BAOLONG AUTOMOTIVE TPMCPROM TPMS-sensor User Manual TIRE PRESSURE MONITORING SYSTEM
SHANGHAI BAOLONG AUTOMOTIVE CORPORATION TPMS-sensor TIRE PRESSURE MONITORING SYSTEM
User Manual
1
OPERATION MANUAL OF TPMS SENSOR
MODEL: TPM-C pro-M
Thank you for choosing our TPMS. This guide instructs the technician how to properly
mount and dismount a Baolong TPMS clamp-in sensor.
Introduction of TPM-C pro-M
TPM-C pro-M is the transmitting module in TPMS. Its working frequency is 433.92MHz;
-20dBm ≥transmitting power ≥ -60dBm.supply: Battery. The communication mode
between TPM-C pro-M and receiving module is RF wireless communication. The module
detect pressure and temperature inner the tire periodically and send these information via
RF output circuit to the receiving module. One can manually detect data inner tire by LF
wake-up tools. Install it on the rim together with cycle valve
1. Mounting of Transmitter

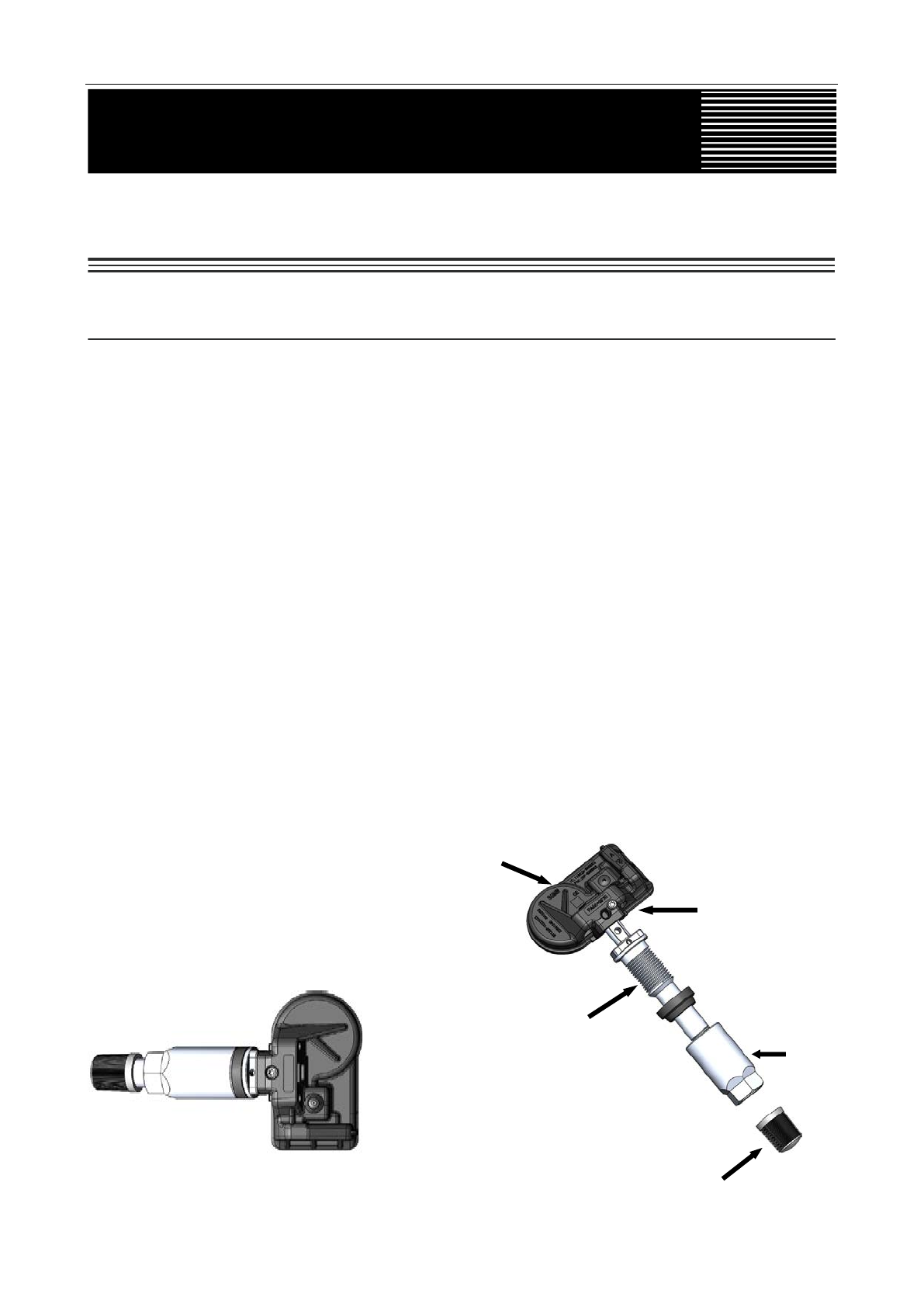

1.1 Identify Transmitter
Check whether the prepared sensor is the same with the image below.
Note: Only plastic or aluminum caps, aluminum valves and nickel plated valve cores can be
used when replaced.
①
Self-lock Screw
②
Electronal Module
③
Valve Stem
⑤
Valve Cap
④
Nut
2

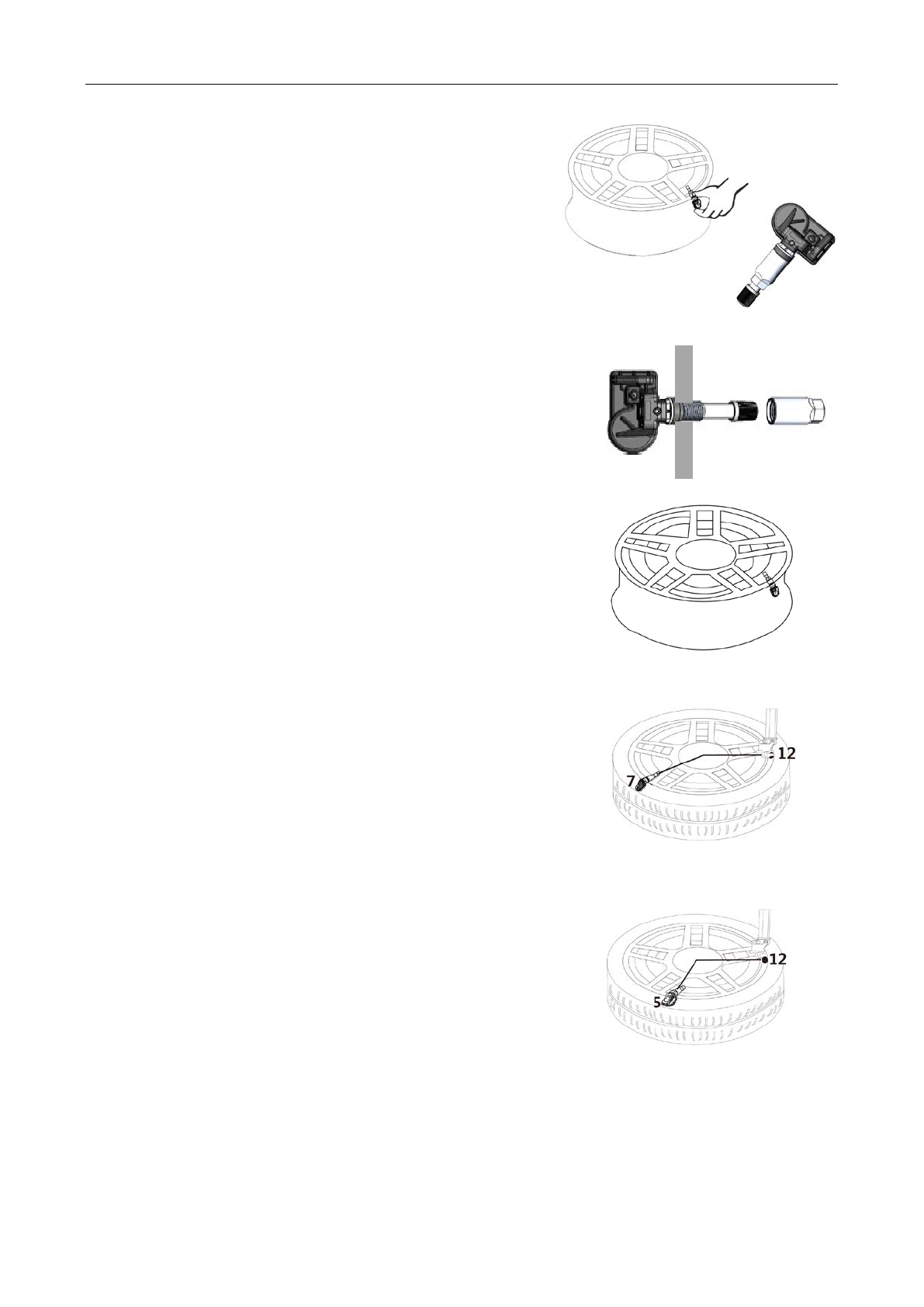

1.2 Before the transmitter is installed, the rim around
the hole must be cleaned with a cloth.
1.3 Take off the nut④, insert the valve stem through the
rim hole from inside.
1.4 Place nut④
on the valve stem, and tighten with 5
Nm (44 inch pounds) torque.
1.5 Lock the rim on the tyre changer. (If the mounting
head of the tyre changer is positioned at 12 o’clock,
then the valve should be at the 7 o’clock position.)
Apply lubricant on both the tyre bead and rim. Mount
the lower tyre bead on the rim. Ensure that the tyre
bead do
es not touch the electronic module during
mounting.
1.6 Mount the upper tyre bead the same way. (If the
mounting head of the tyre changer is positioned at 12
o’clock, then the valve should be at the 5 o’clock
position.) Inflate the tyre to nominal pressure.
Inside the tyre
Outside the tyre
3
1.7 Apply soapsuds on the valve tip. If no leakage is
found, put on the valve cap○
6. If unsuccessful, try again.

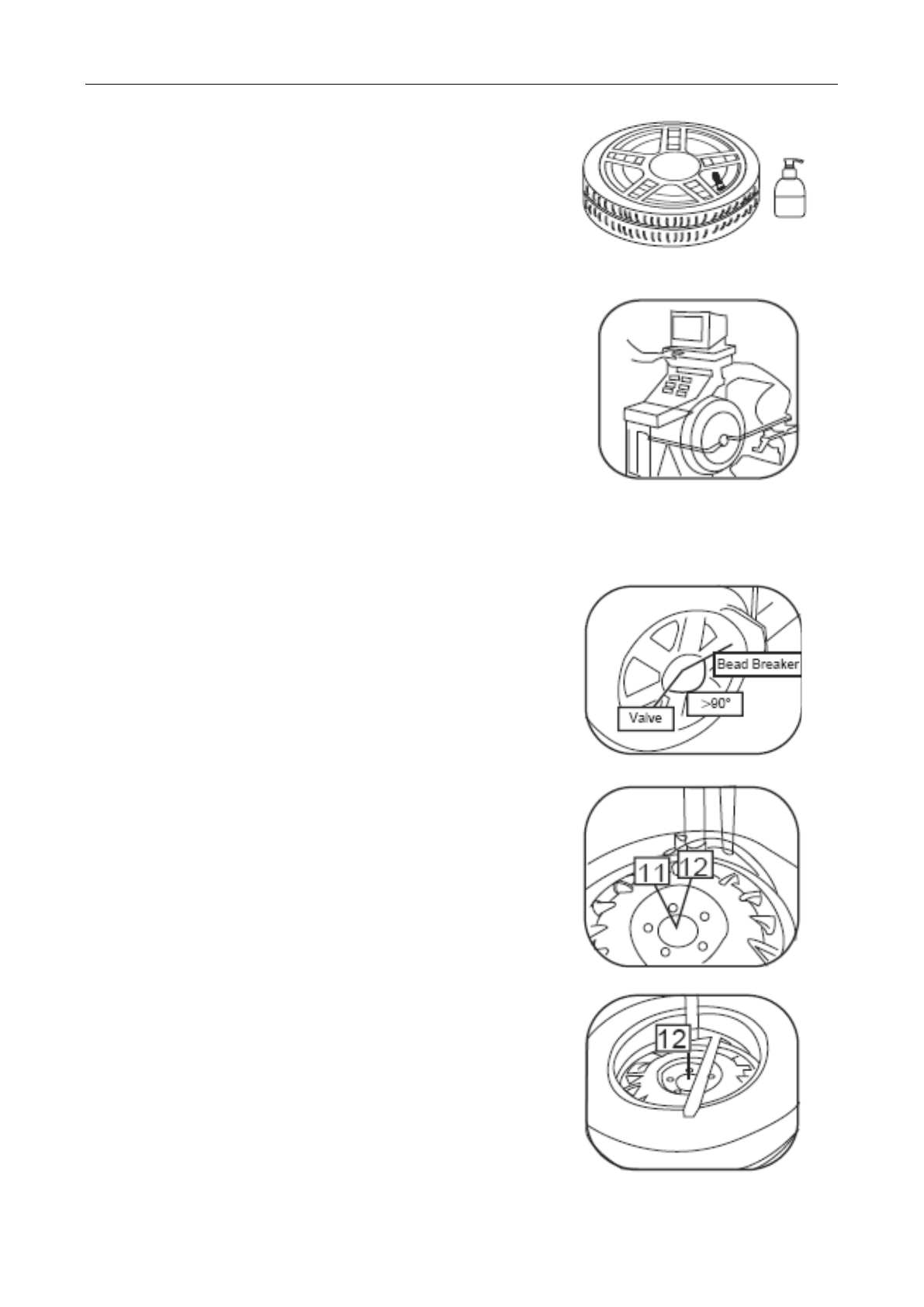

1.8 Dynamically balance the wheel before it is placed
back on the vehicle.
2. Dismounting of Transmitter
2.1
Deflate the tyre and remove the wheel weights
from the rim. Push the tyre bead away from the rim.
Make sure to always set the bead breaker at least 90
degrees from the valve stem to avoid damaging the
electronic module.
2.2 Firmly fix the wheel on the turntable clamps. (If the
mounting head of the tyre changer is positioned at 12
o’clock, then the valves stem should be at the 11
o’clock position.) Apply lubricant to both tyre bead and
rim, and then remove the upper tyre bead.
2.3 Use the same procedu
re to dismount the lower
tyre bead. (If the mounting head of the tyre changer is
at the 12 o’clock position, then the valves stem should
also be at the 12 o’clock position.)
2.4 Final inspection: Visually inspect the rim, valve stem and electronic module to ensure
no damage has occurred.
5
PART TWO FCC’s Authentication Announcements
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Max. Transmitting power (ERP): not more than 7dBm
Temperature Range：-40℃~+125℃
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
This product can be used across EU member states.
We declare that this device is in compliance with the essential requirements and other
relevant provisions of Directive 2014/53/EU.
6
PART THREE WARRANTY
This warranty covers substantial manufacturer’s defects in workmanship and materials. It
does not cover any unit that is damaged beyond normal use, not properly installed, subject
to chemical contact, or other acts not sanctioned by the Owner’s Manual.
All components are covered for one year following the date of purchase. If the warranty
period specified in local law exceeds the period provided by Baolong, the former will
supersede the latter.
The warranty will be honored by any authorized Baolong dealer. The owner is required to
provide date of proof of purchase. The authorized dealer will determine if there is a
warranty condition associated with materials and/or manufacturing workmanship. If a
warranty condition exists, the component will be replaced free of charge and shipping
prepaid. The owner is responsible for any labor and installation charges.
The warranty does not include any further obligation whatsoever, including but not limited to
actual installation of the replacement unit on the customer’s vehicle.
All other Warranties, expressed or implied, are disclaimed. All collateral agreements, which
purport to modify this limited warranty, are of no effect. The absolute limit of liability is the
purchase price of the unit.
Shanghai Baolong Automotive Corporation is not liable for any direct, consequential,
indirect or punitive damages of any kind.
NOTE: Shanghai Baolong Automotive Corporation reserves the right to change the contents of this
manual at any time without notice. The information contained in this manual is proprietary and must not
be reproduced without prior written consent from Shanghai Baolong Automotive Corporation.
