BAOLONG AUTOMOTIVE WARDKS TPMS Sensor User Manual qytpms c
SHANGHAI BAOLONG AUTOMOTIVE CORPORATION TPMS Sensor qytpms c
User Manual
User's Manual
TPMS-C is the transmitter module in the TPMS system.

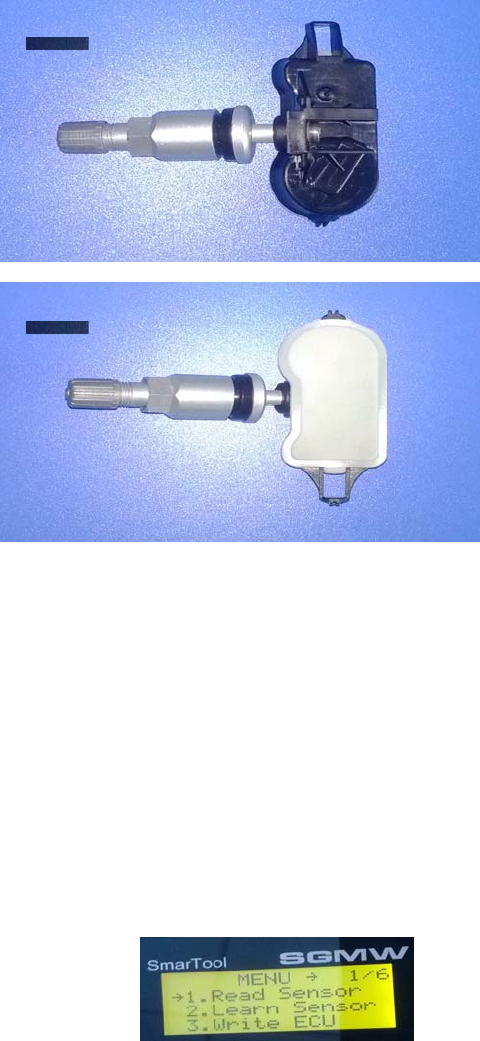

1、Appearance as below，the user can install the correspondi
ng matching valve in the tire on the rim.
2、Testing Methods
Testing Tools: Wakeup Handle
Testing Steps:
a)、Direct the front of the wakeup handle at the transmitter
module
b)、Turn on the power of the wakeup handle
Arrow Pointing 1.Read Sensor→Press ENTER, then step into the
submenu

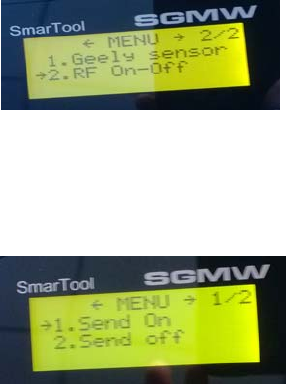

Through Pgdown, Arrow Pointing 2.RF On-Off→Then Press
ENTER
Step into power ON/OFF MENU of the transmitter, then to power
on/off the transmitter through the following two options to enter into
the working model or exit:
1. Send On
2. Send Off

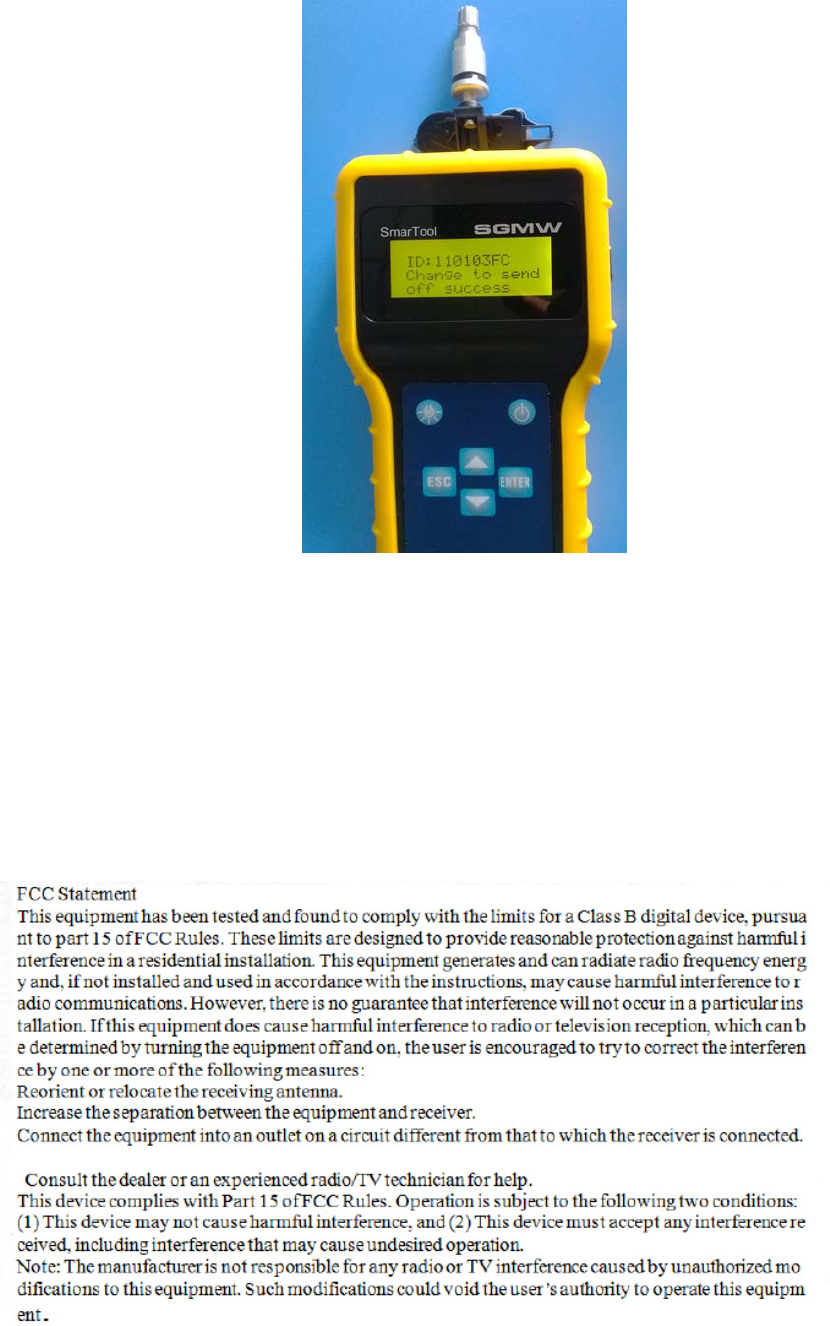

c）、when select 1.Send on，press ENTER，then shows ID number
on the screen of the handle, which means that the transmitter is in
the state of continuous sending(picture as below ) , send cycle is 3
frames per 15second .
d)、when testing finished, select 2.Send off, press ENTER, then
shows ID number on the screen of the handle, which means that
the transmitter is in dormant state, no data is transmitted then.
Note: the transmitter shall be in the Sendoff model after the testing
for each sample.
