BARCO WGA510P16 Wireless Presentation System User Manual
AWIND Incorporated Wireless Presentation System Users Manual
BARCO >
User Manual
Wireless Presentation System
(Model Name: WGA-510P)
Version: 1.0
Date: 26, October 2016
WGA-510P
- -
2
1. Package Contents
WGA-510P Box
USB Token
Power Adapter (DC +5V, 2.6A)
WiFi Antenna x 2
Wall-Mount Kit
Quick Installation Guide
Warranty Card
CE DoC
2. USB Token Contents
MirrorOp Installer for Windows
MirrorOp Installer for Mac
Executable MirrorOp Application for Windows
Executable MirrorOp Application for Mac
SVS Driver (For Mac Extended Screen)
SNMP MIB File
User Manual
3. Physical Details

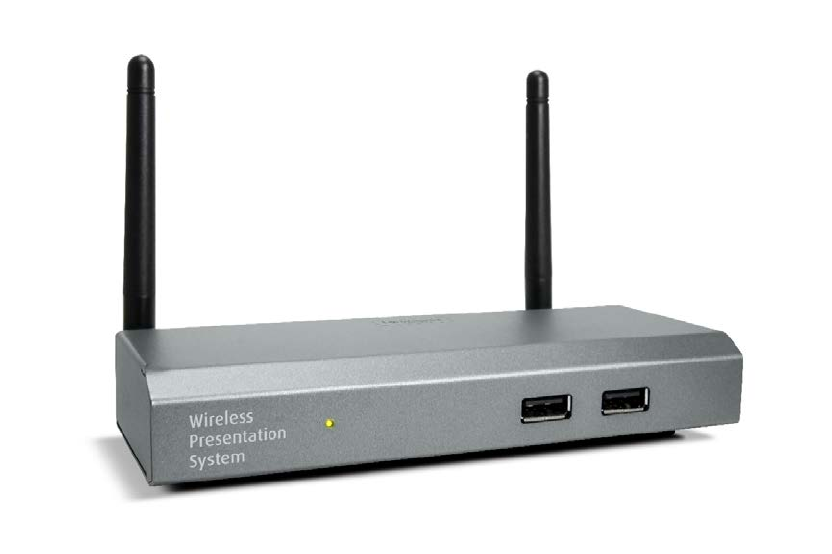

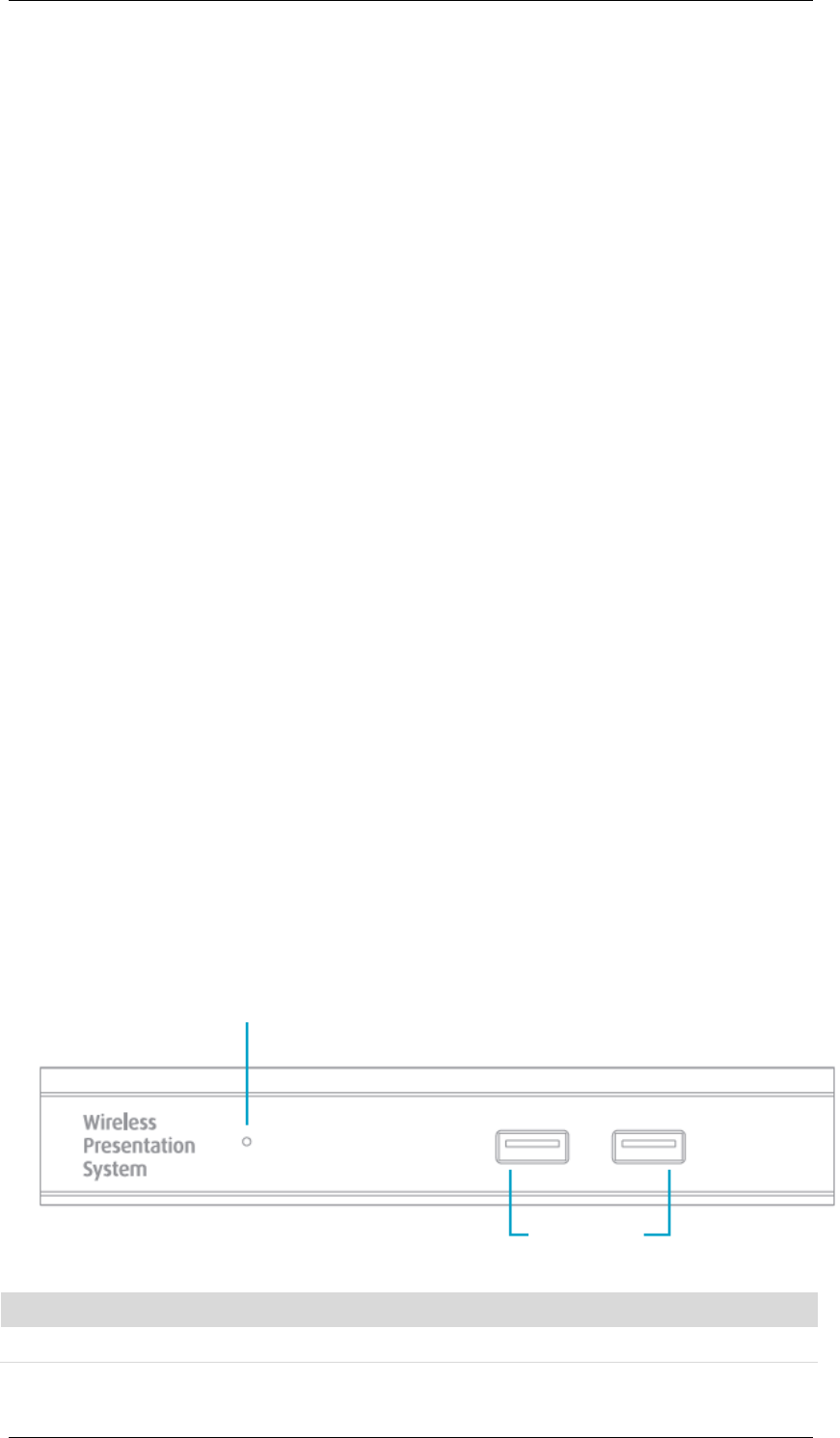

• Front Panel
Power LED LED Indicator: System Loading (Red), Ready (Green)
USB Port (Front) 2 USB Ports for USB Mouse and Keyboard
Power LED
USB Port
WGA-510P
- -
3

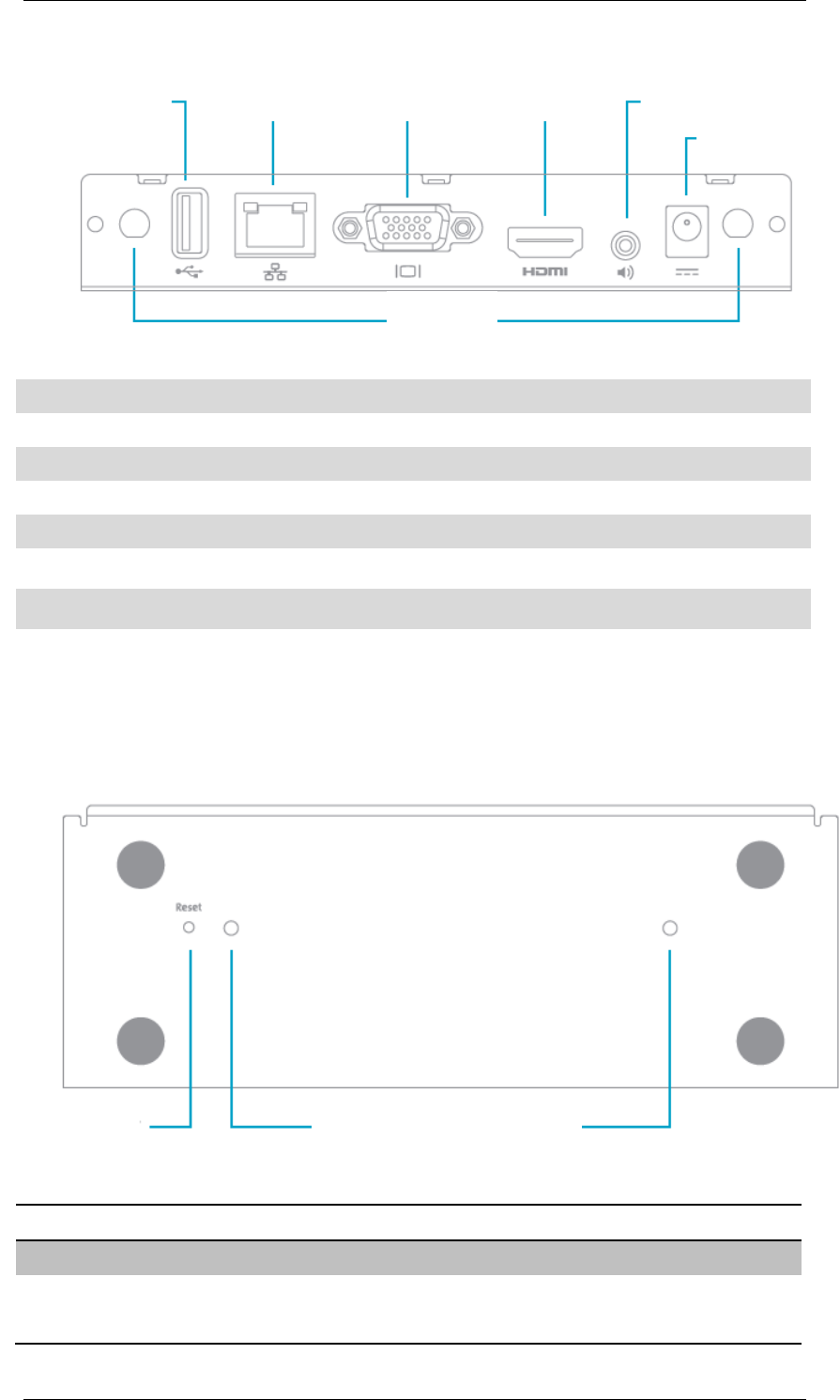

• Rear Panel
Antenna WiFi Antenna
USB Port (Rear) USB Port for USB IWB Device (HID Type)
RJ-45 10/100M RJ-45 Port
VGA VGA Connector
HDMI HDMI Connector
Audio Jack Audio Jack (3.5mm)
Power Jack Power Jack (5V/2.6A)
♦ Each USB port can supply up to 5V/0.5A to the touch device/USB drive.
• Bottom Side
Description
Screw Hole Screw hole for the wall-mount kit
Reset Button Press the Reset button and the Power button on the
device to execute hardware reset.
Reset Button
Screw Hole
(for the Wall-Mount Kit)
Power Jack
VGA
RJ-45
Antenna
HDMI
Audio Jack
USB Port
WGA-510P
- -
4
4. What You Might Need
Projector/Display with VGA/HDMI Interface
Windows or Mac PC/Laptop
Apple iPhone, iPad or iPod Touch
Android Phone or Tablet
Speaker (Optional, for Audio Projection)
USB Mouse and Keyboard (Optional, for Remote Desktop)
USB HID Touch Screen/IWB Device (Optional, for USB over IP)
5. Quick Installation

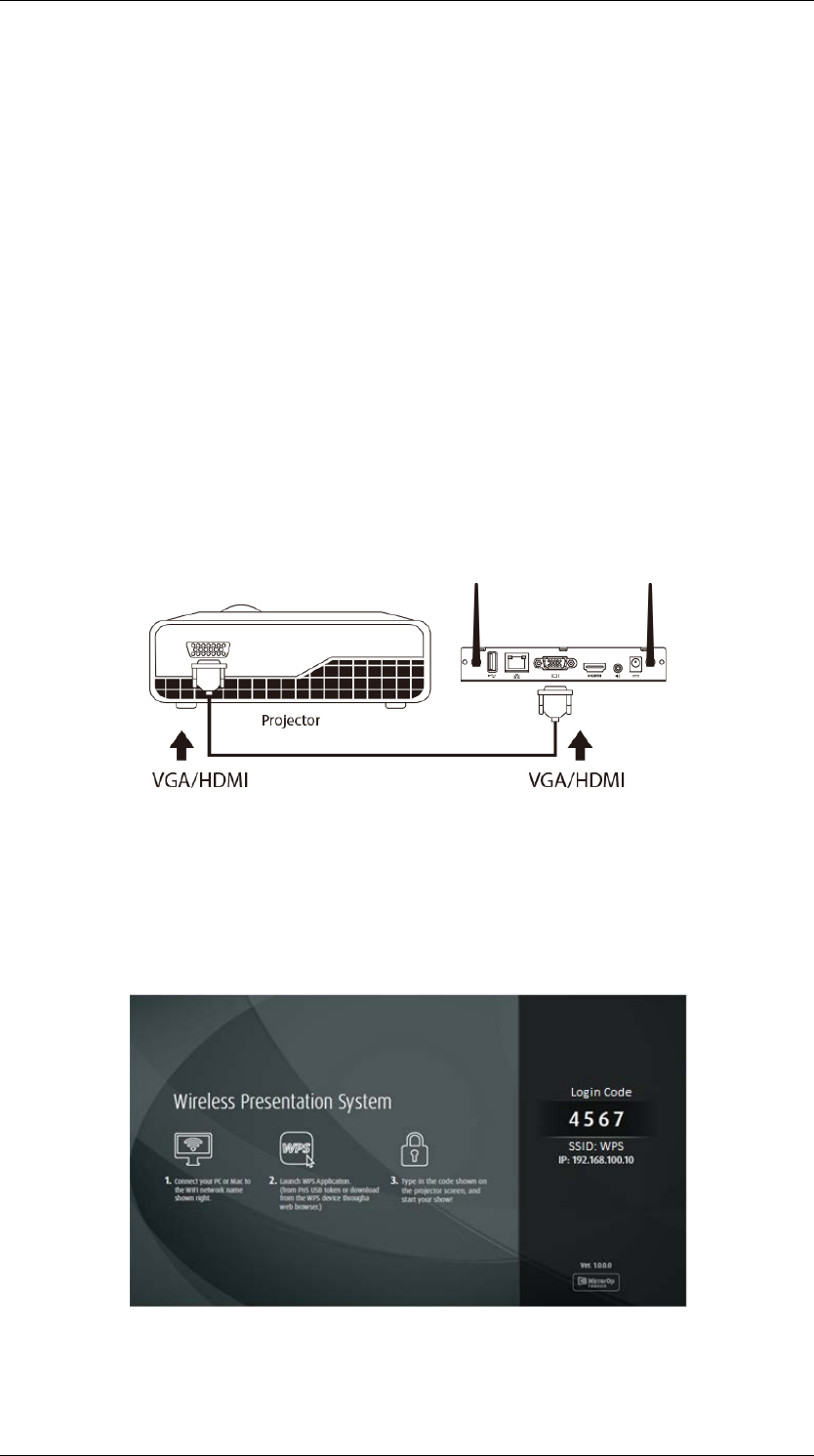

1) Connect the WGA-510P box to the projector/display through the VGA/HDMI
port and turn on the projector/display power.
2) Connect the power adaptor to the WGA-510P box. The system will be ready
when the LED light turns green.
The default standby screen as shown below will be displayed when the
system is ready.
3) Insert the speaker cable to the WGA-510P audio jack for audio output
(Optional when using VGA).
WGA-510P
- -
5
6. Windows
Do not support Windows Phone, Windows RT.
6.1 Install the application

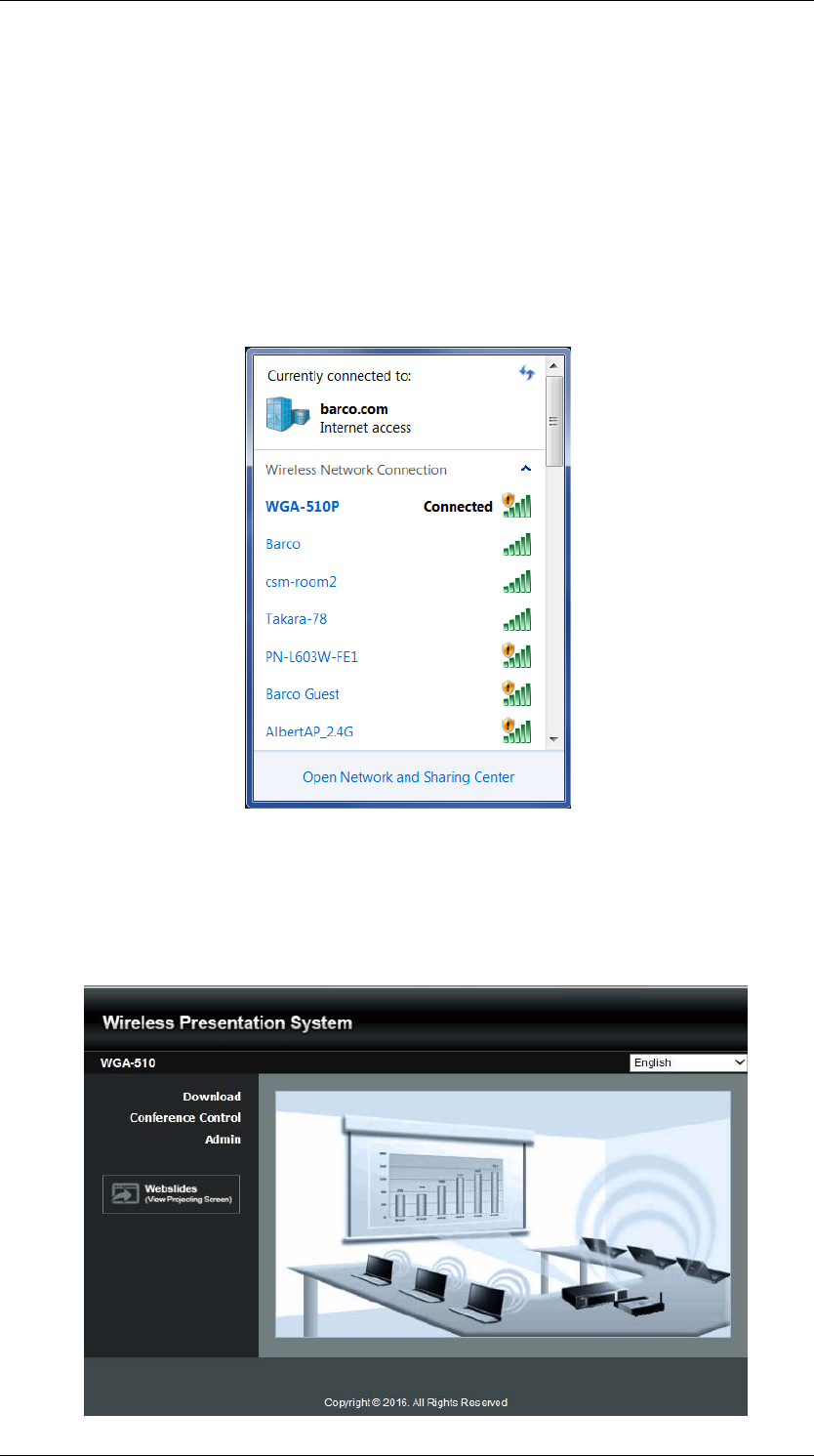

1) Make sure your PC is WiFi-enabled, and connect your PC to the
WGA-510P box through WiFi. You can find the WiFi network name
(SSID) of your WGA-510P box on the standby screen of the
projector/display. [Default SSID is WGA-510P]
2) Open your browser, and enter the IP address of your WGA-510P box in
the address bar of the browser. You can find the IP address on the
standby screen of the projector/display. [Default IP address is
192.168.100.10]
WGA-510P
- -
6

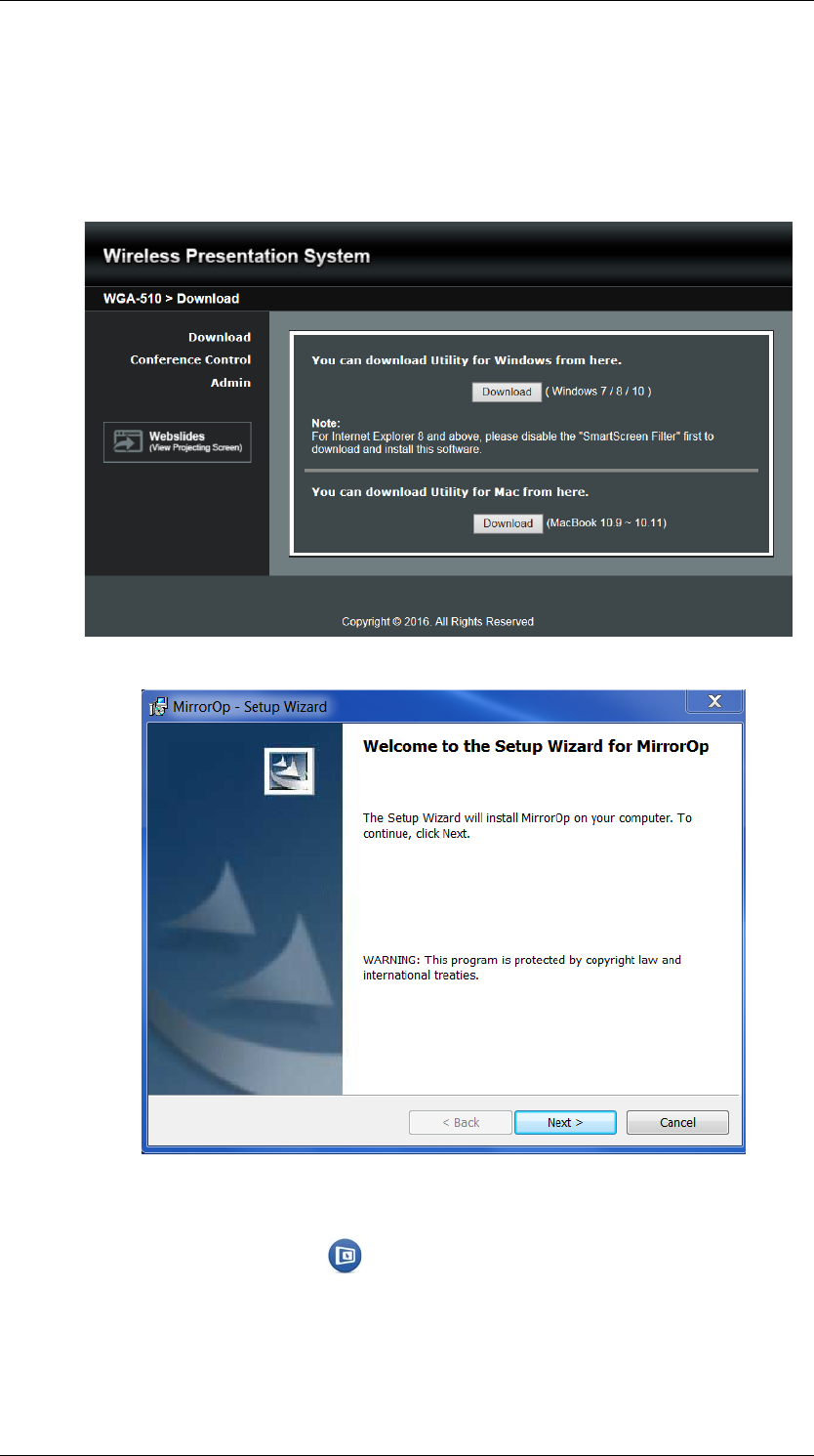

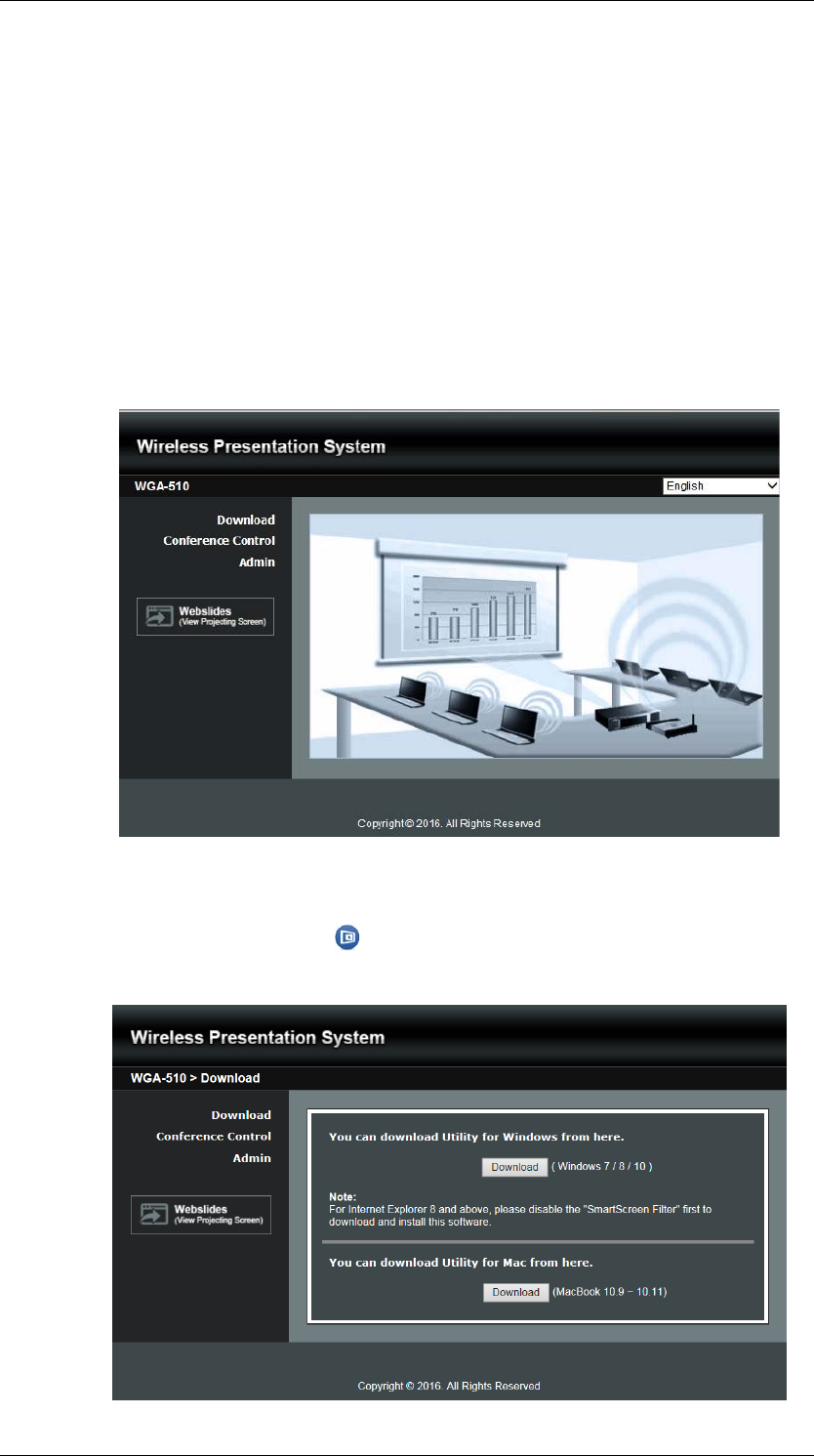

3) Download the software (i.e. “MirrorOp”) for “Windows 7 / 8 / 10”, and
follow the Setup Wizard to install the software. (You can also install the
“MirrorOp” software from the USB token directly.) Make sure the
software is not blocked by your firewall.
6.2 Start the application
1) Click the MirrorOp icon on the desktop to execute the application,
or launch the MirrorOp application from the USB token directly.
2) It will start to search for the WGA-510P device automatically.
WGA-510P
- -
7

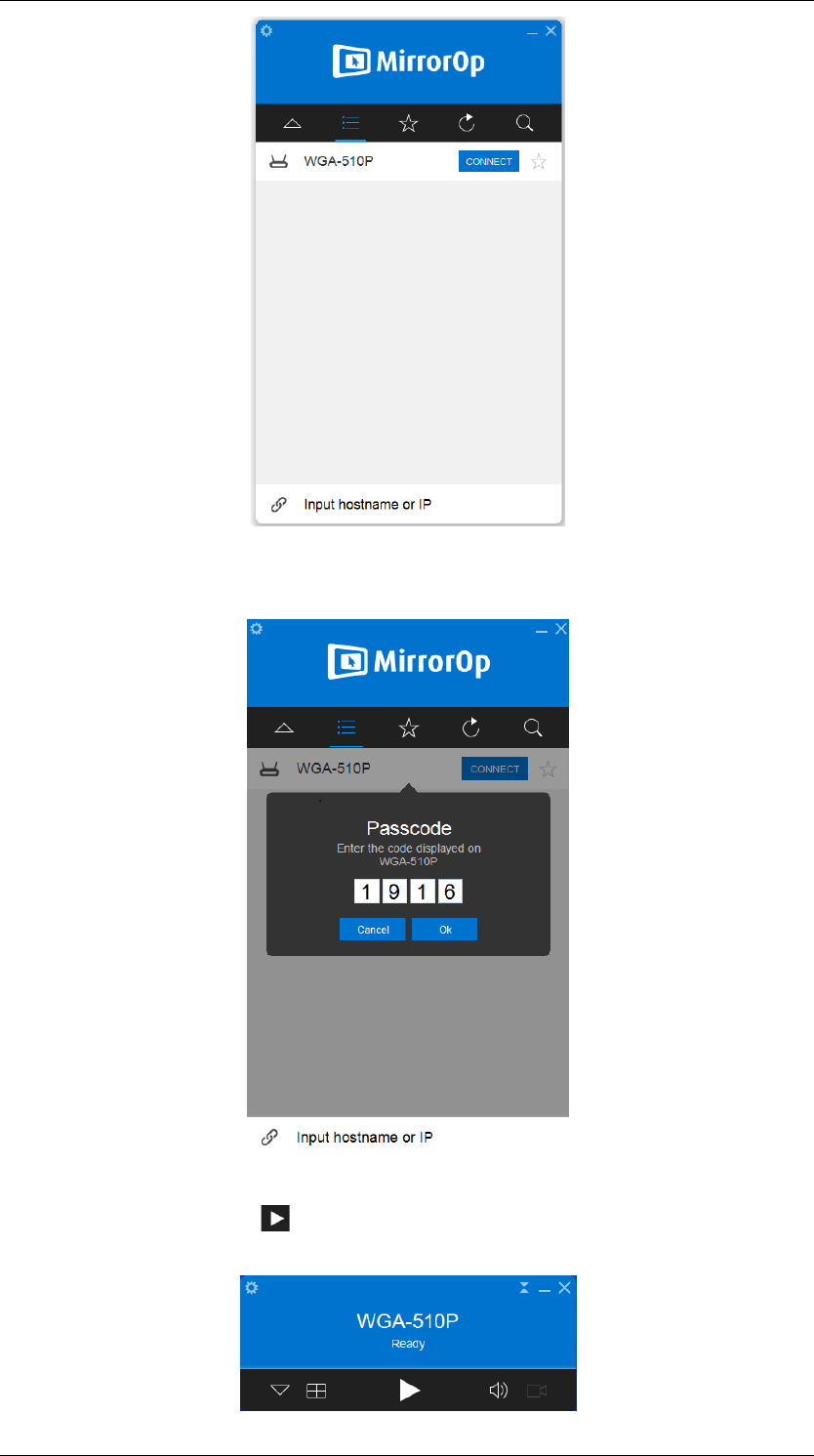

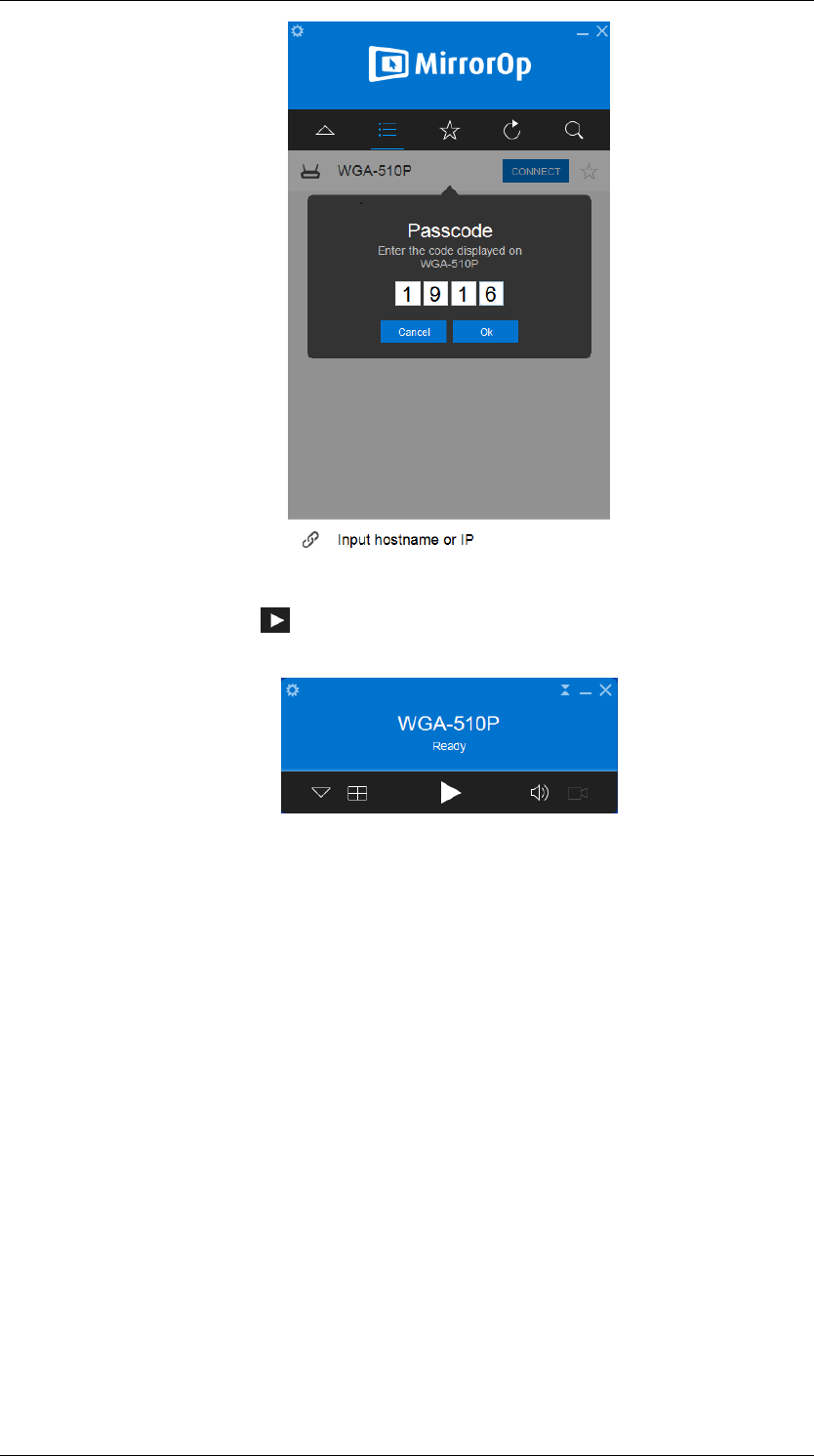

3) Click on the WGA-510P device and enter the login code shown on the
display.
4) Click the “PLAY” button to start the screen sharing.
WGA-510P
- -
8
7. Mac
7.1 Install the application
1) Make sure your Mac is WiFi-enabled, and connect your Mac to the
WGA-510P box through WiFi.
2) Open your browser, and enter the IP address of your WGA-510P box in
the address bar of the browser. You can find the IP address on the
standby screen of the projector/display. [Default IP address is
192.168.100.10]
3) Download the software for “Mac 10.9~10.11”, and you will see a DMG
file with a MirrorOp icon .
WGA-510P
- -
9

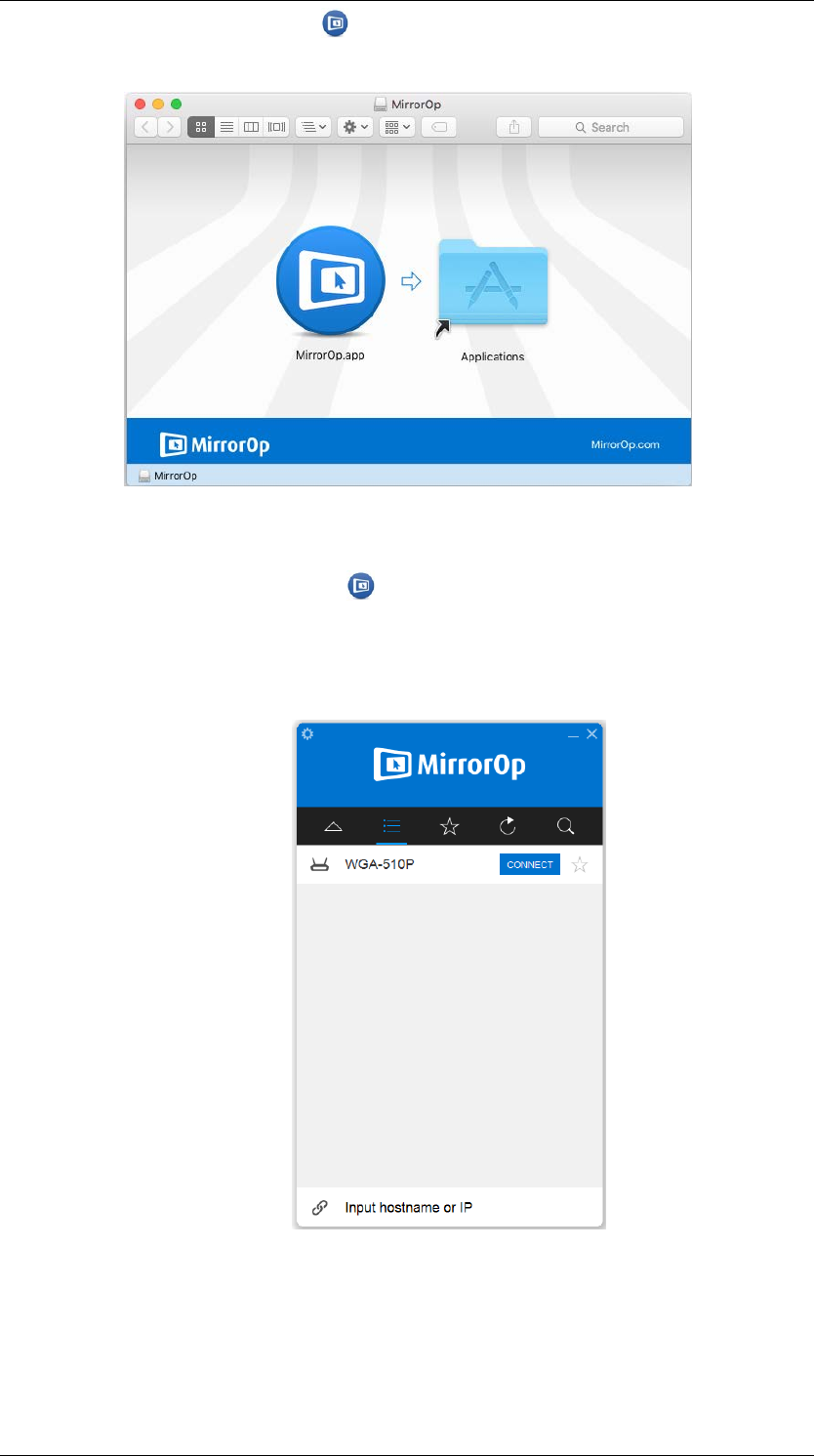

4) Drag the MirrorOp icon into the Applications folder.
7.2 Start the application
1) Click on the MirrorOp icon from the Applications folder to execute the
application.
2) It will start to search for the WGA-510P device automatically.
3) Click on the WGA-510P device and enter the login code shown on the
display.
WGA-510P
- -
10
4) Click the “PLAY” button to start the screen sharing.
Safety :
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
WGA-510P
- -
11
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by the
part responsible for compliance could void the user’s authority to operate the
equipment.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and operated
with a minimum distance of 20 centimeters between the radiator and your
body.
Operation in the band 5150-5250 MHz is only for indoor use to reduce the
potential for harmful interference to co-channelmobile satellite systems.
