BCF Technology DSGC01 Swine Ultrasound Scanner with WLAN User Manual DSG Quick Guide V7

BCF Technology Ltd Swine Ultrasound Scanner with WLAN DSG Quick Guide V7

Contents

DSG Quick Guide V7

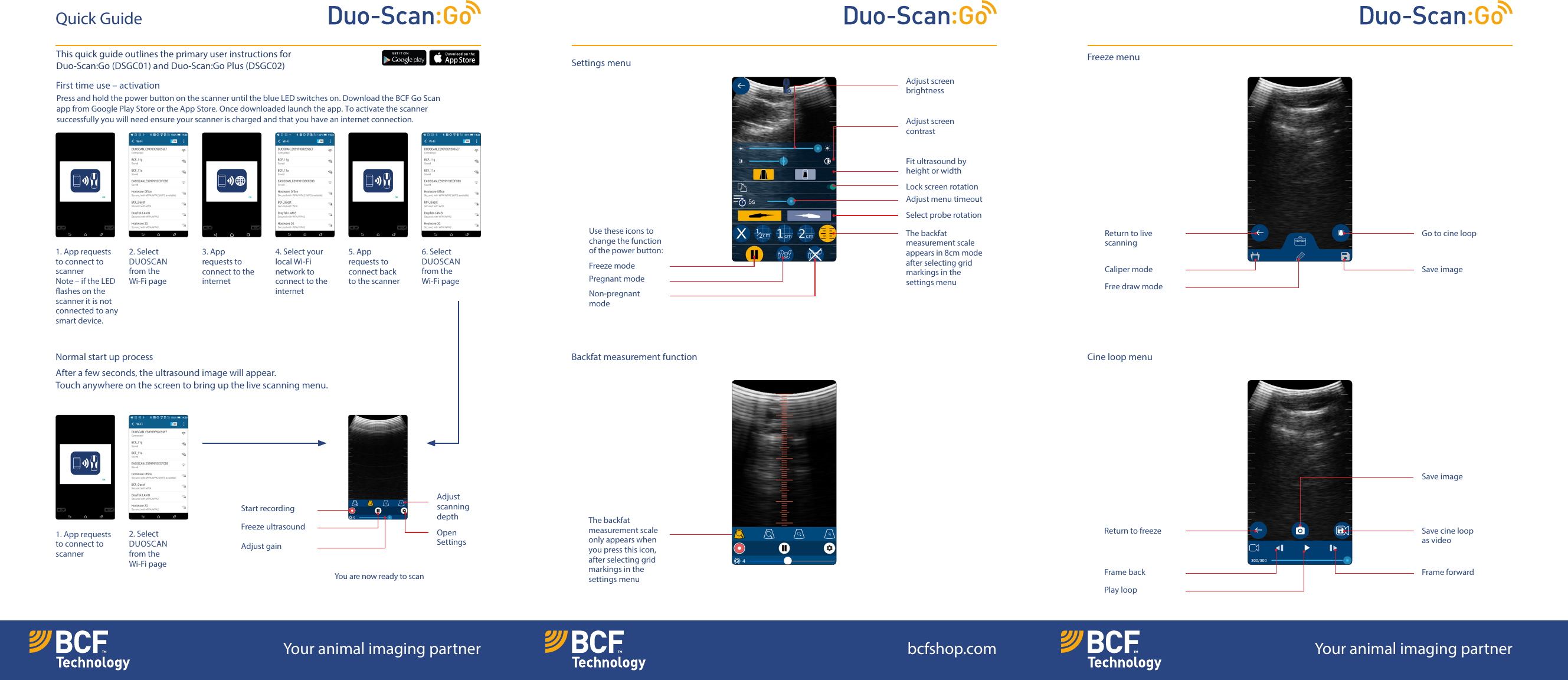

First time use – activation Press and hold the power button on the scanner until the blue LED switches on. Download the BCF Go Scan app from Google Play Store or the App Store. Once downloaded launch the app. Toactivate the scanner successfully you will need ensure your scanner is charged and that you have an internet connection.Normal start up processAfter a few seconds, the ultrasound image will appear. Touchanywhere on the screen to bring up the live scanning menu.Quick GuideSettings menu Cine loop menuBackfat measurement functionFreeze menuAdjust screen brightnessFit ultrasound by height or widthAdjust screen contrastLock screen rotationAdjust menu timeoutSelect probe rotationThe backfatmeasurement scale appears in 8cm modeafter selecting gridmarkings in thesettings menu1. App requests to connect to scanner Note – if the LED ashes on the scanner it is not connected to any smart device.1. App requests to connect to scanner 3. App requests to connect to the internet4. Select your local Wi-Fi network to connect to the internet5. App requests to connect back to the scanner 2. Select DUOSCANfrom the Wi-Fi page2. Select DUOSCANfrom the Wi-Fi page6. Select DUOSCANfrom the Wi-Fi pageYou are now ready to scanFreeze modeUse these icons to change the function of the power button:Return to live scanningGo to cine loopPregnant modeCaliper modeNon-pregnant modeFree draw modeSave imageThe backfat measurement scale only appears when you press this icon, after selecting grid markings in the settings menuReturn to freeze Save cine loop asvideoSave imageFrame backPlay loopFrame forwardAdjust scanning depthStart recordingFreeze ultrasound Open SettingsAdjust gainYour animal imaging partner bcfshop.com Your animal imaging partnerThis quick guide outlines the primary user instructions for Duo-Scan:Go (DSGC01) and Duo-Scan:Go Plus (DSGC02)

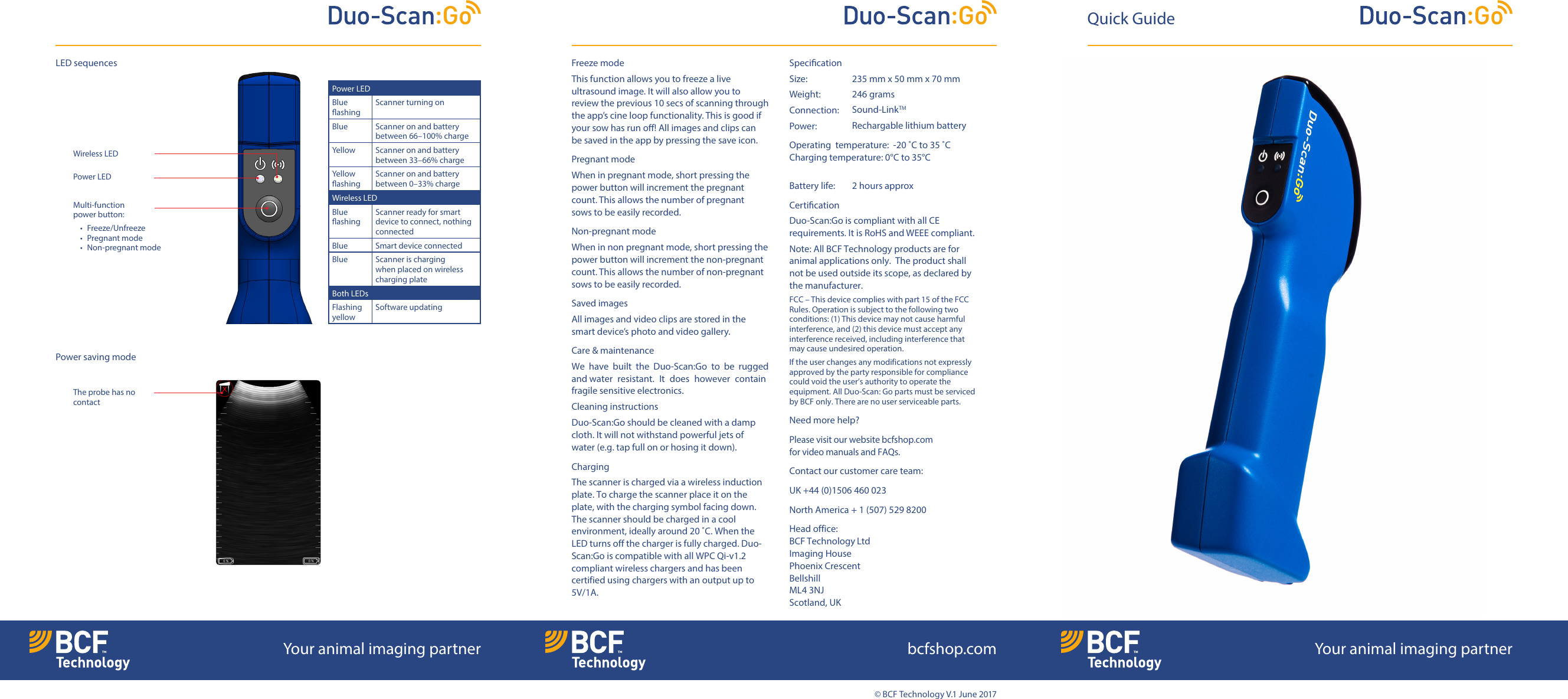

© BCF Technology V.1 June 2017Freeze modeThis function allows you to freeze a live ultrasound image. It will also allow you to reviewthe previous 10 secs of scanning through the app’s cine loop functionality. This is good if your sow has run o! All images and clips can be saved in the app by pressing the save icon.Pregnant mode When in pregnant mode, short pressing the power button will increment the pregnant count.This allows the number of pregnant sowstobe easily recorded.Non-pregnant modeWhen in non pregnant mode, short pressing the power button will increment the non-pregnant count. Thisallows the number of non-pregnant sows to be easily recorded.Saved imagesAll images and video clips are stored in the smart device’s photo and video gallery. Care & maintenanceWe have built the Duo-Scan:Go to be rugged andwater resistant. It does however contain fragile sensitive electronics.Cleaning instructionsDuo-Scan:Go should be cleaned with a damp cloth. It will not withstand powerful jets of water (e.g. tap full onor hosing it down).Charging The scanner is charged via a wireless induction plate. To charge the scanner place it on the plate, with the charging symbol facing down. The scanner should be charged in a cool environment, ideally around 20 ˚C. When the LED turns off the charger is fully charged. Duo-Scan:Go is compatible with all WPC Qi-v1.2 compliant wireless chargers and has been certified using chargers with an output up to 5V/1A. Specication Size: 235 mm x 50 mm x 70 mmWeight: 246 gramsConnection: Power: Sound-LinkTM Rechargable lithium battery Operating temperature: -20 ˚C to 35 ˚C Charging temperature: 0°C to 35°CBattery life: 2 hours approxCertication Duo-Scan:Go is compliant with all CE requirements. It is RoHS and WEEE compliant.Note: All BCF Technology products are for animal applications only. The product shall not be used outside its scope, as declared by the manufacturer.FCC – This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.If the user changes any modifications not expressly approved by the party responsible for compliance couldvoid the user’s authority to operate the equipment. All Duo-Scan: Go parts must be serviced by BCF only. There are no user serviceable parts.Need more help?Please visit our website bcfshop.com forvideo manuals and FAQs.Contact our customer care team:UK +44 (0)1506 460 023North America + 1 (507) 529 8200Head office: BCF Technology Ltd Imaging House Phoenix Crescent Bellshill ML4 3NJ Scotland, UKPower LEDBlue ashingScanner turning onBlue Scanner on and battery between 66–100% chargeYellow Scanner on and battery between 33–66% chargeYellow ashingScanner on and battery between 0–33% chargeWireless LEDBlue ashingScanner ready for smart device to connect, nothing connectedBlue Smart device connectedBlue Scanner is charging when placed on wireless charging plateBoth LEDsFlashing yellowSoftware updatingQuick GuideMulti-function power button:• Freeze/Unfreeze• Pregnant mode • Non-pregnant modePower saving modeLED sequencesThe probe has no contactPower LEDWireless LEDYour animal imaging partner bcfshop.com Your animal imaging partner
