BEA Incorporated 2 relay logic module and wireless receiver in the ISM band (902MHz-928MHz) Users Manual
Users Manual
75.5886.0X BR2-900 20170221 Page 1 of 8

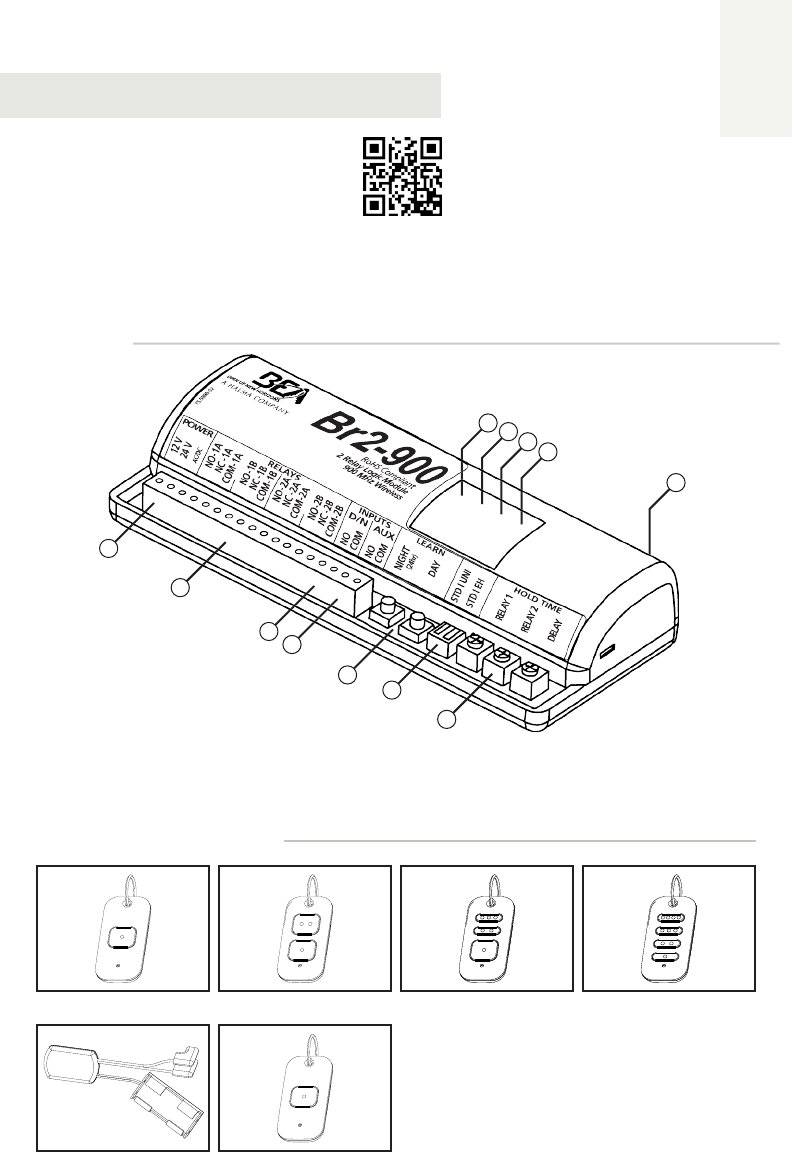

1. Power input
2. Relay outputs
3. Day/Night input
4. AUX input
5. Learn buttons
6. DIP switches
7. Potentiometers
8. Radio frequency LED (red)
1
2
12
BR2-900
9. Relay 2 LED (white)
10. Relay 1 LED (blue)
11. Tri-color signal strength LED
12. Antenna
3
4
11
10
9
8
10TD900HH410TD900HH310TD900HH2 10TD900HH410TD900HH310TD900HH1
10TD900PB 10TD900HH1U
5
6
7
75.5886.0X BR2-900 20170221 Page 1 of 8
2 Relay Logic Module
with Built-In 900 MHz
Wireless Technology
(US version)
DESCRIPTION
Tech Support: 1-800-407-4545 | Customer Service: 1-800-523-2462 | General Tech Questions: Tech_Services@beainc.com | Tech Docs: www.beasensors.com
ENGLISH
HAND HELD TRANSMITTERS
Page 2 of 8 75.5886.0X BR2-900 20170221Page 2 of 8 75.5886.0X BR2-900 20170221
• The device should not be used for purposes other than its intended use. All other uses cannot be
guaranteed by the manufacturer of the product.
• The installer of the door system is responsible for carrying out a risk assessment and installing the product
and the door system in compliance with applicable national and international regulations and standards on
door safety.
• The manufacturer of the product cannot be held responsible for incorrect installations or inappropriate
adjustments of the product.
Shut off all power going to header before attempting any wiring procedures.
Maintain a clean & safe environment when working in public areas.
Constantly be aware of pedestrian trafc around the door area.
Always stop pedestrian trafc through the doorway when performing tests that may result in unexpected reactions by
the door.
ESD (electrostatic discharge): Circuit boards are vulnerable to damage by electrostatic discharge. Before handling
any board ensure you dissipate your body’s ESD charge.
Always check placement of all wiring before powering up to ensure that moving door parts will not catch any wires
and cause damage to equipment.
Ensure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of installation.
DO NOT attempt any internal repair of the components. All repairs and/or component replacements must be per-
formed by BEA, Inc. Unauthorized disassembly or repair:
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product resulting in a voided warranty.
PRECAUTIONS
INSTALLATION

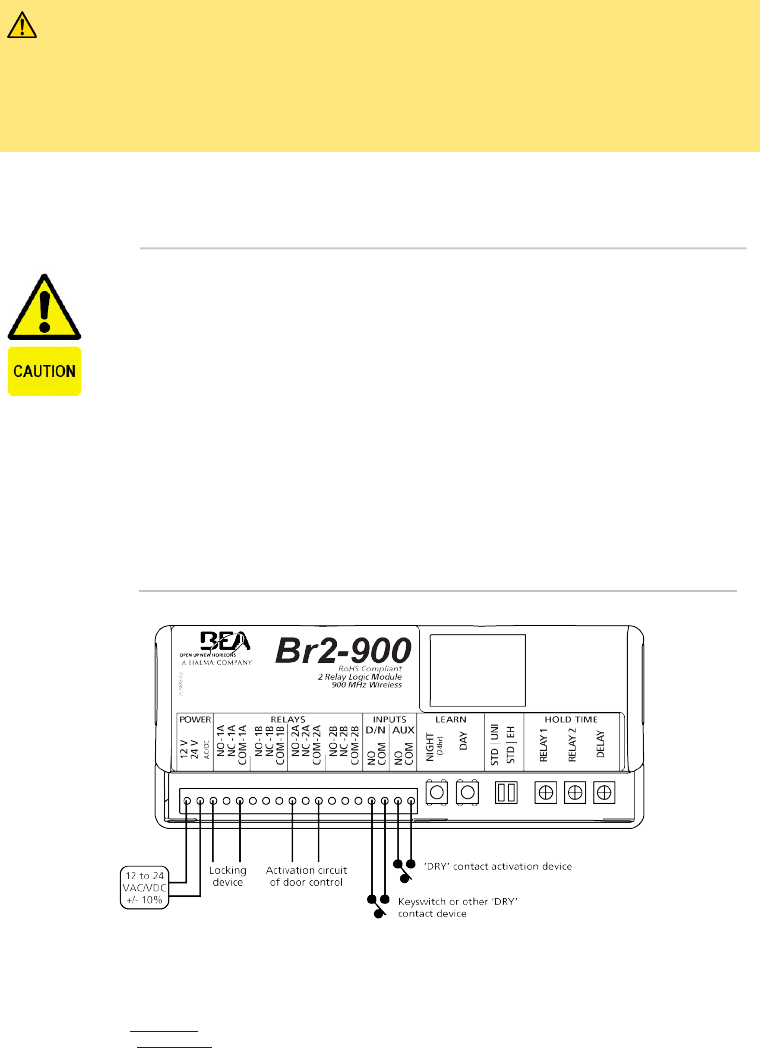

Wiring
Relays 1 and 2 are DPDT: relays 1A and 1B fire simultaneously and relays 2A and 2B fire simultaneously.
Relays 1B and 2B are commonly used in applications with two (2) locking devices and/or with two (2)
independent door controls.
INPUT D/N, when open, allows transmitters learned in both NIGHT (24HR) mode and DAY mode to
function and, when closed, only allows transmitters learned in NIGHT (24HR) mode to function.
INPUT AUX functions regardless of learn, DIP switch, or potentiometer settings.
75.5886.0X BR2-900 20170221 Page 3 of 875.5886.0X BR2-900 20170221 Page 3 of 8
USER INTERFACE
DIP Switches
DIP STATUS FUNCTION DESCRIPTION
1
STD standard
mode allows only learned/programmed transmitters to function
UNI1universal
mode2allows programmed/learned and "universal transmitters" to function
2
STD standard
hold
pressing/holding or pressing/releasing transmitter activates and holds relay
according to HOLD TIME POTs (single shot)
EH extended
hold
pressing/holding transmitter holds relay as long as transmitter is pressed/held
once released, relay acts according to HOLD TIME POTs
NOTES:
1. Day/Night mode does not function when DIP switch 1 is set to UNI.
2. See Universal Mode in Setup section on page 5.
DIP switches can be set to achieve desired functionality based upon specific application requirements.
Potentiometers
POT FUNCTION DESCRIPTION
HOLD 1 relay 1 hold time 0.5 to 10 seconds
HOLD 2 relay 2 hold time 0.5 to 10 seconds
DELAY delay between relay 1 and relay 2 0 to 3 seconds
Potentiometers control output relay functionality.
Learn Buttons
BUTTON FUNCTION DESCRIPTION
NIGHT (24 HR) night / 24 hr transmitter learn learned transmitter functions when INPUT D/N is open or closed
DAY day transmitter learn learned transmitter only functions when INPUT D/N is open
900 MHz wireless transmitters can be programmed, or "learned", as either NIGHT (24 HR) transmitters or a
DAY transmitters. Any combination of up to 75 transmitters may be programmed.
Pressing and holding transmitter button for three (3) seconds activates signal strength LED on Br2-900.
Signal Strength Indicator
LED COLOR DESCRIPTION
GREEN strong wireless signal
YELLOW moderate wireless signal
RED weak wireless signal
Page 4 of 8 75.5886.0X BR2-900 20170221
123
4
21 3
Page 4 of 8 75.5886.0X BR2-900 20170221
Push Plate Configuration
Connect transmitter1 to push
plate (NO & COM) and insert
into box.
Follow steps 1-4 in Hand Held
Configuration.
Install push plate.
NOTES:
1: 10TD900PB required for push plates
SETUP
Universal Mode
Universal transmitters (10TD900HH1U) do not need programmed, or "learned", to the Br2-900. Their
unique serial number is automatically recongized by the Br2-900.
When set to Universal Mode, standard transmitters will function normally and must be programmed/learned
as either "day" or "night" transmitters, following the Hand Held Configuration or Push Plate Configuration
steps under SETUP on page 4.

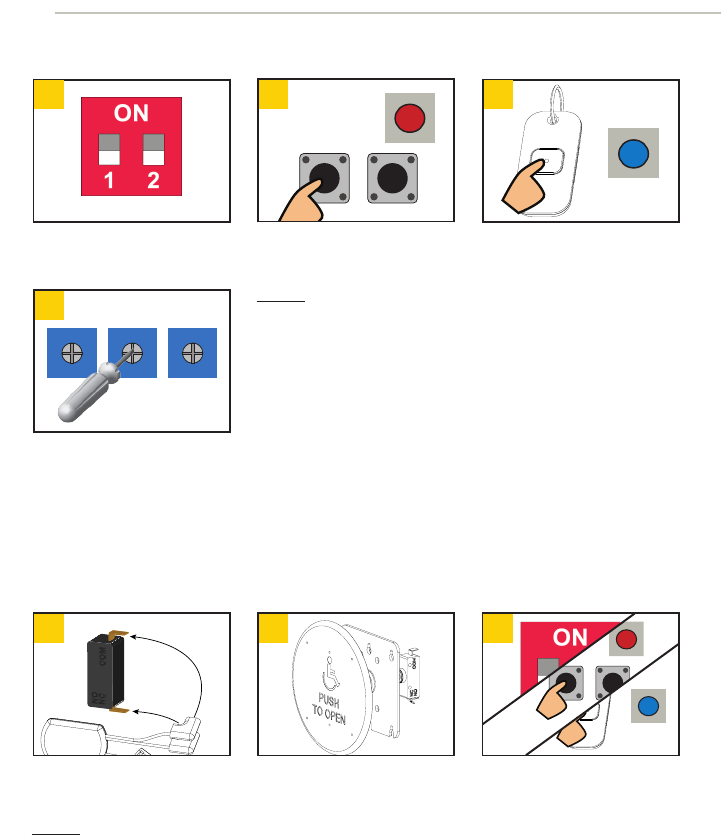

Hand Held Configuration
Set DIP switches as desired1. Press transmitter twice (white
and blue LEDs on receiver will
illuminate).
Press and release desired learn
button (red LED on Br2-900 will
illuminate).
Adjust POTs as desired.
NOTES:
1: For DIP switch settings, please
refer to table on page 3 under
USER INTERFACE.
75.5886.0X BR2-900 20170221 Page 5 of 875.5886.0X BR2-900 20170221 Page 5 of 8

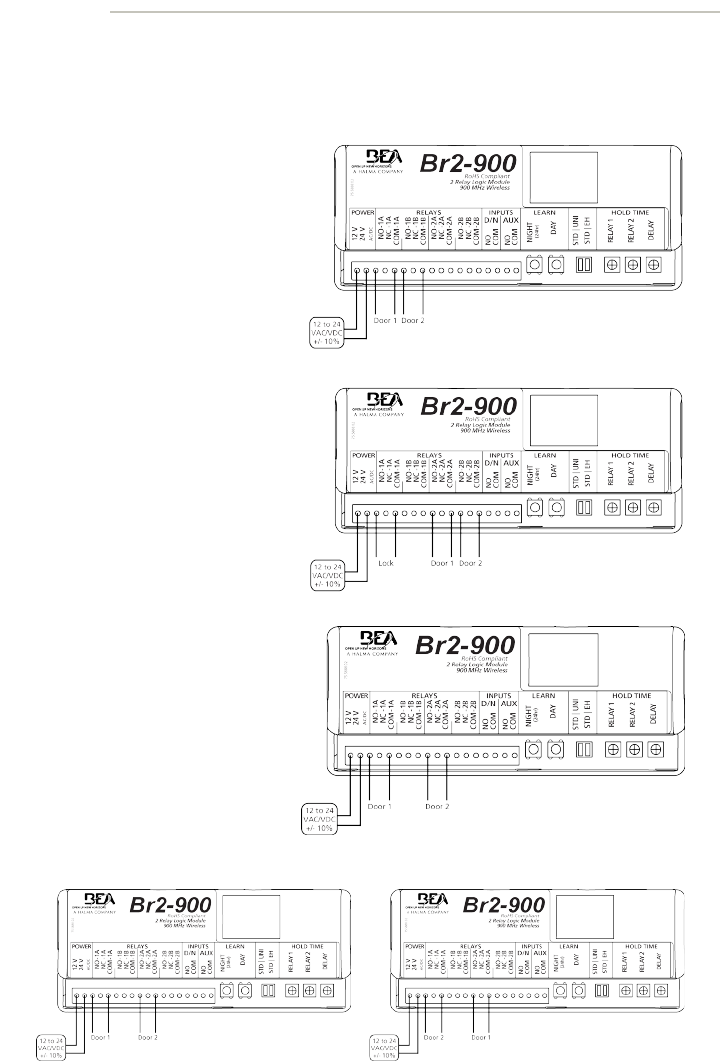

Vestibule Configuration
Vestibule applications may be installed and programmed so that either door 1 and door 2 open
simultaneously or door 1 opens first and door 2 opens after a delay (set by HOLD TIME potentiometers).
For 2-way traffic, two (2) Br2-900 modules are required.
SETUP (cont.)
1-Way Traffic (Simultaneous)
Door 1 and Door 2 will open
simultaneously.
1-Way Traffic (Lock + Sim)
Lock(s) will unlock and then Door 1 and
Door 2 will open simultaneously.
1-Way Traffic (Delay)
Door 1 will open and then Door 2 will
open after a delay set by DELAY POT.
2-Way Traffic
Door 1 will open and then Door 2 will
open after a delay set by DELAY POT. Door 2 will open and then Door 1 will
open after a delay set by DELAY POT.
Page 6 of 8 75.5886.0X BR2-900 20170221
1
x2
2
1
1
3 V
2
AAA Battery
AAA Battery
1
Page 6 of 8 75.5886.0X BR2-900 20170221

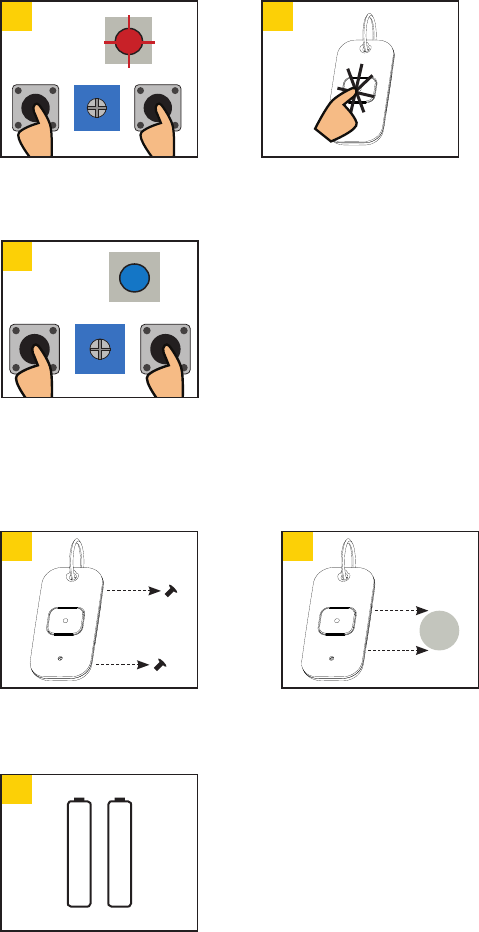

All Transmitters
Removing Transmitters
Single Transmitter
Press BOTH learn buttons until
red LED flashes once (~2 s).
Press BOTH learn buttons until
blue LED illuminates (~10 s).
Press transmitter TWICE within
10 seconds.
Battery Replacement
Push Plate (TD900PB)
Handheld (TD900HHx)
Remove back screws and disas-
semble.
Replace 2 AAA batteries observ-
ing polarity.
Replace 3 volt (CR2032) battery
observing polarity and reassemble.
Low Battery Indicator - After transmitter button is pressed, low battery is indicated by three (3) transmitter
red LED blinks.
75.5886.0X BR2-900 20170221 Page 7 of 875.5886.0X BR2-900 20170221 Page 7 of 8
TROUBLESHOOTING
Br2-900 will not
react to any inputs
Incorrect power Verify power supply of 12 to 24
VAC/VDC +/-10% is wired to
correct terminals
Not programmed Ensure a Br2-900 is programmed
with wireless transmitter
Incorrect wiring Verify wiring
Defective Br2-900 Replace Br2-900
Br2-900 has no
output
Incorrect output devices Ensure proper devices are
connected to outputs
Incorrect wiring Verify wiring
Incorrect settings Verify programming and
potentiometer settings
Defective Br2-900 Replace Br2-900
red LED on receiver
flickering; unable to
program
Stuck push plate Disconnect push plates to determine
which is stuck (LED should go out)
Faulty transmitter If LED does not go out, remove
transmitter batteries to determine which
is faulty, replace transmitter
weak signal Antenna positioned poorly Position antenna outside of door header
Page 8 of 8 75.5886.0X BR2-900 20170221
©BEA | 75.5886.0X BR2-900 20170221
Page 8 of 8 75.5886.0X BR2-900 20170221
Upon completion of the installation or service work, at a minimum, perform a daily safety check in accordance with the minimum
inspection guidelines provided by AAADM. Provide each equipment owner with an owner’s manual that includes a daily safety
checklist and contains, at a minimum, the information recommended by AAADM. Offer an information session with the equipment
owner explaining how to perform daily inspections and point out the location of power/operation switches to disable the equipment if
a compliance issue is noted. The equipment should be inspected annually in accordance with the minimum inspection guidelines. A
safety check that includes, at a minimum, the items listed on the safety information label must be performed during each service call.
If you are not an AAADM certi ed inspector, BEA strongly recommends you have an AAADM certi ed inspector perform an AAADM
inspection and place a valid inspection sticker below the safety information label prior to putting the equipment into operation.
ANSI / AAADM Compliance
TECHNICAL SPECIFICATIONS
Supply Voltage 12-24 VAC/VDC +/- 10%
Current Consumption 45 mA DC
75 mA AC
Frequency 908-918 MHz (frequency hopping)
Emitted radio power -25 dBm (TX)
Power consumption 0.5 - 1.5 W
Programmable transmitters per receiver 75
Temperature Rating -22° to 158° F (-30° to 70° C)
Input
Day / Night (24hr)
AUX
DRY contact
DRY contact
Contact Rating
Relay 1 DPDT / Relay 2 DPDT 2 A @ 30 VDC or 2 A @ 24 VAC
LEDs blue (relay 1 activation)
white (relay 2 activation)
red (radio frequency / learn)
tri-color (signal strength)
Certification FCC, IC
Dimensions 5.2" x 2.2" x 1" (133 mm x 55 mm x 25 mm)
Housing ABS - white translucent
Specifications are subject to change without prior notice.
All values measured in specific conditions.
PLEASE KEEP FOR FURTHER USE - DESIGNED FOR COLOR PRINTING
Tech Support: 1-800-407-4545 | Customer Service: 1-800-523-2462 | General Tech Questions: Tech_Services@beainc.com | Tech Docs: www.beasensors.com
| Original Instructions
FCC / IC
“This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.”
Changes or modifications not expressly approved by BEA Incorporated could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
FCC ID: 2ABWS-10BR2900 IC: 4680A-10BR2900 MODEL: 10BR2900
FCC ID: 2ABWS-10TD900PB IC: 4680A-10TD900PB MODEL: 10TD900PB
FCC ID: 2ABWS-10TD900HH4 IC: 4680A-10TD900HH4 MODEL: 10TD900HH1
FCC ID: 2ABWS-10TD900HH4 IC: 4680A-10TD900HH4 MODEL: 10TD900HH2
FCC ID: 2ABWS-10TD900HH4 IC: 4680A-10TD900HH4 MODEL: 10TD900HH3
FCC ID: 2ABWS-10TD900HH4 IC: 4680A-10TD900HH4 MODEL: 10TD900HH4
FCC ID: 2ABWS-10TD900HH1U IC: 4680A-10TD900HH1U MODEL: 10TD900HH1U
