Users manual

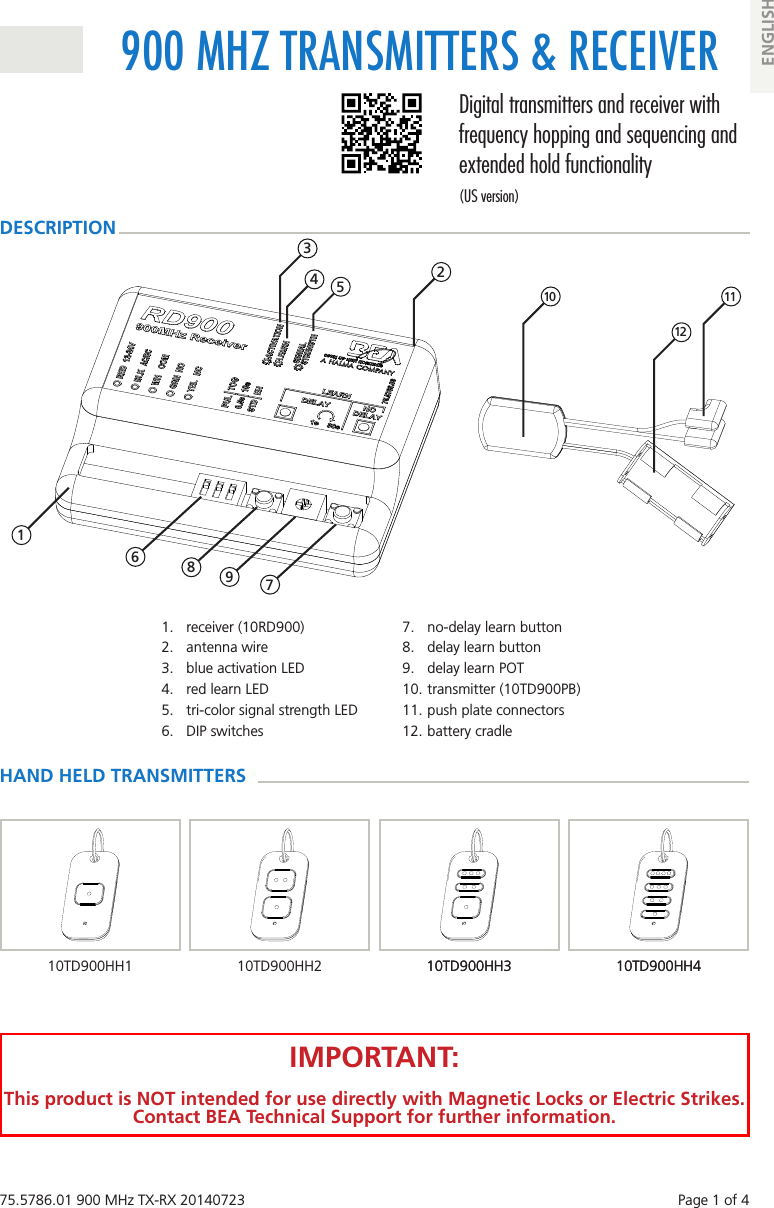

75.5786.01 900 MHz TX-RX 20140723 Page 1 of 4900 MHZ TRANSMITTERS & RECEIVERDigital transmitters and receiver with frequency hopping and sequencing and extended hold functionality(US version)ENGLISH1. receiver (10RD900)2. antenna wire3. blue activation LED4. red learn LED5. tri-color signal strength LED6. DIP switches7. no-delay learn button8. delay learn button9. delay learn POT10. transmitter (10TD900PB)11. push plate connectors12. battery cradle 2 3 4 5 10 11 12HAND HELD TRANSMITTERSDESCRIPTION10TD900HH410TD900HH310TD900HH2IMPORTANT:This product is NOT intended for use directly with Magnetic Locks or Electric Strikes. Contact BEA Technical Support for further information. 1 6 7 8 910TD900HH410TD900HH310TD900HH1

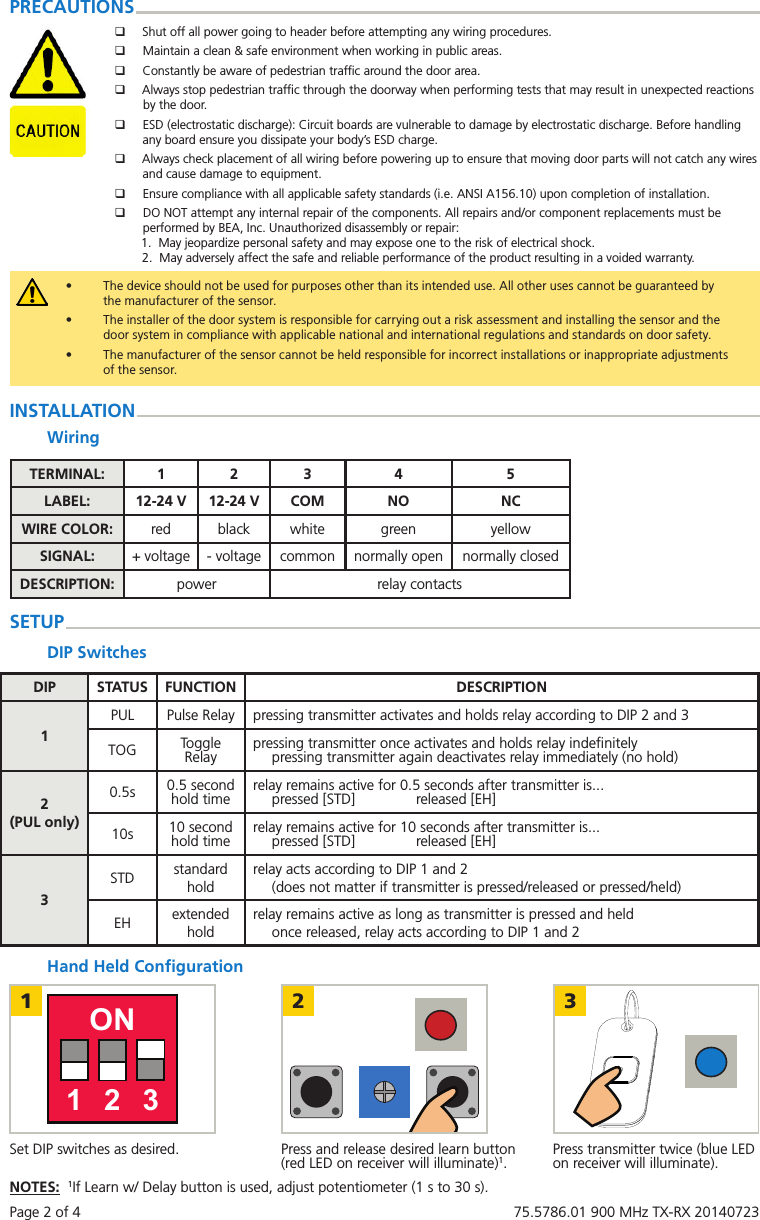

Page 2 of 4 75.5786.01 900 MHz TX-RX 20140723• The device should not be used for purposes other than its intended use. All other uses cannot be guaranteed by the manufacturer of the sensor. • The installer of the door system is responsible for carrying out a risk assessment and installing the sensor and the door system in compliance with applicable national and international regulations and standards on door safety. • The manufacturer of the sensor cannot be held responsible for incorrect installations or inappropriate adjustments of the sensor.PRECAUTIONS qShut off all power going to header before attempting any wiring procedures. qMaintain a clean & safe environment when working in public areas. qConstantly be aware of pedestrian traffic around the door area. qAlways stop pedestrian traffic through the doorway when performing tests that may result in unexpected reactions by the door. qESD (electrostatic discharge): Circuit boards are vulnerable to damage by electrostatic discharge. Before handling any board ensure you dissipate your body’s ESD charge. qAlways check placement of all wiring before powering up to ensure that moving door parts will not catch any wires and cause damage to equipment. qEnsure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of installation. qDO NOT attempt any internal repair of the components. All repairs and/or component replacements must be performed by BEA, Inc. Unauthorized disassembly or repair: 1. May jeopardize personal safety and may expose one to the risk of electrical shock. 2. May adversely affect the safe and reliable performance of the product resulting in a voided warranty.Hand Held ConfigurationINSTALLATIONWiringTERMINAL: 1 2 3 4 5LABEL: 12-24 V 12-24 V COM NO NCWIRE COLOR: red black white green yellowSIGNAL: + voltage - voltage common normally open normally closedDESCRIPTION: power relay contactsSETUPDIP SwitchesDIP STATUS FUNCTION DESCRIPTION1PUL Pulse Relay pressing transmitter activates and holds relay according to DIP 2 and 3TOG Toggle Relay pressing transmitter once activates and holds relay indefinitelypressing transmitter again deactivates relay immediately (no hold)2(PUL only)0.5s 0.5 second hold time relay remains active for 0.5 seconds after transmitter is...pressed [STD] released [EH]10s 10 second hold time relay remains active for 10 seconds after transmitter is...pressed [STD] released [EH]3STD standard holdrelay acts according to DIP 1 and 2(does not matter if transmitter is pressed/released or pressed/held)EH extended holdrelay remains active as long as transmitter is pressed and heldonce released, relay acts according to DIP 1 and 21 2 3ON1 2 3Set DIP switches as desired. Press transmitter twice (blue LED on receiver will illuminate).Press and release desired learn button (red LED on receiver will illuminate)1.NOTES: 1If Learn w/ Delay button is used, adjust potentiometer (1 s to 30 s).

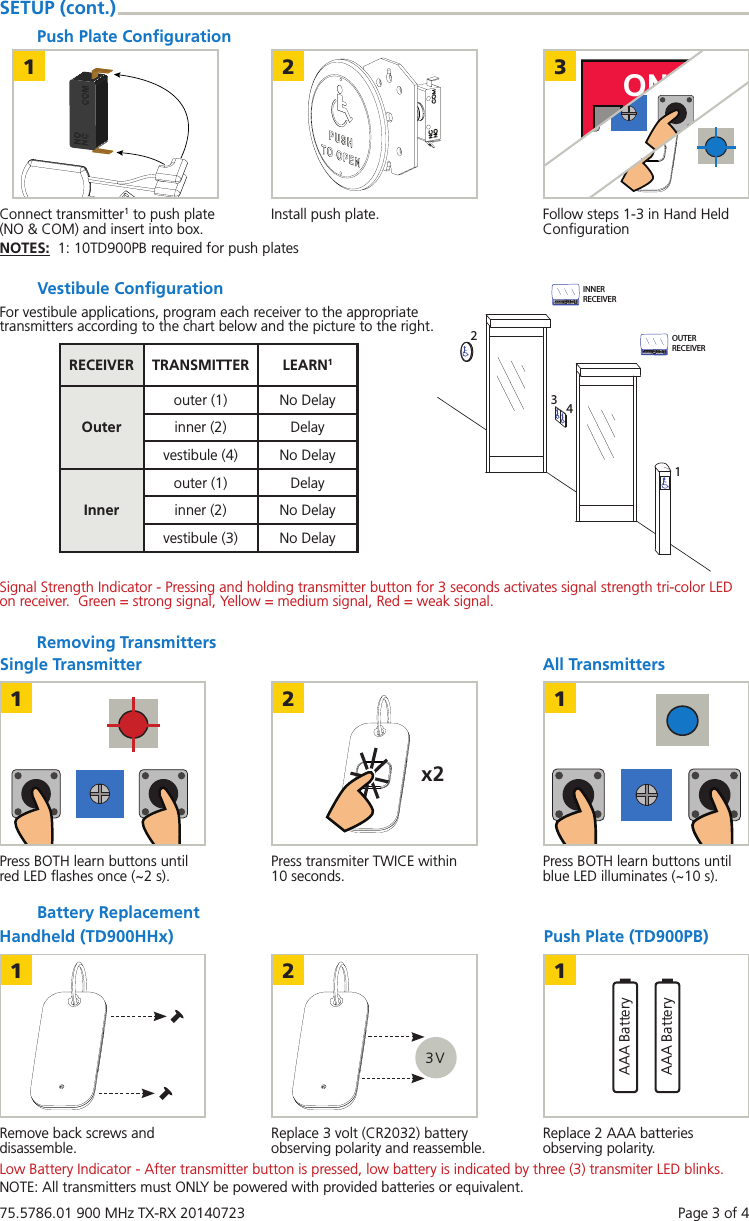

75.5786.01 900 MHz TX-RX 20140723 Page 3 of 4All TransmittersRemoving TransmittersSingle Transmitter1x22 1Press BOTH learn buttons until red LED flashes once (~2 s). Press BOTH learn buttons until blue LED illuminates (~10 s).Press transmiter TWICE within 10 seconds.SETUP (cont.)Push Plate Configuration211 2 3ON3Connect transmitter1 to push plate (NO & COM) and insert into box. Follow steps 1-3 in Hand Held ConfigurationInstall push plate.NOTES: 1: 10TD900PB required for push platesVestibule ConfigurationRECEIVER TRANSMITTER LEARN1Outerouter (1) No Delayinner (2) Delayvestibule (4) No DelayInnerouter (1) Delayinner (2) No Delayvestibule (3) No DelayBattery ReplacementPush Plate (TD900PB)Handheld (TD900HHx)13 V2AAA BatteryAAA Battery1Remove back screws and disassemble. Replace 2 AAA batteries observing polarity.Replace 3 volt (CR2032) battery observing polarity and reassemble.Low Battery Indicator - After transmitter button is pressed, low battery is indicated by three (3) transmiter LED blinks. OUTERRECEIVER123INNERRECEIVER4Signal Strength Indicator - Pressing and holding transmitter button for 3 seconds activates signal strength tri-color LED on receiver. Green = strong signal, Yellow = medium signal, Red = weak signal.For vestibule applications, program each receiver to the appropriate transmitters according to the chart below and the picture to the right.NOTE: All transmitters must ONLY be powered with provided batteries or equivalent.

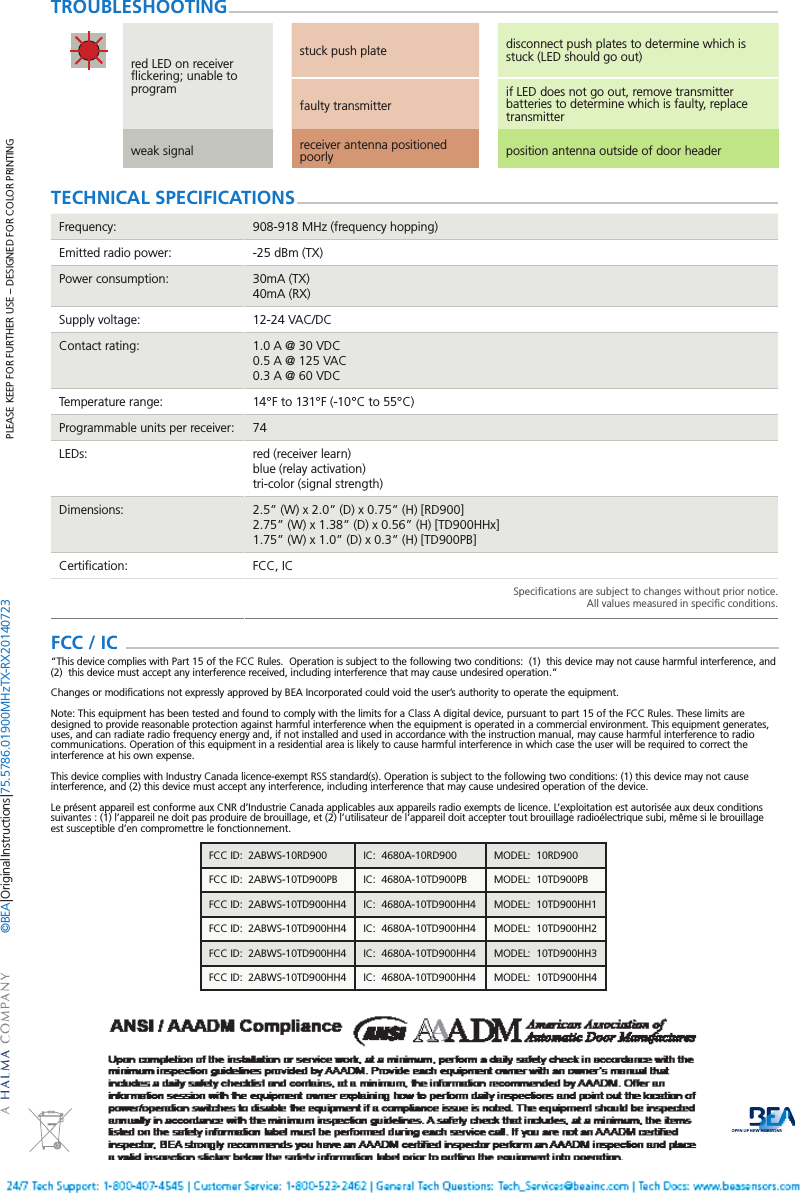

Page 4 of 4 75.5786.01 900 MHz TX-RX 20140723PLEASE KEEP FOR FURTHER USE – DESIGNED FOR COLOR PRINTING©BEA | Original Instructions | 75.5786.01 900 MHz TX-RX 20140723TECHNICAL SPECIFICATIONSFrequency: 908-918 MHz (frequency hopping)Emitted radio power: -25 dBm (TX)Power consumption: 30mA (TX)40mA (RX)Supply voltage: 12-24 VAC/DCContact rating: 1.0 A @ 30 VDC0.5 A @ 125 VAC0.3 A @ 60 VDCTemperature range: 14°F to 131°F (-10°C to 55°C)Programmable units per receiver: 74LEDs: red (receiver learn)blue (relay activation)tri-color (signal strength)Dimensions: 2.5” (W) x 2.0” (D) x 0.75” (H) [RD900]2.75” (W) x 1.38” (D) x 0.56” (H) [TD900HHx]1.75” (W) x 1.0” (D) x 0.3” (H) [TD900PB]Certification: FCC, ICSpecifications are subject to changes without prior notice.All values measured in specific conditions.red LED on receiver flickering; unable to programstuck push plate disconnect push plates to determine which is stuck (LED should go out)faulty transmitterif LED does not go out, remove transmitter batteries to determine which is faulty, replace transmitterweak signal receiver antenna positioned poorly position antenna outside of door headerTROUBLESHOOTINGFCC / IC “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”Changes or modifications not expressly approved by BEA Incorporated could void the user’s authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.FCC ID: 2ABWS-10RD900 IC: 4680A-10RD900 MODEL: 10RD900FCC ID: 2ABWS-10TD900PB IC: 4680A-10TD900PB MODEL: 10TD900PBFCC ID: 2ABWS-10TD900HH4 IC: 4680A-10TD900HH4 MODEL: 10TD900HH1FCC ID: 2ABWS-10TD900HH4 IC: 4680A-10TD900HH4 MODEL: 10TD900HH2FCC ID: 2ABWS-10TD900HH4 IC: 4680A-10TD900HH4 MODEL: 10TD900HH3FCC ID: 2ABWS-10TD900HH4 IC: 4680A-10TD900HH4 MODEL: 10TD900HH4
