BEIJING ITHINK CHUANGXIANG KEJI Y2 IP Camera User Manual

BEIJING ITHINK CHUANGXIANG KEJI CO.,LTD IP Camera

User manual

Before using this product, please read the guide carefully to avoid any damages to the product, do not misconfiguration or misuse.Y2 User ManualIP Camera

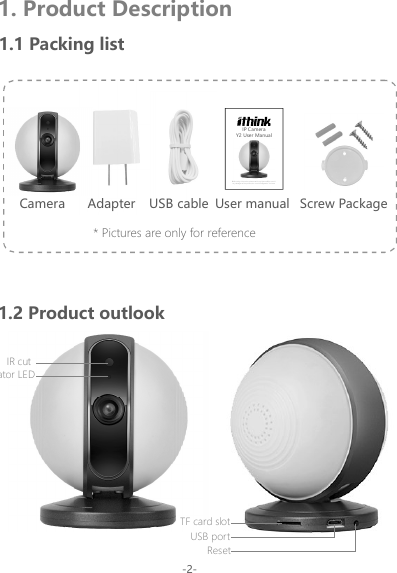

1. Product Description1.1 Packing listCamera Adapter User manual Screw PackageUSB cable* Pictures are only for reference1.2 Product outlook-2-IR cutIndicator LEDResetUSB portTF card slotBefore using this product, please read the guide carefully to avoid any damages to the product, do not misconfiguration or misuse.Y2 User ManualIP Camera

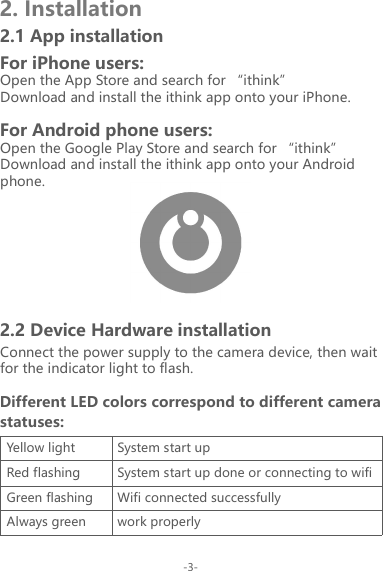

2. Installation2.1 App installation2.2 Device Hardware installationDifferent LED colors correspond to different camera statuses:For iPhone users:Open the App Store and search for “ithink”Download and install the ithink app onto your iPhone.For Android phone users:Open the Google Play Store and search for “ithink”Download and install the ithink app onto your Android phone.Connect the power supply to the camera device, then wait for the indicator light to flash.Yellow lightRed flashingGreen flashingAlways greenSystem start upSystem start up done or connecting to wifiWifi connected successfullywork properly-3-

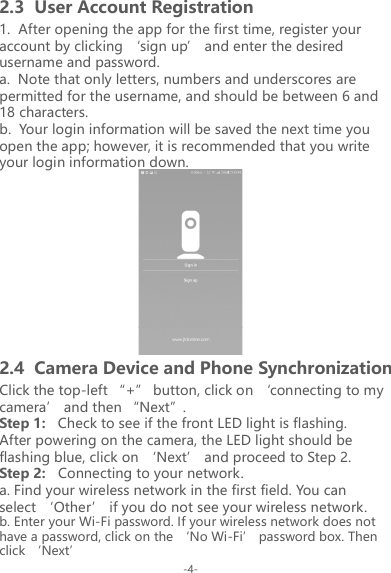

-4-1. After opening the app for the first time, register your account by clicking ‘sign up’ and enter the desired username and password.a. Note that only letters, numbers and underscores are permitted for the username, and should be between 6 and 18 characters.b. Your login information will be saved the next time you open the app; however, it is recommended that you write your login information down.2.3 User Account RegistrationClick the top-left “+” button, click on ‘connecting to my camera’ and then “Next”.Step 1: Check to see if the front LED light is flashing.After powering on the camera, the LED light should be flashing blue, click on ‘Next’ and proceed to Step 2.Step 2: Connecting to your network.a. Find your wireless network in the first field. You can select ‘Other’ if you do not see your wireless network.b. Enter your Wi-Fi password. If your wireless network does not have a password, click on the ‘No Wi-Fi’ password box. Then click ‘Next’2.4 Camera Device and Phone Synchronization

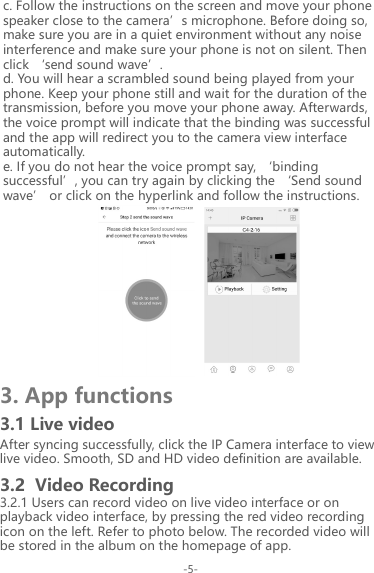

3. App functions3.1 Live videoc. Follow the instructions on the screen and move your phone speaker close to the camera’s microphone. Before doing so, make sure you are in a quiet environment without any noise interference and make sure your phone is not on silent. Then click ‘send sound wave’.d. You will hear a scrambled sound being played from your phone. Keep your phone still and wait for the duration of the transmission, before you move your phone away. Afterwards, the voice prompt will indicate that the binding was successful and the app will redirect you to the camera view interface automatically.e. If you do not hear the voice prompt say, ‘binding successful’, you can try again by clicking the ‘Send sound wave’ or click on the hyperlink and follow the instructions. After syncing successfully, click the IP Camera interface to view live video. Smooth, SD and HD video definition are available.3.2.1 Users can record video on live video interface or on playback video interface, by pressing the red video recording icon on the left. Refer to photo below. The recorded video will be stored in the album on the homepage of app.3.2 Video Recording-5-

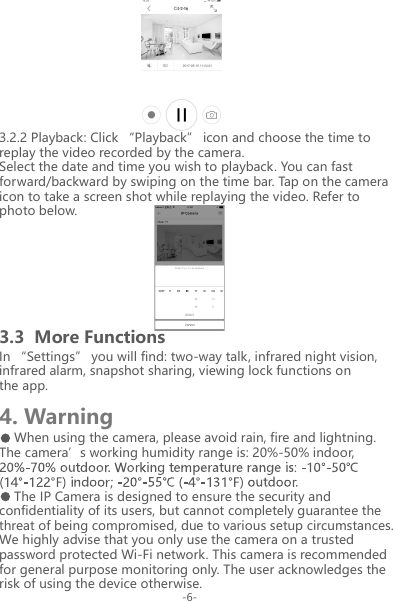

3.3 More Functions4. WarningIn “Settings” you will find: two-way talk, infrared night vision, infrared alarm, snapshot sharing, viewing lock functions on the app.When using the camera, please avoid rain, fire and lightning. The camera’s working humidity range is: 20%-50% indoor, The IP Camera is designed to ensure the security and confidentiality of its users, but cannot completely guarantee the threat of being compromised, due to various setup circumstances. We highly advise that you only use the camera on a trusted password protected Wi-Fi network. This camera is recommended for general purpose monitoring only. The user acknowledges the risk of using the device otherwise.3.2.2 Playback: Click “Playback” icon and choose the time to replay the video recorded by the camera.Select the date and time you wish to playback. You can fast forward/backward by swiping on the time bar. Tap on the camera icon to take a screen shot while replaying the video. Refer to photo below.-6-

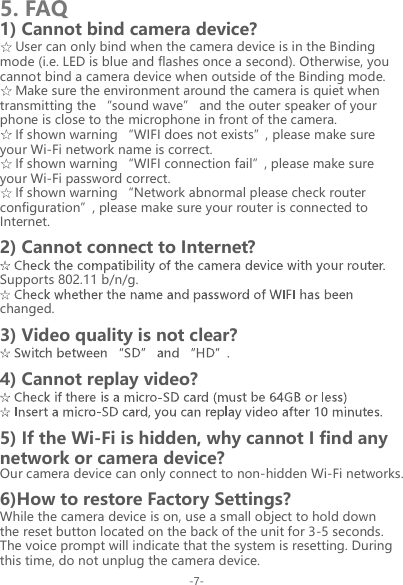

1) Cannot bind camera device?5. FAQUser can only bind when the camera device is in the Binding mode (i.e. LED is blue and flashes once a second). Otherwise, you cannot bind a camera device when outside of the Binding mode.Make sure the environment around the camera is quiet when transmitting the “sound wave” and the outer speaker of your phone is close to the microphone in front of the camera.If shown warning “WIFI does not exists”, please make sure your Wi-Fi network name is correct.If shown warning “WIFI connection fail”, please make sure your Wi-Fi password correct.If shown warning “Network abnormal please check router configuration”, please make sure your router is connected to Internet.2) Cannot connect to Internet?Supports 802.11 b/n/g.changed.3) Video quality is not clear?4) Cannot replay video?5) If the Wi-Fi is hidden, why cannot I find any network or camera device?Our camera device can only connect to non-hidden Wi-Fi networks.6)How to restore Factory Settings?While the camera device is on, use a small object to hold down the reset button located on the back of the unit for 3-5 seconds. The voice prompt will indicate that the system is resetting. During this time, do not unplug the camera device.-7-

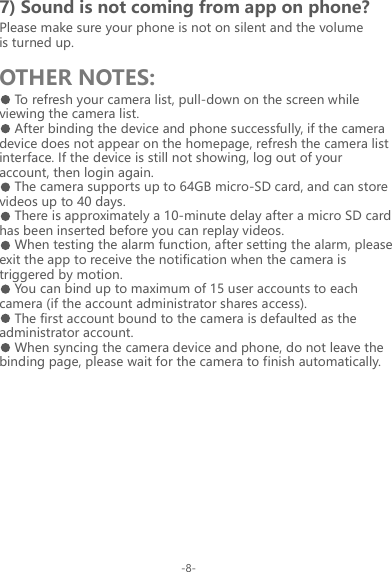

7) Sound is not coming from app on phone?OTHER NOTES:Please make sure your phone is not on silent and the volume is turned up.To refresh your camera list, pull-down on the screen while viewing the camera list.After binding the device and phone successfully, if the camera device does not appear on the homepage, refresh the camera list interface. If the device is still not showing, log out of your account, then login again.The camera supports up to 64GB micro-SD card, and can store videos up to 40 days.There is approximately a 10-minute delay after a micro SD card has been inserted before you can replay videos.When testing the alarm function, after setting the alarm, please exit the app to receive the notification when the camera is triggered by motion.You can bind up to maximum of 15 user accounts to each camera (if the account administrator shares access).The first account bound to the camera is defaulted as the administrator account.When syncing the camera device and phone, do not leave the binding page, please wait for the camera to finish automatically.-8-
- -
