BITWAVE AMP02 Bluetooth headset User Manual 2016 Amp All Language User Guide 29042016 ai

Bitwave Private Limited Bluetooth headset 2016 Amp All Language User Guide 29042016 ai

15_AMP PRO UserMan, r1

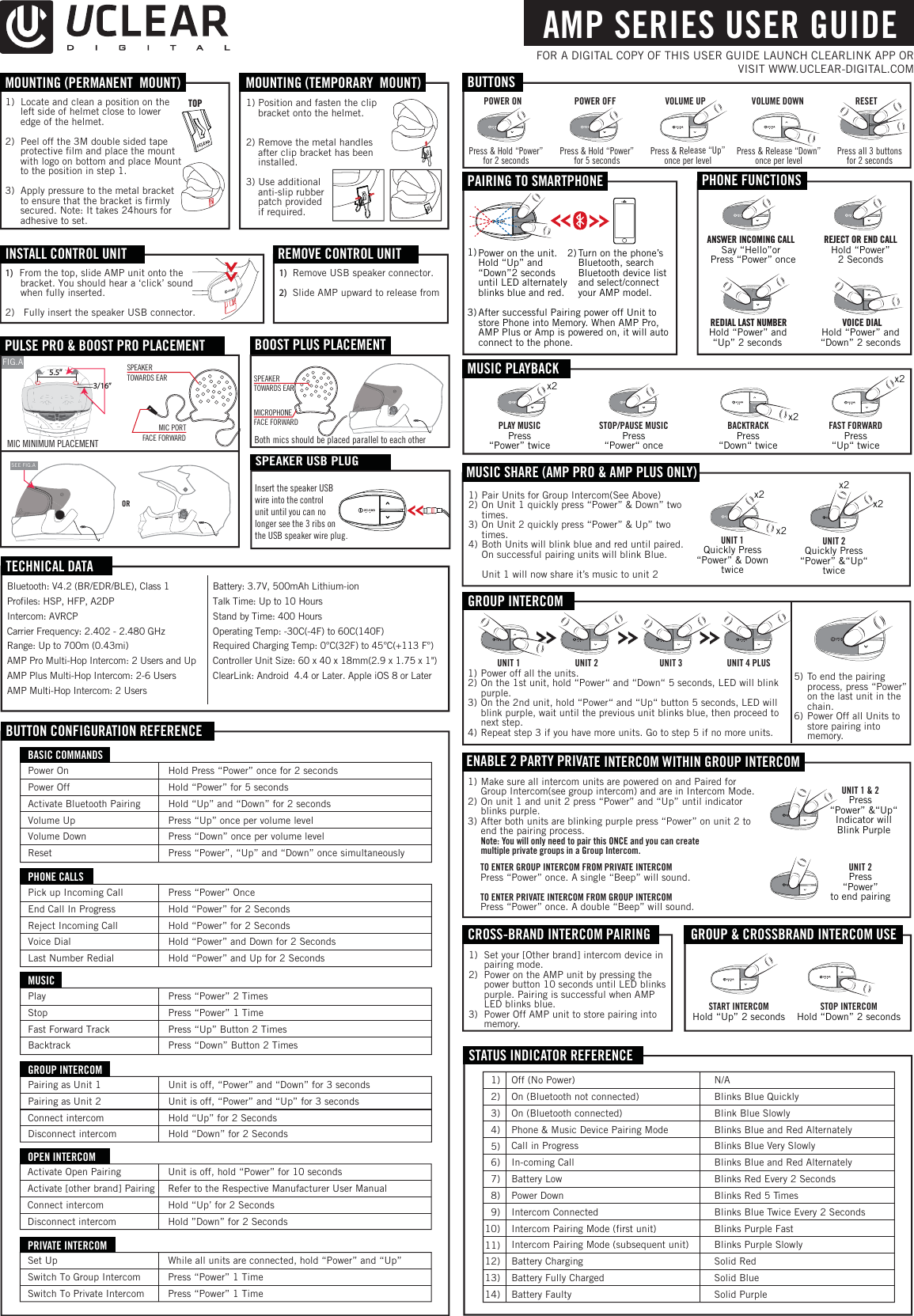

STATUS INDICATOR REFERENCE FIG.AAMP SERIES USER GUIDEPLAY MUSICPress“Power” twiceSTOP/PAUSE MUSICPress“Power“ onceBACKTRACKPress“Down“ twiceFAST FORWARDPress“Up“ twiceFOR A DIGITAL COPY OF THIS USER GUIDE LAUNCH CLEARLINK APP OR VISIT WWW.UCLEAR-DIGITAL.COMPress & Hold “Power”for 5 secondsPOWER OFFPress & Hold “Power”for 2 secondsPOWER ONPress & Release “Up”once per levelVOLUME UP VOLUME DOWNPress & Release “Down”once per levelPress all 3 buttonsfor 2 secondsRESETPower on the unit. Hold “Up” and “Down”2 seconds until LED alternately blinks blue and red. Turn on the phone’s Bluetooth, search Bluetooth device list and select/connect your AMP model. PHONE FUNCTIONSANSWER INCOMING CALLSay “Hello”orPress “Power” onceREJECT OR END CALLHold “Power” 2 SecondsPAIRING TO SMARTPHONEREDIAL LAST NUMBER Hold “Power” and “Up” 2 secondsVOICE DIALHold “Power” and “Down” 2 secondsx2MUSIC PLAYBACKx2x2BUTTONSUNIT 1 UNIT 2 UNIT 3 UNIT 4 PLUSGROUP INTERCOMSTOP INTERCOMHold “Down” 2 secondsSTART INTERCOMHold “Up” 2 secondsPower off all the units.On the 1st unit, hold “Power“ and “Down“ 5 seconds, LED will blink purple.On the 2nd unit, hold “Power“ and “Up“ button 5 seconds, LED will blink purple, wait until the previous unit blinks blue, then proceed to next step.Repeat step 3 if you have more units. Go to step 5 if no more units.To end the pairing process, press “Power” on the last unit in the chain.Power Off all Units to store pairing into memory.1)2)3)4)5)6)5.5”MIC MINIMUM PLACEMENT SEE FIG.ASPEAKERMIC PORTFACE FORWARDTOWARDS EARCROSS-BRAND INTERCOM PAIRINGSet your [Other brand] intercom device in pairing mode. Power on the AMP unit by pressing the power button 10 seconds until LED blinks purple. Pairing is successful when AMP LED blinks blue.Power Off AMP unit to store pairing into memory.GROUP & CROSSBRAND INTERCOM USEPULSE PRO & BOOST PRO PLACEMENTORBOOST PLUS PLACEMENTSPEAKERMICROPHONEFACE FORWARDTOWARDS EARSPEAKER USB PLUGInsert the speaker USB wire into the control unit until you can no longer see the 3 ribs onthe USB speaker wire plug. MOUNTING (PERMANENT MOUNT)TOPMOUNTING (TEMPORARY MOUNT)1) Position and fasten the clip bracket onto the helmet. 2) Remove the metal handles after clip bracket has been installed.3) Use additional anti-slip rubber patch provided if required. 1) Locate and clean a position on the left side of helmet close to lower edge of the helmet. 2) Peel off the 3M double sided tape protective film and place the mount with logo on bottom and place Mount to the position in step 1. 3) Apply pressure to the metal bracket to ensure that the bracket is firmly secured. Note: It takes 24hours for adhesive to set.INSTALL CONTROL UNIT1) From the top, slide AMP unit onto the bracket. You should hear a ‘click’ sound when fully inserted.2) Fully insert the speaker USB connector. REMOVE CONTROL UNITRemove USB speaker connector.Slide AMP upward to release from 1)2)UNIT 1Quickly Press“Power” & DowntwiceUNIT 2Quickly Press“Power” &“Up“twicex2MUSIC SHARE (AMP PRO & AMP PLUS ONLY)x2Pair Units for Group Intercom(See Above)On Unit 1 quickly press “Power” & Down” two times.On Unit 2 quickly press “Power” & Up” two times.Both Units will blink blue and red until paired. On successful pairing units will blink Blue.Unit 1 will now share it’s music to unit 2 x2x21)2)3)4)3/16”1) 2)After successful Pairing power off Unit to store Phone into Memory. When AMP Pro, AMP Plus or Amp is powered on, it will auto connect to the phone.3)Both mics should be placed parallel to each other1)2)3)Make sure all intercom units are powered on and Paired for Group Intercom(see group intercom) and are in Intercom Mode.On unit 1 and unit 2 press “Power” and “Up” until indicator blinks purple.After both units are blinking purple press “Power” on unit 2 to end the pairing process. Note: You will only need to pair this ONCE and you can create multiple private groups in a Group Intercom. ENABLE 2 PARTY PRIVATE INTERCOM WITHIN GROUP INTERCOM1)2)3)UNIT 1 & 2Press“Power” &“Up“Indicator willBlink PurpleUNIT 2Press“Power”to end pairingTO ENTER GROUP INTERCOM FROM PRIVATE INTERCOMPress “Power” once. A single “Beep” will sound.TO ENTER PRIVATE INTERCOM FROM GROUP INTERCOMPress “Power” once. A double “Beep” will sound.TECHNICAL DATABluetooth: V4.2 (BR/EDR/BLE), Class 1Profiles: HSP, HFP, A2DPIntercom: AVRCPCarrier Frequency: 2.402 - 2.480 GHzRange: Up to 700m (0.43mi)AMP Pro Multi-Hop Intercom: 2 Users and UpAMP Plus Multi-Hop Intercom: 2-6 UsersAMP Multi-Hop Intercom: 2 UsersBattery: 3.7V, 500mAh Lithium-ionTalk Time: Up to 10 HoursStand by Time: 400 HoursOperating Temp: -30C(-4F) to 60C(140F)Required Charging Temp: 0°C(32F) to 45°C(+113 F°) Controller Unit Size: 60 x 40 x 18mm(2.9 x 1.75 x 1")ClearLink: Android 4.4 or Later. Apple iOS 8 or LaterOff (No Power)On (Bluetooth not connected)On (Bluetooth connected)Phone & Music Device Pairing ModeCall in ProgressIn-coming CallBattery LowPower DownIntercom ConnectedIntercom Pairing Mode (first unit)Intercom Pairing Mode (subsequent unit)Battery ChargingBattery Fully ChargedBattery FaultyN/ABlinks Blue QuicklyBlink Blue SlowlyBlinks Blue and Red AlternatelyBlinks Blue Very SlowlyBlinks Blue and Red AlternatelyBlinks Red Every 2 SecondsBlinks Red 5 TimesBlinks Blue Twice Every 2 SecondsBlinks Purple FastBlinks Purple SlowlySolid RedSolid BlueSolid Purple1)2)3)4)5)6)7)8)9)10)11)12)13)14)BUTTON CONFIGURATION REFERENCEPower OnPower OffActivate Bluetooth PairingVolume UpVolume DownResetHold Press “Power” once for 2 secondsHold “Power” for 5 secondsHold “Up” and “Down” for 2 secondsPress “Up” once per volume levelPress “Down” once per volume levelPress “Power”, “Up” and “Down” once simultaneouslyPick up Incoming CallEnd Call In ProgressReject Incoming CallVoice DialLast Number RedialPress “Power” OnceHold “Power” for 2 SecondsHold “Power” for 2 SecondsHold “Power” and Down for 2 SecondsHold “Power” and Up for 2 SecondsPlayStopFast Forward TrackBacktrackPress “Power” 2 TimesPress “Power” 1 TimePress “Up” Button 2 TimesPress “Down” Button 2 TimesPairing as Unit 1Pairing as Unit 2Connect intercomDisconnect intercomUnit is off, “Power” and “Down” for 3 secondsUnit is off, “Power” and “Up” for 3 secondsHold “Up” for 2 SecondsHold “Down” for 2 SecondsBASIC COMMANDSPHONE CALLSMUSICGROUP INTERCOMSet UpSwitch To Group IntercomSwitch To Private IntercomWhile all units are connected, hold “Power” and “Up”Press “Power” 1 TimePress “Power” 1 TimePRIVATE INTERCOMActivate Open PairingActivate [other brand] PairingConnect intercomDisconnect intercomUnit is off, hold “Power” for 10 secondsRefer to the Respective Manufacturer User ManualHold “Up’ for 2 SecondsHold ”Down” for 2 SecondsOPEN INTERCOM

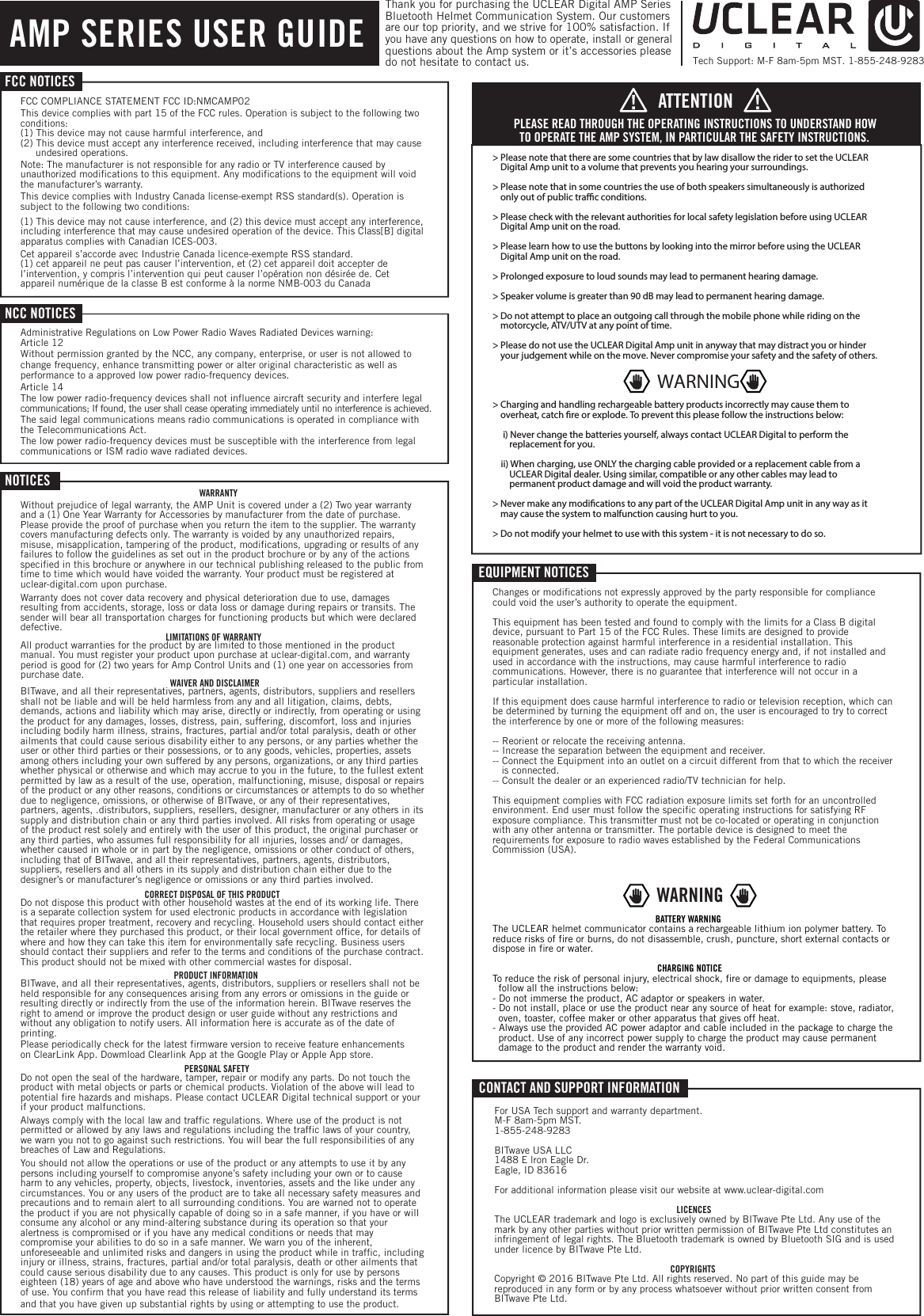

NOTICESWARRANTYWithout prejudice of legal warranty, the AMP Unit is covered under a (2) Two year warranty and a (1) One Year Warranty for Accessories by manufacturer from the date of purchase. Please provide the proof of purchase when you return the item to the supplier. The warranty covers manufacturing defects only. The warranty is voided by any unauthorized repairs, misuse, misapplication, tampering of the product, modifications, upgrading or results of any failures to follow the guidelines as set out in the product brochure or by any of the actions specified in this brochure or anywhere in our technical publishing released to the public from time to time which would have voided the warranty. Your product must be registered at uclear-digital.com upon purchase. Warranty does not cover data recovery and physical deterioration due to use, damages resulting from accidents, storage, loss or data loss or damage during repairs or transits. The sender will bear all transportation charges for functioning products but which were declared defective.LIMITATIONS OF WARRANTYAll product warranties for the product by are limited to those mentioned in the product manual. You must register your product upon purchase at uclear-digital.com, and warranty period is good for (2) two years for Amp Control Units and (1) one year on accessories from purchase date. WAIVER AND DISCLAIMERBITwave, and all their representatives, partners, agents, distributors, suppliers and resellers shall not be liable and will be held harmless from any and all litigation, claims, debts, demands, actions and liability which may arise, directly or indirectly, from operating or using the product for any damages, losses, distress, pain, suffering, discomfort, loss and injuries including bodily harm illness, strains, fractures, partial and/or total paralysis, death or other ailments that could cause serious disability either to any persons, or any parties whether the user or other third parties or their possessions, or to any goods, vehicles, properties, assets among others including your own suffered by any persons, organizations, or any third parties whether physical or otherwise and which may accrue to you in the future, to the fullest extent permitted by law as a result of the use, operation, malfunctioning, misuse, disposal or repairs of the product or any other reasons, conditions or circumstances or attempts to do so whether due to negligence, omissions, or otherwise of BITwave, or any of their representatives, partners, agents, .distributors, suppliers, resellers, designer, manufacturer or any others in its supply and distribution chain or any third parties involved. All risks from operating or usage of the product rest solely and entirely with the user of this product, the original purchaser or any third parties, who assumes full responsibility for all injuries, losses and/ or damages, whether caused in whole or in part by the negligence, omissions or other conduct of others, including that of BITwave, and all their representatives, partners, agents, distributors, suppliers, resellers and all others in its supply and distribution chain either due to the designer’s or manufacturer’s negligence or omissions or any third parties involved.CORRECT DISPOSAL OF THIS PRODUCTDo not dispose this product with other household wastes at the end of its working life. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their suppliers and refer to the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.PRODUCT INFORMATIONBITwave, and all their representatives, agents, distributors, suppliers or resellers shall not be held responsible for any consequences arising from any errors or omissions in the guide or resulting directly or indirectly from the use of the information herein. BITwave reserves the right to amend or improve the product design or user guide without any restrictions and without any obligation to notify users. All information here is accurate as of the date of printing. Please periodically check for the latest firmware version to receive feature enhancements on ClearLink App. Dowmload Clearlink App at the Google Play or Apple App store.PERSONAL SAFETYDo not open the seal of the hardware, tamper, repair or modify any parts. Do not touch the product with metal objects or parts or chemical products. Violation of the above will lead to potential fire hazards and mishaps. Please contact UCLEAR Digital technical support or your if your product malfunctions. Always comply with the local law and traffic regulations. Where use of the product is not permitted or allowed by any laws and regulations including the traffic laws of your country, we warn you not to go against such restrictions. You will bear the full responsibilities of any breaches of Law and Regulations. You should not allow the operations or use of the product or any attempts to use it by any persons including yourself to compromise anyone’s safety including your own or to cause harm to any vehicles, property, objects, livestock, inventories, assets and the like under any circumstances. You or any users of the product are to take all necessary safety measures and precautions and to remain alert to all surrounding conditions. You are warned not to operate the product if you are not physically capable of doing so in a safe manner, if you have or will consume any alcohol or any mind-altering substance during its operation so that your alertness is compromised or if you have any medical conditions or needs that may compromise your abilities to do so in a safe manner. We warn you of the inherent, unforeseeable and unlimited risks and dangers in using the product while in traffic, including injury or illness, strains, fractures, partial and/or total paralysis, death or other ailments that could cause serious disability due to any causes. This product is only for use by persons eighteen (18) years of age and above who have understood the warnings, risks and the terms of use. You confirm that you have read this release of liability and fully understand its terms and that you have given up substantial rights by using or attempting to use the product.EQUIPMENT NOTICESChanges or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the Equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The portable device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA). These requirements set a SAR limit of 1.6 W/kg averaged over one gram BATTERY WARNINGThe UCLEAR helmet communicator contains a rechargeable lithium ion polymer battery. To reduce risks of fire or burns, do not disassemble, crush, puncture, short external contacts or dispose in fire or water.CHARGING NOTICETo reduce the risk of personal injury, electrical shock, fire or damage to equipments, please follow all the instructions below: - Do not immerse the product, AC adaptor or speakers in water. - Do not install, place or use the product near any source of heat for example: stove, radiator, oven, toaster, coffee maker or other apparatus that gives off heat.- Always use the provided AC power adaptor and cable included in the package to charge the product. Use of any incorrect power supply to charge the product may cause permanent damage to the product and render the warranty void.CONTACT AND SUPPORT INFORMATIONFor USA Tech support and warranty department. M-F 8am-5pm MST. 1-855-248-9283BITwave USA LLC1488 E lron Eagle Dr. Eagle, ID 83616For additional information please visit our website at www.uclear-digital.comLICENCESThe UCLEAR trademark and logo is exclusively owned by BITwave Pte Ltd. Any use of the mark by any other parties without prior written permission of BITwave Pte Ltd constitutes an infringement of legal rights. The Bluetooth trademark is owned by Bluetooth SIG and is used under licence by BITwave Pte Ltd. COPYRIGHTSCopyright © 2016 BITwave Pte Ltd. All rights reserved. No part of this guide may be reproduced in any form or by any process whatsoever without prior written consent from BITwave Pte Ltd. FCC NOTICESFCC COMPLIANCE STATEMENT FCC ID:NMCAMP02This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operations.Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Any modifications to the equipment will void the manufacturer’s warranty.This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class[B] digital apparatus complies with Canadian ICES-003. Cet appareil s’accorde avec Industrie Canada licence-exempte RSS standard. (1) cet appareil ne peut pas causer l’intervention, et (2) cet appareil doit accepter de l’intervention, y compris l’intervention qui peut causer l’opération non désirée de. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du CanadaNCC NOTICESAdministrative Regulations on Low Power Radio Waves Radiated Devices warning:AMP SERIES USER GUIDE> Please note that there are some countries that by law disallow the rider to set the UCLEAR Digital Amp unit to a volume that prevents you hearing your surroundings.> Please note that in some countries the use of both speakers simultaneously is authorized only out of public trac conditions. > Please check with the relevant authorities for local safety legislation before using UCLEAR Digital Amp unit on the road. > Please learn how to use the buttons by looking into the mirror before using the UCLEAR Digital Amp unit on the road.> Prolonged exposure to loud sounds may lead to permanent hearing damage.> Speaker volume is greater than 90 dB may lead to permanent hearing damage.> Do not attempt to place an outgoing call through the mobile phone while riding on the motorcycle, ATV/UTV at any point of time. > Please do not use the UCLEAR Digital Amp unit in anyway that may distract you or hinder your judgement while on the move. Never compromise your safety and the safety of others.> Charging and handling rechargeable battery products incorrectly may cause them to overheat, catch re or explode. To prevent this please follow the instructions below: i) Never change the batteries yourself, always contact UCLEAR Digital to perform the replacement for you. ii) When charging, use ONLY the charging cable provided or a replacement cable from a UCLEAR Digital dealer. Using similar, compatible or any other cables may lead to permanent product damage and will void the product warranty.> Never make any modications to any part of the UCLEAR Digital Amp unit in any way as it may cause the system to malfunction causing hurt to you.> Do not modify your helmet to use with this system - it is not necessary to do so.PLEASE READ THROUGH THE OPERATING INSTRUCTIONS TO UNDERSTAND HOW TO OPERATE THE AMP SYSTEM, IN PARTICULAR THE SAFETY INSTRUCTIONS.ATTENTIONWARNINGWARNINGThank you for purchasing the UCLEAR Digital AMP Series Bluetooth Helmet Communication System. Our customers are our top priority, and we strive for 100% satisfaction. If you have any questions on how to operate, install or general questions about the Amp system or it’s accessories please do not hesitate to contact us. Article 12Without permission granted by the NCC, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to a approved low power radio-frequency devices. Tech Support: M-F 8am-5pm MST. 1-855-248-9283Article 14The low power radio-frequency devices shall not influence aircraft security and interfere legalcommunications; If found, the user shall cease operating immediately until no interference is achieved.The said legal communications means radio communications is operated in compliance with the Telecommunications Act.The low power radio-frequency devices must be susceptible with the interference from legal communications or ISM radio wave radiated devices.Commission (USA).
