Helmet CommunicatorUser ManualHBC 200®

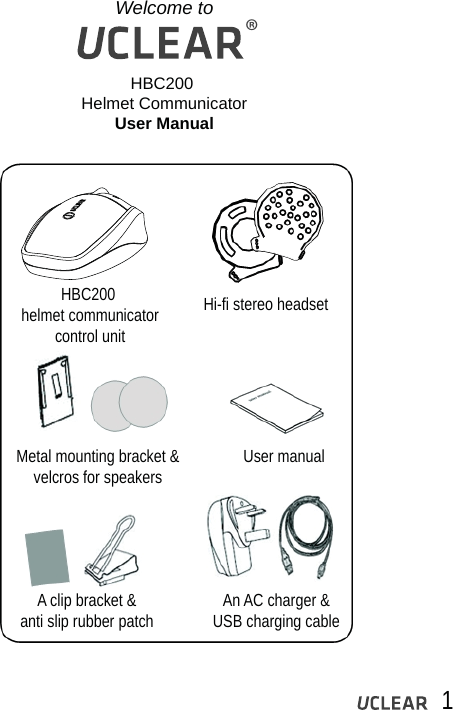

Welcome toHBC200 Helmet CommunicatorUser ManualHBC200 helmet communicatorcontrol unitHi-fi stereo headsetMetal mounting bracket &velcros for speakers User manualAn AC charger &USB charging cableA clip bracket &anti slip rubber patch1®

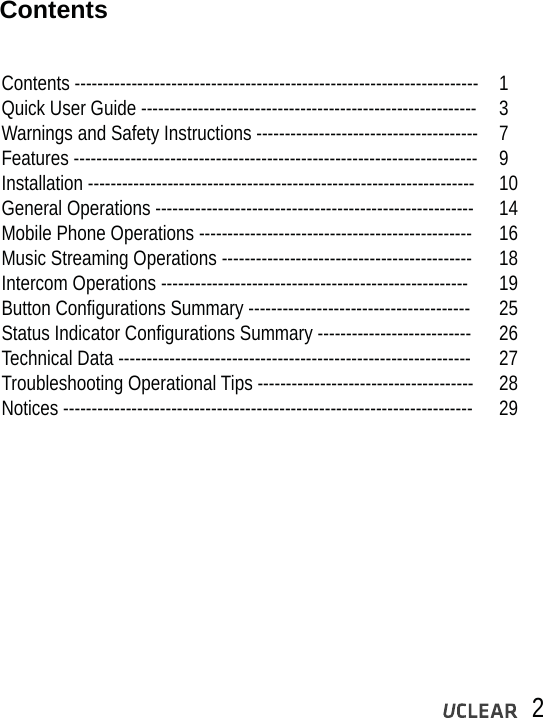

2ContentsContents -----------------------------------------------------------------------  1Quick User Guide -----------------------------------------------------------  3 Warnings and Safety Instructions ---------------------------------------  7 Features -----------------------------------------------------------------------  9Installation --------------------------------------------------------------------  10General Operations --------------------------------------------------------  14Mobile Phone Operations ------------------------------------------------  16Music Streaming Operations --------------------------------------------  18Intercom Operations ------------------------------------------------------  19Button Configurations Summary ---------------------------------------  25Status Indicator Configurations Summary ---------------------------  26Technical Data --------------------------------------------------------------  27Troubleshooting Operational Tips --------------------------------------  28Notices ------------------------------------------------------------------------  29

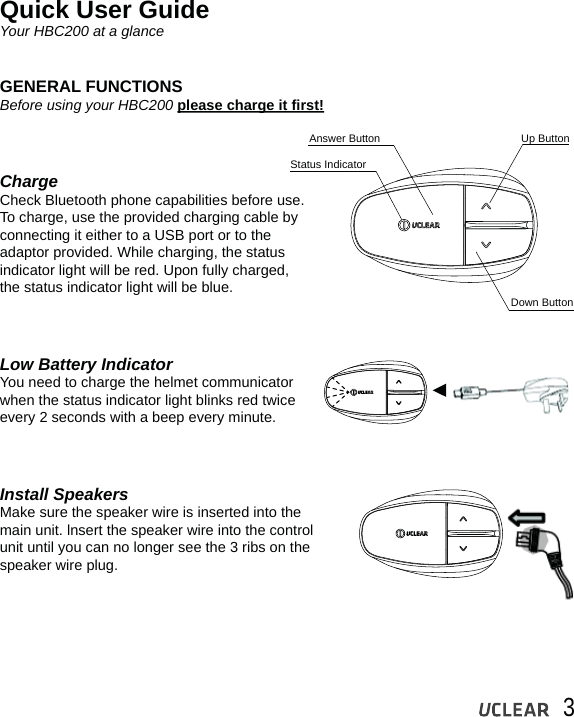

3Quick User GuideYour HBC200 at a glanceGENERAL FUNCTIONSBefore using your HBC200 please charge it first!ChargeCheck Bluetooth phone capabilities before use. To charge, use the provided charging cable by connecting it either to a USB port or to the adaptor provided. While charging, the status indicator light will be red. Upon fully charged, the status indicator light will be blue.Low Battery IndicatorYou need to charge the helmet communicator when the status indicator light blinks red twice every 2 seconds with a beep every minute.Install SpeakersMake sure the speaker wire is inserted into themain unit. lnsert the speaker wire into the control unit until you can no longer see the 3 ribs on the speaker wire plug.Status IndicatorAnswer Button Up ButtonDown Button

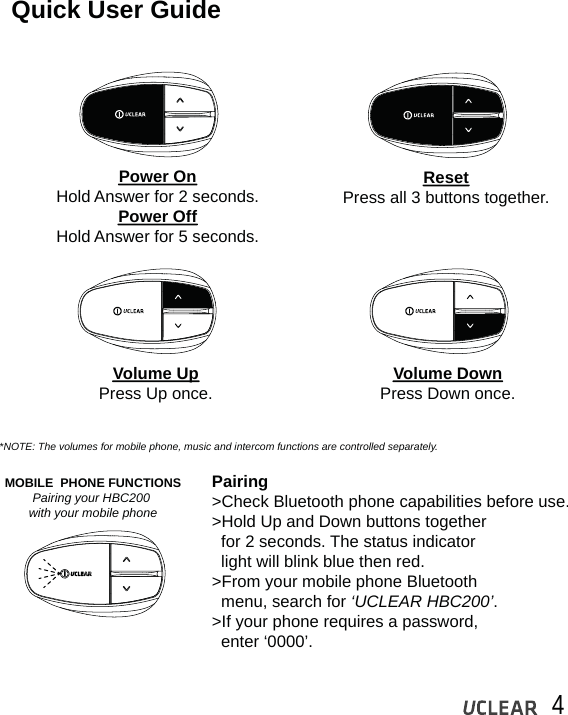

4Quick User GuidePower OnHold Answer for 2 seconds.Power OffHold Answer for 5 seconds.Volume UpPress Up once. Volume DownPress Down once.ResetPress all 3 buttons together.*NOTE: The volumes for mobile phone, music and intercom functions are controlled separately.MOBILE  PHONE FUNCTIONSPairing your HBC200 with your mobile phonePairing>Check Bluetooth phone capabilities before use.>Hold Up and Down buttons together    for 2 seconds. The status indicator   light will blink blue then red.>From your mobile phone Bluetooth   menu, search for ‘UCLEAR HBC200’.>If your phone requires a password,   enter ‘0000’.

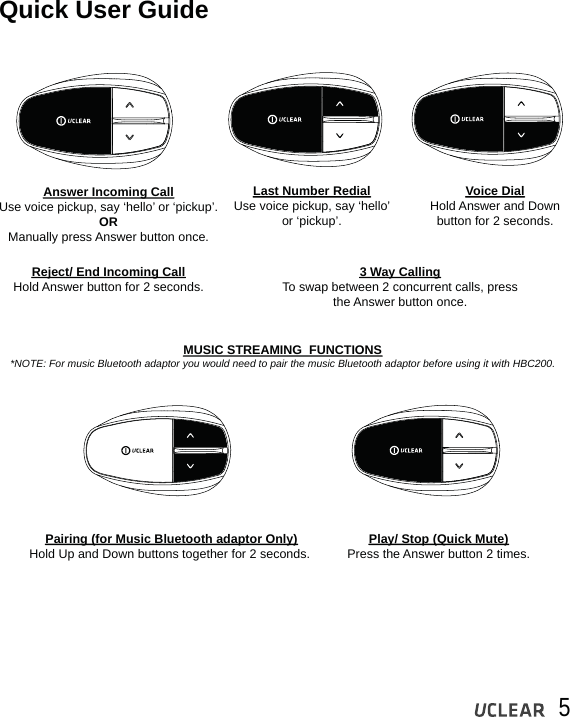

5Quick User GuideAnswer Incoming CallUse voice pickup, say ‘hello’ or ‘pickup’.ORManually press Answer button once.Reject/ End Incoming CallHold Answer button for 2 seconds.Last Number RedialUse voice pickup, say ‘hello’or ‘pickup’.Voice DialHold Answer and Downbutton for 2 seconds.3 Way CallingTo swap between 2 concurrent calls, pressthe Answer button once.MUSIC STREAMING  FUNCTIONS*NOTE: For music Bluetooth adaptor you would need to pair the music Bluetooth adaptor before using it with HBC200.Pairing (for Music Bluetooth adaptor Only)Hold Up and Down buttons together for 2 seconds.  Play/ Stop (Quick Mute)Press the Answer button 2 times.

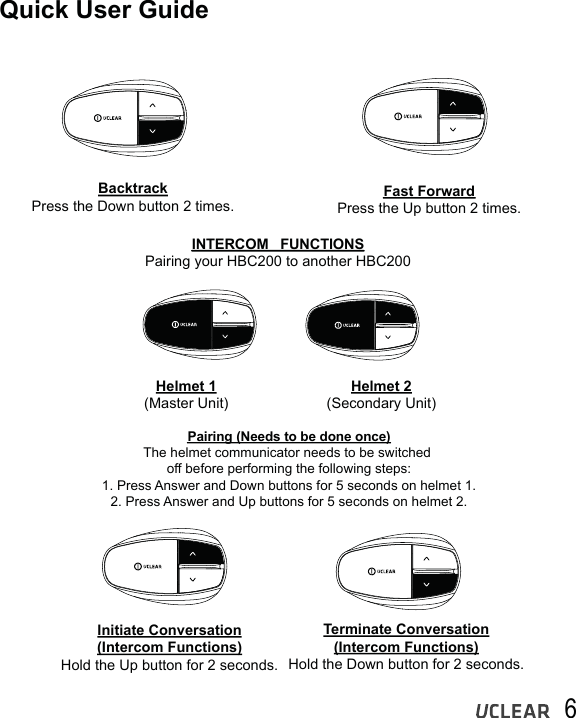

6Quick User GuideBacktrackPress the Down button 2 times.Initiate Conversation(Intercom Functions)Hold the Up button for 2 seconds.Terminate Conversation(Intercom Functions)Hold the Down button for 2 seconds.Helmet 1(Master Unit)Helmet 2(Secondary Unit)Fast ForwardPress the Up button 2 times.INTERCOM   FUNCTIONSPairing your HBC200 to another HBC200Pairing (Needs to be done once)The helmet communicator needs to be switched off before performing the following steps:1. Press Answer and Down buttons for 5 seconds on helmet 1.2. Press Answer and Up buttons for 5 seconds on helmet 2.

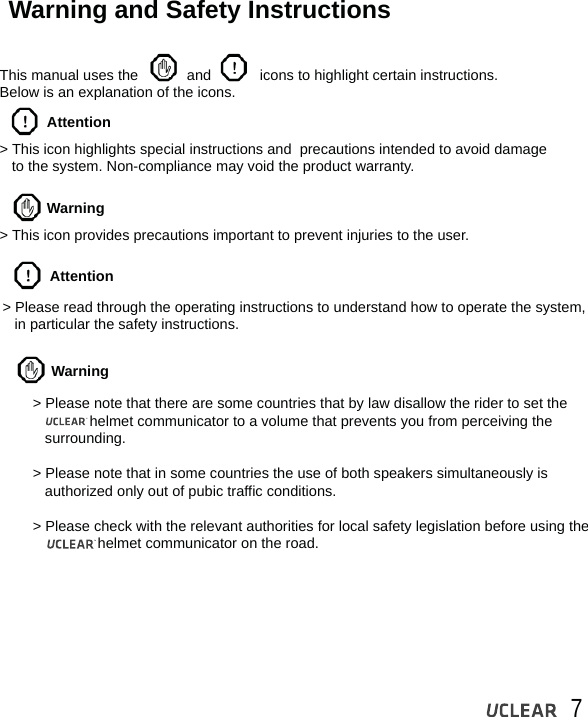

7Warning and Safety InstructionsThis manual uses the            and            icons to highlight certain instructions. Below is an explanation of the icons.> This icon highlights special instructions and  precautions intended to avoid damage    to the system. Non-compliance may void the product warranty.Attention> Please read through the operating instructions to understand how to operate the system,    in particular the safety instructions.Attention> This icon provides precautions important to prevent injuries to the user.WarningWarning> Please note that there are some countries that by law disallow the rider to set the               helmet communicator to a volume that prevents you from perceiving the    surrounding.> Please note that in some countries the use of both speakers simultaneously is    authorized only out of pubic traffic conditions. > Please check with the relevant authorities for local safety legislation before using the                    helmet communicator on the road.

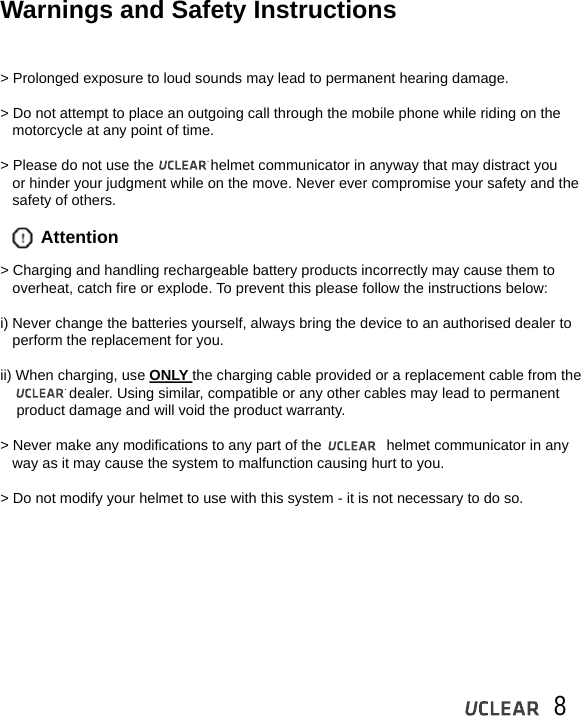

   8Warnings and Safety Instructions> Prolonged exposure to loud sounds may lead to permanent hearing damage.> Do not attempt to place an outgoing call through the mobile phone while riding on the    motorcycle at any point of time. > Please do not use the              helmet communicator in anyway that may distract you    or hinder your judgment while on the move. Never ever compromise your safety and the    safety of others.> Charging and handling rechargeable battery products incorrectly may cause them to    overheat, catch fire or explode. To prevent this please follow the instructions below:i) Never change the batteries yourself, always bring the device to an authorised dealer to    perform the replacement for you.ii) When charging, use ONLY the charging cable provided or a replacement cable from the                      dealer. Using similar, compatible or any other cables may lead to permanent     product damage and will void the product warranty.> Never make any modifications to any part of the                helmet communicator in any    way as it may cause the system to malfunction causing hurt to you.> Do not modify your helmet to use with this system - it is not necessary to do so.Attention

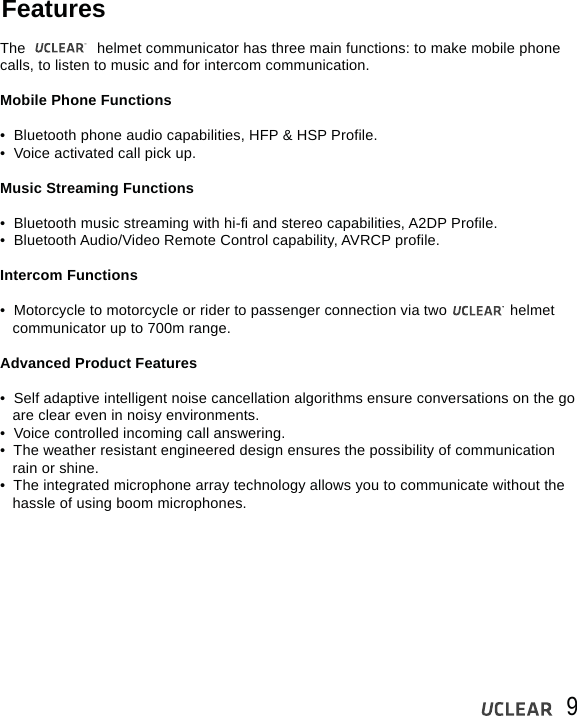

9FeaturesThe                 helmet communicator has three main functions: to make mobile phone calls, to listen to music and for intercom communication. Mobile Phone Functions •  Bluetooth phone audio capabilities, HFP & HSP Profile.•  Voice activated call pick up.Music Streaming Functions •  Bluetooth music streaming with hi-fi and stereo capabilities, A2DP Profile.•  Bluetooth Audio/Video Remote Control capability, AVRCP profile.Intercom Functions•  Motorcycle to motorcycle or rider to passenger connection via two               helmet    communicator up to 700m range.Advanced Product Features•  Self adaptive intelligent noise cancellation algorithms ensure conversations on the go    are clear even in noisy environments.•  Voice controlled incoming call answering.•  The weather resistant engineered design ensures the possibility of communication    rain or shine. •  The integrated microphone array technology allows you to communicate without the    hassle of using boom microphones.

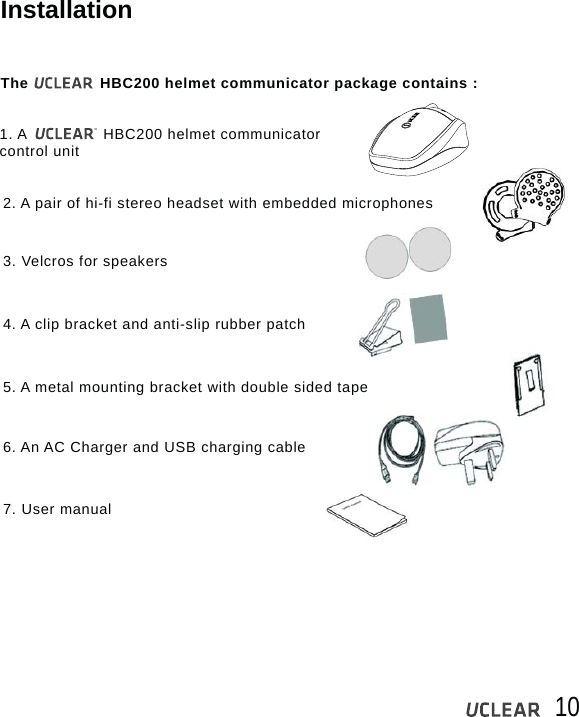

10InstallationThe               HBC200 helmet communicator package contains :1. A                HBC200 helmet communicator control unit2. A pair of hi-fi stereo headset with embedded microphones3. Velcros for speakers4. A clip bracket and anti-slip rubber patch5. A metal mounting bracket with double sided tape6. An AC Charger and USB charging cable7. User manual

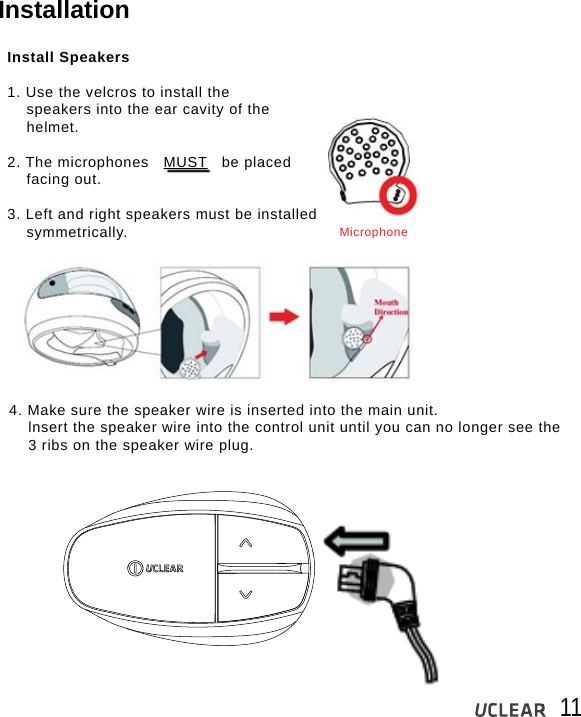

11InstallationInstall Speakers1. Use the velcros to install the    speakers into the ear cavity of the    helmet.2. The microphones   MUST   be placed    facing out.3. Left and right speakers must be installed     symmetrically.4. Make sure the speaker wire is inserted into the main unit.    lnsert the speaker wire into the control unit until you can no longer see the     3 ribs on the speaker wire plug.Microphone

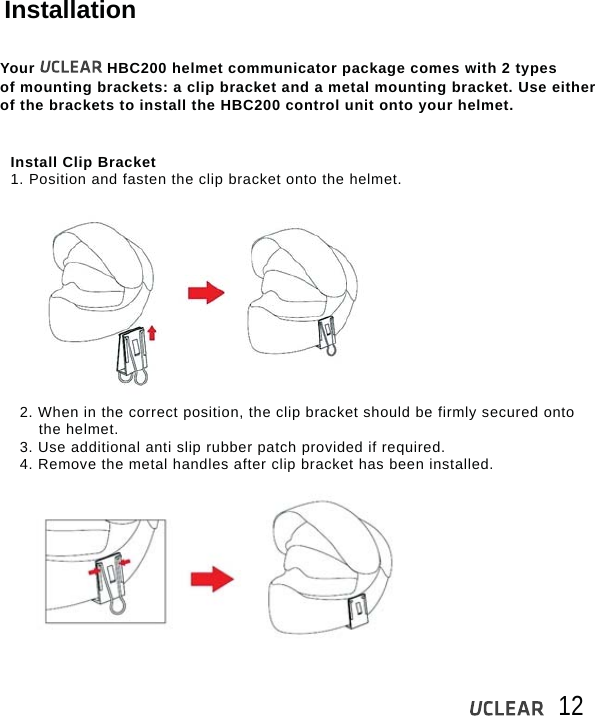

12InstallationYour               HBC200 helmet communicator package comes with 2 types of mounting brackets: a clip bracket and a metal mounting bracket. Use either of the brackets to install the HBC200 control unit onto your helmet.Install Clip Bracket1. Position and fasten the clip bracket onto the helmet.2. When in the correct position, the clip bracket should be firmly secured onto    the helmet.3. Use additional anti slip rubber patch provided if required. 4. Remove the metal handles after clip bracket has been installed.

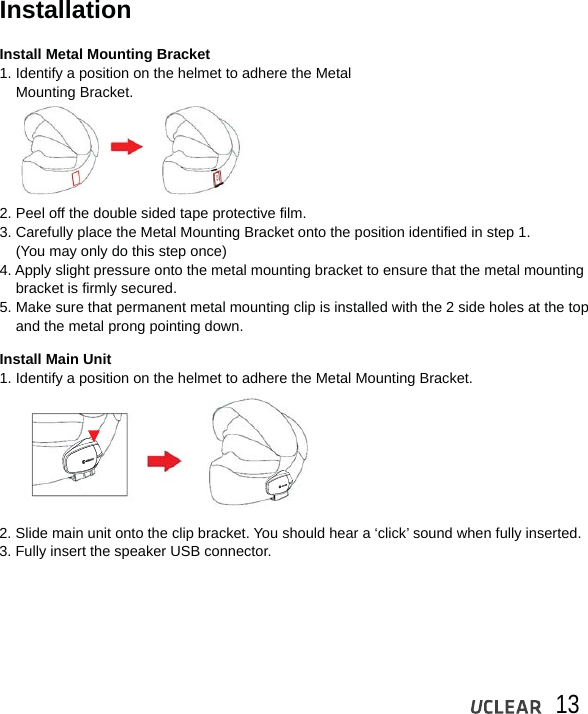

13InstallationInstall Metal Mounting Bracket1. Identify a position on the helmet to adhere the Metal    Mounting Bracket.Install Main Unit1. Identify a position on the helmet to adhere the Metal Mounting Bracket.2. Peel off the double sided tape protective film.3. Carefully place the Metal Mounting Bracket onto the position identified in step 1.     (You may only do this step once) 4. Apply slight pressure onto the metal mounting bracket to ensure that the metal mounting    bracket is firmly secured.5. Make sure that permanent metal mounting clip is installed with the 2 side holes at the top     and the metal prong pointing down.2. Slide main unit onto the clip bracket. You should hear a ‘click’ sound when fully inserted.3. Fully insert the speaker USB connector.

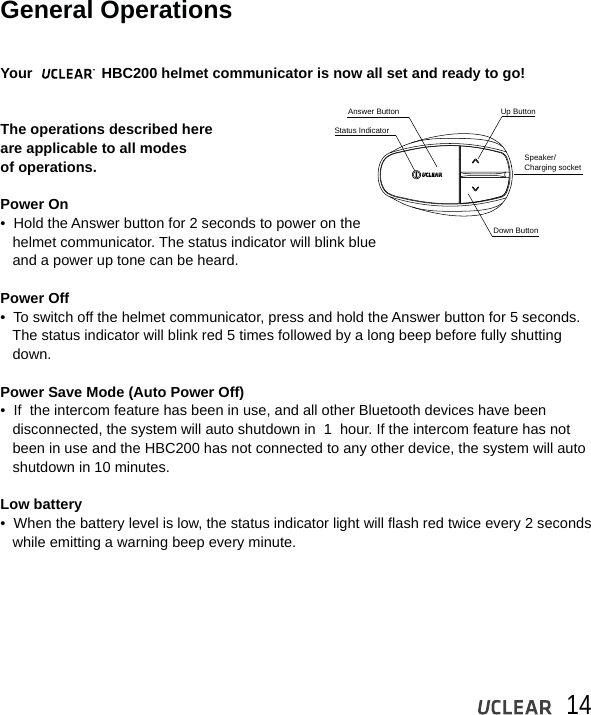

14General OperationsYour                 HBC200 helmet communicator is now all set and ready to go! The operations described here are applicable to all modes of operations.Power On•  Hold the Answer button for 2 seconds to power on the   helmet communicator. The status indicator will blink blue    and a power up tone can be heard.Power Off•  To switch off the helmet communicator, press and hold the Answer button for 5 seconds.    The status indicator will blink red 5 times followed by a long beep before fully shutting    down.Power Save Mode (Auto Power Off)•  If  the intercom feature has been in use, and all other Bluetooth devices have been    disconnected, the system will auto shutdown in  1  hour. If the intercom feature has not   been in use and the HBC200 has not connected to any other device, the system will auto    shutdown in 10 minutes.Low battery•  When the battery level is low, the status indicator light will flash red twice every 2 seconds   while emitting a warning beep every minute. Status IndicatorAnswer Button Up ButtonSpeaker/Charging socketDown Button

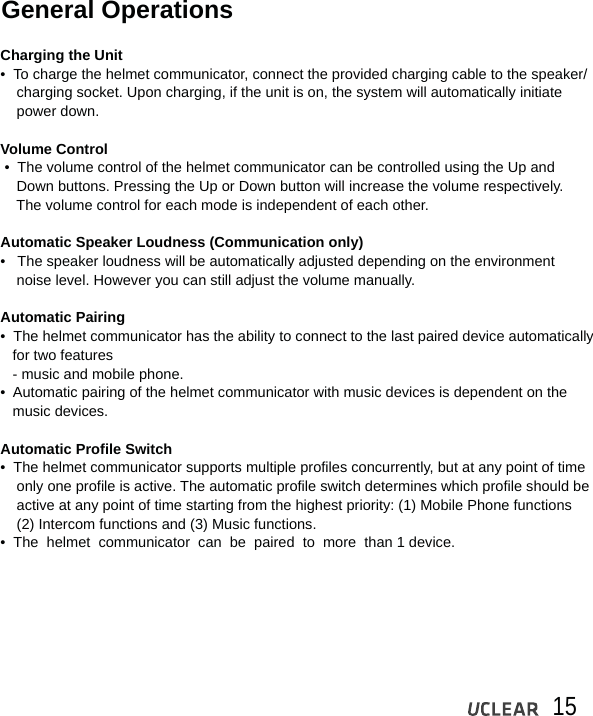

15General OperationsCharging the Unit•  To charge the helmet communicator, connect the provided charging cable to the speaker/     charging socket. Upon charging, if the unit is on, the system will automatically initiate     power down.Volume Control •  The volume control of the helmet communicator can be controlled using the Up and     Down buttons. Pressing the Up or Down button will increase the volume respectively.     The volume control for each mode is independent of each other. Automatic Speaker Loudness (Communication only)•   The speaker loudness will be automatically adjusted depending on the environment     noise level. However you can still adjust the volume manually.Automatic Pairing•  The helmet communicator has the ability to connect to the last paired device automatically    for two features   - music and mobile phone.•  Automatic pairing of the helmet communicator with music devices is dependent on the    music devices.Automatic Profile Switch•  The helmet communicator supports multiple profiles concurrently, but at any point of time     only one profile is active. The automatic profile switch determines which profile should be     active at any point of time starting from the highest priority: (1) Mobile Phone functions     (2) Intercom functions and (3) Music functions.•  The  helmet  communicator  can  be  paired  to  more  than 1 device.

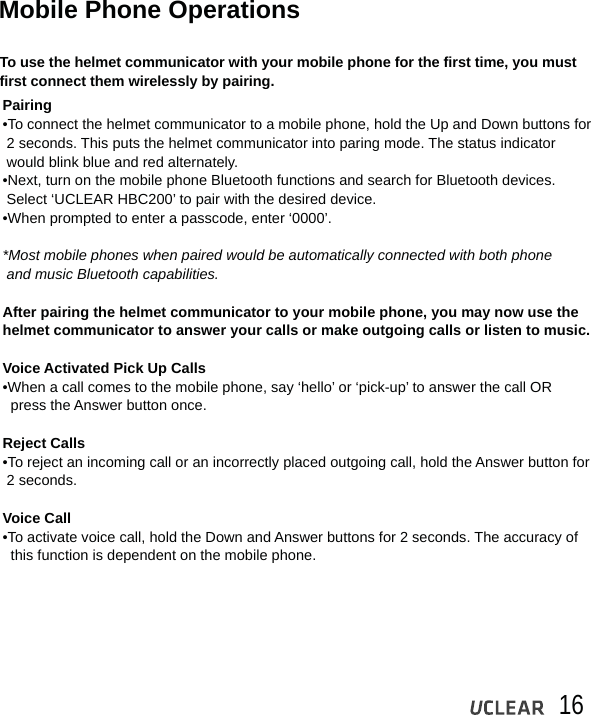

16Mobile Phone OperationsTo use the helmet communicator with your mobile phone for the first time, you must first connect them wirelessly by pairing.Pairing•To connect the helmet communicator to a mobile phone, hold the Up and Down buttons for  2 seconds. This puts the helmet communicator into paring mode. The status indicator  would blink blue and red alternately.•Next, turn on the mobile phone Bluetooth functions and search for Bluetooth devices.  Select ‘UCLEAR HBC200’ to pair with the desired device.•When prompted to enter a passcode, enter ‘0000’.*Most mobile phones when paired would be automatically connected with both phone  and music Bluetooth capabilities.After pairing the helmet communicator to your mobile phone, you may now use the helmet communicator to answer your calls or make outgoing calls or listen to music. Voice Activated Pick Up Calls•When a call comes to the mobile phone, say ‘hello’ or ‘pick-up’ to answer the call OR   press the Answer button once. Reject Calls•To reject an incoming call or an incorrectly placed outgoing call, hold the Answer button for  2 seconds. Voice Call•To activate voice call, hold the Down and Answer buttons for 2 seconds. The accuracy of   this function is dependent on the mobile phone.

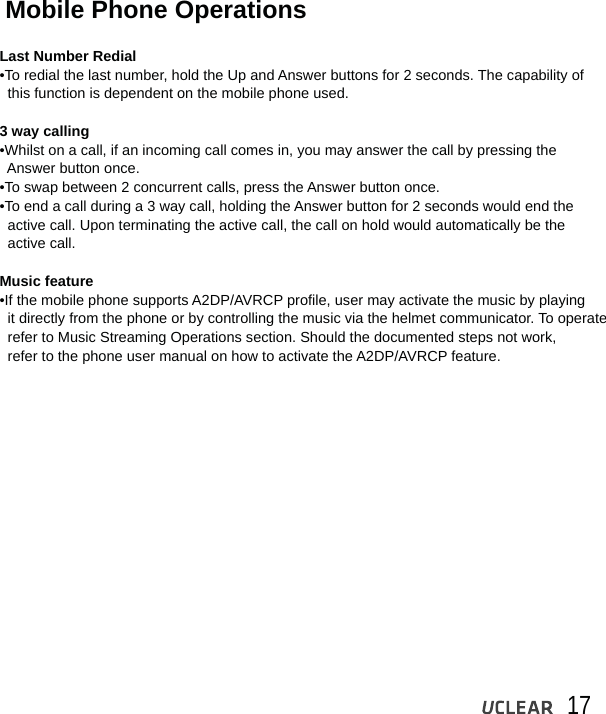

17Mobile Phone OperationsLast Number Redial•To redial the last number, hold the Up and Answer buttons for 2 seconds. The capability of   this function is dependent on the mobile phone used.3 way calling•Whilst on a call, if an incoming call comes in, you may answer the call by pressing the   Answer button once. •To swap between 2 concurrent calls, press the Answer button once.•To end a call during a 3 way call, holding the Answer button for 2 seconds would end the   active call. Upon terminating the active call, the call on hold would automatically be the   active call.Music feature•If the mobile phone supports A2DP/AVRCP profile, user may activate the music by playing   it directly from the phone or by controlling the music via the helmet communicator. To operate  refer to Music Streaming Operations section. Should the documented steps not work,   refer to the phone user manual on how to activate the A2DP/AVRCP feature.

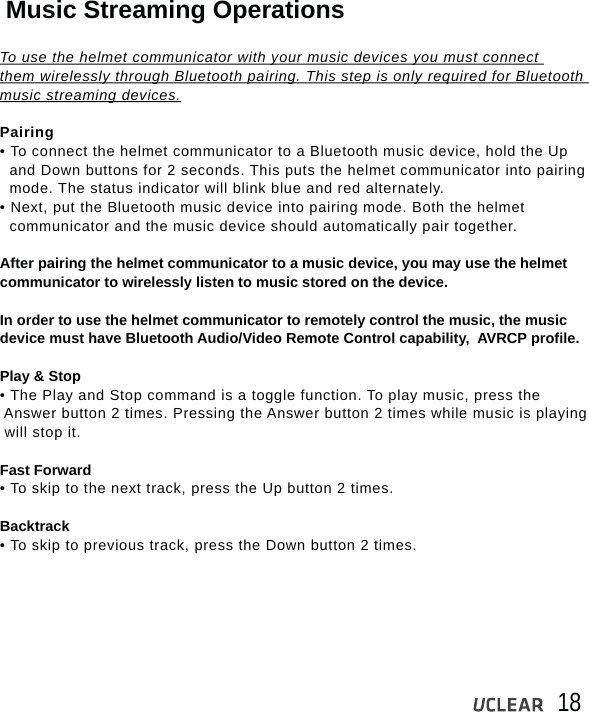

18Music Streaming OperationsTo use the helmet communicator with your music devices you must connect them wirelessly through Bluetooth pairing. This step is only required for Bluetooth music streaming devices.Pairing• To connect the helmet communicator to a Bluetooth music device, hold the Up   and Down buttons for 2 seconds. This puts the helmet communicator into pairing   mode. The status indicator will blink blue and red alternately.• Next, put the Bluetooth music device into pairing mode. Both the helmet   communicator and the music device should automatically pair together. After pairing the helmet communicator to a music device, you may use the helmet communicator to wirelessly listen to music stored on the device. In order to use the helmet communicator to remotely control the music, the music device must have Bluetooth Audio/Video Remote Control capability,  AVRCP profile.Play & Stop• The Play and Stop command is a toggle function. To play music, press the  Answer button 2 times. Pressing the Answer button 2 times while music is playing  will stop it.Fast Forward• To skip to the next track, press the Up button 2 times.Backtrack• To skip to previous track, press the Down button 2 times.

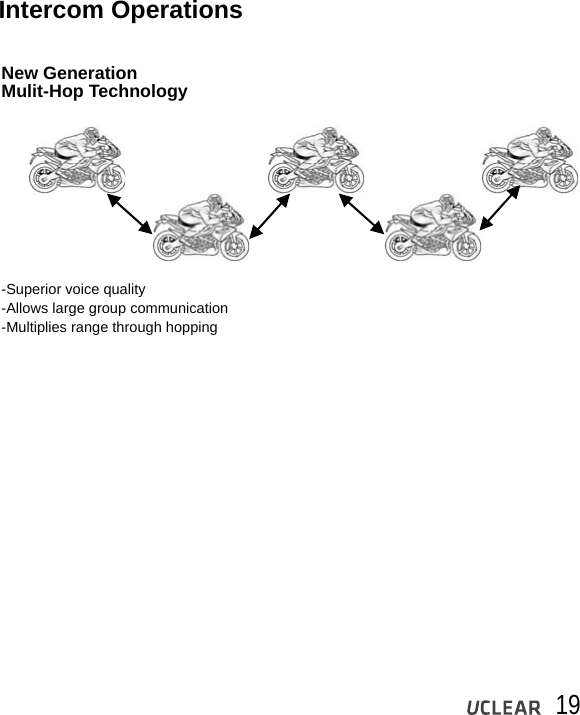

19Intercom OperationsNew GenerationMulit-Hop Technology -Superior voice quality-Allows large group communication-Multiplies range through hopping

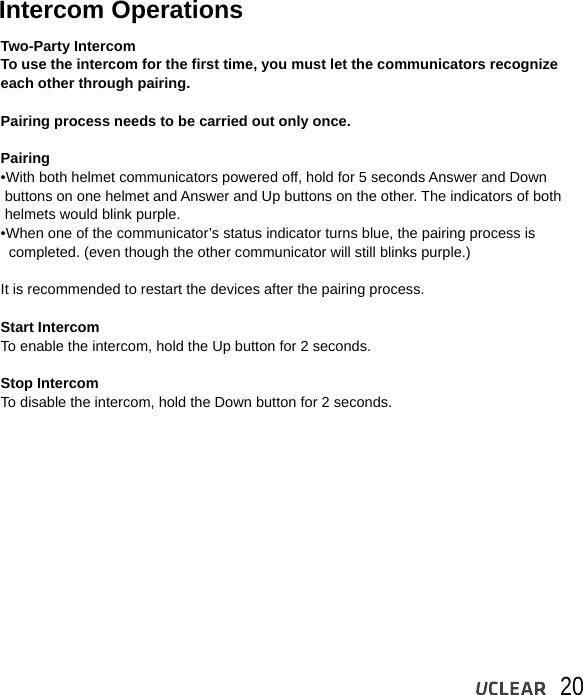

20Intercom OperationsTwo-Party IntercomTo use the intercom for the first time, you must let the communicators recognize each other through pairing. Pairing process needs to be carried out only once.Pairing •With both helmet communicators powered off, hold for 5 seconds Answer and Down  buttons on one helmet and Answer and Up buttons on the other. The indicators of both  helmets would blink purple.•When one of the communicator’s status indicator turns blue, the pairing process is   completed. (even though the other communicator will still blinks purple.)It is recommended to restart the devices after the pairing process.Start Intercom To enable the intercom, hold the Up button for 2 seconds.Stop Intercom To disable the intercom, hold the Down button for 2 seconds.

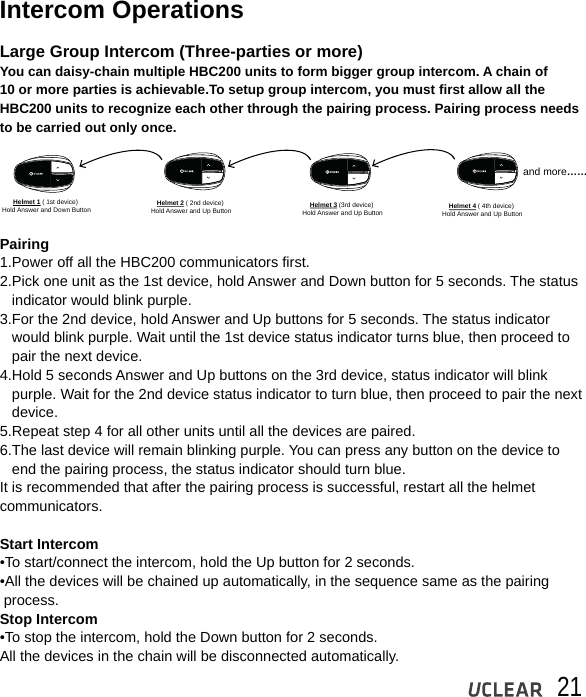

21Intercom OperationsLarge Group Intercom (Three-parties or more)You can daisy-chain multiple HBC200 units to form bigger group intercom. A chain of 10 or more parties is achievable.To setup group intercom, you must first allow all the HBC200 units to recognize each other through the pairing process. Pairing process needs to be carried out only once.                                                                                                                                                                            Pairing1.Power off all the HBC200 communicators first.2.Pick one unit as the 1st device, hold Answer and Down button for 5 seconds. The status   indicator would blink purple.3.For the 2nd device, hold Answer and Up buttons for 5 seconds. The status indicator    would blink purple. Wait until the 1st device status indicator turns blue, then proceed to    pair the next device.4.Hold 5 seconds Answer and Up buttons on the 3rd device, status indicator will blink    purple. Wait for the 2nd device status indicator to turn blue, then proceed to pair the next    device.5.Repeat step 4 for all other units until all the devices are paired. 6.The last device will remain blinking purple. You can press any button on the device to    end the pairing process, the status indicator should turn blue. It is recommended that after the pairing process is successful, restart all the helmet communicators.Start Intercom •To start/connect the intercom, hold the Up button for 2 seconds.•All the devices will be chained up automatically, in the sequence same as the pairing  process. Stop Intercom •To stop the intercom, hold the Down button for 2 seconds.All the devices in the chain will be disconnected automatically.Helmet 1 ( 1st device) Hold Answer and Down Button Helmet 2 ( 2nd device) Hold Answer and Up Button Helmet 3 (3rd device) Hold Answer and Up Button Helmet 4 ( 4th device) Hold Answer and Up Buttonand more……

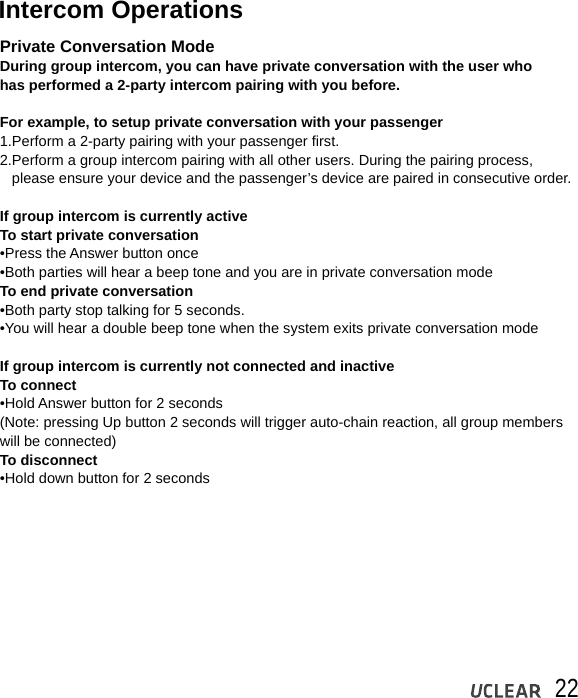

22Intercom OperationsPrivate Conversation ModeDuring group intercom, you can have private conversation with the user who has performed a 2-party intercom pairing with you before.For example, to setup private conversation with your passenger 1.Perform a 2-party pairing with your passenger first.2.Perform a group intercom pairing with all other users. During the pairing process,    please ensure your device and the passenger’s device are paired in consecutive order.If group intercom is currently activeTo start private conversation   •Press the Answer button once•Both parties will hear a beep tone and you are in private conversation modeTo end private conversation   •Both party stop talking for 5 seconds.•You will hear a double beep tone when the system exits private conversation modeIf group intercom is currently not connected and inactiveTo connect  •Hold Answer button for 2 seconds(Note: pressing Up button 2 seconds will trigger auto-chain reaction, all group members will be connected)To disconnect  •Hold down button for 2 seconds

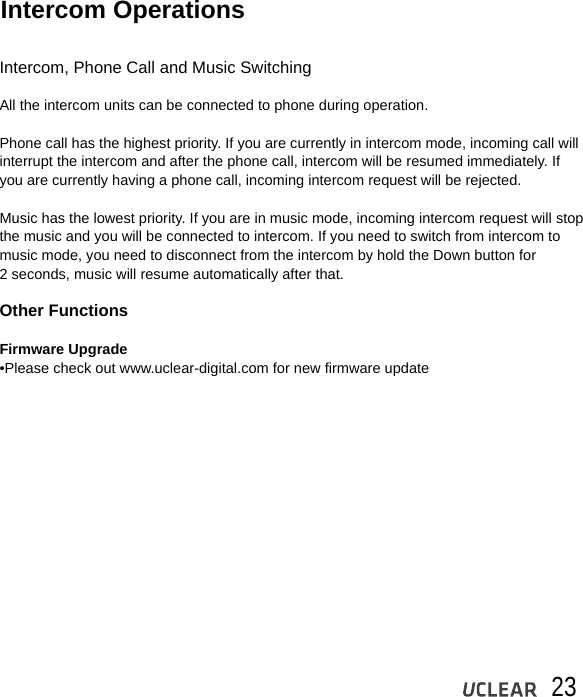

23Intercom OperationsIntercom, Phone Call and Music SwitchingAll the intercom units can be connected to phone during operation.  Phone call has the highest priority. If you are currently in intercom mode, incoming call will interrupt the intercom and after the phone call, intercom will be resumed immediately. If you are currently having a phone call, incoming intercom request will be rejected.Music has the lowest priority. If you are in music mode, incoming intercom request will stop the music and you will be connected to intercom. If you need to switch from intercom to music mode, you need to disconnect from the intercom by hold the Down button for2 seconds, music will resume automatically after that.Other FunctionsFirmware Upgrade •Please check out www.uclear-digital.com for new firmware update

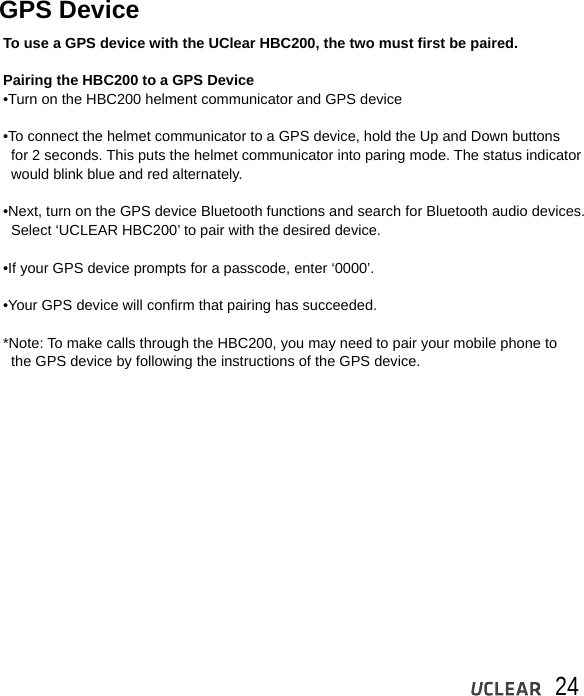

24GPS DeviceTo use a GPS device with the UClear HBC200, the two must first be paired.Pairing the HBC200 to a GPS Device•Turn on the HBC200 helment communicator and GPS device•To connect the helmet communicator to a GPS device, hold the Up and Down buttons   for 2 seconds. This puts the helmet communicator into paring mode. The status indicator   would blink blue and red alternately.•Next, turn on the GPS device Bluetooth functions and search for Bluetooth audio devices.   Select ‘UCLEAR HBC200’ to pair with the desired device.•If your GPS device prompts for a passcode, enter ‘0000’.•Your GPS device will confirm that pairing has succeeded.  *Note: To make calls through the HBC200, you may need to pair your mobile phone to   the GPS device by following the instructions of the GPS device.

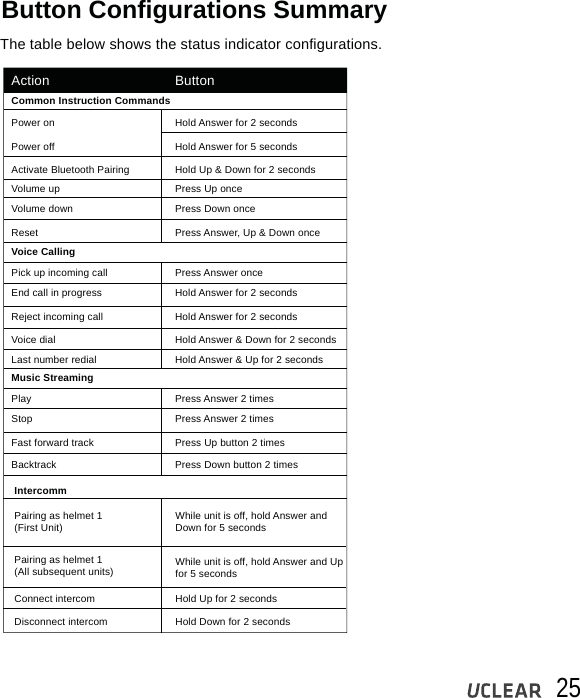

25Button Configurations SummaryThe table below shows the status indicator configurations.Action ButtonPower onCommon Instruction CommandsVoice CallingPower offVolume downResetPick up incoming callEnd call in progressReject incoming callActivate Bluetooth PairingHold Answer for 2 secondsHold Answer for 5 secondsPress Down oncePress Answer, Up & Down oncePress Answer onceHold Answer for 2 secondsHold Answer for 2 secondsVoice dialLast number redialHold Answer & Down for 2 secondsHold Answer & Up for 2 secondsMusic StreamingPlayStopFast forward trackPress Answer 2 timesPress Answer 2 timesPress Up button 2 timesPress Down button 2 timesBacktrackHold Up & Down for 2 secondsVolume up Press Up oncePairing as helmet 1(First Unit)Pairing as helmet 1(All subsequent units)IntercommConnect intercomDisconnect intercomWhile unit is off, hold Answer and Down for 5 secondsWhile unit is off, hold Answer and Up for 5 secondsHold Up for 2 secondsHold Down for 2 seconds

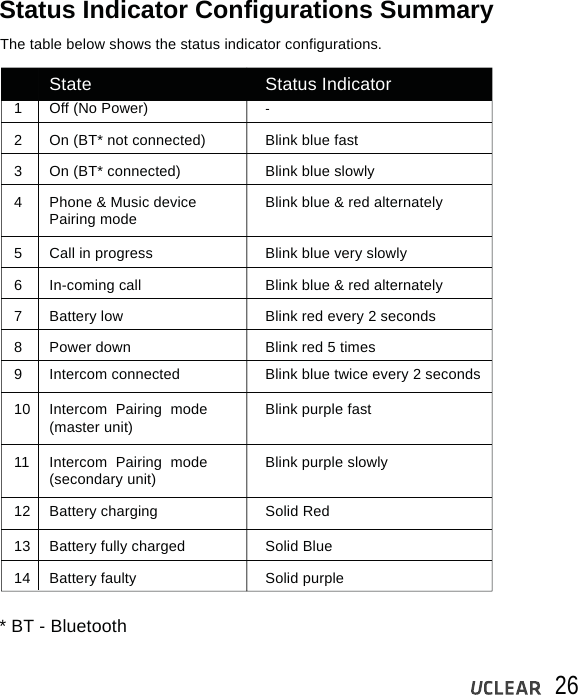

26Status Indicator Configurations SummaryThe table below shows the status indicator configurations.* BT - BluetoothState Status IndicatorOff (No Power)On (BT* not connected)On (BT* connected)Call in progressIn-coming callBattery lowPower downIntercom connectedBattery fully chargedBattery faultyIntercom  Pairing  mode(secondary unit)Battery chargingIntercom  Pairing  mode(master unit)Phone & Music devicePairing mode1235678913141112104-Blink blue fastBlink blue slowlyBlink blue very slowlyBlink blue & red alternatelyBlink red every 2 secondsBlink red 5 timesBlink blue twice every 2 secondsSolid BlueSolid purpleBlink purple slowlySolid RedBlink purple fastBlink blue & red alternately
27Technical DataUnitDimensions (L x W X H) 60mm x 40mm x 15mmWeight 36gAudioBluetoothFrequency response 30Hz to 20 kHzSampling rate 48kHz, 16 bitSpecifications Version 2.1 EDR, Class 1Profiles HSP, HFP, A2DP, AVRCP, IntercomSPL 105dB +/- 2dBRadioPowerTemperatureCarrier frequency 2.402 - 2.480 GHzRange Up to 700m (open field)RF output power 18dBmPower consumption 200mW (max)Standby time 400 hoursProfiles HSP, HFP, A2DP, AVRCP, IntercomPower input (charging) 5V / 400mA / 2WBuilt-in battery 3.7V, 570mAh, Lithium-ion Polymer (Rechargeable)Music / talk time Up to 10 hoursStorage temperature  -40°C to +80°C (-38°F to +176°F)Operation temperature -10°C to +60°C (14°F to +140°F)Charging temperature 0°C to +45°C (+32°F to +113°F)

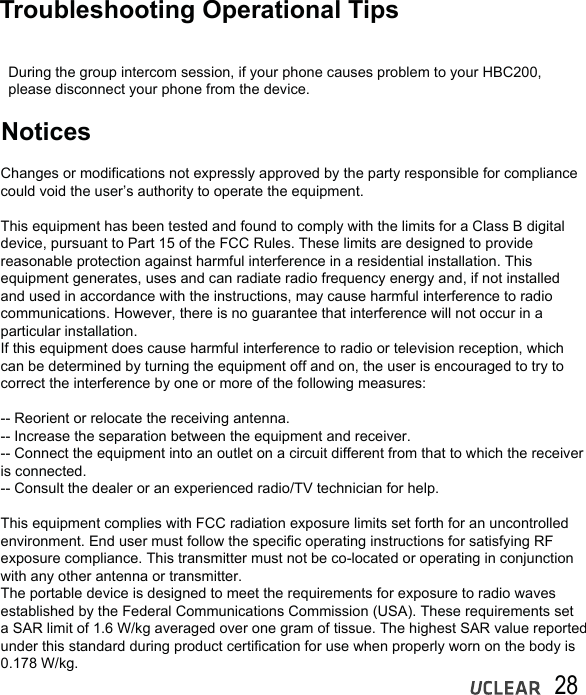

28 Troubleshooting Operational TipsNotices  During the group intercom session, if your phone causes problem to your HBC200,   please disconnect your phone from the device.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.The portable device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA). These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body is 0.178 W/kg.

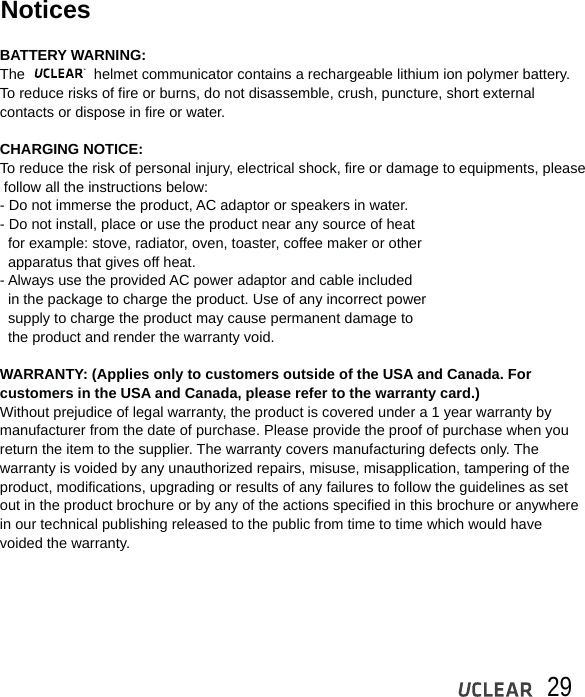

29NoticesBATTERY WARNING:The                 helmet communicator contains a rechargeable lithium ion polymer battery. To reduce risks of fire or burns, do not disassemble, crush, puncture, short external contacts or dispose in fire or water.CHARGING NOTICE:To reduce the risk of personal injury, electrical shock, fire or damage to equipments, please follow all the instructions below: - Do not immerse the product, AC adaptor or speakers in water. - Do not install, place or use the product near any source of heat   for example: stove, radiator, oven, toaster, coffee maker or other   apparatus that gives off heat.- Always use the provided AC power adaptor and cable included  in the package to charge the product. Use of any incorrect power  supply to charge the product may cause permanent damage to  the product and render the warranty void.WARRANTY: (Applies only to customers outside of the USA and Canada. For customers in the USA and Canada, please refer to the warranty card.)Without prejudice of legal warranty, the product is covered under a 1 year warranty bymanufacturer from the date of purchase. Please provide the proof of purchase when you return the item to the supplier. The warranty covers manufacturing defects only. The warranty is voided by any unauthorized repairs, misuse, misapplication, tampering of the product, modifications, upgrading or results of any failures to follow the guidelines as set out in the product brochure or by any of the actions specified in this brochure or anywherein our technical publishing released to the public from time to time which would have voided the warranty.

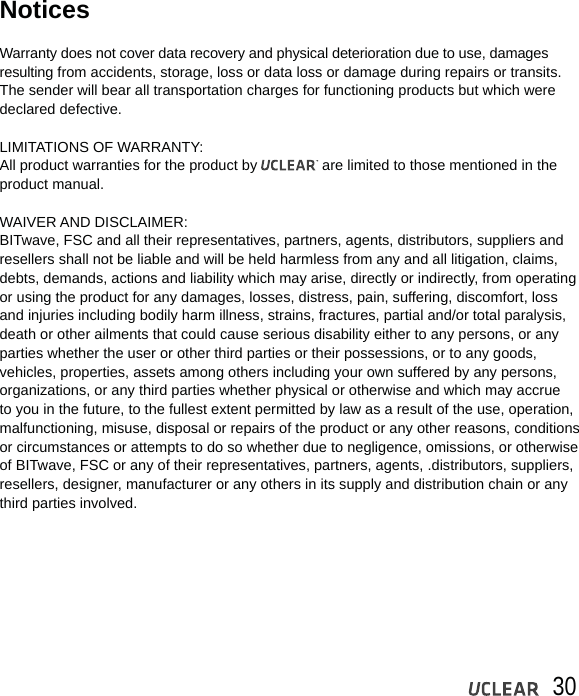

30NoticesWarranty does not cover data recovery and physical deterioration due to use, damages resulting from accidents, storage, loss or data loss or damage during repairs or transits. The sender will bear all transportation charges for functioning products but which were declared defective.LIMITATIONS OF WARRANTY:All product warranties for the product by                are limited to those mentioned in the product manual.WAIVER AND DISCLAIMER:BITwave, FSC and all their representatives, partners, agents, distributors, suppliers and resellers shall not be liable and will be held harmless from any and all litigation, claims, debts, demands, actions and liability which may arise, directly or indirectly, from operating or using the product for any damages, losses, distress, pain, suffering, discomfort, loss and injuries including bodily harm illness, strains, fractures, partial and/or total paralysis, death or other ailments that could cause serious disability either to any persons, or any parties whether the user or other third parties or their possessions, or to any goods, vehicles, properties, assets among others including your own suffered by any persons, organizations, or any third parties whether physical or otherwise and which may accrue to you in the future, to the fullest extent permitted by law as a result of the use, operation,malfunctioning, misuse, disposal or repairs of the product or any other reasons, conditions or circumstances or attempts to do so whether due to negligence, omissions, or otherwise of BITwave, FSC or any of their representatives, partners, agents, .distributors, suppliers, resellers, designer, manufacturer or any others in its supply and distribution chain or any third parties involved.

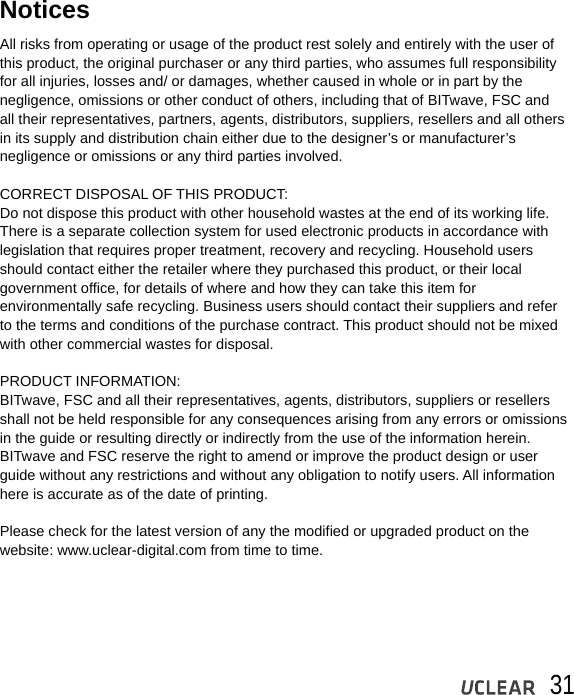

31All risks from operating or usage of the product rest solely and entirely with the user of this product, the original purchaser or any third parties, who assumes full responsibilityfor all injuries, losses and/ or damages, whether caused in whole or in part by the negligence, omissions or other conduct of others, including that of BITwave, FSC and all their representatives, partners, agents, distributors, suppliers, resellers and all othersin its supply and distribution chain either due to the designer’s or manufacturer’s negligence or omissions or any third parties involved.CORRECT DISPOSAL OF THIS PRODUCT:Do not dispose this product with other household wastes at the end of its working life. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their suppliers and refer to the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.PRODUCT INFORMATION:BITwave, FSC and all their representatives, agents, distributors, suppliers or resellers shall not be held responsible for any consequences arising from any errors or omissions in the guide or resulting directly or indirectly from the use of the information herein. BITwave and FSC reserve the right to amend or improve the product design or user guide without any restrictions and without any obligation to notify users. All information here is accurate as of the date of printing. Please check for the latest version of any the modified or upgraded product on the website: www.uclear-digital.com from time to time.Notices

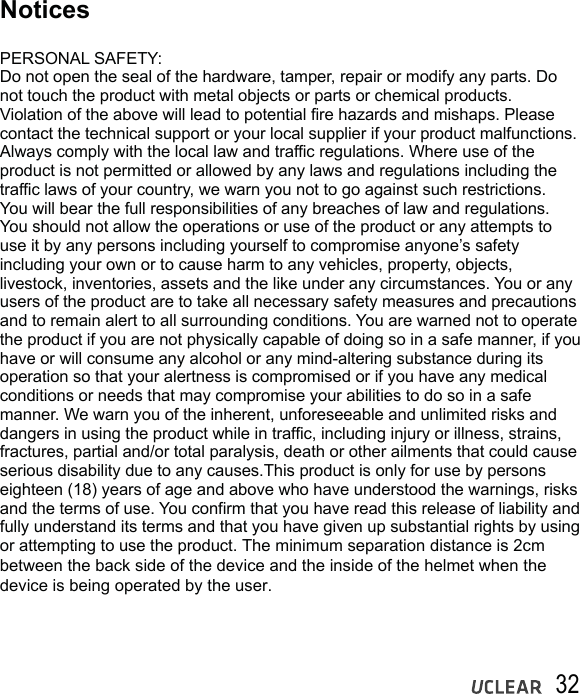

32NoticesPERSONAL SAFETY:Do not open the seal of the hardware, tamper, repair or modify any parts. Do not touch the product with metal objects or parts or chemical products. Violation of the above will lead to potential fire hazards and mishaps. Please contact the technical support or your local supplier if your product malfunctions. Always comply with the local law and traffic regulations. Where use of theproduct is not permitted or allowed by any laws and regulations including the traffic laws of your country, we warn you not to go against such restrictions. You will bear the full responsibilities of any breaches of law and regulations. You should not allow the operations or use of the product or any attempts to use it by any persons including yourself to compromise anyone’s safety including your own or to cause harm to any vehicles, property, objects, livestock, inventories, assets and the like under any circumstances. You or any users of the product are to take all necessary safety measures and precautions and to remain alert to all surrounding conditions. You are warned not to operatethe product if you are not physically capable of doing so in a safe manner, if you have or will consume any alcohol or any mind-altering substance during its operation so that your alertness is compromised or if you have any medical conditions or needs that may compromise your abilities to do so in a safe manner. We warn you of the inherent, unforeseeable and unlimited risks and dangers in using the product while in traffic, including injury or illness, strains, fractures, partial and/or total paralysis, death or other ailments that could cause serious disability due to any causes.This product is only for use by personseighteen (18) years of age and above who have understood the warnings, risks and the terms of use. You confirm that you have read this release of liability and fully understand its terms and that you have given up substantial rights by using or attempting to use the product. The minimum separation distance is 2cm between the back side of the device and the inside of the helmet when the device is being operated by the user.

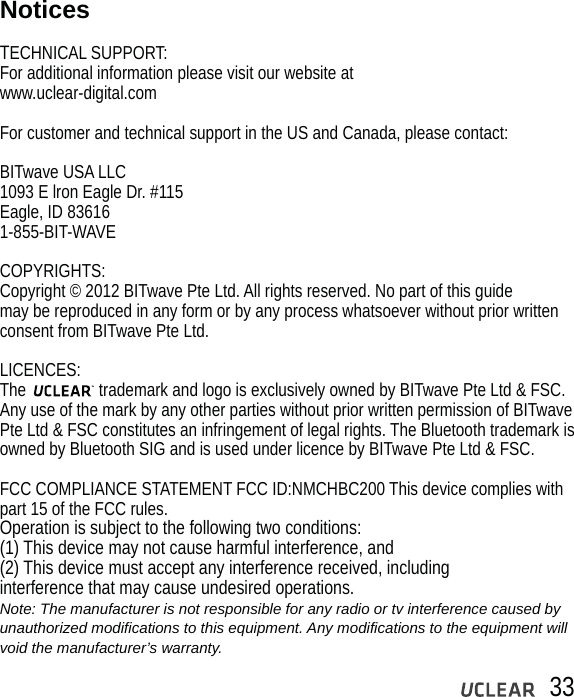

33NoticesTECHNICAL SUPPORT:For additional information please visit our website at www.uclear-digital.comFor customer and technical support in the US and Canada, please contact:BITwave USA LLC1093 E lron Eagle Dr. #115Eagle, ID 836161-855-BIT-WAVECOPYRIGHTS:Copyright © 2012 BITwave Pte Ltd. All rights reserved. No part of this guide may be reproduced in any form or by any process whatsoever without prior written consent from BITwave Pte Ltd.LICENCES:The                 trademark and logo is exclusively owned by BITwave Pte Ltd & FSC. Any use of the mark by any other parties without prior written permission of BITwave Pte Ltd & FSC constitutes an infringement of legal rights. The Bluetooth trademark is owned by Bluetooth SIG and is used under licence by BITwave Pte Ltd & FSC. FCC COMPLIANCE STATEMENT FCC ID:NMCHBC200 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, includinginterference that may cause undesired operations.Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Any modifications to the equipment will void the manufacturer’s warranty.

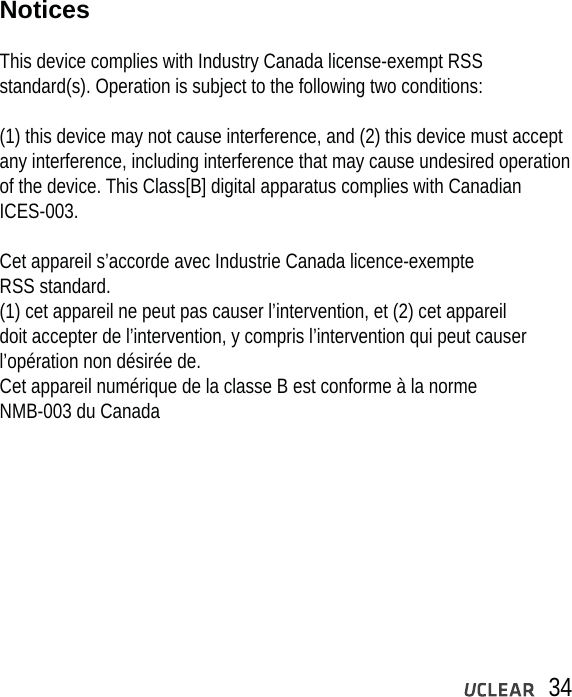

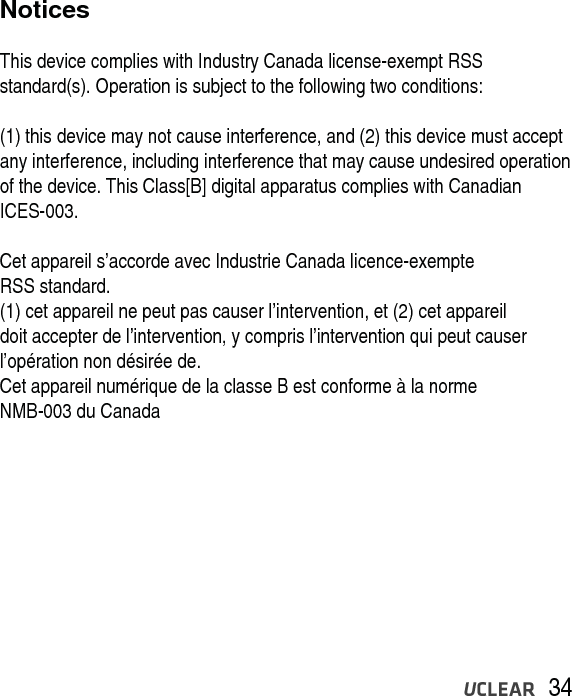

34Notices This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must acceptany interference, including interference that may cause undesired operation of the device. This Class[B] digital apparatus complies with Canadian ICES-003. Cet appareil s’accorde avec Industrie Canada licence-exempte RSS standard. (1) cet appareil ne peut pas causer l’intervention, et (2) cet appareil doit accepter de l’intervention, y compris l’intervention qui peut causer l’opération non désirée de. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada
US-PUB#1D ®
