Universal Remote User ManualMake sure your HBC unit is updated with the latest firmwarewhich can support your Universal Remote.  HBCR001FCC ID:NMCHBCR001

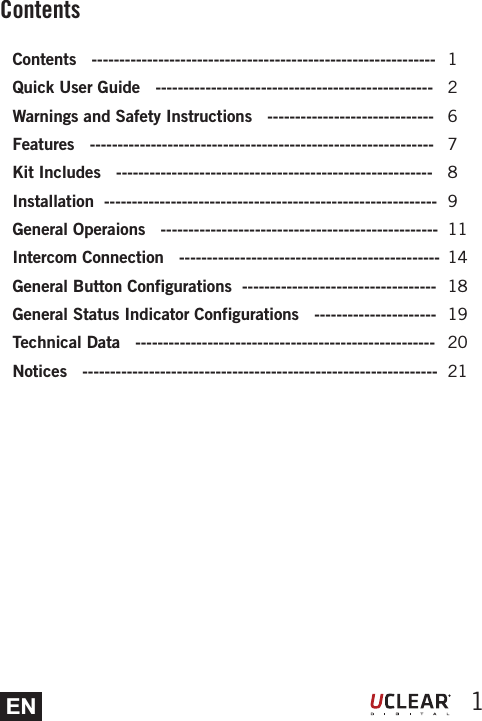

EN 1ContentsContents   -------------------------------------------------------------- Quick User Guide   --------------------------------------------------  Warnings and Safety Instructions   ------------------------------Features   --------------------------------------------------------------Kit Includes   ---------------------------------------------------------Installation  ------------------------------------------------------------General Operaions   --------------------------------------------------Intercom Connection   -----------------------------------------------General Button Configurations  -----------------------------------General Status Indicator Configurations   ----------------------Technical Data   ------------------------------------------------------Notices   ----------------------------------------------------------------126789111418192021

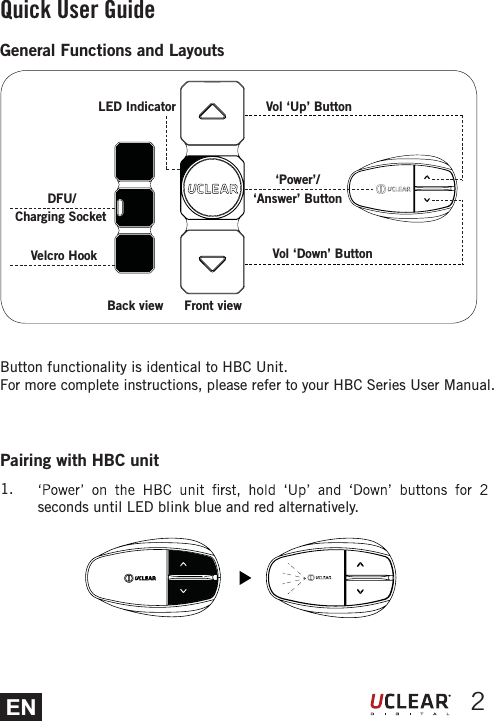

EN 2Quick User GuideGeneral Functions and LayoutsButton functionality is identical to HBC Unit.For more complete instructions, please refer to your HBC Series User Manual.Velcro HookDFU/ Charging Socket‘Power’/ ‘Answer’ ButtonVol ‘Up’ ButtonVol ‘Down’ ButtonLED IndicatorBack view Front viewPairing with HBC unit1. seconds until LED blink blue and red alternatively.

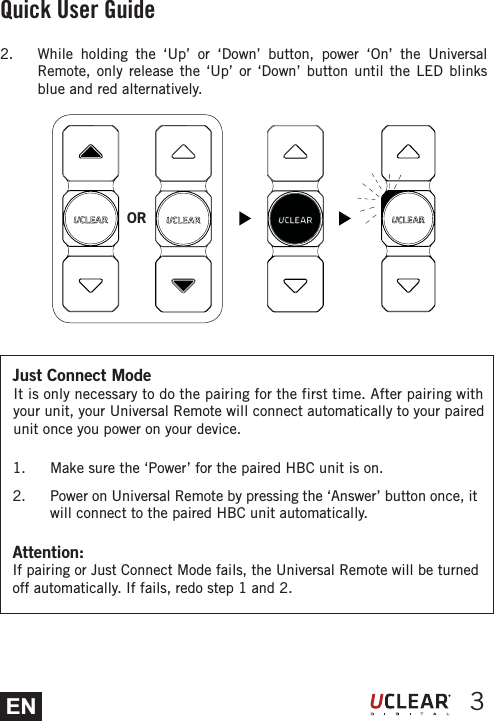

EN 3Attention: If pairing or Just Connect Mode fails, the Universal Remote will be turned off automatically. If fails, redo step 1 and 2. Quick User Guide1.  Make sure the ‘Power’ for the paired HBC unit is on. 2.  Power on Universal Remote by pressing the ‘Answer’ button once, it will connect to the paired HBC unit automatically.OR2.  While holding the ‘Up’ or ‘Down’ button, power ‘On’ the Universal Remote, only release the ‘Up’ or ‘Down’ button until the LED blinks blue and red alternatively.Just Connect ModeIt is only necessary to do the pairing for the first time. After pairing with your unit, your Universal Remote will connect automatically to your paired unit once you power on your device.

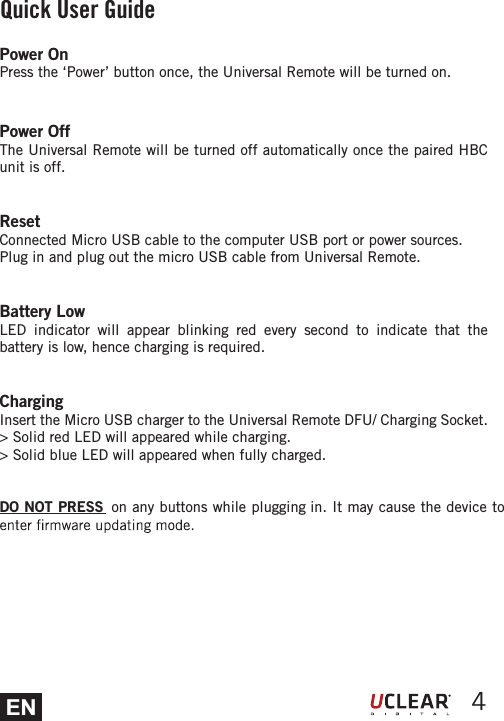

EN 4Power OnPress the ‘Power’ button once, the Universal Remote will be turned on.Power OffThe Universal Remote will be turned off automatically once the paired HBC unit is off.ResetConnected Micro USB cable to the computer USB port or power sources. Plug in and plug out the micro USB cable from Universal Remote.Battery LowLED indicator will appear blinking red every second to indicate that the battery is low, hence charging is required.ChargingInsert the Micro USB charger to the Universal Remote DFU/ Charging Socket.> Solid red LED will appeared while charging.> Solid blue LED will appeared when fully charged.DO NOT PRESS  on any buttons while plugging in. It may cause the device to Quick User Guide

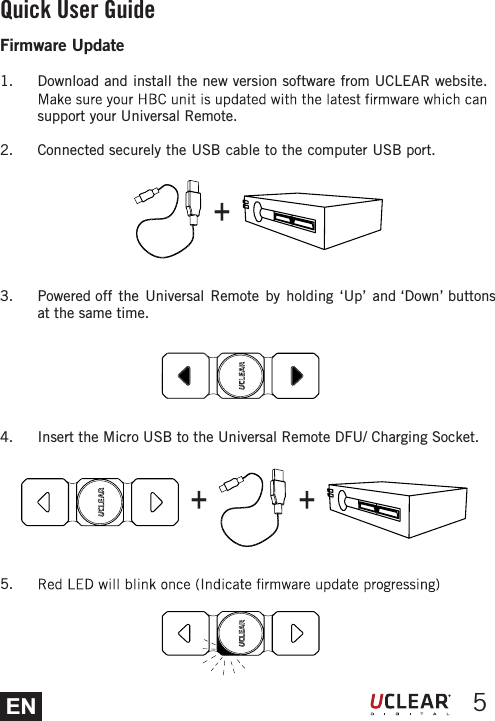

EN 5Quick User GuideFirmware Update1.  Download and install the new version software from UCLEAR website. support your Universal Remote.2. Connected securely the USB cable to the computer USB port.3.  Powered off the Universal Remote by holding ‘Up’ and ‘Down’ buttons at the same time.4.  Insert the Micro USB to the Universal Remote DFU/ Charging Socket.5. +++

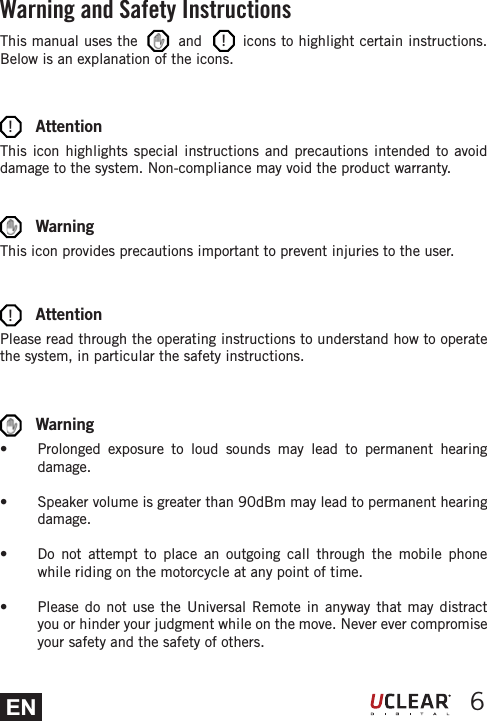

EN 6This manual uses the        and        icons to highlight certain instructions. Below is an explanation of the icons.       AttentionThis icon highlights special instructions and precautions intended to avoid damage to the system. Non-compliance may void the product warranty.       AttentionPlease read through the operating instructions to understand how to operate the system, in particular the safety instructions.       WarningThis icon provides precautions important to prevent injuries to the user.       Warnings  Prolonged exposure to loud sounds may lead to permanent hearing damage.s  Speaker volume is greater than 90dBm may lead to permanent hearing damage.s  Do not attempt to place an outgoing call through the mobile phone while riding on the motorcycle at any point of time.s  Please do not use the Universal Remote in anyway that may distract you or hinder your judgment while on the move. Never ever compromise your safety and the safety of others.Warning and Safety Instructions!!!

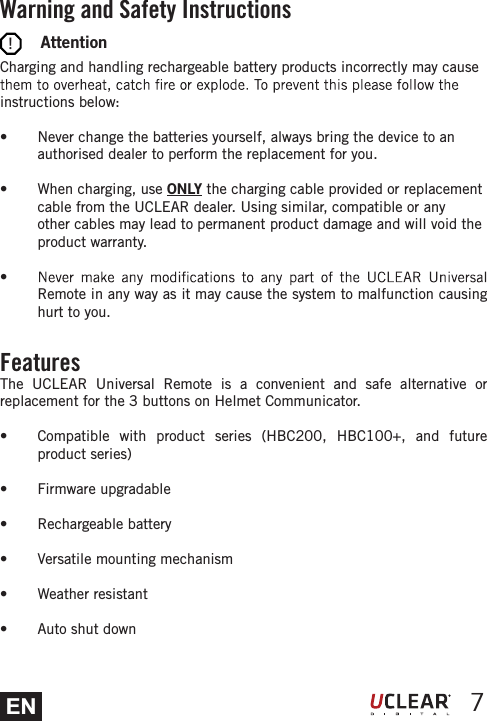

EN 7        AttentionCharging and handling rechargeable battery products incorrectly may cause instructions below: s  Never change the batteries yourself, always bring the device to an authorised dealer to perform the replacement for you. s  When charging, use ONLY the charging cable provided or replacement cable from the UCLEAR dealer. Using similar, compatible or any other cables may lead to permanent product damage and will void the product warranty. s Remote in any way as it may cause the system to malfunction causing hurt to you.Warning and Safety InstructionsFeaturesThe UCLEAR Universal Remote is a convenient and safe alternative or replacement for the 3 buttons on Helmet Communicator.s  Compatible with product series (HBC200, HBC100+, and future product series)s Firmware upgradables Rechargeable batterys  Versatile mounting mechanisms Weather resistants  Auto shut down!

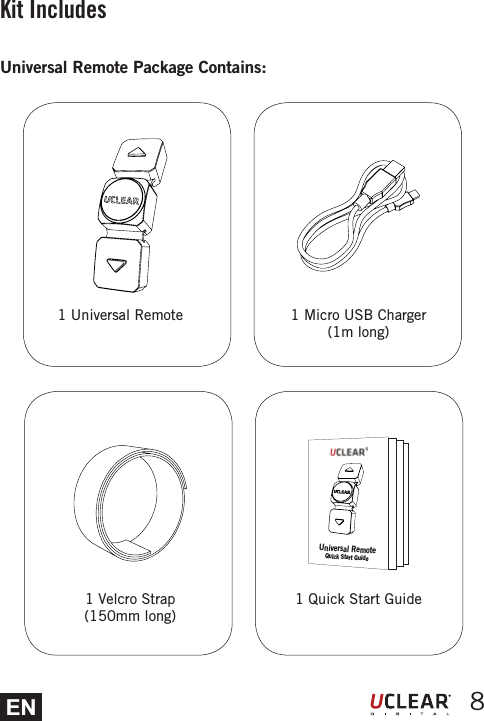

EN 8Kit Includes1 Velcro Strap (150mm long)1 Micro USB Charger (1m long)Universal Remote Package Contains:1 Universal Remote1 Quick Start GuideUniversal RemoteQuick Start Guide

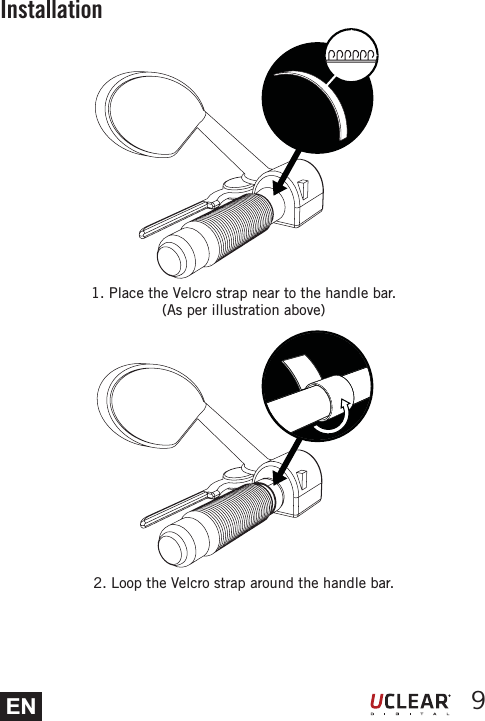

EN 91. Place the Velcro strap near to the handle bar.(As per illustration above)2. Loop the Velcro strap around the handle bar.Installation

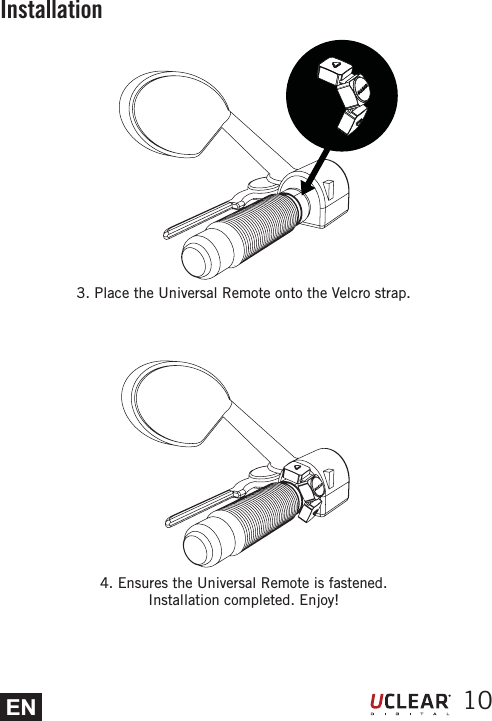

EN 103. Place the Universal Remote onto the Velcro strap.Installation4. Ensures the Universal Remote is fastened.Installation completed. Enjoy!

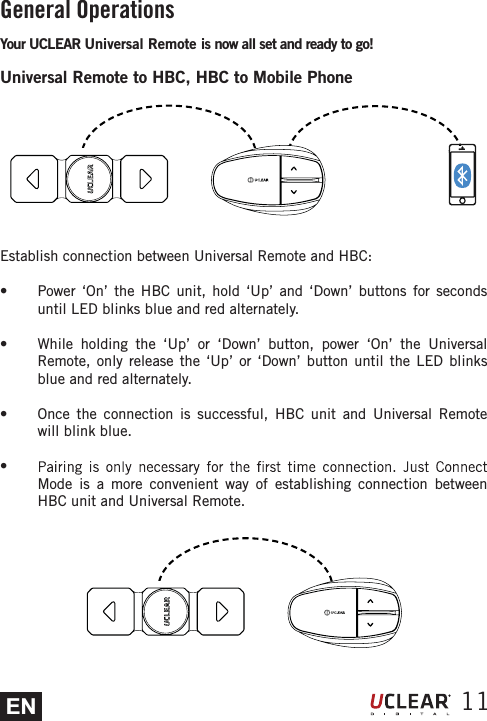

EN 11General OperationsYour UCLEAR Universal Remote is now all set and ready to go!Universal Remote to HBC, HBC to Mobile PhoneEstablish connection between Universal Remote and HBC:s  Power ‘On’ the HBC unit, hold ‘Up’ and ‘Down’ buttons for seconds until LED blinks blue and red alternately.s  While holding the ‘Up’ or ‘Down’ button, power ‘On’ the Universal Remote, only release the ‘Up’ or ‘Down’ button until the LED blinks blue and red alternately.s  Once the connection is successful, HBC unit and Universal Remote will blink blue.s Mode is a more convenient way of establishing connection between HBC unit and Universal Remote.

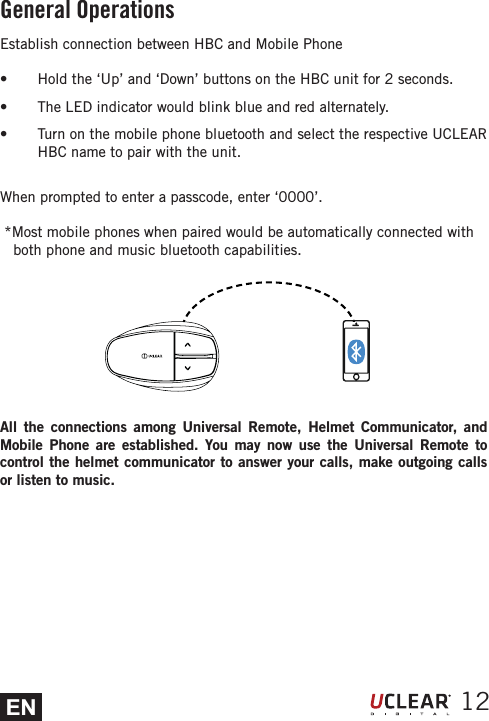

EN 12Establish connection between HBC and Mobile Phones  Hold the ‘Up’ and ‘Down’ buttons on the HBC unit for 2 seconds. s  The LED indicator would blink blue and red alternately. s  Turn on the mobile phone bluetooth and select the respective UCLEAR HBC name to pair with the unit. When prompted to enter a passcode, enter ‘0000’.   *Most mobile phones when paired would be automatically connected with   both phone and music bluetooth capabilities.All the connections among Universal Remote, Helmet Communicator, and Mobile Phone are established. You may now use the Universal Remote to control the helmet communicator to answer your calls, make outgoing calls or listen to music.General Operations

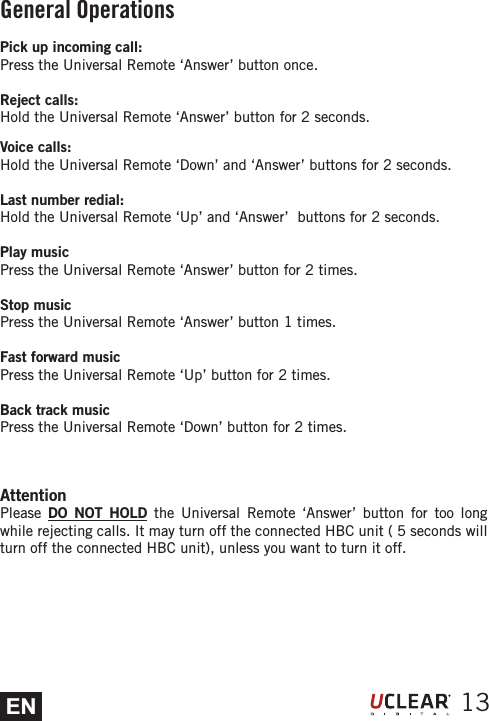

EN 13Pick up incoming call:Press the Universal Remote ‘Answer’ button once.Reject calls:Hold the Universal Remote ‘Answer’ button for 2 seconds.Voice calls:Hold the Universal Remote ‘Down’ and ‘Answer’ buttons for 2 seconds. Last number redial:Hold the Universal Remote ‘Up’ and ‘Answer’  buttons for 2 seconds. Play music Press the Universal Remote ‘Answer’ button for 2 times.Stop musicPress the Universal Remote ‘Answer’ button 1 times.Fast forward musicPress the Universal Remote ‘Up’ button for 2 times.Back track musicPress the Universal Remote ‘Down’ button for 2 times.AttentionPlease  DO NOT HOLD the Universal Remote ‘Answer’ button for too long while rejecting calls. It may turn off the connected HBC unit ( 5 seconds will turn off the connected HBC unit), unless you want to turn it off.General Operations

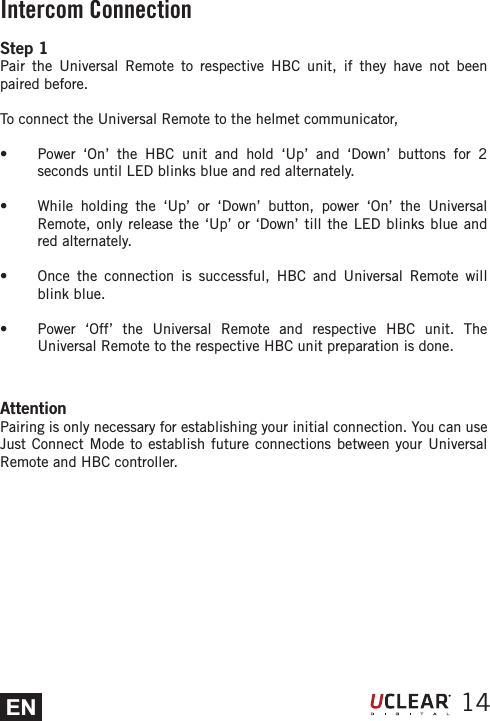

EN 14Intercom ConnectionAttentionPairing is only necessary for establishing your initial connection. You can use Just Connect Mode to establish future connections between your Universal Remote and HBC controller.Step 1Pair the Universal Remote to respective HBC unit, if they have not been paired before.To connect the Universal Remote to the helmet communicator,s  Power ‘On’ the HBC unit and hold ‘Up’ and ‘Down’ buttons for 2 seconds until LED blinks blue and red alternately.s  While holding the ‘Up’ or ‘Down’ button, power ‘On’ the Universal Remote, only release the ‘Up’ or ‘Down’ till the LED blinks blue and red alternately.s  Once the connection is successful, HBC and Universal Remote will blink blue.s  Power ‘Off’ the Universal Remote and respective HBC unit. The Universal Remote to the respective HBC unit preparation is done.

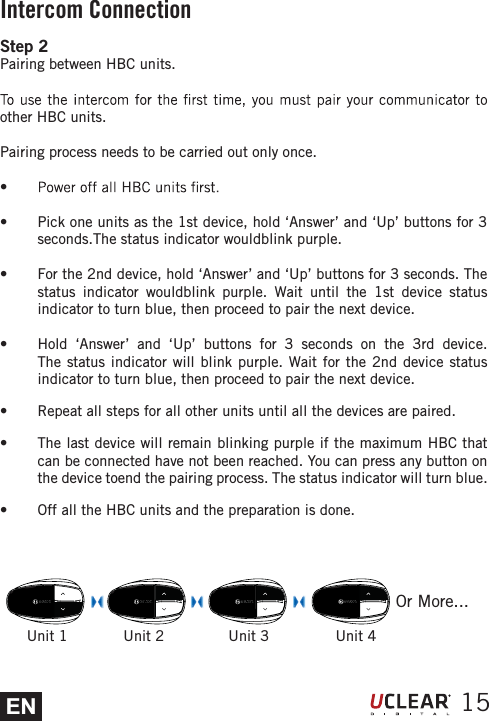

ENOr More...Unit 1 Unit 2 Unit 3 Unit 4Step 2Pairing between HBC units.other HBC units. Pairing process needs to be carried out only once. s s  Pick one units as the 1st device, hold ‘Answer’ and ‘Up’ buttons for 3 seconds.The status indicator wouldblink purple. s  For the 2nd device, hold ‘Answer’ and ‘Up’ buttons for 3 seconds. The status indicator wouldblink purple. Wait until the 1st device status indicator to turn blue, then proceed to pair the next device.s  Hold ‘Answer’ and ‘Up’ buttons for 3 seconds on the 3rd device. The status indicator will blink purple. Wait for the 2nd device status indicator to turn blue, then proceed to pair the next device.s  Repeat all steps for all other units until all the devices are paired.s  The last device will remain blinking purple if the maximum HBC that can be connected have not been reached. You can press any button on the device toend the pairing process. The status indicator will turn blue.s  Off all the HBC units and the preparation is done.Intercom Connection15

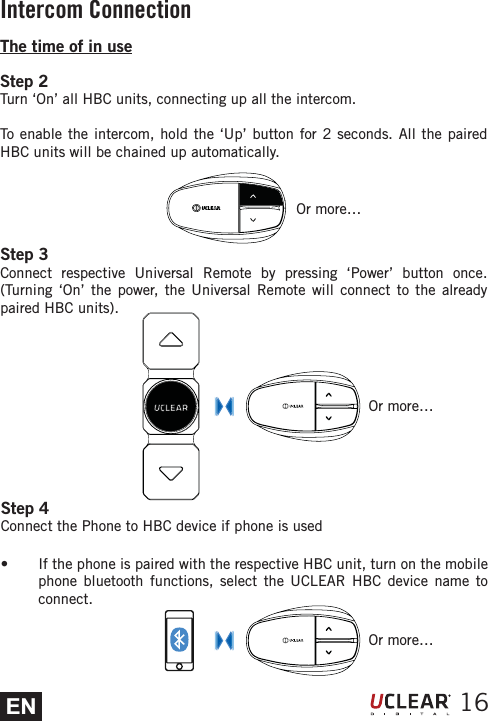

ENOr more…16The time of in useStep 2Turn ‘On’ all HBC units, connecting up all the intercom.To enable the intercom, hold the ‘Up’ button for 2 seconds. All the paired HBC units will be chained up automatically.Step 3Connect respective Universal Remote by pressing ‘Power’ button once. (Turning ‘On’ the power, the Universal Remote will connect to the already paired HBC units).Step 4Connect the Phone to HBC device if phone is useds  If the phone is paired with the respective HBC unit, turn on the mobile phone bluetooth functions, select the UCLEAR HBC device name to connect. Or more…Or more…Intercom Connection

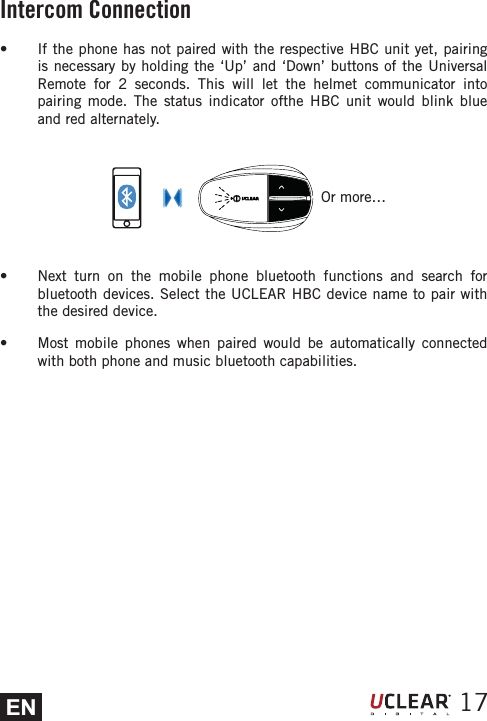

EN 17s  If the phone has not paired with the respective HBC unit yet, pairing is necessary by holding the ‘Up’ and ‘Down’ buttons of the Universal Remote for 2 seconds. This will let the helmet communicator into pairing mode. The status indicator ofthe HBC unit would blink blue and red alternately.s  Next turn on the mobile phone bluetooth functions and search for bluetooth devices. Select the UCLEAR HBC device name to pair with the desired device.s  Most mobile phones when paired would be automatically connected with both phone and music bluetooth capabilities. Or more…Intercom Connection

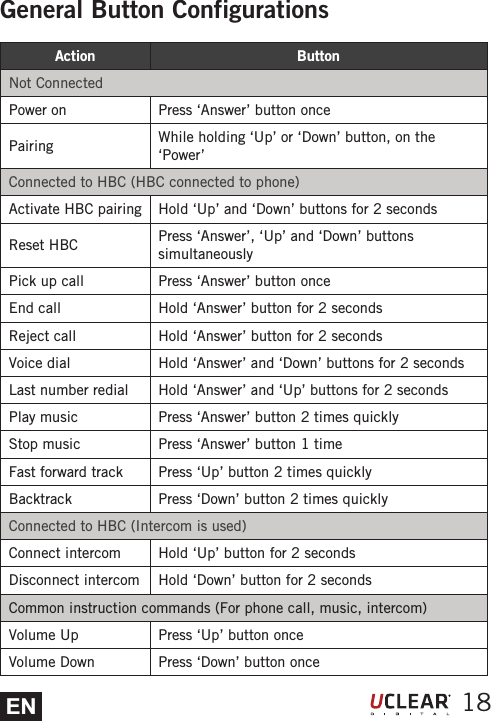

EN 18Action ButtonNot ConnectedPower on Press ‘Answer’ button oncePairing While holding ‘Up’ or ‘Down’ button, on the ‘Power’Connected to HBC (HBC connected to phone)Activate HBC pairing Hold ‘Up’ and ‘Down’ buttons for 2 secondsReset HBC Press ‘Answer’, ‘Up’ and ‘Down’ buttons simultaneouslyPick up call Press ‘Answer’ button onceEnd call Hold ‘Answer’ button for 2 secondsReject call Hold ‘Answer’ button for 2 secondsVoice dial Hold ‘Answer’ and ‘Down’ buttons for 2 secondsLast number redial Hold ‘Answer’ and ‘Up’ buttons for 2 secondsPlay music Press ‘Answer’ button 2 times quicklyStop music Press ‘Answer’ button 1 timeFast forward track Press ‘Up’ button 2 times quicklyBacktrack Press ‘Down’ button 2 times quicklyConnected to HBC (Intercom is used)Connect intercom Hold ‘Up’ button for 2 secondsDisconnect intercom Hold ‘Down’ button for 2 secondsCommon instruction commands (For phone call, music, intercom)Volume Up Press ‘Up’ button onceVolume Down Press ‘Down’ button onceGeneral Button Configurations

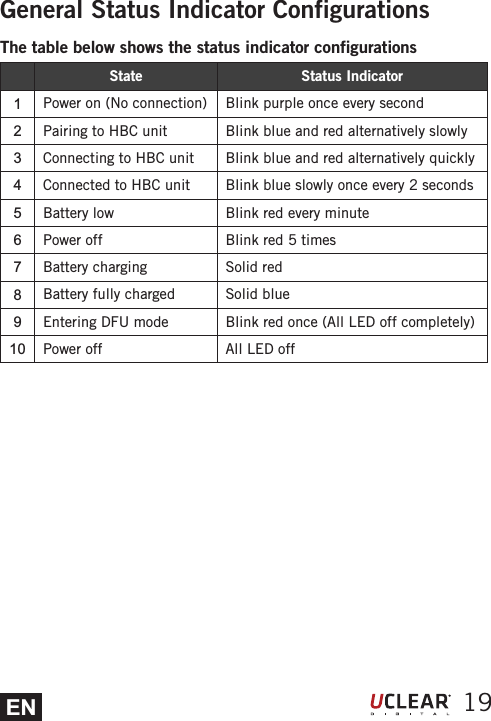

ENGeneral Status Indicator ConfigurationsThe table below shows the status indicator configurations19State Status Indicator1Power on (No connection) Blink purple once every second2Pairing to HBC unit Blink blue and red alternatively slowly3Connecting to HBC unit Blink blue and red alternatively quickly4Connected to HBC unit Blink blue slowly once every 2 seconds5Battery low Blink red every minute6Power off Blink red 5 times7Battery charging Solid red8Battery fully charged Solid blue9Entering DFU mode Blink red once (All LED off completely)10 Power off All LED off

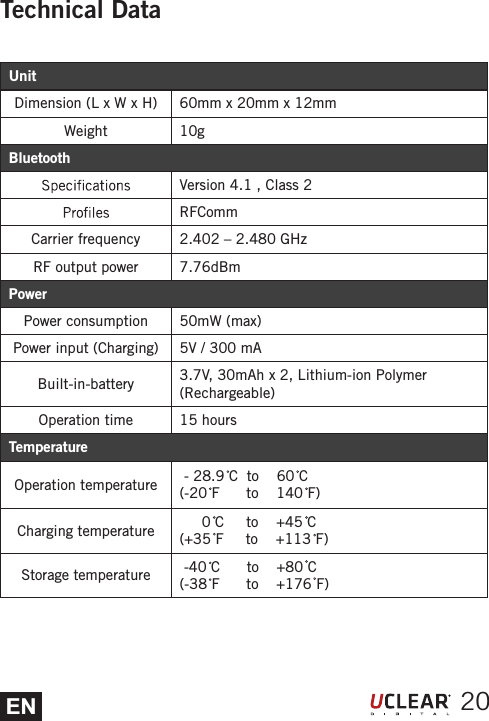

ENTechnical DataUnitDimension (L x W x H) 60mm x 20mm x 12mmWeight 10gBluetoothVersion 4.1 , Class 2RFCommCarrier frequency 2.402 – 2.480 GHzRF output power 7.76dBmPowerPower consumption 50mW (max)Power input (Charging) 5V / 300 mABuilt-in-battery 3.7V, 30mAh x 2, Lithium-ion Polymer (Rechargeable)Operation time 15 hoursTemperatureOperation temperature  - 28.9 C  to    60 C(-20 F      to    140 F)Charging temperature      0 C     to    +45 C(+35 F     to    +113 F)Storage temperature  -40 C      to    +80 C(-38 F      to    +176 F)20

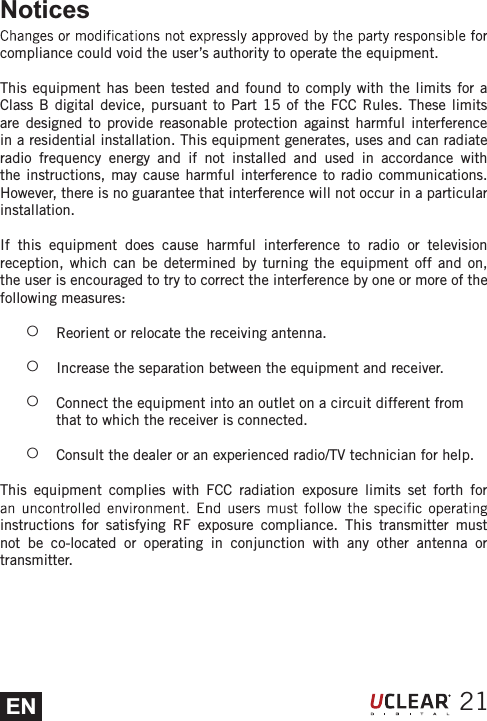

ENNoticescompliance could void the user’s authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference   etaidar nac dna sesu ,setareneg tnempiuqe sihT .noitallatsni laitnediser a niradio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.   ralucitrap a ni rucco ton lliw ecnerefretni taht eetnaraug on si ereht ,revewoHinstallation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: żReorient or relocate the receiving antenna.  żIncrease the separation between the equipment and receiver.  żConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.  żConsult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.21

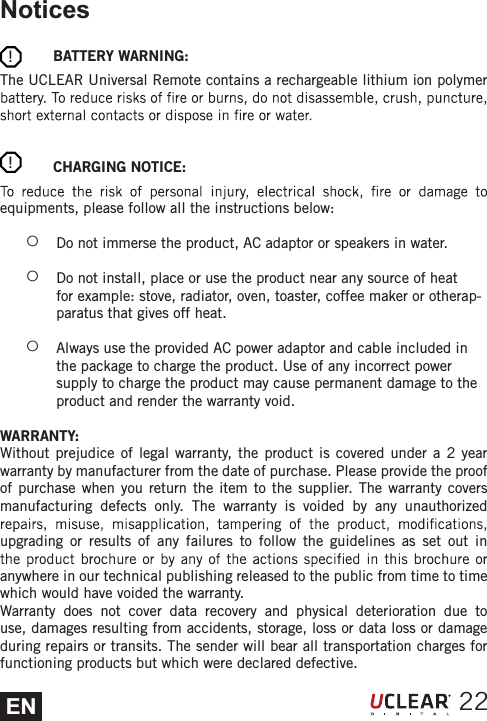

ENNotices            BATTERY WARNING:The UCLEAR Universal Remote contains a rechargeable lithium ion polymer             CHARGING NOTICE:equipments, please follow all the instructions below: żDo not immerse the product, AC adaptor or speakers in water.  żDo not install, place or use the product near any source of heat for example: stove, radiator, oven, toaster, coffee maker or otherap-paratus that gives off heat.  żAlways use the provided AC power adaptor and cable included in the package to charge the product. Use of any incorrect power supply to charge the product may cause permanent damage to the product and render the warranty void. WARRANTY:Without prejudice of legal warranty, the product is covered under a 2 year warranty by manufacturer from the date of purchase. Please provide the proof of purchase when you return the item to the supplier. The warranty covers manufacturing defects only. The warranty is voided by any unauthorized upgrading or results of any failures to follow the guidelines as set out in anywhere in our technical publishing released to the public from time to time which would have voided the warranty. Warranty does not cover data recovery and physical deterioration due to use, damages resulting from accidents, storage, loss or data loss or damage during repairs or transits. The sender will bear all transportation charges for functioning products but which were declared defective.22!!

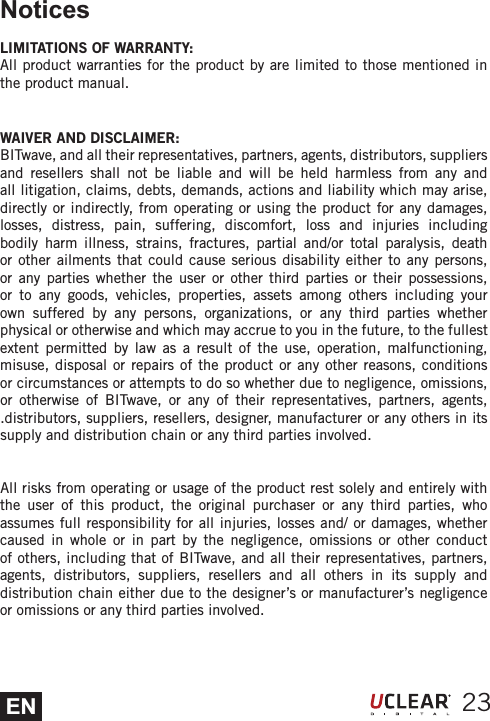

ENNoticesLIMITATIONS OF WARRANTY:All product warranties for the product by are limited to those mentioned in the product manual. WAIVER AND DISCLAIMER:BITwave, and all their representatives, partners, agents, distributors, suppliers and resellers shall not be liable and will be held harmless from any and all litigation, claims, debts, demands, actions and liability which may arise, directly or indirectly, from operating or using the product for any damages, losses, distress, pain, suffering, discomfort, loss and injuries including bodily harm illness, strains, fractures, partial and/or total paralysis, death or other ailments that could cause serious disability either to any persons, or any parties whether the user or other third parties or their possessions, or to any goods, vehicles, properties, assets among others including your own suffered by any persons, organizations, or any third parties whether physical or otherwise and which may accrue to you in the future, to the fullest extent permitted by law as a result of the use, operation, malfunctioning, misuse, disposal or repairs of the product or any other reasons, conditions or circumstances or attempts to do so whether due to negligence, omissions, or otherwise of BITwave, or any of their representatives, partners, agents, .distributors, suppliers, resellers, designer, manufacturer or any others in its supply and distribution chain or any third parties involved.All risks from operating or usage of the product rest solely and entirely with the user of this product, the original purchaser or any third parties, who assumes full responsibility for all injuries, losses and/ or damages, whether caused in whole or in part by the negligence, omissions or other conduct of others, including that of BITwave, and all their representatives, partners, agents, distributors, suppliers, resellers and all others in its supply and distribution chain either due to the designer’s or manufacturer’s negligence or omissions or any third parties involved.23

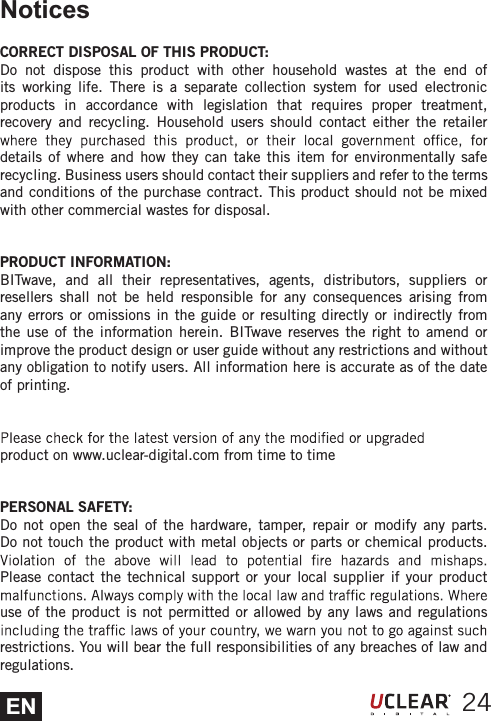

ENNoticesCORRECT DISPOSAL OF THIS PRODUCT:Do not dispose this product with other household wastes at the end of its working life. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Household users should contact either the retailer details of where and how they can take this item for environmentally safe recycling. Business users should contact their suppliers and refer to the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.PRODUCT INFORMATION:BITwave, and all their representatives, agents, distributors, suppliers or resellers shall not be held responsible for any consequences arising from any errors or omissions in the guide or resulting directly or indirectly from the use of the information herein. BITwave reserves the right to amend or improve the product design or user guide without any restrictions and without any obligation to notify users. All information here is accurate as of the date of printing.product on www.uclear-digital.com from time to timePERSONAL SAFETY:Do not open the seal of the hardware, tamper, repair or modify any parts. Do not touch the product with metal objects or parts or chemical products. Please contact the technical support or your local supplier if your product use of the product is not permitted or allowed by any laws and regulations restrictions. You will bear the full responsibilities of any breaches of law and regulations.24

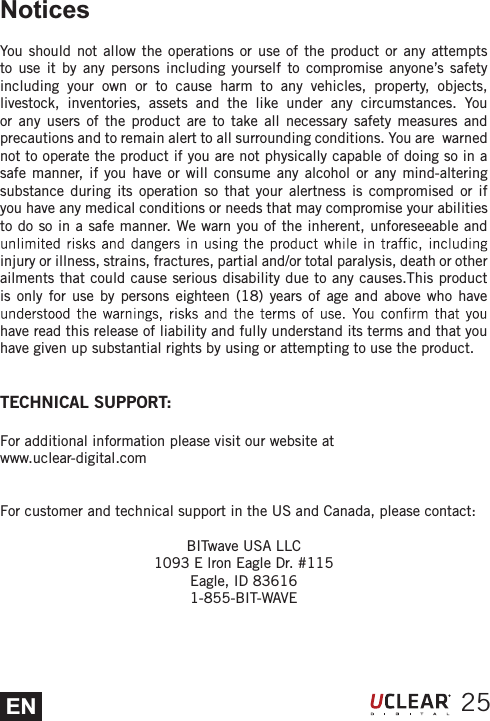

ENNoticesYou should not allow the operations or use of the product or any attempts to use it by any persons including yourself to compromise anyone’s safety including your own or to cause harm to any vehicles, property, objects, livestock, inventories, assets and the like under any circumstances. You or any users of the product are to take all necessary safety measures and precautions and to remain alert to all surrounding conditions. You are  warned not to operate the product if you are not physically capable of doing so in a safe manner, if you have or will consume any alcohol or any mind-altering substance during its operation so that your alertness is compromised or if you have any medical conditions or needs that may compromise your abilities to do so in a safe manner. We warn you of the inherent, unforeseeable and injury or illness, strains, fractures, partial and/or total paralysis, death or other ailments that could cause serious disability due to any causes.This product is only for use by persons eighteen (18) years of age and above who have have read this release of liability and fully understand its terms and that you have given up substantial rights by using or attempting to use the product.TECHNICAL SUPPORT:For additional information please visit our website atwww.uclear-digital.comFor customer and technical support in the US and Canada, please contact:BITwave USA LLC1093 E lron Eagle Dr. #115Eagle, ID 836161-855-BIT-WAVE25

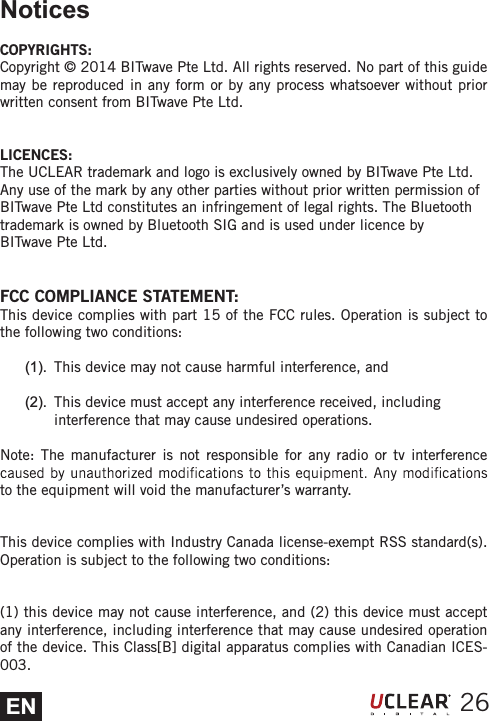

ENNoticesCOPYRIGHTS:Copyright © 2014 BITwave Pte Ltd. All rights reserved. No part of this guide may be reproduced in any form or by any process whatsoever without prior written consent from BITwave Pte Ltd.LICENCES:The UCLEAR trademark and logo is exclusively owned by BITwave Pte Ltd.Any use of the mark by any other parties without prior written permission ofBITwave Pte Ltd constitutes an infringement of legal rights. The Bluetoothtrademark is owned by Bluetooth SIG and is used under licence by BITwave Pte Ltd.FCC COMPLIANCE STATEMENT:This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:(1).  This device may not cause harmful interference, and (2).  This device must accept any interference received, including interference that may cause undesired operations. Note: The manufacturer is not responsible for any radio or tv interference to the equipment will void the manufacturer’s warranty.This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class[B] digital apparatus complies with Canadian ICES-003.26
ENNoticesCet appareil s’accorde avec Industrie Canada licence-exempte RSS standard.(1) cet appareil ne peut pas causer l’intervention, et (2) cet appareil doit accepter de l’intervention, y compris l’intervention qui peut causer l’opération non désirée de. Cet appareil numérique de la classe B est conforme à la norme NMB-003du Canada27
EN 28
