User's Manual
SPP-R200III
Mobile Printer
Rev. 1.00
![](/img.php?id=2724233&img=bg2.png)
Rev. 1.00
-
2
-
SPP-R200III

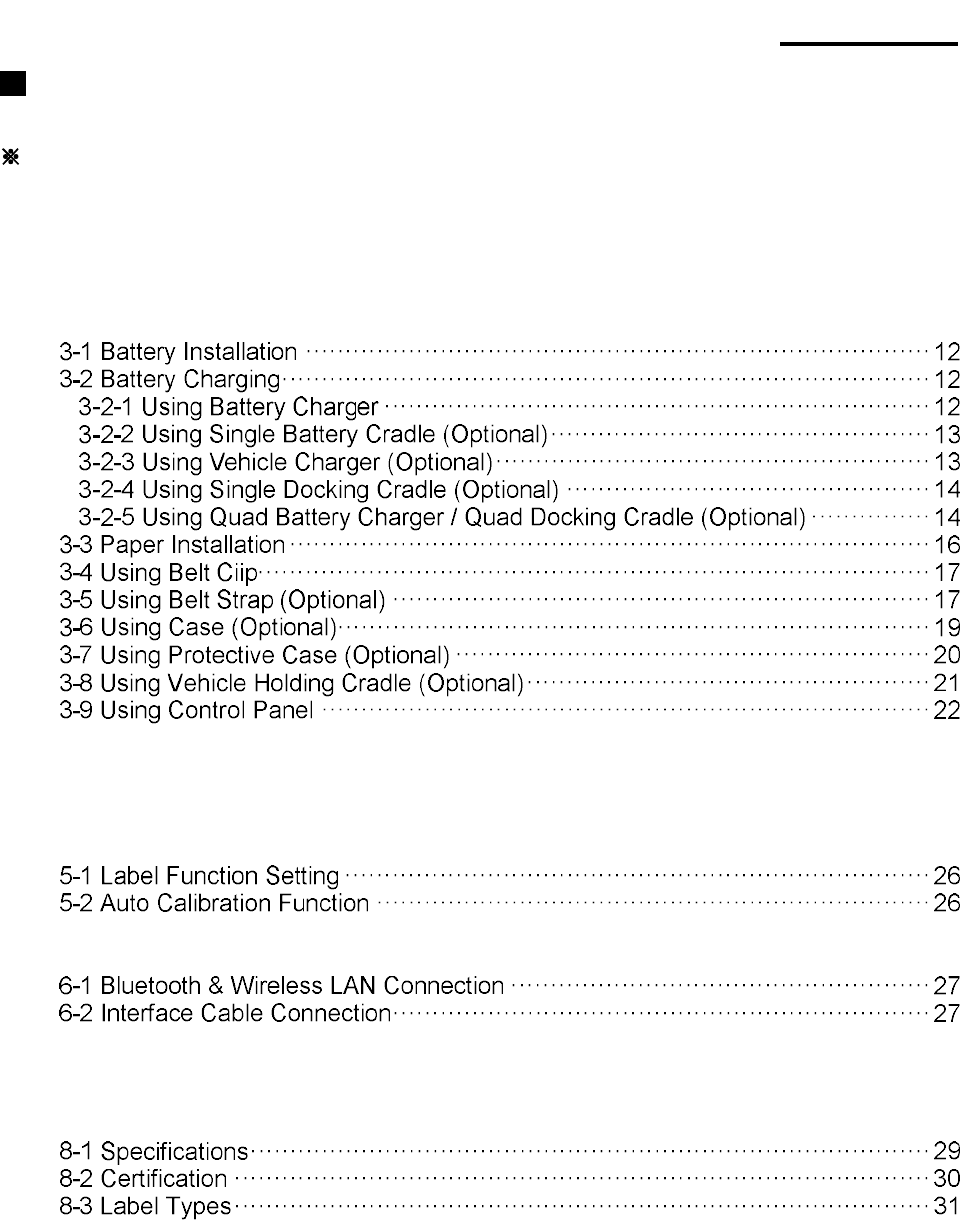

Table of Contents
Manual Information & Usage Precautions ························································3
1. Content Confirmation··················································································· 10
2. Product Part Names····················································································· 11
3. Installation & Usage ·····················································································12
4. Self-Test ····································································································· 23
5. Label Printing Function ················································································ 26
6. Peripherals Connection················································································ 27
7. Printer Cleaning ·························································································· 28
8. Appendix ···································································································· 29
![](/img.php?id=2724233&img=bg3.png)
Rev. 1.00
-
3
-
SPP-R200III

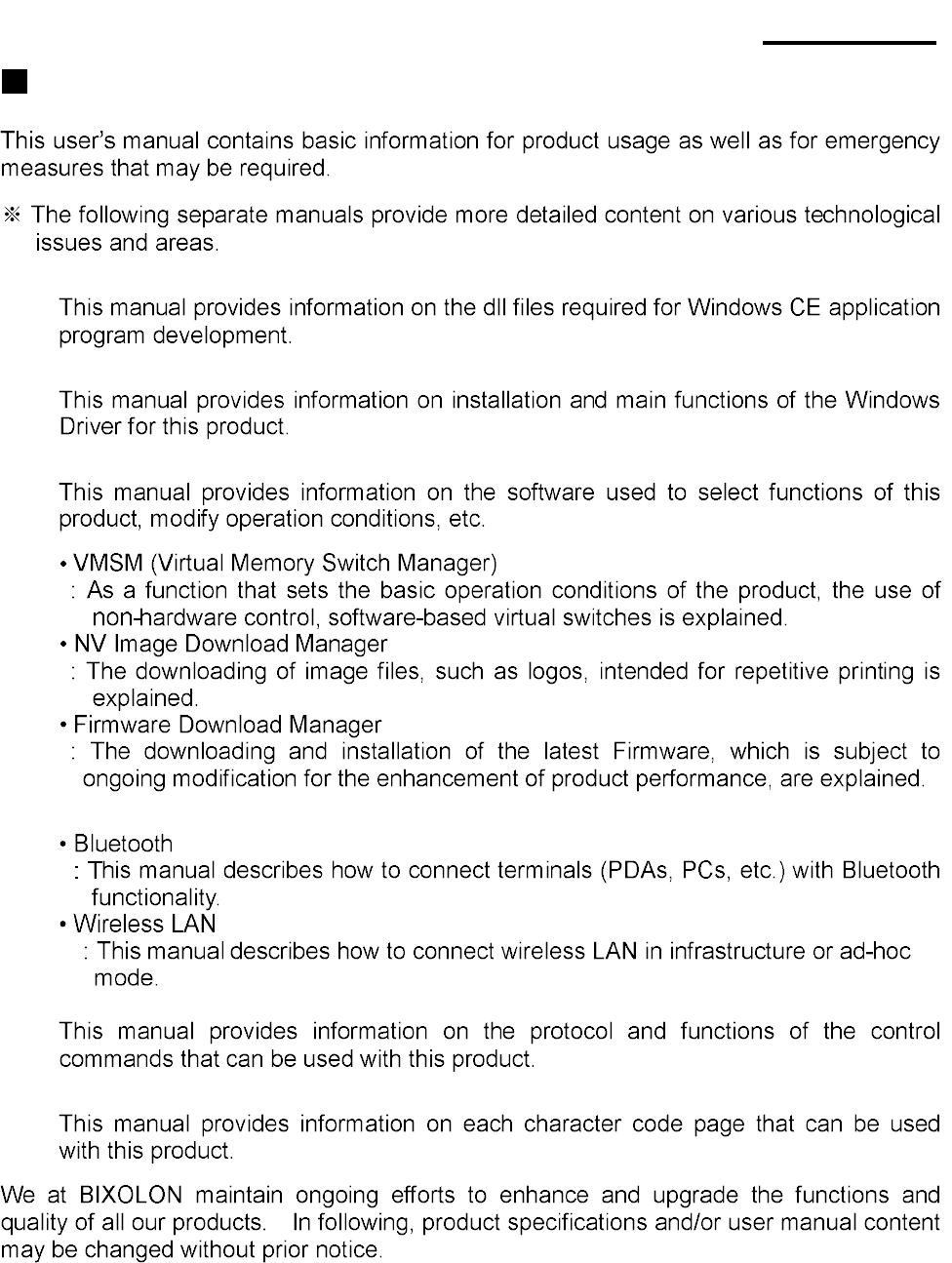

Manual Information
Manual Information & Usage Precautions
1. Windows CE Module Program Manual
2. Windows Driver Manual
3
. Unified Utility Manual
4. Bluetooth & Wireless Manual
5. Commands Manual
6
. Code Pages Manual
![](/img.php?id=2724233&img=bg4.png)
Rev. 1.00
-
4
-
SPP-R200III

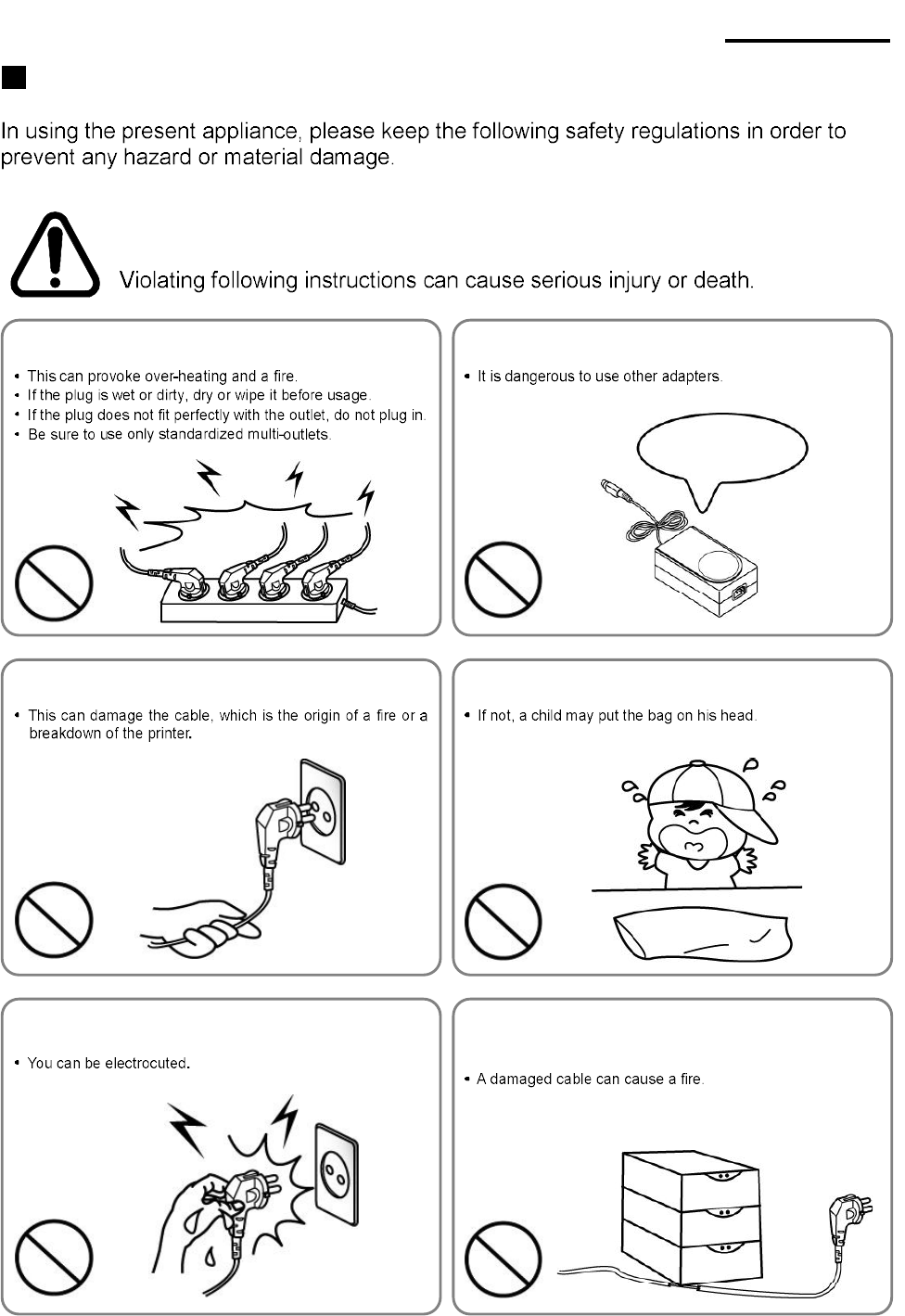

Safety Precautions
WARNING
Do not bend the cable by force or leave it under any
heavy object.
Do not plug in or unplug with your hands wet.
Keep the plastic bag out of children’s reach.Do not pull the cable to unplug.
You must use only the supplied adapter.Do not plug several products in one multi-outlet.
PROHIBIT
PROHIBIT
PROHIBIT
PROHIBIT
PROHIBIT
ONLY SUPPLIED ADA
PTER
PROHIBIT
![](/img.php?id=2724233&img=bg5.png)
Rev. 1.00
-
5
-
SPP-R200III

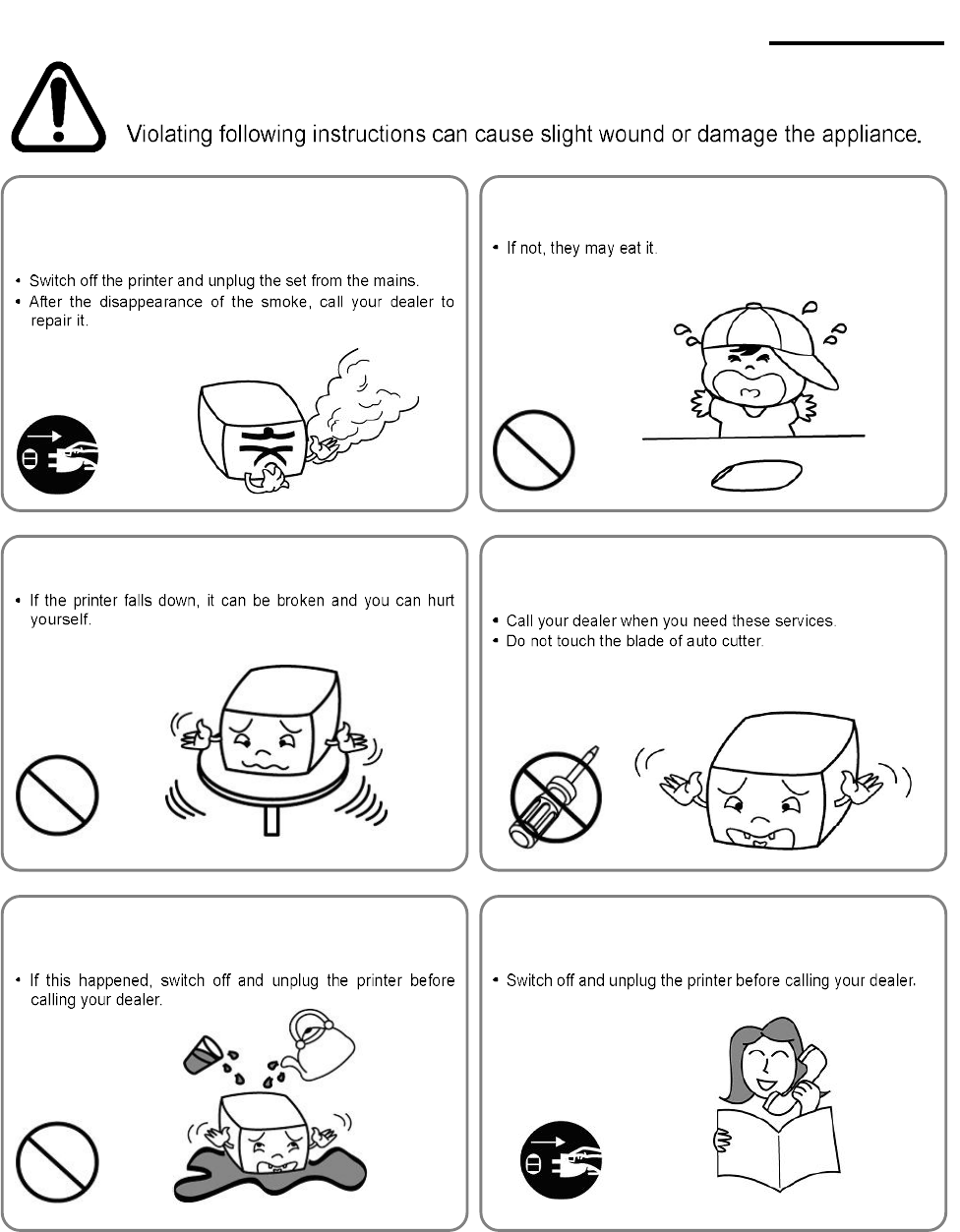

CAUTION
Do not use the printer when it is out of order. This
can cause a fire or an electrocution.
Do not let water or other foreign objects in the
printer.
Use only approved accessories and do not try to
disassemble, repair or remodel it for yourself.
Install the printer on the stable surface.
Keep the desiccant out of children’s reach.
If you observe a strange smoke, odor or noise from
the printer, unplug it before taking following
measures.
TO
UNPLUG
PROHIBIT
DISASSEMBLING
PROHIBITED
PROHIBIT
PROHIBIT
TO UNPLUG
PRINTER
PRINTER
PRINTER
PRINTER
DEALER
PRINTER
![](/img.php?id=2724233&img=bg6.png)
Rev. 1.00
-
6
-
SPP-R200III

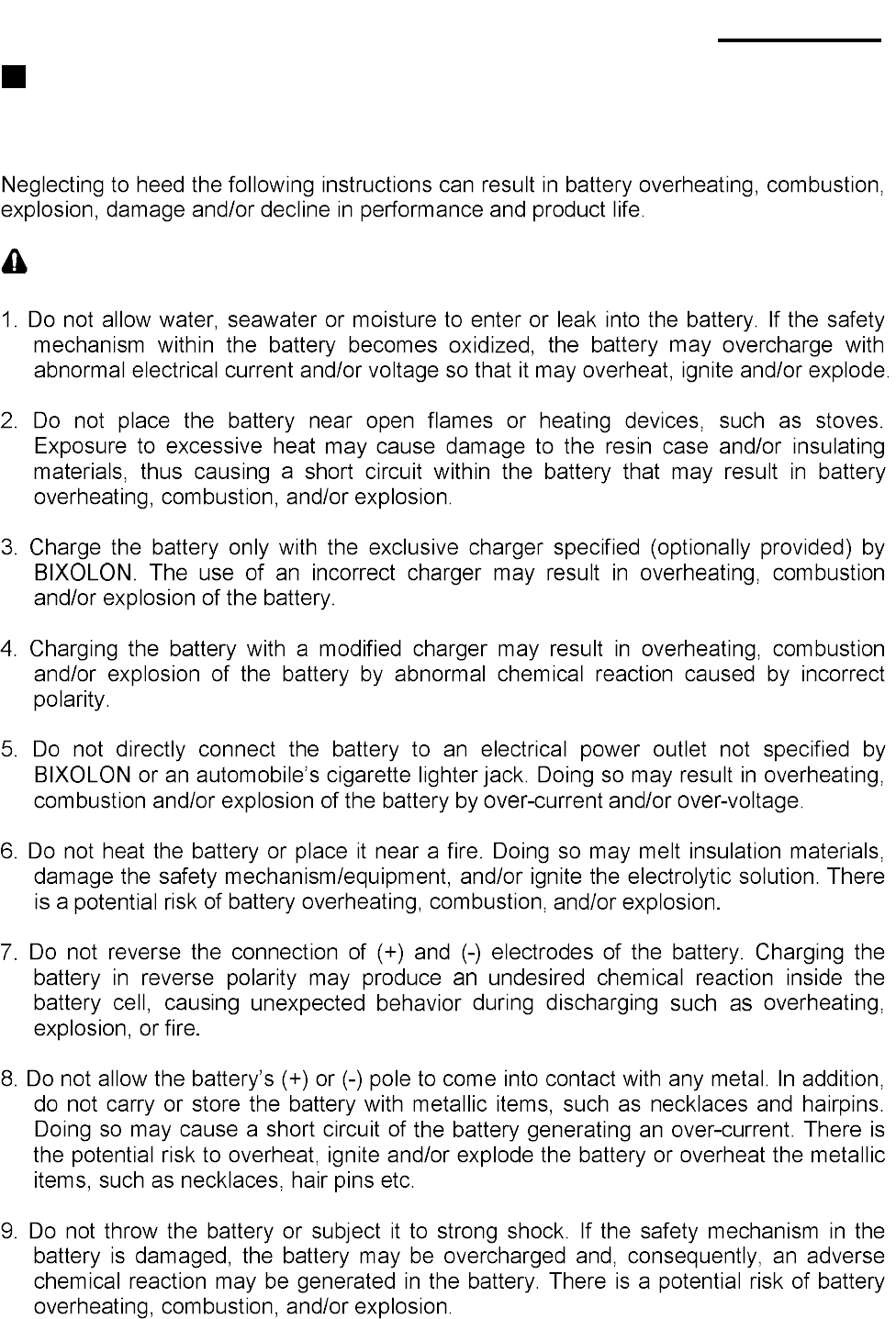

Battery Safety Precautions
Make sure to review the user manual carefully prior to product use.
Danger
![](/img.php?id=2724233&img=bg7.png)
Rev. 1.00
-
7
-
SPP-R200III

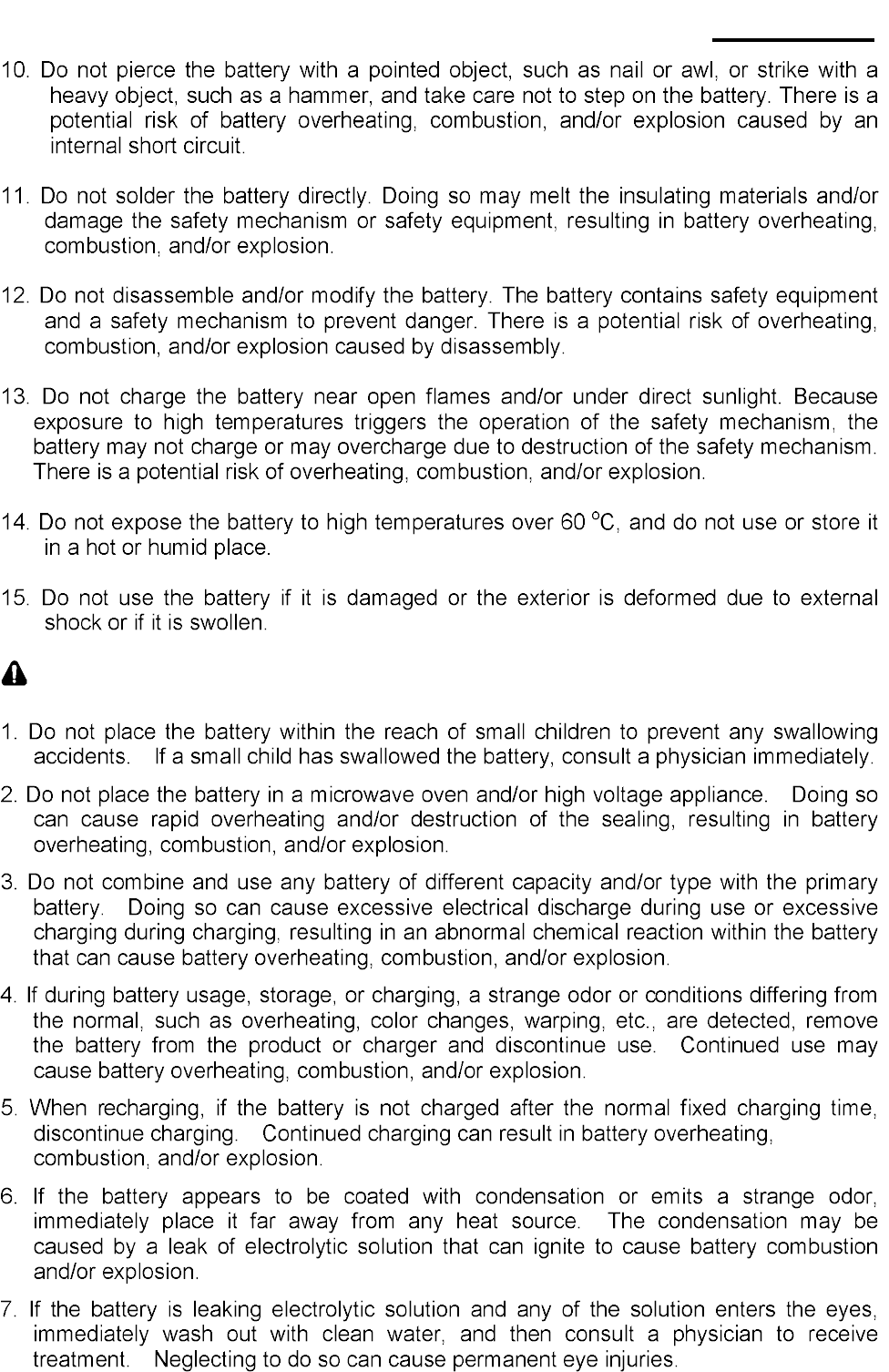

Warning
![](/img.php?id=2724233&img=bg8.png)
Rev. 1.00
-
8
-
SPP-R200III

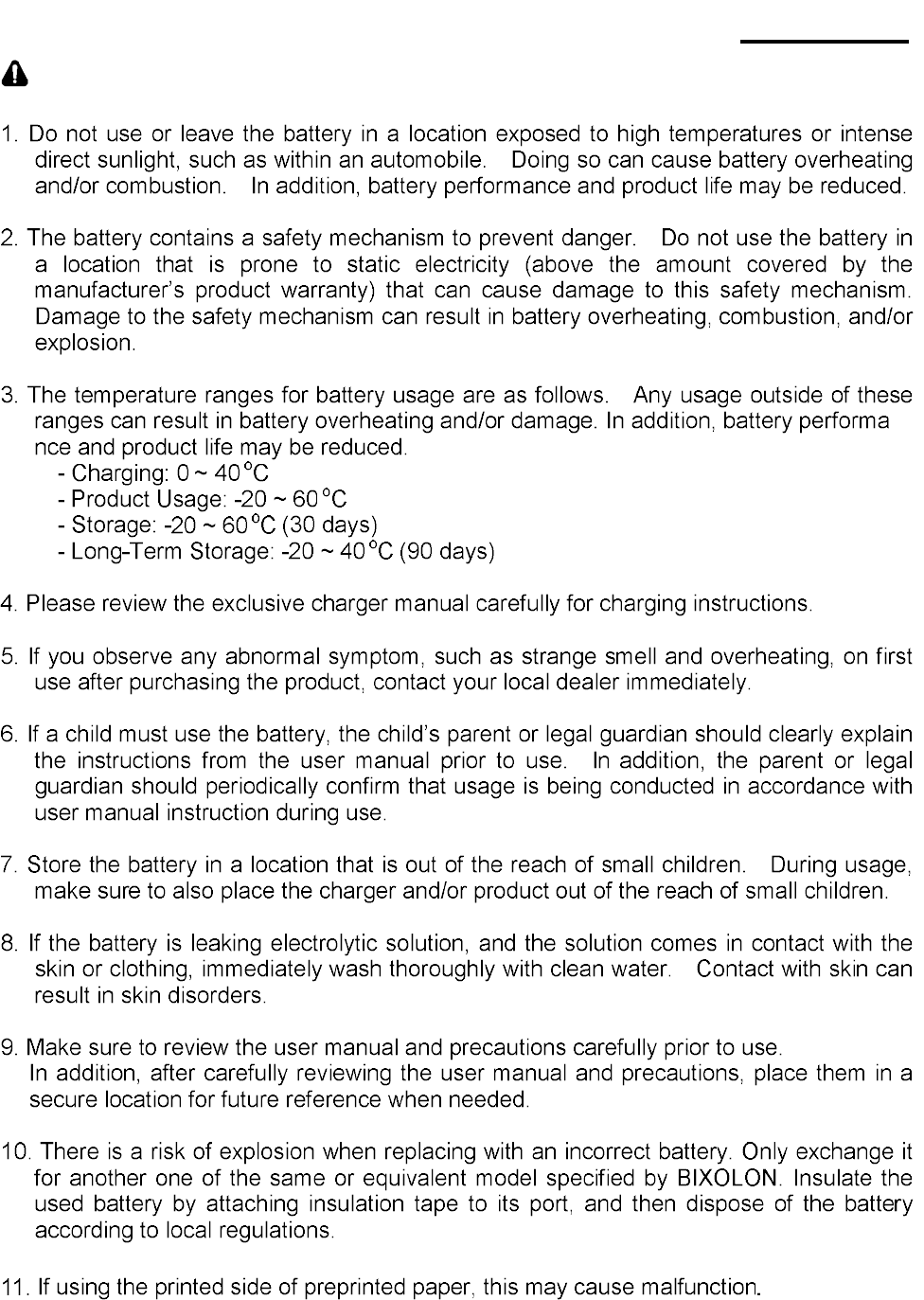

Caution
![](/img.php?id=2724233&img=bg9.png)
Rev. 1.00
-
9
-
SPP-R200III

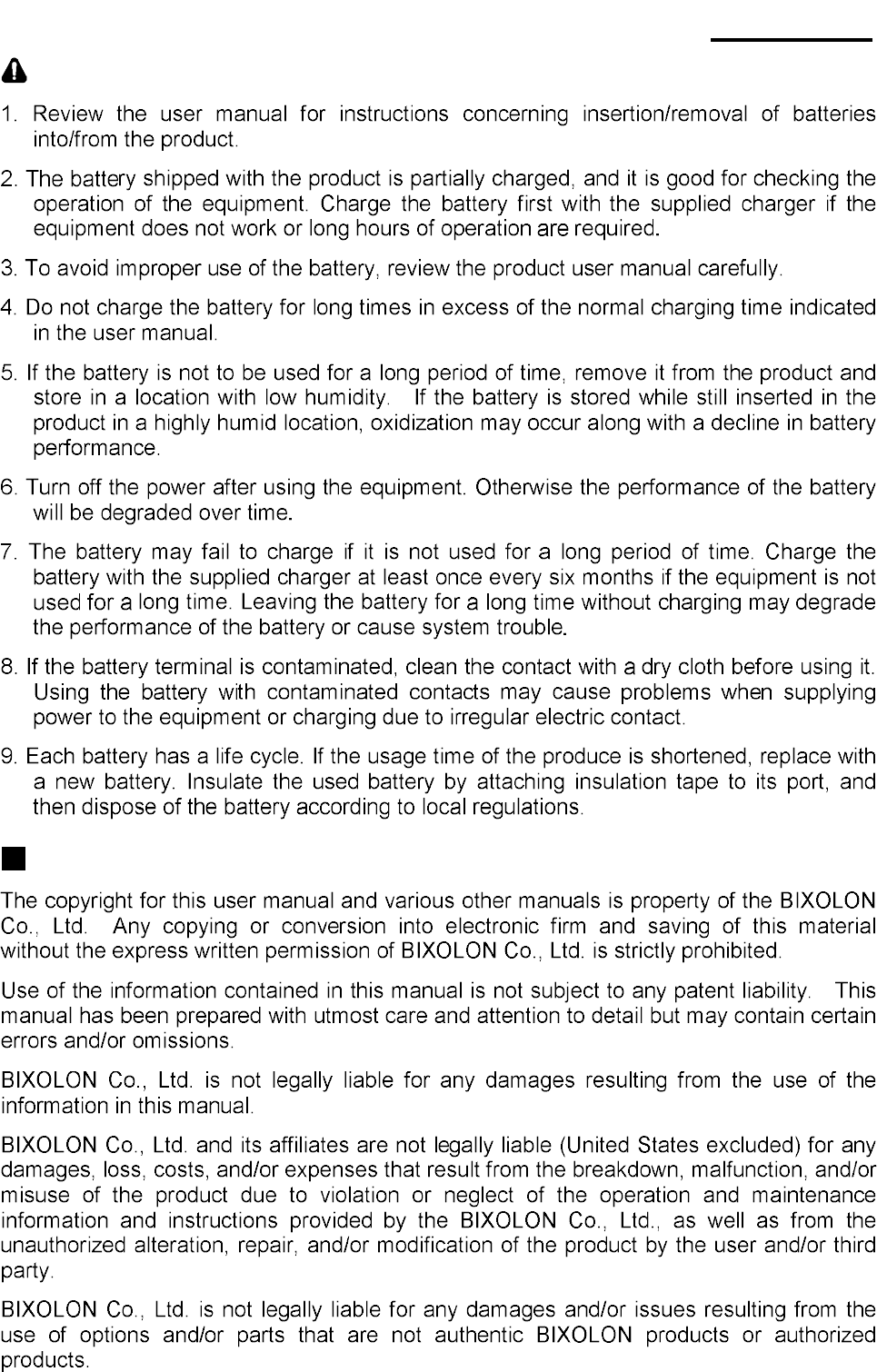

Recommended
Other Precautions
![](/img.php?id=2724233&img=bga.png)
Rev. 1.00
-
10
-
SPP-R200III

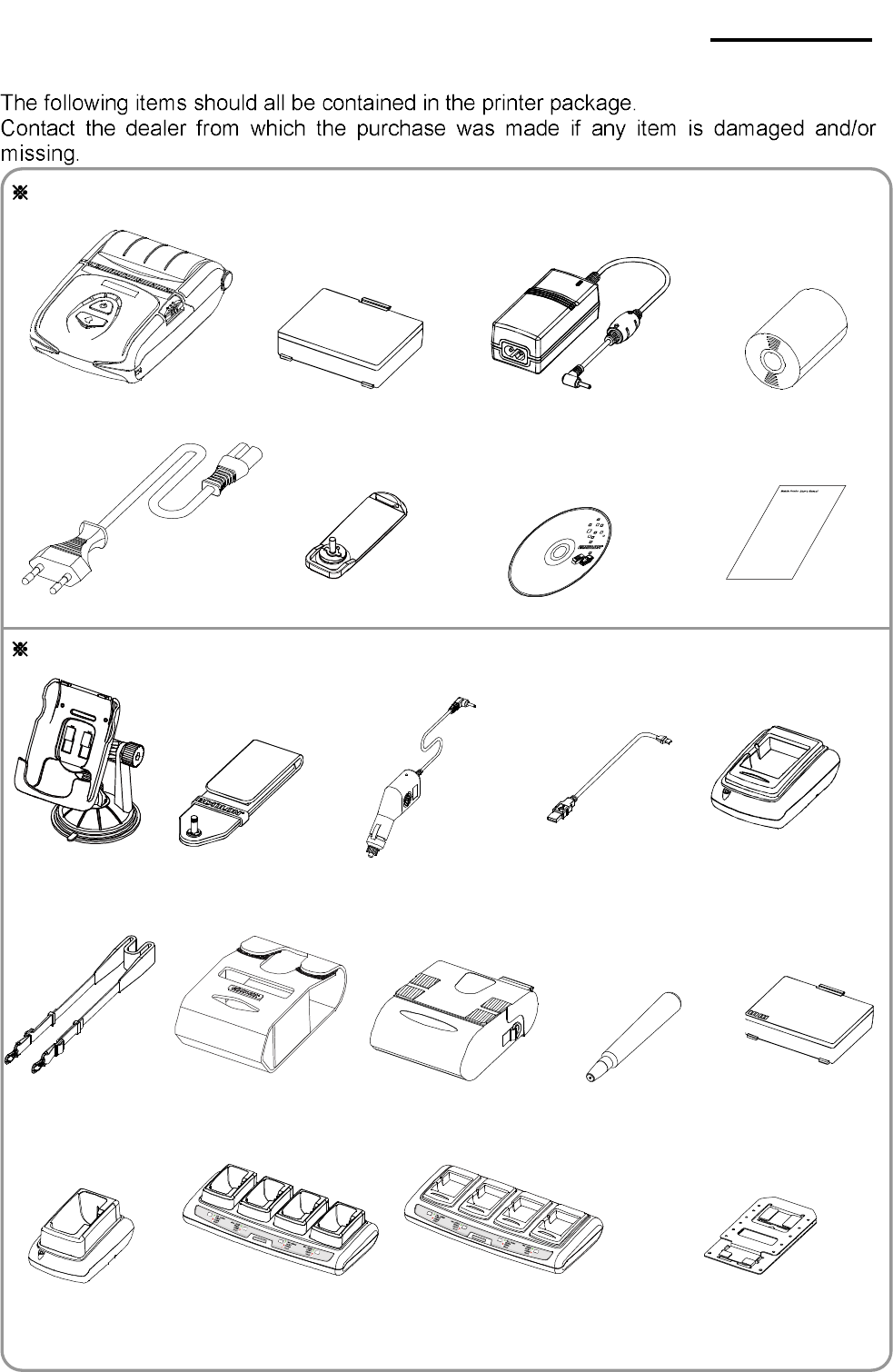

1. Content Confirmation
Basic items
SPP-R200III Battery Pack Battery Charger Paper
Power Cord Belt Clip CD User Manual
Optional items
Vehicle Holding
Cradle
Belt Strap Vehicle Charger Interface Cable Single Battery
Cradle
Shoulder Strap Case Protective Case Cleaning Pen Battery Pack_V2
(with outer
contacts)
Single Docking
Cradle
Quad Docking Cradle Quad Battery Charger Wall Mount (RWM-350)
(for Quad Battery Charger)
![](/img.php?id=2724233&img=bgb.png)
Rev. 1.00
-
11
-
SPP-R200III

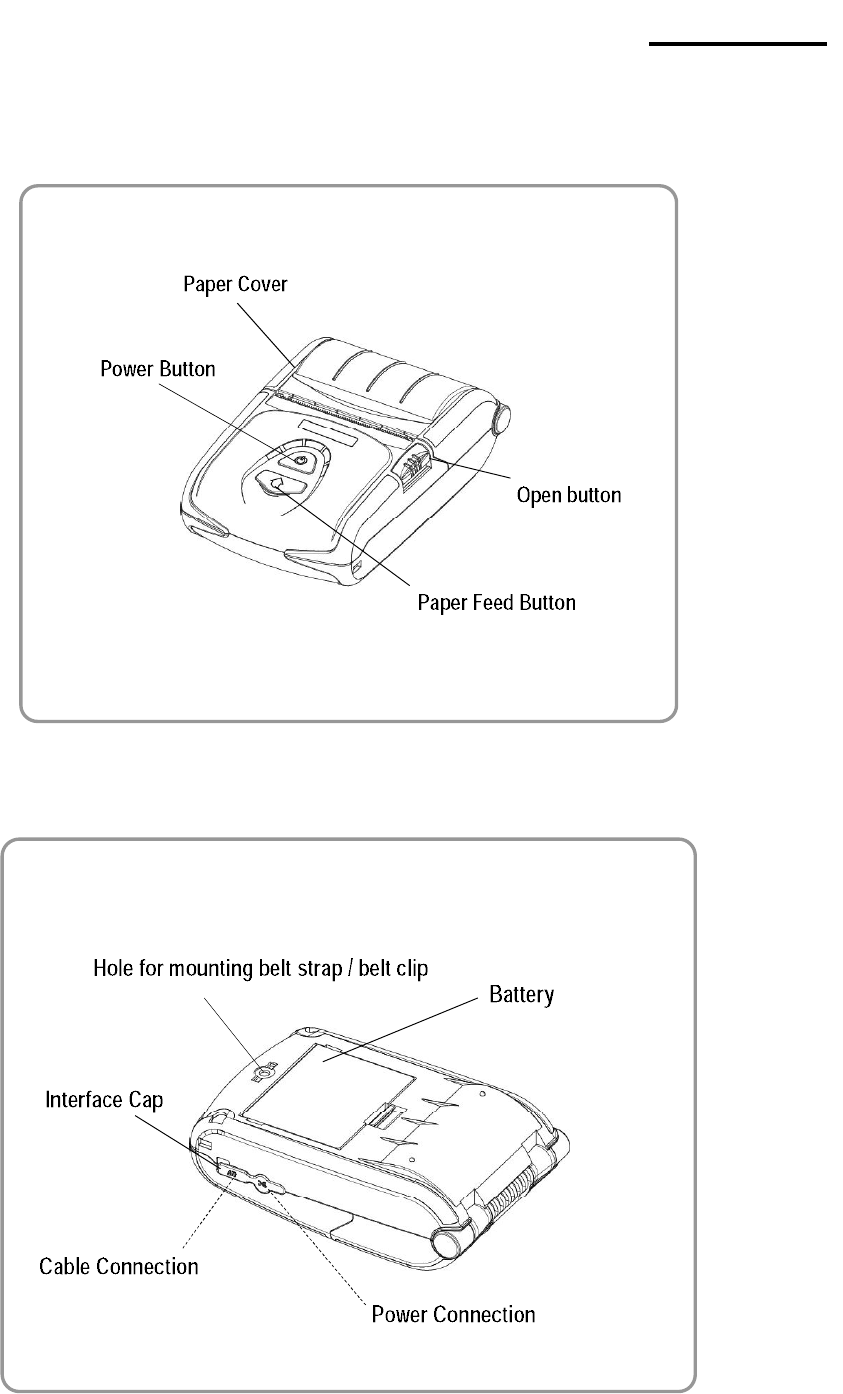

2. Product Part Names
•Front
•Rear
![](/img.php?id=2724233&img=bgc.png)
Rev. 1.00
-
12
-
SPP-R200III
3. Installation & Usage

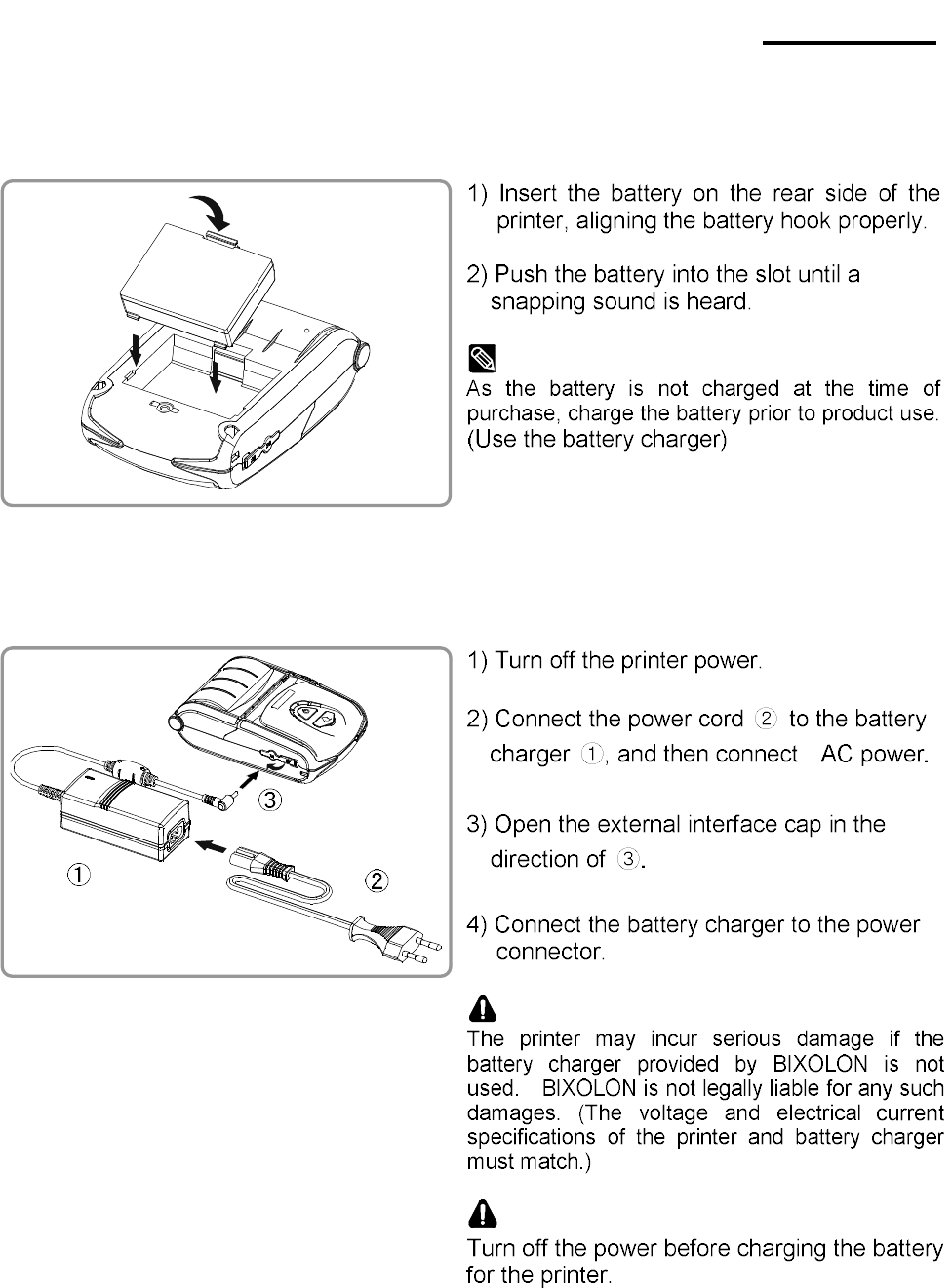

3-1 Battery Installation
NOTE
3-2 Battery Charging
3-2-1 Using Battery Charger
CAUTION
WARNING
![](/img.php?id=2724233&img=bgd.png)
Rev. 1.00
-
13
-
SPP-R200III

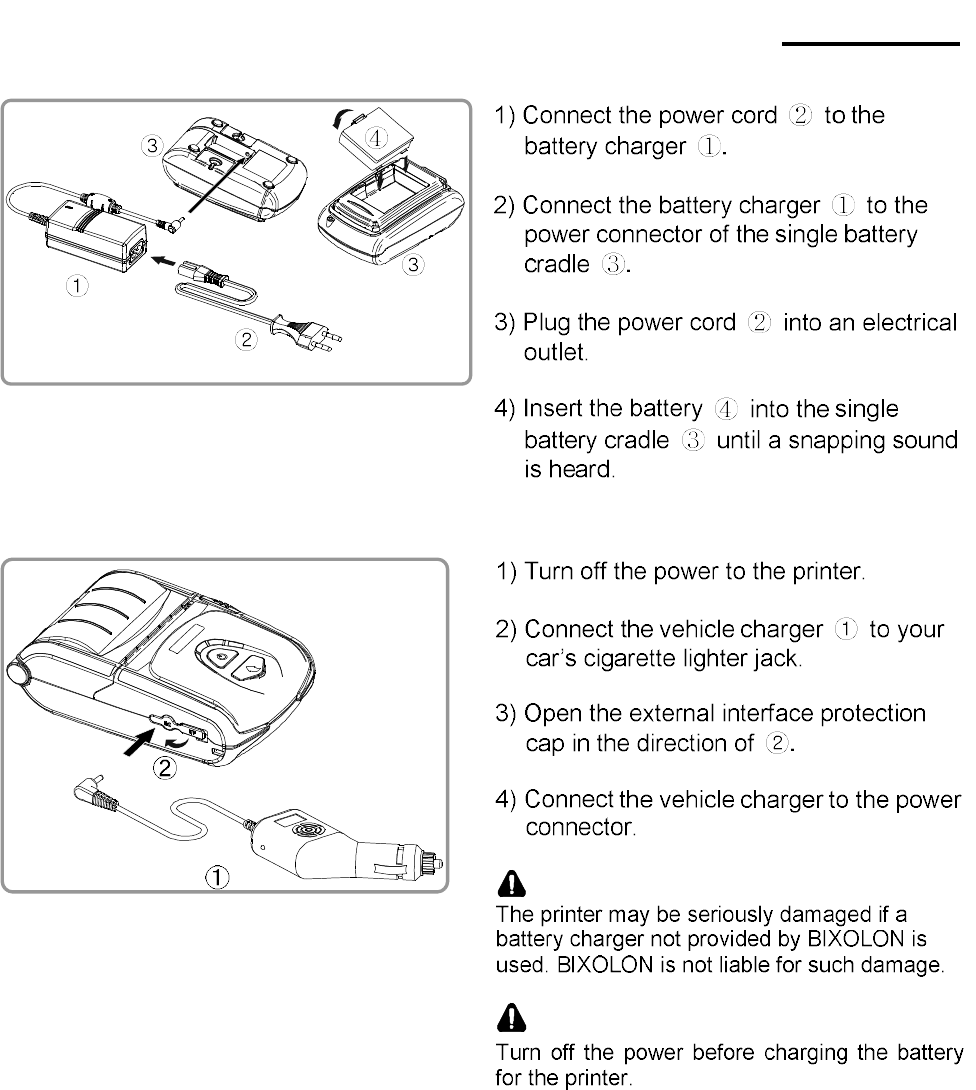

3-2-2 Using Single Battery Cradle (Optional)
3-2-3 Using Vehicle Charger (Optional)
CAUTION
WARNING
![](/img.php?id=2724233&img=bge.png)
Rev. 1.00
-
14
-
SPP-R200III

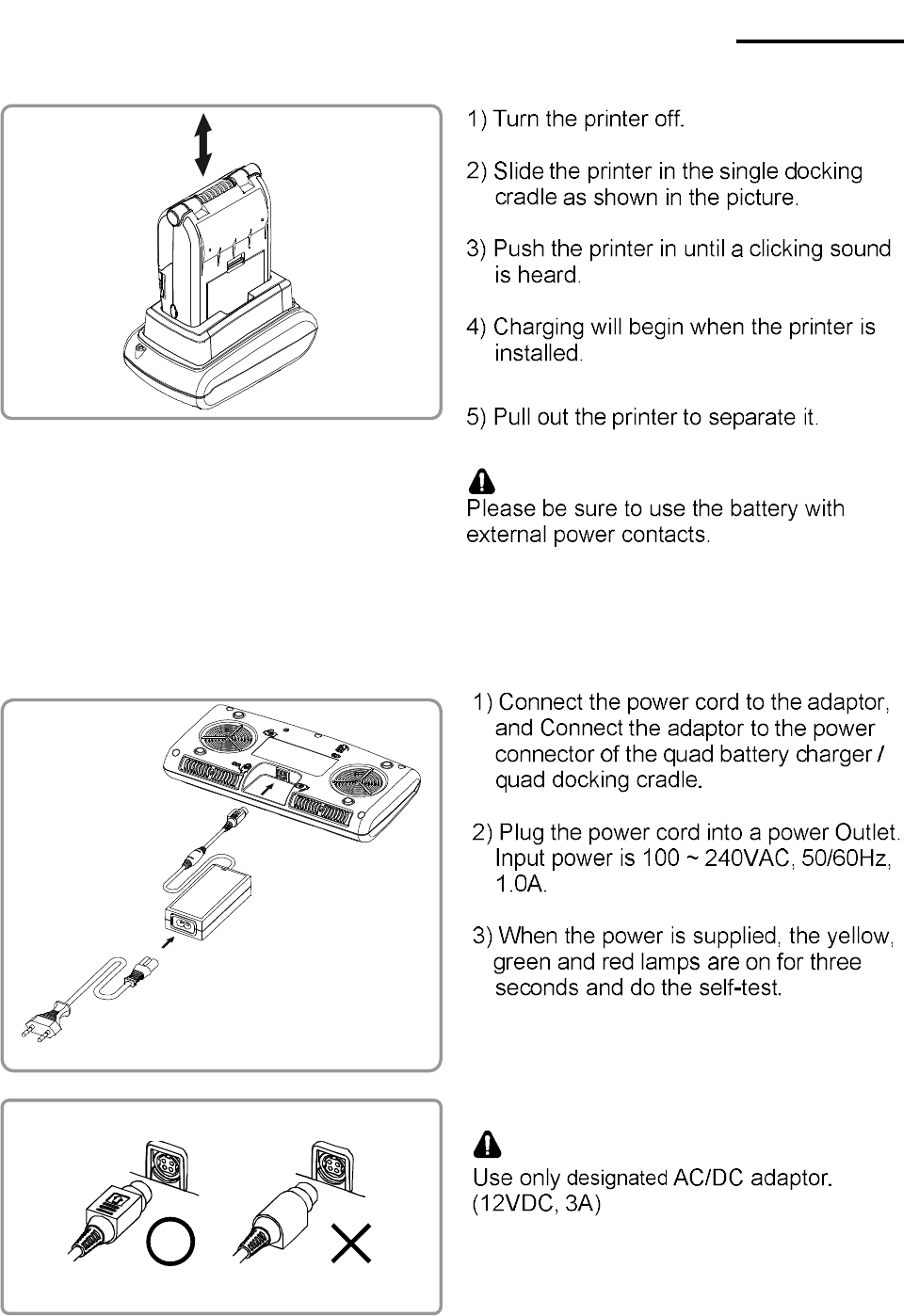

3-2-4 Using Single Docking Cradle (Optional)
CAUTION

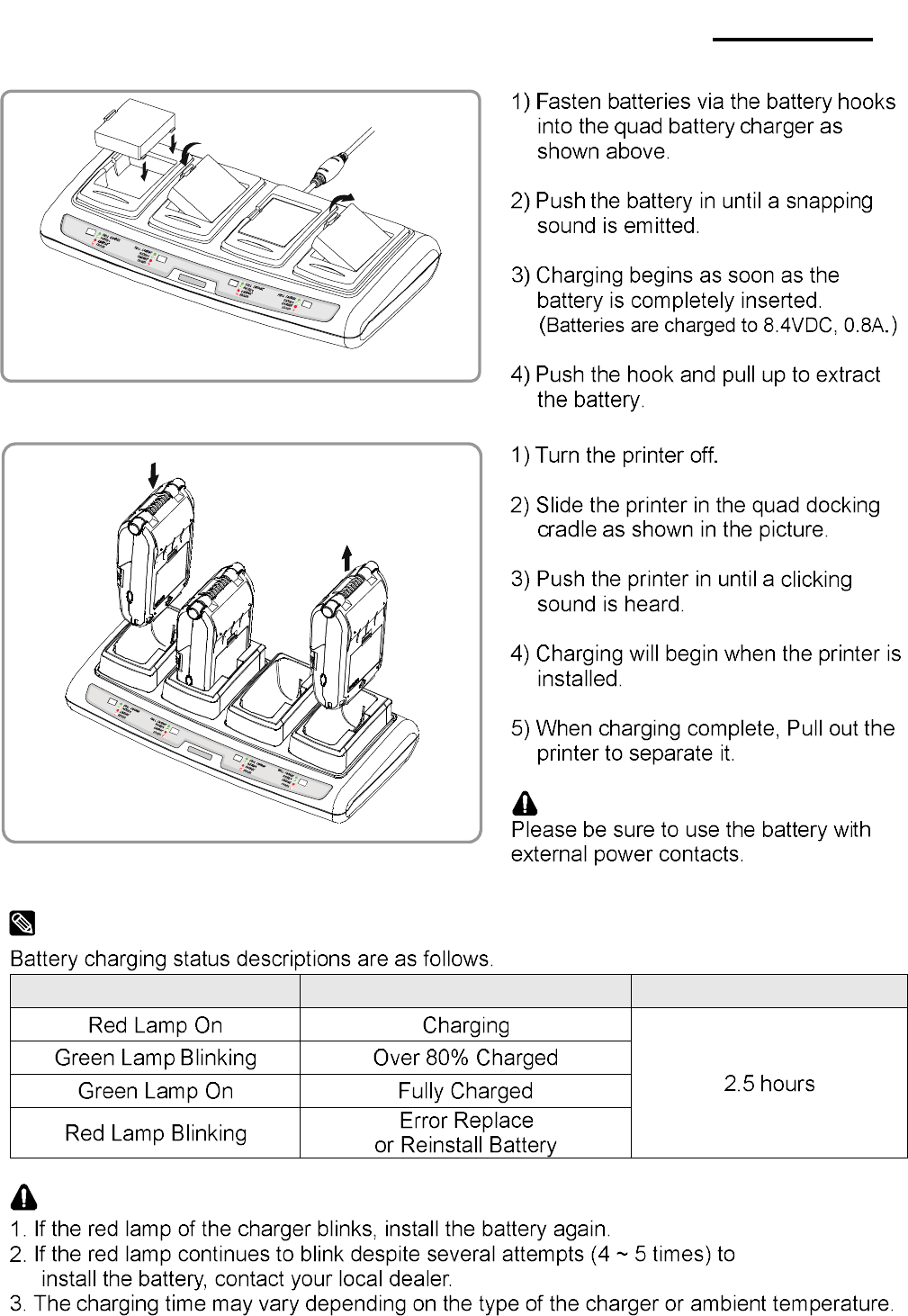

3-2-5 Using Quad Battery Charger / Quad Docking Cradle (Optional)
3-2-5-1 Connecting the cables
WARNING
![](/img.php?id=2724233&img=bgf.png)
Rev. 1.00
-
15
-
SPP-R200III
3-2-5-2 Charging Battery (Printer)
CAUTION
NOTE
Lamp Charge Status Charge Time
CAUTION
![](/img.php?id=2724233&img=bg10.png)
Rev. 1.00
-
16
-
SPP-R200III

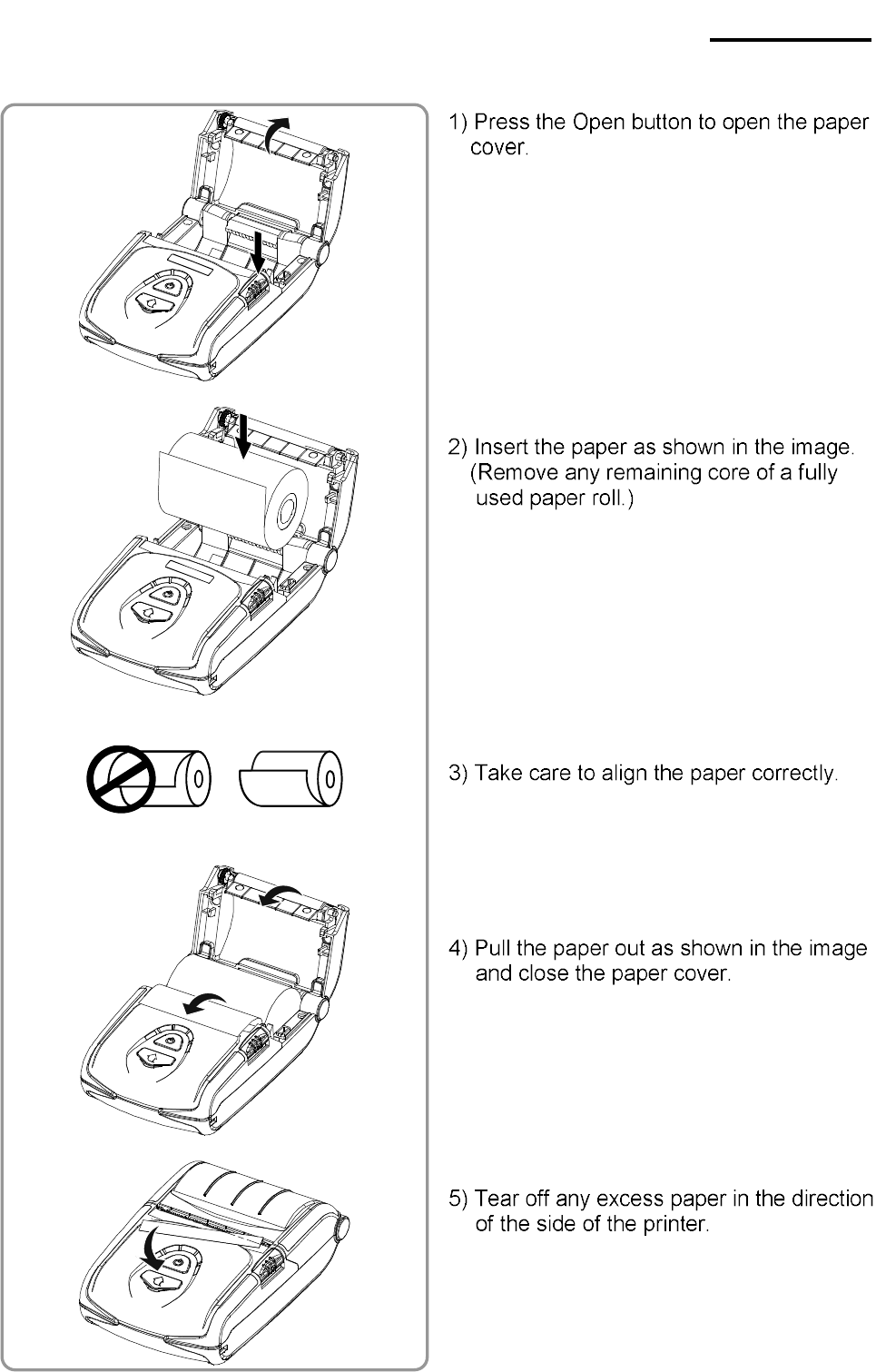

3-3 Paper Installation
![](/img.php?id=2724233&img=bg11.png)
Rev. 1.00
-
17
-
SPP-R200III

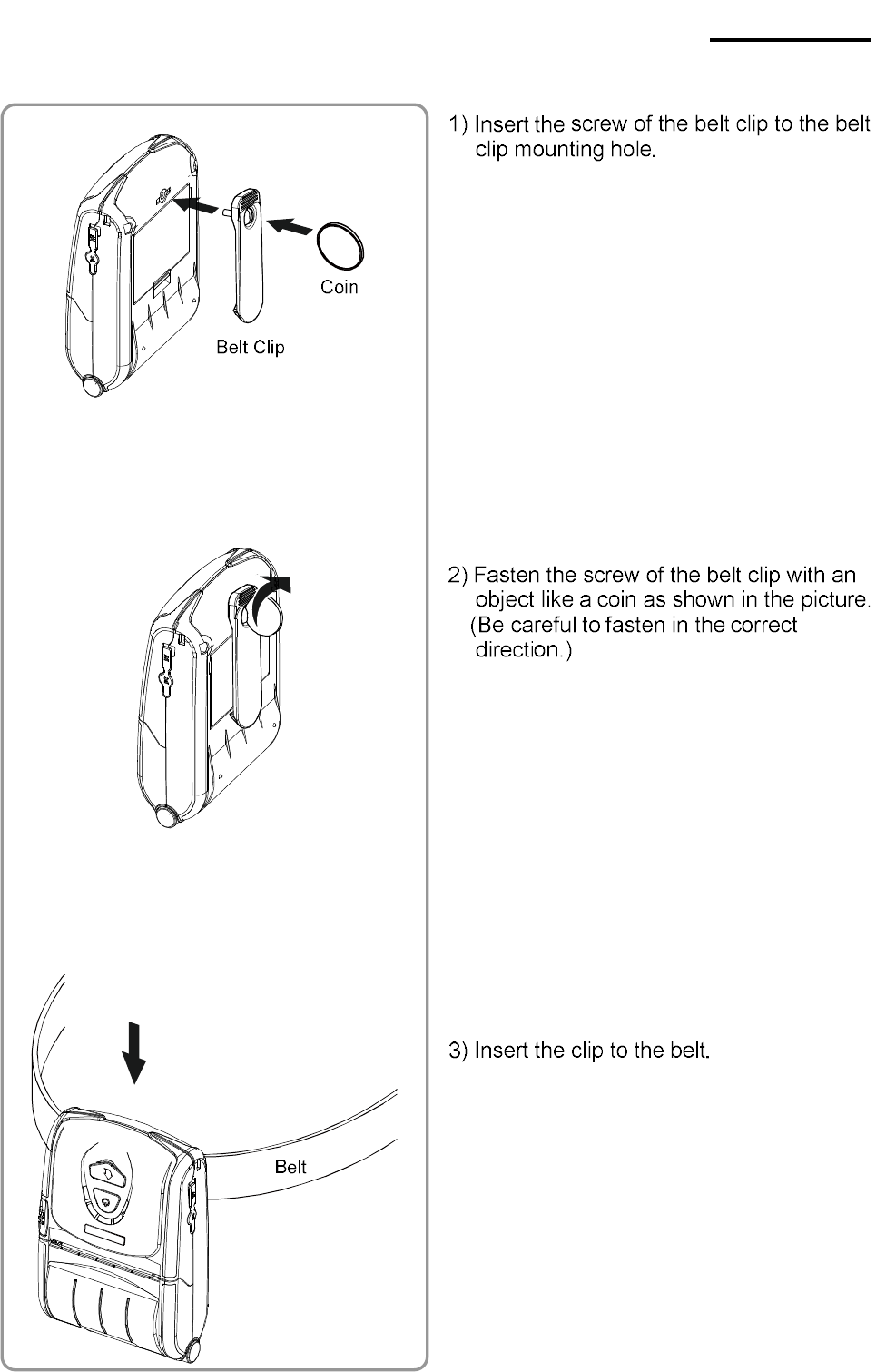

3-4 Using Belt Clip
![](/img.php?id=2724233&img=bg12.png)
Rev. 1.00
-
18
-
SPP-R200III

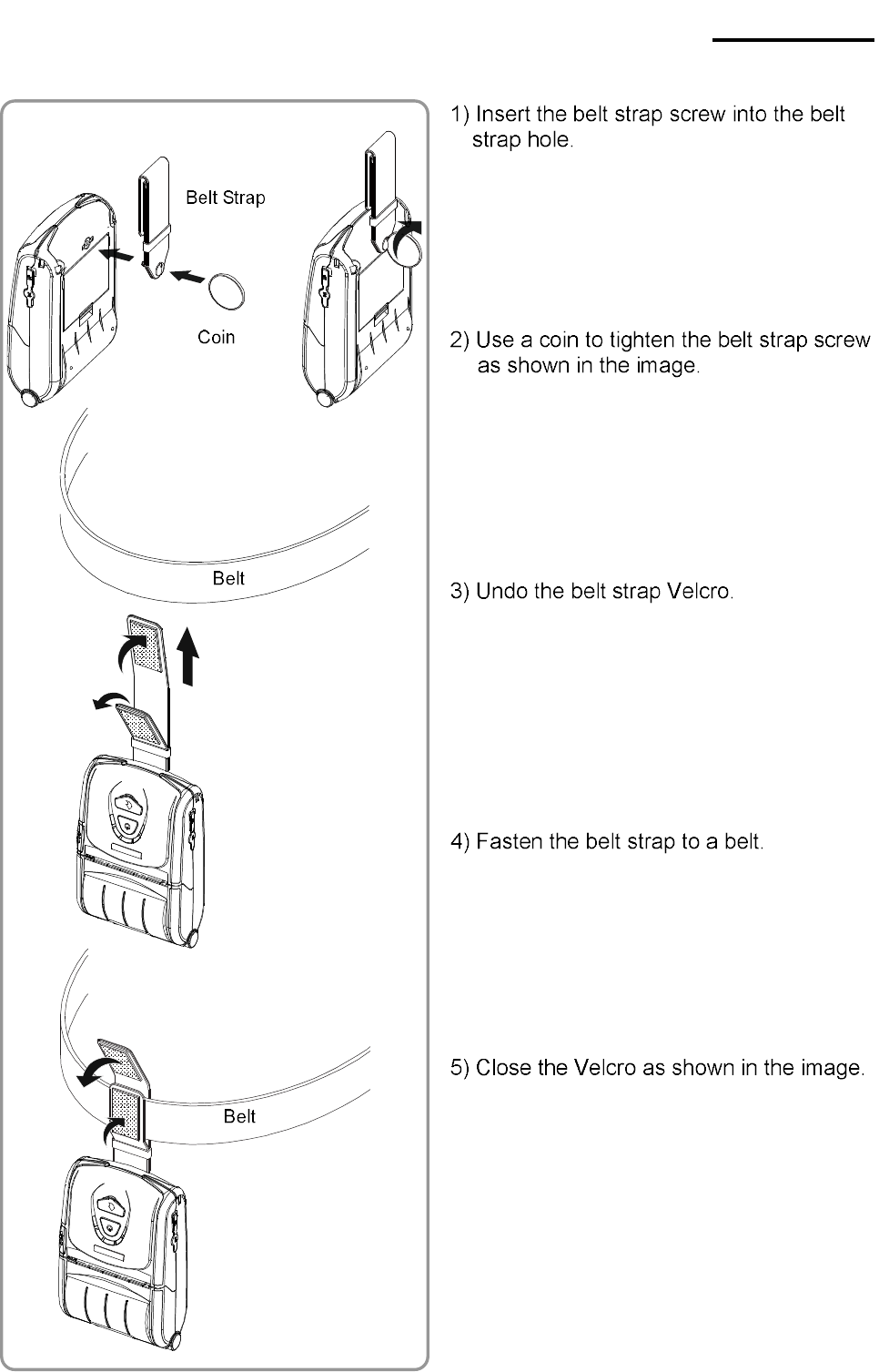

3-5 Using Belt Strap (Optional)
![](/img.php?id=2724233&img=bg13.png)
Rev. 1.00
-
19
-
SPP-R200III

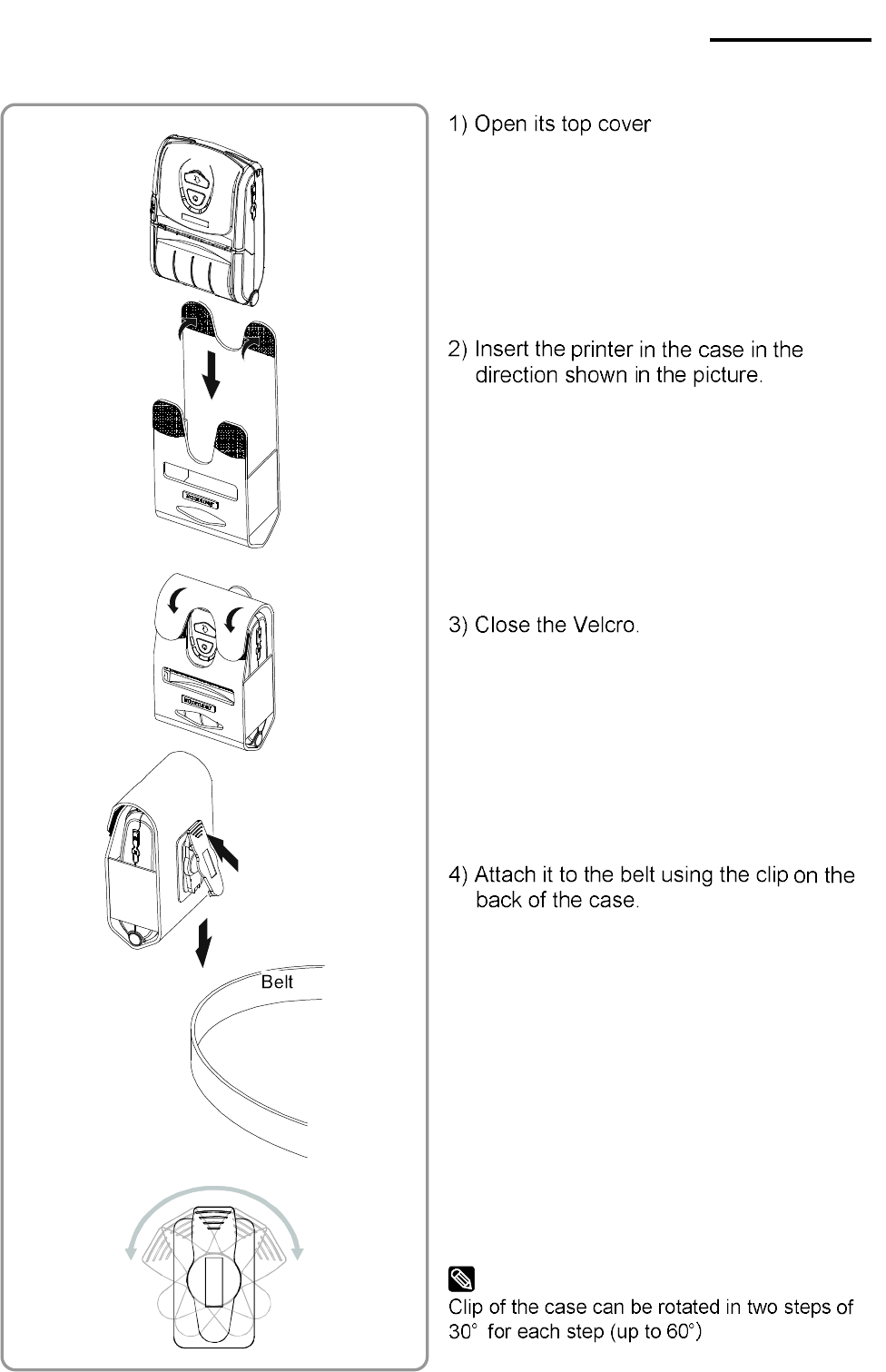

3-6 Using Case (Optional)
Note
![](/img.php?id=2724233&img=bg14.png)
Rev. 1.00
-
20
-
SPP-R200III

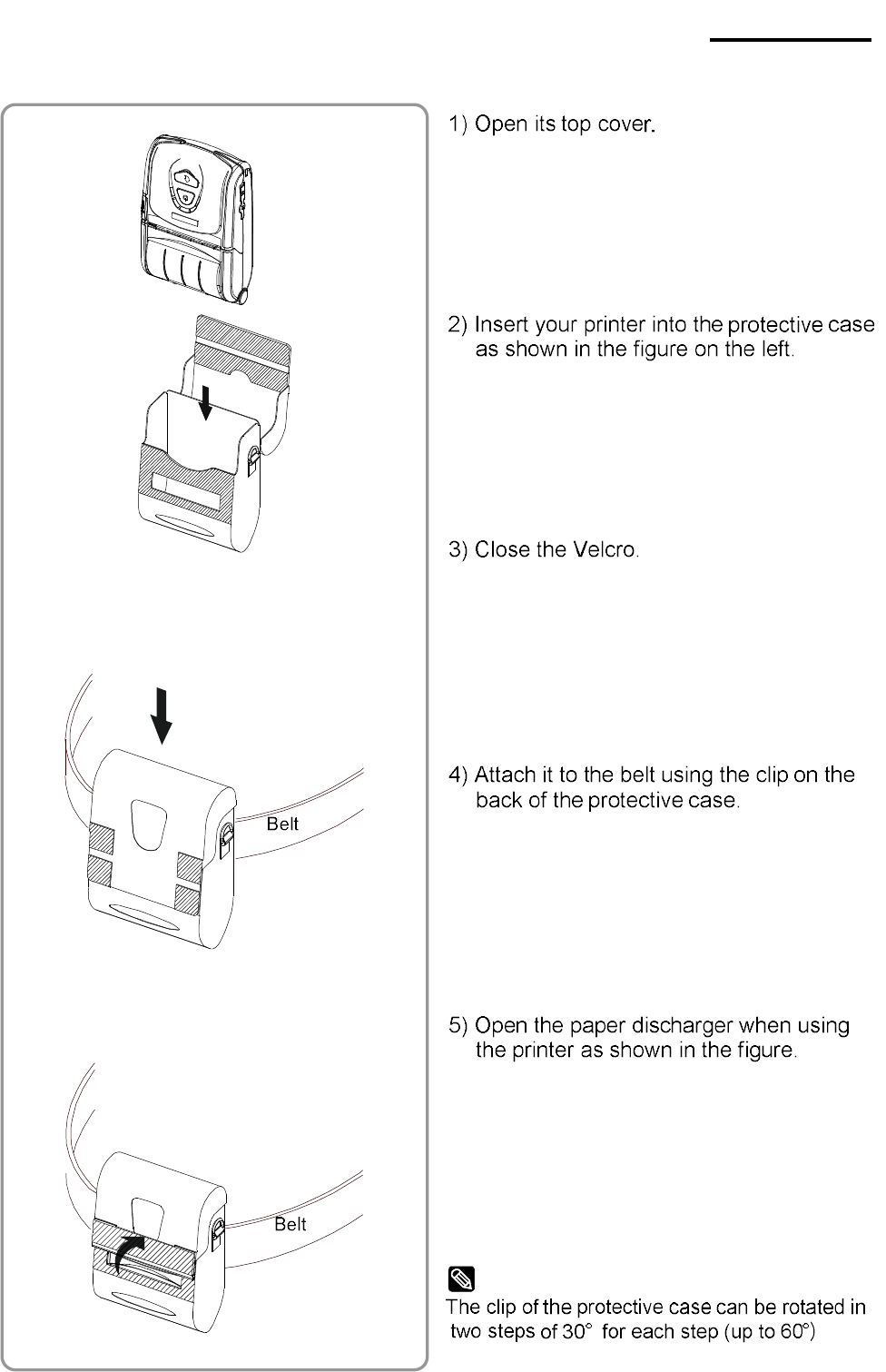

3-7 Using Protective Case (Optional)
Note
![](/img.php?id=2724233&img=bg15.png)
Rev. 1.00
-
21
-
SPP-R200III

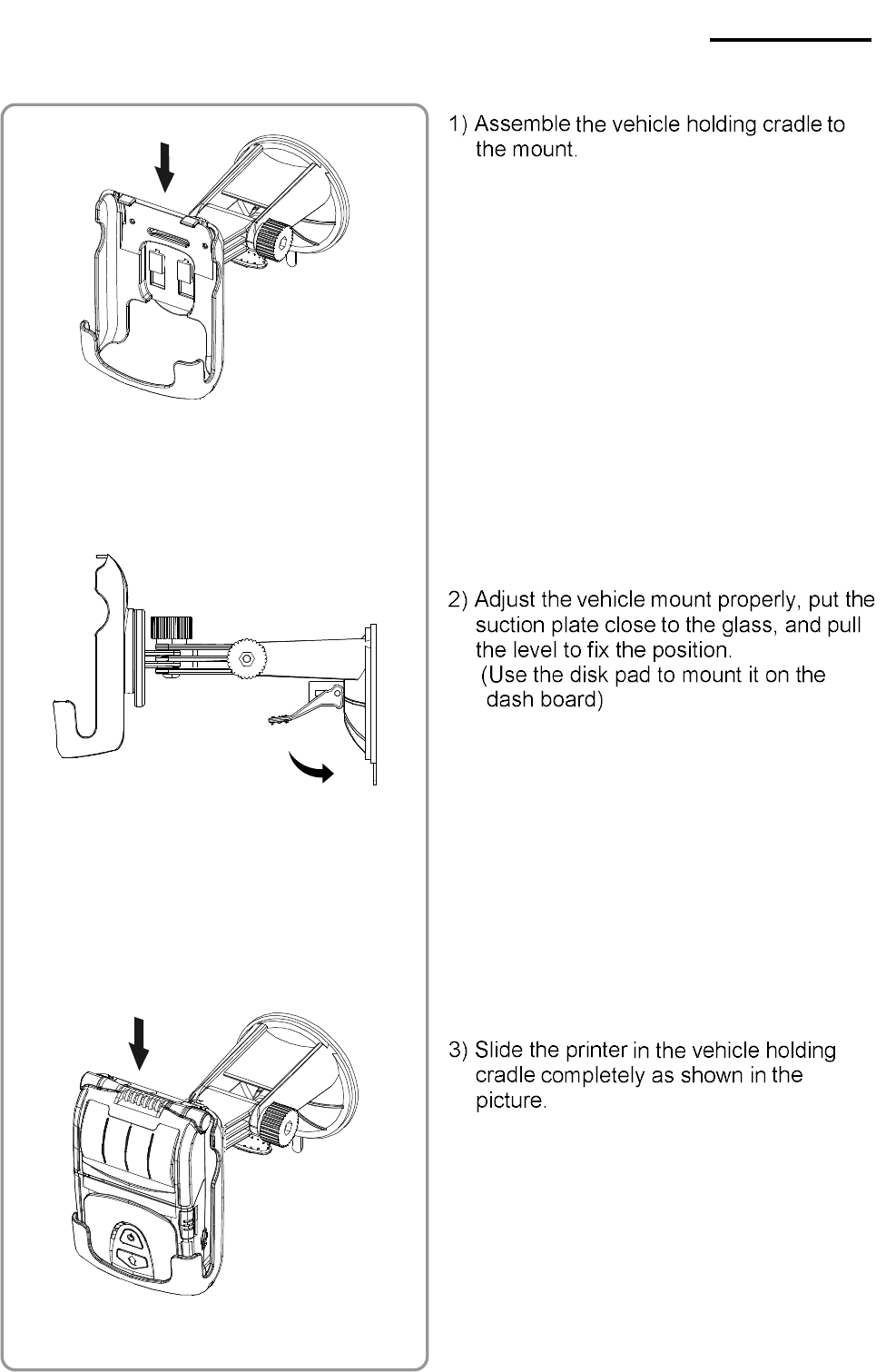

3-8 Using Vehicle Holding Cradle (Optional)
![](/img.php?id=2724233&img=bg16.png)
Rev. 1.00
-
22
-
SPP-R200III

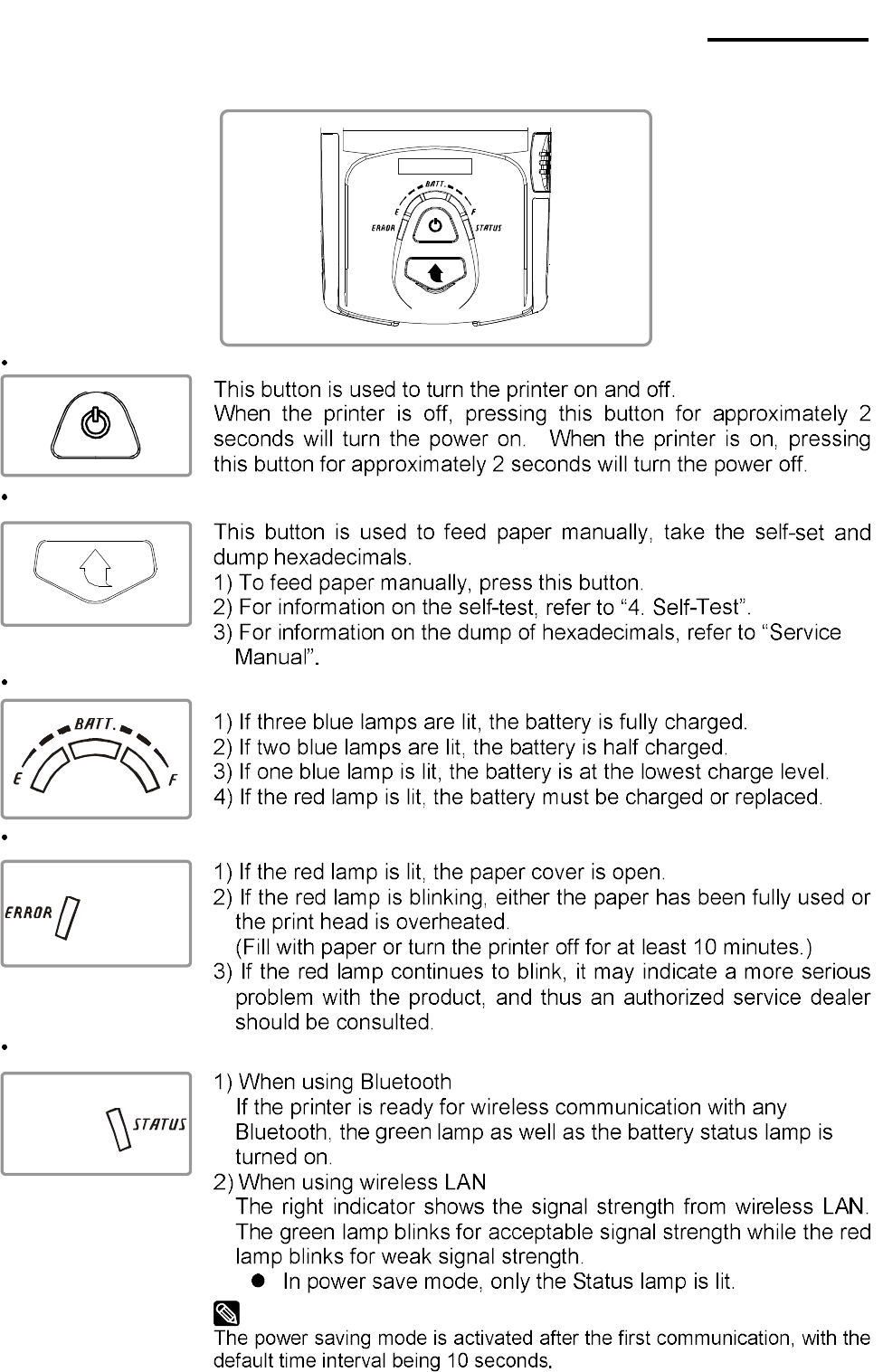

3-9 Using Control Panel
Power Button
Paper Feed Button
Battery Status Lamp (Blue or Red)
Error Lamp (Left-sided)
Bluetooth Lamp (Green)
NOTE
![](/img.php?id=2724233&img=bg17.png)
Rev. 1.00
-
23
-
SPP-R200III

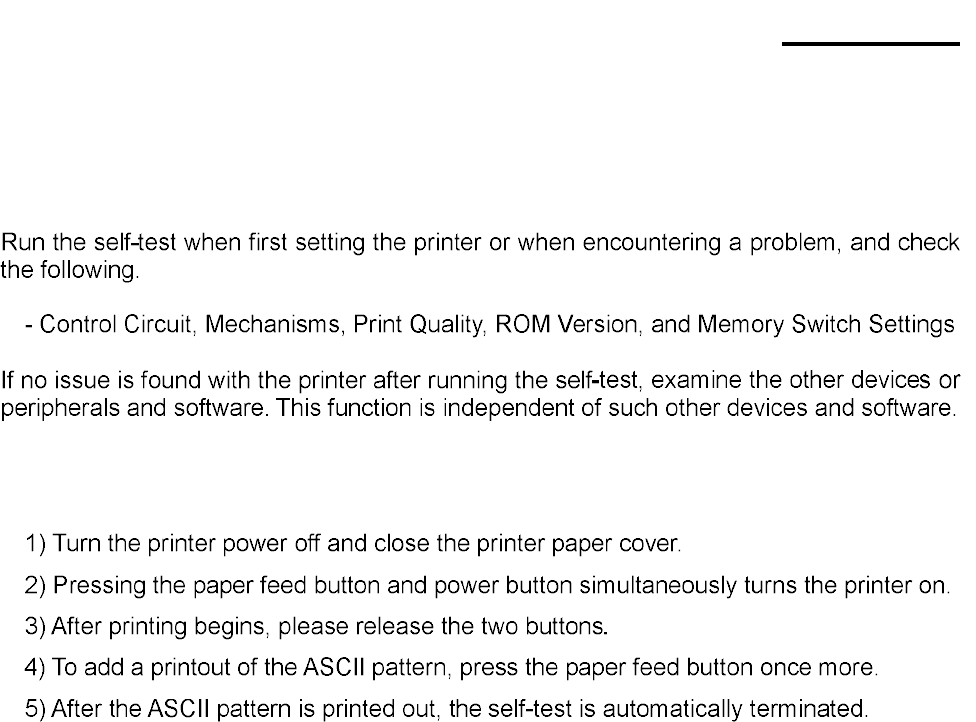

4. Self-Test
• Self-Test Instructions
![](/img.php?id=2724233&img=bg18.png)
Rev. 1.00
-
24
-
SPP-R200III

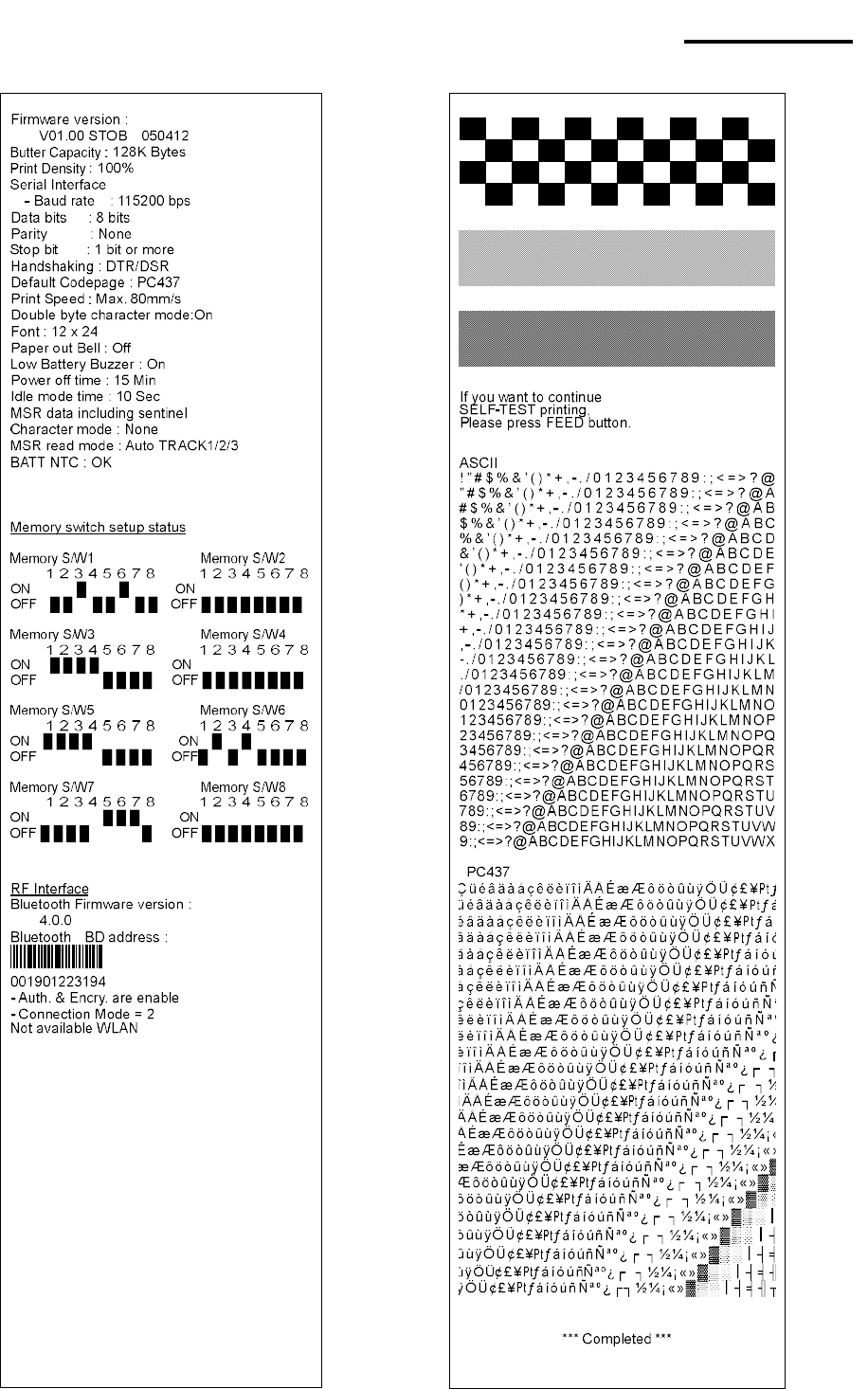

• Self-Test Sample (For Bluetooth)
![](/img.php?id=2724233&img=bg19.png)
Rev. 1.00
-
25
-
SPP-R200III

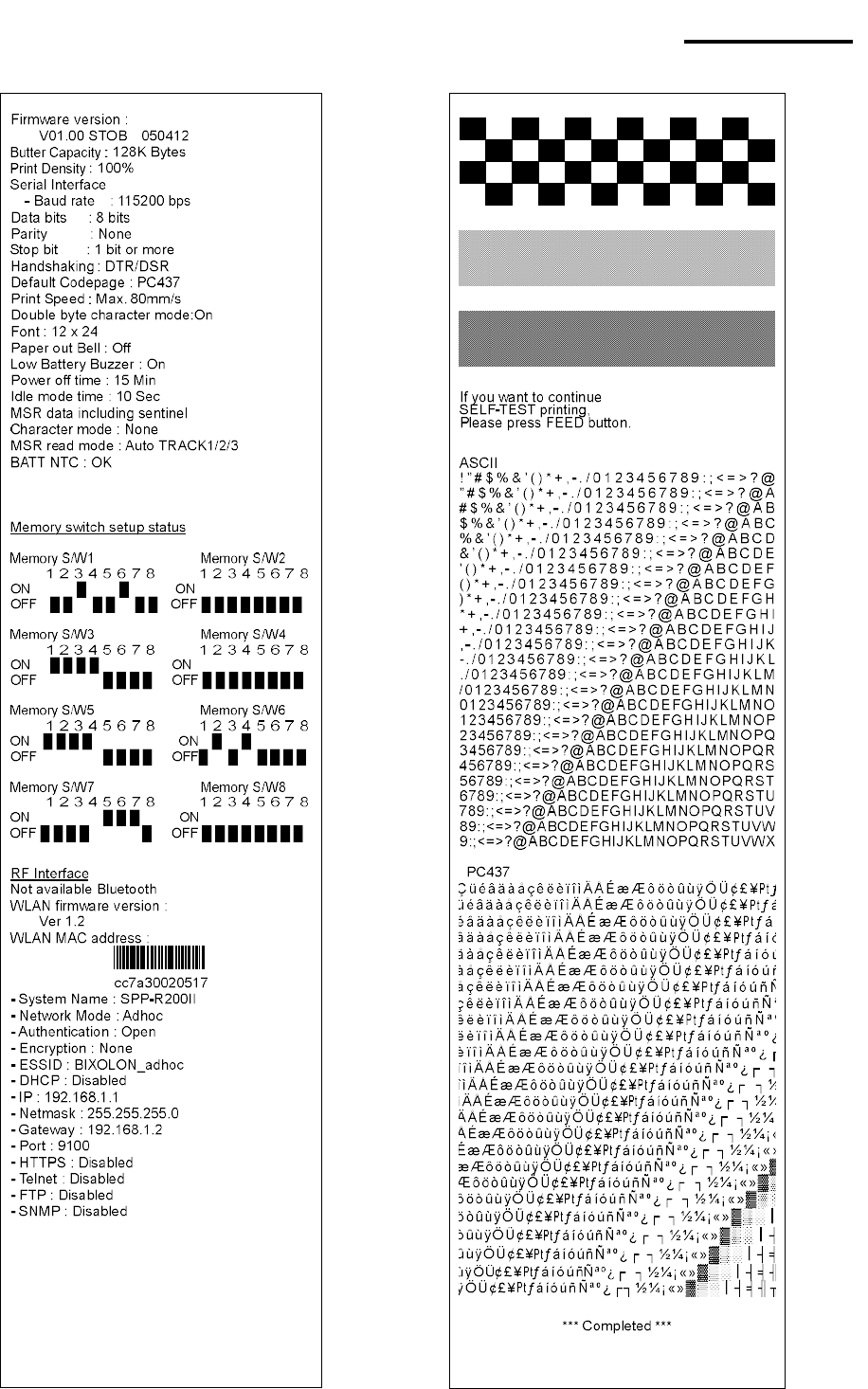

• Self-Test Sample (For Wireless LAN)
![](/img.php?id=2724233&img=bg1a.png)
Rev. 1.00
-
26
-
SPP-R200III

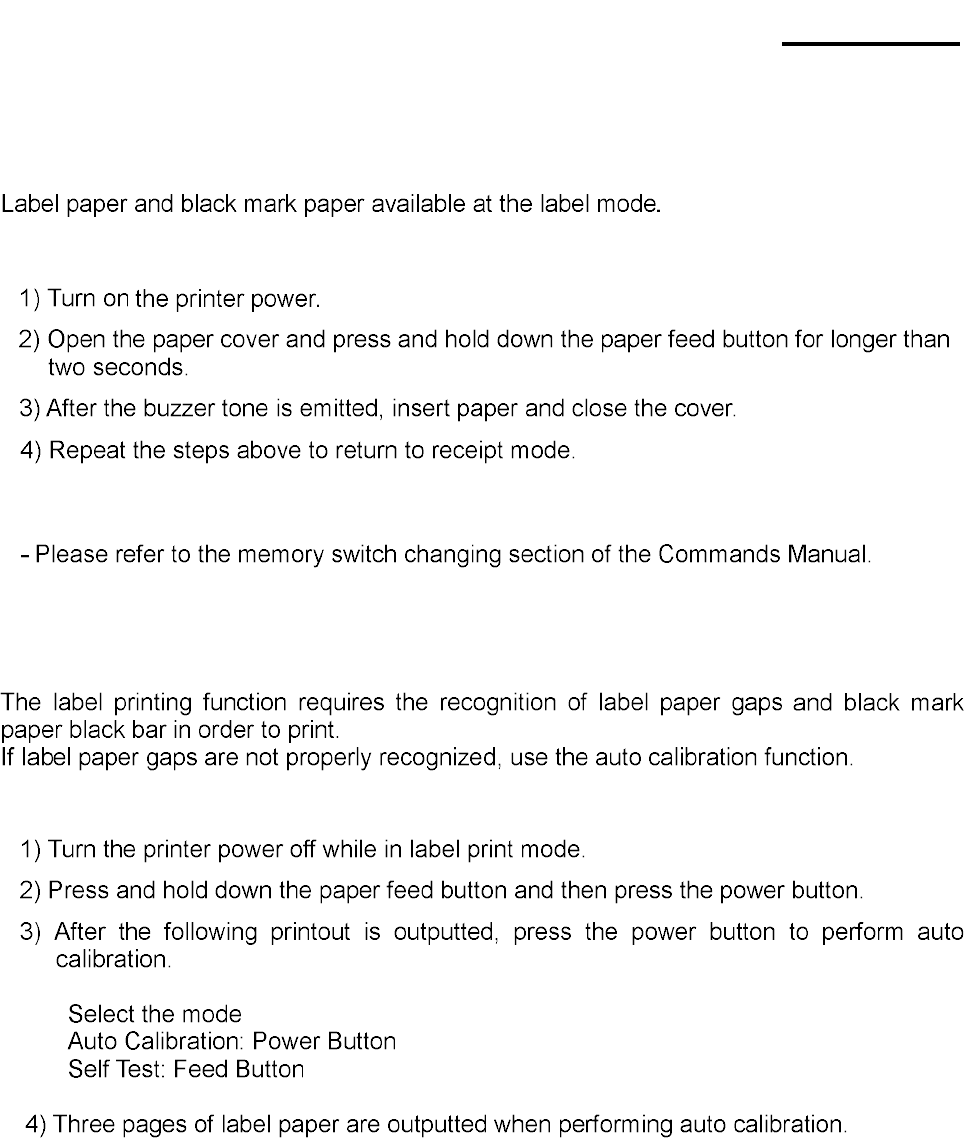

5. Label Printing Function
5-1 Label Function Setting
• Setting Operations
• Setting Via Memory Switch
5-2 Auto Calibration Function
• Auto Calibration Instructions
![](/img.php?id=2724233&img=bg1b.png)
Rev. 1.00
-
27
-
SPP-R200III

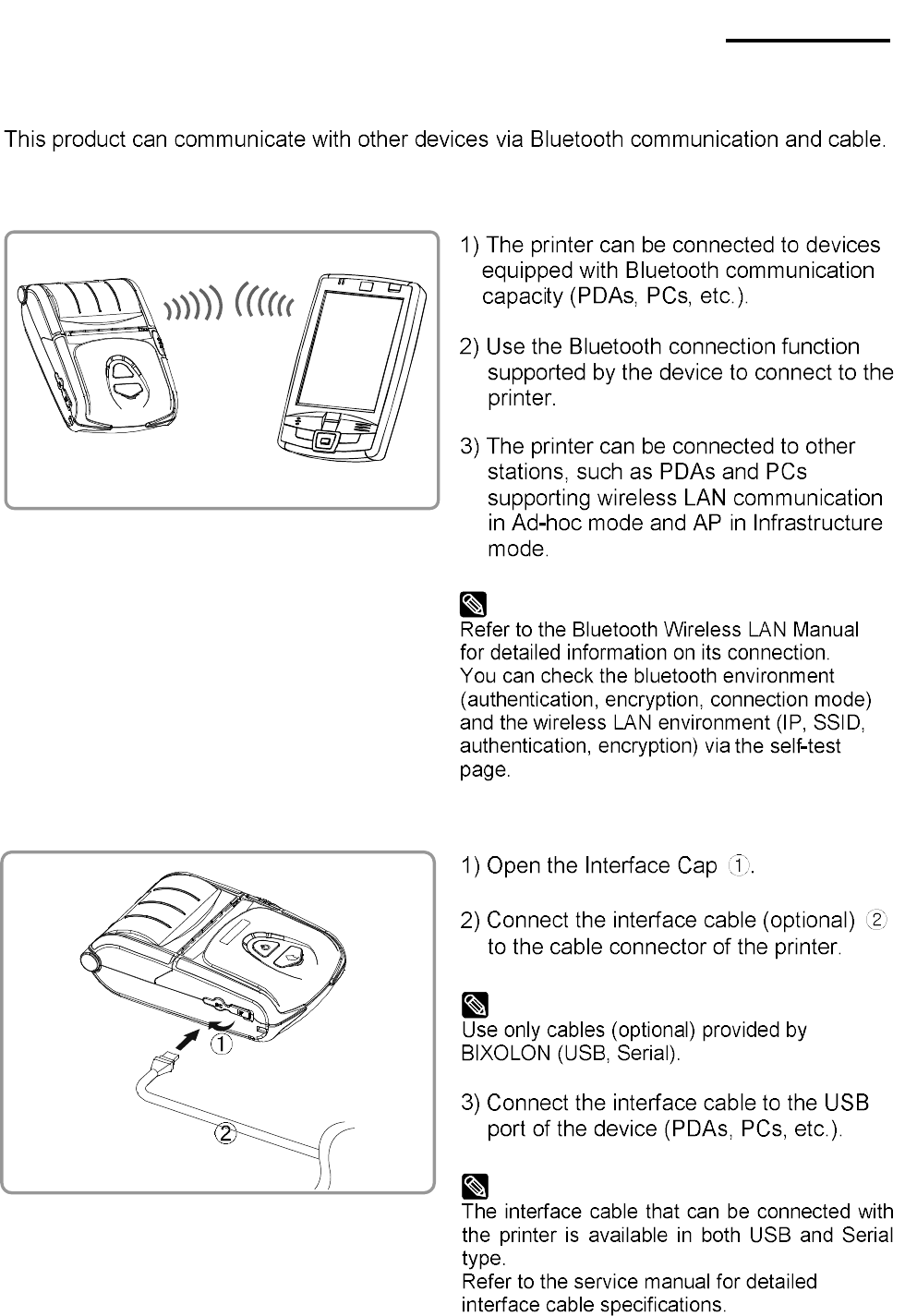

6. Peripherals Connection
6-1 Bluetooth & Wireless LAN Connection
NOTE
6-2 Interface Cable Connection
NOTE
NOTE
![](/img.php?id=2724233&img=bg1c.png)
Rev. 1.00
-
28
-
SPP-R200III

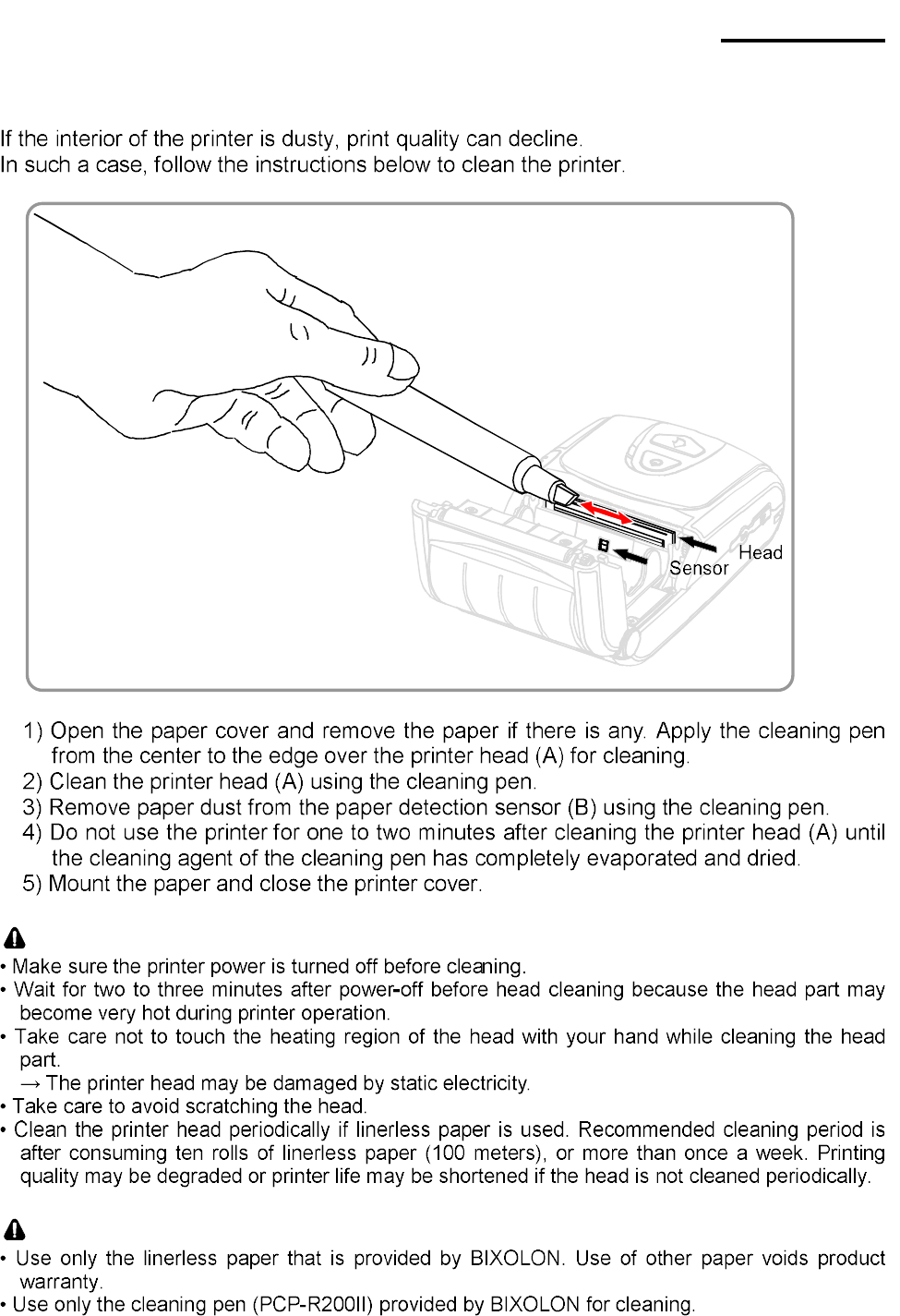

7. Printer Cleaning
Caution
Warning
A
B
![](/img.php?id=2724233&img=bg1d.png)
Rev. 1.00
-
29
-
SPP-R200III
8. Appendix

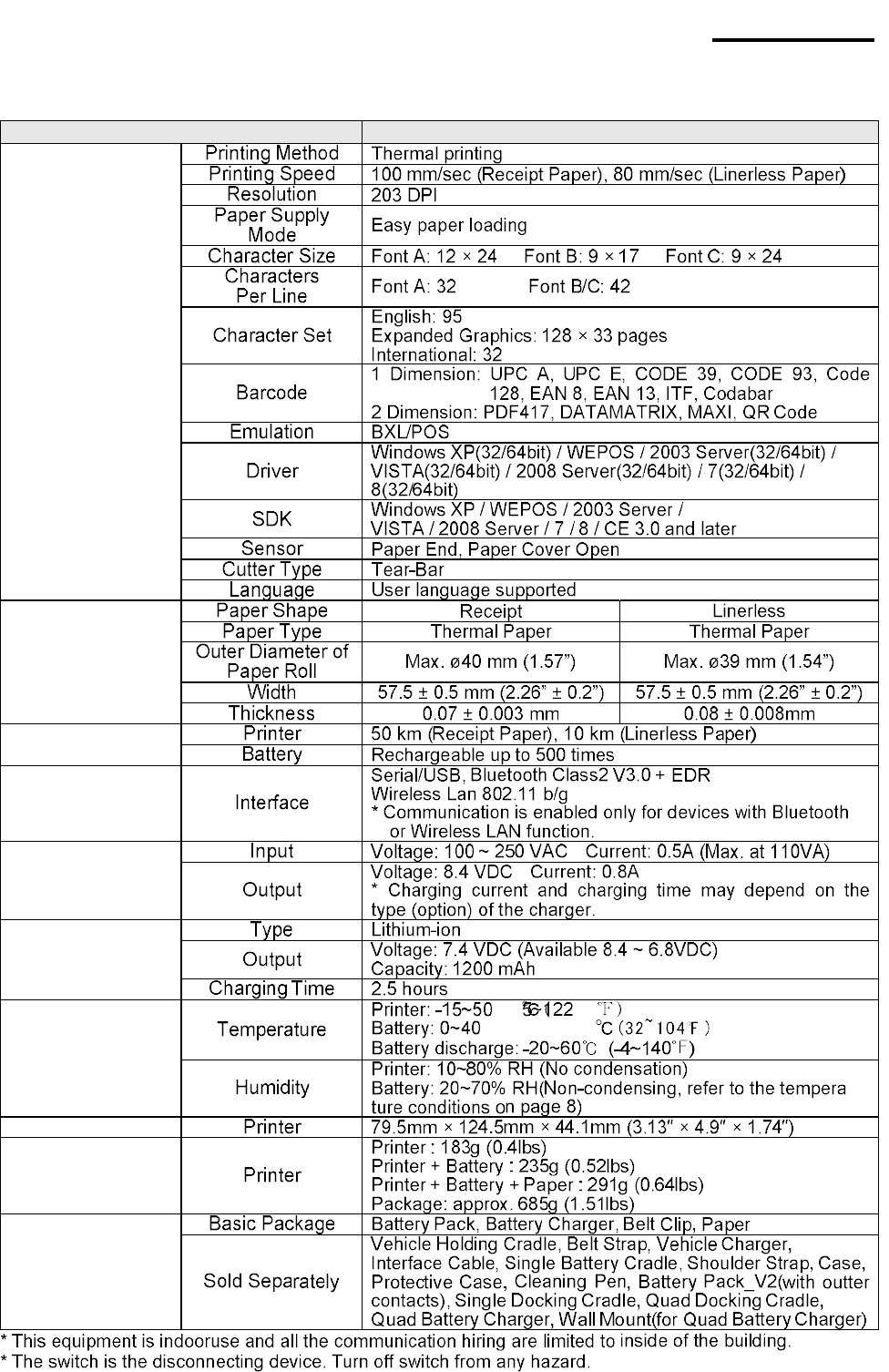

8-1 Specifications
Item Description
Printing
Paper
Reliability
Communications
Battery
Charger
Battery
Usage
Conditions
Dimensions
Weight
Accessories
![](/img.php?id=2724233&img=bg1e.png)
Rev. 1.00
-
30
-
SPP-R200III

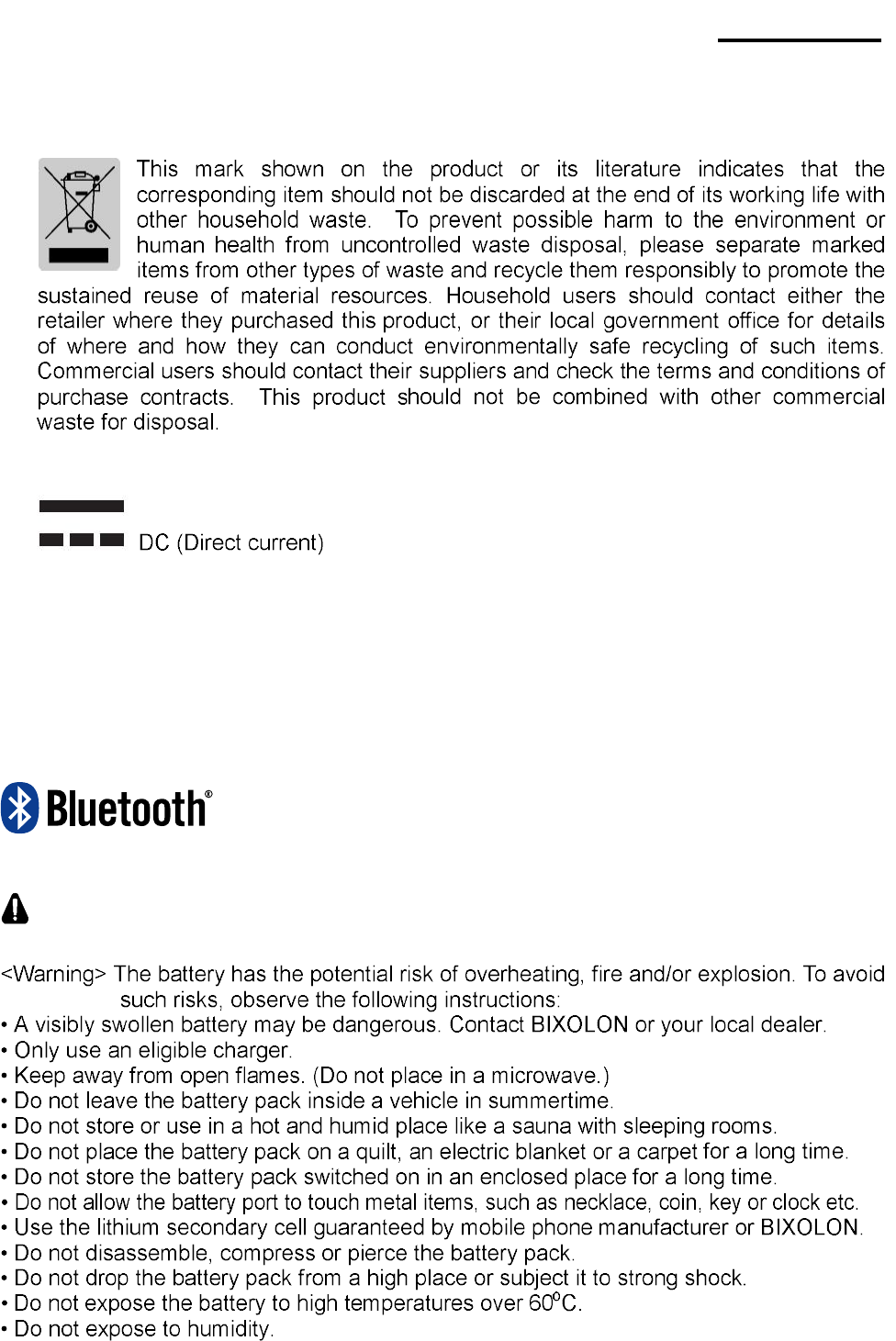

8-2 Certification
1) WEEE (Waste Electrical and Electric Equipment)
2) Rating Label Symbol Information
3) This equipment is indooruse and all the communication hiring are limited to
inside of the building.
4) The switch is the disconnecting device. Turn off switch from any hazard.
5) The following Bluetooth mark and ID D022644 is only applicable to models
with the Bluetooth SIG qualification.
Warning
Lithium-lon Battery pack
![](/img.php?id=2724233&img=bg1f.png)
Rev. 1.00
-
31
-
SPP-R200III

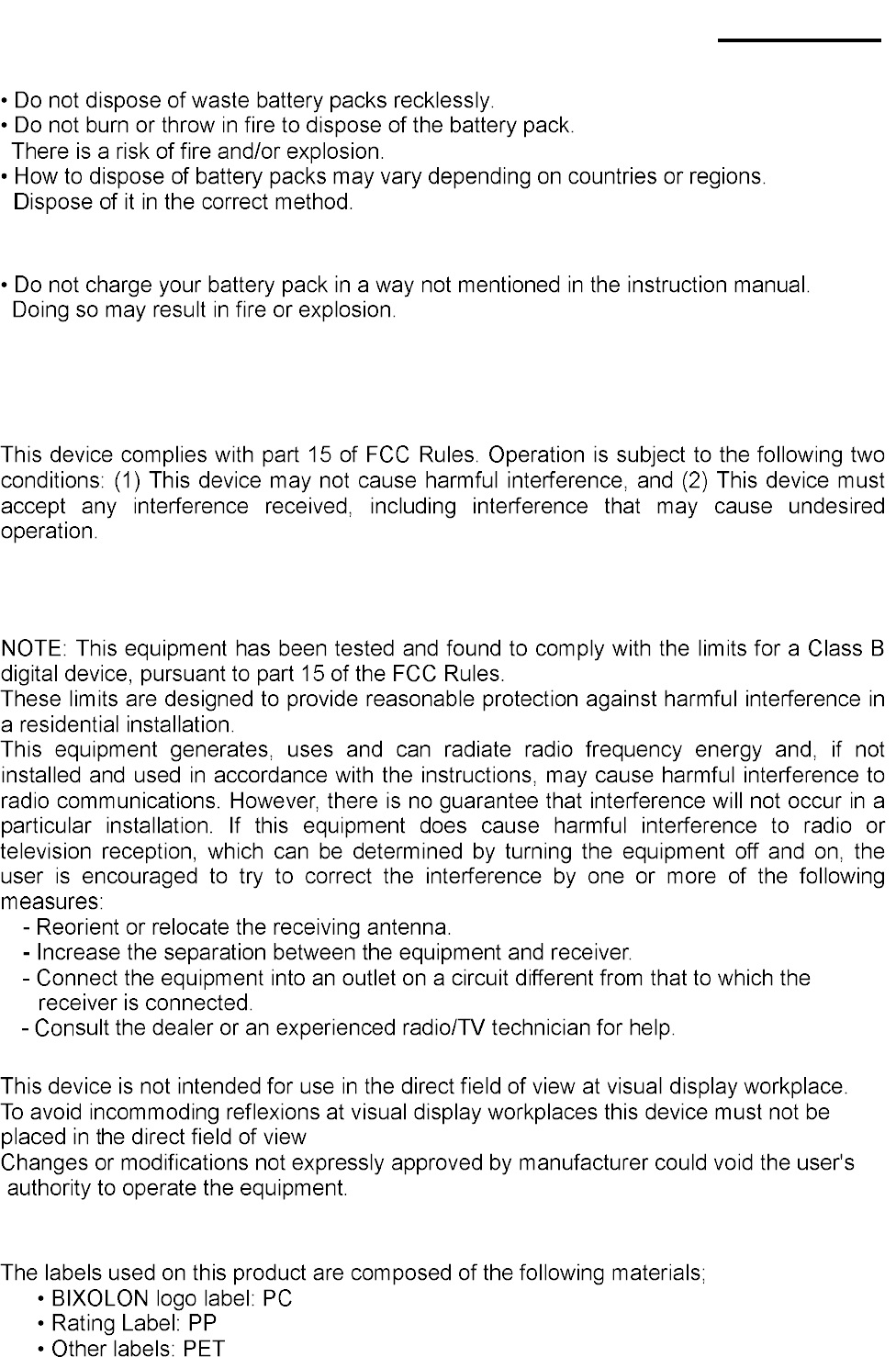

Disposal Directions
Recommendation for Charging
FCC compliance Information
Information to the user
8-3 Label Types
