Users Manual

User's Manual
SPP-R200
Mobile Printer
Rev. 1.04
http://www.bixolon.com
Rev. 1.04 - 2 -
SPP-R200
Table of Contents
Manual Information & Usage Precautions············································· 3

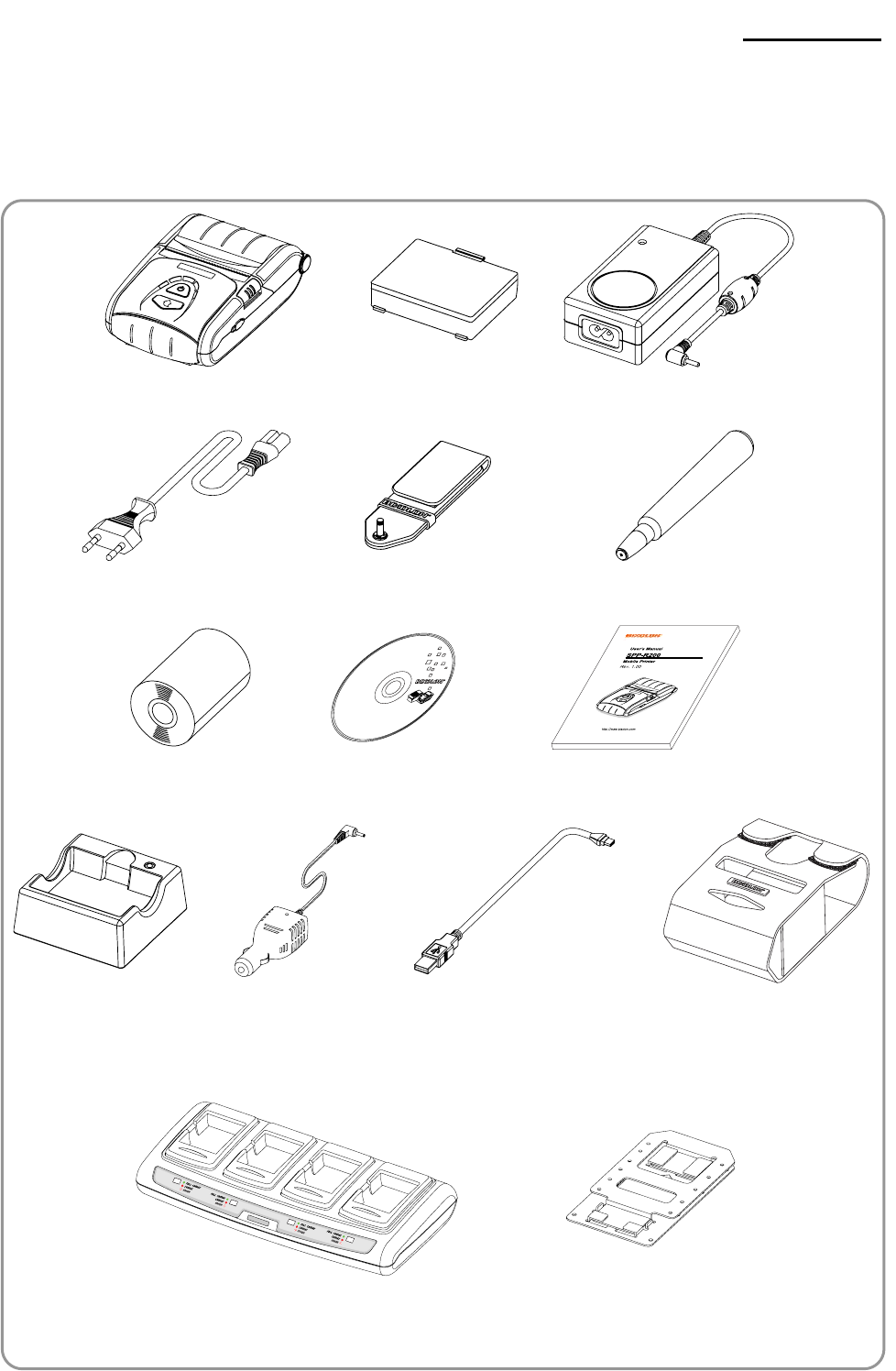

1. Content Confirmation············································································· 10

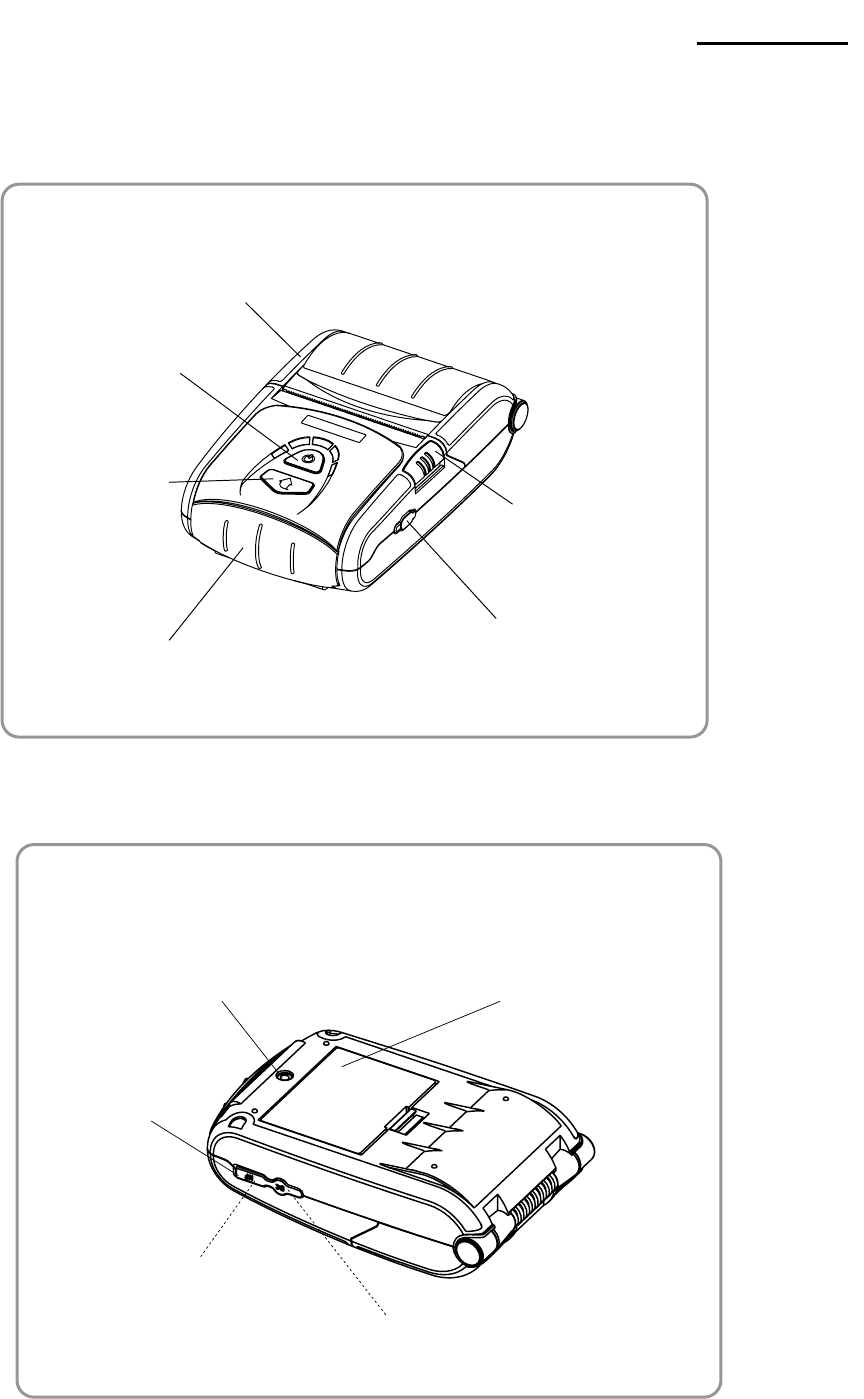

2. Product Part Names·················································································11
3. Installation & Usage················································································ 12

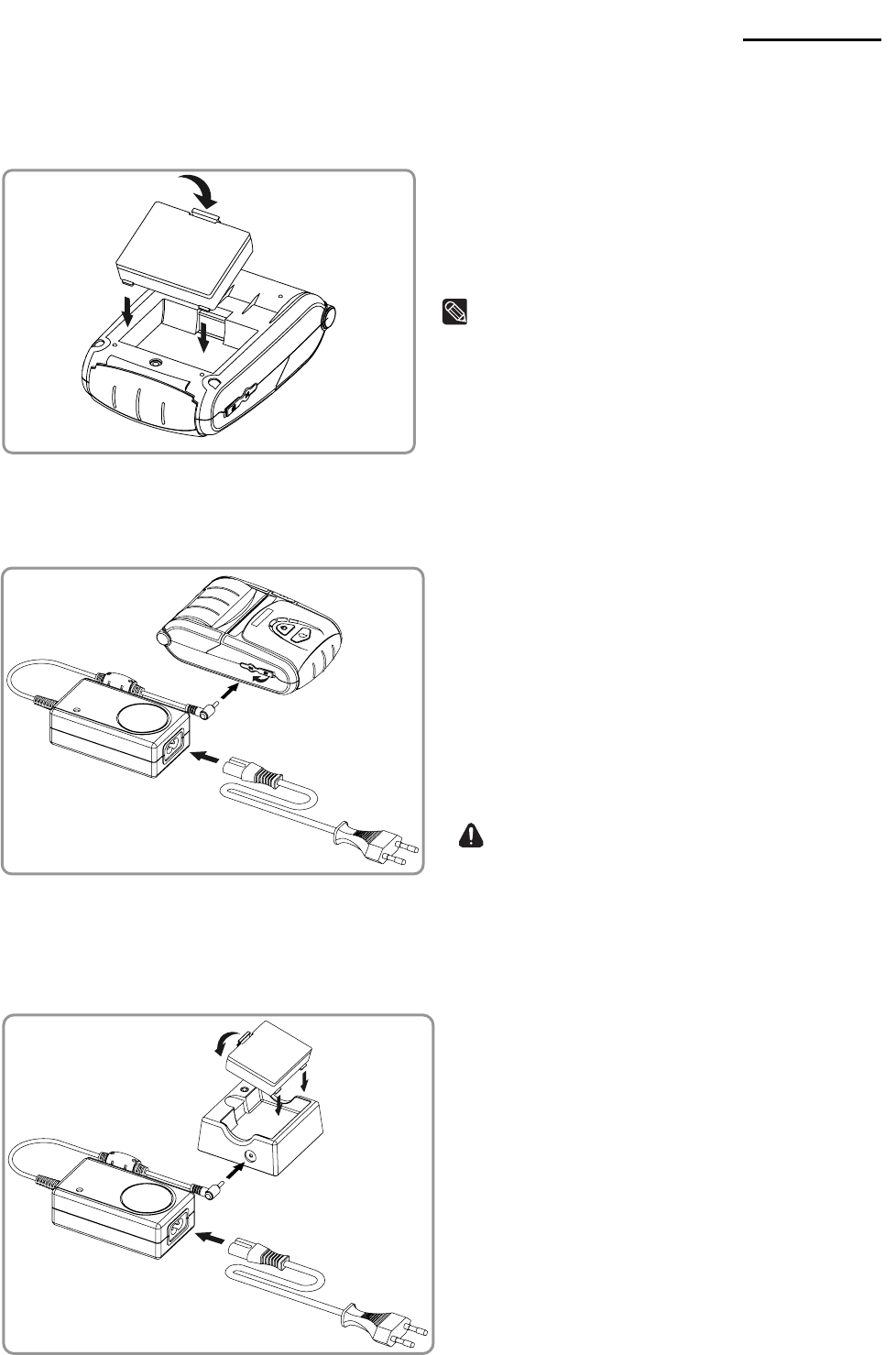

3-1 Battery Installation··········································································· 12
3-2 Battery Charging ············································································· 12
3-2-1 Battery Charging Usage ···············································································12
3-2-2 Battery Holder (Optional) Usage···································································12

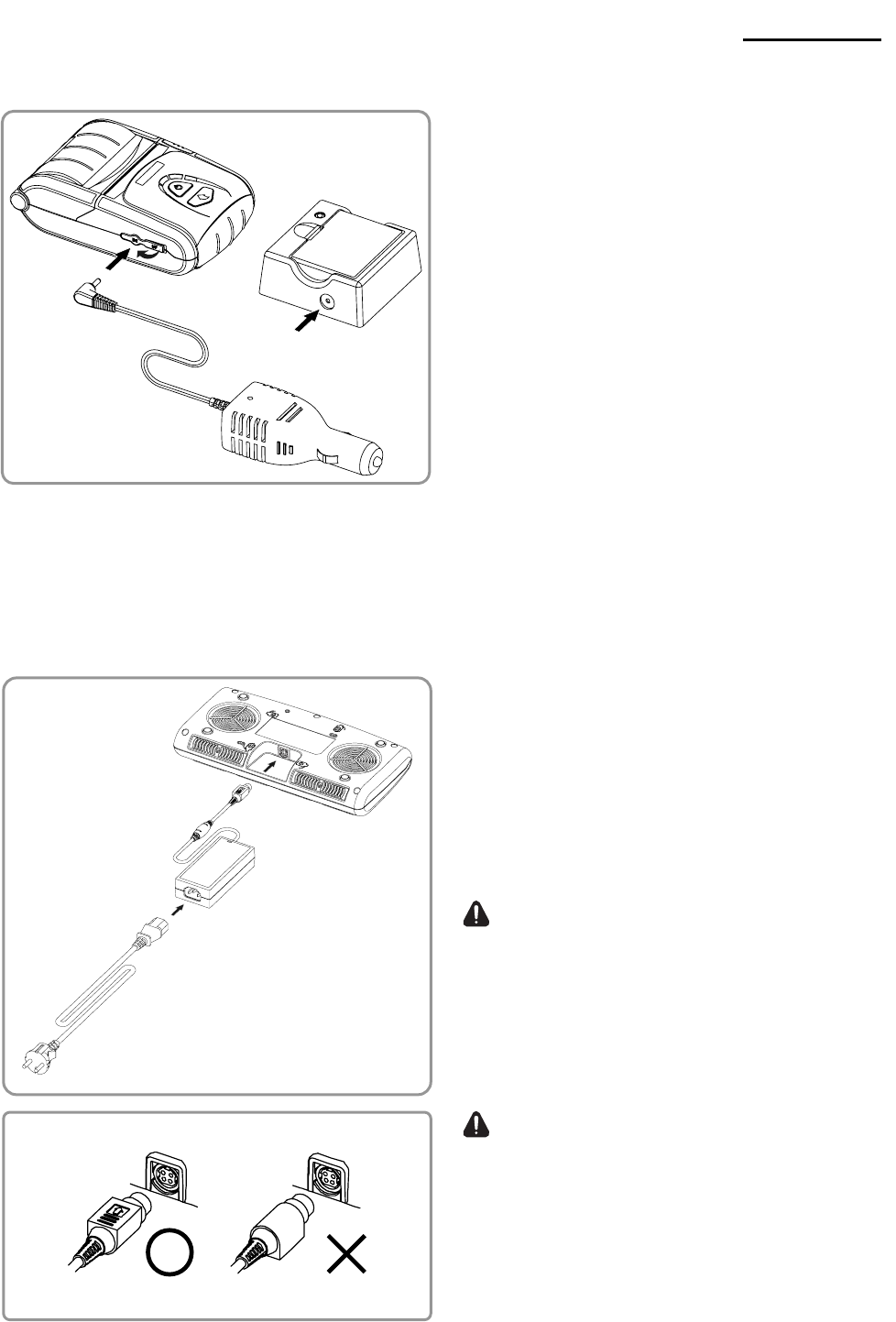

3-2-3 Cigarette Lighter Jack Charger (Optional) Usage·········································13

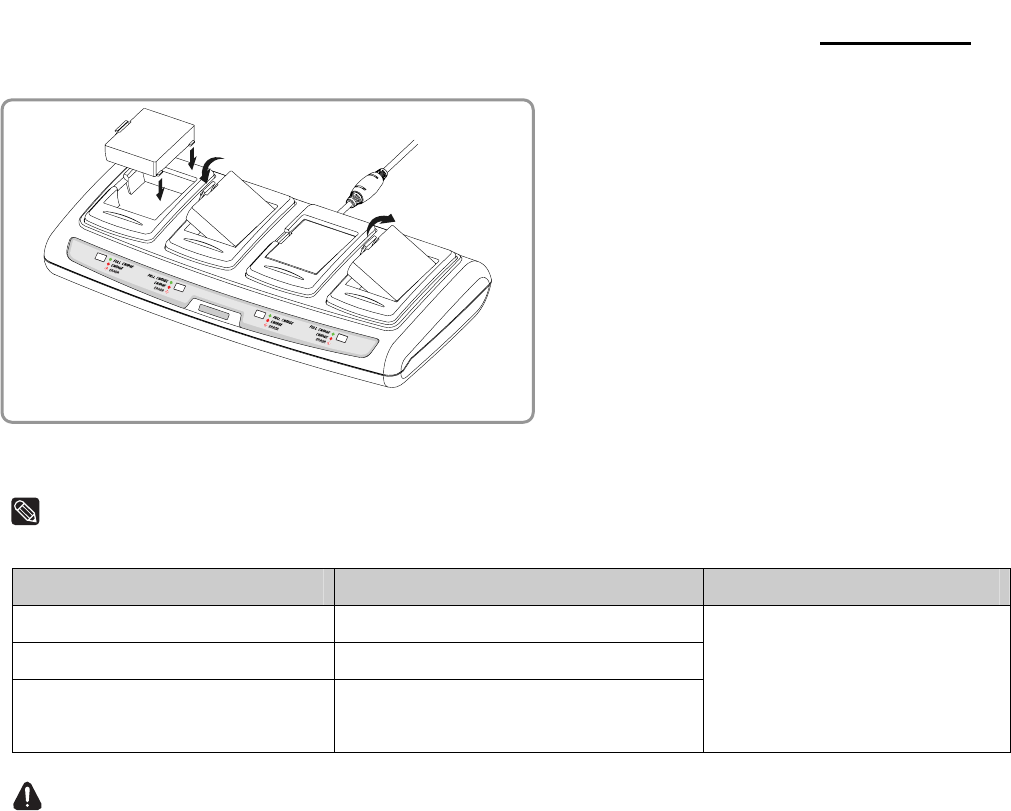

3-2-4 Quad Charger (Optional) Usage···································································13

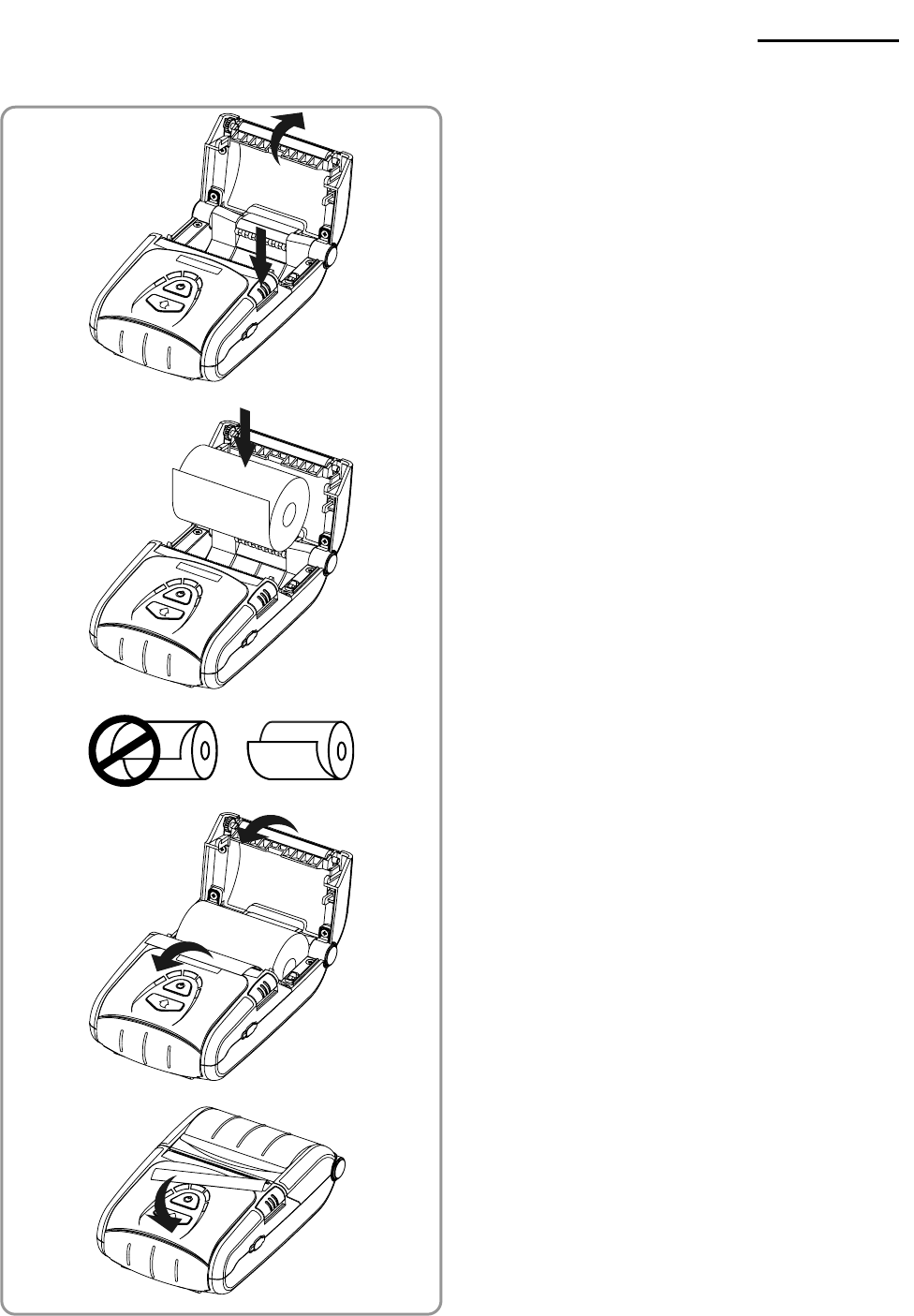

3-3 Paper Installation ············································································ 15

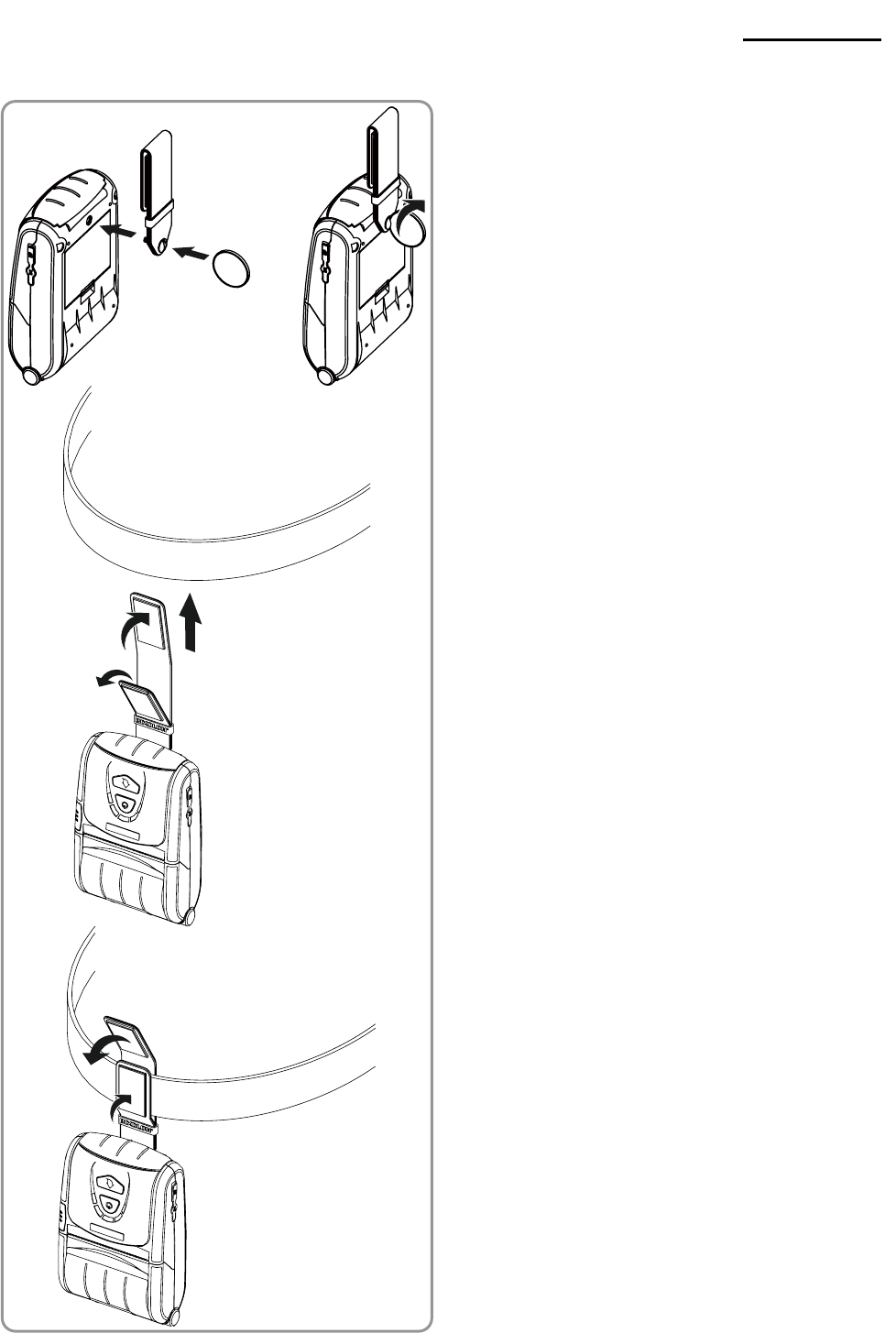

3-4 Belt Strap Usage············································································· 16

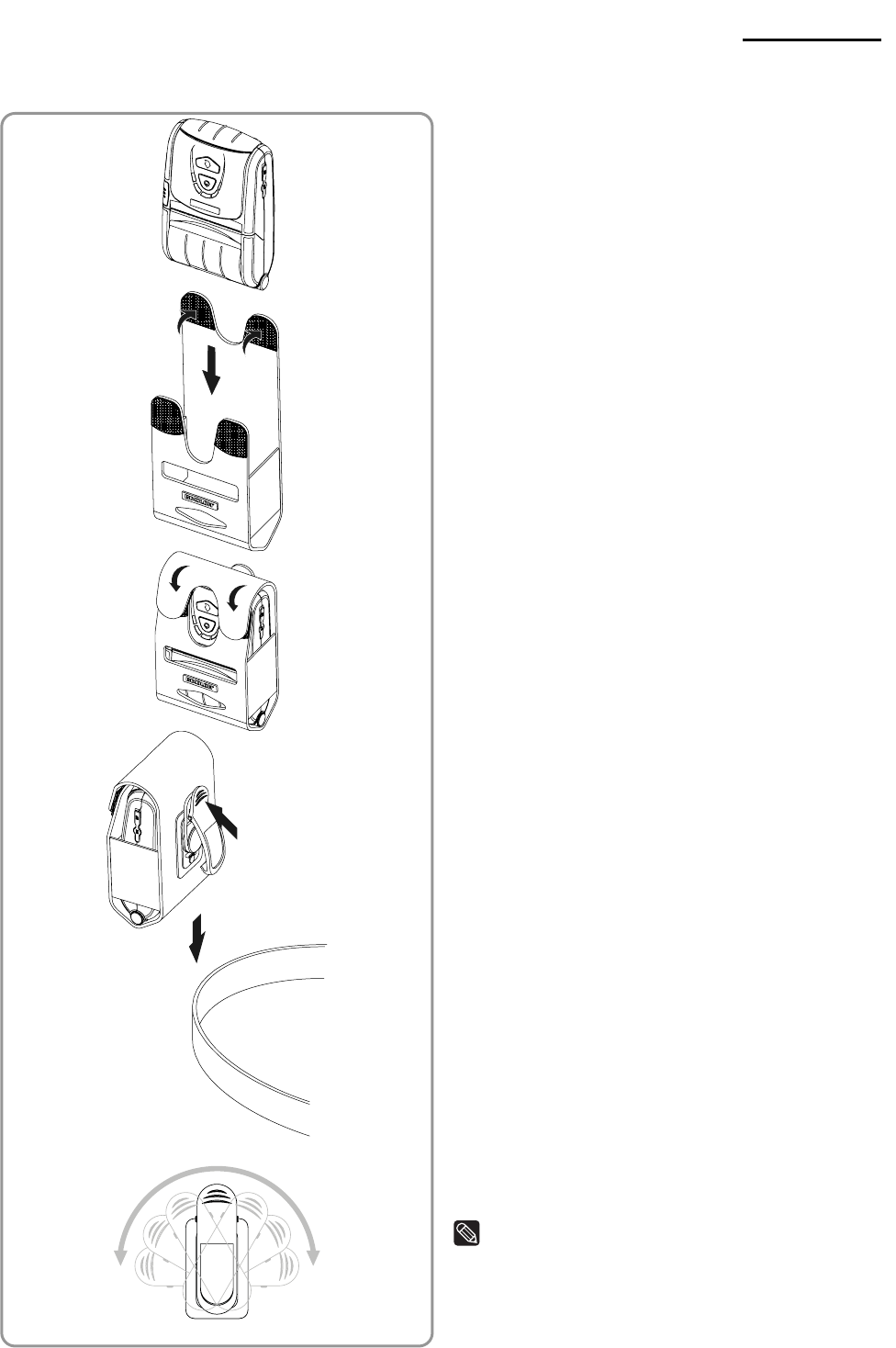

3-5 Leather Case (Optional) Usage ······················································ 17

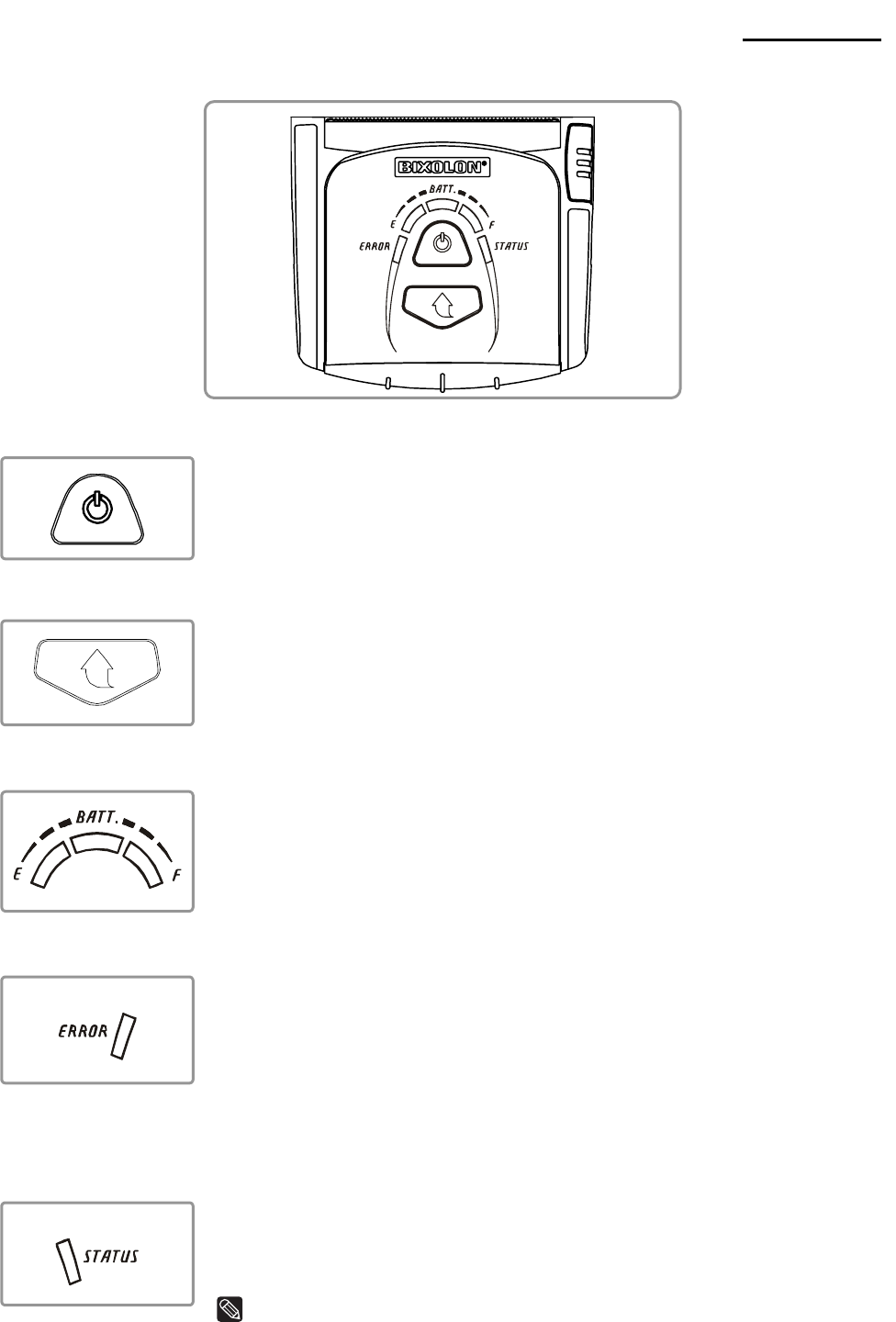

3-6 Control Panel Usage······································································· 18
3-7 MSR Usage····················································································· 19
4. Self-Test··································································································· 19
5. Label Printing Function·········································································· 21
5-1 Label Function Setting ···································································· 21
5-2 Auto Calibration Function································································ 21

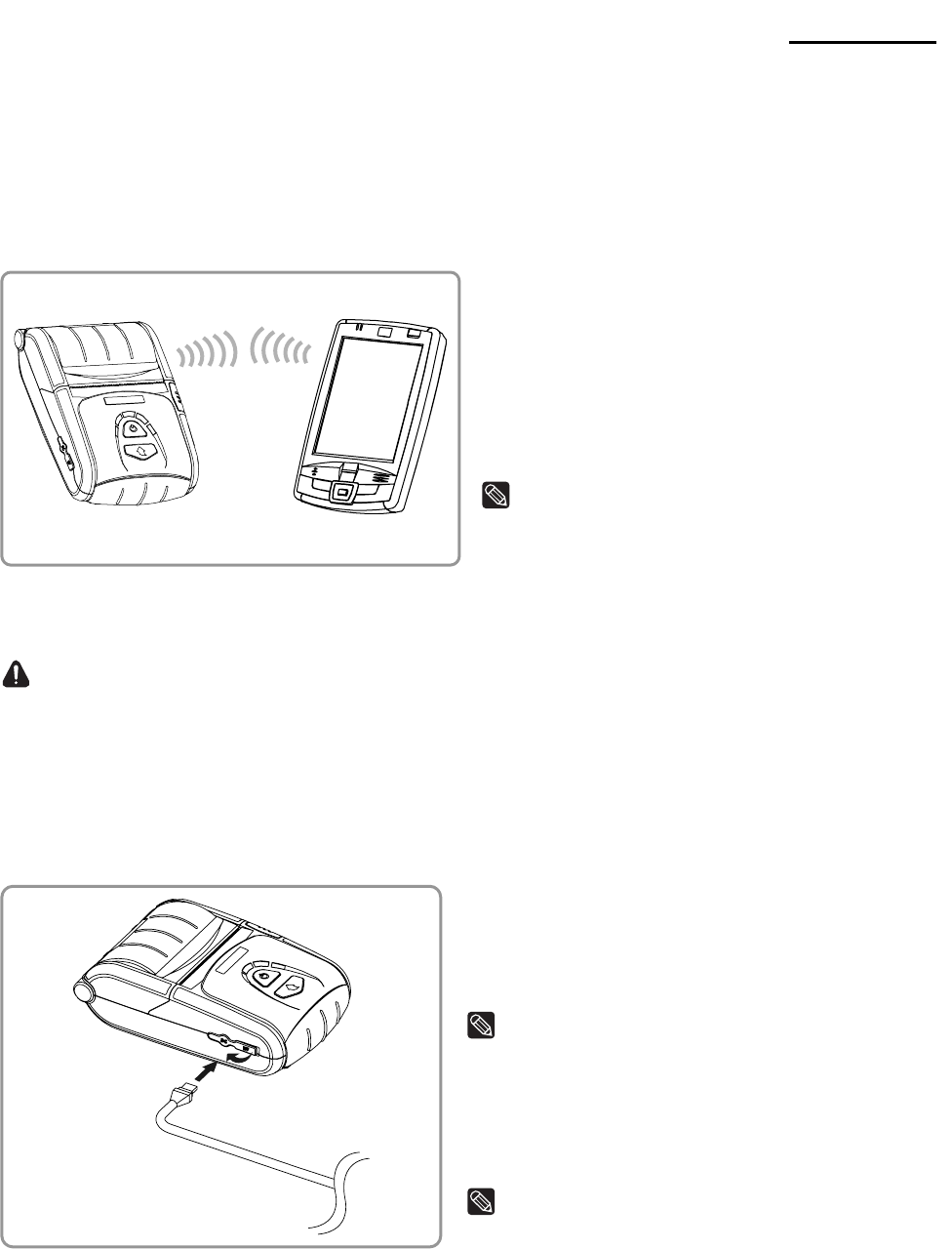

6. Peripherals Connection·········································································· 22
6-1 Bluetooth Connection······································································ 22
6-2 Interface Cable Connection····························································· 22

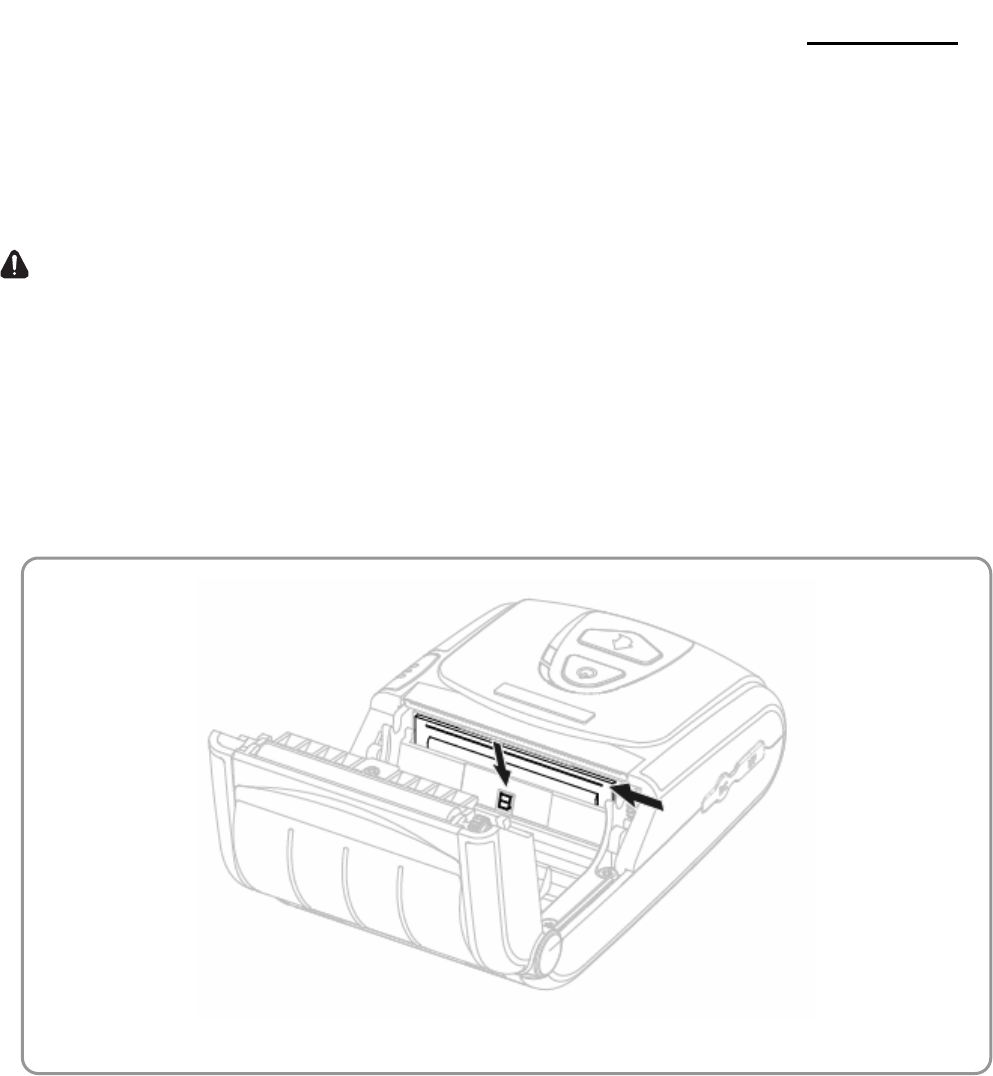

7. Printer Cleaning ······················································································ 23
8. Appendix·································································································· 24
8-1 Specifications·················································································· 24
8-2 Certification ····················································································· 25
8-3 Label Types····················································································· 25
Rev. 1.04 - 3 -
SPP-R200
Manual Information
Manual Information & Usage Precautions
This users manual contains basic information for product usage as well as for emergency
measures that may be required.
The following separate manuals provide more detailed content on various technological
issues and areas.
1. Windows CE Module Program Manual
This manual provides information on the dll files required for Windows CE application
program development.
2. Windows Driver Manual
This manual provides information on installation and main functions of the Windows
Driver for this product.
3. Unified Utility Manual
This manual provides information on the software used to select functions of this
product, modify operation conditions, etc.
• VMSM (Virtual Memory Switch Manager)
: As a function that sets the basic operation conditions of the product, the use o
f
non-hardware control, software-based virtual switches is explained.
• NV Image Download Manager
: The downloading of image files, such as logos, intended for repetitive printing is
explained.
• Firmware Download Manager
: The downloading and installation of the latest Firmware, which is subject to
ongoing modification for the enhancement of product performance, are explained.
4. Bluetooth Connection Manual
This manual provides information on the connection of this product with devices
equipped with Bluetooth functionality (PDAs, PCs, etc.). The devices included are
as follows.
• PDAs:
- Intermec PDA (Device: CN2B, OS: Pocket PC 4.20.0)
- SYMBOL PDA (Device: SYMBOL MC70, OS: Windows Mobile 5.0)
- HP PDA (Device: iPAQ hx2700, OS: Windows Mobile 5.1.1702)
- Mobile Compia PDA (Device: M3, OS: WinCE 5.0)
- InnoTeletek PDA (Device: MC3000, OS: WinCE 4.2)
• Bluetooth Dongle (BlueSoleil IVT Stack)
5. Commands Manual
This manual provides information on the protocol and functions of the control
commands that can be used with this product.
6. Code Pages Manual
This manual provides information on each character code page that can be used
with this product.
We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and
quality of all our products. In following, product specifications and/or user manual content
may be changed without prior notice.
Rev. 1.04 - 4 -
SPP-R200
Safety Precautions
In using the present appliance, please keep the following safety regulations in order to
prevent any hazard or material damage.
WARNING
Violating following instructions can cause serious injury or death.
Do not bend the cable by force or leave it under any
heavy object.
 A damaged cable can cause a fire.

Do not plug in or unplug with your hands wet.
You can be electrocuted.

Keep the plastic bag out of children’s reach.
If not, a child may put the bag on his head.

Do not pull the cable to unplug.
This can damage the cable, which is the origin of a fire or a
breakdown of the printer.

You must use only the supplied adapter.
It is dangerous to use other adapters.

Do not plug several products in one multi-outlet.
 This can provoke over-heating and a fire.
 If the plug is wet or dirty, dry or wipe it before usage.
 If the plug does not fit perfectly with the outlet, do not plug in.
Be sure to use only standardized multi-outlets.
PROHIBIT
PROHIBIT PROHIBIT
PROHIBIT PROHIBIT
ONLY SUPPLIED ADAPTER
PROHIBIT
Rev. 1.04 - 5 -
SPP-R200
CAUTION
Violating following instructions can cause slight wound or damage the appliance
.
Do not use the printer when it is out of order. This
can cause a fire or an electrocution.
Switch off and unplug the printer before calling your dealer.

Do not let water or other foreign objects in the
printer.
If this happened, switch off and unplug the printer before
calling your dealer.

Use only approved accessories and do not try to
disassemble, repair or remodel it for yourself.
Call your dealer when you need these services.
 Do not touch the blade of auto cutter.
 
Install the printer on the stable surface.
If the printer falls down, it can be broken and you can hurt
yourself.

Keep the desiccant out of children’s reach.
If not, they may eat it.

If you observe a strange smoke, odor or noise from
the printer, unplug it before taking following
measures.
 Switch off the printer and unplug the set from the mains.
After the disappearance of the smoke, call your dealer to
repair it.
TO UNPLUG
PROHIBIT
DISASSEMBLING
PROHIBITED
PROHIBIT
PROHIBIT
TO UNPLUG
PRINTER
PRINTER
PRINTER
PRINTER
DEALER
PRINTER
Rev. 1.04 - 6 -
SPP-R200
Battery Safety Precautions
Make sure to review the user manual carefully prior to product use.
Neglecting to heed the following instructions can result in battery overheating, combustion,
explosion, damage and/or decline in performance and product life.
Danger
1. Do not allow water, seawater, etc. enter or leak into the battery interior. If the safety
mechanism within the battery becomes burned out, any charging of the battery can
result in abnormal electrical current flow and/or voltage that causes an abnormal
chemical reaction, which may then cause the battery to overheat, ignite, and/or explode.
2. Do not use or leave the battery in a location exposed to high temperatures, such as next
to a stove, etc. Excessive heat exposure can cause damage to the resin case and/or
insulating materials, thus causing short circuits within the battery that may result in
battery overheating, combustion, and/or explosion.
3. When charging the battery, use the exclusive charger or follow the charging
requirements outlined by BIXOLON. Charging under conditions not included in such
requirements (higher temperature, higher voltage/larger electrical current, use of a
modified charger, etc.) can result in excessive battery charging and abnormal electrical
current flow and/or voltage that causes an abnormal chemical reaction, which may then
cause the battery to overheat, ignite, and/or explode.
4. The battery has clearly delineated plus and minus poles. When inserting the battery
into the charger and/or product, make sure to confirm that the battery is properly
aligned. Reverse insertion will cause reverse charging that can result in an abnormal
chemical reaction, which may then cause the battery to overheat, ignite, and/or explode.
5. Do not place the battery in contact with an electrical power outlet and/or an automobile
cigarette lighter jack. Doing so can inflict high voltage that causes excessive electrical
current flow, resulting in battery overheating, combustion, and/or explosion.
6. Do not heat the battery or place it in a fire. Doing so can melt the insulating materials
and/or damage the safety mechanism or safety equipment, allowing the electrolytic
solution to ignite and resulting in battery overheating, combustion, and/or explosion.
7. Do not use the battery in reverse (+) and (-) alignment. Doing so during charging will
cause reverse charging that can result in an abnormal chemical reaction. During use,
unpredictable electrical current abnormalities can arise, causing battery overheating,
combustion, and/or explosion.
8. Do not allow the battery’s (+) and (-) poles to come into contact with any metals. In
addition, do not carry or store the battery together with metal items, such as necklaces,
hairpins, etc. Resulting short circuits within the battery can cause excessive electrical
current flow, resulting in battery overheating, combustion, and/or explosion as well as
potential overheating of the adjacent metal items (necklaces, hairpins, etc.).
9. Do not throw the battery or subject it to heavy shock. If the safety mechanism within the
battery becomes burned out, any charging of the battery can result in abnormal
electrical current flow and/or voltage that causes an abnormal chemical reaction, which
may then cause the battery to overheat, ignite, and/or explode.
Rev. 1.04 - 7 -
SPP-R200
10. Do not pierce the battery with a sharp object, such as a nail, or hit it with a heavy
object, such as a hammer, and take care not to step on the battery. The battery may
rupture or become warped, causing short circuits within that may result in battery
overheating, combustion, and/or explosion.
11. Do not solder the battery directly. The heat can melt the insulating materials and/or
damage the safety mechanism or safety equipment, resulting in battery overheating,
combustion, and/or explosion.
12. Do not disassemble and/or modify the battery. The battery contains safety equipment
and a safety mechanism to prevent danger. Any damage to these components can
cause battery overheating, combustion, and/or explosion.
13. Do not charge near a source of heat and/or under direct sunlight. Exposure to high
temperatures causes the safety mechanism to activate, thus making charging
impossible. In addition, any damage to the safety mechanism itself that may be
caused by excessive heat can cause any charging of the battery to result in abnormal
electrical current flow and/or voltage that causes an abnormal chemical reaction within
the battery and/or battery overheating, combustion, and/or explosion.
Warning
1. Do not place the battery within the reach of small children to prevent any swallowing
accidents. If a small child has swallowed the battery, consult a physician immediately.
2. Do not place the battery in a microwave oven and/or high voltage appliance. Doing so
can cause rapid overheating and/or destruction of the sealing, resulting in battery
overheating, combustion, and/or explosion.
3. Do not combine and use any battery of different capacity and/or type with the primary
battery. Doing so can cause excessive electrical discharge during use or excessive
charging during charging, resulting in an abnormal chemical reaction within the battery
that can cause battery overheating, combustion, and/or explosion.
4. If during battery usage, storage, or charging, a strange odor or conditions differing from
the normal, such as overheating, color changes, warping, etc., are detected, remove
the battery from the product or charger and discontinue use. Continued use may
cause battery overheating, combustion, and/or explosion.
5. When recharging, if the battery is not charged after the normal fixed charging time,
discontinue charging. Continued charging can result in battery overheating,
combustion, and/or explosion.
6. If the battery appears to be coated with condensation or emits a strange odor,
immediately place it far away from any heat source. The condensation may be
caused by a leak of electrolytic solution that can ignite to cause battery combustion
and/or explosion.
7. If the battery is leaking electrolytic solution and any of the solution enters the eyes,
immediately wash out with clean water, and then consult a physician to receive
treatment. Neglecting to do so can cause permanent eye injuries.
Rev. 1.04 - 8 -
SPP-R200
Caution
1. Do not use or leave the battery in a location exposed to high temperatures or intense
direct sunlight, such as within an automobile. Doing so can cause battery overheating
and/or combustion. In addition, battery performance and product life may be reduced.
2. The battery contains a safety mechanism to prevent danger. Do not use the battery in
a location that is prone to static electricity (above the amount covered by the
manufacturer’s product warranty) that can cause damage to this safety mechanism.
Damage to the safety mechanism can result in battery overheating, combustion, and/or
explosion.
3. The temperature ranges for battery usage are as follows. Any usage outside of these
ranges can result in battery overheating and/or damage. In addition, battery
performance and product life may be reduced.
- Charging: 0 ~ 40
- Product Usage: -20 ~ 60
- Storage: -20 ~ 60 (30 days)
- Long-Term Storage: -20 ~ 40 (90 days)
4. Please review the exclusive charger manual carefully for charging instructions.
5. If upon first use following purchase, a strange odor, overheating, and/or anything
deemed out of the ordinary is detected, discontinue use and contact the dealer from
which the product was purchased.
6. If a child must use the battery, the child’s parent or legal guardian should clearly explain
the instructions from the user manual prior to use. In addition, the parent or legal
guardian should periodically confirm that usage is being conducted in accordance with
user manual instruction during use.
7. Store the battery in a location that is out of the reach of small children. During usage,
make sure to also place the charger and/or product out of the reach of small children.
8. If the battery is leaking electrolytic solution, and the solution comes in contact with the
skin or clothing, immediately wash thoroughly with clean water. Contact with skin can
result in skin disorders.
9. Make sure to review the user manual and precautions carefully prior to use.
In addition, after carefully reviewing the user manual and precautions, place them in a
secure location for future reference when needed.
10. As the improper exchange of the battery can pose the risk of explosion, replace only
with batteries of the same type and grade as designated by the manufacturer.
Dispose of used batteries per the instructions provided by the manufacturer.
11. If using the printed side of preprinted paper, this may cause malfunction.
Rev. 1.04 - 9 -
SPP-R200
Recommended
1. Review the user manual for instructions concerning insertion/removal of batteries
into/from the product.
2. As the battery is slightly charged upon factory shipment, use it to confirm proper product
operation upon purchase. If product operation cannot be confirmed or longer use of
the product is required, use the exclusive charger to charge the battery.
3. To avoid improper use of the battery, review the product user manual carefully.
4. Do not charge the battery for long times in excess of the normal charging time indicated
in the user manual.
5. If the battery is not to be used for a long period of time, remove it from the product and
store in a location with low humidity. If the battery is stored while still inserted in the
product in a highly humid location, oxidization may occur along with a decline in battery
performance.
6. After product usage, make sure to turn power off. Neglecting to do so can cause a
decline in battery performance.
7. A battery that has not been used over a long period of time may not be sufficiently
charged. Even if the battery is not to be used, charge the battery to the status
recommended by the manufacturer once every six months. Neglecting to do can
cause a decline in battery performance and product life.
8. If the battery terminal is dirty, use a dry cloth to wipe clean prior to use. Neglecting to
do so can result in poor connection with the product causing power stoppages or failed
charging.
9. Each battery has a product life. If the usage time of the product has become short,
replace the battery. Wrap the terminals of used batteries with tape to insulate prior to
disposal.
Other Precautions
The copyright for this user manual and various other manuals is property of the BIXOLON
Co., Ltd. Any copying or conversion into electronic firm and saving of this material
without the express written permission of BIXOLON Co., Ltd. is strictly prohibited.
Use of the information contained in this manual is not subject to any patent liability. This
manual has been prepared with utmost care and attention to detail but may contain certain
errors and/or omissions.
BIXOLON Co., Ltd. is not legally liable for any damages resulting from the use of the
information in this manual.
BIXOLON Co., Ltd. and its affiliates are not legally liable (United States excluded) for any
damages, loss, costs, and/or expenses that result from the breakdown, malfunction, and/or
misuse of the product due to violation or neglect of the operation and maintenance
information and instructions provided by the BIXOLON Co., Ltd., as well as from the
unauthorized alteration, repair, and/or modification of the product by the user and/or third
party.
BIXOLON Co., Ltd. is not legally liable for any damages and/or issues resulting from the
use of options and/or parts that are not authentic BIXOLON products or authorized
products.
Rev. 1.04 - 10 -
SPP-R200
1. Content Confirmation
The following items should all be contained in the printer package.
Contact the dealer from which the purchase was made if any item is damaged and/or
missing.
SPP-R200 Battery Battery Charger
Power Cord Belt Strap Cleaning Pen
Paper CD User Manual
Optional items
Battery Holder Cigarette
Lighter Jack
Charger
Interface Cable Leather Case
Quad Charger Wall mount for Quad
Charger(RWM-350)
Rev. 1.04 - 11 -
SPP-R200
2. Product Part Names
• Front
• Rear
Cable Connection
Power Connection
Battery
Belt Strap Hole
Interface Cap
Paper Cover
Power Button
MSR Cover BT Cap (Bluetooth Download Connector)
Open Button
Paper Feed
Button
Rev. 1.04 - 12 -
SPP-R200
3. Installation & Usage
3-1 Battery Installation
1) Insert the battery on the rear side of the
printer, aligning the battery hook properly.
2) Push the battery into the slot until a
snapping sound is heard.
NOTE
As the battery is not charged at the time of
purchase, charge the battery prior to product use.
(Use the battery charger and/or the optional
battery holder.)
3-2 Battery Charging
3-2-1 Battery Charging Usage
1) Turn off the printer power.
2) Connect the power cord to the battery
charger .
3) Open the Interface Cap .
4) Connect the battery charger to the
power connector of the printer.
5) Plug the power cord into an electrical
outlet.
CAUTION
The printer may incur serious damage if the battery
charger provided by BIXOLON is not used. BIXOLON
is not legally liable for any such damages. (The voltage
and electrical current specifications of the printer and
battery charger must match.)
3-2-2 Battery Holder (Optional) Usage
1) Connect the power cord to the battery
charger .
2) Connect the battery charger to the
power connector of the battery holder .
3) Plug the power cord into an electrical
outlet.
4) Insert the battery into the battery
holder until a snapping sound is
heard.
Rev. 1.04 - 13 -
SPP-R200
3-2-3 Cigarette Lighter Jack Charger (Optional) Usage
1) Open the Interface Cap .
2) Connect the cigarette lighter jack charger
to the cigarette lighter jack of an
automobile and/or the printer or battery
holder as shown in the image.
3-2-4 Quad Charger (Optional) Usage
3-2-4-1 Connecting the cables
1) Connect the power cord to the adaptor,
and Connect the adaptor to the power
connector of the Quad Charger.
2) Plug the power cord into a power Outlet.
Input power is 100 ~ 250VAC, 50/60Hz,
1.4A.
3) When power is supplied, the green
lamp turns on for two seconds.
CAUTION
If the red lamp turns on for two seconds, it
may indicate a battery-charging problem.
Please consult the seller and/or dealer.
WARNING
Use only designated AC/DC adaptor.
(12VDC, 5A)
Rev. 1.04 - 14 -
SPP-R200
3-2-4-2 Battery Charging
1) Fasten batteries via the battery
hooks into the Quad Charger as
shown above.
2) Push the battery in until a snapping
sound is emitted.
3) Charging begins as soon as the
battery is completely inserted.
Batteries are charged to 8.4VDC, 0.8A.
4) Push the hook and pull up to extract
the battery.
NOTE
Battery charging status descriptions are as follows.
Lamp Charge Status Charge Time
Red Lamp On Charging
Green Lamp On Charging Complete
Red Lamp Blinking Problem with Battery and/or
Placement
2 hours
CAUTION
If the red lamp is blinking, try extracting the battery and reinserting it.
If the red lamp continues to blink, please consult the seller and/or dealer.
Rev. 1.04 - 15 -
SPP-R200
3-3 Paper Installation
1) Press the Open button to open the paper
cover.
2) Insert the paper as shown in the image.
(Remove any remaining core of a fully
used paper roll.)
3) Take care to align the paper correctly.
4) Pull the paper out as shown in the image
and close the paper cover.
5) Tear off any excess paper in the direction
of the side of the printer.
Rev. 1.04 - 16 -
SPP-R200
3-4 Belt Strap Usage
1) Insert the belt strap screw into the belt
strap hole.
2) Use a coin to tighten the belt strap screw
as shown in the image.
3) Undo the belt strap Velcro.
4) Fasten the belt strap to a belt.
5) Close the Velcro as shown in the image.

Belt Strap
Coin

Rev. 1.04 - 17 -
SPP-R200
3-5 Leather Case (Optional) Usage
1) Undo the Velcro.
2) Place the printer into the leather case
following the direction shown in the
image.
3) Close the Velcro.
4) Affix to a belt using the clip at the rear of
the case.
NOTE
The clip on the leather case can be rotated
three stages by 30° per stage (maximum 90°)
Belt
Rev. 1.04 - 18 -
SPP-R200
3-6 Control Panel Usage
Power Button
This button is used to turn the printer on and off.
When the printer is off, pressing this button for approximately 2
seconds will turn the power on. When the printer is on, pressing
this button for approximately 2 seconds will turn the power off.
Paper Feed Button
Paper output can be done manually by pressing this button.
In addition, self-testing and Hexadecimal Dumping can be done.
1) Refer to “4. Self-Test” for self-test information.
2) Refer to the service manual regarding Hexadecimal Dumping.
Battery Status Lamp (Blue or Red)
1) If three blue lamps are lit, the battery is fully charged.
2) If two blue lamps are lit, the battery is half charged.
3) If one blue lamp is lit, the battery is at the lowest charge level.
4) If the red lamp is lit, the battery must be charged or replaced.
Error Lamp (Red)
1) If the red lamp is lit, the paper cover is open.
2) If the red lamp is blinking, either the paper has been fully used or
the print head is overheated.
(Fill with paper or turn the printer off for at least 10 minutes.)
3) If the red lamp continues to blink, it may indicate a more serious
problem with the product, and thus an authorized service dealer
should be consulted.
Bluetooth Lamp (Green)
1) If the green lamp turns on in unison with the battery status lamp,
the printer can be used with Bluetooth wireless communication.
2) If only the green lamp is lit, the printer has entered the power
saving mode.
NOTE
The power saving mode is activated after the first communication, with the
default time interval being 10 seconds.
Rev. 1.04 - 19 -
SPP-R200
3-7 MSR Usage
1) Press the MSR cover to open.
2) Insert the card as shown in the image
and swipe in the direction of the arrow.
(can be done in both directions)
3) When finished using, press the MSR
cover to close it.
NOTE
If the card does not register, first check to see if
it is properly aligned. When swiping the card,
the recommended swiping speed is 100 ~ 1500
mm/sec.
4. Self-Test
Run the self-test when first setting the printer or when encountering a problem, and check
the following.
- Control Circuit, Mechanisms, Print Quality, ROM Version, and Memory Switch Settings
If no issue is found with the printer after running the self-test, examine the other devices or
peripherals and software. This function is independent of such other devices and
software.
• Self-Test Instructions
1) Turn the printer power off and close the printer paper cover.
2) Pressing the paper feed button and power button simultaneously turns the printer on.
3) The printout is produced after releasing the two buttons.
4) To add a printout of the ASCII pattern, press the paper feed button once more.
5) After the ASCII pattern is printed out, the self-test is automatically terminated.
Rev. 1.04 - 20 -
SPP-R200
• Self-Test Printout Sample
Boot loader version :
VER v2.01 20071005
Firmware version :
VER STMS V1.07-STD 2008.03.31
Bluetooth Firmware version :
3.0.0
Bluetooth BD address :
001901223194
Auth. & Encry. are enable
Connection Mode = 2
================================
Butter Capacity : 128K Bytes
Print Density : 100%
Bluetooth Interface
- Baud rate : 115200 bps
Serial Interface
- Baud rate : 115200 bps
Data bits : 8 bits
Parity : None
Stop bit : 1 bit or more
Handshaking : DTR/DSR
Default Codepage : PC437
Print Speed : 80mm/s
Double byte character mode:Off
Busy printer buffer full
Font : 12 x 24
Paper out Bell : Off
Low Battery Buzzer : On
Power off time : 15 Min
Idle mode time : 10 Sec
Two Dimension Symbol :
- Selected PDF417 symbol
- Selected DATAMATRIX symbol
- Selected MAXI code symbol
- Selected QR code symbol
MSR read mode : Auto TRACK1/2/3
Memory switch setup status
Memory S/W1
1 2 3 4 5 6 7 8
ON
OFF
Memory S/W2
1 2 3 4 5 6 7 8
ON
OFF
Memory S/W3
1 2 3 4 5 6 7 8
ON
OFF
Memory S/W5 (Power off time)
1 2 3 4 5 6 7 8
ON
OFF
Memory S/W6 (Idle time)
1 2 3 4 5 6 7 8
ON
OFF
Memory S/W7
1 2 3 4 5 6 7 8
ON
OFF
Memory S/W8
1 2 3 4 5 6 7 8
ON
OFF
Memory S/W Serial condition
1 2 3 4 5 6 7 8
ON
OFF
If you want to continue
SELF-TEST printing,
please press FEED button.
ASCII

























PC437
ÇüéâäàåçêëèïîìÄÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒ
üéâäàåçêëèïîìÄÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ć
éâäàåçêëèïîìÄÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒáí
âäàåçêëèïîìÄÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒáíó
äàåçêëèïîìÄÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒáíóú
àåçêëèïîìÄÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒáíóúñ
åçêëèïîìÄÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒáíóúñÑ
çêëèïîìÄÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒáíóúñѪ
êëèïîìÄÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒáíóúñѪº
ëèïîìÄÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿
èïîìÄÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿
ïîìÄÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿
îìÄÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿ ½
ìÄÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿ ½¼
ÄÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿ ½¼¡
ÅÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿ ½¼¡«
ÉæÆôöòûùÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿ ½¼¡«»
æÆôöòûùÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿ ½¼¡«»
ÆôöòûùÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿ ½¼¡«»▓▒
ôöòûùÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿ ½¼¡«»▓▒░
öòûùÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿ ½¼¡«»▓▒░
òûùÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿ ½¼¡«»▓▒░
ûùÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿ ½¼¡«»▓▒░┤╡
ùÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿ ½¼¡«»▓▒░┤╡╢
ÿÖÜ¢£¥
Pt
ƒáíóúñѪº¿┌┐½¼¡«»▓▒░┤╡╢╖
Rev. 1.04 - 21 -
SPP-R200
5. Label Printing Function
5-1 Label Function Setting
Label paper and black mark paper available at the label mode.
• Setting Operations
1) Turn on the printer power.
2) Open the paper cover and press and hold down the paper feed button for longer than
two seconds.
3) After the buzzer tone is emitted, insert paper and close the cover.
4) Repeat the steps above to return to receipt mode.
• Setting Via Memory Switch
- Please refer to the memory switch changing section of the Commands Manual.
5-2 Auto Calibration Function
The label printing function requires the recognition of label paper gaps and black mark
paper black bar in order to print.
If label paper gaps are not properly recognized, use the auto calibration function.
• Auto Calibration Instructions
1) Turn the printer power off while in label print mode.
2) Press and hold down the paper feed button and then press the power button.
3) After the following printout is outputted, press the power button to perform auto
calibration.
Select the mode
Auto Calibration: Power Button
Self Test: Feed Button
4) Three pages of label paper are outputted when performing auto calibration.
Black mark sensing possible firmware version : more than over V1.07
Rev. 1.04 - 22 -
SPP-R200
6. Peripherals Connection
This product can communicate with other devices via Bluetooth communication and cable.
6-1 Bluetooth Connection
1) The printer can be connected to devices
equipped with Bluetooth communication
capacity (PDAs, PCs, etc.).
2) Use the Bluetooth connection function
supported by the device to connect to the
printer.
NOTE
Refer to the Bluetooth Manual for more details
on connection.
You can check authentication, Encryption mode
as well as connection mode of the Bluetooth
from self test page.
6-2 Interface Cable Connection
1) Open the Interface Cap .
2) Connect the interface cable (optional) to
the cable connector of the printer.
NOTE
Use only cables (optional) provided by BIXOLON
(USB, Serial).
3) Connect the interface cable to the USB
port of the device (PDAs, PCs, etc.).
NOTE
The interface cable that can be connected with
the printer is available in both USB and Serial
type.
Refer to the service manual for detailed interface
cable specifications.
CAUTION
The BT Cap(Bluetooth Download Connector) is only for Bluetooth program downloading.
Any user other than an authorized service provider should not use this feature.
Rev. 1.04 - 23 -
SPP-R200
7. Printer Cleaning
If the interior of the printer is dusty, print quality can decline.
In such a case, follow the instructions below to clean the printer.
CAUTION
• Make sure to turn the printer power off prior to cleaning.
• As the print head gets very hot during printing, if intending to clean the print head,
turn the printer power off and wait approximately 10 minute before commencement.
• When cleaning the print head, take care not to touch the heated portion of the print
head.
The print head is susceptible to damage from static electricity, etc.
• Take care not to allow the print head to become scratched and/or damaged in any
way.
1) Open the paper cover and remove any paper that may be present.
2) Wipe the print head with a cleaning pen.
3) Use a cloth moistened with an alcohol solution to clean the paper sensor are and
remove any paper remnants and/or dust.
4) Insert paper into the printer 1~2 minutes after completing the cleaning process and
close the printer cover.
Rev. 1.04 - 24 -
SPP-R200
8. Appendix
8-1 Specifications
Item Description
Printing
Method Thermal printing
Printing Speed 80 mm/sec
Resolution 203 DPI
Paper Supply
Mode Easy paper loading
Character Size Font A: 12 × 24
Font B: 9 × 24
Characters
Per Line Font A: 32
Font B: 42
Character Set
English: 95
Expanded Graphics: Standard(ENG) -128 × 30 pages
Others(KOR,CHN,JPN) - 128 × 20 pages
International: 32
Barcode
1 Dimension: UPC A, UPC E, CODE 39, CODE 93,
Code 128, EAN 8, EAN 13, EAN 18, ITF,
Codabar
2 Dimension: PDF417, DATAMATRIX, MAXI, QR
Emulation ESC/POS
Driver Windows 98 / ME / 2000 / NT / XP / 2003Server / VISTA
SDK WinCE 4.2, WinCE 5.0
Sensor No Paper Sensor, Paper Cover Open Switch
Cutter Type Tear-Bar
Printing
Language User language supported
Paper Type Thermal paper
Width 58 ± 0.5 mm (2.28” ± 0.2”)
Diameter Max. ø40 mm (1.57”)
Paper
Thickness 0.067 ± 0.004 mm (0.003 ± 0.0001˝)
TPH 120 km
Reliability Battery Rechargeable up to 500 times
Communications Interface Serial/USB, Bluetooth Class2 V1.2
Input Voltage: 100 ~ 240 VAC
Current: 1.0A (Max. at 110VA)
Battery
Charger Output Voltage: 8.4 VDC
Current: 0.8A
Type Lithium-ion
Output Voltage: 7.4 VDC (Available 8.4 ~ 6.8VDC)
Capacity: 1200 mAh
Battery
Charging Time 2.5 hours
Temperature Printer: -10~50 (14~122 )
Battery: 0~40 (32~104 )
Usage
Conditions Humidity Printer: 10~90% RH (No condensation)
Battery: 20~70% RH (No condensation)
Dimensions Printer 79.5mm × 126.7mm × 43.6mm
(3.13 × 4.99 × 1.72)
Weight Printer
Printer: 184g (0.41lbs)
Printer + Battery: 236g (0.52lbs)
Printer + Battery + Paper: 293g (0.65lbs)
Package: approx. 1000g (2.2lbs)
Basic Package Battery, Battery Charger, Belt Strap, Cleaning Pen
Accessories Sold
Separately
Battery, Battery Holder, Leather Case,
Interface Cable, Cigarette Lighter Jack Charger, Quad
charger, Wall mount (for Quad charger)
Rev. 1.04 - 25 -
SPP-R200
8-2 Certification
1) EMC & Safety Standards
• Europe: CE Mark: CE 0984, DEMKO GS: EN60950-1: 2001
• North America: FCC rules part 15C
• Safety Standards: CB-scheme: IEC60950-1: 2001
WARNING
Use of an unprotected interface cable with this printer conflicts with EMC standards.
Users should only use cables approved by BIXOLON.
2) CE Mark
• EMC Directive 89/336/EEC EN55022 Class B:1998+A1:2000
EN55024:1998+A1:2001
EN61000-3-2:2000
EN61000-3-3:1995+A1:2001
EN6100-4-2:1995+A1:1998+A2:2001
EN6100-4-3:1996+A1:1998+A2:2001
EN6100-4-4:1995+A1:2001
EN6100-4-5:1995+A1:2001
EN6100-4-6:1996+A1:2001
EN6100-4-8:1993+A1:2001
EN6100-4-11:1994+A1:2001
EN 301 489-17 v1.3.2
Radio Spectrum EN 300 328 v1.7.1
• Low Voltage Directive 73/23/EEC Safety: EN60950-1:2006
3) WEEE (Waste Electrical and Electric Equipment)
This mark shown on the product or its literature indicates that the
corresponding item should not be discarded at the end of its working life with
other household waste. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate marked
items from other types of waste and recycle them responsibly to promote the
sustained reuse of material resources. Household users should contact either the
retailer where they purchased this product, or their local government office for details
of where and how they can conduct environmentally safe recycling of such items.
Commercial users should contact their suppliers and check the terms and conditions of
purchase contracts. This product should not be combined with other commercial
waste for disposal.
8-3 Label Types
The label types used with this printer is as follows.
• BIXOLON Logo Labels: PC
• Rating Labels: PP
• Other Labels: PET
Rev. 1.04 - 26 -
SPP-R200
8.4 USER INFORMATION
Modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
FCC compliance Information
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1.
This device may not cause harmful interference, and 2. This device must accept any interference received.
Including interference that may cause undesired operation.
Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio Frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Navigation menu
