BIXOLON SRP-350IIOBE Thermal Receipt Printer User Manual

BIXOLON Co.,Ltd. Thermal Receipt Printer Users Manual

Contents

Users Manual

User's Manual
SRP-350IIOBE
Thermal Printer
Rev. 1.00
http://www.bixolon.com
Rev. 1.00
-
2
-
SRP
35
0
II
OBE
■ Safety Precautions
In using the present appliance, please keep the following safety regulations in order to
prevent any hazard or material damage.
WARNING
Violating following instructions can cause serious injury or death.
Do not bend the cable by force or leave it under any
heavy object.
• A damaged cable can cause a fire.
Do not plug in or unplug with your hands wet.
• You can be electrocuted.
Keep the plastic bag out of children’s reach.
• If not, a child may put the bag on his head.
Do not pull the cable to unplug.
• This can damage the cable, which is the origin of a fire or a
breakdown of the printer.
You must use only the supplied adapter.
• It is dangerous to use other adapters.
Do not plug several products in one multi-outlet.
• This can provoke over-heating and a fire.
• If the plug is wet or dirty, dry or wipe it before usage.
• If the plug does not fit perfectly with the outlet, do not plug in.
• Be sure to use only standardized multi-outlets.
PROHIBITED
PROHIBITED
PROHIBITED
PROHIBITED PROHIBITED
ONLY SUPPLIED ADAPTER
PROHIBITED
Rev. 1.00
-
3
-
SRP
35
0
II
OBE
CAUTION
Violating following instructions can cause slight wound or damage the appliance.
Do not use the printer when it is out of order. This
can cause a fire or an electrocution.
• Switch off and unplug the printer before calling your dealer.
Do not let water or other foreign objects in the
printer.
• If this happened, switch off and unplug the printer before
calling your dealer.
Use only approved accessories and do not try to
disassemble, repair or remodel it for yourself.
• Call your dealer when you need these services.
• Do not touch the blade of auto cutter.
Install the printer on the stable surface.
• If the printer falls down, it can be broken and you can hurt
yourself.
Keep the desiccant out of children’s reach.
• If not, they may eat it.
If you observe a strange smoke, odor or noise from
the printer, unplug it before taking following
measures.
• Switch off the printer and unplug the set from the mains.
• After the disappearance of the smoke, call your dealer to
repair it.
TO UNPLUG
PROHIBITED
DISASSEMBLING
PROHIBITED
PROHIBITED
PROHIBITED
TO UNPLUG
PRINTER
PRINTER
PRINTER
PRINTER
DEALER
PRINTER
Rev. 1.00
-
4
-
SRP
35
0
II
OBE
■ Warning - U.S.A
1) NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
2) Changes or modifications not expressly approved by the manufacturer could void the
user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may cause undesired operation.
■ Notice - Canada
This Apparatus complies with class “B” limits for radio interference as specified in the
Canadian department of communications radio interference regulations.
Get appareil est conforme aux normes class “B” d’interference radio tel que specifier par
ministre canadien des communications dans les reglements d’interference radio.
■ Caution
Some semiconductor devices are easily damaged by static electricity. You should turn the
printer “OFF”, before you connect or remove the cables on the rear side, in order to guard
the printer against the static electricity. If the printer is damaged by the static electricity, you
should turn the printer “OFF”.
Rev. 1.00
-
5
-
SRP
35
0
II
OBE
■ Waste Electrical and Electric Equipment (WEEE)
This marking shown on the product or its literature, indicates that is should not
be disposed with other household wastes at the end of its working life, To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources. Household
users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take this item for
environmentally safe recycling. Business users should contact their supplier and check the
terms and conditions of the purchase contract. This product should not be mixed with other
commercial wastes for disposal.
■ Label Material
* Control Label: PC
* Other Labels: PET
Rev. 1.00
-
6
-
SRP
35
0
II
OBE
■ Introduction
The SRP-350IIOBE Roll Printer are designed for use with electronic instruments such as
system ECR, POS, banking equipment, computer peripheral equipment, etc.
The main features of the printer are as follows:
1. High speed printing : 47.28 (1/6” Feed) lines per second.
2. Low noise thermal printing.
3. USB / Ethernet / Bluetooth On-board Type
4. The data buffer allows the unit to receive print data even during printing.
5. Peripheral units drive circuit enables control of external devices such as cash drawer.
6. Characters can be scaled up to 64 times compared to it’s original size.
7. Bar code printing is possible by using a bar code command.
8. Different print densities can be selected by DIP switches.
Please be sure to read the instruction in this manual carefully before using your new
SRP-350IIOBE.
※ NOTE
The socket-outlet shall be near the equipment and it shall be easy accessible.
※ All specifications are subjected to change without notice.
We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and
quality of all our products. In following, product specifications and/or user manual content
may be changed without prior notice.
Rev. 1.00
-
7
-
SRP
35
0
II
OBE
■ Table of Contents
1. Setting Up the Printer .................................................................................................... 8
1-1 Unpacking ................................................................................................................... 8
1-2 Connecting the Cables ............................................................................................... 9
1-2-1 Ethernet Interface .......................................................................................... 9
1-2-2 USB Interface .............................................................................................. 10
1-2-3 Bluetooth Interface ...................................................................................... 10
1-3 Connecting the Drawer ............................................................................................. 11
1-4 Setting the Dip Switches ........................................................................................... 11
1-5 Installing or Replacing the Paper Roll ....................................................................... 12

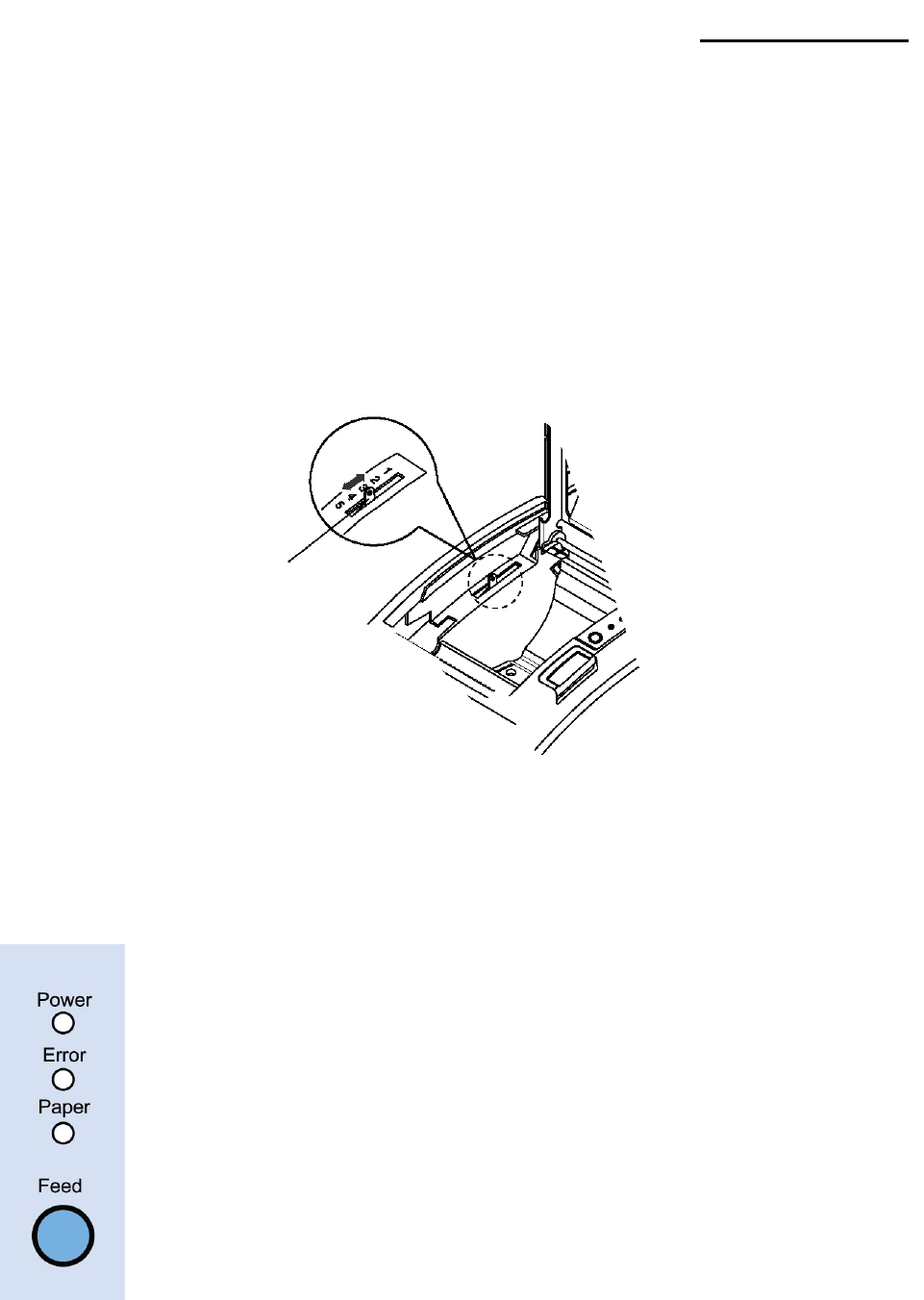

1-6 Adjustments and Settings ......................................................................................... 14
1-7 Using the Printer ....................................................................................................... 14

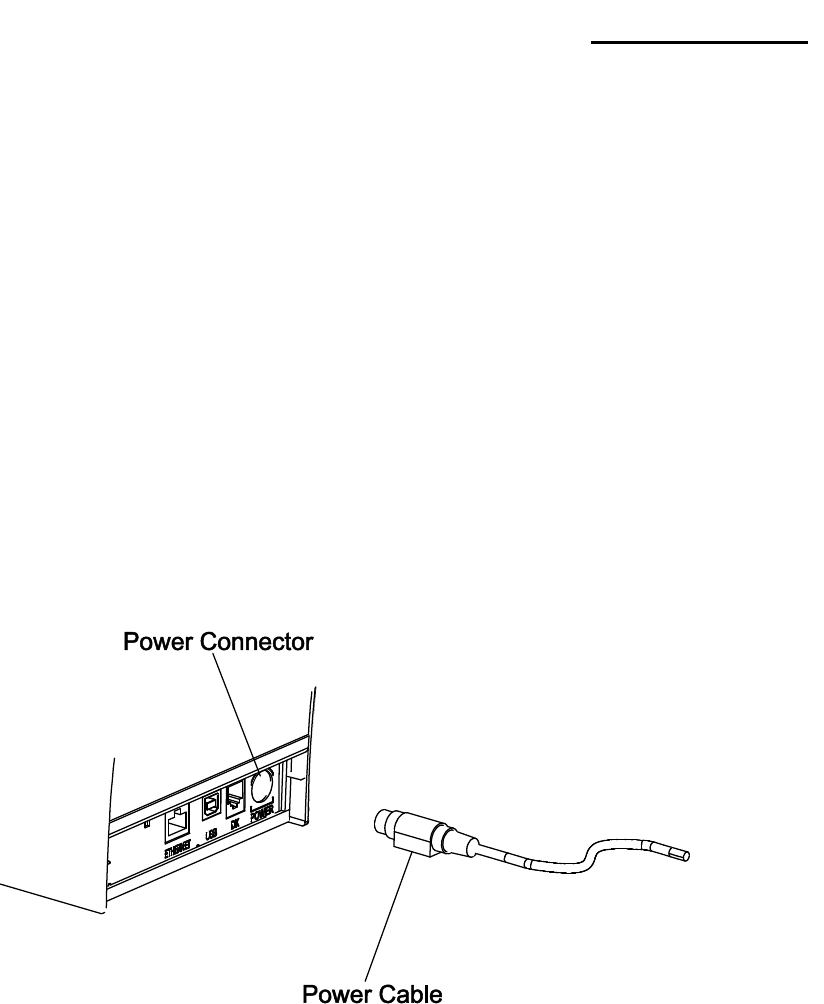

1-8 Connecting the Power Supply .................................................................................. 15
2. Self Test ........................................................................................................................ 16
3. Hexadecimal Dumping ................................................................................................ 17
4. Specification ................................................................................................................ 18
5. Appendix ...................................................................................................................... 19
5-1 Cleaning Printer ........................................................................................................ 19
5-2 Printing speed ........................................................................................................... 19
5-3 Using Wall Mount...................................................................................................... 19
Rev. 1.00
-
8
-
SRP
35
0
II
OBE
1. Setting Up the Printer

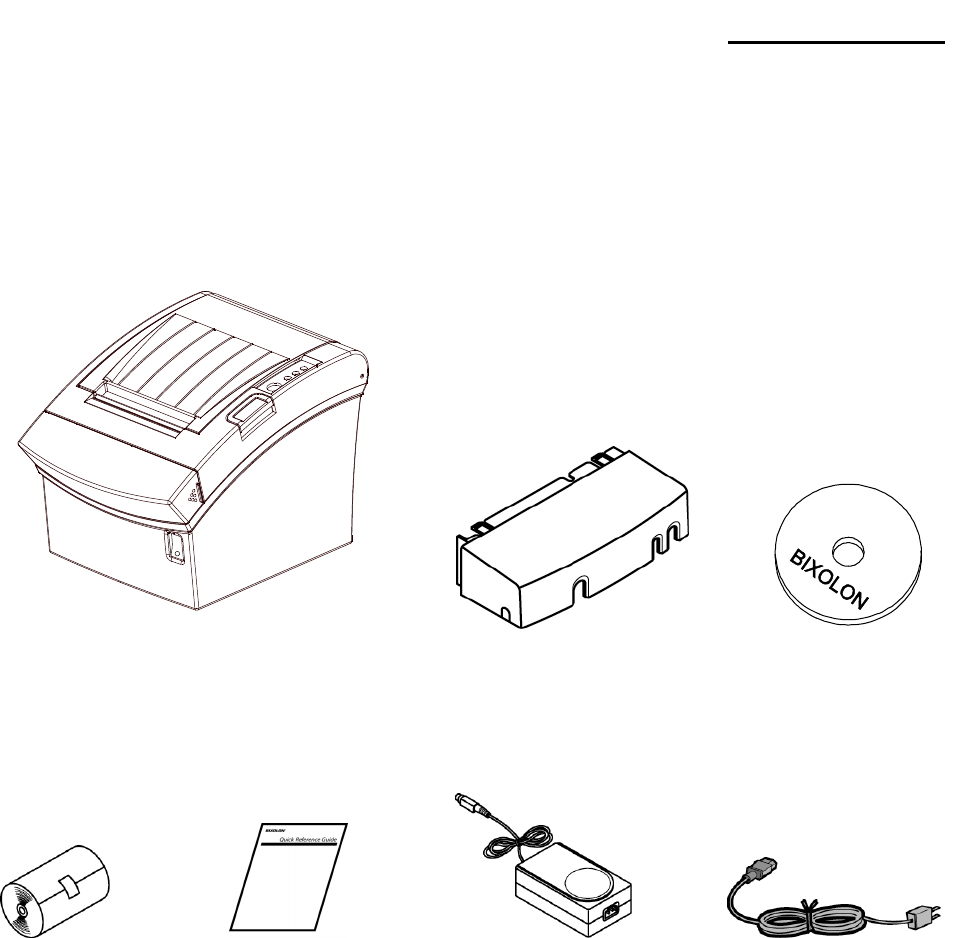

1-1 Unpacking
Your printer box should include these items. If any items are damaged or missing, please
contact your dealer for assistance.
SRP-350IIOBE Cover Cable CD
Roll Paper Manual AC Adapter Power Cord
Rev. 1.00
-
9
-
SRP
35
0
II
OBE

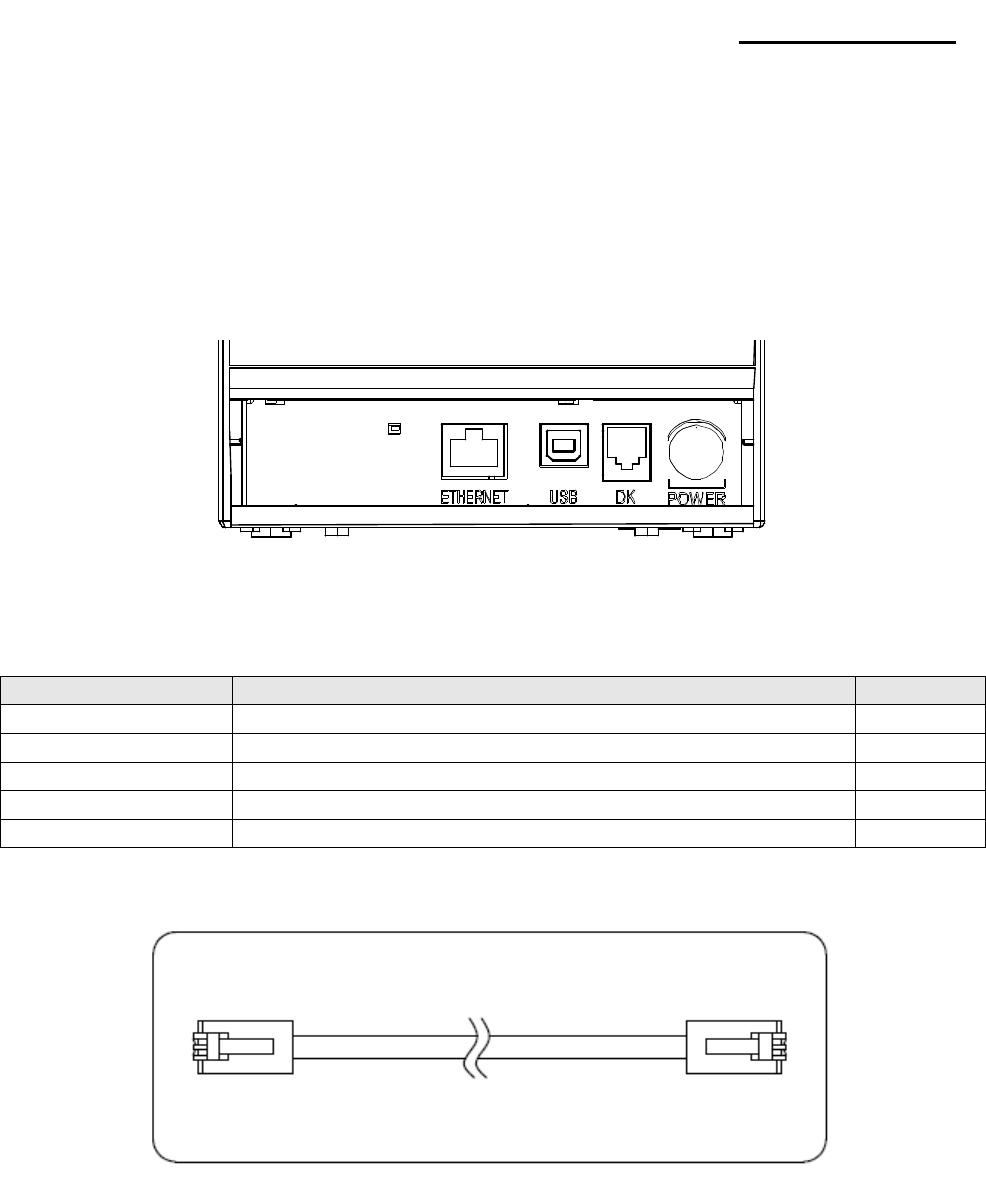

1-2 Connecting the Cables
You can connect up the three cables to the printer. They all connect to the connector panel
on the back of the printer, which is shown below:
※ NOTE
Before connecting any of the cables, make sure that both the printer and the host are
turned off.
1-2-1 Ethernet Interface
1) Ethernet Interface specifications
Item Description Remark
Network Interface 10/100 Base-T All in one type (Auto detection)
Protocol TCP, UDP, IP, ICMP, ARP
IP mode Static IP, DHCP(Dynamic Host Configuration Protocol)
RX buffer 2 KByte
Flow control Hardware (RTS/CTS)
2) Ethernet Interface cable
Drawer kick-out
connector
Power supply
connector
Interface connector
(Ethernet)
Rev. 1.00
-
10
-
SRP
35
0
II
OBE

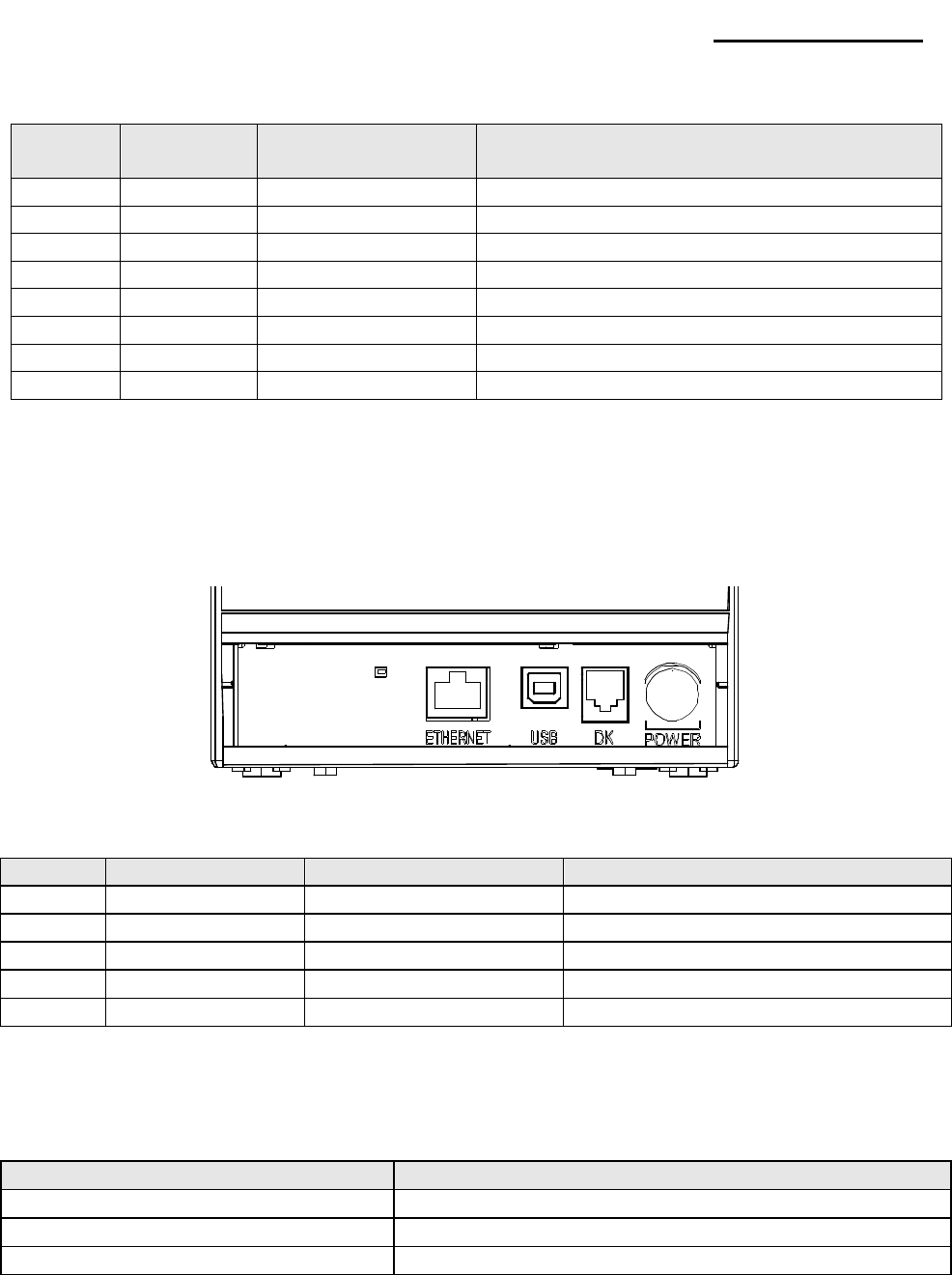

3) Ethernet Interface signal descriptions
Pin No.
Signal
name Assignment(Color)
Function
1 TD+ White Orange Transmit +
2 TD- Orange Transmit -
3 TCT White Green Receive +
4 NC Blue
5 NC White Blue
6 RCT Green Receive -
7 RD+ White Brown
8 RD- Brown
* For more information, refer to the Ethernet User Manual in Bixolon Web Site.
1-2-2 USB Interface
Pin No.
Signal Name Assignment (Color) Function
Shell Shield Drain Wire Frame Ground
1 VBUS Red Host Power : DC5[V] / 500[mA]
2 D- White Differential Data Line
3 D+ Green Differential Data Line
4 GND Black Signal Ground
1-2-3 Bluetooth Interface
1) Bluetooth Interface specifications
Title Description
Frequency 2.402 ~ 2.480 GHz
Version 2.1 + EDR
Module Type Class 1
2) Bluetooth Connection
The printer can be connected to devices equipped with Bluetooth communication
capacity. (PDAs, PCs, Smart Phone, Tablet PCs, etc.)
* Refer to the Bluetooth Manual for detailed information on its connection.
Drawer kick-out
connector
Power supply
connector
USB connector
Rev. 1.00
-
11
-
SRP
35
0
II
OBE
1-3 Connecting the Drawer
※ WARNING
Use a drawer that matches the printer specification. Using an improper drawer may
damage the drawer as well as the printer.
※ CAUTION
Do not connect a telephone line to the drawer kick-out connector; otherwise the printer and
the telephone line may be damaged.

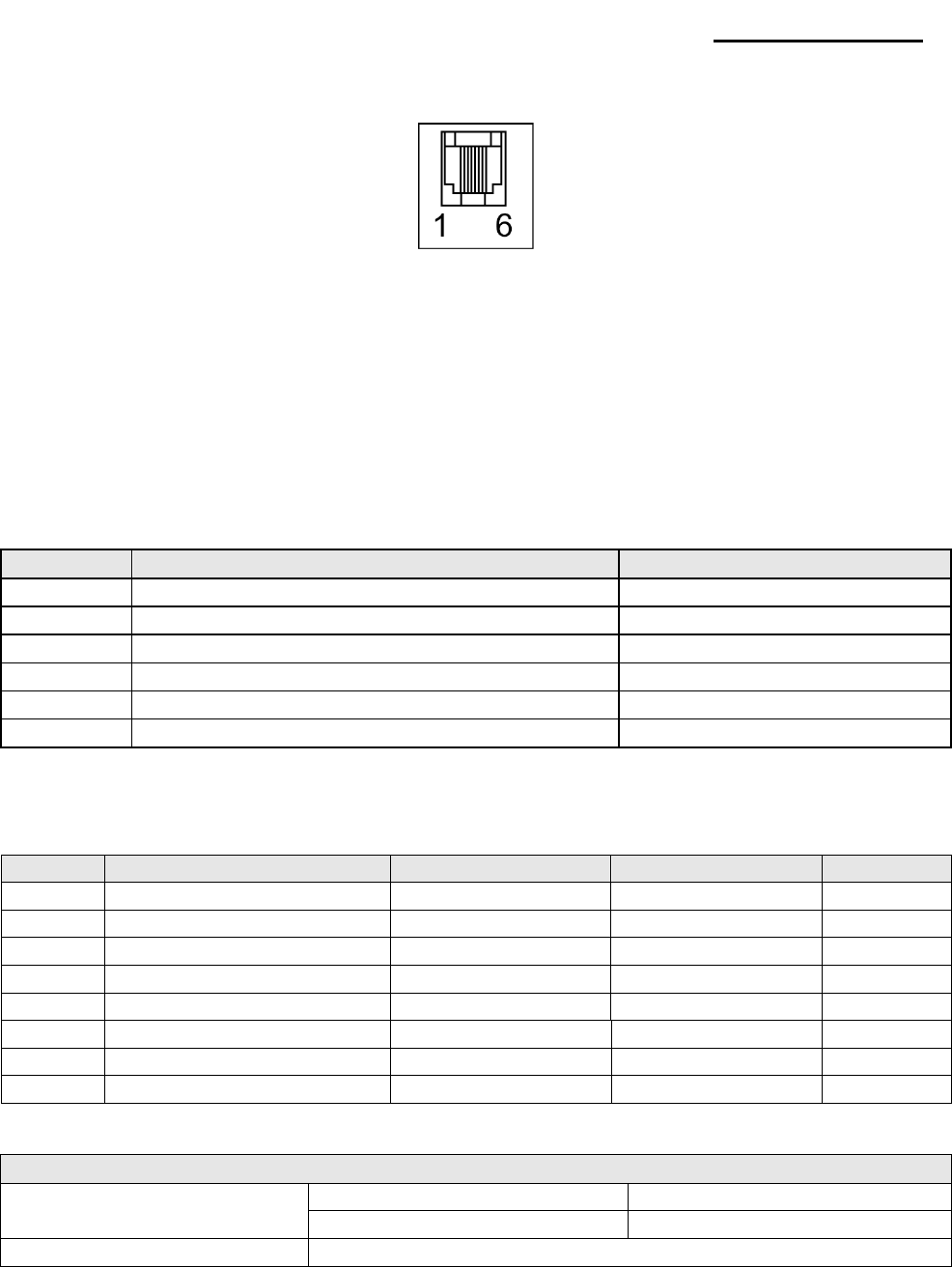

Plug the drawer cable into the drawer kick-out connector on the back of the printer next to
the power supply connector.
Pin No. Signal name Direction
1 Frame GND -
2 Drawer Kick-Out Driver Signal #1 Output
3 Drawer Open / Close Signal Input
4 +24V -
5 Drawer Kick-Out Driver Signal #2 Output
6 Signal GND -
1-4 Setting the Dip Switches
• DIP Switch 1
SW Function ON OFF Default
1-1 Reserved - - OFF
1-2 Reserved - - OFF
1-3 Reserved - - OFF
1-4 Reserved - - OFF
1-5 Auto Cutter Auto cutter disable
Auto cutter enable
OFF
1-6 Reserved - - OFF
1-7 Near-End Sensor Status Disable Enable ON
1-8 Bluetooth mode selection
iOS mode Normal mode OFF
※ Auto Cutter Enable / Disable selection
Dip Switch Set 1
SW 1-5 ON Auto Cutter Disabled
OFF Auto Cutter Enabled
Application Ignores Auto Cutter error for continuous printing.
Rev. 1.00
-
12
-
SRP
35
0
II
OBE

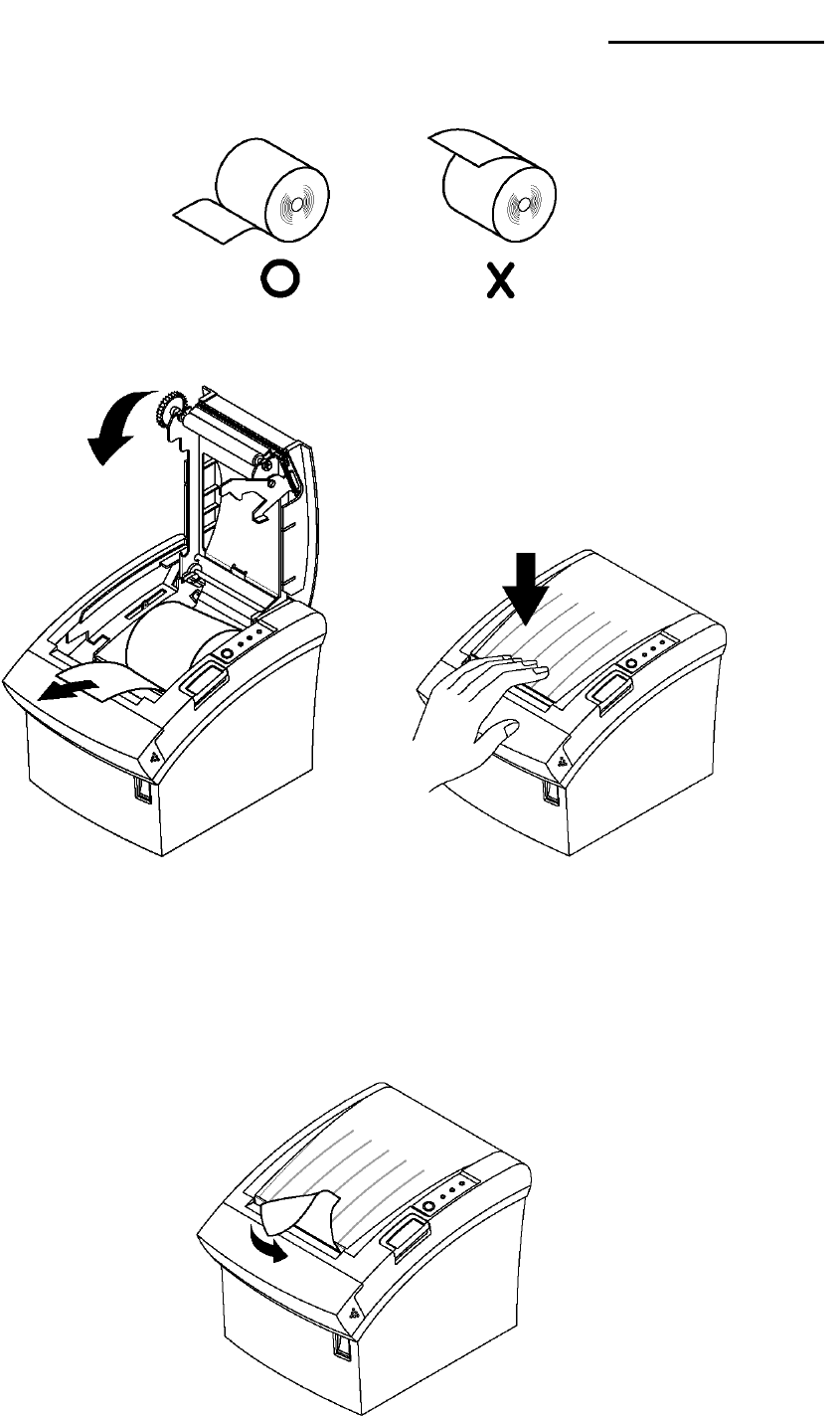

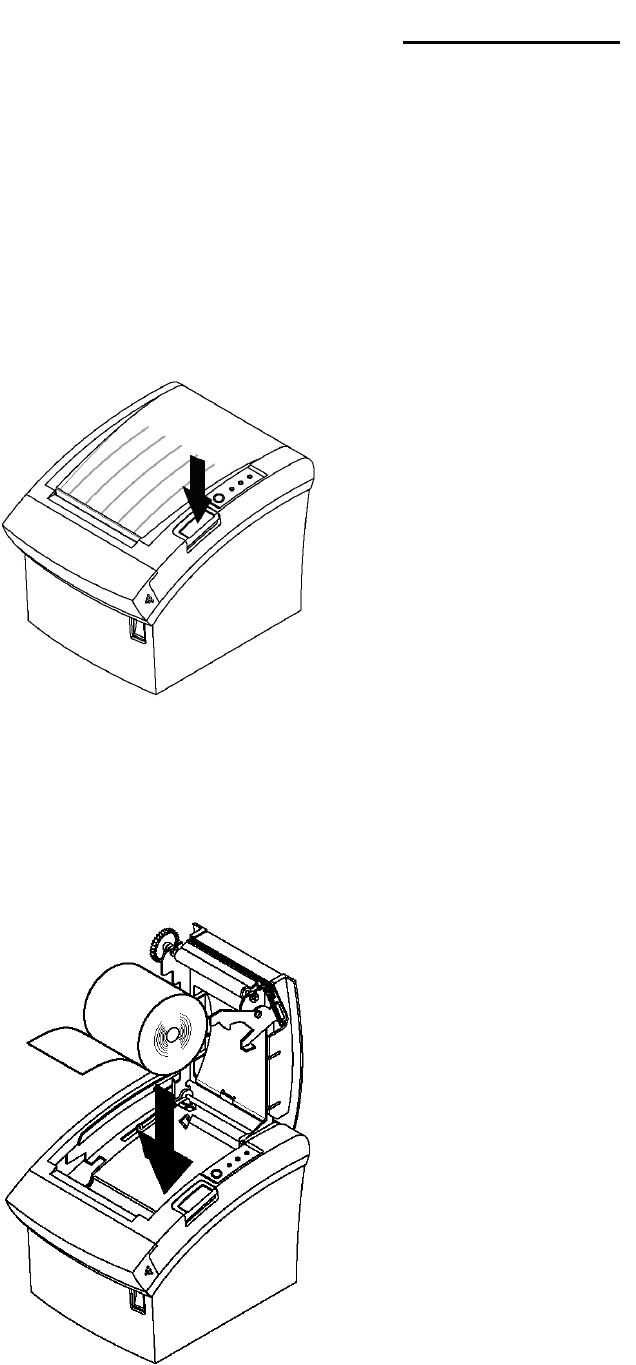

1-5 Installing or Replacing the Paper Roll
※ NOTE
Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have
the paper glued to the core because the printer cannot detect the paper end correctly.
1-5-1 Make sure that the printer is not receiving data; otherwise, data may be lost.
1-5-2 Open the paper roll cover by pressing the cover-open button.
※ NOTE
Do not open the print cover while the printer is operating. This may damage the printer.
1-5-3 Remove the used paper roll core if there is one.
1-5-4 Insert the paper roll as shown.
Rev. 1.00
-
13
-
SRP
35
0
II
OBE
1-5-5 Be sure to note the correct direction that the paper comes off the roll.
1-5-6 Pull out a small amount of paper, as shown. Then close the cover.
※ NOTE
When closing the cover, press the center of printer cover firmly to prevent
paper miss-loading.
1-5-7 Tear off the paper as shown.
Rev. 1.00
-
14
-
SRP
35
0
II
OBE
1-6 Adjustments and Settings
The SRP-350IIOBE is set up at the factory to be appropriate for almost all users. It does,
however, offer some settings for users with special requirements.
It has DIP switches that allow you to change communication settings, such as
handshaking and parity check, as well as print density.
The SRP-350IIOBE also has a near-end sensor for the paper. This can give you a warning
when the paper is almost out. If you find that there is not enough paper remaining on the
roll when the near-end sensor is triggered, you can change the near-end sensor setting.
Rotate the near end sensor tab at front or rear position. (See the below figure)
1-7 Using the Printer
Control Panel
○ POWER
The POWER light is on whenever the printer is on.
○ ERROR
This indicates an error.
○ PAPER
This light indicates the near end of the paper roll. Install a new paper roll
and the printer will continue printing. When the light blinks, it indicates
the self-test printing standby state or macro execution Standby state
when the macro execution command is used.
○ FEED
Press the FEED button once to advance paper one line. You can also
hold down the FEED button to feed paper continuously.
Near end sensor tab
Rev. 1.00
-
15
-
SRP
35
0
II
OBE
1-8 Connecting the Power Supply
※ CAUTIONS
When connecting or disconnecting the power supply from the printer, make sure that the
power supply is not plugged into an electrical outlet. Otherwise you may damage the
power supply or the printer.
If the power supply’s rated voltage and your outlet’s voltage do not match, contact your
dealer for assistance. Do not plug in the power cord. Otherwise, you may damage the
power supply or the printer.
1-8-1 Make sure that the printer’s power switch is turned off, and the power supply’s power
cord is unplugged from the electrical outlet.
1-8-2 Check the label on the power supply to make sure that the voltage required by the
power supply matches that of your electrical outlet.
1-8-3 Plug in the power supply’s cable as shown below. Notice that the flat side of the plug
faces down.
※ NOTE
To remove the DC cable connector, make sure that the power supply’s power cord is
unplugged; then grasp the connector at the arrow and pull it straight out.
Rev. 1.00
-
16
-
SRP
35
0
II
OBE
2. Self Test
The self-test checks whether the printer has any problems. If the printer does not function
properly, contact your dealer. The self-test checks the following;
2-1 Make sure paper roll has been installed properly.
2-2 Turn on the power while holding down the FEED button until it beep 3times.
The self-test begins.
2-3 The self-test prints the current printer status, which provides the control ROM version
and the DIP switch setting.
2-4 After printing the current printer status, self-test printing will print the following,
and pause (The PAPER LED light blinks).
SELF-TEST PRINTING.
PLEASE PRESS THE FEED BUTTON.
2-5 Press the FEED button to continue printing.
The printer prints a pattern using the built-in character set.
2-6 The self-test automatically ends and cuts the paper after printing the following.
*** COMPLETED ***
2-7 The printer is ready to receive data as soon as it completes the self-test.
Rev. 1.00
-
17
-
SRP
35
0
II
OBE
3. Hexadecimal Dumping
This feature allows experienced users to see exactly what data is coming to the printer.
This can be useful in finding software problems. When you turn on the hexadecimal dump
function, the printer prints all commands and data in hexadecimal format along with a
guide section to help you find specific commands.
To use the hexadecimal dump function, follow these steps.
3-1 After you make sure that the printer is off, open the cover.
3-2 Turn on the printer, while holding down the FEED button.
3-3 Close the cover, then the printer enters the hexadecimal dump mode.
3-4 Run any software program that sends data to the printer. The printer will print all the
codes it receives in a two-column format. The first column contains the hexadecimal
codes and the second column gives the ASCII characters that corresponds to the
codes.
1B 21 00 1B 26 02 40 40 40 40
. ! . . & . @ @ @ @
02 0D 1B 44 0A 14 1E 28 28 28
. . . D . . . . ( ( (
00 01 0A 41 0D 42 0A 43 43 43
. . . A . B . C C C
A period (.) is printed for each code that has no ASCII equivalent.
During the hex dump, all commands except DLE EOT and DLE ENQ are disabled.
3-5 When the printing finishes, turn off the printer.
3-6 Turn on the printer and then the hexadecimal mode is off.
Rev. 1.00
-
18
-
SRP
35
0
II
OBE
4. Specification
Printing method Thermal line printing
Dot density 180 dpi (7dots/mm)
Printing width 72 mm
Paper width 80 mm
Characters per line (default)
42 (Font A)
56 (Font B)
56 (Font C)
Printing speed 47.28lines/sec , 200 mm/sec
Receive Buffer Size 4K Bytes
※ NOTE : Printing speed may be slower, depending on the data transmission
speed and the combination of control commands.
Supply voltage
SMPS Input voltage 100~240 VAC
Frequency 50/60 Hz
SMPS Output voltage 24 VDC
Environmental
Conditions
Temperature 0 ~ 45 (Operating)℃
-20 ~ 60 (Storage)℃
Humidity
10 ~ 80 % RH (Operating)
10 ~ 90 % RH (Storage)
; Except for paper
LIFE *
Mechanism Head
150 Km
Auto Cutter 1,800,000 Cut
MCBF * Mechanism 70,000,000 lines
* These values are calculated under printing level 2 with recommended paper at normal
temperature.
* These values may vary with environment temperature, printing level, etc.
* The switch is the disconnecting device. Turn off switch from any hazard.
Rev. 1.00
-
19
-
SRP
35
0
II
OBE
5. Appendix
5-1 Cleaning Printer
Paper dust inside the printer may lower the print quality. In this case clean the printer as
follows.
5-1-1 Open the printer cover and remove the paper if exists.
5-1-2 Clean the print head with a cotton swab moistened with alcohol solvent.
5-1-3 Clean the platen roller and paper end sensor with cotton swab moistened with water.
5-1-4 Insert a paper roll and close the printer cover.
The remained amount of paper detected by paper near end sensor varies with the
diameter of the paper core.
To adjust the remained amount, contact your dealer.
5-2 Printing speed
When the paper is about to run out, the printing speed may become slower while printing.
Press the Push button, open and then close the cover to print at the normal speed until all
the paper is used.
5-3 Using Wall Mount
Please disable the near end paper function by making dip switch 1-7 on when you use the
printer in wall mount position where the near end paper function will not work well.

Navigation menu
