User manual
1
Dash
User Manual
2
Contents
For Your Safety ........................................................ 3
Getting Started ....................................................... 11
Phone Calls ............................................................ 18
Messaging .............................................................. 20
Getting Connected to the Internet ........................ 22
Browsing the Internet ............................................ 24
Bluetooth ................................................................ 26
Making the Most of Multimedia ............................. 27
Using Your Google Applications .......................... 29
Sorting out Your Phone Settings .......................... 32
3
For Your Safety
Distraction
Driving
Full attention must be given to driving at all times in order to
reduce the risk of an accident. Using a phone while driving
(even with a hands free kit) can cause distraction and lead to
an accident. You must comply with local laws and
regulations restricting the use of wireless devices while
driving.
Operating Machinery
Full attention must be given to operating the machinery in
order to reduce the risk of an accident.
Product Handling
General Statement on Handling and Use
You alone are responsible for how you use your phone and
any consequences of its use.
You must always switch off your phone wherever the use of a
phone is prohibited. Use of your phone is subject to safety
measures designed to protect users and their environment.
Always treat your phone and its accessories with care
4
and keep it in a clean and dust-free place.
Do not expose your phone or its accessories to open
flames or lit tobacco products.
Do not expose your phone or its accessories to liquid,
moisture or high humidity.
Do not drop, throw or try to bend your phone or its
accessories.
Do not use harsh chemicals, cleaning solvents, or
aerosols to clean the device or its accessories.
Do not paint your phone or its accessories.
Do not attempt to disassemble your phone or its
accessories, only authorized personnel can do so.
Do not expose your phone or its accessories to extreme
temperatures, minimum - [10] and maximum + [50]
degrees Celsius.
Please check local regulations for disposal of electronic
products.
Do not carry your phone in your back pocket as it could
break when you sit down.
Small Children
Do not leave your phone and its accessories within the reach
of small children or allow them to play with it.
They could hurt themselves or others, or could accidentally
damage the phone.
5
Your phone contains small parts with sharp edges that may
cause an injury or may become detached and create a
choking hazard.
Demagnetization
To avoid the risk of demagnetization, do not allow electronic
devices or magnetic media close to your phone for a long
time.
Electrostatic Discharge (ESD)
Do not touch the SIM card’s metal connectors.
Antenna
Do not touch the antenna unnecessarily.
Normal Use Position
When placing or receiving a phone call, hold your phone to
your ear, with the bottom towards your mouth.
Air Bags
Do not place a phone in the area over an air bag or in the air
bag deployment area.
Store the phone safely before driving your vehicle.
Seizures/ Blackouts
The phone can produce a bright or flashing light.
6
Repetitive Motion Injuries
To minimize the risk of RSI when texting or playing games
with your phone:
Do not grip the phone too tightly.
Press the buttons lightly.
Use the special features which are designed to minimize
the times of pressing buttons, such as Message
Templates and Predictive Text.
Take lots of breaks to stretch and relax.
Emergency Calls
This phone, like any wireless phone, operates using radio
signals, which cannot guarantee connection in all conditions.
Therefore, you must never rely solely on any wireless phone
for emergency communications.
Loud Noise
This phone is capable of producing loud noises, which may
damage your hearing. Turn down the volume before using
headphones, Bluetooth stereo headsets or other audio
devices.
Phone Heating
Your phone may become warm during charging and during
normal use.
7
Electrical Safety
Accessories
Use only approved accessories.
Do not connect with incompatible products or accessories.
Take care not to touch or allow metal objects, such as
coins or key rings, to contact or short-circuit in the battery
terminals.
Connection to a Car
Seek professional advice when connecting a phone interface
to the vehicle electrical system.
Faulty and Damaged Products
Do not attempt to disassemble the phone or its accessory.
Only qualified personnel can service or repair the phone or
its accessory.
If your phone or its accessory has been submerged in water,
punctured, or subjected to a severe fall, do not use it until
you have taken it to be checked at an authorized service
centre.
8
Interference
General Statement on Interface
Care must be taken when using the phone in close
proximity to personal medical devices, such as pacemakers
and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum
separation of 15 cm be maintained between a mobile phone
and a pacemaker to avoid potential interference with the
pacemaker. To achieve this, use the phone on the opposite
ear to your pacemaker and do not carry it in a breast pocket.
Hearing Aids
People with hearing aids or other cochlear implants may
experience interfering noises when using wireless devices or
when one is nearby.
The level of interference will depend on the type of hearing
device and the distance from the interference source,
increasing the separation between them may reduce the
interference. You may also consult your hearing aid
manufacturer to discuss alternatives.
Medical Devices
Please consult your doctor and the device manufacturer
9
to determine if operation of your phone may interfere with
the operation of your medical device.
Hospitals
Switch off your wireless device when requested to do so in
hospitals, clinics or health care facilities. These requests are
designed to prevent possible interference with sensitive
medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed
to do so by airport or airline staff.
Consult the airline staff about the use of wireless devices on
board the aircraft. If your device offers a ‘flight mode’, this
must be enabled prior to boarding an aircraft.
Interference in Cars
Please note that because of possible interference to
electronic equipment, some vehicle manufacturers forbid
the use of mobile phones in their vehicles unless a
hands-free kit with an external antenna is included in the
installation.
10
Explosive Environments
Petrol Stations and Explosive Atmospheres
In locations with potentially explosive atmospheres, obey all
posted signs to turn off wireless devices such as your phone
or other radio equipment.
Areas with potentially explosive atmospheres include fuelling
areas, below decks on boats, fuel or chemical transfer or
storage facilities, areas where the air contains chemicals or
particles, such as grain, dust, or metal powders.
Blasting Caps and Areas
Power off your mobile phone or wireless device when in a
blasting area or in areas posted power off “two-way radios”
or “electronic devices” to avoid interfering with blasting
operations.
11
Getting Started
Overview
Volume Keys
Headset Jack
Earpiece
Touch-screen
Power Key
Charger/USB Jack
Menu Key
Back Key
Search Key
Home Key
12
Keys Explained
Key
Function
Power Key
Hold to turn on or off Silent or Airplane
mode, or to power off.
Press to switch your phone to Sleep
mode.
Press to wake up your phone.
Home Key
Press to return to the Home Screen from
any application or screen.
Hold to see recently used applications.
Menu Key
Press to get the options for the current
screen.
Back Key
Press to go to the previous screen.
Volume Keys
Press or hold to turn the volume up or down.
Starting up

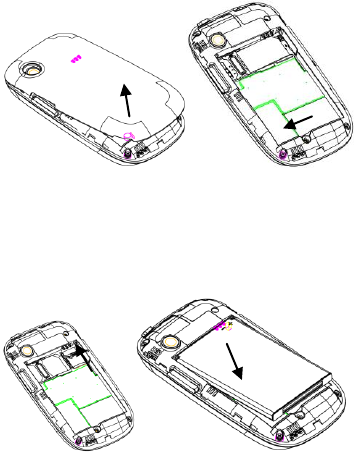

Installing the SIM/MicroSD Card and Battery
Switch off your phone before installing or replacing the battery,
SIM, or memory card.
1. Remove the back cover.
13
2. Hold the SIM card with the cut corner oriented as shown
and slip it into the card holder.
3. Follow the OPEN arrow to push the metal slot, and flip it
up. Insert the memory card into the metal slot with the
metal contacts facing down until it clicks to the right
position. Flip the metal slot back and lock it.
4. Insert the battery by aligning the gold contacts on the
battery with the gold contacts in the battery compartment.
Gently push down on the battery until it clicks into place.
14
5. Press the cover gently back into place until you hear a
click.
Charging the Battery
When you first get your new phone you’ll need to charge the
battery.
1. Connect the adapter to the charger jack. Ensure that the
adapter is inserted with the correct orientation. Do not
force the connector into the charger jack.
2. Connect the charger to a standard AC wall outlet.
3. Disconnect the charger when the battery is fully charged.
Warning:
(1) There may be the risk of explosion if the battery is
replaced by the wrong type.
(2)Dispose of used batteries according to the guidelines.
Warning:
Provides charging temperature range -10 ℃ to 55 ℃,
Over this range, please do not use the charging
Equipment. And be sure to use the charger provided by
The supplier. Use of an unapproved charger may be
Dangerous and breach of warranty of the equipment
Approval and terms.
15
Switching Your Phone On/Off
Make sure the SIM card is in your device and the battery is
charged.
Hold Power Key to switch on your phone.
To switch it off, hold Power Key to get the phone options.
Select Power off, and then tap OK.
Setting Up Your Phone for the First Time
When you first power on your phone after you purchase it or
reset it to factory settings (see Sorting out Your Phone
Settings – Privacy: Factory data reset), you need to do some
settings before using it.
Tap Menu Key in the standby mode, then select Settings >
Language & keyboard > Select language to change the
language you want to use, if needed.
Switching to Sleep Mode
To save battery power, Sleep Mode suspends your device to
a low-power-consumption state while the display is off. Your
device also goes into Sleep Mode by itself when the display
is automatically turned off after a certain period of time. You
can start sleep mode by the following method.
Press Power Key to switch to Sleep Mode.
16
Waking Up Your Phone
1. Press Power Key to activate your screen display.
2. Drag the arrowhead icon to the top.
Getting Around Your Phone
Touch Control
You can use finger gestures to control your phone. The
controls on your touch-screen change dynamically
depending on the tasks you’re performing.
1. Tap the buttons, icons, or applications to select items or
to open applications.
2. Flick the screen to scroll up, down, left or right.
3. Point, drag and drop to move particular items across the
screen.
4. Double-tap the screen to zoom in/out an image. Pinch on
with two fingers to zoom in/out a web page.
Home Screen
In the Home screen, besides the shortcut icon is displayed,
you can also set your own wallpaper, add the widgets or
application shortcuts you need, or remove them as you like.
Extended Home Screen
The Home Screen extends beyond the screen width, giving
17
you loads more space to add more stuff. Simply slide your
finger to the left or right.
Choosing Your Wallpaper
1. Press Home Key to return to the Home Screen.
2. Tap Menu Key and select Wallpaper.
3. Tap Gallery, Live wallpapers, or Wallpapers and
choose the image or animation you want to use as the
wallpaper. Some cropping may be needed for Gallery
images.
4. Tap Set wallpaper.
Adding Items to Your Home Screen
1. Press Home Key to return to the Home Screen.
2. Slide left or right to find a part of the Home Screen with
free space.
3. Hold the icon and drag to the application page then
release your finger.
4. Or you can Tap Menu Key and select Add to add the
items you want to use.
Removing Items from Your Home Screen
1. Press Home Key to return to the Home Screen.
2. Tap and hold the item you want to delete until the
icon appears on the screen.
3. Drag the item to and release your finger when the
18
item turns red.
Status and Notification Icons
Your phone will tell you exactly what’s going on by showing
you simple icons. Here’s what they mean.
USB connected
No signal
Airplane mode
Signal strength
Battery low
New message
Battery status
Connected to a Wi-Fi network
Alarm set
earphone insert
Silent mode
Signal searching
Bluetooth icon
USB debugging connected
Data Conn off
New Wi-Fi network detected
Phone Calls
Making Calls
There are many ways to make a call with your phone. And
they’re all easy to do.
19
Calling from the Phone
1. Press Home key>tap > Phone or tap on the
Home Screen.
2. Enter the phone number using the on-screen keypad.
Tap to delete wrong digits.
3. Tap the dial icon.
TIPS: To make international calls, hold to enter the
“+”.
Calling from Your Contacts
1. Press Home key> tap > Contacts.
2. Slide your finger to scroll the contacts list and tap the
contact you want to call.
You can search for a contact by tapping on the top of
the screen.
3. Tap the dial icon.
Calling from Your Call History
1. Press Home key>tap > Call Log.
2. Tap the call log to dial the number.
Calling from a Text Message
If a text message contains a phone number that you want to
call, you can make the call while viewing the text message.
20
1. Press Home key> tap > Messaging.
2. Tap the conversation and then the message that contains
the phone number you need.
3. Tap the message, the phone will list the numbers.
4. Tap the number you want to dial the number.
Receiving Calls
Creating a Contact
1. Tap or Menu Key > New contact from the Contacts
Screen.
2. Choose the storage location to save the contact.
3. Enter the contact name, phone numbers, and other
information, and then save it.
Searching for a Contact
1. Tap on the top of the Contacts Screen.
2. Input the contact name you want to search for.
The contacts matched will be listed.
Messaging
Your SMS (text message) and MMS (multimedia messaging
service) are combined into one menu in Home Key > >
Messaging.
21
The Message Box
Instead of an inbox and outbox, your phone organizes all
Messaging you sent and received into one box, where
Messaging exchanged with the same number are grouped
into one message thread in the Messaging Screen. You can
tap a thread to see the conversation you have had with
someone.
Sending an Message
1. Press Home key>tap > Messaging.
2. Tap Compose new message.
3. Enter the recipient’s number or name. As you type,
matching contacts will appear. Tap a suggested contact
to add as a recipient.
4. Tap Type to compose and type your message.
Tap Menu Key to insert quick text, smiley, or contact.
If you are sending an MMS, tap Menu Key to add a
subject, or attach pictures, videos, audio, or
slideshows.
5. Tap Send to send your message.
Message Settings
The phone’s message settings are pre-configured for you to
use immediately. To change them, tap Menu Key > Settings
22
from the Messaging Screen.
NOTE: From SMS settings screen tap Menu Key > Restore
default settings to change all the message settings back to
the original.
Getting Connected to the Internet
Your phone’s impressive networking capabilities allow you to
access the Internet or your corporate network with ease.
You can use default connection settings to connect to the
Internet via your mobile network, or Wi-Fi.
The network connection can be enabled /disabled manually.
Just select > Settings > Wireless & networks >
Mobile networks from the Home Screen and tick or clear
the Data enabled check box.
Turning On Wi-Fi
Wi-Fi provides wireless Internet access over distances of up
to about 300 feet.
1. Press Home key> tap > Settings > Wireless &
networks.
2. Tick the Wi-Fi box to turn it on.
Connecting to a Wi-Fi Network
1. Press Home key>tap > Settings > Wireless &
networks > Wi-Fi settings.
23
The Wi-Fi access points, or “hotspots”, that your phone
has detected are displayed with their names and
security settings.
2. Tap an access point to connect to it.
If security features are implemented, you’ll need to enter a
password.
Checking the Wi-Fi Network Status
You can check the Wi-Fi network by looking at the icon
in the status bar.
USB tethering & portable hotspot
Share your phone’s data connection via USB or as a portable
Wi-Fi hotspot.
Enabling USB tethering
TIPS: The PC accesses the Internet via the phone’s mobile
network. Therefore, set up the networks connection correctly
before you try to use the phone as a modem.
Press on the phone Home Key >tap Menu Key >
Settings > Wireless & networks > Tethering & portable
hotspot and tick the USB tethering check box. A new
network connection will be created on your PC.
24
Disabling USB tethering
Press Home Key > tap Menu Key > Settings > Wireless &
networks > Tethering & portable hotspot and clear the
USB tethering check box.
You can also just pull out the USB cable, which is shielded
cable.
Enabling the Wi-Fi Hotspot
You can use the phone as a portable WLAN router, to share
your phone’s internet connection with one or more PC or
other devices.
Disabling the Wi-Fi Hotspot
Press Home Key >tap Menu Key > Settings > Wireless &
networks > Tethering & portable hotspot and clear the
Portable Wi-Fi hotspot check box.
Browsing the Internet
You can use your phone to get on the Internet via a network
or Wi-Fi connection.
Press Home Key >tap > Browser.
There are different ways to open web pages:
Tap the address bar to enter the website you want to browse.
Then tap .
Tap Menu Key > Bookmarks. Select a bookmark to open.
25
Browsing Options
When you browse the Web, you can also do the following:
Tap the relevant icon to zoom in/out a Web page.
Press Menu Key > Windows to open a window for web
browsing.
Press Menu Key > Close and select to exit.
Press Menu Key > Bookmarks. Most visited web sites,
and browsing history.
Press Menu Key > More to do more operations (such as
add bookmarks, downloads, or configure browser settings
etc.).
Using Bookmarks
If you know the Web address, you can manually add
bookmarks. To bookmark a web page, open it and tap Menu
Key > Bookmarks. Then tap Add bookmark. Give the
bookmark a name and save it.
Editing a Bookmark
1. Open a Browser window.
2. Tap Menu Key > Bookmarks.
3. Select an item you want to edit and hold on it until the
shortcut menu pops up.
4. Select Edit bookmark.
26
5. Edit the name or location, and then save it.
Deleting a Bookmark
1. Open a Browser window.
2. Tap Menu Key > Bookmarks.
3. Select an item you want to delete and hold on it until the
shortcut menu pops up.
4. Select Delete bookmark and tap OK to confirm.
Bluetooth
Bluetooth is a short-range wireless communication technology.
Phones or other devices with Bluetooth capabilities can
exchange information wirelessly within a distance of about 10
meters. The Bluetooth devices must be paired before the
communication is performed.
1. Press Home Key > tap > Settings > Wireless &
networks and tick the check box by Bluetooth to turn on
Bluetooth.
When Bluetooth is on, the icon will appear in the
status bar.
2. Tap Bluetooth settings > Scan for devices. Your
phone will show all visible Bluetooth devices in range.
3. Tap the device you want to pair with and, if required, enter
the wireless password or other BT device password.
When the owner of the device to be paired to enter the
27
same password or accept the connection, the pairing is
completed.
Making the Most of Multimedia
Taking Pictures with Your Camera
Your phone has camera function. Open it by pressing Home
Key > tap > Camera.
Tap to take a shot. To view it, just tap the picture in the
right corner of the screen. Or select Menu Key > Gallery to
view all your pictures.
NOTE: Before taking a picture, click the corresponding icon
on camera screen to complete the camera-related settings.
Shooting Video with Your Camcorder
Open the camcorder by pressing Home Key >tap >
Camera. Slide the icon to change to Camcorder mode.
Then tap to start shooting, and tap to stop. Select
the picture in the right corner of the screen to view the video
you’ve just shot. Or tap Menu Key > Gallery to see all your
video clips.
NOTE: You must insert the memory card before you use the
camera and camcorder.
28
Listening to Your FM Radio
With the FM Radio, you can search for radio channels, listen
to them, and save them on your phone. Note that the quality
of the radio broadcast depends on the coverage of the radio
station in your area. The wired headset works as an antenna,
so always connect the headset when using the radio.
To tune in, plug your headset into your phone. Press
Home key> tap > FM Radio.
Opening Your Gallery
Press Home Key > tap > Gallery. You can use Gallery
to view pictures and play videos. You can also do some
basic editing of your pictures – such as setting them as
wallpaper or contact icons, and sharing with friends.
Making Voice Memos
Sound Recorder enables you to record your voice memos.
You need a microSD card to use it.
1. Press Home Key > tap > Sound Recorder.
2. Tap to start recording.
3. Tap to stop recording.
4. Tap to play back the voice recording.
5. Save the voice recording after stop, or tap Cancel to
29
delete the recording.
Using Your Google Applications
Signing in to your Google Account lets you synchronize
Gmail, Calendar, and Contacts between your phone and the
web. And if you don’t have an account, you can easily create
one.
1. Tap a Google application that needs a Google account,
such as Market.
2. Read the instructions and select Next.
3. If you’ve got a Google account, tap Sign in. Enter your
user name and password. Then tap Sign in. (Or tap
Create if you don’t have a Google account.)
Gmail
Gmail is a web-based email service that’s configured when
you sign in to your Google account. Depending on your
synchronization settings, the Gmail on your phone can be
automatically synchronized with your Gmail account on the
web. This is how to enter Gmail:
Open Gmail by Pressing Home Key > tap > Gmail.
Maps
The service is a map service that can be viewed in a web
browser, which provides a powerful map search and step
30
scaling function.
1. In the standby mode, select to open the application
list.
2. Touch Maps to open the map screen.
Notes: Not all location sources are currently enabled. For the
fastest and most accurate location detection: Turn on GPS
and wireless networks in location settings.
Navigation
Understanding of navigation services, the service provides
road guides, and information about location and travel
distance.
1. In the standby mode, select to open the application
list.
2. Tap Navigation.
3. Follow the on-screen prompts to start mobile navigation.
Google Search
You can search the internet for specific information and the
application on the phone.
1. In the standby mode, select to open the application
list.
2. Tap Google Search.
3. Enter the content you want to search for.
31
4. The results matched will be listed.
Voice Search
Voice Search is a new way to search a location for you. You
can directly use the voice to the location query.
1. Press Home key> tap > Voice Search.
2. Say the location you want to go.
3. The results matched will be listed.
WhatsApp
WhatsApp is an application for communication between the
smart phone, which enables you instantly receive the
information your friend and colleagues sent by pressing
Home key> tap > WhatsApp.
Places
Google Places helps you find all kinds of businesses near
you. Please enable GPS or wireless networks in settings
application, under location settings.
1. Press Home Key > tap > Places.
2. Select a business category and the information of that
type of business near you will be displayed.
3. Tap a result you are interested in and check out the
32
details and reviews about that place. You can also see
the place on Google Maps, find out how to get there, or
give that business a call.
Latitude
Google’s Latitude service is a social tool for sharing your
location information with selected friends. You can also find
on the map the location of your friends - to see nearby friends
and met with them (if necessary).
Press Home key> tap > Latitude to enable Latitude
service.
Sorting out Your Phone Settings
Setting Date and Time
1. Press Home key> tap > Settings > Date & time.
2. Clear the Automatic check box if you want to set the time
and date by yourself.
3. Set date, time and change the other options.
Display Settings
By tapping Menu key > Settings > Display, you can adjust
the display settings as you like:
Brightness: Adjust brightness of the screen.
Auto-rotate screen: Rotate the screen display as you
33
rotate the phone.
Animation: Choose window animation.
Screen timeout: Set the delay for the screen to
automatically turn off.
Sound Settings
By pressing Home Key > tap > Settings > Audio
profiles, you can select the profile, adjust the sound settings,
such as ringtones, volume and vibrate.
Language Settings
You can change the language of your phone system in two
simple steps.
1. Press Home key>tap > Settings > Language &
keyboard > Select language.
2. Select a language from the list given.
Mobile Network Services
Press Home key> tap > Settings > Wireless &
networks > Mobile networks to enable or disable data
service, allow data services when roaming, or set access
point names for data access.
34
Disabling Data Services
1. Press Home key> tap > Settings > Wireless &
networks > Mobile networks.
2. Clear the Data enabled check box.
Switching Network Modes
1. Press Home key> tap > Settings > Wireless &
networks > Mobile networks > Network Mode.
2. Select one of the following: GSM/WCDMA (auto mode),
WCDMA only, or GSM only.
Switching Networks
1. Press Home key> tap > Settings > Wireless &
networks > Mobile networks > Network operators. The
phone automatically searches for all available networks.
2. Tap a network to register manually, or tap Select
automatically.
Setting Access Point Names
To connect to the Internet you can use the default Access
Point Names (APN). And if you want to add a new APN,
please contact the service provider to find out more.
Press Home key> Menu Key > Settings > Wireless &
networks > Mobile networks > Access Point Names.
35
Security Settings
Here’s how to protect your phone and SIM card from
unauthorized use.
Protecting Your Phone with a Pattern
Creating Your Screen Unlock Pattern
1. Press Home key>tap > Settings > Security > Set
up screen lock > Pattern.
1. Read the instructions on-screen and watch the example
pattern, and select Next twice (if needed).
2. Drag your finger to connect at least four dots, draw the
pattern.
3. Touch Continue.
4. Redraw your pattern to confirm.
Unlocking the Screen with Your Pattern
1. Press Power Key to wake up the screen.
2. Draw the pattern you set to unlock the screen.
If you make a mistake, your phone will ask you to try again.
Protecting Your Phone with a PIN or
Password
Creating a PIN or Password
1. Press Home key>tap > Settings > Security > Set
36
up screen lock.
2. Tap PIN or Password.
3. Read the instructions and according to this instruction to
complete your PIN or password settings.
Unlocking the Screen with Your PIN or Password
1. Press Power Key to wake up the phone.
2. Drag the arrowhead icon to the top
3. Enter the PIN or password you set.
Disabling Screen Unlock Security
If you have created an unlock pattern, PIN or password, you
can disable it.
1. Press Home key>tap > Settings > Security >
Change screen lock.
2. Draw the screen unlock pattern or enter your PIN/
password you have created.
3. Tap None.
Protecting Your SIM Card with a PIN
Every SIM card comes with a PIN. The initial PIN is provided
by your mobile phone carrier. It’s best to lock your SIM card
as soon as you can.
1. Press Home key> tap > Settings > Security > Set
up SIM card lock.
37
2. Tick the Lock SIM card check box.
3. Enter the PIN you’ve been given and tap OK.
Changing Your SIM PIN
You can change the PIN you’ve been given to one easier for
you to remember and harder for others to guess.
1. Press Home key>tap > Settings > Security > Set
up SIM card lock.
2. Make sure you already tick the Lock SIM card check box.
3. Tap Change SIM PIN.
Setting up Credential Storage
This lets you select applications to access secure certificates
and other credentials.
Enabling Secure Credentials
1. Press Home key>tap > Settings > Security.
2. Tap Set password and create a password for the
credential storage.
3. Tick the Use secure credentials box.
Deleting Secure Credentials
1. Press Home Key > tap > Settings > Security.
2. Tap Clear storage to clear credentials.
38
Managing Your Device Memory
Press Home Key >tap > Settings > Storage.
You can view the space information of the microSD card as
well as the phone storage.
Unmount SD card: You can unmount the microSD card
to safely remove it.
Erase SD card: Erase all data on the microSD card.
Privacy: Reset to Factory Settings
Press Home key> tap > Settings > Privacy > Factory
data reset > Reset phone > Erase everything.
Applications
Press Home Key > tap > Settings > Applications.
Installing an Application
You can install an application from the Android Market
(Home Key > > Market).
You can also install a non-Marketing application if you have
allowed the installation of it. Make sure that you select an
application developed for your device and processor type
before installing it.
1. Copy the application file to the microSD card and install
the card on your phone.
39
2. Press Home key> tap > File Manager, and open the
folder where the application file is.
3. Tap the file to start installation.
4. Read the installation instructions that come with the
application and follow it to complete the setup.
Removing an Application
1. Press Home key> tap > Settings > Applications >
Manage applications.
2. Select the application you want to delete.
3. Tap Uninstall and OK to confirm.
Moving an Application
You can move the applications downloaded or installed on
your phone to the memory card when the phone memory is
full. You can also move applications to your phone if the
memory card is getting full.
NOTE: Not all applications can be move to your phone or
memory card.
1. Press Home key> tap > Settings > Applications >
Manage applications.
2. Click the application you want to move on the
Downloaded tab.
40
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
This mobile phone has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiated radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
41
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
Changes or modifications not expressly approved by the
party responsible for compliance could void the user‘s
authority to operate the equipment.
The antenna(s) used for this transmitter must not be
co-located or operating in conjunction with any other antenna
or transmitter.
RF Exposure Information (SAR)
This mobile phone meets the government’s requirements for
exposure to radio waves.
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy
set by the Federal Communications Commission of the U.S.
Government.
The exposure standard for wireless mobile phones employs
a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
*Tests for SAR are conducted using standard operating
42
positions accepted by the FCC with the phone transmitting at
its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power
levels so as to use only the power required to reach the
network. In general, the closer you are to a wireless base
station, the lower the power output.
The highest SAR value for the model phone as reported to
the FCC when tested for use at the ear is 1.02 W/kg and
when worn on the body, as described in this user guide, is
1.31 W/kg (Body-worn measurements differ among phone
models, depending upon available accessories and FCC
requirements.)
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirement.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and
can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID:
YHLBLUDASH
43
For body worn operation, this phone has been tested and
meets the FCC RF exposure guidelines for use with an
accessory that contains no metal and the positions the
handset a minimum of 1.0 cm from the body. Use of other
accessories may not ensure compliance with FCC RF
exposure guidelines. If you do no t use a body-worn
accessory and are not holding the phone at the ear, position
the handset a minimum of 1.0 cm from your body when the
phone is switched on.
