User manual
1
Dash Music 4.0
User Manual
2
Table of Contents
Appearance and Key Function ................................................................................................................................ 6
Introduction ................................................................................................................................................................ 7
Call Functions ............................................................................................................................................................ 8
Contacts .................................................................................................................................................................... 10
Messaging ................................................................................................................................................................ 13
Internet Browser ...................................................................................................................................................... 14
Bluetooth .................................................................................................................................................................. 16
Camera ..................................................................................................................................................................... 17
Gallery ....................................................................................................................................................................... 19
Music ......................................................................................................................................................................... 21
Sound Recorder ...................................................................................................................................................... 22
3
Alarm Clock .............................................................................................................................................................. 23
FM Radio .................................................................................................................................................................. 24
Settings ..................................................................................................................................................................... 26
Storage ..................................................................................................................................................................... 32
4
Safety Information
Please carefully read the terms below:
Use Safely
Do not use your mobile phone where it might cause danger.
Transportation Safety
Please observe all transportation laws and regulations.
Please drive with both hands on the wheel.
DO NOT TEXT AND DRIVE
Hospitals
Please follow limitations.
Please turn off your mobile phone when near medical instruments.
Airports
Please follow all flight safety regulations and do not use your phone during flight.
Toxic Chemicals
Do not use your mobile phone around fuels or chemicals.
Explosion Hazard
Please observe related limitations and do not use your mobile phone around an area where explosions
may occur.
5
Accessories and Batteries
Please use only Blu authorized accessories and batteries.
Backup
Please remember to keep a written record of all important information.
Water
Your phone is not waterproof. Keep it away from water and liquids.
SOS Emergency Calls
Make sure your mobile phone is switched on and in a service area. In home screen, tap the phone key
and dial 911 and send.
6
Appearance and Key Function
Volume
Power
Back
Home
Menu
Front
Speakers
Rear
Camera
Front
Speakers
7
Introduction
Installation of the SIM Card
Please install the SIM card before using your phone.
Note: Please keep the SIM card out of the reach of children. The SIM card and its contact are easily
damaged due to scratching or bending. Please be cautious when carrying, installing or taking out the SIM
card.

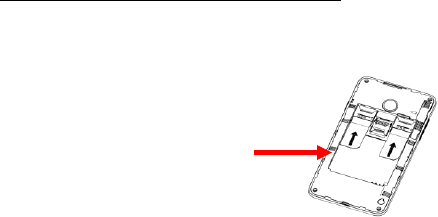

To insert SIM card(s):
1. Power off the phone and remove the battery cover.
2. Insert the SIM card(s)
3. Replace the battery cover of the mobile phone and power on.
SIM Slot(s)
8
Power On and Off
On - Please ensure the SIM card has been properly inserted into the phone. Long press the Power key to
switch the phone on.
Off - In standby mode, long press on Power key until an options menu appears. Select OFF in the menu
and confirm
Password Lock
You may set a screen unlock picture or a PIN code lock as a security measure. For further information
regarding password locks, password revision and other functions please enter the security settings of the
phone.

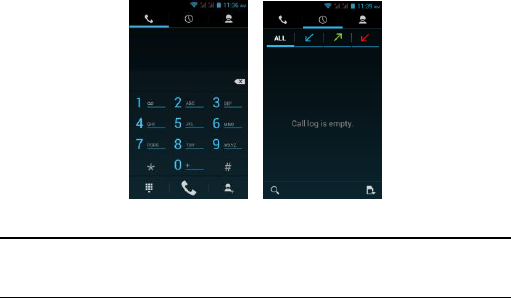

Call Functions
At the dial keyboard, enter the phone number and then click the dial key. If dialing an extension, you may
click the dial pad icon in the bottom of the screen to open the interface and enter the number of the
extension. You may also enter an input number and call contacts through speed dial.
9
Call Logs
Every telephone number called and received will be saved in the phones call log. All numbers in the call
log can be dialed directly by clicking the dial icon on the right side of the screen. When the number
appears on the list, click it to view details.
Proximity Sensor
10
The proximity sensor determines how far away an object is from the device. During the call or when you
place the phone close to the ear, the backlight will turn off automatically which conserves battery and
prevents inadvertently touching.
Contacts
Enter: Click on the applications menu and select contacts
• The default display is the phone contacts and SIM card contacts
• The contacts are organized alphabetically by default.
11
Click the Search icon to enter the contact search interface.
Any numbers or letters associated with any of the contacts saved in the list will be shown in the
search results.
If there were no matches for the inputted contact, the interface will display no contacts found.
Add Contact
Search
12

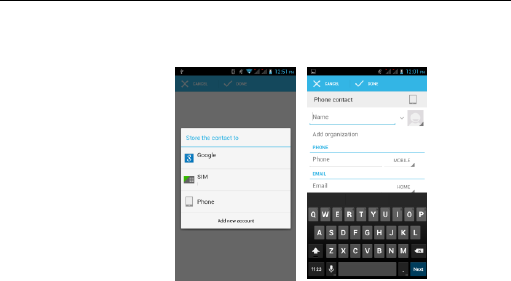

Add New Contact
1. Click “Add Contact” icon
2. Select to save contacts to phone or SIM card
3. You may edit contact picture, name, telephone number, group, address, and email among other
options
4. Click to finish and save contact.
13
Messaging
You may use this function to exchange text messages and multimedia messages with your family and
friends. The messages to and from the same contact or phone number will be saved into a single
conversation so you may see the entire message history conveniently.
Send an SMS
Application Menu » Messaging » New message
(Or use shortcut icon)
1. Click to enter recipient. You may enter contacts from contact book or enter a new number.
2. Compose Message
3. Send

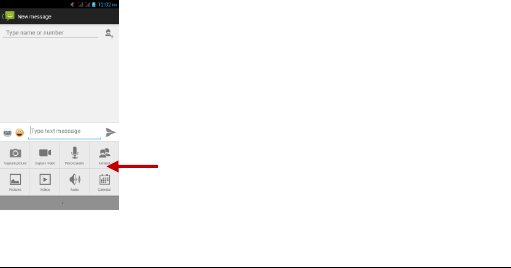

Send an MMS
When creating message, the default message style is SMS. The message will automatically convert to
MMS when adding an attachment.
1. Click the Paperclip icon in the messaging interface.
2. Click “Attach” to add the following attachments.
14

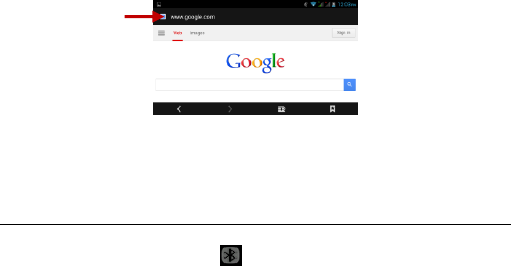

Internet Browser
Menu Functions
Backward
After browsing through multiple pages, this option will return the user to the previous page.
Attachment Type
for MMS Message
15
Forward
After browsing through multiple pages, this option will move to a web page after the current page.
Windows
You may view all windows open by clicking the windows icon in the upper right part of the
browser.
Bookmarks
Click the Bookmarks option to make the current URL as a saved Bookmark.
Click Bookmarks to opened saved bookmarks.
More
Find on page: Search current page.
Share page: Select to share the current page.
Save for offline reading: Saves page for offline reading.
Page info: Display page address and other information of the current browsing
History: Show your browsing history and view the most visited pages.
Settings: Contains a variety of browser settings.
16
Bluetooth
Bluetooth is a short-range wireless communications technology that devices can use to exchange
information and connect to different types of devices which include headsets, car kits, and other devices.
Power on Bluetooth
1) Settings » Wireless & Networks » Bluetooth and select to power on Bluetooth.
2) The Bluetooth icon will appear grey in the in the notification bar. Click “scan for devices” and the
phone will start to scan for all devices within range.
3) In Bluetooth settings all the devices found will displayed in the list under the icon.
Browser
17
Note: The maximum detecting time of the phone is 2 minutes.
Camera
List of available
devices
18

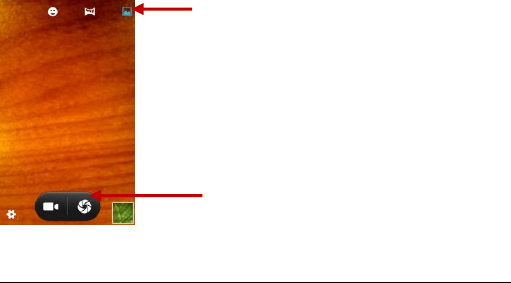

Camera
Prior to use: Install memory card before using the camera or video camera. All photos or videos taken by
the phone are stored in the memory card.
Open Camera
1. Applications Menu » Camera
2. Switch to video mode if you want to record videos.
Note: You may also place a camera shortcut on any of the screens
Take Pictures
1. Aim the object that the picture will be taken.
2. Press the “Shutter” button on the screen.
3. After taking the picture, the file will be saved in the camera’s gallery folder.
4. You can view the photos by clicking the preview box button.
You may adjust various settings for the camera by pressing Menu while in the camera interface.
When in the camera viewfinder mode, you can switch to video or photos’ gallery. On the camera
viewfinder mode, you will find the display the preview of the previous picture taken. Click the “preview
box” and the photo will display in full screen.
19
Gallery
Open Images
Applications Menu » Gallery
Select from Camera or
Video
Camera Options
20
Share Pictures
You may share pictures by sending them through Gmail or the E-mail application. You may also send
pictures through the MMS message function by composing a message and attaching the picture. Any
image can also be sent via the Bluetooth function by selecting Bluetooth equipment that has been paired.
Adjust Image
Press Menu and Edit to adjust images
Edit light: Fill Light, Highlights, Shadows, Auto-Fix.
Edit image effects: Cross-process, Posturize, Logo, Documentary, and Fish Eye.
Color Effects: Warmth, Saturation, B&W, Sepia, Negative, Tint, Duo-tone, Doodle.
Crop: Crop, Red Eye, Straighten, Rotate, Flip, Sharpen.
View Images
In the picture interface, click on an album to view images
In the photo album, scroll the picture towards left to view the next picture or towards right to view the
previous one.
Crop Pictures
1. If you want to adjust the size of the picture, use the crop tools. Once the arrow appears, pinch your
fingers in or out to adjust the size.
2. If you want to adjust the image and keep its proportion, please hold down any of the four corners of the
image and adjust.
21

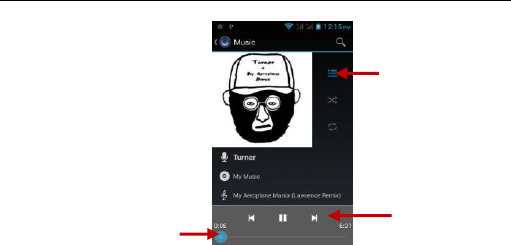

Music
Open Music
Application Menu » Music
Song Status
Song Controls
Player Options
22
Search Music
You may choose to search for music from media folder through artist name, song name, album name.
The following formats are available: AMR, M4A, MIDI, MP3, WAV, and OGG.
Sound Recorder
The Sound Recorder can record voice or any audio.
You may send any recorded audio via Bluetooth or MMS and also have the option to make any recorded
audio the phones default ring tone.
Note: The recorder uses AMR 3GPP format.
Record
- Keep the phone’s microphone near the voice source.
- Click the record button to record the audio.
- Click the stop button to stop recording the audio.
All recordings will be saved in my recording folder in the default music program.
23
Alarm Clock
1. Click on the Clock icon in the application menu
Recording
Controls
Recording
Time
24
2. Click set alarm button and enter the alarm clock set interface where you may add and edit alarms
FM Radio
FM Radio
Click to add, edit or
delete alarms
25
Through this function, you may listen to FM radio on the device. The FM radio uses the wired headphones
as an antenna in order to receive signal. Before using this function, connect the original equipment
headphones that came with the phone.

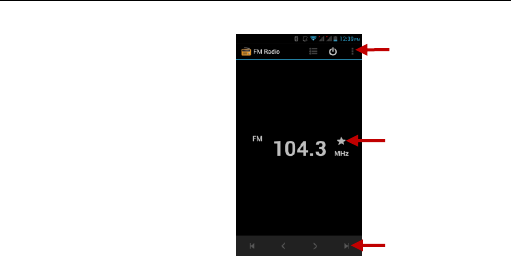

Open FM radio
Press the FM Radio icon to open the application.
1. Click “Search” automatic scans of FM channels.
2. Click to add favorite radio stations.
Radio
Options
Add Favorite
Radio Stations
Scan
26
FM Radio as Background
Click on the Home key to move the FM Radio program to the background.
Settings
SIM Management
Select to disable the SIM card
Network Operators
Wi-Fi / WLAN
Wi-Fi » Wi-Fi settings » Click Wi-Fi to power on. When switched on, the Wi-Fi will automatically
search for available networks. Any unsecured network can be used directly and any
secured network requires a password or credentials prior to connection.
Bluetooth
Press the switch to power on Bluetooth. Once on, the Bluetooth will automatically scan for any
nearby open equipment
Data Usage
Data usage and mobile data traffic limit
27
Wireless & Networks
Airplane Mode
VPN
Tethering & Portable hotspot
Mobile networks and APN Settings
Note: When in flight mode, Wi-Fi will turn off automatically.
Call Settings
Fixed Dialing Numbers, Minute Reminder, TTY Mode, Quick Responses, and International Dialing Assist
Audio Profiles
This option sets the phone tone settings for receiving calls or notifications. Some of the settings include
Vibrate, volume, ring tones, ring tones notification and haptic feedback tones
Display
(a) Brightness (b) Auto rotating screen (c) Wallpaper (d) Screen Timeout
Storage
View the SD card and phone memory usage.
Allows the removal or formatting of the SD card.
28
Allows selection of the default memory.
Battery
General power usage
Power-Save Mode
Adjust power save mode settings.
Apps
Manage applications - Manage and delete installed applications.
Running services - Press any of the services listed in the two-button operation box. Press the
‘Stop’ button to stop any of the services listed and removes from the "running services" list.
Location Access
Use wireless - Use wireless services to find locations in applications
When using the GPS satellite positioning, set accuracy to street level (Cancel it to save battery)
Security
Set up screen locks: Use a pattern, PIN or password to lock the screen
Pattern: The first time there will be simple unlock instructions and examples. Click “next step” to
continue the security pattern step
29
PIN: Enter PIN number to unlock the screen
Password: Set password to unlock the screen
You may stop the security feature at any time
Set up SIM card PIN lock
SIM card PIN (Personal Identification Number) is used to prevent unauthorized use of SIM cards.
To change a blocked PIN code, you will need to unlock the SIM lock then go to the Change Password
screen. The phone will automatically prompt you enter the old PIN code and ask to enter a new PIN code
twice. The phone will then prompt you that the change was successful. If you enter the PIN incorrectly
three times, the SIM and PIN codes will be automatically locked. You will need the PUK code to unlock
the phone which is available through your service provider. If you enter the PUK code incorrectly 10 times,
the SIM card will be permanently locked. Please see your service provider for a new SIM card.
Password visible – Make the password visible when it’s typed.
Use security credentials - Allow applications to visit security credentials or other credentials.
Install from SD card - Install the encrypted certificate from SD card.
Language & Input
Language – Change the language of the phone.
Custom Dictionary - Add or delete words to the custom dictionary.
Keyboard Settings – (a) Haptic vibration (b) Haptic tones (c) Capitalizing (d) Speech Input (e)
Inputting words (f) Predictive text function (g) Auto-Text (h) Input keyboard method
30
Backup & reset
Backup Data – Will back up all application data, WLAN passwords, and other settings to
Google's servers
Restore to Factory Settings - Clear all data stored on the phone.
Date & Time
Automation - Use date and time provided by Network.
Date and Time adjustment.
Time Zone - Select Time Zone according to where your location.
Select Date Format - There are 3 kinds of formats you can choose from: Month-Day-Year,
Day-Month-Year and Year-Month-Day, and Year-Month-Day which is the default setting
Schedule Power On & Off
Schedule power on and off
Accessibility
Power button ends call
Speak Passwords
Touch Delay
31
Developer Options
If the phone does not display Developer options, to access: Press ‘Build number’ seven (7) times in the
about phone tab in settings.
The developer options gives access to USB Debugging and other developer options
About Phone
You can check the information on status and remaining power
You may periodically check for any software or firmware updates through the System Updates
option.
You can use a shielded USB Cable connecting to the PC for data communication.
32
Storage
Connect the phone with the USB cable provided. Once connected, a connection icon will appear in the
status bar. Slide down bar and click on connection icon. Once in the connection mode interface, select
USB mass storage and turn on from the connection screen.
Some settings and user interface (UI) options may vary depending on final SW version.
33
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiated radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Note:
Changes or modifications not expressly approved by the party responsible for compliance could void the
user‘s authority to operate the equipment.
34
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the United States.
During SAR testing, this device was set to transmit at its highest certified power level in all tested
frequency bands, and placed in positions that simulate RF exposure in usage against the head with no
separation, and near the body with the separation of 10 mm. Although the SAR is determined at the
highest certified power level, the actual SAR level of the device while operating can be well below the
maximum value. This is because the phone is designed to operate at multiple power levels so as to use
only the power required to reach the network. In general, the closer you are to a wireless base station
antenna, the lower the power output.
The exposure standard for wireless devices employing a unit of measurement is known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
Tests for SAR are conducted using standard operating positions accepted by the FCC with the device
transmitting at its highest certified power level in all tested frequency bands.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone
is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after
searching on FCC ID: YHLBLUDASHMUS40.
35
For this device, the highest reported SAR value for usage against the head is 1.07W/kg, for usage near
the body is 1.28 W/kg.
While there may be differences between the SAR levels of various phones and at various positions, they
all meet the government requirements.
SAR compliance for body-worn operation is based on a separation distance of 10 mm between the unit
and the human body. Carry this device at least 10 mm away from your body to ensure RF exposure level
compliant or lower to the reported level. To support body-worn operation, choose the belt clips or
holsters, which do not contain metallic components, to maintain a separation of 10 mm between this
device and your body.
RF exposure compliance with any body-worn accessory, which contains metal, was not tested and
certified, and use such body-worn accessory should be avoided.
