User Manual
DeeJay
User Manual
2
Contents
1 About your Mobile Phone .............................. 8
1.1 Appearance ........................................... 8
1.2 Key instructions .................................... 9
1.3 Icons......................................................11
2 Getting started ............................................... 12
2.1 The Battery ......................................... 12
2.1.1 Install & remove a battery ...... 13
2.1.2 Charging ............................... 13
2.2 SIM card installation .......................... 14
2.3 Memory card installation ................... 15
2.4 Storage Management......................... 15
2.5 Power on and off ................................ 16
3 Call functions ................................................... 17
3.1 Make a call .......................................... 17
3.1.1 Make a domestic call .............. 17
3.1.2 Make an extension call ........... 18
3.1.3 Make an international call ....... 18
3.1.4 Make a call from Mobile Phone
book 18
3.1.5 Redial a call by recent call lists 19
3.2 Answer a call ....................................... 19
3
3.3 Reject a call ......................................... 19
3.4 Call options .......................................... 20
4 Menu functions ............................................... 20
4.1 Messages ............................................. 20
4.1.1 SMS ...................................... 20
4.1.2 MMS ..................................... 25
4.1.3 Voice mail server .................... 28
4.1.4 Broadcast Message ................ 28
4.2 Multimedia ........................................... 29
4.2.1 Image Viewer ........................ 29
4.2.2 Audio Player .......................... 29
4.2.3 Sound Recorder ..................... 29
4.2.4 FM Radio ............................... 29
4.3 Organizer ............................................. 30
4.3.1 Calendar ............................... 30
4.3.2 To do .................................... 31
4.3.3 Alarm .................................... 31
4.3.4 World Clock ........................... 31
4.4 Settings ................................................ 32
4.4.1 Phone Setup .......................... 32
4.4.2 Network Setting ................... 33
4.4.3 Security Setup ....................... 34
4
4.4.4 Restore Factory settings .......... 37
4.4.5 Sound effect .......................... 37
4.5 User profiles ........................................ 38
4.6 Services ................................................ 38
4.7 Shortcuts ............................................. 38
4.8 File Manager........................................ 39
4.9 Phonebook ........................................... 39
4.9.1 Quick Search ......................... 40
4.9.2 Search Entry .......................... 40
4.9.3 Add new contact .................... 40
4.9.4 Copy All ................................ 41
4.9.5 Delete ................................... 42
4.9.6 Caller group........................... 42
4.9.7 Extra Number ........................ 42
4.9.8 Settings ................................ 43
4.9.9 Caller Picture ......................... 43
4.9.10 Call Ring Tone........................ 43
4.10 Call center ........................................... 44
4.10.1 Call history ............................ 44
4.10.2 General call settings ............... 44
5 Battery information ...................................... 47
6 Safety information ........................................ 49
5
6.1 Operating environment...................... 49
6.2 Electronic devices ............................... 49
6.2.1 Pacemaker ............................ 50
6.2.2 Hearing aids .......................... 50
6.2.3 Other medical devices ............ 51
6.2.4 Vehicles ................................ 51
6.3 Potentially dangerous situations ...... 52
7 Care and maintenance ................................. 53
Preface
Thank you very much for your choice of this product designed
by our company!
Our Mobile Phone complies with the Telecommunication
industries standards of both the People's Republic of China
and Europe.
The product described in this guide is approved for use on
the GSM networks, and has the GPRS functions.
GSM network is a global cellular communications system of
international standards.
Allow you to receive an international telephone call used as in
6
your homeland.
However, before using these advanced network functions,
you must firstly apply for these required services.
In order to better use your mobile phone, we suggest you to
carefully read this statement to know all the functions well.
Note: Due to the cellular network settings and the services
provided, some functions may be unavailable, please query
local service providers.
For your safety
Read these simple guidelines. Breaking the rules may be
dangerous or illegal. Further detailed information is given in
this manual.
ROAD SAFETY
Always keep your hands free to operate the vehicle while
driving. Park the vehicle before using your Mobile Phone.
SWITCH OFF IN AIRCRAFT
Using of wireless telephones in aircraft may disrupt the
operation of the aircraft. It is dangerous and illegal. Insure
switching off the Mobile Phone before going aboard.
7
SWITCH OFF IN HOSPITALS
Follow any restrictions or rules. Switch off the Mobile Phone
near medical equipment.
SWITCH OFF WHEN REFUELING
Switch off the Mobile Phone at a refueling point or any fuel or
chemicals places.
SWITCH OFF NEAR BLASTING POINT
Don‟t use the Mobile Phone where blasting is in progress.
Observe restrictions, and follow any regulations or rules.
INTERFERENCE
All wireless Mobile Phones may be susceptible to interference,
which could affect the performance.
USE NORMALLY
Use in the normal position explained in the product
documentation. Don't touch the antenna unnecessarily.
ENHANCEMENTS AND BATTERIES
Use only the approved enhancements and batteries. Do not
connect incompatible products.
EMERGENCY CALLS
Ensure the Mobile Phone is switched on and in service. Enter
the emergency number, and then press the key. It will give
your location. Do not end the call until the permission.
8
1 About your Mobile
Phone

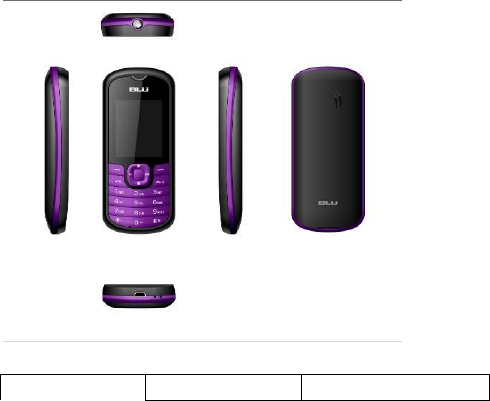

1.1 Appearance
MODEL
Model
DeeJay
9
Size
44.5*102.8*15.2 mm
Weight
70g(battery included)
BATTERY
Type
Lithium battery
Standard Voltage
3.7 V
Restrictions on
Charging voltage
4.5 V
Rated capacity
800 mAh
CHARGER
Model
DeeJay
Input
110-220V
Output
5.0V
Earphone cable
specification
IO
Operating
Temperature
-30° ~ + 50°C
1.2 Key instructions
Keypad name
Keypad Function Introduce
Left-soft-key
Enter the main menu~ Carries out the screen left
under angle guidance symbol to demonstrate the
function.
10
Right-soft-key
Enter the phone book~ Carrie
Set out the screen right under angle guidance
symbol to demonstrate the function.
Direction key
up
It‟s used to choose the all function
down
Left
right
OK
Dial Key
Received the incoming call
Dial the telephone number
Electric-key
Short Press: end the call and
refuse the call
Long Press : Turn on or Turn off
the mobile phone
Number Key
0, ~9
User can type the numeric when
the mobile is standby
User can type manifold
denotation in the editor
*
Short press~ Dials the telephone
number by the host card way~
and enter*
*
#
Long press~ cut the realization +,
P, W
11
*
#
#
Short press~ Dials the telephone
number by the host card way~
and enter #
Long press~ cut the realization
quiet/normal mode
1.3 Icons
ICONS Detail
Icon
Description
Signal Intensity
Battery Capacity
Connected to the GSM/GPRS networks
Unread SMS
Has been set up and activated the alarm
Prompted calls will be set to signal
mode.( General pattern)
Prompted calls set to vibration mode.
（Conference mode）
12
Prompted calls for the setting rings and
vibration mode.（Outdoor model）
Prompted calls after the signal is set to
vibration mode
Headset status
Missed call records
2 Getting started
2.1 The Battery
The lithium battery can be charged and discharged hundreds
of times. Please use the approved batteries, and only use the
battery charger approved by the Mobile Phone producer to
charge your battery.
13
2.1.1 Install & remove a battery
Remove:
(1)Slide forward the bottom off the back cover to remove.
(2) Lift the battery from its slot and take it out.
Install:
(1) Place the battery into the battery slot.
(2) Slide the back cover toward the top of the Mobile Phone
to lock the cover into its place.
2.1.2 Charging
To plug in the power charger, the charger cable plug at the
bottom of the Mobile Phone
Note:
1. It is beneficial to the battery to charge it until full at the
first three times.
2. When charging, don‟t remove or take out off the battery
to avoid the battery circuit to burn out.
3. While charging, it is normal that the Mobile Phone and
charger will become hot.
14
4. If the battery is completely empty, it may take a period of
time before the charging icon appears on the display.
Warning: Provides charging temperature range
-5 ℃ to 55 ℃, over this range, please do not use the
charging equipment. And be sure to use the charger
provided by the supplier. Use of an unapproved
charger may be dangerous and breach of warranty
of the equipment approval and terms.
Notice:
The socket-outlet shall be installed near the equipment
and shall be easily accessible。
2.2 SIM card installation
Turn off the Mobile Phone, and take out the battery.
Keep the gold color side of the SIM card downward, and slide
it gently to the right place.
15
2.3 Memory card installation
Power off the Mobile Phone, and take out the battery or any
other electrical supply.
Keep the golden color side of the Memory card downward,
and push it gently to the right place.
Before take out off the memory card, be sure to Power off the
Mobile Phone and remove the battery first.
2.4 Storage Management
To manage the memory card storage space.
1. The computer and synchronize
Note: This Mobile Phone does not support USB boot function;
all operations are on the computer need to use the card
reader.
You can enter after the discovery has a number of preset
folders, for normal use, set the relevant documents were
deposited with the corresponding directory, that is, which
corresponds to MP3 folder My music, photos corresponding
16
album Folder, corresponding folders, pictures corresponding
Images folder. Sound recording, self-Tone Audio
corresponding folder.
2. Format
If you format the memory card, all files saved in it will be lost.
By two ways you can format your Memory card:
Format by Mobile Phone: enter File Manager—>select
Memory card —>select Format.
Format by computer: Please complete the format work as
following steps:
(1) Right-click "My Computer" and choose "management",
after entering the option "store" -> "Disk Management";
(2) In the memory card on the disk where the right-click and
choose "format";
2.5 Power on and off
Press and hold key to turn on/off the Mobile Phone.
And if you have set PIN or Mobile Phone code, input it
correctly.
17
3 Call functions
3.1 Make a call
When the network supplier's symbol appears when the
display monitors, you might dial or answer the mobile phone.
Under readiness for action, display monitor top left-hand
corner information strip demonstration network signal
strength (when has 4 information strip expressed signal is
strongest).After the user inserts SIM cards, may realize the
double caliper also to wait for an opportunity.
3.1.1 Make a domestic call
Enter the Mobile Phone number including the area code.
Press Key to make a call.
18
3.1.2 Make an extension call
When making an extension call, press and hold 0 key to get
“P” that is a prefix of extension numbers. It will dial
automatically in several seconds since you dialed the mobile
phone exchange.
viz.: area code—telephone exchange numbers—P—extension
numbers, then press key.
3.1.3 Make an international call
Enter the country code, the area code and the Mobile Phone
number, press key to dial. ”+” is needed when input
country code, and it can be got by pressing and holding 0 key.
Dial to Hong Kong, Macao and Taiwan Mobile Phone ibid.
3.1.4 Make a call from Mobile Phone
book
Enter the telephone directory tabulation, the telephone
19
number which the choice must dial, the pressed key passes
the excessively leftist soft key choice to use the SIM dials.
3.1.5 Redial a call by recent call lists
Press key to find the SIM recent call lists or the recent
call lists, scroll to the number or name, and then press
key to use the SIM dials.
3.2 Answer a call
An incoming call window will be displayed as the Mobile
Phone receives a call. The number will appear on the window
if you have opened this function. Press key to answer it.
If you missed a call, a missed call log will appear after you
return to the start screen.
3.3 Reject a call
You can press key to reject an incoming call.
20
3.4 Call options
In the call, press left soft key "options" to enter the call
option, there is OK to answer multi-functional conference
needs to support the network, contact your network vendor.
4 Menu functions
4.1 Messages
Access this menu, user can select these items like SMS, MMS,
voice mail server and broadcast message.
4.1.1 SMS
User can insert picture, animation, melody and sound etc.
User can use template to create the SMS.
Enter the submenu of Messages, there are several items like
21
Inbox, outbox, write message, templates and message
settings.
4.1.1.1 Inbox
Access this menu to view the received short Messages.
Choose the SMS inbox and enter it to read the received
Messages. Press left soft key in view Text Message screen to
do the following functions
-Reply
-Delete
-Forward
- Copy to Mobile Phone
- Move to Mobile Phone
-Delete all
-Copy all
-Move all
-Use number: Extract the number of the message or in the
message. The length of the number is between 3 and 40.
User can call the number directly or save it to phonebook.
-Use URL: Extract the URL of the message or in the message.
22
Users can visit the page, or save it to your bookmarks.
4.1.1.2 Outbox
Access this menu to view the received short Messages.
Choose the SIM outbox and enter it to read the uncompleted
short Messages and sent Messages, drafts. Press left soft key
in view Text Message screen to do the following functions
-Send from SIM
-Edit
-Use URL: Extract the website in the message and visit it.
-Use USSD
4.1.1.3 Write Message
Enter the submenu of Write Message, user can select Text
Message.
Access Text Message menu to edit message, press “option” to
do as following:
-SIM Done
After finished edit, user can choose “send only”, “save”, “save
23
and send”, “send to many” and “send By Group”.
-Use Templates
Insert the predefined text in the Mobile Phone to the
message.
-Insert object
EMS can be supported in this Mobile Phone. User can insert
picture, my picture, predefined animation, melody, my
melody and predefined sound.
Note: Only the Mobile Phone supporting EMS can received
the message with picture, animation and sound.
-Format Text
Set text style, alignment, new paragraph of the message.
-Insert Number
Enter phonebook to select the number.
-Insert Name
Enter phonebook to select the name.
-Insert Bookmark
Enter the bookmark in WAP.
-input Method
Change the input method.
24
4.1.1.4 Templates
There are ten predefined texts. User can use them to edit,
Erase or Write message.
4.1.1.5 SMS settings
Access submenu of Message Settings, user can select SIM
Message settings. Before using message function, you should
do some settings as following:
-Profile Settings
Contact with local network provider to get the SC address.
After entering the submenu, the setting list will be displayed.
The number of the list is different according to the network
and the type of SIM card, Select the mode and press “edit” to
set the profile name, SC address, valid period and message
type.
-Common settings
Set the delivery report and reply path.
-Memory Status
Check memory space of messages in Mobile Phone or SIM.
25
-Preferred Storage
Select to save in phone or SIM.
-Pref. Bearer
Select to choose GPRS /GSM or GSM only
4.1.2 MMS
4.1.2.1 Write Message
Enter the submenu of Write Message, user can select Text
Message.
Access Text Message menu to edit message, press “option” to
do as following:
-SIM Done
After finished edit, user can choose “send only”, “save”, “save
and send”, “send to many” and “send By Group”.
-Use Templates
Insert the predefined text in the Mobile Phone to the
message.
-Insert object
EMS can be supported in this Mobile Phone. User can insert
26
picture, my picture, predefined animation, melody, my
melody and predefined sound.
Note: Only the Mobile Phone supporting EMS can received
the message with picture, animation and sound.
-Format Text
Set text style, alignment, new paragraph of the message.
-Insert Number
Enter phonebook to select the number.
-Insert Name
Enter phonebook to select the name.
-Insert Bookmark
Enter the bookmark in WAP.
-input Method
Change the input method.
4.1.2.2 Templates
There are ten predefined texts. User can use them to edit,
Erase or Write message.
27
4.1.2.3 Message settings
Access submenu of Message Settings, user can select SIM
Message settings. Before using message function, you should
do some settings as following:
-Compose
You can select mode/image Resizing/Best page time here
-Send
-Retrieve
-Filter
-Server Profile
Contact with local network provider to get the SC address.
After entering the submenu, the setting list will be displayed.
The number of the list is different according to the network
and the type of SIM card, Select the mode and press “edit” to
set the profile name, SC address, valid period and message
type.
-Memory Status
Check memory space of messages in Mobile Phone or SIM.
28
4.1.3 Voice mail server
4.1.3.1 Connect to voice
4.1.3.2 Edit
4.1.4 Broadcast Message
Broadcast public information sent by the network providers.
Use Cell Broadcast service, you can receive information on
various subjects from network provider. For more available
information, please contact your local network providers.
29
4.2 Multimedia
4.2.1 Image Viewer
Select submenu album, you can easily view the album stored
in the camera in the picture list, it may also choose to view
pictures, browse style, send, rename, delete, delete all files,
entire albums of pictures in order and switch Photo album in
the store path.
One can view the picture by 1 to 3 keys to the picture to
enlarge, reduce, rotate operation, under the specific
circumstances of the operation and success of the factors
related to the size of the picture.
4.2.2 Audio Player
4.2.3 Sound Recorder
4.2.4 FM Radio
Enter FM radio, you can press left/right key to switch the
channel manually, down key to pause or play, up key to set
the function of the auto search, digital key to select the
30
channel in channel list, and “*” key and “#” key to adjust the
volume.
Channel list: it shows the number and name of the channel
stored in the list.
Manual input ：You can input your favorite channel
manually.
Preset auto search：Search new channel automatically, and
it will be stored in channel list.
Settings：Enter this menu to open or close background play
and loud speaker, set Record format or select record storage.
4.3 Organizer
4.3.1 Calendar
Access this menu, the calendar will be shown on the screen.
Press the direction key to change the date, and the calendar
shown on the screen will be changed accordingly.
31
4.3.2 To do
User can add new task, read the old one or delete all tasks.
After setting a task, the Mobile Phone will remind user the
information at the time appointed.
4.3.3 Alarm
Set the alarm time and it will remind you by alert tone or
vibration when the alarm time expires.
You can set 5 alarms in the Mobile Phone at most.
4.3.4 World Clock
User can view the local time of some cities around the world.
32
4.4 Settings
4.4.1 Phone Setup
Time and Date
Set the home city, time and date, time and date‟s format.
Schedule Power On/off
You can set 4 power on/off schedule, and the Mobile Phone
will power on or power off according to the settings.
Language
Change the language of the Mobile Phone.
Pref. input method Setting
Select preferred input method.
Display Characteristic
This can set up wallpaper, screen saver, animated boot,
shutdown animation shows the date, the local numbers
show.
Greeting text
Edit the greeting text.
Dedicated Key
33
Access the menu you can modify the shortcut of the direction
keys in standby mode.
Auto update of date and time
Set the state to “on” or “off”. If the state is “on”, when
connect to the network, the date and time will be update.
Flight Mode
Access the menu you can choose Normal mode/ Flight Mode/
Query when power on
Backlight Setting
Set the LCD backlight.
4.4.2 Network Setting
Network selection
Preferred Network
GPRS connection
34
4.4.3 Security Setup
4.4.3.1 SIM Security Setup
- SIM Lock
Set the Mobile Phone to ask for your PIN code each time you
start your Mobile Phone (if this function is supported by your
SIM card).
Note: After three consecutive incorrect PIN code entries, the
code will be blocked, and you need the PUK code to unblock
it.
The PIN code and PUK code are usually supplied by the SIM
card. If you don‟t get them, please contact with the supplier.
The default PIN code is 1234 usually.
-Fixed Dial
If your SIM support fixed dial, it can limit you to call fixed
number. When the function is on, it can only call the Mobile
Phone number or Mobile Phone number start by the fixed dial
number.
Note: it needs you to input PIN2 code to open or close this
function. You can get the PIN2 code from service supplier. If
35
the fixed dial is on, the Mobile Phonebook only show the
number of fixed dial.
- Change Password
You can change SIM PIN code password here.
Note: the three codes are numbers between 4 and 8 digits.
4.4.3.2 Phone lock
Set the Phone lock on or off.
Note: The default password is 1122, please as soon as
possible its change as own establishment password.
4.4.3.3 Auto keypad lock
Press left soft key in standby mode and enter Main Menu,
then press # key to lock the keypad. If the keypad is locked,
you can unlock it by pressing left soft key and then # key.
You can set the auto lock time in the submenu of this function,
and then the key will automatically be locked if there is no
more action of the Mobile Phone.
36
4.4.3.4 Anti theft Setup
Anti-theft phone tracking can be achieved after the loss, as
long as your Mobile Phone SIM card is replaced, the Mobile
Phone automatically to the pre-configured number (tracking
number) to send text messages, users will be able to know
whom the use of Mobile Phones are.
Enable Abtu Theft: to open or close the anti-theft tracking.
Designate Numbers: edit the default tracking number, when
the mobile phone SIM card to replace the default
automatically to the tracking number to send text messages.
Enable Alarming: open lock feature, when the End of
follow-up messages sent automatically lock the Mobile Phone,
need to enter the correct password can unlock. Change
Password: modified lock machine password, for security,
please open this feature to modify the initial password
37
4.4.3.5 Fixed Dial
4.4.3.6 Barred Dial
4.4.3.7 Change password
You can change phone lock password here.
Note: the three codes are numbers between 4 and 8 digits.
4.4.4 Restore Factory settings
You can reset some of the Mobile Phone settings to their
original values by input Mobile Phone lock password (1122).
4.4.5 Sound effect
Enters the menu establishment sound special effect, may use
the high and low about key to choose each effect the
balancer and the closure balancer
38
4.5 User profiles
Profiles define how your Mobile Phone reacts when you
receive a call or a message, how your keypad sounds when
you press a key, and more. Each of the available profiles can
be left at their default setting or customized to suit your
needs. Select and customize the most suitable profile for your
situation. The available modes are General, Meeting, Outdoor,
Indoor, and Headset.
In standby mode, you can press and hold key # to switch to
silent mode.
4.6 Services
4.7 Shortcuts
You can select application quickly using this function. If you
assign the shortcut to the presses of the key, you can run the
application as the usual menu action when pressing the key
39
in standby mode.
4.8 File Manager
It provides you the functions such as browsing media files,
checking storage space and formatting function.
When browsing the media files, you can operate the selected
files such as copy, Move, delete, rename etc.
4.9 Phonebook
You can store the information in phonebook like name, phone
number etc.
The phone number can be stored in Mobile Phone or SIM
card.
Press soft right key to enter phonebook in standby mode.
Select a number, then you can use the SIM to play IP Dial,
Send SMS, view, edit, delete.
40
4.9.1 Quick Search
Select this item to enter viewing phonebook screen. And
there are several rows of character. Click to select or input the
first character of the name. Then the name satisfying this
condition will be displayed.
4.9.2 Search Entry
Input the name to fine the corresponding record.
4.9.3 Add new contact
Add a new record to Mobile Phone or SIM.
If add a new record to Mobile Phone, you can input name,
number, home number, company name, email address, office
number, fax number and Birthday. Beside these, you can set
items as following:
-Associate Picture
41
Set the current record number of personalized photo calls.
You can choose the default Mobile Phone as a personalized
picture of the caller picture.
-Associate Sound
From left to right through the Mobile Phone system's built-in
ring tones and document management folder, choose
Individualized or close calls ring (Note: document
management in a document sent to the scene only after the
model can be chosen).
-Caller Group
You can move any Mobile Phone number existing in your
Mobile Phone to a group.
Note: The Mobile Phone records of the existence of SIM cards,
which telephone records can only record the name, Mobile
Phone number information.
4.9.4 Copy All
-From SIM to phone: Duplicates the SIM card 1 number to
Mobile Phone.
-From Mobile Phone to SIM: Duplicates the Mobile Phone
42
number to SIM card.
4.9.5 Delete
-From SIM: Delete all the record in SIM card.
-From Mobile Phone: Delete all the record in Mobile
Phone.
-One by one: Delete the record one by one.
4.9.6 Caller group
Select caller groups and edit its detail information like Group
name, Associate sound, and Associate picture and Member
list.
Note: Only the record in Mobile Phone can be set as the
member in the group.
4.9.7 Extra Number
-SIM Owner Number: Store the Mobile Phone number. It
can store two numbers.
43
-SIM service dialing Number: service dialing number.
Note: This function needs the network support
- SIMSOS Number: Input SOS number.
Note: This function needs the network support.
4.9.8 Settings
-Memory Status: User can query the memory capability
and already used capability in phonebook of Mobile Phone or
SIM.
-Preferred Storage: Set the storage place for record. User
can also set it while save the record.
4.9.9 Caller Picture
User can set a picture for caller from the memory card. The
calling comes with a picture which you had set
4.9.10 Call Ring Tone
User can set a picture for caller from the memory card or
44
phone.
4.10 Call center
Select call center from main menu, you can view the
information about call history and the general call settings.
4.10.1 Call history
Access this menu; user can select these items SIM call
history.
SIM call history: You can view the information about SIM
call history, including missed calls, dialed calls, received calls,
you can delete call logs, call timers, call costs, SMS counter
and GPRS counter.
4.10.2 General call settings
Access the general call settings to establish the sub-menu
below, you may carry on establish:
45
- Caller ID: There are these options: “Set By Network”,
“Hide Id”, and “Send Id”.
-Call Waiting:
If it is supported by your service provider, call waiting will
notifies you of an incoming call even if you are in a call. You
can then accept, reject, or ignore the incoming call.
To make this function available, please contact local network
provider.
-Call Divert
Call diverting is a network services, it tells your network to
divert incoming calls to another number to avoid missing a
call.
The following is available: divert All Voice Calls, Divert If
Unreachable, Divert If No Answer, Divert If Busy, Divert All
Data Calls, and Cancel All Divert.
-Black List
User can choose 5 phone numbers that he doesn‟t want to
answer. And select mode on to shield the numbers.
-Auto Redial
It can dial the same Mobile Phone number automatically after
a failing dial with this function.
-Speed Dial
46
Speed dials is a shortcut to dial frequently called numbers.
Set the numbers to speed dials before use it. User can choose
the SIM to call
- IP Number
You can set the prefix IP number with this function.
In phonebook, you can select one of the phonebook items,
and select “IP Call” in options, the prefix IP number will be
added automatically to the call number and be sent out.
Active SIM: Activates the current IP number to take
the SIM card IP number.
Edit: Edit the current IP number.
-More
Call Time Display
Set it to “on” or “off” state
Call Time Reminder
There will be a hint sound when the setting time passed
during a call.
Off: turn off the function
Single: Input 1-3000(second) between the random numeral.
Periodic: Input 30-60(second) between the random
numeral.
-Auto quick end:
47
During the calling, the system hangs up the current mobile
phone conversation automatically in the user establishment
deadline time.
-Line Switching
You can switch between line 1 and line 2.
Note: It depends on the service provider whether line 2 is
available.
5 Battery information
Your device is powered by a rechargeable battery.
The battery can be charged and discharged hundreds of
times but it will eventually wear out. When the talk and
standby times are noticeably shorter than normal, please buy
a new battery.
Use only the approved batteries, and recharge your battery
only with approved chargers designated for this device.
Unplug the charger from the electrical plug and the device
when not in use. Do not leave the battery connected to a
48
charger. Overcharging may shorten its lifetime. If left unused,
a fully charged battery will lose its charge over time.
Warning
Do not drop, knock, or shake the device. Rough handling can
shorten the life of the battery.
Do not make short-circuit occur to the battery.
The battery put in hot or cold places, such as in a closed car
in summer or winter, will reduce the capacity and lifetime of
the battery.
Do not put the battery near flammable or explosive goods.
Do not dispose of batteries in a fire!
Never use any charger or battery that is damaged.
Use the battery only for its intended purpose.
Dispose of batteries according to local regulations. Please
recycle when possible. Do not dispose as household waste.
49
6 Safety information
6.1 Operating environment
Remember to follow any special regulations in force in any
area and always switch off your device when its use is
prohibited or when it may cause interference or danger. Use
the device only in its normal operating positions. Do not keep
the device near credit cards and other magnetism medium,
some accessories can bring magnetism that may be delete
the data.
6.2 Electronic devices
Some electronic devices are not adequately shielded from
external RF energy.
50
6.2.1 Pacemaker
Pacemaker manufacturers recommend that a minimum
separation of 6in (20cm) should be maintained between a
wireless Mobile Phone and a pacemaker to avoid potential
interference with the pacemaker. These recommendations
are consistent with the independent research by and
recommendations of Wireless Technology Research. To
minimize the potential interference, persons with pacemakers
should do as below:
Always keep the device more than 6 in (20 cm) from their
pacemaker when the device is switched on.
Not carry the device in a breast pocket.
Hold the device to the ear opposite the pacemaker.
If you have any reason to suspect that interference is taking
place, switch off your device immediately.
6.2.2 Hearing aids
Some digital wireless devices may interfere with some
hearing aids. If interference occurs, consult your service
51
provider.
6.2.3 Other medical devices
Operation of any radio transmitting equipment, including
wireless Mobile Phones, may interfere with the functionality
of inadequately protected medical devices. Switch off your
Mobile Phone in health care facilities when any regulations
are posted in these areas instructing you to do so.
6.2.4 Vehicles
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles. For more
information, check with the manufacturer or its
representative of your vehicle or any equipment that has
been added.
52
6.3 Potentially dangerous situations
Switch off your device when in any area with a potentially
explosive atmosphere and obey all signs and instructions.
Sparks in such areas could cause an explosion or fire
resulting in body injury even death.
Switch off the device at refueling points such as near gas
pumps at service stations. Observe restrictions on the use of
radio equipment in fuel depots, storage, and distribution
areas, chemical plants or where blasting operations are in
progress.
Areas with a potentially explosive atmosphere are often but
not always clearly marked. They include below deck on boats,
chemical transfer or storage facilities, vehicles using liquefied
petroleum gas (such as propane or butane), and areas where
the air contains chemicals or particles such as grain, dust or
metal powders.
53
7 Care and maintenance
Your device is a product of superior design and craftsmanship
and should be treated with care. The suggestions below will
help you protect your warranty coverage and enjoy your
device for many years.
Keep your Mobile Phone and all accessories out of the reach
of small children.
Keep the device dry.
Do not use or store the device in dusty, dirty areas. Its
moving parts and electronic components can be damaged.
Do not store the device in hot areas. High temperatures can
shorten the life of electronic devices, damage batteries, and
warp or melt certain plastics.
Do not store the device in cold areas. When the device
returns to its normal temperature, moisture can form inside
the device and damage electronic circuit boards.
Do not attempt to open the device other than as instructed in
this guide.
Do not drop, knock, or shake the device. Rough handling can
54
break internal circuit boards and fine mechanics.
Do not contact the device by wet hands, the electric current
may strike and damage it.
Precipitation, humidity, and all types of liquids or moisture
can contain minerals that will corrode electronic circuits.
Do not use harsh chemicals, cleaning solvents, or strong
detergents to clean the device.
Do not paint the device. Paint can clog the moving parts and
prevent proper operation.
All of the above suggestions apply equally to your device,
battery, charger, or any enhancement. If any device is not
working properly, take it to the nearest authorized service
facility for service.
This manual is accurate when issued. The actual specific
content to the mobile phones.
The Company reserves the right to modify technical
specifications without notice.
Some of the contents of the manual may be different with the
phone, according to the software, SIM card and service
provider to decide.
55
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
This mobile phone has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiated radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
56
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user„s authority to operate
the equipment.
The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
57
RF Exposure Information (SAR)
This mobile phone meets the government‟s requirements for
exposure to radio waves.
This phone is designed and manufactured not to exceed the emission
limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The
SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted
using standard operating positions accepted by the FCC with the
phone transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the highest
certified power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is because
the phone is designed to operate at multiple power levels so as to
use only the poser required to reach the network. In general, the
closer you are to a wireless base station antenna, the lower the
power output.
The highest SAR value for the model phone as reported to the FCC
58
when tested for use at the ear is 1.34 W/kg and when worn on the
body, as described in this user guide, is 1.38 W/kg (Body-worn
measurements differ among phone models, depending upon
available accessories and FCC requirements.)
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government
requirement.
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the Display
Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID:
YHLBLUDJ.
For body worn operation, this phone has been tested and meets the
FCC RF exposure guidelines for use with an accessory that contains
no metal and the positions the handset a minimum of 1.5 cm from
the body. Use of other accessories may not ensure compliance with
FCC RF exposure guidelines. If you do no t use a body-worn
accessory and are not holding the phone at the ear, position the
59
handset a minimum of 1.5 cm from your body when the phone is
switched on.
