User manual
1
Neo 3.5
user manual
2
Table of Contents
Safety Information ............................................. .4
Appearance and Key Function ........................... 5
Introduction ........................................................ 7
Call Functions .................................................... 9
Contacts ........................................................... 11
Messaging ....................................................... 13
Internet Browser ............................................... 15
Bluetooth & Wi-Fi ............................................. 17
Camera ............................................................ 19
Gallery ............................................................. 21
Music ............................................................... 23
3
Sound Recorder ............................................... 24
Alarm Clock ..................................................... 26
FM Radio ......................................................... 27
Play Store ........................................................ 29
Settings ............................................................ 30
Storage ............................................................ 34
4
Safety Information
Please carefully read the terms below:
Use Safely
Do not use the phone in situations where it might cause danger.
Transportation Safety
Please observe all transportation laws and regulations.
Please drive with both hands on the wheel.
DO NOT TEXT AND DRIVE
Hospitals
Please follow limitations.
Please turn off your mobile phone when near medical instruments.
Airports
Remember to follow all airport and flight safety regulations.
Please do not use your phone during flight.
Toxic Chemicals
Do not use your mobile phone around fuels or chemicals.
Hazard
5
Do not use in hazardous areas where explosions may occur.
Accessories and Batteries
Use only Blu authorized batteries and accessories.
Backup
Remember to keep a written record of all important information.
Water
Your phone is not waterproof. Keep it away from water and liquids.
SOS Emergency Calls
Make sure your mobile phone is switched on and in a service area. In home screen, tap the phone key
and dial 911 and send.
Appearance and Key Function
6
Volume
Power
Back
Home
Menu
7
Introduction
Installation of the SIM Card
Note: Please keep the SIM card out of the reach of children. The SIM card and its contact are easily
damaged due to scratching or bending. Please use caution when carrying, installing or taking out the
Rear Camera
8
SIM card. SIM: Contact your cellular phone service provider directly to obtain the SIM card.
To insert SIM card:
1. Remove the rear cover. Insert the SIM card.
2. Insert the SD card. (For additional storage capacity)
3. Insert the battery, replace the rear cover, and power on phone.
Power On and Off
On - Please ensure the SIM card has been properly inserted into the phone. Long press the Power key
to switch on the phone on.
Off - In standby mode, long press on Power key until an options menu appears. Select Power Off in the
menu and confirm in the pop-up prompt to switch off the phone.
SIM Slot
Memory
Card
9
Security
You may set a security lock feature as a security measure for the phone. For further information
regarding password locks, password revision and other functions please enter into the security option
in system settings.
Call Functions
At the dial keyboard, enter the phone number and then click the dial key. If dialing an extension, you
may click the dial pad icon in the bottom of the screen to open the interface and enter the number of the
extension. You may also press and hold the 0 key to add a (+) sign when adding an international dialing
prefix.
10

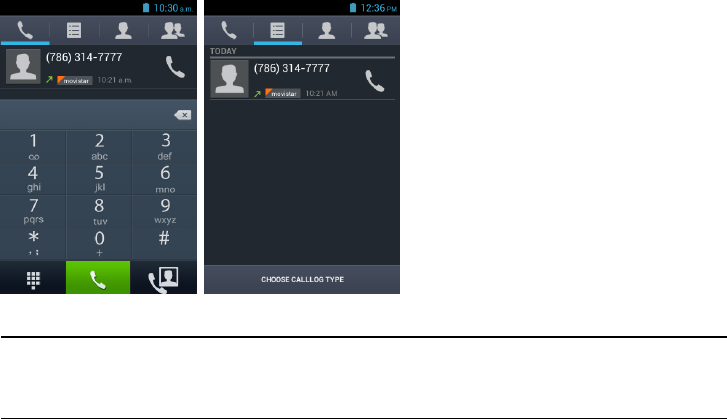

Call Logs
Every telephone number called and received will be saved in the phones call log. All numbers in the call
log can be dialed directly by clicking the dial icon on the screen. When the number appears on the list,
click it to view details.
Call Options
There are different options that can be used in the call log and dialing interface. You may press the
11
menu key while in the dial interface and adjust speed dial and call settings. In the call logs, you may set
call log type for outgoing, received, and missed calls.
Contacts
Enter: Click on the applications menu and select contacts.
• The default display is the phone contacts and SIM card contacts.
• The contacts are organized alphabetically by default.
12
Click the Search icon to enter the contact search interface.
Any numbers or letters associated with any of the contacts saved in the list will be shown in
the search results.

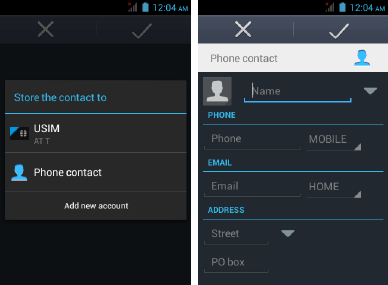

Add New Contact
1. Click the add contact icon (+) to add contact.
2. Select to save your contacts to the Google account, the phone or the SIM card.
Add Contact
Search
13
3. You may enter different contact details which include adding a picture, name, telephone number,
group, address, and email among other options.
4. Click to finish and save contact.
Messaging
You may use this function to exchange text messages and multimedia messages with your family and
friends. The messages to and from the same contact or phone number will be saved into a single
14
conversation so you may see the entire message history conveniently.
Send an SMS
Application Menu » Messaging » New message (or shortcut icon)
1. Click to enter recipient (You may enter contacts from contact
book or enter a new number)
2. Compose Message
3. Send
Send an MMS
When creating message, the default message style is SMS. The message will automatically convert to
MMS when adding an attachment.
1. Click the attachment icon in the messaging interface.
2. Click to add attachments and create an MMS message.
15
Internet Browser
Menu Functions
Backward
• After browsing through multiple pages, this option will return the user to the previous page.
Forward
• After browsing through multiple pages, this option will move to a web page after the current page.
Attachment
Type for MMS
Message
16
Windows
• You may view all windows open by clicking the windows icon in the upper right part of the
browser.
Bookmarks
• Click the save to Bookmarks option to make the current URL as a saved Bookmark.
• Click Bookmarks/History to opened saved bookmarks.
More
Find on page: Search current page.
Share page: Select to share the current page.
Save for offline reading: Saves page for offline reading.
Bookmarks/History: Show your browsing history and view the most visited pages.
Settings: Contains a variety of browser settings.
17
Bluetooth & Wi-Fi
Bluetooth is a short-range wireless communications technology that devices can use to exchange
information and connect to different types of devices which include headsets and other devices.
Power on Bluetooth
18
1) Settings » Bluetooth and select to power on Bluetooth.
2) The Bluetooth icon will appear in the notification bar. The Bluetooth will then start to scan for all
devices within its range and will display all available devices in a list.
3) In Bluetooth settings, all the devices found will displayed in the list under the icon.
Note: The maximum detecting time of the phone is 2 minutes.
Power on Wi-Fi
1) Settings » Wi-Fi and select ON to power on Wi-Fi
List of available
devices
19
2) Click on the desired Wi-Fi network to be connected. Unsecured networks can be connected to
directly - secured networks require a password or credentials prior to connection.
Camera
Camera
Prior to Use: Insert SD card before using the camera or video camera. All photos or videos taken by

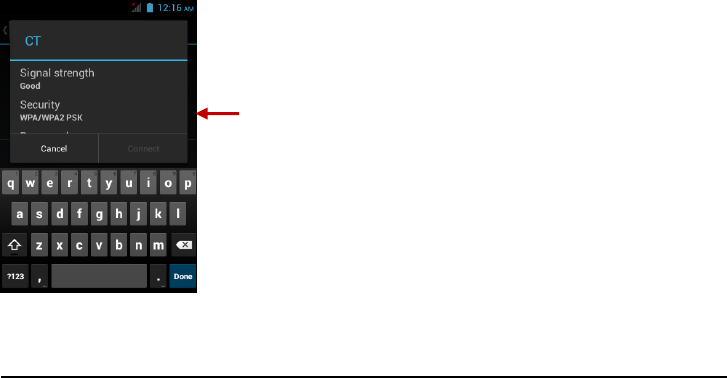

List of available networks and
the network connection screen
20
the phone are typically stored in the memory card.
Open Camera
1. Applications Menu » Camera
2. Switch to video mode if you want to record videos.
Note: You may place a camera shortcut icon on any of the screens
Take Pictures
1. Aim the object that the picture will be taken.
2. Press the “Shutter” button on the screen.
3. After taking the picture, the file will be saved in the camera’s gallery folder.
4. You can view the photos by clicking the preview box button.
You may adjust various settings for the camera by pressing Menu while in the camera interface. When
in the camera viewfinder mode, you can switch to video or photos’ gallery.
21
Gallery
Open Images
Applications Menu » Gallery
Select between
Camera & Video
Camera Options
22
Share Pictures
You may share pictures by sending them through different types of installed applications. You may also
send pictures through the MMS message function by composing a message and attaching the picture.
Any image can also be sent via the Bluetooth function by selecting Bluetooth equipment that has been
paired.
Adjust Image
Press Menu and Edit to adjust images
You may select from different effects that may include: Vintage, Black and White, Instant, Latte, Litho,
Pictures and videos
are stored in
separate albums
23
X-Process, Crop, Rotate, Mirror, Straighten, Vignette, Contrast, Exposure, Auto color, Shadows,
Vibrancy, among other settings that can be used to adjust picture images.
View Images
In the picture interface, click on an album to view images
In the photo album, scroll the picture towards left to view the next picture or towards right to view the
previous one.
Crop Pictures
If you want to adjust the size of the picture, use the crop tools. Once the square appears, pinch your
fingers in or out to adjust the size. If you want to adjust the image and keep its proportion, please hold
down any of the four corners of the image and adjust accordingly.
Music
Open Music
Application Menu » Music
24
Search Music
You may choose to search for music from media folder through artist name, song name, album name.
The following formats are available: AMR, MIDI, MP3, WAV, and OGG.
Sound Recorder
Song Status
Track Controls
Playback
Settings
25
The Sound Recorder can record voice or any audio.
You may send any recorded audio via Bluetooth or MMS and also have the option to make any
recorded audio the phones default ring tone.
The recorder uses AMR, 3GPP and OGG format.
Record
-Keep the phone’s microphone near the voice source.
-Click the record button to record the audio.
-Click the stop button to stop recording the audio.
26
All recordings will be saved in the recording folder in the default music program and can be accessed
from the sound recorder application.
Alarm Clock
Recording
Controls
Recording
Time
27
1. Click on the Clock icon in the application menu
2. Click set alarm button and enter the alarm clock set interface where you may add and edit alarms
FM Radio
FM Radio
Click to add, edit or
delete alarms
28
Through this function, you may listen to FM radio on the device. The FM radio uses the wired
headphones as an antenna in order to receive signal. Before using this function, connect the original
equipment headphones that came with the phone.
Open FM radio
Press the FM Radio icon to open the application.
1. Click “Search” automatic scans of FM channels.
2. Click to add favorite radio stations.
FM Radio as Background
Radio
Options
Add Favorite
Radio Stations
Scan
29
Click on the Home key to move the FM Radio to the background.
Play Store
Google Play allows you to download music, movies, and even games. Click the Play icon to sign in with
your Google account.
Search and select
between different Play
Store categories
30
Settings
SIM Management
Adjust SIM card and data information.
Wi-Fi
Settings » Wi-Fi to power on. When on, the Wi-Fi will automatically search for available
networks. Any unsecured network can be used directly and any secured network requires a
password or credentials prior to connection.
Bluetooth
Press the switch to power on Bluetooth. Once on, the Bluetooth will automatically scan for
any nearby open equipment.
Data Usage
Mobile and Wi-Fi Data Usage
More… Wireless & Networks
Tethering, Portable Hotspot, VPN, APN
Airplane Mode
Note: When in flight mode, all network connections will turn off automatically.
Audio Profiles
31
This option sets the phone tone settings for receiving calls and notifications. Some of the settings
include:
Vibrate, volume, ring tones, ring tones notification, dial touchpad, and haptic feedback and
tones
Power Saving
Click to switch to power saving mode
Display
Brightness, Auto rotating screen, Wallpaper, Screen Timeout
Storage
View the phone memory usage.
Battery
General power usage
Apps
Manage applications - Manage and delete installed applications.
Running services - Press the ‘Force Stop’ button to stop any of the services listed and
removes from the running services list.
Location Access
Mobile Network Location - Use wireless services to find locations in applications.
Security
32
Set up screen locks: Use slide, voice unlock, pattern, PIN or password to lock the screen.
Pattern: The first time there will be simple unlock instructions and examples. Click “next step”
to continue the security pattern step.
PIN: Enter PIN number to unlock the screen.
Password: Use password to unlock the screen
You may stop the security feature at any time.
Set up SIM card PIN lock
SIM card PIN (Personal Identification Number) is used to prevent unauthorized use of SIM
card.
To change a blocked PIN code, you will need to unlock the SIM lock then go to the Change Password
screen. The phone will automatically prompt you enter the old PIN code and ask to enter a new PIN
code twice. The phone will then prompt you that the change was successful. If you enter the PIN
incorrectly three times, the SIM and PIN codes will be automatically locked. You will need the PUK code
to unlock the phone which is available through your service provider. If you enter the PUK code
incorrectly 10 times, the SIM card will be permanently locked. Please see your service provider for a
new SIM card.
Password visible – Make the password visible when it’s typed.
Use security credentials - Allow applications to visit security credentials or other credentials.
Language and Input
Language – Change the language of the phone.
Custom Dictionary - Add or delete words to the custom dictionary.
33
Keyboard Settings – Haptic vibration, Haptic tones, Capitalizing, Speech Input, Inputting
words, Predictive text function, Auto-Text, Input keyboard method
Backup & Reset
Backup Data – Will back up all application data, WLAN passwords, and other settings to
Google's servers
Restore to Factory Settings - Clear all data stored on the phone.
Smart Gesture
Set silent smart gesture
Date & Time
Date and Time adjustment.
Time Zone - Select Time Zone according to where your location.
Select Date Format - There are 3 kinds of formats you can choose from: Month-Day-Year,
Day-Month-Year and Year-Month-Day, and Year-Month-Day which is the default setting
Schedule Power On & Off
Schedule power on and off
Accessibility
Power button ends call and auto rotate screen
Speak Passwords and large text
34
Developer Options
If the phone does not display Developer options press “Build number” seven (7) times in the about
phone tab in settings.
The developer options gives access to USB Debugging and other developer options
About Phone
Phone information status and firmware updates
Storage
Connect the phone with the USB cable provided. Once connected, a connection interface will appear.
Once in the connection mode interface, select USB mass storage and turn on from the connection
screen to be able to transfer files.
35
Some system settings, hardware, and UI may vary depending on final version.
36
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiated radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
F
FC
CC
C
N
No
ot
te
e:
:
Caution: Changes or modifications not expressly approved by the party responsible for compliance
could void the user‘s authority to operate the equipment.
37
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the United States.
During SAR testing, this device was set to transmit at its highest certified power level in all tested
frequency bands, and placed in positions that simulate RF exposure in usage against the head with no
separation, and near the body with the separation of 10 mm. Although the SAR is determined at the
highest certified power level, the actual SAR level of the device while operating can be well below the
maximum value. This is because the phone is designed to operate at multiple power levels so as to
use only the power required to reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output.
The exposure standard for wireless devices employing a unit of measurement is known as the Specific
Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general population /uncontrolled exposure limits in ANSI/IEEE
C95.1-1992 and had been tested in accordance with the measurement methods and procedures
specified in IEEE1528. This device has been tested and meets the FCC RF exposure guidelines when
tested with the device directly contacted to the body.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model
38
phone is on file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: YHLBLUNEO35.
For this device, the highest reported SAR value for usage against the head is 1.21 W/kg, for usage
near the body is 1.48 W/kg.
While there may be differences between the SAR levels of various phones and at various positions,
they all meet the government requirements.
SAR compliance for body-worn operation is based on a separation distance of 10 mm between the unit
and the human body. Carry this device at least 10 mm away from your body to ensure RF exposure
level compliant or lower to the reported level. To support body-worn operation, choose the belt clips or
holsters, which do not contain metallic components, to maintain a separation of 10 mm between this
device and your body.
RF exposure compliance with any body-worn accessory, which contains metal, was not tested and
certified, and use such body-worn accessory should be avoided.
