User manual
1
Life Pure XL
User Manual
2
Table of Contents
Safety Information .......................................................... 3
Appearance and Key Function ........................................ 4
Introduction .................................................................... 5
Call Functions ................................................................. 6
Contacts .......................................................................... 7
Messaging ....................................................................... 8
Internet Browser............................................................. 9
Bluetooth & Wi-Fi ........................................................ 10
Camera ......................................................................... 12
Gallery .......................................................................... 13
Music ............................................................................ 14
Sound Recorder ............................................................ 15
Alarm Clock ................................................................... 16
FM Radio ....................................................................... 16
Play Store ...................................................................... 17
NFC ............................................................................... 18
Settings ......................................................................... 19
Storage .......................................................................... 23
3
Safety Information
Please carefully read the terms below:
Use Safely
Do not use the phone in situations where it might cause danger.
Transportation Safety
Please observe all transportation laws and regulations.
Please drive with both hands on the wheel.
DO NOT TEXT AND DRIVE
Hospital Safety
Please follow hospital rules and limitations.
Please turn off your mobile phone when near medical instruments.
Airport and Flight Safety
Remember to follow all airport and flight safety regulations.
Please do not use your phone during flight.
Chemical Warning
Do not use your mobile phone around fuels or chemicals.
Temperature Warning
Do not subject your phone to extreme temperature conditions.
Water Hazard
Your phone is not waterproof. Keep it away from water and liquids.
Emergency Calls
Make sure your mobile phone is switched on and in a service area.
In home screen, tap the phone key and dial emergency.
Accessories and Batteries
Use only Blu authorized batteries and accessories.
Information Backup
Remember to keep a written record of all important information.
4
Appearance and Key Function
Volume
Power
Back
Home
Menu
Front
Camera
Rear Camera
Flash
Speakers
Single
SIM Tray
5
Introduction
Installation of the SIM Card
Please install the SIM card before using your phone.
Note: Please keep the SIM card out of the reach of children. The
SIM card and its contact are easily damaged due to scratching or
bending. Please be cautious when carrying, installing or taking out
the SIM card.

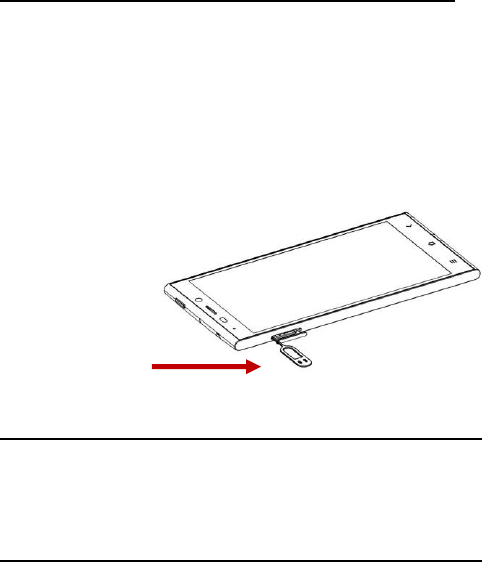

To insert SIM card:
1. Switch off the mobile phone and use the SIM tool to open SIM tray.
Note: The phone uses a Micro SIM card. Please make sure to
obtain one from your mobile phone service provider.
2. Place the SIM card in tray.
3. Insert the SIM tray and power on.
Power On and Off
On - Please ensure the SIM card has been properly inserted into the
phone. Long press the Power key to switch the phone on.
Off - In standby mode, long press on Power key until an options
menu appears. Select Power Off in the menu and confirm in the
pop-up prompt to switch off the phone.
Password Lock
You may set a security lock feature as a security measure for the
phone. For further information regarding password locks, password
revision and other functions please enter into the security option in
system settings.
SIM Tool & Tray
6

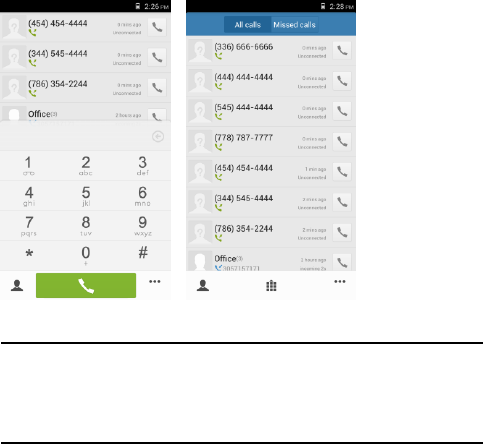

Call Functions
At the dial keyboard, enter the phone number and then click the dial
key. If dialing an extension, you may click the dial pad icon in the
bottom of the screen to open the interface and enter the number of
the extension. You may also press and hold the 0 key to add a (+)
sign when adding an international dialing prefix.
Call Logs
Every telephone number called and received will be saved in the
phones call log. All numbers in the call log can be dialed directly by
clicking the dial icon on the screen. When the number appears on
the list, click it to view details.
Call Options
There are different options that can be used in the call log and
dialing interface. You may press the menu key while in the dial
interface and adjust speed dial and call settings. In the call logs, you
may press the contact button to browse through contacts list.
7

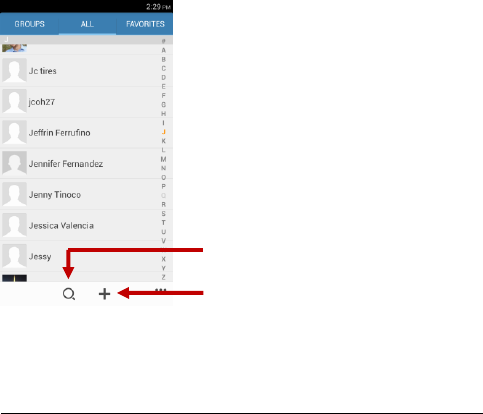

Contacts
Enter: Click on the contacts icon
• The default display is the phone contacts and SIM card contacts
• The contacts are organized alphabetically by default.
Click the Search icon to enter the contact search interface.
Any numbers or letters associated with any of the contacts
saved in the list will be shown in the search results.

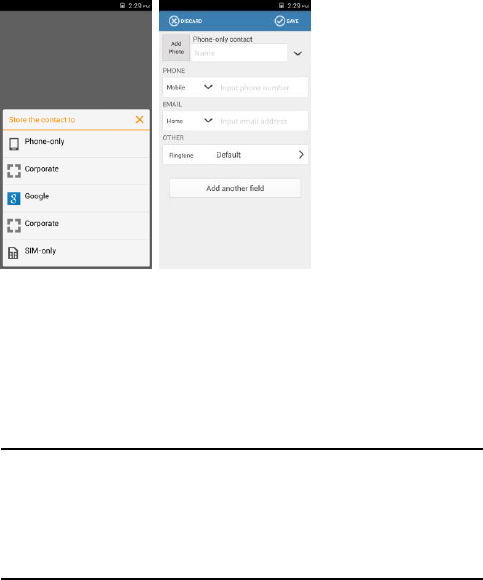

Add New Contact
1. Click the add contact icon (+) to add contact.
2. Select to save your contacts to the Google account, the phone or
the SIM card.
3. You may enter different contact details which include adding a
picture, name, telephone number, group, address, and email among
other options.
4. Click to finish and save contact.
Add Contact
Search
8
Messaging
You may use this function to exchange text messages and
multimedia messages with your family and friends. The messages to
and from the same contact or phone number will be saved into a
single conversation so you may see the entire message history
conveniently.
Send an SMS
Click on the Messaging icon and select new message
1. Click to enter recipient
(You may enter contacts from contact book or enter a new number)
2. Compose Message
3. Send

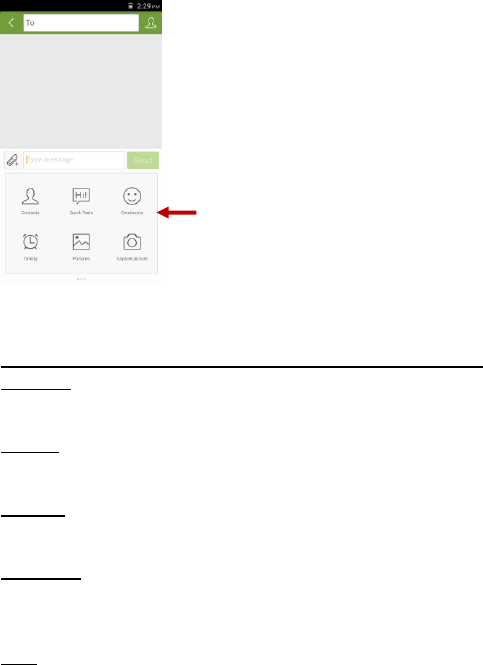

Send an MMS
When creating message, the default message style is SMS. The
message will automatically convert to MMS when adding an
attachment.
1. Click the attachment icon in the messaging interface.
2. Click to select attachment type and create an MMS message.
9

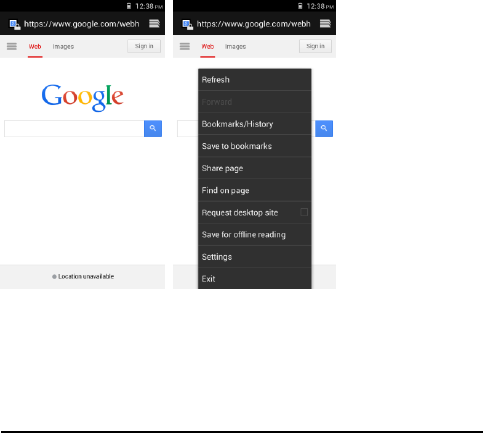

Internet Browser
Menu Functions
Backward
• After browsing through multiple pages, this option will return the
user to the previous page.
Forward
• After browsing through multiple pages, this option will move to a
web page after the current page.
Windows
• You may view all windows open by clicking the windows icon in the
upper right part of the browser.
Bookmarks
• Click the save to Bookmarks option to make the current URL as a
saved Bookmark.
• Click Bookmarks/History to opened saved bookmarks.
More
Find on page: Search current page.
Attachment Type
for MMS
Message
10
Share page: Select to share the current page.
Save for offline reading: Saves page for offline reading.
History: Show your browsing history and view the most visited
pages.
Settings: Contains a variety of browser settings.
Bluetooth & Wi-Fi
Bluetooth is a short-range wireless communications technology that
devices can use to exchange information and connect to different
types of devices which include headsets and other devices.
Power on Bluetooth
1) Settings » Bluetooth and select to power on Bluetooth.
2) The Bluetooth icon will appear in the notification bar. Click “scan
for devices” and the phone will start to scan for all devices within
range.
3) In Bluetooth settings all the devices found will displayed in the list
under the icon.
Note: The maximum detecting time of the phone is 2 minutes.
11
Power on Wi-Fi
1) Settings » Wi-Fi and select ON to power on Wi-Fi
2) Click on the desired Wi-Fi network to be connected.
Unsecured networks can be connected to directly - secured
networks require a password or credentials prior to connection

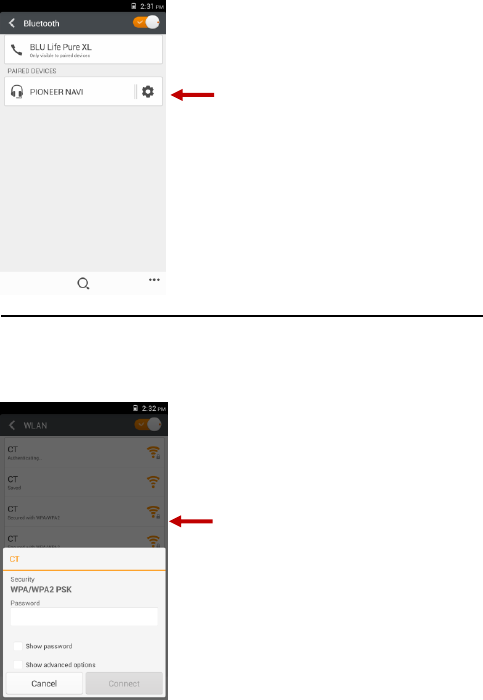

List of available
devices
List of available networks and
the network connection screen
12
Camera
Open Camera
1. Click on the Camera icon
2. Switch to video mode if you want to record videos.
Note: You may also place a camera shortcut on any of the screens
Take Pictures
1. Aim the object that the picture will be taken.
2. Press the “Shutter” button on the screen.
3. After taking the picture, the file will be saved in the camera’s
gallery folder.
4. You can view the photos by clicking the preview box button.
When in the camera viewfinder mode, you can switch to video or
photos’ gallery. On the camera viewfinder mode, you will find the
display the preview of the previous picture taken. Click the preview
box and the photo will display in full screen.
Select from Camera
or Video
Camera Options
13
Gallery
Open Images
Click on the Gallery Icon
Share Pictures
You may share pictures by sending them through different types of
installed applications. You may also send pictures through the MMS
message function by composing a message and attaching the
picture. Any image can also be sent via the Bluetooth function by
selecting Bluetooth equipment that has been paired.
Adjust Image
Press Menu and Edit to adjust images
You may select from different effects that may include: Vintage,
Black and White, Instant, Latte, Litho, X-Process, Crop, Rotate,
Mirror, Straighten, Vignette, Contrast, Exposure, Auto color,
Shadows, Vibrancy, among other settings that can be used to adjust
picture images.

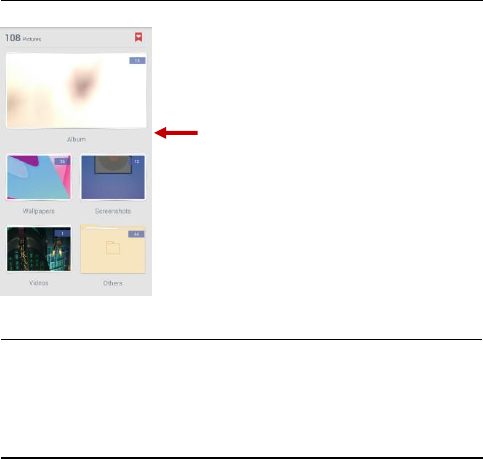

The gallery is
organized in
different albums
14
View Images
In the picture interface, click on an album to view images
You can choose to display small or large thumbnails. In the photo
album, scroll the picture towards left to view the next picture or
towards right to view the previous one.
Crop Pictures
1. If you want to adjust the size of the picture, use the crop tools.
Once the arrow appears, pinch your fingers in or out to adjust the
size. If you want to adjust the image and keep its proportion, please
hold down any of the four corners of the image and adjust.
Music
Open Music
Click on the Music icon
Search Music
You may choose to search for music from media folder through artist
name, song name, album name. The following formats are
available: AMR, MIDI, MP3, WAV, and OGG.
Song Status
Player Controls
Audio Settings
15
Sound Recorder
The Sound Recorder can record voice or any audio.
You may send any recorded audio via Bluetooth or MMS and also
have the option to make any recorded audio the phones default ring
tone.
The recorder uses AMR, 3GPP, and OGG format.
Record
- Keep the phone’s microphone near the voice source.
- Click the record button to record the audio.
- Click the stop button to stop recording the audio.
All recordings will be saved in the recording folder in the default
music program and can be accessed from the sound recorder
application

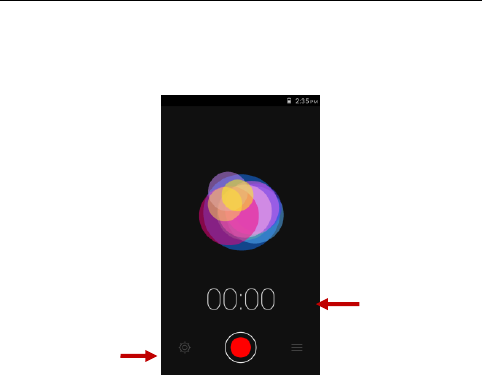

Recording
Controls
Recording
Time
16

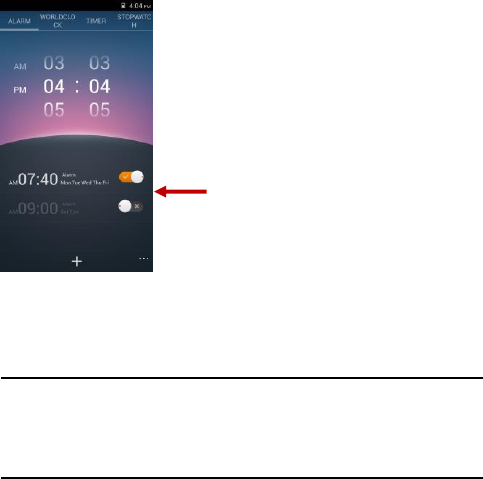

Alarm Clock
1. Click on the Clock icon
2. Click set alarm button and enter the alarm clock set interface
where you may add and edit alarms

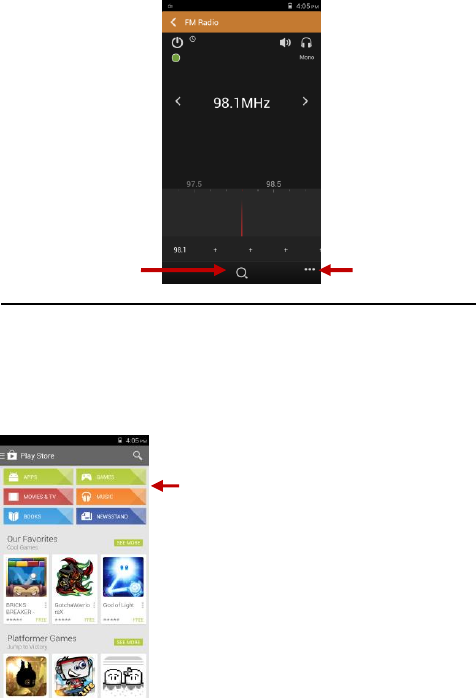

FM Radio
FM Radio
Through this function, you may listen to FM radio on the device. The
FM radio uses the wired headphones as an antenna in order to
receive signal. Before using this function, connect the original
equipment headphones that came with the phone.
Open FM Radio
Press the FM Radio icon.
1. Click “Search” automatic scans of FM channels.
2. Click to add favorite radio stations.
Click to add, edit or
delete alarms
17
FM Radio as Background
Click on the Home key to move the FM Radio to the background.
Play Store
Google Play allows you to download music, movies, and even
games. Click the Play icon to sign in with your Google account.
Radio
Options
Click on the (+)
sign to add
Favorite Radio
Stations
Scan
Search and select
between different Play
Store categories
18
NFC
NFC is a set communication standard that allows sharing of
information through a short range wireless signal. You may
exchange contacts, pictures, music, videos, webpages, and different
files.
Click to power on NFC and select NFC Mark to enter the
NFC menu. There is some NFC tags setup by default.
NFC Mark Screen with
Default Tags and
customizable option
To Sync a new tag with
another phone, touch
both phone’s backs
together. Note: Must
be within 15mm of
each other
NFC Quick
Settings menu
which allows you
to set different
exchange
parameters and
notifications
19
Settings
Airplane Mode
Turn on Airplane Mode.
Note: When in flight mode, all network connections will turn off
automatically.
Mobile Networks
Select Mobile Data Connection and APN settings.
Wi-Fi / WLAN
Settings » Wi-Fi » Click Wi-Fi to power on. When on, the
Wi-Fi will automatically search for available networks. Any
unsecured network can be used directly and any secured
network requires a password or credentials prior to
connection.
NFC
Near Field Communication (NFC) allows transferring of information
by touching one phone to another via a short range radio
communications.
Bluetooth
Press the switch to power on Bluetooth. Once on, the
Bluetooth will automatically scan for any nearby open
equipment.
More Wireless
Data Usage
VPN
Tethering & Portable hotspot
Sound and Vibrate
This option sets the phone tone settings for receiving calls or
notifications. Some of the settings include
Vibrate, volume, ring tones, ring tones notification and
20
haptic feedback tones
Display
Brightness, Auto rotating screen, Wallpaper, Screen Timeout
Suspend Button
Adds quick access buttons for screen lock, settings, and home
menus
Security
Basic screen locks: use a Pattern, PIN or Slide to lock the screen.
Pattern: The first time there will be simple unlock
instructions and examples. Click “next step” to continue
the security pattern step.
PIN: Enter PIN number to unlock the screen.
You may stop the security feature at any time.
Set up SIM card PIN lock
SIM card PIN (Personal Identification Number) is used to
prevent unauthorized use of SIM card.
To change a blocked PIN code, you will need to unlock the SIM lock
then go to the Change Password screen. The phone will
automatically prompt you enter the old PIN code and ask to enter a
new PIN code twice. The phone will then prompt you that the
change was successful. If you enter the PIN incorrectly three times,
the SIM and PIN codes will be automatically locked. You will need
the PUK code to unlock the phone which is available through your
service provider. If you enter the PUK code incorrectly 10 times, the
SIM card will be permanently locked. Please see your service
provider for a new SIM card.
Password visible – Make the password visible when it’s
typed.
Use security credentials - Allow applications to visit
security credentials or other credentials.
Install the encrypted certificate.
21
Location Access
Mobile Network - Use wireless services to find locations in
applications.
GPS satellite sets accuracy and positioning to street level
Add Account
Add Corporate, Email, or other application accounts.
Battery
General power usage
Storage
View the phone memory usage.
Apps
Manage applications - Manage and delete installed
applications.
Running Applications- Press the “Force Stop” button to
stop any of the applications listed and removes from the
running apps list.
LED Light
Set LED reminders
Smart Gesture
Set smart and air gestures.
Date & Time
Automation - Use date and time provided by Network.
Date and Time adjustment.
Time Zone - Select Time Zone according to where your
location.
Select Date Format - There are 3 kinds of formats you can
choose from: Month-Day-Year, Day-Month-Year and
Year-Month-Day, and Year-Month-Day which is the default
setting.
22
Schedule airplane On/off
Schedule airplane mode on and off
Language and Input
Language – Change the language of the phone.
Custom Dictionary - Add or delete words to the custom
dictionary.
Keyboard Settings – Haptic vibration, Haptic tones,
Capitalizing, Speech Input, Inputting words, Predictive text
function, Auto-Text, Input keyboard method
System Backup
Backup Data – Contacts, SMS, Call Log and Email
Backup & Reset
Backup Data – Will back up all application data, WLAN
passwords, and other settings to Google's servers
Restore to Factory Settings - Clear all data stored on the
phone.
Accessibility
Power button ends call
Speak Passwords
Web accessibility
Developer Options
If the phone does not display Developer options, to access: Press
“Build number” seven (7) times in the about phone tab in settings.
The developer options gives access to USB Debugging
and other developer options
About Device
You can check the information on status
Check for software or firmware updates
23
Storage
Connect the phone with the USB cable provided. Once connected, a
connection interface will appear. Once in the connection mode
interface, select USB mass storage under File Copy and turn on
from the connection screen to be able to transfer files.
Some system settings and user interface (UI) options may vary depending on
SW version.
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
This mobile phone has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
24
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Note:
Caution: Changes or modifications not expressly approved by the
party responsible for compliance could void the user‘s authority to
operate the equipment.
25
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission of the United States.
During SAR testing, this device was set to transmit at its highest
certified power level in all tested frequency bands, and placed in
positions that simulate RF exposure in usage against the head with
no separation, and near the body with the separation of 10 mm.
Although the SAR is determined at the highest certified power level,
the actual SAR level of the device while operating can be well below
the maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the power
required to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output.
The exposure standard for wireless devices employing a unit of
measurement is known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general population
/uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and had
been tested in accordance with the measurement methods and
procedures specified in IEEE1528. This device has been tested and
meets the FCC RF exposure guidelines when tested with the device
directly contacted to the body.
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the Display
Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC
ID: YHLBLUPUREXL.
26
For this device, the highest reported SAR value for usage against
the head is 0.79 W/kg, for usage near the body is 1.28 W/kg.
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government
requirements.
SAR compliance for body-worn operation is based on a separation
distance of 10 mm between the unit and the human body. Carry this
device at least 10 mm away from your body to ensure RF exposure
level compliant or lower to the reported level. To support body-worn
operation, choose the belt clips or holsters, which do not contain
metallic components, to maintain a separation of 10 mm between
this device and your body.
RF exposure compliance with any body-worn accessory, which
contains metal, was not tested and certified, and use such
body-worn accessory should be avoided.
