BLU BLUSAMBATV Quad-band /GPRS/ GSM Mobile Phone User Manual
BLU Products, Inc. Quad-band /GPRS/ GSM Mobile Phone
BLU >
User Manual
-1-
Samba TV , Samba W- Table of Contents
1. Getting Started ............................................................................................................................................................. 6
1.1 Installing the SIM Card, SD Card and Battery............................................................................................................. 6
2. Input Type ..................................................................................................................................................................... 7
3. Menu Guide ................................................................................................................................................................... 9
3.1 Messaging .................................................................................................................................................................... 9
3.2 Multimedia ................................................................................................................................................................... 9
3.3 Call history ................................................................................................................................................................. 10
3.4 Calculator .................................................................................................................................................................. 10
3.5 Contact ....................................................................................................................................................................... 11
3.6 Settings ....................................................................................................................................................................... 11
3.7 Audio player .............................................................................................................................................................. 12
3.8 Mobile TV ................................................................................................................................................................. 12
3.9 Camera ...................................................................................................................................................................... 12
3.10 BLU Club .................................................................................................................................................................. 12
3.11 0rganizer .................................................................................................................................................................... 13
3.12 Calendar .................................................................................................................................................................... 13
-2-

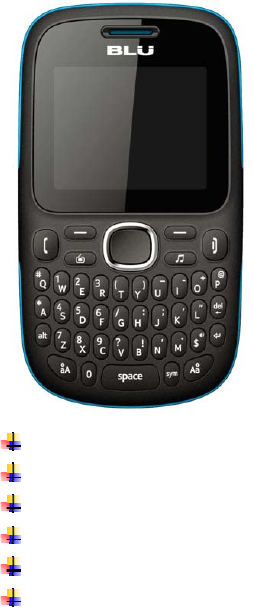

Phone Overview
Dimensions: (H x W x D): 107.8 x 59.5 x 13.7mm
Camera: VGA
Cable: Micro USB
Battery: Lithium-Ion
Rated Capacity: 820 mAh
Continuous Standby Duration: (Relates to network status)
-3-
Please refer to their labels for other data related to the battery and the charger
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiated radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could
void the user‘s authority to operate the equipment.
-4-
4RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency
(RF) energy set by the Federal Communications Commission of the United States, Industry Canada of
Canada.
During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency
bands, and placed in positions that simulate RF exposure in usage against the head with no separation, and
near the body with the separation of 15 mm. Although the SAR is determined at the highest certified power
level, the actual SAR level of the device while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless base station antenna, the lower the power
output.
The exposure standard for wireless devices employing a unit of measurement is known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg, and 1.6W/kg by Industry Canada.
This device is complied with SAR for general population /uncontrolled exposure limits in ANSI/IEEE
C95.1-1992 and Canada RSS 102, and had been tested in accordance with the measurement methods and
-5-
procedures specified in OET Bulletin 65 Supplement C, and Canada RSS 102. This device has been tested,
and meets the FCC, IC RF exposure guidelines when tested with the device directly contacted to the body.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is
on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after
searching on FCC ID: YHLBLUSAMBATV.
For this device, the highest reported SAR value for usage against the head is 0.87W/kg, for usage near the
body is 1.03W/kg.
While there may be differences between the SAR levels of various phones and at various positions, they all
meet the government requirements.
SAR compliance for body-worn operation is based on a separation distance of 15 mm between the unit and
the human body. Carry this device at least 15 mm away from your body to ensure RF exposure level
compliant or lower to the reported level. To support body-worn operation, choose the belt clips or
holsters, which do not contain metallic components, to maintain a separation of 15 mm between this
device and your body.
RF exposure compliance with any body-worn accessory, which contains metal, was not tested and certified,
and use such body-worn accessory should be avoided.
-6-
1. Getting Started
1.1 Installing the SIM Card, SD Card and Battery
A SIM card carries useful information, including your mobile phone number, PIN (Personal Identification
Number), PUK (PIN Unlocking Key), IMSI (International Mobile Subscriber Identity), network information,
phonebook data, and short messaging data.
Installation
Hold the End Key and power off the mobile phone if the phone is powered on.
Pull the back cover and remove it.
Pull the battery outward and remove the battery.
Insert the SIM card into the SIM card slot ensuring that the card is properly aligned and that the gold
contact of the card is facing down.
The SD card is a mobile storage card that the phone may utilize to store different files. Please insert the
SD card into the SD card slot.
Insert the battery with the gold contacts of the battery facing the metallic contacts in the battery slot and
press the battery down until it locks into place.
Charge or transfer data with shielded cable.
Phone Lock Code
-7-
The phone lock code is a security measure that may be set to prevent your mobile phone from unauthorized
use. The initial phone lock code is set to 1122 and may be changed by the user. Once the lock code is set, it
will need to be inputted when powering on the mobile phone.
PIN
The PIN (Personal identification number 4 to 8 digits) code prevents your SIM card from unauthorized use.
Once a PIN lock is enabled, you will need to input the PIN any time the phone is powered on. The SIM card
will lock if the PIN code is inputted incorrectly three consecutive times.
To Unlock:
- Input the correct PUK to unlock the SIM card.
- Input the new PIN and press the Selection key.
- Input the new PIN again to verify and then press the Selection key.
- If the input PUK is correct, the SIM card will be unlocked and the PIN will be reset.
Note: The SIM card will be locked if you input wrong PIN code for three times. To unlock the SIM card, you
need to input the PUK. The PUK code can be obtained from the network operator.
2. Input Type
The mobile phone provides the following keys:
Dial key
Press it to place a call by entering the called number or selecting a contact from the phonebook; or press
it to receive an incoming call; or press it in standby state to show the latest call records
End key
-8-
Press it to end a call being dialed or end an ongoing call; or press it to exit the menu and return to the
standby state; or hold it for two or three seconds to power on or off the mobile phone.
Left and right soft key
The bottom line on the screen displays the functions of the Left and Right soft key.
Direction key
Press them to scroll the options when browsing a function list. In edit state, press direction keys to
navigate.
OK/Selection key
Press it to confirm your selection.
Delete key
Press it to delete a character before cursor.
Linefeed
This key helps to switch to another line when the interface is in the edit interface.
Shift key
Press this key to switch between input methods.
Space key
Press it in the edit interface to get a blank.
Sym key
Press it in the edit interface to input a symbol.
Alt key
In edit interface, press it to input an alternative symbol or number.
Audio player key
-9-
Press key to access audio player interface.
TV key
Press key to access TV interface.
Number and letters
Press number keys or letter keys to in input or edit state to input numbers or letters.
3. Menu Guide
3.1 Messaging
Write Message: Through this feature you can create, read, or send a new message.
Inbox: Received messages are listed in this location.
Drafts: Drafts messages are listed in this location.
Outbox: The messages which failed delivery or are temporarily stored in the Outbox.
Sent Messages: Sent messages are listed in this location.
Service Messages: This network service enables you to receive a variety of text messages such as
broadcast messages about weather forecast or road conditions. At the present time, few networks provide
this service. Please consult your network operator.
Message Settings：This function enables default settings.
3.2 Multimedia
Image Viewer: Use this feature to view pictures or images.
-10-
Video Recorder: This function enables you to record dynamic pictures.
Video Player: Use this feature to play video files. Through pressing the direction key you can control
the playing process of video player: Play/Pause (Selection key), Fast Forward (Right Direction key) and
Rewind (Left Direction key). You may press the Up or Down Direction key to adjust the volume and
press * key to switch to full screen play.
Sound Recorder: The phone supports .WAV and .AMR file extensions.
FM Radio: You can use the phone as a traditional FM radio. In the radio interface, you may press left or
right direction key to search channels manually, press selection key to start/pause, or press I/- or O/+ key
to tune volume.
3.3 Call history
The call center keeps record of missed calls, dialed calls and received calls.
Call Settings: You can set call waiting, call divert, call barring, line switching. Advanced Settings: auto
redial, call time reminder, answer mode.
3.4 Calculator
To use the calculator: Press the up, down, left, right and middle key to select ＋, －, ×, ÷, ＝ respectively.
-11-
3.5 Contact
The phonebook feature allows you to store, browse, edit, and delete phone numbers and can save up to 100
telephone numbers. The number of telephone numbers that an SIM card can store depends on the storage
capacity of the SIM card.
3.6 Settings
Profiles: The mobile phone provides multiple user profiles that may be customized to specific events and
environments. Customize the user profiles according to your preference and then activate the user
profiles. The user profiles fall into four selections: General, Silent, Meeting and Outdoor. When you
insert an earpiece to the mobile phone, the mobile phone automatically enters the Headset mode. There is
no option for activating the Headset mode on the screen. If you set Call Settings » Advanced Settings »
Answer Mode to Any Key: all incoming calls will be automatically answered with any key.
Phone Settings: This function allows adjustment in time, date, language, shortcuts, and other changes.
Note: When flight mode is engaged, it will suspend signal-transmitting functions – thereby disabling the
device's capacity to place or receive calls or text messages. Other functions that do not require signal
transmission (e.g., games, built-in camera, and MP3 player) are still available.
Network Settings: Access this interface to set SIM and GPRS parameters.
Security Settings: The security settings ensure the device is protected from unauthorized use.
Restore Factory Settings: Use this function to restore factory settings. The pre-set password is 1122.
-12-
3.7 Audio player
Use this feature to play audio files and control the audio player by pressing the direction keys: Play/Pause
(Selection key), Previous Song/Next Song (Left and Right Direction key), Fast Forward (Long Press Right
Direction key) and Rewind (Long Press Left Direction key). In audio player interface, you can press I/- or
O/+ key to tune volume.
3.8 Mobile TV
This function allows you to watch mobile TV programs and add programs to the channel list.
Note: Before watching, please search available channels in your area.
3.9 Camera
The phone provides a camera feature to capture pictures. In the camera interface, you may press the Selection
key to take a picture and may press up or down Direction key to zoom in and zoom out. Press menu for
camera options.
3.10 BLU Club
Blu Club: This function enables you to view the internet and set the default features about the network. You
can log on Facebook, Skype, MSN, Yahoo, Twitter and Games etc. through a web page
-13-
3.11 0rganizer
Bluetooth:Bluetooth allows you can make a wireless connection to other compatible devices such as
mobile phones, computers, headsets and car kits or send images, video clips, and sound.
File Manager：You may use the file manager to conveniently manage various directories and files on the
phone and the SD card and allows you to format data in the memory.
Games: A game named F1 race is embedded in the phone. For specific operation, please refer to ‘help’
option of the game.
Alarm: Five alarm clocks are set but deactivated by default. You can activate one, multiple or all of them
as needed. For each alarm clock, the ringing time can be set.
3.12 Calendar
This feature provides a monthly-view calendar to keep track of important appointments and daily events.
