User manual
Studio 5.0 S II
User Manual
Table of Contents
Safety Information ............................................. 4
Appearance and Key Function........................... 6
Introduction ........................................................ 7
Call Functions .................................................... 8
Contacts .......................................................... 10
Messaging ....................................................... 12
Internet Browser .............................................. 14
Bluetooth & Wi-Fi ............................................. 16
Camera ........................................................... 19
Gallery ............................................................. 21
Music ............................................................... 23
Sound Recorder .............................................. 25
Alarm Clock ..................................................... 26
FM Radio ......................................................... 27
Play Store ........................................................ 29
Settings ........................................................... 30
Storage ............................................................ 36
Safety Information
Please carefully read the terms below:
Use Safely
Do not use your mobile phone where it might cause danger.
Transportation Safety
Please observe all transportation laws and regulations.
Please drive with both hands on the wheel.
DO NOT TEXT AND DRIVE
Hospitals
Please follow limitations.
Please turn off your mobile phone when near medical instruments.
Airports
Please follow all flight safety regulations and do not use your phone
during flight.
Toxic Chemicals
Do not use your mobile phone around fuels or chemicals.
Explosion Hazard
Please observe related limitations and do not use your mobile phone
around an area where explosions may occur.
Accessories and Batteries
Please use only Blu authorized batteries and accessories.
Backup
Please remember to keep a written record of all important information.
Water
Your phone is not waterproof. Keep it away from water and liquids.
SOS Emergency Calls
Make sure your mobile phone is switched on and in a service area. In home
screen, tap the phone key and dial 911 and send.
Appearance and Key Function
Volume
Power
Back
Home
Menu
Rear Camera
Flash
Speaker
Front Camera
Introduction
Installation of the SIM Card
Note: Please keep the SIM card out of the reach of children. The SIM card
and its contact are easily damaged due to scratching or bending. Please be
cautious when carrying, installing or taking out the SIM card. Please contact
your cellular phone service provider directly to obtain the SIM card.
To insert SIM card:
1. Remove the rear cover and battery. Insert the SIM card.
2. Insert the SD card. (For additional storage capacity)
3. Insert the battery and replace the rear cover of the mobile phone.
SIM Slot
Memory
Card
Power On and Off
On - Please ensure the SIM card has been properly inserted into the
phone. Long press the Power key to switch on the phone on.
Off - In standby mode, long press on Power key until an options menu
appears. Select Power Off in the menu and confirm in the pop-up prompt to
switch off the phone.
Security
You may set a security lock feature as a security measure for the phone.
For further information regarding password locks, password revision and
other functions please enter into the security option in system settings.

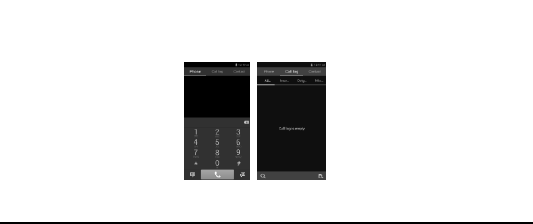

Call Functions
At the dial keyboard, enter the phone number and then click the dial key. If
dialing an extension, you may click the dial pad icon in the bottom of the
screen to open the interface and enter the number of the extension. You
may also enter an input number and call contacts through speed dial.
Call Logs
Every telephone number called and received will be saved in the phones
call log. All numbers in the call log can be dialed directly by clicking the
contact icon on the left side of the screen. When the number appears on the
list, click it to view details.
Proximity Sensor
The proximity sensor determines how far away an object is from the device.
During the call or when your place the phone close to the ear, the backlight
will turn off automatically this conserves battery and prevents inadvertently
touching.
Contacts
Enter: Click on the applications menu and select contacts
• The default display is the phone contacts and SIM card contacts
• The contacts are organized alphabetically by default.
Click the Search icon to enter the contact search interface.
Any numbers or letters associated with any of the contacts saved
in the list will be shown in the search results.
If there were no matches for the inputted contact, the interface
will display no contacts found.

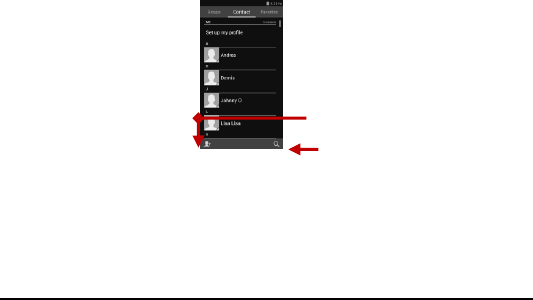

Add New Contact
1. Click (+) icon to add contact.
Add Contact
Search
2. Select to save contacts to phone or SIM card.
3. You may edit contact picture, name, telephone number, group, address,
and email among other options.
4. Click to finish and save contact.
Messaging
You may use this function to exchange text messages and multimedia
messages with your family and friends. The messages to and from the
same contact or phone number will be saved into a single conversation so
you may see the entire message history conveniently.

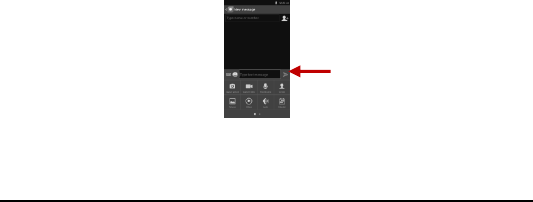

Send an SMS
Application Menu » Messaging » New message (or use
shortcut icon)
1. Click to enter recipient (You may
enter contacts from contact book or enter a new number)
2. Compose Message
3. Send
Send an MMS
When creating message, the default message style is SMS. The message
will automatically convert to MMS when adding an attachment.
1. Click the Paperclip icon in the messaging interface.
2. Click “Attach” to add the following attachments.
Internet Browser
Menu Functions
Backward
• After browsing through multiple pages, this option will return the user
to the previous page.
Forward
• After browsing through multiple pages, this option will move to a web
Attachment
Type for MMS
Message
page after the current page.
Windows
• You may view all windows open by clicking the windows icon in the
upper right part of the browser.
Bookmarks
• Click the save to Bookmarks option to make the current URL as a
saved Bookmark.
• Click Bookmarks/History to opened saved bookmarks.
More
Find on page: Search current page.
Share page: Select to share the current page.
Save for offline reading: Saves page for offline reading.
Bookmarks/History: Show your browsing history and view the most visited
pages.
Settings: Contains a variety of browser settings.
Bluetooth & Wi-Fi
Bluetooth is a short-range wireless communications technology that
devices can use to exchange information and connect to different types of
devices which include headsets, car kits, and other devices.

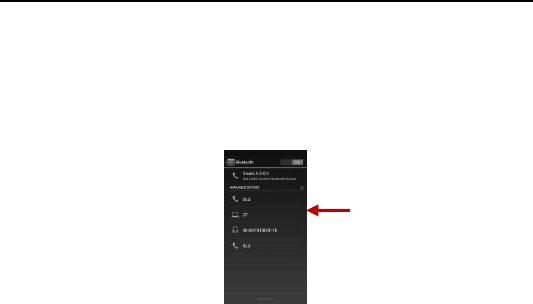

Power on Bluetooth
1) Settings » Bluetooth and select to power on Bluetooth.
2) The Bluetooth icon will appear grey in the in the notification bar. Click
“scan for devices” and the phone will start to scan for all devices within
range.
3) In Bluetooth settings all the devices found will displayed in the list under
the icon.
Note: The maximum detecting time of the phone is 2 minutes.
List of available
devices

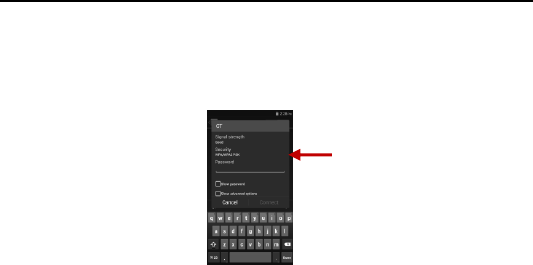

Power on Wi-Fi
1) Settings » Wi-Fi and select ON to power on Wi-Fi
2) Click on the desired Wi-Fi network to be connected. Note: Unsecured
networks can be connected to directly - secured networks require a
password or credentials prior to connection.
List of available
networks and the
network connection
screen
Camera
Camera
Prior to use: Install memory card before using the camera or video camera.
All photos or videos taken by the phone are typically stored in the memory
card for large storage capacity for images.
Open Camera
1. Applications Menu » Camera
2. Switch to video mode if you want to record videos.
Note: You may place a camera shortcut icon on any of the screens
Take Pictures
1. Aim the object that the picture will be taken.
2. Press the “Shutter” button on the screen.
3. After taking the picture, the file will be saved in the camera’s gallery
folder.
4. You can view the photos by clicking the preview box button.
You may adjust various settings for the camera by pressing Menu while in
the camera interface. When in the camera viewfinder mode, you can switch
to video or photos’ gallery.
Select between
Camera & Video
Camera Options
Gallery
Open Images
Applications Menu » Gallery
Share Pictures
You may share pictures by sending them through Gmail or the E-mail

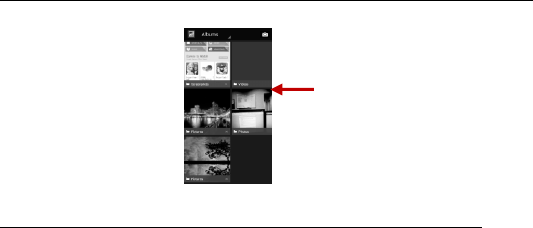

Pictures and
videos are stored
in separate
albums
application. You may also send pictures through the MMS message
function by composing a message and attaching the picture. Any image can
also be sent via the Bluetooth function by selecting Bluetooth equipment
that has been paired.
Adjust Image
Press Menu and Edit to adjust images
You may select from different effects that include: Vintage, Black and White,
Instant, Latte, Litho, X-Process, Crop, Rotate, Mirror, Straighten, Vignette,
Contrast, Exposure, Auto color, Shadows, Vibrancy, among other settings
that can be used to adjust picture images.
View Images
In the picture interface, click on an album to view images
In the photo album, scroll the picture towards left to view the next picture or
towards right to view the previous one.
Crop Pictures
If you want to adjust the size of the picture, use the crop tools. Once the
arrow appears, pinch your fingers in or out to adjust the size. If you want to
adjust the image and keep its proportion, please hold down any of the four
corners of the image and adjust accordingly.

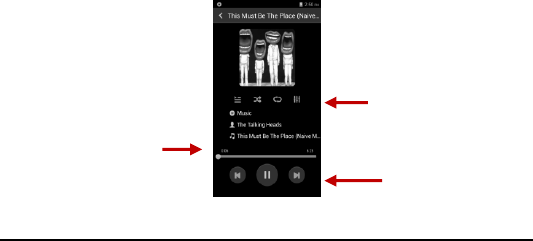

Music
Open Music
Application Menu » Music
Search Music
You may choose to search for music from media folder through artist name,
song name, album name. The following formats are available: AMR,
MIDI, MP3, WAV, and OGG.
Song Status
Track Controls
Playback
Settings
Sound Recorder
The Sound Recorder can record voice or any audio.
You may send any recorded audio via Bluetooth or MMS and also have the
option to make any recorded audio the phones default ring tone.
Notice: The recorder uses AMR, 3GPP and OGG format.
Record
- Keep the phone’s microphone near the voice source.
- Click the record button to record the audio.
- Click the stop button to stop recording the audio.
All recordings will be saved in my recording folder in the default music
program.

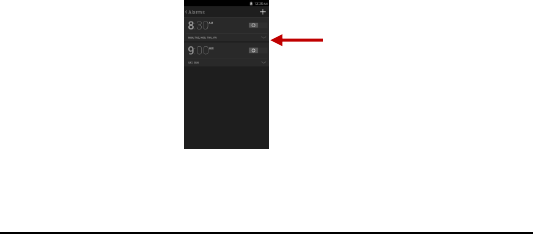

Alarm Clock
1. Click on the Clock icon in the application menu
2. Click set alarm button and enter the alarm clock set interface where you
may add and edit alarms
Recording
Controls
Recording
Time

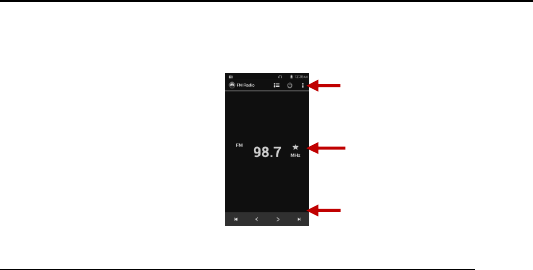

FM Radio
FM Radio
Through this function, you may listen to FM radio on the device. The FM
radio uses the wired headphones as an antenna in order to receive signal.
Before using this function, connect the original equipment headphones that
came with the phone.
Click to add, edit
or delete alarms
Open FM radio
Press the FM Radio icon to open the application.
1. Click “Search” automatic scans of FM channels.
2. Click to add favorite radio stations.
FM Radio as Background
Click on the Home key to move the FM Radio to the background.
Radio
Options
Add Favorite
Radio Stations
Scan
Play Store
Google Play allows you to download music, movies, and even games. Click
the Play icon to sign in with your Google account.
Select between
different
categories
Settings
Call Settings
Fixed Dialing Numbers and TTY mode
Wi-Fi
Settings » Wi-Fi to power on. When on, the Wi-Fi will
automatically search for available networks. Any unsecured
network can be used directly and any secured network requires a
password or credentials prior to connection.
Bluetooth
Press the switch to power on Bluetooth. Once on, the Bluetooth
will automatically scan for any nearby open equipment.
Data Usage
Mobile and Wi-Fi Data Usage
More Wireless
Tethering, Portable hotspot, VPN
Airplane Mode
Note: When in flight mode, all network connections will turn off
automatically.
Audio Profiles
This option sets the phone tone settings for receiving calls and notifications.
Some of the settings include:
Vibrate, volume, ring tones, ring tones notification, dial touchpad,
and haptic feedback and tones
Display
Brightness, Auto rotating screen, Wallpaper, Screen Timeout
Storage
View the phone memory usage.
Battery
General power usage
Apps
Manage applications - Manage and delete installed applications.
Running services - Press the ‘Stop’ button to stop any of the
services listed and removes from the "running services" list.
Location Access
Use wireless - Use wireless services to find locations in
applications.
When using the GPS satellite positioning, set accuracy to street
level (Cancel it to save battery).
Security
Set up screen locks: Use slide, face/voice unlock, pattern, PIN or password
to lock the screen.
Pattern: The first time there will be simple unlock instructions and
examples. Click “next step” to continue the security pattern step.
PIN: Enter PIN number to unlock the screen.
Password: Use password to unlock the screen
You may stop the security feature at any time.
Set up SIM card PIN lock
SIM card PIN (Personal Identification Number) is used to prevent
unauthorized use of SIM card.
To change a blocked PIN code, you will need to unlock the SIM lock then go
to the Change Password screen. The phone will automatically prompt you
enter the old PIN code and ask to enter a new PIN code twice. The phone
will then prompt you that the change was successful. If you enter the PIN
incorrectly three times, the SIM and PIN codes will be automatically locked.
You will need the PUK code to unlock the phone which is available through
your service provider. If you enter the PUK code incorrectly 10 times, the
SIM card will be permanently locked. Please see your service provider for a
new SIM card.
Password visible – Make the password visible when it’s typed.
Use security credentials - Allow applications to visit security
credentials or other credentials.
Language and Input
Language – Change the language of the phone.
Custom Dictionary - Add or delete words to the custom dictionary.
Keyboard Settings – Haptic vibration, Haptic tones, Capitalizing,
Speech Input, Inputting words, Predictive text function, Auto-Text,
Input keyboard method
Backup & Reset
Backup Data – Will back up all application data, WLAN
passwords, and other settings to Google's servers
Restore to Factory Settings - Clear all data stored on the phone.
Date & Time
Date and Time adjustment.
Time Zone - Select Time Zone according to where your location.
Select Date Format - There are 3 kinds of formats you can
choose from: Month-Day-Year, Day-Month-Year and
Year-Month-Day, and Year-Month-Day which is the default setting
Schedule Power On & Off
Schedule power on and off
Accessibility
Power button ends call
Speak Passwords
Web accessibility
Developer Options
If the phone does not display Developer options press “Build number”
seven (7) times in the about phone tab in settings.
The developer options gives access to USB Debugging and other
developer options
About Phone
Phone information status and firmware updates
Storage
Connect the phone with the USB cable provided. Once connected, a
connection interface will appear. Once in the connection mode interface,
select USB mass storage and turn on from the connection screen to be able
to transfer files.
Some system settings and UI options may vary depending on final SW
version.
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This mobile phone has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiated radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
F
FC
CC
C
N
No
ot
te
e:
:
Caution: Changes or modifications not expressly approved by the party
responsible for compliance could void the user‘s authority to operate the
equipment.
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed the emission limits
for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the United States.
During SAR testing, this device was set to transmit at its highest certified
power level in all tested frequency bands, and placed in positions that
simulate RF exposure in usage against the head with no separation, and
near the body with the separation of 10 mm. Although the SAR is
determined at the highest certified power level, the actual SAR level of the
device while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels so as to
use only the power required to reach the network. In general, the closer
you are to a wireless base station antenna, the lower the power output.
The exposure standard for wireless devices employing a unit of
measurement is known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general population /uncontrolled
exposure limits in ANSI/IEEE C95.1-1992 and had been tested in
accordance with the measurement methods and procedures specified in
IEEE1528. This device has been tested and meets the FCC RF exposure
guidelines when tested with the device directly contacted to the body.
The FCC has granted an Equipment Authorization for this model phone with
all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model phone is on file with
the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: YHLBLUSTUD50SII.
For this device, the highest reported SAR value for usage against the head
is 1.16 W/kg, for usage near the body is 1.37 W/kg.
While there may be differences between the SAR levels of various phones
and at various positions, they all meet the government requirements.
SAR compliance for body-worn operation is based on a separation distance
of 10 mm between the unit and the human body. Carry this device at least
10 mm away from your body to ensure RF exposure level compliant or
lower to the reported level. To support body-worn operation, choose the belt
clips or holsters, which do not contain metallic components, to maintain a
separation of 10 mm between this device and your body.
RF exposure compliance with any body-worn accessory, which contains
metal, was not tested and certified, and use such body-worn accessory
should be avoided.
