User manual
1
Studio 5.0 II
User Manual
2
Table of Contents
Safety Information .................................. 3
Appearance and Key Function ................... 4
Introduction ........................................... 5
Call Functions ......................................... 6
Contacts ................................................ 7
Messaging .............................................. 9
Internet Browser .................................. 10
Bluetooth ............................................. 11
Camera ............................................... 12
Gallery ................................................ 13
Music .................................................. 14
Sound Recorder .................................... 15
3
Alarm Clock .......................................... 16
FM Radio ............................................. 16
Settings ............................................... 17
Storage ............................................... 21
Safety Information
Please carefully read the terms below:
Use Safely
Do not use your mobile phone where it might cause danger.
Transportation Safety
Please observe all transportation laws and regulations.
Please drive with both hands on the wheel.
DO NOT TEXT AND DRIVE
Hospitals
Please follow limitations.
Please turn off your mobile phone when near medical instruments.
Airports
Please follow all flight safety regulations and do not use your phone
during flight.
Toxic Chemicals
Do not use your mobile phone around fuels or chemicals.
Explosion Hazard
Please observe related limitations and do not use your mobile phone
around an area where explosions may occur.
Accessories and Batteries
4
Please use only Blu authorized accessories and batteries.
Backup
Please remember to keep a written record of all important
information.
Water
Your phone is not waterproof. Keep it away from water and liquids.
SOS Emergency Calls
Make sure your mobile phone is switched on and in a service area.
In home screen, tap the phone key and dial 911 and send.

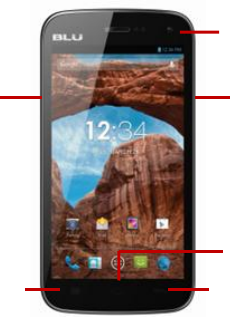

Appearance and Key Function
Volume
Power
Back
Home
Menu
Front
Camera

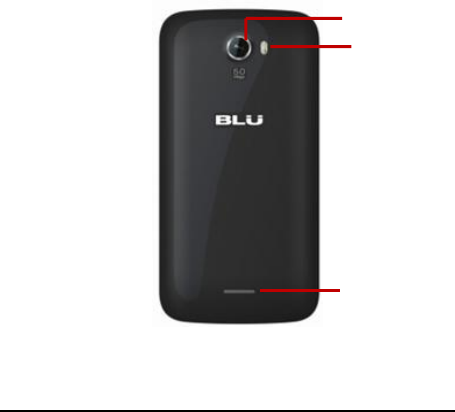

Rear Camera
5
Introduction
Installation of the SIM Card
Please install the SIM card before using your phone.
Note: Please keep the SIM card out of the reach of children. The
SIM card and its contact are easily damaged due to scratching or
bending. Please be cautious when carrying, installing or taking out
the SIM card. The SIM card is obtained through your service
provider.
To insert SIM card:
1. Switch off the mobile phone and remove the rear cover.
2. Insert the SIM card. Insert SD card (For additional capacity)
Flash
Speaker
6
3. Replace the rear cover of the mobile phone and power on.
Power On and Off
On - Please ensure the SIM card has been properly inserted into the
phone. Long press the Power key to switch on the phone.
Off - In standby mode, long press on Power key until an options
menu appears. Select OFF in the menu and confirm
Password Lock
You may set a screen unlock picture or a PIN code lock as a security
measure. For further information regarding password locks,
password revision and other functions please enter the security
settings of the phone.

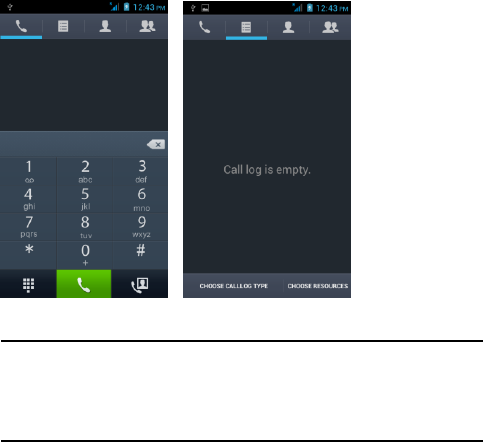

Call Functions
At the dial keyboard, enter the phone number and then click the dial
key. If dialing an extension, you may click the dial pad icon in the
bottom of the screen to open the interface and enter the number of
the extension. You may also enter an input number and call contacts
through speed dial.
SIM Slot
7
Call Logs
Every telephone number called and received will be saved in the
phones call log. All numbers in the call log can be dialed directly by
clicking the icon on the right side of the screen. When the number
appears on the list, click it to view details.
Proximity Sensor
The proximity sensor determines how far away an object is from the
device. During the call or when you place the phone close to the ear,
the backlight will turn off automatically which conserves battery and
prevents inadvertently touching.

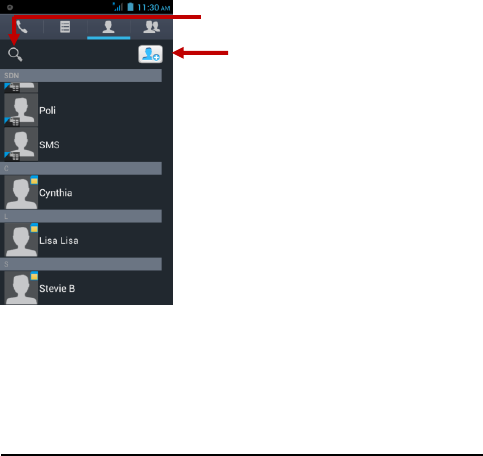

Contacts
Enter: Click on the applications menu and select contacts
• The default display is the phone contacts and SIM card contacts
• The contacts are organized alphabetically by default.
8
Click the Search icon to enter the contact search interface.
Any numbers or letters associated with any of the contacts
saved in the list will be shown in the search results.
If there were no matches for the inputted contact, the
interface will display no contacts found.
Add New Contact
1. Click “Add Contact” icon
2. Select to save contacts to phone or SIM card
3. You may edit contact picture, name, telephone number, group,
address, and email among other options
4. Click to finish and save contact.
Add Contact
Search
9
Messaging
You may use this function to exchange text messages and
multimedia messages with your family and friends. The messages to
and from the same contact or phone number will be saved into a
single conversation so you may see the entire message history
conveniently.
Send an SMS
Application Menu » Messaging » New message
(Or use shortcut icon)
1. Click to enter recipient (You may enter contacts from contact book
or enter a new number)
2. Compose Message
3. Send

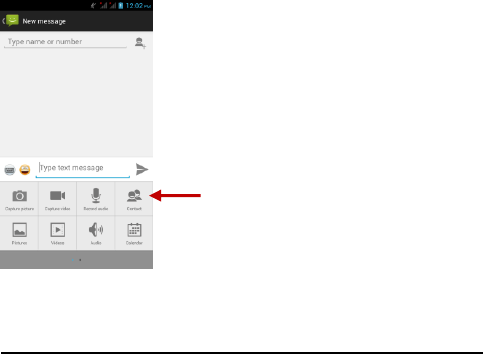

Send an MMS
When creating message, the default message style is SMS. The
message will automatically convert to MMS when adding an
attachment.
1. Click the Paperclip icon in the messaging interface.
2. Click “Attach” to add the following attachments.
10

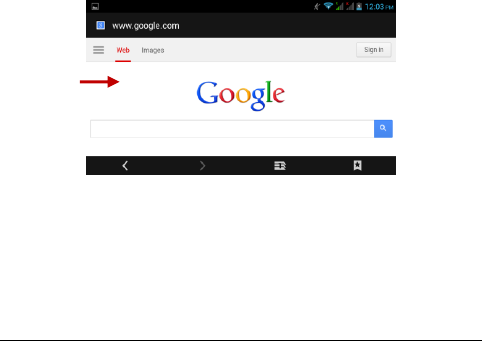

Internet Browser
Menu Functions
Backward
After browsing through multiple pages, this option will
return the user to the previous page.
Forward
After browsing through multiple pages, this option will
move to a web page after the current page.
Windows
You may view all windows open by clicking the windows
icon in the upper right part of the browser.
Bookmarks
Click the Bookmarks option to make the current URL as a
saved Bookmark.
Click Bookmarks to opened saved bookmarks.
More
Find on page: Search current page.
Share page: Select to share the current page.
Attachment
Type for MMS
Message
11
Save for offline reading: Saves page for offline reading.
Page info: Display page address and other information of the current
browsing
History: Show your browsing history and view the most visited
pages.
Settings: Contains a variety of browser settings.

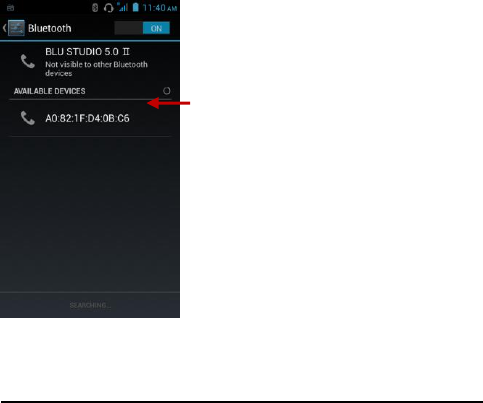

Bluetooth
Bluetooth is a short-range wireless communications technology that
devices can use to exchange information and connect to different
types of devices which include headsets, car kits, and other devices.
Power on Bluetooth
1) Settings » Wireless & Networks » Bluetooth and select to power
on Bluetooth.
2) The Bluetooth icon will appear grey in the notification bar. Click
“scan for devices” and the phone will start to scan for all devices
within range.
3) In Bluetooth settings all the devices found will displayed in the list
under the icon.
Note: The maximum detection time is 2 minutes.
Browser
12

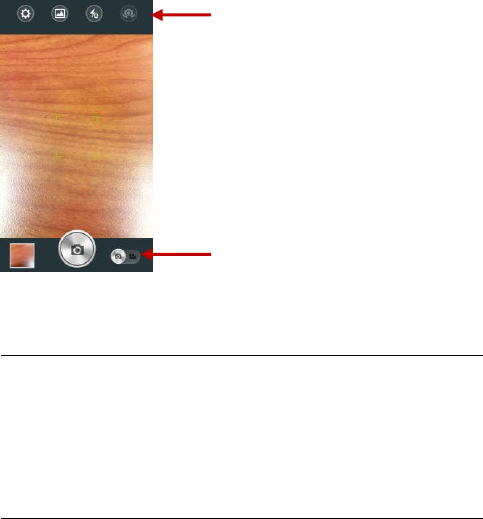

Camera
Camera
Prior to use: Ensure the memory card is installed before using the
camera or video camera. All photos or videos taken by the phone
are typically stored in the memory card unless noted otherwise.
Open Camera
1. Applications Menu » Camera
2. Switch to video mode if you want to record videos.
Note: You may also place a camera shortcut on any of the screens
Take Pictures
1. Aim the object that the picture will be taken.
2. Press the “Shutter” button on the screen.
3. After taking the picture, the file will be saved in the camera’s
gallery folder.
4. You can view the photos by clicking the preview box button.
List of available
devices
13
You may adjust various settings for the camera by pressing Menu
while in the camera interface.
When in the camera viewfinder mode, you can switch to video or
photos’ gallery. On the camera viewfinder mode, you will find the
display the preview of the previous picture taken. Click the “preview
box” and the photo will display in full screen.
Gallery
Open Images
Applications Menu » Gallery
Share Pictures
You may share pictures by sending them through Gmail or the
E-mail application. You may also send pictures through the MMS
message function by composing a message and attaching the
picture. Any image can also be sent via the Bluetooth function by
selecting Bluetooth equipment that has been paired.
Adjust Image
Press Menu and Edit to adjust images
Select from
Camera or Video
Camera Options
14
You may select from different effects that may include: Vintage,
Black and White, Instant, Latte, Litho, X-Process, Crop, Rotate,
Mirror, Straighten, Vignette, Contrast, Exposure, Auto color,
Shadows, Vibrancy, among other settings that can be used to adjust
picture images.
View Images
In the picture interface click on an album to view images. You can
choose to display small or large thumbnails. In the photo album,
scroll the picture towards left to view the next picture or towards right
to view the previous one.
Crop Pictures
If you want to adjust the size of the picture, use the crop tools. Once
the arrow appears, pinch your fingers in or out to adjust the size. If
you want to adjust the image and keep its proportion, please hold
down any of the four corners of the image and adjust.

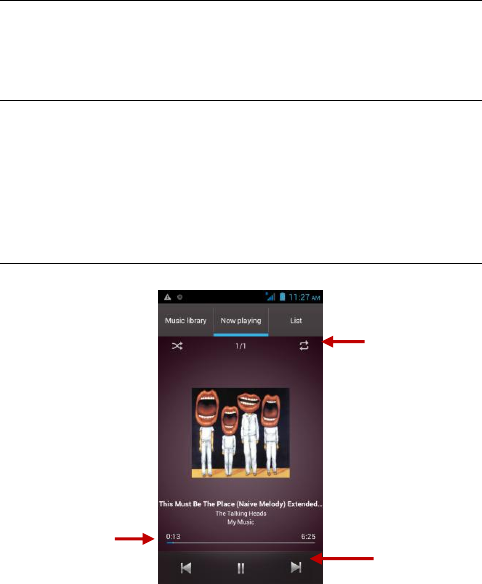

Music
Open Music
Application Menu » Music
Song Status
Song Controls
Player Options
15
Search Music
You may choose to search for music from media folder through artist
name, song name, album name. The following formats are
available: AMR, M4A, MIDI, MP3, WAV, and OGG.
Sound Recorder
The Sound Recorder can record voice or any audio.
You may send any recorded audio via Bluetooth or MMS and also
have the option to make any recorded audio the phones default ring
tone.
Notice: The recorder only uses AMR 3GPP format.
Record
- Keep the phone’s microphone near the voice source.
- Click the record button to record the audio.
- Click the stop button to stop recording the audio.
All recordings will be saved in my recording folder in the default
music program.
Recording
Controls
Recording
Time
16

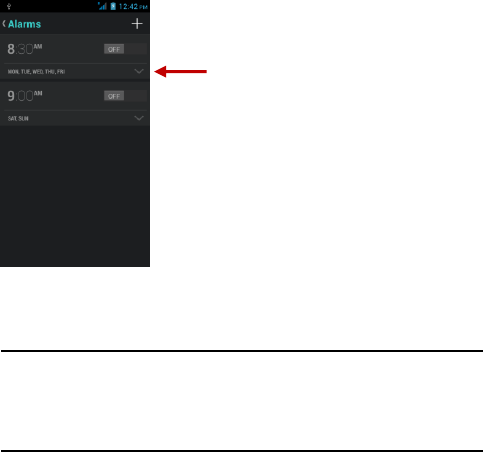

Alarm Clock
1. Click on the Clock icon in the application menu
2. Click set alarm button and enter the alarm clock set interface
where you may add and edit alarms

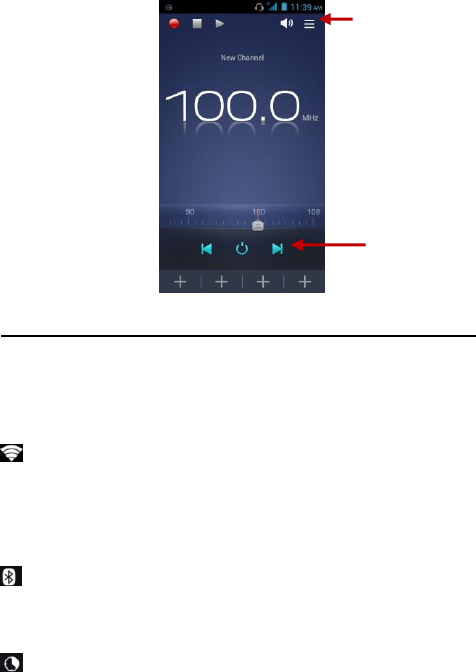

FM Radio
FM Radio
Through this function, you may listen to FM radio on the device. The
FM radio uses the wired headphones as an antenna in order to
receive signal. Before using this function, connect the original
equipment headphones that came with the phone.
Open FM radio
Press the FM Radio icon to open the application.
1. Click “Search” automatic scans of FM channels.
2. Click to add favorite radio stations.
Click to edit or
delete alarms
17
FM Radio as Background
Click on the Home key to move the FM Radio program to the
background.
Settings
Wi-Fi / WLAN
Wi-Fi » Wi-Fi settings » Click Wi-Fi to power on. When
switched on, the Wi-Fi will automatically search for
available networks. Any unsecured network can be used
directly and any secured network requires a password or
credentials prior to connection.
Bluetooth
Press the switch to power on Bluetooth. Once on, the
Bluetooth will automatically scan for any nearby open
equipment.
Data Usage
Data usage and mobile data traffic limit.
Radio
Options
Scan
18
More… Wireless & Networks
Airplane Mode
VPN
Tethering & Portable hotspot
Mobile networks and APN Settings
Note: When in flight mode, Wi-Fi will turn off automatically.
Audio Profiles
This option sets the phone tone settings for receiving calls or
notifications. Some of the settings include
Vibrate, volume, ring tones, ring tones notification and
haptic feedback tones
Display
Brightness, Auto rotating screen, Wallpaper, Screen Timeout
Storage
View the SD card and phone memory usage.
Allows adjustment of different storage settings.
Allows selection of the default memory.
Battery
General power usage
Apps
Manage applications - Manage and delete installed
applications.
Running services - Press any of the services listed in the
two-button operation box. Press the ‘Stop’ button to stop
any of the services listed and removes from the running
services list.
Location Access
Use wireless - Use wireless services to find locations in
applications.
Turn on GPS satellite positioning and set to include mobile
networks.
19
Security
Set up screen locks: Use a pattern, PIN or password to lock the
screen.
Pattern: The first time there will be simple unlock
instructions and examples. Click “next step” to continue
the security pattern step.
PIN: Enter PIN number to unlock the screen.
Password: Set password to unlock the screen.
You may stop the security feature at any time.
Set up SIM card PIN lock
SIM card PIN (Personal Identification Number) is used to
prevent unauthorized use of SIM card.
To change a blocked PIN code, you will need to unlock the SIM lock
then go to the Change Password screen. The phone will
automatically prompt you enter the old PIN code and ask to enter a
new PIN code twice. The phone will then prompt you that the
change was successful. If you enter the PIN incorrectly three times,
the SIM and PIN codes will be automatically locked. You will need
the PUK code to unlock the phone which is available through your
service provider. If you enter the PUK code incorrectly 10 times, the
SIM card will be permanently locked. Please see your service
provider for a new SIM card.
Password visible – Make the password visible when it’s
typed.
Use security credentials - Allow applications to visit
security credentials or other credentials.
Install the encrypted certificates
Language & Input
Language – Change the language of the phone.
Custom Dictionary - Add or delete words to the custom
dictionary.
Keyboard Settings – Haptic vibration, Haptic tones,
Capitalizing, Speech Input, Inputting words, Predictive text
20
function , Auto-Text, Input keyboard method and other
settings
Backup & reset
Backup Data – Will back up all application data, WLAN
passwords, and other settings to Google's servers
Restore to Factory Settings - Clear all data stored on the
phone.
Smart Gesture
Set smart gestures
Date & Time
Use date and time provided by the mobile network.
Date and Time adjustment.
Time Zone - Select Time Zone according to where your
location.
Select Date Format - There are 3 kinds of formats you can
choose from: Month-Day-Year, Day-Month-Year and
Year-Month-Day, and Year-Month-Day which is the default
setting
Schedule Power On & Off
Schedule power on and off
Accessibility
Power button ends call
Speak Passwords
Touch Delay
Developer Options
If the phone does not display Developer options, to access: Press
“Build number” seven (7) times in the about phone tab in settings.
The developer options gives access to USB Debugging
and other developer options
21
About Phone
You can check the information on phone status and
remaining power
You may periodically check for any software or firmware
updates through the System Updates option.
Storage
Connect the phone with the USB cable provided. Once connected, a
connection icon will appear in the status bar. Slide down bar and
click on connection icon. Once in the connection mode interface,
select USB mass storage or another option and turn on from the
connection screen.
Some system settings and user interface (UI) options in the phone may vary depending
on SW version.
22
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
This mobile phone has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
F
FC
CC
C
N
No
ot
te
e:
:
Caution: Changes or modifications not expressly approved by the
party responsible for compliance could void the user‘s authority to
operate the equipment.
23
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission of the United States.
During SAR testing, this device was set to transmit at its highest
certified power level in all tested frequency bands, and placed in
positions that simulate RF exposure in usage against the head with
no separation, and near the body with the separation of 10 mm.
Although the SAR is determined at the highest certified power level,
the actual SAR level of the device while operating can be well below
the maximum value. This is because the phone is designed to
operate at multiple power levels so as to use only the power
required to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output.
The exposure standard for wireless devices employing a unit of
measurement is known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general population
/uncontrolled exposure limits in ANSI/IEEE C95.1-1992 and had
been tested in accordance with the measurement methods and
procedures specified in IEEE1528. This device has been tested and
meets the FCC RF exposure guidelines when tested with the device
directly contacted to the body.
The FCC has granted an Equipment Authorization for this model
phone with all reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the Display
Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC
ID: YHLBLUSTUDIO5II.
For this device, the highest reported SAR value for usage against
the head is 1.33 W/kg, for usage near the body is 1.39 W/kg.
24
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government
requirements.
SAR compliance for body-worn operation is based on a separation
distance of 10 mm between the unit and the human body. Carry this
device at least 10 mm away from your body to ensure RF exposure
level compliant or lower to the reported level. To support body-worn
operation, choose the belt clips or holsters, which do not contain
metallic components, to maintain a separation of 10 mm between
this device and your body.
RF exposure compliance with any body-worn accessory, which
contains metal, was not tested and certified, and use such
body-worn accessory should be avoided.
