BLU BLUSTUDIOII Mobile Phone User Manual Studio 5 3 II UserMan
BLU Products, Inc. Mobile Phone Studio 5 3 II UserMan
BLU >
user manual
1
BLU
UserManual
Studio5.3II
2
TableofContents
SAFETEYINFORMATION.........................................................................................................3
APPEARANCEANDKEYFUNCTIONS..................................................................................4
STORAGE......................................................................................................................................5
WI‐FI..............................................................................................................................................7
BLUETOOTH................................................................................................................................8
EMAIL............................................................................................................................................9
DIALING.....................................................................................................................................10
MESSAGING..............................................................................................................................13
CONTACTS.................................................................................................................................15
INTERNETBROWSER............................................................................................................18
SOUNDRECORDER................................................................................................................19
ALARMCLOCK.........................................................................................................................20
CALCULATOR...........................................................................................................................21
CAMERA.....................................................................................................................................21
GALLERY....................................................................................................................................23
MUSIC.........................................................................................................................................25
CALENDAR................................................................................................................................27
FMRADIO.................................................................................................................................28
SETTINGS..................................................................................................................................29
3
SafetyInformation
Please carefully read the terms below:
Use Safely
Do not use your mobile phone where it is forbidden or where it might cause a disturbance or danger.
Transportation Safety
Please observe all transportation laws and regulations.
Please drive with both hands on the wheel.
DO NOT TEXT AND DRI VE
Hospitals
Please follow limitations.
Please turn off your mobile phone when near medical instruments.
Airports
Please follow all flight safety regulations and do not use your phone during flight.
Toxic Chemicals
Do not use your mobile phone around fuels or chemicals.
Explosion Area
Please observe related limitations and do not use your mobile phone around an area where explosions may
occur.
Accessories and Batteries
Please use only Blu authorized accessories and batteries.
Waterproof
Your mobile phone is not waterproof. Please keep it away from water.
Backup
Please r em em ber t o m ake a backup or keep a w r it t en r ecord of all important information saved in your mobile
phone.
Connect to other devices
Please read the user manual of the device to get more detailed security instructions before connecting to
other devices and do not connect to unmatched product.
SOS Emergency Calls
Make sure your mobile phone is switched on and in a service area. In home screen, tap the phone key and
dial 911 and send.
4
AppearanceandKeyFunctions
KeysFunctions
Home
Press to return to the home screen from any application or interface.
Long Press for the recently opened applications window
Menu
Press to launch the menu screen which allows you to perform actions in either
the current interface or the option menu
Back
Press to return to the previous interface or to close a dialog box, an option
menu, the notification panel or the keypad
Power
Press to lock the screen
Long Press to launch the Power Off menu
Volume Up
Press to increase the volume
Press to turn out of Silent mode
Volume Down
Press to decrease the volume
Press to manually switch to Silent mode
P-Sensor The proximity sensor determines how far away an object is from the device
Rear Camera Rear loaded camera for various applications
Front Camera Front loaded camera for video calls and self portraits
Power
Front
Camera
PSensor
Back
Rear
Camera
Volume
Keys
Home
Menu
5
Storage
If you want to send music, pictures or other f iles to the phone’s memory card from the computer, you must set the
memory card as USB storage.
USB Mass Storage
1. Connect the phone with the shielded USB cable provided. Once connected, a connection icon will appear in the
status bar
2. You can use a shielded USB cable connecting to the computer and an android icon will appear on the
screen
3. Pull down the notif ication panel and in the “Notif ications” section select “USB Storage” device
To turn off USB mass storage from computer pull down the status bar and select from the options

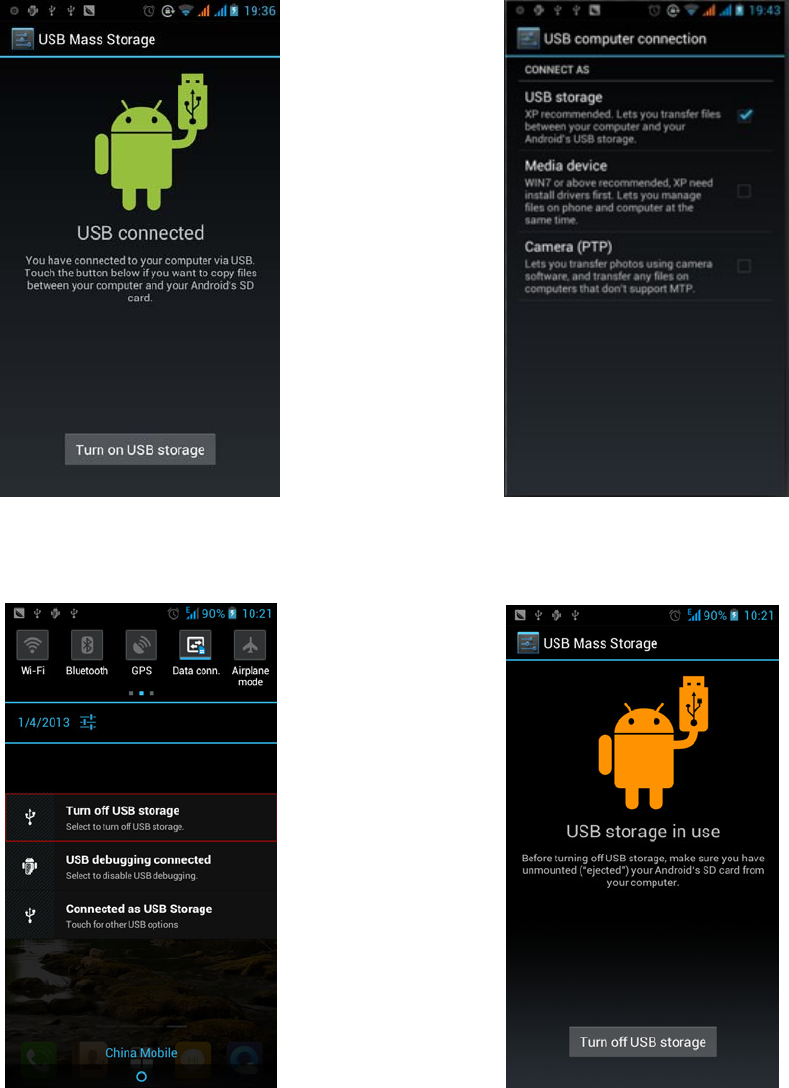

Please refer to the following pictures:
6

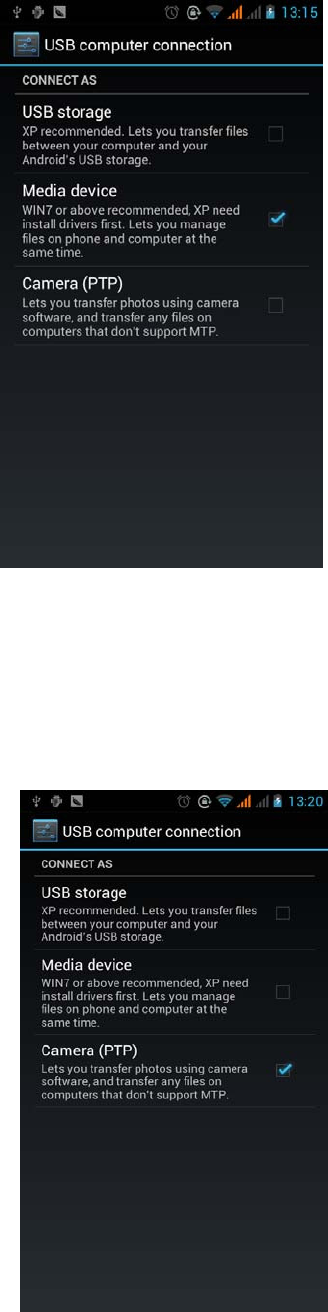

Other USB Options
Media Device ( MTP)
Media device (MTP) option lets you transfer media files with higher operating systems
From the notification panel, choose "Media device” (MTP) connection mode
Camera ( PTP)
The Camera (PTP) option lets you transfer photos using camera software or transfer f iles that cannot be
otherwise sent through the (MTP) option.
1. Connect the phone with the USB cable provided
2. From the notification panel, choose “Camera” (PTP) connection mode
7
Notice: Connections via USB storage mode vary depending on operating system. Drivers may be
available for download once the phone is plugged in.
Windows 7 – Plug and Play compatible
Windows XP – You must update the Windows Media Player to 11 for USB recognition
Once the mobile phone connects as a storage device, the SD card w ill be unavailable.
WI‐FI
Your phone can connect to a variety of different networks and devices which include mobile networks for
voice and data transmission, Wi-Fi data networks, and Bluetooth devices such as headsets. You may also
connect your phone to a computer and transfer f iles from your computer to your phone's SD card and share
your phone's mobile data connection via USB or as a portable Wi-Fi hot spot.
To open and connect to a network:
1) Press Home -> Menu -> Settings> Wireless & Networks
2) Select the Wi-Fi box to power on Wi-Fi.
3) The phone will scan for available Wi-Fi networks and display the results. Any secured networks found
will be indicated with a lock icon.
4) Press a network to connect to it. I f the network is unsecured, you will be prompted to conf irm that you
want to connect to that network. If the network is secured, you will be prompted to enter a password or
credentials.

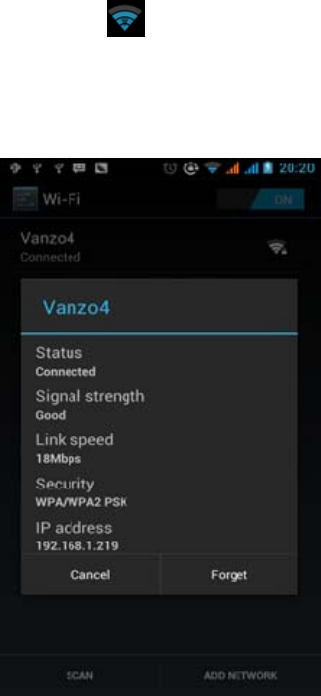

When connected to Wi-Fi
The status box will show a blue lit Wi-Fi icon with the approximate signal strength.
Click on a connected network and it will display the name of Wi-Fi network, status, speed, signal, strength,
security, information and I P address. I f you want to delete the wireless settings, select “Forget”. I f you wish to
reconnect to that network at a later date, you must enter the network settings again.
8
Notice: Unless you choose not to reserve the network, there is no need to re-enter the corresponding
password when next time connecting to the previously encrypted wireless network. Wi-Fi will search and
connect automatically.
Connect to other Wi-Fi netw orks
1) In wireless and network, search and click Wi-Fi settings. The Wi-Fi networks will be displayed on the
Wi-Fi network list.
2) Click on other Wi-Fi networks and then connect to the network.
Notice: You may also surf the internet via GPRS. The users can select manually the specif ic location in
“Settings -> Wireless and Network -> Data Connection”. Click “SIM1, SIM2 or No Data Connection”. Once
activated, the selection will turn green.
Bluetooth
Bluetooth is a short-range wireless communications technology that devices can use to exchange information
and connect to different types of devices which include headsets, car kits, and other devices.

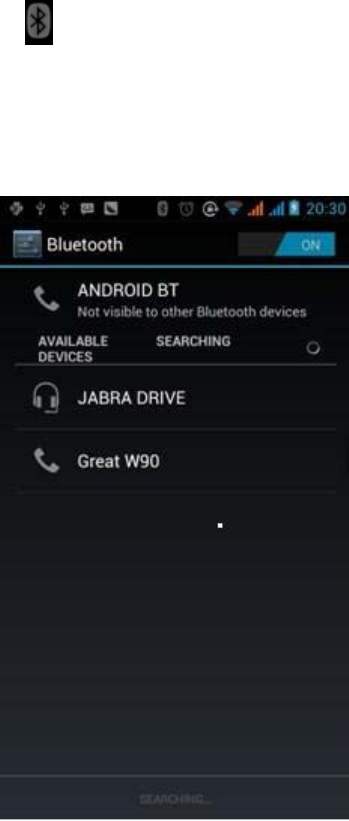

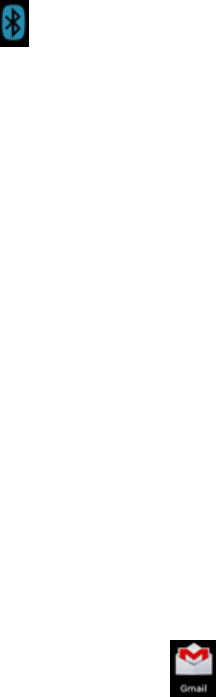

To pow er on Bluetooth
1) Main menu -> Settings-> Bluetooth and select to power on Bluetooth.
2) Press wireless and networks and click on the Bluetooth switch to turn on the Bluetooth function. The
Bluetooth icon will appear grey in the in the notif ication bar. Click “scan for devices” and the phone will
start to scan for all devices within range.
3) In Bluetooth settings all the devices found will displayed in the list under the icon.
I mportant: The maximum detecting time of the phone is 2 minutes.
9
Pairing and connection of Bluetooth
1) Press Home -> Menu -> Settings
2) Under Wireless & Networks select Bluetooth box to ON and the phone will scan for the Bluetooth devices
within range and display the searched results. I f the phone cannot f ind your equipment, attempt to re-scan it
and make sure that the devices wanted are under the detected mode.
3) Click on the headset in the equipment list to f inish the connection.
Notice: Bluetooth devices often use 0000 as the default password.
4) The pairing and connection status will show under the Bluetooth devices list. When the headset is
connected to your phone, a blue lit icon will display in the notif ication bar.
Email
5.1 Gmail
Create an Account
Select mail -> settings. You can activate or edit existing e-mail accounts as well as create a new e-mail
account.
Select mail and Google account when the interface appears. Then select ‘next step’ -> create account ->
enter name, last name and e-mail account.
Google servers determine whether the name can be used, if so, new interface appears prompting enter
password. Users who don’t meet the password requirements will need to re-enter the password.
Load an Account
Open Gmail -> Select load
Enter email and password then load
The Gmail client will display “login successful” and the Google account will be synchronized
Create and Send Emails
When creating an email, enter the recipient, theme and contents. You may “attach” f iles, add “Cc/Bcc”.
Receive Emails
For new emails, an alert tone will sound and a Gmail icon will appear in the notif ication bar.
Delete Account
When deleting an email account, you need to restore factory settings. I f there is more than one account, any
subsequent email addresses may be deleted from the menu.
Notice：Many applications depend on a Gmail Account like Google Play, Google Talk, Sync Contact and
Calendar.
5.2 Email
Load Email
Open the email application
In the setting account interface, input the correct email address and password and click next. The
mobile phone will automatically complete the server settings, mail frequency, and user settings
interface will appear. Enter and complete the user settings and click next.
Select the account name associated with the email and click next to synchronize the mailbox.
10
Create and send Email
When creating an email, enter the recipient, theme and contents. You may “attach” f iles, add “Cc/Bcc”.

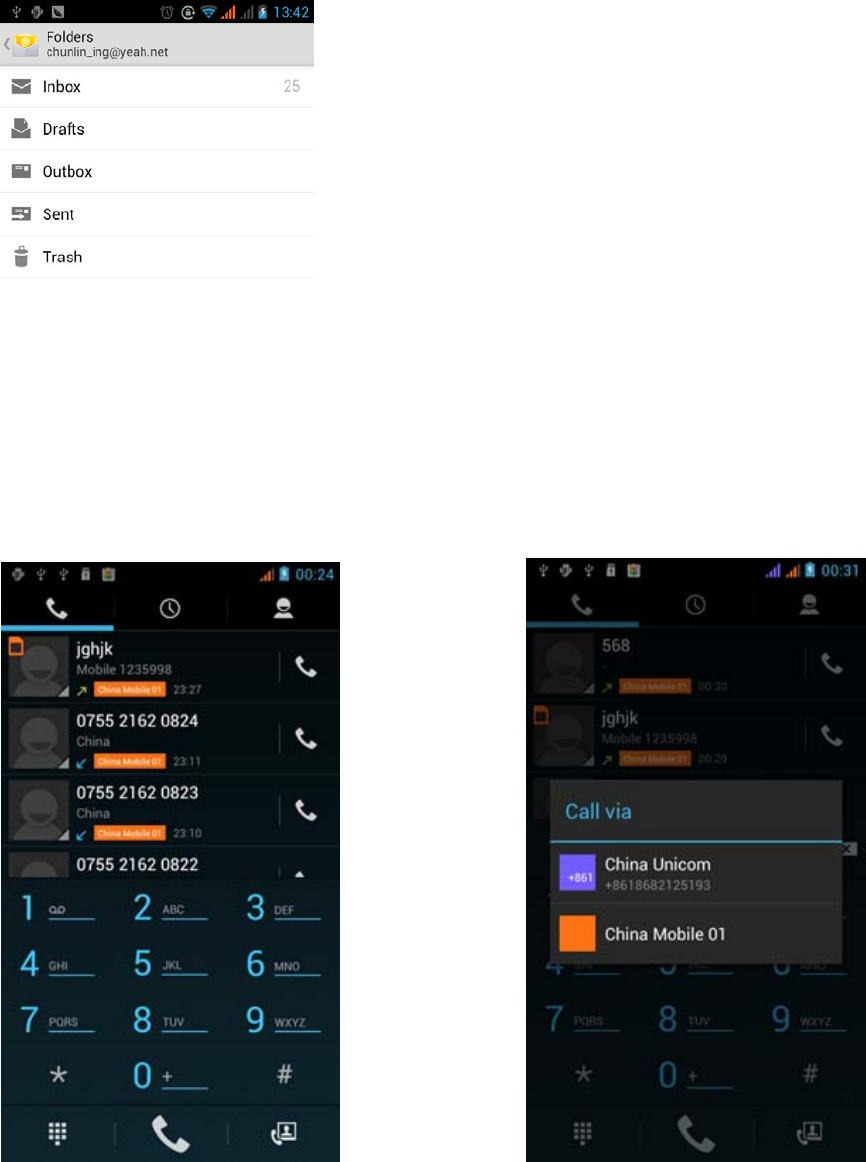

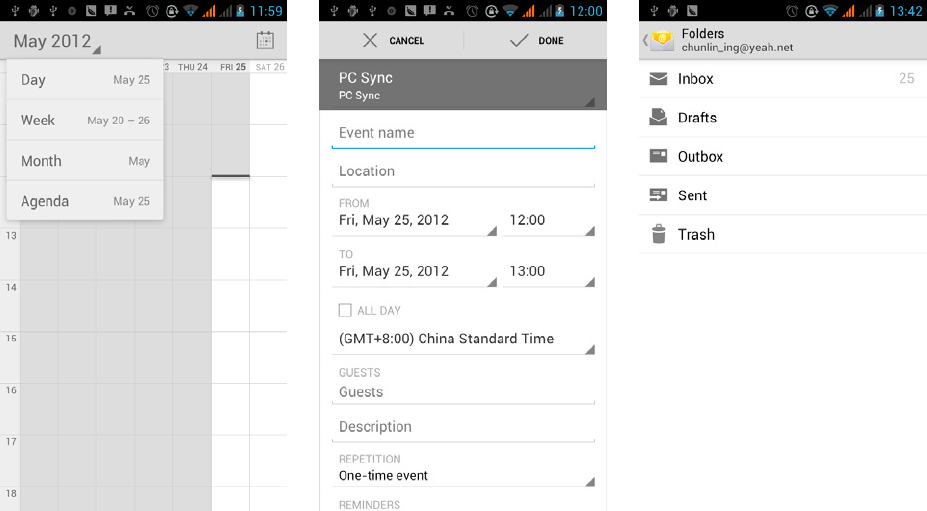

Folder Options
Click on the bottom and list all folder options
Dialing
At the dial keyboard, enter the phone number and then click the dial key. You may choose which SIM card the
call will be placed on. I f dialing an extension, you may click the dial pad icon in the bottom of the screen to
open the interface and enter the number of the extension. You may also enter an input number and call
contacts through speed dial.
Video Call
The video call usually refers to a phone call placed via a mobile I nternet based on 3G I nternet. The video call
implements real-time transmission of image and audio as a way to communicate. I nput a number and click
video dial-up to place the phone call and the phone will transmit the call through the camera for the video call.
Be advised that only 3G mobile services support this function.
11
Call Logs
Every telephone number called and received will be saved in the phone’s call log. There will be an indicator on
the top left of the call record that will display SI M1 or SI M2. All numbers in the call log can be dialed directly
by clicking the dial icon on the right side of the screen. When the number appears on the list, click it to view
details. You may also long press it to dial via SIM1 or SI M 2 or to edit, delete, save number and do other
operations.
Receive Calls
When receiving an incoming call, answer the call by sliding the “Answer” button towards the middle of the
screen.
Proximity Sensor
The proximity sensor determines how far away an object is from the device. During the call or when you place
the phone close to the ear, the backlight will turn off automatically which conserves battery and prevents
inadvertently touching.
Decline Calls
When a call comes in during stand by, press “Ignore” button and slide the key towards the middle of
the screen and the call will not be received.
During a call, click on the Ignore button to decline the phone call.

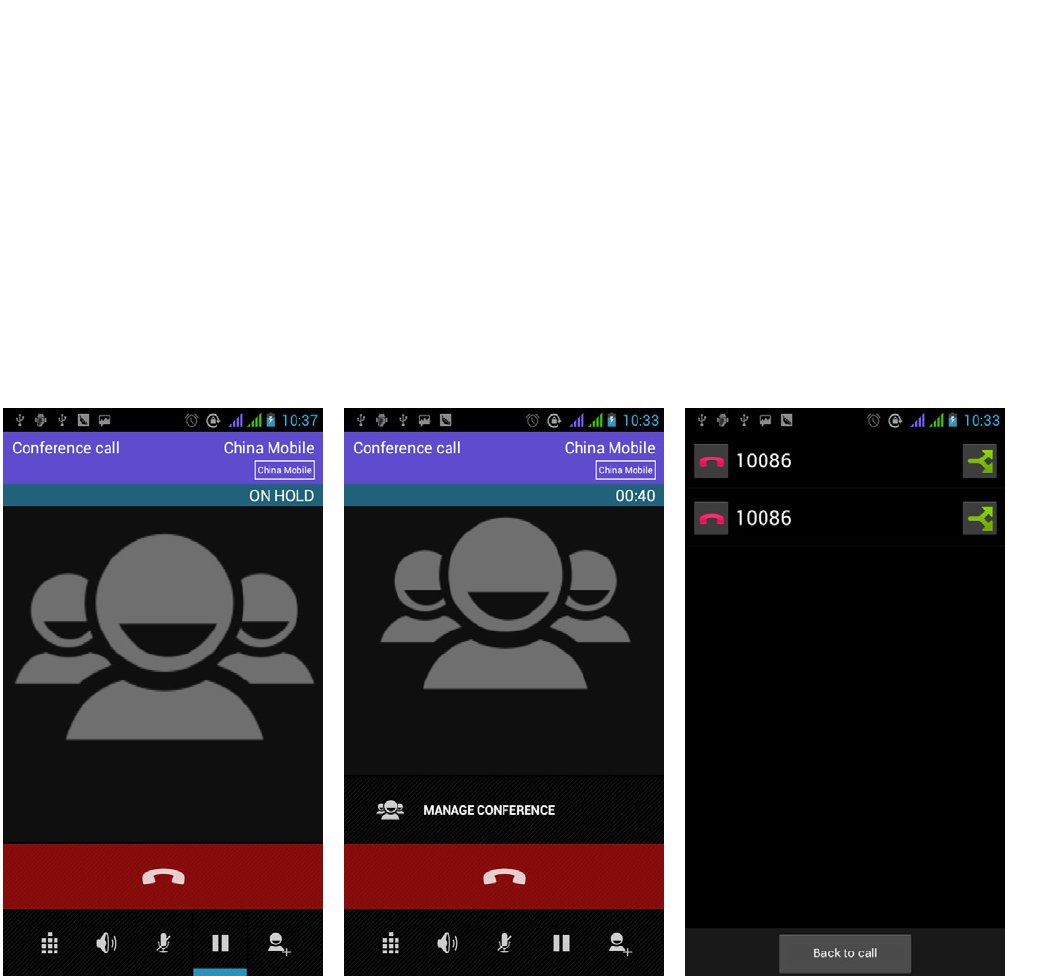

Two-way Call/ Multi- party Calls ( Conference call)
1. During an existing call
2. Click “Add calls”，dial another call（or receive another call).
3. Select the merge option to combine the two calls.
4. After multiparty call connected, you may separate the calls or hang up via the small conference call
arrow.
Record Conversations
During the call press more -> Start record and you may record the dialog of the call.
12
Call Transfer and Waiting
In settings -> Dialing Settings -> Other Dialing Settings. After the settings are turned on, you may
transfer the call to another number.
In settings -> Dialing Settings -> Other Dialing Settings and select the Call Waiting option. After the
setting is turned on, you may receive an incoming call during an existing call.

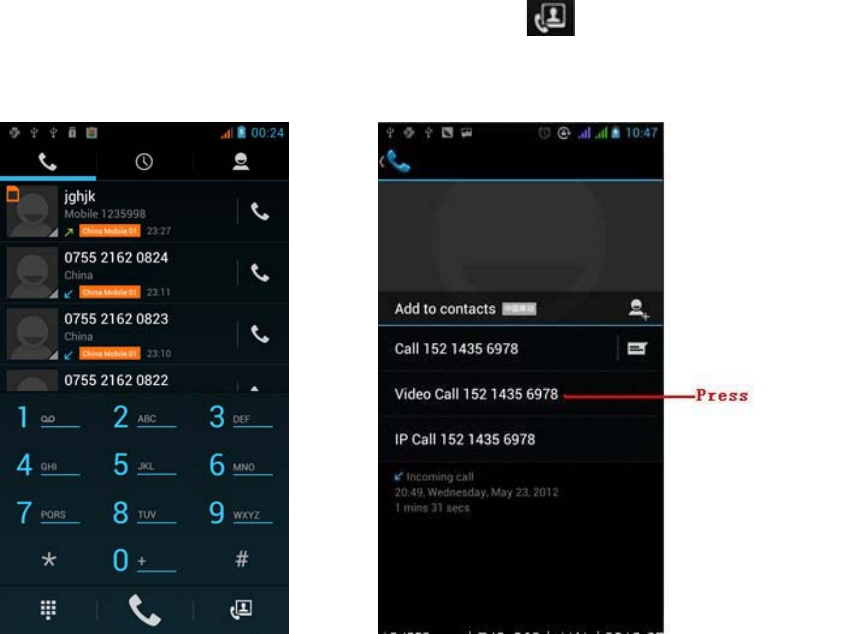

Video Call
In the dialing interface, enter numbers and then press the icon so the video call may be completed.
Another way of dialing a video call would be to open the application menu and go to Contacts. In the Contacts
menu, long press a contact’s phone number and select the “Video Call” from the submenu.
Call Settings
Voice Call
Voice Mail: The voice mailbox and voicemail number.
IP prefix number: Setting different of SI M card I P pref ix numbers.
Call Forwarding: Can set call forwarding to another number.
Call Barring: Can set respectively two to the SIM card call restrictions.
Additional Settings：a) Phone Number b) Call Waiting
Video Call
Local video replacement: Set a picture to display when camera is offline.
Display peer video：Display picture for replacing peer video.
Peer video replacement：Set a picture to display when peer video is unavailable.
Enable back camera：Enables the rear camera.
Bigger Peer Video：Turn on setting to make peer video bigger than local video
Auto drop back：Drop back to voice call.
Outgoing video call：Display local video when making a video call.
Incoming video call：Display local video when accepting an incoming video call.
Other settings：a) Call Forwarding b) Call Barring c) Additional settings
I nternet Call
1) Account 2) Use I nternet calling
13
Other Settings
1. Fixed Dialing Numbers
2. Minute Reminder: Turn on a minute reminder at the 50th second of every minute.
3. Quick Response: Can edit the text information for quick response options.
Messaging
You may use this function to exchange text messages and multimedia messages with your family and friends.
The messages to and from the same contact or phone number will be saved into a single conversation so you
may see the entire message history conveniently
Send an SMS
Press home -> Messaging -> New message
1. Click to enter recipient (You may enter contacts from contact book or enter a new number)
2. Compose Message
3. Click SI M1 or SI M2 and Send
Send an MMS
When creating message, the default message style is SMS. The message will automatically convert to MMS
when adding an attachment.
1. Click the Paperclip icon in the top of the screen
2. Click “Attach” to add the following attachments.
14
Notices:
A)IfyouwantsendMMSwithmanypages,youshouldselect
“AttachPPT”inthe“Attach”interface.
B)Youcanappend10pictures,withtheformofGIF,JPEG.
C)Click“addthemes”andthe“theme”boxwillappearunder
therecipient.
Send messages to multiple numbers
Enter multiple numbers by entering each number divided by a comma.
Click on the left side of the contact from the list to select the contact group.
Notice：The phone supports up to 20 contacts for mass messaging.
When a message is sent or sent again, a yellow letter will appear. The number 1 or 2 refers to SIM1 or
SI M2.
When sending has failed，a red triangle with an exclamation mark will appear.
15
Contacts
Enter: Click on the applications menu and select contacts
The default display is the phone contacts and SI M card contacts
The contacts are organized by f irst letter of alphabet.
Click the Search icon to enter the contact search interface.
Any numbers or letters associated with any of the contacts saved in the list will be shown in the
search results.
If there were no matches for the inputted contact, the interface will display no contacts found.
16
Add New Contact
1. Click “Add Contact” icon
2. Select to save contacts to phone or SI M card
3. You may edit contact picture, name, telephone number, group, address, and email among other
options
4. Click to finish and save contact.
Contact Options
In the phone contact interface, click on the Menu button
Delete Contacts
Ensure contact is checked and click the delete button. This process deletes the contact completely including
cell phone and SI M card of contact.
To delete all contacts, check all contacts in the list.
Display Contact
You can choose all phone contacts, SI M card contacts, and the mobile phone contacts
You may choose from the different display options including whether or not to show a specific
contact.
I mport/ Export
1. I n the mobile phone can export SI M card contacts to the SD card for storage and may also import
contacts from the SIM and SD card.
2. First choose the "copy source" and then select the next step by selecting the destination source.
Accounts
Account and synchronization sets routine settings including background data and automatic synchronization.
Share Visible Contacts
All contacts can be shared via SD card, or through Bluetooth, email, text message or MMS.
17
Add Group
Click the “Add Group” icon to create a new group.
In "the group name" column input what the group will be named. In the “contact's name" column input the
contact key word and add to the group.
In a group, click on the Menu button for Menu functions
Update Group
You can modify the group name, delete or add groups.
Delete Group
You can delete the group (will not delete the contact itself).
Send Message by Group
Automatically send new messages to the group. This is done through the recipients section of the new
message.
Send Email by Group
Automatically send new email messages to the group. This is done through the recipients section of the new
email.
18
InternetBrowser
Homepage
Select “homepage” to set and load a homepage. The vendor’s pre-set sites are set as default.
Menu Functions
Backward
After browsing through multiple pages, this option will return the user to the previous page.
Forward
After browsing through multiple pages, this option will move to a web page after the current page.
Window s
You may view all the windows open.
Bookmarks
Click the “Bookmarks” option to make the current URL as a saved bookmark.
Click the bookmark under the bookmarks list, will open the URL.
More
Add bookmarks: Save the current URL as bookmark.
Find on page: Search current page.
Select text: Click and drag to select a piece of text.
Page info: Display page address and other information of the current browsing.
Share page: Select the Bluetooth or SMS to share the current page.
Downloads: Show all the downloaded content.
History: Show your browsing history and view the most visited pages.
Setting: Contains a variety of browser settings.
19
SoundRecorder
The Sound Recorder can record voice or any audio.
You may send any recorded audio via Bluetooth or MMS and also have the option to make any recorded audio
the phones default ring tone.
Notice: The recorder only uses AMR format.
To Record
1. Click the recorder application.
2. Keep the phone’s microphone near the voice source.
3. Click the record button to record the audio.
4. Click the stop button to stop recording the audio.
All recordings will be saved in my recording folder in the default music program.
20
AlarmClock
1) Open the application
2) Click screen set alarm button and enter the alarm clock set interface
After functions set, the phone will alert you by ringing or vibrating or both to achieve its function. You may
press the menu to add additional alarms. The interface will show three default alarms which can be deleted or
edited.
Note: You may edit the alarm time, ringing tones, vibration, and repeat pattern in the alarm tabs.
21
Calculator
This function can turn your phone into calculator and do some simple mathematical calculations.
Advanced Panel: Press the Menu button or hold down the screen to the left.
Camera
Camera
Prior to use: I nstall memory card before using the camera or video camera. All photos or videos taken by the
phone are stored in the memory card.
Open Camera
1. Home -> Applications Menu -> Camera.
2. Switch to video mode if you want to make videos.
3. The screen will automatically switch to landscape mode.
Note: You may also place a camera shortcut on any of the screens
Take Pictures
1. Aim the object that the picture will be taken.
2. Press the “Shutter” button on the screen.
3. After taking the picture, the f ile will be saved in the camera’s gallery folder.
4. You can view the photos by clicking the preview box button.
You may adjust various settings for the camera by pressing Menu while in the camera interface.
When in the camera viewfinder mode, you can switch to video or photos’ gallery. On the top right of camera
viewf inder mode, you will f ind the display the preview of the previous picture taken. Click the “preview box”
and the photo will display in full screen.
22
Camera Settings
Capture mode：Normal, EV bracket shot, 4 shots, 8 shots, 16 shots.
HDR settings：On, Off.
Flash mode：Auto, On, Off.
White balance：Auto, I ncandescent, Daylight, Fluorescent, Cloudy, Twilight, Shade, Warm fluorescent.
Color effect：None, Mono, Sepia, Negative, Aqua, Blackboard, Whiteboard.
Scene mode: Auto, Normal, Night, Sunset, Party, Portrait, Landscape, Night portrait, Theatre, Beach,
Snow, Steady Photo, Fireworks, Sport, Candle light.
Camera settings：Exposure, Self-timer, Sharpness, Hue, Saturation, Brightness, Contrast, Picture Size,
ISO, AE meter, Anti-flicker, Restore defaults.
Video Camera
Prior to use: I nstall memory card before using the camera or video camera. All photos or videos taken by the
phone are stored in the memory card.
Open Camera
1. Press Home -> Applications Menu -> Camera
2. Select video camera mode
3. The screen will automatically switch to landscape mode
Recording Video
1. Aim the object that will be recorded.
2. Press the “shutter” button on the screen.
3. After recording the video, the file will be saved to the camera’s galley folder.
4. You can view the videos by clicking the preview box button.
You may adjust various settings for the camera by pressing Menu while in the camera interface.
When in the camera viewfinder mode, you can switch to video or photos’ gallery. On the top right of camera
viewf inder mode, you will f ind the display the preview of the previous video taken. Click the “preview box”
and the video will display in full screen.
23
Videos Settings
Flash Mode: On/ Off.
White balance: Auto, Incandescent, Daylight, Fluorescent, Cloudy, Twilight, Shade, and Warm
Fluorescent.
Color Effect: None, Mono, Sepia, Negative, Aqua, Blackboard, Whiteboard.
Time Lapse Interval: 1s, 1.5s, 2s, 2.5s, 3s, 5s, 10s.
Video Quality: Low, Medium, High, Fine.
Camera Settings: Exposure, Self-timer, Sharpness, Hue, Saturation, Brightness, Contrast, Picture Size,
ISO, AE meter, Anti-flicker, Restore Defaults.
Gallery
Open I mages
Press Home -> Applications Menu -> Gallery
24
Files I nterface
Long press any image files for picture options.
Share Pictures
You may share pictures by sending them through Gmail or the E-mail application. You may also send pictures
through the MMS message function by composing a message and attaching the picture. Any image can also
be sent via the Bluetooth function by selecting Bluetooth equipment that has been paired.
Adjust I mage
Edit light: Fill Light, Highlights, Shadows, Auto-Fix.
Edit image effects : Cross-process, Posturize, Logo, and Documentary.
Color Effects: Warmth, Saturation, B&W, Sepia, Negative, Tint, Duo-tone, Doodle.
Crop: Crop Red Eye, Straighten, Rotate, Flip, Sharpen.
View I mages
In the picture interface, click on a photo album to view images.
Press the thumbnail to view pictures on full screen.
You can choose to display small or large thumbnails. I n the photo album, scroll the picture towards left to
view the next picture or towards right to view the previous one.
Crop Pictures
If you want to adjust the size of the picture, please use the cutting tools. Once the arrow appears,
pinch your fingers in or out to adjust the size.
If you want to adjust the image and keep its proportion, please hold down any of the four corners of
the image and adjust accordingly.
If you wish to cut and paste an image, please press and hold.
25
Music
The following formats are available: AMR, M4A, MIDI , MP3, WAV, and OGG
Open Music
Home -> Application Menu -> Music
Search Music
You may choose to search for music from media folder through artist name, song name, album name.
26
Party Shuffle
Press Menu, and select Party Shuffle. The music will start playing from a randomly selected song.
To turn off the Party Shuffle, press Menu and press the Party Shuffle option.
View Lyrics
When the songs have a lyrics f ile, the player displays the lyric source. You may press the up arrow to play
music and view lyrics at the same time.
27
Calendar
The Calendar app lets you view and edit your schedule. The first time you open the Calendar application on
your phone, it displays any existing calendar events from that Google Account on the web.
Calendar View
Schedule View: Shows any pending activities
Daily View: Shows the daily schedule calendar view
Weekly View: Shows the weekly calendar view
Monthly View: Shows the monthly calendar view
New Events
1. I n calendar view, click menu and add new event.
2. Enter the name of activity.
3. Enter the event location, description and guests, repeat, and remind time.
4. Click finish.
Notice: I n special occasions such as birthday, select the all-day option. I f the activity is at a certain time
period, select the start time and end time.
28
FMRadio
FM Radio
Through this function, you may listen to FM radio on the device. The FM radio uses the wired headphones as
an antenna in order to receive signal. Before using this function, connect the original equipment headphones
that came with the phone.
Open FM radio
Press the FM Radio icon to open the application.
Click “Search” to start automatic scans of FM channels.
Click "Record FM" to record the current radio station.
Click "Exit" to close and completely exit the FM radio.
Remember to insert cable headphones as they function as the FM Radio’s antenna.
Click on the star icon, to add the channel to the collection channel list.
FM Radio as background
Click on the Home or Return key to move the FM Radio program to the background.
29
Settings
Notice: Your service provider may default some device settings.
SIMManagement
Select to disable the SIM card.
You may choose Voice call, Video call, Messaging, Data connection for SIM settings.
Notice: The SI M card is disabled when the flight mode is activated.
Wireless&Networks
Flight Mode
Wi-Fi and Wi-Fi settings – Click Wi-Fi to power on . When on, the Wi-Fi
will automatically search for available networks. Any unsecured network can be used directly and any
secured network requires a password or credentials.
Notice: When in flight mode, Wi-Fi will turn off automatically.
Bluetooth
Press the switch to power on Bluetooth. Once on, the Bluetooth will automatically scan for any nearby
open equipment.
DataUsage
Data usage and mobile data traffic limit.
Wireless & networks
Airplane Mode
VPN
Tethering & Portable hotspot
Mobile networks
GPRS transfer prefer mode
AudioProfiles
This option sets the phone tone settings for receiving calls or notif ications.
Some of the settings include:
Vibrate, volume, ring tones, ring tones notif ication and haptic feedback tones.
Select: Standard / Mute / Conference / Outdoor audio profiles.
Volume: Including the ring volume and alarm clock settings.
Display
(a) Brightness (b) Auto rotating screen (c) Animation (d) Screen Timeout
Storage
View the SD card and phone memory usage.
Allows the removal or formatting of the SD card.
Allows selection of the default memory.
Battery
General power usage
30
Applications
Unknown sources - Allows to install non-Google market applications
Manage applications - Manage and delete installed applications.
Running services - Press any of the services listed in the two-button operation box. Press the ‘Stop’
button to stop any of the services listed and removes from the "running services" list.
Storage use - View all the downloaded programs and how many memory space they occupy.
Battery use – View the power consumption of standby, phone idle, display and browser options.
Development - USB debugging - Debugging only applies during the development process. This
function allows the copying data in computer and mobile devices and corrects programming errors.
Synchronization
Background data - Applications using the background data synchronization send and receive data at
any time. Disable the background data extend battery life and reduce data usage. There may be some
applications will use the background data for the connection.
Automatic synchronization - Applications automatically synchronizes data.
LocationServices
Use wireless - Use wireless services to find locations in applications.
When using the GPS satellite positioning, set accuracy to street level (Cancel it to save battery).
GPS EPO assistance: Use GPS assistance data (EPO) to speed up GPS positioning.
A-GPS: The use of auxiliary data can accelerate the process of GPS positioning.
Security
Set up screen locks: Use a pattern, PI N or password to lock the screen.
Pattern: The first time there will be simple unlock instructions and examples. Click “next step” to
continue the security pattern step.
PI N: Enter PI N number to unlock the screen.
Password: Set password to unlock the screen.
You may stop the security feature at any time.
Set up SI M card PI N lock
SI M card PI N (Personal I dentification Number) is used to prevent unauthorized use of SI M cards.
To change a blocked PIN code, you will need to unlock the SI M lock then go to the Change Password screen.
The phone will automatically prompt you enter the old PIN code and ask to enter a new PIN code twice. The
phone will then prompt you that the change was successful. If you enter the PI N incorrectly three times, the
SI M and PI N codes will be automatically locked. You will need the PUK code to unlock the phone which is
available through your service provider. I f you enter the PUK code incorrectly 10 times, the SIM card will be
permanently locked. Please see your service provider for a new SIM card.
Password visible – Make the password visible when it’s typed.
Select device administration - Add or delete device manager.
Use security credentials - Allow applications to visit security credentials or other credentials.
Install from SD card - I nstall the encrypted certificate from SD card.
Set password - Set or change Certificate store password
Clear storage - Clear all the contents of the certificate store and reset their passwords.
31
LanguageandInput
Language – Change the language of the phone.
Custom Dictionary - Add or delete words to the custom dictionary.
Keyboard Settings – (a) Haptic vibration (b) Haptic tones (c) Capitalizing (d) Speech Input (e)
Inputting words (f) Predictive text function (g) Auto-Text (h) I nput keyboard method
BackUp&Reset
Backup Data – Will backup all application data, WLAN passwords, and other settings to Google's
servers
Restore to Factory Settings - Clear all data stored on the phone.
Date&Time
Automation - Use date and time provided by Network.
Date - Press “+ ” and”-” to set date.
Time Zone - Select Time Zone according to where your location.
Time – Press “+ ” and”-” to set time.
Use 24 Hour Time Format
Select Date Format - There are 3 kinds of formats you can choose from: Month-Day-Year,
Day-Month-Year and Year-Month-Day, and Year-Month-Day which is the default setting.
SchedulePowerOn/Off
You may set the boot time or shutdown. You may also select the option to repeat it a certain day
during a week.
Accessibility
Large text
Power button ends call
Auto-rotate screen
Speak Passwords
Touch Delay
Install web scripts
Quick boot
DeveloperOptions
USB Debugging
Stay awake
Allow mock locations
Desktop backup password
Strict mode enabled
Pointer location
Show touches
Show screen updates
Show CPU usage
Force GPU rendering
Window animation scale
Transition animation scale
Background process limit
AboutPhone
You can check the information on status and remaining power.
32
FCCRegulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiated radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation I f this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-I ncrease the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
Caution: Changes or modif ications not expressly approved by the party responsible for compliance could void
the user‘s authority to operate the equipment.
RFExposureInformation(SAR)
This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency
(RF) energy set by the Federal Communications Commission of the United States, Industry Canada of
Canada.
During SAR testing, this device was set to transmit at its highest certif ied power level in all tested frequency
bands, and placed in positions that simulate RF exposure in usage against the head with no separation, and
near the body with the separation of 10 mm. Although the SAR is determined at the highest certif ied power
level, the actual SAR level of the device while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels so as to use only the power required to
reach the network. In general, the closer you are to a wireless base station antenna, the lower the power
output.
The exposure standard for wireless devices employing a unit of measurement is known as the Specif ic
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/ kg, and 1.6W/ kg by I ndustry Canada.
This device is complied with SAR for general population / uncontrolled exposure limits in ANSI /I EEE
C95.1-1992 and Canada RSS 102, and had been tested in accordance with the measurement methods and
procedures specif ied in OET Bulletin 65 Supplement C, and Canada RSS 102. This device has been tested,
and meets the FCC, I C RF exposure guidelines when tested with the device directly contacted to the body.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated
as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with
the FCC and can be found under the Display Grant section of www.fcc.gov/ oet/ ea/ fccid after searching on
33
FCC I D: YHLBLUSTUDIOⅡ.
For this device, the highest reported SAR value for usage against the head is 0.32 W/ kg, for usage near the
body is 0.79 W/ kg.
While there may be differences between the SAR levels of various phones and at various positions, they all
meet the government requirements.
SAR compliance for body-worn operation is based on a separation distance of 10 mm between the unit and
the human body. Carry this device at least 10 mm away from your body to ensure RF exposure level
compliant or lower to the reported level. To support body-worn operation, choose the belt clips or
holsters, which do not contain metallic components, to maintain a separation of 10 mm between this
device and your body.
RF exposure compliance with any body-worn accessory, which contains metal, was not tested and certif ied,
and use such body-worn accessory should be avoided.
