User manual
STUDIO M HD
User Guide
Contents
1. For your safety ............................................................................................................... 1
2. Learn about the phone .................................................................................................. 2
Overview ......................................................................................................................... 2
Function Keys ................................................................................................................ 2
3. Before using ................................................................................................................... 2
Insert Micro SIM and SD cards ..................................................................................... 2
Charge the Battery ......................................................................................................... 3
4. Getting started ................................................................................................................ 4
Basic Function ............................................................................................................... 4
Home screen ................................................................................................................... 4
Touch screen .................................................................................................................. 6
5. Communication .............................................................................................................. 7
Make a call ...................................................................................................................... 7
Incoming call .................................................................................................................. 7
Send a Message ............................................................................................................. 7
6. Multimedia ....................................................................................................................... 8
Camera ............................................................................................................................ 8
Gallery ........................................................................................................................... 10
Music ............................................................................................................................. 10
7. Connection .................................................................................................................... 11
Airplane mode .............................................................................................................. 11
Mobile Networks ........................................................................................................... 11
WLAN ............................................................................................................................. 11
Bluetooth ....................................................................................................................... 11
USB ................................................................................................................................ 12
8. Advanced Functions .................................................................................................... 12
Screen lock ................................................................................................................... 12

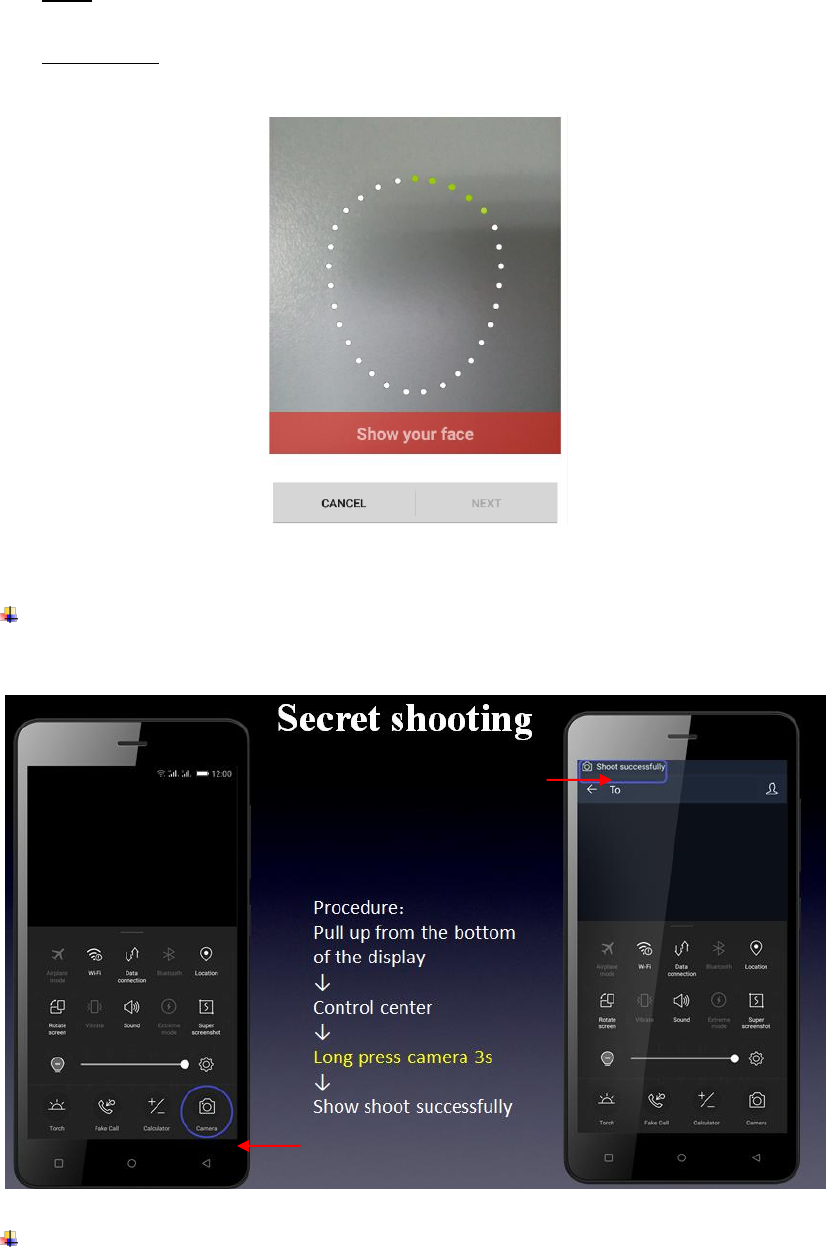

Secret shooting ............................................................................................................ 13
Super screenshot ......................................................................................................... 13
Chameleon .................................................................................................................... 16
9. Operation ...................................................................................................................... 17
Smart gestures ............................................................................................................. 17
Suspend option ............................................................................................................ 18
10. Warnings and notes .................................................................................................. 19
1
1. For your safety
Please read this manual before using the cell phone to ensure safe and proper use.
SWITCH OFF IN HOSPITALS
Please abide by relevant provisions or regulations. Please turn off your mobile phone near medical
equipment.
SWITCH OFF WHEN REFUELING
Don’t use the phone at a refueling point. Don’t use near fuel or chemicals.
MICRO SIM CARDS AND SD CARD ARE PORTABLE
Keep your phone, phone parts and accessories out of children’s reach.
BATTERY
Please do not destroy or damage the battery, it can be dangerous and cause fire.
Please do not throw battery in fire to avoid hazard.
When battery cannot be used, please dispose in safe environment.
Do not try to dismantle the battery.
If the battery or the charger is broken or old, please stop using them, and replace with certified genuine
battery
USE QUALITY EQUIPMENT
Use authorized equipment to avoid danger
ROAD SAFETY COMES FIRST
Give full attention while driving, Park before using your phone. Please follow traffic rules of local city
town.
INTERFERENCE
All wireless devices may be susceptible to cause interference, which could affect performance.
SWITCH OFF IN AIRCRAFT
Wireless devices can cause interference in aircraft. It’s not only dangerous but also illegal to use mobile
phone in an aircraft.
2
2. Learn about the phone
Overview
Function Keys
Keys
Icon
Function
Power key
a) Press to Turns on/off the screen.
b) Press and Hold to power off the phone or reboot.
Volume key
Press to adjust the volume of device.
Recent task key
Tap to open the list of recent used apps.
Shake the phone to clean all of recent used apps.
Home key
Tap to return to Home screen.
Long press to access Google™ search.
Back key
Tap to return to the previous screen.
3. Before using
The phone is a Dual SIM mobile allowing you to use the facility of two networks.
Insert Micro SIM and SD cards

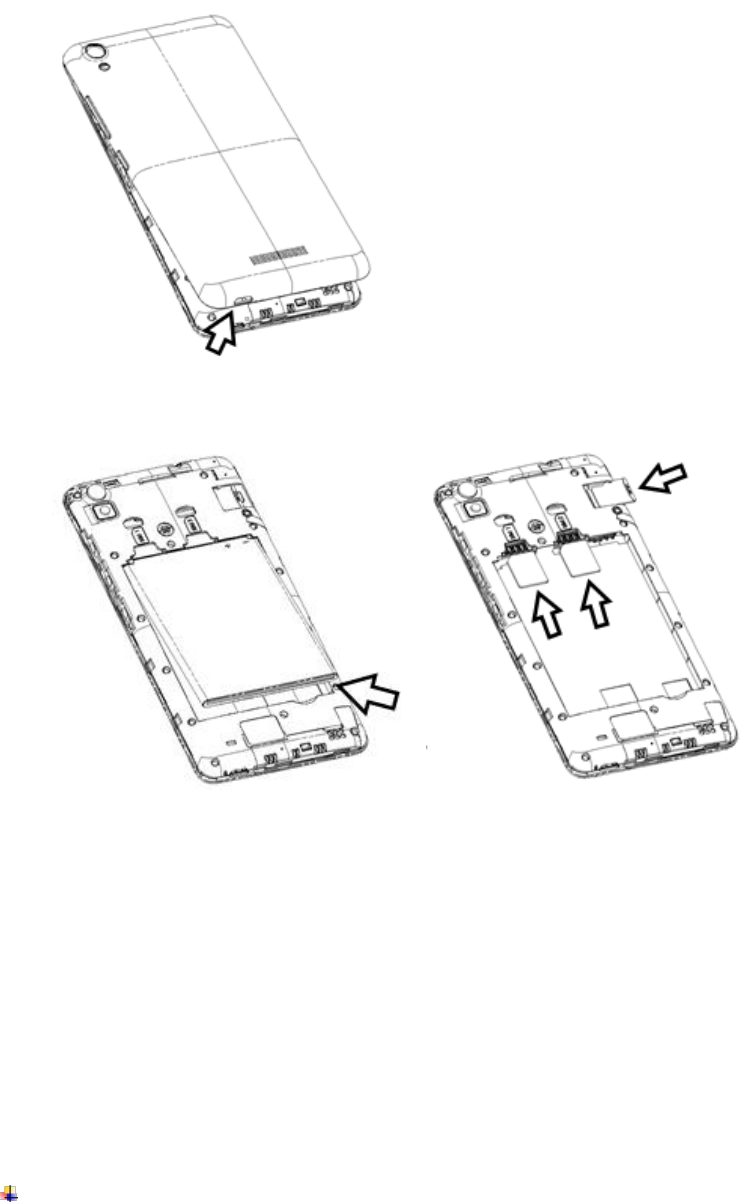

1. Switch off the mobile phone. Then remove the cover as shown in figure.
3
Note: Please start from the bottom left while removing the cover, and flip it up at the
bottom.
2. Remove the battery and insert the Micro SIM and SD cards to the card slots correctly.
① ②
3. Put back the battery and cover.
Note:
Micro SIM and SD cards don’t support hot plugging.
Do not remove the Micro SIM and SD cards while the device is transferring data.
Doing so may cause data to be lost or damage to the cards and device.
The Micro SIM card and SD card are small parts. Please keep away from Children to
avoid swallowing the card by accident.
Please do not touch the metal surface of Micro SIM and SD cards and keep them
away from electromagnetic field to avoid damage data.
Charge the Battery
Charge the battery before using it. Connect the USB cable to the USB power adaptor, and
then plug the end of the USB cable into the USB Port.
4
4. Getting started
Basic Function
Turn on the phone
Press and hold a while of power key to turn on the phone.
Turn off the phone
Long press the power key until a menu will show. Choose “Power off’’ to turn off the
phone.
Restart the phone
Long press the power key until a menu will show. Choose “Reboot’’ to restart the
phone.
Lock the screen
Option 1: Press the power key to turn off the screen and lock it
Option 2: In the Home screen, double tap the screen to lock it.
Option 3: The screen will auto lock if you don't use the phone for a while.
Unlock the screen
Press the power key, and then slide to top for unlocking.
Home screen
The Home screen is your starting point to access all the features on your phone. It
displays application icons, widgets, and other features. You can customize the Home
screen with different wallpaper and display the items you want.
5
Status Bar
At the top of the screen, it displays the time, signal, battery information, and icons for
notifications that you’ve received.
Notification Center
Swipe down from the top edge to see more detail of the new notification, such as
messaging, missed call, Wi-Fi connection. Tap the notification and drag to left or right
to delete it.
Control Center
Swipe up from the bottom edge. In the control center, it’s a quick access to Torch,
Fake call, Calculator, and Camera. You can also adjust the brightness and turn on /
off Airplane mode, Wi-Fi, Data connection, Bluetooth, Location, Rotate screen,
Vibrate, Sound, Super screenshots and Alarm.
Desktop Menu
6
Slide to top on the touch screen to open the desktop menu. You can change the
Launcher Theme & Wallpaper, edit desktop. It’s quick to access to Desktop Settings,
System Settings and Search.
Move an application
Touch & hold the icon you want to move. Drag the icon to move or cross at the edge
of the screen to move into another screen.
Uninstall an application
Touch & hold the icon you want to uninstall. The top / bottom of the icon will appear
“Uninstall”. Tap it to uninstall.
Creating a folder
Drag an icon on the top of another one to create a folder. Open the folder and then
touch & hold the folder name to rename it.
Touch screen
The way to control mobile phone is using your finger on touch icons, buttons, menu items,
the onscreen keyboard, and other items on the touch screen.
Touch: To act on items on the screen, such as application and settings icons, to type
letters and symbols using the onscreen keyboard, or to press onscreen buttons, you
simply touch them with your finger.
Touch & hold: Touch & hold an item on the screen by touching it and not lifting your
finger until an action occurs.
Drag: Touch & hold an item for a moment and then, without lifting your finger, move
your finger on the screen until you reach the target position. You can drag items on the
Home screen to reposition them and you can drag to open the Notification Center.
Swipe or slide: To swipe or slide, quickly move your finger across the surface of the
screen, without pausing when you first touch (so you don’t drag an item instead). For
example, you slide the screen up or down to scroll a list, and in same way Calendar
views you can swipe quickly across the screen to change the range of time visible.
Pinch: In some applications (Such as Maps and Gallery) you can zoom in and out by
placing finger and thumb on the screen at same time and pinching them out together
7
(to zoom out) or spreading them apart (to zoom in).
Rotate the screen: On most screens, the orientation of the screen rotates with the
phone as you turn it from upright to its side and back again. You can turn this feature
on and off.
5. Communication
Make a call
Touch the phone icon on the Home screen.
Enter the phone number you want to dial.
Touch the phone icon to dial the number that you entered.
Incoming call
Send a Message
You can use this phone to exchange text messages and multimedia messages with your
Touch to open contacts
Touch to make an audio call.
Touch to open advanced option.
Drag the phone icon on
right to answer the call.
Drag the phone icon on left
to reject the call.
Drag the phone icon to down to reject the call and
send a message to caller.
8
friends on their mobile phones. The messages come to and from the same contact or
phone number will be visible into a single conversation, so you can see your entire
message history with a person conveniently.
Enter text
Tap a text field to see onscreen keyboard.
Tap the keys on the keyboard to type; the characters you’ve entered appear in a strip
above the keyboard. With suggestions for the word you are typing to the right.
Use the Delete key to erase characters to the left of the cursor.
When you’re finished typing, Press Back to close the keyboard.
6. Multimedia
Camera
Camera is a combination of camera and camcorder that you use to shoot and share
pictures and videos. Tap the image on the camera screen where should focus on. You can
also change camera setting like transfer front and rear camera, adjust the exposure on
this screen.
Take a photo
Delete
Number & Symbol
input.
Tap to transfer between
lowercase and uppercase.
Tap to another line.
Enter a space. Long press to voice input.
Choose a language and keyboard mode.
Emoji Keyboard
9
Normal Mode -Take a photo.
Face Beauty Mode - DIY your face with Smoother, Whitening, Slimming, Enlarger.
Drag the slider to adjust it.
Filter Mode - Multiple filters can choose. Normal, LOMO, Hazy, Halos, Time, Food,
Beauty, Sweet, Vintage, B&W.
HDR Mode - High-Dynamic Range mode will improve the light and the shadow effect
at the same time. For Rear camera only.
Panorama Mode - Press camera button and move the phone on one direction slowly.
For Rear camera only.
Pic Note Mode - Intelligent crop and optimize the text photo once shooting. For Rear
camera only.
Touch to enter the Camera Settings.
Touch to enter the Mode
setting.
Touch to set flash to On, Off or auto.
Touch to transfer between rear camera and front camera.
Touch to take a picture or shoot a video.
Touch to enter Gallery
Touch to transfer between camera
and video recorder.
Touch the screen to focus on it.
Pinch or spread the screen to
zoom in or zoom out.
10
Shoot a Video
Tap video icon to switch it for video capturing mode.
Adjust the quality and other settings if you wish or leave them on automatic mode.
Point the lens to frame the scene where you want to start.
Touch the Start Video icon. Camera starts shooting the video.
Touch Stop video icon to stop shooting. An image from your most recent video is
displayed as a thumbnail at the bottom left
Gallery
Touch the Gallery icon in the Launcher to view albums of your pictures and videos which
you’ve taken from camera. You may share the pictures and videos with your friends by
Messaging, Email, Bluetooth and so on.
You can also encrypt the private photos.
To View files: Gallery-->Pinch out and enter private album
To Backup files: File Explorer --> File --> Phone storage --> Pictures --> More -->
Show hidden files --> .Gallery Safe --> si.
Music
You can use Music player to organize and listen to music and other audio files that you
transfer to your phone from your computer.
Touch to Change play mode
of Repeat One, Shuffle, or
Repeat List.
Add to my favorites
or New Playlist.
Settings Menu
Share music by Bluetooth,
Email, Messaging and so on.
Slide to right for current list
Slide to left for lyrics file.
Previous song
Next song
Play/ Pause
11
7. Connection
Your phone can connect to a variety of networks and devices, including mobile networks
for voice and data transmission, WLAN data networks, and Bluetooth devices, such as
headsets. You can also connect your phone to a computer, to transfer files from your
phone storage, and share your phone’s mobile data connection via USB or as a portable
WLAN hotspot.
Airplane mode
Option1: Settings-->Airplane mode to turn it on
Option2: Swipe up from the bottom edge to open control center--> tap Airplane mode
Some locations like Airplane may require you to turn off your phone’s Cellular network,
WLAN, and Bluetooth wireless connections. You can turn off all these wireless
connections at once by placing your phone in Airplane mode.
Mobile Networks
When you assemble your phone with a SIM card from your wireless service provider, your
phone is configured to use your provider’s mobile networks for voice calls and for
transmitting data.
Settings-->Mobile networks-->Network operators
The name of the wireless service provider you’re currently registered with is selected in
the list.
WLAN
WLAN is a wireless networking technology that can provide internet access at distance of
up to 100 meters, depending on the WLAN router and your surroundings. You can
configure the WLAN as follow:
Settings-->WLAN, check WLAN to turn it on.
Enter WLAN. The phone scans for available WLAN networks and displays the names
of those it finds. Secured networks are indicated with a Lock icon. The phone will auto
login the network if you previously connected.
Touch a network to connect to it.
If the network is open, you are prompted to confirm that you want to connect to that
network by touching connect. If the network is secured, you’re prompted to enter a
password or other credentials.
Bluetooth
Bluetooth is a short-range wireless communications technology that devices can use to
exchange information over a distance of about 10 meters. The most common Bluetooth
devices are headphones for making calls or listening to music, hands-free kits for cars,
and other portable device, including laptops and cell phones.
To send a file
Settings--> Bluetooth, check Bluetooth to turn it on.
12
Enter File Explorer to select a file, Select More--> Share--> Bluetooth.
Touch Scan for devices, the phone will scan for and display the names of all
available Bluetooth devices in range.
Touch the names of the other device in the list to pair them. After paired the file will be
sent.
To receive a file
Settings--> Bluetooth, check Bluetooth to turn it on. Ensure your Bluetooth has been
connected within visibility time.
You can receive files from the devices which are paired with yours. The file you received
will be saved to the “Bluetooth” folder in the File Explorer.
To connect to a Handsfree device
Turn on the Handsfree device, make it in a searchable state;
Settings-->Bluetooth, Select “Search for devices”;
After searched the Handsfree device，Select it in the list to pair.
After paired, you can use the Handsfree device to listen to music, video and receive
call.
USB
You can connect the phone to your computer with a USB cable to transfer music, pictures,
and other files.
Turn on USB connection
1. Connect the phone to your computer with a USB cable.
2. Open the notification center and tap Connected as a media device to access files
on this device.
3. Other USB options can be chosen.
Charge Phone, connected as a USB for charging.
View photos, connected as a camera to browse photos on PC only.
Notice:
Do not disconnect the USB cable from the phone when you are transferring files.
Doing so may cause data loss or phone damage.
8. Advanced Functions
Screen lock
There are 4 options to choose, Swipe, Security password, None, and Face unlock
Swipe
In lock screen, slide to top for unlocking.
Security password
Set up a security password to protect your phone. Including Pattern, PIN and mixed
password.
13
None
Use the phone directly.
Face Unlock
1) Look at your phone and adjust your face inside the dots to set up.
2) Turn on the screen and show your face to front camera when you want to unlock.
Secret shooting
In control center, long press the Camera key at 3 seconds to take a photo secretly. The
secret photo is auto saved in “Phone Storage/SD Card --> DCIM --> Camera”.
Super screenshot
In control center, tap to access Super screenshots. Super screenshots included Normal
screenshots, Long screenshots and Part screenshots. The image is saved in the “Phone
Storage / SD card --> Screenshots”
14
Normal screenshots
Capture 1 page in screenshots.
Long screenshots
Capture 10 pages at most in screenshots. It’s easy for you to save conversations in
commutation tools, articles in website and so on.
15
Part screenshots
Capture part size in screenshots. You can adjust the size with square on the screen.
16
Chameleon
With Chameleon, you can pick color with front or rear camera. Click anywhere or drag the
color point to choose your favorite to design the colors of phone background.
Color Preview
Tap to restore the
system default colors.
Tap to transfer between
front and rear camera.
Introduction
Tap to preview the pick
color.
Pick colors
17
9. Operation
Smart gestures
Settings-->Advanced settings--> Smart gestures to turn it on.
The smart gestures system supports a variety of experience and control, through gesture
can be more convenient operation. Some of the smart gesture functions will not work
while flip cover is closed.
Pause alarm
Settings--> Advanced settings--> Smart gestures -->Select Pause alarm
Flip back the phone to pause the on-going alarm.
① ②
Black screen gestures
Settings--> Advanced settings--> Smart gestures --> Select Black screen gestures
Draw pattern to access menu quickly while phone is in sleep mode.
Smart vibration remind
18
Settings--> Advanced settings--> Smart gestures --> Select Smart vibration remind
Phone vibrate to remind the unread message or missed call notification in sleep mode.
① ②
Smart bright screen
Settings--> Advanced settings--> Smart gestures--> Select Smart bright screen
When front camera detects you are viewing screen, the screen can be maintained
normally. Enable this function, the status bar will display this icon .
The following scenario, the function maybe failure:
-User doesn’t face on the screen
-The light is too strong or too dark
-Front camera is used by other applications
Double click wake
Settings--> Advanced Settings--> Smart Gestures--> Select Double click wake
In sleep screen, quick double tapping can wake up the mobile phone.
① ②
Suspend option
Suspend option helps you to use the mobile phone without press the key. You can do the
action just by tapping the screen.
Settings--> Advanced settings--> Suspend option to turn it on.
Long press can be hidden in the notification bar.
19
10. Warnings and notes
Operational Warnings
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. Read this
information before using your phone. For the safe and efficient operation of your phone,
observe these guidelines:
Potentially explosive at atmospheres: Turn off your phone when you are in any areas
with a potentially explosive atmosphere, such as fueling areas (gas or petrol stations,
below deck on boats), storage facilities for fuel or chemicals, blasting areas and areas
near electrical blasting caps, and areas where there are chemicals or particles (Such as
metal powders, grains, and dust) in the air.
Interference to medical and personal Electronic Devices: Most but not all electronic
equipment is shielded from RF signals and certain electronic equipment may not be
shielded against the RF signals from your phone.
Audio Safety: This phone is capable of producing loud noises which may damage your
hearing. When using the speaker phone feature, it is recommended that you place your
phone at a safe distance from your ear.
Other Medical Devices, hospitals: If you use any other personal medical device, consult
the manufacture of your device to determine if it is adequately shielded from external RF
energy. Your physician may be able to assist you in obtaining this information. Turn your
phone OFF in health care facilities when any regulations posted in these areas instruct
you to do so. Hospitals or health care facilities may be using equipment that could be
sensitive to external RF energy.
Product statement on handling and use: You alone are responsible for how you use
your phone and any consequences of its use.
You must always switch off your phone wherever the use of a phone is prohibited. Use of
your phone is subject to safety measures designed to protect users and their environment.
Always treat your phone and its accessories with care and keep it in a clean and dust-free
place
Do not expose your phone or its accessories to open flames or lit tobacco products.
Do not expose your phone or its accessories to liquid, moisture, or high humidity.
Tap to return to the previous
screen.
Close
Tap to return to the Home
screen.
Tap to lock the screen.
Tap to open the Options.
20
Do not drop, throw, or try to bend your phone or its accessories
Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its
accessories.
Do not attempt to disassemble your phone or its accessories; only authorized personnel
must do so.
Do not expose your phone or its accessories to extreme temperatures, minimum 32℉and
maximum 113℉(0℃ to 45℃).
Battery: Your phone includes an internal lithium-ion or lithium-ion polymer battery. Please
note that use of certain data applications can result in heavy battery use and may require
frequent battery charging. Any disposal of the phone or battery must comply with laws and
regulations pertaining to lithium-ion or lithium-ion polymer batteries.
Faulty and damaged products: Do not attempt to disassemble the phone or its
accessory. Only qualified personnel must service or repair the phone or its accessory. If
your phone or its accessory has been submerged in water, Punctured, or subjected to a
severe fall, do not use it until you have taken it to be checked at an authorized service
center.
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Note:
Caution: Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
21
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed the emission limits for exposure
to radio frequency (RF) energy set by the Federal Communications Commission of the
United States.
During SAR testing, this device was set to transmit at its highest certified power level in all
tested frequency bands, and placed in positions that simulate RF exposure in usage
against the head with no separation, and near the body with the separation of 10 mm.
Although the SAR is determined at the highest certified power level, the actual SAR level
of the device while operating can be well below the maximum value. This is because the
phone is designed to operate at multiple power levels so as to use only the power required
to reach the network. In general, the closer you are to a wireless base station antenna, the
lower the power output.
The exposure standard for wireless devices employing a unit of measurement is known as
the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general population /uncontrolled exposure limits in
ANSI/IEEE C95.1-1992 and had been tested in accordance with the measurement
methods and procedures specified in IEEE1528.
The FCC has granted an Equipment Authorization for this model phone with all reported
SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and can be found under the
Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID:
YHLBLUSTUDIOMHD.
For this device, the highest reported SAR value for usage against the head is 0.82
W/kg, for usage near the body is 1.16 W/kg.
While there may be differences between the SAR levels of various phones and at various
positions, they all meet the government requirements.
SAR compliance for body-worn operation is based on a separation distance of 10 mm
between the unit and the human body. Carry this device at least 10 mm away from your
body to ensure RF exposure level compliant or lower to the reported level. To support
body-worn operation, choose the belt clips or holsters, which do not contain metallic
components, to maintain a separation of 10 mm between this device and your body.
RF exposure compliance with any body-worn accessory, which contains metal, was not
tested and certified, and use such body-worn accessory should be avoided.
22
IC Notice
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
IC: 11492A-STUDIOMHD
IC Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure
limits in IC RSS-102 and had been tested in accordance with the measurement
methods and procedures specified in IEEE 1528 and IEC 62209. This equipment
should be installed and operated with minimum distance 1.0 cm between the
radiator and your body. This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or transmitter.
Cet appareil est conforme aux limites d'exposition DAS incontrôlée pour la population
générale de la norme CNR-102 d'Industrie Canada et a été testé en conformité avec
les méthodes de mesure et procédures spécifiées dans IEEE 1528 et IEC 62209.
Cet appareil doit être installé et utilisé avec une distance minimale de 1.0 cm entre
l’émetteur et votre corps. Cet appareil et sa ou ses antennes ne doivent pas être
co-localisés ou fonctionner en conjonction avec tout autre antenne ou transmetteur.
Android, Google, Google Play, the Google Play logo and other marks are trademarks of Google Inc.
