User manual
1
STUDIO X8 HD
user manual
2
Table of Contents
Appearance and Key Function .......................... 7
Introduction ............................................................ 8
Call Functions ....................................................... 9
Contacts ................................................................ 11
Camera .................................................................. 18
Gallery ................................................................... 20
Music...................................................................... 22
3
Sound Recorder .................................................. 23
Alarm Clock .......................................................... 24
FM Radio ............................................................... 25
Play Store ............................................................. 26
Settings ................................................................. 27
Storage .................................................................. 33
FCC Rules Compliance ..................................... 34
ISED Notice .......................................................... 37
5
Safety Information
Please carefully read the iterms below:
Use Safely
Do not use the phone in situations where it might cause danger.
Transportation Safety
Please observe all transportation laws and regulations.
Please drive with both hands on the wheel.
DO NOT TEXT AND DRIVE
Hospitals
Please follow limitations.
Please turn off your mobile phone when near medical instruments.
Airports
Remember to follow all airport and flight safety regulations.
Please do not use your phone during flight.
6
Toxic Chemicals
Do not use your mobile phone around fuels or chemicals.
Hazard
Do not use in hazardous areas where explosions may occur.
Accessories and Batteries
Use only Blu authorized batteries and accessories.
Backup
Remember to keep a written record of all important information.
Water
Your phone is not waterproof. Keep it away from water and liquids.
SOS Emergency Calls
Make sure your mobile phone is switched on and in a service area. In home screen, tap the
phone key and dial 911 and send.
7
Appearance and Key Function
Power
Front Camera
Volume up/down
Back
Home
Rear Camera
Rear
Flash
Speaker
Menu
Receiver
8
Introduction
Installation of the SIM Cards
Note: Please keep the SIM card out of the reach of children. The SIM card and its contacts
are easily damaged due to scratching or bending. Please be cautious when carrying,
installing or taking out the SIM cards. SIM: Contact your cellular phone service provider
directly to obtain the SIM card.

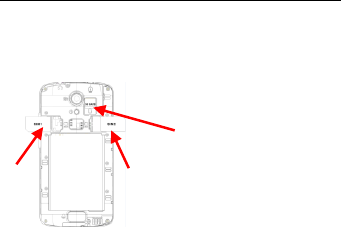

To insert SIM cards:
1. Remove the rear cover. Insert the SIM card(s).
2. Insert the SD card. (For additional storage capacity)
3. Replace the rear cover of the phone and power on.
SIM1
SIM2
SDcard
9
Power On and Off
On - Please ensure the SIM card has been properly inserted into the phone. Long press
the Power key to switch on the phone.
Off - In standby mode, long press on Power key until an options menu appears. Select
Power Off in the menu and confirm
Security
You may set a security lock feature as a security measure for the phone. For further
information regarding password locks, password revision and other functions please enter
into the security option in system settings.
Call Functions
At the dial keyboard, enter the phone number and then click the dial key. If dialing an
extension, you may click the dial pad icon in the bottom of the screen to open the interface
and enter the number of the extension. You may also press and hold the 0 key to add a (+)
sign when adding an international dialing prefix.
10

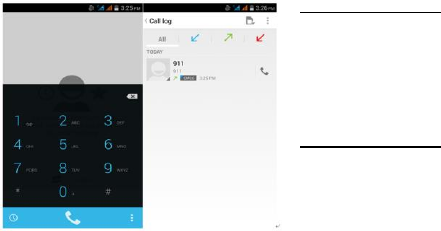

history
Every telephone number
called and received will be
saved in the history. All
numbers in the history can
be dialed directly by clicking
the CALL BACK on the
screen. When the number
appears on the list, click it to
view details.
Call Options
There are different options
that can be used in the
history and dialing interface.
You may press the MORE
while in the dial interface and
adjust speed dial and call
settings. In press the search
button to browse through contacts list or set default contact resources.
11
Contacts
Enter: Click on the applications menu and select
contacts.
• The default display is the phone contacts and
SIM card contacts.
• The contacts are organized alphabetically by
default.
Click the Search icon to enter the contact search
interface.
Any numbers or letters associated with
any of the contacts
saved in the list will be shown in the
search results.
Add Contact
Search
12

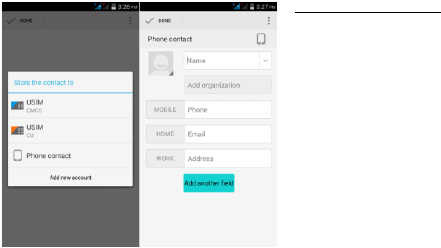

Add New Contact
1. Click the add contact icon
(+) to add contact.
2. Select to save your
contacts to the Google
account, the phone or the
SIM card.
3. You may enter different
contact details which include
adding a picture, name,
telephone number, group,
address, and email among
other options.
4. Click to finish and save
contact.
13
Messages
You may use this function to exchange text messages
and multimedia messages with your family and
friends. The messages to and from the same contact
or phone number will be saved into a single
conversation so you may see the entire message
history conveniently.
Send an SMS
Application Menu » Messaging » New message (or
shortcut icon)
1. Click to enter recipient (You may enter contacts
from contact book or enter a new number)
2. Compose Message
3. Send

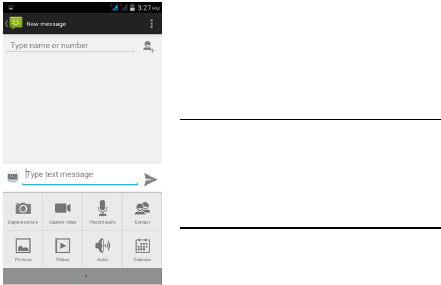

Send an MMS
When creating message, the default message style is
SMS. The message will automatically convert to MMS
when adding an attachment.
14
1. Click the attachment icon in the messaging interface.
2. Click to add attachments and create an MMS message.
Internet Browser
Menu Functions
Backward
• After browsing through multiple pages, this option will return the user to the
previous page.
Forward
• After browsing through multiple pages, this option will move to a web page after
the current page.
Windows
• You may view all windows open by clicking the windows icon in the upper right
part of the browser.
Bookmarks
• Click the save to Bookmarks option to make the current URL as a saved
Bookmark.
• Click Bookmarks/History to opened saved bookmarks.
15
Find on page: Search current
page.
Share page: Select to share the
current page.
Save for offline reading: Saves
page for offline reading.
Bookmarks/History: Show your
browsing history and view the
most visited pages.
Settings: Contains a variety of
browser settings.
16
Bluetooth & Wi-Fi
Bluetooth is a short-range wireless communications technology that devices can use to
exchange information and connect to different types of devices which include headsets and
other devices.

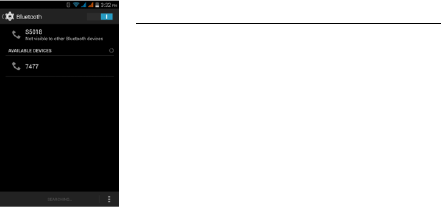

Power on Bluetooth
1) Settings » Bluetooth and select to power on Bluetooth.
2) The Bluetooth icon will appear in the notification bar. Click
“scan for devices” and the phone will start to scan for all
devices within range.
3) In Bluetooth settings all the devices found will displayed in
the list under the icon.
Note: The maximum detecting time of the phone is 2 minutes.
17
Power on Wi-Fi
1) Settings » Wi-Fi and select ON to power on Wi-Fi
2) Click on the desired Wi-Fi network to be
connected. Unsecured networks can be connected
to directly - secured networks require a password or
credentials prior to connection.
18
Camera
Camera
Prior to use: Insert SD card before using the camera or video camera. All photos or videos
taken by the phone are typically stored in the memory card for large storage capacity of
images.
Open Camera
1. Applications Menu » Camera
2. Switch to video mode if you want to record videos.
Note: You may place a camera shortcut icon on any of the screens
Take Pictures
1. Aim the object that the picture will be taken.
2. Press the “Shutter” button on the screen.
3. After taking the picture, the file will be saved in the camera’s gallery folder.
4. You can view the photos by clicking the preview box button.
You may adjust various settings for the camera by pressing Menu while in the
camera interface. When in the camera viewfinder mode, you can switch to video
or photos’ gallery.
19
Select between Camera &
Video
Settings
Picture modes
20

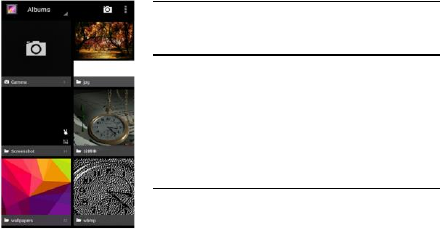

Gallery
Open Images
Applications Menu » Gallery
Share Pictures
You may share pictures by sending them through different
types of installed applications. You may also send
pictures through the MMS message function by
composing a message and attaching the picture. Any
image can also be sent via the Bluetooth function by
selecting Bluetooth equipment that has been paired.
Adjust Image
Press Menu and Edit to adjust images
You may select from different effects that may include:
Vintage, Black and White, Instant, Latte, Litho, X-Process,
21
Crop, Rotate, Mirror, Straighten, Vignette, Contrast, Exposure, Auto color, Shadows,
Vibrancy, among other settings that can be used to adjust picture images.
View Images
In the picture interface, click on an album to view images
In the photo album, scroll the picture towards left to view the next picture or towards right to
view the previous one.
Crop Pictures
If you want to adjust the size of the picture, use the crop tools. Once the arrow appears,
pinch your fingers in or out to adjust the size. If you want to adjust the image and keep its
proportion, please hold down any of the four corners of the image and adjust accordingly.
22

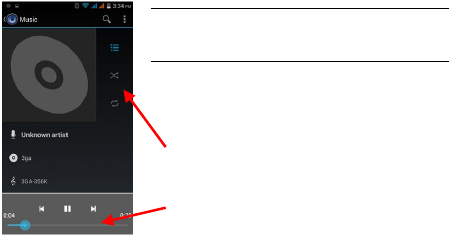

Music Open Music
Application Menu » Music
Search Music
You may choose to search for music from media folder
through artist name, song name, album name. The following
formats are available: AMR, MIDI, MP3, WAV, and OGG.
Song Status
Track Controls
23

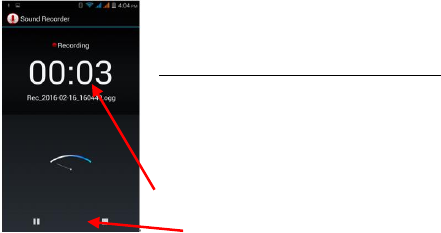

Sound Recorder
The Sound Recorder can record voice or any audio.
You may send any recorded audio via Bluetooth or MMS
and also have the option to make any recorded audio the
phones default ring tone.
The recorder uses 3GPP and OGG format.
Record
-Keep the phone’s microphone near the voice source.
-Click the record button to record the audio.
-Click the stop button to stop recording the audio.
All recordings will be saved in the recording folder in the
default music program and can be
accessed from the sound recorder application.
Recording Controls
Recording Time
24
Alarm Clock
1. Click on the Clock icon in the application menu
2. Click set alarm button and enter the alarm clock set interface where you may delete and
edit alarms
Click to delete alarms
Click to add alarms
Click to edit alarms
25
FM Radio
FM Radio
Through this function, you may listen to FM radio on the
device. The FM radio uses the wired headphones as an
antenna in order to receive signal. Before using this
function, connect the original equipment headphones that
came with the phone.
Open FM radio
Press the FM Radio icon to open the application.
1. Click “Search” automatic scans of FM channels.
2. Click to add favorite radio stations.
FM Radio as Background
Click on the Home key to move the FM Radio to the
background.
26
Play Store
Google Play allows you to download music, movies, and
even games. Click the Play icon to sign in with your
Google account.
Search and select between
different Play Store categories
27
Settings
SIM cards
Press the switch to power on SIM cards.When insert two cards,click to set cellular
data、calls、SMS messages
Wi-Fi
Settings » Wi-Fi to power on. When on, the Wi-Fi will automatically search for
available networks. Any unsecured network can be used directly and any
secured network requires a password or credentials prior to connection.
Bluetooth
Press the switch to power on Bluetooth. Once on, the Bluetooth will automatically
scan for any nearby open equipment.
Data Usage
Mobile and Wi-Fi Data Usage
28
More…
Tethering, Portable Hotspot, VPN, APN
Airplane Mode
Note: When in flight mode, all network connections will turn off automatically.
Audio profiles
This option sets the phone tone settings for receiving calls and notifications. Some of the
settings include:
Vibrate, volume, ring tones, ring tones notification, dial touchpad, and haptic
feedback and tones
Display
Brightness, Auto rotating screen, Wallpaper, Screen Timeout
Storage
View the phone memory usage.
29
Battery
General power usage
Apps
Manage applications - Manage and delete installed applications.
Running services - Press the ‘Force Stop’ button to stop any of the services listed
and removes from the running services list.
Location
Mobile Network Location - Use wireless services to find locations in applications.
When using the GPS, power on to set satellite positioning for accuracy.
Security
Set up screen locks: Use slide, face/voice unlock, pattern, PIN or password to lock the
screen.
Pattern: The first time there will be simple unlock instructions and examples. Click
“next step” to continue the security pattern step.
30
PIN: Enter PIN number to unlock the screen.
Password: Use password to unlock the screen
You may stop the security feature at any time.
Set up SIM card PIN lock
SIM card PIN (Personal Identification Number) is used to prevent unauthorized
use of SIM card.
To change a blocked PIN code, you will need to unlock the SIM lock then go to the Change
Password screen. The phone will automatically prompt you enter the old PIN code and ask
to enter a new PIN code twice. The phone will then prompt you that the change was
successful. If you enter the PIN incorrectly three times, the SIM and PIN codes will be
automatically locked. You will need the PUK code to unlock the phone which is available
through your service provider. If you enter the PUK code incorrectly 10 times, the SIM card
will be permanently locked. Please see your service provider for a new SIM card.
Password visible – Make the password visible when it’s typed.
Use security credentials - Allow applications to visit security credentials or other
credentials.
Language & Input
31
Language – Change the language of the phone.
Custom Dictionary - Add or delete words to the custom dictionary.
Keyboard Settings – Haptic vibration, Haptic tones, Capitalizing, Speech Input,
Inputting words, Predictive text function, Auto-Text, Input keyboard method
Backup & Reset
Backup Data – Will back up all application data, WLAN passwords, and other
settings to Google's servers
Restore to Factory Settings - Clear all data stored on the phone.
Add account
Add accounts,include Exchange、Google、IMAP、Personal(IMAP)、
Personal(POP3)、POP3
Date & Time
Date and Time adjustment.
Time Zone - Select Time Zone according to where your location.
32
Select Date Format - There are 3 kinds of formats you can choose from:
Month-Day-Year, Day-Month-Year and Year-Month-Day, and
Year-Month-Day which is the default setting
Schedule Power On & Off
Schedule power on and off
Accessibility
Power button ends call and auto rotate screen
Speak Passwords and large text
Printing
Need to download the "CloudPrint.apk" from the Internet and install.
About device
Phone information status and firmware updates
33
Storage
Connect the phone with the USB cable provided.
Once connected, a connection interface will appear.
In the connection mode interface, select MTP and
turn on from the connection screen to be able to
transfer files. Other storage options are also
available.
Some system settings, hardware, and UI options may
vary depending on final version.
34
Regulatory Information
FCC Rules Compliance
(United States Federal Communications Commission)
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation if this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user,
is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
35
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user‘s authority to operate the equipment. The antenna(s) used for this
transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
RF Exposure Information (SAR)
This mobile phone meets the government’s requirements for exposure to radio waves.
This phone is designed and manufactured not to exceed the emission limits for exposure to
radio frequency (RF) energy set by the Federal Communications Commission of the U.S.
Government.
The exposure standard for wireless mobile phones employs a unit of measurement known
36
as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg - Tests
for SAR are conducted using standard operating positions accepted by the FCC with the
phone transmitting at its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the actual SAR level of
the phone while operating can be well below the maximum value. This is because the
phone is designed to operate at multiple power levels so as to use only the poser required
to reach the network. In general, the closer you are to a wireless base station antenna, the
lower the power output.
The highest SAR value for the model phone as reported to the FCC when tested for use at
the ear is 0.96 W/kg and when worn on the body, as described in this user guide, is
1.19W/kg (Body-worn measurements differ among phone models, depending upon
available accessories and FCC requirements.) While there may be differences between the
SAR levels of various phones and at various positions, they all meet the government
requirement.
The FCC has granted an Equipment Authorization for this model phone with all reported
SAR levels evaluated as in compliance with the FCC RF exposure guidelines.
SAR information on this model phone is on file with the FCC and can be found under the
Display Grant section www.fcc.gov/oet/ea/fccid after searching -
FCC ID: YHLBLUSTX8HD.
37
For body worn operation, this phone has been tested and meets the FCC RF exposure
guidelines for use with an accessory that contains no metal and the positions the handset a
minimum of 10mm from the body. Use of other accessories may not ensure compliance
with FCC RF exposure guidelines. If you do not use a body-worn accessory and are not
holding the phone at the ear, position the handset a minimum of 10mm from your body
when the phone is switched on.
ISED Notice
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en
38
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
IC: 11492A-STX8HD
ISED Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure
limits in IC RSS-102 and had been tested in accordance with the measurement
methods and procedures specified in IEEE 1528 and IEC 62209. This equipment
should be installed and operated with minimum distance 1.0 cm between the
radiator and your body. This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or transmitter.
Cet appareil est conforme aux limites d'exposition DAS incontrôlée pour la population
39
générale de la norme CNR-102 d'Industrie Canada et a été testé en conformité avec
les méthodes de mesure et procédures spécifiées dans IEEE 1528 et IEC 62209.
Cet appareil doit être installé et utilisé avec une distance minimale de 1.0 cm entre
l’émetteur et votre corps. Cet appareil et sa ou ses antennes ne doivent pas être
co-localisés ou fonctionner en conjonction avec tout autre antenne ou transmetteur.
Additional Information
The information provided in this user manual is subject to change without notice and BLU
Products reserves the right to modify the manual at any given time. BLU Products has made
every effort to ensure that this user manual is accurate and disclaims responsibility and
liability for any inaccuracies or omissions. BLU Products makes no commitment to keep
current the user manuals, however, does reserve the right to make improvements to the user
manual at any given time without notice.
