Touch Book 9.7 User Manual
Appearance ...................................................................................................................................... 2
Turning on/off ................................................................................................................................. 3
Touch screen .................................................................................................................................... 3
Interface introduction ..................................................................................................................... 4
1. Desktop..................................................................................................................................... 4
2. Locking desktop ...................................................................................................................... 6
Programs operation instruction ................................................................................................... 6
1. Media player ............................................................................................................................ 6
2.Music ......................................................................................................................................... 7
3. Sound recorder ........................................................................................................................ 8
4. Camera ..................................................................................................................................... 9
5. Browser .................................................................................................................................. 10
6. Play Store ............................................................................................................................... 11
7. Calendar................................................................................................................................. 11
8. Clock....................................................................................................................................... 11
9. Calculator .............................................................................................................................. 12
10. Download ............................................................................................................................. 13
11. Maps ..................................................................................................................................... 13
12. E-mail ................................................................................................................................... 14
13. File Manager ........................................................................................................................ 16
Settings ........................................................................................................................................... 17
Wi-Fi network settings.................................................................................................................. 18
3G network settings ...................................................................................................................... 18
Expand storage ............................................................................................................................ 19
1.U Disk usage ........................................................................................................................... 19
2. TF card usage ........................................................................................................................ 19
Download and install application ................................................................................................ 19
Connect to computer ..................................................................................................................... 20
Charging ........................................................................................................................................ 21
Note ................................................................................................................................................ 21
2
Appearance

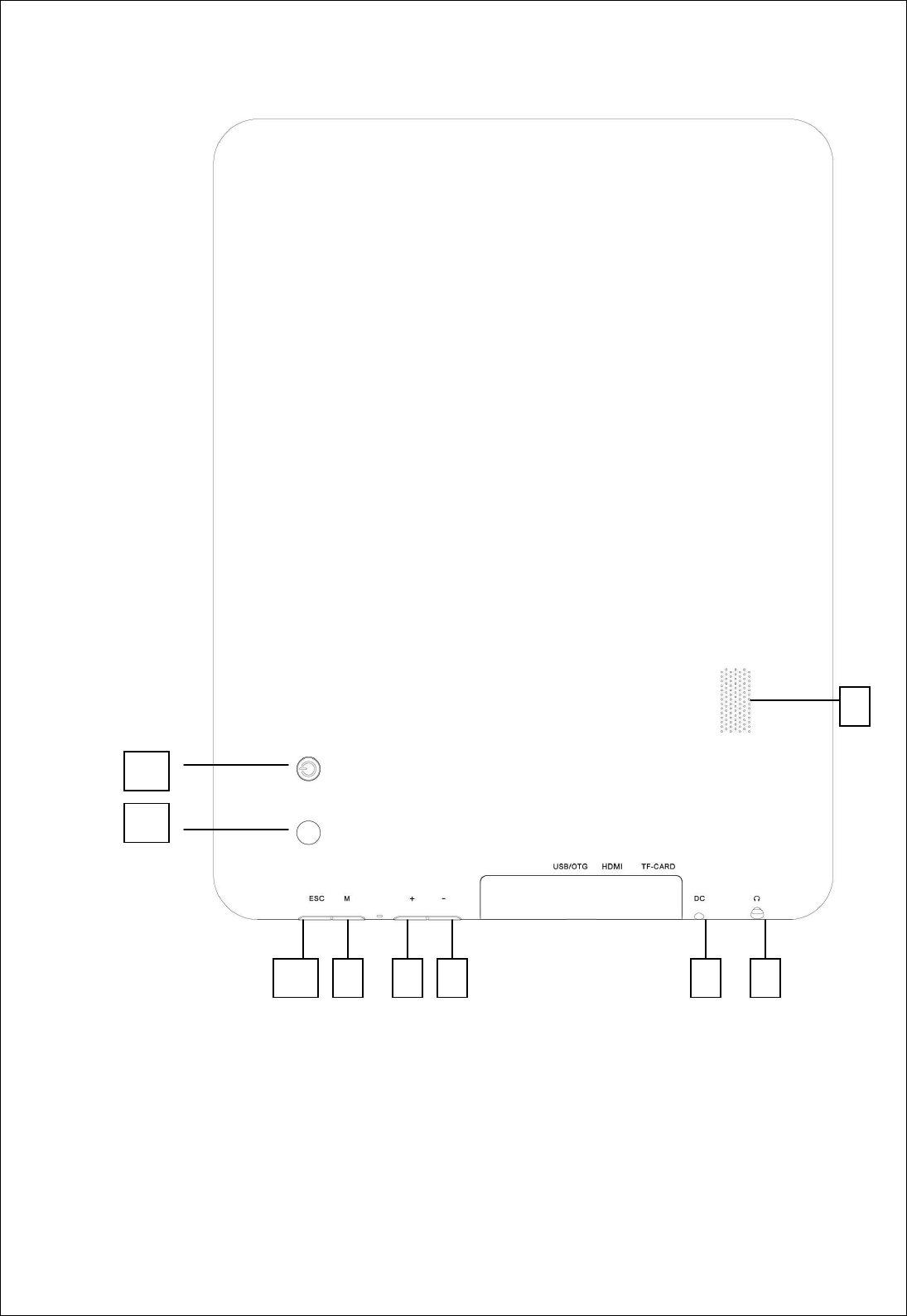

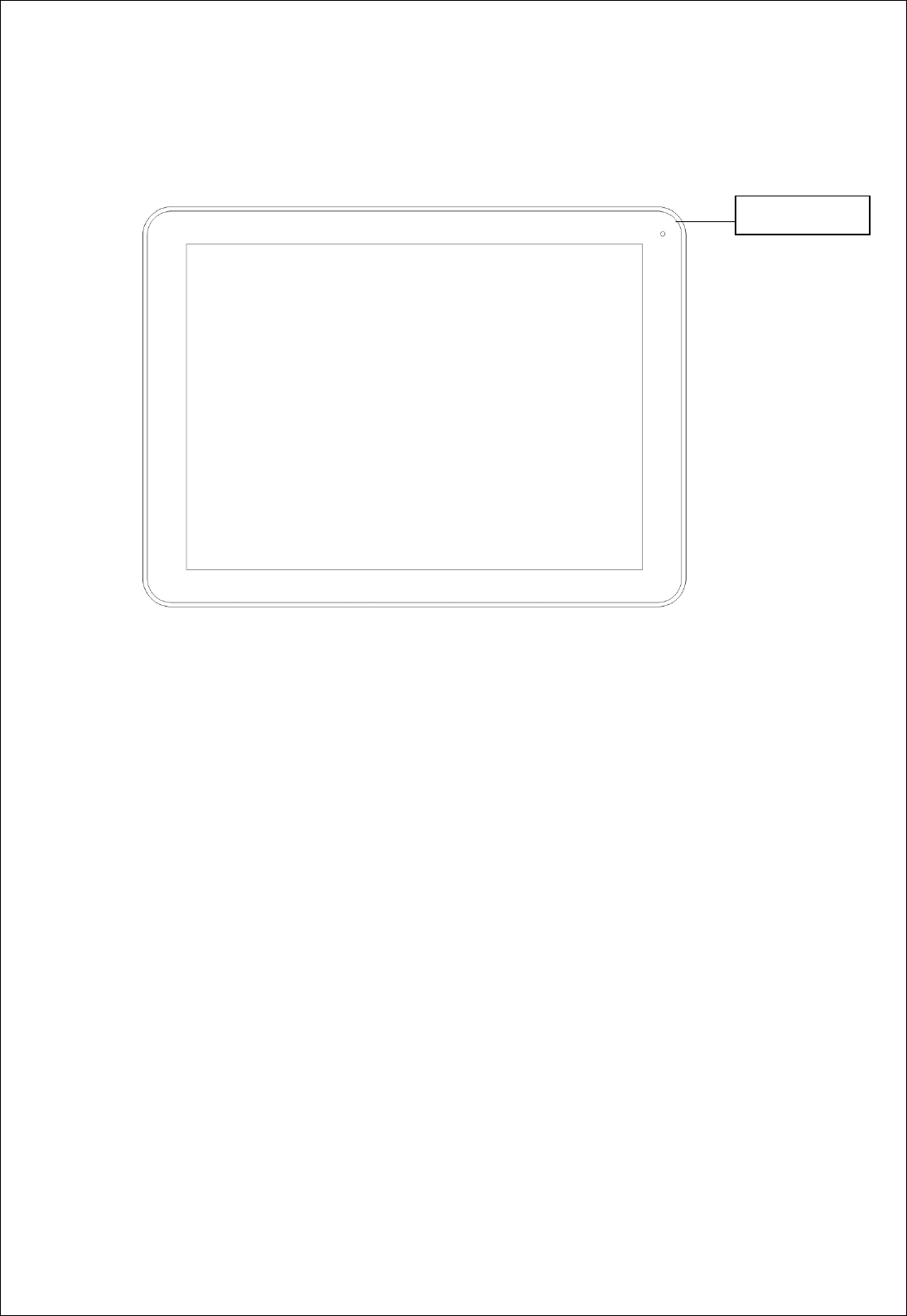

Front Camera
3
①
On/Off ②Back camera ③
ESC
④
Menu
⑤
Volume+
⑥
Volume-
⑦DC-9V ⑧Headset jack
⑨
Speaker
Turn On and turn Off
Turning on: Press and hold the power switch for five seconds
①
②
④
③
⑤
⑥
⑦
⑧
⑨
4
Turning off: Press and hold the power switch for five seconds – Tap Turn Off – Tap OK
Screen locking/unlocking: Press the power switch to lock/unlock the screen.
Force shut-down: If the device doesn’t have response, press the Reset key to restart the device.
Note: Do not force shut down the device unless necessary. Under normal condition, please follow
the normal procedure to turn off the device.
Reset key: Press the Reset key to restart the device.。
Touch screen
Tap: Tap to select an icon or option.
Tap and hold: Tap and hold an icon to drag it to the desktop.
Drag and drop: Drag and drop on the desktop to switch among different interfaces.
☆
☆☆
☆
To avoid scratching or breaking the screen, do not put any object on it.
1. Desktop

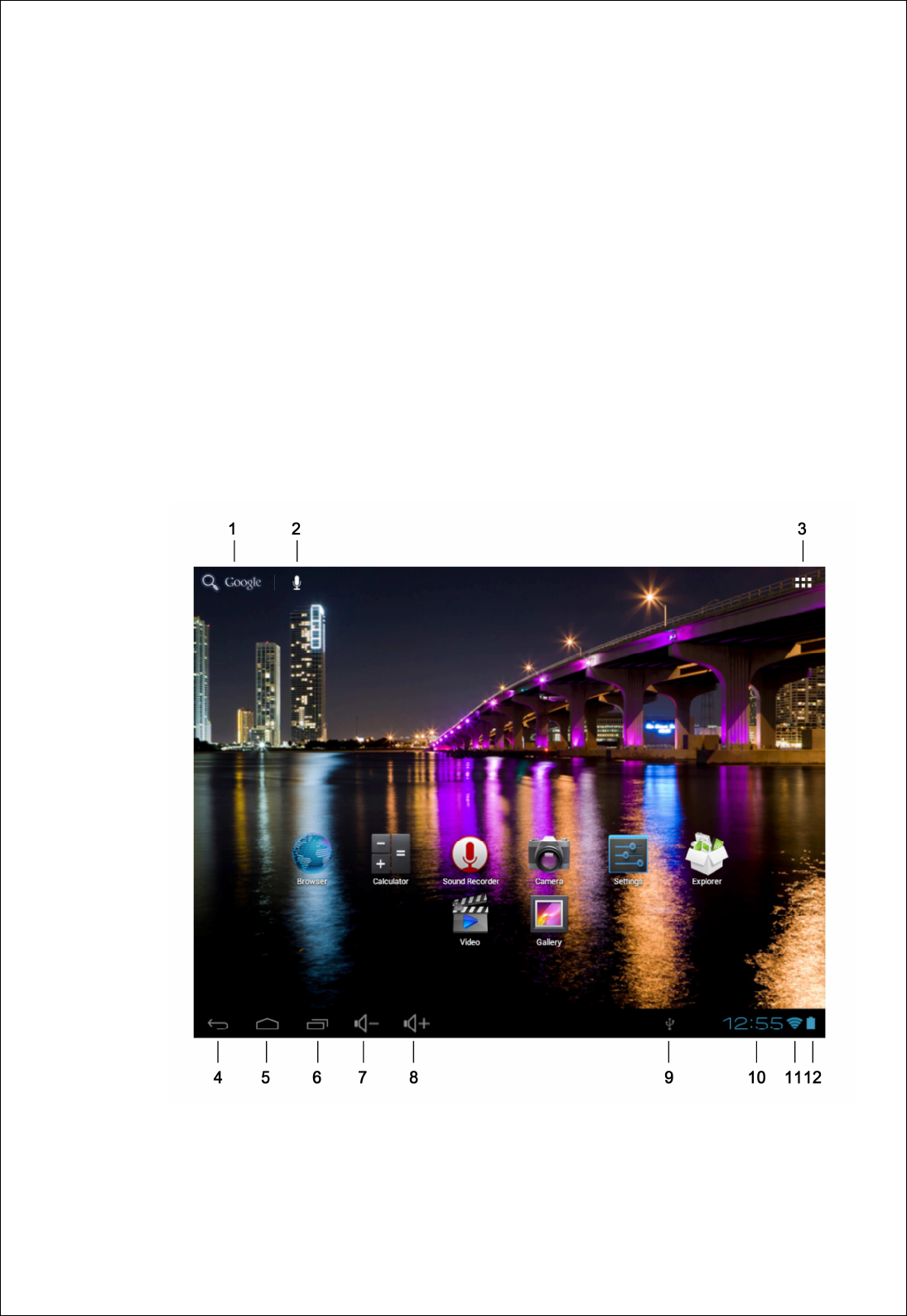

1：Google search
2：Voice search shortcut
5
3 ：Tap to view all applications
4：Return to current operation
5：Return to desktop directly from the program interface
6：Multipage task selection key
7：Speaker –
8：Speaker +
9. USB connection symbol
10: Current time
11:3G/WIFI connection signal symbol
12: Battery status

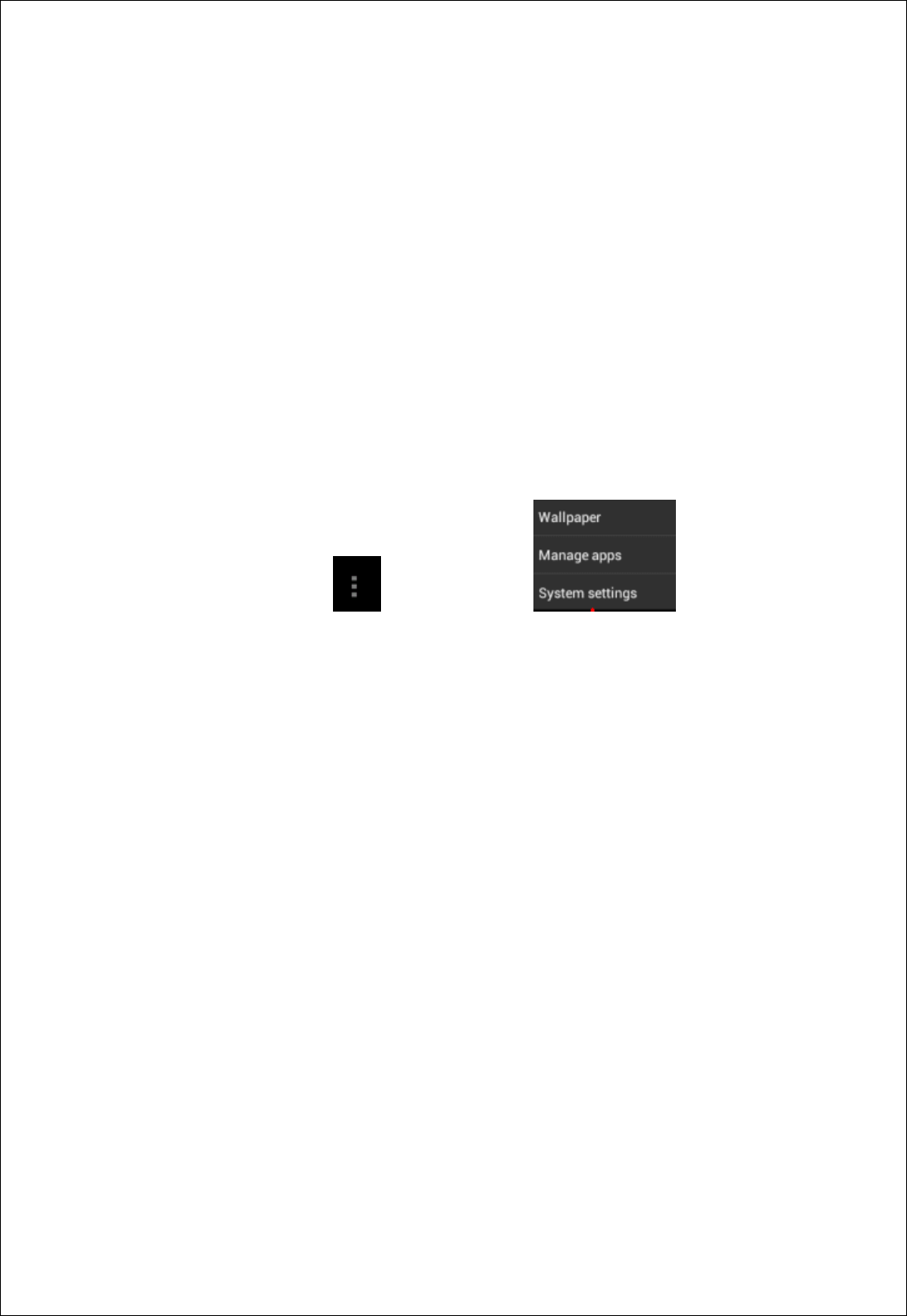

On desktop, tap the Menu key to show the menu list and perform the
operation. At the same time, set common programs on desktop by tapping and holding the
program icon to move to the desktop;
6
2.
Locking desktop
If the PC won’t be used for a long time, or the power switch is tapped, the device enters standby
state. The standby has two states. One is deep-sleep standby, in which the screen is turned off; the
other is light standby after pressing the power switch. The picture shows the default light standby

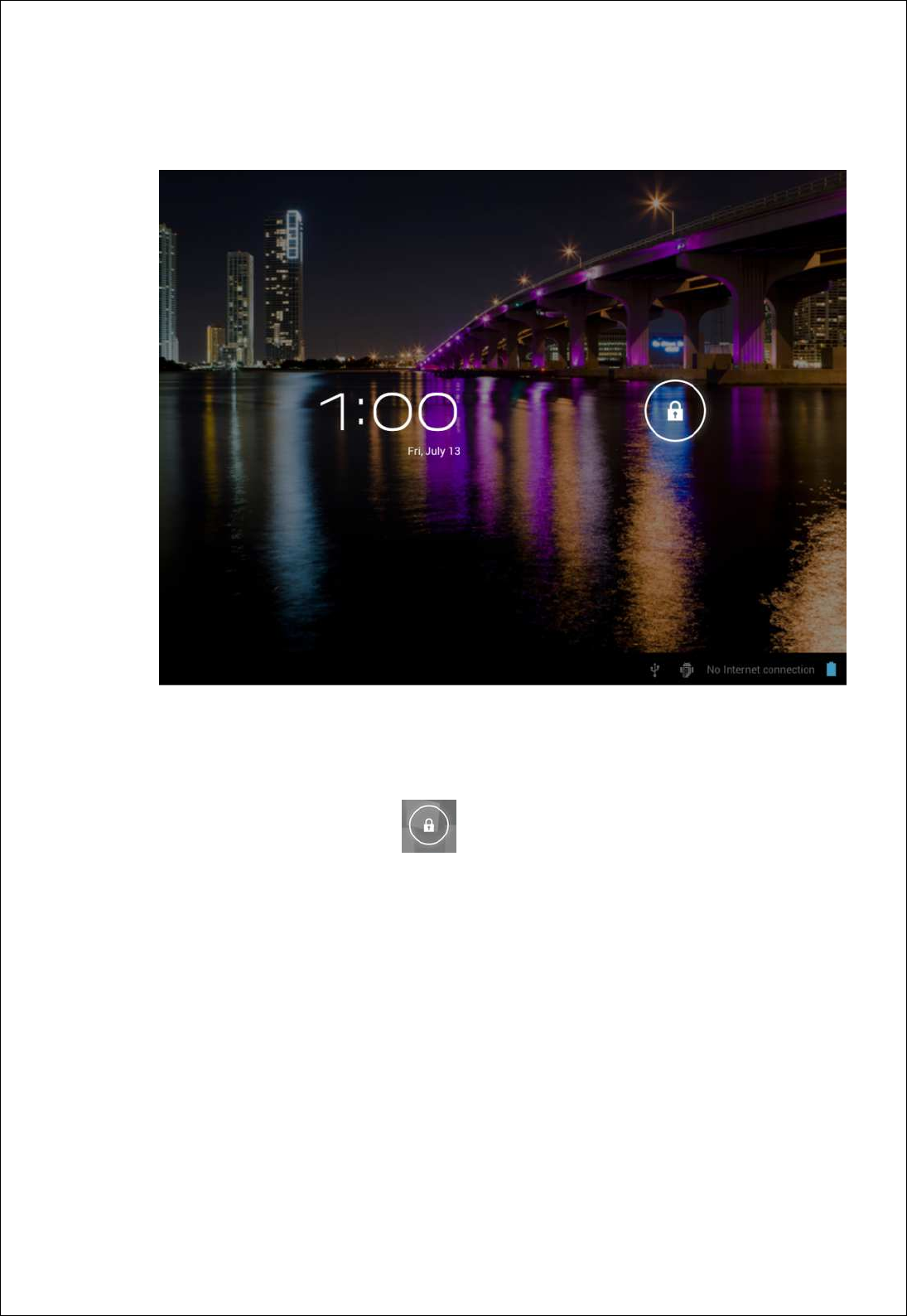

state. Tap and hold the unlocking switch , and the A, B symbols as shown in the picture
appear; point A is the camera icon and point B is the unlocking icon. The system will prompt
about the path of unlocking. The ripple at point B in the picture is the path of the prompt. Tap and
drag the unlocking switch to point B to unlock the screen, tap and drag the unlocking switch to
point A to activate the camera function.
Program operation
1.Player
☆ AVI, WMV, RM, RMVB, 3GP, MKV, MP4, ASF, VOB, MPG, MOV up to 1080P
HD-Definition
☆The compatible picture formats are: JPEG, BMP, GIF, PNG
7
1. Tap to into playing interface .
2. Select desired video to play from the list.
3. Tap on the screen to adjust the video (including volume, pause/play, brightness,
etc.)
4. Tap to into playing interface.
5. Tap a picture to browser, sliding screen can browse pictures.
6. Tap the icon for more detailed information or choose pictures to play, or
rotating, clip etc.
7. Tap the icon to delete.
2
.Music
☆
☆☆
☆
Support music format
：
MP3
、
WMA
、
OGG
、
FLAC
、
WAV
、
ACC
。
☆
☆☆
☆
Tap My Music icon .
☆
☆☆
☆
Select desired music to play from the music/album/artist/playing list.
☆
☆☆
☆
Tap Previous→ Pause → Next icon for operation.
☆
☆☆
☆
To return to previous interface while playing music, tap or to
return to the desktop.

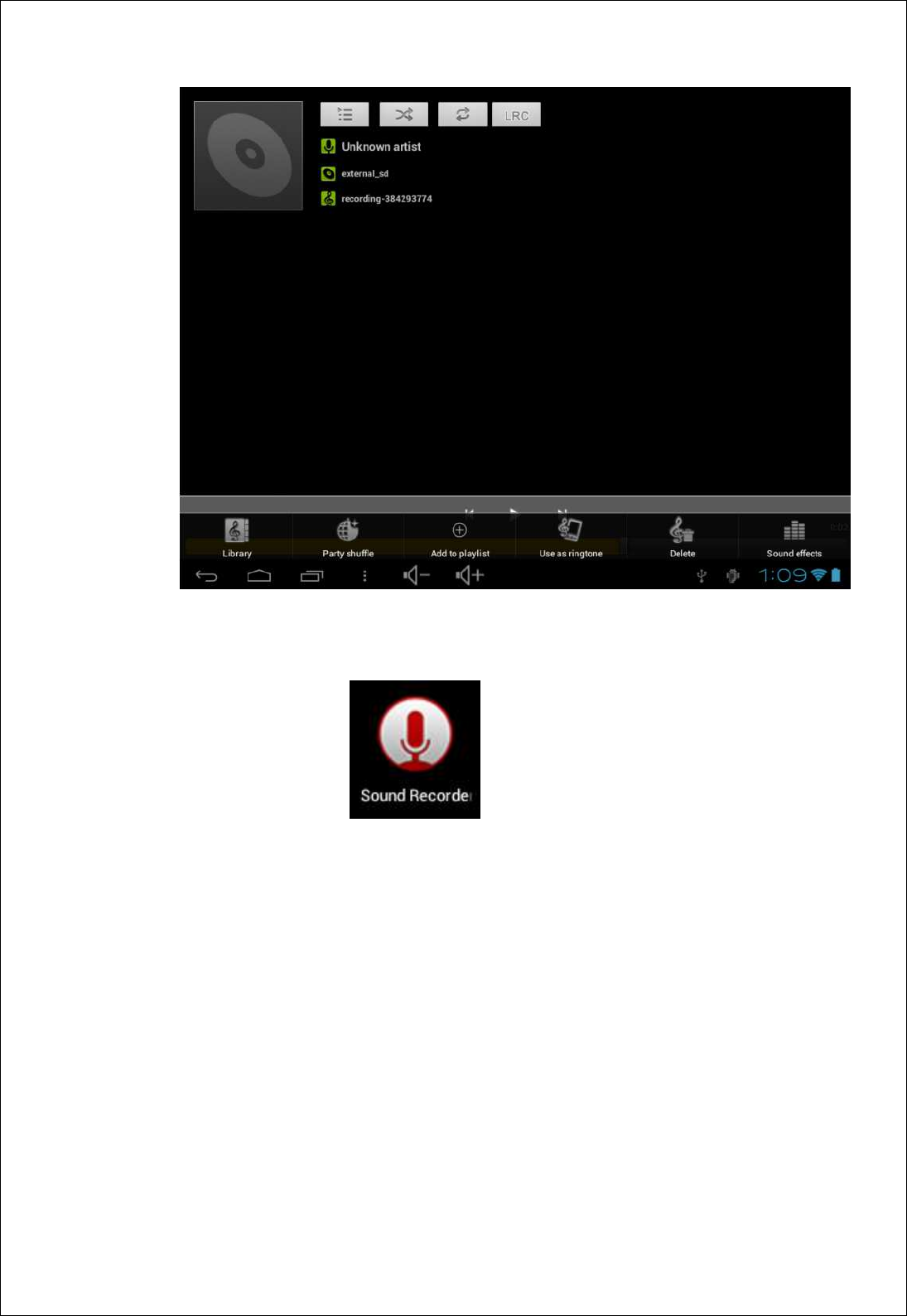

Press the Menu key for music operation, as in the interface below:
8
3.
Sound recorder

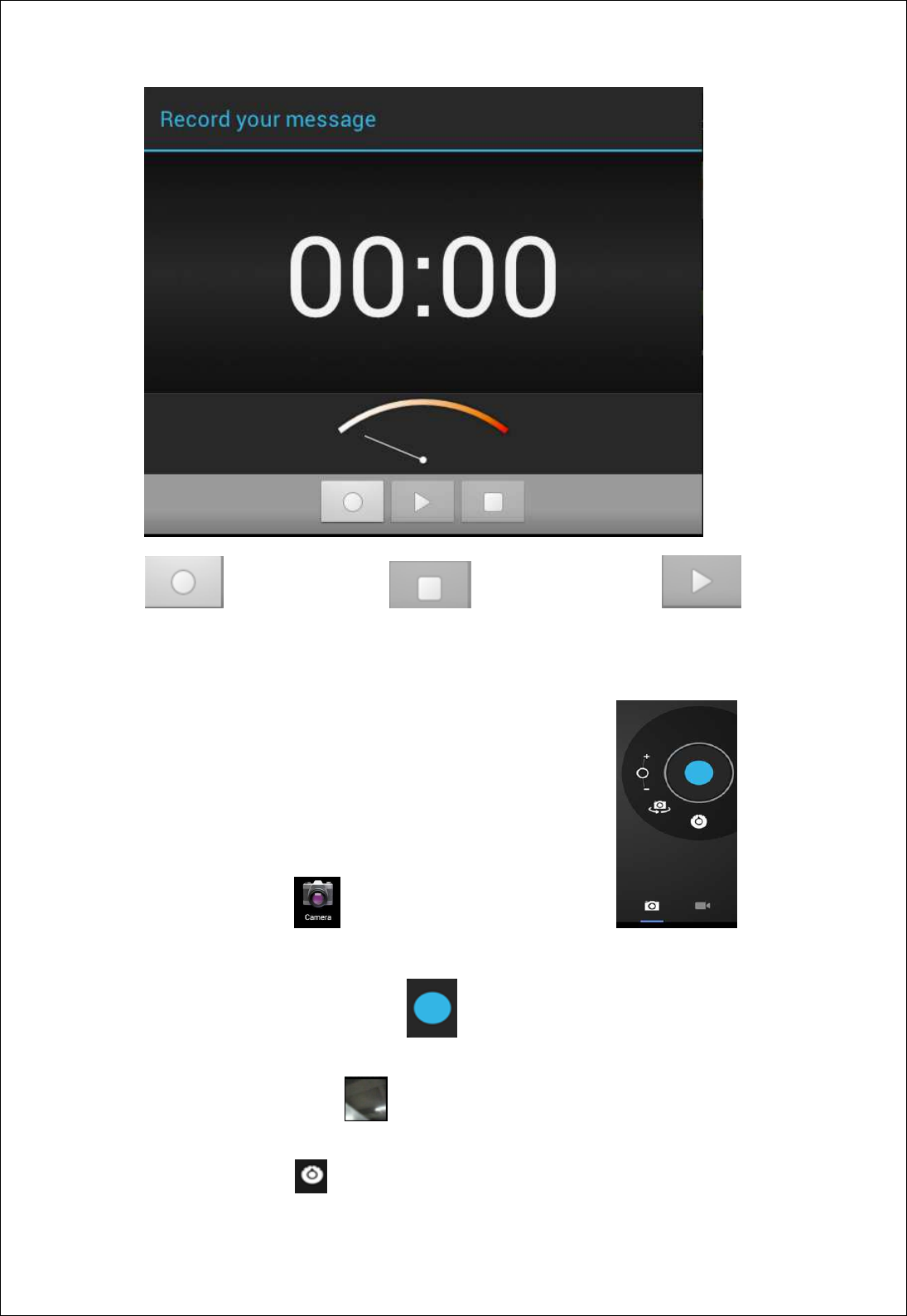

Click the sound recorder icon .The following interface appears
9
Tap to start recording, tap to stop the recording, tap to start
playing.
4.
Camera
Tap the camera icon to turn on the camera and the interface appears.
Taking pictures
1. In the camera interface, tap to take pictures.
2. The pictures will be saved automatically.
3. Tap the thumbnail of the picture to view the original in Gallery.
4. Press the Back key to return to the camera.
5. Tap the icon to perform camera setting.
Recording video
10
1. Tap to switch to the video mode, in which you can record video.
2. Tap to start recording, and tap to stop recording.
3. The video files will be saved automatically.
4. Tap the video thumbnail to play the video.
5. Press the Back key to return to the camera.
6. Tap to switch to camera interface.
7. Press the key to perform settings for video recording.
Note: You can tap to switch between front camera and rear camera to take pictures
and record video.
（Note：Only the models with double camera has such function ）
5.
Browser

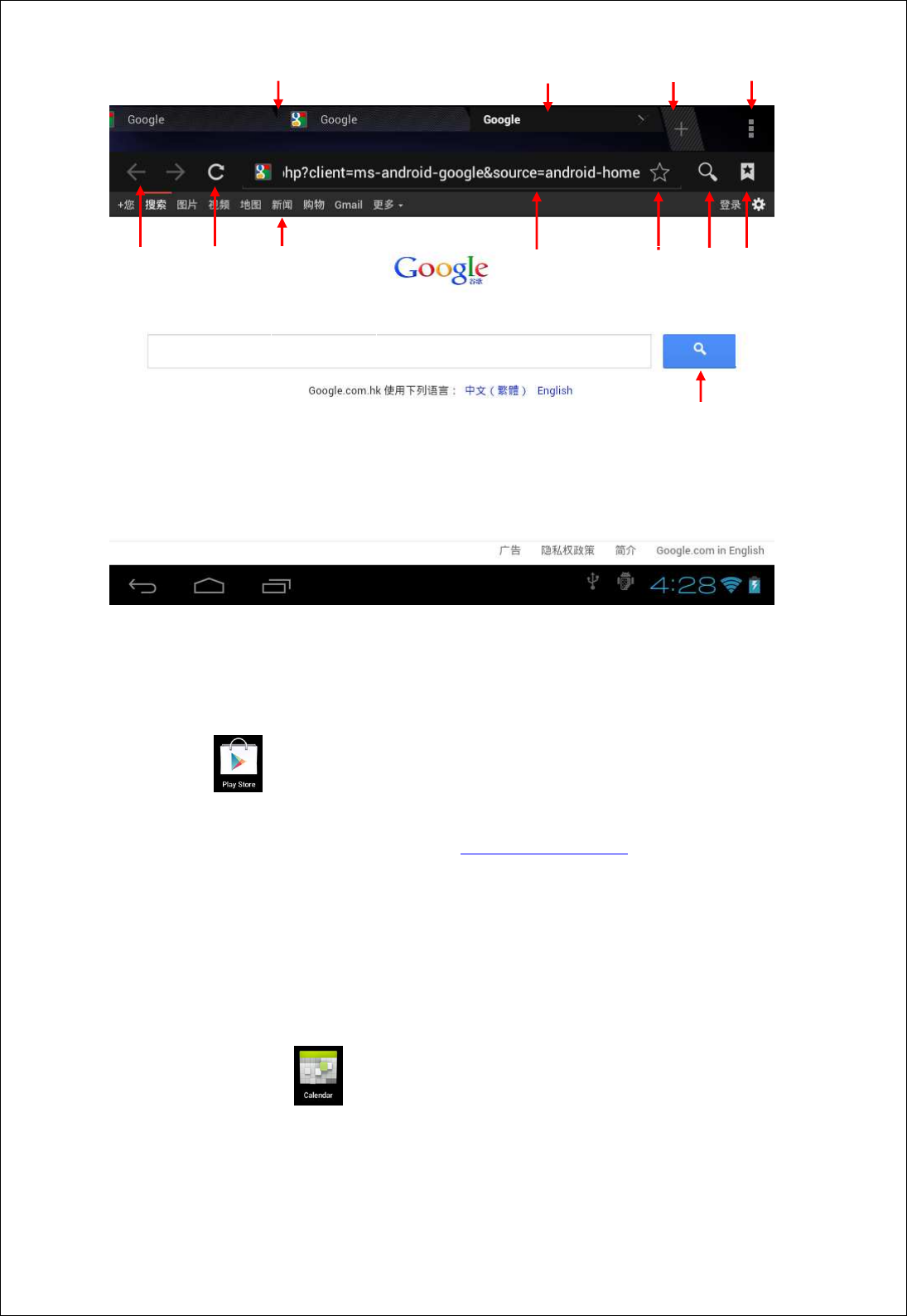

Tap the browser icon on desktop to access the Internet:
1 2 3 4
11
1：
Previous web; select to view
；2：
Current web
；3：
Add web;
；4：
: Menu key
6.
Play Store
Tap the icon query and download applications.。
When play store is run for the first time, the system will ask to log in with Google account (if
you don’t have a GMAIL account, please apply at http://gmail.google.com).
After downloading, install the applications.
7. Calendar
Tap the calendar icon .
When the calendar is used for the first time, you need to add an Exchange account. Enter the
e-mail address and password of the account, tap Next and follow the prompt the finish the
account setting, and then the calendar is available.
New event
For
ward
\Bac
kwar
Refresh
Click the link to
open
independent
window
Current
URL
Bookmark
folder
Web
histor
y
Web
interface
shortcut
Search
Web history
12
1. In the Calendar interface, tap the date you want to create an event.
2. Select the time → enter the details in each field.
3. Tap OK.
4. Tap the Menu key to select desired calendar interface.
☆
☆☆
☆
The dates displayed in grey have events.
8.
Clock
Tap the clock icon to view current date and time.
Alarm clock
You can set several alarm clocks at the same time.
☆
☆☆
☆
When the icon appears in the upper status bar of the screen, at least one
alarm clock is activated.
Adding alarm clock
1. Tap the clock icon .
2. Press the Menu key → Add alarm clock.
3. Set the alarm clock accordingly.
☆
☆☆
☆
If you don’t select Repeat, the alarm clock will be deleted automatically after the
alarm time.
4. Tap Enable alarm clock.
5. Tap OK.
Turning off alarm prompt
When the alarm time is out, a window with the name of alarm clock will pop up.
If you want to repeat the alarm clock in 10 minutes, tap Snooze.
Tap Cancel to stop the prompt.
Enabling alarm clock
If you select Repeat in the settings, the alarm clock will be deactivated temporarily,
but won’t be deleted.
1. In the alarm clock interface, tap the icon after desired alarm clock.
2. Tap
to re-activate the alarm clock.
Editing alarm clock
1. Tap the clock icon , → tap .
2. Tap a desired alarm clock → edit.
Deleting alarm clock
13
1. Tap the clock icon , → tap .
2. Tap desired alarm clock and enter.
3. Tap Delete.
Tap to return to the desktop.
9.
Calculator
1. Tap the calculator icon
2. Tap the figures and operators to calculate.
3. Tap Clear to delete one, or tap and hold Clear to clear all the results.
10.
Downloads
Tap the download icon .
1. View currently downloaded applications in PC, select and install.
11.
Maps
☆
☆☆
☆This function requires Internet connection.

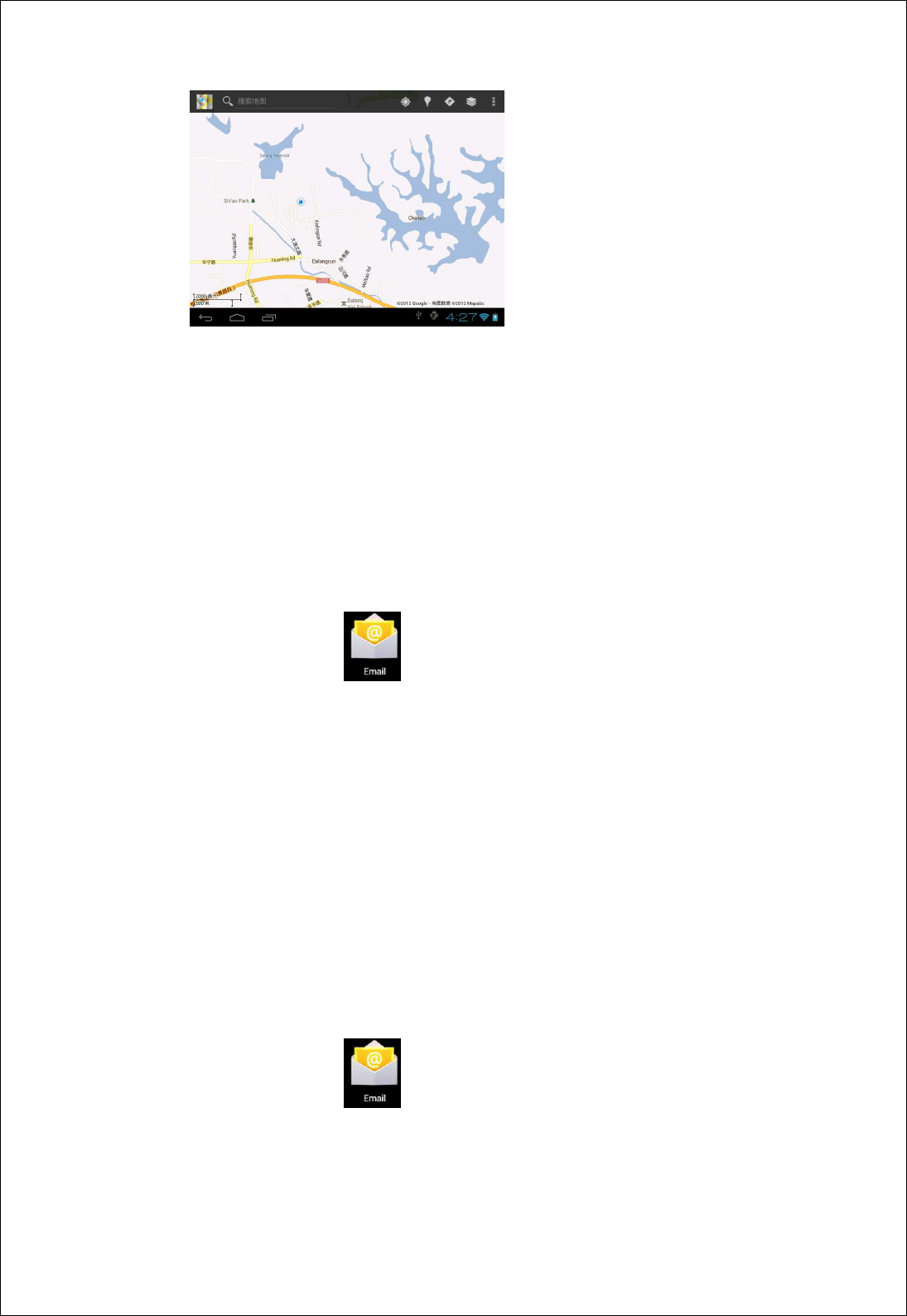

After connecting to the Internet, tap the map icon to open your current position
automatically; as shown below, you can search desired information;
14
12.
E-mail
☆
☆☆
☆Support POP3 and SMTP accounts.
Adding e-mail account
You can enter one or several desired e-mail addresses on the device.
1. Tap the e-mail icon .
2. In Your account interface, tap Next.
3. In e-mail address option, enter your e-mail address.
4. In password option, → enter your e-mail password.
5. Tap OK.
6. Manual setting (optional): The server fills the supplier (i.e. gmail.com)
automatically according to your e-mail account. However, if you need to change the
server setting, click Manual setting to make necessary change.
7. Tap Next.
8. Optional: Enter the account name.
9. Enter the name of the message → Tap OK.
☆
☆☆
☆
After setting, if you can’t access a free e-mail account, please check with your
e-mail service provider whether their server support POP and SMTP protocol.
Inbox
1. Tap the e-mail icon .
2. If you only set one e-mail account, it will be opened directly. If you have set several
accounts the account list will be displayed.
3. Tap desired e-mail account → tap Inbox.
Opening e-mail
15
1. In the Inbox interface, tap and open an e-mail.
2. For attachment, tap Open to start respective application, or tap Save to save the
attachment to SD card.
3. To Reply, tap Reply or Reply to all.
a) Write the message you want to send.
b) Tap Send to send the e-mail immediately; tap Drafts to save but do not
send the e-mail, or delete directly but do not save or send.
4. To delete the e-mail directly, tap Delete.
Writing new e-mail
1. In Inbox interface, press the Menu key → Write.
2. Tap Send to, and then enter the address of the recipient.
3. Or if you want to send a cc or bcc, press the Menu key → Add cc and bcc, and
enter the e-mail addresses of the recipients.
4. Enter desired subject in the title bar of the e-mail.
5. Tap Write option to enter your personal information.
6. If necessary, press the Menu key → tap Add attachment to add the attachment
file.
7. After writing, press the Menu key → tap Send.
Editing e-mail account
1. Tap the e-mail icon .
2. In the Inbox interface, press the Menu key → tap Account setting.
3. Set your e-mail account accordingly.
4. Tap to return to the Inbox interface.
Deleting e-mail account
☆
☆☆
☆
If you have several accounts and have deleted the default account, the next e-mail
account in the list will be set to default automatically.
1. Tap the e-mail icon .
2. In the Inbox interface, press the Menu key → tap Account.
3. Tap and hold the account you want to delete.
4. In the popup Account option window, tap Delete account.
5. Tap OK to confirm the operation.
Setting default e-mail account
You should always have a default account. Therefore, if you have several e-mail
accounts, you can set anyone to default.
1. Tap the e-mail icon .
2. In the Inbox interface, press the Menu key tap → Account setting.
16
3. Tap Default account to select it.
If you delete the default account, the next e-mail account in the list will be set to default
automatically.
13.

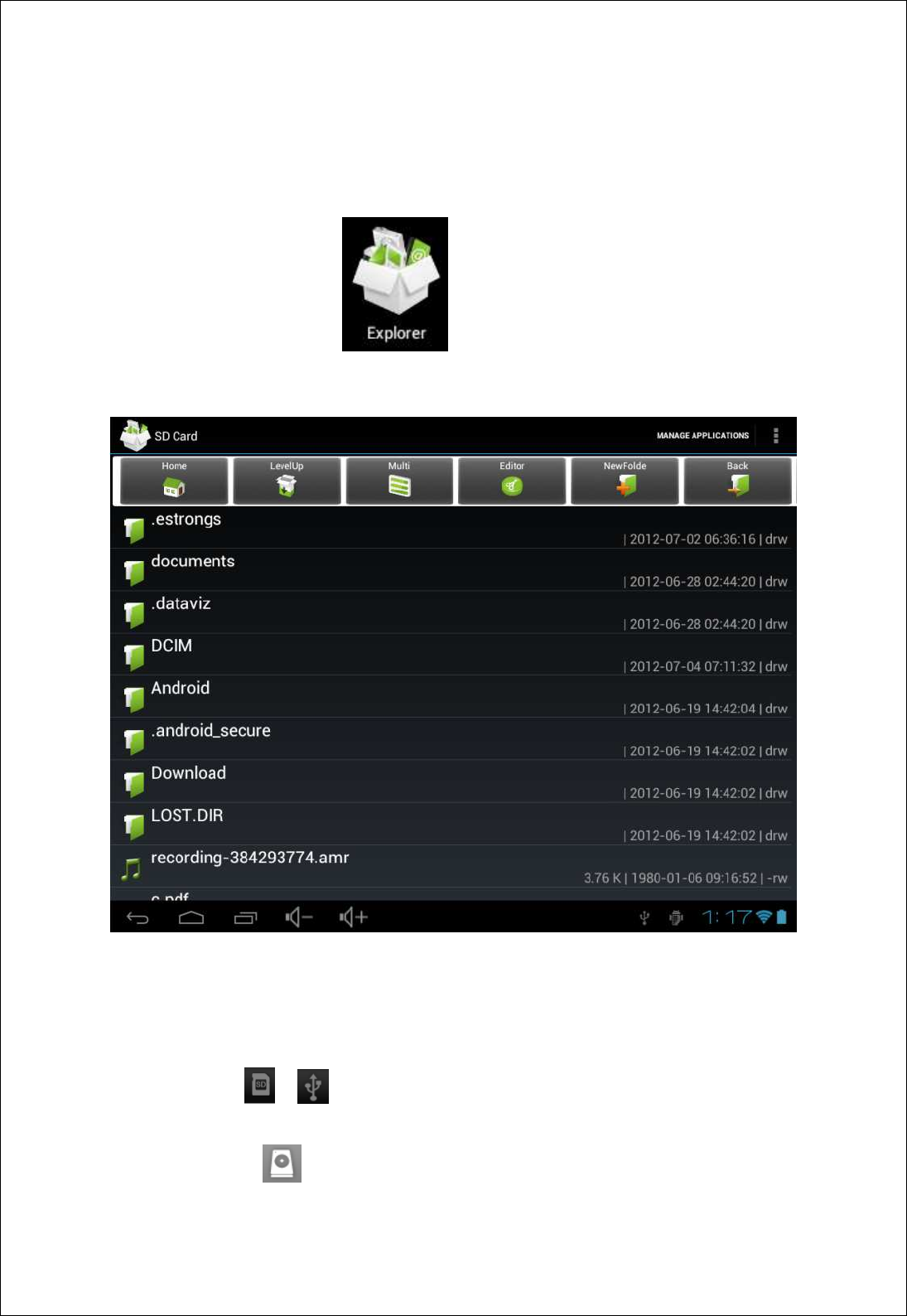

File Manager
Tap the file manager icon to view the files in all storage devices (internal
memory, SD card, USB storage), and install Android applications to the device quickly.
The icons in the top of the screen have the following functions:
14.Copying files between PC and the device
You can copy files between external storage device, internal memory and the PC
through File Manager. To copy files to the device, it is required to copy to SD card or
USB storage device first.
1. Tap or to show the files in your storage device.
2. Tap and hold the desired file or folder and tap Copy.
3. Tap the icon to return to the internal memory, tap the target folder and then
tap Paste.
17
Deleting files
Tap and hold the file or folder, tap Delete and then tap OK to delete.
15. Settings
Wireless and network
Wi-Fi Set and manage wireless access point(View WIFI network Settings )
Bluetooth Set and manage Bluetooth
Data usage Flow data settings and management
More..
VPN VPN network configuration
Portable hotspot Wi-Fi configuration.
Wi-Fi direct Wi-Fi direct configuration
Mobile networks 3G network setting
Device
Sound
Volumes
Adjust the volume of media, alarm clock and notification
by tapping and dragging the slider
，and then tapping
OK。
Touch sounds Enable or disable the touch sounds.
Screen lock sounds Play sound when locking and unlocking the screen
Display
Brightness
Adjust the brightness of the screen by tapping and
dragging the slider , and then tapping
OK
wallpaper Wallpaper setting
Auto-rotate screen Switch orientation automatically when rotating the device
Font size Adjust font size interface.
HDMI HDMI setting Turn on or turn off HDMI
Storage Display device the use situation of storage capacity.
Remove all the data in the storage or un-mount the storage.
Battery Display battery use data .
Apps Display the application situation in device.
Personal
Account & sync Add and manage the account in the device.
Location
services Set the position of Google services and Google search applications.
Security
Screen Security Screen safety protection setting .
Encrypt tablet
Passwords Passwords setting 。
Device
18
administrators
Credentials
storage Application management and access security vouchers and
Language &
input
Set the default language system
Keyboard & input
methods Set the default keyboard input method and system
Speedch
Backup & reset
1.backup/Data reduction
2. Restore the factory Settings.
System
Date & time Set and change the time and data in device.
Accessibility Set the screen to be automatic rotation, touching effect etc.
Developers
options The basic application for developers
About table
Check messages, and power, legal information , model, Android version, the version
of the kernel and the version number.
16. Wi-Fi network settings
Since many functions require Wi-Fi connection, please configure the Wi-Fi network
before operation.
1. Click → Wireless and network.
2. Select to turn on Wi-Fi.
The device will automatically scan and list all available Wi-Fi networks. If the Wi-Fi
connection has icon, you need to enter the valid password.
3. Tap a Wi-Fi connection → if password is required, please enter the valid password →
tap Connect, and the icon appears on the desktop after connecting to Wi-Fi
network.
4. Tap to return to the desktop.
☆
☆☆
☆
If you set to hide Wi-Fi, it won’t be scanned automatically. Please tap Add Wi-Fi
Network, and then enter corresponding information to add the Wi-Fi.
Mobile networks settings
1. To connect to 3G network, please select the 3G Dongle that the device supports. The
device only supports external USB 3G Dongles.
After installing the SIM card into the 3G NIC, install the 3G NIC to the USB OTG cable and then
connect to the device;
19
3. After connecting to the 3G NIC, tap → Wireless and network → More → Mobile
networks to perform 3G Internet access settings.
4. Turn on the mobile network and select Enabled data flow → Data roaming, then select APN,
enter and select Menu key: create new APN for Internet access. For China Unicom 3G Internet
access, please set as follows:
Name: 3GWAP / APN: 3gnet / Proxy: Not set/ Port: 80 / Username: Not set/ Password: Not
set / Server: Not set / MMSC: Not set / MMC proxy: Not set / MMC port: Not set / MCC: 460
/ MNC: 01/ Authentication type: Not set / APN type: Not set / APN type: Not set
Connect to 3G network after setting; the symbol appears on the screen after connecting to
3G network.
If the symbol is grey, it is scanning the network; blue symbol indicates that the network is
connected, and the symbol indicates data transmitting.
Expand storage
1.
USB flash drive
Connect one end of the OTG cable to the flash drive and the other end to the USB OTG
interface of the device. You can use the flash drive when it is ready.
☆
☆☆
☆
Do not insert/remove the USB flash drive frequently, or else it may damage the flash
drive.
2.
TF card usage
☆
☆☆
☆
The device supports memory card up to 32GB.
Insert the memory card into the slot, press with fingers to clamp it; the screen will show
Preparing SD card, and the TF card is ready for use when the characters disappear. You can
operate when the card is ready.
Removing TF card
Close all programs or files opened from the memory card. Tap → TF card and
device memory → Remove TF card. Press the card and it will eject.
☆
☆☆
☆
Do not insert/remove the memory card repeatedly, or else it may damage the
card.
☆
☆☆
☆
Please use qualified memory card to avoid incompatibility.
Installing programs
/
Uninstalling the application
☆
☆☆
☆
You can install the purchased or downloaded Android applications quickly
20
through .
1. Copy desired .apk files to SD card or USB storage device → insert the card into the
device or connect USB flash drive to the device.
2. Tap the file manager icon .
3. Tap or and find the folder that saves .apk files.
4. Select an .apk file → Install. After the application is installed, the icon will appear
in the interface that shows all applications.
5. Tap to run the application directly, or tap OK to return to the File Manager
interface.
Downloading applications from Internet directly
You can download Android applications from the Internet directly, and install in the
device quickly.
1. Click the icon to connect to the Internet.
2. Enter the URL and tap the download link of desired application.
3. After downloading, tap and hold the downloaded files (in download log interface),
→ click Open → Install.
Connecting to PC to save files
1. Connect the tablet PC to PC and the tablet PC can be used as mobile storage device;
to connect to PC, connect one end of the USB cable to the USB OTG interface of the
tablet PC and the other end to the USB interface of PC;
2. After connected, the tablet PC will prompt , click the icon
and then select Turn on USB storage to transmit data between PC and tablet PC, as
shown below:
Uninstalling the application
21
You can uninstall the Android application quickly.
1. Tap Menu key → Settings → Application → Manage applications.
2. Tap an application → Uninstall.
3. Tap OK to uninstall.
Charging the device
Connect one end of the power adapter to the socket and the other end to the power jack
to charge the device.
During charging, the battery symbol is ; after charged, the battery symbol turns into
.
☆
☆☆
☆
You can use USB cable to charge the device.
☆
☆☆
☆
You can use the device while charging; however, it will extend the charging time.
● Use the device at least once every week.
● Charge the battery regularly.
● Do not keep the battery too low for long time.
Note
When you use this device, please follow the safety notice below to prevent fire, electric
shock and injury.
Keep the device away from rain and moisture.
Keep the device away from direct sunlight and heat source.
Protect the power cord. When connect the power cord, do not step onto it or place
any object on it, which may cause extrusion. Protect the connector of the power
cord connected devices specially.
Please use the original power adapter for charging. Nonconforming chargers may
cause harms.
Do not disassemble the shell or repair it without authorization.
Handle the screen gently. To clear the fingerprints or dust on the screen, use soft cloth
dedicated for camera lens instead of gauze.
22
Federal Communication Commission Interference Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy, and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Note: The country code selection is for non-US model only and is not available to all US model.
Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only.
23
4
44
4RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless device employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
*
Tests for SAR are
conducted using standard operating positions accepted by the FCC with the device transmitting at
its highest certified power level in all tested frequency bands. Although the SAR is determined
at the highest certified power level, the actual SAR level of the device while operating can be well
below the maximum value. This is because the device is designed to operate at multiple power
levels so as to use only the poser required to reach the network. In general, the closer you are to
a wireless base station antenna, the lower the power output.
The highest SAR value for the model device as reported to the FCC when tested for worn on the
body, as described in this user guide, is 0.489 W/kg (Body-worn measurements differ among
device models, depending upon available accessories and FCC requirements.)
While there may be differences between the SAR levels of various devices and at various
positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model device with all reported SAR
levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this
model device is on file with the FCC and can be found under the Display Grant section of
www.fcc.gov/oet/ea/fccid after searching on FCC ID: YHLBLUTB97WIFI.

Navigation menu
