BLU BLUVIVO43 GSM / WCDMA mobile phone User Manual BLU VIVO 4 3
CT Asia GSM / WCDMA mobile phone BLU VIVO 4 3
BLU >
user manual
BLUVIVO4.3
UserManual
1. For your safety ......................................................................................................................... 3
2. Learn about the phone ........................................................................................................... 4
3. Before using .............................................................................................................................. 5
4. Getting started ....................................................................................................................... 7
5. Communication ................................................................................................................... 10
6.Multimedia ............................................................................................................................ 11
7.Connecting to networks and devices ........................................................................... 13
8.Warnings and notes ........................................................................................................... 15
1. For your safety
Read these simple guidelines. Not following them may be dangerous or illegal.
SWITCH OFF IN HOSPITALS
Follow any restrictions. Switch the device off near medical equipment. Do not use the
device where blasting is in progress.
Please keep this cell phone away from children, as they could mistake it for a toy, and hurt
themselves with it.
Don’t try to modify the phone except by the professional.
Warning!
Only use the authorized spare parts, otherwise it may damage the phone and the warranty
will not work. And it may be dangerous.
SWITCH OFF WHEN REFUELING
Don’t use the phone at a refueling point. Don’t use near fuel or chemicals.
SIM CARD AND T-FLASH CARD ARE PORTABLE
Pay attention to these small things to avoid children eating them.
Notice: The T-Flash Card can be used as a Memory Disk, the USB cable is necessary.
BATTERY
Please do not destroy or damage the battery, it can be dangerous and cause fire.
Please do not throw battery in fire, it will be dangerous
When battery cannot be used, put it in the special container.
Do not open the Battery.
If the battery or the charger is broken or old, please stop using them.
USE QUALITY EQUIPMENT
Use our authorized equipment or it will cause dangers
ROAD SAFETY COMES FIRST
Give full attention while driving; Pull off the road or park before using your phone if driving
conditions so require.
INTERFERENCE
All wireless devices may be susceptible to cause interference, which could affect
performance.
SWITCH OFF IN AIRCRAFT
Wireless devices can cause interference in aircraft. It’s not only dangerous but also illegal
to use mobile phone in an aircraft.
2. Learn about the phone
Button Press Press & hold
Power
key
(Right
side)
Turns on/off the screen. Opens a menu
with options for
airplane mode, /
powering off
The phone and
so on.
Volume
Up/Down
(Left side)
When a call is in progress, Increases or decrease the call
volume, When the phone is ringing, silences the ringer.
On the Home screen when no calls in progress, Increase
or decreases the ringtone volume, or sets the phone to
be silent instead of ringing. In other applications, controls
the volume of music, spoken directions, and other audio.
Quickly
increasing the
ringtone volume
to maximum or
minimum.
3. Before using

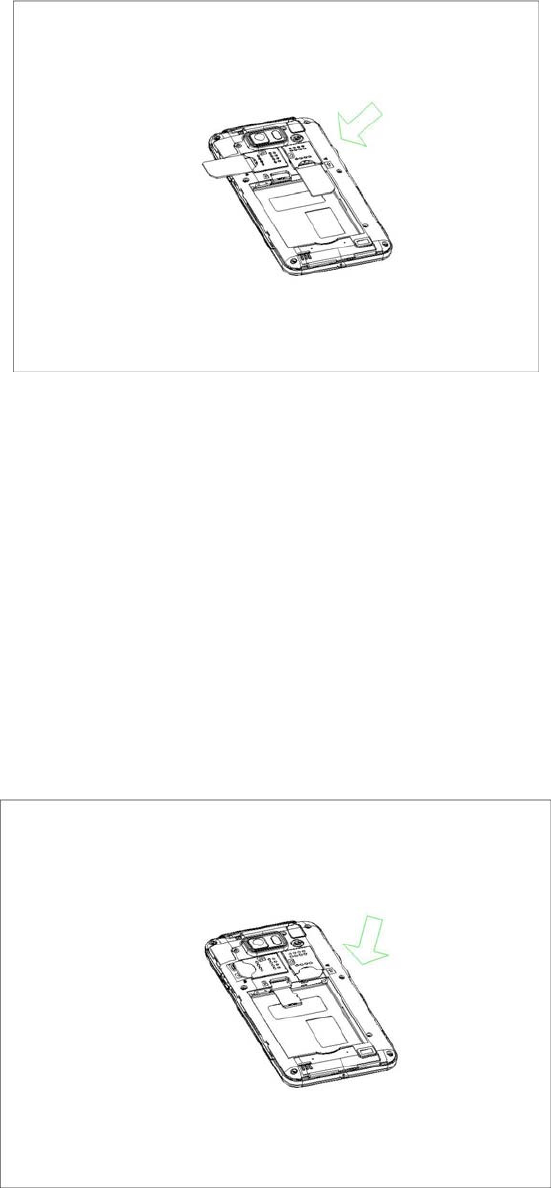

Insert SIM card
The BLU VIVO 4.3 is a Dual SIM mobile phone allowing you to use the facility of two
networks. To insert SIM card(s):
1. Switch off the mobile phone and remove the rear cover and battery.
2. Insert the SIM card correctly in the card slot(s)(See figure below).
3. Finally insert the battery and replace the rear cover of the mobile phone.
Note: The SIM card is a small object; please keep the card out of the reach of children to
avoid swallowing the card by accident. Do not touch the metal surface of the SIM card and
keep it away from electromagnetism to avoid loss and damage of the data. You will not be
able to connect to the network if the SIM card is damaged.
Insert Memory card
Use only compatible memory cards approved by Our company for use with this device.
Incompatible memory cards may damage the card or the device and corrupt the data
stored in the card.
To insert the memory card:
1. Power off the mobile phone, then remove the rear cover and battery.
2. Insert the memory card into the slot at the bottom.
3. Finally insert the battery and the rear cover of the mobile phone.

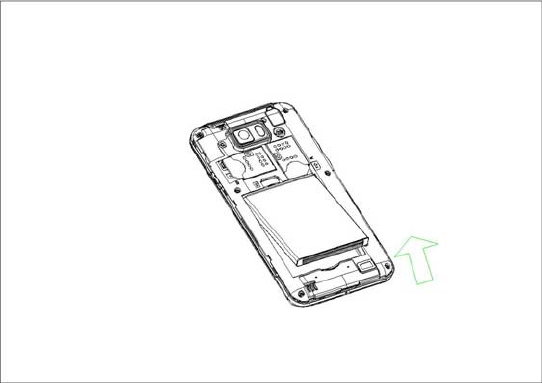

Remove/Insert Battery
You may need to remove the battery to insert SIM cards, Memory card or for replacing the
battery.
To insert the battery:
1. Invert the back of the mobile phone upward and then take off the rear cover.
2. Insert the battery as shown in the following figure.
3. Finally place back the rear cover of the mobile phone.
Note: Please use the original-packing battery and accessories.
Charger
1. Connect the charger to the charger jack on the phone.
2. Next connect the charger to a power socket, the charging starts, with the charging icon
in an animated state.
3. When the charging icon becomes static, it indicates that the battery is full.
4. Disconnect the charger from the power socket and the phone.
Note: Slight heating during charging is normal. It indicates that the battery is full, when the
charging icon becomes static.
4. Getting started
4
4.
.1
1
T
Tu
ur
rn
n
o
on
n/
/o
of
ff
f
y
yo
ou
ur
r
p
ph
ho
on
ne
e
Turn on the phone
Long press the power key to start up the cell phone. If you have started up the SIM card
1/2 lock, you have to enter SIM card 1/2 PIN.
Turn off the phone
Long press the power key, a context menu will prompt, touch “Power off” to switch off the
cell phone.

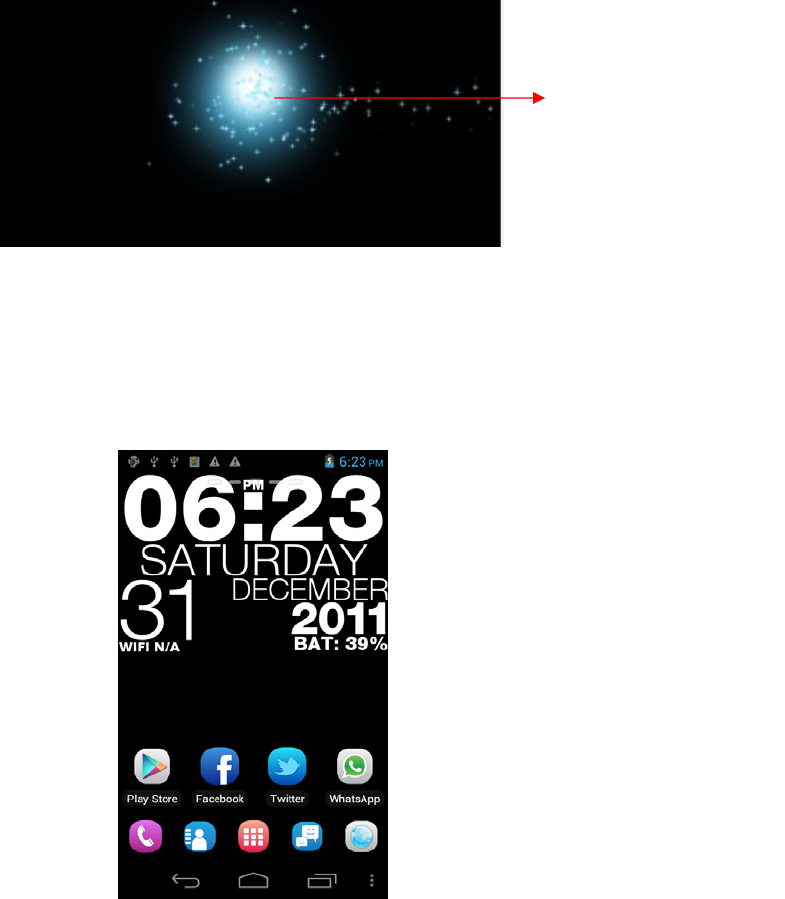

To wake up the phone
If you don’t use the phone for a while, the Home screen or other screen you are
viewing is replaced with the lock screen and then the screen darkens, to conserve the
battery.
1. Press the Power button.
2. Drag the lock icon rightward. The last screen you were working on opens.
4
4.
.2
2
G
Ge
et
tt
ti
in
ng
g
t
to
o
k
kn
no
ow
w
t
th
he
e
H
Ho
om
me
e
s
sc
cr
re
ee
en
n
The Home screen is your starting point to access all the features on your phone. It
displays application icons, widgets, shortcuts, and other features. You can customize the
Home screen with different wallpaper and display the items you want.
At the top of the screen, the Status bar displays the time, information about the status of
your phone, and icons for notifications that you’ve received.
Touch the Launcher icon at the bottom of the screen to view all installed applications.
4
4.
.3
3
U
Us
si
in
ng
g
t
th
he
e
t
to
ou
uc
ch
h
s
sc
cr
re
ee
en
n
The main way to control Android features is by using your finger to touch icons, buttons,
menu items, the onscreen keyboard, and other items on the touch screen.
Touch: To act on items on the screen, such as application and settings icons, to type
letters and symbols using the onscreen keyboard, or to press onscreen buttons, you
simply touch them with your finger.
Touch & hold: Touch & hold an item on the screen by touching it and not lifting your finger
until an action occurs. For example, to open a menu for customizing the Home screen,
you touch an empty area on the Home screen until the menu opens.
Drag the lock icon
rightward to wake up the
p
hone
Drag: Touch & hold an item for a moment and then, without lifting your finger, move your
finger on the screen until you reach the target position. You drag items on the Home
screen to reposition them and you drag to open the Notification panel.
Swipe or slide: To swipe or slide, you quickly move your finger across the surface of the
screen, without pausing when you first touch (so you don’t drag an item instead). For
example, you slide the screen up or down to scroll a list, and in some Calendar views you
swipe quickly across the screen to change the range of time visible.
Double-tap: Tap quickly twice on a webpage, map, or other screen to zoom. For example,
you double-tap a section of a webpage in Browser to zoom that section to fit the width of
the screen. You can also double-tap to control the Camera zoom, In Maps, and in other
applications, Double-tapping after pinching to zoom in some applications, such as browser,
reflows a column of text to fit the width of the screen.
Pinch: In some applications (Such as Maps, Browser, and Gallery) you can zoom in and
out by placing two fingers on the screen at once and pinching them together (to zoom out)
or spreading them apart (to zoom in).
Rotate the screen: On most screens, the orientation of the screen rotates with the phone
as you turn it from upright to its slide and back again. You can turn this feature on and off.
4
4.
.4
4
C
Cu
us
st
to
om
mi
iz
zi
in
ng
g
t
th
he
e
H
Ho
om
me
e
s
sc
cr
re
ee
en
n
To add items to the Home screen
1. Open the Home screen where you want to add the item.
2. Press Menu icon and touch Add.
Or just touch & hold an empty location on the Home screen. if there are no empty
spots on the Home screen, Add is dimmed; you must delete or move an item before
you can add another item, or switch to another Home screen.
3. In the menu that opens, touch the type of item to add.
To move an item on the Home screen
1. Touch & hold the item you want to move, until it vibrates. Don’t lift your finger.
2. Drag the item to a new location on the screen. Pause at the edge of the screen to drag
the item onto another screen pane.
3. When the item is where you want it, lift your finger.
To remove an item from the Home screen
1. Touch & hold the item you want to remove, until it vibrates. Don’t lift your finger. The
top of the screen will appear a Trash can Icon.
2. Drag the item to the Trash Can icon.
3. When the icon turns red, lift your finger.
4
4.
.5
5
C
Co
on
nn
ne
ec
ct
t
t
to
o
n
ne
et
tw
wo
or
rk
k
When you assemble your phone with a SIM card from your wireless service provider, your
phone is configured to use your provider’s mobile networks for voice calls and for
transmitting data.
Settings--> Dual SIM settings; the name of the wireless service provider you’re
currently registered with is selected in the list.
Click the name of the network provider, you can rename it or set the color for it.
You can set default SIM for voice call and messaging;
4
4.
.6
6.
.
I
In
np
pu
ut
t
t
te
ex
xt
t
You can touch a text field where you want to enter text to open the keyboard.
To enter text
Touch a text field, the onscreen keyboard opens.
Touch the keys on the keyboard to type; the characters you’ve entered appear in a
strip above the keyboard. With suggestions for the word you are typing to the right.
Press the left or right arrows in the strip to view more suggestions.
Press space or a punctuation mark to enter the highlighted suggested word. If you
touch the space key, the suggestion strip offers a series of punctuation marks you can
touch, to replace the space with, or touch another suggested word to enter it.
Use the Delete key to erase characters to the left of the cursor.
When you’re finished typing, Press Back to close the keyboard.
5. Communication
5
5.
.1
1
M
Ma
ak
ke
e
a
a
c
ca
al
ll
l
* Touch the phone icon on the Home screen or if you’re already working with Contacts or
the Call log, touch the Phone tab.
* Enter the phone number you want to dial;
* Touch the phone icon to dial the number that you entered. You can select voice call.
Space key
Delete
Switch to number input
Touch once to capitalize the
next letter you type. Touch
&hold for all caps.
5
5.
.2
2
M
Me
es
ss
sa
ag
gi
in
ng
g
You can use this phone to exchange text messages and multimedia messages with your
friends on their mobile phones. The messages to and from the same contact or phone
number will into a single conversation, so you can see your entire message history with a
person conveniently.
6. Multimedia
6
6.
.1
1
C
Ca
am
me
er
ra
a
Camera is a combination camera and camcorder that you use to shoot and share
pictures and videos.
6.1.1 Take a picture
Touch to show a list of some
options related to calling.
Touch & hold to enter
“+”
Touch to make a call.
Touch to make a video call
Adjust your exposure, flash, and other settings if you wish. Or leave them on
automatic.
Frame your subject on screen.
Touch the Shutter icon on screen.
6.1.2 To shoot a video
If necessary, drag the control to the video position
Adjust the quality, color effect, flash, and other settings if you wish. Or leave them on
automatic.
Point the lens to frame the scene where you want to start.
Touch the Start Video icon. Camera starts shooting the video.
Touch Stop video icon to stop shooting. An image from your most recent video is
displayed as a thumbnail at the bottom right.
6
6.
.2
2
V
Vi
ie
ew
w
a
al
lb
bu
um
ms
s
Touch the Gallery icon in the Launcher to view albums of your pictures and videos. Gallery
presents the pictures and videos on your SD card, including those you’ve taken with
Camera and those you downloaded from the web or other locations.
You can do the following operations:
To share pictures: you can share your pictures through MMS, Bluetooth, and so on.
To delete pictures: You can delete the pictures you are viewing.
To get details about the picture: You can view more details about the picture.
6
6.
.3
3
M
Mu
us
si
ic
c
You use Music to organize and listen to music and other audio files that you transfer to
your SD card from your computer.
Touch to view the pictures Touch to transfer between camera
and video.
Touch to take a picture or shoot a
video.
Touch settings to change them.
7. Connecting to networks and devices
Your phone can connect to a variety of networks and devices, including mobile networks
for voice and data transmission, Wi-Fi data networks, and Bluetooth devices, such as
headsets. You can also connect your phone to a computer, to transfer files from your
phone’s SD card, and share your phone’s mobile data connection via USB.
7
7.
.1
1
W
WL
LA
AN
N
WLAN is a wireless networking technology that can provide internet access at distance of
up to 100 meters, depending on the Wi-Fi router and your surroundings. You can
configure the WLAN as follow:
Main menu--> Settings-->WLAN, check WLAN to turn it on.
Enter WLAN. The phone scans for available Wi-Fi networks and displays the names
of those it finds. Secured networks are indicated with a Lock icon. If the phone finds a
network, you connected previously, It connects to it.
Touch a network to connect to it.
If the network is open, you are prompted to confirm that you want to connect to that
network by touching connect.
If the network is secured, you’re prompted to enter a password or other credentials
7
7.
.2
2
B
Bl
lu
ue
et
to
oo
ot
th
h
Bluetooth is a short-range wireless communications technology that devices can use to
exchange information over a distance of about 10 meters. The most common Bluetooth
devices are headphones for making calls or listening to music, hands-free kits for cars ,
and other portable device, including laptops and cell phones.
Touch to open the current playlist
Touch to shuffle the current
playlist
Touch to repeat the current playlist; touch
again to repeat the current track
7.2.1 To send a file
Main menu--> settings-->Bluetooth, check Bluetooth to turn it on.
Enter File manager to select a file and long press it, Select Send--> Bluetooth.
Touch Scan for devices, the phone will scan for and display the IDs of all available
Bluetooth devices in range.
Touch the ID of the other device in the list to pair them. After paired the file will be sent.
7.2.2 To receive a file
Main menu--> settings-->Bluetooth, check Bluetooth to turn it on. Ensure the
Bluetooth settings--> Discoverable is on.
After paired, the phone will receive the file. The file you received will save to the
“Bluetooth” file folder on the SD card.
7.2.3 To connect to a Handsfree device
Main menu--> settings--> Bluetooth, Select “Search”;
Turn on the Handsfree device, Select the Handsfree device in the list to pair.
After paired, you can use the Handsfree device to listen music and receive call.
7
7.
.3
3
C
Co
on
nn
ne
ec
ct
ti
in
ng
g
t
to
o
a
a
c
co
om
mp
pu
ut
te
er
r
v
vi
ia
a
U
US
SB
B
You can connect your phone to a computer with a shielded USB cable, to transfer music,
pictures, and other files between your phone’s SD card and the computer.
When connecting your phone to a computer and mounting its SD card, you must follow
your computer’s instructions for connecting and disconnecting USB devices, to avoid
damaging or corrupting the files on your SD card.
You can’t share your phone’s data connection and SD card via USB cable at the same
time. If you are using USB tethering, you must turn that off first.
7.3.1 To connect your phone to a computer via USB
1. Use the USB cable that came with your phone to connect the phone to a USB port on
your computer. You receive a notification that the USB is connected.
2. Open the notification panel and touch USB connected.
3. Touch Turn on USB storage in the screen that opens to confirm that you want to
transfer files. When the phone is connected as USB storage, the screen indicates that
USB storage is in use and you receive a notification. You phone’s SD card is mounted as
a drive on your computer. You can now copy files to and from the SD card.
During this time, you can’t access the SD card from your phone, so you can’t use
applications that rely on the SD card, such as camera, Gallery, and Music. You also can’t
share your phone’s data connection with your computer via USB.
7.3.2 To disable phone calls (Airplane mode)
Some locations may require you to turn off your phone’s mobile, Wi-Fi, and Bluetooth
wireless connections. You can turn off all these wireless connections at once by placing
your phone in Airplane mode.
1. Press & hold the Power button
2. Touch Airplane mode.
8. Warnings and notes
Operational Warnings
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. Read this
information before using your phone. For the safe and efficient operation of your phone,
observe these guidelines:
Potentially explosive at atmospheres: Turn off your phone when you are in any areas
with a potentially explosive atmosphere, such as fueling areas (gas or petrol stations,
below deck on boats), storage facilities for fuel or chemicals, blasting areas and areas
near electrical blasting caps, and areas where there are chemicals or particles (Such as
metal powders, grains, and dust) in the air.
Interference to medical and personal Electronic Devices: Most but not all electronic
equipment is shielded from RF signals and certain electronic equipment may not be
shielded against the RF signals from your phone.
Audio Safety: This phone is capable of producing loud noises which may damage your
hearing. When using the speaker phone feature, it is recommended that you place your
phone at a safe distance from your ear.
Other Media Devices, hospitals: If you use any other personal medical device, consult
the manufacture of your device to determine if it is adequately shielded from external RF
energy. Your physician may be able to assist you in obtaining this information. Turn your
phone OFF in health care facilities when any regulations posted in these areas instruct
you to do so. Hospitals or health care facilities may be using equipment that could be
sensitive to external RF energy.
Product statement on handling and use: You alone are responsible for how you use
your phone and any consequences of its use.
You must always switch off your phone wherever the use of a phone is prohibited. Use of
your phone is subject to safety measures designed to protect users and their environment.
Always treat your phone and its accessories with care and keep it in a clean and dust-free
place
Do not expose your phone or its accessories to open flames or lit tobacco products.
Do not expose your phone or its accessories to liquid, moisture, or high humidity.
Do not drop, throw, or try to bend your phone or its accessories
Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its
accessories.
Do not attempt to disassemble your phone or its accessories; only authorized personnel
must do so.
Do not expose your phone or its accessories to extreme temperatures, minimum 32and
maximum 113(0 to 45).
Battery: Your phone includes an internal lithium-ion or lithium-ion polymer battery. Please
note that use of certain data applications can result in heavy battery use and may require
frequent battery charging. Any disposal of the phone or battery must comply with laws and
regulations pertaining to lithium-ion or lithium-ion polymer batteries.
Faulty and damaged products: Do not attempt to disassemble the phone or its
accessory. Only qualified personnel must service or repair the phone or its accessory. If
your phone or its accessory has been submerged in water, Punctured, or subjected to a
severe fall, do not use it until you have taken it to be checked at an authorized service
center.
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Part 15.19
This mobile phone has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiated radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user‘s authority to operate the equipment.
4RF Exposure Information (SAR)
This mobile phone meets the government’s requirements for exposure to radio waves.
This phone is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard for wireless mobile phones employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR
are conducted using standard operating positions accepted by the FCC with the phone transmitting
at its highest certified power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR level of the phone while operating
can be well below the maximum value. This is because the phone is designed to operate at
multiple power levels so as to use only the power required to reach the network. In general, the
closer you are to a wireless base station, the lower the power output.
The highest SAR value for the model phone as reported to the FCC when tested for use at the ear
is 1.24 W/kg and when worn on the body, as described in this user guide, is 0.831 W/kg
(Body-worn measurements differ among phone models, depending upon available enhancements
and FCC requirements.)
While there may be differences between the SAR levels of various phones and at various positions,
they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR
levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on
this model phone is on file with the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on FCC ID: YHLBLUVIVO43.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines
for use with an accessory that contains no metal and the positions the handset a minimum of 1.5
cm from the body. Use of other enhancements may not ensure compliance with FCC RF
exposure guidelines. If you do not use a body-worn accessory and are not holding the phone at
the ear, position the handset a minimum of 1.5 cm from your body when the phone is switched on.
