BLU BLUVIVOXLIII Mobile phone User Manual

BLU Products, Inc. Mobile phone

User manual

USER GUIDE
Contents
1. For your safety ............................................................................................................... 1
2. Learn about the phone .................................................................................................. 2
Overview ......................................................................................................................... 2
Function Keys ................................................................................................................ 2
3. Before using ................................................................................................................... 3
Insert SIM cards and TF card ........................................................................................ 3
Charge the Battery ......................................................................................................... 5
4. Getting started ................................................................................................................ 5
Basic Function ............................................................................................................... 5
Home screen ................................................................................................................... 5
Touch screen .................................................................................................................. 7
5. Communication .............................................................................................................. 8
Make a call ...................................................................................................................... 8
Ongoing call.................................................................................................................... 8
Incoming call .................................................................................................................. 9
Send a Message ............................................................................................................. 9
6. Multimedia ..................................................................................................................... 10
Camera .......................................................................................................................... 10
Gallery ........................................................................................................................... 11
Music ............................................................................................................................. 11
7. Connection .................................................................................................................... 12
Airplane mode .............................................................................................................. 12
WLAN ............................................................................................................................. 12
Bluetooth ....................................................................................................................... 13
USB ................................................................................................................................ 13
8. Features ........................................................................................................................ 14
Split Screen ................................................................................................................... 14
Data Clone ..................................................................................................................... 14
Lambency Selfie ........................................................................................................... 14
Beautified Video ........................................................................................................... 14
Fingerprint Security ..................................................................................................... 15
Power Manager ............................................................................................................. 15
Selfies Album ................................................................................................................ 15
Navigation bar .............................................................................................................. 16
Picture-in-Picture ......................................................................................................... 16
9. Operation ...................................................................................................................... 16
Smart gestures ............................................................................................................. 16
Suspend option ............................................................................................................ 18
10.Warnings and notes ................................................................................................... 19
1
1. For your safety
Please read this manual before using the cell phone to ensure your safety and proper use.
SWITCH OFF IN HOSPITALS
Please abide by relevant provisions or regulations. Please turn off your mobile phone near medical
equipment.
SWITCH OFF WHEN REFUELING
Don’t use the phone at a refueling point. Don’t use near fuel or chemicals.
SIM CARDS AND TF CARD ARE PORTABLE
Keep your phone, phone parts and accessories out of children’s reach.
BATTERY
Please do not destroy or damage the battery, it can be dangerous and cause fire. Please do not throw
battery in fire to avoid hazard. When battery cannot be used, please dispose in safe environment. Do not
try to dismantle the battery. If the battery or authorized charger is broken or old, please stop using them,
and replace with certified genuine battery.
For first time using, please discharge completely and charge the battery in 100% full and continue
charging one more hour with authorized charger.
USE QUALITY EQUIPMENT
Use authorized equipment to avoid danger.
ROAD SAFETY COMES FIRST
Give full attention while driving, Park before using your phone. Please follow traffic rules of local city
town.
INTERFERENCE
All wireless devices may be susceptible to cause interference, which could affect performance.
SWITCH OFF IN AIRCRAFT
Wireless devices can cause interference in aircraft. It’s not only dangerous but also illegal to use mobile
phone in an aircraft.
2
2. Learn about the phone
Overview
1
LED Light 9
Fingerprint Sensor
2
Front Camera 10
Rear Camera
3
Receiver 11
Rear Flash
4
Light Sensor 12
Card Tray
5
Front Flash 13
Speaker
6
Volume Key 14
Headset Jack
7
Power Key 15
Microphone
8
USB port
Function Keys
Keys Functions
Power Key
Press to turn on/off the screen.
Press and hold to reboot, power off the phone, and turn
on
airplane mode or silent.
Volume Key Press to adjust the volume of device.
Multi Task Key
(on the screen)
Tap to open the list of recently used apps.
Click the circle button to clean all of recently used apps.
Home Key Tap to return to Home screen.
3
(on the screen) Long press to access Google™ search.
Back Key
(on the screen)
Tap to return to the previous screen.

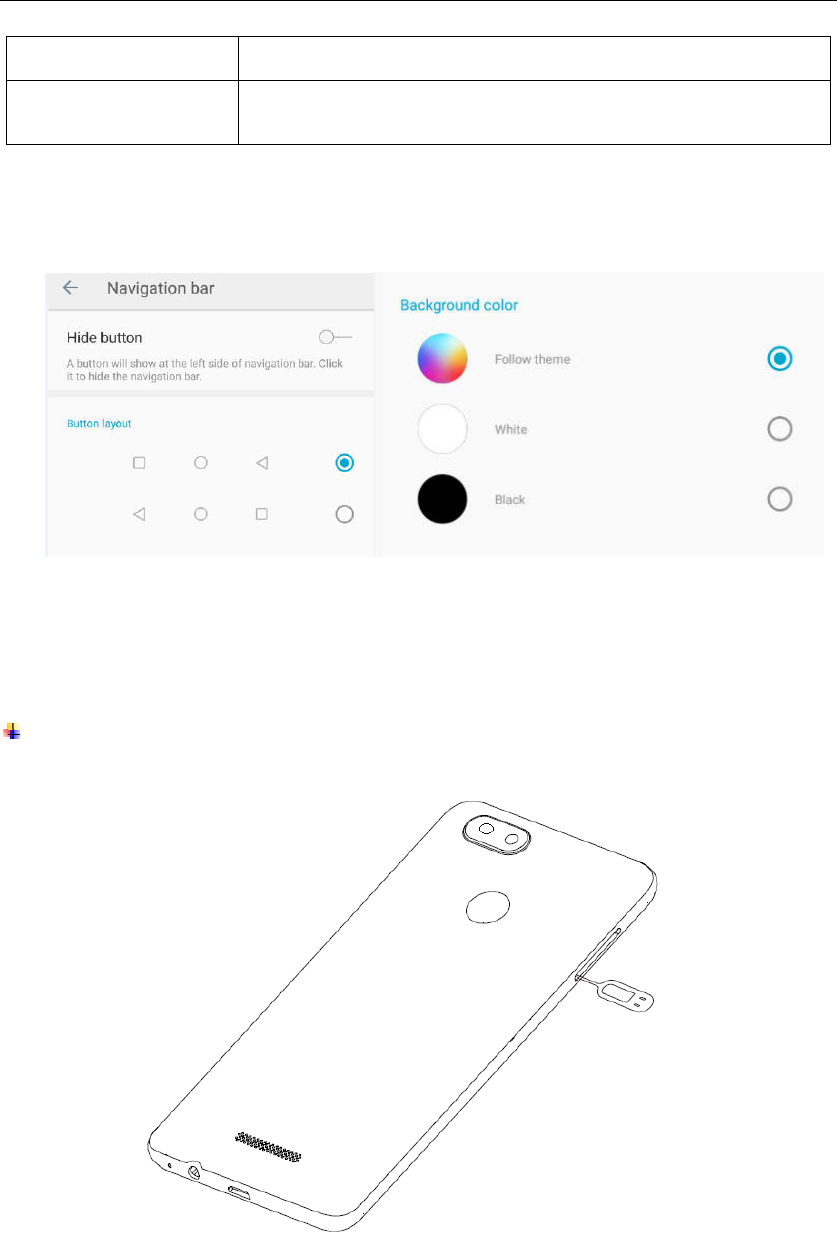

Note
Multi Task Key and Back Key can be exchanged the layout and color in Settings -->
Navigation bar. You can also hide button at the left of navigation bar.
3. Before using
The phone is a Dual SIM mobile that allows you to use two mobile networks.

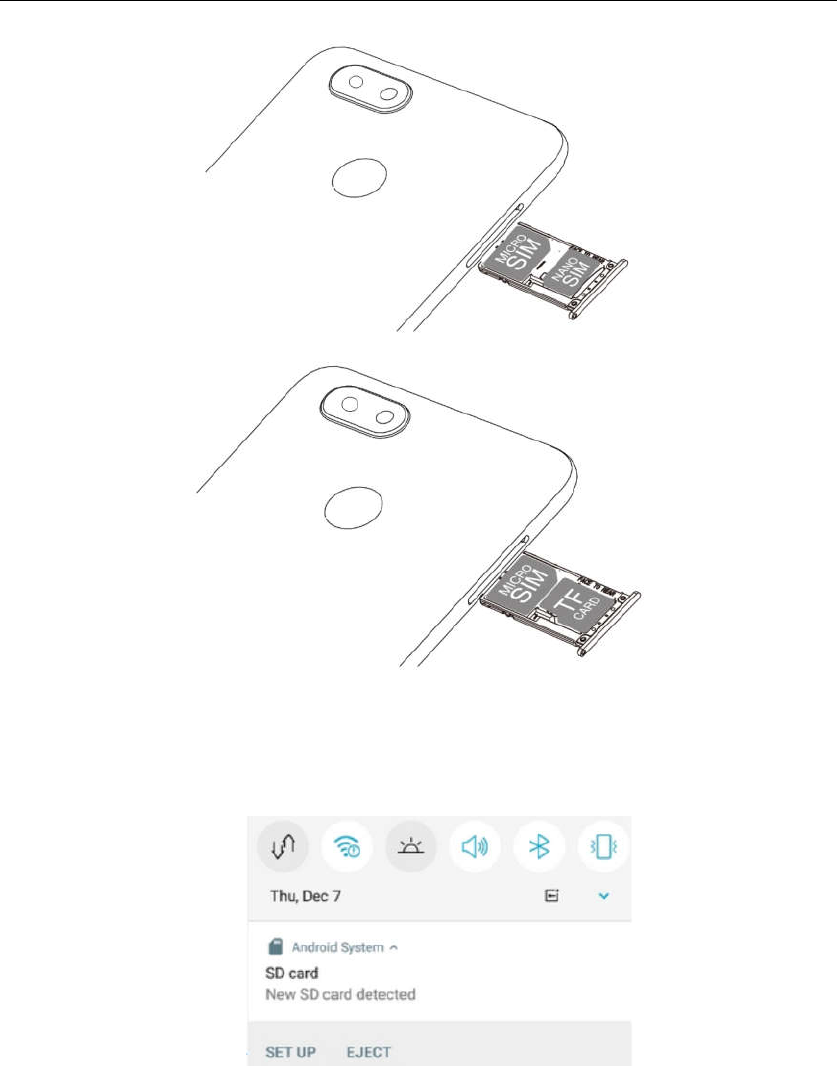

Insert SIM cards and TF card
1) Stick into the pin hole with eject tool, and then card tray will be out of phone.
2) Put SIM cards and TF card to card tray correctly.
Card 1 supports Micro SIM card.
Card 2 supports Nano SIM car or TF card.
4
Note: TF card can be used as internal storage.
Option 1: Notification Center --> Tap the notice to set up --> Use as internal storage
--> Next --> Erase & Format
Option 2: Settings --> More settings-->Storage & USB --> Format as internal
storage--> Erase & Format
3) Push the card tray into the phone.
Note:
SIM cards and TF card support hot plugging.
Do not remove the cards while the device is transferring data. Doing so may cause
data to be lost or damage to the cards and device.
The SIM cards and TF card are small parts. Please keep away from Children to avoid
swallowing the card by accident.
5
Please do not touch the metal surface of SIM and TF cards and keep them away from
electromagnetic field to avoid damaged data.
Charge the Battery
Charge the battery before using it. Connect the USB cable to the USB power adaptor, and
then plug the end of the USB cable into the USB Port.
Note:
The battery of mobile phone is fixed. It cannot remove.
4. Getting started
Basic Function
Turn on the phone
Press and hold the power key for a while to turn on the phone.
Turn off the phone
Long press the power key until a menu shows. Choose “Power off’’ to turn off the
phone.
Restart the phone
Option 1: Long press the power key until a menu shows. Choose “Reboot to restart
the phone.
Option 2: Long press the power key till 11 seconds to auto restart the phone.
Lock the screen
Option 1: Press the power key to turn off the screen and lock it
Option 2: In the Home screen, double tap the screen to lock it (Please double tap the
screen and choose “Lock the screen” to activate this function).
Option 3: The screen will auto lock if you don't use the phone for a while.
Unlock the screen
Press the power key, and then slide to top for unlocking.

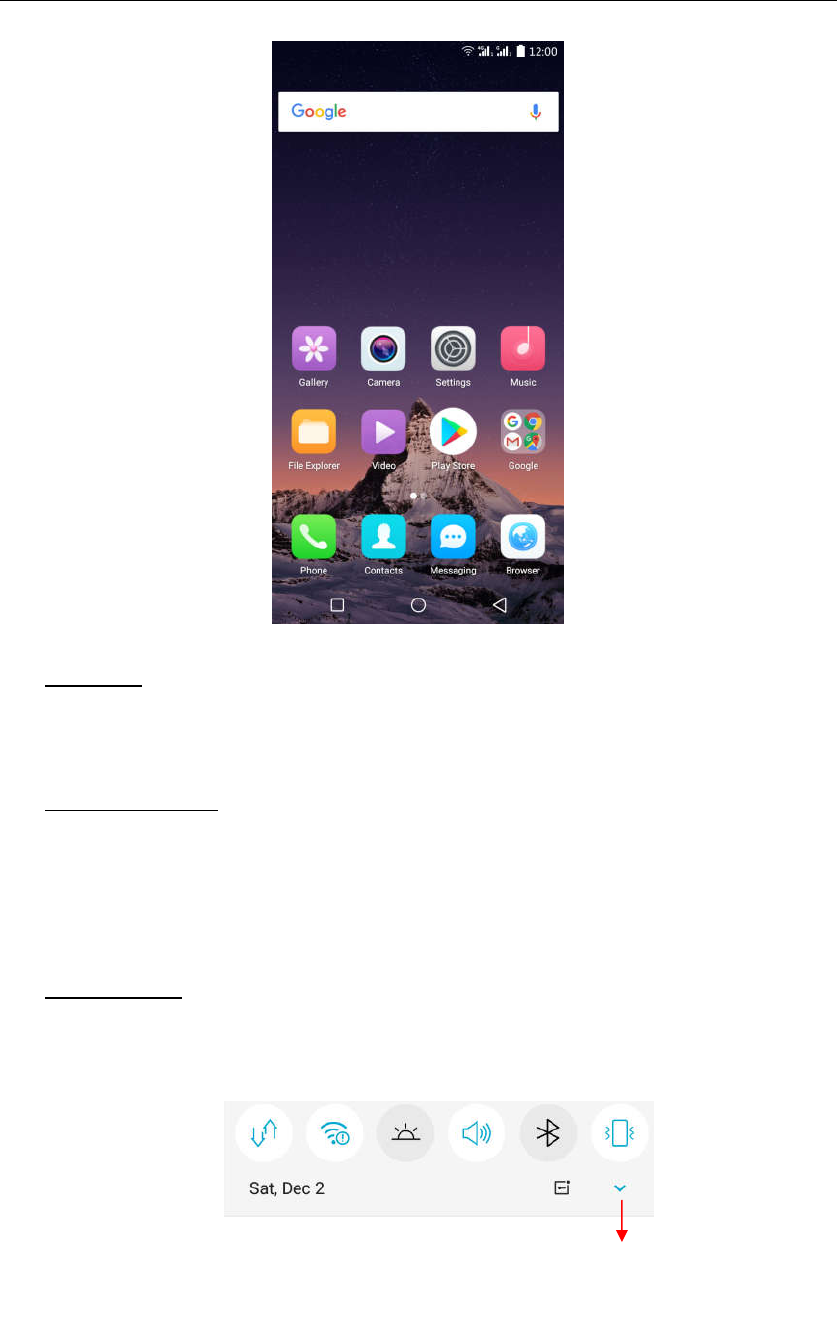

Home screen
The Home screen is your starting point to access all the features on your phone. It
displays application icons, widgets, and other features. You can customize the Home
screen with different wallpaper and display the items you want.
6
Status Bar
At the top of the screen, it displays the time, signal, battery information, and icons for
notifications that you’ve received.
Notification Center
Swipe down from the top edge to see more details of the new notification, such as
messaging, missed call, Wi-Fi network available etc. Tap the notification and drag to
left or right to delete it.
Settings-->Notification-->Notification Center to manage it.

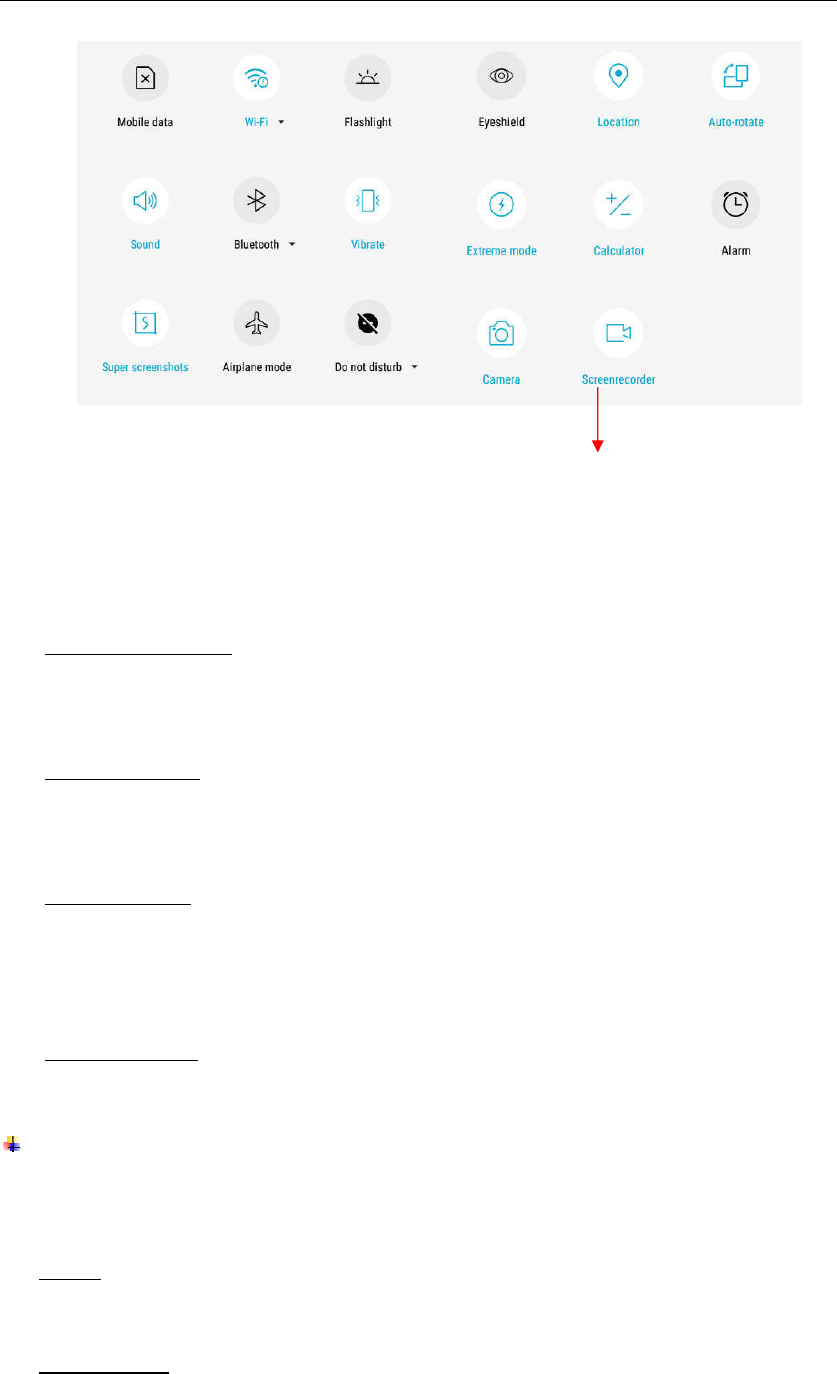

Control Center
Slide down from the top edge to open the control center.
In the control center, it’s a quick access to Mobile data, Wi-Fi, Flashlight, Sound,
Bluetooth, and Vibrate.
Tap to see more functions
7
Move an application
Touch & hold the icon you want to move. Drag the icon to move or cross at the edge
of the screen to move into another screen.
Creating a folder
Drag an icon on the top of another one to create a folder. Open the folder and then
tap the “Folder” to rename it.
Launcher Menu
Long press on an empty spot to open the launcher menu. You can change Wallpaper,
Arrange Desktop, Search and Desktop Settings. It’s a quick access to Desktop
Settings, System Settings and Search.
Pick up a widget
Touch and hold some icon can pick up a widget.
Touch screen
The way to control mobile phone is using your finger on touch icons, buttons, menu items,
the onscreen keyboard, and other items on the touch screen.
Touch: To act on items on the screen, such as application and settings icons, to type
letters and symbols using the onscreen keyboard, or to press onscreen buttons, you
simply touch them with your finger.
Touch & hold: Touch & hold an item on the screen by touching it and not lifting your
finger until an action occurs.
Screen Recorder:
Tap to record your operating
process, and the videos can
be save and share to others.
8
Drag: Touch & hold an item for a moment and then, without lifting your finger, move
your finger on the screen until you reach the target position. You can drag items on the
Home screen to reposition them and you can drag to open the Notification Center.
Swipe or slide: To swipe or slide, quickly move your finger across the surface of the
screen, without pausing when you first touch (so you don’t drag an item instead). For
example, you slide the screen up or down to scroll a list, and in the same way
Calendar views you can swipe quickly across the screen to change the range of time
visible.
Pinch: In some applications (Such as Maps and Gallery) you can zoom in and out by
placing finger and thumb on the screen at same time and pinching them out together
(to zoom out) or spreading them apart (to zoom in).
Rotate the screen: On most screens, the orientation of the screen rotates with the
phone as you turn it from upright to its side and back again. You can turn this feature
on and off.
5. Communication

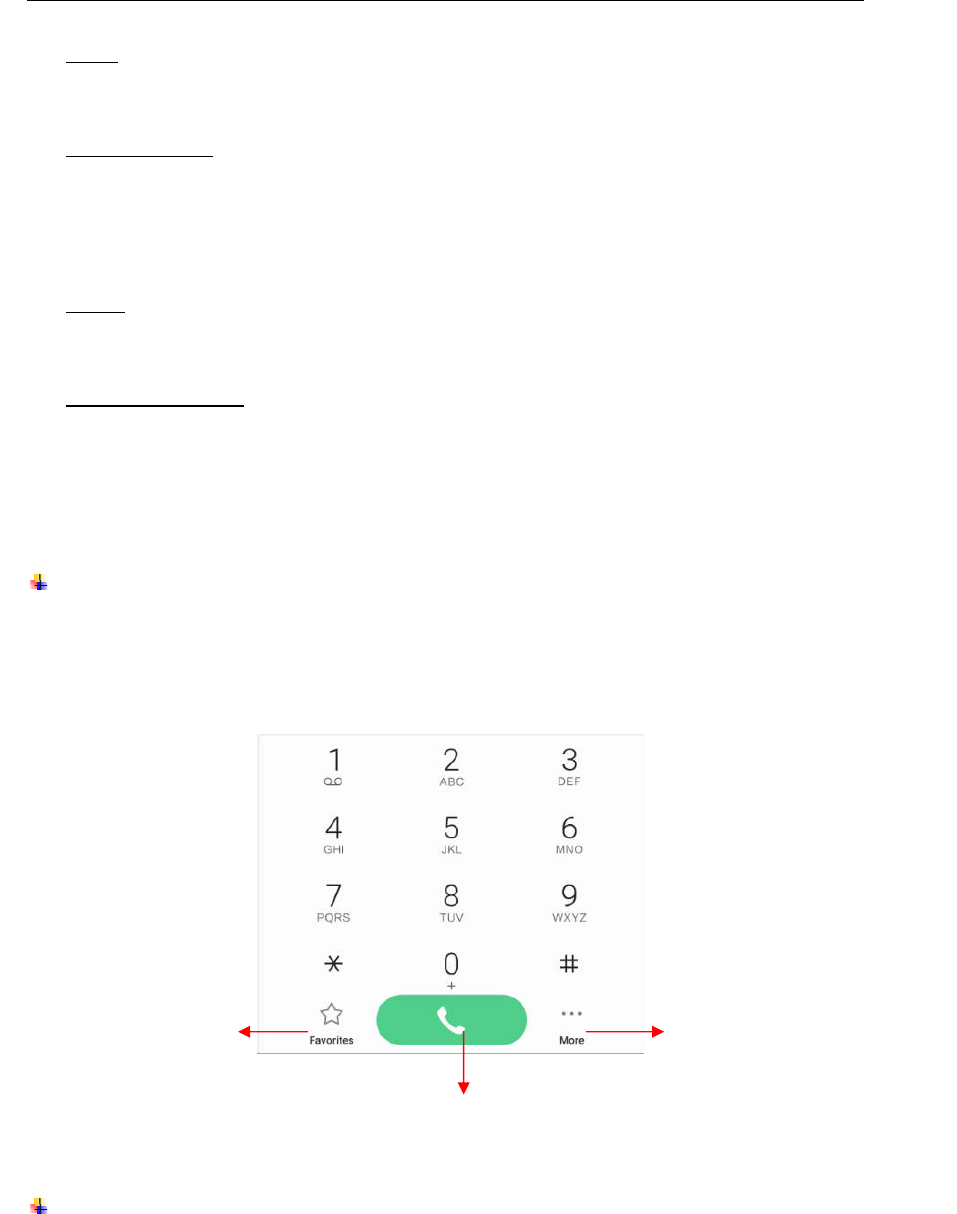

Make a call
Touch the phone icon on the Home screen.
Enter the phone number you want to dial.
Touch the phone icon to dial the number that you entered.

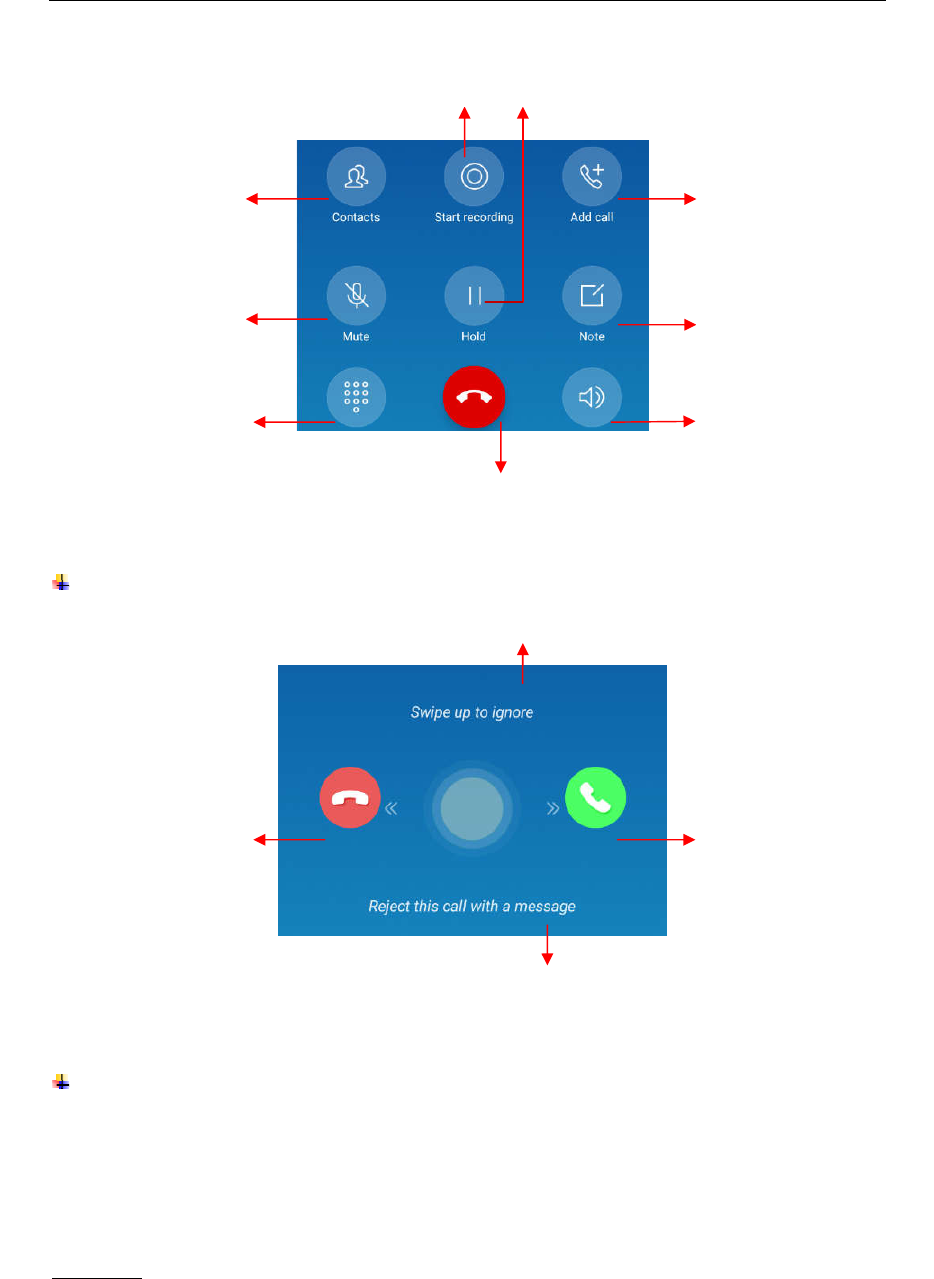

Ongoing call
Touch to open favorites
Touch to make an audio call.
Touch to open advanced option.
9
ar
Incoming call
Send a Message
You can use this phone to exchange text messages and multimedia messages with your
friends on their mobile phones. The messages come to and from the same contact or
phone number will be visible into a single conversation, so you can see your entire
message history with a person conveniently.
Enter text
Tap the text field to see onscreen keyboard.
Tap the keys on the keyboard to type; the characters you’ve entered appear in a strip
above the keyboard. With suggestions for the word you are typing to the right.
Use the Delete key to erase characters to the left of the cursor.
Drag the phone icon on
right to answer the call.
Drag the phone icon on left
to reject the call.
Drag the phone icon down to reject the call and
send a message to caller.
End the current call
Get contacts information
Start recording
Add call
Mute the line
Number keypad
Take a note
Speaker
Hold on the line
Swipe up to ignore the call.
10
When you’re finished typing, press back to close the keyboard.
6. Multimedia

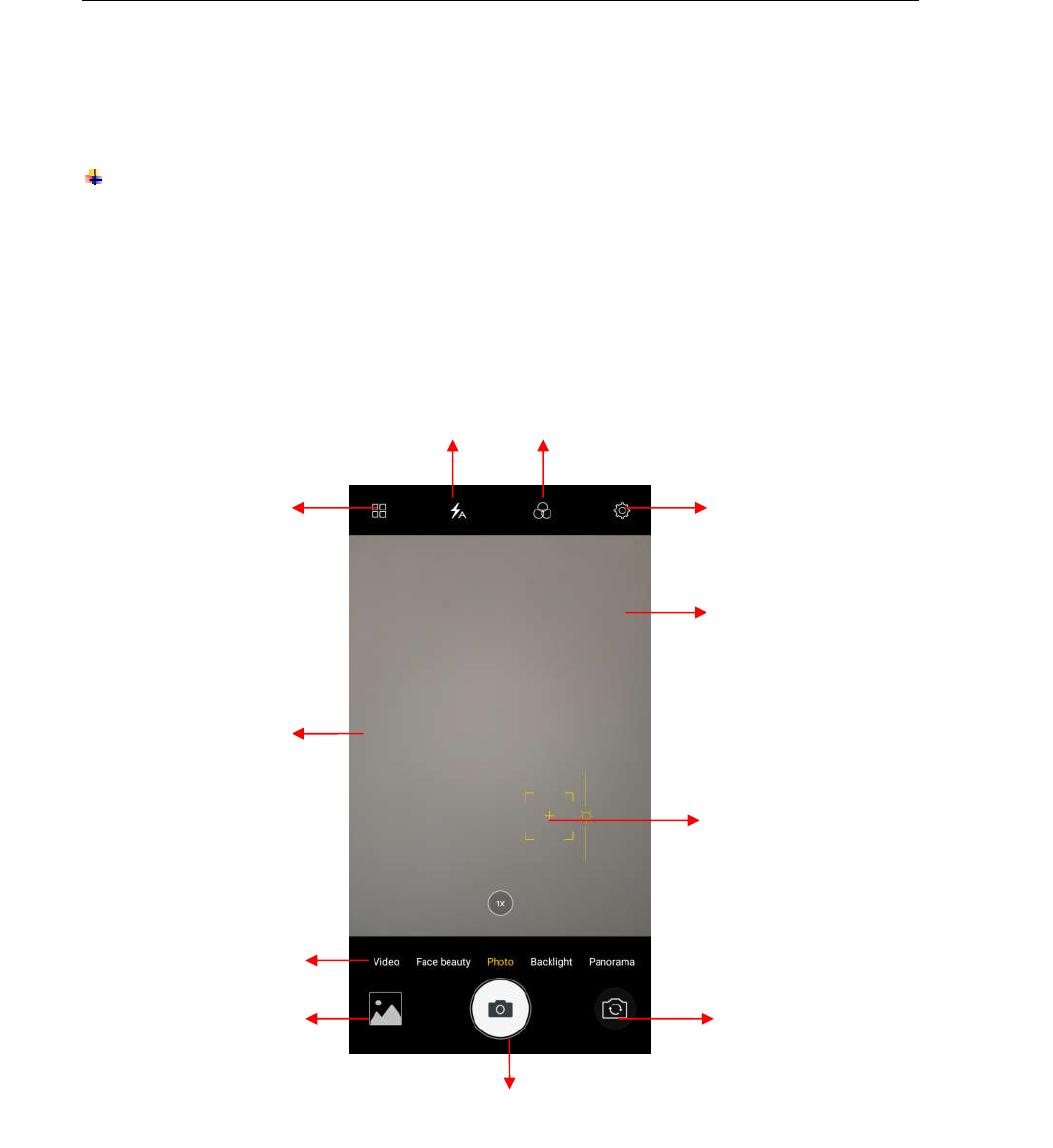

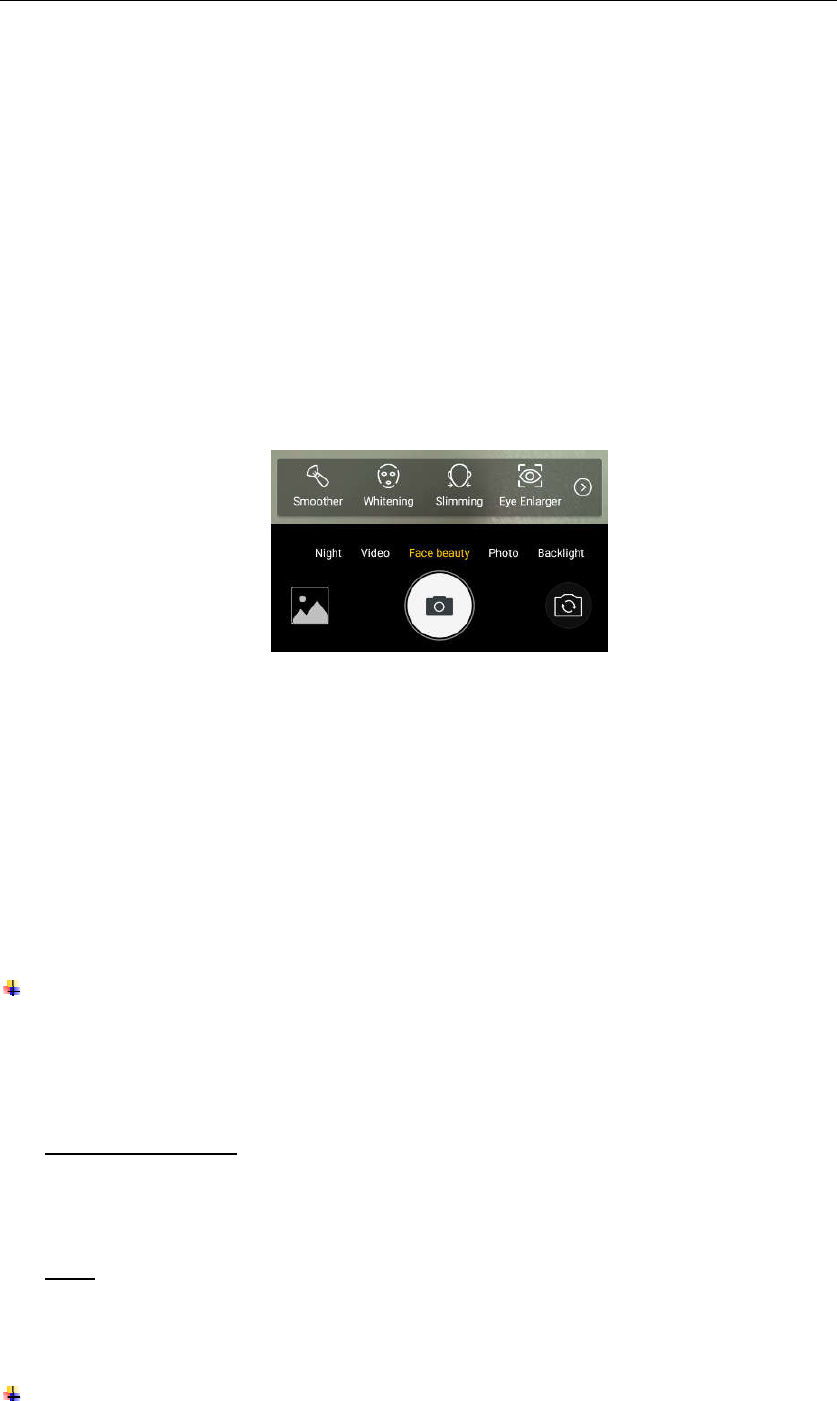

Camera
Camera is a combination of camera and camcorder that you use to shoot and share
pictures and videos. Tap the image on the camera screen where should focus on. You can
also change camera setting like transfer front and rear camera, adjust the exposure on
this screen.
Take a photo
Time-lapse Mode – Time lapse photography is the rapid play of the video, from a
long period of time condensed to a very short period of time.
Slow motion Mode - Using slow motion function make a short video, playing with a
slow speed.
Text recognition Mode – The text of the photograph can be edited.
GIF Mode – Shooting multiple images to form a simple animation.
PicNote Mode - Intelligent crop and optimize the text photo after shooting.
Smart scan Mode - Align QR/Bar code within frame to scan.
Touch to enter the Camera Settings.
Touch to enter the Mode
Settings.
Touch to set flash to Auto, On or Off.
Touch to take a picture or shoot a video.
Touch to enter Gallery
Touch to transfer between rear
camera and front camera
Touch the screen to focus on it.
Pinch or spread the screen to
zoom in or zoom out.
Slide down the screen to
enter Mode Settings
Slide right or left to transfer Night,
Video, Face beauty, Photo,
Backlight, Panorama and last time
selected feature.
Touch to open Filter mode.
11
Mood photo Mode - Easy to shoot a good photo like Polaroid. You can select a filter
and write down your mood.
Card scanner Mode Select a recognition language to scan the name card and then
save the information to the phone.
Translation Mode – Press the button and choose the scope to translate.
Group selfie Mode Take group selfie. Press the shutter to take first photo. Then,
rotate the phone slowly to left side to take second photo. Finally, rotate the phone
slowly to right side to take the third one.
Panorama Mode - Press camera button and slowly move the phone in one direction.
Backlight Mode – Improve the photo quality in dynamic environment.
Face beauty Mode Beautify your photo and realize full skin beauty not just
beautifying the face, so that presents more natural selfie. You can select Smoother,
Whitening, Slimming, and Eye Enlarger. Drag the slider to adjust it.
Night Mode - Through nightscape noise reduction, we see the thing as it actually is.
Shoot a Video
In camera mode, slide the screen to right for video capturing.
Adjust the quality and other settings if you wish or leave them on automatic mode.
Point the lens to frame the scene where you want to start.
Touch the Video icon. Camera starts shooting the video.
Touch Stop video icon to stop shooting. An image from your most recent video is
displayed as a thumbnail at the bottom left.
Gallery
Touch the Gallery icon in the Launcher to view albums of your pictures and videos which
you’ve taken from camera. You may share the pictures and videos with your friends by
Messaging, Email, Bluetooth and so on.
Hidden management: You can hide any folder in Hidden Management. You can select
multiple folders by long pressing on each folder icon, and clicking on “Hide”. After
hiding, the picture will not be displayed in the Time and All. You can go to Gallery
settings --> hidden management to view or manage the hidden folder.
Trash: Deleted pictures will be moved to trash, which will be deleted permanently on
the seventh day. You can delete or recover these pictures manually in trash.
Music
12
You can use Music player to organize and listen to music and other audio files that you
transfer to your phone from your computer.
7. Connection
Your phone can connect to a variety of networks and devices, including mobile networks
for voice and data transmission, WLAN data networks, and Bluetooth devices, such as
headsets. You can also connect your phone to a computer, to transfer files from your
phone storage, and share your phone’s mobile data connection via USB or as a portable
WLAN hotspot.
Airplane mode
Option1: Settings-->More-->Airplane mode to turn it on
Option2: Swipe down from the bottom edge to open control center--> tap Airplane mode
Some locations like Airplane may require you to turn off your phone’s Cellular network,
WLAN, and Bluetooth wireless connections. You can turn off all these wireless
connections at once by placing your phone on Airplane mode.
WLAN
WLAN is a wireless networking technology that can provide internet access at distance of
up to 100 meters, depending on the WLAN router and your surroundings. You can
configure the WLAN as follow:
Settings-->WLAN, check WLAN to turn it on.
Enter WLAN. The phone scans for available WLAN networks and displays the names
of those it finds. Secured networks are indicated with a Lock icon. The phone will auto
login to the network if you have previously connected.
Touch a network to connect to it.

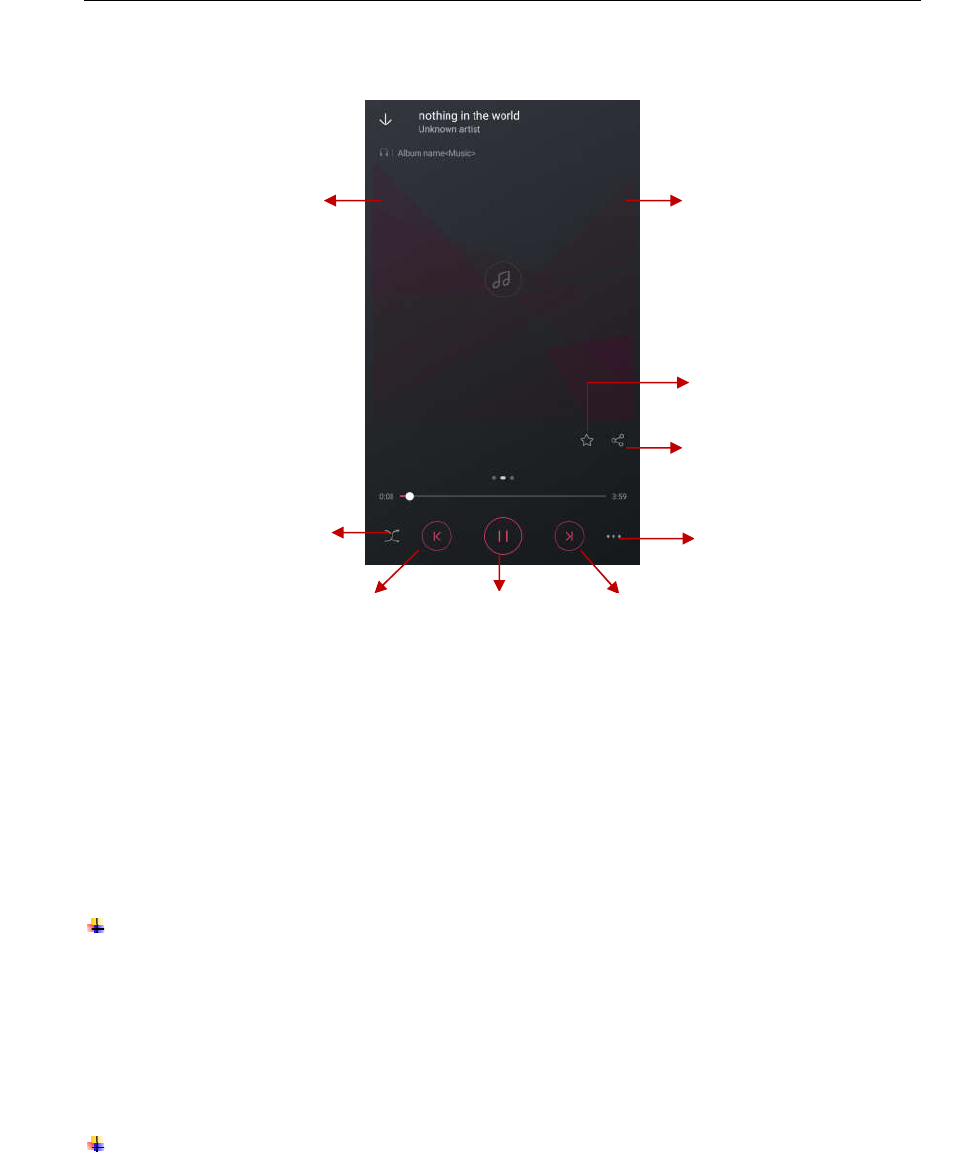

Touch to Change play mode of Single
cycle, Shuffle, or Circulating list.
Add to my favorites
or New song list.
Settings Menu
Share music by Bluetooth,
Email, Messaging and so on.
Slide to right for current list
Slide to left for lyrics file.
Previous song Next song
Play/ Pause
13
If the network is open, you are prompted to confirm that you want to connect to that
network by touching connect. If the network is secured, you’re prompted to enter a
password or other credentials.
Bluetooth
Bluetooth is a short-range wireless communications technology that devices can use to
exchange information over a distance of about 10 meters. The most common Bluetooth
devices are headphones for making calls or listening to music, hands-free kits for cars,
and other portable device, including laptops and cell phones.
To send a file
Settings--> Bluetooth, check Bluetooth to turn it on.
Enter File Explorer to select a file, Select More--> Share--> Bluetooth.
Touch Scan for devices, the phone will scan for and display the names of all
available Bluetooth devices in range.
Touch the names of the other device in the list to pair them. After pairing the file will
be sent.
To receive a file
Settings--> Bluetooth, check Bluetooth to turn it on. Ensure your Bluetooth has been
connected within visibility time.
You can receive files from the devices which are paired with yours. The file you received
will be saved to the “Bluetooth” folder in the File Explorer.
To connect to a Handsfree device
Turn on the Handsfree device, make it in a searchable state;
Settings-->Bluetooth, Select “Search for devices”;
After searching for the Handsfree deviceSelect it in the list to pair.
After pairing, you can use the Handsfree device to listen to music, video and receive
call.
USB
You can connect the phone to your computer with a USB cable to transfer music, pictures,
and other files.
Turn on USB connection
1. Connect the phone to your computer with a USB cable.
2. In notification center, tap USB charging this device to open USB connection.
3. Choose the USB options.
Charge only, connected as a USB for charging.
Copy files, Transfer music, videos, documents and other documents (MTP).
View photos, Browse photos in DCIM and Pictures file folder (PTP).
Note:
14
Do not disconnect the USB cable from the phone when you are transferring files.
Doing so may cause data loss or phone damage.
8. Features
Split Screen
You can run two different applications on the same screen.
Data Clone
You can transfer contacts, text messages, pictures, music, videos and apps data from
your old phone to your new phone without data traffic.
Lambency Selfie
8MP front camera with a soft LED flash, under the low light environment can easily take a
clear and bright self-portrait.
Beautified Video
How to use
1) Turn on the camera
2) Select the front camera mode
3) Set the flash to On or Auto
4) Take pictures
How to use
1) Click the multi task key and long press
application to drag to the top of screen
2) Click to select another application that
needs split screen
3) Or long press the multi-task key on the
split table application page
How to use
1) Phone settings-->More
settings-->Backup & Reset--> Data
Clone
2) Select the required replacement
conditions
15
Video automatically detect the face and support 7-level beauty adjustment.
Fingerprint Security
Support fingerprint unlock.
Power Manager
Extreme power saving, always in power.
Selfies Album
A new album ‘Selfies’ is added in the Gallery. Photos shot by front camera stocks in the
‘Selfies’ folder automatically.
How to use
1) Turn the camera on
2) Select the video mode
3) Click the beauty icon to adjust the
beauty level
How to use
1) Phone settings --> Security -->
Fingerprint
2) Set the phone security password
3) Place your finger on fingerprint
sensor for fingerprint entry
How to use
1) System manager --> Power manager
2) Two power saving modes are
available
16
Navigation bar
Navigation bar can be hidden to minimize visual distractions. Besides, the position of
button or the button or the background color can be changed too.
Picture-in-Picture
An app can display in a floating window when you leave it. So you can see two apps at
once. Tips: Only certain apps which will be listed in Picture-in-Picture menu support this
feature.
9. Operation
Smart gestures
Settings-->More settings--> Smart gestures to turn it on.
The smart gestures system supports a variety of experience and control, through gesture
can be more convenient operation, some of the smart gesture functions will not work while
flip cover is closed.
How to use
1) Take a selfie
2) You can always locate your selfies in
a special folder ‘Selfies in the gallery
How to use
Enter the “Navigation bar” in Settings.
How to use
1) Settings --> Apps --> More -->
Configure apps-->Special access
2) Find the Picture-in-Picture menu,
then turn on/off this feature
17

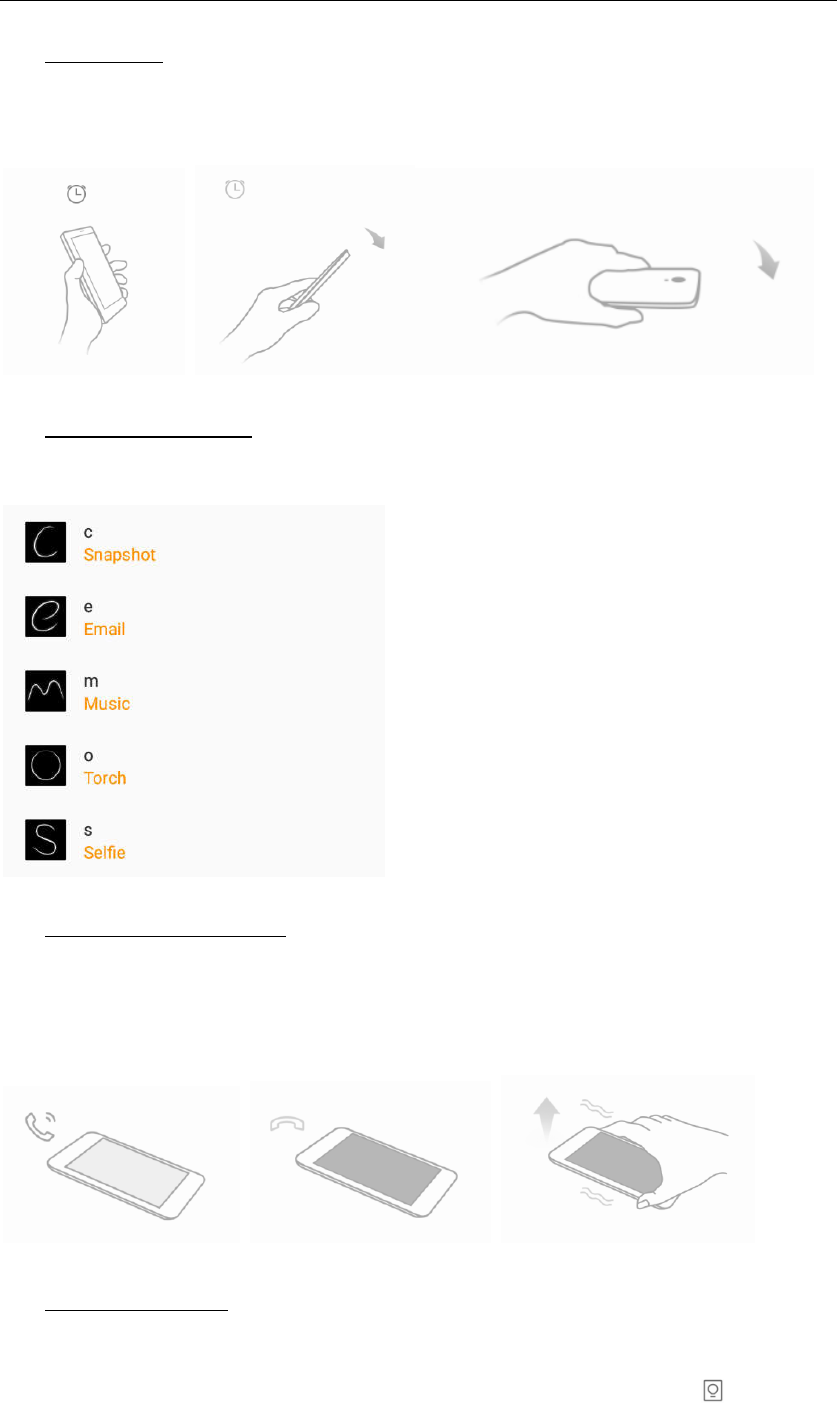

Pause alarm
Settings--> More settings --> Smart gestures -->Select Pause alarm
Flip back the phone to pause an on-going alarm.
Black screen gestures
Settings--> More settings --> Smart gestures --> Select Black screen gestures
Draw pattern to access menu quickly while phone is on sleep mode.
Smart Vibration Reminder
Settings--> More settings --> Smart Gestures -->Select Smart Vibration Reminder
When the phone has missed call or unread SMS, pick up it in sleep screen will vibrate to
remind again.
Smart bright screen
Settings--> More settings --> Smart gestures-->Select Smart bright screen
When front camera detects you are viewing screen, the screen will be maintained
normally. When you enable this function, the status bar will display this icon .
18
The following scenario, the function may fail:
-User doesn’t face on the screen
-The light is too strong or too dark
-Front camera is used by other applications
Double click wake up
Settings--> More settings --> Smart gestures -->Select Double click wake up
When the screen is in sleep mode, quick double tap to wake up the phone.
Suspend option
Long press can be hidden in the notification bar. Operation the suspend button, achieved
to return, sleep and so on. You can also change the transparency, button size, and
customization of suspend button here.
Settings--> More settings --> Suspend option
Tap to open one hand
operation
Close
Tap to return to the previous
screen.
Tap to lock the screen.
Tap to return to the Home screen.
19
10. Warnings and notes
Operational Warnings
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. Read this
information before using your phone. For the safe and efficient operation of your phone,
observe these guidelines:
Potentially explosive at atmospheres: Turn off your phone when you are in any areas
with a potentially explosive atmosphere, such as fueling areas (gas or petrol stations,
below deck on boats), storage facilities for fuel or chemicals, blasting areas and areas
near electrical blasting caps, and areas where there are chemicals or particles (Such as
metal powders, grains, and dust) in the air.
Interference to medical and personal Electronic Devices: Most but not all electronic
equipment is shielded from RF signals and certain electronic equipment may not be
shielded against the RF signals from your phone.
Audio Safety: This phone is capable of producing loud noises which may damage your
hearing. When using the speaker phone feature, it is recommended that you place your
phone at a safe distance from your ear.
Other Medical Devices, hospitals: If you use any other personal medical device, consult
the manufacturer of your device to determine if it is adequately shielded from external RF
energy. Your physician may be able to assist you in obtaining this information. Turn your
phone OFF in health care facilities when any regulations posted in these areas instruct
you to do so. Hospitals or health care facilities may be using equipment that could be
sensitive to external RF energy.
Product statement on handling and use: You alone are responsible for how you use
your phone and any consequences of its use.
You must always switch off your phone wherever the use of a phone is prohibited. Use of
your phone is subject to safety measures designed to protect users and their environment.
Always treat your phone and its accessories with care and keep it in a clean and dust-free
place.
Do not expose your phone or its accessories to open flames or lit tobacco products.
Do not expose your phone or its accessories to liquid, moisture, or high humidity.
Do not drop, throw, or try to bend your phone or its accessories.
Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its
accessories.
Do not attempt to disassemble your phone or its accessories; only authorized personnel
can do so.
Do not expose your phone or its accessories to extreme temperatures, minimum 32and
maximum 104(0 to 40).
Battery: Your phone includes an internal lithium-ion or lithium-ion polymer battery. Please
note that use of certain data applications can result in heavy battery use and may require
frequent battery charging. Any disposal of the phone or battery must comply with laws and
regulations pertaining to lithium-ion or lithium-ion polymer batteries.
Faulty and damaged products: Do not attempt to disassemble the phone or its
accessory. Only qualified personnel can service or repair the phone or its accessory. If
20
your phone or its accessory has been submerged in water, Punctured, or subjected to a
severe fall, do not use it until you have taken it to be checked at an authorized service
center.
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Note:
Caution: Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed the emission limits for exposure
to radio frequency (RF) energy set by the Federal Communications Commission of the
United States.
During SAR testing, this device was set to transmit at its highest certified power level in all
tested frequency bands, and placed in positions that simulate RF exposure in usage
against the head with no separation, and near the body with the separation of 10 mm.
Although the SAR is determined at the highest certified power level, the actual SAR level
of the device while operating can be well below the maximum value. This is because the
phone is designed to operate at multiple power levels so as to use only the power required
to reach the network. In general, the closer you are to a wireless base station antenna, the
lower the power output.
The exposure standard for wireless devices employing a unit of measurement is known as
the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general population /uncontrolled exposure limits in
ANSI/IEEE C95.1-1992 and had been tested in accordance with the measurement
methods and procedures specified in IEEE1528.
The FCC has granted an Equipment Authorization for this model phone with all reported
SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC and can be found under the
21
Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID:
YHLBLUVIVOXLIII.
For this device, the highest reported SAR value for usage against the head is 1.18
W/kg, for usage near the body is 1.04 W/kg.
While there may be differences between the SAR levels of various phones and at various
positions, they all meet the government requirements.
SAR compliance for body-worn operation is based on a separation distance of 10 mm
between the unit and the human body. Carry this device at least 10 mm away from your
body to ensure RF exposure level compliant or lower to the reported level. To support
body-worn operation, choose the belt clips or holsters, which do not contain metallic
components, to maintain a separation of 10 mm between this device and your body.
RF exposure compliance with any body-worn accessory, which contains metal, was not
tested and certified, and use such body-worn accessory should be avoided.
Google, Android, Google Play and other marks are trademarks of Google LLC.
Oreo is a trademark of Mondelez International, Inc. group.

Navigation menu
