BLU WIN JR LTE
USER MANUAL
2
Table of Contents
Safety Information ................................................................................................................. 4
Appearance and Key Function ........................................................................................... 7
Introduction ............................................................................................................................ 9
Call Functions ...................................................................................................................... 10
Getting Started ..................................................................................................................... 12
Personalization .................................................................................................................... 12
People ................................................................................................................................... 14
Messaging ............................................................................................................................ 17
Connectivity .......................................................................................................................... 19
Internet Explorer .................................................................................................................. 21
Outlook .................................................................................................................................. 22
3
Store ...................................................................................................................................... 23
Camera ................................................................................................................................. 24
Photos ................................................................................................................................... 26
Music ..................................................................................................................................... 27
FM Radio .............................................................................................................................. 28
Calendar ............................................................................................................................... 30
Alarms ................................................................................................................................... 31
Storage Sense ..................................................................................................................... 32
Troubleshooting ................................................................................................................... 33
4
Safety Information
Please carefully read the terms below:
Use Safely
Do not use the phone in situations where it might cause danger.
Transportation Safety
Please observe all transportation laws and regulations.
Please drive with both hands on the wheel.
PLEASE DRIVE RESPONSIBLY - DO NOT TEXT AND DRIVE
Hospital Safety
Please follow hospital rules and limitations.
Please turn off your mobile phone when near medical instruments.
Airport Safety
Remember to follow all airport and flight safety regulations.
Please do not use your phone during flight.
Chemical Warning
Do not use your mobile phone around fuels or chemicals.
5
Temperature Warning
Do not subject your phone to extreme temperature conditions.
Water Hazard
Your phone is not waterproof. Keep it away from water and liquids.
Emergency Calls
Make sure your mobile phone is switched on and in a service area. In home screen, click the phone key
and dial the emergency number.
Accessories and Batteries
Use only Blu authorized batteries and accessories.
Information Backup
Remember to keep a written record of all important information.
Battery Safety and Precautions
- For better performance and longer battery life, it is recommended that you charge the battery fully before
using the mobile phone for the first time.
- The optimum performance of a new battery is typically achieved after two or three complete charge cycles.
Note: Keep in mind that continuous overcharging will affect long term battery life.
- While charging, keep the mobile phone out the reach of children.
- Store the battery in a cool and dry place away from direct sunlight and water.
6
- Do not expose batteries to extreme temperatures.
- Immediately stop using the battery if it produces an odor, cracks and leaks, overheats, distorts or has any
other type of physical damage.
- Avoid using the charger near or around liquids. If the charger comes in contact with water or any liquids,
immediately unplug it from the outlet to reduce the risk of overheating, charger malfunction, electric shock
or fire.
Warning: Please be careful with the disposal of used batteries. Do not throw away batteries with daily
waste. Please follow local environmental laws and guidelines for proper waste disposal.
Cleaning and Maintenance
- Avoid using the handset and accessories in excessively moist areas to avoid malfunction.
- Use a soft, dry cloth to clean the handset, battery and charger.
- Do not use alcohol, thinner, benzene or any other solvent to clean the handset.
7
Appearance and Key Function
Volume
Power
Search
Start
Back
Front Camera
8
Rear Camera
Flash
Speaker
9
Introduction
Installation of the SIM Card
Warning: Please keep the SIM card out of the reach of children. The SIM card and its contact are easily
damaged due to scratching or bending. Please use caution when carrying, installing or taking out the SIM
card. NB: Please make sure to obtain a SIM card directly from your mobile phone service provider.

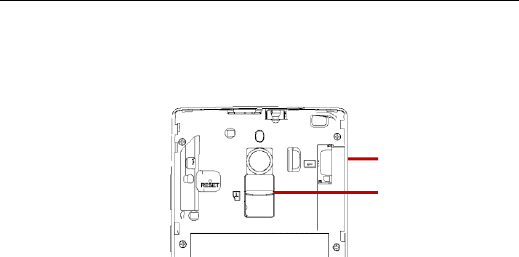

To insert SIM card:
1. Remove the rear cover. Insert the SIM card.
2. Insert the SD card. (For additional storage capacity)
3. Replace the rear cover and power on phone.
SIM Slot
Memory Card Slot
10
Power On and Off
On - Please ensure the SIM card has been properly inserted into the phone. Long press the Power key to
switch the phone on.
Off - In standby mode, long press on Power key until an options menu appears. Slide the screen down to
completely power off the phone.
Lock Screen
You may set a password to the lock screen setting as security measure for the phone. For further
information regarding password locks, please enter to the lock screen option in system settings and select
on in the password option.

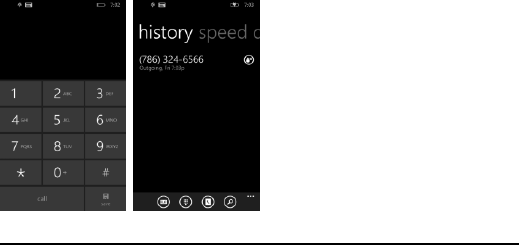

Call Functions
At the dial keyboard, enter the phone number and then click the dial key. If dialing an extension, you may
click the dial pad icon in the bottom of the screen to open the interface and enter the number of the
extension. You may also press and hold the 0 key to add a (+) sign when adding an international dialing
prefix.
11
Call Logs
Every telephone number called and received will be saved in the phones call log. All numbers in the call log
can be dialed directly.
When the number appears on the list, click it to view details. To clear the call logs, press the menu key, click
select calls, and then pick the calls you wish to delete. You may remove one or multiple calls.
12
Getting Started
Signing In
Sign in with a Microsoft account to download apps, back up contacts and more. You can sign in when you
set up your phone or you can sign in at any time afterwards.
To sign in after you've already set up your phone
1. In the App list, click Settings, and then click Email + accounts.
2. Click Add an account > Microsoft account.
3. If you already have a Microsoft account, click Sign in. If you don't have a Microsoft account
yet, click Create one.
4. Follow the instructions to sign in with or create your account.
Personalization
On Windows Phone, Start is your home base: you can keep all of your important things just where you need
it, perform a task with a click or two, and then press the Start button to zoom right back to the Start screen.
You can fill the Start screen with links, contacts, maps and apps, or just a few basics. With Live Tiles, you
get notifications and updates in real time, so you don't even have to open an app to see relevant info.
13
Move things around
The phone starts off with preset tiles, but you have the option to customize it your way: when you move
Tiles around, you're free to leave gaps between them, have only one Tile in a row or fill up every available
space. You can also adjust Tile sizes so you can pack a lot of apps into a small space or enjoy an expanded
Live Tile. All Tiles can be shrunk and many can be expanded to span the width of the Start screen.
Pinning Apps to Start
To pin an app
In the App list, click and hold the app you want to pin, and then click Pin to start.
To pin a contact
On Start, click People and press and hold the contact you wish to pin.
Add some color
Your phone comes with 20 colors you can use for your Tiles and the accents around the phone.
Your theme color will show up not only on Start and your App list, but also in links, Messaging and other
places. You can also choose between a black or white background. On phones, the dark background uses
less battery, while the light background has higher contrast. Tip: Some colors look a little different against
the dark background than they do against the light colored background, so if you change between them, try
revisiting different theme colors.
Finding your Apps
1. On Start, swipe over to the App list.
2. Click Search to find a specific app, or click a letter to jump to that section.
Note: To find your games, go to the App list, and then click Games.
14
People
To Enter Contacts list
Click on the applications menu and select contacts.
The default display is the phone contacts and SIM card contacts until the phone is synchronized.
The contacts are organized alphabetically by default.
Contacts – Click a name to call text, chat, and email or see social updates. To make the list more
manageable, set filters – just click Showing at the top of the list. You'll always be able to find filtered
contacts by using a quick search.
What's new – Here you can see all of your contacts' latest updates, pulled together from social networks,
including Facebook, Twitter and LinkedIn preparing you for an avalanche of posts, tweets, and pictures.
Plus, you can configure what information you choose to see.
Rooms and Groups – Get to your Rooms and Groups and create new ones from here. Click into a room to
start a chat or view the calendar, notes or photo album or open up a group to see what's new with the
members or send them a quick group email or text.
Note: You can add and synchronize different accounts which include: Outlook, Skype, Xbox, One Drive,
Microsoft Exchange, Microsoft 365, Google, iCloud, Facebook, Twitter, and LinkedIn (See import contacts).
15

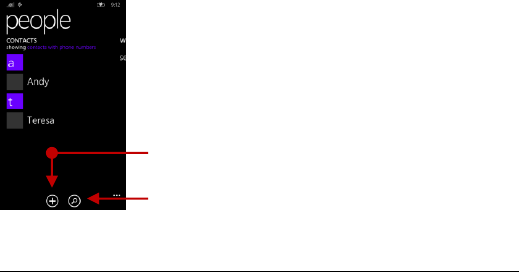

Click the Search icon to enter the contact search interface.
Any numbers or letters associated with any of the contacts saved in the list will be shown in the
search results.

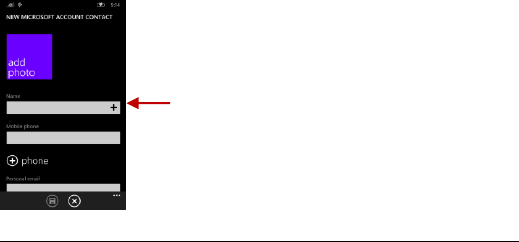

Add New Contact
- Click the add contact icon (+) to add contact.
- You may enter different contact details which include adding a picture, name, telephone number, group,
address, and email among other options.
Add Contact
Search
16
Delete Contact
Click on the Contacts icon to enter the phonebook.
Long press on the contact you wish to delete.
Click delete to eliminate contact from phonebook.
Contact
information
entry field
Note: Saving your contacts to your
Outlook account facilitates both
storage and synchronization with
multiple entries across different
handsets and tablets. When
syncing your Outlook with a new
phone, all your stored Outlook
contacts are automatically synced
with the new phone.
17
Import Contacts
The phone allows you to import contacts to synchronize information between different storage types that
include the SIM card, Outlook account and your phone.
To synchronize and import contacts:
1. Press the Contacts icon to enter the phonebook.
2. Press the menu key and click on settings.
3. Click on add contacts or click on select import contacts from SIM.
4. Select the source account you want to import the contacts from. Once selected follow the instructions to
sign into the account to add the account to your phone and import the accounts contacts. If adding a new
account, enter user name and password for synchronization.
Messaging
You may use this function to exchange text messages and multimedia messages with your family and
friends. The messages to and from the same contact or phone number will be saved into a single
conversation so you may see the entire message history conveniently.
Send an SMS
Click on the Messaging icon
Click the (+) add recipient icon to enter text message recipient
Compose Text Message and click to send.
18

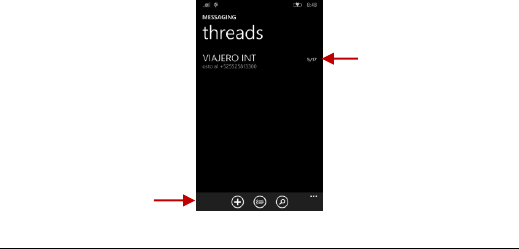

Send an MMS
When creating message, the default message style is SMS.
Click the paperclip attachment icon in the messaging interface.
Click to add attachments and create an MMS message.
Text Message
Threads
Messaging Controls
19
Connectivity
Bluetooth is a short-range wireless communications technology that devices can use to exchange
information and connect to different types of devices which include headsets and other devices.

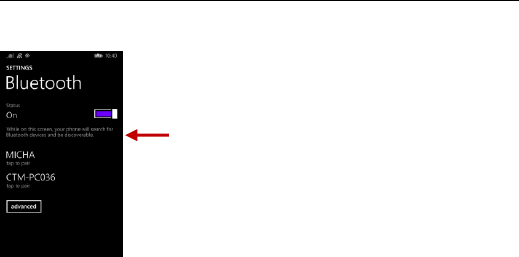

Power on Bluetooth
Settings » Bluetooth and select to power on Bluetooth.
The Bluetooth will then start to scan for all devices within its range and will display all available
devices in a list.
List of available Bluetooth
devices
Note: The maximum
detecting time of the phone
is 2 minutes.
20
Power on Wi-Fi
Settings » Wi-Fi and select ON to power on Wi-Fi
Click on the desired Wi-Fi network to be connected.
Note: Unsecured networks can be connected to directly - secured networks require a password or
credentials prior to connection.
List of available
networks and the
network connection
screen
21
Internet Explorer
Menu Functions
Favorites
This option displays favorites
Add to favorites
This option will add to favorites
Find on Page
This menu option finds texts on the page.
Share Page
This menu option shares the webpage
Pin to Start
This menu option pins to start
Recent
This menu option displays recent webpage activity.
Settings
This menu option displays internet explorer settings
22
Outlook
Outlook is Microsoft’s free email service. To access the Outlook program, click the applications menu and
click on the Outlook icon and either sign in with your existing account or create a new one.
Note: In order to keep accounts streamlined with Microsoft services, your Outlook account user name and
password may be used for other Microsoft programs.
Click menu to
access the internet
browser options
23
Store
Windows Store allows you to download applications, programs and games directly to your device. To
access the Store, click on the Store icon and search the specific category.
The Outlook inbox is
separated in different
categories
Scroll Outlook to view
different categories.
Email controls
24
Camera
Prior to use: Insert SD card before using the camera or video camera. All photos or videos taken by the
phone should be stored in the memory card for large storage capacity of images and videos.
Search and select between
different Store categories
Once your applications you
have downloaded are installed
into the phone, swipe over to
the application menu to access
them directly. You may pin any
application to the start screen
for easier access.
25
Click the Applications Menu » Camera
Switch to video mode if you want to record videos.
Take Pictures
Aim at the object that the picture will be taken.
Press the Shutter button on the screen to capture image.
After taking the picture, the file will be saved in the default save location.
Select between
Camera & Video
Camera Modes
26
Photos
Open Images
Click on the Photos icon
Share Pictures
You may share pictures by sending them through different types of installed applications. You may also
send pictures through the MMS message function by attaching a picture and also via Bluetooth.

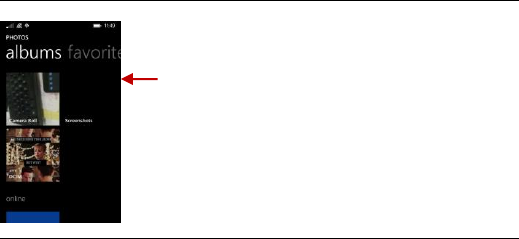

Pictures are stored
in separate albums
27
Adjust Image
Press Menu and select edit to adjust images. You may select from different effects that may include: Crop,
Rotate, and Fix.
Music
Open Music
Application Menu » Music

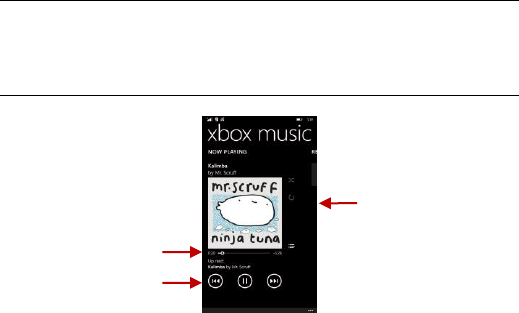

Song Status
Track Controls
Playback Settings
28
Search Music
You may choose to search for music from media folder through artist name, song name, album name
among other options.
FM Radio
FM Radio
Through this function, you may listen to FM radio on the device. The FM radio uses the wired headphones
as an antenna in order to receive signal. Before using this function, connect the original equipment
headphones that came with the phone.
Open FM radio
Press the FM Radio icon to open the application.
Click to scan FM channels automatically then click to add any of your favorite radio stations.
29
FM Radio as Background
Click on the Start key to move the FM Radio to the background.

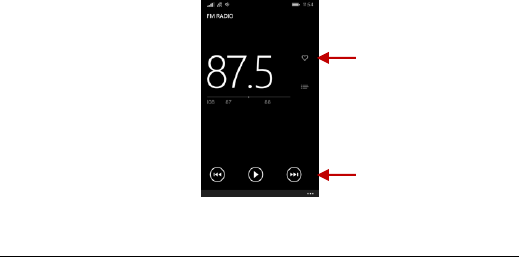

Add Favorite
Radio Stations
Scan
30
Calendar
The calendar helps keep track of your life’s most important moments in one application.
Click the (+) button to
enter a new event
Click the calendar
button to change views
31
Alarms
In settings, click on Alarm to enter the alarm clock settings
This option allows you to add and edit alarms.
Click to add or
edit alarms
32
Storage Sense
Storage Sense allows you to organize your default storage settings. You may select between storage on
your device or your SD card. You may also configure your storage based on different categories you can
choose from which include Music, videos, photos, applications, and new downloads.
33
Troubleshooting
Below is a list of common problems that may occur when using your mobile phone. Try these easy
troubleshooting steps to resolve any type of issues you may encounter.
The phone does not power on
Press and hold the power key until the startup sequence appears on the display.
Check the battery level and ensure there is sufficient charge.
The phone does not respond after several minutes
Remove and insert the battery – If the phone has an internal battery, please press and hold the
power button.
The phone powers off by itself
Check if the screen lock of the phone is enabled.
Check if the phone needs to be charged.
The battery won’t charge
Check if the battery is already fully charged.
Make sure that the battery is inserted correctly.
Ensure that the battery being used is a BLU approved battery.
Double check if the charger connector is properly connected to the phone.
Note: Connect charger only after the battery has been inserted.
34
The standby time is too short
Please keep in mind that standby time relates directly to phone usage (Internet, Text, Voice Calls,
Maps, etc.).
Batteries typically have to be replaced after a year of use.
The phone cannot connect to the network (Voice or Data)
Verify if you have active service with your service provider.
Contact your local network service provider and verify if you are within its network coverage area.
The phone display a SIM Error
Make sure the SIM is properly inserted and in its intended slot.
Make sure that the SIM card is not damaged or scratched.
The PIN code was entered incorrectly three times
The SIM card will lock and you will need to enter the PUK code (PIN Unlock Code). Please contact
your local service provider to obtain the PUK.
I cannot make calls
Make sure that the number you dialed is correct and the dial key has been pressed.
Use the full national area code when dialing out of your area or when abroad, use country-specific
international access codes.
I cannot receive calls
Make sure that your phone is connected to a network.
Check the phones Call Divert and Call barring settings (Check with your service provider for these
35
settings and codes)
The caller ID does not display on incoming calls
Contact your local network service provider and verify you have the caller ID feature enabled on
your account or verify if the caller may have blocked his number from appearing.
The caller cannot leave a voicemail message
Contact your local network service provider and verify if the voicemail service is active on your
account or check if the network is busy.
The phone does not connect to the internet
Ensure with your service provider that your account has the appropriate internet/data plan
enabled.
Ensure internet APN settings are configured (Carrier dependent).
Text Messages cannot be Sent / Received
Ensure text messaging is enabled with your service provider.
Ensure text APN settings are configured (Carrier dependent).
The information provided in this user manual is subject to change without notice and BLU Products
reserves the right to modify the manual at any given time. BLU Products has made every effort to ensure
that this user manual is accurate and disclaims responsibility and liability for any inaccuracies or omissions.
Some software, user interface, or components may vary depending on final version.
36
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiated radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Note:
Caution: Changes or modifications not expressly approved by the party responsible for compliance could
void the user‘s authority to operate the equipment.
37
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency
(RF) energy set by the Federal Communications Commission of the United States.
During SAR testing, this device was set to transmit at its highest certified power level in all tested frequency
bands, and placed in positions that simulate RF exposure in usage against the head with no separation,
and near the body with the separation of 10 mm. Although the SAR is determined at the highest certified
power level, the actual SAR level of the device while operating can be well below the maximum
value. This is because the phone is designed to operate at multiple power levels so as to use only the
power required to reach the network. In general, the closer you are to a wireless base station antenna, the
lower the power output.
The exposure standard for wireless devices employing a unit of measurement is known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
This device is complied with SAR for general population /uncontrolled exposure limits in ANSI/IEEE
C95.1-1992 and had been tested in accordance with the measurement methods and procedures specified
in IEEE1528. This device has been tested and meets the FCC RF exposure guidelines when tested with
the device directly contacted to the body.
The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is
38
on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after
searching on FCC ID: YHLBLUWINJRLTE.
For this device, the highest reported SAR value for usage against the head is 0.50 W/kg, for usage near the
body is 1.15 W/kg.
While there may be differences between the SAR levels of various phones and at various positions, they all
meet the government requirements.
SAR compliance for body-worn operation is based on a separation distance of 10 mm between the unit and
the human body. Carry this device at least 10 mm away from your body to ensure RF exposure level
compliant or lower to the reported level. To support body-worn operation, choose the belt clips or
holsters, which do not contain metallic components, to maintain a separation of 10 mm between this
device and your body.
RF exposure compliance with any body-worn accessory, which contains metal, was not tested and certified,
and use such body-worn accessory should be avoided.
39
IC Notice
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
IC: 11492A-WINJRLTE
40
IC Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure
limits in IC RSS-102 and had been tested in accordance with the measurement
methods and procedures specified in IEEE 1528 and IEC 62209. This equipment
should be installed and operated with minimum distance 1.0 cm between the
radiator and your body. This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or transmitter.
Cet appareil est conforme aux limites d'exposition DAS incontrôlée pour la population
générale de la norme CNR-102 d'Industrie Canada et a été testé en conformité avec
les méthodes de mesure et procédures spécifiées dans IEEE 1528 et IEC 62209.
Cet appareil doit être installé et utilisé avec une distance minimale de 1.0 cm entre
l’émetteur et votre corps. Cet appareil et sa ou ses antennes ne doivent pas être
co-localisés ou fonctionner en conjonction avec tout autre antenne ou transmetteur.
