User Manual

BIP-1300 Series

User Manual (for Windows

Mobile)

BluebirdSoft Inc.

558-5, Shinsa-Dong, Kangnam-Gu, Seoul, Korea

A/S Center: 1588-1380

Website : www.mypidion.com

- Please read “Warning and Caution” before use.

Bluebird Soft Inc.

WARNING AND CAUTION

• Use only the approved accessories and components

provided by Bluebird Soft Inc. to insure user safety.

• Never reconstruct, disassemble, or repair the

product arbitrarily. Always contact a service center

authorized by Bluebird Soft Inc.

• If PDA or battery is wet, please do not attempt to

dry it by heater or microwave. Failure to do so may

cause explosion, deformation, or malfunction. (Wet

PDA or battery changes the label color. Malfunction

with colored label can not be serviced under

warranty service.

• Please avoid the use of device in explosives area.

• Please do not use the device in restricted area such as in

flight and hospital Operation while driving is also dangerous.

• Do not use the PDA in high humidity and

temperature. High temperature and humidity may

cause PDA malfunction and shorten battery life.

• Avoid the shock and vibration. Unplug the power

cord if the device in not in use and keep it in the

safe place.

• Do not operate the PDA phone near any credit card,

phone card, account book, ticket in order to avoid

magnetic interference. It may cause damage to

data in the PDA phone.

• Please avoid contact of metal objects such as necklace and

coins with battery connection.

• Please use the authorized battery and adapter only. Do not

use them for other purposes. Unauthorized battery and

adapter use may shorten the device life or cause explosion.

• Please avoid barcode laser contact with eyes.

• PDA phone data must be stored separately so that

they are kept safe while the PDA being repaired or

upgraded.

Ⅰ. Get to Know BIP-1300

1. Terminal and Accessories

2. Component Names

3. Buttons

4. Function Keys

5. Attach/Detach Battery

6. Charge Battery

7. Battery

8. Specifications

Ⅱ. Get familiar with the basic functions

1. Power On/Off

2. Stylus Pen

3. Get Started

4. Phone Calls (Send/Receive)

5. Character Input

6. SD memory card

7. Initialize with Soft Reset

8. Format Memory with Hard Reset

Ⅲ. Functions

1. Barcode Scanner

2. IrDA

3. Bluetooth

4. Wireless LAN

Ⅳ. ActiveSync

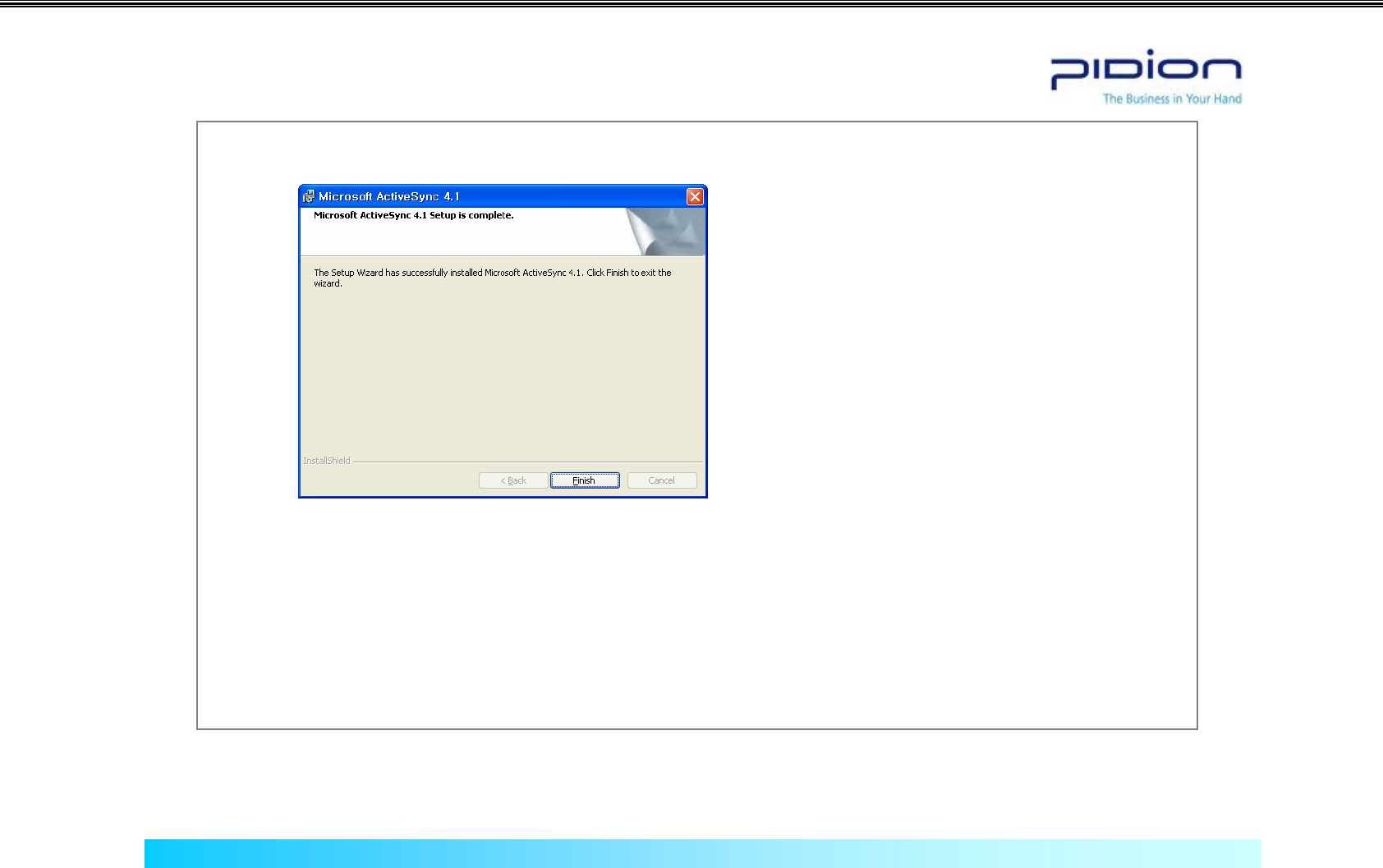

1. Install ActiveSync

2. Download Files

Ⅴ. APPENDIX

1. Frequently Asked Questions

2. Website and Authorized Service Station

3. Miscellaneous

CONTENTS

Ⅰ. Get to know BIP-1300

1. Terminal and Accessories

Thank you for purchasing PIDION. Please check if all components are included.

※ Picture or Image on the manual could be different from actual model.

Please contact the regional manager for accessories or additional components.

(Belt clip is not provided)

[Terminal] [Cradle] [Battery] [Stylus Pen]

[USB Cable]

[Power Cable] [AC Adapter] [Stylus Tether]

2. Component Names

Please see below for each component.

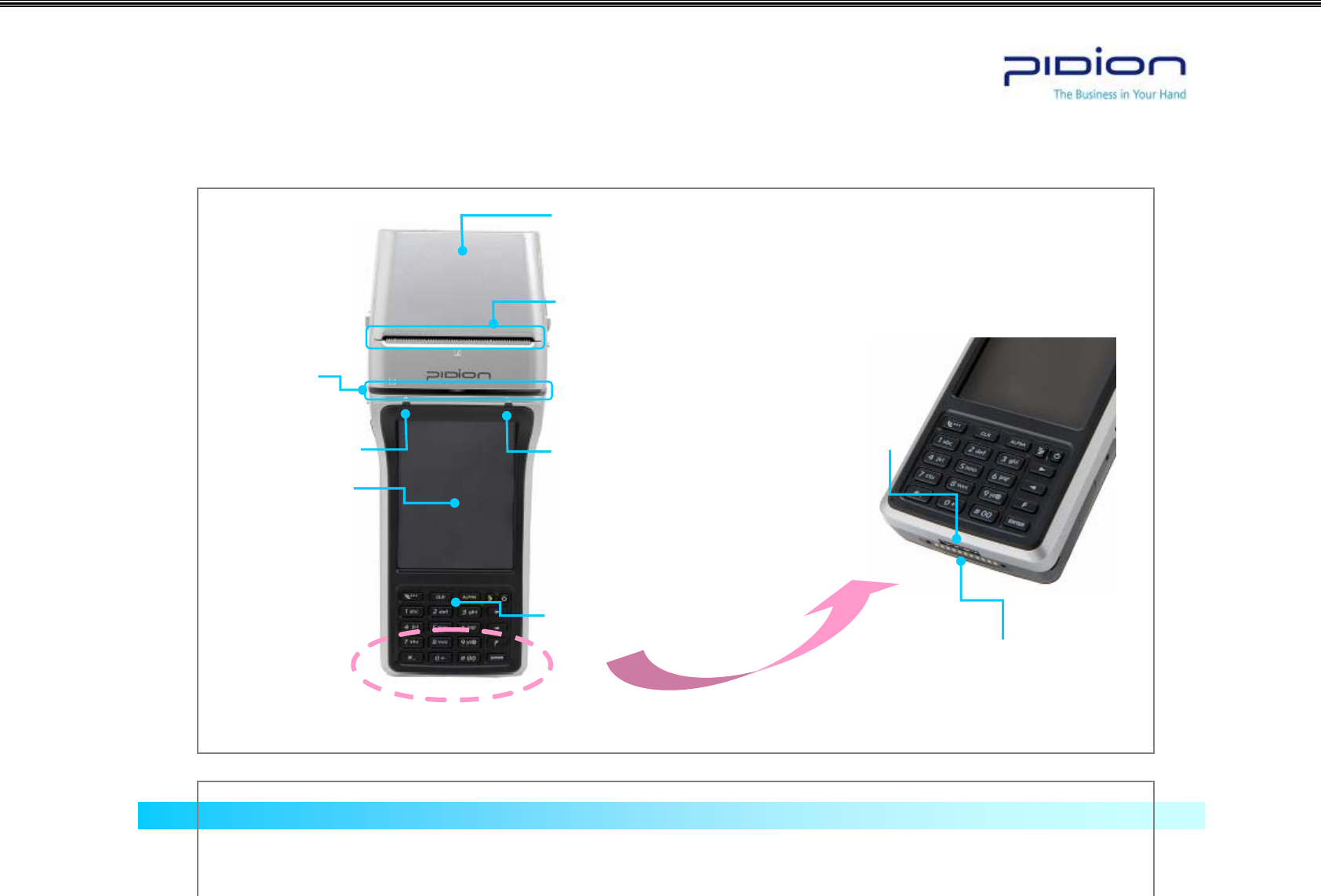

[Front]

Printer

Printing Outlet

Magnetic Card Reader

CDMA light

Charge light

LCD

Key Pad

Data Synch or

Charging connection

Cradle connection

[Bottom]

[Right]

Speaker

Printing paper door

Ear Jack

IC Card Reader

Barcode or Camera button

Reset

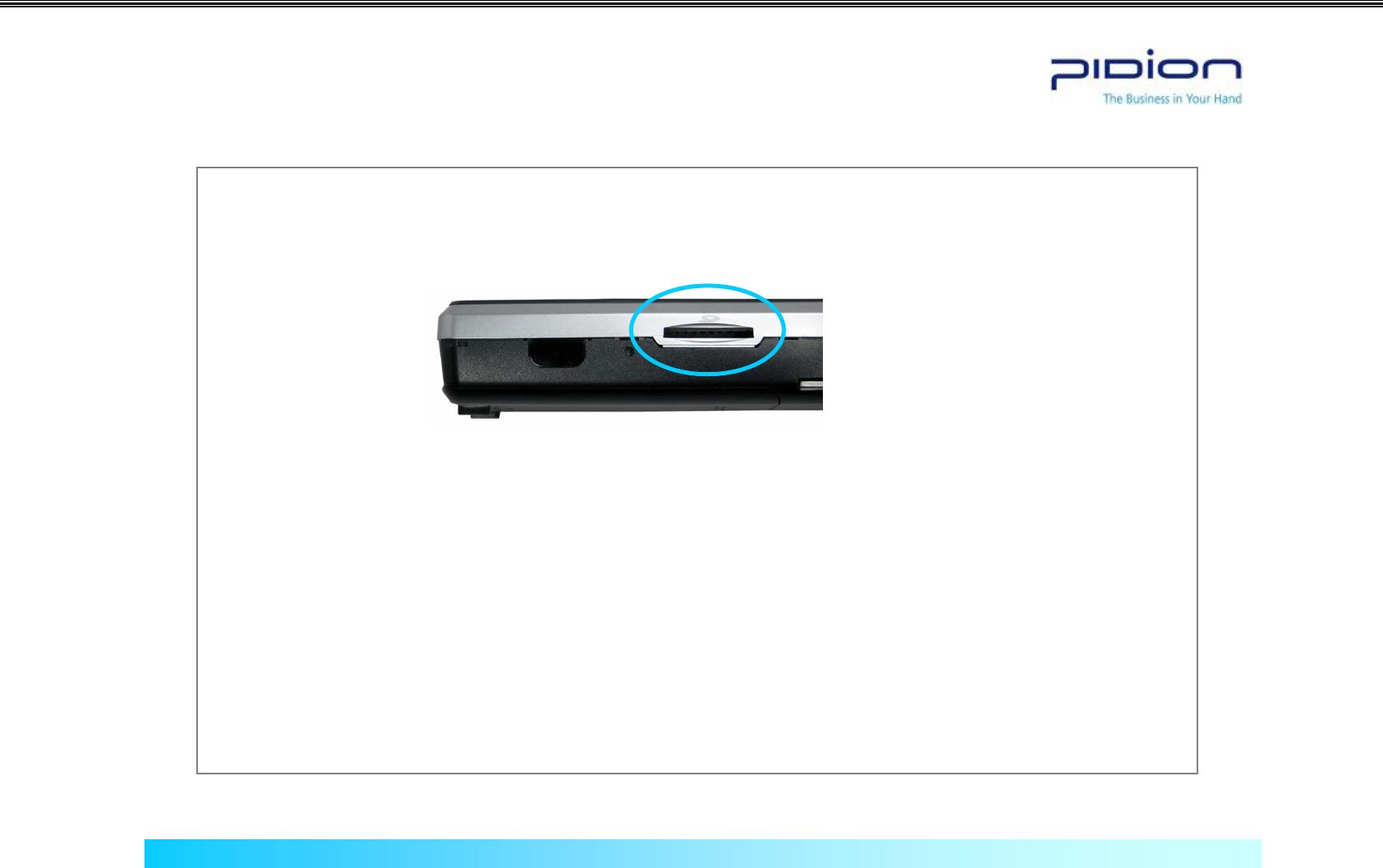

SD Slot

IrDA

[Left]

Printing paper check

Window

USB Host

Barcode button

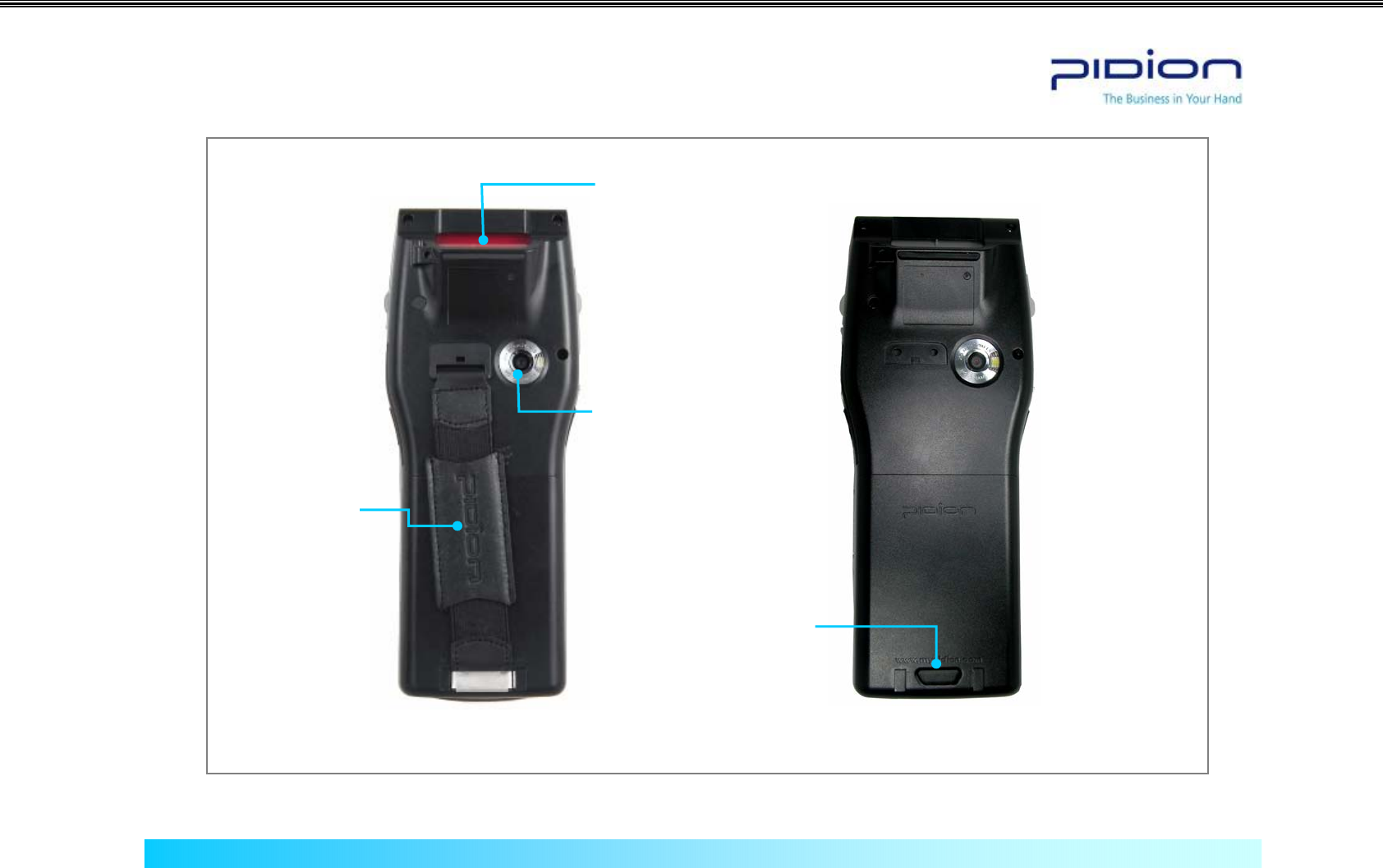

[Back]

Barcode Scanner

Camera, Flash

Hand Strap

Battery door

[Back]

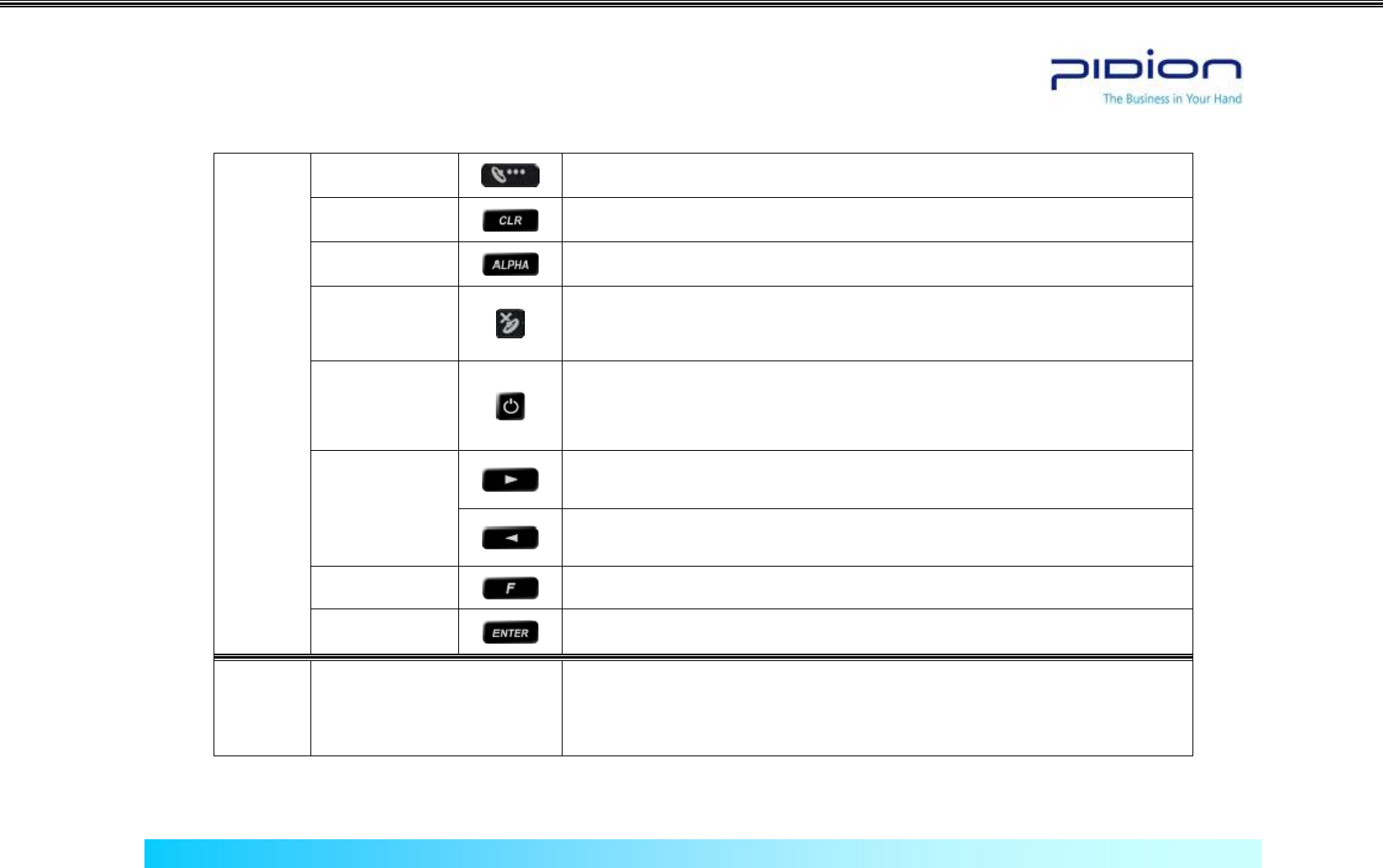

3. Buttons

Phone Activate phone program and connect phone.

Clear Delete the character from right side to left.

Alpha Change the character mode to numeral, upper case, lower case or symbols.

Hang up

Turn on/off the PDA power.

Terminate the program in use.

Power Button

Turn on/off the PDA power.

LCD Back Light on/off could be carried out when push the button longer than

3 second.

Move the menu up or left side.

Direction Key

Move the menu down or right side.

Function Key Execute an event while holding function key and other numeric key.

Front

Buttons

Enter key Input symbol or letter and execute.

Side

Button

Barcode

or Camera Button

Depending on user setting, right or left side button can be used for barcode

scanner or camera.

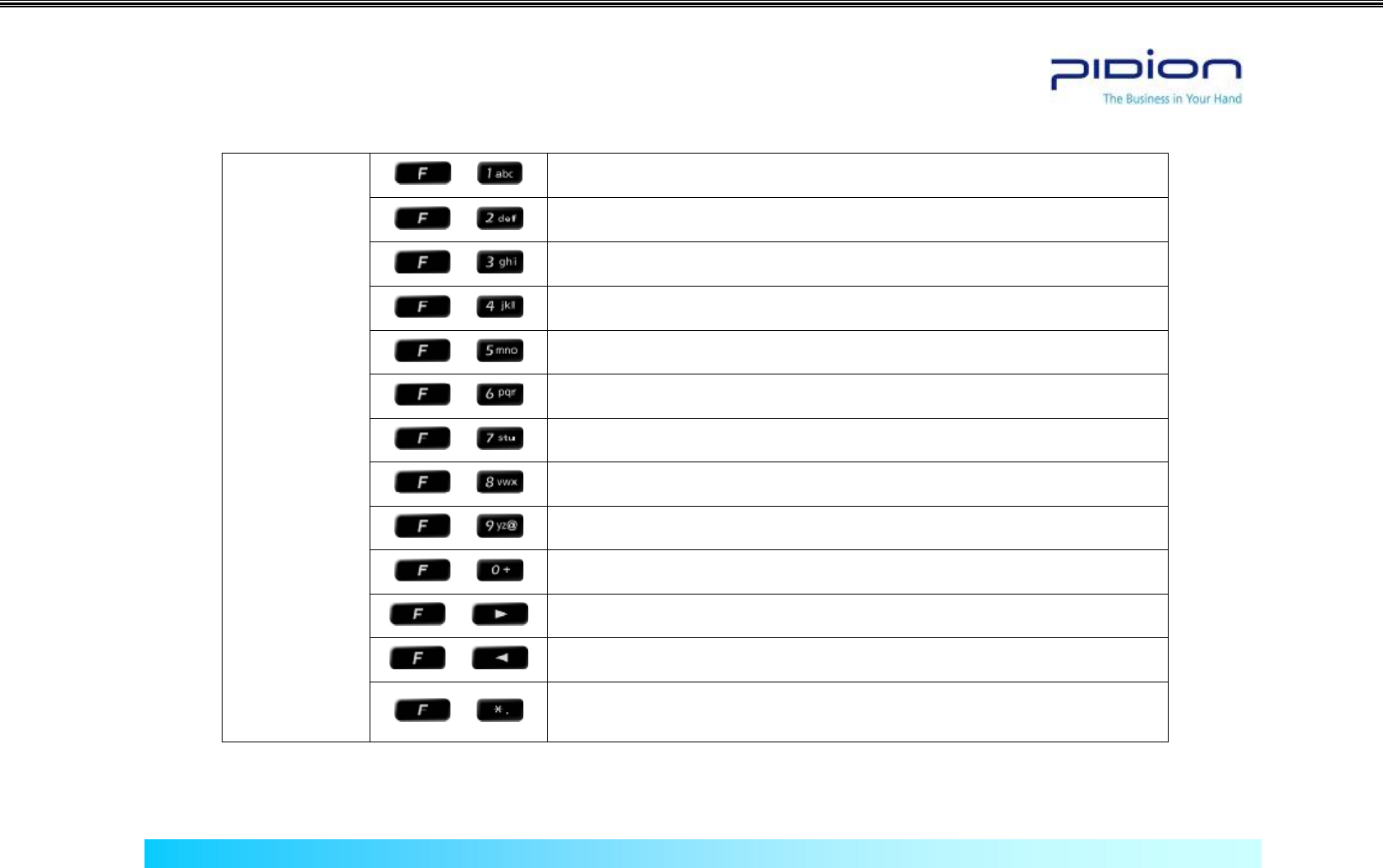

4. Function Keys

+ Opens “Start Program.” (Same as the “Start” on the Window of PC.)

+ Starts the Key Board Input Method.

+ Starts the Symbol Input Method.

+ Gradually lights up the LCD.

+ Starts Refresh Function. (Same as F5 of PC.)

+ Gradually dim the LCD.

+ Page Down.

+ Changes to an Active Program. (Same as “Alt+Tab” of PC.)

+ Page Up.

+ Starts the Stylus Pen Adjustment Program.

+ Scroll Up.

+ Scroll Down.

Combination of

Function Keys

and

Number/Symbol

Keys

The LCD Screen rotates in 4 Steps. It changes sequentially depending on the

number of pressing the buttons.

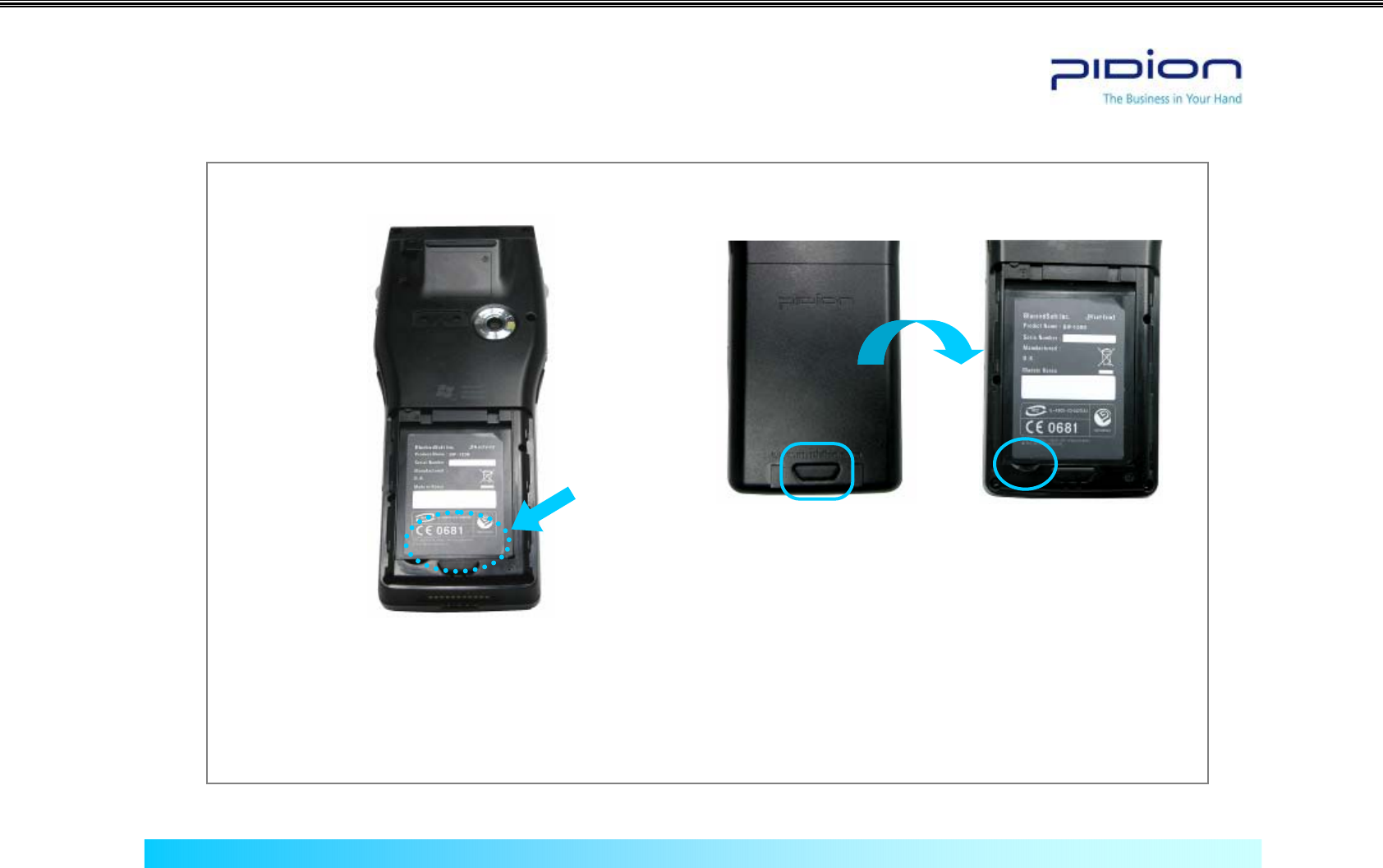

5. Attach and Detach Battery

[Batter Attached]

▪ Push the lower part of battery after adjusting the

battery to the battery slot

▪ Place the battery door from upside.

[Battery Detached]

▪ Detach the battery door with pushing the above button

▪ Detach the battery with lifting the battery upside

※ Power must be turned off before removing the battery.

Sudden electricity cut may cause the trouble.

Sudden power off may be a cause of failure and

may lose data.

6. Charge the battery

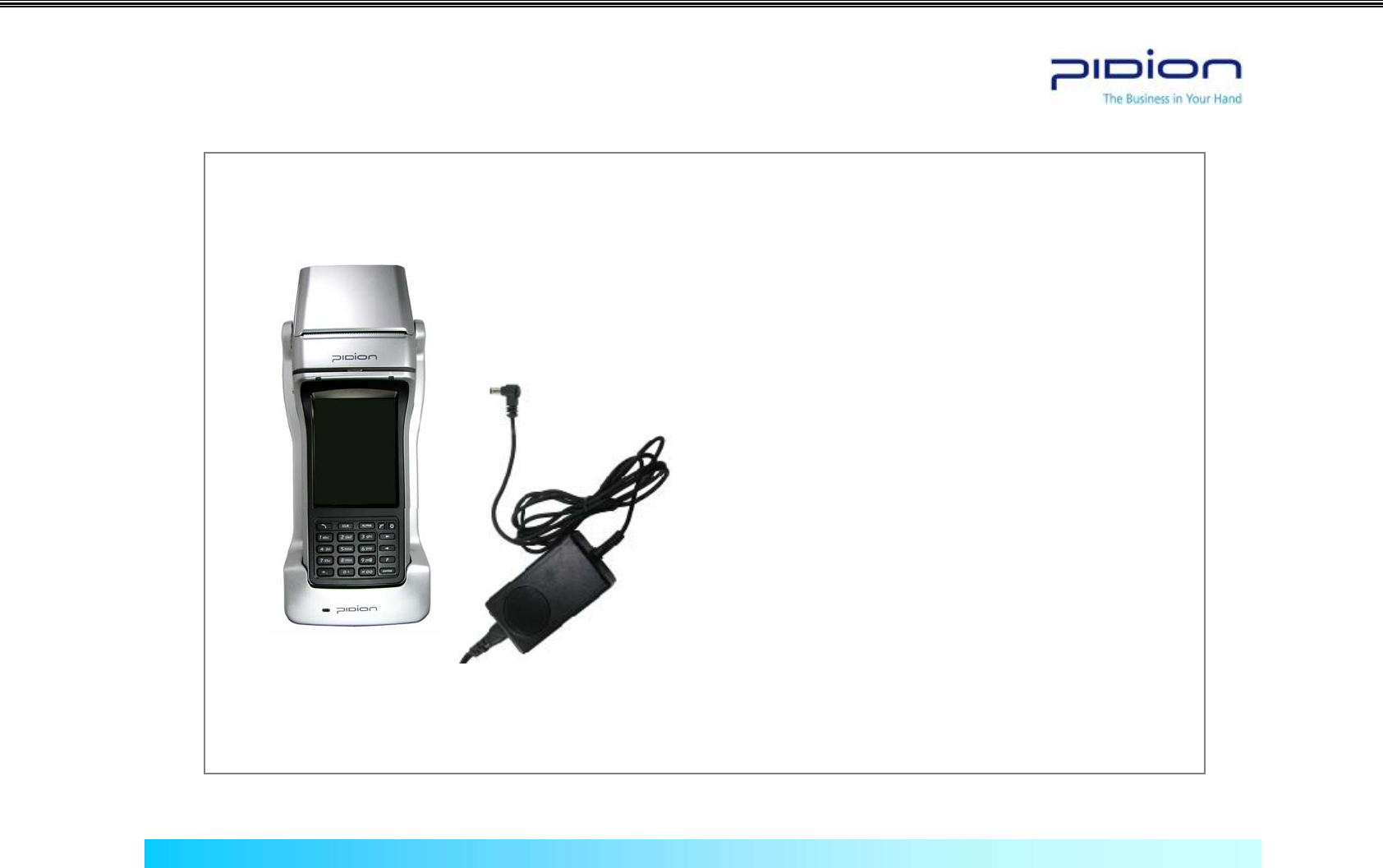

[Charge with the cradle]

▪ As shown in the left, connect the adapter to the right side of

the cradle on the back.

▪ When you insert PDA to cradle, push it untill clicking sound

comes out.

▪ For extra battery charge, insert extra battery to extra battery

place on cradle until you hear the clicking sound.

※ The product may not have been charged at the time of

purchase.

It is recommended to charge the battery for more than 48 hours

prior to the first use of device.

※ If the device has not been used for a long time, please

charge the battery for more than 48 hours before use.

※ When charging both terminal and extra battery on a cradle,

Terminal will be charged first before charging the extra battery.

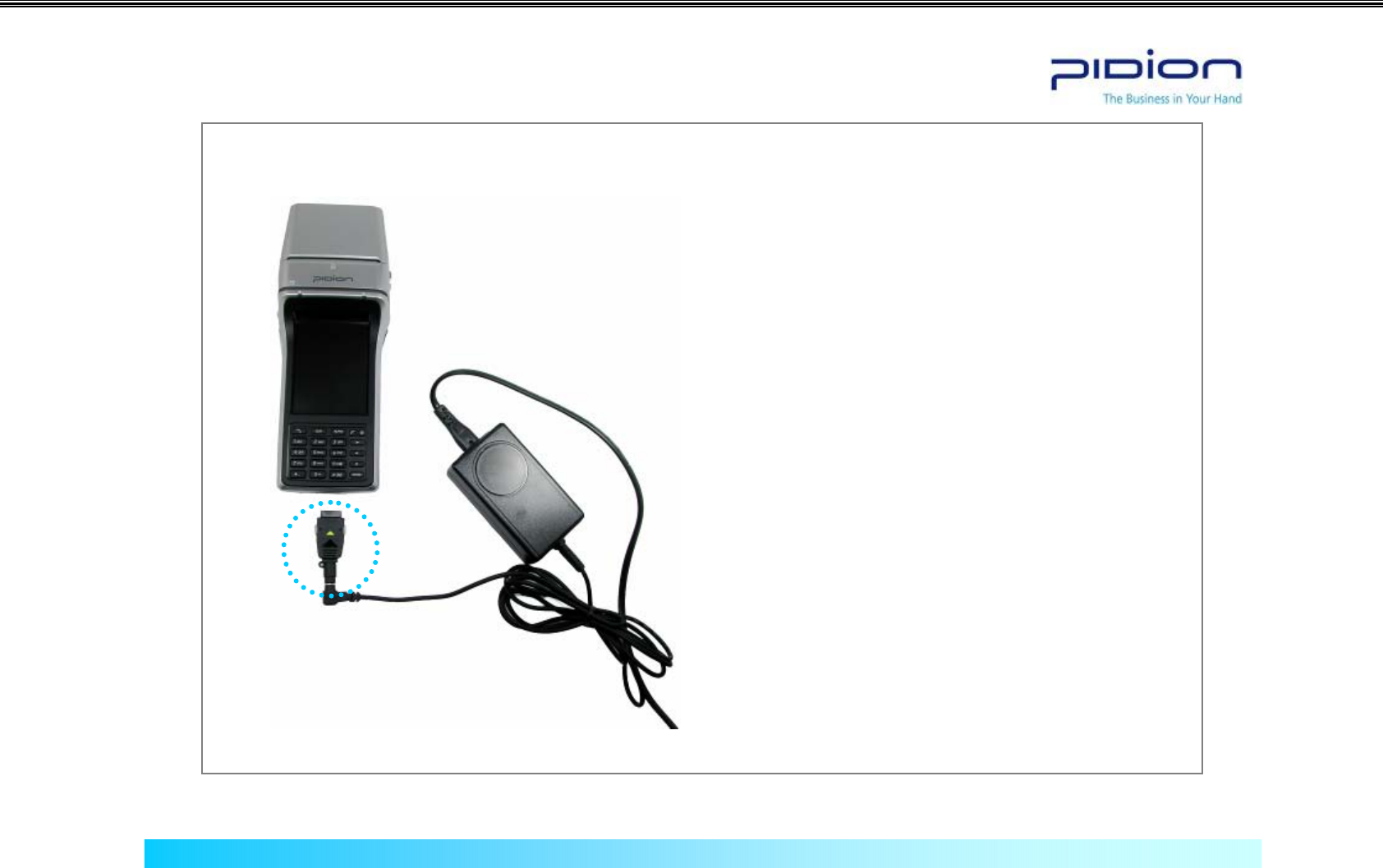

[Charge with adapter]

▪ 24 pin to DC jack converter PDA will be required to be

connected to adapter.

※ 24pin to DC jack converter can be purchased separately.

▪ As shown in the left, please make sure that converter’s

connector is in the right direction. Push the both side buttons

and insert it into the terminal’s connecting port

▪ After charging, please remove the connector from the

terminal.

※ Use the adapter which is provided by Bluebird soft Inc. for

safety

※ Use of 9V 3A adapter for any other low-voltage device than

Bluebird’s device may cause malfunction, explosion.

24pin to DC jack converter

7. Battery

▪ When PDA and extra battery are in the cradle at the same time, PDA will be charged at first, and then extra battery start to charge.

Therefore, extra battery will be charged longer when PDA and extra battery are in the cradle at the same time

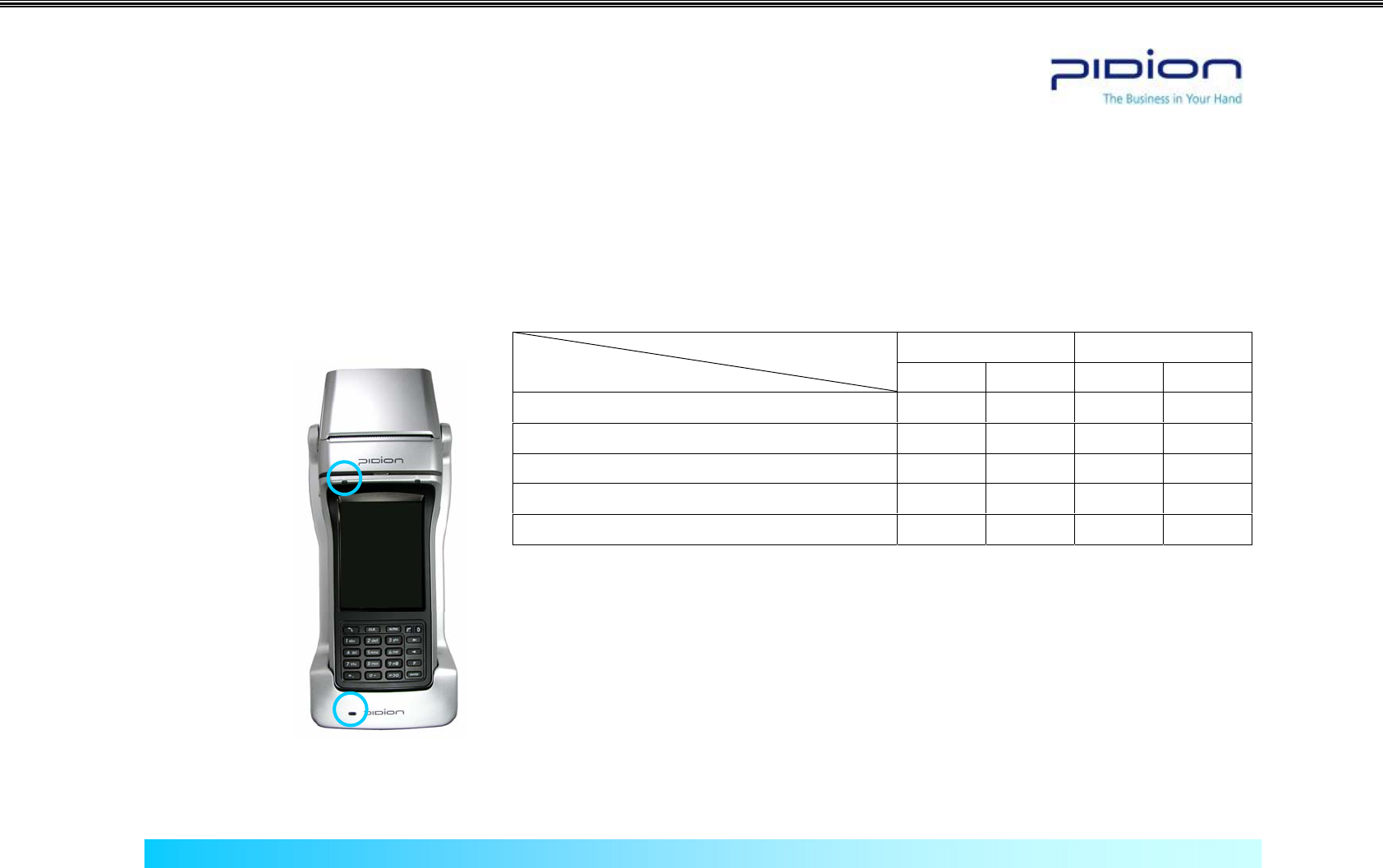

▪ LED during charging

※ When battery is placed in cradle improperly, orange LED blinks on the cradle. Please re-

insert battery again.

※ Battery is consumable and its life will get shorter. When battery working time is shorter than

new battery, battery needs to replace new one. (Battery warranty is 6 month after purchase)

※ Battery life will vary depending on the working environment such as carrier’s service,

temperature, and battery using time. Battery working time may get shorter when magnetic

card reader, printer, IC card reader, internet and etc are in use.

Charging Completely Charged

Charge LED

Classification PDA Cradle PDA Cradle

PDA Phone Orange Green

PDA in cradle Orange Green

Battery in cradle Orange Green

PDA & battery in cradle (charge PDA ) Orange Orange Green Green

PDA & battery in cradle (charge battery) Green Orange Green Green

Charge indicator

Cradle charge indicator

8. Specifications

▪

CPU Intel PXA270 520MHz

OS Windows Mobile 5.0, Win CE 5.0

Memory RAM: 128MB, ROM: 128MB

Display 3.5” 260,000 Color 240x320pixel

Communication CDMA 1X or EVDO & WLAN(802.11b/g), GSM & WLAN(802.11b/g)

Interface IrDA 1.2, Bluetooth Class 2

USB Host (mini type USB) / Client

RS-232C, SD slot (Support SDIO)

SIM Card Slot 1, SAM Card Slot 3

MSR ISO7810(Track1,2,3) card reader / Bi-direction

IC Card Reader ISO7816, EMV2000 Level 1, 2 certified Smart Card Reader, 3 SAMs

Barcode Engine 1D(linear Image type or Laser type), 2D(only PDF 417, linear Image type)

Printer 2” Thermal Printer

Camera 2.0M Pixel, Flash

Input Touch screen, Function Keys, Numeric Button

Audio Speaker (Mono), Ear Jack (Mono, 3극)

Antenna Internal (CDMA, GSM, BlueTooth, WLAN)

Battery 7.4V 3,700mAh Li-ion Battery (1,850mAh x 2cell)

Dimension Max. 87(min.74) x 218 x 54.5(min.29) mm, 510g

Environment 1.2m concrete drop

Communication Specification

Index Specification

CDMA 1x Frequency: Sending (824.64MHz ~ 848.37MHz), Receiving(869.64MHz ~ 893.37MHz)

Antenna Power: 270mW or less

Shift Keying: G7W

Used the Certified Module (BCM-865)

CDMA Evdo CDMA 1xEV-DO(IS-856)

Forward: up to 2.4Mbps, Reverse: 153.6Kbps

Dual Band :

- Cellular : Sending (824.82MHz ~ 848.19MHz), Receiving(869.82MHz ~ 893.19MHz)

- USPCS : Sending (1850MHz ~ 1910MHz), Receiving(1930MHz ~ 1990MHz)

Antenna Power: 250mW or less

Shift Keying: G7W

Used the Certified Module (CDE-650G)

WLAN Frequency: 2,412MHz ~ 2,472MHz

Number of Channels: 13

Antenna Power: 10mW or less

Shift Keying: G1D, D2D

Used the Certified Module (SWL-2460C)

Bluetooth Frequency: 2,402MHz ~ 2,480MHz

Number of Channels: 79

Antenna Power: 0.01mW or less

Shift Keying: F1D

Ⅱ. Get familiar with the basic functions

1. Power on/Off

▪ Push the power button.

▪ While power is on, push the power button longer (About 3 Sec.) Then Back light will be

turned off. .

▪ While Back Light is turn off, push the power button longer (About 3 Sec.) Then Back light

is turned on.

▪ When Power is on or Back light is on, power is turned off if the power button is pushed.

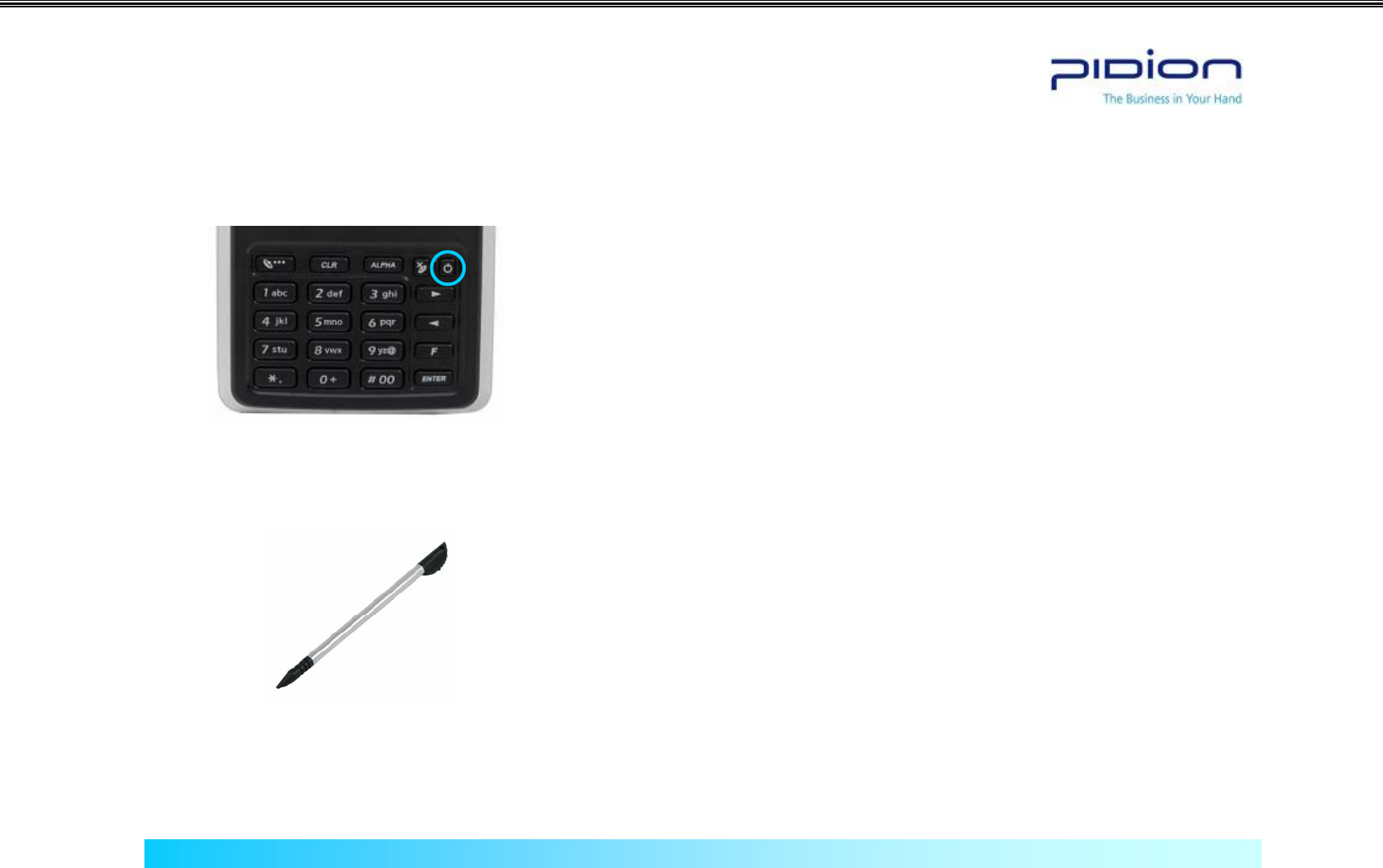

2. Stylus Pen

▪ Using stylus to select, execute and move the items in the screen.

▪ Tapping Stylus: Tap the icon in the screen for once by using stylus to select or execute the

item, like clicking the mouse left button.

▪ Dragging Stylus: Using dragging stylus to select several items, characters and images, like

dragging the mouse.

▪ Tapping and Holding Stylus: In order to view selected item’s function, taping and holding

the stylus in the screen and it shows the pop manual, like using mouse to select the item

and click the right button.

※ Improper use of sharp pen, pin instead of stylus pen may make damage to device window.

Power button

3. Getting Started

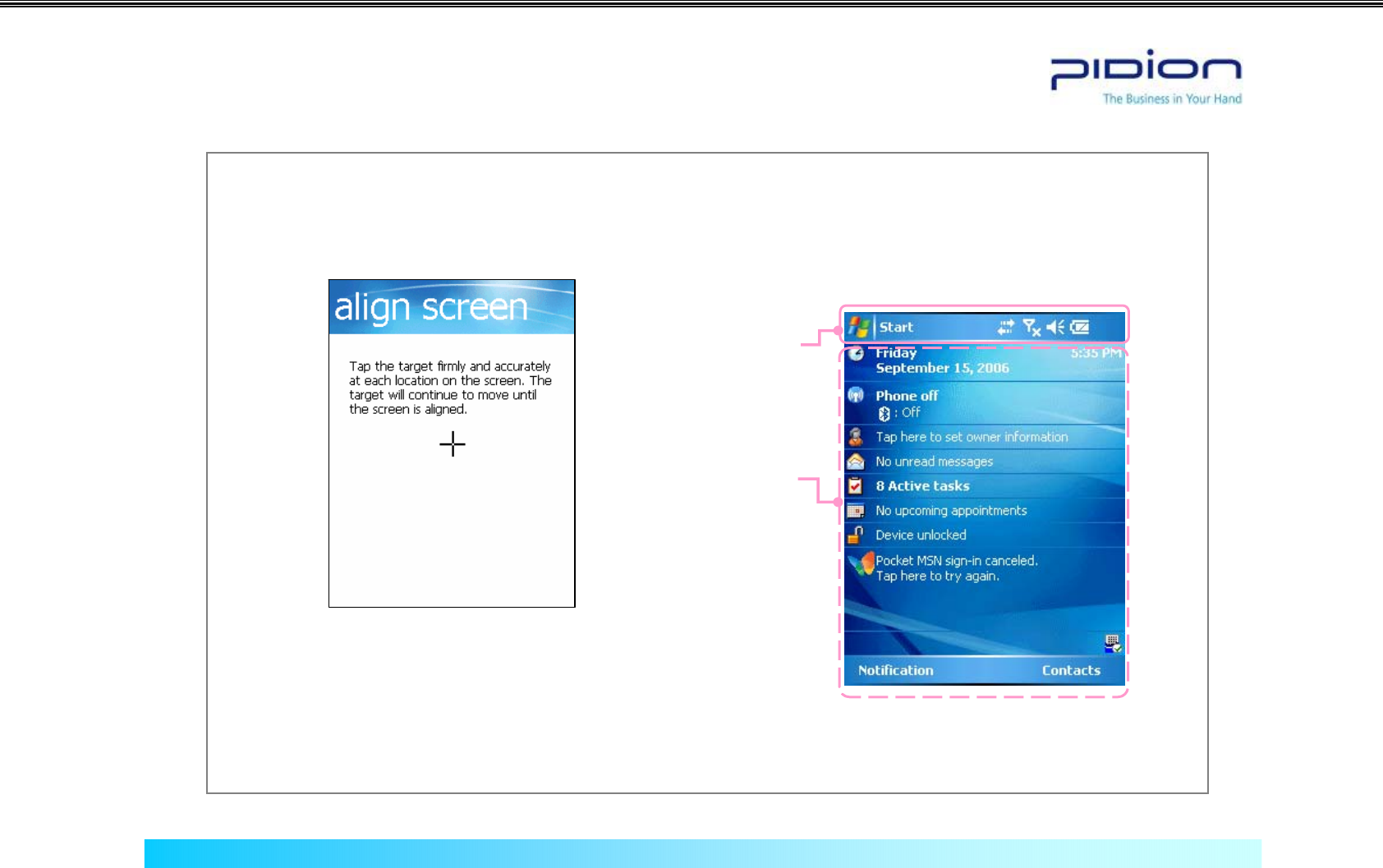

[Calibration] [Windows Mobile screen]

▪ Using stylus to select, execute, move the item in screen

▪ Press the stylus to the targeted center target accurately,

and doing the same when the target move to up left, down

left, down right, up right (This is to settle the input value of

stylus in LCD screen.

▪ The following figure is shown after the

initialization wizard finished.

Title Bar

Today

Screen

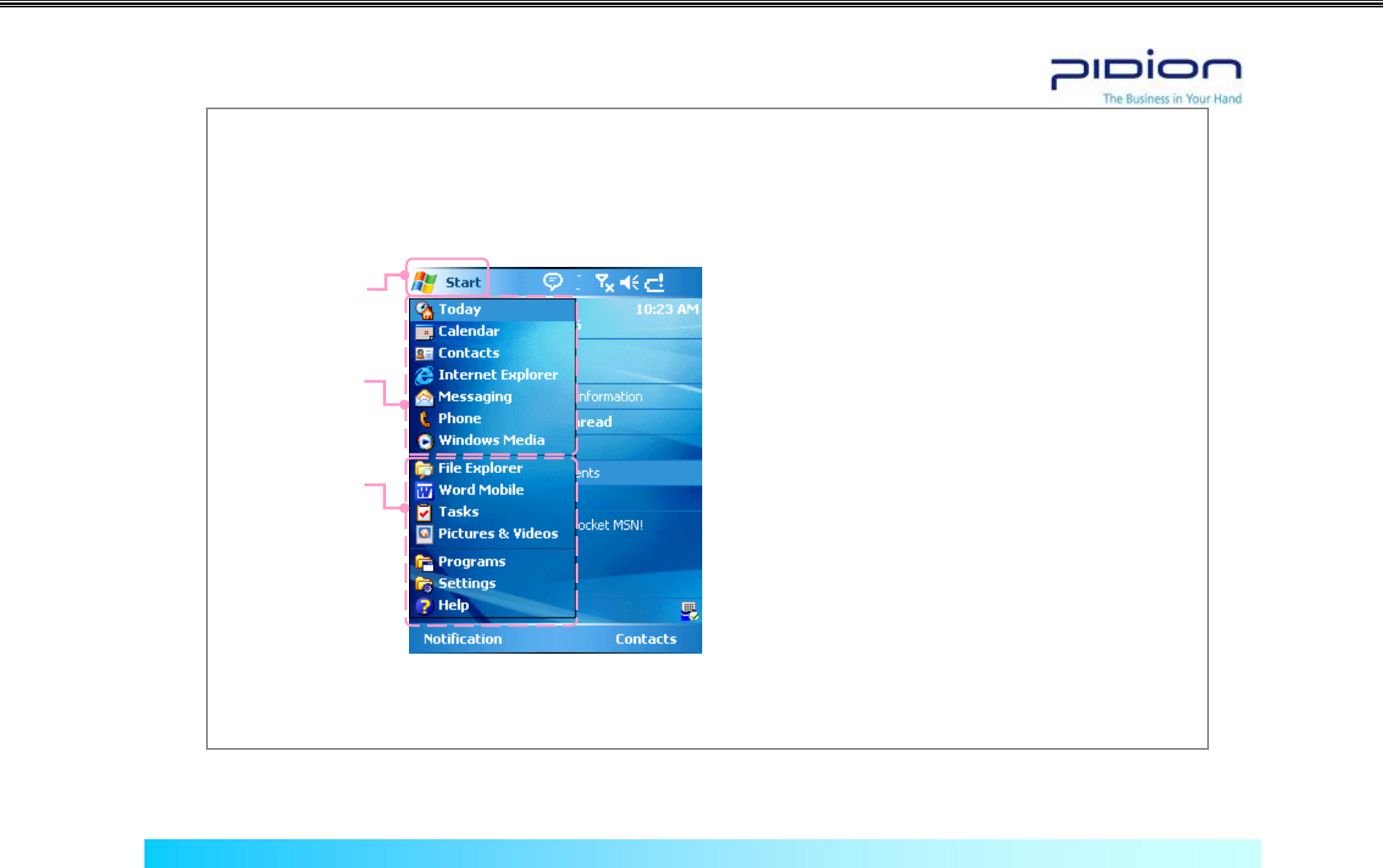

[Starting Windows Mobile]

▪ Click on the Start Button on the upper left corner of the

title bar and the Start Menu appears.

Start Button

Start Menu

Program

Execution and

Option Setting

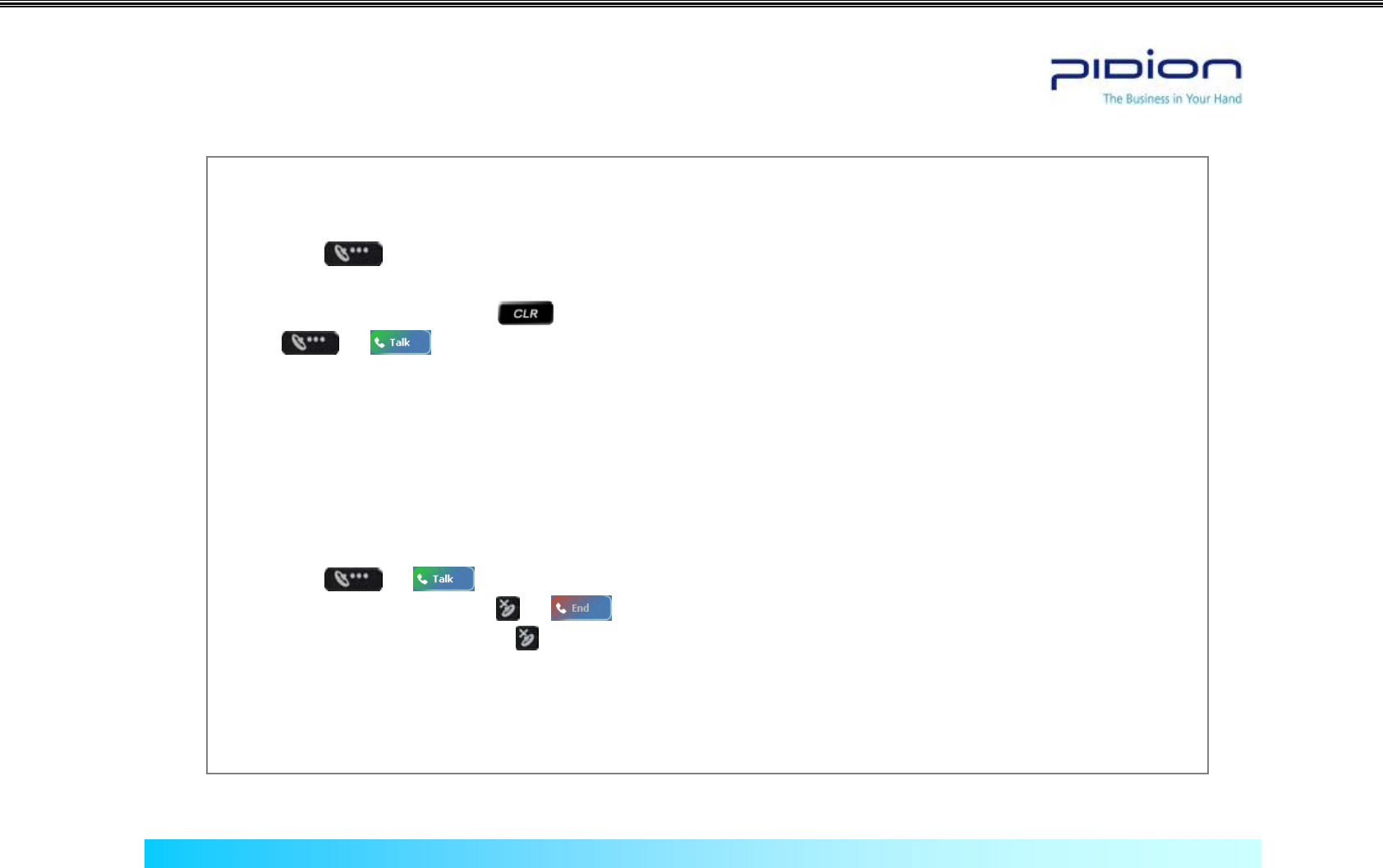

4. Phone Calls (Send / Receive)

[Send]

1) Push and make a start the phone program.

2) Enter the phone number.

3) Edit the phone number with .

4) or make you phone call.

• Re-send function: Automatically make a phone call which is the last number you input

5) Connecting.

• Talking time will show up on the screen.

[Receive]

1) With ringing ‘Calling’ sign will be shown on the screen.

2) Push or and it will be connected.

3) Push the disconnect button or button will make you disconnected with line.

4) Push the disconnected button longer, then modem will be off.

※ This mobile handheld device requires ear jack(headset) to make a phone call.

※ Ear jack is an accessory item.

5. Character input

[Keyboard entry]

▪ Available for input character by Keyboard.

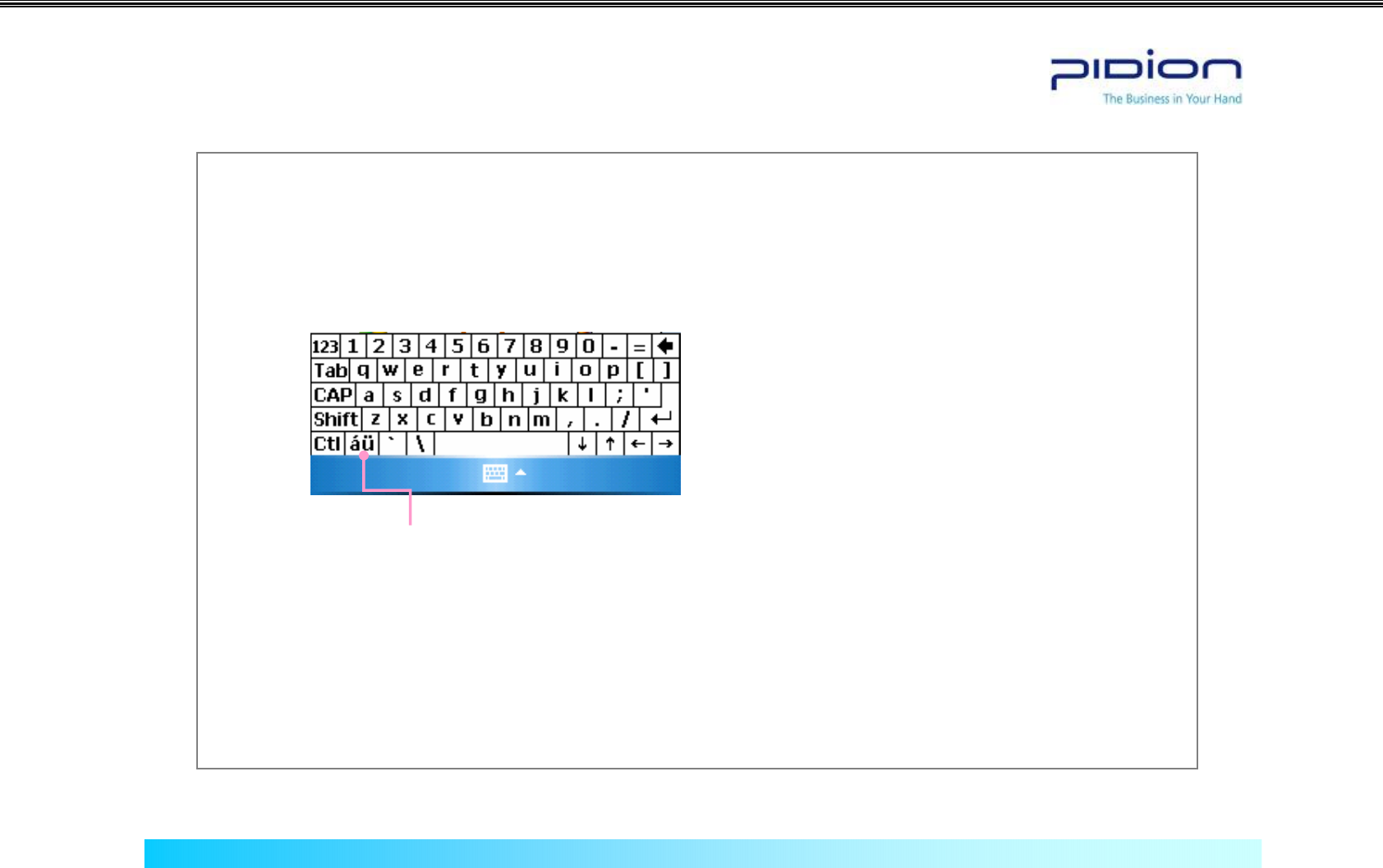

▪ Keyboard

① Select the keyboard.

② Type in the character you want to enter

※ Use of “Shift” and “Ctrl” is the same as in PC keyboard.

Language Converter Button

[Character recognition]

▪ Available for input like writing. When you write the letter in the box, it will be automatically recognized.

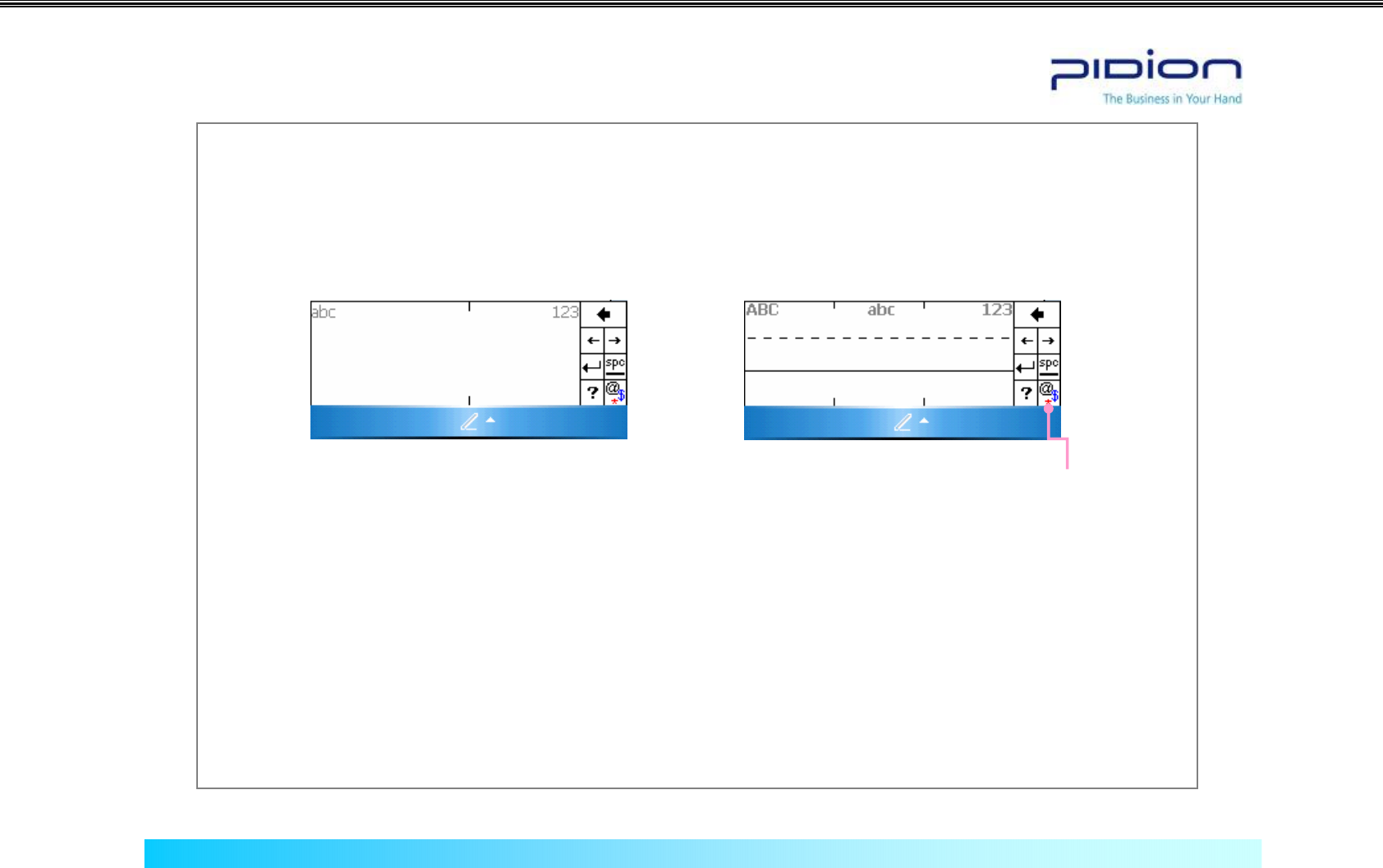

▪ Block Recognizer ▪ Letter Recognizer

① Select a Screen for Handwriting Recognition Input Method, Block Recognizer or Letter Recognizer.

② Select the character type and write the character in each window.

※ Write precisely

※ When you write the letter too slowly, letter recognition start before writing is done. Therefore proper using is required.

Opening the Special Character Input Screen

6. SD Memory Card

SD card is ultra-mini Flash memory card, used for data storage and transfer.

▪ Insert SD card: Push the SD memory card into the slot (shown in the photo) until it’s fitted.

▪ Remove SD card: Push the card with finger tip and the small bit of the memory card will come out, then pull it out.

SD card slot

7. Initialize with Soft Reset

Press ‘Reset’ button with a stylus pen. System will be restarted, opened programs will be shut down and unsaved data will be lost. It’s the

same as pressing reset button on a personal computer.

▪ Press ‘Reset’ button on the right side of the device using a stylus pen.

▪ PDA is restarted.

※ Soft reset can be used to restart the PDA when there is error occurred and PDA stopped

working.

8. Format memory with Hard Reset

Hard reset will restore PDA settings to initial mode and format memory. All the installed program in RAM, documents, settings will be lost

after hard reset.

▪ ▪ While function button F and number button 4 are pressed at the same time, press ‘Reset’ button on

the side of the body with a stylus pen.

※ Please backup the data and programs before hard reset. Bluebird will not be responsible for loss of any data or program.

Reset

Ⅲ. Functions

1. Barcode Scanner

Please position the terminal to face the barcode and push right or left button depending on user setting.

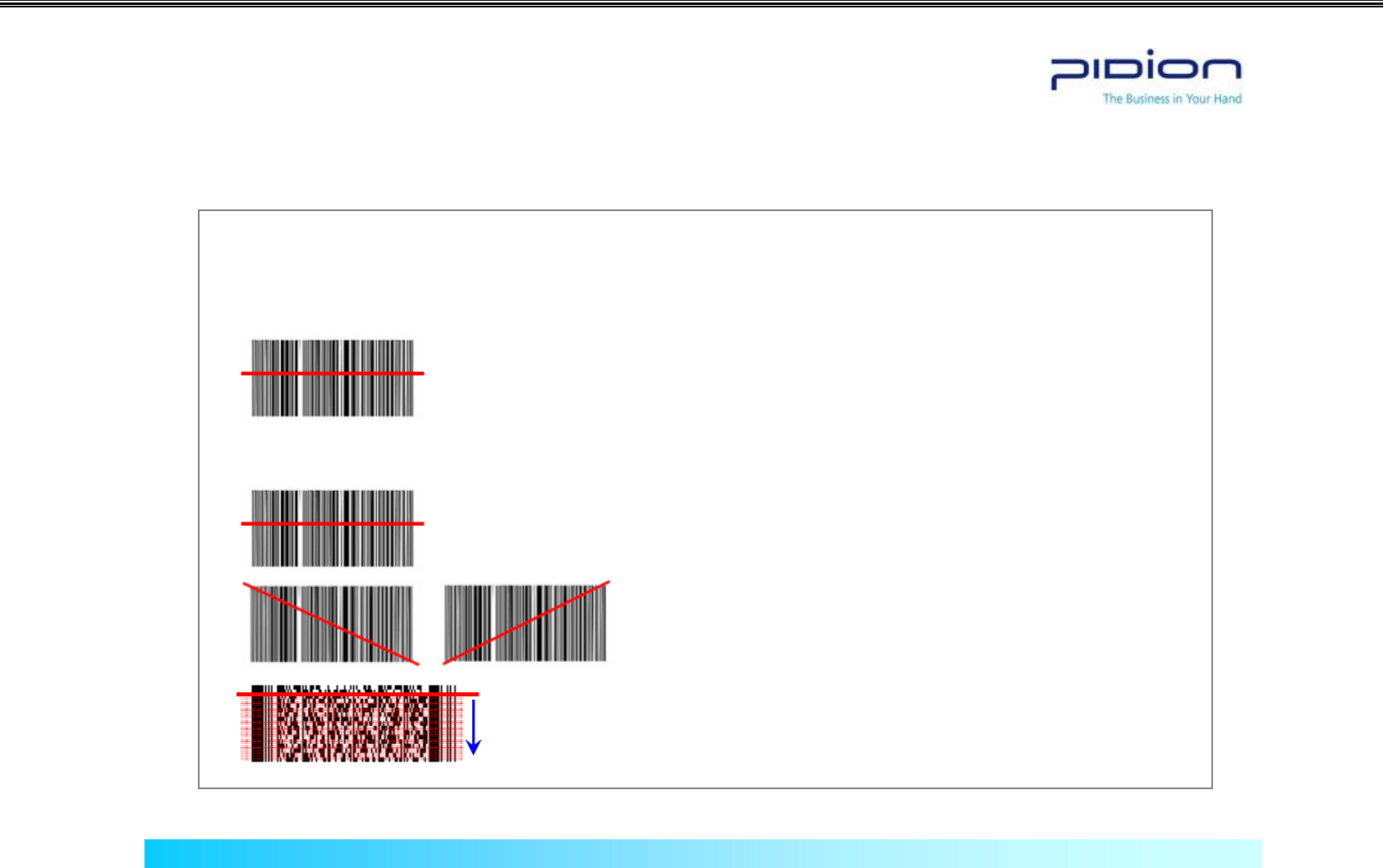

[Laser type Scanner]

▪ Barcode must be scanned in the same direction for proper reading.

[Linear imager type Scanner]

▪ Barcode can be read in any direction.

▪ For PDF417, barcode must be scanned from up to bottom or vise versa.

Laser type Barcode and Linear imager type Barcode reading tests are basically the same.

[Barcode Test]

① Executes the BarcodeApp Program.

② Go to Start Menu and executes starts Word Mobile of Program.

③ Open a new document.

④ Position the scanner to face the barcode and push the scanner button .

⑤ Captured barcode value is shown in the new notepad.

※ For the use of barcode scanner on a special barcode reading program, please contact the program provider.

2. IrDA

PDA can communicate with PC or other peripherals for file or program transfer without cradle or USB cable.

▪ Face the 2 IrDA windows each other within 30cm.

▪ IrDA use

① Path: [Start] -> [Settings]

② Click on the [Connections] tab and select [Beam].

③ Check ‘Receive all incoming beams’ and then click on [OK].

④ Search for the opposite IrDA port

⑤ Press “OK” after sending the data

※ The faster transmission speed is, the shorter the distance is.

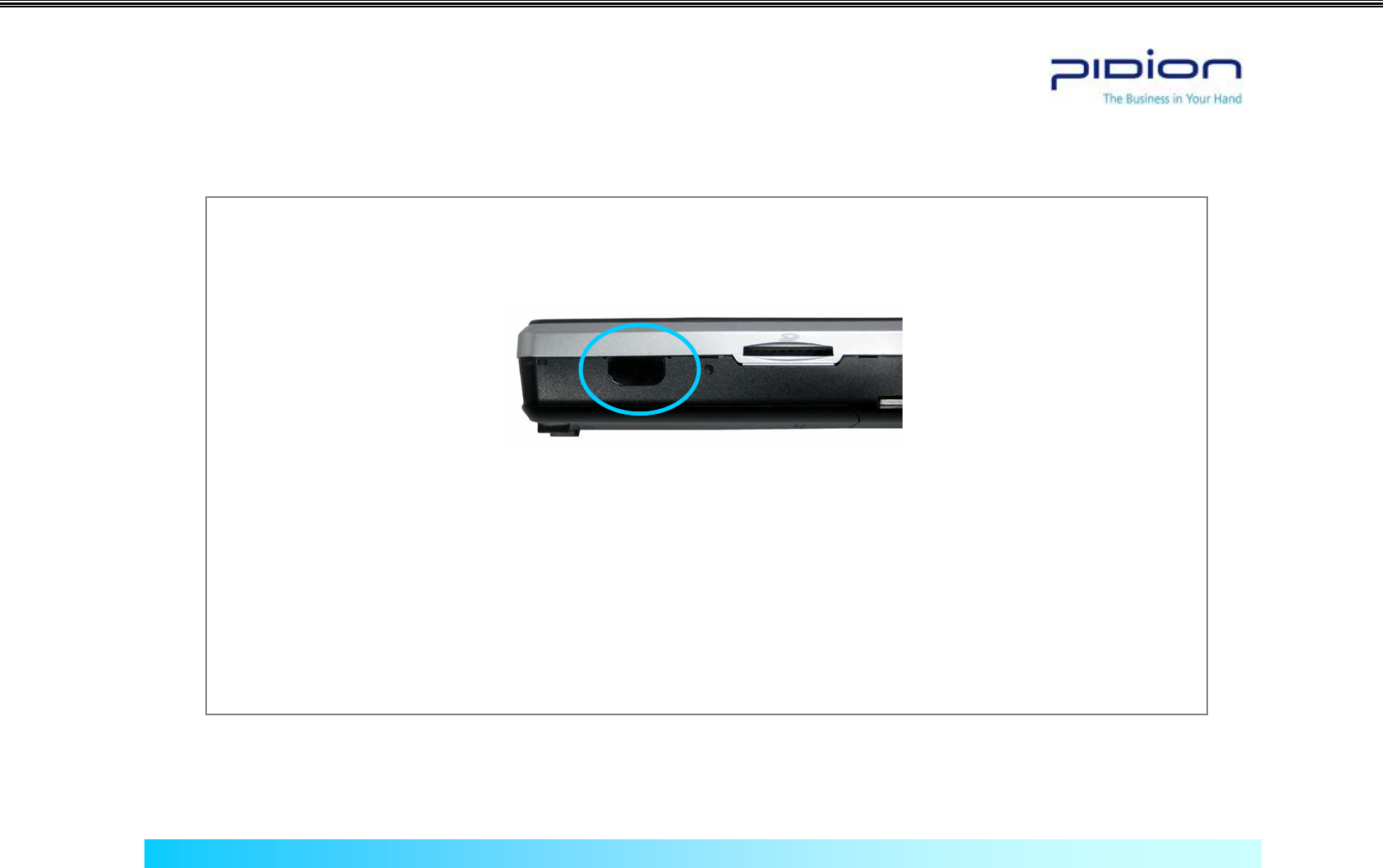

IrDA port

3. Bluetooth

Activate the Bluetooth device such as Bluetooth printer and card reader.

Allow you to communicate with Bluetooth devices.

▪ Example of Using the Bluetooth.

① Path: [Start] -> [Settings]

② Click on the [Connections] table and then Select [Bluetooth].

③ Under the [Mode] tab, check ‘Turn on Bluetooth’ and click on

[OK].

▪ Turn on Bluetooth

- Depending on checking the option, it is either In Use or Not in

Use Status.

※ When it is Not in Use, make sure to deactivate the function in

order to prevent battery loss.

▪ Make this device discoverable to other devices

- When checked In Use, it should allow other devices to

search BIP-1300.

Other Bluetooth devices are scanned and paired.

▪ Example of Using the Bluetooth

① Path: [Start] -> [Settings]

② Click on the [Connections] table and then Select [Bluetooth]

③ Under the [Devices] tab, select ‘New Partnership...

※ When other Bluetooth devices are recognized, the model

name of the product and an icon appears as shown in the

Figure.

※ When nothing is recognized, an message to indicate that

nothing was found appears.

▪ See if PIN Number entry window pops up. (Contact the device manufacturer for the original PIN No.

Each device has its own unique device PIN Number for authentication.)

▪ Make sure that the scanned device displays the same icon as bluetooth device.

▪ Double-click the device icon > select trust menu > enter PIN No.

▪ The red mark of the found device icon will disappear if a correct PIN code is input.

▪ Double-click the device icon and select ‘Activate.’

▪ Make sure the red check mark is shown on the device icon.

※ For activating Bluetooth device, please contact the device manufacturers.

4. How to Use Wireless Manager

With the Comprehensive Wireless Manager Function, it assists to use Bluetooth and Wi-Fi (Wireless Lan) in an easy and

simple way.

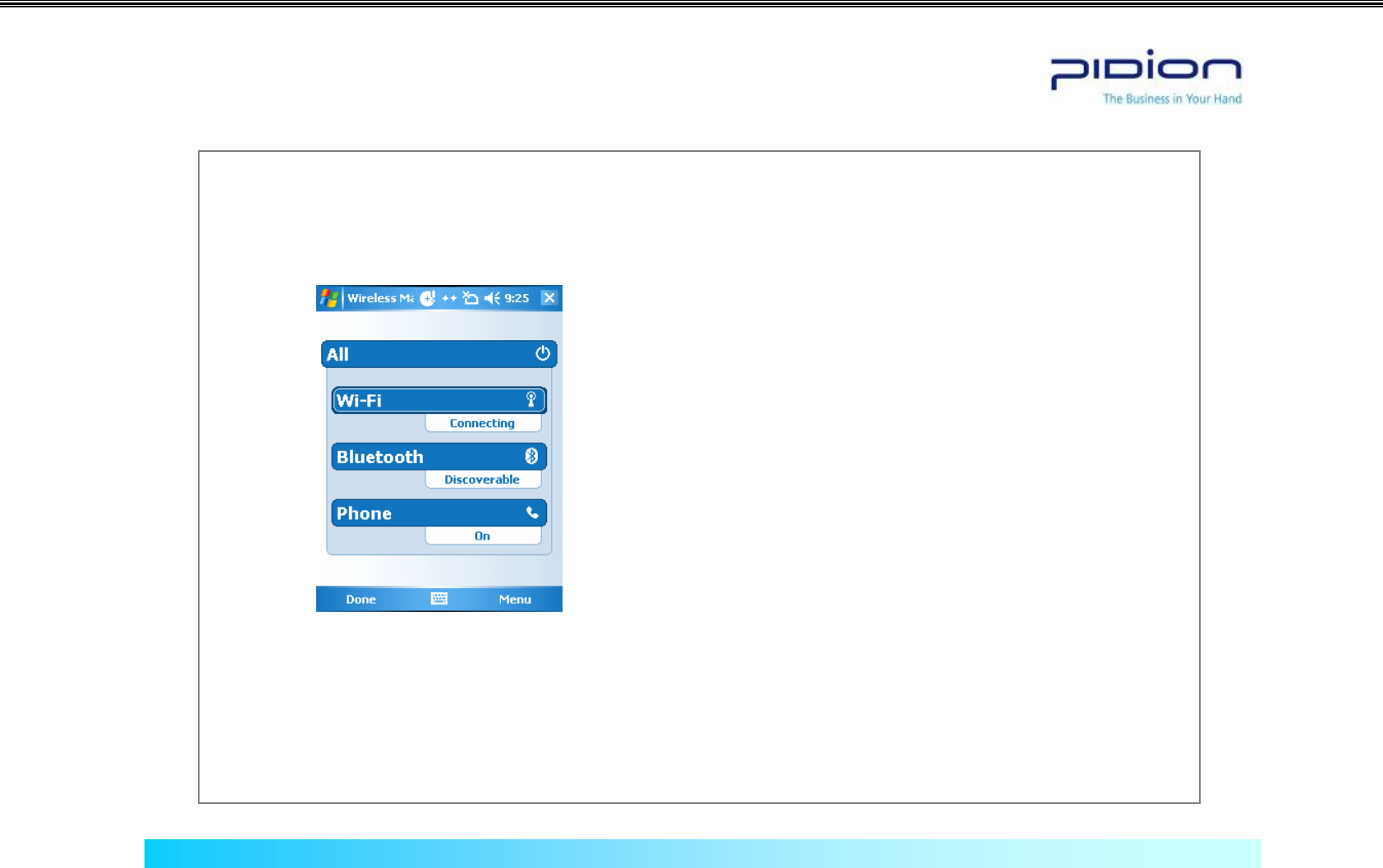

▪ Example of Using the Wireless Manager

①

② Path: [Start] -> [Setting]

② Click on the [Connections] table and then Select [Wireless

Manager]

③ Select either ‘Wi-Fi’ or ‘Bluetooth’ button

※ Depending on the communication specification of the terminal,

the Support Items for Wireless Manager can vary.

※ By using the ‘All’ button, all functions can be set ON/OFF at

once; and, by using ‘Wi-Fi,’ ‘Bluetooth,’ or ‘전화’ buttons, a

function can be set ON/OFF individually.

※ When ‘Wi-Fi’ or ‘Bluetooth’ is set ON, other functions under

this will be activated so as to make sub-settings possible. Even

when it is set OFF, individual settings are possible by using the

Menu button on the bottom.

Ⅳ. ActiveSync

1. Install ActiveSync

※ This is for Microsoft ActiveSync 4.1 - Korean. In using other versions, the Menu selections and functions in the manual

can be different.

▪ Download the installation file for ActiveSync from

http://www.microsoft.com/korea, and run the setup.exe

▪ When the following window appears, click “Next”. ▪ When the following window appears, click “Install”.

▪ After installation is done, click “Finish”.

▪ Depending on your PC environment, the Wizard may ask you to restart your PC. In this case, restart your PC.

※ When you first connect BIP-1300 to PC, the New Hardware Search Wizard of the PC is activated.

※ If you have already installed Microsoft ActiveSync, you do not need to install an additional driver program.

※ During first installation, the terminal may not be able to connect to the PC. In this case, the Communication Error dialog

box appears on the terminal. Click “OK” in this dialog and retry connection.

2. Download Files

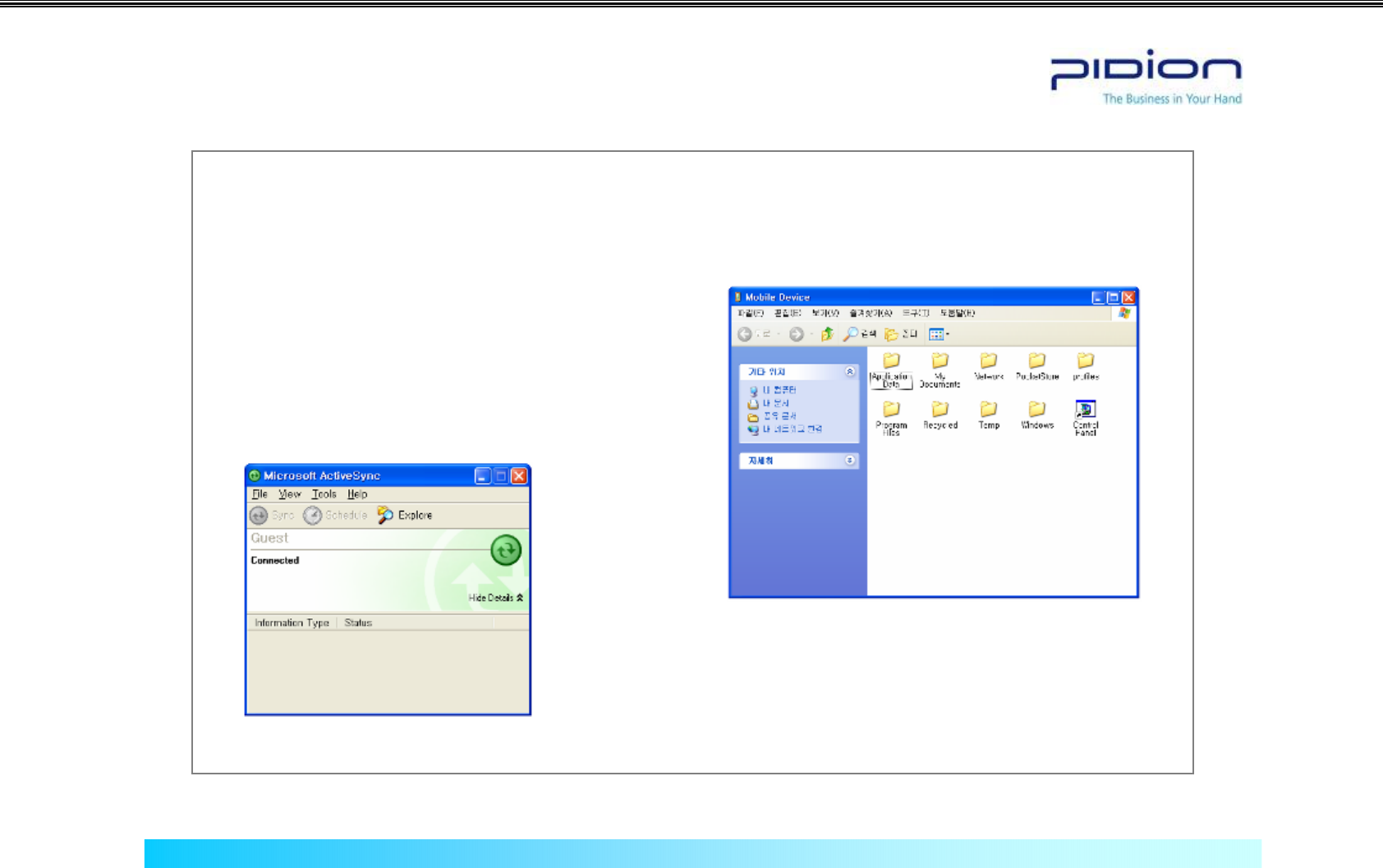

▪ In order to use ActiveSync, connect PDA to PC or Laptop

by using the USB cable.

Or, after fitting PDA in a cradle, connect the cradle to PC

by using the USB cable.

▪ If PDA is turned on when connected to PC,

PC will automatically detect it and execute ActiveSync.

▪ Press ActiveSync Search button and activate Mobile

installation window.

▪ Open file finder of your PC, and copy files you want.

After all files are copied, move the files to PocketStore.

Ⅴ. APPENDIX

1. Frequently Asked Questions.

Q. I have dropped a terminal in water.

A. Remove the battery immediately and dry it in the dry area. If the device still doesn’t work, main board or other components

may be required to replace. Please contact service center.

Q. It doesn’t boot.

A. Program may have been damaged. Please attempt to rest reset. If it still doesn’t work, please contact the service station.

Q. I can’t get it charged

A. Make sure the device is properly placed in a cradle and lights are on. You can also cleanse the charging terminal. If it still

doesn’t work, it may be damaged. (Batter warranty is 6 months)

Q. How do I request for a warranty service?

A. Please use international courier such as FedEx, or DHL. You can also contact Bluebird’s regional manager for the

authorized service station.

Q. How do I check delivery status?

A. Please contact Bluebird’s regional manager.

2. Website and Authorized Service Station

[Authorized stations]

GLOBAL & KOREA

BluebirdSoft Inc.

Email: service@bluebird.co.kr

SINGAPORE

http://www.ark-technology.com

Tel) 65-6741-3866 Fax) 65-6741-3066

TIWAN

http:// www.arktech.com.tw/

Tel) 886-2-86471546 Fax)886-2-86473543

MALAYSIA

ENT Quest Sdn. Bhd.

Tel)603-2380-4744 Fax) 603-2380-4745

THAILAND

ENT (Thailand) Company Limited

Tel) 662 216 20404 Fax) 662 216 2045

FCC COMPLIANCE STATEMENT:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device

may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

INFORMATION TO USER:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one more of the following measures:

-. Reorient or relocate the receiving antenna.

-. Increase the separation between the equipment and receiver.

-. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-. Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Any changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to

operate the equipment

Caution: Exposure to Radio Frequency Radiation.

To comply with FCC RF exposure compliance requirements, a separation distance of at least 5 cm must be maintained between the

antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or

transmitter.

BLUEBIRD BIP13X0 Industrial PDA User Manual BIP 1300 User s Guide F

BLUEBIRD INC. Industrial PDA BIP 1300 User s Guide F

User Manual

Navigation menu

Namespaces

Views

Navigation
