Users Manual

-Before starting, ensure that you read and follow the “Safety Warnings and Precautions”section of this manual.

Safety Warnings and PrecautionsSafety Warnings and Precautions

: Please follow the instructions to properly use the product and avoid accidents in advance.

1. Exercise precautions when using the battery

- If the batteries are damaged, severely shocked, heated, exposed to moisture or high temperatures, or

bored by a gimlet, it may explode.

- Keep batteries away from children and pets.

2. Do not use PDA phone in explosion areas.

3. Do not use PDA phone on an aircraft or inside a hospital.

4. Avoid using PDA phone or checking phone numbers while driving. Use hands free kit in unavoidable conditions

or use it after stopping the car

5. Product may deform or malfunction if exposed to direct sunlight

6. Prevent conductive objects such as necklaces and coins from making contact with the battery plug. Do not

shock battery with sharp objects or animals. Battery may explode.

7. Only use recommended batteries and do not use with other products. Do not use inferior quality battery as

doing so may shorten battery and PDA life span and cause explosion. (Warranty is void in this event)

8. Battery must be charged with the adapter or standard charger provided. Usage of unapproved adapter may

shorten battery life or cause explosion. (Warranty is void in this event)

9. If the PDA gets wet, never insert or place the terminal, battery, or charger into or near heating devices, such

as heaters or microwave ovens . This may cause production deformation, explosion or fire. (The label’s color

inside the PDA or battery will fade if immersed in water.) Please note that free repair service won’t be provided

in this condition.)

ContentsContents

I. Safety and precautions –Warning and cautions

II. Contents

1. Product composition

2. Get to know the product

1) Left, front, right side of product

2) Button introduction

3) Specifications

3. Getting started

1) Connecting and disconnecting the battery

2) Charging battery

3) Using PDA

4. Start connecting network

1) Scan

2) ear jack (Converter)

3) Reset PDA

4) Host PC connecting

5) IrDA 사용 Using IrDA

6) Bluetooth

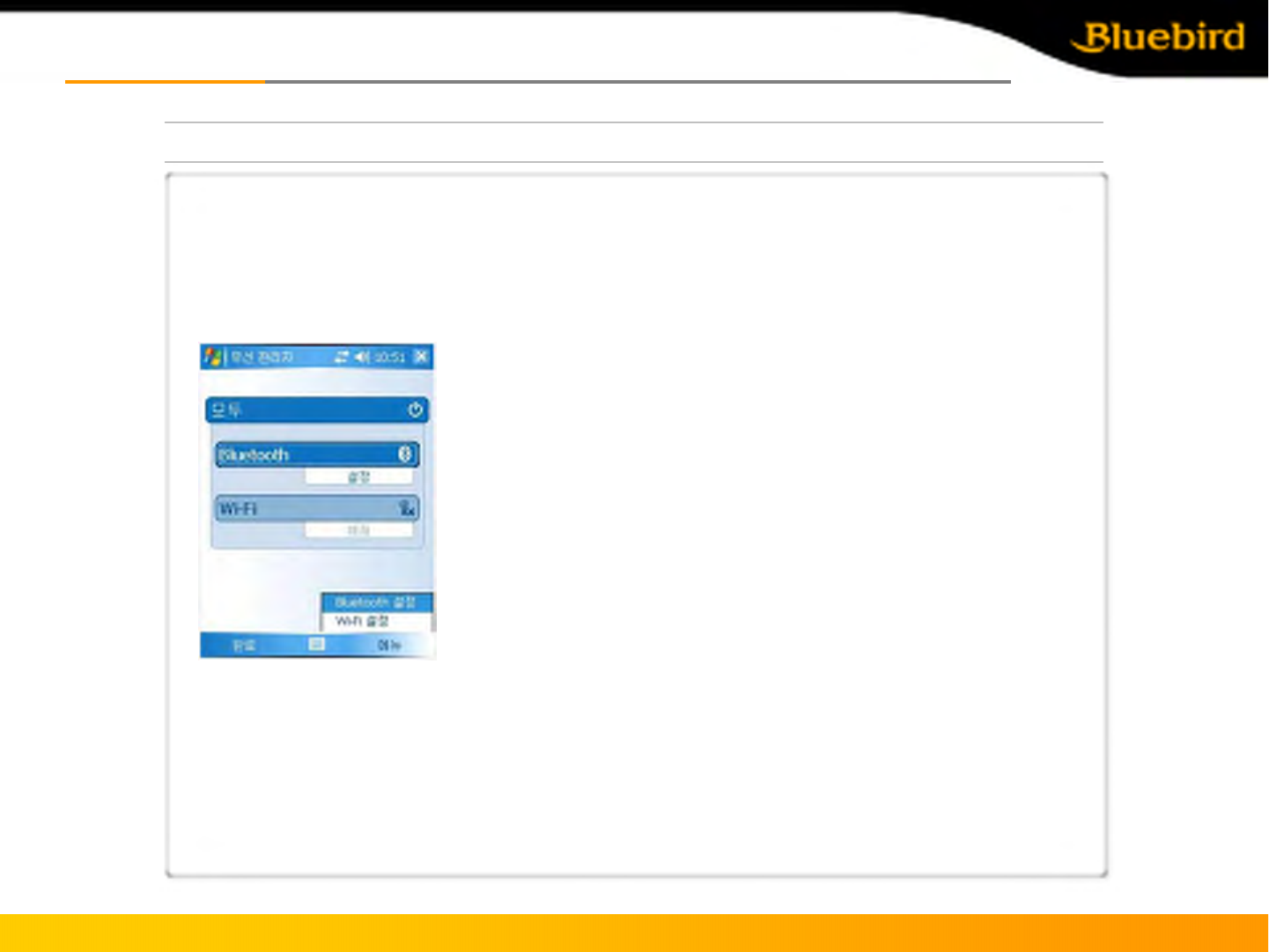

7) How to Use Wireless Manager

8) Using memory card

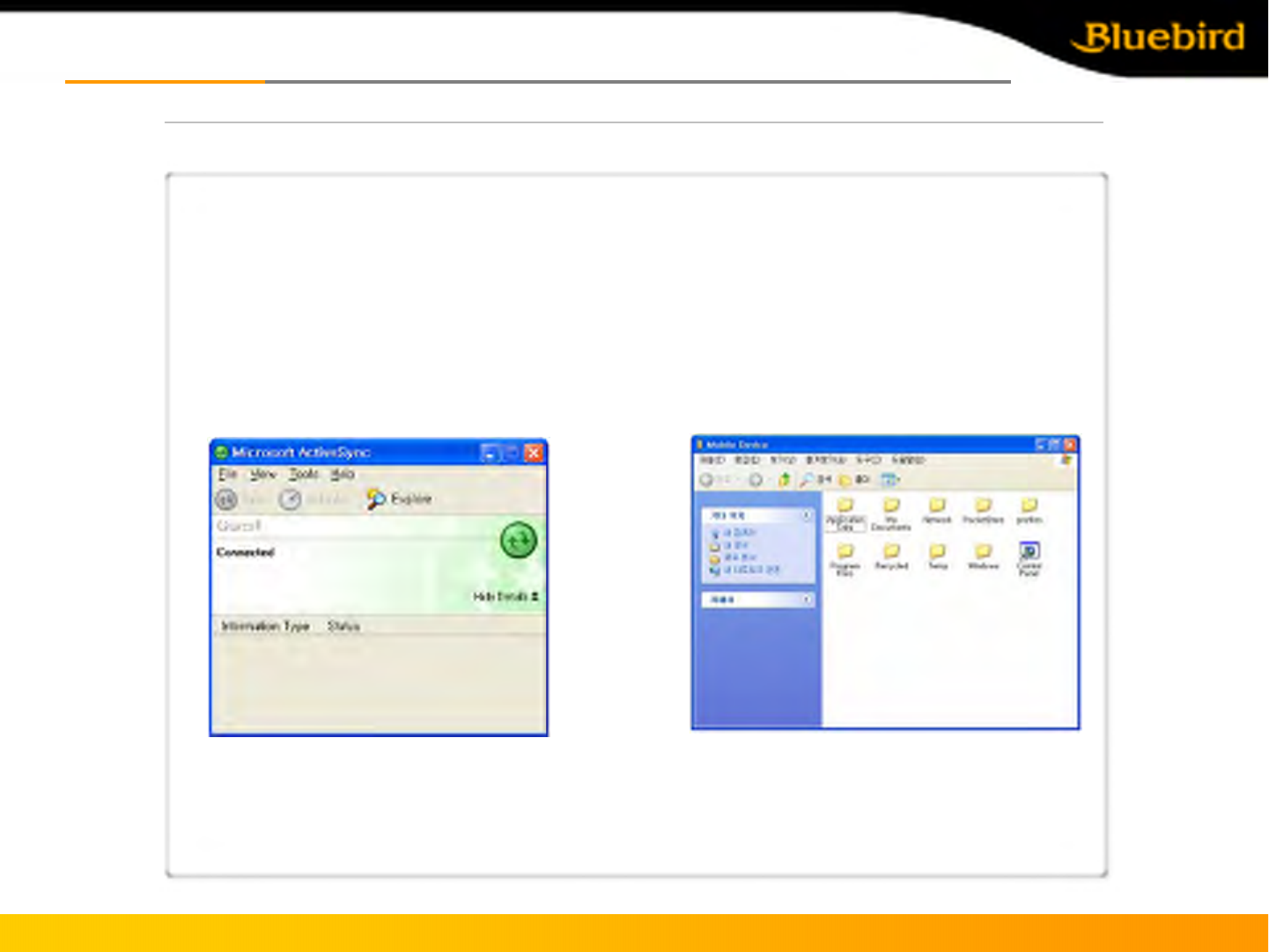

5. ActiveSync

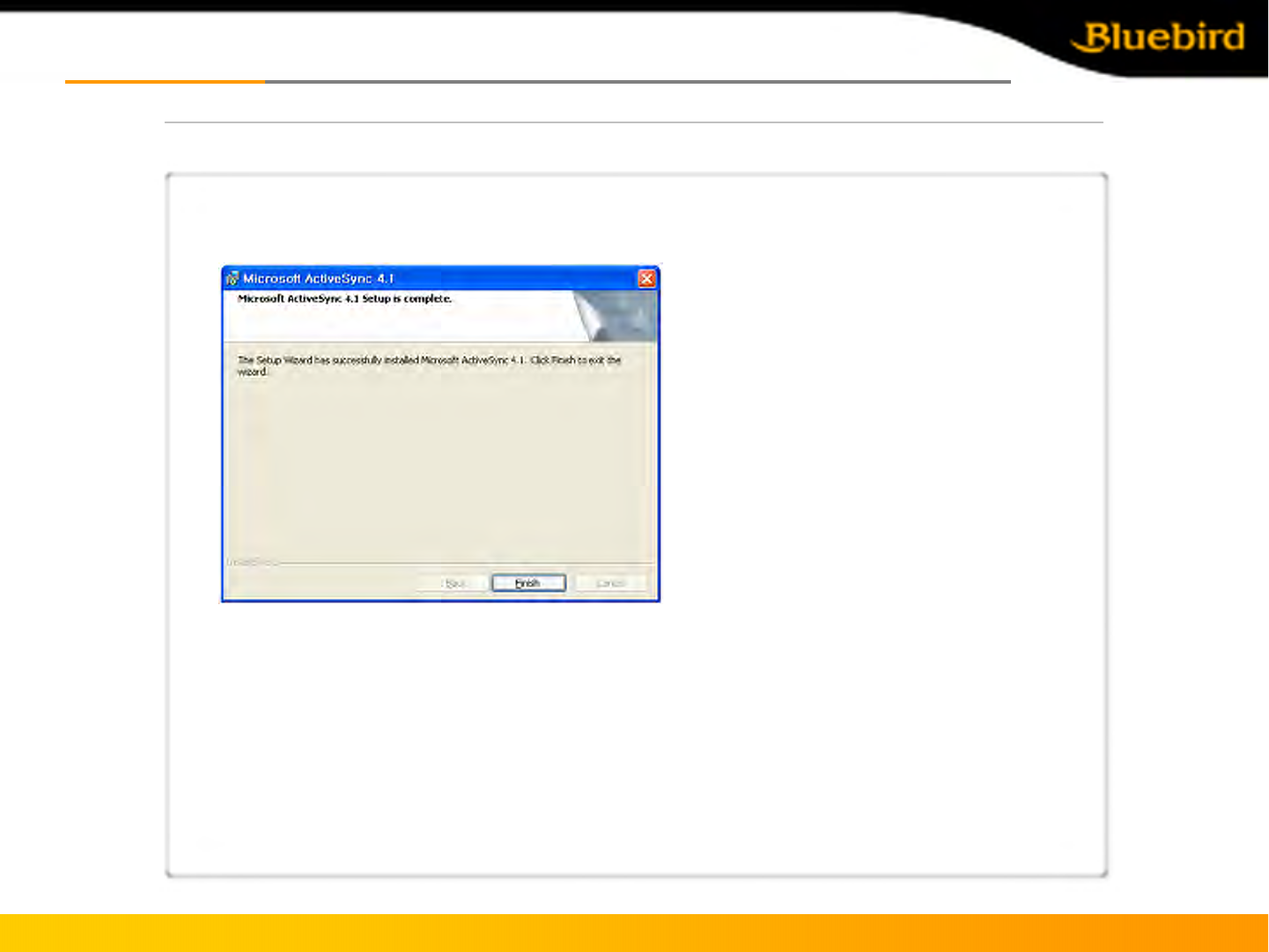

1) Installing ActiveSync

2) Precaution for using ActiveSync

6. Using PDA phone functions

7. Using Wireless LAN features

8. Precautions

9. Appendix

1) Q&A

2) Accessories

BIP-5000

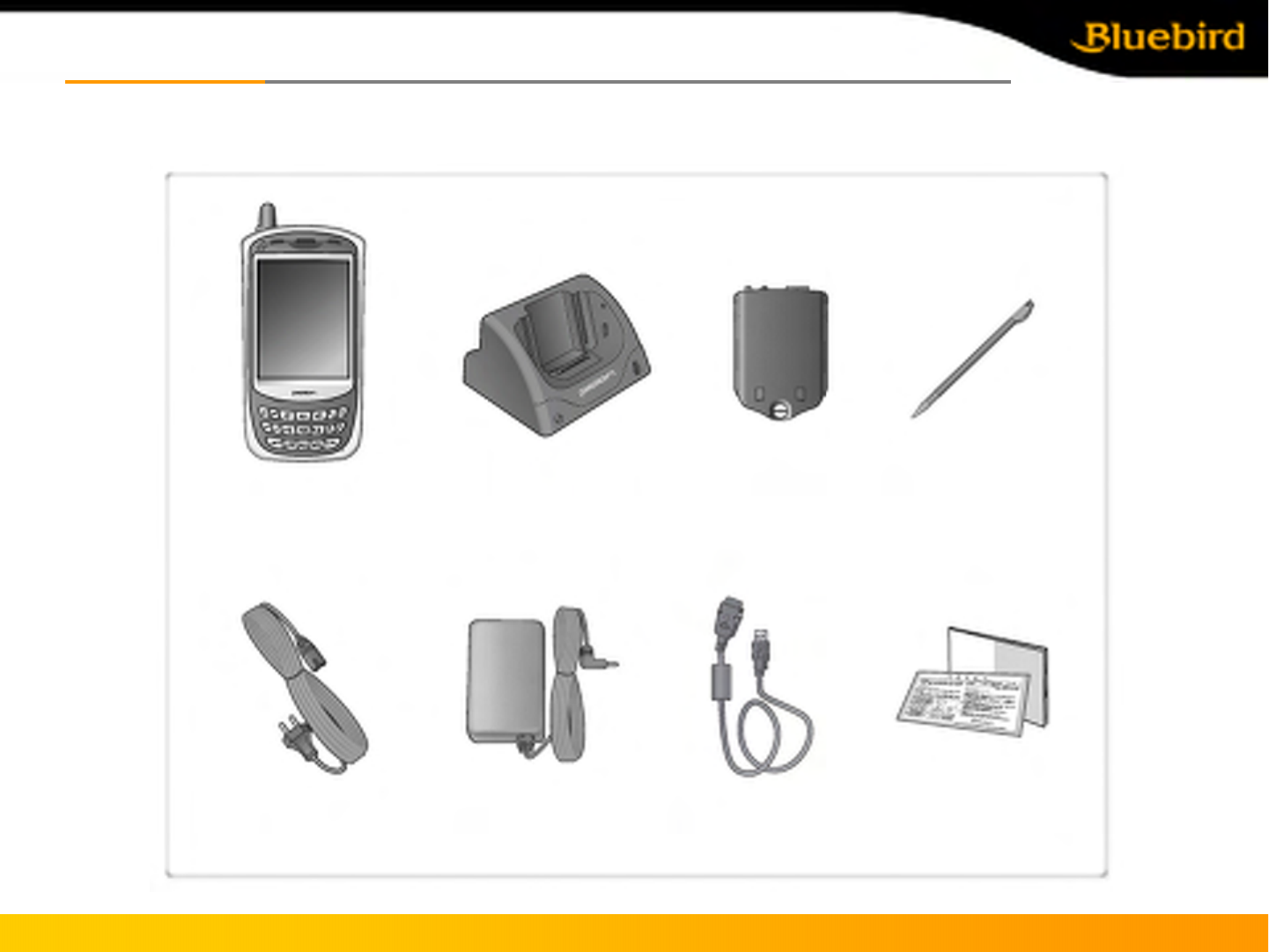

Product CompositionProduct Composition

The following illustrations may differ from actual products. Please contact our customer center to purchase

additional or optional products.

[BIP-5000 PDA 1 unit] [BIP-5000 Cradle 1 unit] [Battery (standard)] [Stylus]

[Power cable] [Adapter] [USB cable] [User manual]

BIP-5000

Knowing the productKnowing the product

1. Front, left side, back, right side

[Front] [Right side] [Back] [Left side]

Antenna

GSM

(LED)

Speaker

Power(LED)

Alpha key

Power button

Call button

Barcode

scanner

window

Barcode/

Camera

Button

ear jack

IrDA

Camera

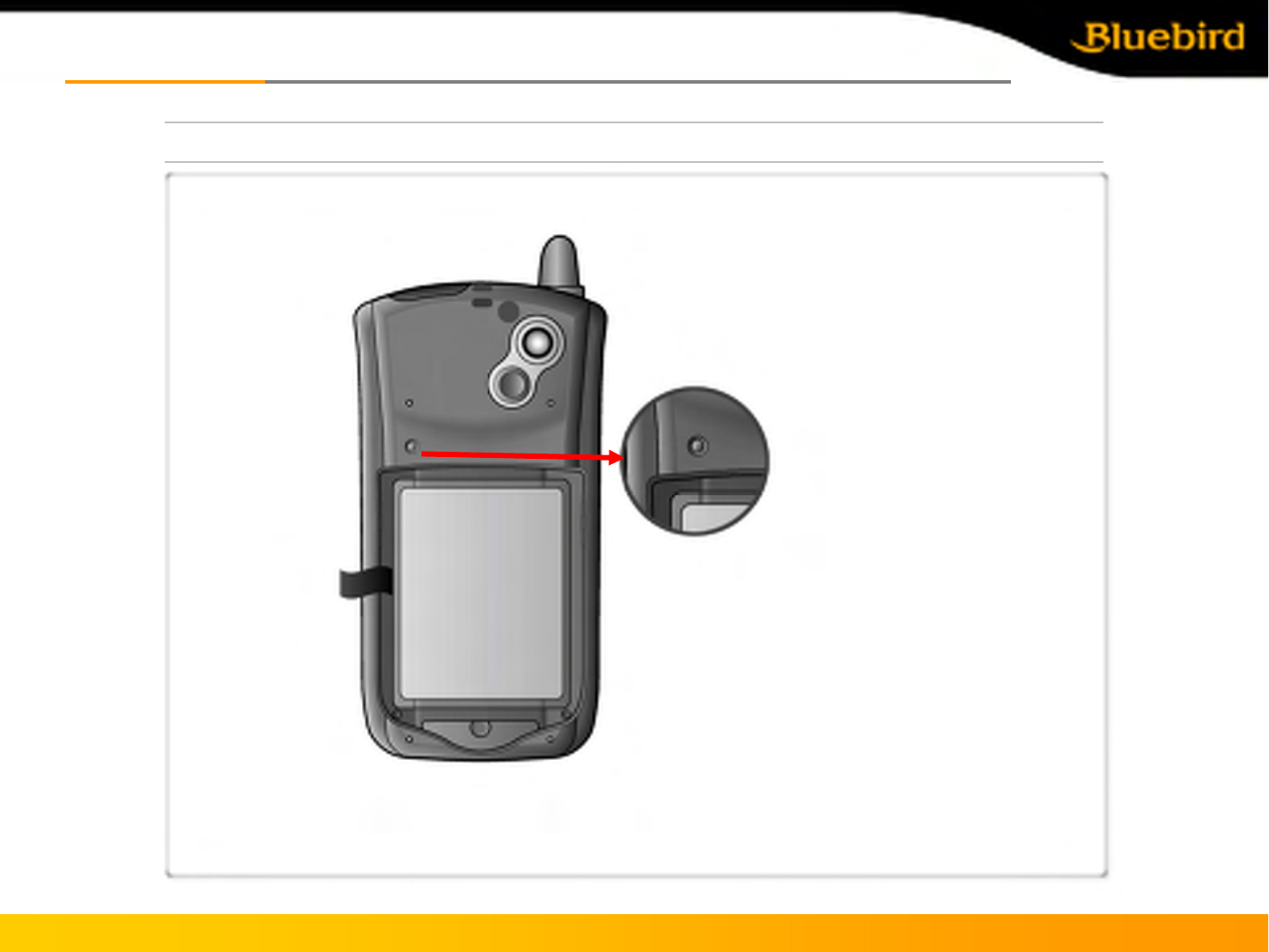

Reset

Battery Case

Fixed screw

Hand

Strap

Barcode/

Camera

Button

Flash

Enter key

Function

key

Microphone

BIP-5000

Knowing the productKnowing the product

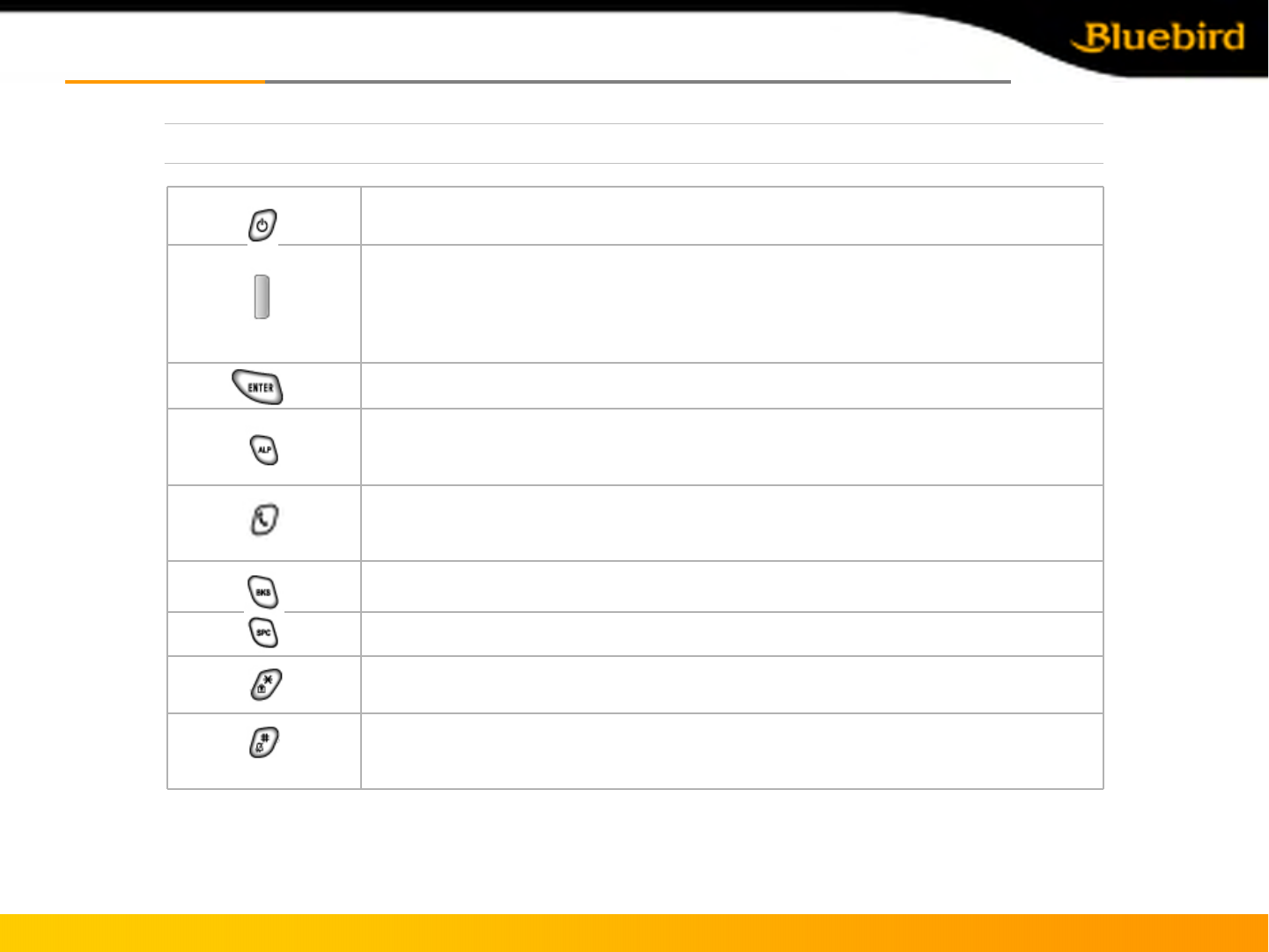

2. Button introduction

Press 3 seconds to lock the PDA. Password must be inserted to use the PDA.

Press 3 seconds to enable/disable silent mode

Move one space to the right.

Delete a character by moving the cursor one space to the left.

Execute program and make phone connection. Press once to execute phone program,

press twice to view recent calls, press three times to call the selected number.

Change character input mode. Default mode is numeric. Press once for lower case

English, press twice for capital English, press three times for special characters.

Execute after user input

Laser(1D,2D) Barcode / Camera Type : Press left button to use barcode scanner

Press right button to use camera

CMOS Barcode Type : Use right and left button to activate barcode.

Use it to turn on/turn off the PDA

BIP-5000

Knowing the productKnowing the product

3. Specifications

5V 2.4A

ADAPTER

314 g

WEIGHT

79.5(width) x 150.3(length) x 34.9thickness) mm

SIZE

2000mAH

BATTERY

2.0M pixel camera

CAMERA

1 x USB 1.1 Client / Host

1 x RS-232C

Mini-SD slot

IrDA 1.2 (Option: Bluetooth class )

INTERFACE

3.5”, 240 x 320 / 260,000 color

DISPLAY

Window Mobile 5.0

Intel PXA270 520MHz

CPU

DescriptionContents

BIP-5000

Knowing the productKnowing the product

3. Specification

FCC Compliance Statement

FCC NOTICE: This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions: (1) This devices may not cause harmful interference, and (2) This device

must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generate, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications to the equipment not expressly approved by the party

responsible for compliance could void user’s authority to operate the equipment.

Knowing the productKnowing the product

3. Specification

European Union Notice

This product satisfies all the technical regulations applicable to the product within the scope of

Council Directives 1999/5/EC, 89/336/EEC and 73/23/EEC.

Radio : ETSI EN 301 511 / ETSI EN 300 328

EMC : ETSI EN 301 489-1/7/17, EN 55022, EN 55024, EN 61000-3-2/-3

Safety : EN 60950-1

Health : EN 50360 / EN 50361

BIP-5000

3. Specification

Knowing the productKnowing the product

FCC RF EXPOSURE INFORMATION

WARNING! Read this information before using your phone

In August 1996 the Federal Communications Commission (FCC) of the United States with its action in

Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio

frequency (RF) electromagnetic energy emitted by FCC regulated transmitters.

Those guidelines are consistent with the safety standard previously set by both U.S. and international

standards bodies. The design of this phone complies with the FCC guidelines and these international

standards.

CAYTION : Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or

attachments could impair call quality, damage the phone, or result in violation of FCC regulations.

Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin,

a minor burn may result. Please contact your local dealer for replacement antenna.

Body-worn Operation

The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. BIP-5000 Device (FCC ID:

SS4BIP5XX0) has also been tested against this SAR limit. The highest SAR value reported under this

standard during product certification for use at the ear is 0.573 W/kg and when properly worn on the

body is 0.956 W/kg.

BIP-5000

Getting startedGetting started

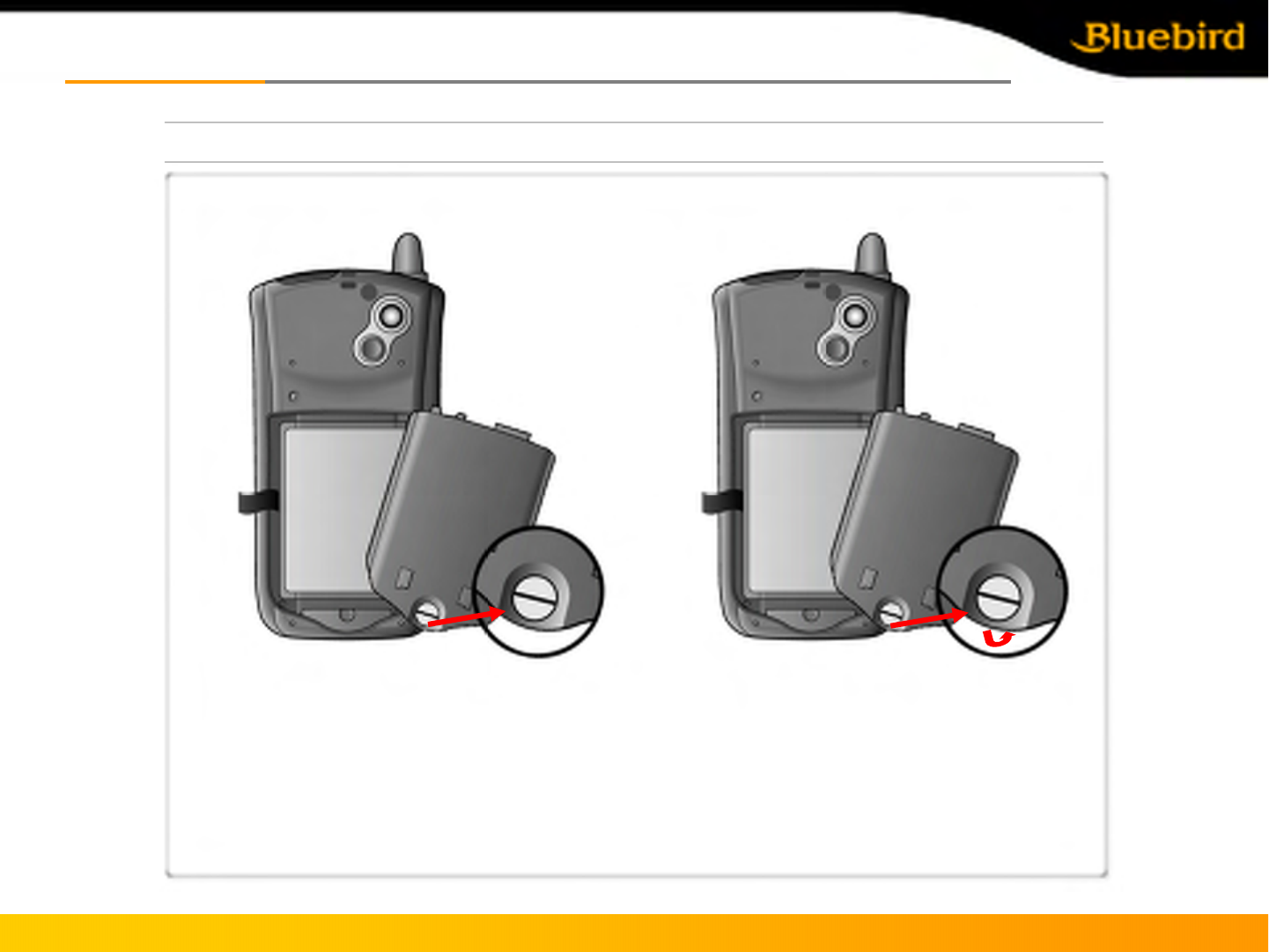

1. Connecting and disconnecting the battery

[Connecting the battery]

•Sit the battery to the groove,

Put the cover and swivel the screw •Swivel the screw in arrow direction until

detached, take off battery

* Battery must be taken off after turning off the PDA. Sudden power break may cause the PDA malfunction.

[Disconnecting the battery]

BIP-5000

Getting startedGetting started

2. Charging the battery

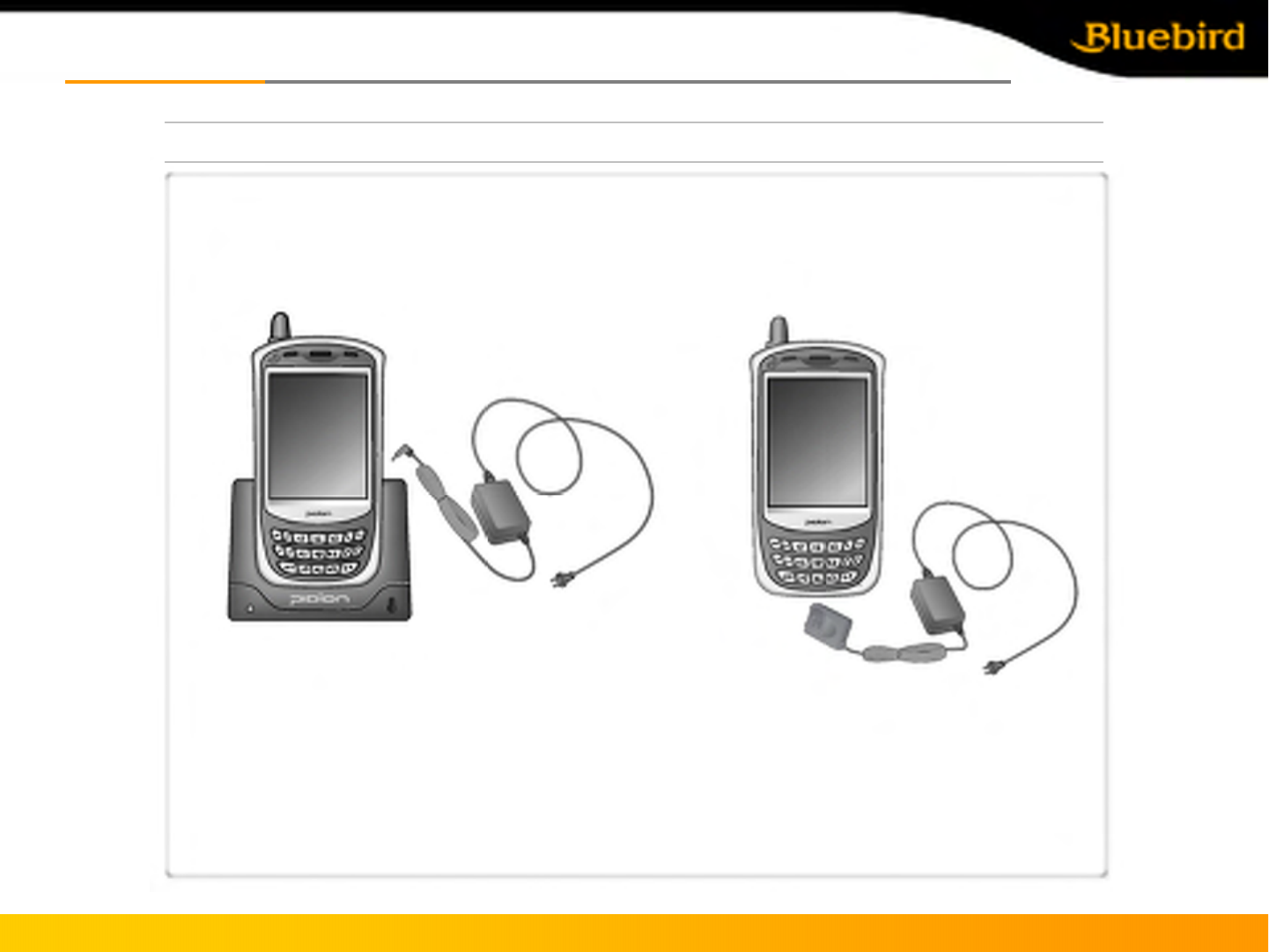

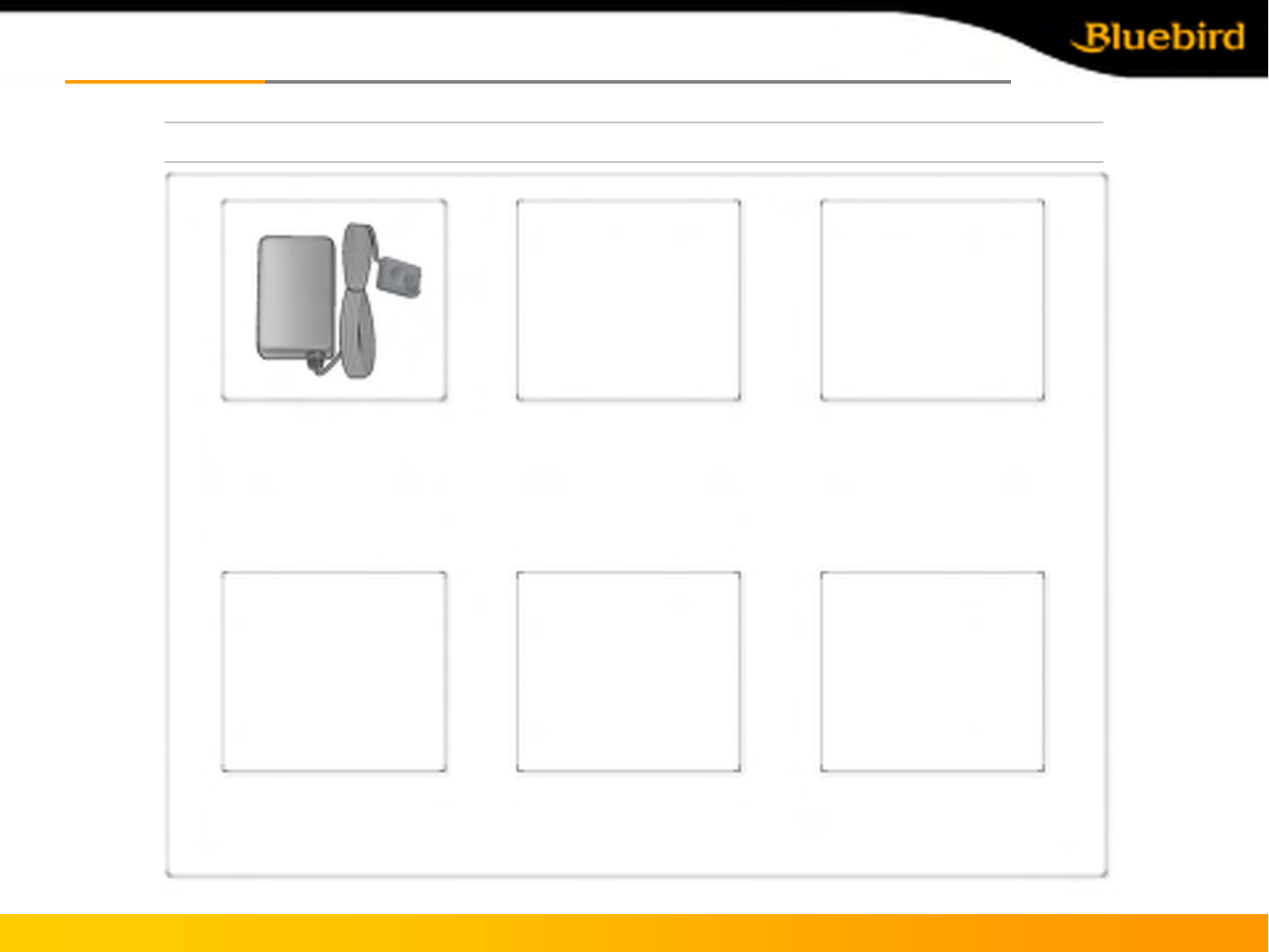

[While connecting the adapter to the table charging cradle]

*Connect the adapter with table charging cradle as showed * Connect the converter attached jack with PDA

•Note: Using the provided/approved adapter is the most safely and effective way to use PDA.

[While connecting the adapter to PDA directly]

BIP-5000

Getting startedGetting started

2. Battery charging method

[Battery charging and working time]

*The Charging time is subject to change of charging condition, please purchase the new one when it’s working

time is shortened by 50%.

12 hours (LCD on,

backlight off),

200hours (LCD off)

Standby time

4 hours

Talk time

Standard (2000mhA)Working time

Less than 4 hours (main

battery), less than 72

hours (backup battery)

Time

Standard (2000mhA)Charging Time

*Modem power turns off automatically to prevent the battery power damage. Use is after recharging.

*The battery talk time and standby time can be different from the specification in various conditions.

[Battery Charging condition]

Red

Charging

Green

Charging

Lamp

Fully charged

* It is fully charged when table charging cradle and PDA’s charging lamp turn to green, there is no harm if keep

charging the PDA.

BIP-5000

Getting startedGetting started

3. Getting started

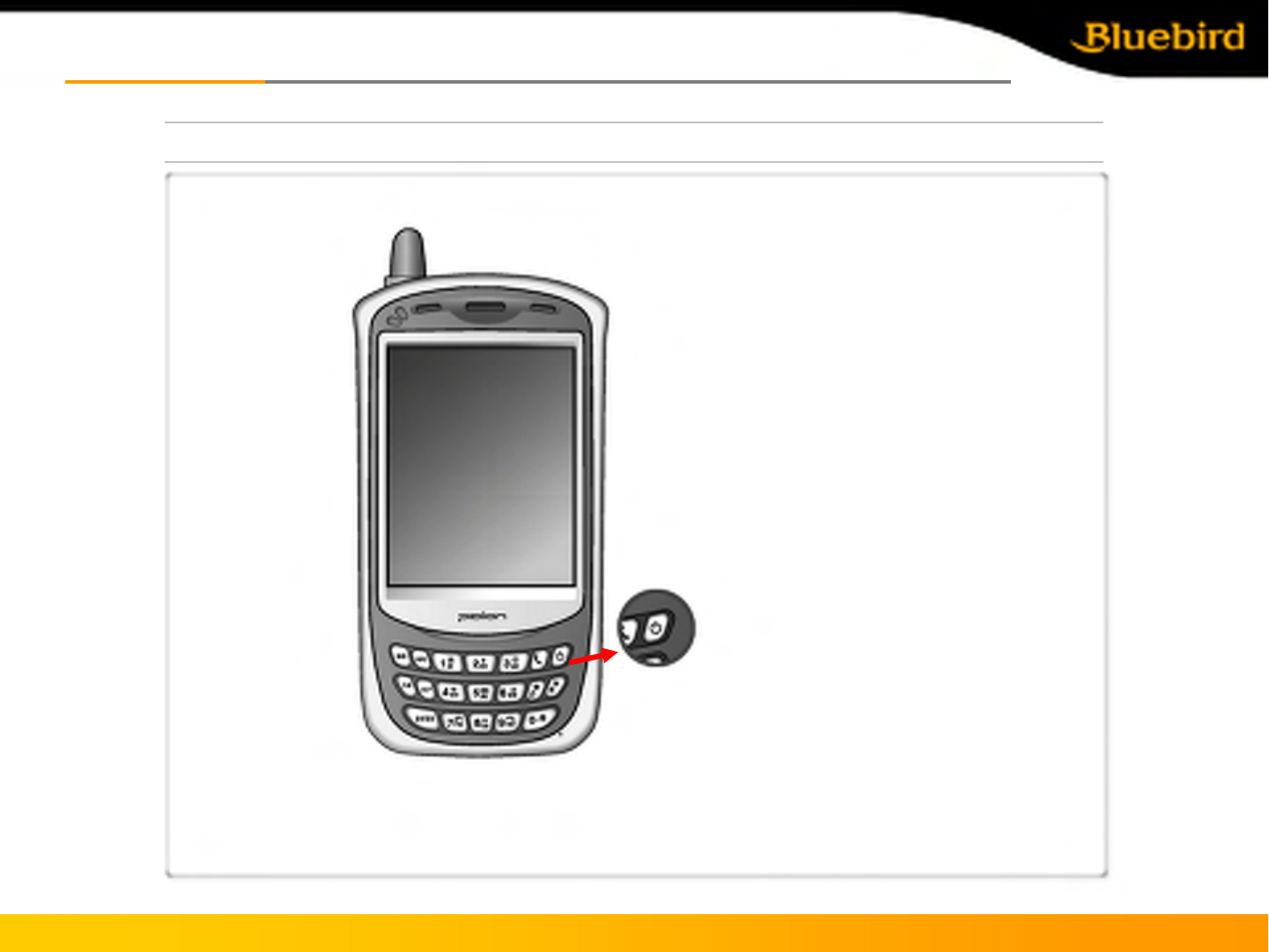

[Turn the PDA]

-Power Button

* Press power button to turn on the PDA

* Depress power button for 2 seconds in the condition

of PDA is turned on, the Front light will be turned on

or turned off.

BIP-5000

Getting startedGetting started

3. Getting started

Using Stylus (using method of stylus, dragging, pressing method)

* Using stylus to select, execute and move the items in the screen.

# Get stylus from PDA

# Tapping Stylus

: Tap the icon in the screen for once by using stylus to select or execute the item, like clicking the mouse

left button.

# Dragging Stylus

: Using dragging stylus to select several items, characters and images, like dragging the mouse.

# Tapping and Holding Stylus

: In order to view selected item’s function, taping and holding the stylus in the screen and it shows the pop

manual, like using mouse to select the item and click the right button.

BIP-5000

Getting startedGetting started

3. Start to use PDA

[Calibration]

*Using stylus to select, execute, move the item in screen.

▪Press the stylus to the targeted center target accurately, and

doing the same when the target move to up left, down left, down

right, up right (This is to settle the input value of stylus in LCD

screen.

BIP-5000

Getting startedGetting started

3. Start to use PDA

[Initialization the screen of Win CE]

*The following figure is shown after the

initialization wizard finished.

Title Bar

Today

Screen

[Starting Windows Mobile]

▪ Click on the Start Button on the upper left

corner of the title bar and the Start Menu appears.

Start Button

Start Menu

Program

Execution and

Option Setting

BIP-5000

Get to know the productGet to know the product

3. Start to use PDA

Moving one space down

Function + 8

Page Down

Function + 7

Moving one space to the right

Function + 6

Execute the sign input

Function + 5

Moving one space up

Function + 2

LCD getting brighter

Function + 3

Moving one space to the left

Function + 4

Page Up

Function + 9

Run the sign character

Function + 0

Run user defined program

Function + 1

LCD getting darker

Function + 1

Run user defined program

Function + 1

Run user defined program

Function + 1

Description

Contents

- To use the Function keypad

- The following functions will be executed after pressing the function key and button.

BIP-5000

Connecting to the networkConnecting to the network

1. Scan

[Using laser Scanner] [UsingCMOS Scanner]

* Face the PDA the barcode as shown and press left/right button to use.

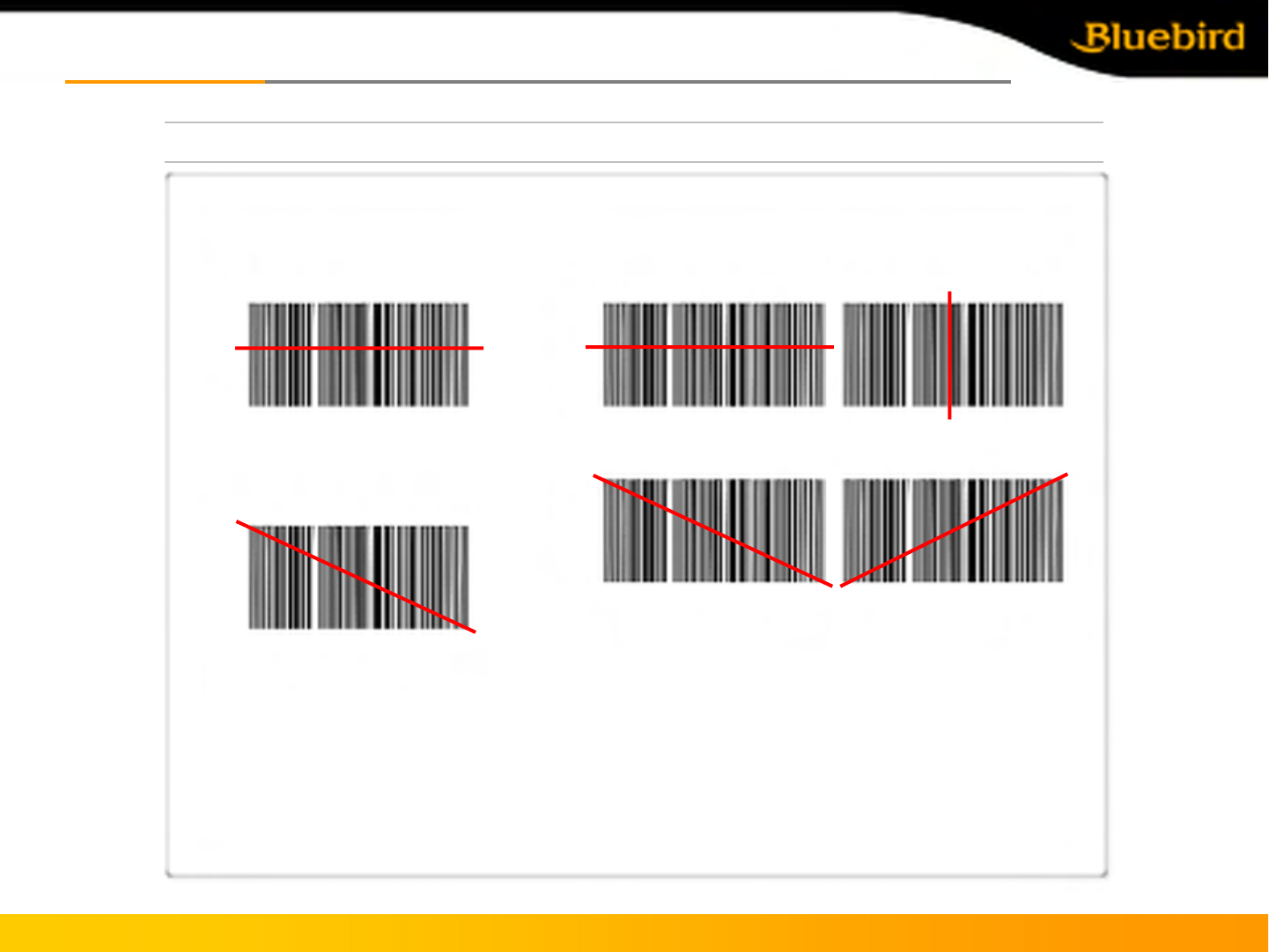

[correct]

[incorrect] [correct]

-Barcode can be read in every direction

BIP-5000

Connect to the networkConnect to the network

1. Scan

[Basic test method of laser barcode]

1) Run notepad

2) Create new notepad file

3) Face the scanner to the barcode and press barcode button.

4) The captured barcode value is shown in the new notepad.

•Please consult the program’s manufacture for using the special barcode program.

BIP-5000

Connect to the networkConnect to the network

1. Scan

[Basic CMOS barcode test method]

1) Run notepad

2) Create the new notepad file

3) Face the scanner to the barcode and press barcode button.

4) The read barcode value is shown in the new notepad.

•Please consult the program’s manufacture for using the special barcode program.

BIP-5000

Connect to the networkConnect to the network

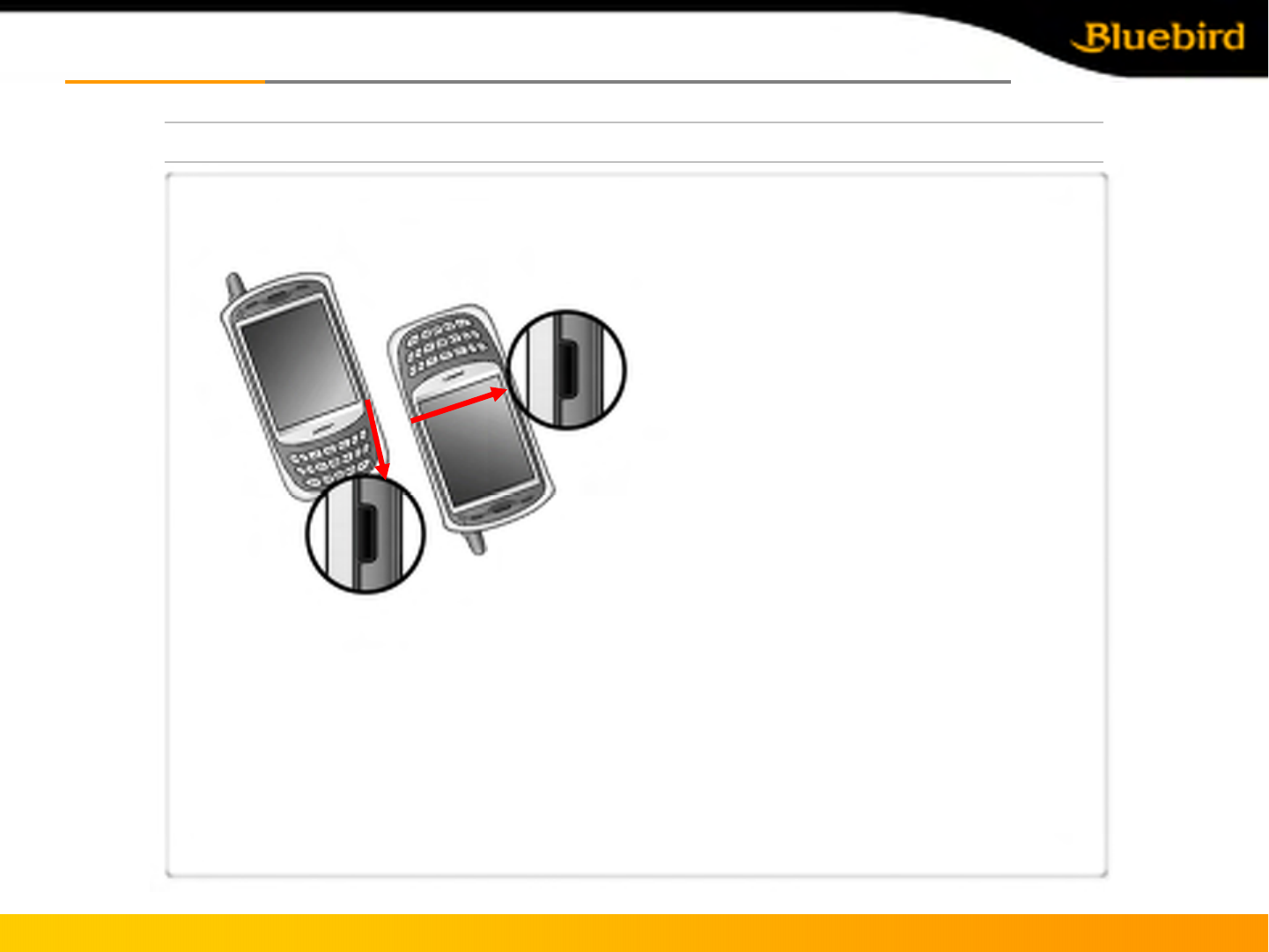

2. Using method of ear jack

[Using ear jack]

•Take off the ear jack cover and plug it straight into the PDA asshown.

BIP-5000

Connect to the networkConnect to the network

3. Reset PDA

[Reset]

* Soft reset can be used to restart the PDA when there is error occurred and PDA stopped working. Same

as computer reset, all the unsaved data will be lost.

•Press reset softly by using stylus

Reset button

BIP-5000

Connect to the networkConnect to the network

3. Reset the PDA

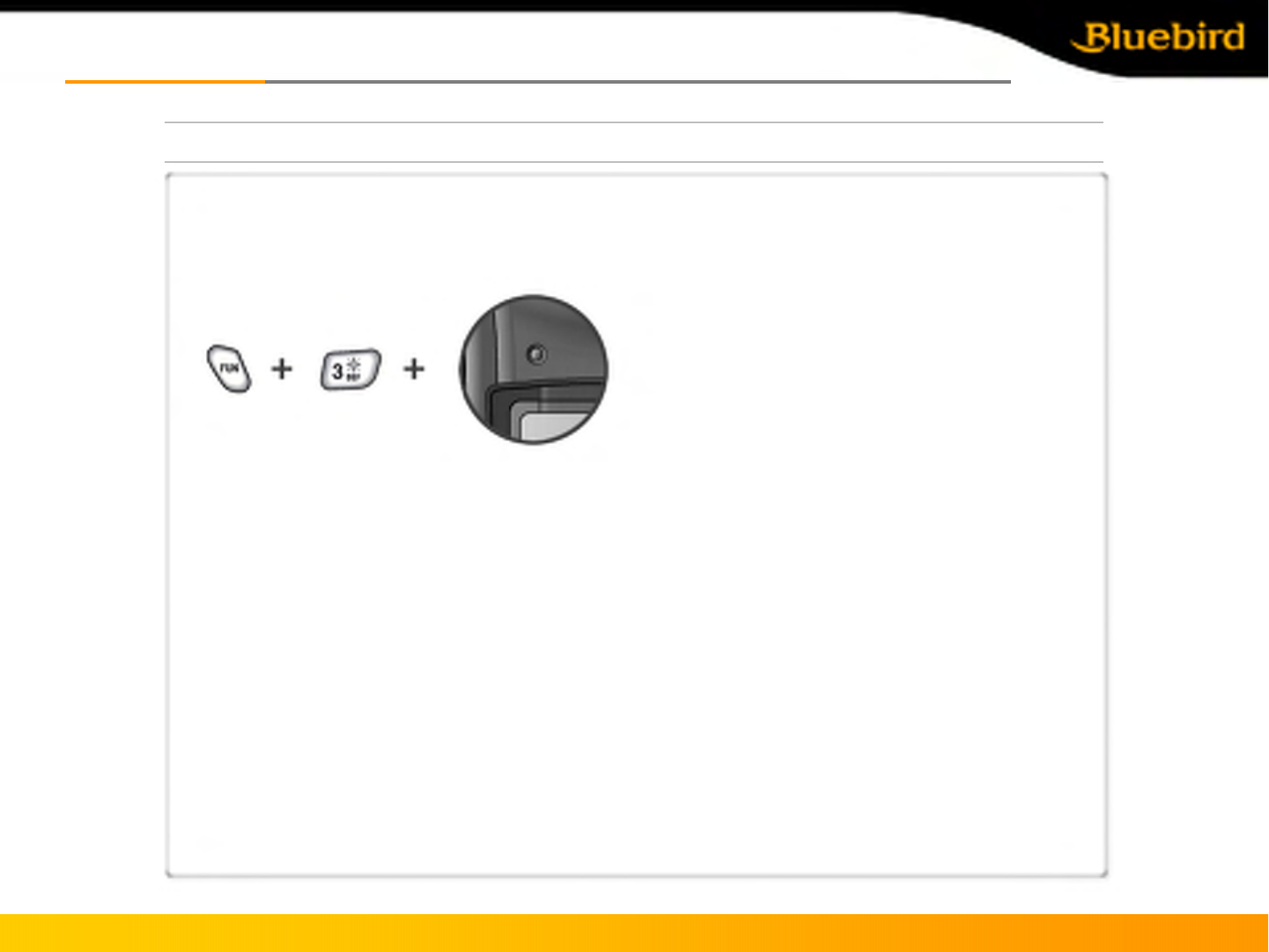

[Hard reset]

•Hard reset is used when the soft reset doesn’t work. The PDA will turn to the original condition after

being hard reset.

All the installed program in RAM, documents, settings will be lost after doing hard reset.

•Please backup the data and program before doing hard reset, we will not be responsible for any data

and data/program lost.

•Perform the hard reset using Stylus and buttons.

[Connect the cradle] [Connect to PDA directly]

* Connect the PDA (cradle) -cable-computer as

shown

* Connect PDA-cable-computer as shown

BIP-5000

Connect to the networkConnect to the network

3. Host PC connection method

•ActiveSync can be used after connecting the PC or notebook to copy the files or install the new

program by synchronizing the PDA with PC.

[IrDA using method] [Executing screen]

•Matching the IrDA port as shown (transmission

speed is fastest when the distance at shortest)

Sample)

1. Start->Setting

2. Select WL transmission after pressing “connect”tab.

3. Click “OK”after check “receiving all the incoming WL”

4. Searching for the opposite IrDA port

5. Press “OK”after sending the data

BIP-5000

Connect to the networkConnect to the network

4. IrDA using method

BIP-5000

Connect to the networkConnect to the network

5. Bluetooth using method

Activate the Bluetooth device such as Bluetooth printer and card reader.

▪ Example of Using the Bluetooth.

① Path: [Start] -> [Settings]

② Click on the [Connections] table and then Select [Bluetooth].

③ Under the [Mode] tab, check ‘Turn on Bluetooth’and click on

[OK].

▪ Turn on Bluetooth

- Depending on checking the option, it is either In Use or Not in

Use Status.

※ When it is Not in Use, make sure to deactivate the function in

order to prevent battery loss.

▪ Make this device discoverable to other devices

- When checked In Use, it should allow other devices to search

BIP-1300.

BIP-5000

Connect to the networkConnect to the network

5. Bluetooth using method

Other Bluetooth devices are scanned and paired.

▪ Example of Using the Bluetooth

① Path: [Start] -> [Settings]

② Click on the [Connections] table and then Select [Bluetooth]

③ Under the [Devices] tab, select ‘New Partnership...

※ When other Bluetooth devices are recognized, the model name of the

product and an icon appears as shown in the Figure.

※ When nothing is recognized, an message to indicate that nothingwas

found appears.

▪ See if PIN Number entry window pops up. (Contact the device

manufacturer for the original PIN No.

Each device has its own unique device PIN Number for authentication.)

▪ Make sure that the scanned device displays the same icon as Bluetooth

device.

▪ Double-click the device icon > select trust menu > enter PIN No.

▪ The red mark of the found device icon will disappear if a correct PIN

code is input.

▪ Double-click the device icon and select ‘Activate.’

Make sure the red check mark is shown on the device icon.

※For activating Bluetooth device, please contact the device

manufacturers.

BIP-5000

Connect to the networkConnect to the network

6. How to Use Wireless Manager

With the Comprehensive Wireless Manager Function, it assists to use Bluetooth and Wi-Fi (Wireless LAN) in an

easy and simple way.

▪ Example of Using the Wireless Manager

① Path: [Start] -> [Setting]

② Click on the [Connections] table and then Select [Wireless Manager]

③ Select either ‘Wi-Fi’or ‘Bluetooth’button

※ Depending on the communication specification of the terminal, the

Support Items for Wireless Manager can vary.

※By using the ‘All’button, all functions can be set ON/OFF at once; and,

by using ‘Wi-Fi,’‘Bluetooth,’or ‘Phone’buttons, a function can be set

ON/OFF individually.

※GPRS/EDGE and WLAN can not operate simultaneously.

※When ‘Wi-Fi’or ‘Bluetooth’is set ON, other functions under this will be

activated so as to make sub-settings possible. Even when it is set OFF,

individual settings are possible by using the Menu button on the bottom.

[Insert Mini SD card] [Take out Mini SD card]

* Push the memory card into the slot as shown

until it’s plugged.

BIP-5000

Connect to the networkConnect to the network

7. Memory card using method

* Press the memory card down deeply as shown and

it will bounce out and get detached.

Memory

Card

Memory

Card

BIP-5000

ActiveSync connectionActiveSync connection

1. Install ActiveSync

▪ Download the installation file for ActiveSync from

http://www.microsoft.com/korea, and run the setup.exe

▪ When the following window appears, click “Next”.

▪ When the following window appears, click “Install”.

※ This is for Microsoft ActiveSync 4.1 - Korean. In using other versions, the Menu selections and functions

in the manual can be different.

BIP-5000

ActiveSync connectionActiveSync connection

1. Install ActiveSync

▪After installation is done, click “Finish”.

▪ Depending on your PC environment, the Wizard may ask you to restart your PC. In this case, restart your PC.

※ When you first connect BIP-5000 to PC, the New Hardware Search Wizard of the PC is activated.

※ If you have already installed Microsoft ActiveSync, you do not need to install an additional driver program.

※ During first installation, the terminal may not be able to connect to the PC. In this case, the

Communication Error dialog box appears on the terminal. Click “OK”in this dialog and retry connection.

BIP-5000

ActiveSync connectionActiveSync connection

1. Install ActiveSync

▪ In order to use ActiveSync, connect PDA to PC or Laptop

by using the USB cable.

Or, after fitting PDA in a cradle, connect the cradle to PC

by using the USB cable.

▪ If PDA is turned on when connected to PC,

PC will automatically detect it and execute ActiveSync.

▪ Press ActiveSync Search button and activate Mobile

installation window.

▪ Open file finder of your PC, and copy files

you want.

After all files are copied, move the files to

PocketStore.

BIP-5000

Using PDA phoneUsing PDA phone

Using call program

1) Dial number

a. Dial a phone number or a speed dial number

b. Number can be cleared by using [CLR] button

c. Press [SEND] button to make a call

- Redail function: Without inputting numbers, press the [SEND] button to redail the lasted call

number

d. Communication is available after the call being connected

- Redail option and times can be set in SETTING-OPTION automatically when the connection failed.

- Call time is shown on the screen

e. Press [END] button to end the call

2) Receive the call

a. An incoming call message is shown when the bell rings.

b. Press any key to receive the call.

c. Press [END] to finish the call .

* Keep pressing [END] button can turn on/off the phone modem.

Using phone programUsing phone program

Phone program screen

[Send]

1) Push and make a start the phone program.

2) Enter the phone number.

3) Edit the phone number with .

4) or make you phone call.

•Re-send function: Automatically make a phone call which is the last number you input

5) Connecting.

•Talking time will show up on the screen.

[Receive]

1) With ringing ‘Calling’sign will be shown on the screen.

2) Push and it will be connected.

3) Push the disconnect button will make you disconnected with line.

4) Push the disconnected button longer, then modem will be off.

longer, then modem will be off.

※ This mobile handheld device requires ear jack(headset) to make a phone call.

※ Ear jack is an accessory item.

Using Wireless LAN FeaturesUsing Wireless LAN Features

Using Wireless LAN Features

1) The “WLAGS4681”menu window appears.

cf) If the “WLAGS4681”menu window does not appear, double click “”in the tool bar.

2) Click “Wireless Information”, select the corresponding AP, and select “Connect”.

cf) If the AP information does not exist, enter it manually.

2-1) Double click “Add”in the AP list window.

2-2) When the wireless network properties window appears, enter the corresponding AP in “Network

Name (SSID)”.Check the corresponding settings for the AP.

2-3) Depress “OK”.

3) The window in (2) above appears again, and the AP name appears.

4) Depress “OK”.

4-1) Depress “Connect”on the window.

BIP-5000

CautionsCautions

Cautions

: When you don’t follow below instructions, Injury or damage can be occur

1. Use only the approved accessories and components provided by BluebirdSoft Inc. to insure user safety.

2. Do not turn on the PDA while it’s wet, and don’t touch the adapter or power cord with wet hands. This may

cause electric shock.

3. Never reconstruct, disassemble, or repair the product arbitrarily. Always contact a service center authorized

by BluebirdSoft Inc. Ensure that you adhere to the safety warnings and precautions. If these principles are

not adhered to, free repair service will not be offered.

4. Backup PDA phone’s data so that they won’t be lost while the PDA being repaired or upgraded. (Ringtone,

SMS/voice message will be initialized)

5. Do not use the PDA in the place with high humidity and temperature. High temperature and

humidity (Operation temperature: 4’to 122’F/ -20’~ 50’C; humidity: 5% to 90% relative humidity) may

cause PDA malfunction. Warranty will null and avoid in this event.

6. Do not put the PDA phone near any credit card, phone card, account book, ticket to avoid magnetic

interference. It will cause PDA phone’s data lost.

7. Avoid the shock and vibration, unplug the power cord if not use PDA phone and keep it in the safe place.

8. Do not keep it in the dusty place, and do not put the power cord close to the heated devices. Unplug the

power cord when cleaning, make sure to rub off the dusts around the power plug pin.

9. Fully charge the battery and keep it in the room temperature if it’s not going to be used for long time. Even

so, battery’s useful time can be shorten due to the low voltage.

10. Don’t paint on PDA, screen and case could be damaged and it can cause defectiveness.

Touch exposured area of PDA resin may cause allergy symptom, please stop using PDA phone

and take the advice from a doctor

BIP-5000

AppendixAppendix

1. Q&A

Q. What should I do if the PDA is dropped into water?

A. Firstly detach the battery from PDA and dry them. If PDA doesn’t work properly after being dried, contact

A/S center for repairing main board and other components.

Q. Can’t turn on the PDA.

A. Program can be damaged. Reset the PDA, and if it doesn’t work properly after that, contact A/S center for repair.

Q. PDA can’t be charged.

A. Make sure that PDA and cradle are properly connected, and check if the lamp is turned on. Clearly clean the

charging board and try again. If the PDA still can’t be charged after that, then probably the batter’s life is ended or

it has defect. (The warranty period for battery is 6 months.)

Q. How to claim for A/S (after service)?

A. Fill in the RMA form and send the units to A/S center after being accepted. Repair cost should be paid

according to distributor agreement.

Q. How to check if the PDA is repaired and being returned?

A. An email includes the courier track number and device’s S/N will be sent right after the delivery. Detailed delivery

information can be checked by visiting the courier website.

Q. What should I do if the battery drains out very fast?

A. It can be happened while using the peripherals like barcode scanner and printer. If the battery’s useful time

keeps shortening, then it’s life is ended. Please purchase the new one for replace.

BIP-5000

AppendixAppendix

2. Accessories

[Portable Adapter] [Vehicle Adapter][Ear-jack]

[Stylus] [Leather case]

이미지 준비 중 이미지 준비 중

Preparing the


Preparing the


BLUEBIRD BIP5XX0 PDA User Manual

BLUEBIRD INC. PDA Users Manual

Contents

Users Manual

Navigation menu

Namespaces

Views

Navigation
