User Manual
EP3XX
www.mypidion.com
Mobile Payment Terminal
User’s Manual
Please read the following warnings before using the product.
Shapes and colors of the images shown in this manual may differ from the actual products.
Contents of the manuals may differ based on the software version of products or conditions of the wireless provider.
· This user manual is protected by copyright.
· This user manual has been created by the Bluebird Inc. We have done our best not to
create typos, editing errors, and leaving out any information. Please understand if there
are any inconveniences.
· This product’s program is legally protected. Illegal copying, transmitting, or erasing of
the program is prohibited.
· This product’s partial functions might have problems from the environment, user
program, and other machines.
· The radio equipment can’t be used for life saving services because there is possibility to
have radio interference and failure.
REGISTERED TRADEMARK
Pidion is an emerging global brand, striving to lead the market
in performance and mobility. Their products represent reliability,
innovation, and innovative technology. Pidion is a registered
trademark from the global brand of Bluebird Inc. and is copyright
protected.
User’s guidance
Device type
Class B Device
(Household Infor-
mation and
Communication
Device)
Type registration
User’s guidance
This device has qualified the electromagnetic wave suitable
registration and can be used as a household device at a resi-
dential area as well as any other areas.
This wireless device may cause propagation interference, and
so, it cannot be used for life-saving services.
※ Please read warnings and cautious before use.
EP3XX MANUAL
2
EP3XX MANUAL
3
Contents
Notice Before Using Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Precautions Before Using Battery . . . . . . . . . . . . . . . . . . . . . . . . . 6
About the product
1. Checking components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2. Checking names of parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Paying with card
1. Paying with MSR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2. Paying with IC Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3. Contactless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Learning Basics
1. Battery
1-1. Insert the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-2. Removing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. SAM card
2-1. Insert the SAM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-2. Removing the SAM card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. To Connect the EP3XX Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
14
15
15
16
Device Specification
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Q & A
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Service Center
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Warranty Certificate
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
EP3XX MANUAL
4
Notice Before Using Device
This information is for your own safety. Please observe the following precautions.
WARNING
· This device is qualified for the standard of the safety of human body against
electromagnetic wave. For your own safety, please use certified devices provided by
headquarter.
If not the case, we cannot guarantee your safety.
· Do not press power button on the device if the device is wet or do not touch adapter or
power cord with wet hands. There is risk of electric shock.
· Do not remodel, take apart, or repair the device. Please refer to your customer service
center.
If not the case, you will not be able to get your free repair service.
· Please follow instructions when using the battery.
· Do not use your device at an explosive danger zone.
· In case your device is wet, do not put your device in heaters, microwaves, or etc to
dry- there is a risk of explosion or it can be the cause of malfunction.
(Please note there is a label in the device that changes color when it gets wet. In this case
you will not be able to get your free repair service.)
· Do not use your device when boarding a plane or inside of hospitals.
· Please backup the data and information from your device.
During the repair or upgrade, there is a slight possibility of your data being erased.
(Ring tones, text/voice message, characters will be reset.)
· Please refrain from using your device while driving. If you are in an unavoidable
situation, stop your vehicle or use your hand free kit.
· Do not use in places of high temperature and high humidity. The following can be the
causes of malfunction: getting wet from the rain, spilling drinks, and taking it in with you
at the sauna (high temp.)
In these cases, you cannot receive your free repair service.
· Do not place credit cards, phone cards, bankbook, and tickets next to the device.
The magnetic forces of the device can damage the information of listed item.
· Please avoid impacts or vibrations. When the device is not in use, unplug the power
cord and place it at a safe place where it won’t drop.
· Do not place your device at a dusty place. Keep your power cord away from any heating
devices. Unplug the power cord when cleaning. If there are any dusts or residue clean the
power cords pins thoroughly.
· When a battery is not in use for a long time, please charge and store it at room
temperature. Even for fully charged battery, the lifetime can be decreased because of its
own properties of voltage decrease.
· Do not paint your device. It can damage your screen or your device’s exterior.
Also, the paint can peel off and it triggers allergies. If there is allergic reaction, please find
medical advice.
EP3XX MANUAL
5
Precautions Before Using Battery
These are safety precautions in order to prevent a dangerous accident.
WARNING
Please use the battery correctly and carefully observe the instructions.
· If the battery is taken apart by impact, applied heat, submersion, or hole-drilling, there is
a risk of a dangerous explosion. Please keep away from children and animals.
· Leaving the battery in the vehicles under direct sunlight or any enclosed space with hot
temperature can deform or break down the battery.
· Please do not make any improper contact on battery contact pin with necklaces, coins
or any electric conductors. Do not give any impact by sharp object. There is a risk of
explosion.
· Please use only the designated battery for the device.
If the original battery is not used, the life of the device may decrease and there is a risk of
explosion. (In this case you cannot receive the free repair service)
· When charging the battery, you must use the supplied standard power adapter.
If the original adapter is not used, the battery life may decrease and may explode.
(In this case you cannot receive the free repair service)
· Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
EP3XX MANUAL
6
About the product

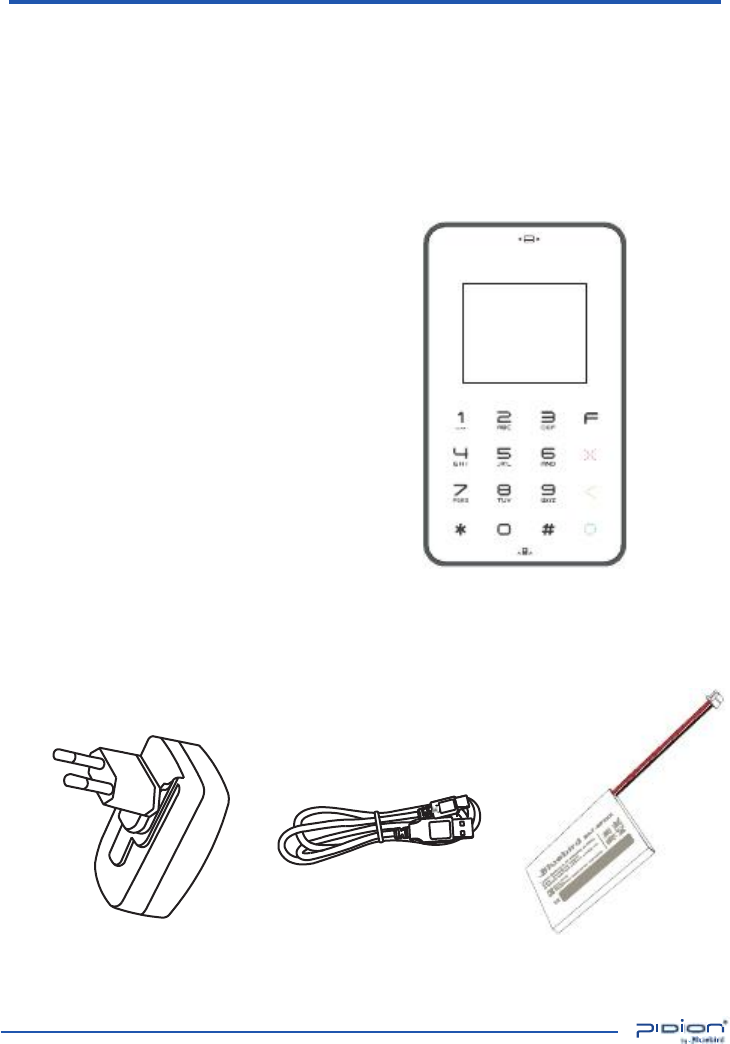

1. Checking components
The images in this User’s Manual may not reflect the color and shape of the
actual product.
Please contact the Customer Care Center if you wish to purchase any additional
or optional products.
EP3XX
MANUAL
Adaptor
Micro USB Cable
7
EP3XX Main Body
Battery

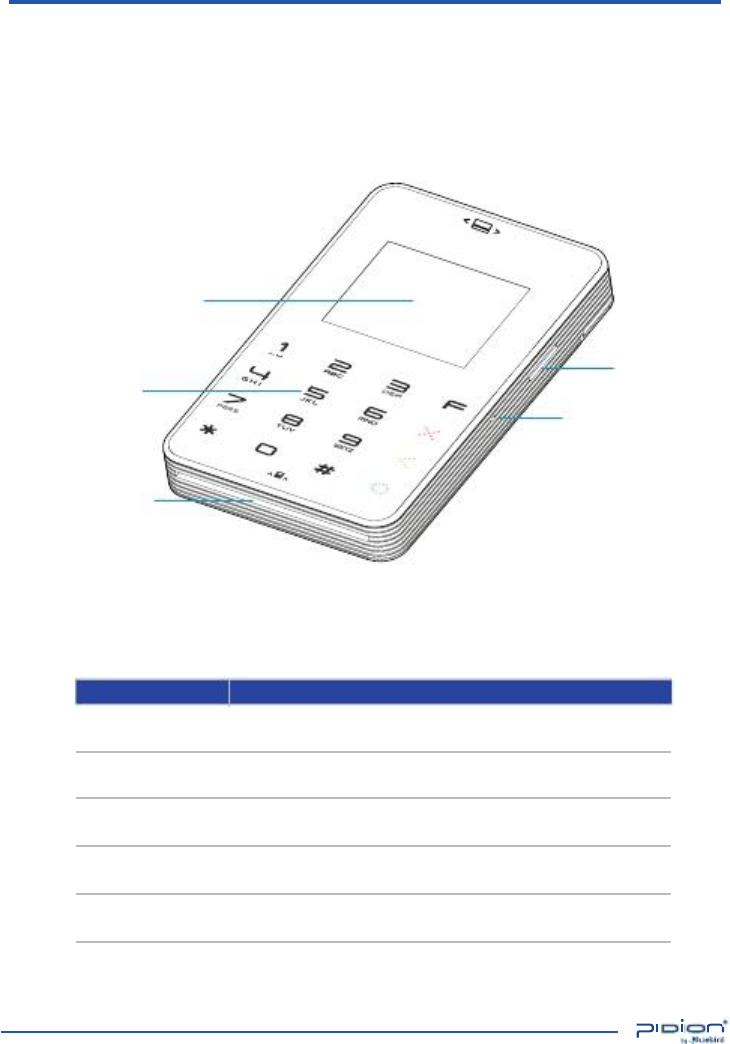

2-2. Front (EP3XX)
Screen
Power
Button Button
Speaker
IC Card Slot
Item
1. Power Button
2. Screen
3. Button
4. Buzzer
5. IC Card Slot
EP3XX MANUAL
Description
Turns on the device
Display the operating status.
Perform the functions that are printed along with the function
buttons of four.
Function after the "beep" to sound.
IC Card payments are done.
9

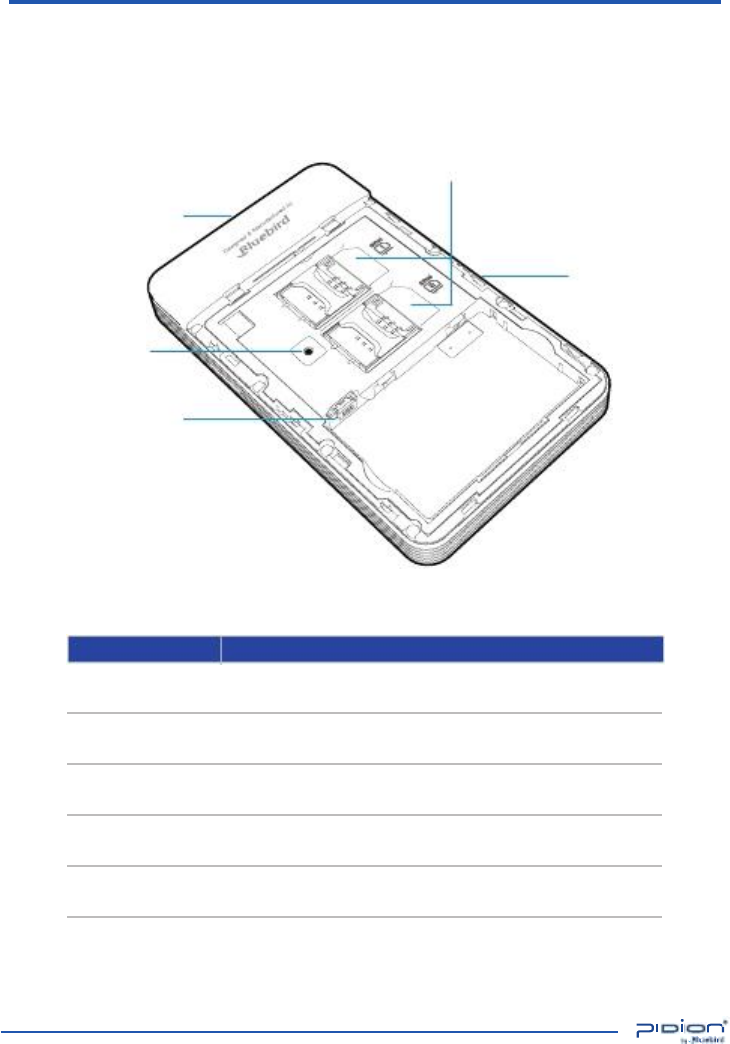

2-3. Rear (EP3XX)
SAM Card Slot
MSR Card Slot
Micro USB Port
Reset
button
Battery terminals
Item
1. MSR Card Slot
2. SAM Card Slot
3. Reset button
4. Micro USB Port
5. Battery terminals
EP3XX MANUAL
Description
You can settle the MSR card.
SAM card is inserted, the wireless network operators to
provide broadband network if necessary, can be used.
Use hard reset.
Charge is used to connect the device.
It is used when you remove or install the battery.
10

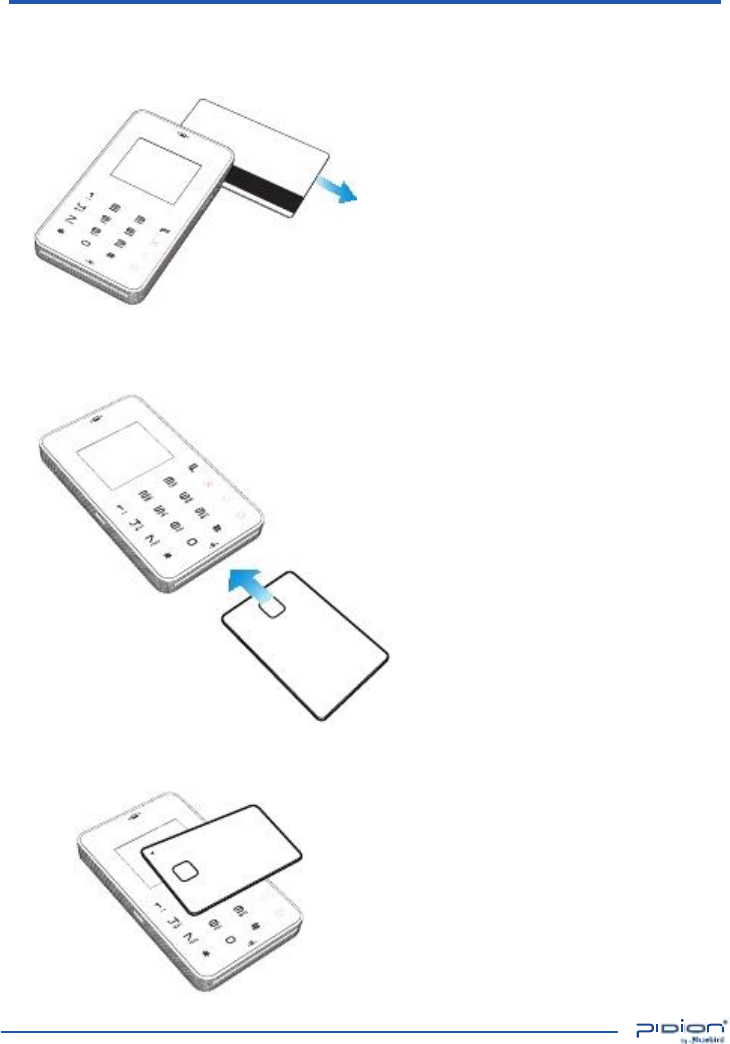

Paying with card
1. Paying with MSR
MSR card down in the direction of the arrow
shows.
2. Paying with IC Card
IC card is inserted in the direction of the
arrow.
IC is facing up.
3. Contactless
If you touch the picture card as the payment
is to PICC.
EP3XX MANUAL
11
Learning Basics
1. Battery
1-1. Insert the battery
Slide down the battery cover to open it.
Insert the red cable to the left.
EP3XX MANUAL
12

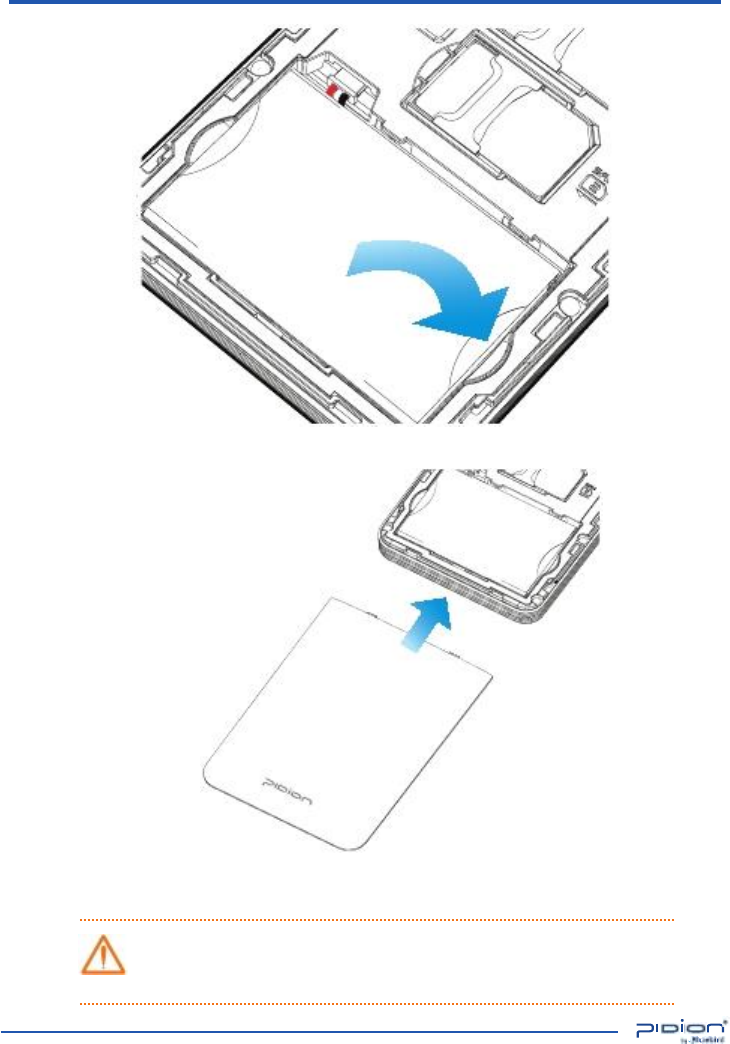

Push your battery in the direction of the arrow.
Slide the battery cover in the direction of the arrow to close.
Only use the supplied adapter to charge your battery.
WARNING
EP3XX MANUAL
13

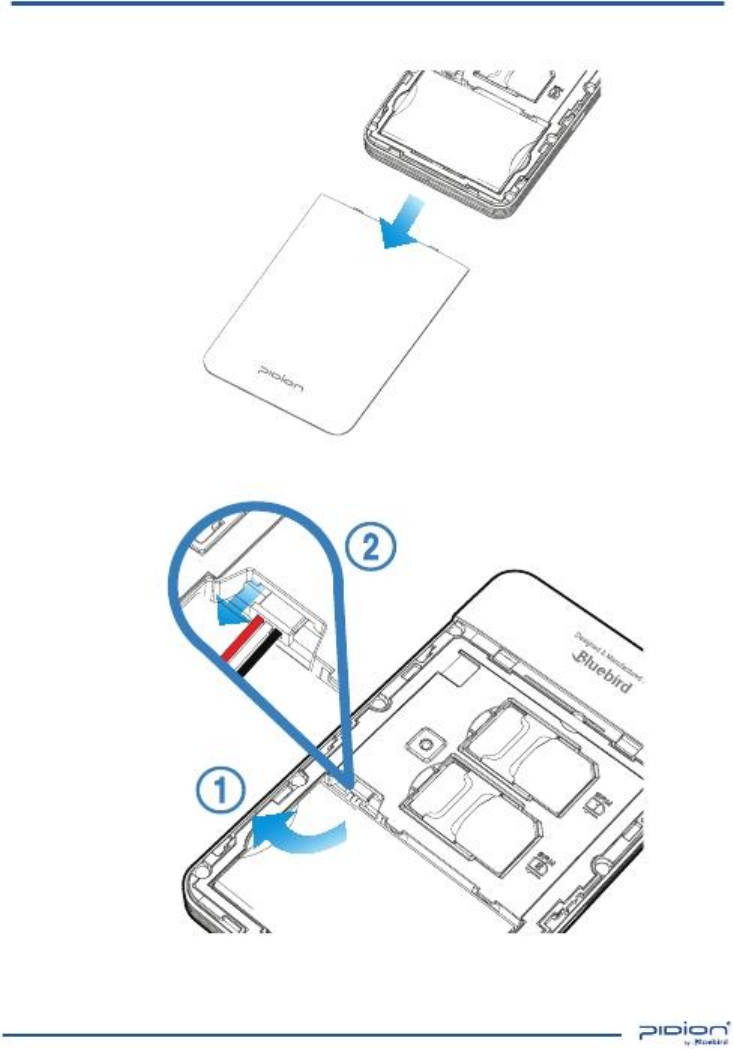

1-2 Removing the battery
Slide the battery cover in the direction of the arrow and remove it.
1 Lift the battery in the direction of the arrow and remove it.
2 Disconnect the battery connector.
EP3XX MANUAL
14

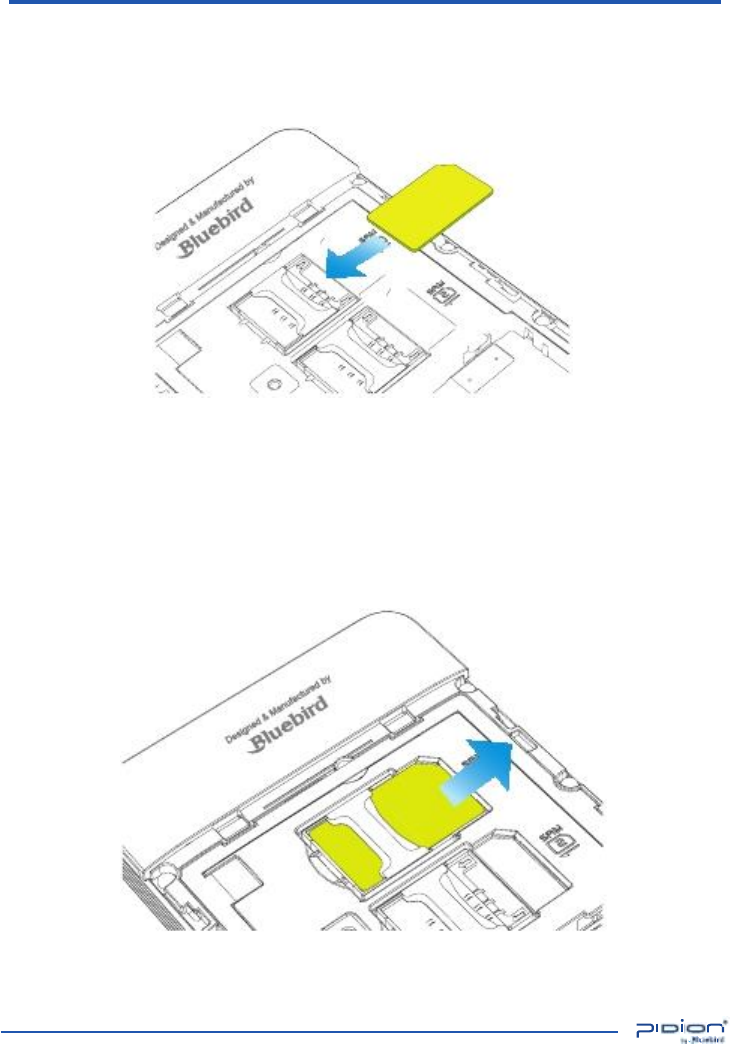

2. SAM card
2-1. Insert the SAM card
Push your SAM Card in the direction of the arrow.
2-2. Removing the SAM card
Slide the SAM Card in the direction of the arrow and remove it.
EP3XX MANUAL
15

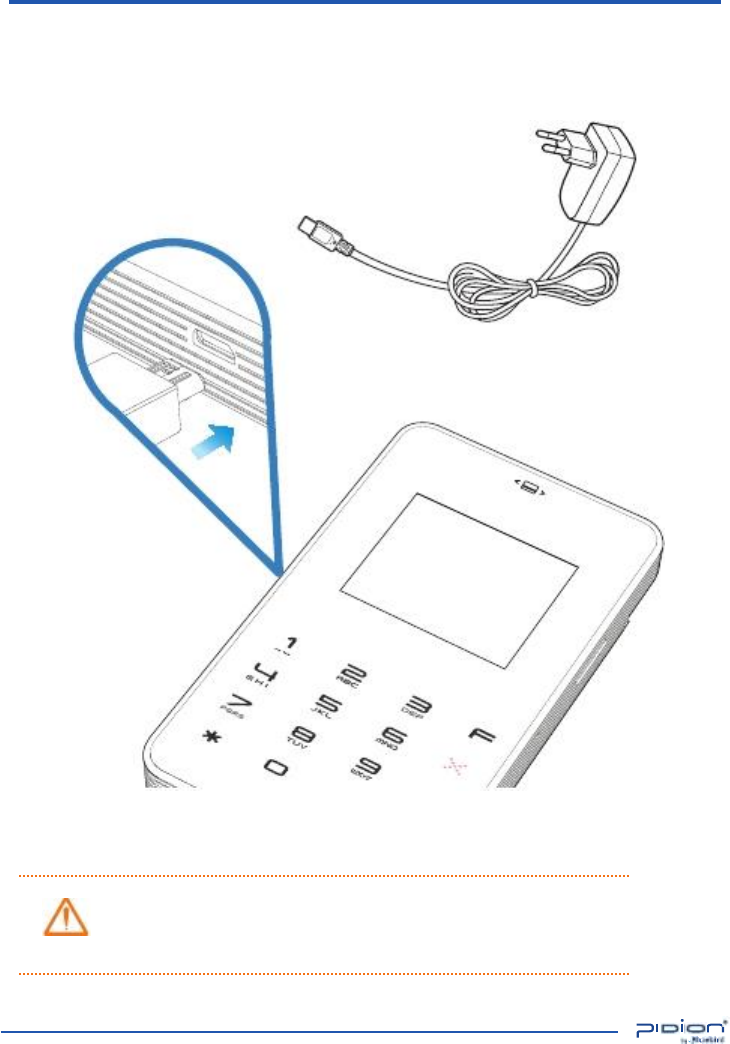

3. To Connect the EP3XX Power
Adaptor
As you see in the picture, connect the adapter with the power to charge the EP3XX.
· When The battery of the device is low, it may warn you with a ring and a
message.
WARNING · The charging time can vary depending on the environment.
A new battery is only partially charged. Please charge fully before using.
EP3XX MANUAL
16
Device Specifications
Performance Characteristics
Processor
OS
Memory
Interface
WPAN Radio
Magstripe
Smart Card
Contactless
Security
Dimension & Weight
Display
Keypad
Battery & Voltage
SAM Slot
Durability
Operating Temp
Storage Temp
Humidity
ARM11 32-bit, Secure Processor
Linux
128MB Flash / 32MB SDRAM
one USB 2.0 Device
Communication Options
Bluetooth V2.1 + EDR (Optional, Class I / II)
Payment Options
Bi-directional, Triple track (Tracks 1, 2, 3)
EMV Level 1 and 2 type approved;
ISO 7816, 3V, 5V; synchronous and asynchronous cards (TBD)
Optional
MasterCard PayPass
Visa payWave
NFC(Near Field Communication),All Types Supported(MIFARE/
CALYPSO/FELICA/ETC.)
Security Chracteristics
PCI PTS 3.1 / EMV Level 1 & Level 2 (예정)
Physical Characteristics
66.6 x 13.6 x 113 / 132g (EP360, with battery), 127g (EP330, with battery)
EP360 only, 2-Inch 176x220, 262K color TFT LCD module
Capacitive touch keypad
3.7V, 950mAh, Li-Ion
Optional, 1 SAM or 2 SAMs
User Environment Characteristics
1.2m drop to steel (TBD)
0℃ to 60℃ (TBD)
-20℃ to 60℃ (TBD)
90% RH / 60℃ (TBD)
Please ask your sales representative for the specs not listed above.
WARNING
EP3XX MANUAL
17
Q&A
Q Water went into my device. What do I do?
A First, remove the battery from the device and completely dry them
in a dry place.
After drying for a good period of time, try to turn it on. If it still does not
turn on, the main-board or other parts needs to be replaced.
Please contact to your service center.
Q The EP3XX won’t turn on.
A The program may be damaged. Please try resetting your device.
If it still doesn’t work, Please contact the service center.
Q The EP3XX won’t charge.
A A Make sure the power cable and your device have been properly
connected.
Try to clean the charging terminals. If they still do not work,
your battery life might be finished or it may be a broken battery.
(The battery warranty lasts for 6 months)
Q How do I get the repair service?
A You can send the device via a delivery service to headquarter.
When sending the package, make sure you pay for the shipping
fee in advance.
When the repair is finished, headquarter will cover the shipping cost.
Q My battery drains very quickly.
A The battery can be drained quickly when the Bluetooth is turned on.
If it drains quickly regardless of using the options above,
please purchase another battery.
· If you have done the above and the device still does not work, please contact to
the service center.
WARNING
EP3XX
MANUAL
· After the 1 year warranty the repair service will be charged.
18
Service Center
Before Requesting After-Sales Service
Before asking for after-sales service, please back up the data from the terminal.
We do not back up data from the products received in the Customer Care
Center. Therefore, we assume no responsibility for loss/deletion of data.
Bluebird Customer Service
· FAX : +82-2-548-0870
· E-Mail : mookseven@bluebird.co.kr
· Address : Customers service center, SSang-young IT twintower B 703,
Sangdaewon-dong 442-5, Joongwon-gu, Sungnam-si, Keonggi-do,
Korea
Operating hours
· Mon.-Fri. : 9:30 A.M. ~ 6:30 P.M. (GMT Time: +9 Hours)
The center is closed on Saturdays, Sundays and holidays.
Registering for After-Sales Service
· We receive the products for after-sales service through mail, delivery service
and hand carry only in principle.
· If you bought the product from any party other than the authorized dealer,
you need to register the product before asking for after-sales service.
· Please enclose an evidence of purchasing or the receipt to the product for
after-sales service.
· Please enclose the name, telephone number, address and symptom for
prompt service.
· You can ask for after-sales service through the dealer or the Customer Care
Center in the head office.
· Do not intentionally damage the label on the product.
· Damaged label may result in a disadvantage to the customer.
· When you return the product to Bluebird for service, please put the product in
a protective box.
· Warranty will not be provided for any damage occurring during delivery.
We recommend you to use the box and protective cover supplied with the
product.
· Make sure to deliver the product in a safe way. Bluebird assumes no
responsibility for loss of the product during delivery.
EP3XX MANUAL
19
Charged Service
1. If it is not a default, it will be charged when requesting for after-sales service.
- Service request due to inappropriate use of the customer
- Loss of a PIN number
- Use of programs that might effect the program
(over-clock, forceful changes in the input of the system, personal
developments)
2. Default due to a mistake on the part of the customer
- Default due to inappropriate or careless use of the product (dropping,
submersion under water, shock, damage, unreasonable operations, etc).
- Default due to a repair or unauthorized technician.
- Default caused intentionally or by carelessness of the customer.
- Default due to the use of fraudulent parts or components.
3. Other cases
- Default due to nature (fire, damage due to sea wind, flood damage, etc.).
- Expendable parts have exhausted there life (batteries, antenna, or other
component parts).
4. Regulations of treatment after charged service
- If the same default occurs on the part that had been repaired within a 2
months(60 days) period, it will be provided with free of charge repair service.
There will be no returning of goods or repayment upon the following situation
· Removal of the sealing of the product if it had been sealed.
· If the product has been damaged due to careless use by the customer or due to
a natural disaster (floods, rain, fire, etc.).
· Loss of product or other components (CD, diskette, manual, connecting cables,
WARNING
etc).
· Damage to the product after 10 days of purchase, the product will either be
exchanged or provided with after-sales service (note, returning of goods or
repayment is not allowed).
EP3XX MANUAL
20
Warranty Certificate
Thank you for purchasing a product from Bluebird Inc.
· If a circumstance arises where you lose a receipt or the certificate of guarantee, then
the term of guarantee will be calculated 3 months (certified by the number of the
manufacture, a certificate of inspection) after the date of manufacture.
· In case of accessories (such as batteries), only those that match the sales list managed by
the service center will be eligible for customer service.
· A repair or an exchange of batteries that does not match the sales list of the service
center due to the carelessness of the customer will be fully charged.
Name of Product
Name of Model
Date of Purchase
Manufacture Number
Place of Purchase
Term of Guarantee
Mobile Payment Terminal
EP3XX
1 year from purchase
Warranty
1. Bluebird Inc. (hereinafter referred to as Bluebird) provides the warranty service for its
products in compliance with the regulations on compensation for damage of customer.
2. Upon receiving a notification on a defect of its product within the range of warranty
during the warranty period, Bluebird will repair or replace the defective product
according to its warranty policy.
3. If the defective product within the range of warranty is not repairable or replaceable,
Bluebird shall refund the purchasing price within a designated period from the date of
receiving a notice of defect.
4. Bluebird assumes no responsibility for repairing, replacement or refund until it receives
the defective product from the customer. The replacement shall be equivalent to a new
product in the aspect of performance.
5. Warranty of Bluebird is valid in the countries where the Bluebird products are
distributed by Bluebird. (Contract for additional warranty service like field service)
6. Bluebird products may contain the recycled products, components or materials
equivalent to new products in the aspect of performance.
7. This warranty is applied to software products only when the programming commands
are not executed. Bluebird does not guarantee interruption-free or error-free
performance.
EP3XX MANUAL
21
Customers Service Center
Hours
Mon. ~ Fri. : 9:30 A.M. ~ 6:30 P.M.
(GMT Time: +9 Hours)
We are not open on Saturday,
Sundays and National Holidays.
Address
Customers service center, SSang-young
IT twintower B 703, Sangdaewon-dong
442-5, Joongwon-gu, Sungnam-si,
Keonggi-do, Korea
U
P
S
Bluebird constantly strives to bring
C
utmost satisfaction to all our customers.
EP3XX MANUAL
22
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
con-nected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
