BLUEBIRD I1F4 Bluetooth Barcode Scanner User Manual BI 500 Manual 20101022 Eng 2
BLUEBIRD INC. Bluetooth Barcode Scanner BI 500 Manual 20101022 Eng 2
BLUEBIRD >
User manual
Empowering Mobility Sayfa 1/46 Bluebird Soft Inc.
www.mypidion.com
BI-500-A
User Manual
Bluebird Soft. Inc.
Bluebird Soft. Inc.Bluebird Soft. Inc.
Bluebird Soft. Inc.
1242
12421242
1242,
, ,
, Gaepo
GaepoGaepo
Gaepo-
--
-dong
dongdong
dong, Kangnam
, Kangnam, Kangnam
, Kangnam-
--
-g
gg
gu,
u,u,
u,
Seoul
SeoulSeoul
Seoul,
, ,
, Korea
KoreaKorea
Korea
Tel : +82
Tel : +82 Tel : +82
Tel : +82 70
7070
70
7730
77307730
7730
8000
80008000
8000
Fax : +82 2 548 0870
Fax : +82 2 548 0870Fax : +82 2 548 0870
Fax : +82 2 548 0870
www.
www.www.
www.mypidion.com
mypidion.commypidion.com
mypidion.com
Empowering Mobility Sayfa 2/46 Bluebird Soft Inc.
www.mypidion.com
● This User’s Manual is protected under the related copyright laws
● This User’s Manual is produced by Bluebird Soft Inc. The company has made
every effort to avoid errors and omissions.
Please understand that some parts may not reflect the actual state
● The supplied basic programs are protected under. Reproduction, transfer or
deletion of the programs without prior consent is strictly prohibited.
● Depending on users’ environments, programs or peripherals, some parts of this
Product may not work normally
● This wireless device may cause propagation interference, and so, it cannot be
used for life-saving services
Trademark
PIDION aims for leading brand in the future mobile industry.
As a global brand representing the image of reliability, representativeness, and
cutting-edge technologies, this mark has been registered by Bluebird Soft Inc.
around the world to be protected under trademark-related laws.
Empowering Mobility Sayfa 3/46 Bluebird Soft Inc.
www.mypidion.com
C
CC
Contents.
ontents.ontents.
ontents.
P.4 Safety Insturctions
P.5 About the Product
P.6 Checking names of parts
P.8 Product Features
P.9 Learning scan,communication, battery LEDs
P.10 Battery removal
P.11 Insert the battery
P.12 Battery charging
P.13 Power On/Off
P.14 Barcode scan Function
P.15 Button
P.16 PC Data Sync (Win XP)
- The process for PC sync
- Install of PC driver
P.19 Sending data to PC
- Installing PidionScan Program
P.23 Sending data by PDA
- Procedures for data transmission

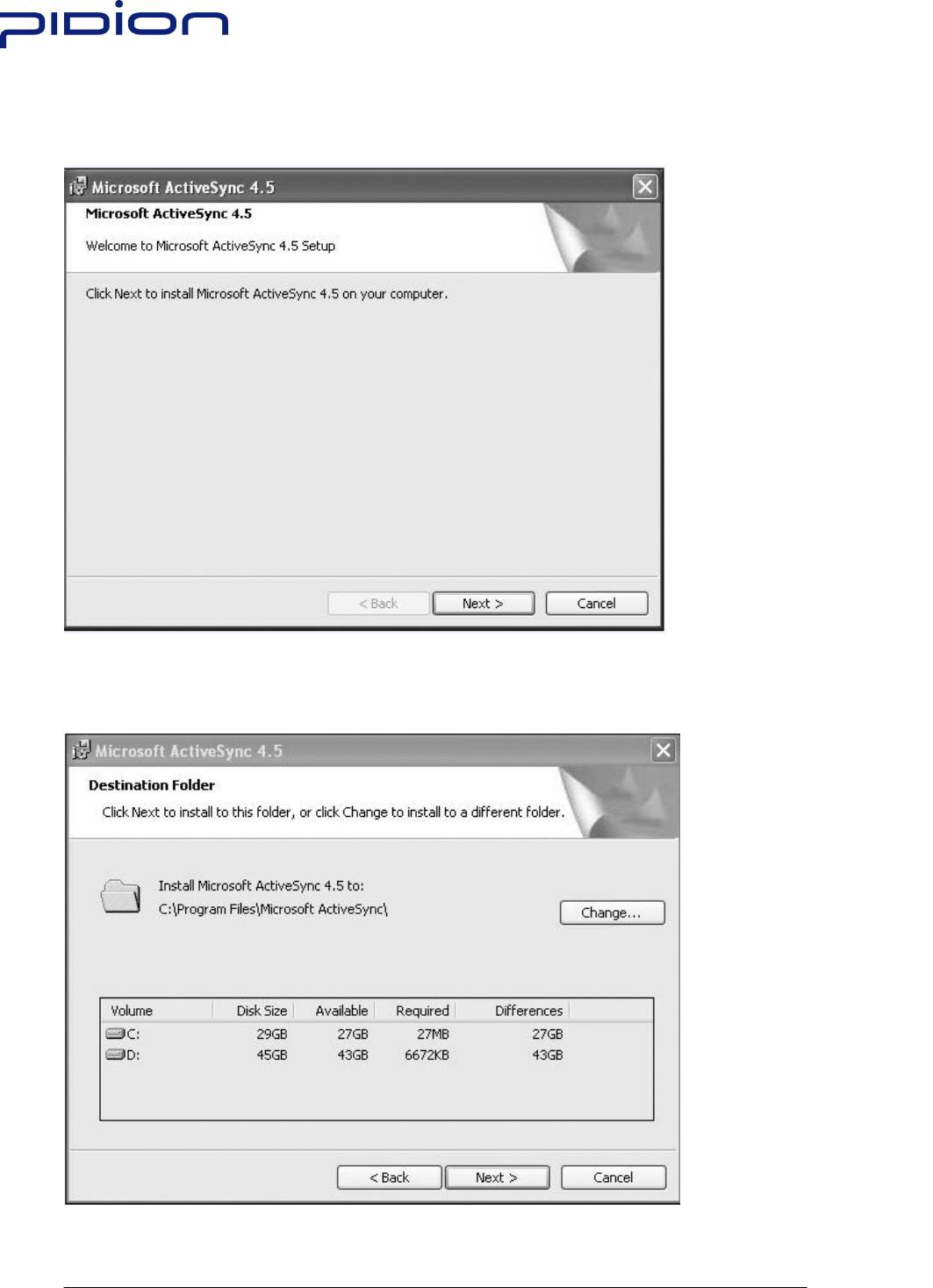

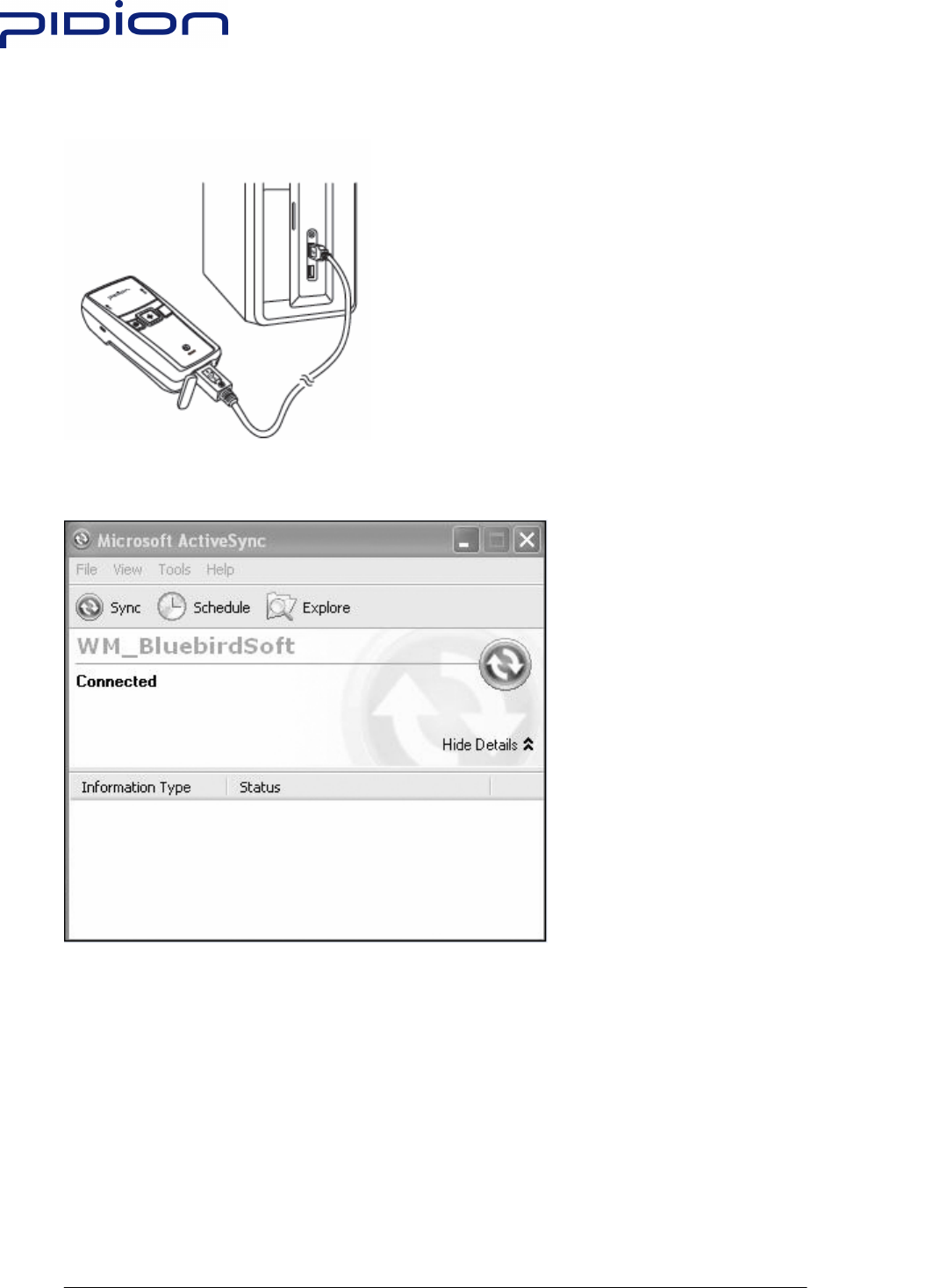

- Installing Activesync.
- Installing PidionScan Program.

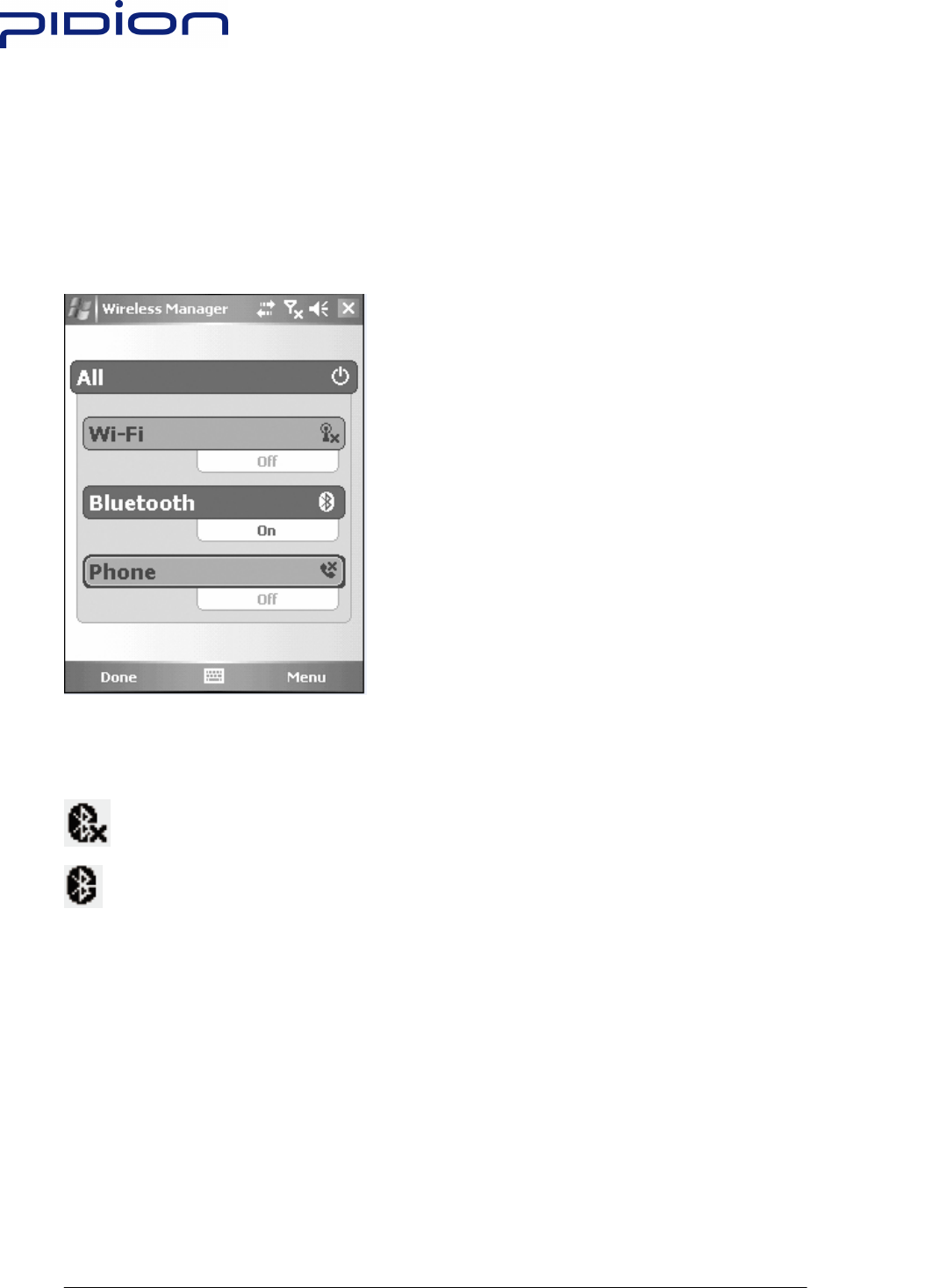

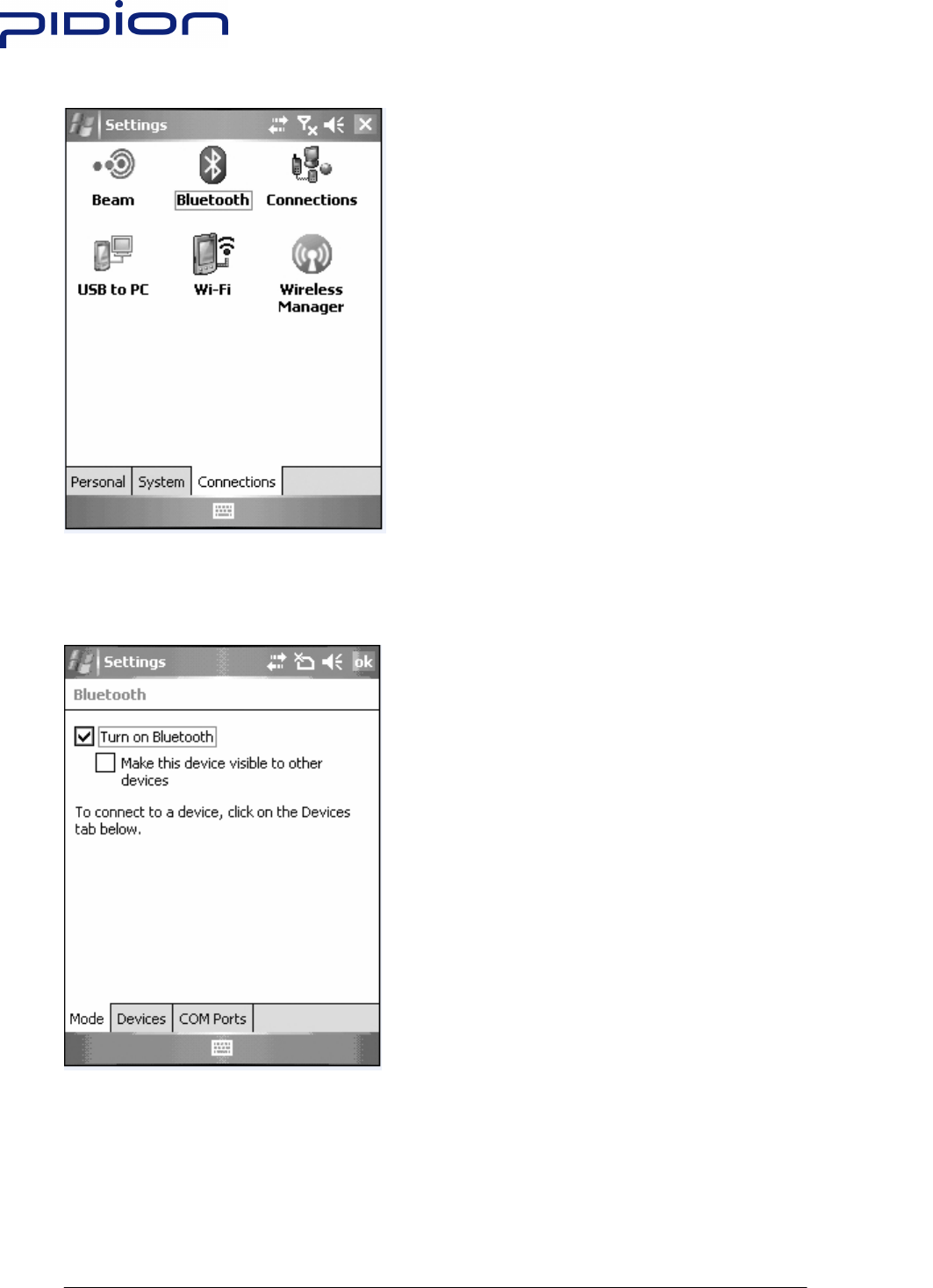

- Bluetooth Power On/Power Off

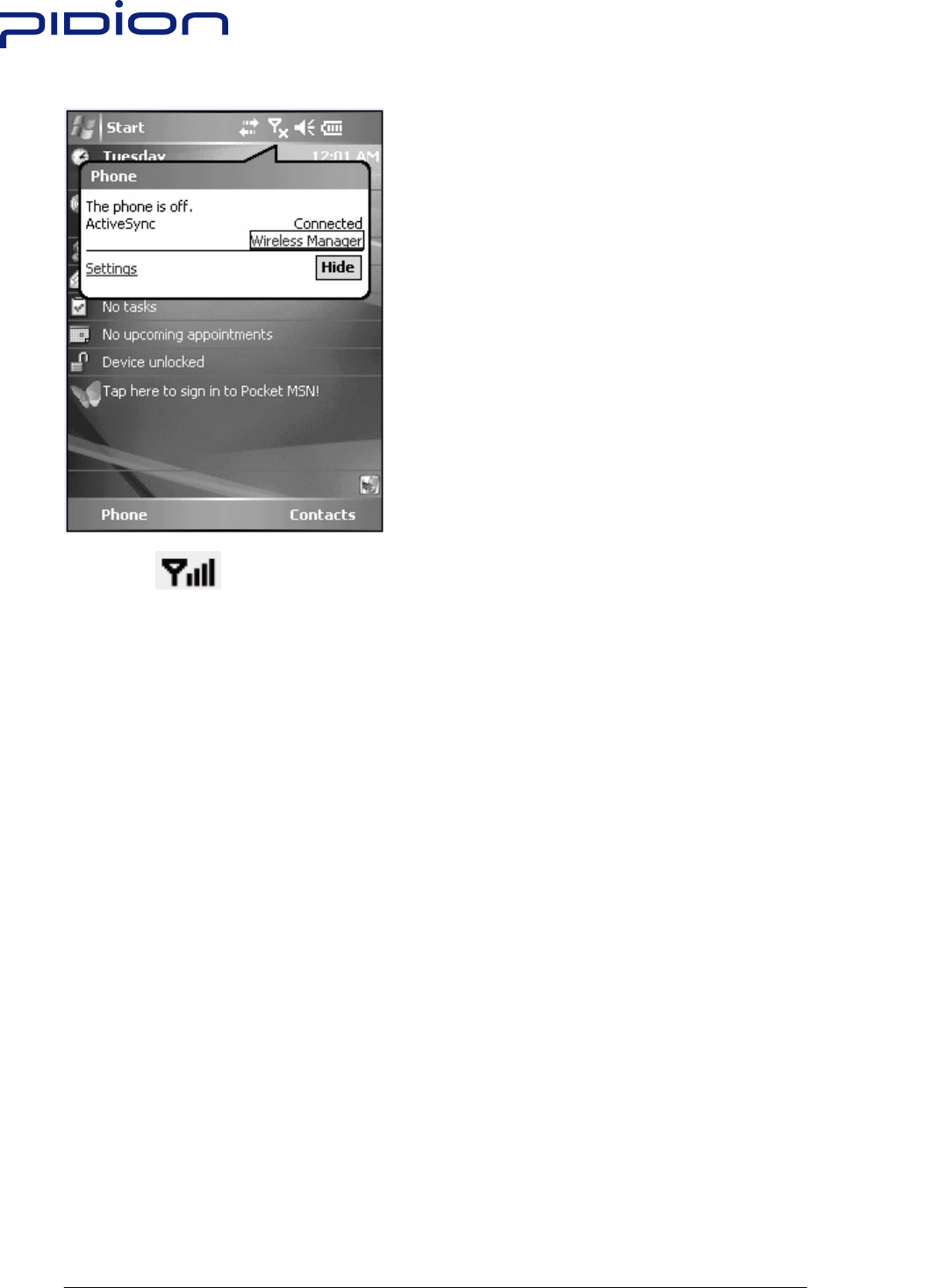

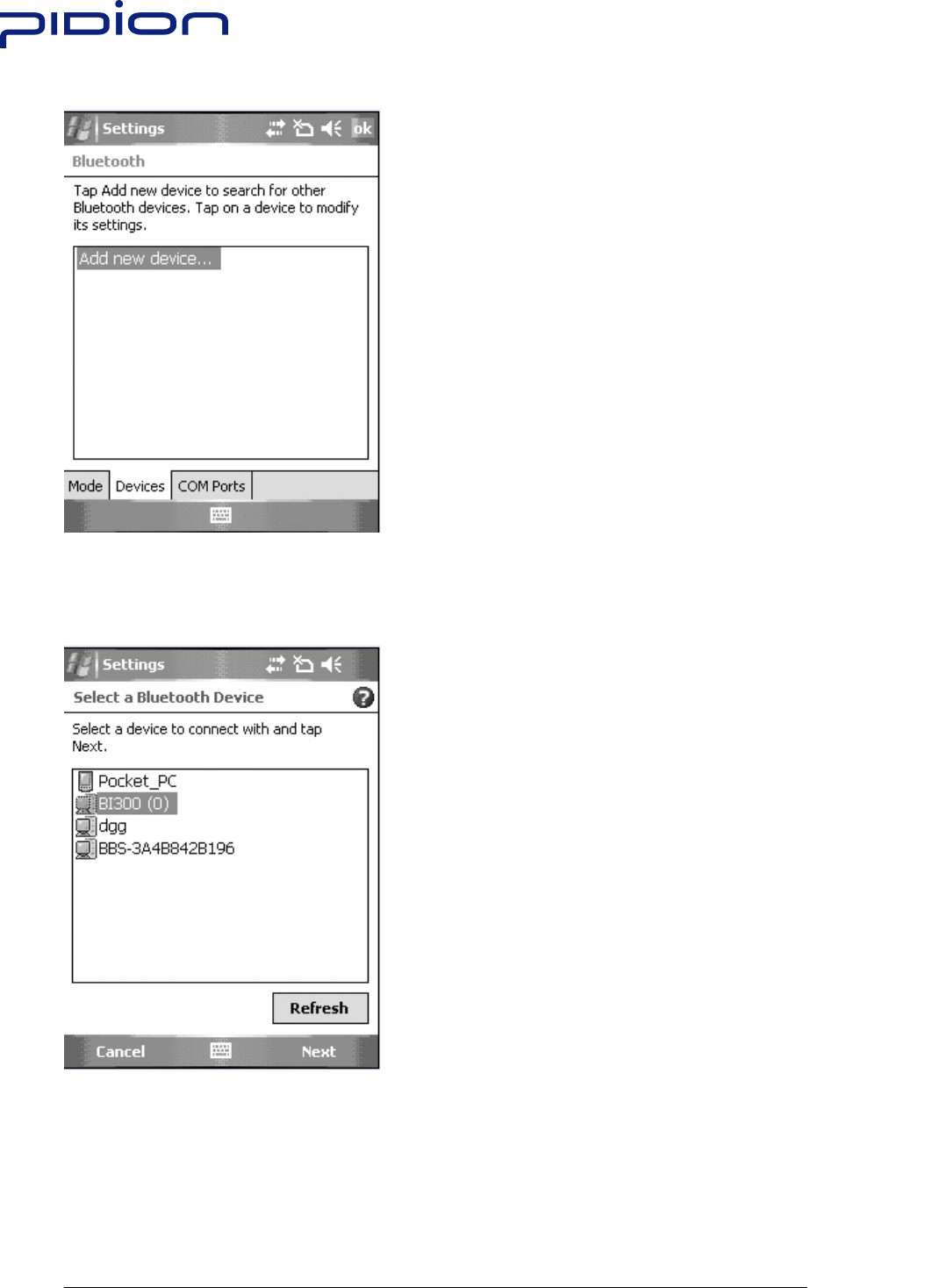

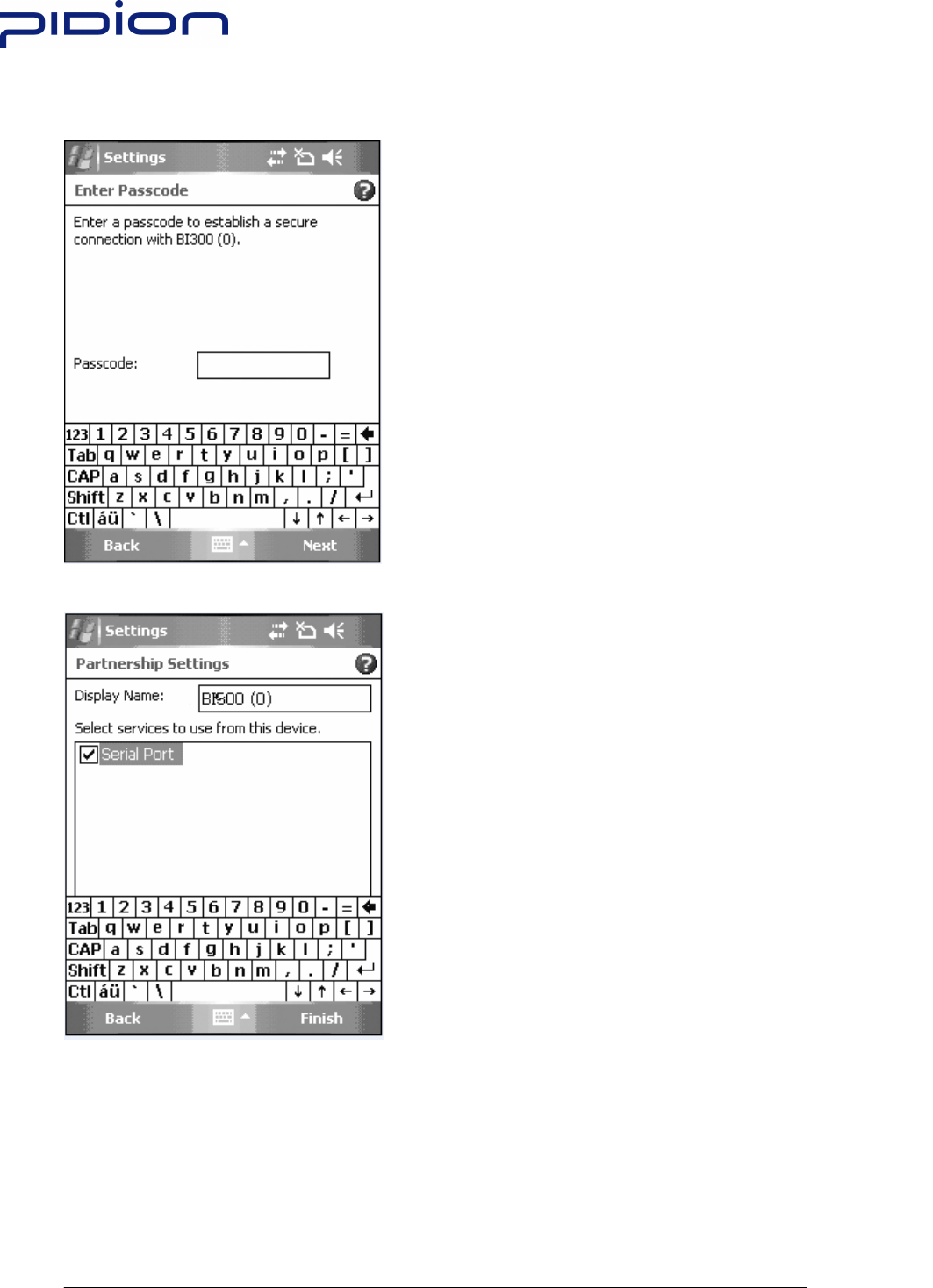

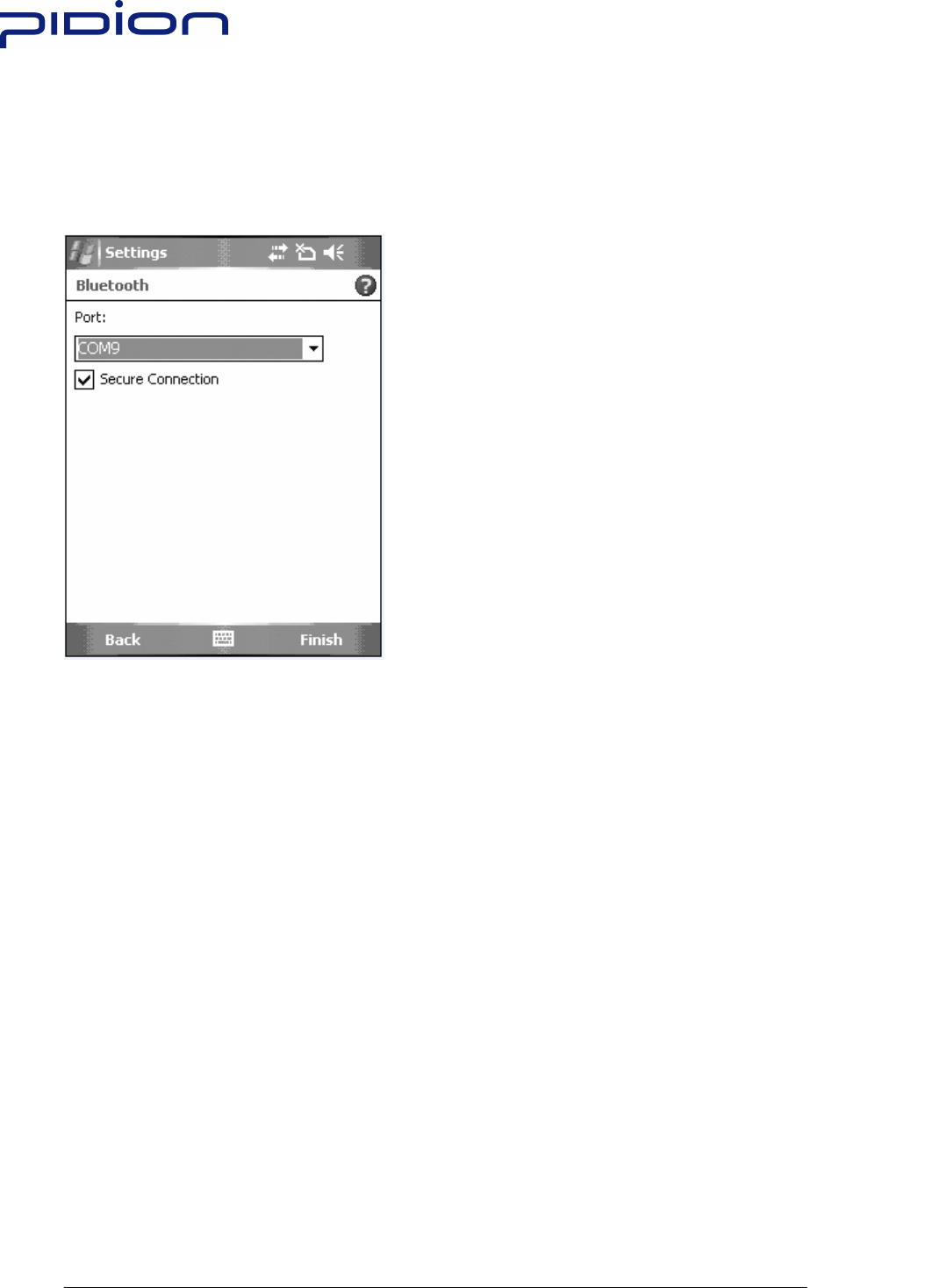

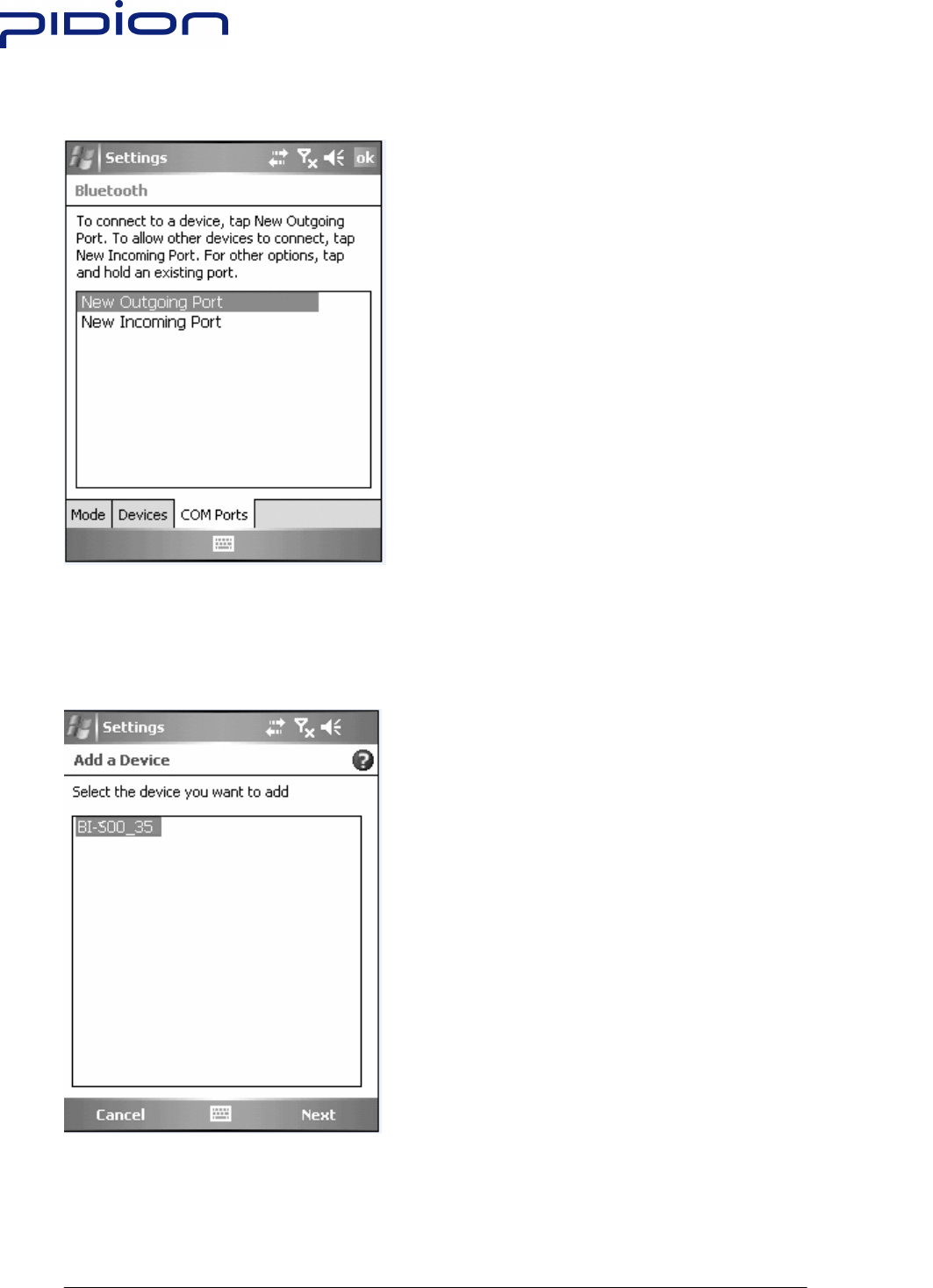

- Bluetooth setting

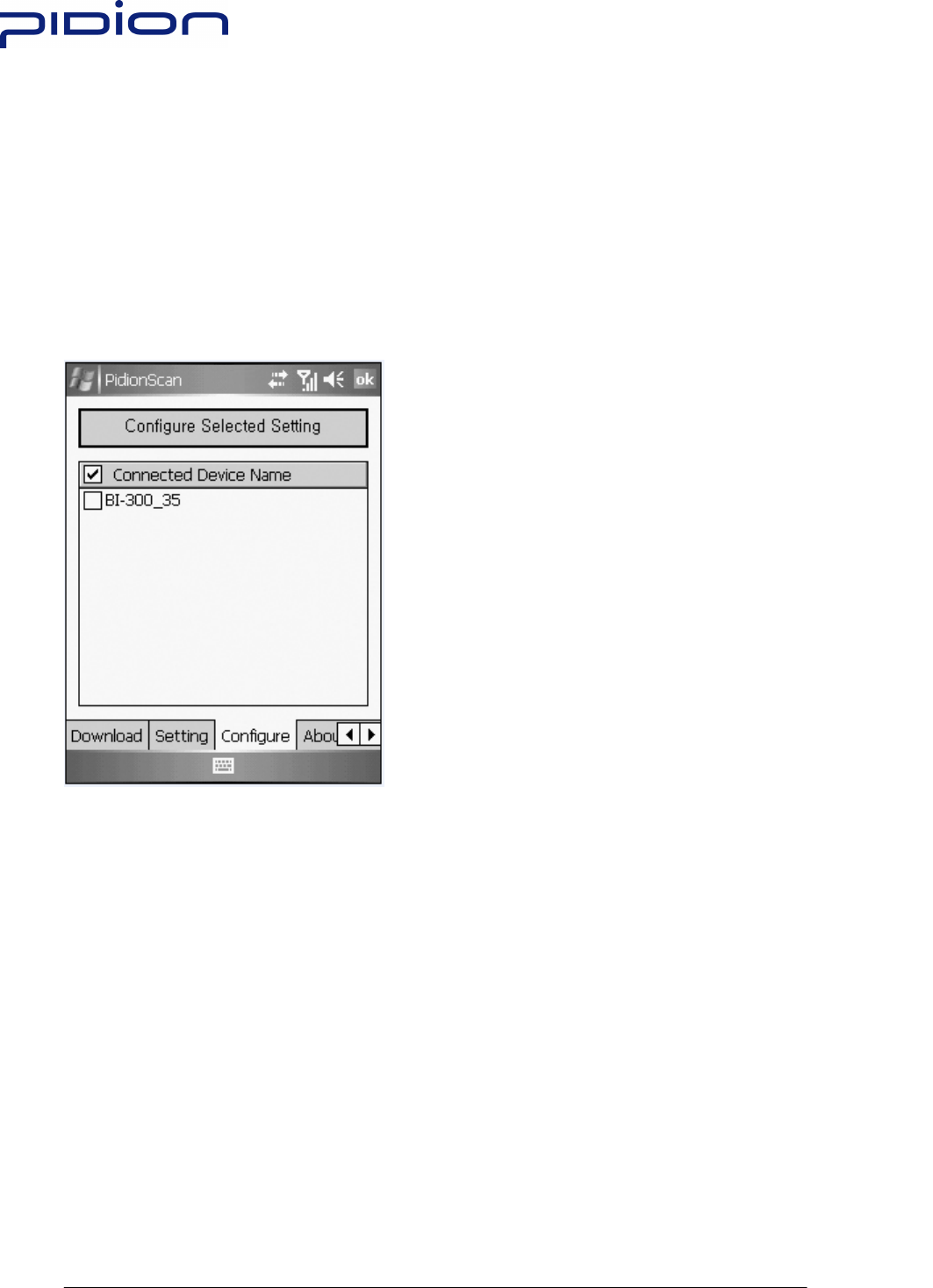

P. 35 Using PidionScan Program

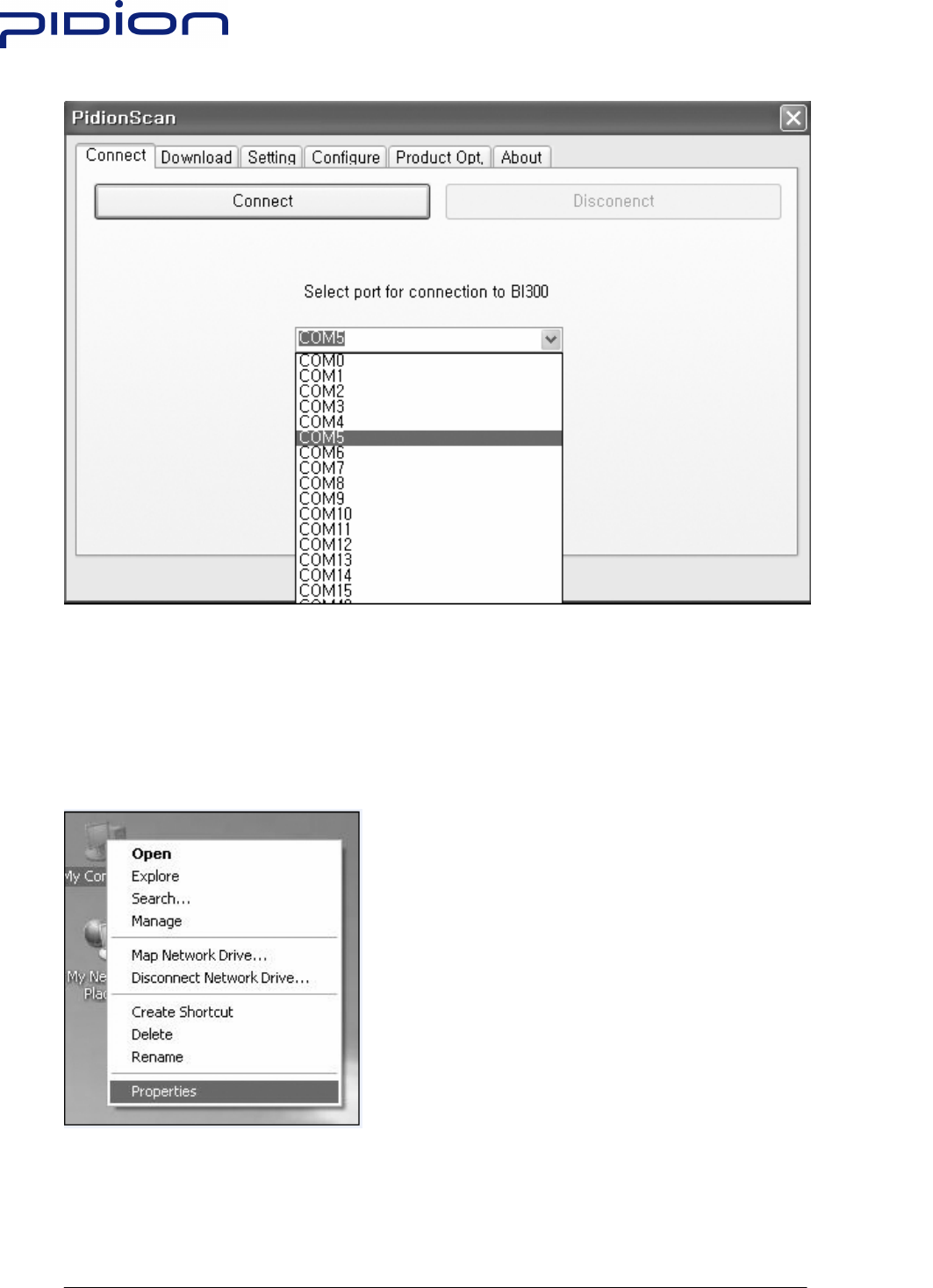

-Connect

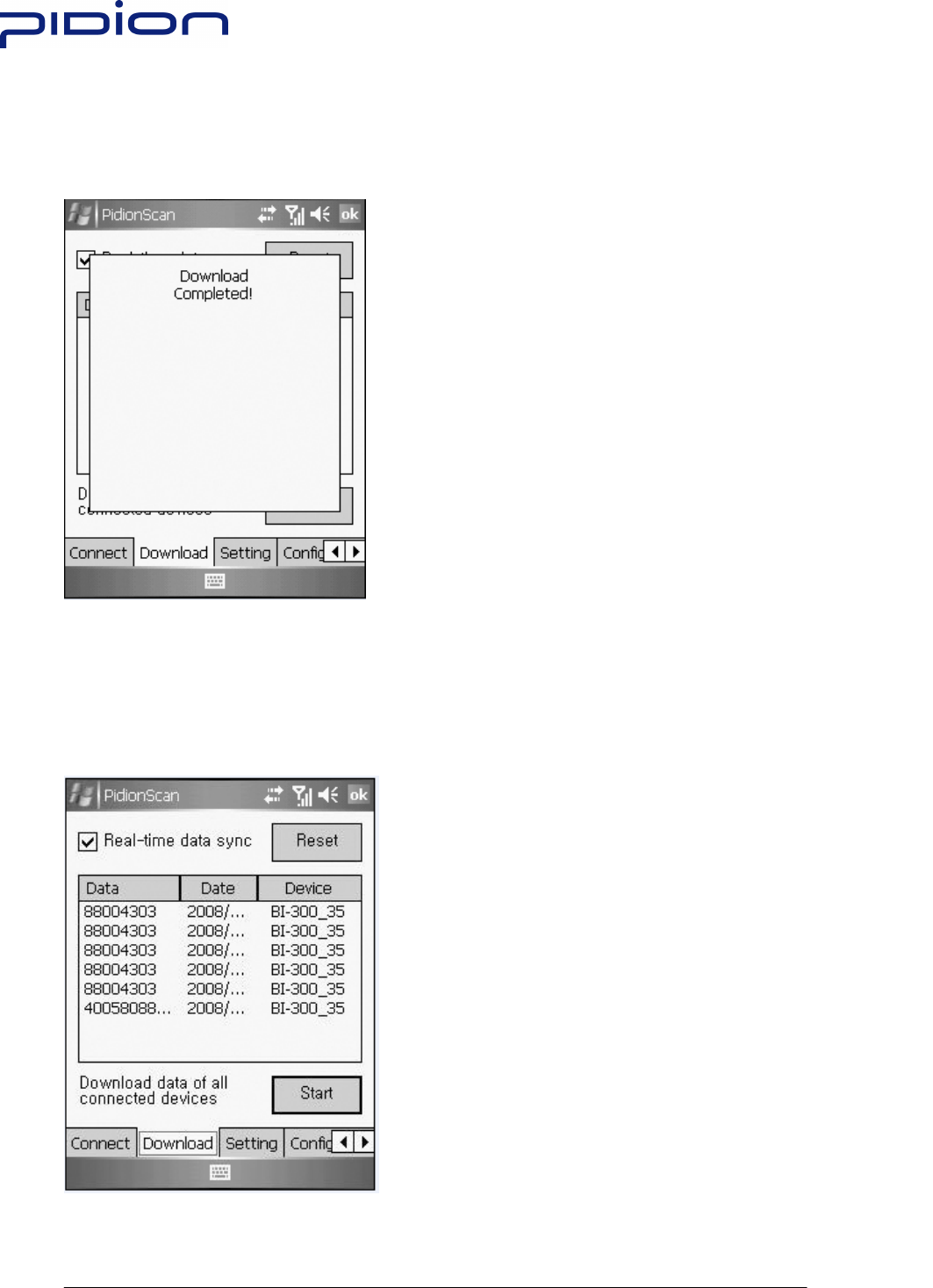

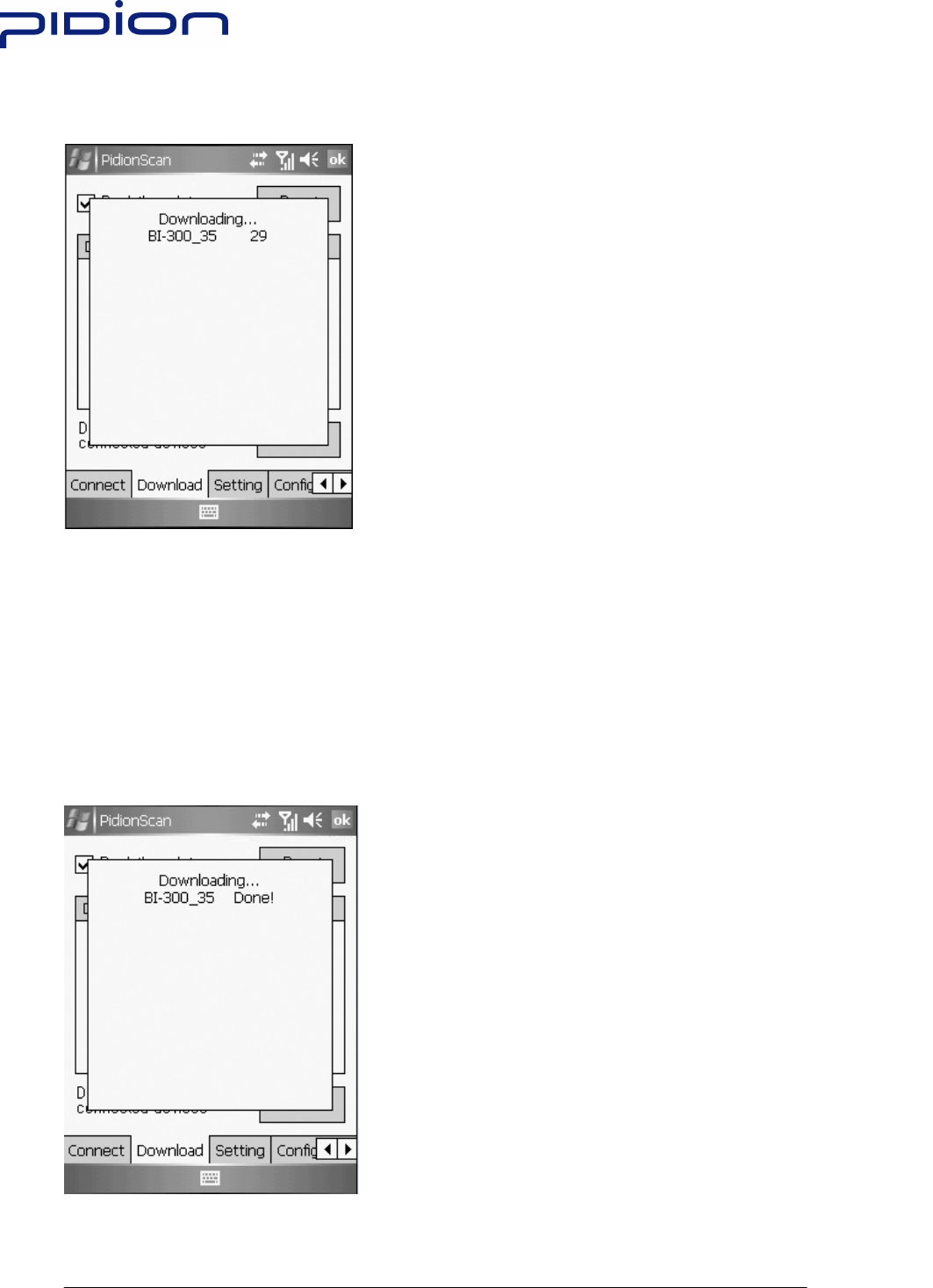

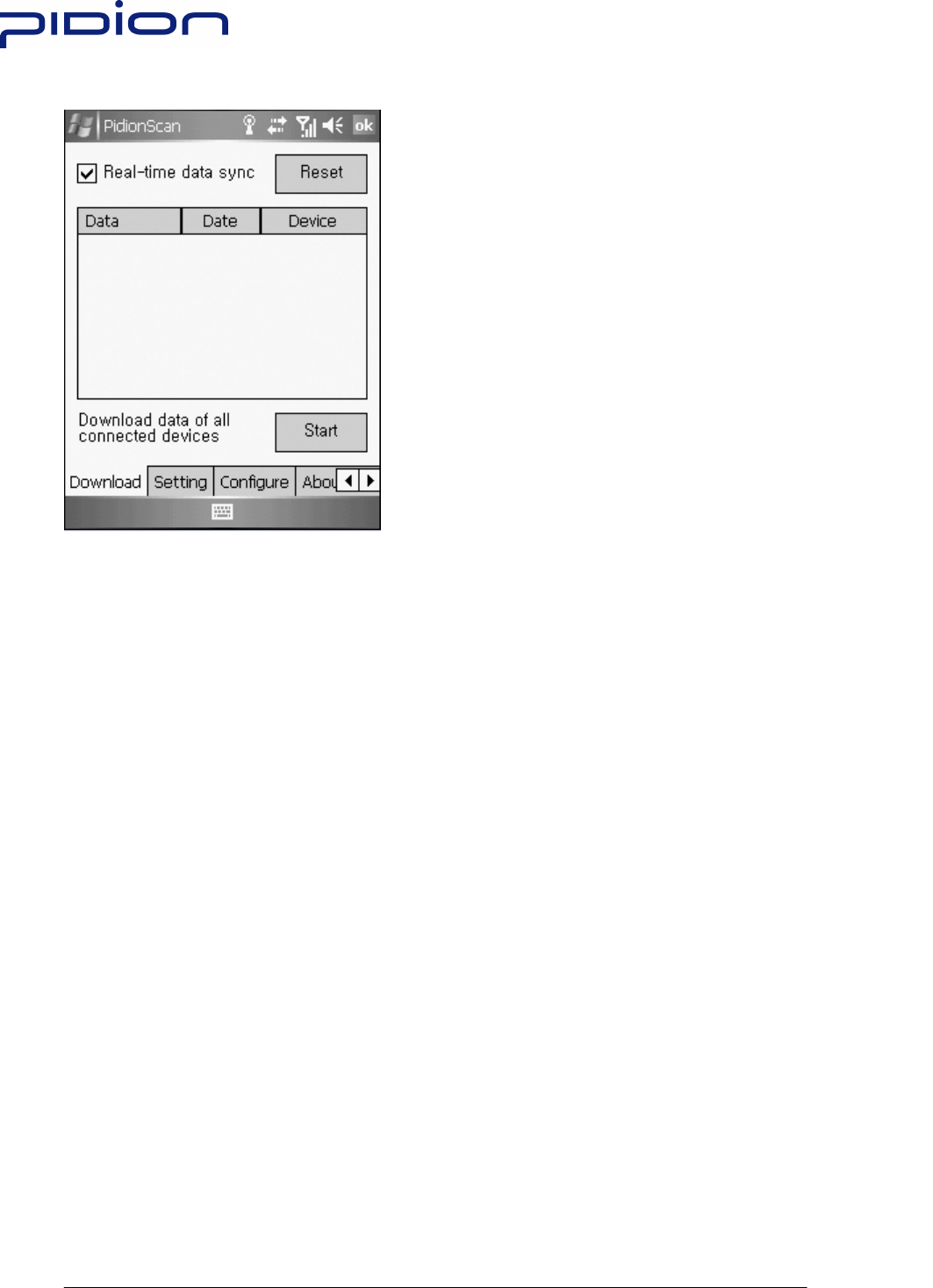

-Download
-Setting

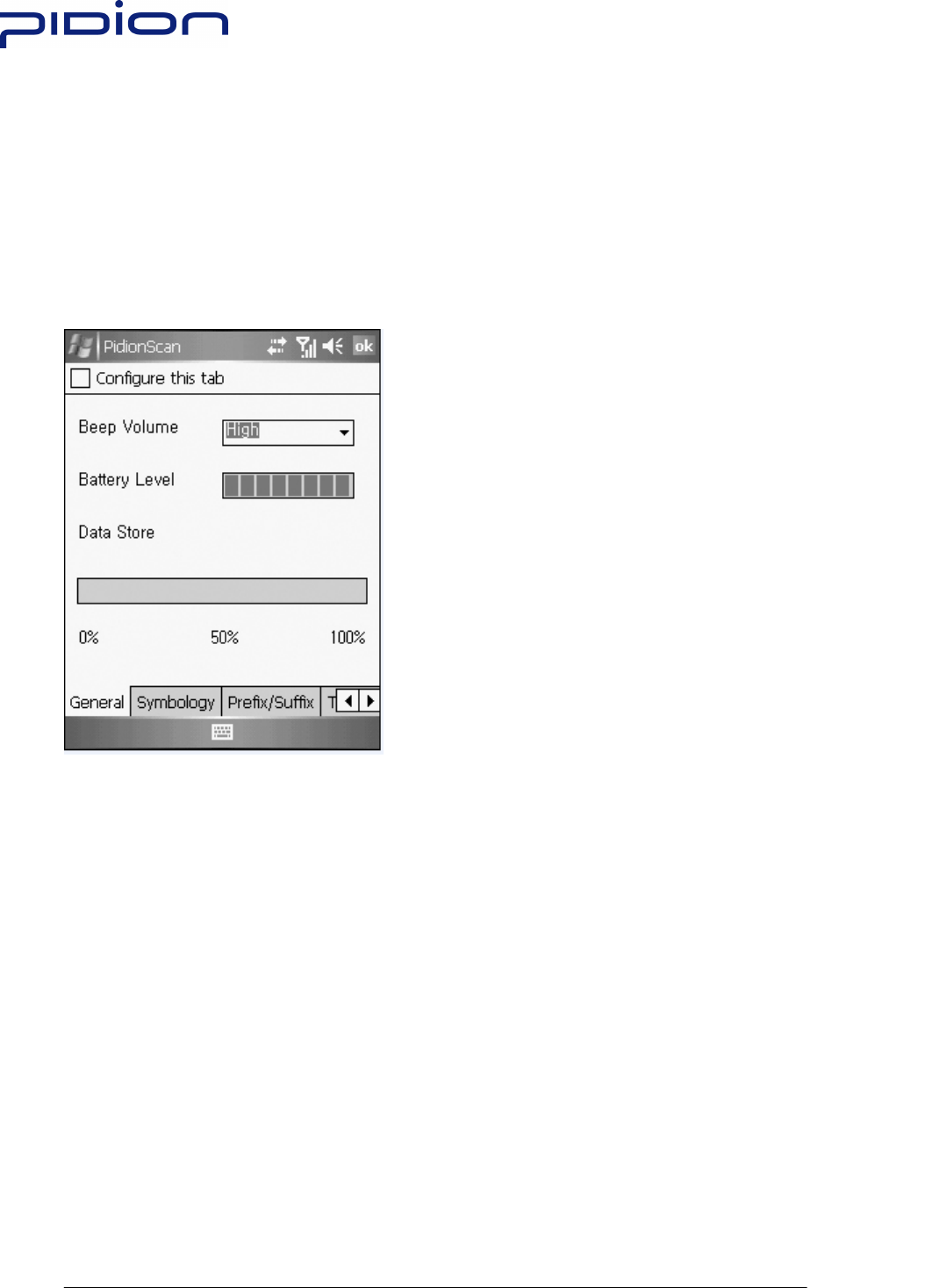

- General

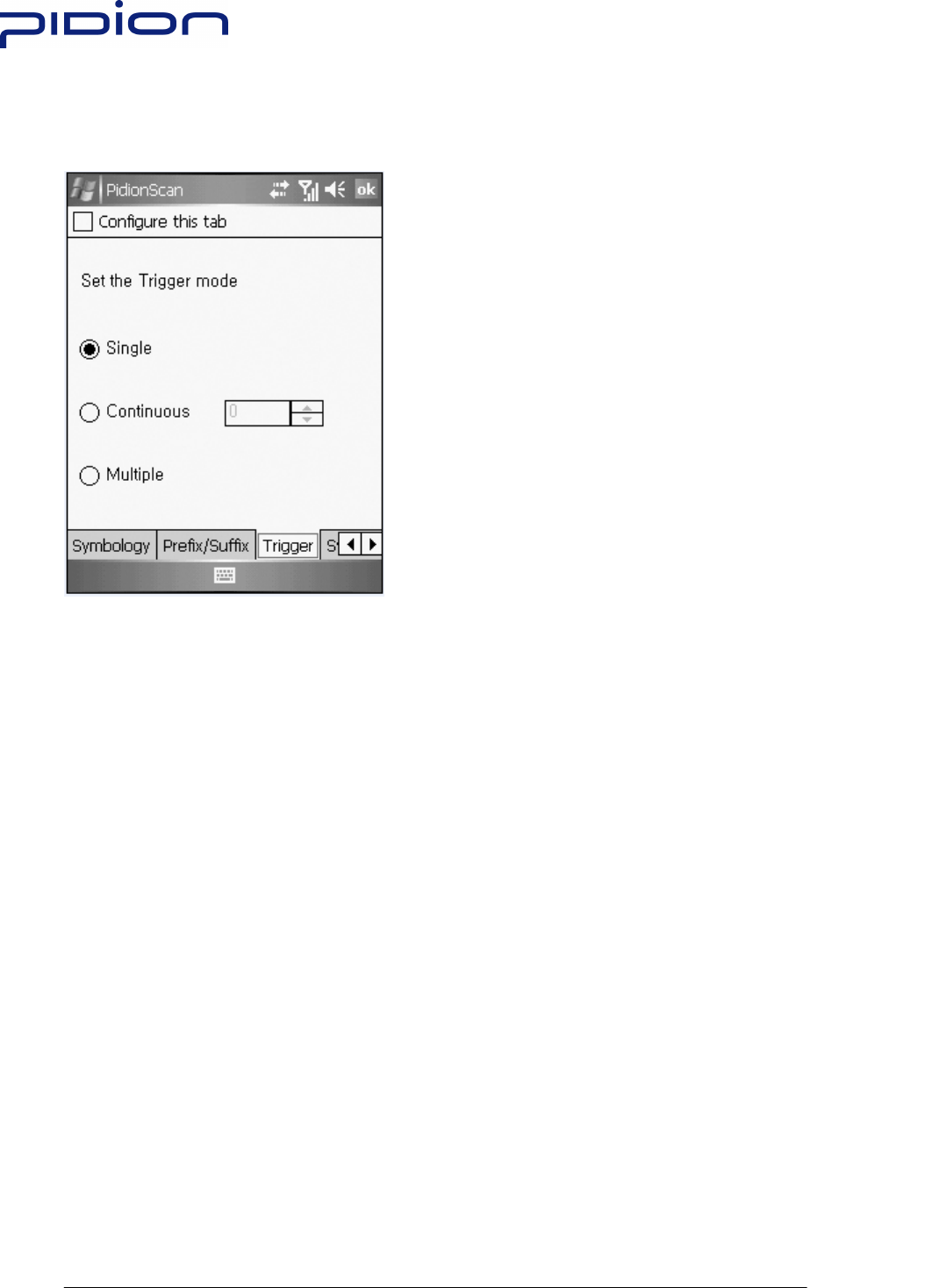

- trigger

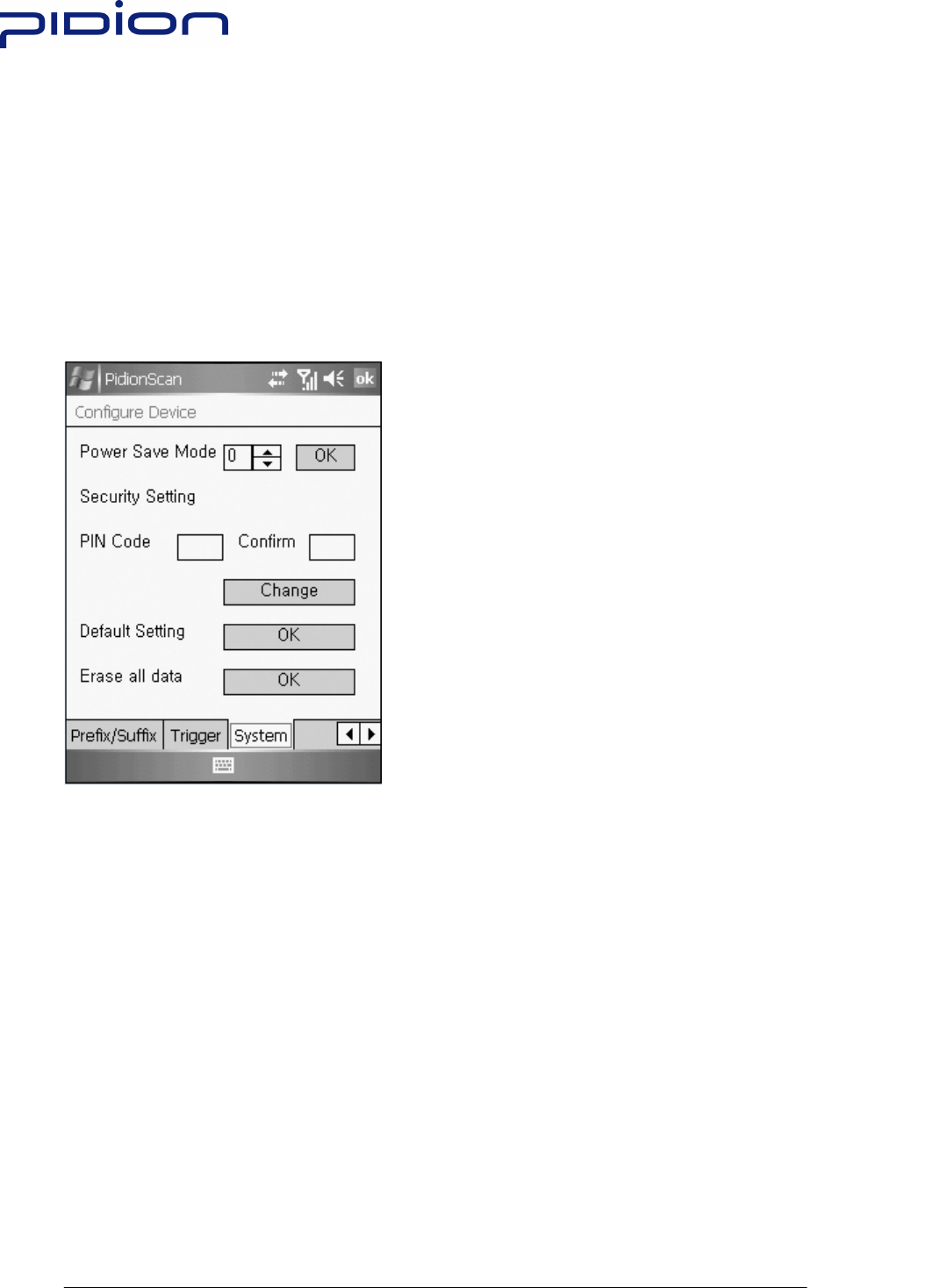

- System
P.45 Q&A
P.46 Customer Serv
Empowering Mobility Sayfa 4/46 Bluebird Soft Inc.
www.mypidion.com
- Read these instructions and warnings to use the Product in a safe manner
and to prevent accidents.
- Read these instructions and warnings to use the Product in a safe manner
and to prevent accidents.
Caution for
Caution for Caution for
Caution for Product Use
Product UseProduct Use
Product Use.
..
.
• This Product is EMC-compliant. For safety and health, use the authentic parts
supplied by the manufacturer. Any inauthentic part may affect safety.
• Do not modify, disassemble or repair the Product at your discretion.
Manufacturer if there is a problem in the Product. Also, make sure to follow the
warnings and Instructions. If you fail to follow any of the above instructions, no
warranty service will be provided.
• If the Product is wet, do not put it in a device that may heat the terminal (heater,
microwave oven, etc.). Heating batteries may cause an explosion, deformation
or fault.
(Water or any other liquid will change the color of the label inside the terminal.
In this case, no warranty service will be provided.)
• Do not use the product on an airplane or in a hospital and also do not operate
the product while driving a car.
• Do not use this Product in a hot or humid place. Using the Product under a
hot/humid temperature such as rain or sauna may cause a trouble. In this case,
no warranty service will be provided.
Avoid vibration and impact. When not in operation or when you are absent, pull
out the power cord, and keep the Product in a safe place.
• Keep this Product away from magnetic products such as credit card, telephone
card, bankbook and traffic ticket. The magnetic field of the terminal may affect
the data
• Use dedicated batteries only and do not use the batteries for any other purpose
than operating this Product. Using an inauthentic battery may reduce life of the
Product, or cause an explosion. (In this case, no warranty service will be
provided..
• Do not place the eyes of a person and/or pet near the scanner exit window.
Doing so can result in retinal damage and/or reduced vision.
Empowering Mobility Sayfa 5/46 Bluebird Soft Inc.
www.mypidion.com
About the Product
About the ProductAbout the Product
About the Product
Please make sure all the above components are included.
1. Basic Components
Main set,, AC/DC Adapter, Clip ,USB Cable, Neck strap
[ Main set] [ Neckstrap] [Battery]
[ Adapter+Clip] [ USB cable]
The images in this User’s Manual may not reflect the color and shape of the actual
product
Empowering Mobility Sayfa 6/46 Bluebird Soft Inc.
www.mypidion.com

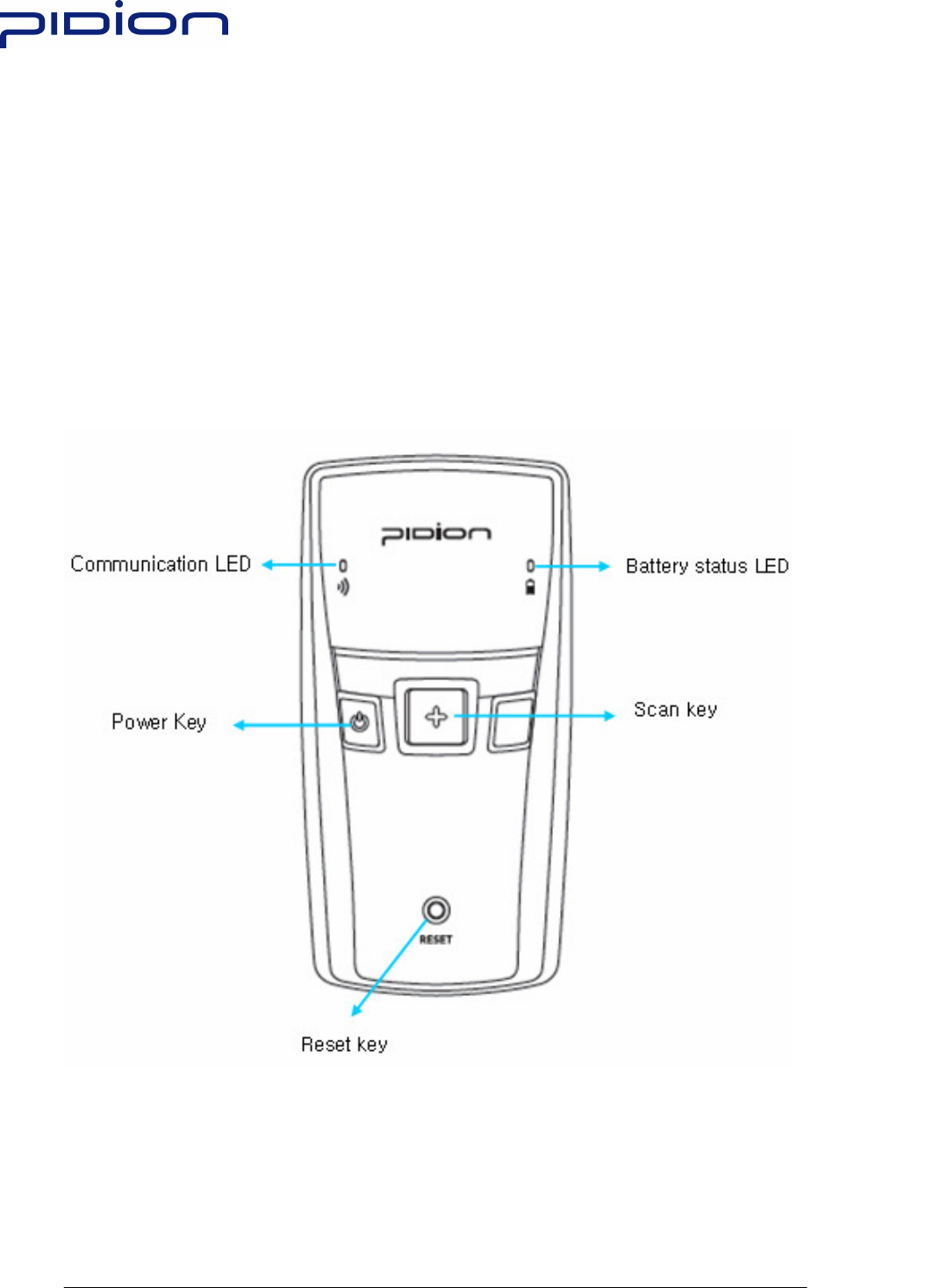

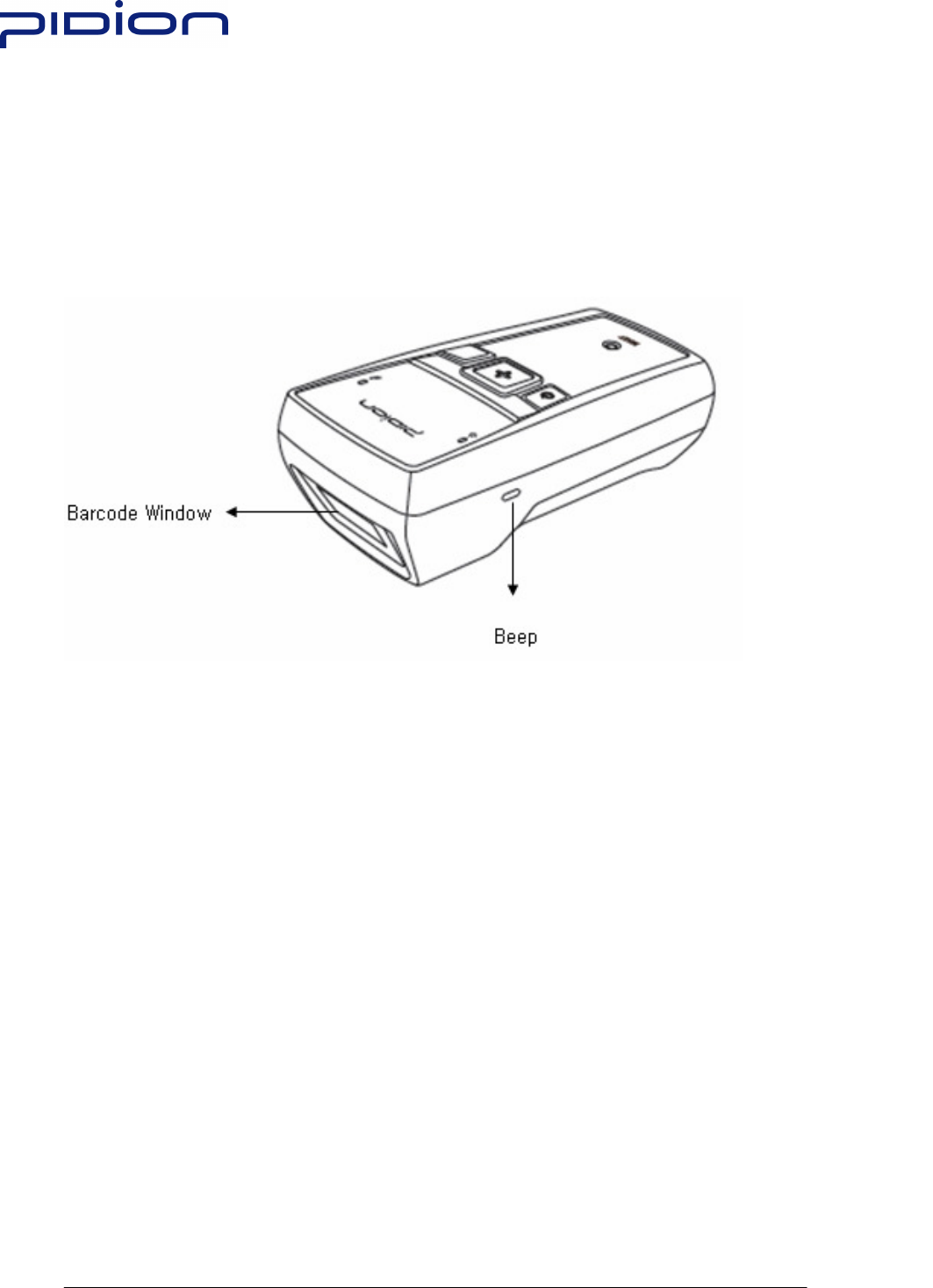

Checking names of parts
Checking names of partsChecking names of parts
Checking names of parts
각 부분의 명칭 및 기능을 숙지하신 후 제품을 사용하시기 바랍니다.
[ Front] ]
Empowering Mobility Sayfa 7/46 Bluebird Soft Inc.
www.mypidion.com
[ Side ]
Empowering Mobility Sayfa 8/46 Bluebird Soft Inc.
www.mypidion.com
Product Features
Product FeaturesProduct Features
Product Features
SPECIFICATIONS
SPECIFICATIONSSPECIFICATIONS
SPECIFICATIONS
Laser Scanner
Laser ScannerLaser Scanner
Laser Scanner
Physical Characteristics
Physical CharacteristicsPhysical Characteristics
Physical Characteristics
Dimensions (W x H x D) 50 x 99 x 34mm / 2.0 x 3.9 x 1.3 inch
Weight Excluding battery: 80g / Including battery: 110g
Indicator (LED)
Three-color LED (blue, red and green)
Alert Type Beep sound
Input Scan, Power buttons, Reset Key
Standard Battery Rechargeable, 3.7V, 1,130mAh, Li-ion
GPS Integrated GPS
Performance Charact
Performance CharactPerformance Charact
Performance Characteristics
eristicseristics
eristics
CPU S3C2440A40, 400MHz
OS Window CE Core
Memory 32MB RAM / 32MB ROM
Interface USB 1.1 Client
User Environment Characteristics
User Environment CharacteristicsUser Environment Characteristics
User Environment Characteristics
Operating Temp -10℃ to 40℃ / 14℉ to 104℉
Storage Temp -20℃ to 60℃ / -4℉ to 140℉
Humiditiy 90% non-condensing
Drop Spec 5ft. / 1.5m drop to steel surface, 3 drops per 6
sides
Rain/Dust Protection IP54
Integrated Radio
Integrated RadioIntegrated Radio
Integrated Radio
WPAN Radio Bluetooth Class Ⅱ V2.0
Data
Data Data
Data Capture
CaptureCapture
Capture
Barcode Scanner 1D Laser Class II / 1D&2D CMOS Imager
Empowering Mobility Sayfa 9/46 Bluebird Soft Inc.
www.mypidion.com

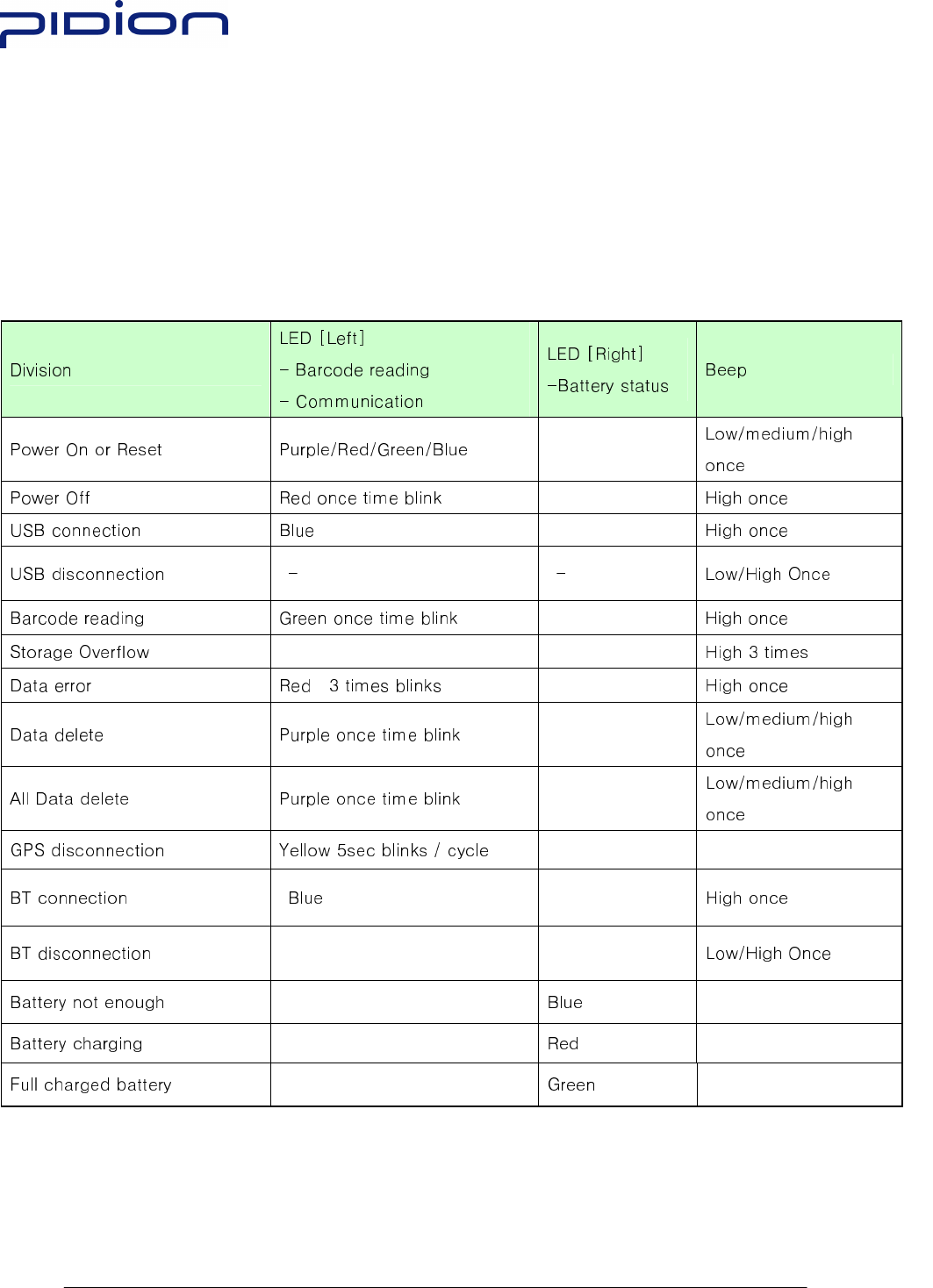

Learning scan,communication, battery LEDs
Learning scan,communication, battery LEDsLearning scan,communication, battery LEDs
Learning scan,communication, battery LEDs
Notifies the operating information of the scanner to the user by tone volume or
sequence.
Empowering Mobility Sayfa 10/46 Bluebird Soft Inc.
www.mypidion.com

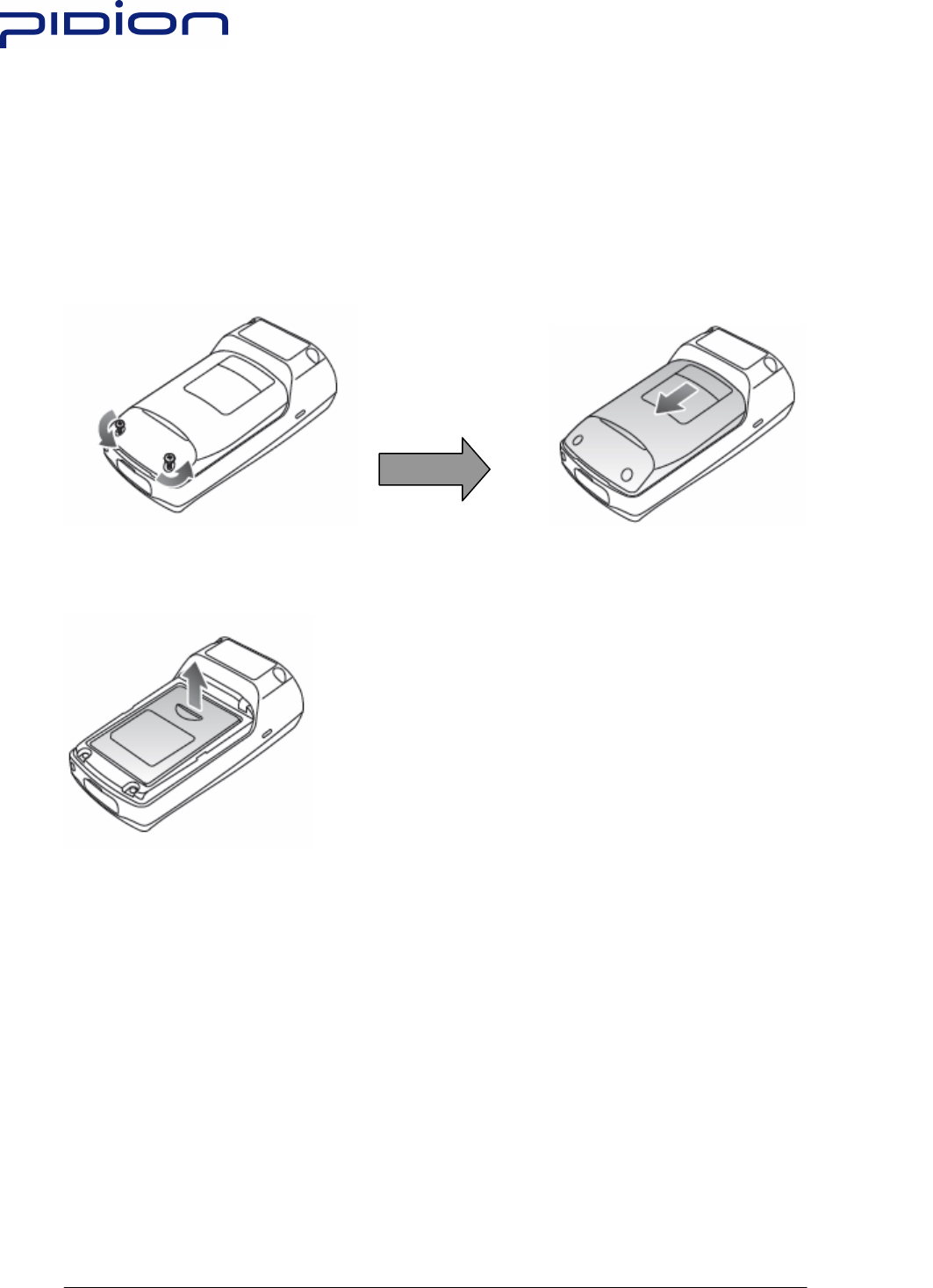

Battery removal
Battery removalBattery removal
Battery removal
1 Turn the product power off
2 Turn the screw on the battery cover counter-clockwise to loosen, then remove
3 Lift off the battery cover in the direction of the arrow.
4 Pull up a doorknob for battery and battery removed.
Empowering Mobility Sayfa 11/46 Bluebird Soft Inc.
www.mypidion.com

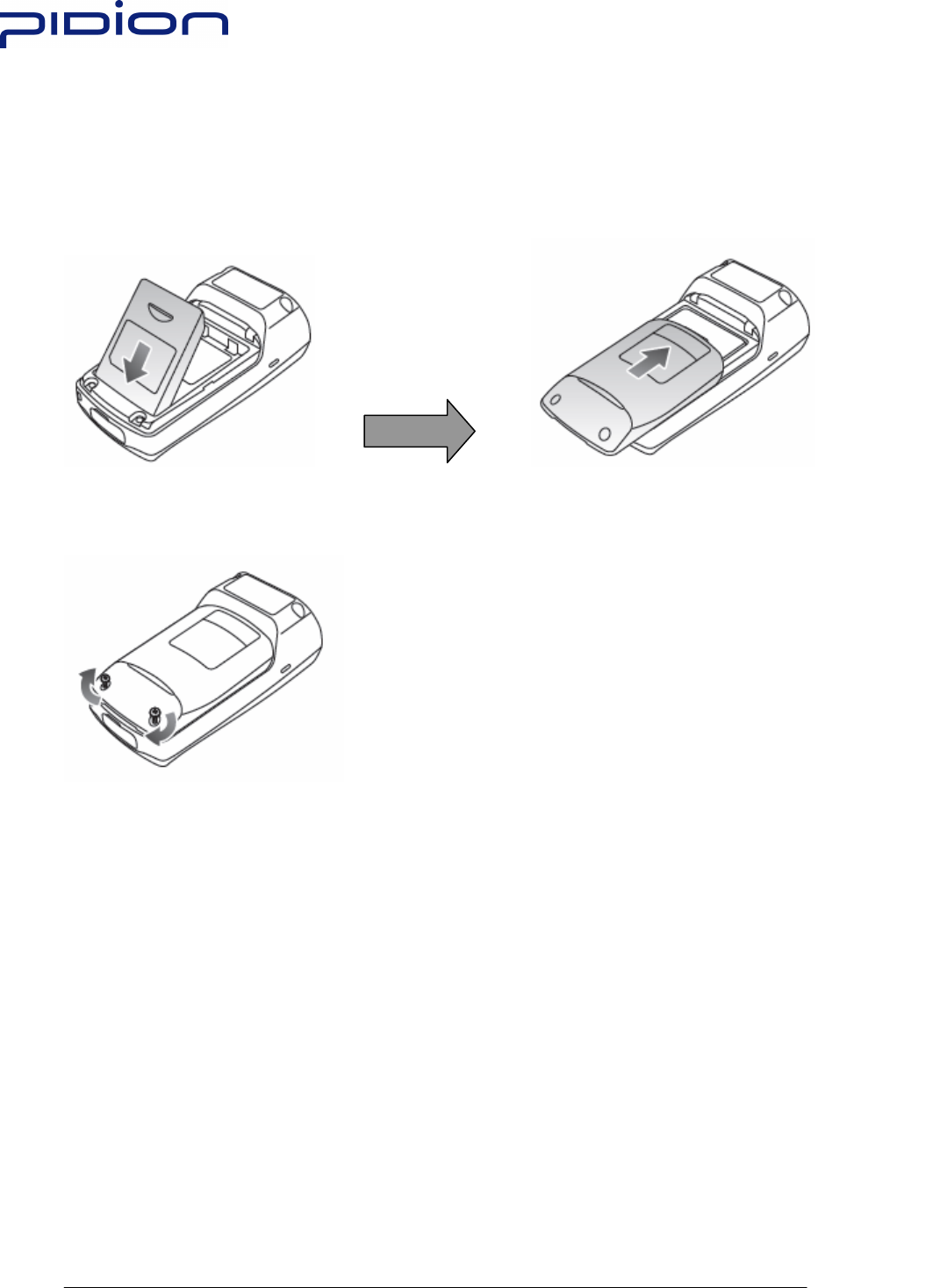

Insert the Battery
Insert the BatteryInsert the Battery
Insert the Battery
1. Put the battery in line.
2. Fit the battery cover to groove and close of battery cover.
3. Tighten 2 screw clockwise.
Empowering Mobility Sayfa 12/46 Bluebird Soft Inc.
www.mypidion.com

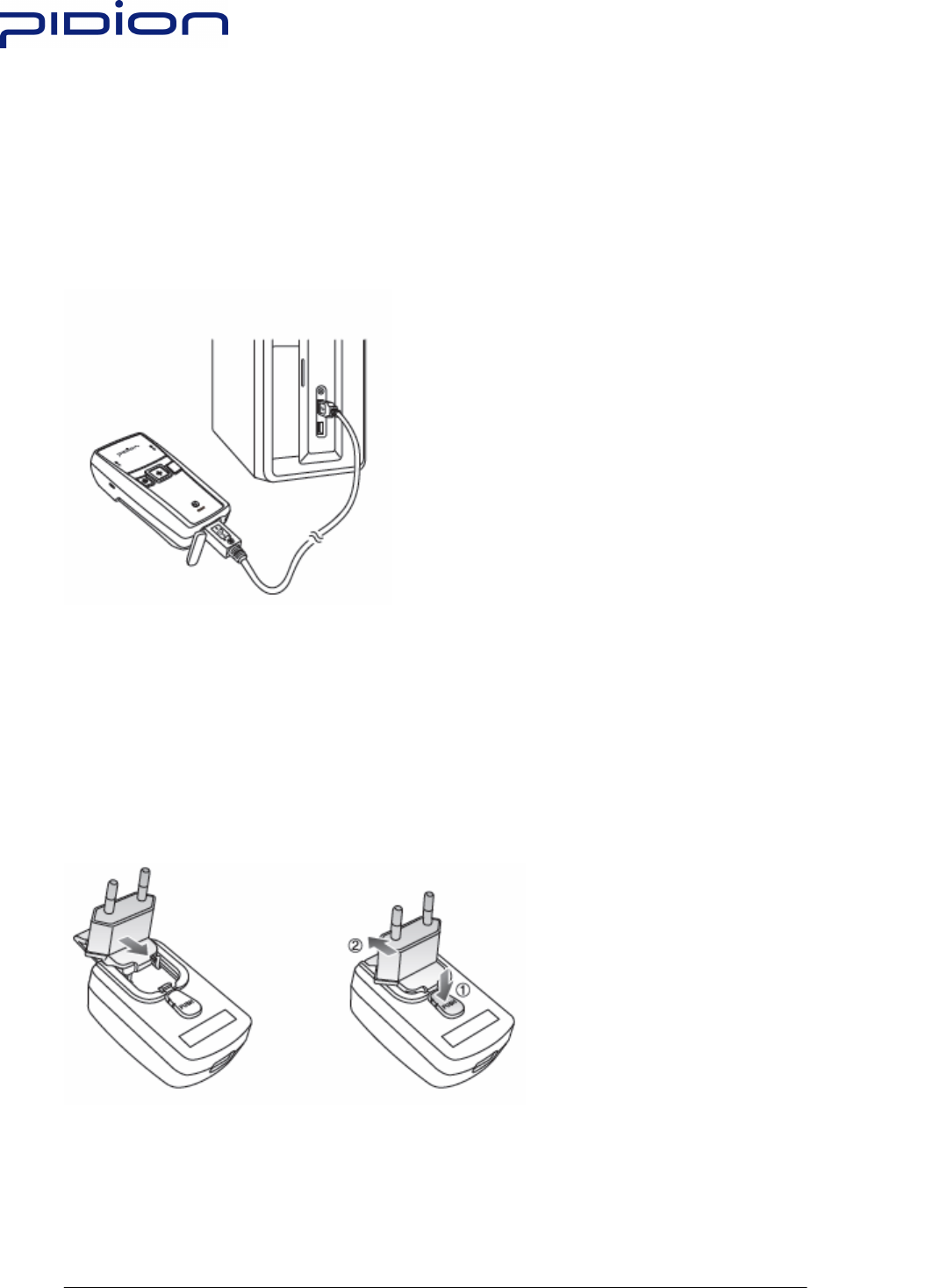

Battery Charging
Battery ChargingBattery Charging
Battery Charging
1. Charging with a charge cable
1. Charging with a charge cable1. Charging with a charge cable
1. Charging with a charge cable
Connect the charge-USB cable to the micro-USB port at the bottom of the
product and then connect to the PC of USB.

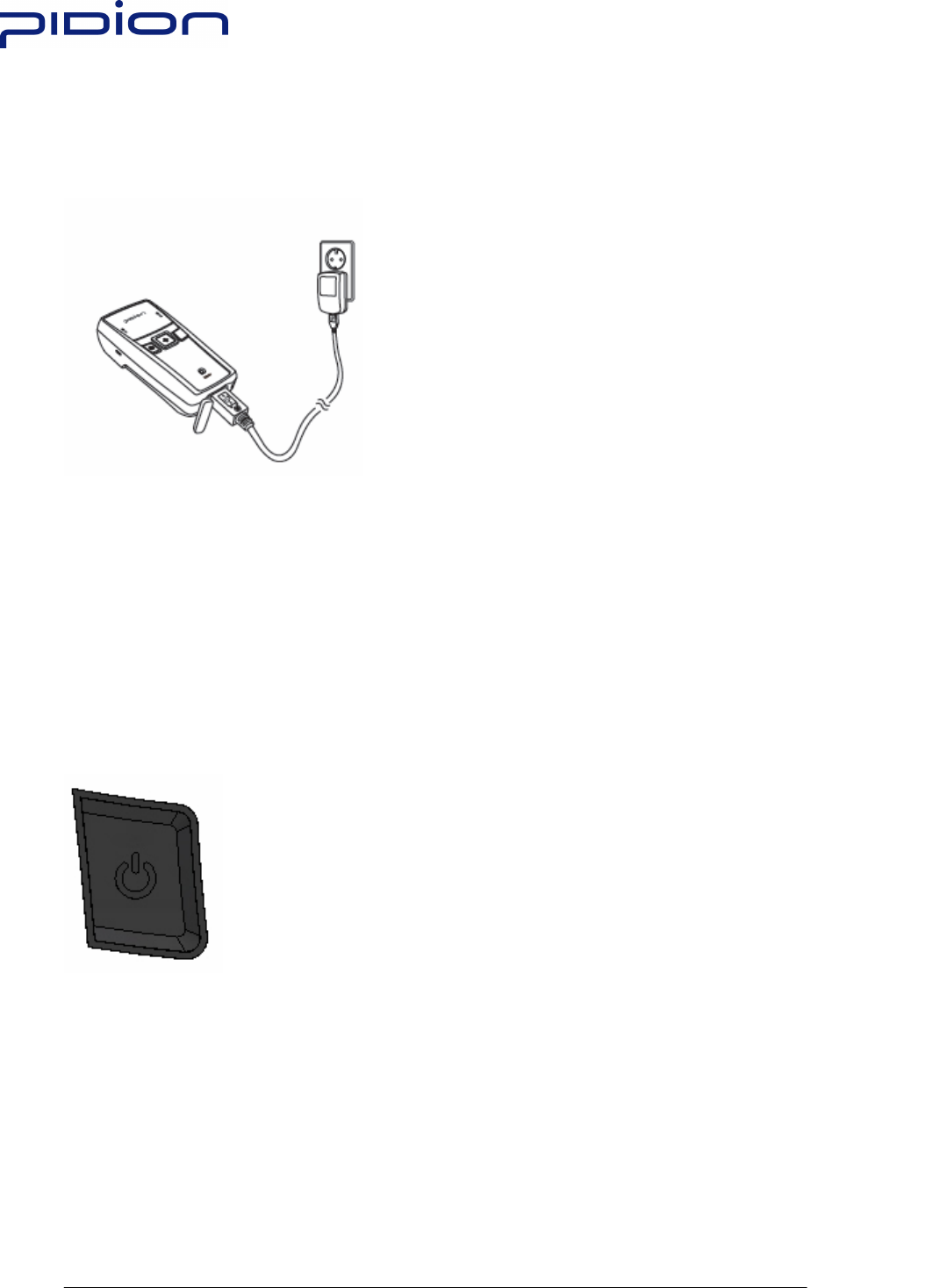

2. Charging with DC adapter
2. Charging with DC adapter2. Charging with DC adapter
2. Charging with DC adapter
1) Connection Adapter and Adapter clip.
Empowering Mobility Sayfa 13/46 Bluebird Soft Inc.
www.mypidion.com
2) Connect the charge-USB cable to the micro-USB port at the bottom of the
product and then conect to the DC adpater and AC plug.
Power ON
Power ONPower ON
Power ON
Push to left power button about 3sec and the power is on. When booting is start,
the lamp will be turn on in purple.
After completion of booting up, the lamp will be flashed with Red/Green/Blue Led
wink up with signal sound.
The booting up time about 10 seconds.
Please used to about later 10 sec after push to the power button.
P
PP
Power Off
ower Offower Off
ower Off
Push to left power button about 5 sec same to power on and then power is off.
Empowering Mobility Sayfa 14/46 Bluebird Soft Inc.
www.mypidion.com
Barcode scanning
Barcode scanningBarcode scanning
Barcode scanning

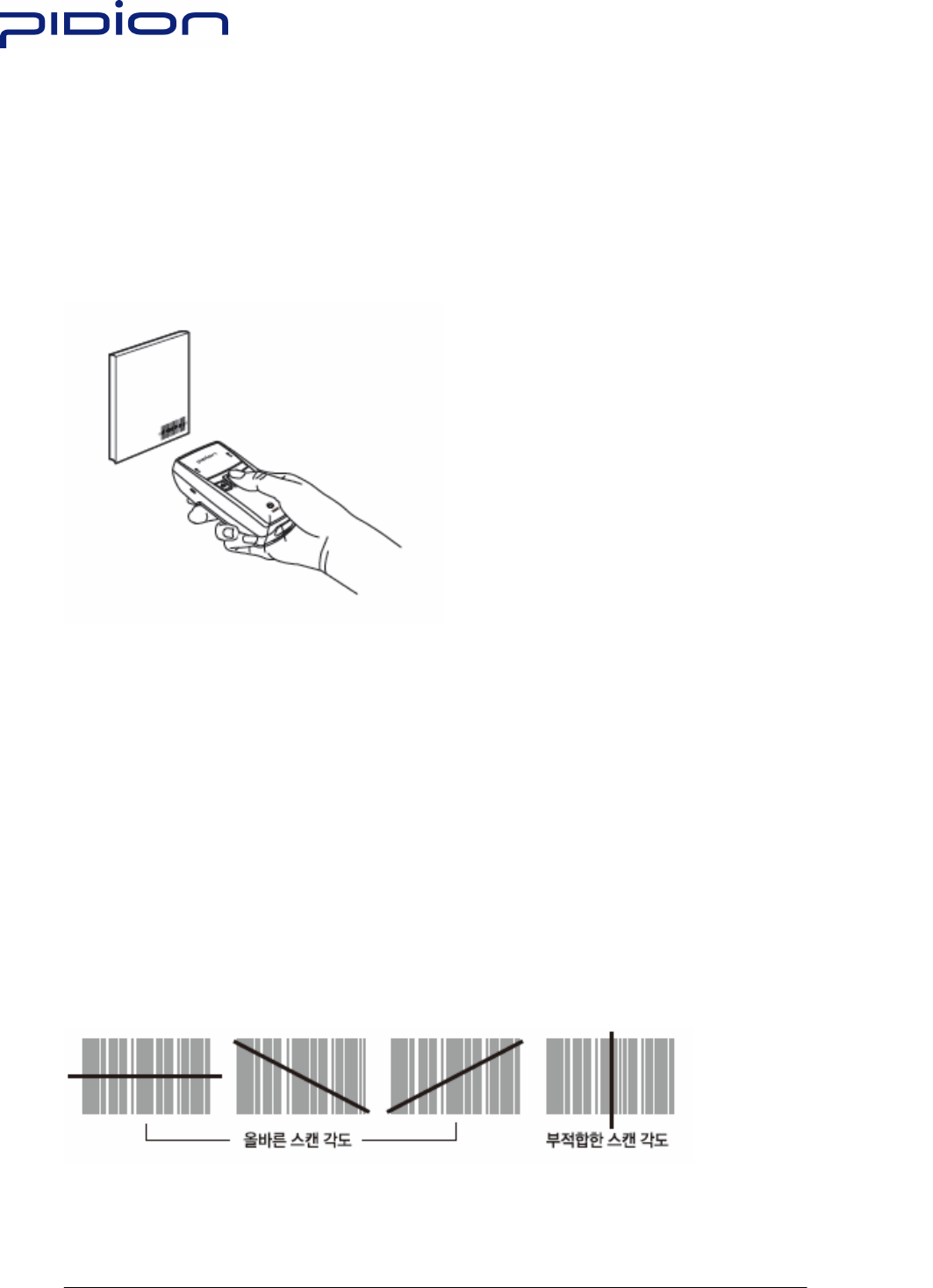

Face the scanner window toward the barcode at intervals of approximately 10cm,
and press the scan button to read the barcode.
When scanning barcode, do not direct the scanner window toward eyes of a
man • an animal. It may cause damage to the retina and eyesight damage.
If you use the product at a place with a big difference in ambient temperature,
barcode can’t be recognized temporarily due to moisture or frost in the
barcode window.
If the scanner window is perpendicular (0°) to the barcode, it is impossible to
read barcode due to characteristics of the laser barcode engine. Thus, scan at
a little inclined angle, not a right angle.
[ ○ ] [ X ]
Empowering Mobility Sayfa 15/46 Bluebird Soft Inc.
www.mypidion.com

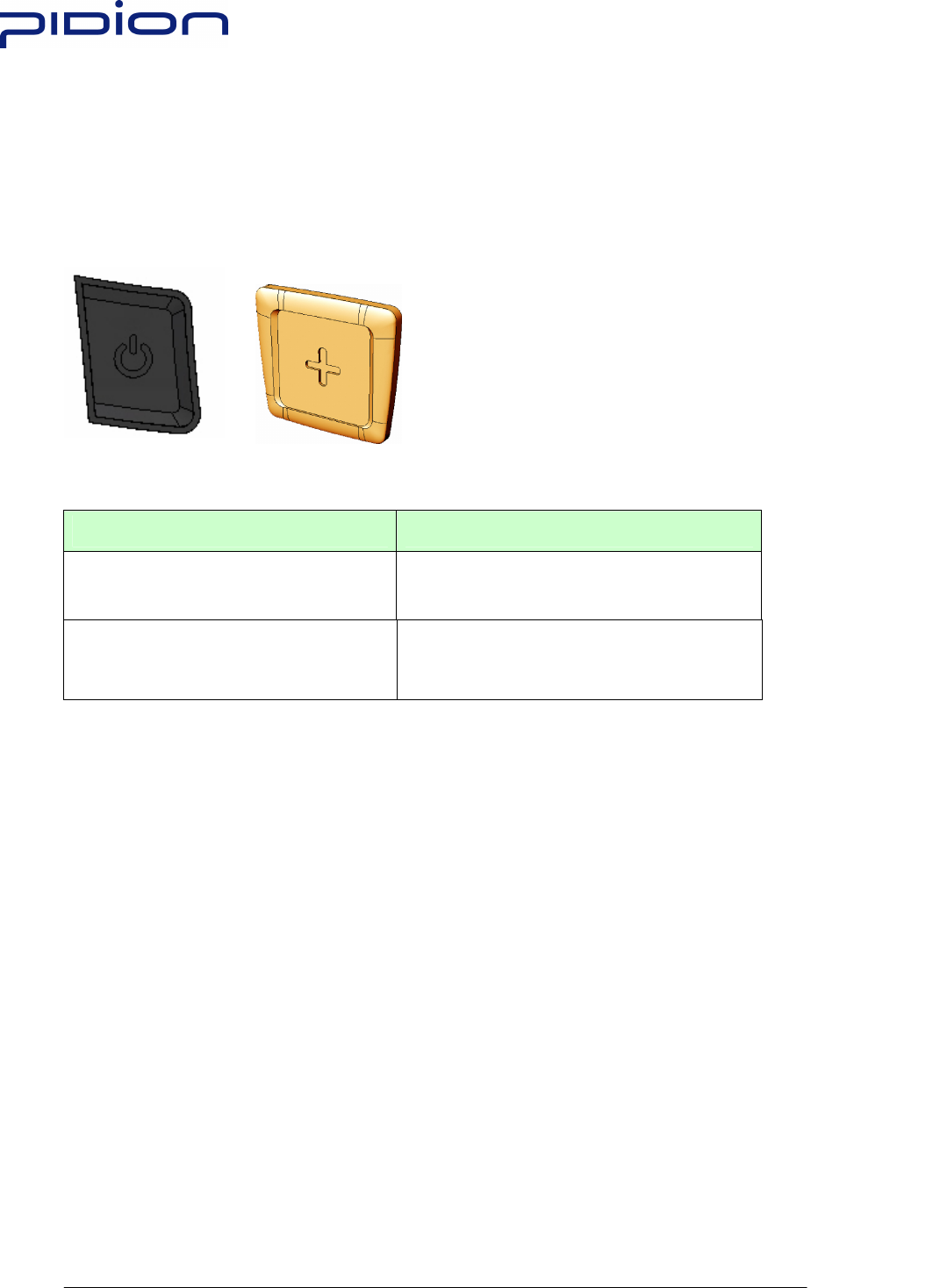

Button.
Button.Button.
Button.
Key Function
Left( ^ ) 3 sec Power
SCAN Barcode scanning
Empowering Mobility Sayfa 16/46 Bluebird Soft Inc.
www.mypidion.com
PC Sync
PC SyncPC Sync
PC Sync
1. Installation of Driver
1. Installation of Driver 1. Installation of Driver
1. Installation of Driver –
––
– Window XP
Window XP Window XP
Window XP
If Microsoft ActiveSync is installed in a PC, set [Microsoft ActiveSync] ▶ <File>
▶ <Connection Setup> ▶ <Permit USB Connection> as inactivate. Driver is not
installed if USB connection is permitted.

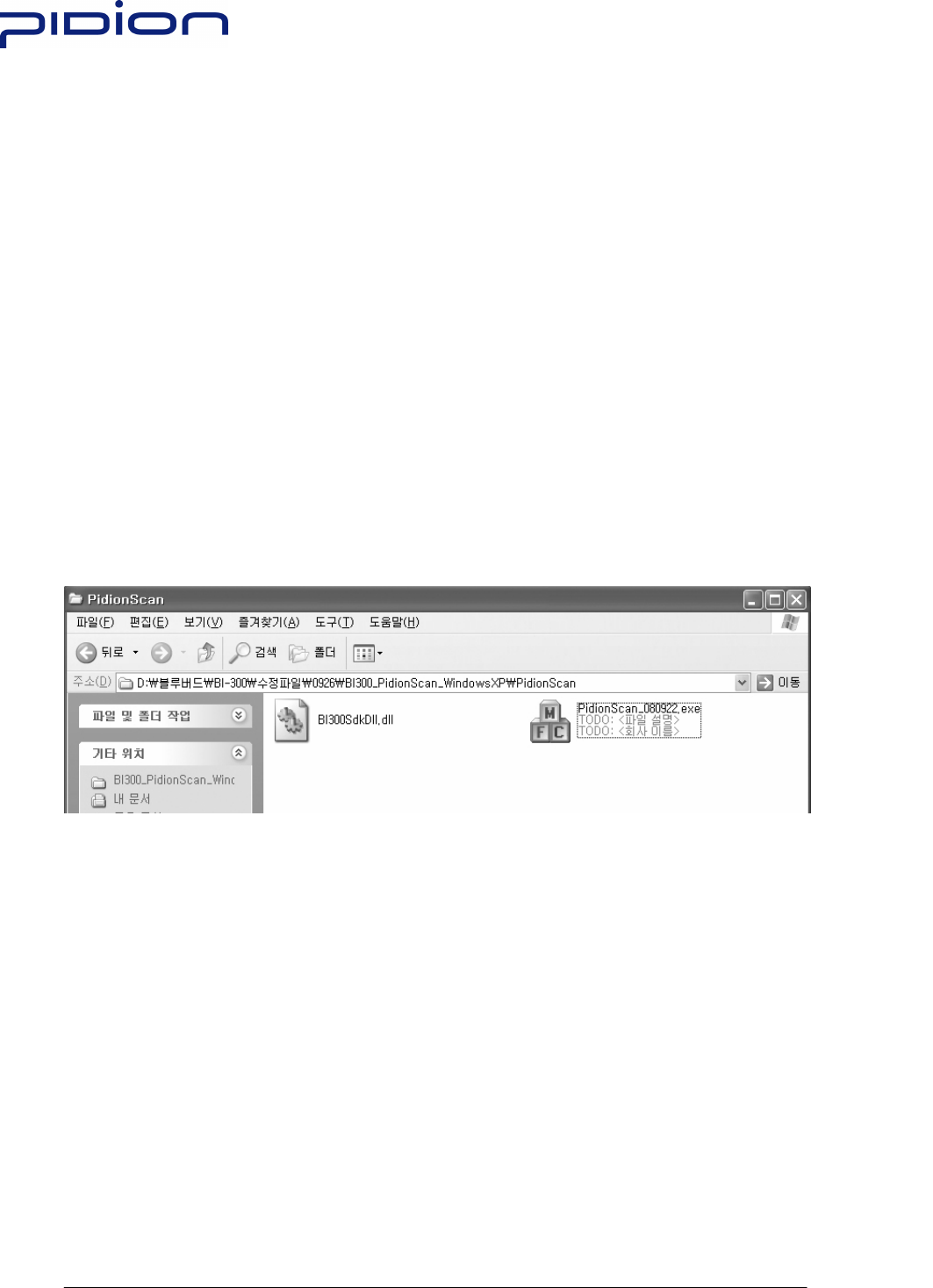

① Select the PC driver folder [BI300_PidionScan_Windows XP, Vista], and copy
the driver file [gserial_XP.inf] in the PC.
You can download the driver at our homepage. (http://www.mypidion.com)
② Power the terminal on and connect it to the PC using the USB cable

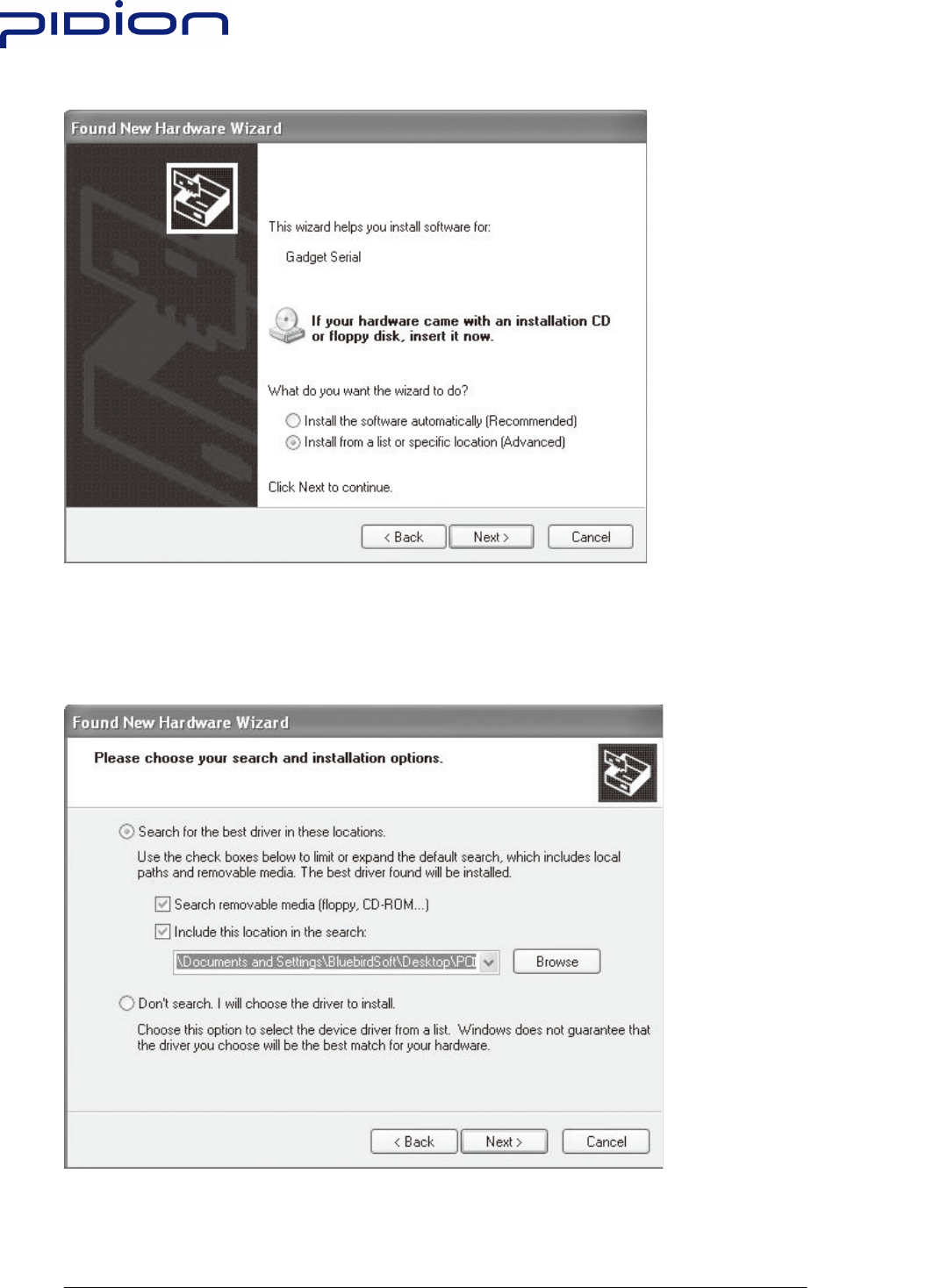

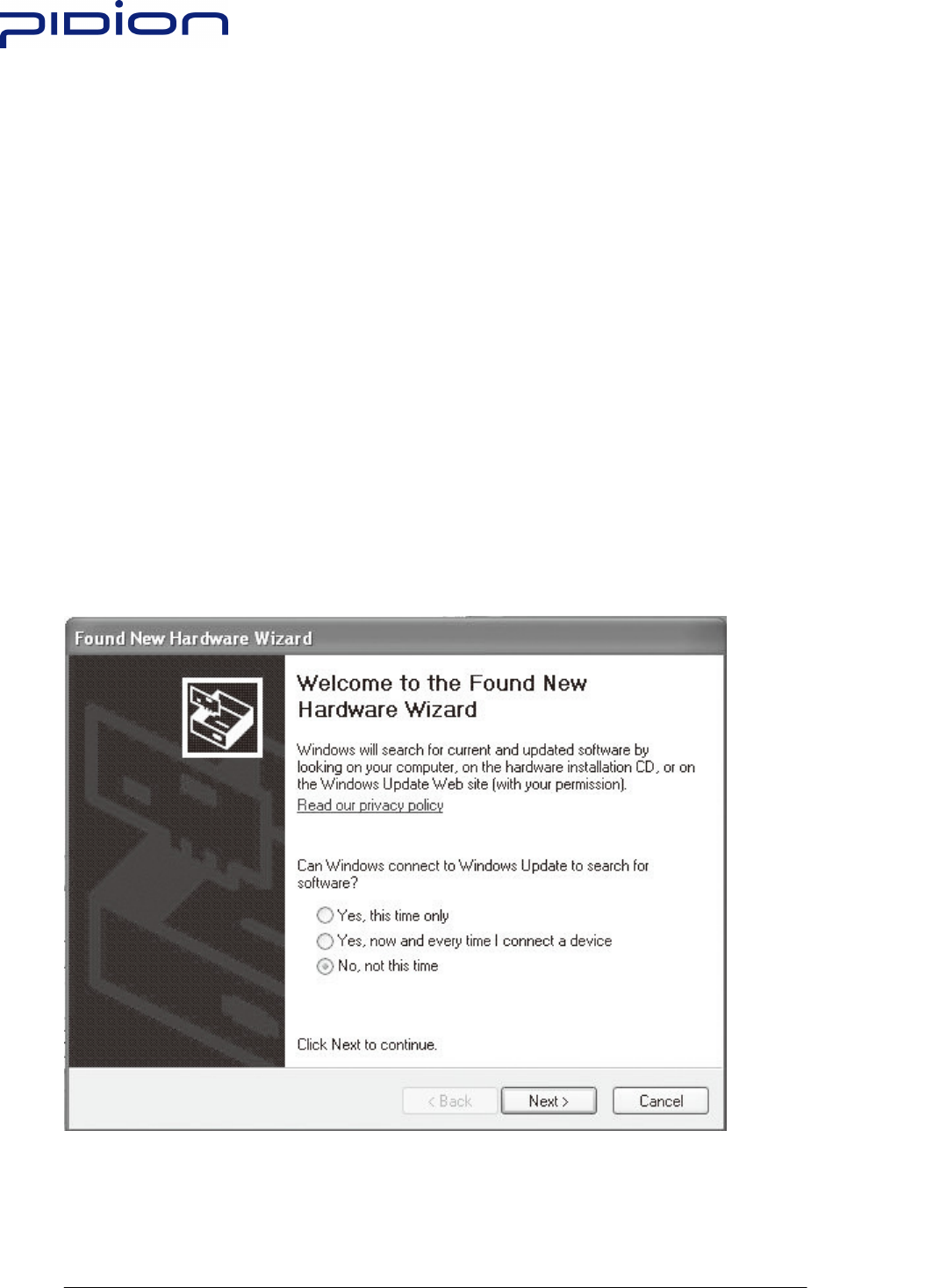

③ The [Found New Hardware Wizard] program is automatically run, and select
<No, not this time>, and select the <Next> button.
④ Select the <Install from a list or specific location [Advanced]> menu and select the
<Next> button.
Empowering Mobility Sayfa 17/46 Bluebird Soft Inc.
www.mypidion.com
⑤ Select the <Include this location in the search> menu and select the <Search>
button, and select a folder in which the driver file [gserial_XP.inf] is saved, and then
select the <Next> button.
⑥ After the <Install Hardware> window appears, press the <Continue> button.
Empowering Mobility Sayfa 18/46 Bluebird Soft Inc.
www.mypidion.com

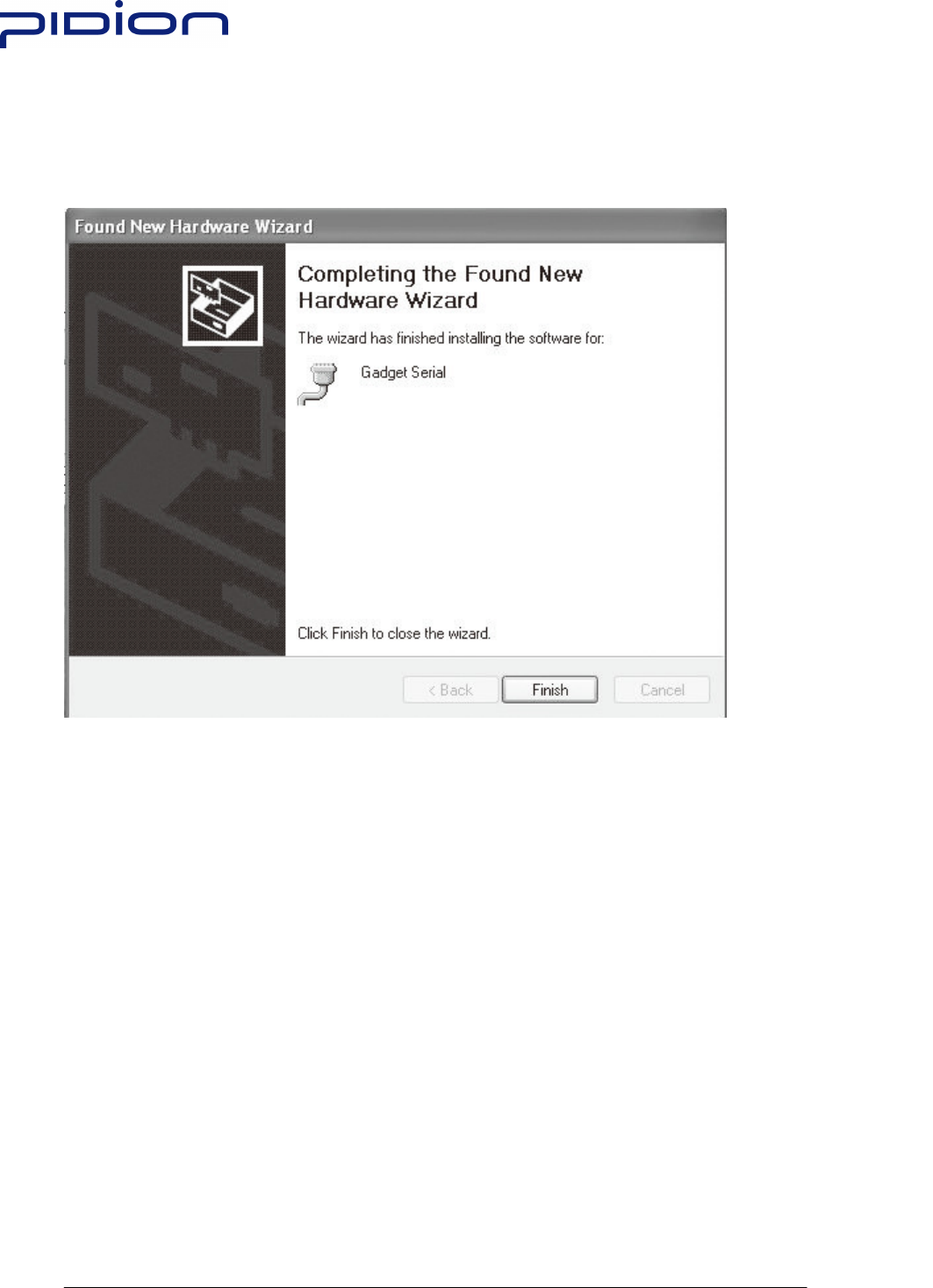

⑦ If you check <Finish> in the [Found New Hardware Wizard], the program is
successfully installed.
TIP. ˙
• If the window to search for [usbser.sys] file does not appear, or the device is not
properly recognized even after the driver file [gserial_XP.inf] is normally installed,
separate the terminal from the PC, ▶ copy the [usbser.sys] file of in the
<C:\WINDOWS\ system32\drivers> folder, ▶ connect the terminal to the PC again.
• You can download the driver at our homepage. (http://www.mypidion.com)
Empowering Mobility Sayfa 19/46 Bluebird Soft Inc.
www.mypidion.com
Sending data to PC
Sending data to PCSending data to PC
Sending data to PC
2.
2. 2.
2. Installing PidionScan P
Installing PidionScan PInstalling PidionScan P
Installing PidionScan Program
rogramrogram
rogram.
..
.
Warning)
• The seen screen corresponds to the [Windows XP] version and it depends on
the software version used.
• Image seen in the [Windows Vista] screen is different, but the function is the
same as [Windows XP].
① Select the PC driver folder [BI300_PidionScan_Windows XP, Vista], and copy
the [PidionScan_ Winxp,Vista] folder in the PC, and select the
[PidionScan_WinXp,Vista.exe] program.
You can download the driver at our homepage.
② Set <COM Port> in the [Connect] tab and select the <Connect> button.
Empowering Mobility Sayfa 20/46 Bluebird Soft Inc.
www.mypidion.com
TIP. <COM Port> of <Gadget Serial> is changed at each PC, so that check the
number to which the Gadget Serial COM port is set.
To check <COM Port> to be set,
a. Right-click the mouse in [My Computer] of the PC, and select <Properties>.
Empowering Mobility Sayfa 21/46 Bluebird Soft Inc.
www.mypidion.com

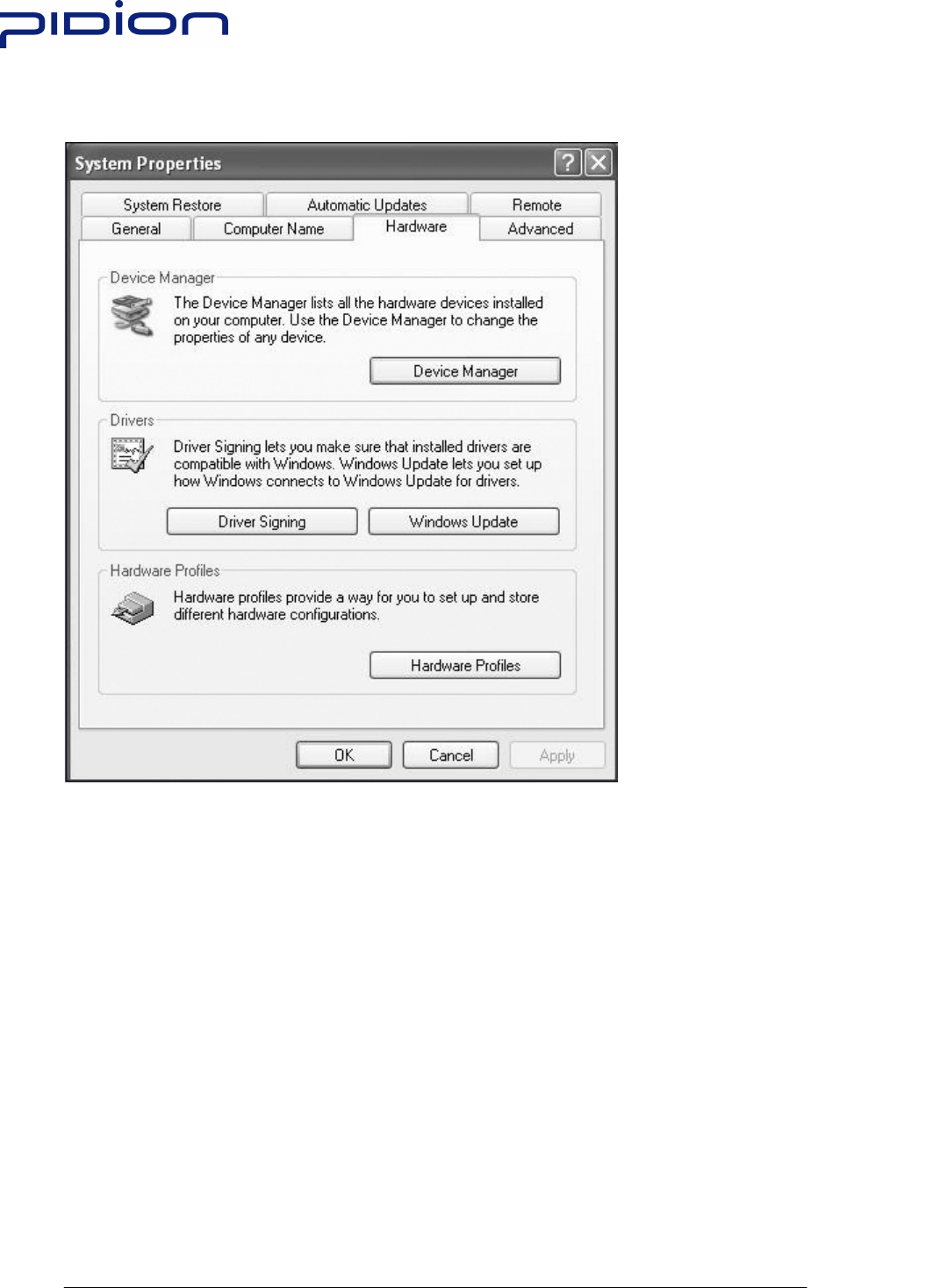

b. Select [System Restore] ▶ [Hardware] ▶<Device Manager>.
c. If you select <POrt (COM and LPT)> in <Device Manager>, you can check
<Gadget Serial>.
Empowering Mobility Sayfa 22/46 Bluebird Soft Inc.
www.mypidion.com
③ For how to use the [PidionScan] program, refer to <Use PidionScan Program>
on page 37.
Tip. Image seen in the PC screen is different, but the function is quite similar to
PDA.
Empowering Mobility Sayfa 23/46 Bluebird Soft Inc.
www.mypidion.com
Sending data by PDA
Sending data by PDASending data by PDA
Sending data by PDA
You can exchange data by connecting the terminal to the PDA supporting
Bluetooth, without the USB cable.
1.
1. 1.
1. Procedures for data transmission
Procedures for data transmissionProcedures for data transmission
Procedures for data transmission.
..
.
① Install [Microsoft ActiveSync] in a PC. (See P-26)
② Connect the PDA and PC with the USB cable and install [PidionScan] in PDA,
and disconnect.(See P-28)
③ Power the terminal on. (See P-11)
④ Set <Bluetooth> of the PDA. (See P-31)
⑤ Set the [PidionScan] program of the PDA. (See P-37)
⑥ Scan barcode with the terminal. (See P-12)
⑦ Scanned barcode information is displayed in the screen of the [PidionScan]
program or in the Word/Memo of the PDA.
Tip.
• If the PDA and Bluetooth are properly connected, the battery
• communication lamp turns blue, and high signal tone is generated once.
• Even if the Bluetooth transmission fails after barcode scanning, the barcode
data is automatically stored in the scanner.
• Because the Bluetooth interworking is disconnected while PDA is in Power Save
mode, do not use Power Save mode when interworking with Bluetooth.
2.
2. 2.
2. Installing ActiveSyn
Installing ActiveSynInstalling ActiveSyn
Installing ActiveSync.
c.c.
c.
To install the [PidionScan] program in the PDA, install the [MicroSoft ActiveSync]
program in a PC.
If the [ActiveSync] program is already installed in the PC, you need not install the
program separately.
The seen screen corresponds to the [Microsoft ActiveSync 4.5] version and it
depends on the software version used.
Empowering Mobility Sayfa 24/46 Bluebird Soft Inc.
www.mypidion.com
① Access the Microsoft’s Website, and download [Microsoft ActiveSync], and
install.
② Select the <Accept> button in the [License Contract] window, and ▶ fill in the
<User ID> <Organization> in the [Customer information] window, and ▶ set
<Installation Location> in the [Target Folder] window.
Empowering Mobility Sayfa 25/46 Bluebird Soft Inc.
www.mypidion.com
③ If ready to install, [Microsoft ActiveSync] is installed.
④ [Microsoft ActiveSync] installation is completed.
3.
3. 3.
3. Installing PidionScan Program
Installing PidionScan ProgramInstalling PidionScan Program
Installing PidionScan Program.
..
.
• The seen screen corresponds to the [Windows Mobile] version and it depends
on the software version used.
• Image seen in the [Windows CE] screen is different, but the function is the
same as [Windows Mobile].
Empowering Mobility Sayfa 26/46 Bluebird Soft Inc.
www.mypidion.com
① Connect the PDA and the PC using the USB cable.
② Execute [Microsoft ActiveSync], and select the <Browse> button.

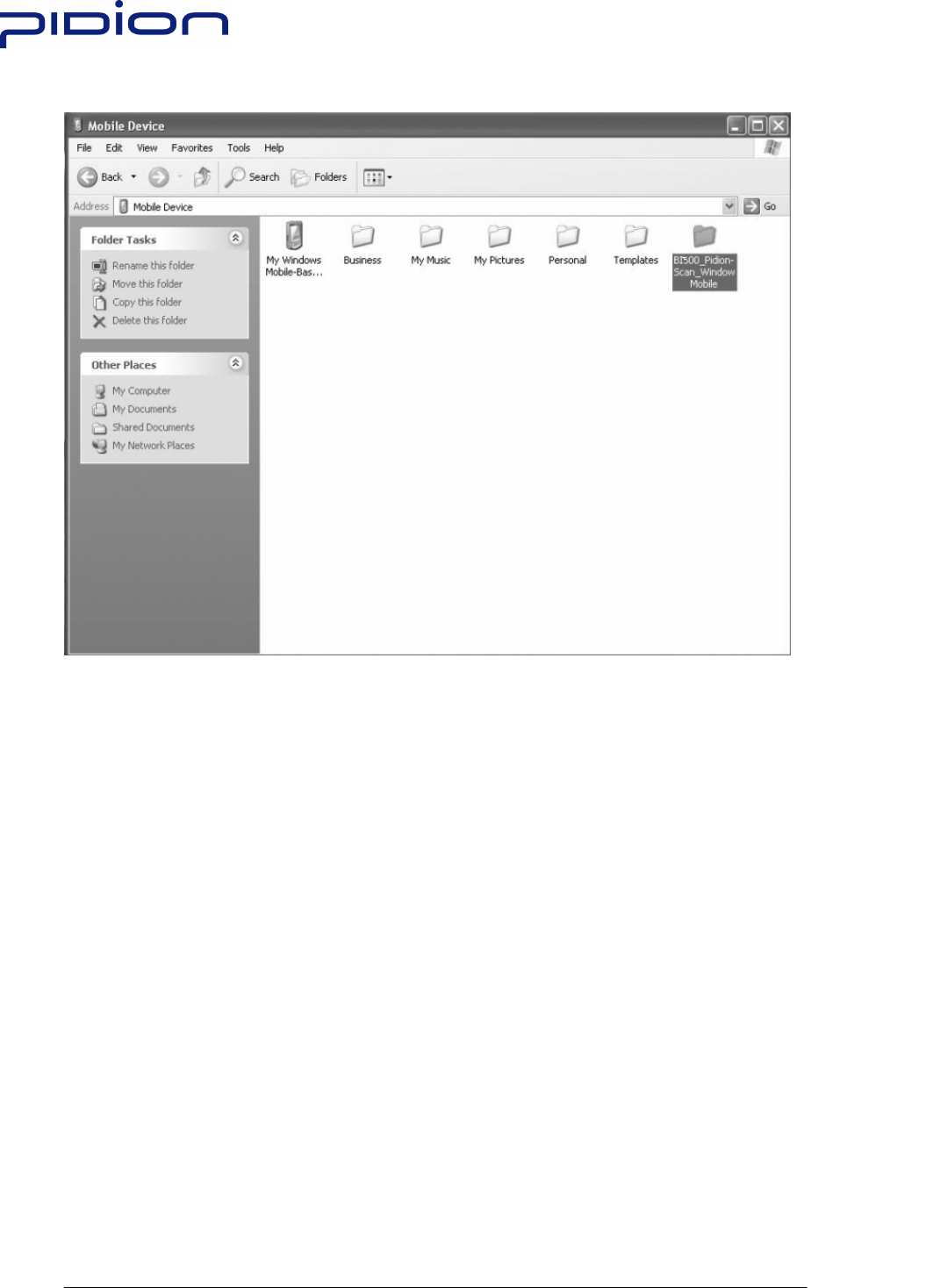

③ Copy the [BI300_Pidion-Scan_Windows Mobile] folder in the provided CD in
the [Mobile Device] folder.
Empowering Mobility Sayfa 27/46 Bluebird Soft Inc.
www.mypidion.com
• Depending on software version used in PDA, install the [BI500_ PidionScan
_Windows CE] folder for Windows CE, and install the [BI500_PidionScan_Windows
Mobile] folder for Windows Mobile.
• The <PidionScan_WinCE.exe, PidionScan_WinMobile.exe> file and the
<BI500SdkDll.dll> file and the <BIDevSearch.dll> file are enabled only if they are
installed in the same folder.
Empowering Mobility Sayfa 28/46 Bluebird Soft Inc.
www.mypidion.com
4.
4.4.
4.
Bluetooth Power On/Power Off
Bluetooth Power On/Power OffBluetooth Power On/Power Off
Bluetooth Power On/Power Off
-
--
-1
11
1
If you want to connect other equipment using the Bluetooth, execute the Bluetooth
function first.
① Select the [Start] ▶ [Set] ▶[Connect], and ▶ [Wireless Administrator].
② Select <Bluetooth>.
: Bluetooth on (set)
: Bluetooth off(release)
4.
4. 4.
4. Bluetooth Power On/
Bluetooth Power On/Bluetooth Power On/
Bluetooth Power On/
Power Off
Power OffPower Off
Power Off
-
--
-2
22
2
Empowering Mobility Sayfa 29/46 Bluebird Soft Inc.
www.mypidion.com
① Select at the top of the screen and select [Wireless Administrator].
② Select <Bluetooth>.
Tip. Terminal equipped with Bluetooth can be connected without setting Bluetooth.
5.
5. 5.
5. Bluetooth setting
Bluetooth settingBluetooth setting
Bluetooth setting-
--
-Windows Mobile
Windows MobileWindows Mobile
Windows Mobile
The seen screen corresponds to the [Windows Mobile 5.0] version and it depends
on the software version used.
① Select the [Start] ▶ [Set] ▶ [Connections] and ▶ [Bluetooth].
Empowering Mobility Sayfa 30/46 Bluebird Soft Inc.
www.mypidion.com
② Select <Turn on Bluetooth> in [Mode] tab.
③ Select <Add New Device> in the [Device] tab.
Empowering Mobility Sayfa 31/46 Bluebird Soft Inc.
www.mypidion.com
④ Select <BI-500> among the searched Bluetooth devices, and select the
<Next>button.
⑤ Enter password and select <Next> button.
※ If the PDA and the terminal are connected for the first time, enter password to
register.
Default password is 1234, and the user can change the password.
Empowering Mobility Sayfa 32/46 Bluebird Soft Inc.
www.mypidion.com
⑥ Select <Serial Port> and select the <Finish> button.
Empowering Mobility Sayfa 33/46 Bluebird Soft Inc.
www.mypidion.com
⑦ Select <New Outgoing Port> in the [COM Port] tab.
⑧ Select <BI-300> and select the <Next> button.
Empowering Mobility Sayfa 34/46 Bluebird Soft Inc.
www.mypidion.com
⑨ Select an unused port address and select the <Finish> button.
TIP. Unavailable if a port in use is selected and available only if a port not in use is
selected.
Empowering Mobility Sayfa 35/46 Bluebird Soft Inc.
www.mypidion.com
Using PidionScan Program
Using PidionScan ProgramUsing PidionScan Program
Using PidionScan Program
Using the program named PidionScan, you can perform data communication with
the PDA/PC, and set the function of a terminal.
Image seen in the PC screen is different from that of PDA, but the function is quite
similar each other.
Click [PidionScan] installed in PDA/PC to execute the program.

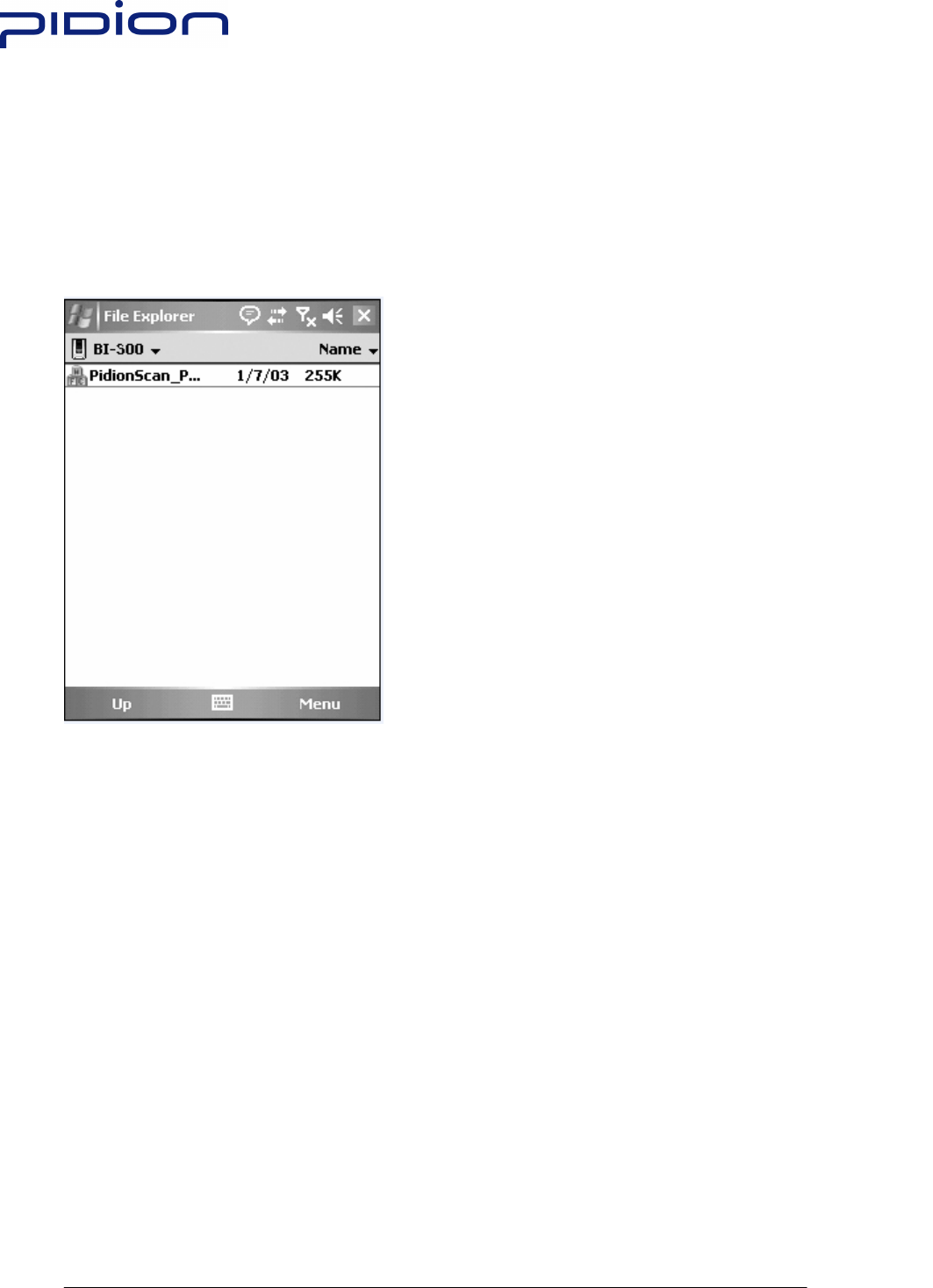

In case of PDA, go to [Start] ▶ [File Browser], and then search for the folder
saving PidionScan. Select [PidionScan] in the folder.
1. Connect
1. Connect1. Connect
1. Connect
You can connect/disconnect communication between the terminal and PC/PDA
through Connect/Disconnect.
Empowering Mobility Sayfa 36/46 Bluebird Soft Inc.
www.mypidion.com
• Connect : Connect to the ticked device in the list.
• Disconnect : Disconnect to the ticked device in the list, among connected
devices.
• Device Name; It is possible to distinguish many devices by the terminal serial
number.
• Status : Display the progress status and results.
- Connected : Connected normally.
- Connecting : Attempting to connect.
- Connect Fail : Fail in connection.
- Disconnected : Disconnect.
2. Download
2. Download 2. Download
2. Download
You can download data stored in the terminal.
• Real-time data sync : If ticked off, barcode values read in all connected devices
are displayed in data sheet in real time.
Empowering Mobility Sayfa 37/46 Bluebird Soft Inc.
www.mypidion.com
• Reset
If you press Reset, barcode values read as Real-time data sync is cleared only
from the screen.
Tip. If too many barcode values are displayed in a data sheet in Real-time data
sync state, sometimes, there may be a problem with program performance.
• Data sheet
- Possible to adjust the width of each row by drag.
- Scroll is automatically created if an item goes beyond the window.
- Unless otherwise, size only is left as blank.
Empowering Mobility Sayfa 38/46 Bluebird Soft Inc.
www.mypidion.com
• Download data saved in the device
① If you press the <Start> button in the [Download] tab, the <Downloading>
popup window appears (If the Popup window appears, the Download button is
deactivated, and activated again after the completed Popup window disappears)
②
Device IDs of all connected devices are displayed in the Popup window, and
the download status per device is progressed by %.
IF download is completed, the <Done!> message is displayed, and the download
of the next device gets started.
Empowering Mobility Sayfa 39/46 Bluebird Soft Inc.
www.mypidion.com
③
If download of all devices is completed, the <Download Completed!>
message is displayed, and automatically disappears in one second.
④
File name of download location is saved as <Device
name_scandata.extension>. For PDA, downloaded files are saved in the
<Device(my device)> folder, and for PC, downloaded files are in a folder where
the EXE file of [PidionScan] exists
Empowering Mobility Sayfa 40/46 Bluebird Soft Inc.
www.mypidion.com
3. Setting
3. Setting3. Setting
3. Setting
Auto re
Auto reAuto re
Auto re-
--
-connect
connectconnect
connect
• Automatically re-connect if Bluetooth connection is disconnected.
• You can set the maximum number of attempt.
- Time interval default is 5 seconds, the maximum number of attempt is 0~10
(impossible to automatically re-connect if 0)
• Default : 3times
Auto Real
Auto RealAuto Real
Auto Real-
--
-time mode
time modetime mode
time mode
• If you select the checkbox, barcode values read by If you click the check box,
the barcode data from the terminal will be indicated on the exe window of
notepad or word at your PC or PDA in real time.
• If you do not select the checkbox, barcode values are not displayed in real time.
• Time Stamp
Used to display date and time in the barcode information.
Example) 2008/11/20 19:26:13 01223334
date time Barcode information
Tip. If you select the <Auto Real-time mode> checkbox, the <Time Stamp>
checkbox is activated.
Empowering Mobility Sayfa 41/46 Bluebird Soft Inc.
www.mypidion.com
4. Configure
4. Configure4. Configure
4. Configure
You can configure the environment such as terminal volume, memory.
For multiple accesses, you can select many terminals and apply set value at a
time.
If you select the checkbox of a target terminal and click the <Configure Selected
Setting> button, you can move to the submenu of Configure.
Tip. Change settings in each submenu, and check <Configure this tab>, and
select the <OK> button at the right top, and then settings are applied.
Empowering Mobility Sayfa 42/46 Bluebird Soft Inc.
www.mypidion.com
General
GeneralGeneral
General
Beep Volume
Beep Volume Beep Volume
Beep Volume : You can adjust the beep volume to level 4(Off/Low/Medium/High).
(Default : High)
Battery Level
Battery Level Battery Level
Battery Level : Battery level is displayed as High/Medium/Low.
Data Store
Data Store Data Store
Data Store : Memory usage is displayed and available memory is indicated as %.
Symbology
SymbologySymbology
Symbology
You can set a barcode symbol. Select the checkbox of a barcode symbol.
Default
Default Default
Default : Default barcode is selected.
Among the barcode symbols, Supplement code, Interleaved 2 of 5 Length Min,
Interleaved 2 of 5 Length Max, MSI check digit, MSI check digit algorithm are
needed to put the default value of symbol.
If you click the check box of barcode symbol, Sub Option which you can input the
default value will pop up. Then, input the default value as below and push Set
button.
Empowering Mobility Sayfa 43/46 Bluebird Soft Inc.
www.mypidion.com
Trigger
TriggerTrigger
Trigger
You can the Scan mode of the Scan button.
Single
Single Single
Single : Scans one barcode each time you press the Scan button once.
Contin
ContinContin
Continuous
uous uous
uous : If you press the Scan button once, the laser is continuously emitted,
so that barcodes are read in a row.If you press the Scan button once again, laser
emission is stopped. If you scan the barcode, after a certain period of time, even
Empowering Mobility Sayfa 44/46 Bluebird Soft Inc.
www.mypidion.com
if it is read once, additional data can be read. You can set a certain period of time,
and the range is 0~9999, unit is ms(1/1,000 of 1 second), Default is 2222ms.
Multiple
Multiple Multiple
Multiple : If you press the Scan button once, laser is continuously emitted, so that
barcodes can be read in a row, but a read barcode is not read again.
If you press the Scan button one more time, laser emission is stopped.
System
SystemSystem
System
You can change the Power Save mode and password of the terminal.
Power Save Mode
Power Save ModePower Save Mode
Power Save Mode : Set to the Power Save mode for saving power.
If you do not use a terminal for a certain period of time (minute), the terminal is
changed to the Power Save mode.
Security Setting
Security SettingSecurity Setting
Security Setting : Set password.
• Password is up to 4 numeric characters.
• PIN Code : Set password.
• Confirm : Confirm password to be set.
• Press the Change button and turn off and on the terminal again, then, password
is changed.
Default Setting
Default SettingDefault Setting
Default Setting : All settings for the terminal are initialized to default setting. If you
execute this, theterminal reboots as initialization.
Erase all data
Erase all dataErase all data
Erase all data : Clear all barcode values saved in theterminal.
Empowering Mobility Sayfa 45/46 Bluebird Soft Inc.
www.mypidion.com
Q&A
Q&AQ&A
Q&A
If the terminal does not op
If the terminal does not opIf the terminal does not op
If the terminal does not operate normally, please refer to
erate normally, please refer toerate normally, please refer to
erate normally, please refer to
Q: Water comes into the barcode scanner. What shall I do?
A: First, remove the battery from the barcode scanner, and dry it up at the dry
place for a certain period of time.
Q: Power is not on.
A: Check if the battery is inserted properly and use after charging the battery for a
certain period of time.
Q: A battery is not charged.
A: Check if the barcode scanner is properly connected to the charger.
Q: Barcode is not scanned.
A: 1. Angle of scan many be incorrect. Scan at a right angle.
2. Barcode cannot be read if you scan barcode too far. Move close and scan
barcode.
3. The barcode may be damaged. Scan other barcodes for check.
Q: Barcode data scanned by PDA is not transmitted.
A: 1. When transmitting Bluetooth, check if PDA supports the Bluetooth function.
2. Check if the Bluetooth of PDA is set properly.
3. When sending Bluetooth through data cable, check if cable is connected
correctly.
Q: Data is not sent from PC.
A: 1. Check if data cable is connected properly.
2. Check if the connection program is correctly installed in a PC.
Q: Heat is generated in the barcode scanner
A: If you use the product for a long time, heat is generated sometimes. Use the
product in relief because product performance is not affected.
Q: Lifetime of a battery is reduced.
A: Batteries are consumables. Lifetime may be reduced depending on period of
use. Please, replace by a new battery.
If the terminal does not operate normally, please refer to:
※ If a problem still remains even if you check the above items, please contact a
nearby Customer Service Center.
※ The warranty period (one year after the purchase date) for the product is one
year.
Empowering Mobility Sayfa 46/46 Bluebird Soft Inc.
www.mypidion.com
Customer Service
Customer ServiceCustomer Service
Customer Service
[Before aski
[Before aski[Before aski
[Before asking for after
ng for afterng for after
ng for after-
--
-sales service]
sales service]sales service]
sales service]
• Before requesting after-sales service, the user needs to back up data in the
device in person.
• We do not backup products registered at the customers service center.
Therefore, we are not responsible for any damage or loss of data.
[Customer care center of Bluebird Soft Inc.]
[Customer care center of Bluebird Soft Inc.][Customer care center of Bluebird Soft Inc.]
[Customer care center of Bluebird Soft Inc.]
• Phone : +82-2-1588-1380
• Fax : +82-2-548-0870
• E-Mail : gcs@bluebird.co.kr
• Address : 1242, Gaepo-dong, Gangnam-gu, Seoul, Korea
[ Work hours]
[ Work hours][ Work hours]
[ Work hours]
• Mon.-Fri. : 9 A.M. ~ 6 P.M. (GMT Time: +9 Hours)
• We do not work on Saturday, Sundays and National Holidays.
[How to ask for after
[How to ask for after[How to ask for after
[How to ask for after-
--
-sales service]
sales service]sales service]
sales service]
• For after-sales service, please contact your local dealer or our customer care
center.
• Do not remove the label of the product on purpose.
• Make sure to deliver the product in a safe way.
Bluebird Soft is not liable for device loss during delivery.
For any enquires of problems or inconveniences while using the product please
call +82-2-1588-1380.

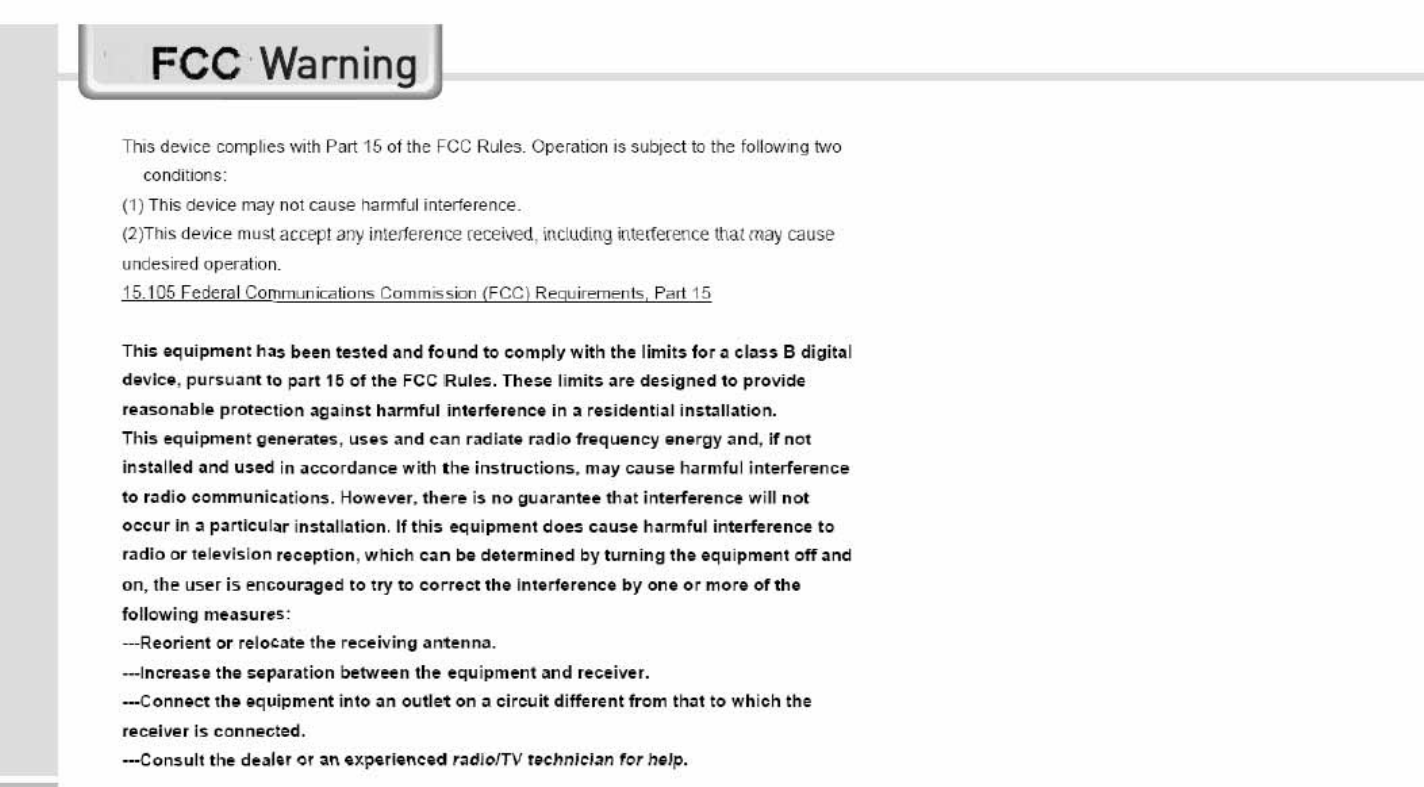

FCC Compliance Statement.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference
that may cause undesired operation.
Do Not.
Any changes or modifications to the equipment not expressly
approved by the party
responsible for compliance could void user’s authority to operate
the equipment.
