BOOMBOTIX MINI Portable Loudspeaker User Manual Manual

BOOMBOTIX, INC. Portable Loudspeaker Manual

Manual

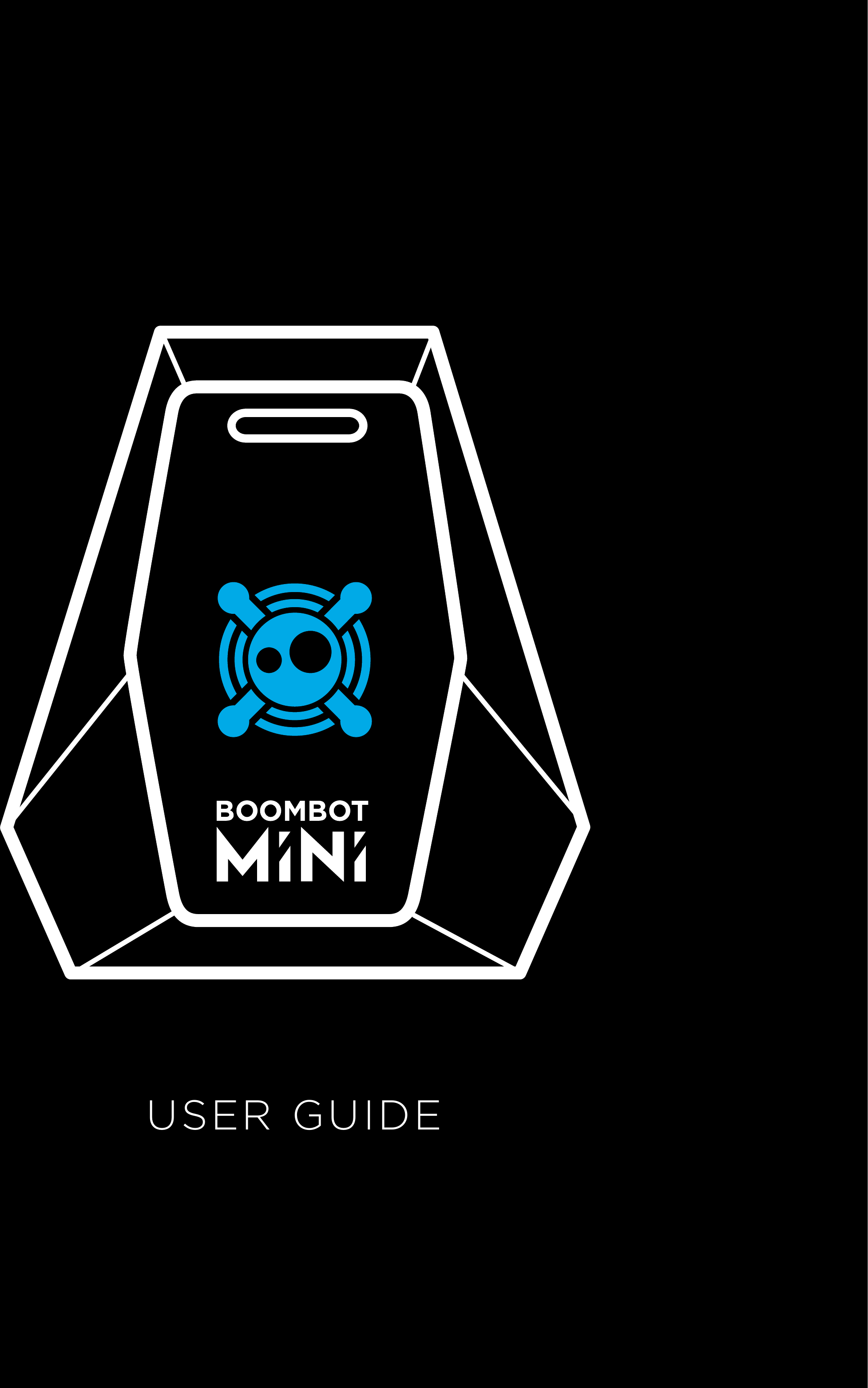

USER GUIDE

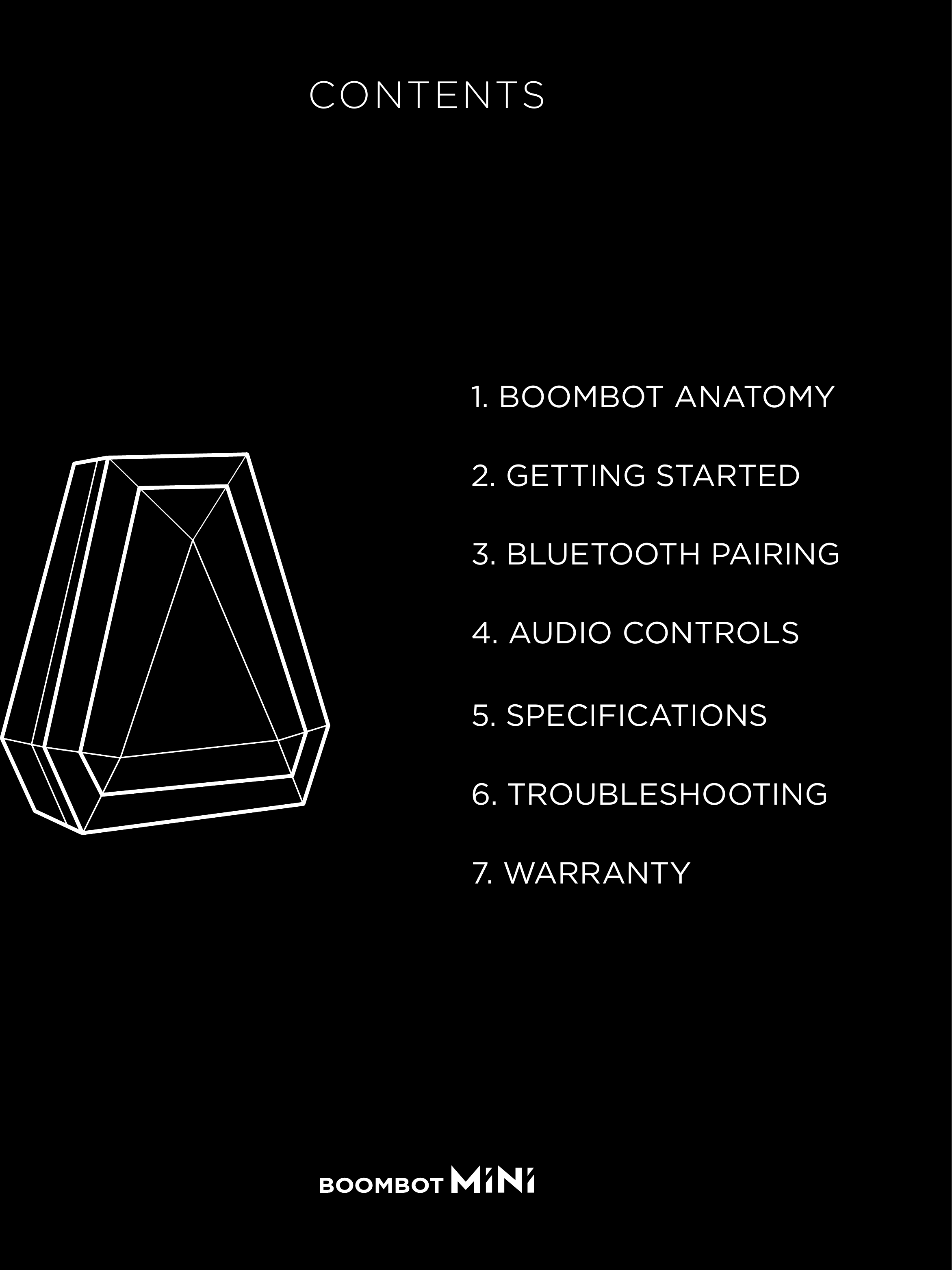

1. BOOMBOT ANATOMY2. GETTING STARTED4. AUDIO CONTROLS3. BLUETOOTH PAIRING5. SPECIFICATIONS6. TROUBLESHOOTING7. WARRANTYCONTENTS

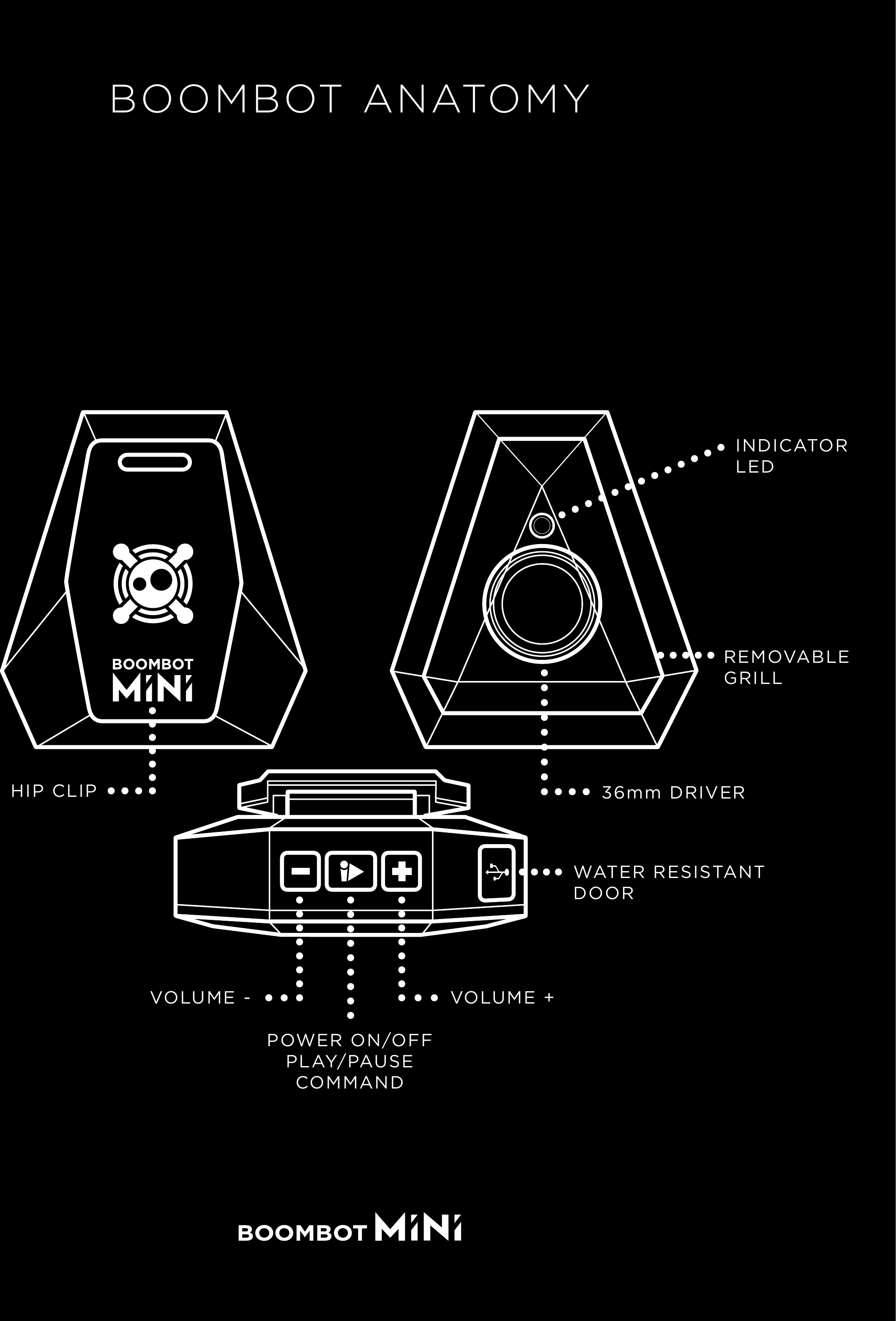

VOLUME +VOLUME -POWER ON/OFFPL AY/PAUSECOMMAND36mm DRIVERHIP CLIPREMOVABLEGRILLWATER RESISTANTDOORINDICATORLEDBOOMBOT ANATOMY

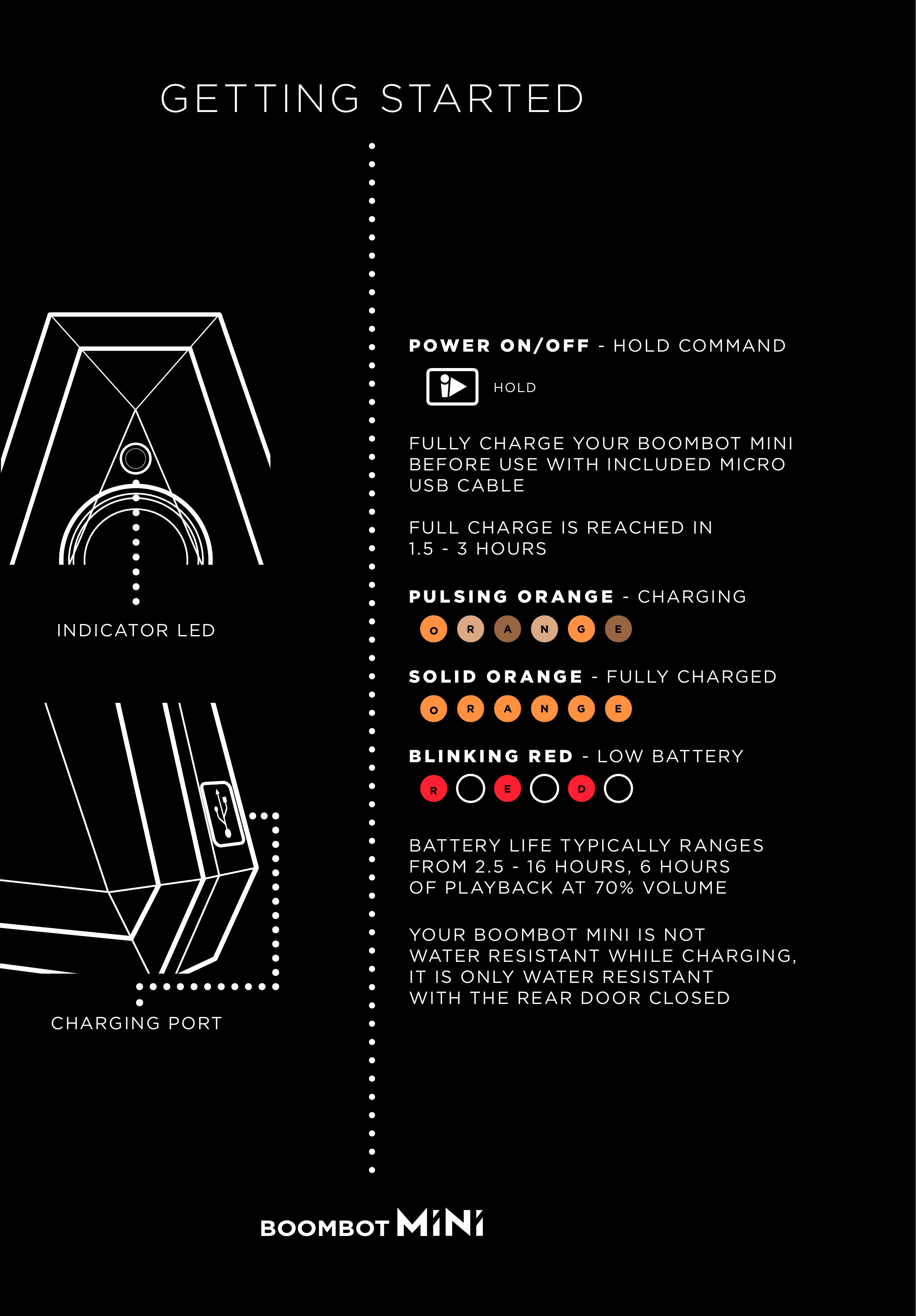

GETTING STARTEDFULLY CHARGE YOUR BOOMBOT MINIBEFORE USE WITH INCLUDED MICROUSB CABLEPULSING ORANGE - CHARGINGSOLID ORANGE - FULLY CHARGEDBLINKING RED - LOW BATTERYFULL CHARGE IS REACHED IN1.5 - 3 HOURSBATTERY LIFE TYPICALLY RANGESFROM 2.5 - 16 HOURS, 6 HOURS OF PLAYBACK AT 70% VOLUMEYOUR BOOMBOT MINI IS NOTWATER RESISTANT WHILE CHARGING,IT IS ONLY WATER RESISTANT WITH THE REAR DOOR CLOSEDINDICATOR LEDCHARGING PORTPOWER ON/OFF - HOLD COMMANDHOLD
BLUETOOTH PAIRINGYOUR BOOMBOT MINI CONNECTS EASILYWITH YOUR BLUETOOTH DEVICE1. POWER ON BOOMBOT MINI INDICATED BY A BLINKING BLUE LED2. SELECT BOOMBOT MINI ON YOUR BLUETOOTH DEVICE’S DISCOVERABLE DEVICE LIST3. BOOMBOT MINI WILL CHIME WITH A PAIRING ALERT AND A SOLID BLUE LEDYOUR BOOMBOT MINI WILL AUTOMATICALLY BE PAIRED TO THE MOST RECENTLY CONNECTED DEVICETO DISCONNECT YOUR BOOMBOT MINI, HOLD BOTH VOLUME BUTTONS (+ AND -) SIMULTANEOUSLY FOR 2 SECONDSTO RESET BLUETOOTH CONNECTION, HOLD BOTH VOLUME BUTTONS (+ AND -)SIMULTANEOUSLY FOR 2 SECONDSHOLD (2 SECONDS)HOLDHOLD

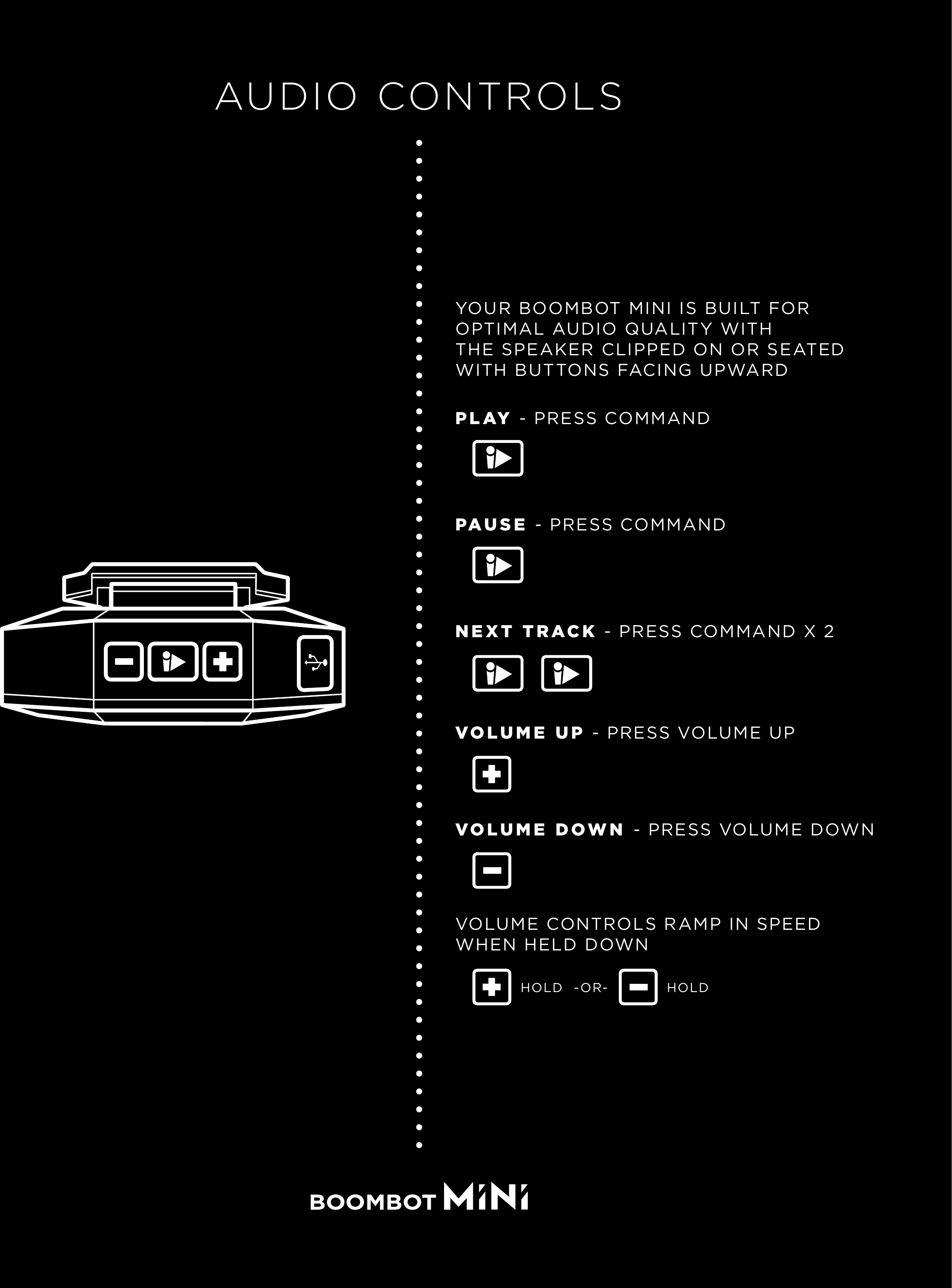

AUDIO CONTROLSYOUR BOOMBOT MINI IS BUILT FOR OPTIMAL AUDIO QUALITY WITH THE SPEAKER CLIPPED ON OR SEATED WITH BUTTONS FACING UPWARDPLAY - PRESS COMMANDPAUSE - PRESS COMMANDNEXT TRACK - PRESS COMMAND X 2VOLUME DOWN - PRESS VOLUME DOWNVOLUME UP - PRESS VOLUME UPVOLUME CONTROLS RAMP IN SPEEDWHEN HELD DOWN-OR-HOLD HOLD
SPECIFICATIONS6 HOURS OF CONTINUOUS PLAYPLAY TIMEPROPRIETARY 36MM 3W ACOUSTIC DRIVERAUDIOUP TO 14 DAYSSTANDBY TIME120g/ 4.25ozWEIGHT60mm L x 42mm W x 79mm HDIMENSIONSINPUT: BLUETOOTH WIRELESSOUTPUT: N/ASTEREO INFORMATIONBLUETOOTH-ENABLED DEVICES INCLUDINGiPHONE, iPAD, iPOD TOUCH, ANDROIDSMARTPHONES AND TABLETS, AND MOSTMAC OR PC COMPUTERSDEVICE COMPATIBILITYIPX4 WATER RESISTANTINGRESS PROTECTIONPROFILES: ADVANCED AUDIO DISTRIBUTION PROFILE(A2DP) 1.2, 50-FOOT RANGEBLUETOOTH 2.1RECHARGEABLE, NON-REPLACEABLE LITHIUM POLYMERBATTERY TYPE/CAPACITYDISPLAYED ON HANDSET, AUTOMATICALLYSHUTS DOWN AFTER 5 MINUTES OFINACTIVITY OR UNPAIREDBATTERY STATUSMICRO USB (CABLE INCLUDED)CHARGE CONNECTOR PORTLESS THAN 100 MINUTES FOR FULL CHARGECHARGE TIME (MAXIMUM)1-YEAR LIMITED WARRANTYWARRANTY AND SERVICE

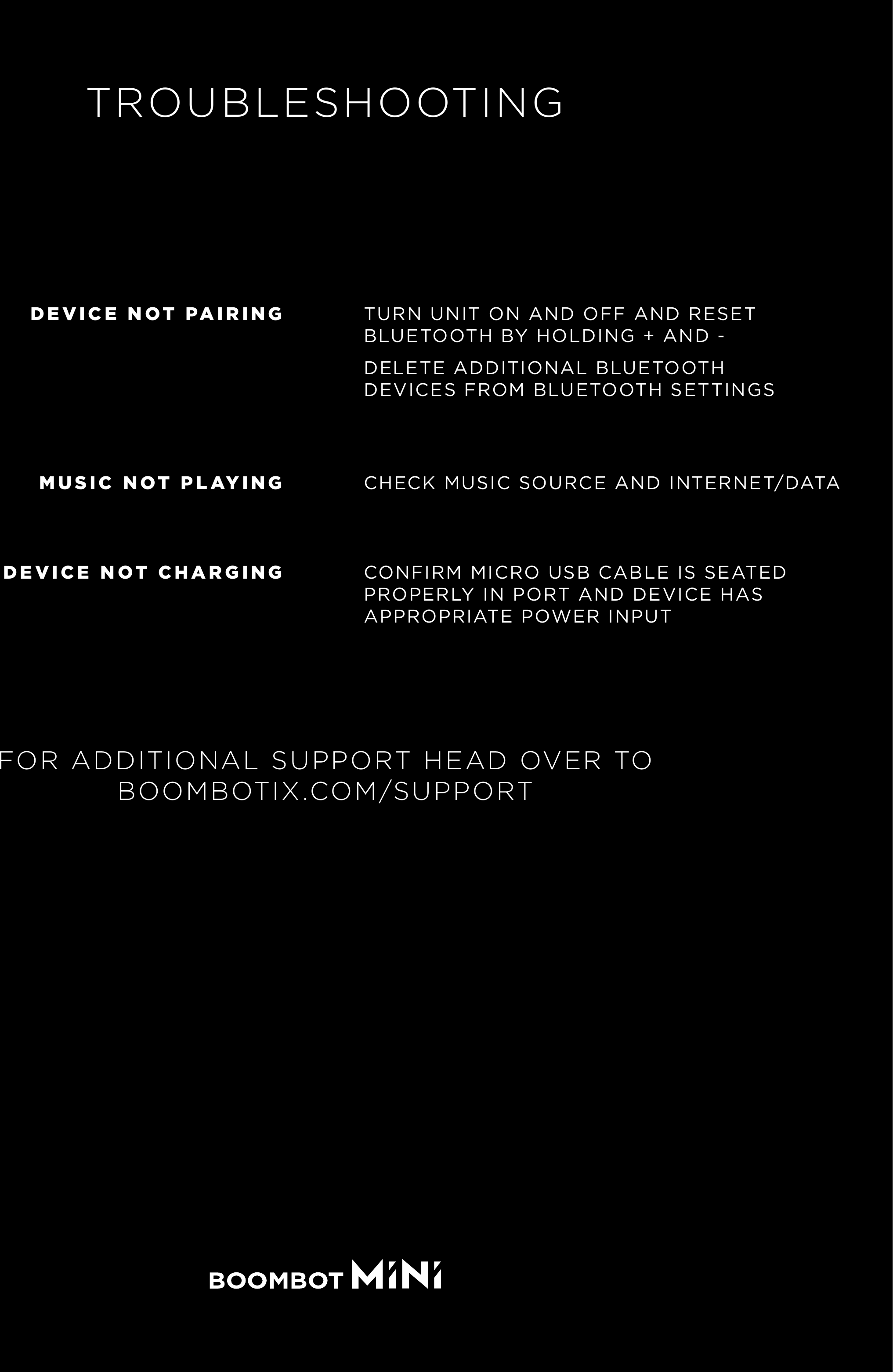

TROUBLESHOOTINGTURN UNIT ON AND OFF AND RESET BLUETOOTH BY HOLDING + AND -DELETE ADDITIONAL BLUETOOTH DEVICES FROM BLUETOOTH SETTINGSDEVICE NOT PAIRINGCHECK MUSIC SOURCE AND INTERNET/DATAMUSIC NOT PLAYINGCONFIRM MICRO USB CABLE IS SEATED PROPERLY IN PORT AND DEVICE HAS APPROPRIATE POWER INPUTDEVICE NOT CHARGINGFOR ADDITIONAL SUPPORT HEAD OVER TOBOOMBOTIX.COM/SUPPORT

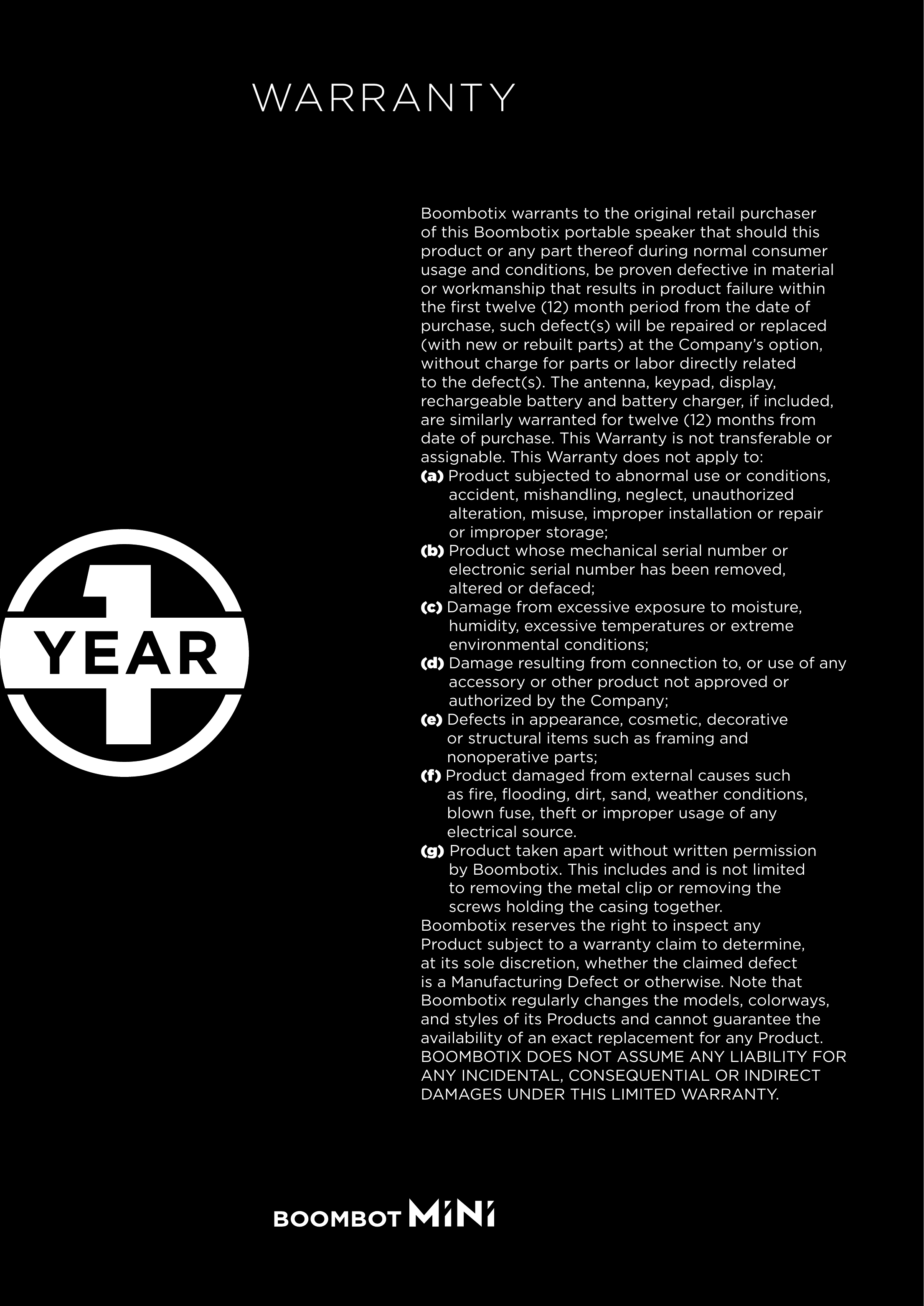

WARRANTYBoombotix warrants to the original retail purchaser of this Boombotix portable speaker that should this product or any part thereof during normal consumer usage and conditions, be proven defective in material or workmanship that results in product failure within the first twelve (12) month period from the date of purchase, such defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company’s option, without charge for parts or labor directly related to the defect(s). The antenna, keypad, display, rechargeable battery and battery charger, if included, are similarly warranted for twelve (12) months from date of purchase. This Warranty is not transferable or assignable. This Warranty does not apply to:(a) Product subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage;(b) Product whose mechanical serial number or electronic serial number has been removed, altered or defaced;(c) Damage from excessive exposure to moisture, humidity, excessive temperatures or extreme environmental conditions;(d) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company;(e) Defects in appearance, cosmetic, decorative or structural items such as framing and nonoperative parts;(f) Product damaged from external causes such as fire, flooding, dirt, sand, weather conditions, blown fuse, theft or improper usage of any electrical source.(g) Product taken apart without written permission by Boombotix. This includes and is not limited to removing the metal clip or removing the screws holding the casing together.Boombotix reserves the right to inspect any Product subject to a warranty claim to determine, at its sole discretion, whether the claimed defect is a Manufacturing Defect or otherwise. Note that Boombotix regularly changes the models, colorways, and styles of its Products and cannot guarantee the availability of an exact replacement for any Product. BOOMBOTIX DOES NOT ASSUME ANY LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES UNDER THIS LIMITED WARRANTY.

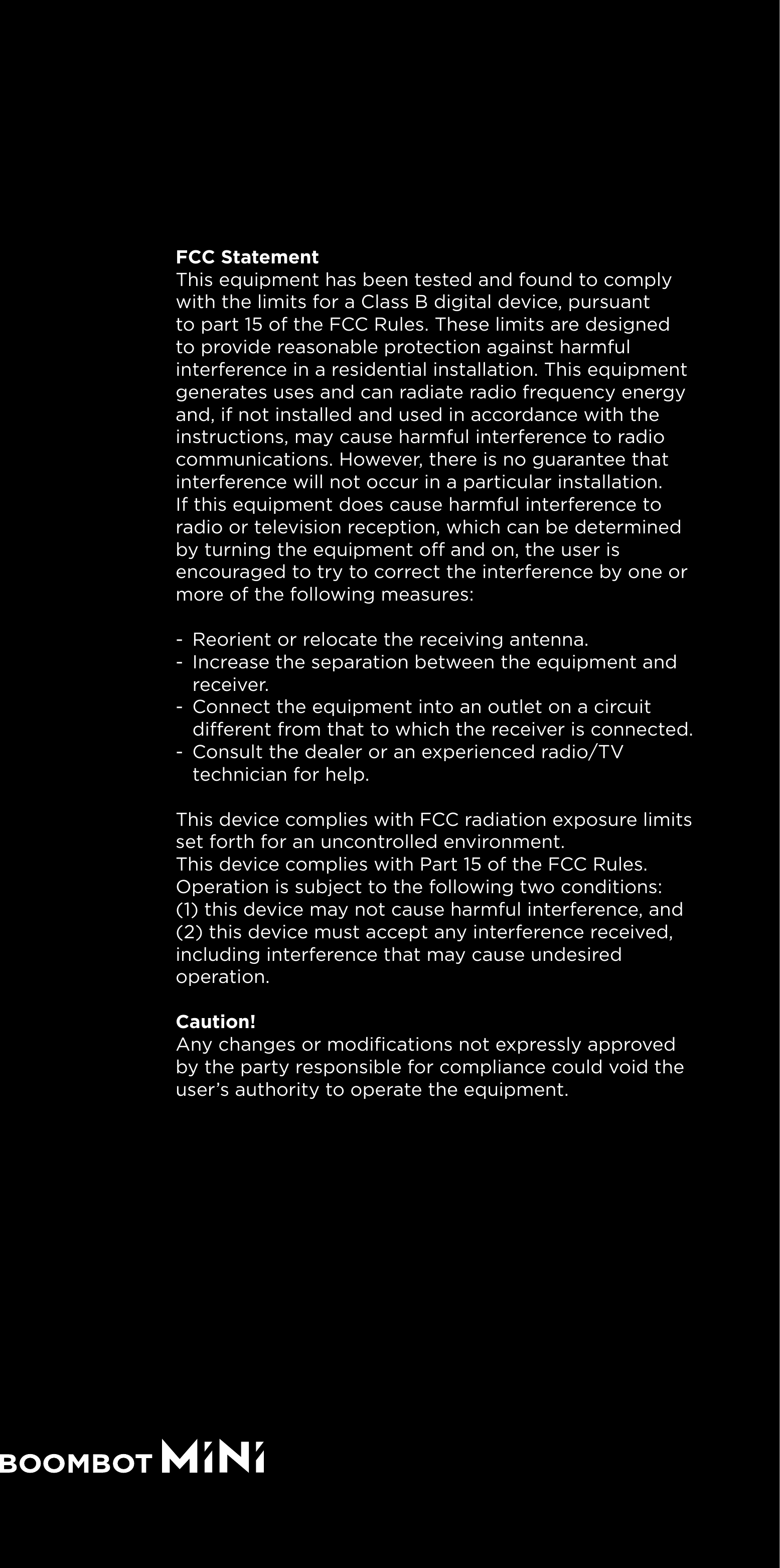

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
www.boombotix.com
