Operating Guide

Guia de uso

Notice d'utilisation

_3_OSE

,_ WARNING: To reduce the risk of fire or electric shock, do not expose the system to rain or moisture.

These CAUTION marks are located on your LIFESTYLE _ media center and Acoustimass ÷ module enclosures:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence

of uninsulated dangerous voltage within the system enclosure that may be of sufficient magnitude to constitute a risk

of electric shock.

The exclamation point within an equilateral triangle, as marked on the system, is intended to alert the user to the pres-

ence of important operating and maintenance instructions in this owner's guide.

,_ CAUTION: Toprevent electric shock, match wide blade of plug to wide slot, insert fully

Class 1 laser product

The DVD player contained within the media center is classified as a CLASS 1 LASER PRODUCT

according to EN 60825-1:1994 + A11. The CLASS 1 LASER PRODUCT label is located on the bot-

tom of the media center.

,_ CAUTION: Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure. The compact disc player should not be adjusted or

repaired by anyone except properly qualified service personnel.

Class B emissions limits

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Batteries

Please dispose of used batteries properly, following any local regulations. Do not incinerate.

Additional safety information

See the additional instructions on the Important .Safety Instructions sheet enclosed in the shipping carton.

Please read this owner's guide

Please take the time to follow this owner's guide carefully. It will help you set up and operate your system properly, and enjoy all

of its advanced features. Save your owner's guide for future reference.

,_ CAUTION: No naked flame sources, such as lighted candles, should be placed on the apparatus.

Manufactured under license from Dolby Laboratories "Dolby" and the double D symbol are trademarks of Dolby Laboratories, Confidential

"DTS" and "D TSDigital Surround" are registered trademarks of Digital Theater Systems, Inc

MPEG Layep3 audio compression technology licensed by Fraunhofer IIS and THOMSON multimedia

This product incorporates copyright pmtaction technology that is protected by method claims of certain U S, patents and other intellectual prop

erty rights owned by Macrovision Corporation and othe_ rights owners Use of this copyright protection technology must be authorized by Mac

rovision Corporadoh, and is intended for home and other [_mited viewing uses only unl_;ss otherwise authorized I_ Macrovision Corporation,

Reverse engineering or disassemb_ is prohibited,

This product incorporates copyright protected technology and other intellectual property nghts owned by Cirrus Logic, Inc, and subjL,ct to the

copyright protection of the US is well as other Iicansin_ restrictions and protections Use of this copyright protect_;_J technology is limited solely

to use with the Cirrus Logic integrated circuits incorporated in this product, Reverse engineering or disassembly is prohibited

Where to find ...

Introduction .................................................................... 5

Welcome ................................................................... 5

Types of discs you can play .................................................... 5

Check for region number compatibility ........................................... 5

Glossary ................................................................... 5

Controls and Indicators .......................................................... 7

The remote control .......................................................... 7

Media center controls and indicators ............................................. 10

Media center display window ................................................... 11

General System Operation ........................................................ 12

Turning your system on and off ................................................. 12

Making sound adjustments .................................................... 12

Volume ................................................................. 12

Changing the number of speakers playing ..................................... 12

Adjusting surround sound .................................................. 12

Using the headphones jack ................................................. 12

System settings ............................................................. 12

Using the sleep timer ......................................................... 12

Changing the video output for component video connections ......................... 12

Testing the TV on/off detector .................................................. 13

Playing a Video DVD ............................................................. 14

Before you play your first DVD .................................................. 14

Loading and playing a DVD .................................................... 14

Basic DVD operations ........................................................ 14

Using parental controls ....................................................... 15

Playing an Audio CD ............................................................. 16

Loading and playing a CD ..................................................... 16

Basic CD operations ......................................................... 16

Listening to AM/FM Radio ........................................................ 17

Turning the radio on .......................................................... 17

Tuning ..................................................................... 17

Setting a station preset ....................................................... 17

Erasing a station preset ....................................................... 18

Selecting a preset station ...................................................... 18

Playing External Sources ......................................................... 19

Controlling external sources .................................................... 19

Programming your LIFESTYLE_ remote to control your TV ............................ 19

Programming your LIFESTYLE remote to control your VCR ........................... 19

Programming your LIFESTYLE remote to control your cable/satellite box ................ 20

Turning the system on and selecting the source .................................... 20

Changing channels using a VCR or cable/satellite box ............................... 21

Recording to a tape deck ...................................................... 21

Changing System Settings ........................................................ 22

Using the settings menus ...................................................... 22

Changing DVD settings ........................................................ 24

DVD settings ............................................................ 24

DVD play options ......................................................... 24

Changing VCD settings ....................................................... 26

Changing CD settings ........................................................ 27

Changing FM settings ........................................................ 28

Changing AM settings ........................................................ 29

Changing TV/VCR/AUX/TAPE settings ........................................... 30

Making audio adjustments ..................................................... 31

Changing the system setup .................................................... 34

System setup menu ....................................................... 35

BVD setup submenu ...................................................... 36

Parental control setup submenu ............................................. 36

Remote control setup submenu ............................................. 37

Reference ..................................................................... 38

Changing the house code settings ............................................... 38

Setting up a second listening zone .............................................. 39

Taking care of your LIFESTYLE*_system .......................................... 40

Replacing the remote control batteries ........................................... 41

Troubleshooting ............................................................. 41

Technical information ......................................................... 44

Accessories ................................................................ 45

Warranty ................................................................... 45

Contacting customer service ................................................... 45

Conventions used in this guide

Operating instructions include names of buttons on the remote control and on the media cen-

ter front panel, and menu items appearing on your TV screen and on the media center dis-

play.

•Button names appear in boldface type. For example, "Press the CD/DVD button".

If a button has only a symbol, that will be used.

• On-screen display messages appearing on your TV screen will be in boldface type with a

line above and below. For example, "Use the Audio Setup menu to adjust the sound".

• Messages appearing on the media center display are represented by a narrow boldface

uppercase type. For example, "REPEAT:TRACKappears when the repeat disc track mode is

selected".

A box with dotted lines identifies what parts may vary with different systems or in different

countries.

Welcome

Thank you for purchasing a LIFESTYLE*_DVD-based home entertainment system. Through

proprietary Bose technologies and innovative LIFESTYLE" systems design, it delivers supe-

rior performance for both music and video programming from an elegant and easy-to-use

system.

,_ Note: Because DVD is a relatively new technology, please take the time to read through this

manual and familiarize yourself with the features of your new system.

Types of discs you can play

The DVD player in your system can play the following types of discs having the

corresponding Iogos:

• Video DVDs

• Video CDs (VCDs)

• Audio CDs 1011D°_

mBn'AL NJmD

• CD-Rs or CD-R/Ws

• MP3 CDs

Check for region number compatibility

For any DVD player and DVD disc to be compatible, their region numbers must match. These

numbers are allocated according to where the player and disc are sold.

Check the region number on the bottom of the media center included with your system. Then

be sure to choose only DVD discs that show the same region number on the disc label or

packaging.

For example, a Region 1 DVD player should display the following mark:

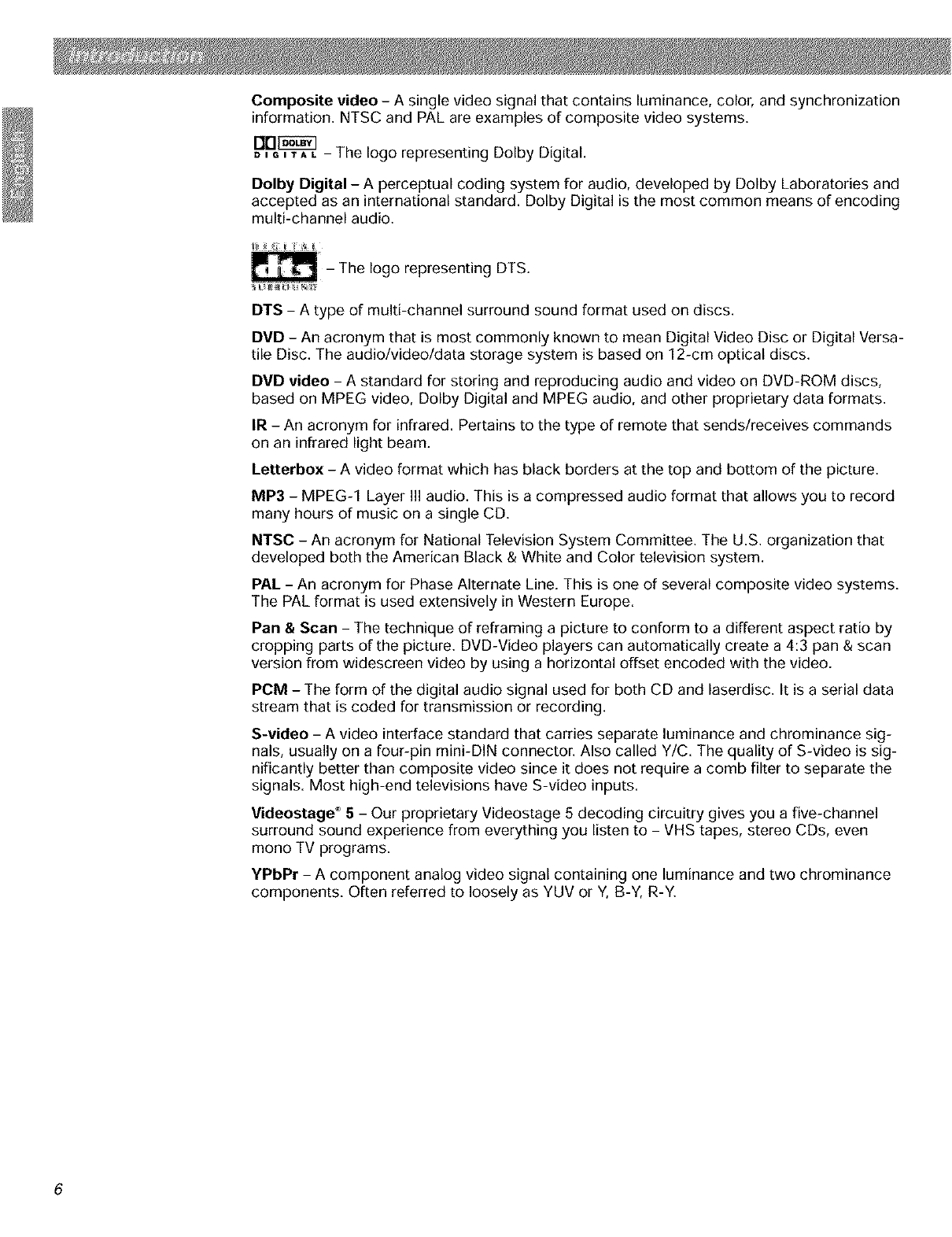

Glossary

Aspect ratio - The shape of the rectangular picture in a TV set expressed as the width of the

picture relative to the height. For example, if a TV picture has an aspect ratio of 4:3 (read as 4

by 3), the shape of that picture is 4 units wide by 3 units high. The two standard TV aspect

ratios are 4:3 and 16:9.

Chapter - In DVD-Video, a division of a title. Technically called a part of title (PTT).

Component video - A video system containing three separate color component signals,

either red/green/blue (RGB) or chroma/color difference (YPbPr), in analog or digital form. The

MPEG-2 encoding system used by DVD is based on color-difference component digital

video.

Composite video - A single video signal that contains luminance, color, and synchronization

information. NTSC and PAL are examples of composite video systems.

D[],D_ - The logo representing Dolby Digital.

Dolby Digital - A perceptual coding system for audio, developed by Dolby Laboratories and

accepted as an international standard. Dolby Digital is the most common means of encoding

multi-channel audio.

- The logo representing DTS.

DTS - A type of multi-channel surround sound format used on discs.

DVD - An acronym that is most commonly known to mean Digital Video Disc or Digital Versa-

tile Disc. The audio/video/data storage system is based on 12-cm optical discs.

DVD video - A standard for storing and reproducing audio and video on DVD-ROM discs,

based on MPEG video, Dolby Digital and MPEG audio, and other proprietary data formats.

IR - An acronym for infrared. Pertains to the type of remote that sends/receives commands

on an infrared light beam.

Letterbox - A video format which has black borders at the top and bottom of the picture.

MP3 - MPEG-1 Layer III audio. This is a compressed audio format that allows you to record

many hours of music on a single CD.

NTSC - An acronym for National Television System Committee. The U.S. organization that

developed both the American Black & White and Color television system.

PAL - An acronym for Phase Alternate Line. This is one of several composite video systems.

The PAL format is used extensively in Western Europe.

Pan &Scan - The technique of reframing a picture to conform to a different aspect ratio by

cropping parts of the picture. DVD-Video players can automatically create a 4:3 pan & scan

version from widescreen video by using a horizontal offset encoded with the video.

PCM - The form of the digital audio signal used for both CD and laserdisc. It is a serial data

stream that is coded for transmission or recording.

S-video - A video interface standard that carries separate luminance and chrominance sig-

nals, usually on a four-pin mini-DIN connector. Also called Y/C. The quality of S-video is sig-

nificantly better than composite video since it does not require a comb filter to separate the

signals. Most high-end televisions have S-video inputs.

Videostage ®5- Our proprietary Videostage 5 decoding circuitry gives you a five-channel

surround sound experience from everything you listen to - VHS tapes, stereo CDs, even

mono TV programs.

YPbPr - A component analog video signal containing one luminance and two chrominance

components. Often referred to loosely as YUV or Y, B-Y, R-Y.

The remote control

The advanced radio-frequency remote control works from anywhere within most homes. Sim-

ply press the desired button. You do not need to aim the remote at the media center.

J_ Note: Some types of buildings create "dead spots" where the remote will not operate. Move

the remote a Foot or two and try again. You can also move the media center a few feet to a

location with better remote response, or extend the media center's power cord which contains

the antenna Forthe remote control,

Power on/off and mute controls

-- FOU_CEJI_UT

dO do¸¸¸¸dO

-- pLayBACK--

Stop P_ _y

Turns the system on and off.

Mutes the volume for all connected speakers (all zones rooms).

and

Mutes/unmutes the volume in the current zone.

Source/input controls

Selects the built-in CD/DVD player and turns the system on.

Selects the built-in FM/AM tuner and turns the system on to the previously-selected

station. Switches between FM and AM when the tuner is on.

Selects the Tape source and turns the system on.

J_ Note: Your LIFESTYLE remote can be used to control your TV, VCR, or AUX device only after

it is programmed with the correct device code. See "Playing External Sources" on page 19,

Changes the external input to your TV. For example, your TV might have two exter-

nal inputs, one of which you connect to your cable box and the other to a VCR. This

button will allow you to alternately switch between these two inputs.

To use this function, (1) your TV's remote control must have a similar control button,

and (2) your LIFESTYLP' remote control must be programmed to control your TV.

TV - The top of this button turns your system on and selects your TV (if properly

connected) as the sound source.

Power - The bottom of this button turns your TV on and off.

VCR - The top of this button turns your system on and selects your VCR as the

sound source.

Power - The bottom of this button turns your VCR on and off.

AUX - The top of this button turns your system on and selects the AUX input (such

as cable box or satellite receiver) as the sound source.

Power - The bottom of this button turns your AUX device on and off.

The remote control -continued

System menu/navigation controls

=JEEJ_

-- SOURCEIIf_UT --

-- pLaYBACK --

-- AUDIO --

Spea_er_

rune

Ente_

Channel _

Chapter _::_;

Preset z_,_

lrack _:_,-

Displays or exits the menu of the DVD disc that is currently loaded.

Displays the electronic program guide of TV listings.

Steps you back to a previous level in the settings menu for the current

source,

Exitstheelectronicprogram guideofTV listings.

Displays or exits the settings menu for the current source.

Tunes the FM/AM radio up/down to the next higher/lower frequency.

Selects the next item, up or down, in the settings menu.

Seeks backward/forward to the next strong radio station.

Changes the setting of a menu item.

Enters submenus or submits settings, choices or entries to

the system.

Skips to the next/previous TV channel, DVD chapter, radio station pre-

set, or CD track.

Raises • or lowers • the volume of the current source. If the system

is muted, pressing • unmutes the current source in the current zone.

VolumePressing • lowers the volume setting without unmuting the current

source.

The numeric keypad allows you to access a DVD chapter, CD track,

TV channel, or a radio station preset by directly entering the desired

number. It also allows you to directly enter some system settings.

Skips to the previous TV channel (if your TV supports this feature).

The remote control -continued

-- SOURCEtlf_UT --

"o"

P_YB_CK

AUDIO

Playback controls

Note: All playback controls, except Shuffle and Repeat, can also be used to contro/ your

VCR. See "Programming your LIFESTYLE' remote to control your VCR" on page 19.

(_m3 Stops the disc player. For DVDs only, the system remembers the point where

the disc was stopped. Pressing Stop • a second time returns to the beginning

of the disc.

Pauses the disc player.

Starts the disc player.

(_ By pressing and holding, scans backward through the disc currently playing.

(_ By pressing and holding, scans forward through the disc currently playing.

Plays CD tracks in random order. Press Shuffle again to cancel this mode.

Repeats a CD, CD track, DVD chapter, or DVD title. Press Repeat again to

change the repeat mode.

Audio controls

Speakers

Pressing this button repeatedly changes the number of speakers playing

to 2, 3, or 5 speakers.

Surround

@ _ In surround (5-speaker) mode, raises (+) or lowers (-) volume of the surround

speakers.

Media center controls and indicators

The media center has a control panel and CD tray located under its front panel door. The

information display window fills the right half of the front (Figure 1).

Figure 1 Front panel door - lift up to open Display window

Media center front \

DVD/CDtray Control button panel

Media center control buttons

The media center has nine control buttons located under its front panel door.

On/Off

Turns the system on or off in zone 1.

AIlOff

Turns off the system and all connected speakers (all zones and rooms).

Source

Enter

Erase

Volume

I Opens/closesthe disc tray.

Steps through the available source selections.

Confirms storage of presets.

Removes a radio station preset.

Removes custom equalization settings.

Pressing • raises the volume of the system and unmutes the current

source, if muted. Pressing • lowers the volume of the system; if the

current source is muted, it stays muted.

Store

Stores a radio station preset.

Media center display window

Figure 2

Elements of the media

center display

The media center display window shows you information about your system (Figure 2).

Twenty characters display system messages and source-related information.

SLEEP Lights up when the system sleep timer is on.

ZONE-1 2 Lights up with either the 1 or the 2 to indicate the current zone,

STEREO Lights up to indicate that FM stereo is being received.

SETTINGS Lights up when settings menu information is being displayed.

SHUFFLE The appropriate icon lights up to indicate the current CD mode,

SHUFFLE or REPEAT,

REPEAT

i_ Lights up briefly whenever a remote control command is received by the

media center,

Note: When you make changes using the on-screen display on your TV,the changes may not

appear simultaneously on the media center's display

Turning your system on and off

You can turn your system on and off using the On/Off button on the remote control or the

media center button panel. When you turn it on with either On/Off button, the source that

was played last is automatically selected. You can also press any source button on the

remote to turn the system on and select the source at the same time.

Making sound adjustments

Volume

System volume can be raised or lowered using the Volume • • buttons on the remote or the

media center button panel.

Changing the number of speakers playing

When you turn on a source, the number of speakers used for that source is automatically

determined. For example, when you select FM, the front right and left speakers are used.

When you play a DVD video, all five speakers are turned on. You can change the number of

speakers used for any source by pressing the Speakers 2-3-5 button on the remote control.

Adjusting surround sound

The sound level of the surround (rear) speakers in your system can be adjusted in small steps

using the Surround + /- buttons on your remote. In surround (5-speaker) mode, Surround+

raises the volume; Surround- lowers it.

Using the headphones jack

For private listening, you can connect a headset to the headset jack located on the right side

of the media center. When a headset is connected, all ZONE 1 speakers are muted.

System settings

When necessary, the system settings can be changed using the system settings menus. See

"Changing System Settings" on page 22.

Using the sleep timer

Your system includes a sleep timer, which can be set to turn your system off automatically

after 10 to 90 minutes of listening to any source. This timer can be accessed through the set-

tings menu. See "Using the settings menus" on page 22.

Changing the video output for component video connections

If your TV or video monitor is capable of component video input signals, and you have con-

nected your TV to your system using the component video adapter (included), you must

change the video output setting in the settings menu to "YPbPr". This will enable the media

center to send the correct video signals to your TV.

To change the video output setting, see "Using the settings menus" on page 22, and

"Changing the system setup" on page 34.

Testing the TI! on/off detector

The TV on/off detector causes your media center to turn your TV on and off automatically

when you select a video source on your LIFESTYLE _remote. To make sure the detector is

mounted in the proper position on the back of your TV, follow these steps:

1. Turn your TV on.

2. Press the TM button on the LIFESTYLE ®remote.

3. Press the Settings button and scroll down to the "In/Status display.

If the display (Figure 3) indicates, Detected TV Power: On, the TV on/off detector

is workin 9 properly.

If the display indicates, Detected TM Power: Off, move the__detector

around until you find a position that changes this status to O_.

4. After you find the proper position for the detector, use the mountin 9 strip and attach the

detector to the back of your TV in that position. See "lnstallin 9 the TV on/off detector" in

your LIFESTYLE _Installation Guide.

Figure 3

TVStatus Display

This line indicates the

proper operation of

the TV ontoff detector.

Before you play your first DVD

This section tells you how to use the DVD player in your system to play video DVDs. Before

you play your first DVD, make note of the following:

• Make sure that you are familiar with the functions of the remote control buttons (see "The

remote control" on page 7). Although some remote control buttons look the same as those

found on a VCR or CD player remote, their functions are different.

• In order for some system features to work, the DVDs that you play must be encoded with

the information for that feature. For example, in order to display subtitles while watching a

movie, the disc must contain subtitle information.

• Both the DVD player in your system and the discs you play are coded by region. In order for

a disc to play, these region codes must match. Check the label on the media center or on

the shipping carton for your player's region code.

Loading and playing a DVD

1. Turn your television on.

2. Press @ to select the DVD player. If the system is off, this will also turn it on.

OpenlCtose

3. Lift up the media center front door and press O "

4. Insert the DVD disc into the tray (label side up).

Open/CI0se

5. Press _ to closethe disc tray.

If the DVD disc does not start to play automatically, press (_. Some DVD videos will

ask you to make some on-screen selections before the movie starts to play.

Note: Your system was set at the factory to automatically play a disc when it is loaded. This

feature can be turned off in the system settings menu. See "DVD setup submenu" on

page 36.

Basic DVD operations

If you want to: Do this:

Pause a DVD movie ...

Resume play ...

Stop a DVD movie ...

Skip to the next chapter ...

Press (_).

Press (_ or (_-_.

Press _ once. Pressing (_ continues the movie

from the point you stopped the movie.

Press (_ twice. Pressing _ starts the movie from

the beginning.

Press Chapter up. Cha,nel

Preset

Track

Basic DVD operations -cont.

If you want to:

Skip to the previous chapter ..,

Repeat a chapter ...

Search backward or forward ...

Do this:

Press Chapter down twice, cham_

c_ ®

Preset

Trad_

While playing the chapter you want to repeat, press _.

Press and hold (_ or (_).

Using parental controls

Playback restrictions can be placed on your DVD player by choosing a level of parental con-

trol and setting up a system password using the settings menu. See "Parental control setup

submenu" on page 36. For information on using the system settings menu, see "Changing

System Settings" on page 22.

The Motion Picture Association of America (MPAA) standard movie ratings are mapped to

specific parental levels of control in the following table. There are eight levels, each less

restrictive of content than the level below. The DVD player in your new LIFESTYLE +`home

entertainment system can be set to any of these eight levels.

Parental

MPAA Control

Rating Setting Audience Restriction

8 None

NC-17 7 Adult audiences

R 6 Mature audiences

5 Mature teenage audiences

PG-13 4 Teenage audiences

PG 3 Mature young audiences

2 Most audiences

G 1 General

The password you created will prevent unauthorized viewing of DVD videos having a rating

higher than the parental control setting. When you load a DVD video into a system having a

parental control setting of 4, for example, only DVD videos that have a MPAA rating of 4 (PG-

13) and lower can be played without entering a password.

The password also prevents others from changing the parental control setting without per-

mission.

Loading and playing a CD

Your system can play regular audio CDs and MP3 CDs. While playing a CD, the media center

display window will show you the track number, track time, and repeat or shuffle mode.

Press to select the CD player. If the system is off, this will also turn it on.

OpenlCtose

Lift up the media center front door and press O "

Insert the audio CD into the tray.

OpenlCIose

Press O to close the disc tray.

If the CD does not start to play automatically, press Play (_,0.

Basic CD operations

If you want to:

Pause a CD ...

Resume play of paused CD ...

Stop a CD ...

Go to next track ...

Do this:

Press _.

Press _ again or (_:).

Press _).

Press Track up. c_,_

Go to beginning of current track ...

Go to a previous track ...

Scan a CD backward/forward ...

Randomly play CD tracks ...

Cancel random play ...

Repeat a track

Repeat a CD

After track has played for several c,_,_,

seconds, press Track down.

If track has played for several c_

seconds, press Track down

twice. T,_c_

If not, press once.

Press and hold scan backward (_ or forward (_).

Note: The scan feature is not available for MP3 CDs.

Press _ after loading CD.

Press _ while in Shuffle mode.

Press _t_ after loading a CD.

Press _'_ twice after loading a CD.

Turning the radio on

Press O on the remote to select the radio tuner. If the system is off, this will also turn it on.

When it turns on, the radio will be playing the most recently selected FM or AM station.

Tuning

You can tune to a radio station in the following ways:

If you want to:

Switch between FM and AM ...

Seek the next strong station ...

Manually tune to a station ...

Select a preset station ...

Do this:

Press O on the remote.

Press Seek (_ or (_) on the remote.

Press Tune (_) or (_) on the remote.

Cha_E

Press Preset Cha_

or T_

Key in a preset number on the keypad and press _.

Setting a station preset

Your LIFESTYLE" media center can store up to 25 AM and 25 FM stations.

1. Lift up the media center door.

2. Using the remote, tune to a radio station you want to store as a preset.

3. Press _ on the media center. The display shows, STORETO PRESET<number>?,

where <number>is the next lowest available preset number. If you do not want to store to

this preset number, nrr_<<pr_=t c_, Q up or down to change the preset number.

preset @Trac_

4. Press _ again or press gll to save the preset. The display shows,

STATIONSAVEDto <number>.

Note: tf you attempt to store more than 25 AM or 25 FM stations, the media center will display

the message,

ALLPRESETSFULL...... ERASEA PRESET

Note: Tochange an existing preset, &st you must erase the preset station and then store a

new station to that preset number

Erasing a station preset

1. Lift up the media center door.

2. Using the remote, select the preset you want to erase.

3. Press 6 on the media center. The display shows, ERASEPRESET<number>?

4. Press _ again to delete the preset. The display shows, PRESET<number>ERASED.

Selecting a preset station

You can select preset stations using the remote control or the on-screen settings menu.

To select a preset with the remote control:

•Key-in the preset number on the numerical keypad, or

Chanr_

• Press Preset or

c_ up down to change the preset number

T_ac_

To select a preset using the settings menu:

1. Press on the remote and select the FM or AM source.

2. Press _. (Make sure your TV is on.)

3. Press (_ and select Preset.

4. Press (_)/(_ to step through the preset stations.

Controlling external sources

Follow the instructions in your LIFESTYLE _Installation Guidefor connecting an external com-

ponent. Turn on your component directly or by using its remote control. If you like, you can

program your new LIFESTYLE' remote to control your external component. The LIFESTYLE'

remote can be programmed for most brands of TVs, VCRs, and cable/satellite control boxes.

Your media center has an infrared (IR) emitter behind the media center display to communi-

cate with any component your remote is programmed to control. However, a component may

be positioned where it cannot receive the IR signals emitted from the front of the media cen-

ter. If you experience difficulty operating one of your components, you can install the optional

IR emitter cable included with your system. See "Connecting the optional IR emitter cable" in

your LIFESTYLE _Installation Guide.

Programming your LIFESTYLE* remote to control your TV

If you want to control your TV with your LIFESTYLE' remote control, you can program it to

operate your brand of TV using the system settings menu. See the "Remote control setup

submenu" on page 37.

1. Turn on your TV.

2. Press the TV button on the LIFESTYLE ®remote control.

3. Press the Settings button.

4. Select System Setup and press Enter.

5. Select Remote Control Setup and press Enter.

6. TV Brand is selected first. Press (_ until your TV brand name is shown.

7. Select TV Device Code. The first 4-digit device code is shown.

8. Press TV Power on the LIFESTYLF' remote control to see if the TV turns off.

9. If you cannot turn off your TV, press (_ to choose the next device code, and press the

TV Power button again. Test each device code until you find one that turns your TV off

and on again when pressing the TV Power button.

Programming your LIFESTYLE* remote to control your VCR

If you want to control your VCR with your LIFESTYLE' remote control, you can program it to

operate your brand of VCR using the system settings menu. See the "Remote control setup

submenu" on page 37.

1. Turn on your TV and VCR.

2. Press the VCR button on the LIFESTYLP' remote control.

3. Press the Settings button.

4. Select System Setup and press Enter.

5. Select Remote Control Setup and press Enter.

6. Scroll down the menu and select VCR Brand. Press _ until your VCR brand name is

shown.

7. Select VCR Device Code. The first 4-digit device code is shown.

Press VCR Power

off.

on the LIFESTYLE _ remote control to see if the VCR turns

If you cannot turn off your VCR, press (_ to choose the next device code, and press

the VCR Power button again. Test each device code until you find one that turns your

VCR off and on again when pressing the VCR Power button.

Programming your LIFESTYLE* remote to control your cable/satellite box

If you want to control your cable/satellite box (connected to the AUX input) with your LIFE-

STYLE" remote control, you can program it to operate your brand of cable/satellite box using

the system settings menu. See the "Remote control setup submenu" on page 37.

1. Turn on your TV and cable/satellite box.

2. Press the AUX button on the LIFESTYLP' remote control.

3. Press the Settings button.

4. Select System Setup and press Enter.

5. Select Remote Control Setup and press Enter.

6. Scroll down the menu and select AUX Device. Press (_ to select cable or satellite.

7. Scroll down once more and select AUX Brand. Press _ until your cable/satellite box

brand name is shown.

8. Select AUX Device Code. The first 4-digit device code is shown.

9. Press AUX Power

lite box turns off.

_F on the LIFESTYLE _remote control to see if the cable/satel-

10. If you cannot turn off your cable/satellite box, press (_ to choose the next device

code, and press the AUX Power button again. Test each device code until you find one

that turns your cable/satellite box off and on again when pressing the AUX Power button.

Turning the system on and selecting the source

Press the Tape (tape), VCR, or AUX button on the remote or press Source on the media cen-

ter until the desired component is selected. This turns your system on and selects the com-

ponent connected to that input. If the system is already on, this button selects the

component.

,_ Note: Selecting an external source turns the system on in surround (5-speaker) mode,

Press the Speakers 2-3-5 button to change the number dspeakers playing.

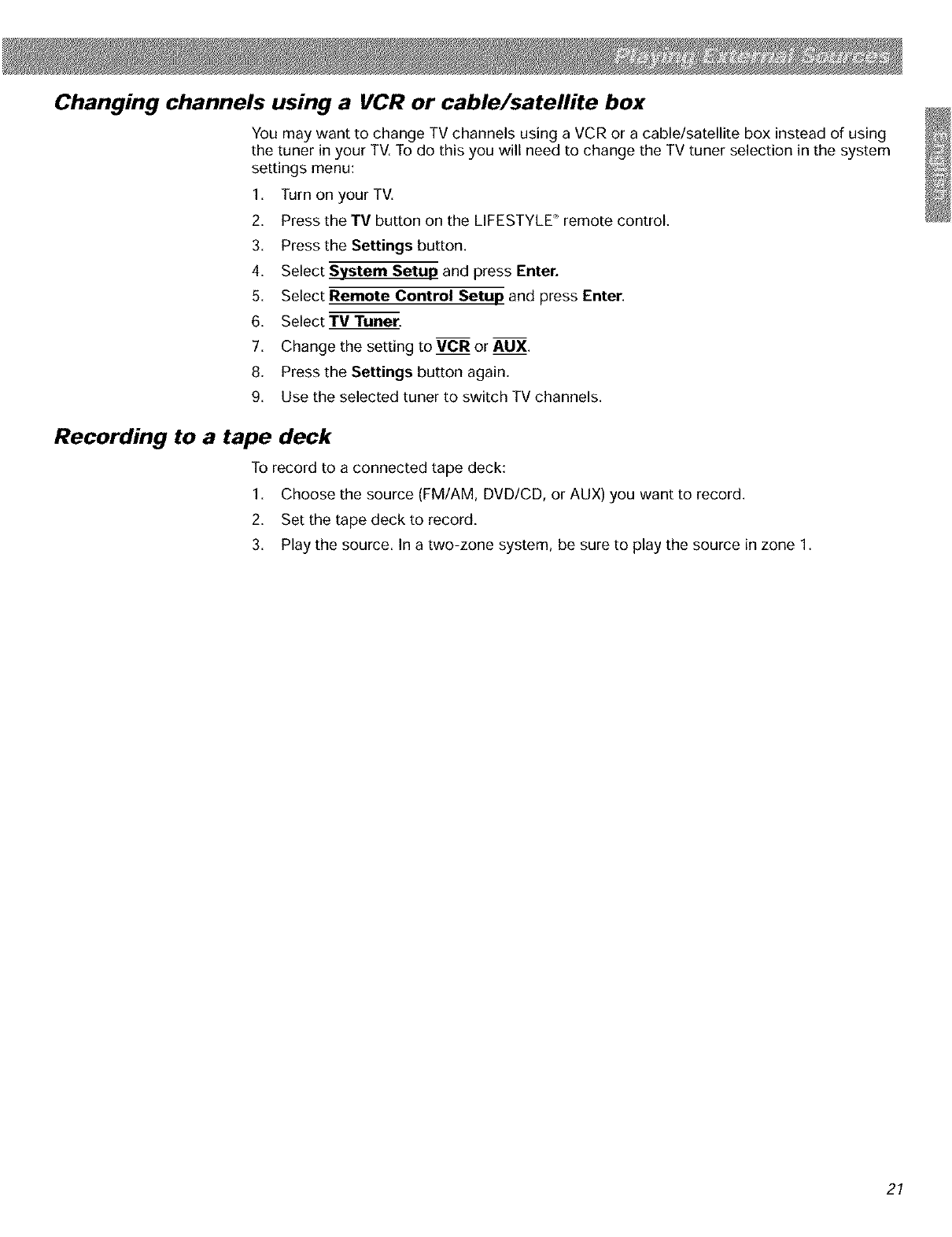

Changing channels using a VCR or cable/satellite box

You may want to change TV channels using a VCR or a cable/satellite box instead of using

the tuner in your TV. To do this you will need to change the TV tuner selection in the system

settings menu:

1. Turn on your TV.

2. Press the TV button on the LIFESTYLE'*' remote control.

3. Press the Settings button.

4. Select _stem Setup and press Enter.

5. Select Remote Control Setup and press Enter.

6. Select TV Tuner.

7. Change the setting to VCR or AUX.

8. Press the Settings button again.

9. Use the selected tuner to switch TV channels.

Recording to a tape deck

To record to a connected tape deck:

1. Choose the source (FM/AM, DVD/CD, or AUX) you want to record.

2. Set the tape deck to record.

3. Play the source. In a two-zone system, be sure to play the source in zone 1.

IUsing the settings menus

To display the settings menu on your TV screen:

Press the Settings button. Ihe displayed menu will contain items related to the currently

selected source. For example, if you press the Settings button while watching a DVL) you will

see a menu similar to the one in Hgure 4. I his metal is generated by your LII-ES I YLE_system

and not by the currently loaded L)VD.

Note: When you make change5 us#_g the an-screen display an '!our TV,the changes may not

appear _i#'_u/taoeou'_, on the media center's di_p/sy

Figure 4

=_____

_£££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££__

_££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££_

Title bar- shows the

name or the current menu

(the currently selected

source is in parentheses).

iiiiiiiiiiiiiiill_

Monu=tern=-a,_stor iiiiiiiiiiiiiiiii

choices iS ShOWn in iiiiiiiiiiiiiiiiiii......................................................................................................................................_$}_is_a_s_i_3_rI_e_f_i_i_s_f_h_is_se_ti_r_

,=,sspace, iiiiiiiiiiiiii miiiiiiiii]iiiiiiiiiiiiiiiiii,iiiiiii=iiiiiiiiiiiiiiiiiiii i iiiiiiii

__________________________________________________________________________________________________________________iiiiiiiiiiiiiiiiiiiii_Ii!iii !Ii ii i i.iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Menu item description -

Describes the selected

menu item.

Na_gation controls -Identifies which remote

control buttons to use within this menu.

Status display area -

this area is used to

display status infor-

mation when a status

item is selected.

To navigate around in the settings menu:

Use the MENU/NAVIGATION buttons on your remote to move within the on-screen menus.

Figure 4 shows you the elements of the on-screen menu displays.

To select a menu item and change the setting:

Selected items are highlighted with a lighter color. Use the up/down arrow buttons (_ _ ) to

scroll up or down the list and select the item you want. Io change the setting use the right

and left arrow b!.lttons (_ _).

Figure 5

on-screen dls:PJ_O"

To _ter a submenu:

When you see the Enter button symbol to the right of' the selected item, that item has a sub- []

menu of additional items. With the item selected, press Enter to go to the submenu. I

To exit a submenu

Pressing the Exit button on the remote steps back one level in the menu structure.

To exit the settings menu and clear it from your TV screen:

Press the Settings button again.

To change a set#ng

Select the item you want to change using the up/down arrow buttons. Press the left or right

arrow button to choose the desired setting. Select another item to change or press the Set-

tings button to leave the settings menu.

_____£

______

iilililililililili iililililililililililililililililililililililililililililililililililililii

iiiiiiiiiiiiiiiiii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiii _iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiii iiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiii _iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiii iiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiii_ m_:iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiii.............................................................................................................................................................................................iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiii iiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

____

iiiiiiiiiiiiiiiiii_, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiii _iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

___£££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££££__

To view the system status

I he settings menu provides a selection for displaying the status of the currently selected

source. Press the Settings button to step down to the status selection. I he system status is

shown on the right-hand side of the menu display (see Figure 4).

IChanging DVD settings

While playing a DVD movie, there are several play options that can be changed. Figure 6

shows you a map to the DVD Play Options menu.

Figure 6

DVD settings

DVL) Play Options See "L)VD play options" table.

Sleep limer: Off I imer not active.

00:00 I urns system off after set time expires (10 to 90 minutes).

DVD Status: Displays information about the DVD source.

Audio Setup See "Making audio adjustments" on page 31.

System Setup i See "(.:hanging the system setup" on page 34.

]

DVD play options

I itle: of Chooses the movie title that corresponds with the num-

ber you entered.

Chapter: of Chooses the movie chapter that corresponds with the

number you entered.

I itle Iime: Allows you to enter and go directly to an elapsed or

remaining time in a movie.

Iime Display:

00:00:00

Elapsed

I,Zemaining

Displays elapsed time in the media center window and in

the on-screen DVD Status window.

Displays remaining time in the media center window and

in the on-screen DVD Status window.

Motion Control: <<Scan/<<4x/ Chooses direction and speed of DVL) playback (Scan --

<<2x/l_ause/ 8x).

Play 1_'2x>>/

4x.,>/Scan.,>

Audio I rack: Irack Chooses one of the available sound tracks on the DVL).

Note: Ma._5,DVL)s will not aflow you to make thLsselec-

tion here I,_avaflsb_e, use the setup menu on the DVD

d_scyou are pl_/_ng. 70 do this, press the DVD Menu bu#

tol_.

Camera Angle of Chooses one of the available camera angles on the cur-

rent DVD.

Subtitle: On Displays subtitles in the lower portion of your lV screen.

Off' Hides subtitles. Use this setting if you choose to use

automatic subtitles {see "DVD setup submenu" on

page 36).

Subtitle Lang _ Chooses one of the available subtitle languages on the

Language: current DVD.

AB Repeat Repeats a speciried section of the DVD movie. Move to

point A in the movie and press Enter. I hen, move to

point "B" in the movie and press Enter. Ihe speciried

scene is repeated until you press Enter, Play, or Stop.

IChanging VCD settings

Io change the VCB settings, press the Settings button while a VCD disc is loaded in the disc

tray and the CI_)/I_)VDsource is selected. Figure 7 shows you a map of the VCD settings

It_enu.

Figure 7

,T,_e VCD s_t_inqs _;_ienu

Sleep limer: Off' I imer not active.

00:00 ILIrns systelt'l of_ after set time expires (10 to ,r.J0minLites).

Irack: of Chooses a VCD track.

I rack lime: 0:00:00 Chooses a time in the current VCD track. Use the

numeric keypad to enter a speciNc time.

VCD Status: Displays information about the CD source.

Language Both Chooses the soundtrack language for the VCD.

Audio Setup See "Making audio adjustments" on page 31.

System Setup See "Changing the system setup" on page 34.

Changing CD settings

Io change the CD settings, press the Settings button while the CD source is selected.

Figure 8 shows you a map of the CI_)settings menu.

Figure 8

me CDS_ menu /

iiM '#ii iiiiiiiii ii tI iii iii iii ii i 'gii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Sleep limer: Off I imer not active.

00:00 I[_rns system off after set time expires (10 to 90 minutes).

Irack: of Chooses a CD track.

I rack lime: 0:00:00 Chooses a time in the current CD track. Use the numeric

keypad to enter a speciric time.

CD Status: Displays information about the CD source.

Audio Setup See "Making audio adjustments" on page 31.

System Setup See "Changing the system setup" on page 34.

+ +

IChanging FM settings

I0 change the I-M settings, press the Settings button while the I-M source is selected. Hgure

9 shews you a map of the FM settings menu.

Figure 9

Sleep limer: Off I imer is not active.

00:00 I urns the system off after set time expires (10 to 90 minutes).

Station: I unes the FM tuner to the station frequency entered on the

numeric keypad.

Preset: _ of 25 I unes the FM tuner to an FM preset station.

FM Status: Displays information about the FM source.

RDS info: On Makes RDS information appear in the media center display.

iFor Eulepeorlly) Oft' Makes RDS information unavailable to the media center.

Output Mode Auto Automatically chooses stereo or mono for FM broadcasts

Stereo Always plays the FM broadcast in stereo (if available)

Mono Always plays the FM broadcast in mono

Audio Setup See "Making audio adjustments" on page 31.

System Setup See "Changing the system setup" on page 34.

Changing AM settings

Io change the AM settings, press the Settings bLitton while the AM soLirce is selected.

Figure 10 shows you a map of the AM settings menu.

Figure 10

iiIiiiIiiiiiiiiiiiimi

Sleep limer: Off Iimer is not active.

00:00 lurns the system off after set time expires (10 to 90 minutes).

Station: I unes the AM tuner to the station frequency entered on the

numeric keypad.

Preset: _ of 25 I unes the AM tuner to an AM preset station.

AM Status: Displays information about the AM source.

Audio Setup See "Making audio adjustments" on page 31.

System Setup See "Changing the system setup" on page 34.

IChanging TWi/CR/AUX/TAPE settings

Figure 11

_e D/ i VCI,?i AUX i

TAPEse_inge menu

Io change the settings for the I\ VCR, AUX, or IAPE source, press the Settings button while

one of these sources is selected. Figure 11 shows you a map of the settings menu when one

of these sources is selected.

+I imer not active.

ILlrnssystem off after set time expires (10 to 90 minLites).

I V, VCR, AUX or Displays information about the IV /VCR /AUX /IAPE

IAPE StatLis: source.

Audio Setup See "Making audio adjustments" on page 31.

Analog Input: Adjusts the IV /VCI,Z/AUX /IAPE analog audio level. Use

this adjustment if an external analog source sounds much

louder or softer than the other sources.

Digital Input: Adjusts the IV /VCI,Z/AUX /IAPE digital audio level. Use

this adjustment if an external digital source sounds much

louder or softer than the other sources.

System Setup See "Changing the system setup" on page 34.

Sleeplimer: Off

mm:ss

-6/-3/0/3/6

Making audio adjustments

You can make some audio adjustments for each source indMdually. Figure 12 shows you

how to get to the Audio Setup menu:

1. Press the Settings button. A menu of the available settings for the current source

will be displayed on your I V screen.

2. Using the down navigation button (_.), scroll down the list and select (highlight)

Audio Setu R.

3. Press the Enter button and the audio settings will be displayed for the current source.

Figure 12

me _ud/o setup

SUOqleFIU

_(Note 1)

NOt_:

l r Does rlo_.appear for FM, AM, or CD.

2r Appears only wtlerl Dolby 1+1 is riot availabler

3r Appears only when a disc contairls a Dolby Digital 1+1 audio track,

4r 1-tie ADAP1-iQ audio calibration Sy'teiriri rria_, riot be included with

your LIFES1-YLE ®system. Contact your Bose" dealer:

+ +

Menu Item Settings What each setting does

Movie EQ: On Automatically sets bass and treble compensation for the proper playback of movie

sound tracks.

Off Movie EQ mode is Off.

Range On

Compression: Automatically adjusts the volume to allow you to hear soft sounds (particularly dialogue)

and to prevent you from being overwhelmed by a loud special effect, such as an explo-

sion. Ihis feature is normally engaged when you turn the system on to DVD, I V, VCla,

AUX, or IAPE.

Off I@nge compression is off.

L)olbvDigital 1+1: 1/2/Both Selects Irack 1, Irack 2, or both of the L)olby Digital 1+1 (dual mono) audio tracks.

IMenu Item Settings What each setting does

Mono Decoding: On Automatically engages Bose _Videostage _ 5 mono decoding circuitry when a Dolby

Digital bitstream indicates that it contains a mono program. Ihis feature can process a

one-channel program into five-speaker sound directing the signals so that dialogue

remains locked on-screen, while music and ambient effects rill the room. You experi-

ence a surround sensation, providing extra enjoyment when you watch older {that is,

pre-stereo) movies. I his feature can be used for mono I V shows and movies when you

select IV, VCR, AUX, or IAPE.

Off Mono decoding is off.

Center Channel: -8 to 8 Focuses or softens the presentation of center-channel sound. In 2-speaker mode "--"

appears instead of a nLiitleric valtle.

Audio Status: Displays system audio information. See the example in Figure 13.

ADAPliQ TM On Makes audio adjustments based on the audio calibration process performed when you

played Setup Disc 2. Ihese audio adjustments compensate for your room furnishings

speaker placement, and listening locations you selected during the process.

Off Erases the ADAPliQ system adjustments and reverts to the factory settings.

e,_ol a lo,.o, e_e, olL-_e,o eo_o,e ,,.e ADAP, Q o_o,e,., _fiuo, ,e,.,,o, ,o_ ,.,_,,,_ _,,._,

complete the p'_mcess on Setup Disc 2 aga_'_

- - You have not performed the ADAPliQ audio calibration on Setup Disc 2.

Note: _heADAP;qQ

sjst_ _ _': "_Ot b_

LIFES I YL r_ s,}_e_h,

Ireble -14 to +14

Compensation: After

ADAt>HQ

d,C%on,

-9 tO +6

Decreases (-) or increases (+) the treble sound.

l?ooms wi_ few sound-absorbing

floors and walls, may"sound overly

sound can be usef_fl. Conversely, rooms

furnishings, such as upholstered furniture,

drapes, can sound "dull" and may benefit b "

Different source materials, such as DVDs,

vary in the amount of treble they have.

You can decrease the treble sound by towerin_ this settin_

value from -Ito -I4. tO increase the treble, ra_sethis setting

value from +I to +I4.

Bass -14 to +14

Compensation: After

ADA_>tiQ

system

calibradon:

-9 tO +6

Decreases (-) or increases (+) the bass sound.

_lacement of the Acousdmass" module affects the amount of bass you

hea_ P,_cing the module e!osor to the corner of th,eroom wilt increase the

bass, Moving the module away from the corner #/itl deerP4_se the bass,

Different source materials, such as DVDs, CDS or radio stations, may also

vary in the amount of bass they have,

You can decrease the bass sound by lowering

value from -1to - I4, tO increase the bass, "

value from ÷I>÷ I4.

Figure 13 I

IChanging the system setup

Press the Settings button to open the Settings itlenLi on yoLir I V screen. Using the down

arrow button (J_), scroll down the list and select [highlight) _;ystem Setup. Press the Enter

button to display the System Setup menu. Ibis section explains each item in the setup menu

in detail.

Figure 14

Mei_US

[iisy_t_iis_6iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

System setup menu

I he system setup menu contains settings that affect the entire system.

Display Brightness: 1 to 7 Determines the brightness level of the media center display (7 -- brightest).

Display Language: English Presents on-screen display menus in the selected language.

Optical Source: IV /AUX /Assigns the O1_11CALINI_UI to one of the four sources.

VCR/IAI_E

/NONE

Optical Input: -6/-3/0/3/6 Adjusts the optical audio input level to match the input from the other sources.

Record Out Format: Original No processing applied for I,ZECOI,ZDDIGIIAL OUIPUI.

I_CM Presents 2-channel, mixed-down Pulse Coded Modulation (PCM) on the

I,_ECOI,_DDIGIIAL OUIPUI.

I V Power: Auto Automatically turns on your I V whenever a video source is selected (IV on/off

detector required).

Manual You must turn on your IV separately.

Send IR Commands: Off No IR commands are sent by your system to control your I V, VCR and AUX

components.

On Your system sends IR commands for all connected devices. Ihis setting may

be usef'ul to teach LIFESI YLE® remote commands to other II,Zremote controls.

Receive IR Commands: Off II,Zcommands are not received by your system.

On II,Zcommands from external equipment, such as universal remotes, are

received by your system.

luner Spacing: US Sets channel spacing for AM/I-M radio stations to the USA standard.

European Sets channel spacing for AM/I-M radio to the European standard (if available).

Video Format: NI SC Sets video format for NISC monitors.

PAL Sets video format for PAL monitors.

Video Black Level: Normal Sets the black level appropriate for most IVs.

Extended Sets a black level that may be preferred for DVL) playback on some I Vs.

Video Output: Normal Provides a video output at the COMPOSII E and S-VIDEO connectors.

YPbPr Provides component video output using the COMPOSII E and S-VIDEO con-

nectors (component video adapter required).

Zone 1 Protocol: Normal Provides the correct output at the SPEAKEI,Z ZONE 1 connector for the new

Acoustimass ®module that came with your system. Always use "Normal" for

zone 1.

Legacy Not used in zone 1 for this system.

Zone 2 Protocol: Normal Provides the correct output (variable level) at the SPEAKER ZONE 2 connector

for 8ose _ powered speaker systems, such as Acoustimass 5P and Acousti-

Legacy mass 20Ft

Provides the correct output (fixed level) at the SPEAKEI,Z ZONE 2 connector

for other Bose speakers that use the SA-1 LII-ES IYLE ®amplirier.

IDVD setup submenu

I he BVD setup submenu lists options for how the BVD player should operate, including

Parental Control.

iii i iiiiiiiiiiiii . iiiiiiiiiiiii ii i ÈI"gid ``iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

Auto Select On Where applicable, system automatically plays 5.1 channel

Audio Irack: audio track when available on a BVL).

Off Audio track must be selected manually.

Auto Subtitle: On DVD subtitles are automatically displayed when the audio is

muted.

Off DVD subtitles are not displayed automatically.

DVD Autoplay: On DVD starts to play automatically when it is loaded into the

DVD player.

Off DVD is not started automatically when loaded.

Aspect Ratio: 4:3 If available, provides the 4:3 aspect ratio for standard IVs.

16:9 If available, provides the 16:9 aspect ratio for wide screen

I Vs.

Image Format: Pan & Scan Images are resized to fit a standard IV.

Letterbox Images are resized to fit a wide screen I V.

If Aspect Ratio is 16:9, I_e Format is not applicable and

the setting is automatically shown as "--".

Parental control setup submenu

I he parental control submenu lists options for how to restrict access to certain DVL)s.

MenU]_em _set#.'_g

I;_estrict Unrated On Prevents viewing of unrated titles when password is set.

I itles: Off' Allows unrated titles to play.

Create/Change .... Lists options for how to create a new password or to change

Password: a current password.

Allowed I,Zatings: 1 to 8 Blocks access to DVDs rated higher than the limit. See

"Using parental controls" on page 15.

Remote control setup submenu

I his menu allows you to program yoLIr LIFES IYLE ®reitlote to operate your IV, VCI,Zand

cable/satellite box.

I V luner IV /VCI,Z/AUX Choose a device that selects the channel for

viewing.

IV Brand: Brand1 /Brand2 /etc. Chooses the IV brand.

I V Device Code: Code1 /Code2 /etc. Chooses the I1_code that the lV remote con-

trol Lises. Press 1"!/Power to test.

VCI_ Brand: Brand1 /Brand2 /etc. Chooses the VCI_ brand.

VCI_ Device Code: Code1 /Code2 /etc. Chooses the IFJcode that the VCI_ remote

control uses. Press VCR Power to test.

AUX Device: Cable /Satellite Chooses the type of device connected to the

AUX input.

AUX Brand: Brand1 /Brand2 /etc. Chooses the AUX component brand.

AUX Device Code: Code1 /Code2 /etc. Chooses the I1_code that the remote control

of the AUX component uses. Press AUX

Power to test.

!Changing the house code settings

Each LIFES IYLE ®remote control uses a system of matching house codes to communicate

with its corresponding media center. If commands given from your remote ever conflict with

those of another nearby LIFESI YLE_system, you can easily set a new house code for your

system and its remote control(s) by doing the following:

1. Open the remote control battery cover and locate the miniature switches (Figure 15).

2. Move one or more of switches 1, 2, 3, or 4 in the opposite direction from its current

setting. Use a paper clip, ball point pen, or similar object.

Note: DO NOT change arG,other switch aetUnga Moving other switches may cause your

remote to not contro/ 5,our aystem.

3. Replace the battery cover:

4. Lift the media center door and press the All Off button.

5. Press and hold the Store key. Your current house code will appear in the media center

display window in the form of four rectangles which represent the positions of switches 1

through 4: HOUSECODE: ....

Current house code = 0 0 0 0 (Switches 1 -4 down.)

6. While holding the Store key, press any key on the remote control.

I he display will change to show the new house code to confirm recognition of the

new code: NEWHOUSE(;ODE: ___

New house code =1 0 1 0

(Switch 1 up, 2 down, 3 Lip,and 4 down.)

7. Release the Store key. Ihe system remains off.

8. If you have additional remote controls, change the switches to match those of the I'irst

remote control. It is not necessary to repeat steps 4-8.

Note: To ven:_,your a;,stem'_ house code, press Store while the system Lso,_..7he diaplsy

_,o. ,,,, ,0 ,,.e oe,J. oo o, ='w_,,c.e= ,-4.

Figure 15

M'n'_ufe hoarse code

I-4o_iSecode switches (1-4).

Setting up a second listening zone

Your LII-ESI YLE_ home entertainment system can direct sound from one or two sound

sources (such as CD, AM/I-M tuner, IAI_E, or AUX) to two different listening zones at the

same time.

What is a zone?

Each listening area, whether a room or a group of rooms (including outdoor areas), is called a

zone. Your primary listening area is set Lip as zone 1.

What do I need for setting up a second zone?

*A Bose _ powered speaker system that is compatible with your home entertainment system.

An existing stereo system can also be connected (special adapter required).

*I he appropriate LIFESIYLE _ system cable to connect the zone 2 speaker system to the

SPEAKEI,Z ZONES 2 connector on the rear panel of the media center.

*A second LIFES IYLE ®system remote control to operate the zone 2 sound.

See your dealer or contact Bose for information on obtaining additional powered speakers,

remote controls, cables, and adapters for connecting additional equipment.

How do I set up a second remote to control zone 27

1. Remove the battery compartment cover from the back side of' the zone 2 remote.

2. Locate miniature switches 5 through 9 (I-igure 16) and set them according to the table.

3. Make sure the house code switches (1, 2, 3, and 4) match those on your first remote.

4. Re-install the battery compartment cover back.

Figure 16 Set switches 1_4to match the settings

of 1_4 in your ZONE 1 remote. Set switches 5_9For"ZONE2.

rgs

5 6789

L_rl Up Down Down i Down

IJp Up i Down

!Taking care of your LIFESTYLE" system

Caring for yOLIrsystem may include:

* Cleaning the system's enclosures

* Cleaning your compact discs

* Replacing the remote control batteries

Cleaning the media center

-Use only a soft, dry cloth to clean the outside of' the media center.

* Do not use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or

abrasives.

- Do not allow liquids to spill into any openings.

- Do not use any sprays near the system.

Cleaning the speakers

-Clean the surface of your speakers with a soft, damp cloth. You can use an ammonia-free

window cleaner on a soft cloth to maintain the finish.

- Do not use any sprays near the system. Do not use any solvents, chemicals, or cleaning

solutions containing alcohol, ammonia, or abrasives.

- Do not allow liquids to spill into any openings.

- I he speaker grille panels require no special care, although you may vacuum them carefully,

if necessary.

Cleaning discs

-Handle discs by their edges to prevent fingerprints and scratches (I-igure 17).

-Io remove stains or fingerprints from the surface of a disc, Llsea soft, lint-free, dry cloth.

Wipe in straight movements from the center of the disc to the outside. Do not use any

chemical products; they can damage the disc.

- Do not write on or attach labels to the surface of the disc.

- Io minimize exposure to dust and dirt, replace discs in their cases after use. Store each

disc in its case, out of direct sunlight, high temperatures, and humidity.

Replacing the remote control batteries BE

Replace the batteries when the remote control stops operating or its range seems reduced, mm

Alkaline batteries are recommended. |

1. Slide open the battery compartment on the back of the remote {Figure 18).

2. Insert four AAA or IEC-LR3 1.5V batteries, or the equivalent, as shown. Match the + and -

symbols on the batteries with the + and - markings inside the conlpartment.

3. Slide the battery conlpartment cover back into place.

Figure 18

controf':b_t_des _ batteries (4 ,_,_ #

i ii

iiiiii

Troubleshooting

Problem What to do

System doesn't do any- : * Make sure the power connector is inserted securely into the media center, the power

thing cord is inserted securely into the Acoustimass _ module, and the power pack and power

cord are plugged fully into operating AC wall outlets.

• Be sure to select a source (CD/DVD, AM/FM, etc.).

• Unplug the media center power supply for 60 seconds, then reconnect it. I his allows the

unit to reset itself after a power surge or power interruption.

No sound * increase the volume.

Check to see if MUlE is lit on the display. If it is, press the Mute button on the remote

control to unmute the sound.

Make sure the audio input cable is firmly seated in the media center SI_EAKEI,ZZONE 1

jack and the multi-pin connector on the other end is firmly seated in the Acoustimass

module AUDIO INI_U I jack.

Check speaker connections.

• lurn the media center off for 60 seconds, then on again, to restore communication

between the media center and the speakers.

• Check the connections for any external components. Make sure to select the correct

source for the desired input.

• Be sure the disc is placed correctly, label-side up, in the CD tray.

• Connect the FM and AM antennas.

• Make sure that the power switch on the Acoustimass module is set to ON (I).

!Problem What to do

No sound from center *Make sure the center speaker cable is connected at both ends.

speaker •Select 3- or 5-speaker mode.

Ioo much sound from Decrease the Center Channel setting in the Audio Setup menu. See "Making audio

center speaker adjustments" on page 31.

No sound from surround • Select 5-speaker mode.

speakers • Press Surround +

• Make SLirethe video sound SOLirce is stereo and surround-encoded, and the component

used (IV, VCI,Z,etc.) is stereo.

Surround speakers are too • In 5-speaker mode, press Surround -.

loud • Make sure that the left and right front speakers are connected to the front speaker jacks

{blue) and the left and right surround speakers are connected to the surround speaker

jacks (orange).

I_emote control is incon- *Check batteries and their polarity (+ and -). See "l,Zeplacing the remote control batteries"

sistent or does not work on page 41.

• Operate the remote control closer to the media center.

• Move the remote (or the media center) a few feet to avoid an area of "dead spots." See

note under "lhe remote control" on page 7.

• Make sure the media center power cable is rirmly seated, uncoiled, and extended as

much as possible.

• Make sure the remote control and media center house codes match. See "(;hanging the

house code settings" on page 38.

System turns on by itself, • Change the house code setting to prevent signals from conflicting with another nearby

or behaves erratically LII-ES IYLE®system.

• See "Changing the house code settings" on page 38.

Radio does not work Make sure antennas are connected properly.

Move AM antenna at least 20 inches (50 cm) from the media center.

• Adjust antenna position to improve reception.

AM antenna must be upright.

Move antennas farther from media center, I V, or other electronic equipment.

You may be in an area of weak signal coverage.

I he disc does not play Check to see if the play symbol in the display is lit.

• After pressing the CL)/DVL) button wait a few seconds before pressing Play.

• Make sure the disc is properly inserted (label side up).

• Eject the disc and try loading it again.

• I he CD may be dirty. See "Cleaning discs" on page 40.

• I he CD may be defective. Iry another CD.

Problem What to do

FM sound is distorted *Adjust antenna position to reduce interference.

FM sound is noisy in sur- *Weak FM stations will produce static in the surround speakers. Select the 2-speaker

round mode mode to minimize noise.

Sound is distorted • Make slim speaker cables are not damaged and the connections are secure.

•RedLice the outpLit level from any external components connected to the media center.

No tape, CD, VCR, or IV *Check the connections.

sound. •Make sure the component is turned on.

•Refer to the component owner's mamlal.

You forgot your password • Enter a password of 2673 to access the parental controls and then create a

new password.

{

Media center display says: *Make sure the audio input cable is firmly seated in the media center

NOTCOI_NECIED SPEAKEI ,_.ZONE 1 jack.

LIFESIYLE _ remote does *Make sure correct codes are set. See "Programming your LIFESIYLE _ remote to control

not control your I V, VCR, your I V" on page 19.

cabledsatellite box, or .Make sure that the front of the media center is not obstructed. I he IFZemitters that send

other external component, commands to your external components are behind the front panel display.

If you still cannot control your external components successfully, you may need to con-

nect the external II,Zemitter, included with your system, to the II,ZEMIl I ERjack on the

rear panel of the media center. See "Connecting the optional II,Zemitter cable" in your

LIFESTYLE _installation Guide.

Your IV turns on and off Reposition the I V on/off detector on the back of your I V.

unexpectedly. *Ve[.[[_ythat the I V on/off detector is working properly by choosing TV Status in the

Settiag_._"_ menu. When you turn on your IV, the status line that reads, "l_]etected IV

Power: Off" should change to "Detected IV Power: On".

!Technical hTformation

Media Center power pack power rating

USA/Canada: 120V ; 0.55A 50/60 Hz 33VDC 1.1A

International: 220-240V 0.30A 50/60 Hz 33VDC 1.1A

Dual voltage: 115/230V " 0.55A 50/60 Hz 33VDC ..............1.1A

Speaker system power rating

USA/Canada: 100-120V 50/60 Hz 350W

International: 220-240V ; 50/60 Hz 350W

Dual voltage: 100-120/220-240W 50/60 Hz 350W

Media center inputs

IAPE: 2Vrms, maximum

AUX: 2Vrms, maximum

VCR: 2Vrms, maximum

I V: 2Vrms, maximum

DIGIIAL: SPDIF (1 each for IV, VCR, IAPE, and AUX)

COMPOSII E VIDEO: NISC or PAL format lVp.p with sync 75

S-VIDEO: LLiminance lVp.p, Chrominance 0.3Vp.p

Ol_l ICAL INPUh SPDIF digital, mapped to input

FM antenna: 75 Q

AM antenna: 12_H

I V SENSOR: Scan frequency sensing

Media center outputs

SPEAKEI,Z ZONES 1 and 2: Variable audio, user selectable

RECORD L and I_: Fixed audio

RECORD DIGIIAL: SPDIF

OPIICAL OUIPUI! SPDIF_ -15 to -21 dbm

COMPOSII E VIDEO: NISC or PAL lVp.p with sync 75 £_

S-VIDEO: LLiminance lVp.p, Chrominance 0.3Vp.p

Component video: NISC or PAL lVp.p with sync on Y

Remote control range

65 ft (20 m)

Dimensions/Weights

Media Center:

Cube speakers:

15.8" W x 11.0" D x 3.5" H

(40.1 cmx 27.9 cmx 8.9 cm)

3.1" Wx 4.0" Dx 3.1" H

(7.9 cm x 10.2 cm x 7.9 cm)

Acoustimass _module: 8.0" W x 24.5" D x 16.0" H

(20.3 cmx 62.2 cmx 40.6 cm)

Finish

Media center: Aluminum

Cube speakers: Polymer painted

Acoustimass module: Vinyl veneer, Polymer

8.2 Ib (3.7 kg)

1.1 Ib (0.5 kg)

35.9 Ib (16.3 kg)

Accessories

For information on speaker mounting brackets and stands, additional remote controls, and

connecting additional Bose _ powered loudspeakers, contact your Bose dealer or call Bose

customer service. See the address and phone number list included with your system.

Warranty

Your LIFESI YLE_ home entertainment system is covered by a transferable warranty. See your

warranty card for details. Please be sure to rill out the information section on the card and

mail it to Bose.

Contacting customer service

I-or additional help in solving problems, contact Bose Customer Service. See the address and

phone number list included with your system.

,<'2003 Bose CorporatFon The Mountain,

_ram_ngham MA 01701 9168 USA

269711 AM Rev 00 JN31014
