TCl000 • TC3000 • TC5000
![](asset-2.png)

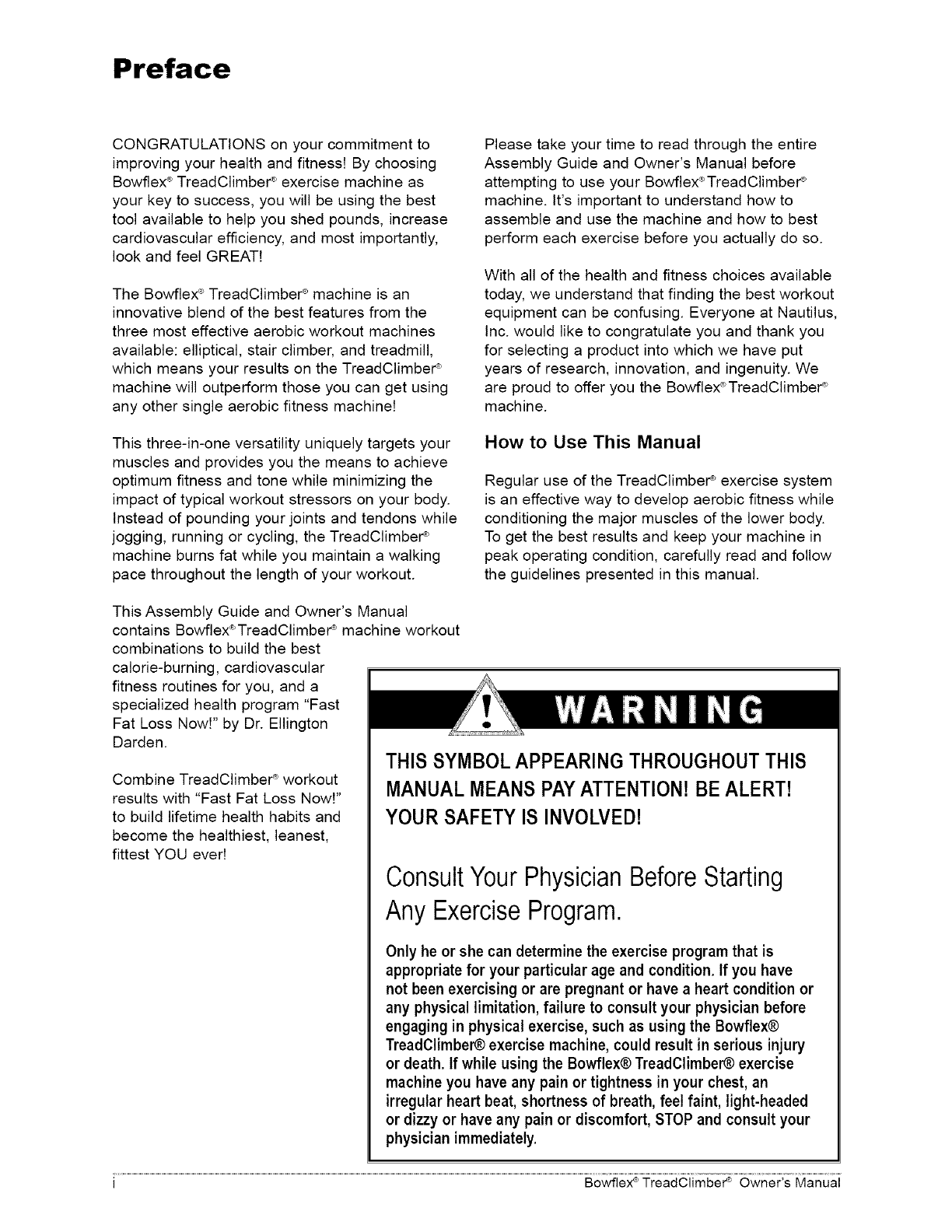

Preface
CONGRATULATIONS on your commitment to
improving your health and fitness! By choosing
Bowflex _>TreadClimber _ exercise machine as
your key to success, you will be using the best
tool available to help you shed pounds, increase
cardiovascular efficiency, and most importantly,
look and feel GREAT!
The Bowflex '_TreadClimber _ machine is an
innovative blend of the best features from the
three most effective aerobic workout machines
available: elliptical, stair climber, and treadmill,
which means your results on the TreadClimber _
machine will outperform those you can get using
any other single aerobic fitness machine!
This three-in-one versatility uniquely targets your
muscles and provides you the means to achieve
optimum fitness and tone while minimizing the
impact of typical workout stressors on your body.
Instead of pounding your joints and tendons while
jogging, running or cycling, the TreadClimber _
machine burns fat while you maintain a walking
pace throughout the length of your workout.
Please take your time to read through the entire
Assembly Guide and Owner's Manual before
attempting to use your Bowflex_>TreadClimbe¢ _
machine. It's important to understand how to
assemble and use the machine and how to best
perform each exercise before you actually do so.
With all of the health and fitness choices available
today, we understand that finding the best workout
equipment can be confusing. Everyone at Nautilus,
Inc. would like to congratulate you and thank you
for selecting a product into which we have put
years of research, innovation, and ingenuity. We
are proud to offer you the Bowflex®TreadClimber _
machine.
How to Use This Manual
Regular use of the TreadClimber _ exercise system
is an effective way to develop aerobic fitness while
conditioning the major muscles of the lower body.
To get the best results and keep your machine in
peak operating condition, carefully read and follow
the guidelines presented in this manual.
This Assembly Guide and Owner's Manual
contains Bowflex_TreadClimber _ machine workout
combinations to build the best
calorie-burning, cardiovascular
fitness routines for you, and a
specialized health program "Fast
Fat Loss Now!" by Dr. Ellington
Darden.
Combine TreadClimber _ workout
results with "Fast Fat Loss Now!"
to build lifetime health habits and
become the healthiest, leanest,
fittest YOU ever!
THIS SYMBOLAPPEARING THROUGHOUT THIS
MANUAL MEANS PAYATTENTION! BEALERT!
YOUR SAFETY IS INVOLVED!
ConsultYourPhysicianBeforeStarting
Any ExerciseProgram.
Only he or she can determine the exercise program that is
appropriate for your particular age and condition. If you have
not been exercisingor are pregnantor have a heart condition or
any physical limitation, failure to consult your physician before
engaging in physical exercise, such as usingthe Bowflex®
TreadClimber_ exercise machine, could result in serious injury
or death. If while using the Bowflex® TreadClimber_ exercise
machine you have any pain or tightness in your chest, an
irregular heart beat, shortness of breath, feel faint, light-headed
or dizzy or have any pain or discomfort, STOP and consult your
physician immediately.
i Bowflex ®TreadClimber _ Owner's Manual
![](asset-3.png)

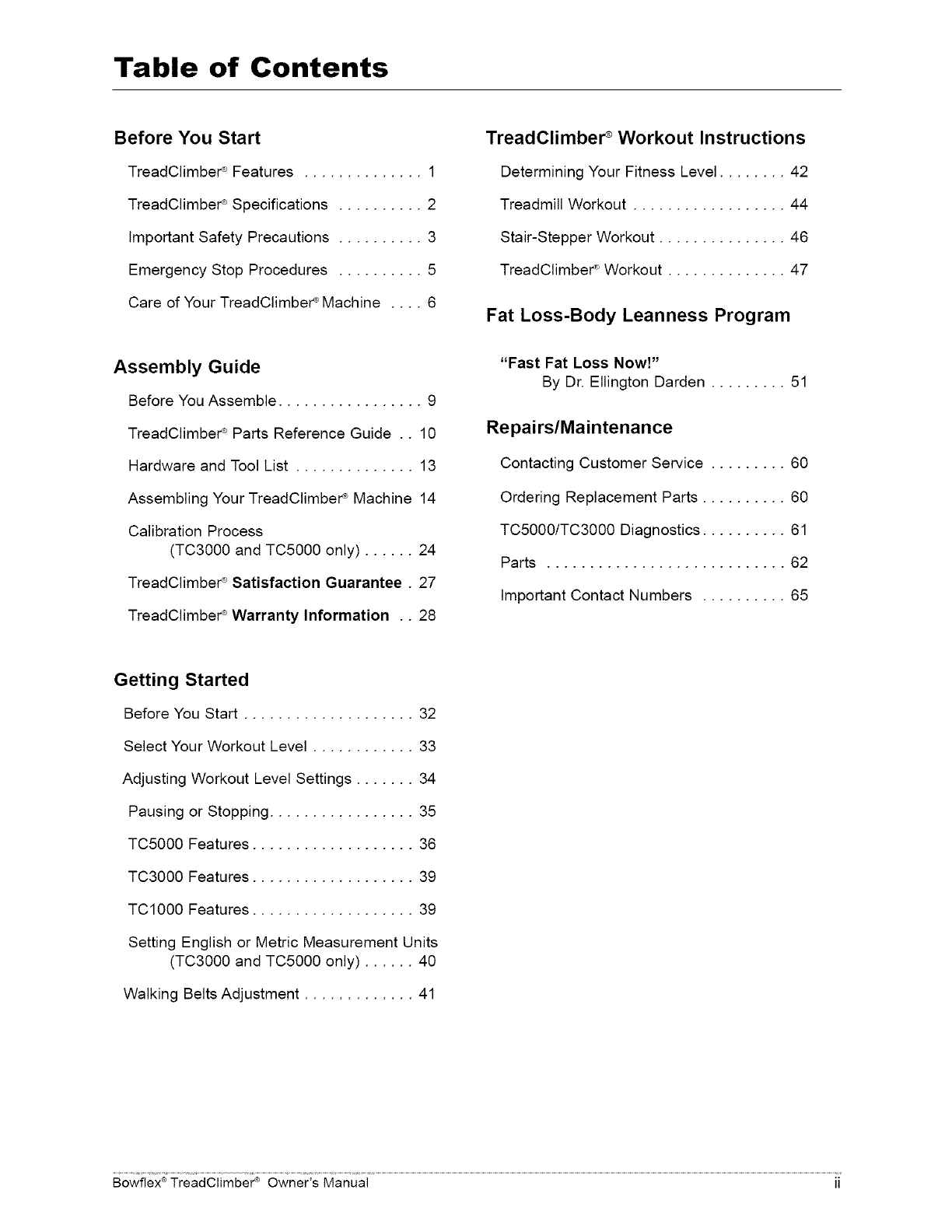

Table of Contents
Before You Start
TreadClimbeP Features .............. 1
TreadClimbeP Specifications .......... 2
Important Safety Precautions .......... 3
Emergency Stop Procedures .......... 5
Care of Your TreadClimbeP Machine .... 6
Assembly Guide
Before You Assemble ................. 9
TreadClimbeP Parts Reference Guide .. 10

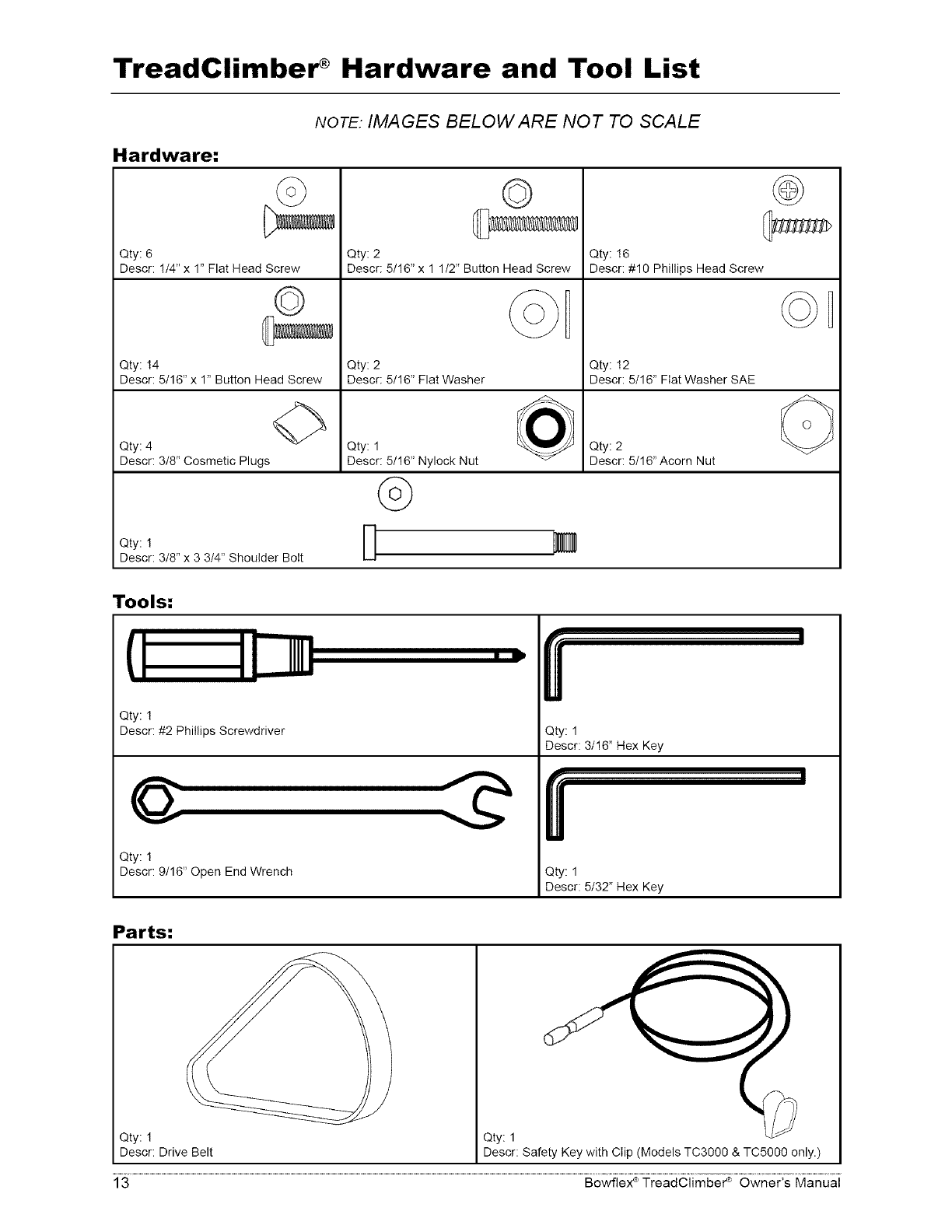

Hardware and Tool List .............. 13

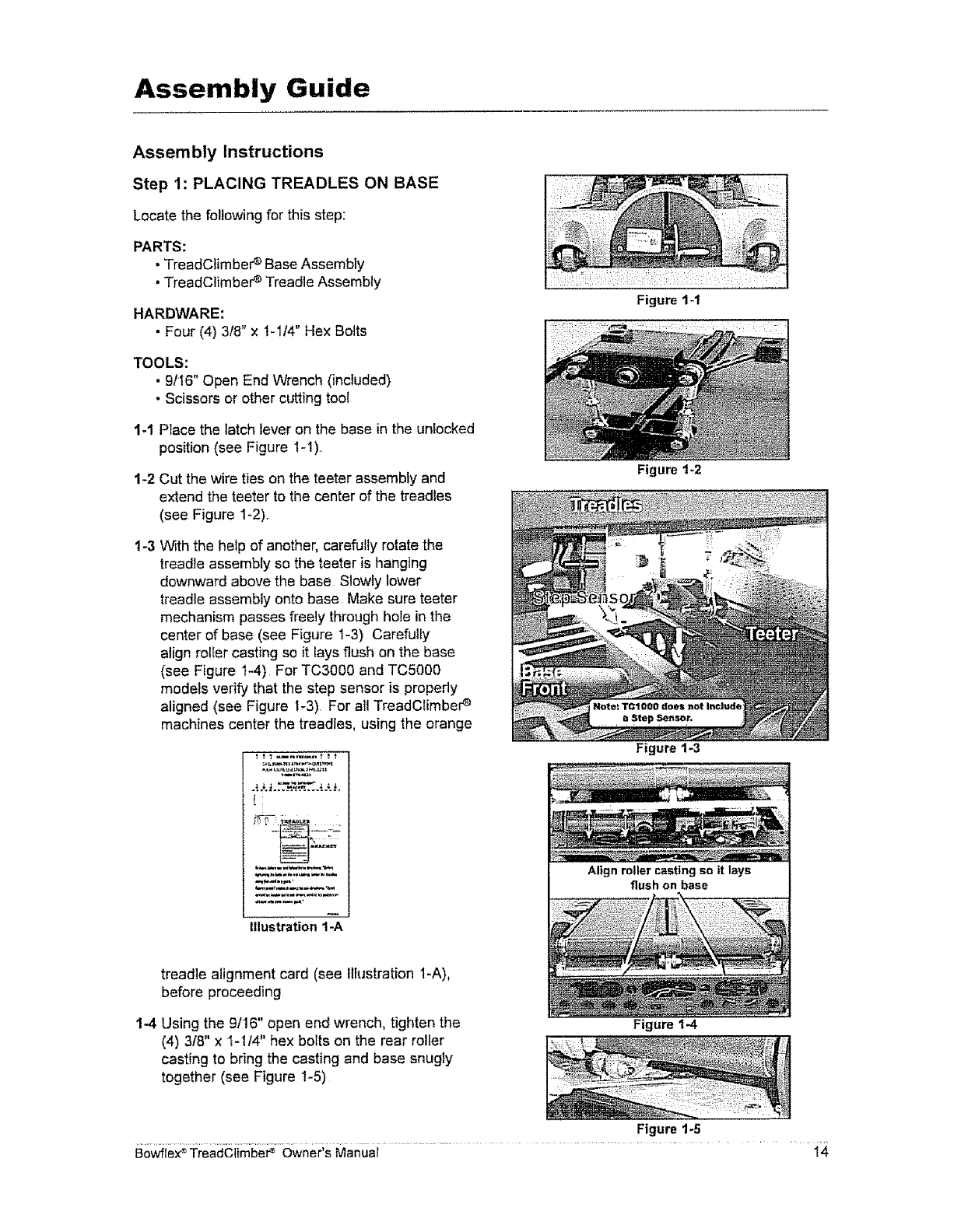

Assembling Your TreadClimbeP Machine 14

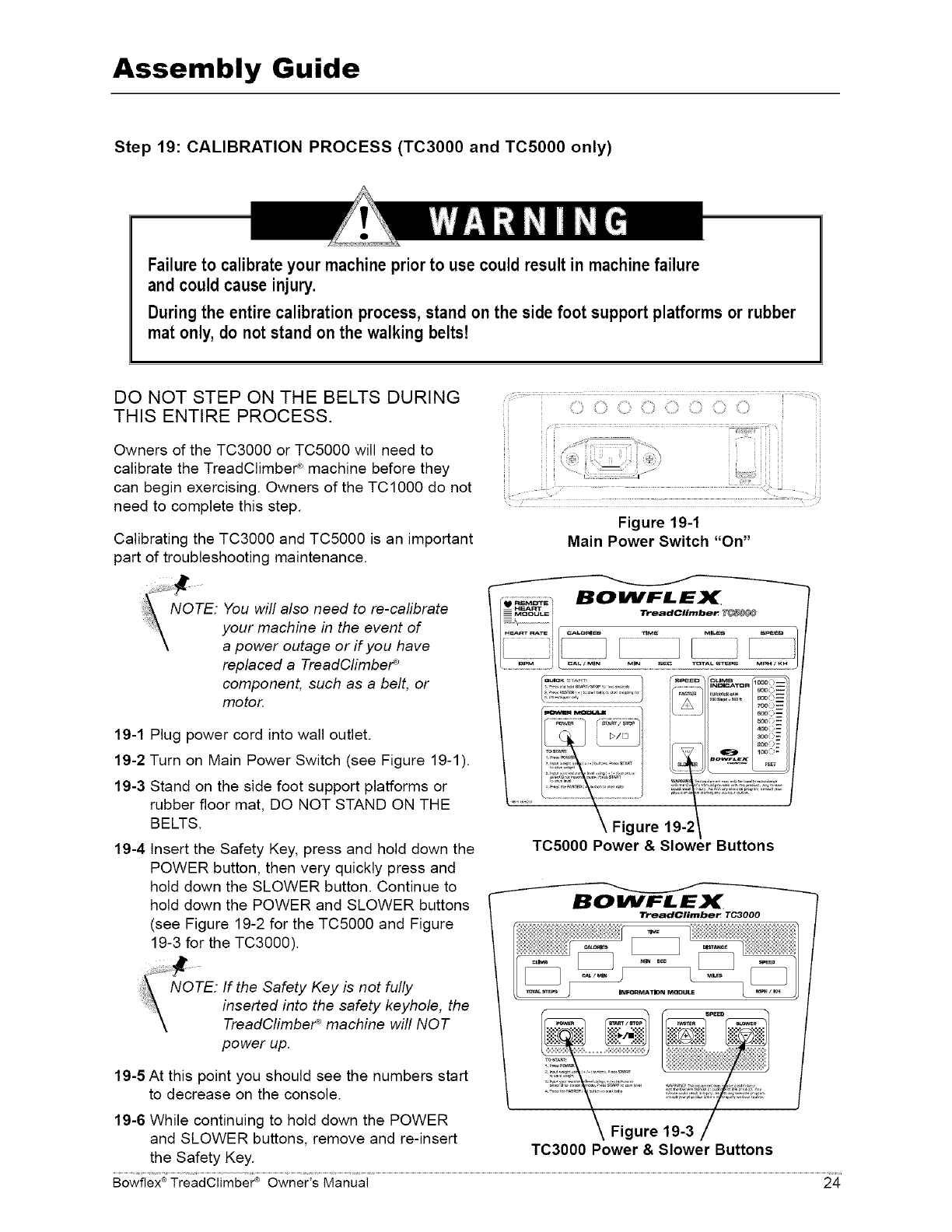

Calibration Process
(TC3000 and TC5000 only) ...... 24

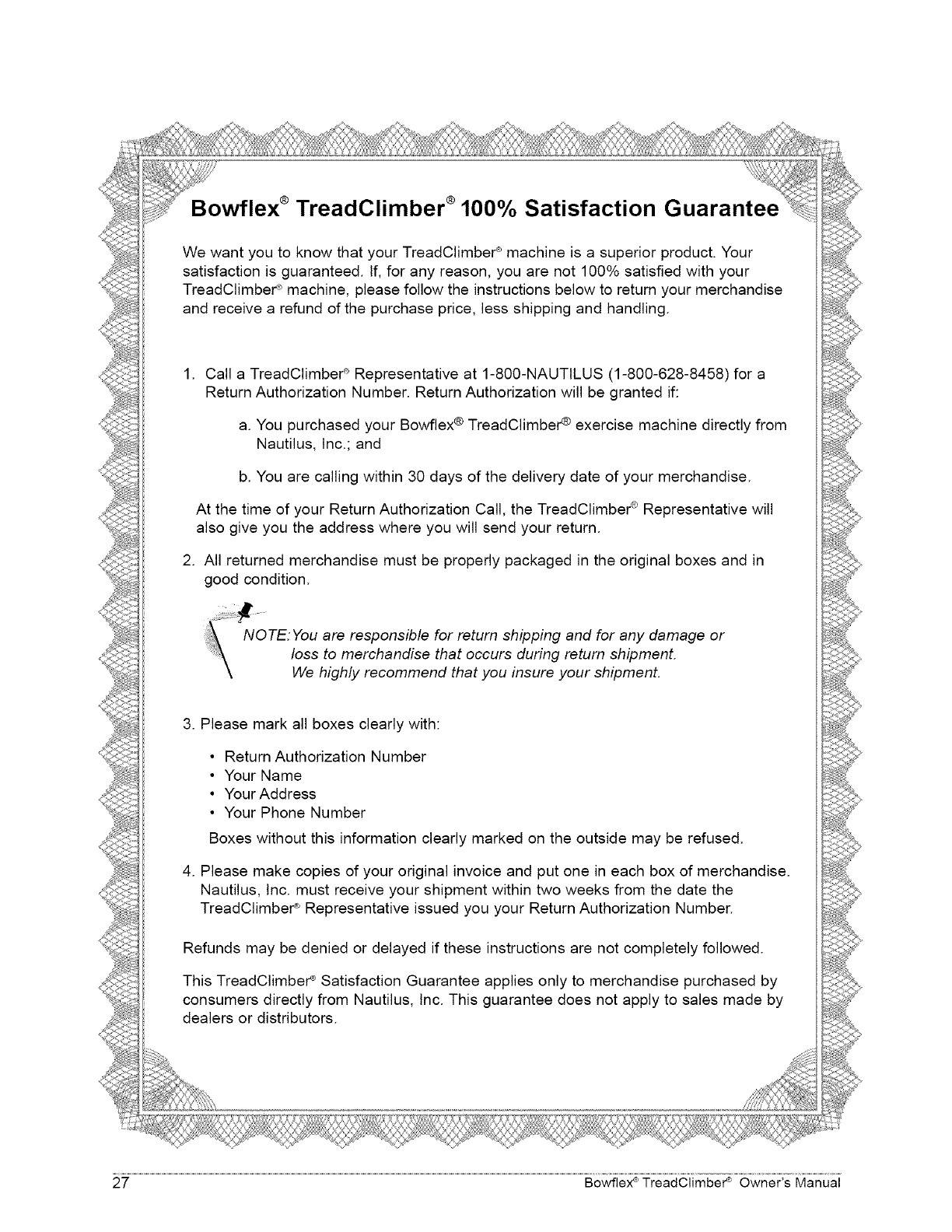

TreadClimbeP Satisfaction Guarantee. 27

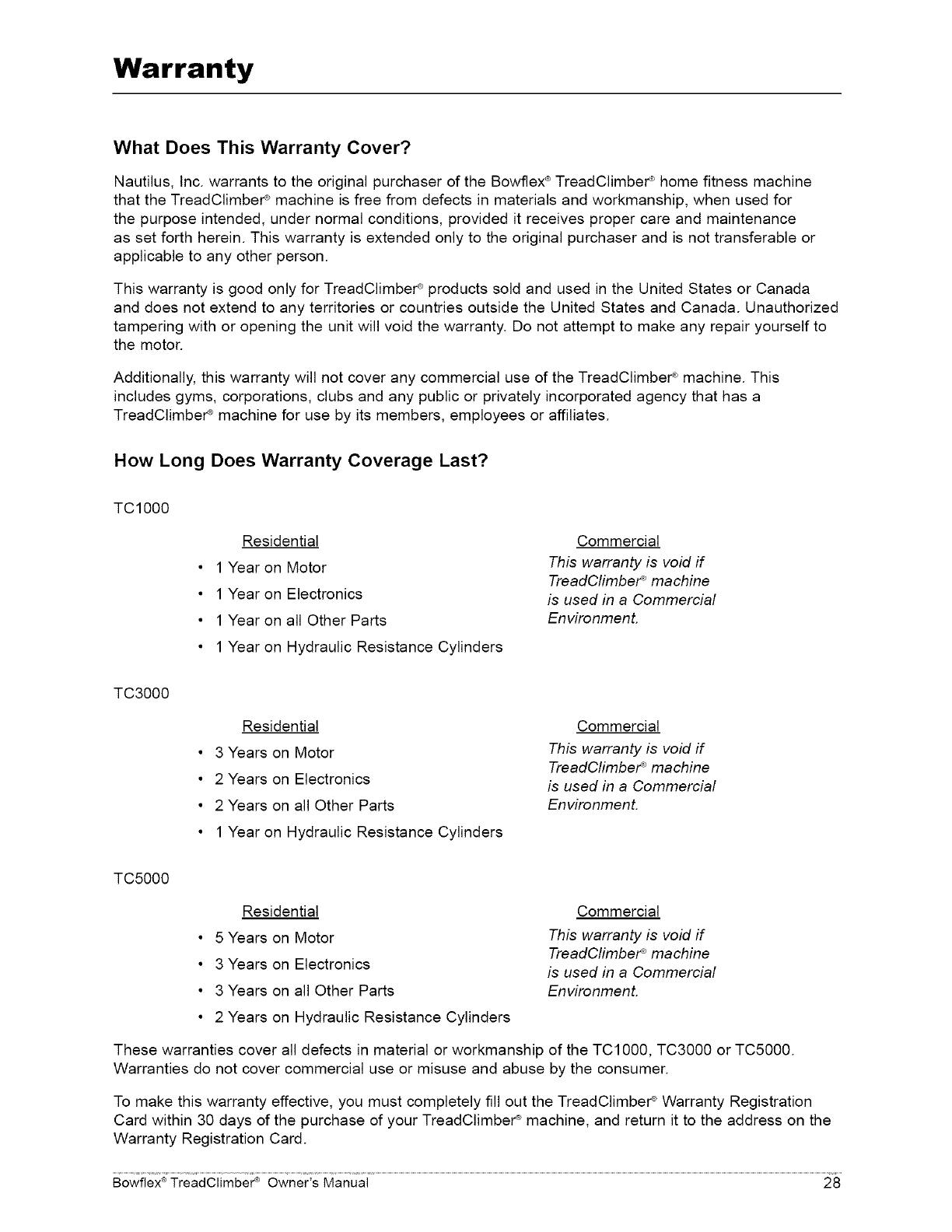

TreadClimbeP Warranty Information .. 28

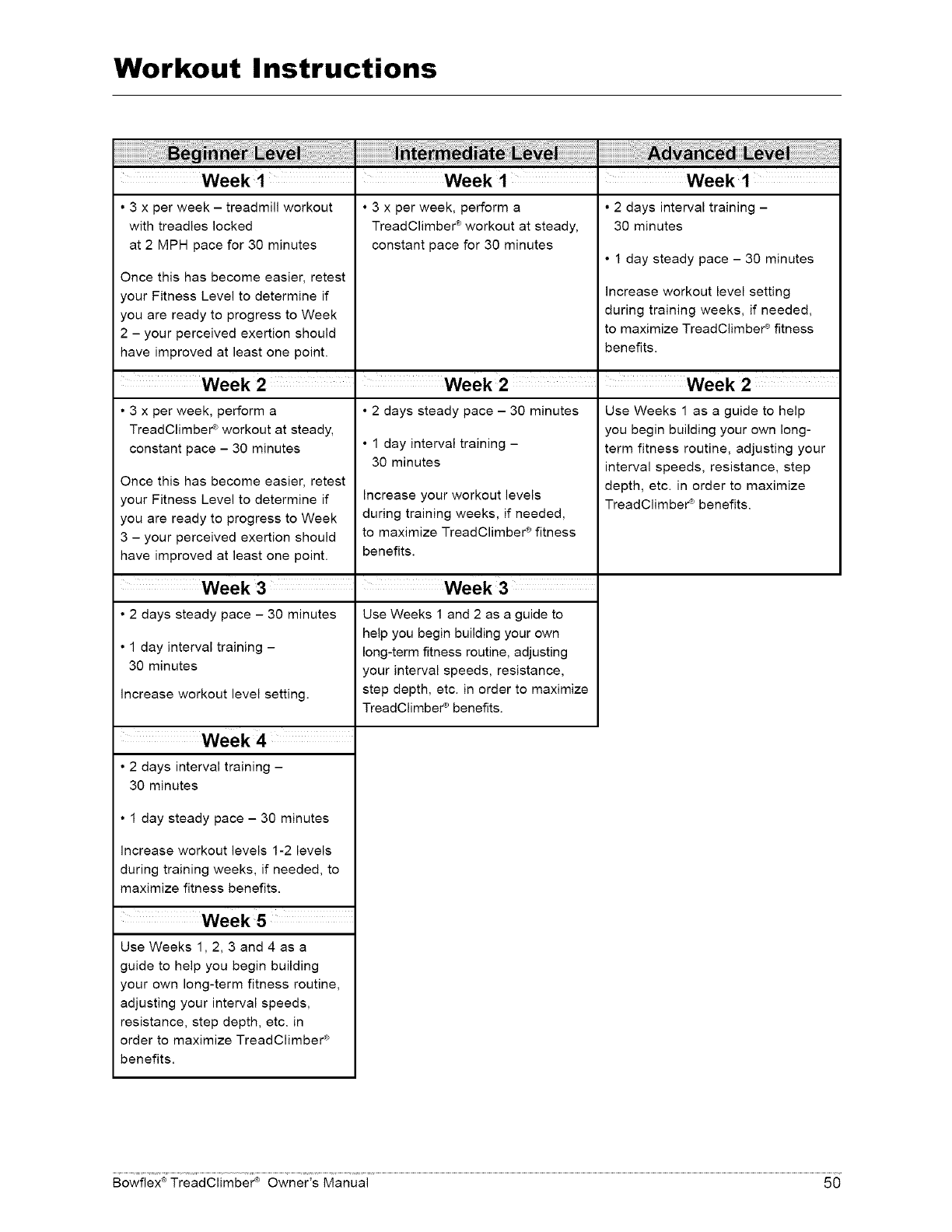

TreadClimber _ Workout Instructions
Determining Your Fitness Level ........ 42
Treadmill Workout .................. 44
Stair-Stepper Workout ............... 46
TreadClimbeP Workout .............. 47

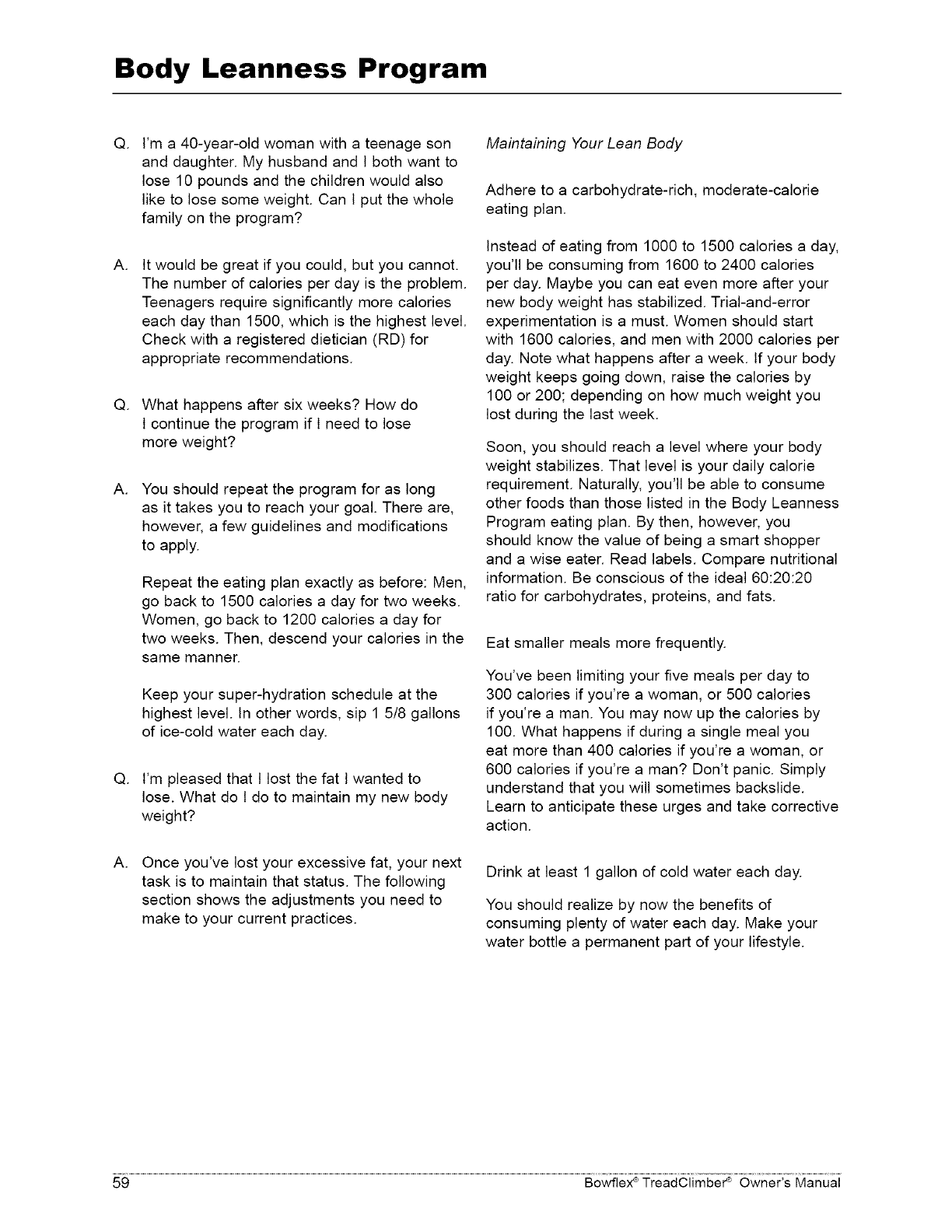

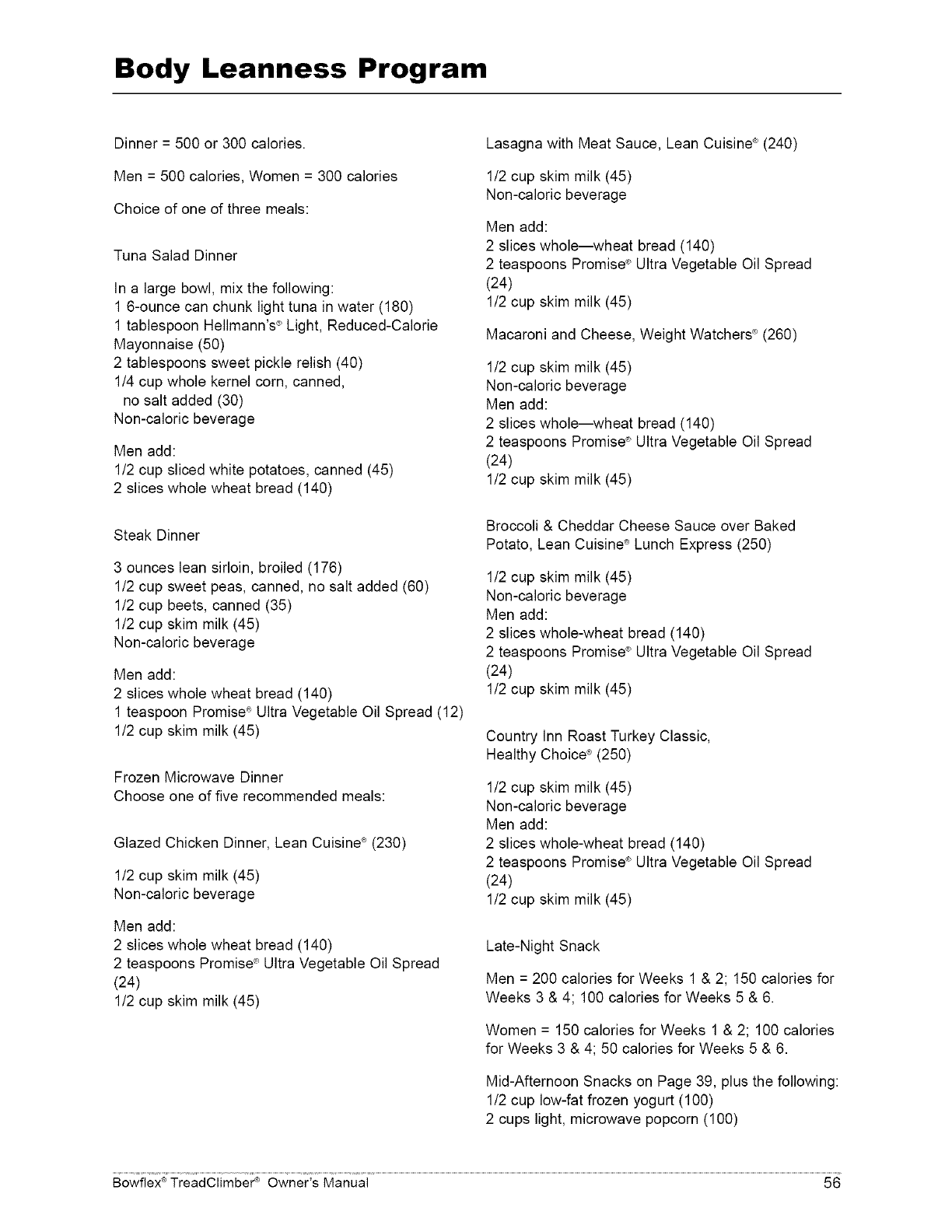

Fat Loss-Body Leanness Program
"Fast Fat Loss Now!"
By Dr. Ellington Darden ......... 51
Repairs/Maintenance
Contacting Customer Service ......... 60
Ordering Replacement Parts .......... 60
TC5000/TC3000 Diagnostics .......... 61
Parts ............................ 62
Important Contact Numbers .......... 65
Getting Started
Before You Start .................... 32
Select Your Workout Level ............ 33
Adjusting Workout Level Settings ....... 34
Pausing or Stopping ................. 35
TC5000 Features ................... 36
TC3000 Features ................... 39
TC1000 Features ................... 39

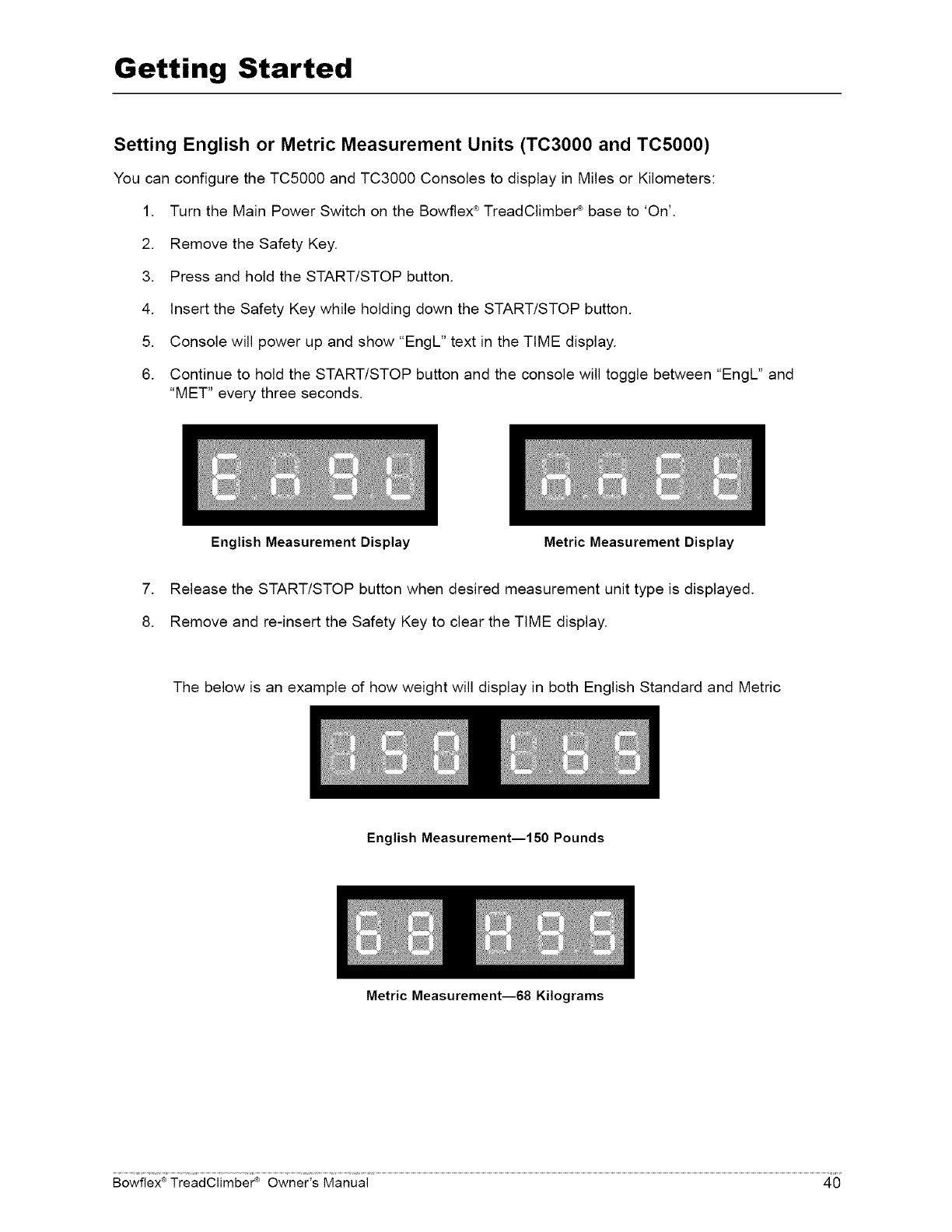

Setting English or Metric Measurement Units
(TC3000 and TC5000 only) ...... 40

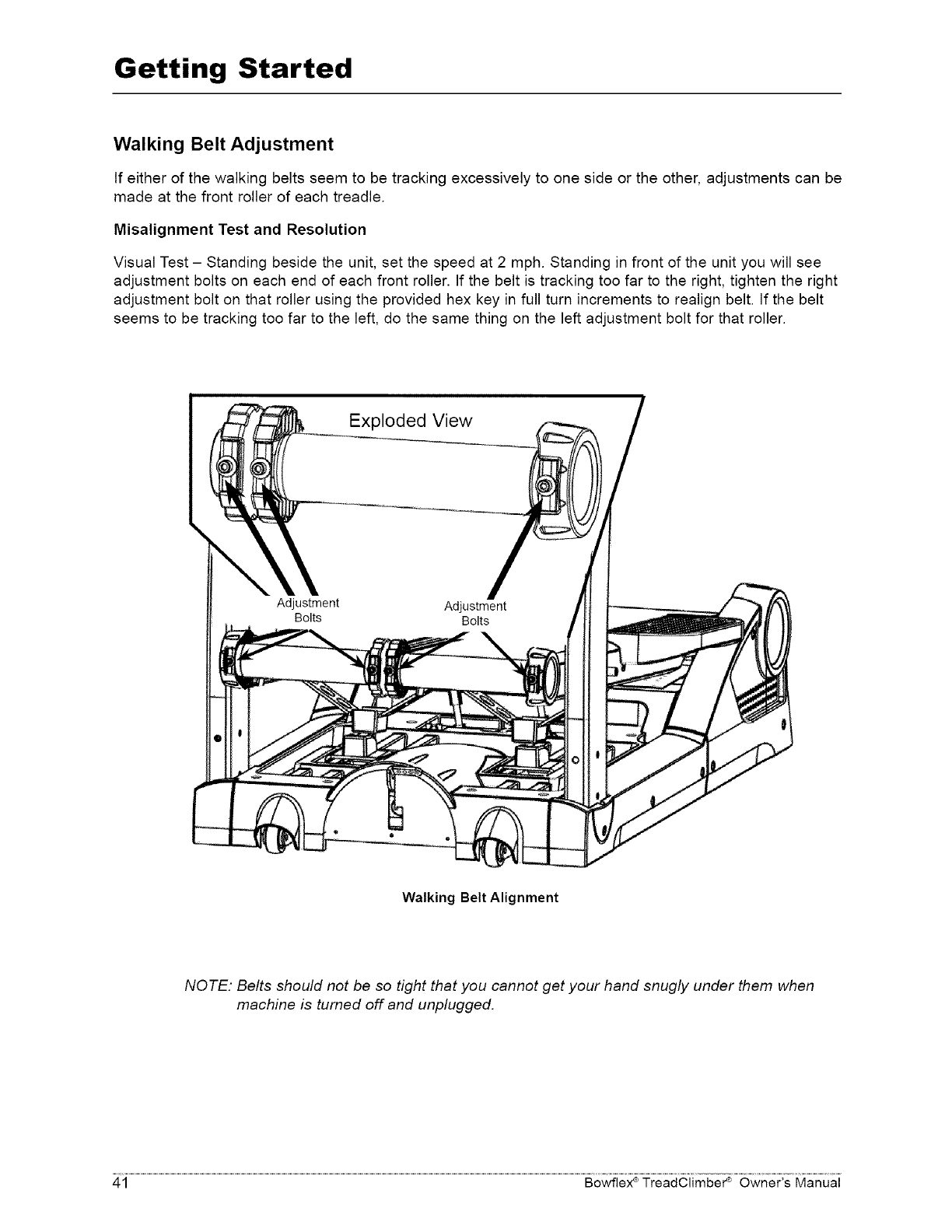

Walking Belts Adjustment ............. 41
®
Bowflex' TreadClimbe¢ _ Owner's Manual II
![](asset-4.png)

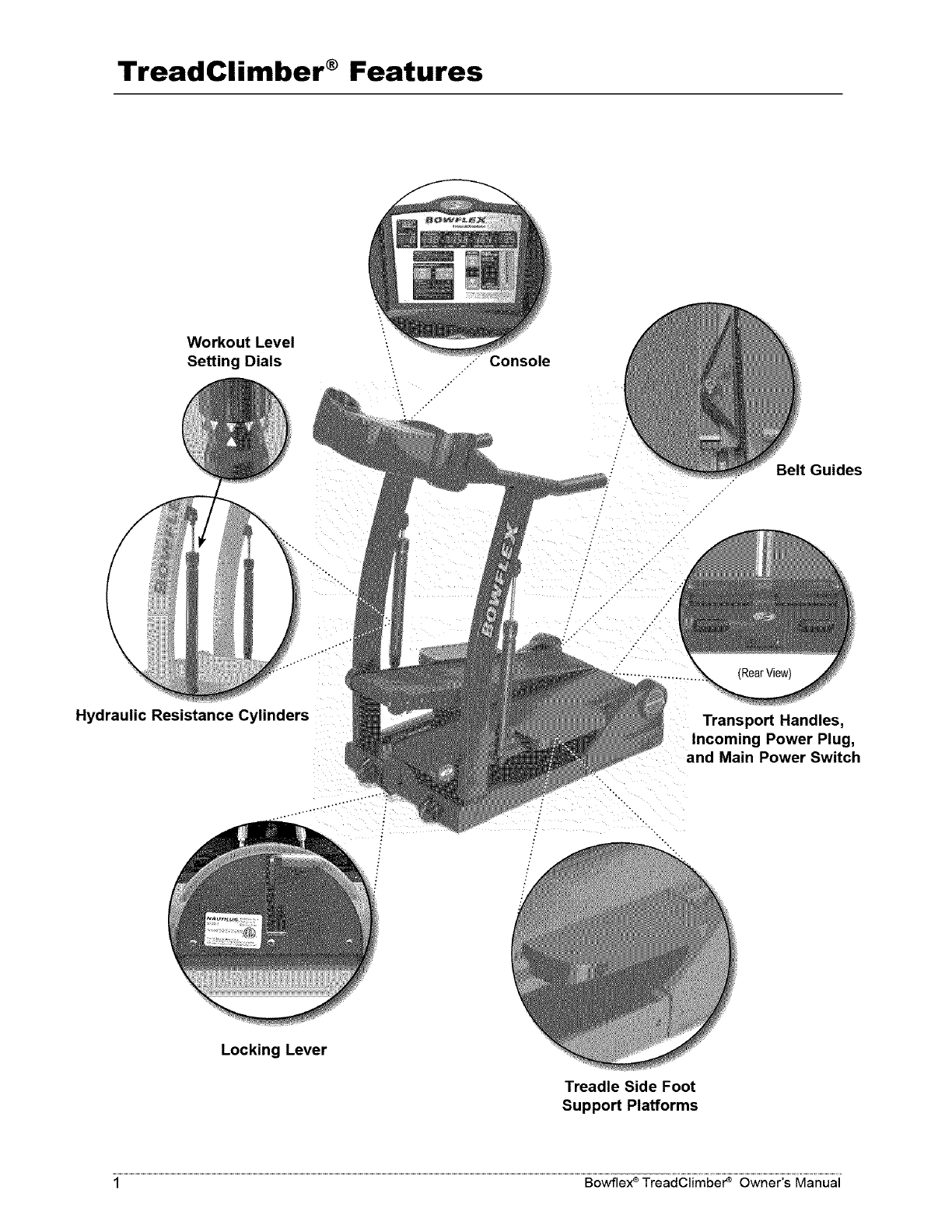

TreadClimber ®Features
Workout Level
Setting Dials . ./ Console
Belt Guides
I
Hydraulic Resistance Cylinders Transport Handles,
Incoming Power Plug,
and Main Power Switch
Locking Lever
Treadle Side Foot
Support Platforms
1Bowflex ®TreadClimber _ Owner's Manual
![](asset-5.png)

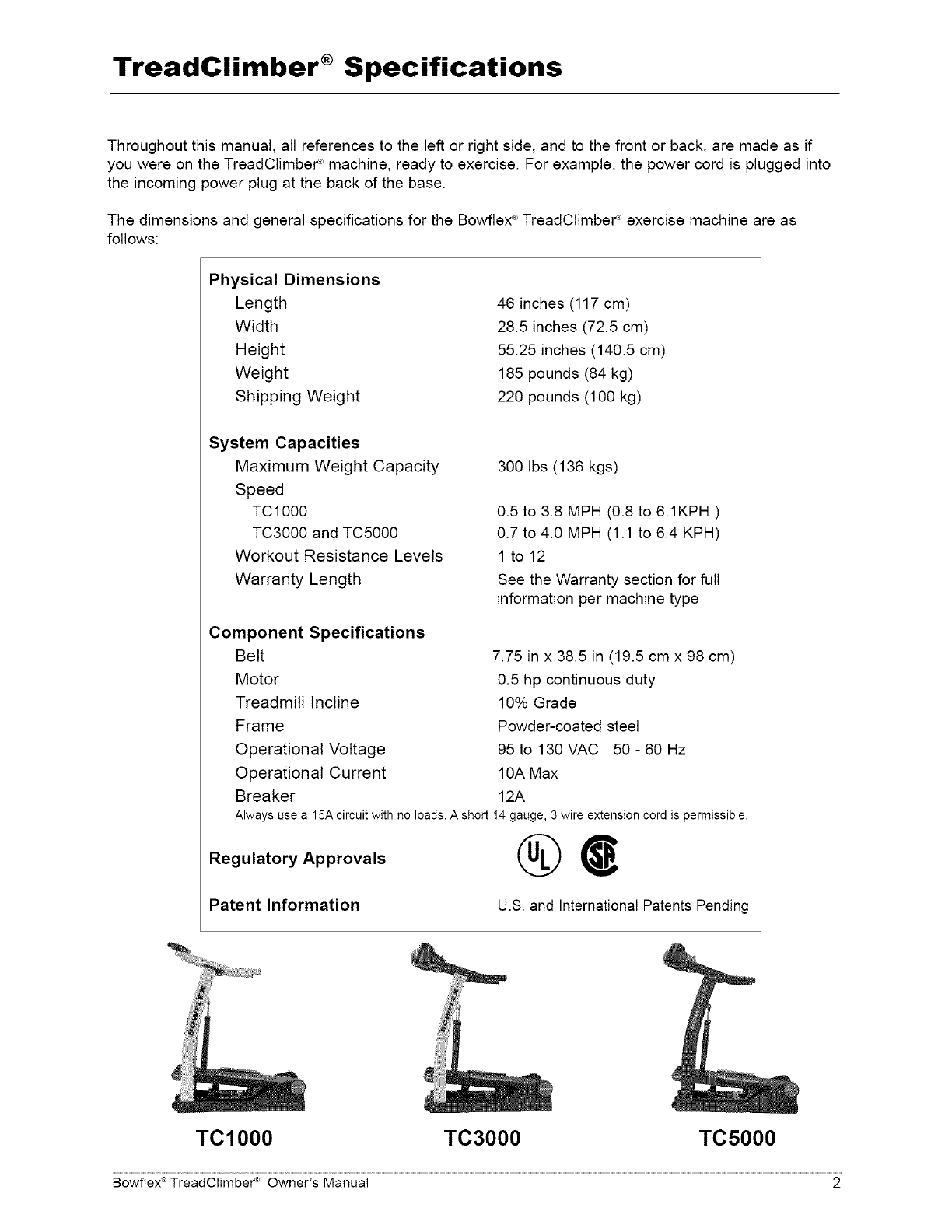

TreadClimber ®Specifications
Throughout this manual, all references to the left or right side, and to the front or back, are made as if
you were on the TreadClimber _ machine, ready to exercise. For example, the power cord is plugged into
the incoming power plug at the back of the base.
The dimensions and general specifications for the Bowflex _ TreadClimber _ exercise machine are as
follows:
Physical Dimensions
Length
Width
Height
Weight
Shipping Weight
46 inches (117 cm)
28.5 inches (72.5 cm)
55.25 inches (140.5 cm)
185 pounds (84 kg)
220 pounds (100 kg)
System Capacities
Maximum Weight Capacity
Speed
TC 1000
TC3000 and TC5000
Workout Resistance Levels
Warranty Length
Component Specifications
Belt
Motor
Treadmill Incline
Frame
Operational Voltage
Operational Current
Breaker
300 Ibs (136 kgs)
0.5 to 3.8 MPH (0.8 to 6.1KPH )
0.7 to 4.0 MPH (1.1 to 6.4 KPH)
1 to 12
See the Warranty section for full
information per machine type
7.75 in x 38.5 in (19.5 cm x 98 cm)
0.5 hp continuous duty
10% Grade
Powder-coated steel
95 to130VAC 50-60Hz
10A Max
12A
Always use a 15A circuit with no loads. A short t4 gauge, 3 wire extension cord is permissible.
Regulatory Approvals
Patent Information U.S. and International Patents Pending
TCl000 TC3000 TC5000
®
Bowflex' TreadClimbe¢ _ Owner's Manual 2
![](asset-6.png)

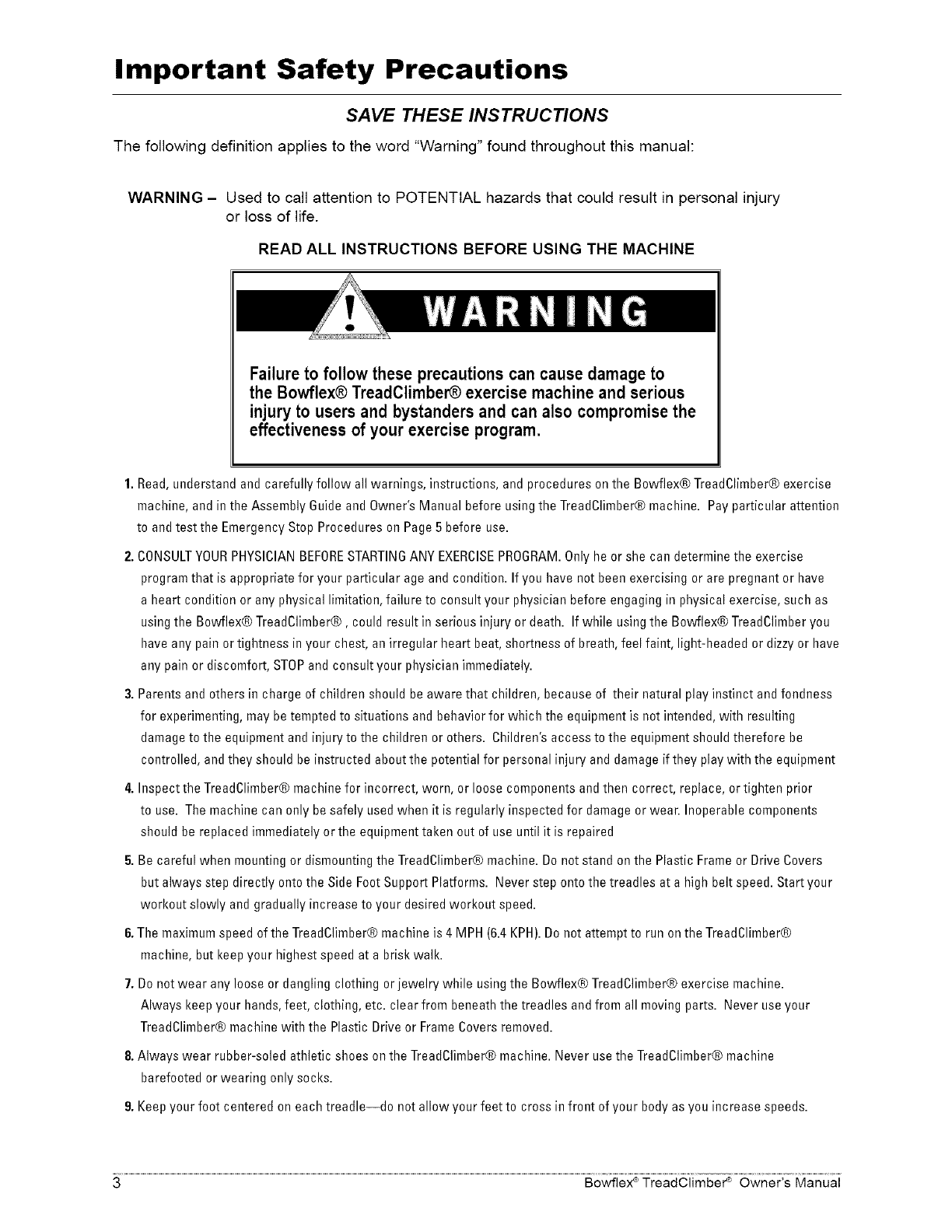

Important Safety Precautions
SAVE THESE INSTRUCTIONS
The following definition applies to the word "Warning" found throughout this manual:
WARNING -Used to call attention to POTENTIAL hazards that could result in personal injury
or loss of life.
READ ALL INSTRUCTIONS BEFORE USING THE MACHINE
Failure to follow these precautionscan cause damage to
the Bowflex@TreadClimber_ exercise machine and serious
injury to users and bystandersand can also compromise the
effectiveness of your exercise program.
1. Read, understand and carefully follow all warnings, instructions, and procedures on the Bowflex® TreadClimber@ exercise
machine, and in the Assembly 6uide and Owner's Manual before using the TreadClimber@ machine. Payparticular attention
to and test the Emergency Stop Procedures on Page 5 before use.
2. CONSULTYOURPHYSICIANBEFORESTARTIN6 ANY EXERCISEPRO6RAM. Only he or she can determine the exercise
programthat is appropriate for your particular age and condition. If you have not been exercising or are pregnant or have
a heart condition or any physical limitation, failure to consult your physician before engaging in physical exercise, such as
usingthe Bowflex@ Treadglimber®, could result in serious injury or death. If while using the Bowflex® Treadglimber you
have any pain or tightness in your chest, an irregular heart beat, shortness of breath, feel faint, light-headed or dizzy or have
any pain or discomfort, STOP and consult your physician immediately.
3. Parents and others in charge of children should be aware that children, because of their natural play instinct and fondness
for experimenting, may be tempted to situations and behavior for which the equipment is not intended, with resulting
damage to the equipment and injury to the children or others. Children's access to the equipment should therefore be
controlled, and they should be instructed aboutthe potential for personal injury and damage if they playwith the equipment
4. Inspect the TreadClimber® machine for incorrect, worn, or loose components and then correct, replace, or tighten prior
to use. The machine can only besafely used when it is regularly inspected for damage or wear. Inoperable components
should be replaced immediately orthe equipment taken out of use until it is repaired
5. Be careful when mounting or dismounting the TreadClimber® machine. Do not stand on the Plastic Frameor Drive Covers
but always step directly onto the Side FootSupport Platforms. Never step onto the treadles at a high belt speed. Start your
workout slowly and gradually increase to your desired workout speed.
6. The maximumspeed of the Treadglimber@ machine is 4 MPH (6.4 KPH).Do not attempt to run on the TreadClimber®
machine, but keep your highest speed at a brisk walk.
7. Do not wear any loose or dangling clothing or jewelry while using the Bowflex® TreadClimber@exercise machine.
Always keep your hands,feet, clothing, etc. clear from beneath the treadles and from all moving parts. Never useyour
TreadClimber® machine with the Plastic Drive or FrameCovers removed.
8. Always wear rubber-soled athletic shoes onthe TreadClimber@ machine. Never use the TreadClimber@machine
barefooted or wearing only socks.
9. Keep your foot centered on each treadle--do not allow your feet to cross in front of your body as you increase speeds.
3 Bowflex ®TreadClimbeP Owner's Manual
![](asset-7.png)

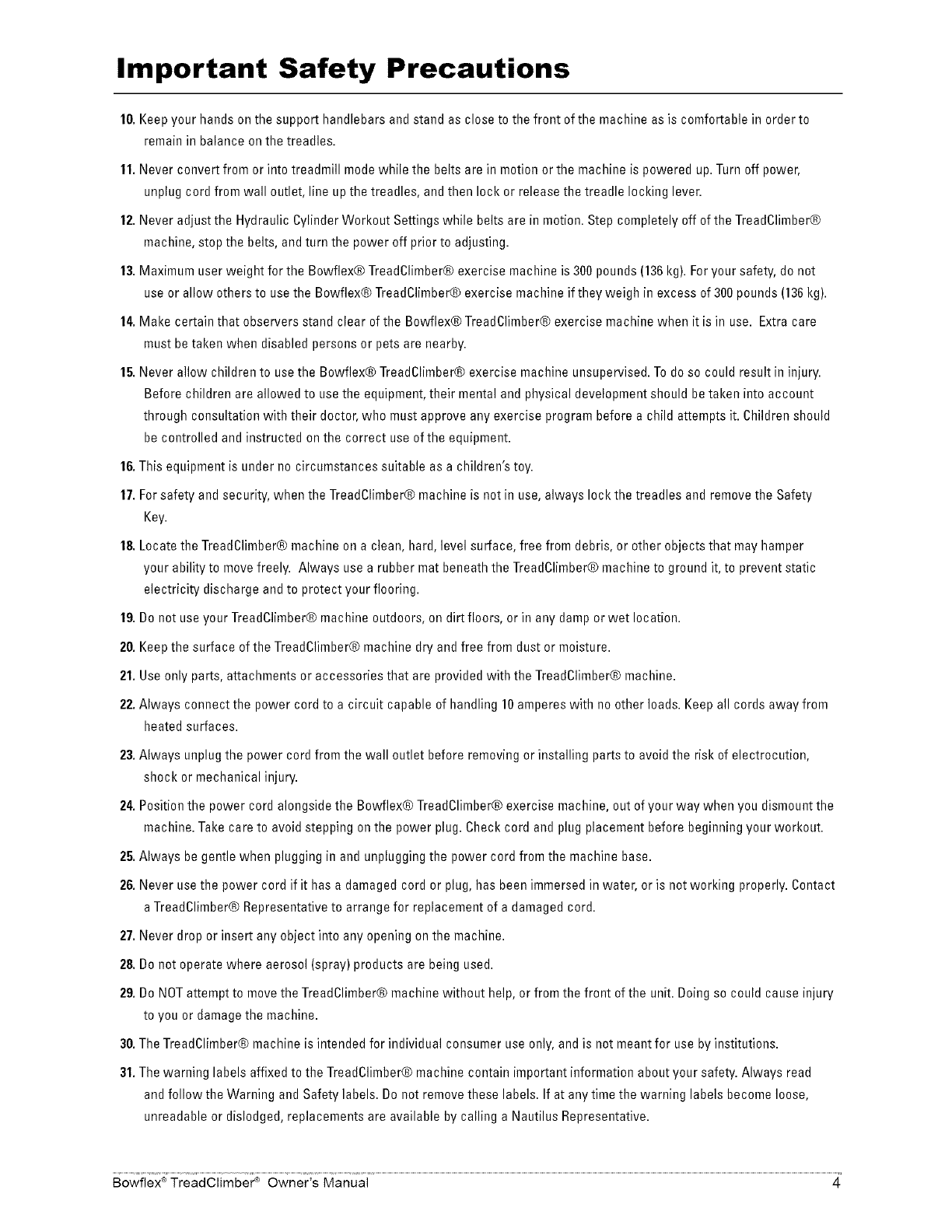

Important Safety Precautions
1& Keep your hands on the support handlebars and stand as close to the front of the machine as is comfortable in order to
remain in balance on the treadles.
11.Never convert from or into treadmill mode while the belts are in motion or the machine is powered up.Turn off power,
unplug cord from wall outlet, line up the treadles, and then lock or release the treadle locking lever.
12.Never adjust the Hydraulic Cylinder Workout Settings while belts are in motion. Step completely off of the TreadClimber®
machine, stop the belts, and turn the power off prior to adjusting.
13.Maximum user weight for the Bawfiex® TreadClimber@ exercise machine is 300 pounds (136kg). Foryour safety, do not
use or allow others to use the Bawfiex@ TreadClimber® exercise machine if they weigh in excess of 300 pounds (136kg).
14.Make certain that observers stand clear of the Bowflex® TreadClimber@ exercise machine when it is in use. Extra care
must be taken when disabled persons or pets are nearby.
15.Never allow children to use the Bowfiex® TreadClimber@ exercise machine unsupervised.To doso could result in injury.
Before children are allowed to use the equipment, their mental and physical development should be taken into account
through consultation with their doctor, who must approve any exercise program before a child attempts it. Children should
becontrolled and instructed on the correct use of the equipment.
16.This equipment is under no circumstances suitable as a children's toy.
17.For safety and security, when the TreadClimber® machine is not in use, always lock the treadles and removethe Safety
Key.
18.Locate the TreadClimber@ machine on a clean, hard, level surface, free from debris, or other objects that may hamper
your ability to move freely. Always use a rubber mat beneath the TreadClimber® machine to ground it, to prevent static
electricity discharge and to protect your flooring.
19.Do not use your TreadClimber® machine outdoors, on dirt floors, or in any damp or wet location.
2& Keep the surface of the TreadClimber® machine dry and free from dust or moisture.
21.Use only parts, attachments or accessories that are provided with the TreadClimber® machine.
22.Always connect the power cord to a circuit capable of handling 10 amperes with no other loads. Keep all cords away from
heated surfaces.
23.Always unplug the power cord from the wall outlet before removing or installing partsto avoid the risk of electrocution,
shock or mechanical injury.
24.Position the power cord alongside the Bowfiex@ TreadClimber® exercise machine, out of your way when you dismount the
machine. Take care to avoid stepping an the power plug. Check cord and plug placement before beginning your workout.
25.Always be gentle when plugging in and unplugging the power cord from the machine base.
26.Never usethe power cord if it has a damaged cord or plug, has been immersed in water, or is not working properly. Contact
a TreadClimber@ Representative to arrange for replacement of a damaged cord.
27.Never drop or insert any object into any opening on the machine.
28.Do net operate where aerosol (spray) products are being used.
29.Do NOT attempt to move the TreadClimber@ machine without help, or from the front ofthe unit. Doing so could cause injury
to you or damagethe machine.
3& TheTreadClimber@ machine is intended for individual consumer use only,and is not meant for use by institutions.
31.The warning labels affixed to the TreadClimber® machine contain important information about your safety. Always read
and follow the Warning and Safety labels. Do not remove these labels. If at any time the warning labels become loose,
unreadable or dislodged, replacements are available by calling a Nautilus Representative.
Bowfiex' TreadClimbe¢ _ Owner's Manual 4
![](asset-8.png)

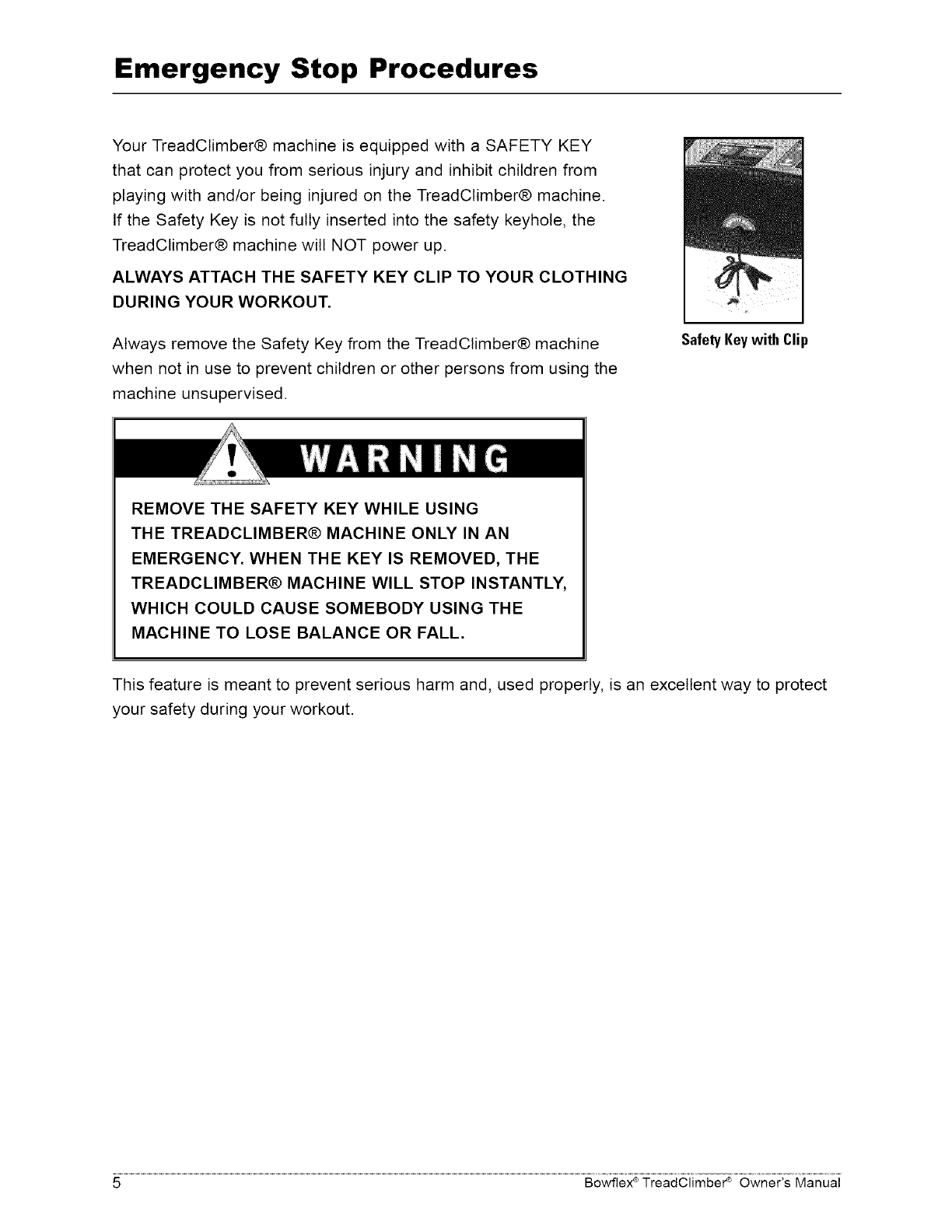

Emergency Stop Procedures
Your TreadClimber® machine is equipped with a SAFETY KEY
that can protect you from serious injury and inhibit children from
playing with and/or being injured on the TreadClimber® machine.
If the Safety Key is not fully inserted into the safety keyhole, the
TreadClimber® machine will NOT power up.
ALWAYS ATTACH THE SAFETY KEY CLIP TO YOUR CLOTHING
DURING YOUR WORKOUT.
Always remove the Safety Key from the TreadClimber® machine
when not in use to prevent children or other persons from using the
machine unsupervised.
Safety Keywith Clip
REMOVE THE SAFETY KEY WHILE USING
THE TREADCLIMBER® MACHINE ONLY IN AN
EMERGENCY. WHEN THE KEY IS REMOVED, THE
TREADCLIMBER® MACHINE WILL STOP INSTANTLY,
WHICH COULD CAUSE SOMEBODY USING THE
MACHINE TO LOSE BALANCE OR FALL.
This feature is meant to prevent serious harm and, used properly, is an excellent way to protect
your safety during your workout.
5 Bowflex ®TreadClimber _ Owner's Manual
![](asset-9.png)

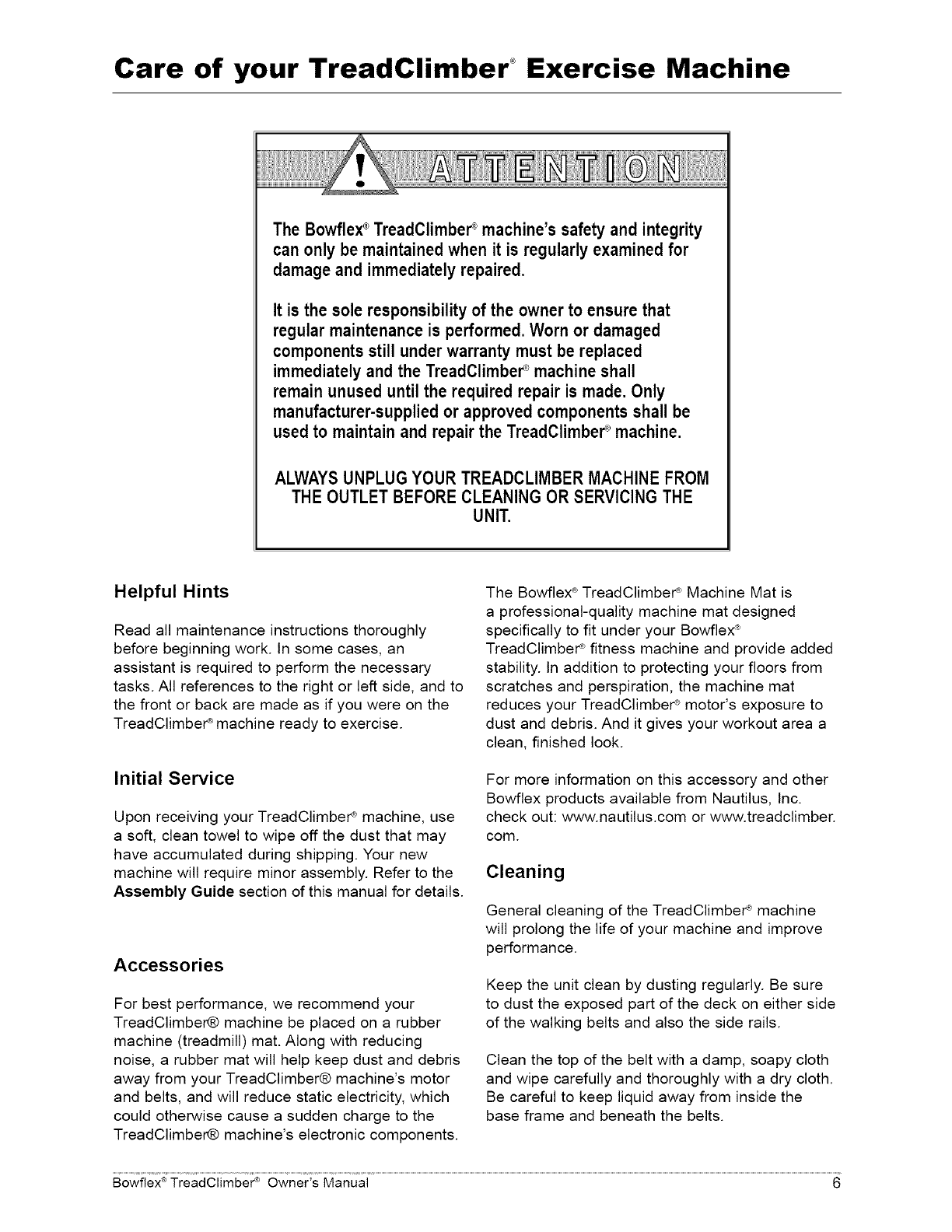

Care of your TreadClimber °Exercise Machine
The Bowflex®TreadClimbeC_machine's safety and integrity
can only be maintainedwhen it is regularly examined for
damage and immediately repaired.
It is the sole responsibilityof the owner to ensure that
regular maintenance is performed. Worn or damaged
componentsstill underwarranty must be replaced
immediately and the TreadClimbe¢_machineshall
remain unused until the required repair is made. Only
manufacturer-suppliedor approved componentsshall be
used to maintain and repair the TreadClimbeC_machine.
ALWAYSUNPLUG YOUR TREADCLIMBER MACHINE FROM
THE OUTLET BEFORE CLEANING OR SERVICING THE
UNIT.
Helpful Hints
Read all maintenance instructions thoroughly
before beginning work. In some cases, an
assistant is required to perform the necessary
tasks. All references to the right or left side, and to
the front or back are made as if you were on the
TreadClimber _machine ready to exercise.
Initial Service
Upon receiving your TreadClimber _ machine, use
a soft, clean towel to wipe off the dust that may
have accumulated during shipping. Your new
machine will require minor assembly. Refer to the
Assembly Guide section of this manual for details.
Accessories
For best performance, we recommend your
TreadClimber@ machine be placed on a rubber
machine (treadmill) mat. Along with reducing
noise, a rubber mat will help keep dust and debris
away from your TreadClimber® machine's motor
and belts, and will reduce static electricity, which
could otherwise cause a sudden charge to the
TreadClimber@ machine's electronic components.
The Bowflex ®TreadClimber _ Machine Mat is
a professional-quality machine mat designed
specifically to fit under your Bowflex ®
TreadClimber _ fitness machine and provide added
stability. In addition to protecting your floors from
scratches and perspiration, the machine mat
reduces your TreadClimber _ motor's exposure to
dust and debris. And it gives your workout area a
clean, finished look.
For more information on this accessory and other
Bowflex products available from Nautilus, Inc.
check out: www.nautilus.com or www.treadclimber.
com.
Cleaning
General cleaning of the TreadClimbe¢ _ machine
will prolong the life of your machine and improve
performance.
Keep the unit clean by dusting regularly. Be sure
to dust the exposed part of the deck on either side
of the walking belts and also the side rails.
Clean the top of the belt with a damp, soapy cloth
and wipe carefully and thoroughly with a dry cloth.
Be careful to keep liquid away from inside the
base frame and beneath the belts.
®
Bowflex' TreadClimbe¢ _ Owner's Manual 6
![](asset-a.png)
Care of your TreadClimber ®Exercise Machine

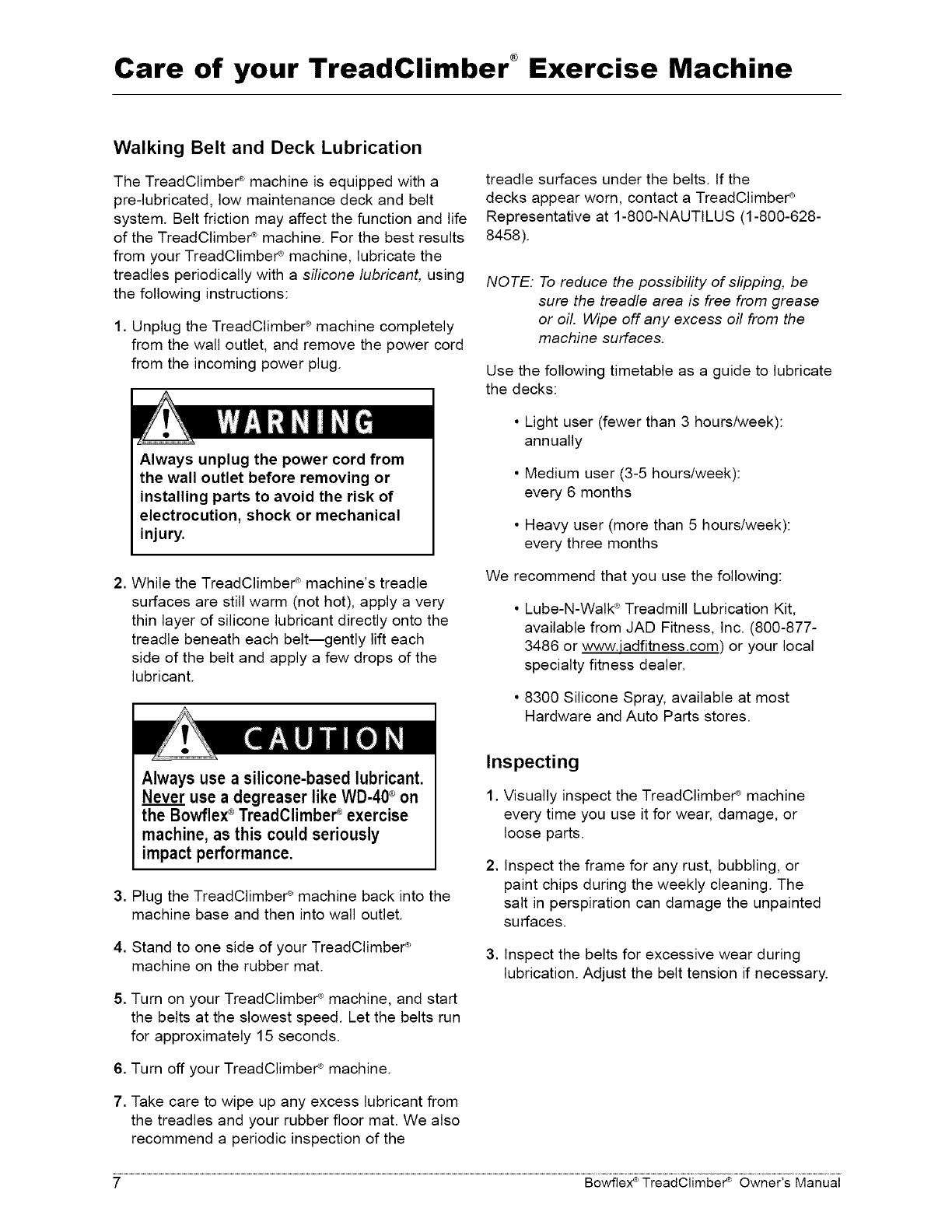

Walking Belt and Deck Lubrication
The TreadClimbe¢ _ machine is equipped with a
pre-lubricated, low maintenance deck and belt
system. Belt friction may affect the function and life
of the TreadClimber _ machine. For the best results
from your TreadClimber _ machine, lubricate the
treadles periodically with a silicone lubricant, using
the following instructions:
1. Unplug the TreadClimbe¢ _ machine completely
from the wall outlet, and remove the power cord
from the incoming power plug.
Always unplug the power cord from
the wall outlet before removing or
installing parts to avoid the risk of
electrocution, shock or mechanical
injury.
2. While the TreadClimber _ machine's treadle
surfaces are still warm (not hot), apply a very
thin layer of silicone lubricant directly onto the
treadle beneath each belt--gently lift each
side of the belt and apply a few drops of the
lubricant.
treadle surfaces under the belts. If the
decks appear worn, contact a TreadClimber _
Representative at 1-800-NAUTILUS (1-800-628-
8458).
NOTE: To reduce the possibility of slipping, be
sure the treadle area is free from grease
or oil. Wipe off any excess oil from the
machine surfaces.
Use the following timetable as a guide to lubricate
the decks:
• Light user (fewer than 3 hours/week):
annually
• Medium user (3-5 hours/week):
every 6 months
• Heavy user (more than 5 hours/week):
every three months
We recommend that you use the following:
• Lube-N-Walk '_Treadmill Lubrication Kit,
available from JAD Fitness, Inc. (800-877-
3486 or www.iadfitness.com) or your local
specialty fitness dealer.
• 8300 Silicone Spray, available at most
Hardware and Auto Parts stores.
Always use a silicone-based lubricant.
Never use a degreaser like WD-40®on
®
the Bowflex TreadClimbef_exercise
machine, as this could seriously
impact performance.
3. Plug the TreadClimber _ machine back into the
machine base and then into wall outlet.
4. Stand to one side of your TreadClimber _
machine on the rubber mat.
5. Turn on your TreadClimbe¢ _machine, and start
the belts at the slowest speed. Let the belts run
for approximately 15 seconds.
6. Turn off your TreadClimbe¢ _ machine.
7. Take care to wipe up any excess lubricant from
the treadles and your rubber floor mat. We also
recommend a periodic inspection of the
Inspecting
1. Visually inspect the TreadClimber _ machine
every time you use it for wear, damage, or
loose parts.
2. Inspect the frame for any rust, bubbling, or
paint chips during the weekly cleaning. The
salt in perspiration can damage the unpainted
surfaces.
3. Inspect the belts for excessive wear during
lubrication. Adjust the belt tension if necessary.
7Bowflex ®TreadClimber _ Owner's Manual
![](asset-b.png)
Care of your TreadClimber °Exercise Machine

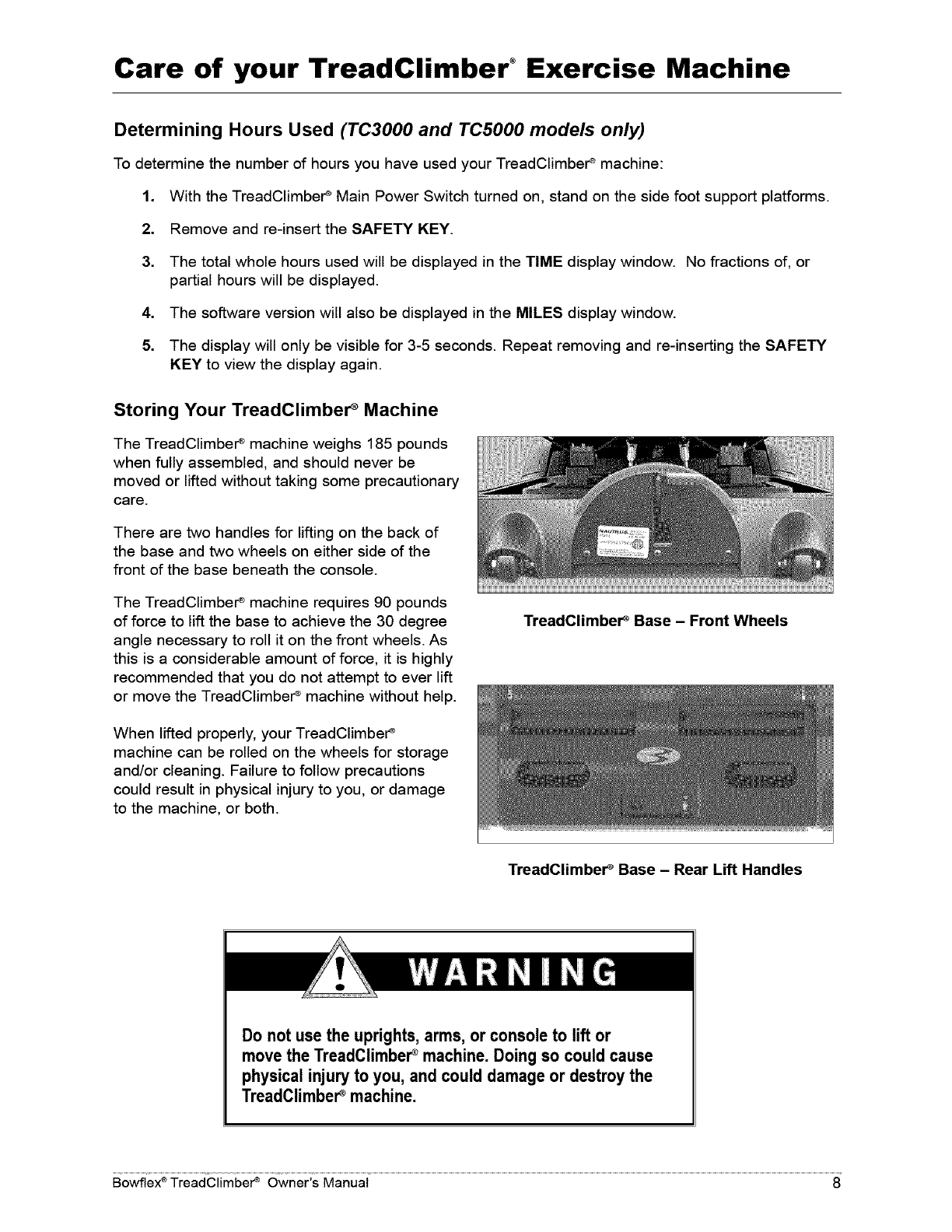

Determining Hours Used (TC3000 and TC5000 models only)
To determine the number of hours you have used your TreadClimber_machine:
1. With the TreadClimber _Main Power Switch turned on, stand on the side foot support platforms.
2. Remove and re-insert the SAFETY KEY.
3. The total whole hours used will be displayed in the TIME display window. No fractions of, or
partial hours will be displayed.
4. The software version will also be displayed in the MILES display window.
5. The display will only be visible for 3-5 seconds. Repeat removing and re-inserting the SAFETY
KEY to view the display again.
Storing Your TreadClimber _Machine
The TreadClimber _ machine weighs 185 pounds
when fully assembled, and should never be
moved or lifted without taking some precautionary
care.
There are two handles for lifting on the back of
the base and two wheels on either side of the
front of the base beneath the console.
The TreadClimber _ machine requires 90 pounds
of force to lift the base to achieve the 30 degree
angle necessary to roll it on the front wheels. As
this is a considerable amount of force, it is highly
recommended that you do not attempt to ever lift
or move the TreadClimber _ machine without help.
When lifted properly, your TreadClimber _
machine can be rolled on the wheels for storage
and/or cleaning. Failure to follow precautions
could result in physical injury to you, or damage
to the machine, or both.
TreadClimber _Base - Front Wheels
TreadClimber _Base - Rear Lift Handles
Do not use the uprights, arms, or console to lift or
move the TreadClimber®machine. Doing so could cause
physical injury to you, and could damage or destroy the
TreadClimber®machine.
Bowflex _TreadClimber _ Owner's Manual 8
![](asset-c.png)

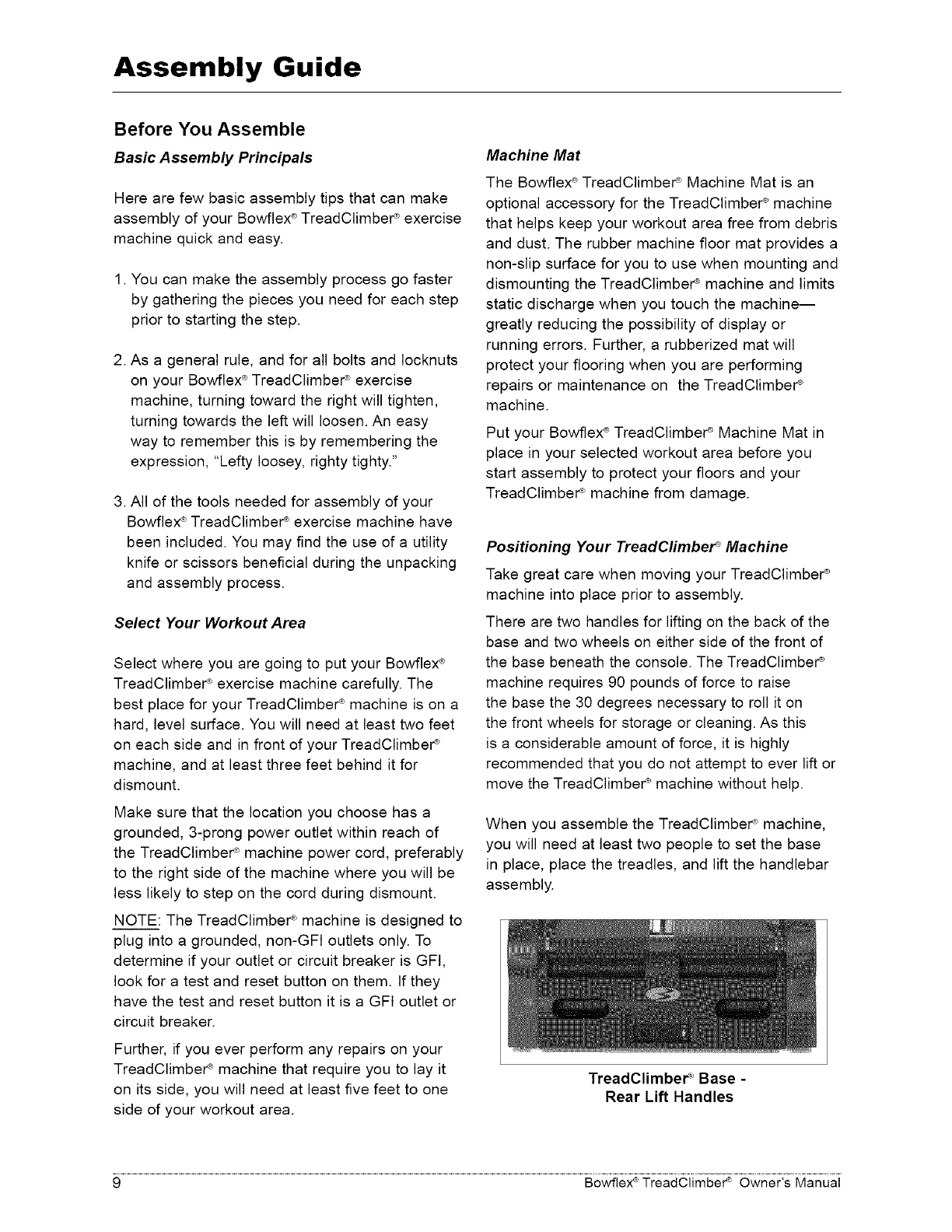

Assembly Guide
Before You Assemble
Basic Assembly Principals
Here are few basic assembly tips that can make
assembly of your Bowflex ®TreadClimber _ exercise
machine quick and easy.
1. You can make the assembly process go faster
by gathering the pieces you need for each step
prior to starting the step.
2. As a general rule, and for all bolts and Iocknuts
on your Bowflex '_TreadClimber _ exercise
machine, turning toward the right will tighten,
turning towards the left will loosen. An easy
way to remember this is by remembering the
expression, "Lefty Ioosey, righty tighty."
3. All of the tools needed for assembly of your
Bowflex ®TreadClimber _exercise machine have
been included. You may find the use of a utility
knife or scissors beneficial during the unpacking
and assembly process.
Select Your Workout Area
Select where you are going to put your Bowflex ®
TreadClimber _ exercise machine carefully. The
best place for your TreadClimber '_machine is on a
hard, level surface. You will need at least two feet
on each side and in front of your TreadClimber '_
machine, and at least three feet behind it for
dismount.
Make sure that the location you choose has a
grounded, 3-prong power outlet within reach of
the TreadClimber _ machine power cord, preferably
to the right side of the machine where you will be
less likely to step on the cord during dismount.
NOTE: The TreadClimber _ machine is designed to
plug into a grounded, non-GFt outlets only. To
determine if your outlet or circuit breaker is GFI,
look for a test and reset button on them. If they
have the test and reset button it is a GFI outlet or
circuit breaker.
Further, if you ever perform any repairs on your
TreadClimber _ machine that require you to lay it
on its side, you will need at least five feet to one
side of your workout area.
Machine Mat
The Bowflex ®TreadClimber _ Machine Mat is an
optional accessory for the TreadClimbe¢ _ machine
that helps keep your workout area free from debris
and dust. The rubber machine floor mat provides a
non-slip surface for you to use when mounting and
dismounting the TreadClimber _ machine and limits
static discharge when you touch the machine--
greatly reducing the possibility of display or
running errors. Further, a rubberized mat will
protect your flooring when you are performing
repairs or maintenance on the TreadClimber _
machine.
Put your Bowflex ®TreadClimber _ Machine Mat in
place in your selected workout area before you
start assembly to protect your floors and your
TreadClimber _ machine from damage.
Positioning Your TreadClimber _Machine
Take great care when moving your TreadClimber _
machine into place prior to assembly.
There are two handles for lifting on the back of the
base and two wheels on either side of the front of
the base beneath the console. The TreadClimber '_
machine requires 90 pounds of force to raise
the base the 30 degrees necessary to roll it on
the front wheels for storage or cleaning. As this
is a considerable amount of force, it is highly
recommended that you do not attempt to ever lift or
move the TreadClimber _ machine without help.
When you assemble the TreadClimber _ machine,
you will need at least two people to set the base
in place, place the treadles, and lift the handlebar
assembly.
TreadClimber °>Base -
Rear Lift Handles
9 Bowflex ®TreadClimber _ Owner's Manual
![](asset-d.png)

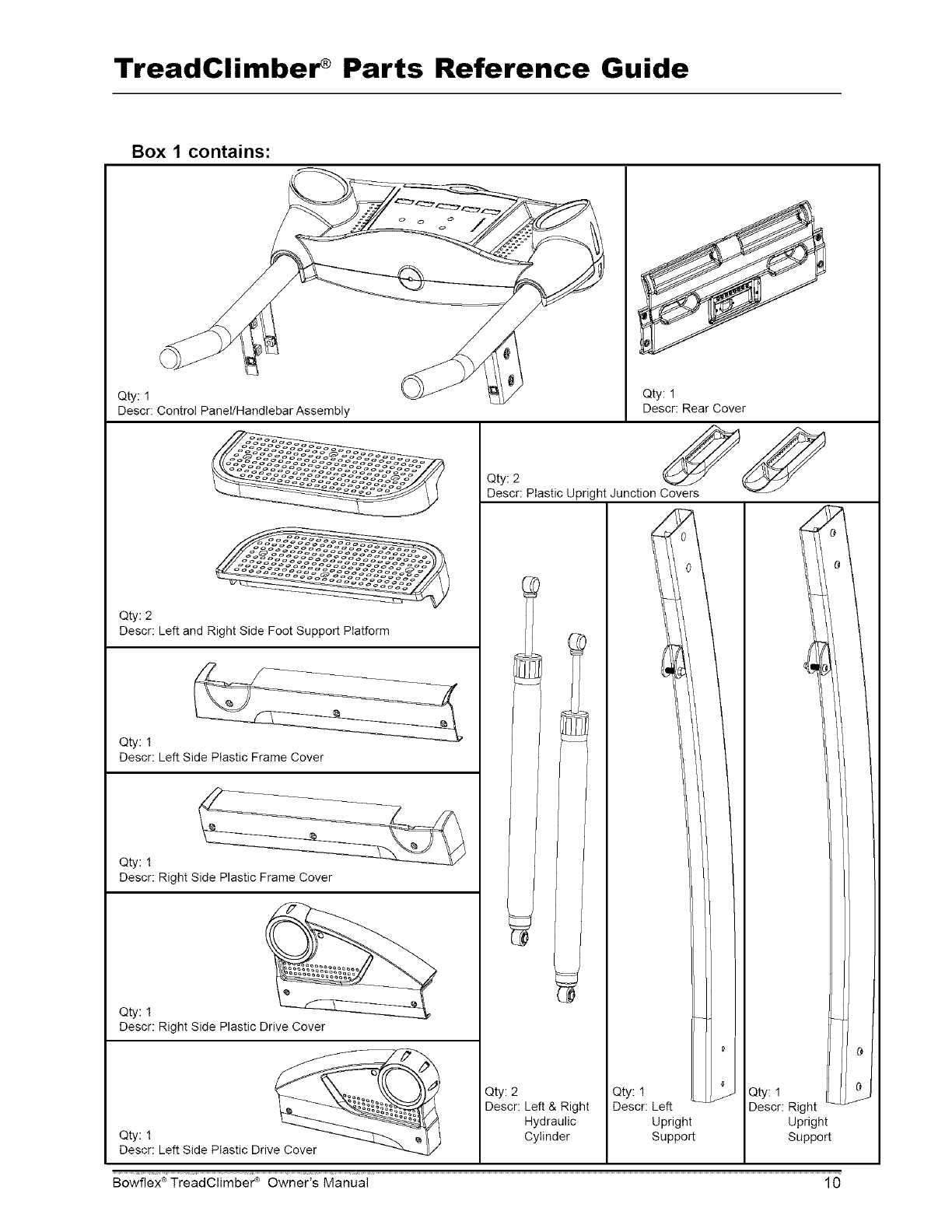

TreadClimber _Parts Reference Guide
Box 1 contains:
Descr: Control PaneI/Handlebar Assembly
Qty: 2
Descr: Left and Right Side Foot Support Platform
Qty: 1
Descr: Left Side Plastic Frame Cover
Qty: 1
Descr: Right Side Plastic Frame Cover
Qty: 1
Descr: Right Side Plastic Drive Cover
Qty: 1
Descr: Left Side Plastic Drive Cover
Qty: !
Descr: Rear Cover
Descr: Plastic Upright Junction Covers
Qty: 2
Descr: Left & Right
Hydraulic
Cylinder
Qty: 1
Descr: Left
Upright
Support
/
?
Qty: 1 _)
Descr: Right -- J
Upright
Support
Bowflex' TreadClimbe¢ _ Owner's Manual 10
![](asset-e.png)

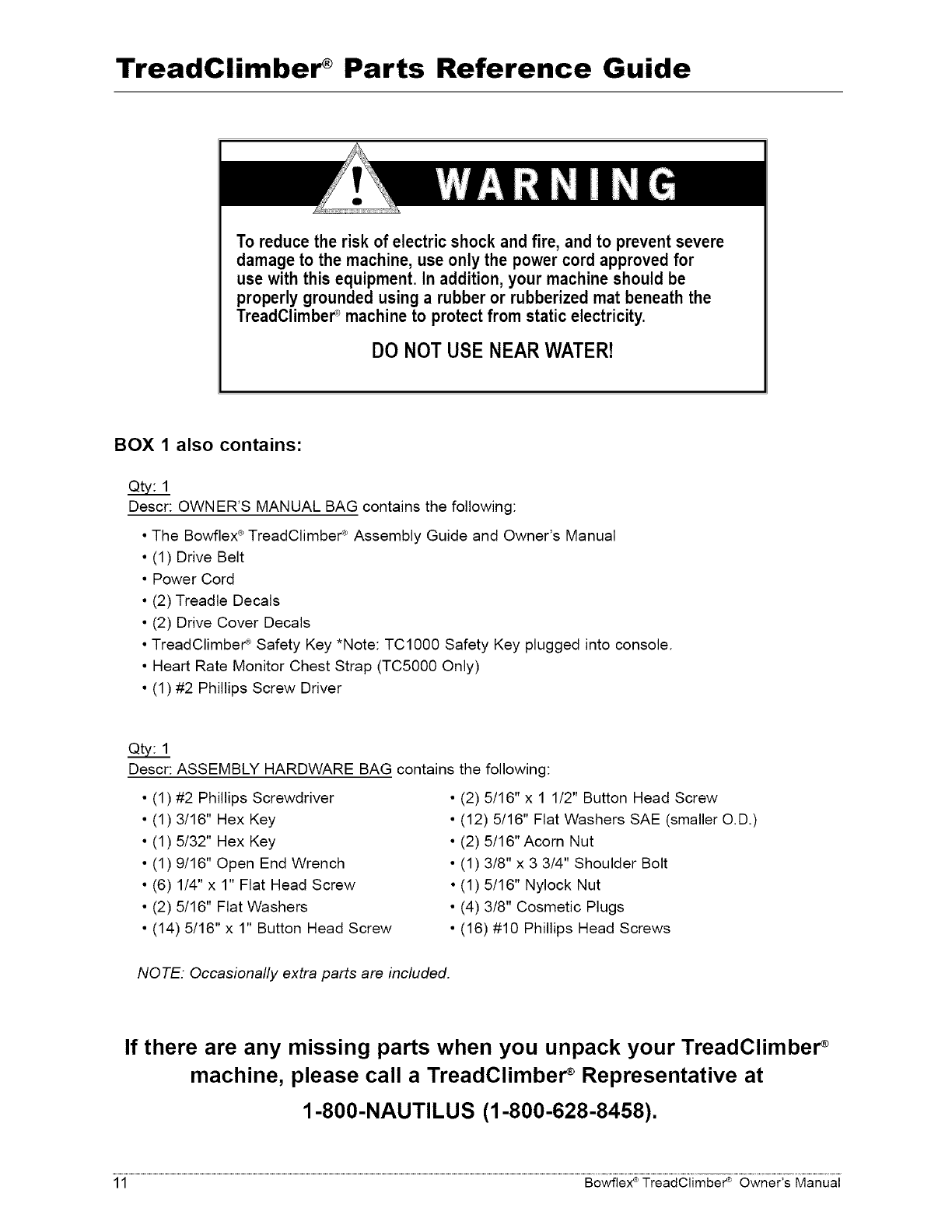

TreadClimber Parts Reference Guide
To reduce the risk of electric shock and fire, and to prevent severe
damage to the machine, use only the power cord approved for
use with this equipment. In addition, your machineshould be
properly grounded using a rubberor rubberized mat beneath the
TreadClimbe¢_machineto protect from static electricity.
DO NOTUSE NEAR WATER!
BOX 1 also contains:
Qty:l
Descr: OWNER'S MANUAL BAG contains the following:
The Bowflex ®TreadClimber _ Assembly Guide and Owner's Manual
(1) Drive Belt
Power Cord
(2) Treadle Decals
(2) Drive Cover Decals
TreadClimbe¢ _ Safety Key *Note: TCl000 Safety Key plugged into console.
Heart Rate Monitor Chest Strap (TC5000 Only)
(1) #2 Phillips Screw Driver
Oty:l
Descr:
(1) #2 Phillips Screwdriver
(1) 3/16" Hex Key
(1) 5/32" Hex Key
(1) 9/16" Open End Wrench
(6) 1/4" x 1" Flat Head Screw
(2) 5/16" Flat Washers
(14) 5/16" x 1" Button Head Screw
ASSEMBLY HARDWARE BAG contains the following:
(2) 5/16" x 1 1/2" Button Head Screw
(12) 5/16" Flat Washers SAE (smaller O.D.)
(2) 5/16" Acorn Nut
(1) 3/8" x 3 3/4" Shoulder Bolt
(1) 5/16" Nylock Nut
(4) 3/8" Cosmetic Plugs
(16) #10 Phillips Head Screws
NOTE: Occasionally extra parts are included.
If there are any missing parts when you unpack your TreadClimber _
machine, please call a TreadClimber _Representative at
1-800-NAUTILUS (1-800-628-8458).
11 Bowflex ®TreadClimber _ Owner's Manual
![](asset-f.png)

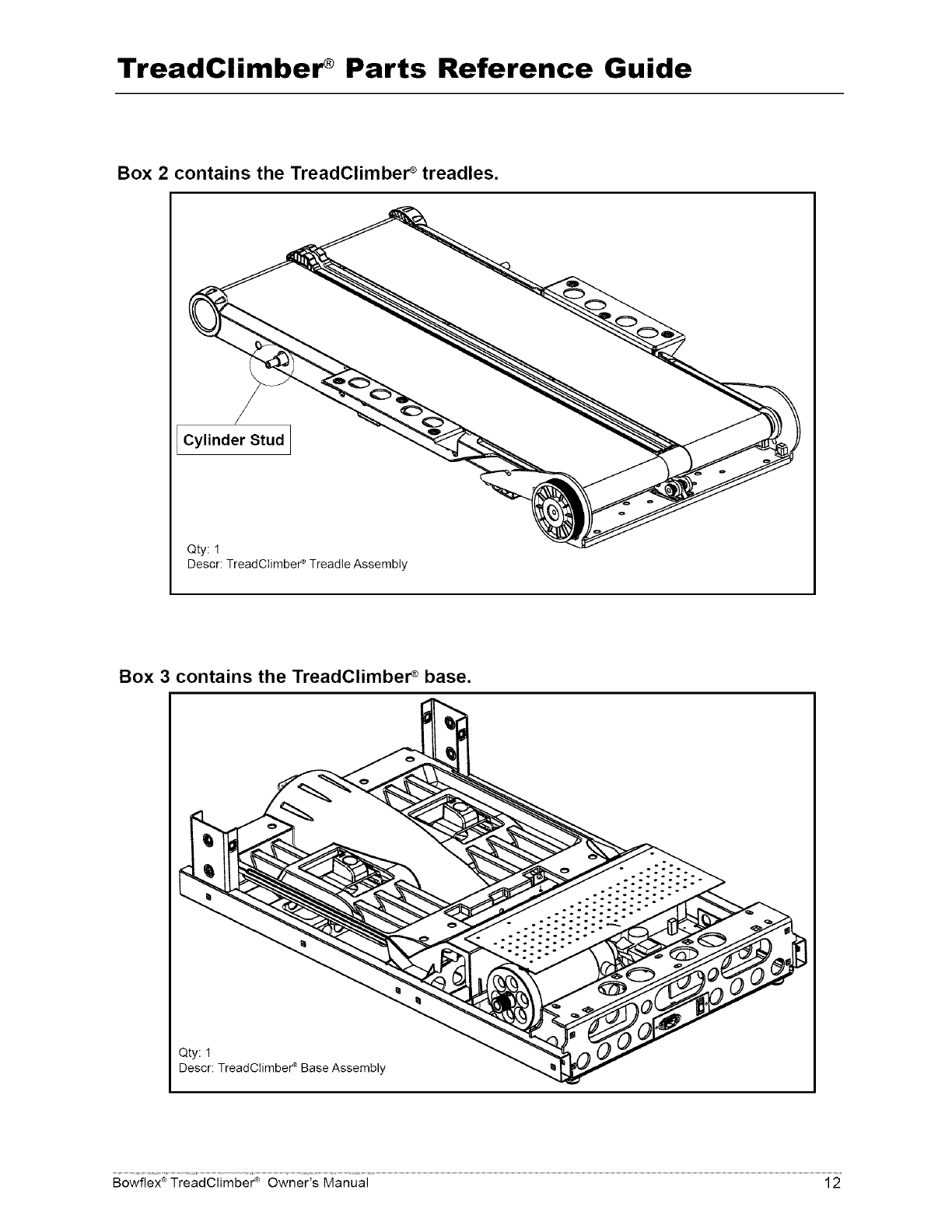

TreadClimber _Parts Reference Guide
Box 2 contains the TreadClimber _ treadles.
Cylinder Stud
Qty: 1
Descr: TreadCIimbeP Treadle Assembly
Box 3 contains the TreadClimber _base.
Qty: 1
Descr: TreadCIimbeP Base Assembly
®
Bowflex' TreadClimbe¢ _ Owner's Manual 12
![](asset-10.png)
TreadClimber _Hardware and Tool List
Hardware:
NOTE: IMAGES BELOWARE NOT TO SCALE
Qty: 6
Descr: !/4" x 1" Flat Head Screw
Qty: !4
Descr: 5/16" x 1" Button Head Screw
O
Qty: 4
Descr: 3/8" Cosmetic Plugs
©
Qty: 2
Descr: 5/16" x 1 1/2" Button Head Screw
©
Qty: 2
Descr: 5/16" Flat Washer
Qty: 1
Descr: 5/16" Nylock Nut
©
Qty:l I'-'1 ]]_
Descr: 318" x 3 3/4" Shoulder Bolt
Tools:
Qty: !6
Descr: #10 Phillips Head Screw
Qty: !2
Descr: 5/16" Fiat Washer SAE
Qty: 2
Descr: 5/16" Acorn Nut
@
©
Qty: !
Descr: #2 Phillips Screwdriver
Qty: 1
Descr: 9/16" Open End Wrench
Qty: 1
Descr: 3/16" Hex Key
Qty: 1
Descr: 5/32" Hex Key
Parts:
Qty: !
Descr: Drive Belt Qty: 1
Descr: Safety Key with Clip (Models TC3000 & TC5000 only.)
13 Bowflex ®TreadClimber _ Owner's Manual
![](asset-11.png)
Assembly Guide
Assembly Instructions
Step 1: PLACING TREADLES ON BASE
Locate the following for this step:
PARTS:
• TreadClimber _ Base Assembly
• TreadClimber _ Treadle Assembly
HARDWARE:
• Four (4) 3/8" x t-1/4" Hex Bolts
TOOLS:
• 9/16" Open End Wrench (included)
. Scissors or other cutting tool
t-1 Place the latch lever on the base in the unlocked
position (see Figure 1-1).
1-2 Cut the wire ties on the teeter assembly and
extend the teeter to the center of the treadles
(see Figure 1-2)
1-3 With the help of another, carefully rotate the
treadle assembly so the teeter is hanging
downward above the base Slowly lower
treadle assembly onto base Make sure teeter
mechanism passes freely through hole in the
center of base (see Figure 1-3) Carefully
align roller casting so it lays flush on the base
(see Figure t-4) For TC3000 and TC5000
models verify that the step sensor is properly
aligned (see Figure I-3) For all TreadClimber _
machines center the treadles, using the orange
.... Lo+_:,z.+.+{ z.,L
!
Illustration I+A
treadle alignment card (see Illustration t-A),
before proceeding
1-4 Using the 9116"open end wrench, tighten the
(4) 318"x t-1/4" hex belts on the rear roller
casting to bring the casting and base snugly
together (see Figure 1-5)
Figure 1-t
Figure 1-2
Figure 1+3
Align roller casting so it lays
flush on base
Figure 14
Figure 1-5
Bowflex_ TreadClimber _ Owner's Manual 14
![](asset-12.png)
Assembly Guide

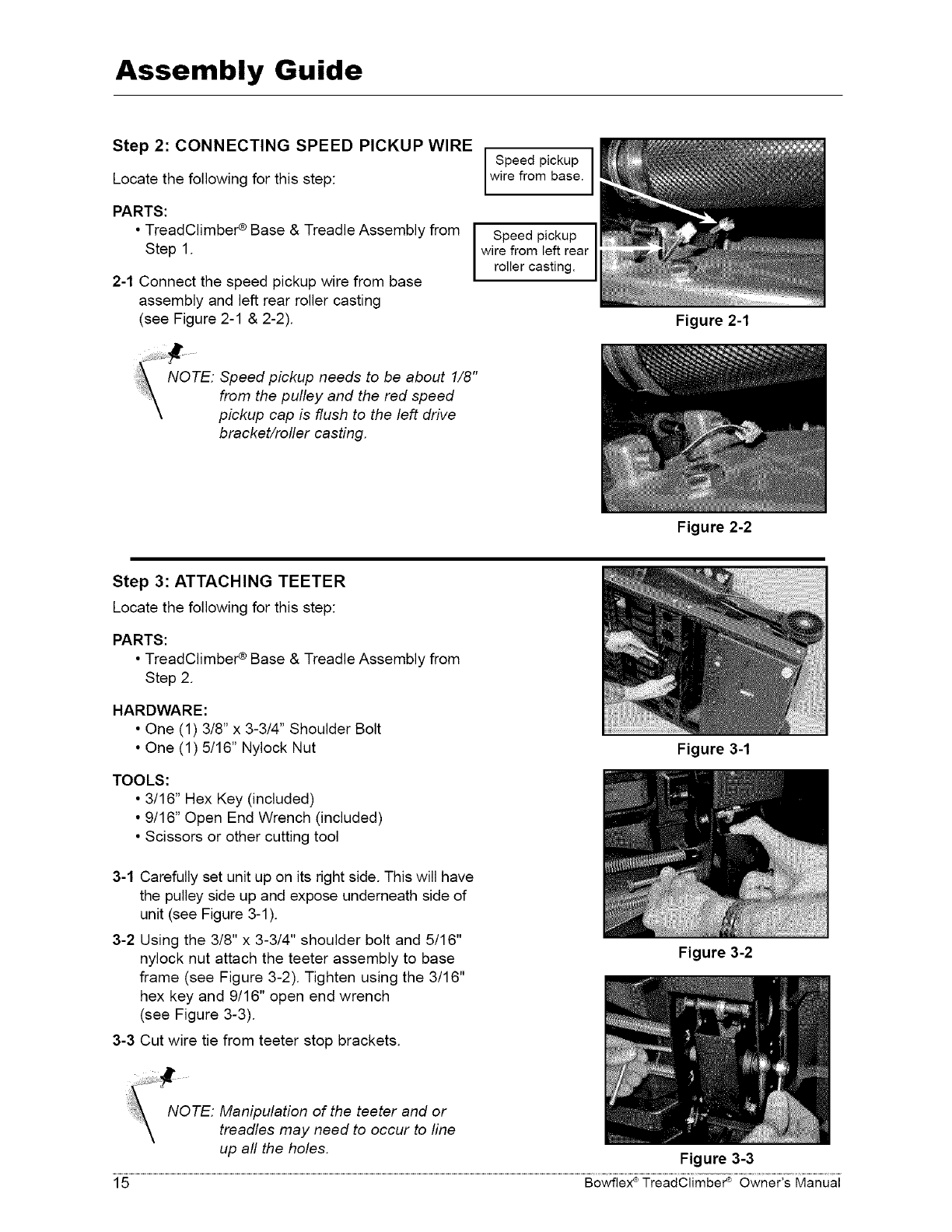

Step 2: CONNECTING SPEED PICKUP WIRE
Locate the following for this step:
PARTS:
•TreadClimber ¢ Base & Treadle Assembly from
Step 1.
2-1 Connect the speed pickup wire from base
assembly and left rear roller casting
(see Figure 2-1 & 2-2).
NOTE: Speed pickup needs to be about 1/8"
from the pulley and the red speed
pickup cap is flush to the left drive
bracket/roller casting.
Speed pickup I
wire from base.
I Speed pickup
wire from left rear
roller casting.
Step 3: ATTACHING TEETER
Locate the following for this step:
PARTS:
• TreadClimber ¢ Base & Treadle Assembly from
Step 2.
HARDWARE:
• One (1) 3/8" x 3-3/4" Shoulder Bolt
• One (1) 5/16" Nylock Nut
TOOLS:
• 3/16" Hex Key (included)
• 9/16" Open End Wrench (included)
• Scissors or other cutting tool
3-1 Carefully set unit up on its right side. This will have
the pulley side up and expose underneath side of
unit (see Figure 3-1).
3-2 Using the 3/8" x 3-3/4" shoulder bolt and 5/16"
nylock nut attach the teeter assembly to base
frame (see Figure 3-2). Tighten using the 3/16"
hex key and 9/16" open end wrench
(see Figure 3-3).
3-3 Cut wire tie from teeter stop brackets.
NOTE: Manipulation of the teeter and or
\treadles may need to occur to line
up all the holes.
Figure 2-1
Figure 2-2
Figure 3-1
Figure 3-2
Figure 3-3
15 Bowflex ®TreadClimber _ Owner's Manual
![](asset-13.png)
Assembly Guide

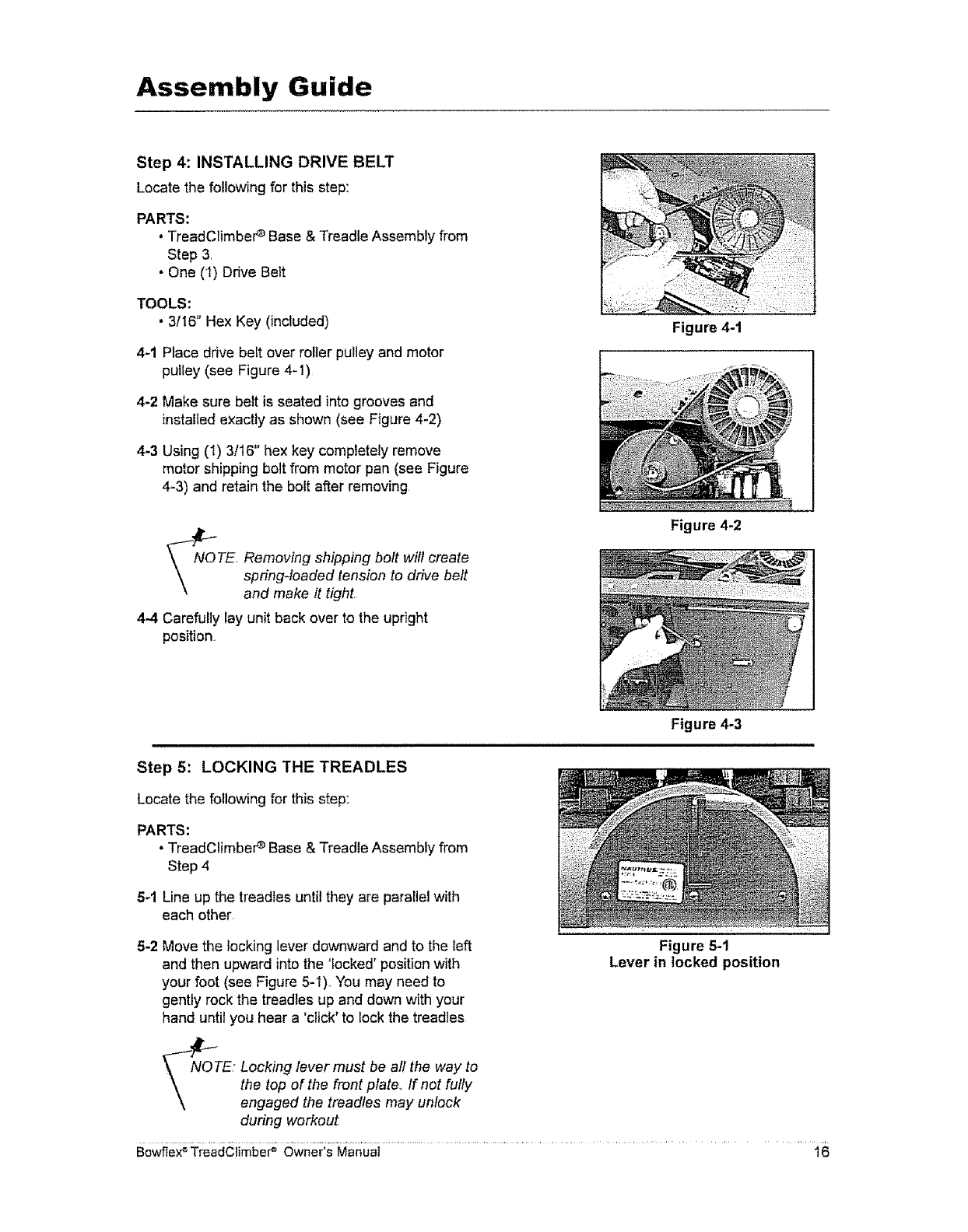

Step 4: INSTALLING DRIVE BELT
Locate the following for this step:
PARTS:
• TreadClimber _ Base & Treadle Assembly from
Step 3
• One (1) Drive Belt
TOOLS:
•3116"Hex Key (included)
4-1 Place drive belt over roller pulley and motor
pulley (see Figure 4-1)
4-2 Make sure belt is seated into grooves and
installed exactly as shown (see Figure 4-2)
4-3 Using (1) 3/16" hex key completely remove
motor shipping bolt from motor pan (see Figure
4-3) and retain the bolt after removing
NOTE, Removing shipping bolt will create
spring-loaded tension to drive belt
and make it tight,
4-4 Carefully lay unit back over to the upright
position
Step 5: LOCKING THE TREADLES
Locate the following for this step:
PARTS:
*TreadClimber _ Base & Treadle Assembly from
Step 4
5-1 Line up the treadles until they are parailel with
each other
Figure 4-1
Figure 4-2
Figure 4-3
Figure 5-1
Lever in locked position
5-2 Move the locking lever downward and to the left
and then upward intothe 'locked' position with
your foot (see Figure 5-1), You may need to
gently rock the treadles up and down with your
hand until you hear a 'click' to lockthe treadles
NO TE Locking lever must be all the way to
the top of the front plate., If not fully
engaged the treadles may unlock
during workout
Bowflex _TreadClimber _ Owner's Manual 16
![](asset-14.png)
Assembly Guide

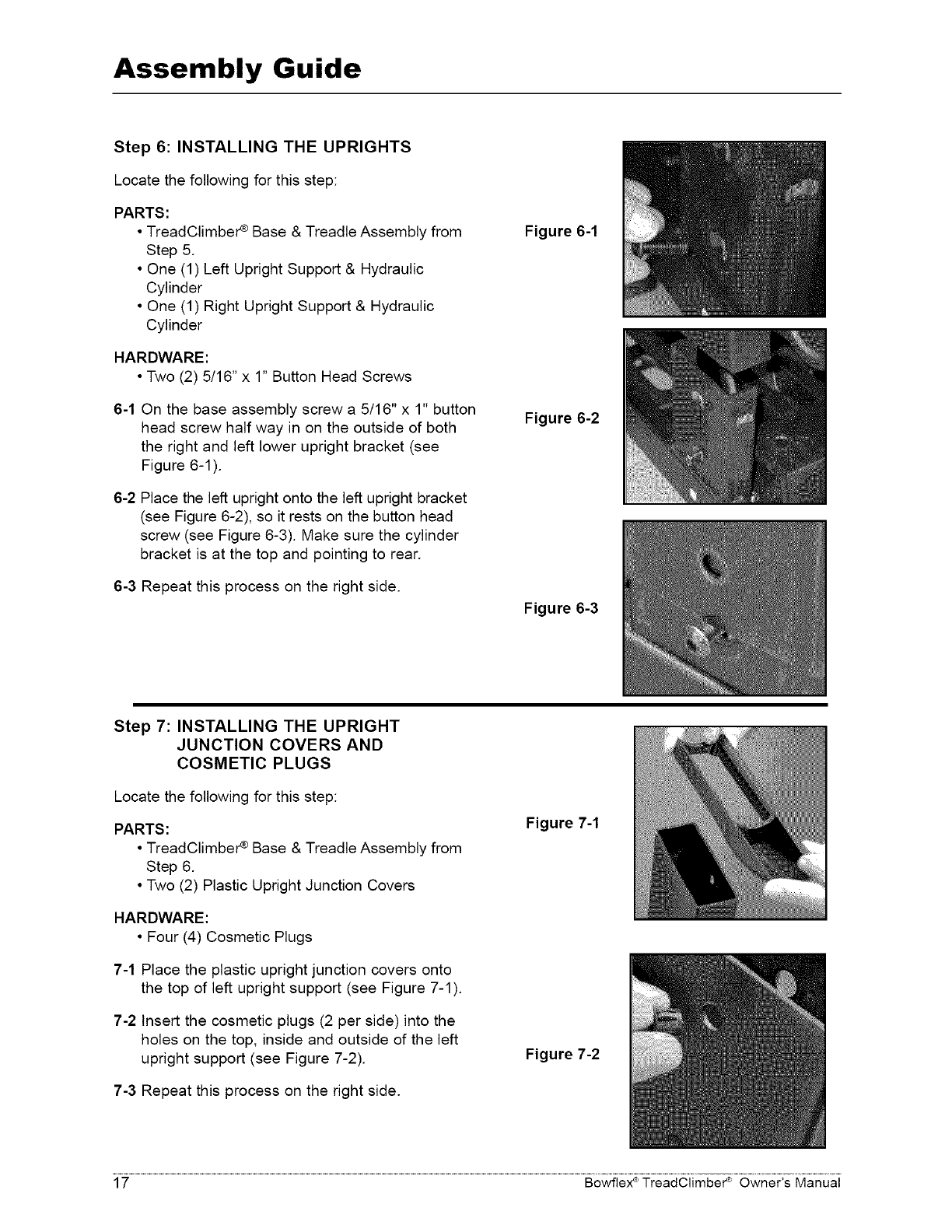

Step 6: INSTALLING THE UPRIGHTS
Locate the following for this step:
PARTS:
•TreadClimber ¢ Base & Treadle Assembly from
Step 5
• One (1) Left Upright Support & Hydraulic
Cylinder
• One (1) Right Upright Support & Hydraulic
Cylinder
HARDWARE:
• Two (2) 5/16" x 1" Button Head Screws
6-1 On the base assembly screw a 5/16" x 1" button
head screw half way in on the outside of both
the right and left lower upright bracket (see
Figure 6-1 )
6-2 Place the left upright onto the left upright bracket
(see Figure 6-2), so it rests on the button head
screw (see Figure 6-3) Make sure the cylinder
bracket is at the top and pointing to rear
6-3 Repeat this process on the right side
Figure 6-1
Figure 6-2
Figure 6-3
Step 7: INSTALLING THE UPRIGHT
JUNCTION COVERS AND
COSMETIC PLUGS
Locate the following for this step:
PARTS:
• TreadClimber ¢ Base & Treadle Assembly from
Step 6
• Two (2) Plastic Upright Junction Covers
HARDWARE:
• Four (4) Cosmetic Plugs
7-1 Place the plastic upright junction covers onto
the top of left upright support (see Figure 7-1 )
7-2 Insert the cosmetic plugs (2 per side) into the
holes on the top, inside and outside of the left
upright support (see Figure 7-2)
7-3 Repeat this process on the right side
Figure 7-1
Figure 7-2
17 Bowflex ®TreadClimber _ Owner's Manual
![](asset-15.png)
Assembly Guide

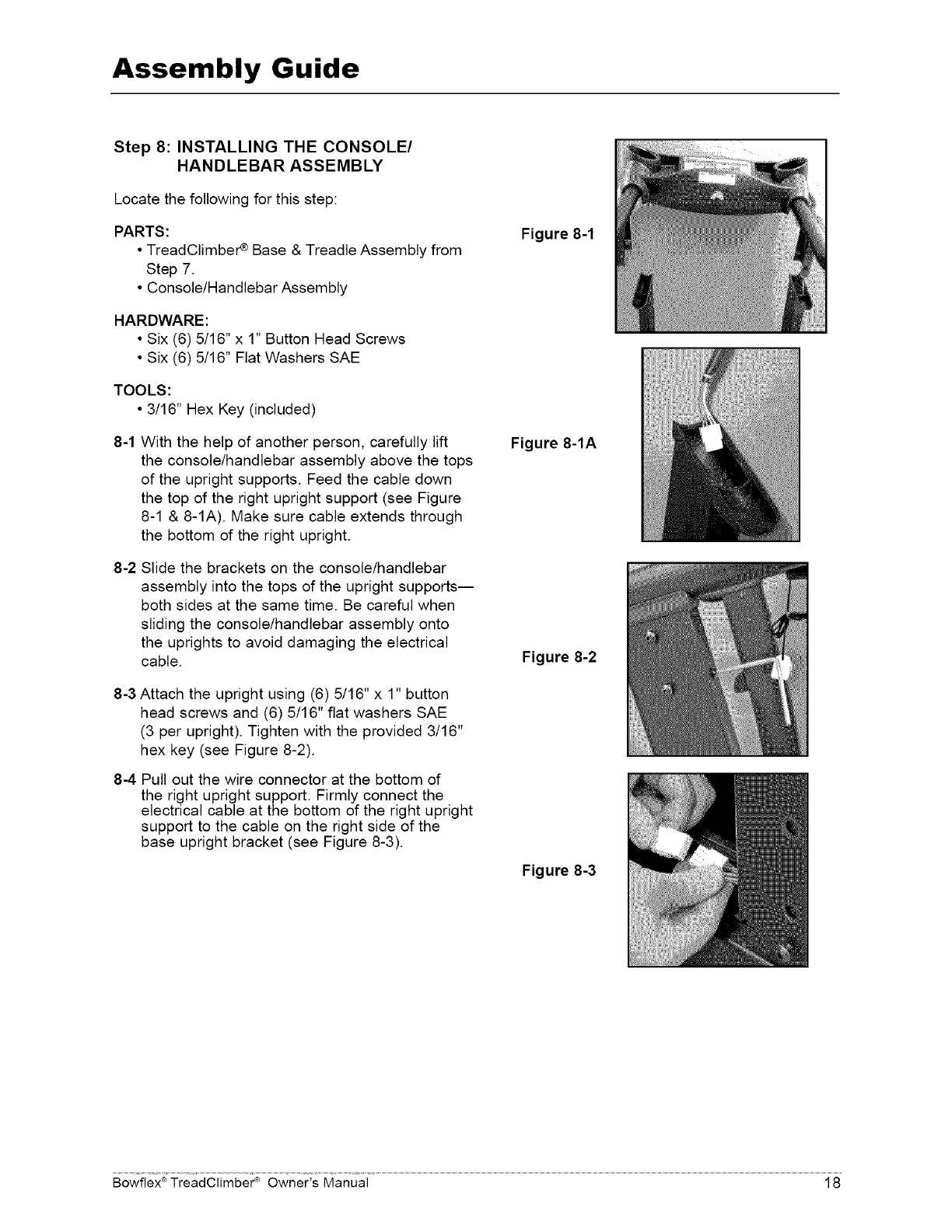

Step 8: INSTALLING THE CONSOLE/
HANDLEBAR ASSEMBLY
Locate the following for this step:
PARTS:
•TreadClimber ¢ Base & Treadle Assembly from
Step 7.
• Console/Handlebar Assembly
HARDWARE:
• Six (6) 5/16" x 1" Button Head Screws
• Six (6) 5/16" Flat Washers SAE
TOOLS:
• 3/16" Hex Key (included)
8-1 With the help of another person, carefully lift
the console/handlebar assembly above the tops
of the upright supports. Feed the cable down
the top of the right upright support (see Figure
8-1 & 8-1A). Make sure cable extends through
the bottom of the right upright.
8-2 Slide the brackets on the console/handlebar
assembly into the tops of the upright supports--
both sides at the same time. Be careful when
sliding the console/handlebar assembly onto
the uprights to avoid damaging the electrical
cable.
8-3 Attach the upright using (6) 5/16" x 1" button
head screws and (6) 5/16" flat washers SAE
(3 per upright). Tighten with the provided 3/16"
hex key (see Figure 8-2).
8-4 Pull out the wire connector at the bottom of
the right upright support. Firmly connect the
electrical cable at the bottom of the right upright
support to the cable on the right side of the
base upright bracket (see Figure 8-3).
Figure 8-1
Figure 8-1A
Figure 8-2
Figure 8-3
®
Bowfiex' TreadClimbe¢ _ Owner's Manual 18
![](asset-16.png)
Assembly Guide

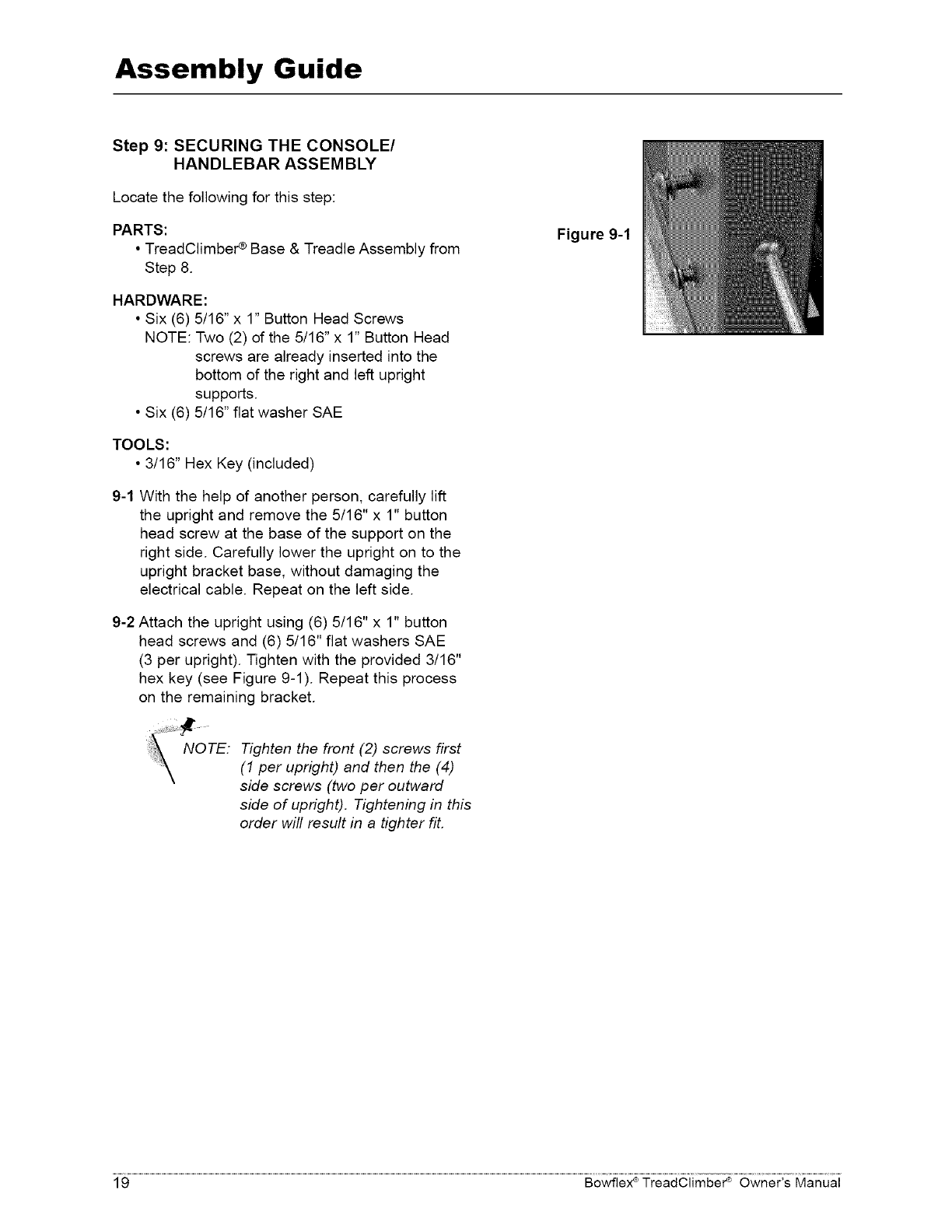

Step 9: SECURING THE CONSOLE/
HANDLEBAR ASSEMBLY
Locate the following for this step:
PARTS:
•TreadClimber _ Base & Treadle Assembly from
Step 8
HARDWARE:
• Six (6) 5/16" x 1" Button Head Screws
NOTE: Two (2) of the 5/16" x 1" Button Head
screws are already inserted into the
bottom of the right and left upright
supports
• Six (6) 5/16" flat washer SAE
TOOLS:
• 3/16" Hex Key (included)
9-1 With the help of another person, carefully lift
the upright and remove the 5/16" x 1" button
head screw at the base of the support on the
right side Carefully lower the upright on to the
upright bracket base, without damaging the
electrical cable Repeat on the left side
9-2 Attach the upright using (6) 5/16" x 1" button
head screws and (6) 5/16" flat washers SAE
(3 per upright) Tighten with the provided 3/16"
hex key (see Figure 9-1) Repeat this process
on the remaining bracket
NOTE: Tighten the front (2) screws first
(1 per upright) and then the (4)
side screws (two per outward
side of upright) Tightening in this
order will result in a tighter fit
Figure 9-1
19 Bowflex ®TreadClimber _ Owner's Manual
![](asset-17.png)
Assembly Guide

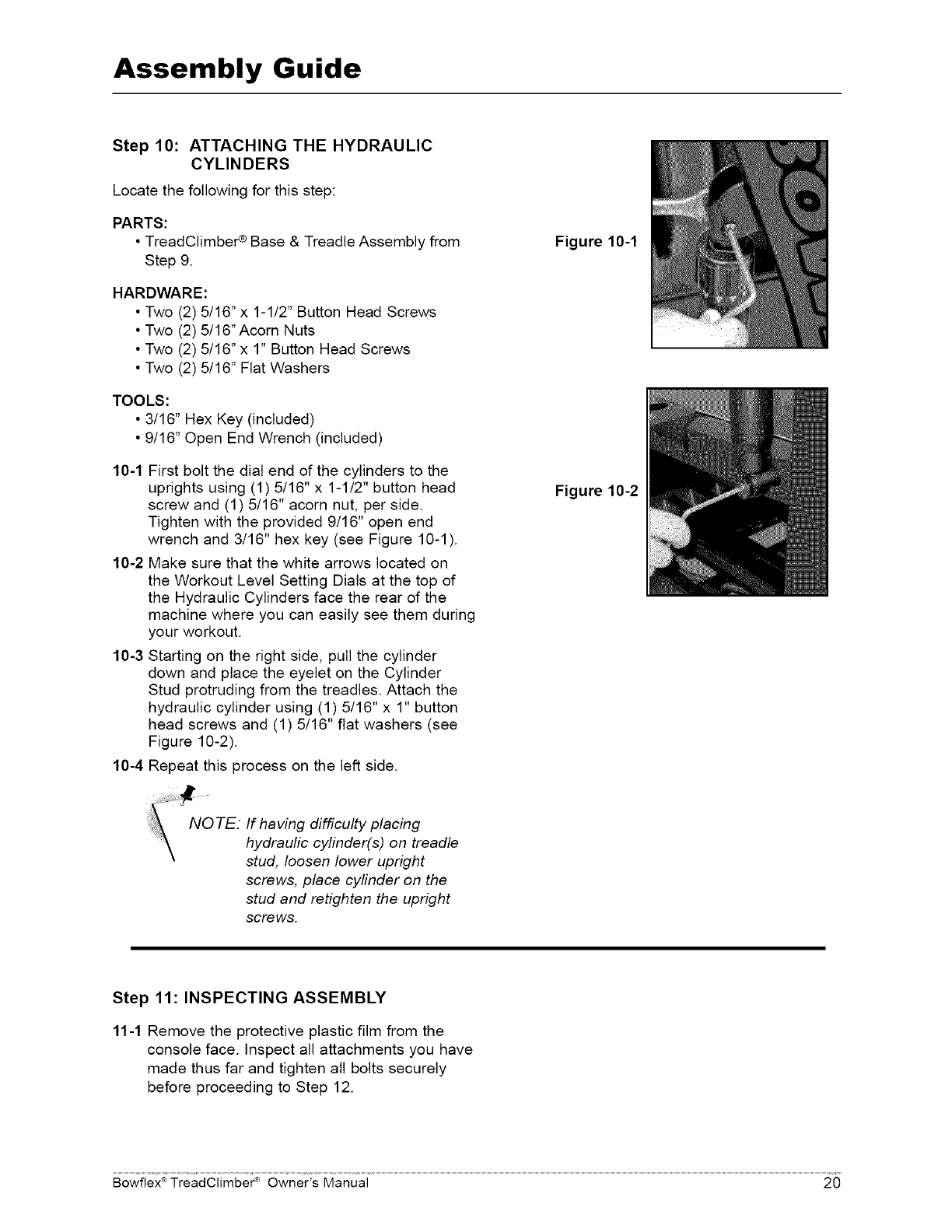

Step 10: ATTACHING THE HYDRAULIC
CYLINDERS
Locate the following for this step:
PARTS:
•TreadClimber _ Base & Treadle Assembly from
Step 9.
HARDWARE:
• Two (2) 5/16" x 1-1/2" Button Head Screws
• Two (2) 5/16" Acorn Nuts
• Two (2) 5/16" x 1" Button Head Screws
• Two (2) 5/16" Flat Washers
TOOLS:
• 3/16" Hex Key (included)
• 9/16" Open End Wrench (included)
10-1 First bolt the dial end of the cylinders to the
uprights using (1) 5/16" x 1-1/2" button head
screw and (1) 5/16" acorn nut, per side.
Tighten with the provided 9/16" open end
wrench and 3/16" hex key (see Figure 10-1).
10-2 Make sure that the white arrows located on
the Workout Level Setting Dials at the top of
the Hydraulic Cylinders face the rear of the
machine where you can easily see them during
your workout.
10-3 Starting on the right side, pull the cylinder
down and place the eyelet on the Cylinder
Stud protruding from the treadles. Attach the
hydraulic cylinder using (1) 5/16" x 1" button
head screws and (1) 5/16" flat washers (see
Figure 10-2).
10-4 Repeat this process on the left side.
havingdi icultyplacing
hydraulic cylinder(s) on treadle
stud, loosen lower upright
screws, place cyfinder on the
stud and retighten the upright
screws.
Figure 10-1
Figure 10-2
Step 11: INSPECTING ASSEMBLY
11-1 Remove the protective plastic film from the
console face. Inspect all attachments you have
made thus far and tighten all bolts securely
before proceeding to Step 12.
®
Bowfiex' TreadClimbe¢ _ Owner's Manual 20
![](asset-18.png)
Assembly Guide

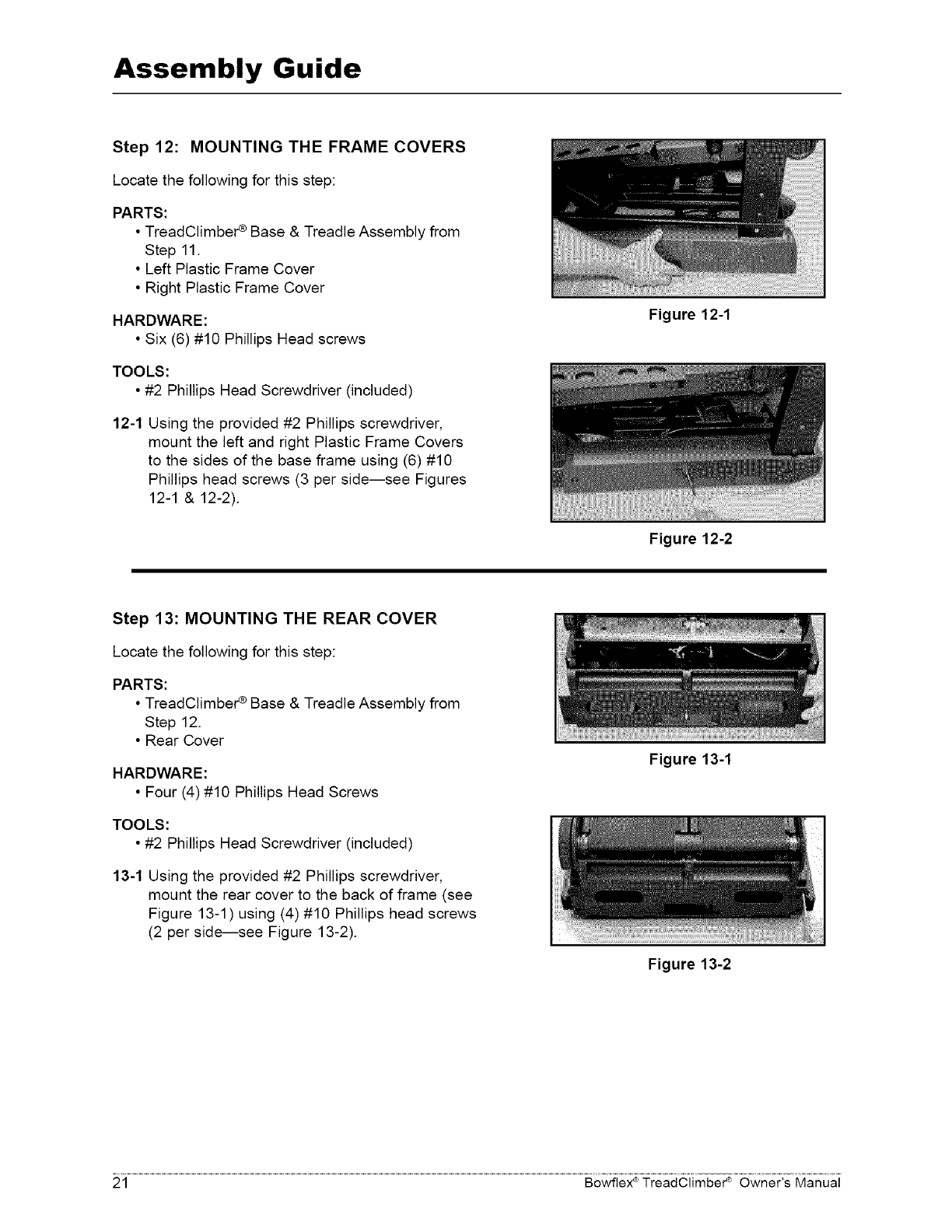

Step 12: MOUNTING THE FRAME COVERS
Locate the following for this step:
PARTS:
•TreadClimber ®Base & Treadle Assembly from
Step 11
• Left Plastic Frame Cover
• Right Plastic Frame Cover
HARDWARE:
• Six (6) #10 Phillips Head screws
TOOLS:
• #2 Phillips Head Screwdriver (included)
12-1 Using the provided #2 Phillips screwdriver,
mount the left and right Plastic Frame Covers
to the sides of the base frame using (6) #10
Phillips head screws (3 per side--see Figures
121 & 122)
Step 13: MOUNTING THE REAR COVER
Locate the following for this step:
PARTS:
• TreadClimber ®Base & Treadle Assembly from
Step 12
• Rear Cover
HARDWARE:
• Four (4) #10 Phillips Head Screws
TOOLS:
• #2 Phillips Head Screwdriver (included)
13-1 Using the provided #2 Phillips screwdriver,
mount the rear cover to the back of frame (see
Figure 13-1) using (4) #10 Phillips head screws
(2 per side--see Figure 13-2)
Figure 12-1
Figure 12-2
Figure 13-1
Figure 13-2
21 Bowflex ®TreadClimber _ Owner's Manual
![](asset-19.png)
Assembly Guide

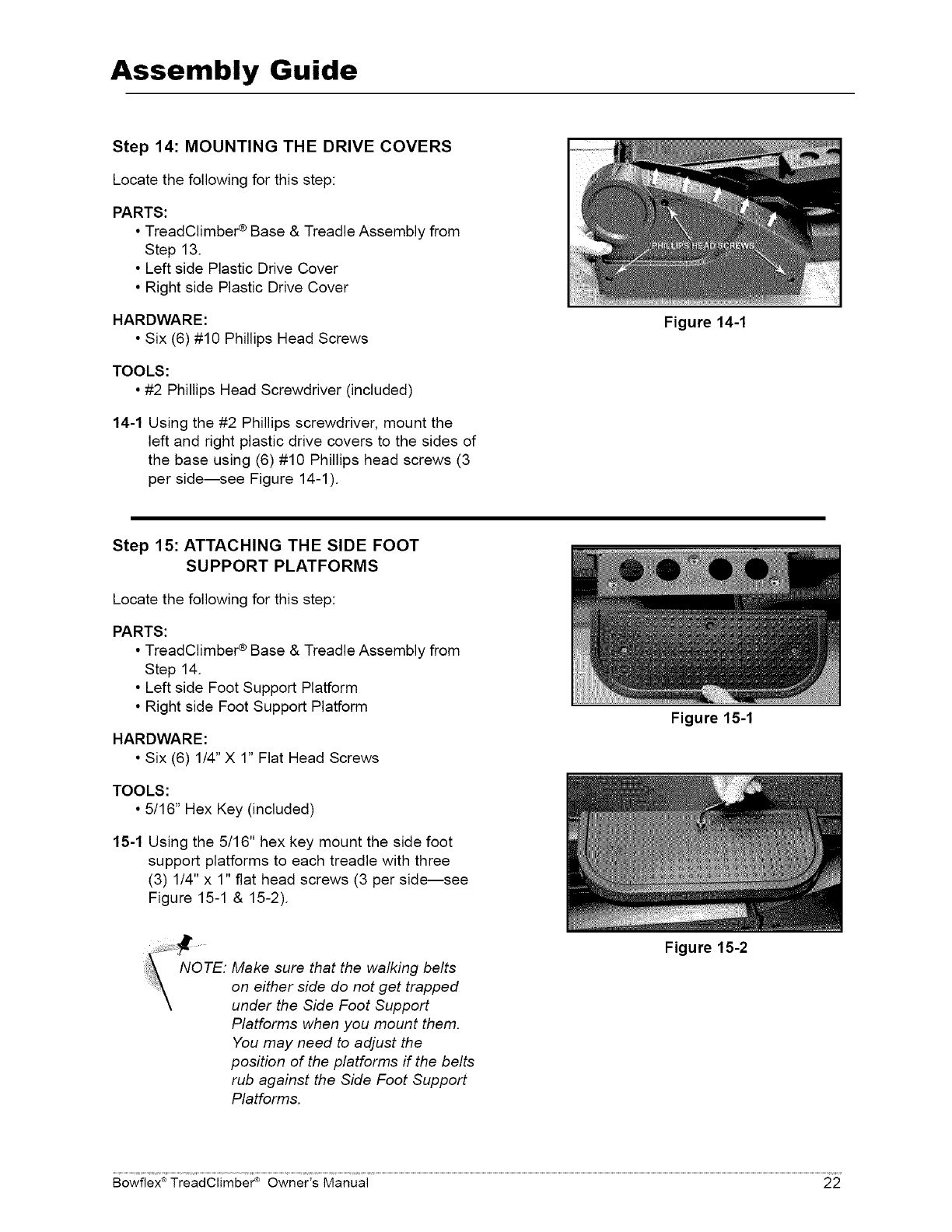

Step 14: MOUNTING THE DRIVE COVERS
Locate the following for this step:
PARTS:
•TreadClimber ®Base & Treadle Assembly from
Step 13
• Left side Plastic Drive Cover
• Right side Plastic Drive Cover
HARDWARE:
• Six (6) #10 Phillips Head Screws
TOOLS:
• #2 Phillips Head Screwdriver (included)
14-1 Using the #2 Phillips screwdriver, mount the
left and right plastic drive covers to the sides of
the base using (6) #10 Phillips head screws (3
per side--see Figure 14-1)
Step 15: ATTACHING THE SIDE FOOT
SUPPORT PLATFORMS
Locate the following for this step:
PARTS:
• TreadClimber ¢ Base & Treadle Assembly from
Step 14
• Left side Foot Support Platform
• Right side Foot Support Platform
HARDWARE:
• Six (6) 1/4" X 1" Flat Head Screws
TOOLS:
• 5/16" Hex Key (included)
15-1 Using the 5/16" hex key mount the side foot
support platforms to each treadle with three
(3) 1/4" x 1" fiat head screws (3 per side--see
Figure 15-1 & 152)
NOTE: Make sure that the walking belts
on either side do not get trapped
under the Side Foot Support
Platforms when you mount them.
You may need to adjust the
position of the platforms if the belts
rub against the Side Foot Support
Platforms.
Figure 14-1
Figure 15-1
Figure 15-2
®
Bowfiex TreadClimbe¢ _ Owner's Manual 22
![](asset-1a.png)
Assembly Guide

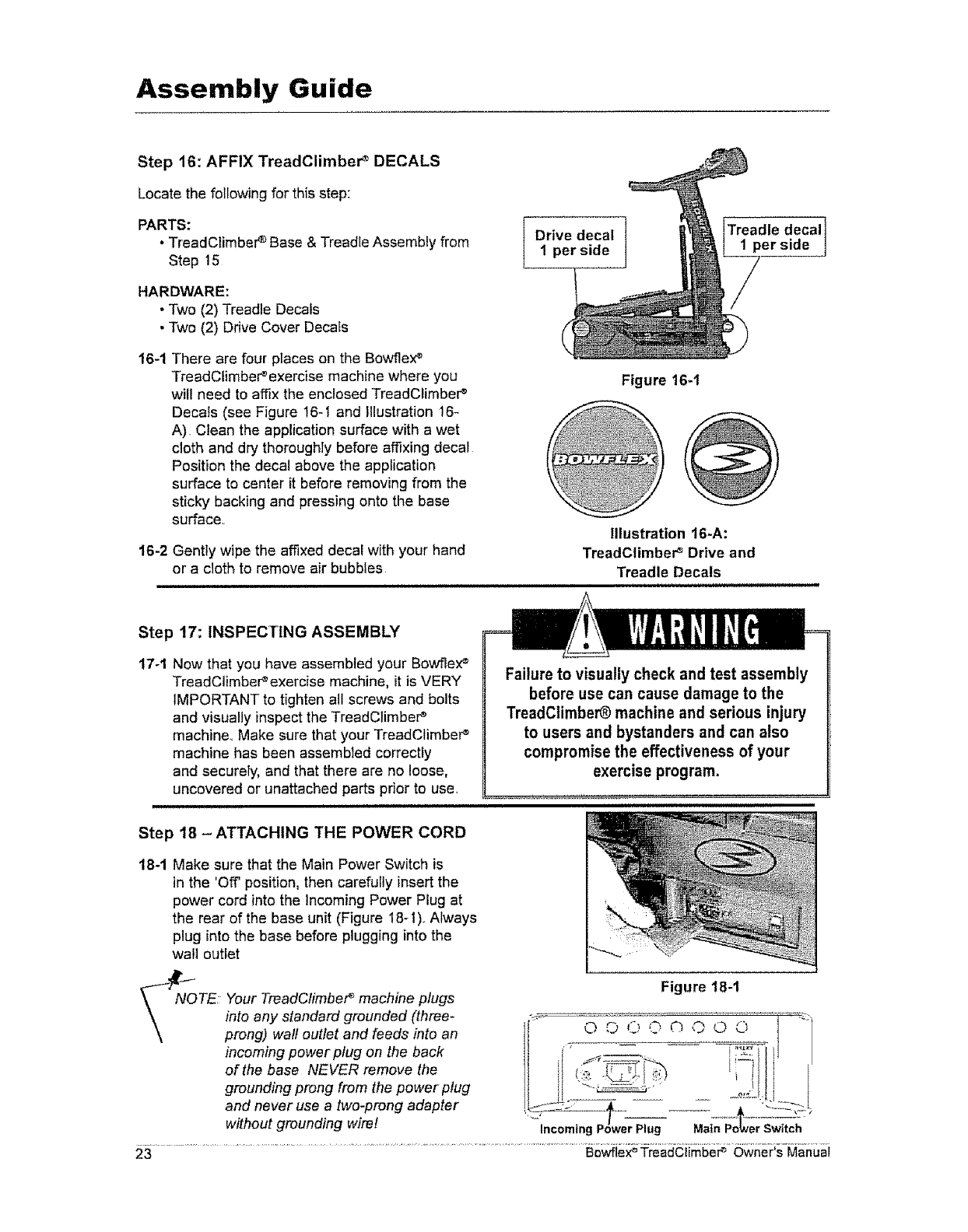

Step 16: AFFIX TreadClimber _DECALS
Locate the following for this step:
PARTS:
• TreadCtimber _ Base & Treadle Assembly from
Step 15 I Drive decal
1per side
Treadle decal
1 per sde
HARDWARE:
•Two (2) Treadle Decafs
•Two (2) Drive Cover Decats
16-1 There are four places on the Bowflex_
TreadCfimber_exercise machine where you
will need to affix the enclosed TreadCiimber _
Decats (see Figure 16-1 and illustration167
A) Clean the application surface with awet
cloth and dry thoroughly before affixing decal
Position the decal above the application
surface to center it before removing from the
sticky backing and pressing onto the base
surface.
16-2 Gently wipe the affixed decal with your hand
or a cloth to remove air bubbles
Figure 16-1
Illustration 16-A:
TreadClimber _ Drive and
Treadle Decals
Step 17: INSPECTING ASSEMBLY
17-1 Now that you have assembled your Bowflex_
TreadClimber _exercise machine, it is VERY
IMPORTANT to tighten all screws and bolts
and visually inspectthe TreadClimber _
machine.. Make sure that your TreadCtimber _
machine has been assembled correctly
and securely, and that there are no loose,
uncovered or unattached parts pdor to use.
Failure to visually check and test assembly
before use can cause damage to the
TreadClimber_ machine and serious injury
to users and bystanders and can also
compromise the effectiveness of your
exercise program.
iii lure lu u uuuuuuuuu uuulu i
Step 18 -ATTACHING THE POWER CORD
18-1 Make sure that the Main Power Switch is
in the 'Off' position, then carefully insert the
power cord into the Incoming Power Plug at
the rear of the base unit (Figure 18- ! ). Always
plug into the base before plugging into the
wall outlet
NO TE: Your TreadClimbeF machine plugs
into any standard grounded (three-
prong) wall outlet and feeds into an
incoming power plug on the back
of the base NEVER remove the
grounding prong from the power plug
and never use a two-prong adapter
without grounding wire!
Figure 18-1
oc .,",o o o
11
Incoming Power Plug Main Po_ter Switch
23 Bowflex_TreadClimber_ Owner'sManual
![](asset-1b.png)
Assembly Guide
Step 19: CALIBRATION PROCESS (TC3000 and TC5000 only)
Failureto calibrateyour machinepriorto use could result in machine failure
and could cause injury.
During the entire calibration process, stand on the side foot support platforms or rubber
mat only, do not stand on the walking belts!
DO NOT STEP ON THE BELTS DURING
THIS ENTIRE PROCESS.
Owners of the TC3000 or TC5000 will need to ..............
calibrate the TreadClimber _ machine before they ._
can begin exercising. Owners of the TC1000 do not
need to complete this step. Figure 19-1
Calibrating the TC3000 and TC5000 is an important Main Power Switch "On"
part of troubleshooting maintenance.
NO TE: YOUwill also need to re-calibrate
\your machine in the event of
\a power outage or if you have
replaced a TreadClimber _
component, such as a belt, or
motor.
19-1 Plug power cord into wall outlet.
19-2 Turn on Main Power Switch (see Figure 19-1).
19-3 Stand on the side foot support platforms or
rubber floor mat, DO NOT STAND ON THE
BELTS.
19-4 Insert the Safety Key, press and hold down the
POWER button, then very quickly press and
hold down the SLOWER button. Continue to
hold down the POWER and SLOWER buttons
(see Figure 19-2 for the TC5000 and Figure
19-3 for the TC3000).
AIOTE: If the Safety Key is not fully
inserted into the safety keyhole, the
TreadClimber _machine will NOT
power up.
19-5 At this point you should see the numbers start
to decrease on the console.
Figure
TC5000 Power & Slower Buttons
J_ BOI/VFLEX
TreadClimbe_ TC3000
19-6 While continuing to hold down the POWER
and SLOWER buttons, remove and re-insert
the Safety Key. TC3000 Power & Slower Buttons
®
Bowfiex' TreadClimbe¢ _ Owner's Manual 24
![](asset-1c.png)

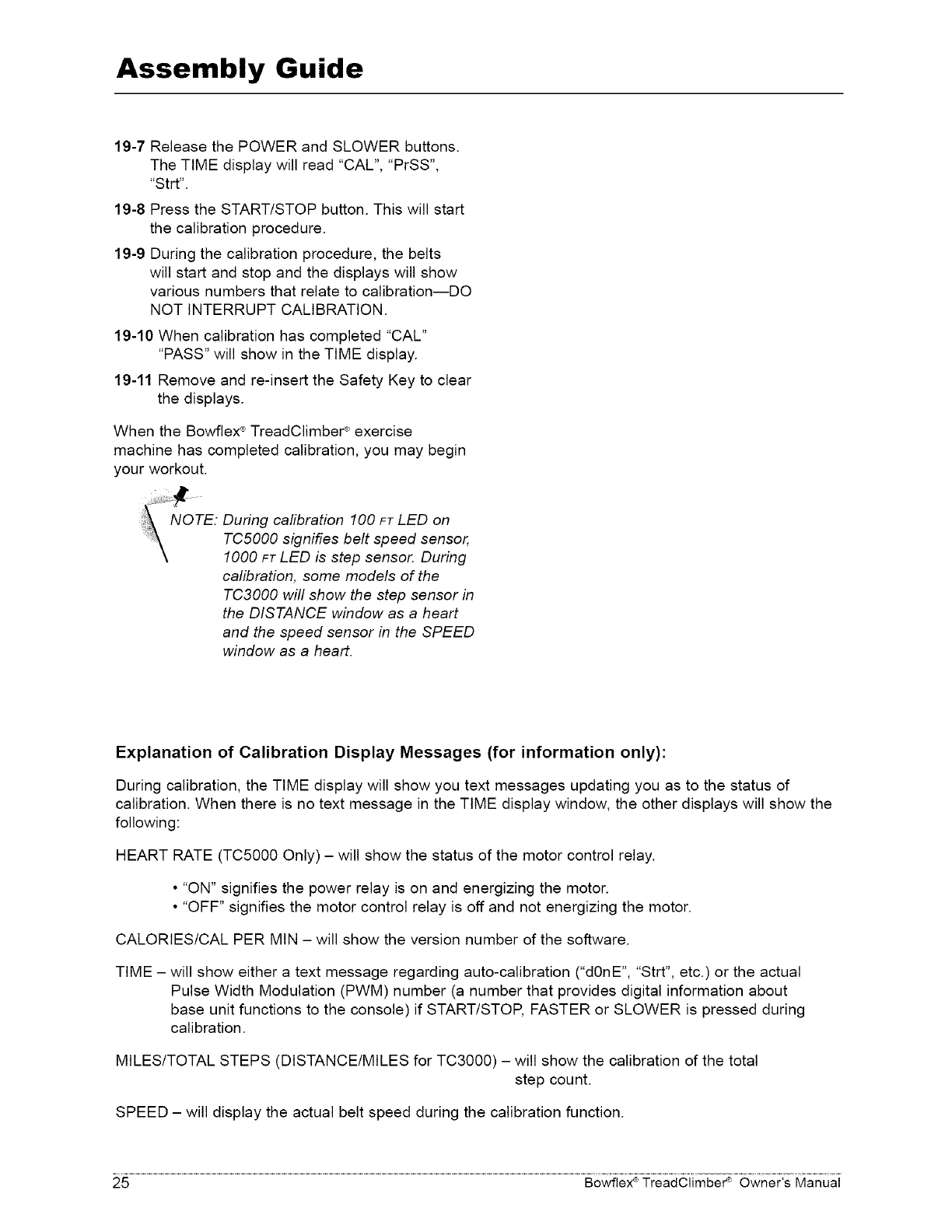

Assembly Guide
19-7 Release the POWER and SLOWER buttons.
The TIME display will read "CAL", "PrSS",
"Strt".
19-8 Press the START/STOP button. This will start
the calibration procedure.
19-9 During the calibration procedure, the belts
will start and stop and the displays will show
various numbers that relate to calibration--DO
NOT INTERRUPT CALIBRATION.
19-10 When calibration has completed "CAL"
"PASS" will show in the TIME display.
19-11 Remove and re-insert the Safety Key to clear
the displays.
When the Bowflex _TreadClimber _ exercise
machine has completed calibration, you may begin
your workout.
During cafibration 100 FTLED on
TC5000 signifies belt speed sensor,
1000 FTLED is step sensor. During
calibration, some models of the
TC3000 will show the step sensor in
the DISTANCE window as a heart
and the speed sensor in the SPEED
window as a heart.
Explanation of Calibration Display Messages (for information only):
During calibration, the TIME display will show you text messages updating you as to the status of
calibration. When there is no text message in the TIME display window, the other displays will show the
following:
HEART RATE (TC5000 Only) - will show the status of the motor control relay.
• "ON" signifies the power relay is on and energizing the motor.
• "OFF" signifies the motor control relay is off and not energizing the motor.
CALORIES/CAL PER MIN -will show the version number of the software.
TIME - will show either a text message regarding auto-calibration ("dOnE", "Strt", etc.) or the actual
Pulse Width Modulation (PWM) number (a number that provides digital information about
base unit functions to the console) if START/STOP, FASTER or SLOWER is pressed during
calibration.
MILES/TOTAL STEPS (DISTANCE/MILES for TC3000) - will show the calibration of the total
step count.
SPEED - will display the actual belt speed during the calibration function.
25 Bowflex ®TreadClimber _ Owner's Manual
![](asset-1d.png)
®
Bowflex' TreadClimbe¢ _ Owner's Manual 26
![](asset-1e.png)
Bowflex ®TreadClimber ®100% Satisfaction Guarantee
We want you to know that your TreadClimber _ machine is a superior product. Your
satisfaction is guaranteed. If, for any reason, you are not 100% satisfied with your
TreadClimber _ machine, please follow the instructions below to return your merchandise
and receive a refund of the purchase price, less shipping and handling.
1. Call a TreadClimber _ Representative at 1-800-NAUTILUS (1-800-628-8458) for a
Return Authorization Number. Return Authorization will be granted if:
a. You purchased your Bowflex ® TreadClimber ¢ exercise machine directly from
Nautilus, Inc.; and
b. You are calling within 30 days of the delivery date of your merchandise.
At the time of your Return Authorization Call, the TreadClimber ® Representative will
also give you the address where you will send your return.
2. All returned merchandise must be properly packaged in the original boxes and in
good condition.
NOTE:You are responsible for return shipping and for any damage or
_\ loss to merchandise that occurs during return shipment.
\We highly recommend that you insure your shipment.
3. Please mark all boxes clearly with:
• Return Authorization Number
• Your Name
• Your Address
• Your Phone Number
Boxes without this information clearly marked on the outside may be refused.
4. Please make copies of your original invoice and put one in each box of merchandise.
Nautilus, Inc. must receive your shipment within two weeks from the date the
TreadClimber _ Representative issued you your Return Authorization Number.
Refunds may be denied or delayed if these instructions are not completely followed.
This TreadClimber _ Satisfaction Guarantee applies only to merchandise purchased by
consumers directly from Nautilus, Inc. This guarantee does not apply to sales made by
dealers or distributors.
27 Bowflex ®TreadClimber _ Owner's Manual
![](asset-1f.png)
Warranty
What Does This Warranty Cover?
Nautilus, Inc warrants to the original purchaser of the Bowflex ®TreadClimbe¢ _ home fitness machine
that the TreadClimbeP machine is free from defects in materials and workmanship, when used for
the purpose intended, under normal conditions, provided it receives proper care and maintenance
as set forth herein This warranty is extended only to the original purchaser and is not transferable or
applicable to any other person
This warranty is good only for TreadClimbeP products sold and used in the United States or Canada
and does not extend to any territories or countries outside the United States and Canada Unauthorized
tampering with or opening the unit will void the warranty Do not attempt to make any repair yourself to
the motor
Additionally, this warranty will not cover any commercial use of the TreadClimbeP machine This
includes gyms, corporations, clubs and any public or privately incorporated agency that has a
TreadClimbeP machine for use by its members, employees or affiliates
How Long Does Warranty Coverage Last?
TC 1000
Residential
•1 Year on Motor
• 1 Year on Electronics
• 1 Year on all Other Parts
• 1 Year on Hydraulic Resistance Cylinders
Commercial
This warranty is void if
TreadClimber _machine
is used in a Commercial
Environment
TC3000
Residential
• 3 Years on Motor
• 2 Years on Electronics
• 2 Years on all Other Parts
• 1 Year on Hydraulic Resistance Cylinders
Commercial
This warranty is void if
TreadClimber _machine
is used in a Commercial
Environment
TC5000
Residential
• 5 Years on Motor
• 3 Years on Electronics
• 3 Years on all Other Parts
• 2 Years on Hydraulic Resistance Cylinders
Commercial
This warranty is void if
TreadClimber _machine
is used in a Commercial
Environment
These warranties cover all defects in material or workmanship of the TC1000, TC3000 or TC5000
Warranties do not cover commercial use or misuse and abuse by the consumer
To make this warranty effective, you must completely fill out the TreadClimbeP Warranty Registration
Card within 30 days of the purchase of your TreadClimber _machine, and return it to the address on the
Warranty Registration Card
®
Bowfiex TreadClimbe¢ _ Owner's Manual 28
![](asset-20.png)
Warranty
Warranty Does Not Cover
•A Bowflex _*TreadClimber _ exercise machine purchased for commercial or institutional use.
• Damage due to use by persons who weigh more than 300 pounds (136 Kilograms).
• Damage due to abuse, accident, failure to follow instructions or warnings in the Owner's Manual,
misuse, mishandling, accident or Acts of God (such as floods, tornadoes, hurricanes, power surges,
etc.).
• Damage due to normal wear and tear.
Exclusions
THIS WARRANTY AND THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES, ORAL OR WRITTEN, EXPRESS OR IMPLIED. NAUTILUS, INC. SPECIFICALLY
DISCLAIMS AND EXCLUDES ANY AND ALL OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED OR
STATUTORY, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABtLITYAND FITNESS
FORA PARTICULAR PURPOSE, AND ANY IMPLIED WARRANTIES ARISING FROM THE COURSE OF
DEALING OR USAGE OF TRADE. NO NAUTILUS, INC. AGENT OR EMPLOYEE IS AUTHORIZED TO
MAKE ANY MODIFICATION, EXTENSION OR ADDITION TO THIS WARRANTY.
What Nautilus, Inc. Will Do
During your Warranty Coverage Period, Nautilus, Inc. will repair any TreadClimber _ machine that proves to
be defective in materials or workmanship. In the event repair is not possible, Nautilus, Inc. will either replace
your TreadClimber _machine or refund your purchase price, less shipping and handling.
Nautilus, Inc. reserves the right to substitute material of equal or better quality if identical materials are not
available at the time of service under this Warranty. The replacement of the product under the terms of the
Warranty in no way extends the Warranty period.
Limitation of Remedies
THE PURCHASER'S EXCLUSIVE REMEDY IS LIMITED TO REPAIR OR REPLACEMENT OF
ANY COMPONENT DEEMED BY NAUTILUS, INC. TO BE DEFECTIVE UNDER THE TERMS AND
CONDITIONS STATED HEREIN. EXCEPTAS PROHIBITED BY LAW. IN NO EVENT WILL NAUTILUS,
INC. BE LIABLE FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, INDIRECT OR ECONOMIC
DAMAGES, REGARDLESS OF THE THEORY OF LIABILITY (INCLUDING, WITHOUT LIMITATION,
PRODUCT LIABILITY, NEGLIGENCE OR OTHER TORT) OR FOR ANY LOST REVENUE, PROFIT,
DATA, PRIVACY OR FOR ANY PUNITIVE DAMAGES ARISING OUT OF OR RELATED TO THE USE
OF THE TREADCLIMBER _*EVEN IF NAUTILUS, INC. HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. THIS EXCLUSION AND LIMITATION SHALLAPPLY EVEN IFANY REMEDY FAILS
OF ITS ESSENTIAL PURPOSE. SOME STATES DO NOTALLOW THE EXCLUSION OR LIMITATION OF
CONSEQUENTIAL OR INCIDENTAL TYPE DAMAGES SO THE ABOVE LIMITATION MAY NOT APPLY TO
YOU.
How to Get Service
Return the defective part at your expense to the address given you by a Bowflex _ TreadClimber _
Representative at 1-800-NAUTILUS (1-800-628-8458).
Always include an explanation of the problem with service shipments.
For information, contact a TreadClimbe¢ _Representative at 1-800-NAUTILUS (1-800-628-8458). Adequate
protective packaging of the defective parts or unit and cost of shipping to the above address are your
responsibility.
The required part or unit will be returned to you at the company's expense.
How State Law Applies
This warranty gives you specific legal rights, and you may also have other rights, which vary from state
to state.
After Your Warranty Expires
Once your warranty has expired, Nautilus, Inc. will still assist you with replacements or repairs to parts and
labor, but you will be charged for these services. Call a TreadClimber _ Representative at 1-800-NAUTILUS
(1-800-628-8458) for information on post-warranty parts and services.
29 Bowflex ®TreadClimber _ Owner's Manual
![](asset-21.png)
I
Bowflex ®TreadClimber ®Warranty Registration Card
I=V=l'_e]:| f_,1_I Ill =v=V_,II ISVAvli i-'ll_ IK[o]lmT_,V_'][e]I "Jel:Tel-"r_,_]
PLEASE PRINT CLEARLY -THANK YOU
1. _ Mr. 2. _ Mrs. 3. E Ms. 4. _ Miss Customer ID from Invoice l
Name:
Address:
City: I State: [_
Phone number: I- I
E-Mail address:
Is this your primary address? E Yes _ No
Place of purchase:
Date of purchase:
Purchaser date of birth:
Gender: E Male _ Female
Marital status: _ Married E Single
Including yourself, total number of people living in your household: (Examples: 01, 02, 03 ...)
Would you like to receive additional information on healthy lifestyle products? _ Yes E No
Which bestdescribes your familyincome:
Under$15,000 _ $25,000- $34,999
$15,000 - $24,999 _ $35,000 - $49,999
Whatothertypes ofexercise equipment do you own?
$50,000 -$74,999
$75,000 -$99,999
Apt. #:1
Zip:l
$100,000 - $149,999
OverS150,000
Did you receive this item as a gift? E Yes
Name of original purchaser:
Original purchaser customer ID number: I
E No
Thanks for filling out this questionnaire. Your answers are important to us. Please check here u if you would prefer
not to obtain information on new and interesting opportunities from other exciting companies.
® 2005. Nautilus, Inc. All Rights Reserved. Bowflex and TreadClimber are registered trademarks of Nautilus, Inc.
![](asset-22.png)
What Is Covered
Nautilus, Inc. warrants to the original
purchaser of the TreadCUmber '_ home
fitness machine that the TreadCUmber °
machine is free from defects in materials
or workmanship, with the exceptions stated
below. This warranty is not transferable
or applicable to any person other than the
original purchaser and is only applicable for
products sold and used in the United States
or Canada. Unauthorized tampering with or
opening the unit will void the warranty.
TreadClimber _ TC5000
• 5 years on Motor
• 3 years on Electronics
• 3 years on all Other Parts
• 2 years on Hydraulic Resistance Cylinders
TreadClimber _ TC3000
• 3 years on Motor
• 2 years on Electronics
• 2 years on all Other Parts
• 1 year on Hydraulic Resistance Cylinders
m m m m
TreadClimber ° TCl000
• 1 year on Motor
• 1 year on Electronics
• 1 year on all Other Parts
• 1 year on Hydraulic Resistance Cylinders
Warranties Do Not Cover
• A TreadClimber _ machine purchased for
commercial or institutional use.
• Damage due to use by persons who weigh
more than 300 pounds.
• Damage due to abuse, accident, failure
to follow instructions or warnings in the
Owner's Manual, misuse, mishandling,
accident or Acts of God (such as floods or
power surges).
• Damage due to normal wear and tear.
What We Will Do
During your Warranty Coverage Period,
Nautilus, Inc. will repair any TreadClimber '_
machine that proves to be defective in
m m m m
materials or workmanship. In the event
repair is not possible, Nautilus, Inc. will either
replace your TreadClimber '_ machine or
refund your purchase price, less shipping
and handling
How To Get Service
Return the defective part, at your expense, to
the address given to you by a TreadClimber e
Representative at 1-800-NAUTILUS (1-800-
628-8458). Include an explanation of the
problem. Adequate protective packaging
of the defective parts or unit and cost of
shipping are your responsibility. The repaired
part or unit will be returned to you at the
company's expense.
How State Law Applies
This warranty gives you specific legal rights,
and you may also have other rights which
vary from state to state.
mmmm
!
Please fold over and tape before mailing
m m m m
Please fold over and tape before mailing
!
mmm mmmmm
Place
Stamp
Here
BOWFLEX °_TREADCLIMBER °_
16400 S.E. Nautilus Drive
Vancouver, WA 98683
![](asset-23.png)

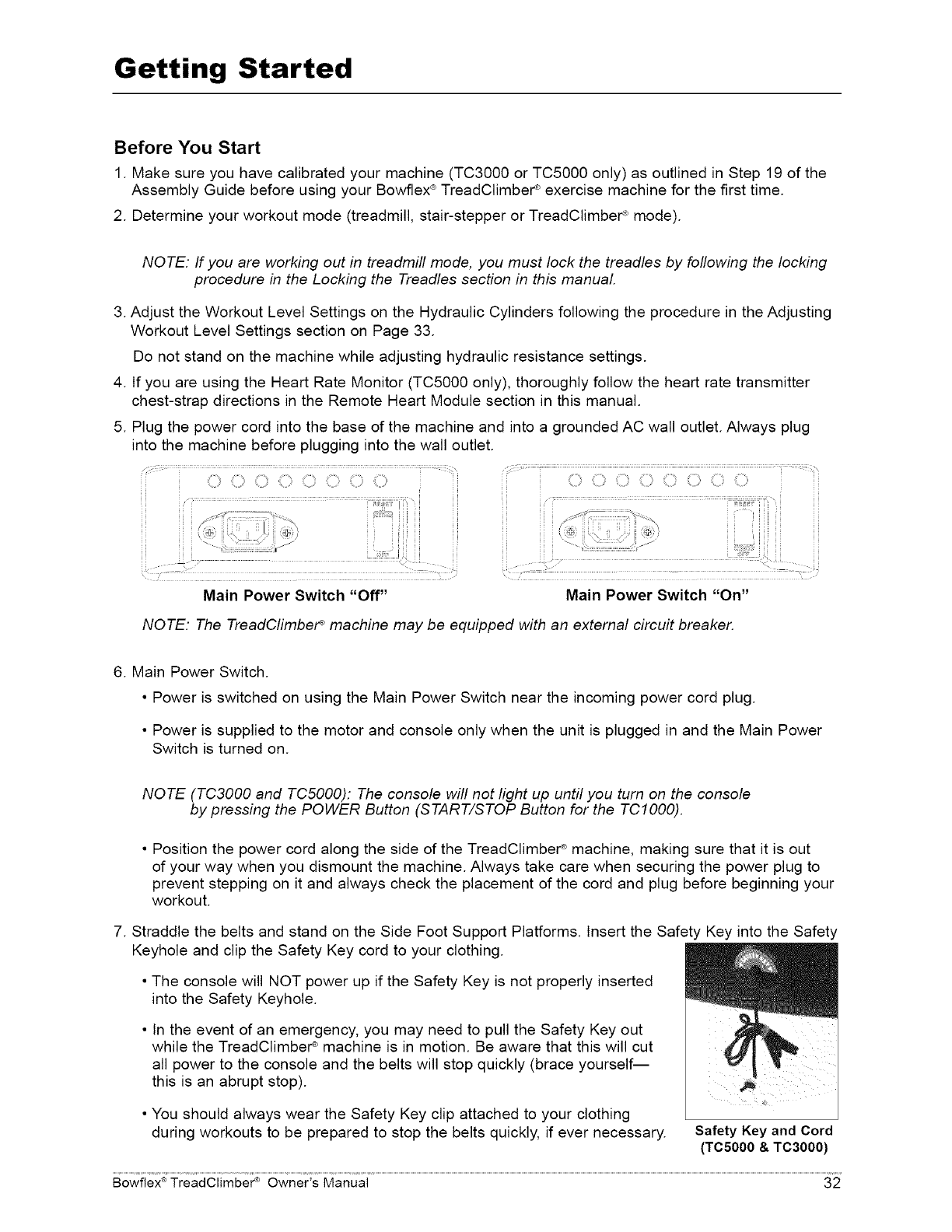

Getting Started
Before You Start
1. Make sure you have calibrated your machine (TC3000 or TC5000 only) as outlined in Step 19 of the
Assembly Guide before using your Bowflex ®TreadClimber _ exercise machine for the first time.
2. Determine your workout mode (treadmill, stair-stepper or TreadClimber _ mode).
NOTE: If you are working out in treadmill mode, you must lock the treadles by following the locking
procedure in the Locking the Treadles section in this manual
3. Adjust the Workout Level Settings on the Hydraulic Cylinders following the procedure in the Adjusting
Workout Level Settings section on Page 33.
Do not stand on the machine while adjusting hydraulic resistance settings.
4. If you are using the Heart Rate Monitor (TC5000 only), thoroughly follow the heart rate transmitter
chest-strap directions in the Remote Heart Module section in this manual.
5. Plug the power cord into the base of the machine and into a grounded AC wall outlet. Always plug
into the machine before plugging into the wall outlet.
/
Main Power Switch "Off"
'i
NOTE: The TreadClimbeP' machine may be equipped with an external circuit breaker.
6. Main Power Switch.
• Power is switched on using the Main Power Switch near the incoming power cord plug.
• Power is supplied to the motor and console only when the unit is plugged in and the Main Power
Switch is turned on.
NOTE (TC3000 and TC5000): The console will not light up until you turn on the console
by pressing the POWER Button (START/STOP Button for the TCIO00).
• Position the power cord along the side of the TreadClimber _ machine, making sure that it is out
of your way when you dismount the machine. Always take care when securing the power plug to
prevent stepping on it and always check the placement of the cord and plug before beginning your
workout.
7. Straddle the belts and stand on the Side Foot Support Platforms. Insert the Safety Key into the Safety
Keyhole and clip the Safety Key cord to your clothing.
• The console will NOT power up if the Safety Key is not properly inserted
into the Safety Keyhole.
• In the event of an emergency, you may need to pull the Safety Key out
while the TreadClimber _ machine is in motion. Be aware that this will cut
all power to the console and the belts will stop quickly (brace yourself--
this is an abrupt stop).
• You should always wear the Safety Key clip attached to your clothing
during workouts to be prepared to stop the belts quickly, if ever necessary. Safety Key and Cord
(TCS000 & TC3000)
®
Bowflex' TreadClimbe¢ _ Owner's Manual 32
![](asset-24.png)

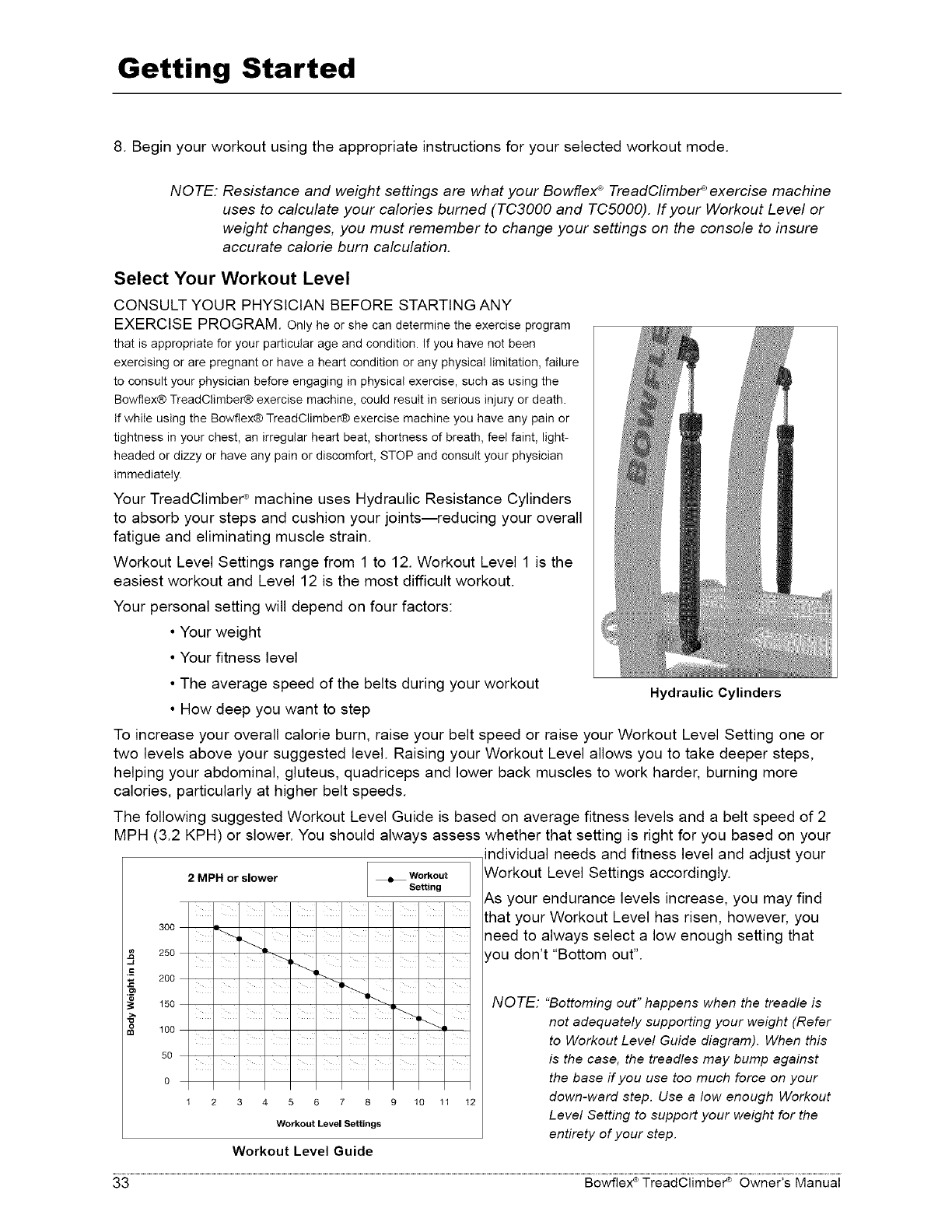

Getting Started
8. Begin your workout using the appropriate instructions for your selected workout mode.
NOTE: Resistance and weight settings are what your Bowflex _' TreadClimber_ exercise machine
uses to calculate your calories burned (TC3000 and TC5000). If your Workout Level or
weight changes, you must remember to change your settings on the console to insure
accurate calorie burn calculation.
Select Your Workout Level
CONSULT YOUR PHYSICIAN BEFORE STARTING ANY
EXERCISE PROGRAM. Only he or she can determine the exercise program
that is appropriate for your particular age and condition. If you have not been
exercising or are pregnant or have a heart condition or any physical limitation, failure
to consult your physician before engaging in physical exercise, such as using the
BovvfIex®TreadClimber® exercise machine, could result in serious injury or death.
If while using the Bowflex® TreadClimber® exercise machine you have any pain or
tightness in your chest, an irregular heart beat, shortness of breath, feel faint, light-
headed or dizzy or have any pain or discomfort, STOP and consult your physician
immediately.
Your TreadClimbeP machine uses Hydraulic Resistance Cylinders
to absorb your steps and cushion your joints--reducing your overall
fatigue and eliminating muscle strain.
Workout Level Settings range from 1 to 12. Workout Level 1 is the
easiest workout and Level 12 is the most difficult workout.
Your personal setting will depend on four factors:
• Your weight
• Your fitness level
• The average speed of the belts during your workout
• How deep you want to step
Hydraulic Cylinders
To increase your overall calorie burn, raise your belt speed or raise your Workout Level Setting one or
two levels above your suggested level. Raising your Workout Level allows you to take deeper steps,
helping your abdominal, gluteus, quadriceps and lower back muscles to work harder, burning more
calories, particularly at higher belt speeds.
The following suggested Workout Level Guide is based on average fitness levels and a belt speed of 2
MPH (3.2 KPH) or slower. You should always assess whether that setting is right for you based on your
individual needs and fitness level and adjust your
25O
m 200
150
I_ 100
2 MPH or slower _Workout
Setting
' ' I I I I I I I I
300
, , , , , , , , , ,
5O , , , , , , , , , ,
2 3 4 5 6 7 8 9 10 11 t2
Workout Level Settings
Workout Level Guide
Workout Level Settings accordingly.
As your endurance levels increase, you may find
that your Workout Level has risen, however, you
need to always select a low enough setting that
/ou don't "Bottom out".
NOTE: "Bottoming out" happens when the treadle is
not adequately supporting your weight (Refer
to Workout Level Guide diagram). When this
is the case, the treadles may bump against
the base if you use too much force on your
down-ward step. Use a low enough Workout
Level Setting to support your weight for the
entirety of your step.
33 Bowflex ®TreadClimber _ Owner's Manual
![](asset-25.png)

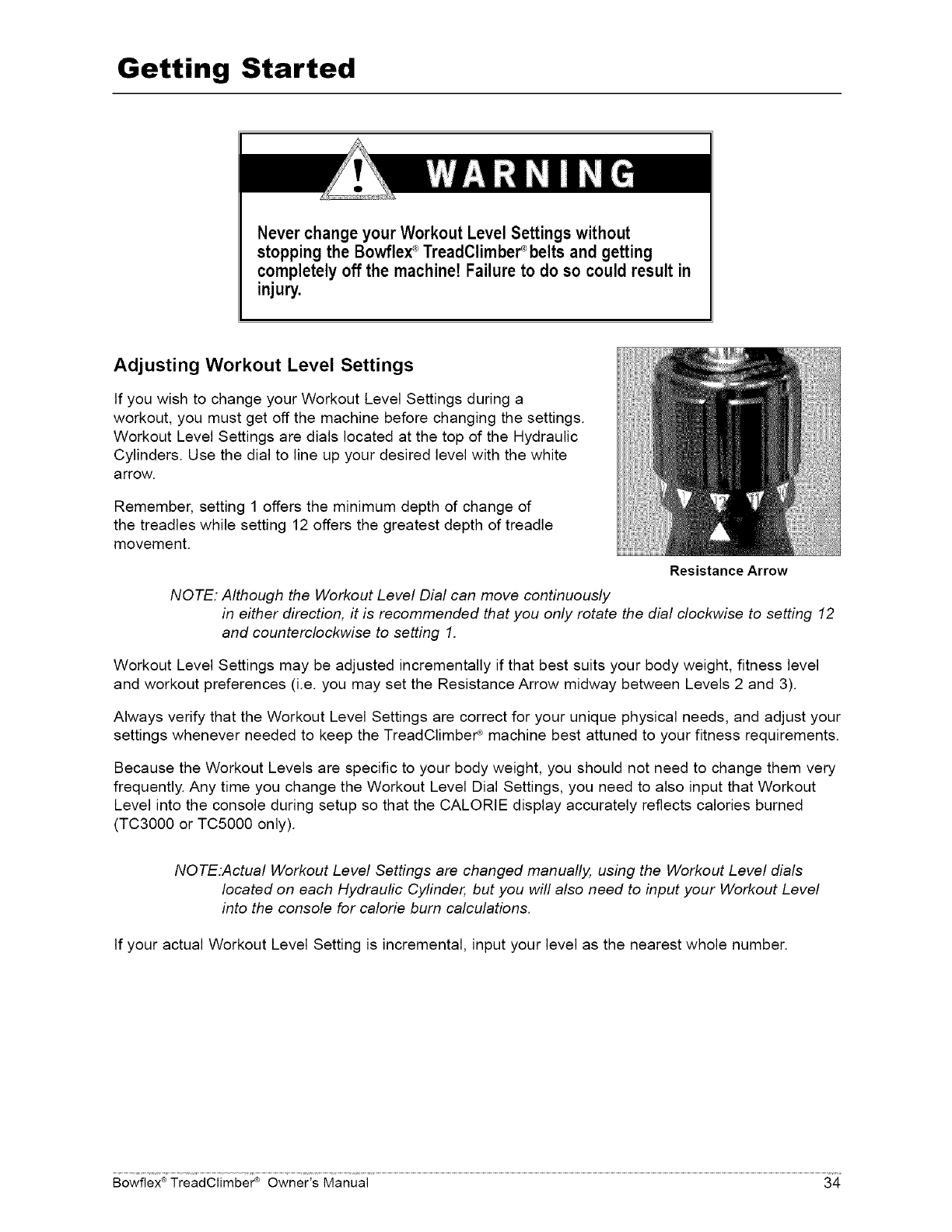

Getting Started
Never change your Workout Level Settingswithout
stopping the Bowflex_TreadClimbe¢_beltsand getting
completely off the machine! Failure to do so could result in
injury.
Adjusting Workout Level Settings
If you wish to change your Workout Level Settings during a
workout, you must get off the machine before changing the settings.
Workout Level Settings are dials located at the top of the Hydraulic
Cylinders. Use the dial to line up your desired level with the white
arrow.
Remember, setting 1 offers the minimum depth of change of
the treadles while setting 12 offers the greatest depth of treadle
movement.
Resistance Arrow
NOTE: Although the Workout Level Dial can move continuously
in either direction, it is recommended that you only rotate the dial clockwise to setting 12
and counterclockwise to setting 1.
Workout Level Settings may be adjusted incrementally if that best suits your body weight, fitness level
and workout preferences (i.e. you may set the Resistance Arrow midway between Levels 2 and 3).
Always verify that the Workout Level Settings are correct for your unique physical needs, and adjust your
settings whenever needed to keep the TreadClimber _ machine best attuned to your fitness requirements.
Because the Workout Levels are specific to your body weight, you should not need to change them very
frequently. Any time you change the Workout Level Dial Settings, you need to also input that Workout
Level into the console during setup so that the CALORIE display accurately reflects calories burned
(TC3000 or TC5000 only).
NOTE:Actual Workout Level Settings are changed manually, using the Workout Level dials
located on each Hydraufic Cylinder, but you will also need to input your Workout Level
into the console for calorie burn calculations.
If your actual Workout Level Setting is incremental, input your level as the nearest whole number.
®
Bowfiex' TreadClimbe¢ _ Owner's Manual 34
![](asset-26.png)

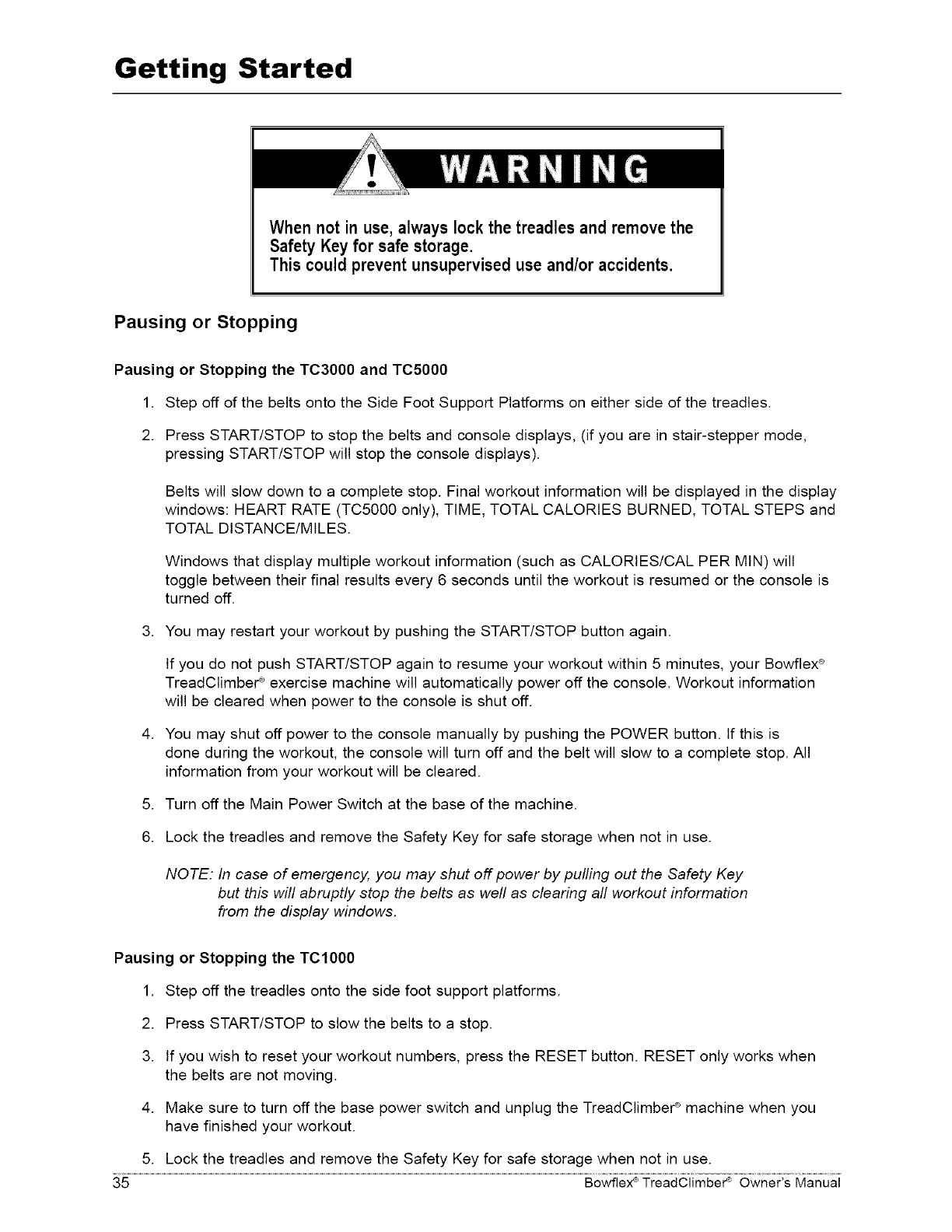

Getting Started
When not in use, always lock the treadles and removethe
Safety Key for safe storage.
This could prevent unsupervised use and/or accidents.
Pausing or Stopping
Pausing or Stopping the TC3000 and TC5000
1. Step off of the belts onto the Side Foot Support Platforms on either side of the treadles.
2. Press START/STOP to stop the belts and console displays, (if you are in stair-stepper mode,
pressing START/STOP will stop the console displays).
Belts will slow down to a complete stop. Final workout information will be displayed in the display
windows: HEART RATE (TC5000 only), TIME, TOTAL CALORIES BURNED, TOTAL STEPS and
TOTAL DISTANCE/MILES.
Windows that display multiple workout information (such as CALORIES/CAL PER MIN) will
toggle between their final results every 6 seconds until the workout is resumed or the console is
turned off.
3. You may restart your workout by pushing the START/STOP button again.
If you do not push START/STOP again to resume your workout within 5 minutes, your Bowflex _
TreadClimbe¢ _exercise machine will automatically power off the console. Workout information
will be cleared when power to the console is shut off.
4. You may shut off power to the console manually by pushing the POWER button. If this is
done during the workout, the console will turn off and the belt will slow to a complete stop. All
information from your workout will be cleared.
5. Turn off the Main Power Switch at the base of the machine.
6. Lock the treadles and remove the Safety Key for safe storage when not in use.
NOTE: In case of emergency, you may shut off power by pulling out the Safety Key
but this will abruptly stop the belts as well as clearing all workout information
from the display windows.
Pausing or Stopping the TCl000
1. Step off the treadles onto the side foot support platforms.
2. Press START/STOP to slow the belts to a stop.
3. If you wish to reset your workout numbers, press the RESET button. RESET only works when
the belts are not moving.
4. Make sure to turn off the base power switch and unplug the TreadClimber _ machine when you
have finished your workout.
5. Lock the treadles and remove the Safety Key for safe storage when not in use.
35 Bowflex ®TreadClimber _ Owner's Manual
![](asset-27.png)

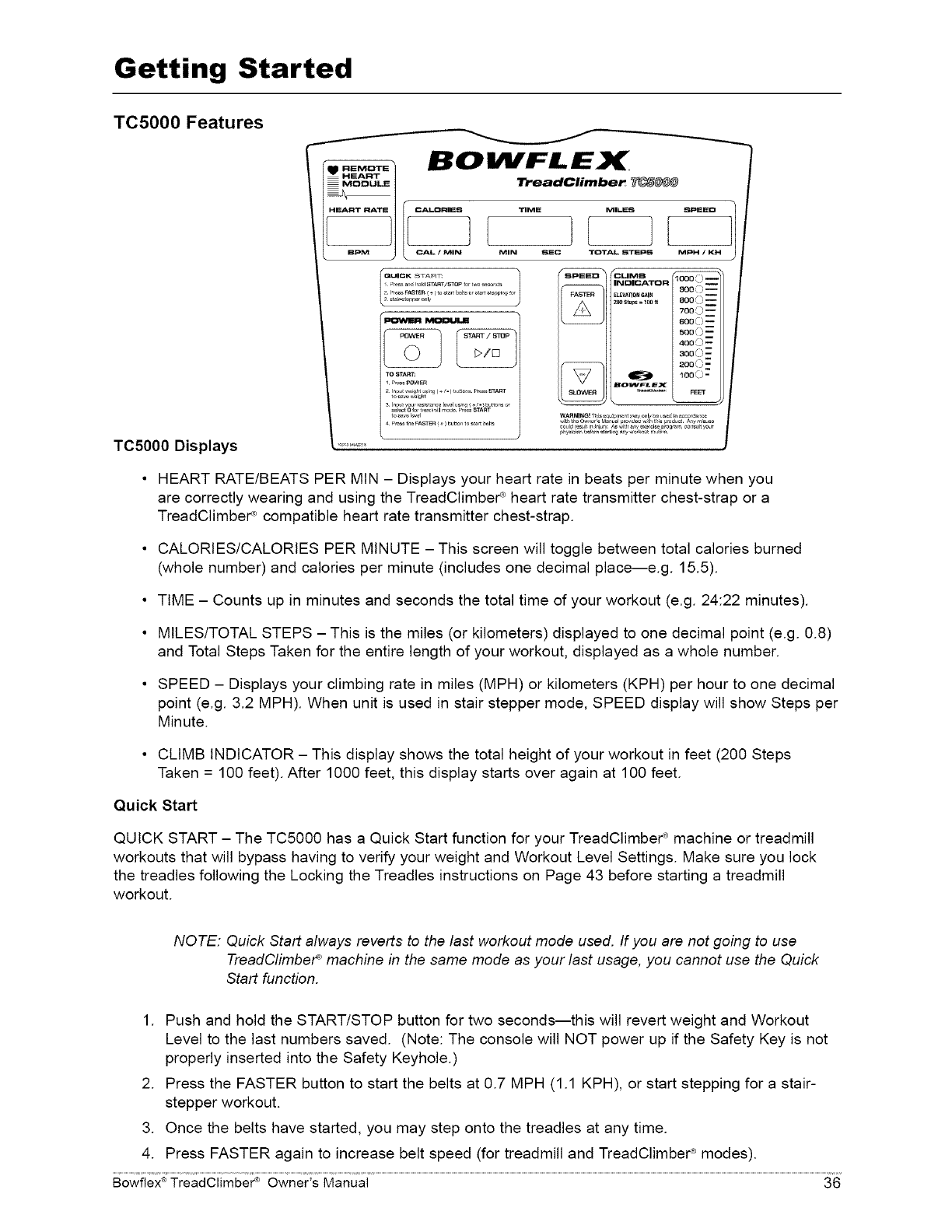

Getting Started
TC5000 Features
TC5000 Displays
BOItVFLEX
TreadClimber
CAL /MIN MIN S_C TOTAL STI_pS MPH /KH
QUICK STAR T:
+ +re++a,_++mldSTA_T/STOpbr ++++m+om+
It=O_'_nk'R m
TO S_
I_P,_s POWER
CLIMB 1000_
INDICATO!_ 900 ="--_
ELEVATIONGAIN
2_st+.s: +m. 8o0 :--"
700(?_----"
soo ,--
5oo)--
4oo0 --
3oo -,_--
_oo_ _
_00C:"
BOWFLEX
WARNING! _is equ_me_ m_ onl be um_in _ccor_a_ce
•HEART RATE/BEATS PER MIN -Displays your heart rate in beats per minute when you
are correctly wearing and using the TreadClimbe¢ _ heart rate transmitter chest-strap or a
TreadClimber _ compatible heart rate transmitter chest-strap.
• CALORIES/CALORIES PER MINUTE - This screen will toggle between total calories burned
(whole number) and calories per minute (includes one decimal place--e.g. 15.5).
• TIME - Counts up in minutes and seconds the total time of your workout (e.g. 24:22 minutes).
• MILES/TOTAL STEPS - This is the miles (or kilometers) displayed to one decimal point (e.g. 0.8)
and Total Steps Taken for the entire length of your workout, displayed as a whole number.
• SPEED - Displays your climbing rate in miles (MPH) or kilometers (KPH) per hour to one decimal
point (e.g. 3.2 MPH). When unit is used in stair stepper mode, SPEED display will show Steps per
Minute.
• CLIMB INDICATOR - This display shows the total height of your workout in feet (200 Steps
Taken = 100 feet). After 1000 feet, this display starts over again at 100 feet.
Quick Start
QUICK START -The TC5000 has a Quick Start function for your TreadClimber _ machine or treadmill
workouts that will bypass having to verify your weight and Workout Level Settings. Make sure you lock
the treadles following the Locking the Treadles instructions on Page 43 before starting a treadmill
workout.
NOTE: Quick Start always reverts to the last workout mode used. If you are not going to use
TreadClimbeP machine in the same mode as your last usage, you cannot use the Quick
Start function.
1. Push and hold the START/STOP button for two seconds--this will revert weight and Workout
Level to the last numbers saved. (Note: The console will NOT power up if the Safety Key is not
properly inserted into the Safety Keyhole.)
2. Press the FASTER button to start the belts at 0.7 MPH (1.1 KPH), or start stepping for a stair-
stepper workout.
3. Once the belts have started, you may step onto the treadles at any time.
4. Press FASTER again to increase belt speed (for treadmill and TreadClimber _ modes).
®
Bowflex' TreadClimbe¢ _ Owner's Manual 36
![](asset-28.png)

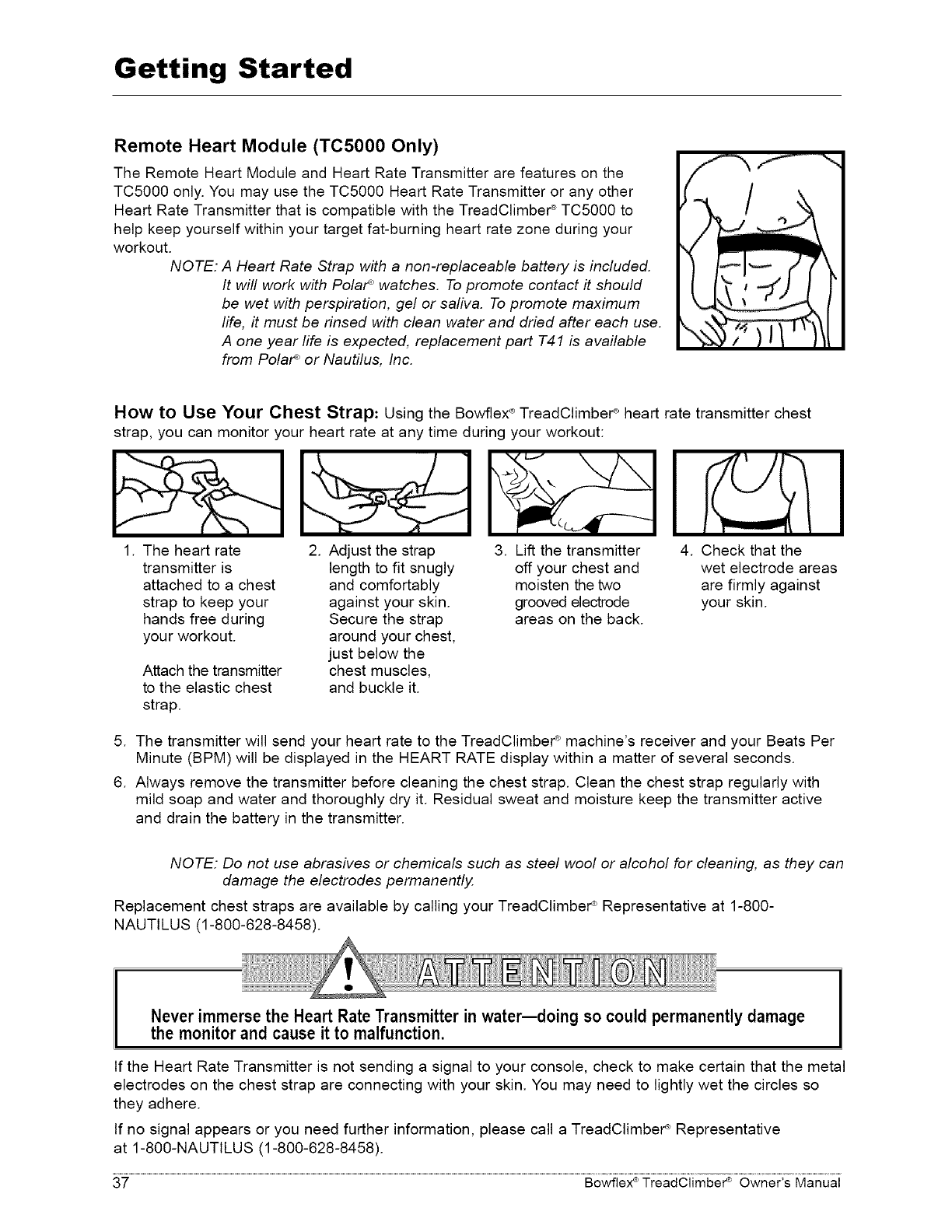

Getting Started
Remote Heart Module (TCSO00 Only)
The Remote Heart Module and Heart Rate Transmitter are features on the
TC5000 only. You may use the TC5000 Heart Rate Transmitter or any other
Heart Rate Transmitter that is compatible with the TreadClimber _ TC5000 to
help keep yourself within your target fat-burning heart rate zone during your
workout.
NOTE: A Heart Rate Strap with a non-replaceable battery is included.
It will work with Polar _watches. To promote contact it should
be wet with perspiration, gel or saliva. To promote maximum
life, it must be rinsed with clean water and dried after each use.
A one year life is expected, replacement part T41 is available
from Polar _or Nautilus, Inc.
How to Use Your Chest Strap; Using the Bowflex ®TreadClimber _ heart rate transmitter chest
strap, you can monitor your heart rate at any time during your workout:
1. The heart rate
transmitter is
attached to a chest
strap to keep your
hands free during
your workout.
Attach the transmitter
to the elastic chest
strap.
.Adjust the strap
length to fit snugly
and comfortably
against your skin.
Secure the strap
around your chest,
just below the
chest muscles,
and buckle it.
3. Lift the transmitter
off your chest and
moisten the two
grooved electrode
areas on the back.
4. Check that the
wet electrode areas
are firmly against
your skin.
5. The transmitter will send your heart rate to the TreadClimber _ machine's receiver and your Beats Per
Minute (BPM) will be displayed in the HEART RATE display within a matter of several seconds.
6. Always remove the transmitter before cleaning the chest strap. Clean the chest strap regularly with
mild soap and water and thoroughly dry it. Residual sweat and moisture keep the transmitter active
and drain the battery in the transmitter.
NOTE: Do not use abrasives or chemicals such as steel wool or alcohol for cleaning, as they can
damage the electrodes permanently.
Replacement chest straps are available by calling your TreadClimber _ Representative at 1-800-
NAUTILUS (1-800-628-8458).
Never immerse the Heart Rate Transmitter in water--doing so could permanentlydamage
the monitor and cause it to malfunction.
If the Heart Rate Transmitter is not sending a signal to your console, check to make certain that the metal
electrodes on the chest strap are connecting with your skin. You may need to lightly wet the circles so
they adhere.
If no signal appears or you need further information, please call a TreadClimber _ Representative
at 1-800-NAUTILUS (1-800-628-8458).
37 Bowflex ®TreadClimber _ Owner's Manual
![](asset-29.png)

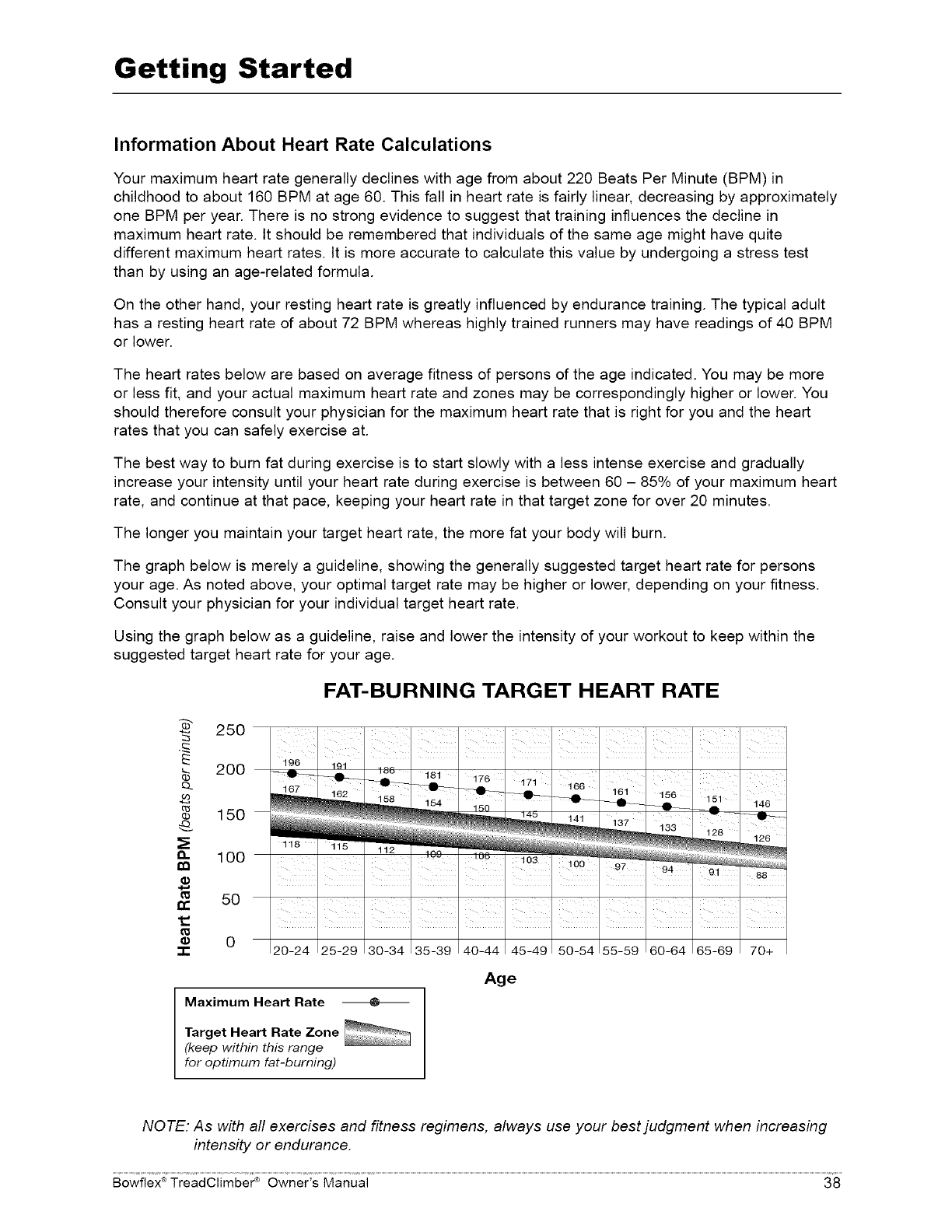

Getting Started
Information About Heart Rate Calculations
Your maximum heart rate generally declines with age from about 220 Beats Per Minute (BPM) in
childhood to about 160 BPM at age 60. This fall in heart rate is fairly linear, decreasing by approximately
one BPM per year. There is no strong evidence to suggest that training influences the decline in
maximum heart rate. It should be remembered that individuals of the same age might have quite
different maximum heart rates, tt is more accurate to calculate this value by undergoing a stress test
than by using an age-related formula.
On the other hand, your resting heart rate is greatly influenced by endurance training. The typical adult
has a resting heart rate of about 72 BPM whereas highly trained runners may have readings of 40 BPM
or lower.
The heart rates below are based on average fitness of persons of the age indicated. You may be more
or less fit, and your actual maximum heart rate and zones may be correspondingly higher or lower. You
should therefore consult your physician for the maximum heart rate that is right for you and the heart
rates that you can safely exercise at.
The best way to burn fat during exercise is to start slowly with a less intense exercise and gradually
increase your intensity until your heart rate during exercise is between 60 - 85% of your maximum heart
rate, and continue at that pace, keeping your heart rate in that target zone for over 20 minutes.
The longer you maintain your target heart rate, the more fat your body will burn.
The graph below is merely a guideline, showing the generally suggested target heart rate for persons
your age. As noted above, your optimal target rate may be higher or lower, depending on your fitness.
Consult your physician for your individual target heart rate.
Using the graph below as a guideline, raise and lower the intensity of your workout to keep within the
suggested target heart rate for your age.
FAT-BURNING TARGET HEART RATE
E
o_
rt
rn
(D
n-
(D
-i-
250 I I I
I I I I I I I I I I
_II IIIIII
200 196 1_1
15O
IO0
Age
Maximum Heart Rate
Target Heart Rate Zone
(keep within this range
for optimum fat-burning)
NOTE: As with all exercises and fitness regimens, always use your best judgment when increasing
intensity or endurance.
®
Bowflex' TreadClimbe¢ _ Owner's Manual 38
![](asset-2a.png)

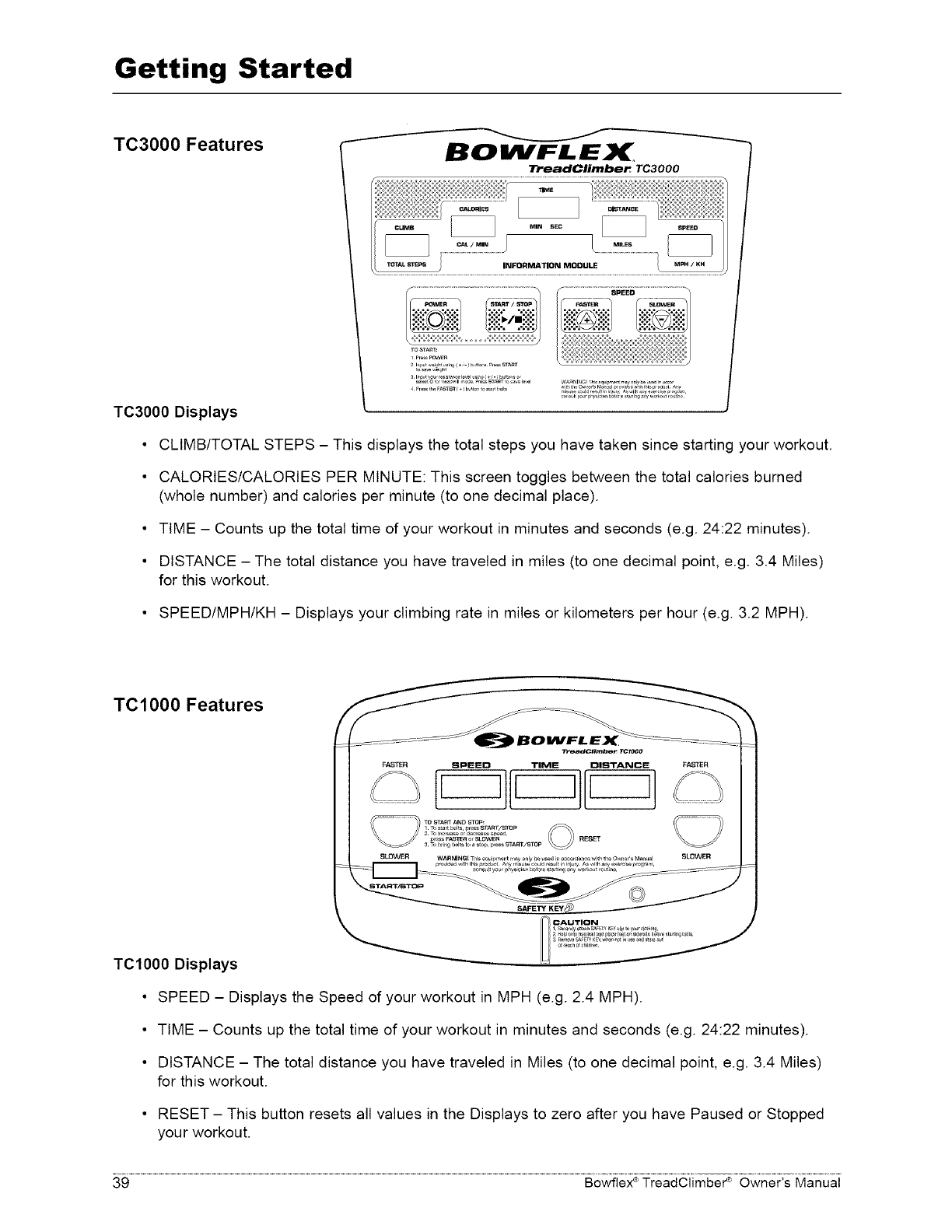

Getting Started
TC3000 Features BOWFLEXTreadClimber TC3000
TC3000 Displays
TOSTART:
1 P_ss_En
•CLIMB/TOTAL STEPS -This displays the total steps you have taken since starting your workout.
• CALORIES/CALORIES PER MINUTE: This screen toggles between the total calories burned
(whole number) and calories per minute (to one decimal place).
• TIME - Counts up the total time of your workout in minutes and seconds (e.g. 24:22 minutes).
• DISTANCE - The total distance you have traveled in miles (to one decimal point, e.g. 3.4 Miles)
for this workout.
• SPEED/MPH/KH - Displays your climbing rate in miles or kilometers per hour (e.g. 3.2 MPH).
TCIO00 Features
TC1000 Displays
• SPEED - Displays the Speed of your workout in MPH (e.g. 2.4 MPH).
• TIME - Counts up the total time of your workout in minutes and seconds (e.g. 24:22 minutes).
• DISTANCE - The total distance you have traveled in Miles (to one decimal point, e.g. 3.4 Miles)
for this workout.
• RESET - This button resets all values in the Displays to zero after you have Paused or Stopped
your workout.
39 Bowflex ®TreadClimbeP Owner's Manual
![](asset-2b.png)
Getting Started
Setting English or Metric Measurement Units (TC3000 and TCS000)
You can configure the TC5000 and TC3000 Consoles to display in Miles or Kilometers:
1. Turn the Main Power Switch on the Bowflex _ TreadClimber _ base to 'On'.
2. Remove the Safety Key.
3. Press and hold the START/STOP button.
4. Insert the Safety Key while holding down the START/STOP button.
5. Console will power up and show "EngL" text in the TIME display.
6. Continue to hold the START/STOP button and the console will toggle between "EngL" and
"MET" every three seconds.
English Measurement Display Metric Measurement Display
7. Release the START/STOP button when desired measurement unit type is displayed.
8. Remove and re-insert the Safety Key to clear the TIME display.
The below is an example of how weight will display in both English Standard and Metric
English Measurement--150 Pounds
Metric Measurement--68 Kilograms
®
Bowflex' TreadClimbe¢ _ Owner's Manual 40
![](asset-2c.png)
Getting Started
Walking Belt Adjustment
If either of the walking belts seem to be tracking excessively to one side or the other, adjustments can be
made at the front roller of each treadle.
Misalignment Test and Resolution
Visual Test -Standing beside the unit, set the speed at 2 mph. Standing in front of the unit you will see
adjustment bolts on each end of each front roller. If the belt is tracking too far to the right, tighten the right
adjustment bolt on that roller using the provided hex key in full turn increments to realign belt. If the belt
seems to be tracking too far to the left, do the same thing on the left adjustment bolt for that roller.
Walking Belt Alignment
NOTE: Belts should not be so tight that you cannot get your hand snugly under them when
machine is turned off and unplugged.
41 Bowflex ®TreadClimber _ Owner's Manual
![](asset-2d.png)

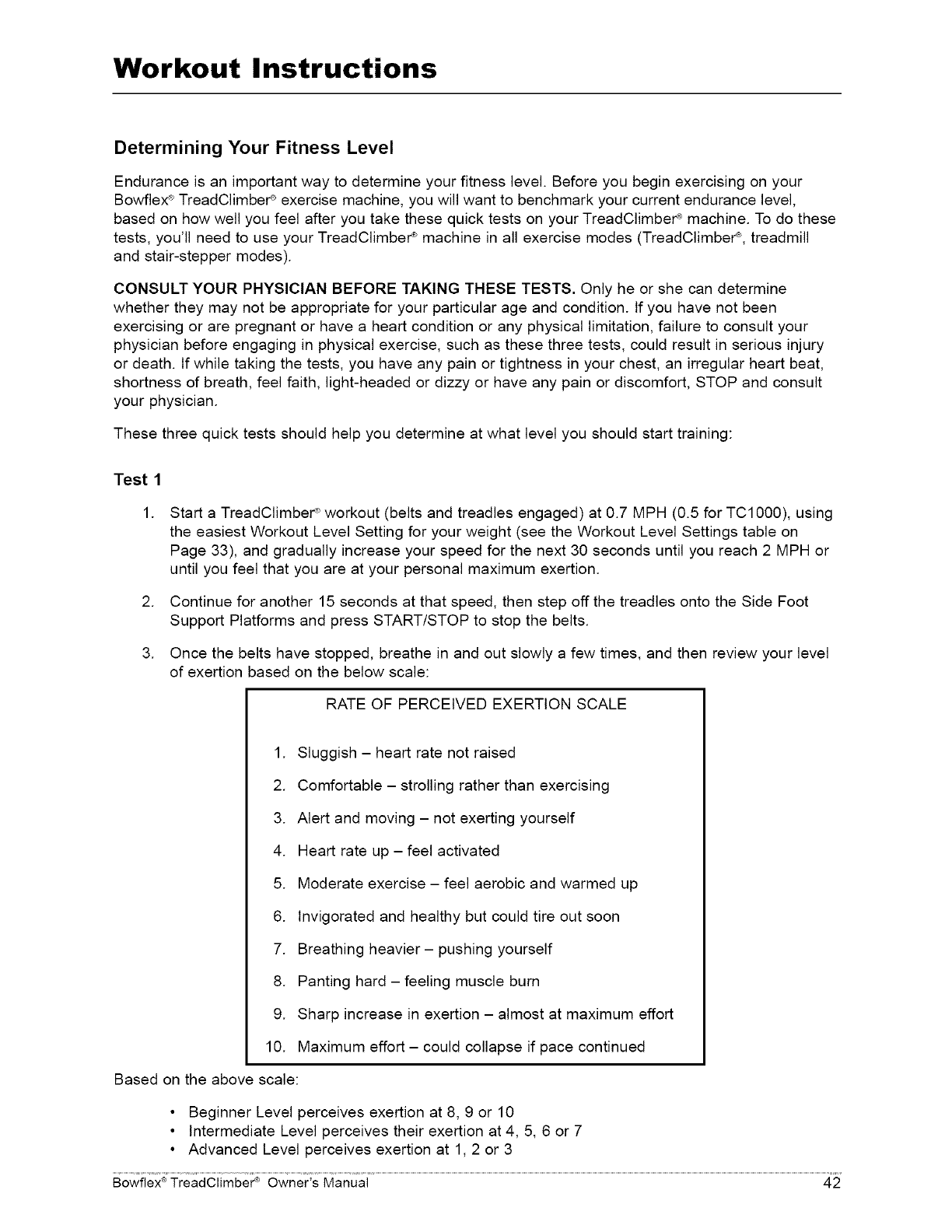

Workout Instructions
Determining Your Fitness Level
Endurance is an important way to determine your fitness level. Before you begin exercising on your
Bowflex '_TreadClimbeP exercise machine, you will want to benchmark your current endurance level,
based on how well you feel after you take these quick tests on your TreadClimbeP machine. To do these
tests, you'll need to use your TreadClimber _ machine in all exercise modes (TreadClimber% treadmill
and stair-stepper modes).
CONSULT YOUR PHYSICIAN BEFORE TAKING THESE TESTS. Only he or she can determine
whether they may not be appropriate for your particular age and condition. If you have not been
exercising or are pregnant or have a heart condition or any physical limitation, failure to consult your
physician before engaging in physical exercise, such as these three tests, could result in serious injury
or death. If while taking the tests, you have any pain or tightness in your chest, an irregular heart beat,
shortness of breath, feel faith, light-headed or dizzy or have any pain or discomfort, STOP and consult
your physician.
These three quick tests should help you determine at what level you should start training:
Test 1
1.
.
.
Start a TreadClimbeP workout (belts and treadles engaged) at 0.7 MPH (0.5 for TC1000), using
the easiest Workout Level Setting for your weight (see the Workout Level Settings table on
Page 33), and gradually increase your speed for the next 30 seconds until you reach 2 MPH or
until you feel that you are at your personal maximum exertion.
Continue for another 15 seconds at that speed, then step off the treadles onto the Side Foot
Support Platforms and press START/STOP to stop the belts.
Once the belts have stopped, breathe in and out slowly a few times, and then review your level
of exertion based on the below scale:
RATE OF PERCEIVED EXERTION SCALE
1. Sluggish -heart rate not raised
2. Comfortable - strolling rather than exercising
3. Alert and moving - not exerting yourself
4. Heart rate up - feel activated
5. Moderate exercise - feel aerobic and warmed up
6. Invigorated and healthy but could tire out soon
7. Breathing heavier- pushing yourself
8. Panting hard - feeling muscle burn
9. Sharp increase in exertion - almost at maximum effort
10. Maximum effort- could collapse if pace continued
Based on the above scale:
• Beginner Level perceives exertion at 8, 9 or 10
• Intermediate Level perceives their exertion at 4, 5, 6 or 7
• Advanced Level perceives exertion at 1, 2 or 3
®
Bowflex' TreadClimbe¢ _ Owner's Manual 42
![](asset-2e.png)

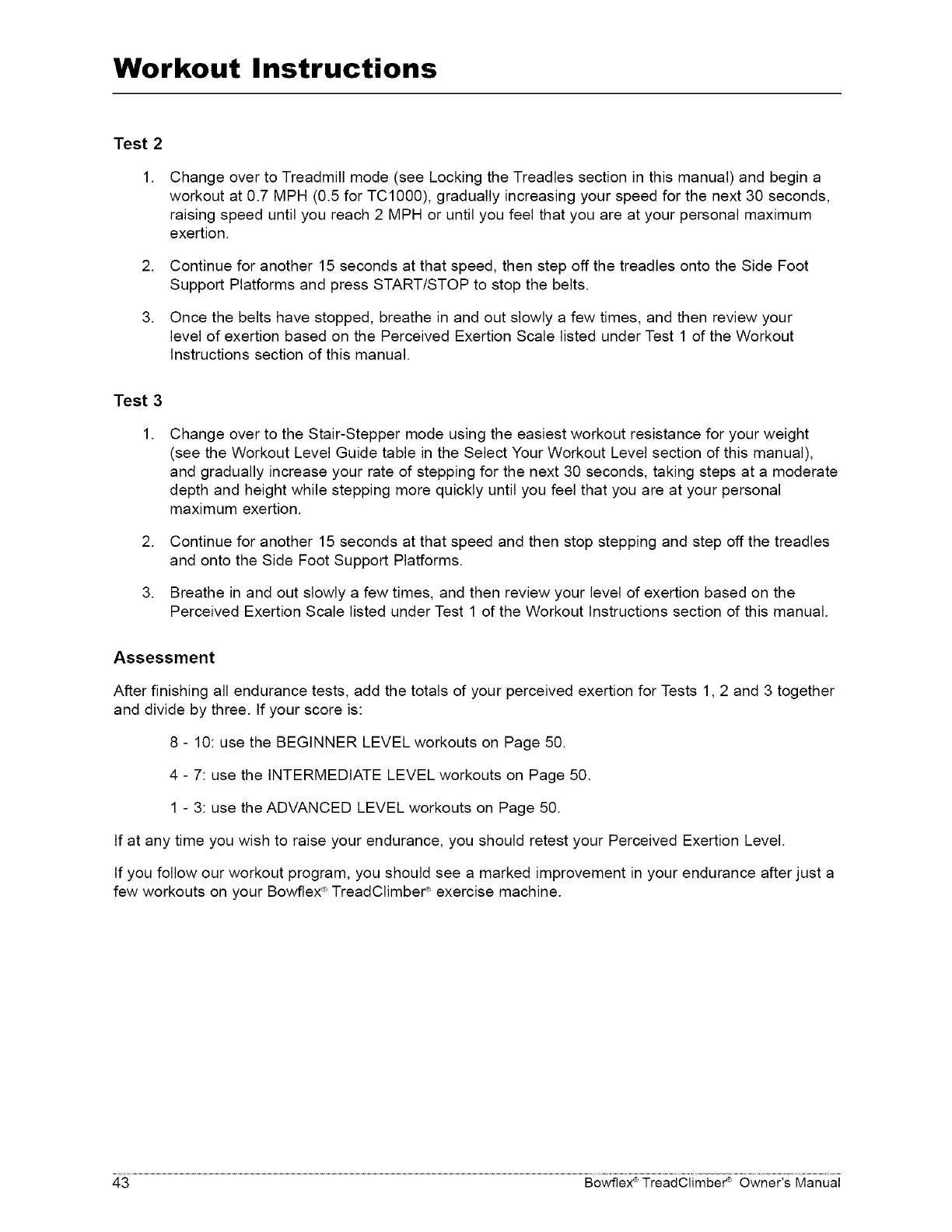

Workout Instructions
Test 2
1.
.
.
Change over to Treadmill mode (see Locking the Treadles section in this manual) and begin a
workout at 0.7 MPH (0.5 for TCl000), gradually increasing your speed for the next 30 seconds,
raising speed until you reach 2 MPH or until you feel that you are at your personal maximum
exertion.
Continue for another 15 seconds at that speed, then step off the treadles onto the Side Foot
Support Platforms and press START/STOP to stop the belts.
Once the belts have stopped, breathe in and out slowly a few times, and then review your
level of exertion based on the Perceived Exertion Scale listed under Test 1 of the Workout
Instructions section of this manual.
Test 3
1.
.
.
Change over to the Stair-Stepper mode using the easiest workout resistance for your weight
(see the Workout Level Guide table in the Select Your Workout Level section of this manual),
and gradually increase your rate of stepping for the next 30 seconds, taking steps at a moderate
depth and height while stepping more quickly until you feel that you are at your personal
maximum exertion.
Continue for another 15 seconds at that speed and then stop stepping and step off the treadles
and onto the Side Foot Support Platforms.
Breathe in and out slowly a few times, and then review your level of exertion based on the
Perceived Exertion Scale listed under Test 1 of the Workout Instructions section of this manual.
Assessment
After finishing all endurance tests, add the totals of your perceived exertion for Tests 1,2 and 3 together
and divide by three. If your score is:
8 - 10: use the BEGINNER LEVEL workouts on Page 50.
4 - 7: use the INTERMEDIATE LEVEL workouts on Page 50.
1 - 3: use the ADVANCED LEVEL workouts on Page 50.
If at any time you wish to raise your endurance, you should retest your Perceived Exertion Level.
If you follow our workout program, you should see a marked improvement in your endurance after just a
few workouts on your Bowflex ®TreadClimber _ exercise machine.
43 Bowflex ®TreadClimber _ Owner's Manual
![](asset-2f.png)

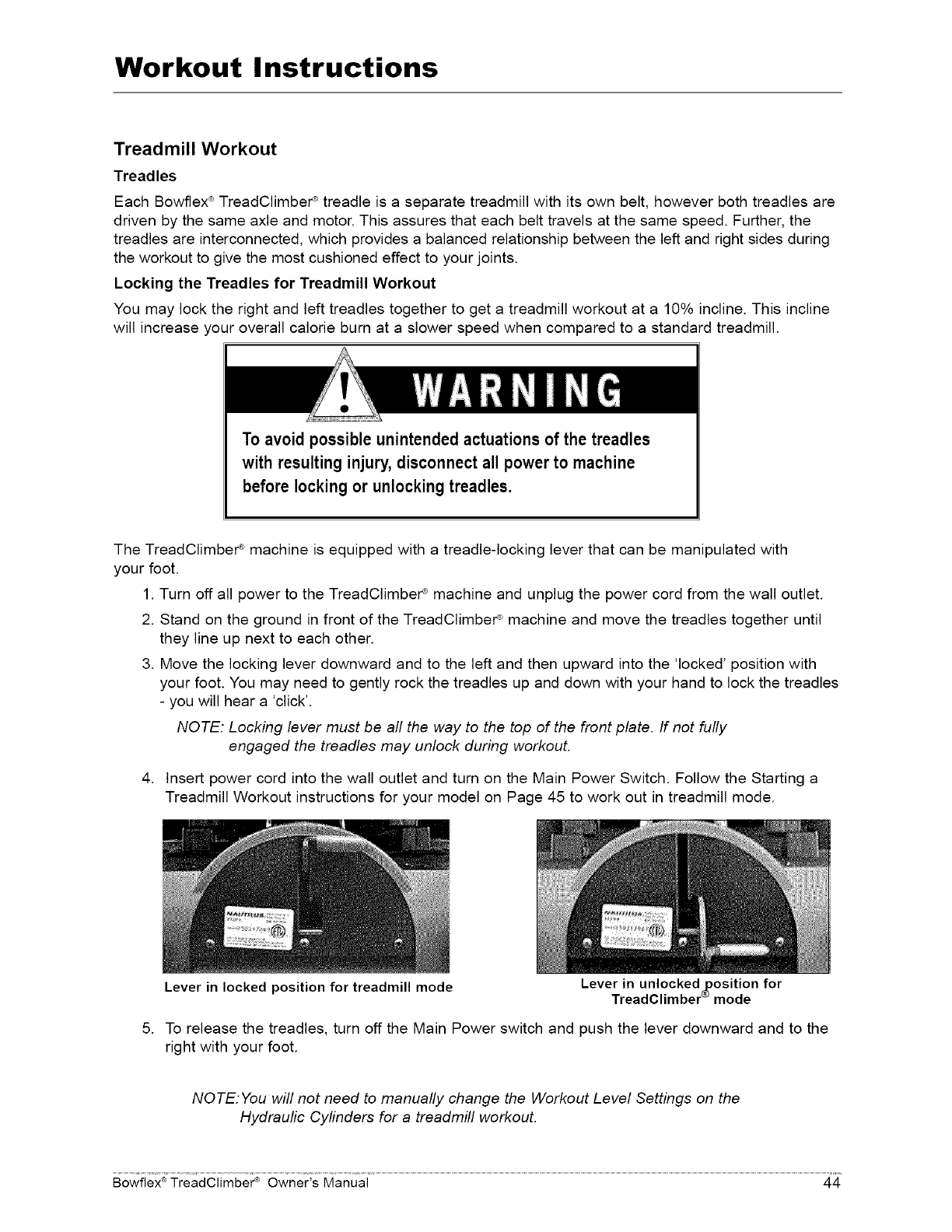

Workout Instructions
Treadmill Workout
Treadles
Each Bowflex ®TreadClimbeP treadle is a separate treadmill with its own belt, however both treadles are
driven by the same axle and motor. This assures that each belt travels at the same speed. Further, the
treadles are interconnected, which provides a balanced relationship between the left and right sides during
the workout to give the most cushioned effect to your joints.
Locking the Treadles for Treadmill Workout
You may lock the right and left treadles together to get a treadmill workout at a 10% incline. This incline
will increase your overall calorie burn at a slower speed when compared to a standard treadmill.
To avoid possible unintended actuations of the treadles
with resulting injury,disconnect all power to machine
before locking or unlocking treadles.
The TreadClimber _ machine is equipped with a treadle-locking lever that can be manipulated with
your foot.
1. Turn off all power to the TreadClimbeP machine and unplug the power cord from the wall outlet.
2. Stand on the ground in front of the TreadClimbeP machine and move the treadles together until
they line up next to each other.
3. Move the locking lever downward and to the left and then upward into the 'locked' position with
your foot. You may need to gently rock the treadles up and down with your hand to lock the treadles
- you will hear a 'click'.
NOTE: Locking lever must be all the way to the top of the front plate. If not fully
engaged the treadles may unlock during workout.
4. Insert power cord into the wall outlet and turn on the Main Power Switch. Follow the Starting a
Treadmill Workout instructions for your model on Page 45 to work out in treadmill mode.
Lever in locked position for treadmill mode Lever in unlockedposition for
TreadClimber_mode
5. To release the treadles, turn off the Main Power switch and push the lever downward and to the
right with your foot.
NOTE:You will not need to manually change the Workout Level Settings on the
Hydraufic Cyfinders for a treadmill workout.
®
Bowflex' TreadClimbe¢ _ Owner's Manual 44
![](asset-30.png)

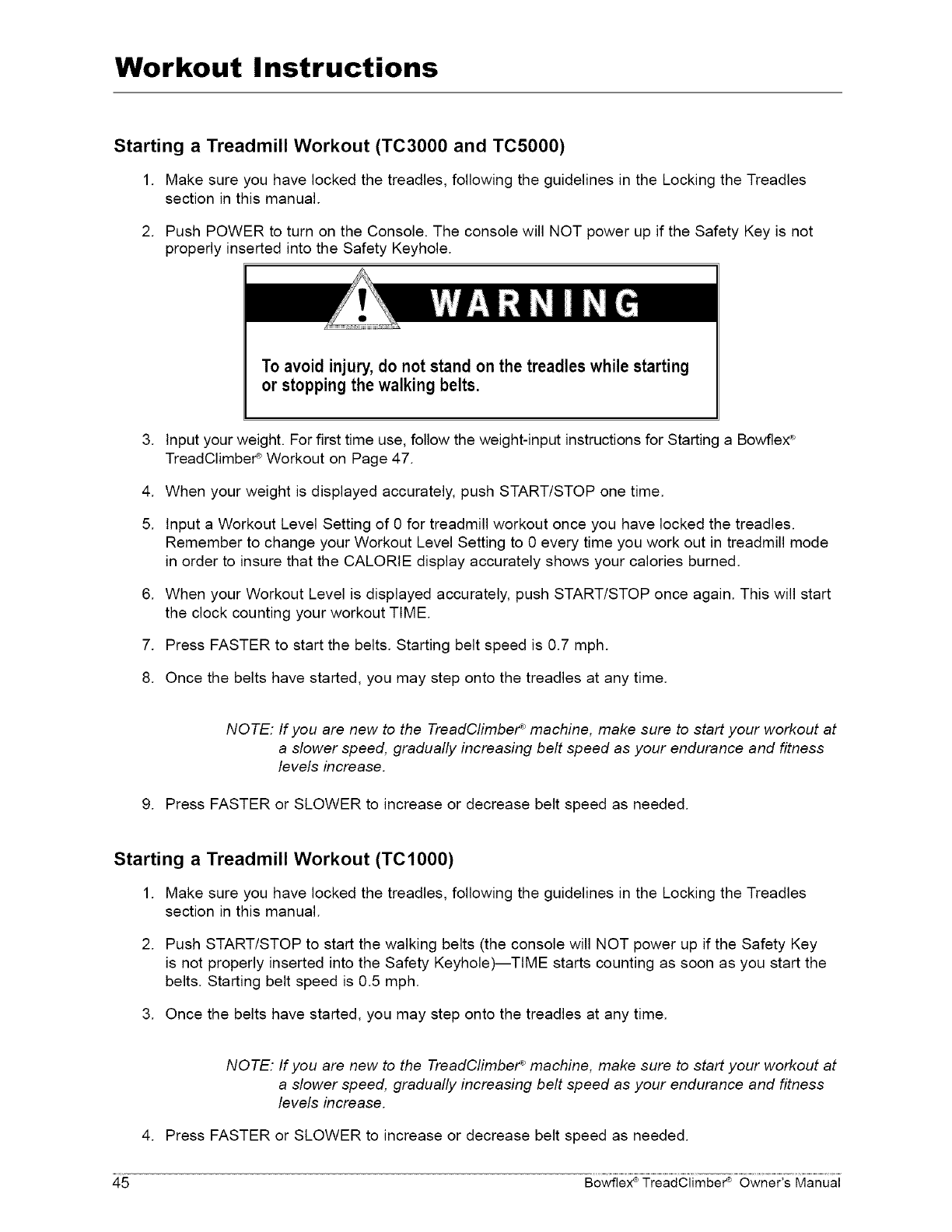

Workout Instructions
Starting a Treadmill Workout (TC3000 and TC5000)
1. Make sure you have locked the treadles, following the guidelines in the Locking the Treadles
section in this manual.
2. Push POWER to turn on the Console. The console will NOT power up if the Safety Key is not
properly inserted into the Safety Keyhole.
To avoid injury, do not stand on the treadles while starting
or stopping the walking belts.
3. Input your weight. For first time use, follow the weight-input instructions for Starting a Bowflex_
TreadClimbe¢ _Workout on Page 47.
4. When your weight is displayed accurately, push START/STOP one time.
5. Input a Workout Level Setting of 0 for treadmill workout once you have locked the treadles.
Remember to change your Workout Level Setting to 0 every time you work out in treadmill mode
in order to insure that the CALORIE display accurately shows your calories burned.
6. When your Workout Level is displayed accurately, push START/STOP once again. This will start
the clock counting your workout TIME.
7. Press FASTER to start the belts. Starting belt speed is 0.7 mph.
8. Once the belts have started, you may step onto the treadles at any time.
NOTE: If you are new to the TreadClimber _machine, make sure to start your workout at
a slower speed, gradually increasing belt speed as your endurance and fitness
levels increase.
9. Press FASTER or SLOWER to increase or decrease belt speed as needed.
Starting a Treadmill Workout (TCl000)
1. Make sure you have locked the treadles, following the guidelines in the Locking the Treadles
section in this manual.
2. Push START/STOP to start the walking belts (the console will NOT power up if the Safety Key
is not properly inserted into the Safety Keyhole)--TIME starts counting as soon as you start the
belts. Starting belt speed is 0.5 mph.
3. Once the belts have started, you may step onto the treadles at any time.
NOTE: If you are new to the TreadClimber _machine, make sure to start your workout at
a slower speed, gradually increasing belt speed as your endurance and fitness
levels increase.
4. Press FASTER or SLOWER to increase or decrease belt speed as needed.
45 Bowflex ®TreadClimber _ Owner's Manual
![](asset-31.png)

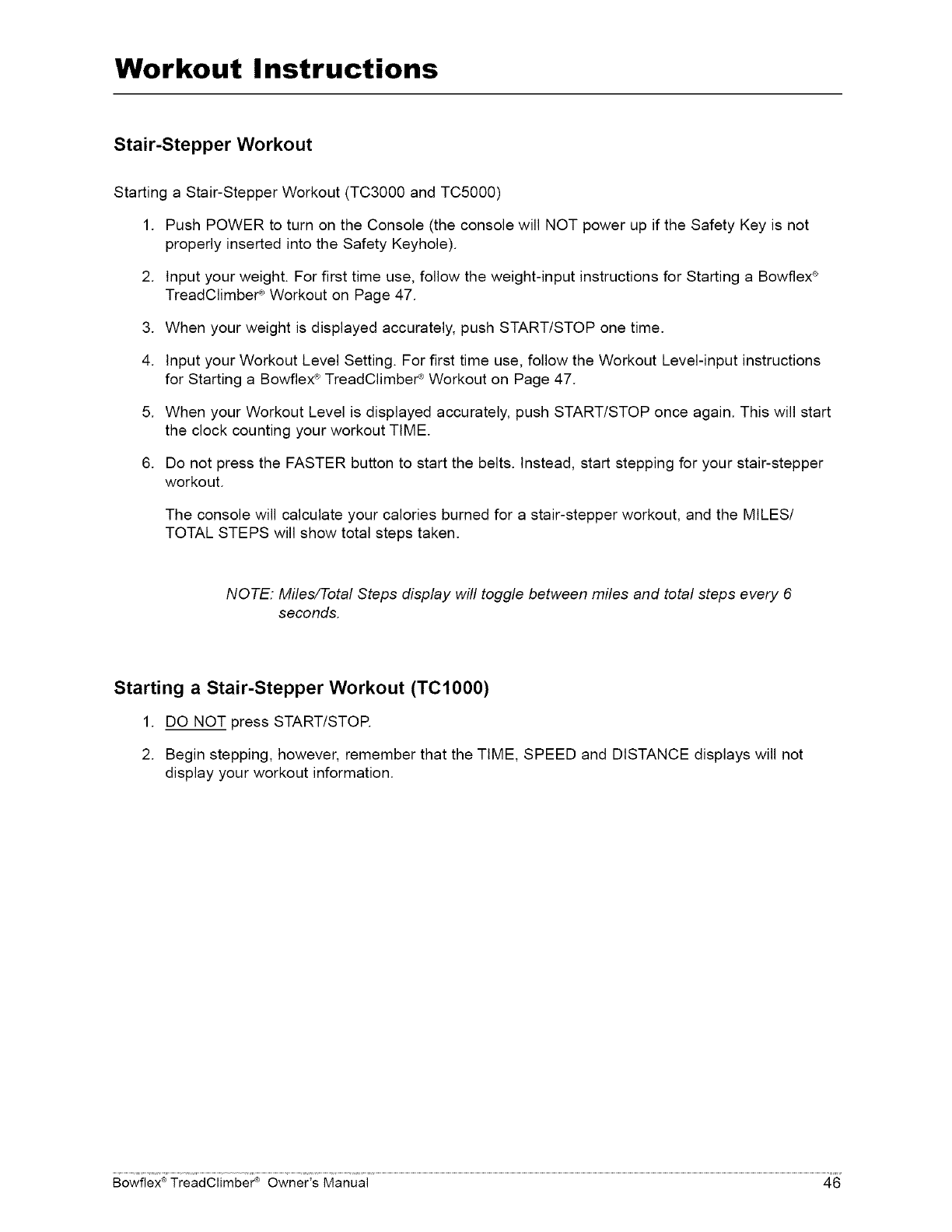

Workout Instructions
Stair-Stepper Workout
Starting a Stair-Stepper Workout (TC3000 and TC5000)
1. Push POWER to turn on the Console (the console will NOT power up if the Safety Key is not
properly inserted into the Safety Keyhole).
2. Input your weight. For first time use, follow the weight-input instructions for Starting a Bowflex _>
TreadClimber _Workout on Page 47.
3. When your weight is displayed accurately, push START/STOP one time.
4. Input your Workout Level Setting. For first time use, follow the Workout Level-input instructions
for Starting a Bowflex '_TreadClimber _ Workout on Page 47.
5. When your Workout Level is displayed accurately, push START/STOP once again. This will start
the clock counting your workout TIME.
6. Do not press the FASTER button to start the belts. Instead, start stepping for your stair-stepper
workout.
The console will calculate your calories burned for a stair-stepper workout, and the MILES/
TOTAL STEPS will show total steps taken.
NOTE: Miles/Total Steps display will toggle between miles and total steps every 6
seconds.
Starting a Stair-Stepper Workout (TCl000)
1. DO NOT press START/STOP.
2. Begin stepping, however, remember that the TIME, SPEED and DISTANCE displays will not
display your workout information.
®
Bowflex' TreadClimbe¢ _ Owner's Manual 46
![](asset-32.png)

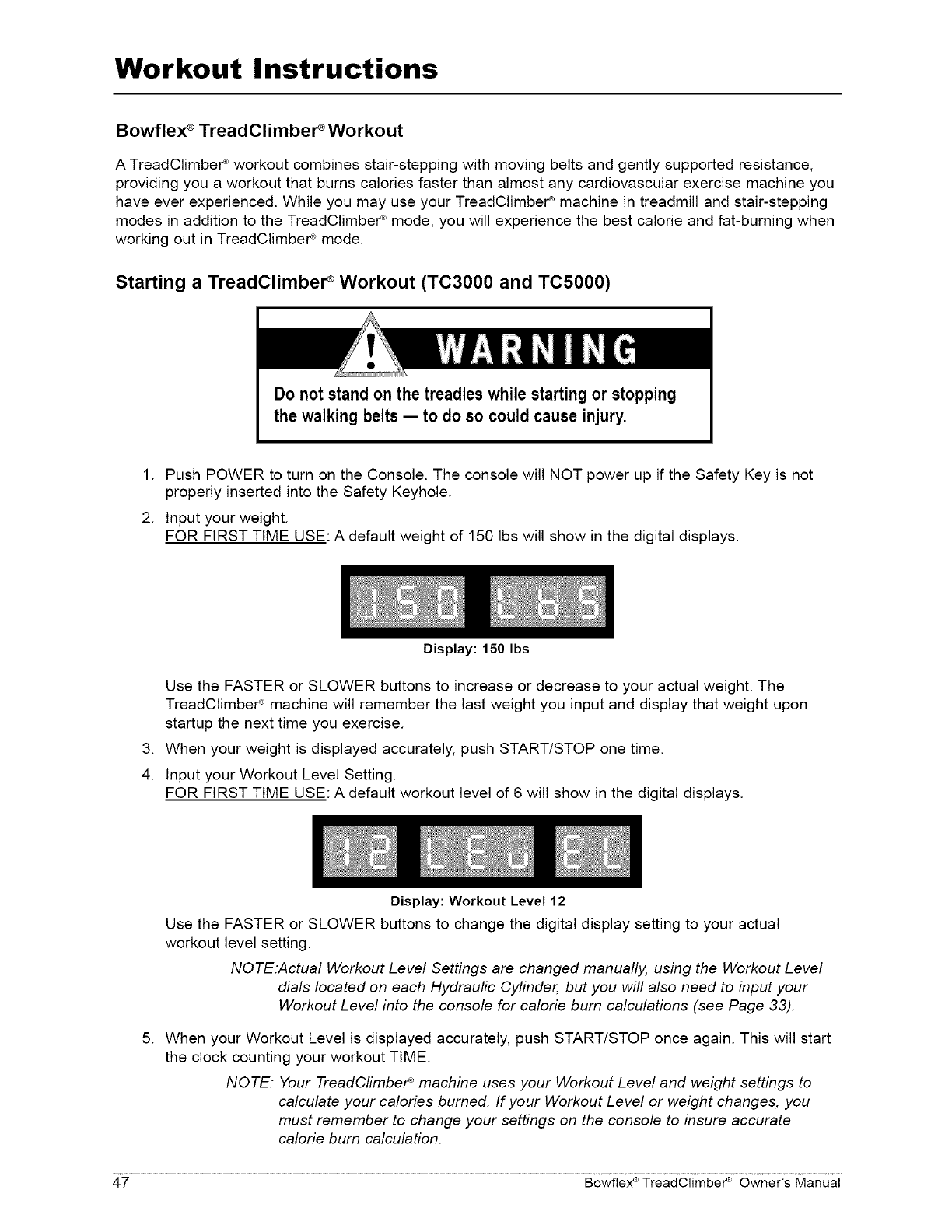

Workout Instructions
Bowflex ®TreadClimbereWorkout
A TreadClimber _ workout combines stair-stepping with moving belts and gently supported resistance,
providing you a workout that burns calories faster than almost any cardiovascular exercise machine you
have ever experienced. While you may use your TreadClimber _ machine in treadmill and stair-stepping
modes in addition to the TreadClimber _ mode, you will experience the best calorie and fat-burning when
working out in TreadClimber _ mode.
Starting a TreadClimber _Workout (TC3000 and TC5000)
Do not stand on the treadles while starting or stopping
the walking belts -- to do so could cause injury.
.
2.
Push POWER to turn on the Console. The console will NOT power up if the Safety Key is not
properly inserted into the Safety Keyhole.
Input your weight.
FOR FIRST TIME USE: A default weight of 150 Ibs will show in the digital displays.
.
4.
Display: 150 Ibs
Use the FASTER or SLOWER buttons to increase or decrease to your actual weight. The
TreadClimber _machine will remember the last weight you input and display that weight upon
startup the next time you exercise.
When your weight is displayed accurately, push START/STOP one time.
Input your Workout Level Setting.
FOR FIRST TIME USE: A default workout level of 6 will show in the digital displays.
.
Display: Workout Level 12
Use the FASTER or SLOWER buttons to change the digital display setting to your actual
workout level setting.
NOTE:Actual Workout Level Settings are changed manually, using the Workout Level
dials located on each Hydraulic Cylinder, but you will also need to input your
Workout Level into the console for calorie burn calculations (see Page 33).
When your Workout Level is displayed accurately, push START/STOP once again. This will start
the clock counting your workout TIME.
NOTE: Your TreadClimber _machine uses your Workout Level and weight settings to
calculate your calories burned. If your Workout Level or weight changes, you
must remember to change your settings on the console to insure accurate
calorie burn calculation.
47 Bowflex ®TreadClimber _ Owner's Manual
![](asset-33.png)

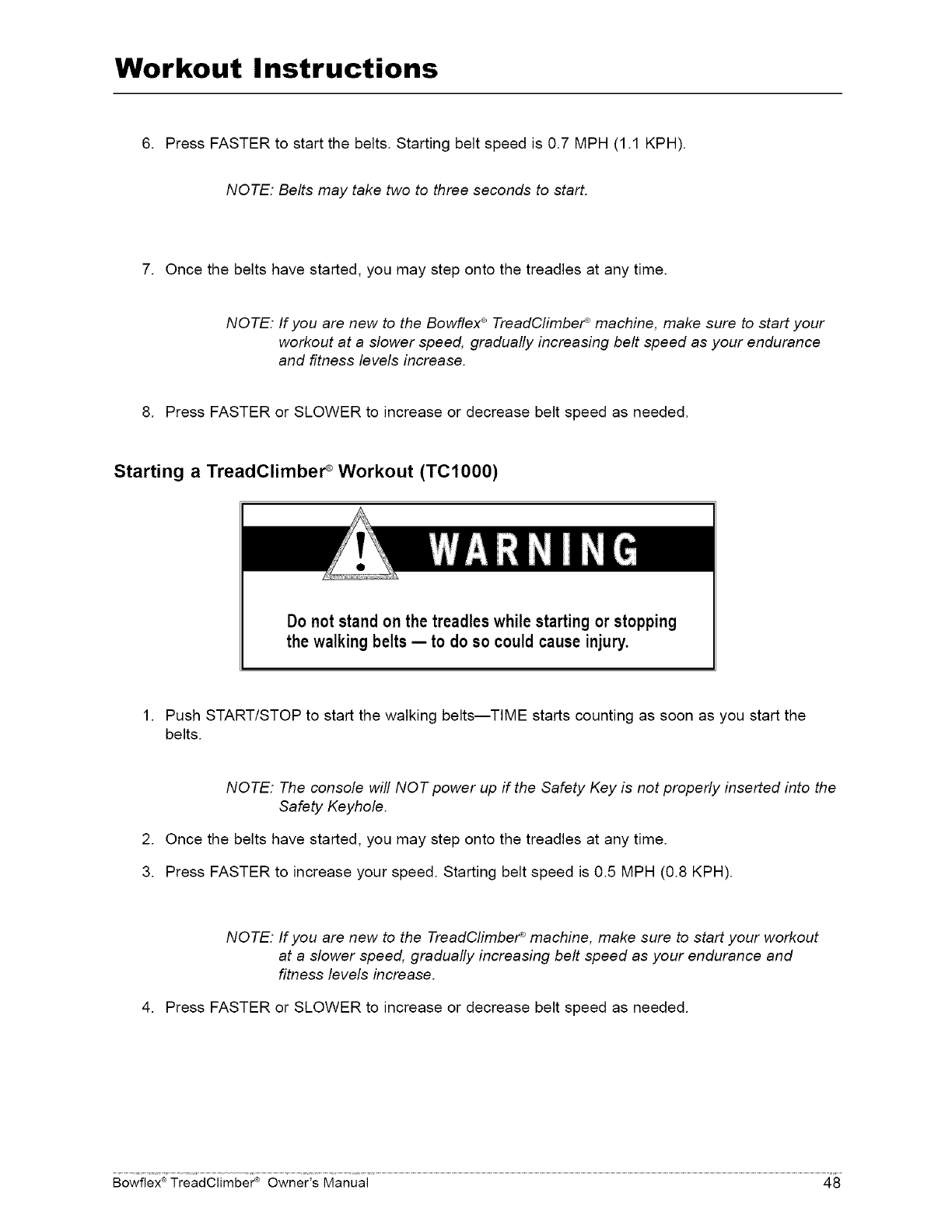

Workout Instructions
6. Press FASTER to start the belts. Starting belt speed is 0.7 MPH (1.1 KPH).
NOTE: Belts may take two to three seconds to start.
7. Once the belts have started, you may step onto the treadles at any time.
NOTE: If you are new to the Bowflex _TreadClimber _machine, make sure to start your
workout at a slower speed, gradually increasing belt speed as your endurance
and fitness levels increase.
8. Press FASTER or SLOWER to increase or decrease belt speed as needed.
Starting a TreadClimber _ Workout (TCl000)
Do not standon the treadles while startingor stopping
the walkingbelts -- to do so could cause injury.
1. Push START/STOP to start the walking belts--TIME starts counting as soon as you start the
belts.
.
3.
NOTE: The console will NOT power up if the Safety Key is not properly inserted into the
Safety Keyhole.
Once the belts have started, you may step onto the treadles at any time.
Press FASTER to increase your speed. Starting belt speed is 0.5 MPH (0.8 KPH).
NOTE: If you are new to the TreadClimber _machine, make sure to start your workout
at a slower speed, gradually increasing belt speed as your endurance and
fitness levels increase.
4. Press FASTER or SLOWER to increase or decrease belt speed as needed.
®
Bowflex' TreadClimbe¢ _ Owner's Manual 48
![](asset-34.png)

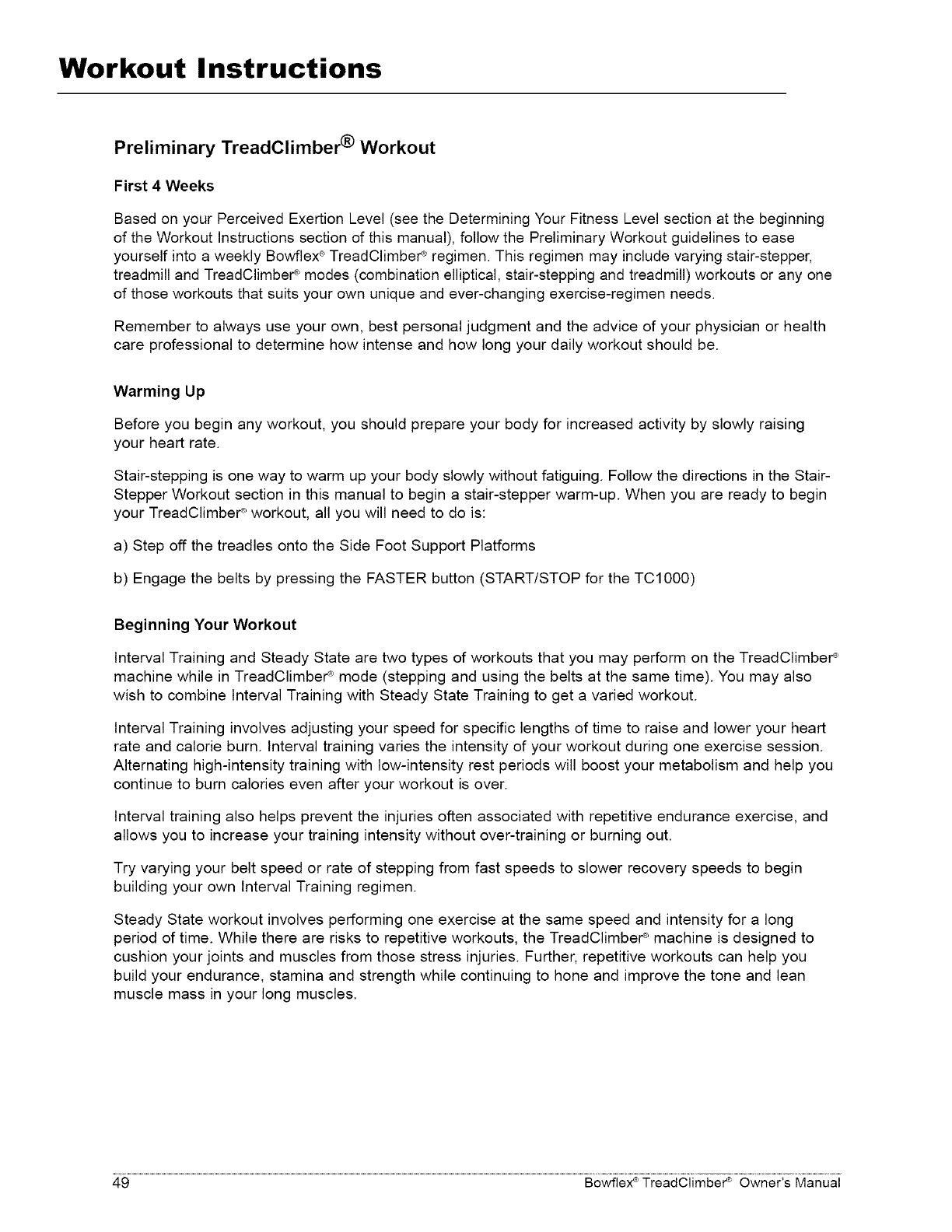

Workout Instructions
Preliminary TreadClimber ® Workout
First 4 Weeks
Based on your Perceived Exertion Level (see the Determining Your Fitness Level section at the beginning
of the Workout Instructions section of this manual), follow the Preliminary Workout guidelines to ease
yourself into a weekly Bowflex ®TreadClimber _regimen. This regimen may include varying stair-stepper,
treadmill and TreadClimber _ modes (combination elliptical, stair-stepping and treadmill) workouts or any one
of those workouts that suits your own unique and ever-changing exercise-regimen needs.
Remember to always use your own, best personal judgment and the advice of your physician or health
care professional to determine how intense and how long your daily workout should be.
Warming Up
Before you begin any workout, you should prepare your body for increased activity by slowly raising
your heart rate.
Stair-stepping is one way to warm up your body slowly without fatiguing. Follow the directions in the Stair-
Stepper Workout section in this manual to begin a stair-stepper warm-up. When you are ready to begin
your TreadClimber _ workout, all you will need to do is:
a) Step off the treadles onto the Side Foot Support Platforms
b) Engage the belts by pressing the FASTER button (START/STOP for the TCl000)
Beginning Your Workout
Interval Training and Steady State are two types of workouts that you may perform on the TreadClimber _
machine while in TreadClimbe¢ _ mode (stepping and using the belts at the same time). You may also
wish to combine Interval Training with Steady State Training to get a varied workout.
Interval Training involves adjusting your speed for specific lengths of time to raise and lower your heart
rate and calorie burn. Interval training varies the intensity of your workout during one exercise session.
Alternating high-intensity training with low-intensity rest periods will boost your metabolism and help you
continue to burn calories even after your workout is over.
Interval training also helps prevent the injuries often associated with repetitive endurance exercise, and
allows you to increase your training intensity without over-training or burning out.
Try varying your belt speed or rate of stepping from fast speeds to slower recovery speeds to begin
building your own Interval Training regimen.
Steady State workout involves performing one exercise at the same speed and intensity for a long
period of time. While there are risks to repetitive workouts, the TreadClimber _ machine is designed to
cushion your joints and muscles from those stress injuries. Further, repetitive workouts can help you
build your endurance, stamina and strength while continuing to hone and improve the tone and lean
muscle mass in your long muscles.
49 Bowflex ®TreadClimber _ Owner's Manual
![](asset-35.png)
Workout Instructions
Week 1Week 1Week 1
•3 x per week -treadmill workout
with treadles locked
at 2 MPH pace for 30 minutes
Once this has become easier, retest
your Fitness Level to determine if
you are ready to progress to Week
2 - your perceived exertion should
have improved at least one point.
•3 x per week, perform a
TreadClimbe¢ _ workout at steady,
constant pace for 30 minutes
• 2 days interval training -
30 minutes
• 1 day steady pace - 30 minutes
increase workout level setting
during training weeks, if needed,
to maximize TreadClimbe¢ _ fitness
benefits.
Week2 •Week2
• 3 x per week, perform a
TreadClimber ° workout at steady,
constant pace - 30 minutes
Once this has become easier, retest
your Fitness Level to determine if
you are ready to progress to Week
3 - your perceived exertion should
have improved at least one point.
• 2 days steady pace - 30 minutes
• 1 day interval training -
30 minutes
Increase your workout levels
during training weeks, if needed,
to maximize TreadClimber ®fitness
benefits.
Week 3-Week3
• 2 days steady pace - 30 minutes
• 1 day interval training -
30 minutes
increase workout level setting.
• 2 days interval training -
30 minutes
• 1 day steady pace - 30 minutes
increase workout levels 1-2 levels
during training weeks, if needed, to
maximize fitness benefits.
Use Weeks 1, 2, 3 and 4 as a
guide to help you begin building
your own long-term fitness routine,
adjusting your interval speeds,
resistance, step depth, etc. in
order to maximize TreadClimbe¢ _
benefits.
Use Weeks 1 as a guide to help
you begin building your own long-
term fitness routine, adjusting your
interval speeds, resistance, step
depth, etc. in order to maximize
TreadClimbe¢ _ benefits.
Use Weeks 1 and 2 as a guide to
help you begin building your own
long-term fitness routine, adjusting
your interval speeds, resistance,
step depth, etc. in order to maximize
TreadClimbe¢ _ benefits.
®
Bowflex' TreadClimbe¢ _ Owner's Manual 50
![](asset-36.png)
By Dr. Ellington Darden
51
![](asset-37.png)
Body Leanness Program
The following dietary program was created for use with the Bowflex®TreadClimbeP exercise machine
by Dr. Ellington Darden. Please consult your physician or health care professional before beginning any
fitness or dietary program.
Introduction
The TreadClimbeP Body Leanness Program
This program is scientifically designed for
maximum fat loss over six weeks. It is important
that you practice every aspect of the plan to
achieve optimum results.
The program separates into three two-week
stages. During each stage you will exercise,
control the number and quality of calories you
consume and drink plenty of ice-cold water.
Before starting the exercise routine, you must be
familiar with your TreadClimbeP machine. You
should experiment with finding the proper amount
of resistance and speed to use during your
workouts to remain in your target fat-burning heart-
rate zone.
Before beginning this program, consult your
physicianor health care professionaland
showthem this plan.
Only your physician or health care
professionalcan determine if this course
is appropriate for your particularage and
condition.
If you choose to use this program, you
assume all risks, known and unknown,
inherentto exercise and workout programs,
diet programs, and physical changesor
injuriesthat may result from the use of such
programs.
Nautilus, Inc., its subsidiaries and affiliated
companies,will not acceptany responsibility
or liability resulting from your use of the
Body Leanness Program. In addition, if you
have not already done so, we suggest having
a physician or health care professional
review the warning for additional contra-
indications.
If you experience any light-headedness,
dizziness, or shortness of breathwhile
exercising, stop the movement and consult a
physician or health care professional.
Make sure you read your TreadClimbe¢_
Owner's Manual before attempting a workout.
There are a few people who should not
try this program: children and teenagers;
pregnantwomen; women who are breast
feeding; diabetics; individualswith certain
types of heart, liver, or kidney disease;
and those sufferingfrom certain types of
arthritis. Thislistis not all-inclusive.Some
peopleshouldfollow the course onlywith
their physician or health care professional's
specific guidance.
Play it safe and always consult a physician or
health care professional.
®
Bowflex' TreadClimbe¢ _ Owner's Manual 52
![](asset-38.png)

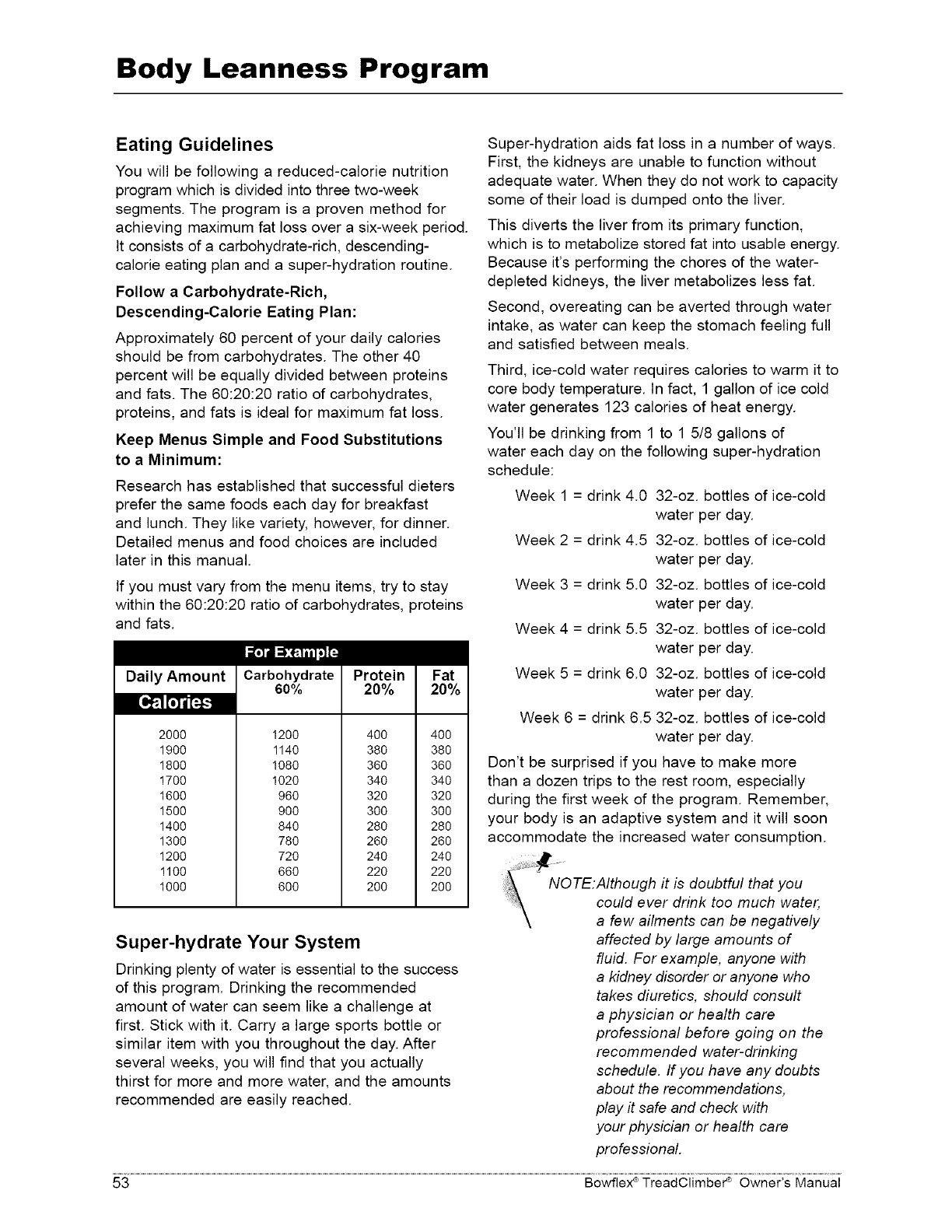

Body Leanness Program
Eating Guidelines
You will be following a reduced-calorie nutrition
program which is divided into three two-week
segments. The program is a proven method for
achieving maximum fat loss over a six-week period.
It consists of a carbohydrate-rich, descending-
calorie eating plan and a super-hydration routine.
Follow a Carbohydrate-Rich,
Descending-Calorie Eating Plan:
Approximately 60 percent of your daily calories
should be from carbohydrates. The other 40
percent will be equally divided between proteins
and fats. The 60:20:20 ratio of carbohydrates,
proteins, and fats is ideal for maximum fat loss.
Keep Menus Simple and Food Substitutions
to a Minimum:
Research has established that successful dieters
prefer the same foods each day for breakfast
and lunch. They like variety, however, for dinner.
Detailed menus and food choices are included
later in this manual.
If you must vary from the menu items, try to stay
within the 60:20:20 ratio of carbohydrates, proteins
and fats.
i_f'l=!rem_at_
Daily Amount
[1_'1_
2OOO
1900
1800
1700
1600
1500
1400
1300
1200
1100
1000
Carbohydrate Protein
60% 20%
1200 400
1140 380
1080 380
1020 340
960 320
900 300
840 280
780 260
720 240
660 220
600 200
Fat
20%
400
380
380
340
320
300
280
260
240
220
200
Super-hydrate Your System
Drinking plenty of water is essential to the success
of this program. Drinking the recommended
amount of water can seem like a challenge at
first. Stick with it. Carry a large sports bottle or
similar item with you throughout the day. After
several weeks, you will find that you actually
thirst for more and more water, and the amounts
recommended are easily reached.
Super-hydration aids fat loss in a number of ways.
First, the kidneys are unable to function without
adequate water. When they do not work to capacity
some of their load is dumped onto the liver.
This diverts the liver from its primary function,
which is to metabolize stored fat into usable energy.
Because it's performing the chores of the water-
depleted kidneys, the liver metabolizes less fat.
Second, overeating can be averted through water
intake, as water can keep the stomach feeling full
and satisfied between meals.
Third, ice-cold water requires calories to warm it to
core body temperature, tn fact, 1 gallon of ice cold
water generates 123 calories of heat energy.
You'll be drinking from 1 to 1 5/8 gallons of
water each day on the following super-hydration
schedule:
Week 1 = drink 4.0 32-oz. bottles of ice-cold
water per day.
Week 2 = drink 4.5 32-oz. bottles of ice-cold
water per day.
Week 3 = drink 5.0 32-oz. bottles of ice-cold
water per day.
Week 4 = drink 5.5 32-oz. bottles of ice-cold
water per day.
Week 5 = drink 6.0 32-oz. bottles of ice-cold
water per day.
Week 6 = drink 6.5 32-oz. bottles of ice-cold
water per day.
Don't be surprised if you have to make more
than a dozen trips to the rest room, especially
during the first week of the program. Remember,
your body is an adaptive system and it will soon
accommodate the increased water consumption.
NOTE:Although it is doubtful that you
could ever drink too much water,
a few ailments can be negatively
affected by large amounts of
fluid. For example, anyone with
a kidney disorder or anyone who
takes diuretics, should consult
a physician or health care
professional before going on the
recommended water-drinking
schedule. If you have any doubts
about the recommendations,
play it safe and check with
your physician or health care
professional.
53 Bowflex ®TreadClimber _ Owner's Manual
![](asset-39.png)

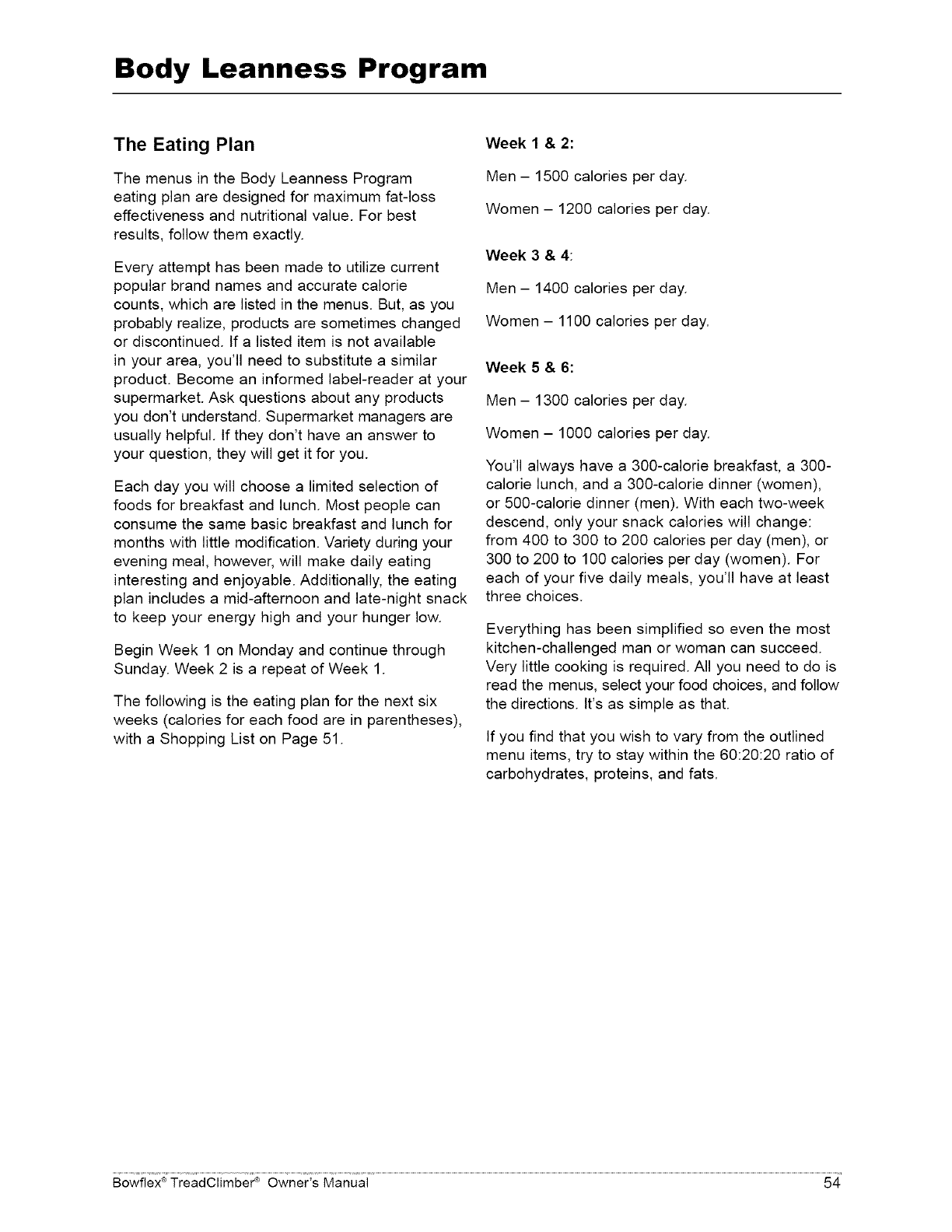

Body Leanness Program
The Eating Plan
The menus in the Body Leanness Program
eating plan are designed for maximum fat-loss
effectiveness and nutritional value. For best
results, follow them exactly.
Every attempt has been made to utilize current
popular brand names and accurate calorie
counts, which are listed in the menus. But, as you
probably realize, products are sometimes changed
or discontinued. If a listed item is not available
in your area, you'll need to substitute a similar
product. Become an informed label-reader at your
supermarket. Ask questions about any products
you don't understand. Supermarket managers are
usually helpful. If they don't have an answer to
your question, they will get it for you.
Each day you will choose a limited selection of
foods for breakfast and lunch. Most people can
consume the same basic breakfast and lunch for
months with little modification. Variety during your
evening meal, however, will make daily eating
interesting and enjoyable. Additionally, the eating
plan includes a mid-afternoon and late-night snack
to keep your energy high and your hunger low.
Begin Week 1 on Monday and continue through
Sunday. Week 2 is a repeat of Week 1.
The following is the eating plan for the next six
weeks (calories for each food are in parentheses),
with a Shopping List on Page 51.
Week 1 & 2:
Men -1500 calories per day.
Women - 1200 calories per day.
Week 3 & 4:
Men -1400 calories per day.
Women - 1100 calories per day.
Week 5 & 6:
Men - 1300 calories per day.
Women - 1000 calories per day.
You'll always have a 300-calorie breakfast, a 300-
calorie lunch, and a 300-calorie dinner (women),
or 500-calorie dinner (men). With each two-week
descend, only your snack calories will change:
from 400 to 300 to 200 calories per day (men), or
300 to 200 to 100 calories per day (women). For
each of your five daily meals, you'll have at least
three choices.
Everything has been simplified so even the most
kitchen-challenged man or woman can succeed.
Very little cooking is required. All you need to do is
read the menus, select your food choices, and follow
the directions. It's as simple as that.
If you find that you wish to vary from the outlined
menu items, try to stay within the 60:20:20 ratio of
carbohydrates, proteins, and fats.
®
Bowflex' TreadClimbe¢ _ Owner's Manual 54
![](asset-3a.png)

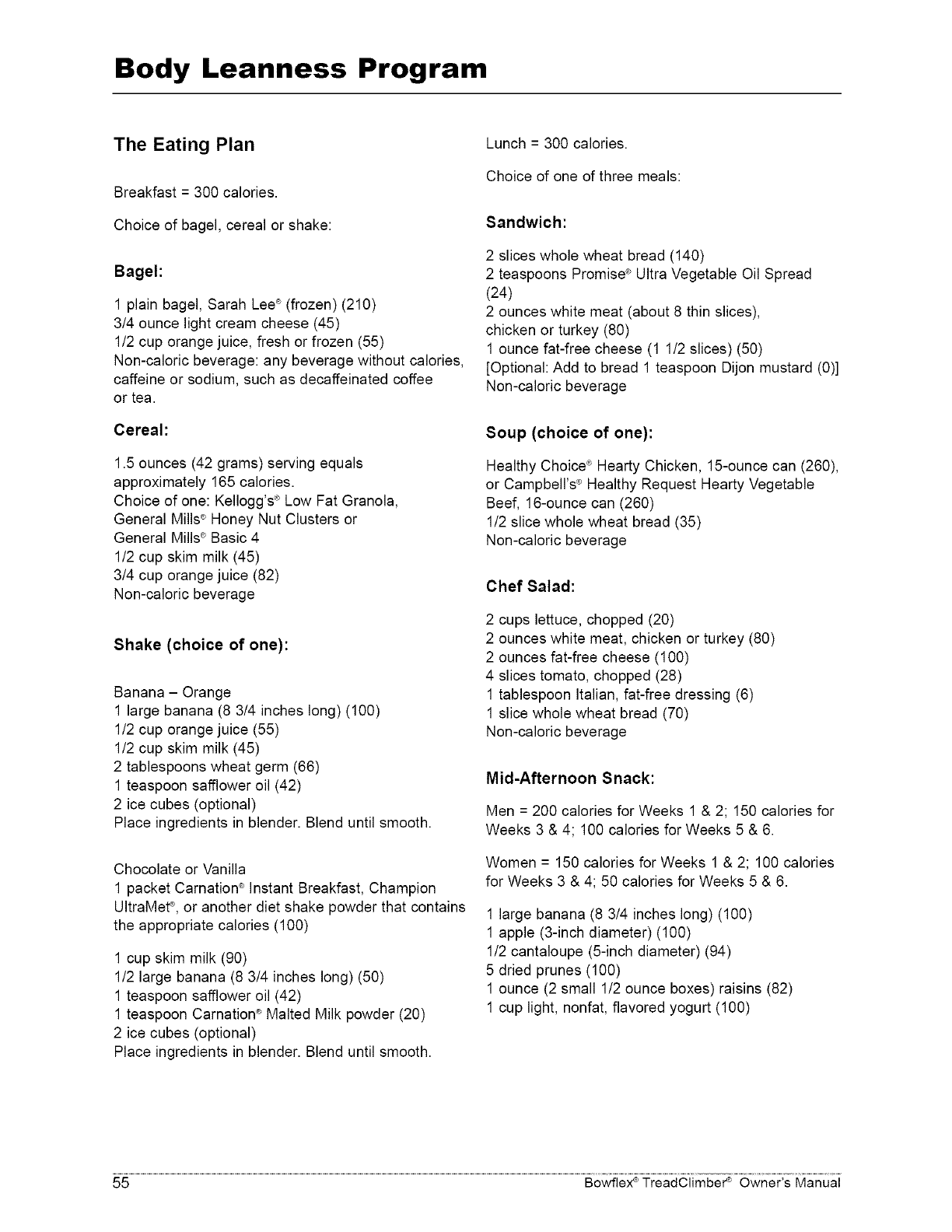

Body Leanness Program
The Eating Plan
Breakfast = 300 calories.
Choice of bagel, cereal or shake:
Bagel:
1 plain bagel, Sarah Lee®(frozen) (210)
3/4 ounce light cream cheese (45)
1/2 cup orange juice, fresh or frozen (55)
Non-caloric beverage: any beverage without calories,
caffeine or sodium, such as decaffeinated coffee
or tea.
Cereal:
1.5 ounces (42 grams) serving equals
approximately 165 calories.
Choice of one: Kellogg's<_Low Fat Granola,
General Mills®Honey Nut Clusters or
General Mills®Basic 4
1/2 cup skim milk (45)
3/4 cup orange juice (82)
Non-caloric beverage
Shake (choice of one):
Banana -Orange
1 large banana (8 3/4 inches long) (100)
1/2 cup orange juice (55)
1/2 cup skim milk (45)
2 tablespoons wheat germ (66)
1 teaspoon safflower oil (42)
2 ice cubes (optional)
Place ingredients in blender. Blend until smooth.
Chocolate or Vanilla
1 packet Carnation <_Instant Breakfast, Champion
UltraMet_, or another diet shake powder that contains
the appropriate calories (100)
1 cup skim milk (90)
1/2 large banana (8 3/4 inches long) (50)
1 teaspoon safflower oil (42)
1 teaspoon Carnation ®Malted Milk powder (20)
2 ice cubes (optional)
Place ingredients in blender. Blend until smooth.
Lunch = 300 calories.
Choice of one of three meals:
Sandwich:
2 slices whole wheat bread (140)
2 teaspoons Promise®Ultra Vegetable Oil Spread
(24)
2 ounces white meat (about 8 thin slices),
chicken or turkey (80)
1 ounce fat-free cheese (1 1/2 slices) (50)
[Optional: Add to bread 1 teaspoon Dijon mustard (0)]
Non-caloric beverage
Soup (choice of one):
Healthy Choice®Hearty Chicken, 15-ounce can (260),
or Campbell's <_Healthy Request Hearty Vegetable
Beef, 16-ounce can (260)
1/2 slice whole wheat bread (35)
Non-caloric beverage
Chef Salad:
2 cups lettuce, chopped (20)
2 ounces white meat, chicken or turkey (80)
2 ounces fat-free cheese (100)
4 slices tomato, chopped (28)
1 tablespoon Italian, fat-free dressing (6)
1 slice whole wheat bread (70)
Non-caloric beverage
Mid-Afternoon Snack:
Men = 200 calories for Weeks 1 & 2; 150 calories for
Weeks 3 & 4; 100 calories for Weeks 5 & 6.
Women = 150 calories for Weeks 1 & 2; 100 calories
for Weeks 3 & 4; 50 calories for Weeks 5 & 6.
1 large banana (8 3/4 inches long) (100)
1 apple (3-inch diameter) (100)
1/2 cantaloupe (5-inch diameter) (94)
5 dried prunes (100)
1 ounce (2 small 1/2 ounce boxes) raisins (82)
1 cup light, nonfat, flavored yogurt (100)
55 Bowflex ®TreadClimber _ Owner's Manual
![](asset-3b.png)
Body Leanness Program
Dinner = 500 or 300 calories.
Men = 500 calories, Women = 300 calories
Choice of one of three meals:
Tuna Salad Dinner
In a large bowl, mix the following:
1 6-ounce can chunk light tuna in water (180)
1 tablespoon Hellmann's ®Light, Reduced-Calorie
Mayonnaise (50)
2 tablespoons sweet pickle relish (40)
1/4 cup whole kernel corn, canned,
no salt added (30)
Non-caloric beverage
Men add:
1/2 cup sliced white potatoes, canned (45)
2 slices whole wheat bread (140)
Steak Dinner
3 ounces lean sirloin, broiled (176)
1/2 cup sweet peas, canned, no salt added (60)
1/2 cup beets, canned (35)
1/2 cup skim milk (45)
Non-caloric beverage
Men add:
2 slices whole wheat bread (140)
1 teaspoon Promise®Ultra Vegetable Oil Spread (12)
1/2 cup skim milk (45)
Frozen Microwave Dinner
Choose one of five recommended meals:
Glazed Chicken Dinner, Lean Cuisine® (230)
1/2 cup skim milk (45)
Non-caloric beverage
Men add:
2 slices whole wheat bread (140)
2 teaspoons Promise'_'Ultra Vegetable Oil Spread
(24)
1/2 cup skim milk (45)
Lasagna with Meat Sauce, Lean Cuisine®(240)
1/2 cup skim milk (45)
Non-caloric beverage
Men add:
2 slices whole--wheat bread (140)
2 teaspoons Promise®Ultra Vegetable Oil Spread
(24)
1/2 cup skim milk (45)
Macaroni and Cheese, Weight Watchers<_(260)
1/2 cup skim milk (45)
Non-caloric beverage
Men add:
2 slices whole--wheat bread (140)
2 teaspoons Promise®Ultra Vegetable Oil Spread
(24)
1/2 cup skim milk (45)
Broccoli & Cheddar Cheese Sauce over Baked
Potato, Lean Cuisine®Lunch Express (250)
1/2 cup skim milk (45)
Non-caloric beverage
Men add:
2 slices whole-wheat bread (140)
2 teaspoons Promise®Ultra Vegetable Oil Spread
(24)
1/2 cup skim milk (45)
Country Inn Roast Turkey Classic,
Healthy Choice®(250)
1/2 cup skim milk (45)
Non-caloric beverage
Men add:
2 slices whole-wheat bread (140)
2 teaspoons Promise'_Ultra Vegetable Oil Spread
(24)
1/2 cup skim milk (45)
Late-Night Snack
Men = 200 calories for Weeks 1 & 2; 150 calories for
Weeks 3 & 4; 100 calories for Weeks 5 & 6.
Women = 150 calories for Weeks 1 & 2; 100 calories
for Weeks 3 & 4; 50 calories for Weeks 5 & 6.
Mid-Afternoon Snacks on Page 39, plus the following:
1/2 cup low-fat frozen yogurt (100)
2 cups light, microwave popcorn (100)
Bowfiex' TreadClimbe¢ _ Owner's Manual 56
![](asset-3c.png)
Body Leanness Program
Shopping List
Quantities for listed items will depend on your
specific selections. Review your choices and
adjust the shopping list accordingly. It may be
helpful for you to photocopy this list each week
before doing your shopping.
Staples
Orange juice, skim milk, whole-wheat bread,
Promise ®Ultra Vegetable Oil Spread, Italian fat-
free dressing, Dijon mustard, safflower oil, non-
caloric beverages (tea, decaffeinated coffee, diet
soft drinks, water).
Vegetables
Lettuce, tomatoes, whole kernel corn (canned
no salt added), sweet peas, (canned no salt
added), sliced white potatoes (canned), cut beets
(canned).
Dairy
Yogurt (light nonfat), cream cheese (light), cheese
(fat-free), low-fat frozen yogurt, Carnation _
Instant Breakfast packets, Champion UItraMet ®
Packets.
Grains
Bagels, Sarah Lee _ (frozen)
Cereals -- 1.5 ounce serving equals
approximately
165 calories; Kellogg's ® Low-Fat Granola (without
raisins), General Mills®Honey Nut Clusters,
General Mills<_Basic 4.
Wheat germ, malted milk powder, popcorn
(microwave light).
Fruits
Bananas, large (8 3/4 inches long), apples (3-inch
diameter), cantaloupes (5-inch diameter), dried
prunes, raisins.
Meat, Poultry, Fish and Entrees
Chicken (thin sliced), turkey (thin sliced), tuna
(canned in water), sirloin steak (lean).
Canned soup
Healthy Choice ®Hearty Chicken, Campbell's ®
Healthy Request Hearty Vegetable Beef.
Frozen microwave dinners or entrees:
Lean Cuisine '_Glazed Chicken Dinner, Lean
Cuisine ® Lasagna with Meat Sauce, Lean Cuisine '_
Lunch Express Broccoli & Cheddar Cheese over
Potato, Weight Watchers ® Macaroni and Cheese,
Healthy Choice ®Grilled Turkey Breast.
57 Bowflex ®TreadClimber _ Owner's Manual
![](asset-3d.png)
Body Leanness Program
Questions & Answers
q.
A.
O.
A.
q.
A.
Q.
A.
I often get headaches when I eat only 1000
calories a day. What should I do?
Your headaches may be caused by going
longer than three hours between meals or
snacks. Try spacing your meals and snacks
where there are fewer hours between them.
q.
A.
Some people who are used to drinking
regular coffee with caffeine notice headaches
when they stop consuming coffee for several Q.
days. If this is the case with you, you might
want to ease off the coffee more gradually. A.
I don't like red meat. I notice that the Lean
Cuisine ®Lasagna with Meat Sauce contains
beef. What can I substitute for it?
Lean Cuisine ®has many other frozen dinners
that you may substitute for Lasagna with Meat
Sauce. Try to find one that contains the same
calories, with approximately 15 to 20 percent
of the calories coming from fat. Some of the
Lean Cuisine ®dinners actually have too little
fat for my nutritional requirements.
May 1have dinner for lunch and lunch
for dinner?
Yes.
I tend to get a headache when I drink cold
water. Can I drink water without it being
chilled?
Yes, but you won't get the 123 calories or
more thermogenic effect from warming the cold
water to core body temperature. Try a more
gradual drinking of the cold water. You may
have been consuming it too quickly.
q.
A.
Is it possible to drink too much water?
Certainly. To do so, however, you'd probably
have to drink four or five times as much per
day as I'm recommending. There are a few
ailments that can be negatively affected by
large amounts of fluid. If you feel you have
a problem, check with your doctor before
starting the program.
Is bottled water better than tap water?
Research shows that bottled water is not
always higher quality water than tap water.
The decision to drink bottled water or not is
usually one of taste, tf you dislike the taste of
your tap water, then drink your favorite bottled
water. But first you might want to try a twist of
lemon or lime added to the water from your
tap. Some people say it makes a significant
difference in the taste.
I'm a middle-aged woman who gets black and
blue marks on my legs when I diet. Am I doing
anything wrong?
I doubt you are doing anything wrong. Such
black and blue marks are usually the result of
an increased level of estrogen circulating in
your body, which weakens the walls of the
capillaries and causes them to break under
the slightest pressure. When this happens,
blood escapes and a bruise occurs. Estrogen
is broken down in the liver, and so is fat.
When you are dieting, your liver breaks down
the fat, leaving a lot more estrogen in the
bloodstream.
It may be helpful to supplement your diet
with a little extra vitamin C each day to help
toughen the walls of the capillaries.
®
Bowflex' TreadClimbe¢ _ Owner's Manual 58
![](asset-3e.png)
Body Leanness Program
q.
A.
q.
A.
O.
A.
I'm a 40-year-old woman with a teenage son
and daughter. My husband and I both want to
lose 10 pounds and the children would also
like to lose some weight. Can I put the whole
family on the program?
It would be great if you could, but you cannot.
The number of calories per day is the problem.
Teenagers require significantly more calories
each day than 1500, which is the highest level.
Check with a registered dietician (RD) for
appropriate recommendations.
What happens after six weeks? How do
I continue the program if I need to lose
more weight?
You should repeat the program for as long
as it takes you to reach your goal. There are,
however, a few guidelines and modifications
to apply.
Repeat the eating plan exactly as before: Men,
go back to 1500 calories a day for two weeks.
Women, go back to 1200 calories a day for
two weeks. Then, descend your calories in the
same manner.
Keep your super-hydration schedule at the
highest level. In other words, sip 1 5/8 gallons
of ice-cold water each day.
I'm pleased that t lost the fat 1wanted to
lose. What do I do to maintain my new body
weight?
Once you've lost your excessive fat, your next
task is to maintain that status. The following
section shows the adjustments you need to
make to your current practices.
Maintaining Your Lean Body
Adhere to a carbohydrate-rich, moderate-calorie
eating plan.
Instead of eating from 1000 to 1500 calories a day,
you'll be consuming from 1600 to 2400 calories
per day. Maybe you can eat even more after your
new body weight has stabilized. Trial-and-error
experimentation is a must. Women should start
with 1600 calories, and men with 2000 calories per
day. Note what happens after a week. If your body
weight keeps going down, raise the calories by
100 or 200; depending on how much weight you
lost during the last week.
Soon, you should reach a level where your body
weight stabilizes. That level is your daily calorie
requirement. Naturally, you'll be able to consume
other foods than those listed in the Body Leanness
Program eating plan. By then, however, you
should know the value of being a smart shopper
and a wise eater. Read labels. Compare nutritional
information. Be conscious of the ideal 60:20:20
ratio for carbohydrates, proteins, and fats.
Eat smaller meals more frequently.
You've been limiting your five meals per day to
300 calories if you're a woman, or 500 calories
if you're a man. You may now up the calories by
100. What happens if during a single meal you
eat more than 400 calories if you're a woman, or
600 calories if you're a man? Don't panic. Simply
understand that you will sometimes backslide.
Learn to anticipate these urges and take corrective
action.
Drink at least 1 gallon of cold water each day.
You should realize by now the benefits of
consuming plenty of water each day. Make your
water bottle a permanent part of your lifestyle.
59 Bowflex ®TreadClimber _ Owner's Manual
![](asset-3f.png)

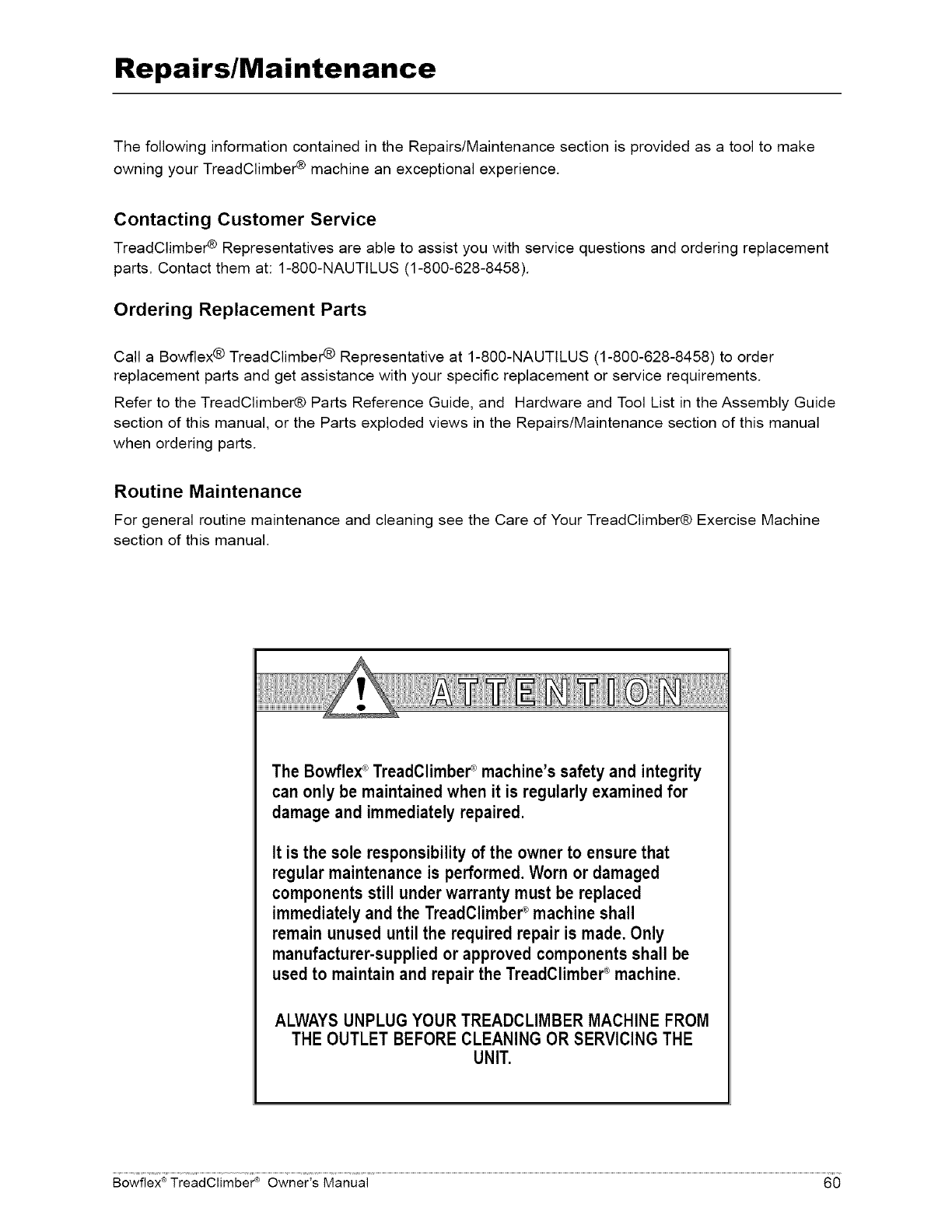

Repairs/Maintenance
The following information contained in the Repairs/Maintenance section is provided as a tool to make
owning your TreadClimber ® machine an exceptional experience.
Contacting Customer Service
TreadClimber ® Representatives are able to assist you with service questions and ordering replacement
parts. Contact them at: 1-800-NAUTILUS (1-800-628-8458).
Ordering Replacement Parts
Call a Bowflex® TreadClimber@ Representative at 1-800-NAUTILUS (1-800-628-8458) to order
replacement parts and get assistance with your specific replacement or service requirements.
Refer to the TreadClimber® Parts Reference Guide, and Hardware and Tool List in the Assembly Guide
section of this manual, or the Parts exploded views in the Repairs/Maintenance section of this manual
when ordering parts.
Routine Maintenance
For general routine maintenance and cleaning see the Care of Your TreadClimber® Exercise Machine
section of this manual.
The Bowflex_TreadClimbe¢*machine's safety and integrity
can only be maintained when it is regularly examined for
damage and immediately repaired.
It is the sole responsibility of the owner to ensure that
regular maintenance is performed. Worn or damaged
components still under warranty must be replaced
immediatelyand the TreadClimbef_machine shall
remain unused until the required repair is made. Only
manufacturer-suppliedor approved componentsshall be
used to maintain and repair the TreadClimber_machine.
ALWAYS UNPLUG YOUR TREADCLIMBER MACHINE FROM
THE OUTLET BEFORECLEANING OR SERVICING THE
UNIT.
®
Bowflex' TreadClimbe¢ _ Owner's Manual 60
![](asset-40.png)

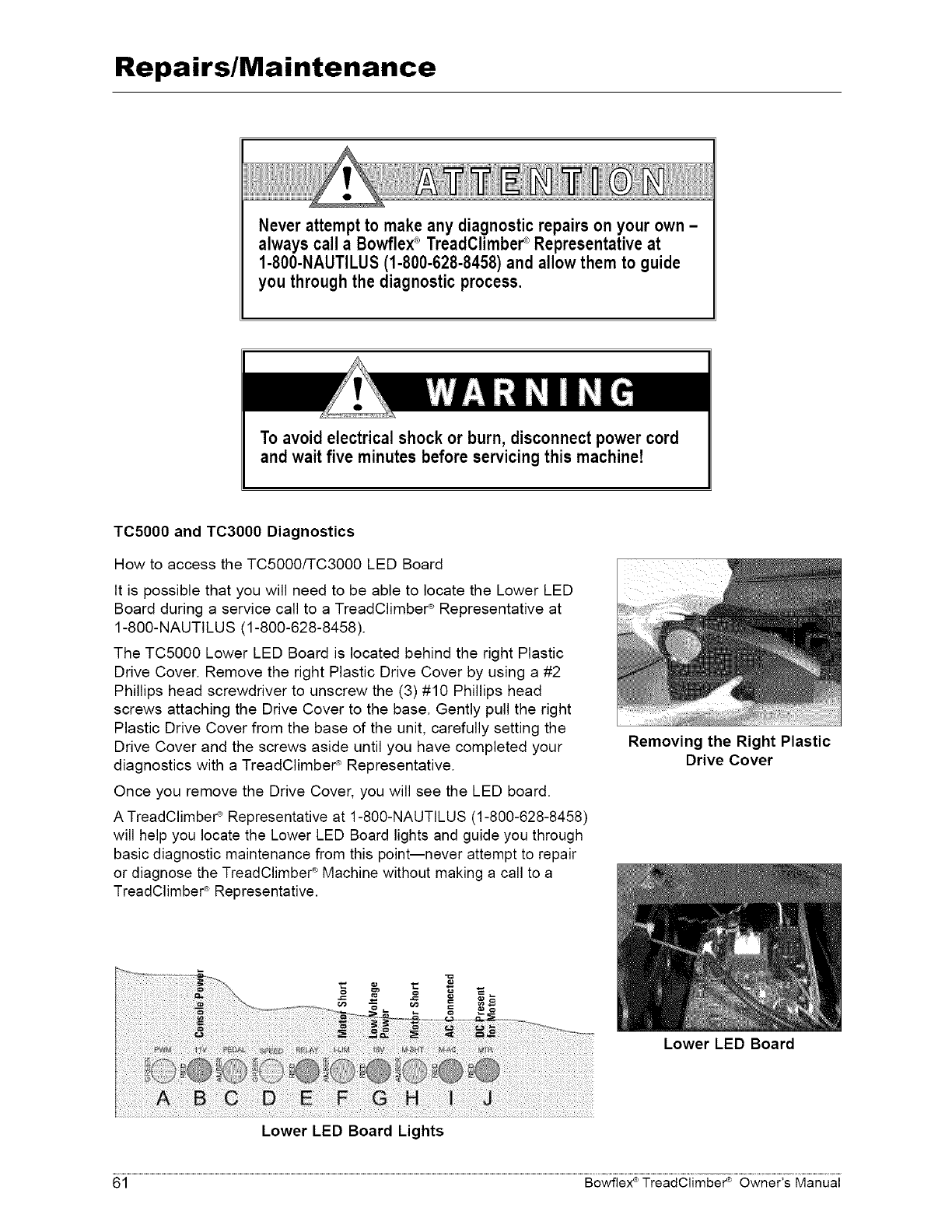

Repairs/Maintenance
Never attempt to make any diagnostic repairs on your own -
always call a Bowflex_TreadClimbeff_Representativeat
1-800-NAUTILUS(1-800-628-8458)and allow them to guide
you through the diagnostic process.
To avoid electrical shock or burn, disconnect power cord
and wait five minutes before servicing this machine!
TC5000 and TC3000 Diagnostics
How to access the TC5000/TC3000 LED Board
It is possible that you will need to be able to locate the Lower LED
Board during a service call to a TreadClimber _ Representative at
1-800-NAUTILUS (1-800-628-8458).
The TC5000 Lower LED Board is located behind the right Plastic
Drive Cover. Remove the right Plastic Drive Cover by using a #2
Phillips head screwdriver to unscrew the (3) #10 Phillips head
screws attaching the Drive Cover to the base. Gently pull the right
Plastic Drive Cover from the base of the unit, carefully setting the
Drive Cover and the screws aside until you have completed your
diagnostics with a TreadClimber _ Representative.
Once you remove the Drive Cover, you will see the LED board.
A TreadClimbe¢ _Representative at 1-800-NAUTILUS (1-800-628-8458)
will help you locate the Lower LED Board lights and guide you through
basic diagnostic maintenance from this point--never attempt to repair
or diagnose the TreadClimbeff _Machine without making a call to a
TreadClimber _Representative.
Lower LED Board Lights
Removing the Right Plastic
Drive Cover
Lower LED Board
61 Bowflex ®TreadClimber _ Owner's Manual
![](asset-41.png)

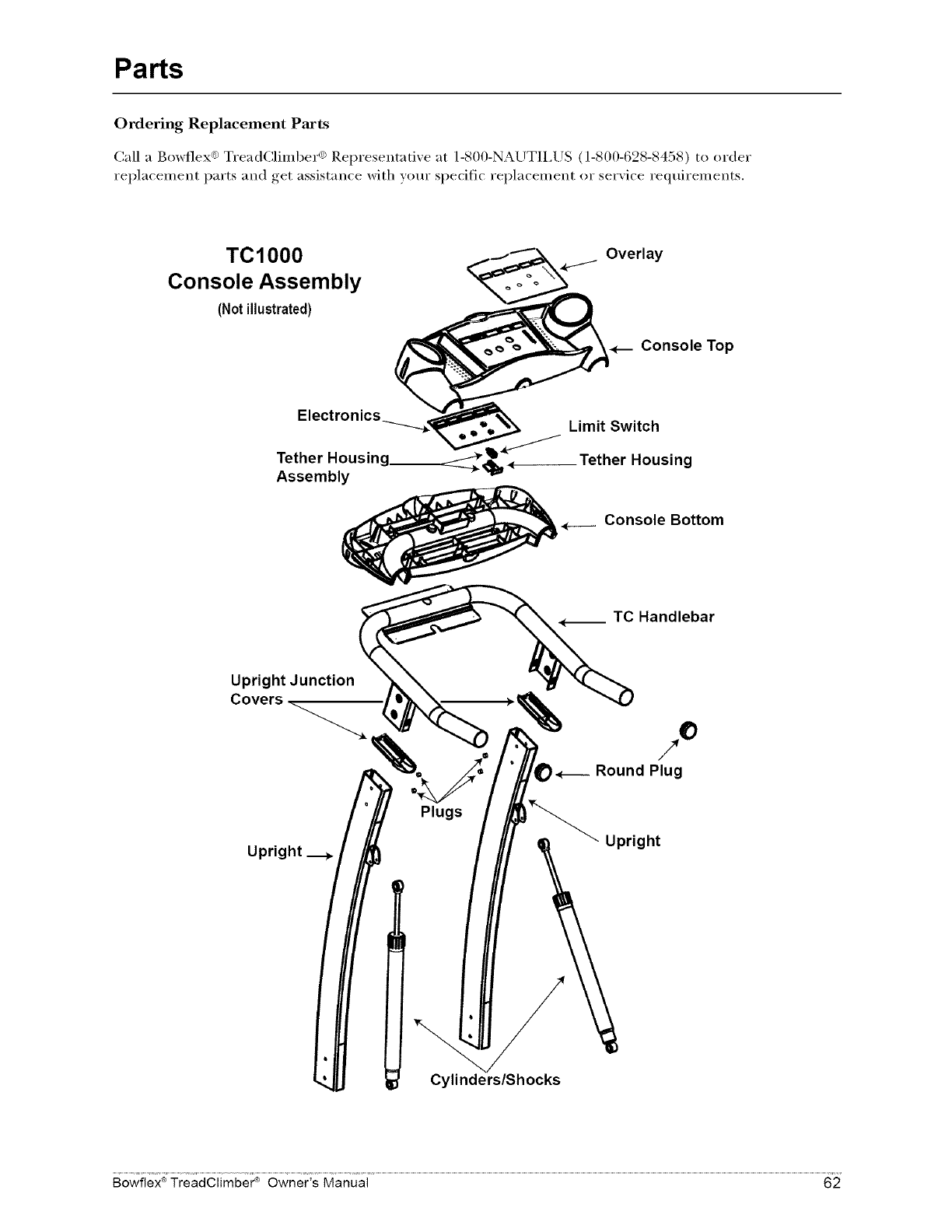

Parts
Ordering Replacement Parts
Call aBowflex ° TreadCling_er ¢_Representatixe at 1-800-NAUTII,US (1-800-628-8458) to order
replacement parts and get assistance with your specific replacement or serxice reqtfirements.
TC1000
Console Assembly
(Notillustrated)
Overlay
,-- Console Top
Electronics Limit Switch
Upright Junction
Covers
Tether Housing__,____Tether Housing
Assembly
_.___ Console Bottom
,_ TC Handlebar
p___ Round Plug
Plugs
Upright
Cylinders/Shocks
®
Bowflex' TreadClimbe¢ _ Owner's Manual 62
![](asset-42.png)

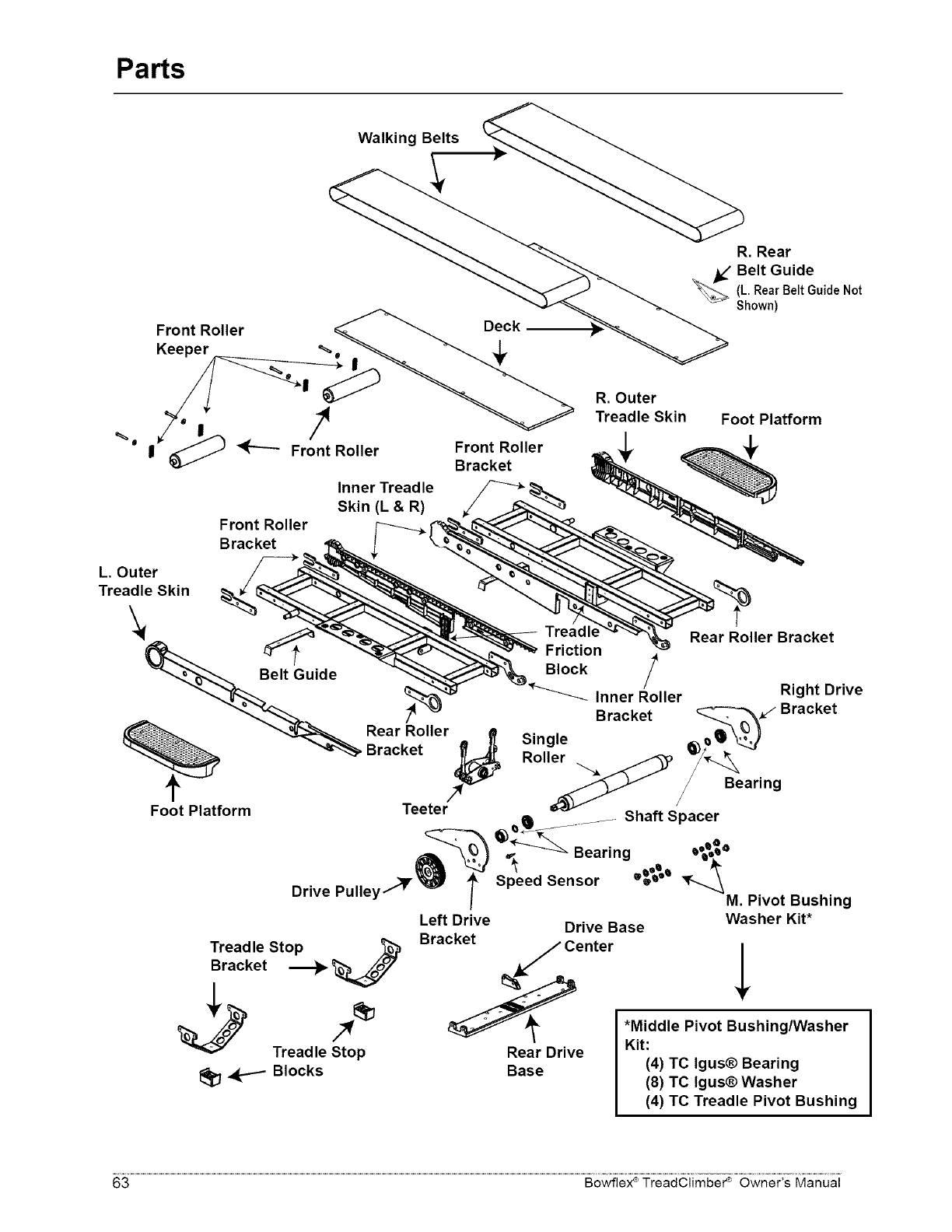

Parts
Front Roller
Keeper
Walking Belts
R. Rear
Belt Guide(L.RearBeltGuideNot
Shown)
_o I
Front Roller
Front Roller
Bracket
Inner Tread le
Skin (L & R)
Front Roller
Bracket
R. Outer
Treadle Skin Foot Platform
%
L. Outer
Treadle Skin
%,
Foot Platform
Rear Roller
Bracket _
I-
Teeter
Single
Roller
Rear Roller Bracket
Treadl_
Friction
Block /Right Drive
Inner Roller
Bracket _-._./Bracket
_; Bearing
m .............Shaft Spacer
__Bearing .°_o_a
Speed Sensor _Qe
Drive Pulley _'_'_M. Pivot Bushing
Tread le Stop ._
Bracket _
Treadle Stoi_p_
Blocks
Left Drive Drive Base
Bracket
Center
Rear Drive
Base
Washer Kit*
!
*Middle Pivot Bushing/Washer
Kit:
(4) TC Igus® Bearing
(8) TC Igus® Washer
(4) TC Treadle Pivot Bushing
63 Bowflex ®TreadClimber _ Owner's Manual
![](asset-43.png)

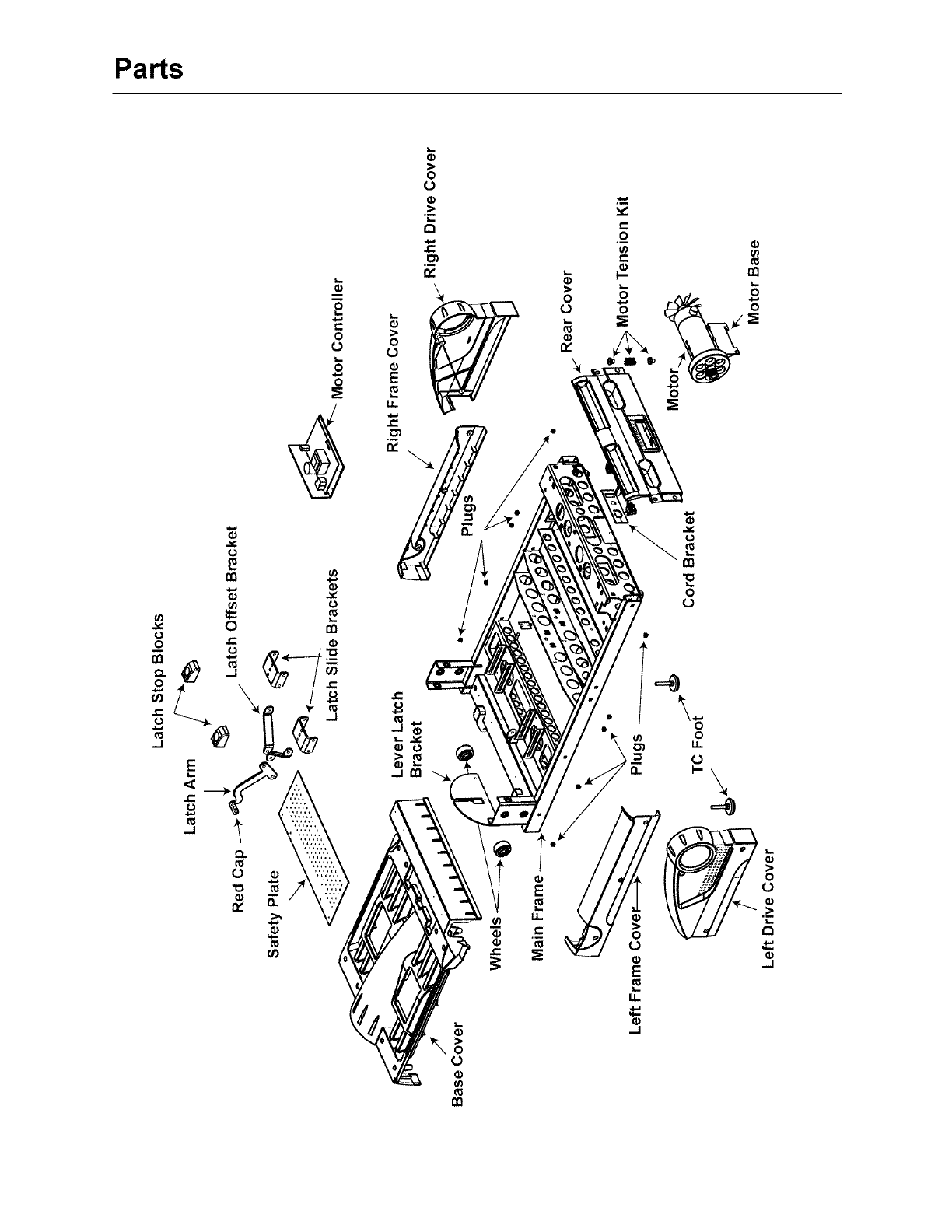

Parts
o
>
0
o
o
>
a
o
(R
rn
0
![](asset-44.png)
IMPORTANT CONTACT NUMBERS
If you need assistance, please have both the serial
number of your machine and the date of purchase
available when you contact the appropriate
Nautilus office listed below.
OFFICESIH THE UHKED STATES:
° TECHNICAL/CUSTOMER SERVICE
Nautilus, Inc.
World Headquarters
16400 SE Nautilus Drive
Vancouver, Washington, USA 98683
Phone: 800-NAUTILUS (800-628-8458)
Email: customerservice@nautilus.com
Fax: 800-523-1049
• CORPORATE HEADQUARTERS
Nautilus, Inc.
World Headquarters
16400 SE Nautilus Drive
Vancouver, Washington, USA 98683
Phone: 800-NAUTILUS (800-628-8458)
For technical assistance and a list of distributors
in your area, please call or fax one of the following
numbers.
INTEBHATIOHAL CUSTOMEB SEBVICE:
INTERNATIONAL OFFICE
Nautilus International S.A.
Rue Jean Prouve 6
1762 Givisiez /Switzerland
Tel: + 41-26-460-77-77
Fax: + 41-26-460-77-70
Email: technics@nautilus.corn
IHTEBHATIOHAL OFFICES:
° SWITZERLAND OFFICE
Nautilus Switzerland S.A.
Tel: + 41-26-460-77-66
Fax: + 41-26-460-77-60
° GERMANY and AUSTRIA OFFICE
Nautilus GmbH
Tel: +49-2204-610-27
Fax: +49-2204-628-90
° ITALYOFFICE
Nautilus Italy s.r.I.
Tel: +39-031-51-10-86
Fax: +39-031-34-24-97
° UNITED KINGDOM OFFICE
Nautilus UK Ltd.
Tel: +44-1908-267-345
Fax: +44-1908-267-346
• CHINA OFFICE
Nautilus Representative Office
Tel: +86-21-523-707-00
Fax: +86-21-523-707-09
65 Bowflex ®TreadClimber _ Owner's Manual
![](asset-45.png)
@2006. Nautilus, Inc. All Rights Reserved Nautilus, Inc, World Headquarters, 16400 S.E Nautilus Drive,
Vancouver, Washington, USA 98683 TreadClimber, Bowflex, and the Bowflex Logo are either registered trademarks
or trademarks of Nautilus, Inc. All marks not listed above are either registered trademarks or trademarks of their
respective companies.
Printed in China P/N: FF2922 Rev C (05/06)
