BQT Solutions BT863 Contactless Smart card Reader with Optional Keypad, LCD Display and Optional Biometric Sensor User Manual
BQT Solutions (Australia) Pty Ltd Contactless Smart card Reader with Optional Keypad, LCD Display and Optional Biometric Sensor
User Manual
Mounting Hole Dimensions
Use the mounting bracket as guide for drilling holes.
A1, A2: UK Back Box
B1, B2: AU/US Back Box
Specifications
Output protocols
Wiegand 26-199bit, RS485 or custom configuration (Model
dependent)
Power requirement
7-18V DC
Current
consumption
63mA (Idle)
168mA (Peak)
Read range
20-40mm (0.8”-1.6”) at 12V DC depends on the type of card
used
Relay Rating
80mA
Operating
temperature
-20’C to +65’C (-4’F to 149’F)
Relative humidity
90% max, operating non-condensing
Reader dimensions
156mm(L) x 98mm(W) x 50mm(D) (6.14”x3.86”x1.97”)
Status LED
Green & Red
Audible tone
Internal and external buzzer control
Keypad
3 x 4 Keypad and 4 Function keys, illuminated
Colour finish
Charcoal & Ivory
IP rating
IP65
Information obtained in this document is subject to change without notice.
For further technical information, visit our website at www.bqtsolutions.com or email
techsupport@bqtsolutions.com.
Alternatively contact us at one of our global locations
AUSTRALIA & PACIFIC
BQT Solutions (Australia) Pty Limited
Unit 29, 1 Talavera Road
North Ryde, NSW 2113, Australia
Phone: +61 (0)2 8817 2800
Fax: +61 (0)2 8817 2811
Email: sales@bqtsolutions.com
EUROPE AND MIDDLE EAST
BQT Solutions (UK) Limited
Regus, Castle Court, 41 London Road
Reigate, RH2 9RJ
United Kingdom
Phone: +44 (0)17 3773 5071
Fax: +44 (0)17 3773 5072
Email: salesuk@bqtsolutions.com
GREATER ASIA
BQT Solutions Singapore Office
Mediapolis
71 Ayer Rajah Crescent #03-03
Singapore 139951
Phone: +65 6220 7970
Fax: +65 6220 7656
Email: salesasia@bqtsolutions.com
Copyright © 2014 BQT Solutions Limited. BQT Solutions and the BQT solutions logo are registered trademarks of BQT Solutions (Australia) Pty Ltd.

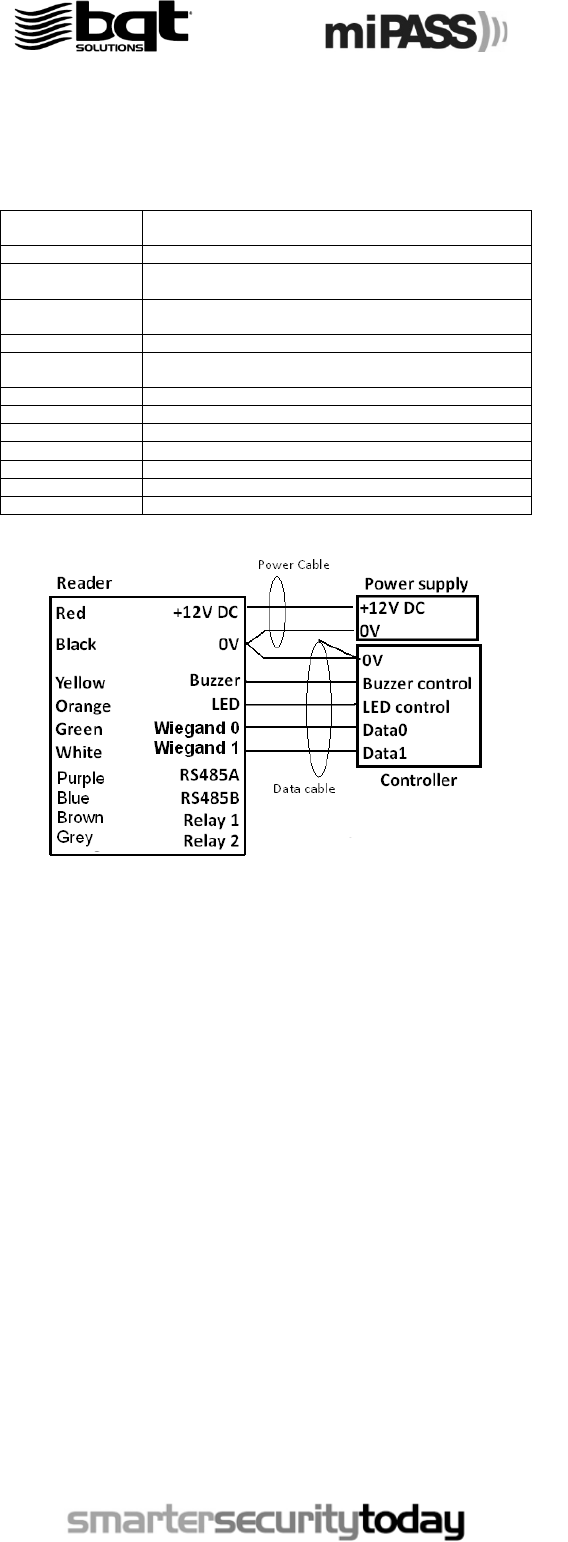

Wiring diagram
Note:
• A shielded cable is recommended to be used. The shield is connected to controller 0V reference
• Maximum wiegand data cable length: 150 meters (500 feet)
• Buzzer and LED are low activated.
• RS485 and Relay are only for optional use.
• Terminate or insulate all un-used wires
Regulatory Information
C-Tick: This device is C-Tick complied.
CE: The device has passed all relevant tests and obtained CE approval.
FCC: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device
may not cause interference and 2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressively approved by BQT Solutions could void the user’s authority to operate this
equipment.
BT853
INSTALLATION GUIDE
Version1.0
Installation
The BT853 should be located approximately 165 cm above the floor on the
wall surface. Care should be taken to position the unit so as to minimize
reflections on the display from external light sources. Fluorescent lights
directly overhead and down lights at the unit should be avoided.
To mount the BT853, the bracket should be secured to the wall or gang box
using the corresponding screw holes, before attaching the unit itself. (See
Mounting Hole Dimensions).

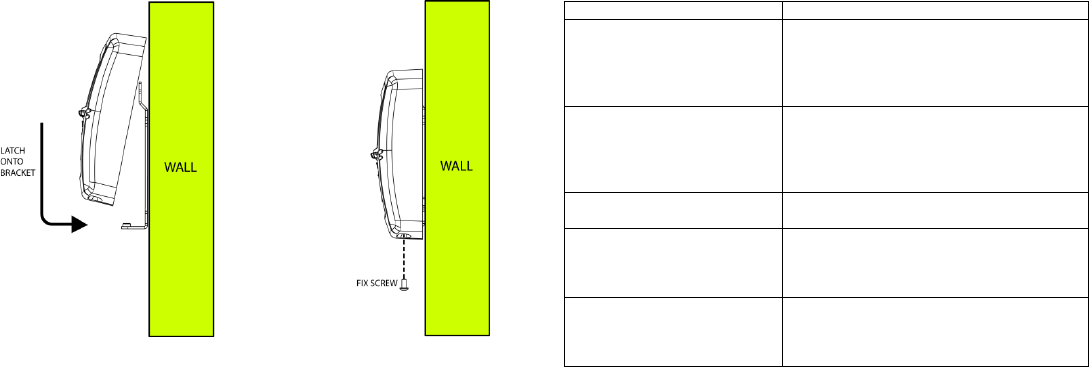

After the bracket is installed, mount BT853 unit onto bracket (follow the
diagram below) and secure the unit with two M4 screws at the bottom of
unit.
Note: Make sure that you don't drill through the cable.
Wire connection
Note:
Power to the unit is provided from the listed control unit or from a
separately UL listed 12V DC power-limited, access control power source.
DO NOT supply power during installation.
Wiring methods shall be in accordance with the Electrical wiring regulation
in your country / region.
Check your circuit diagram for the colour coding of the circuit wiring. The
device can be damaged beyond repair if the wiring is connected incorrectly.
This will void the warranty.
1. Connect the 0V wire to the power 0V line;
Note: The 0V line of all power supplies must be connected to a common 0V reference
point.
2. Connect the Wiegand data wires;
3. Connect the Buzzer and LED wires;
4. Connect 12V DC wire;
5. Place unit on the wall (Make sure the wires are not crushed. This will
void the warranty if damage occurs)
6. Insert and hand tighten the screws;
7. Check that the unit is level before tightening the screws;
Note: Excessive tightening of screws may deform the casing, resulting in a damaged
unit. This will void the warranty.
8. Turn on the 12V DC power to power up the device.
9. Allow 5 – 10 seconds for the device to finish initialization (depends on
the application). Make sure the unit is functioning correctly according
to the application specification.
External Use
• Make sure the wire bundle to the device has an IP rating of at least IP65
Handling
• Handle the device with care. DO NOT damage or drop unit before
installation. This will void the warranty.
• If the case is damaged, the unit may not be to the specified IP rating.
Replace the unit if the case is damaged.
Maintenance
• Once installed the device requires no maintenance.
Troubleshooting
Problem
Troubleshooting steps
Power on reader – reader does
not start up
1. Check connections
2. Check the voltage at the reader
3. Check the current capability of the power
supply
Power on reader – reader keeps
beeping
1. Check buzzer line
2. Check the voltage at the reader
3. Check the current capability of the power
supply
Power on reader – LED stays
green
1. Check LED line
Present a card to reader – a beep
is heard but reader does not
output any data
1. Check whether the card has data encoded
2. Check the wiegand connection to controller
3. Check the voltage level on wiegand data lines
Present a card to reader – no
response from reader
1. Try a known working card
2. Check if the reader requires to be configured
with a configuration card
If the problem still persists, please contact your distributor for technical support.
Warranty
Unless specified otherwise, the Company warrants to the Customer that’
BQT Solutions Branded Products’ (excluding third party products and
software) are covered by a return to base warranty on defects in materials
and workmanship affecting normal use for a period of the Warranty offered
under the Standard Terms and Conditions of Sale from BQT invoice date
(‘Standard Warranty’)
This standard warranty does not cover damage, fault, failure or malfunction
due to external causes including; accident, misuse, problems with electrical
power, servicing not authorised by the Company, usage and/or storage
and/or installation not in accordance with Product instructions, failure to
perform required preventative maintenance, normal wear and tear, act of
God, fire, flood, war, any violent or similar occurrence; any attempt by any
person other than Company personnel or any person authorised by the
Company to repair or support the Products and problems caused by use of
parts and components not supplied by the Company. The standard warranty
does not cover any items that are in one or more of the following categories:
software; external devices; accessories or parts added to the product after
the product has been shipped from BQT Solutions.
During the warranty, period beginning on the invoice date, the Company will
repair or replace faulty products (at its absolute discretion) returned to its’
factory. The Customer must prepay shipping and transportation costs and
insure the shipment or accept the risk of loss or damage during such
transportation.
The Customer shall be solely responsible for determining suitability for use
and the Company will, in no event, be liable in this respect. This standard
warranty is given in place of all warranties, conditions, terms, undertakings
and obligations implied by statute, common law, trade usage, and course of
dealing or otherwise including warranties or conditions of merchantability,
fitness for purpose, satisfactory quality and / or compliance with description,
all of which are hereby excluded to the fullest extent permitted by law.
