BQT Solutions BT910X2 Biometric Contactless Smart Card Reader User Manual Manual
BQT Solutions (Australia) Pty Ltd Biometric Contactless Smart Card Reader Manual
Manual
Specifications
Output protocols
Wiegand or RS485 (Model dependent)
BTBIOX/DFBIOX
BIOMIP2X/BIOXMIP3X
BTBIOXK/DFBIOXK
BIOMIP2XK/BIOMIP3XK
Power requirement
6 – 18V DC (Nominal operating voltage 12V DC)
Current consumption
(12V DC)
84mA (Average)
246mA (Peak)
Relay Rating
80mA
Read range
20-40mm (0.8”-1.6”) at 12V DC depends on the type of card
used
Operating
temperature
-10’C to +50’C (14’F to 122’F)
Relative humidity
90% max, operating non-condensing
Reader dimensions
190mm(L) x 119mm(W) x 58mm(D) (7.5”4.7”x2.3”)
Status LED
Green & Red Bi-colour, Blue, Orange
Audible tone
Internal and external buzzer control
Keypad (XK only)
3 x 4 Keypad and 4 Function keys, illuminated
Colour finish
Charcoal / Ivory
IP rating
IP65
Information obtained in this document is subject to change without notice.
For further technical information, visit our website at www.bqtsolutions.com or email
techsupport@bqtsolutions.com.
Alternatively contact us at one of our global locations
AUSTRALIA & PACIFIC
BQT Solutions (Australia) Pty Limited
Unit 29, 1 Talavera Road
North Ryde, NSW 2113, Australia
Phone: +61 (0)2 8817 2800
Fax: +61 (0)2 8817 2811
Email: sales@bqtsolutions.com
EUROPE AND MIDDLE EAST
BQT Solutions (UK) Limited
Regus, Castle Court, 41 London Road
Reigate, RH2 9RJ
United Kingdom
Phone: +44 (0)17 3773 5071
Fax: +44 (0)17 3773 5072
Email: salesuk@bqtsolutions.com
GREATER ASIA
BQT Solutions Singapore Office
Mediapolis
71 Ayer Rajah Crescent #03-03
Singapore 139951
Phone: +65 6220 7970
Fax: +65 6220 7656
Email: salesasia@bqtsolutions.com
Copyright © 2013 BQT Solutions Limited. BQT Solutions and the BQT solutions logo are registered trademarks of BQT Solutions (Australia) Pty Ltd.

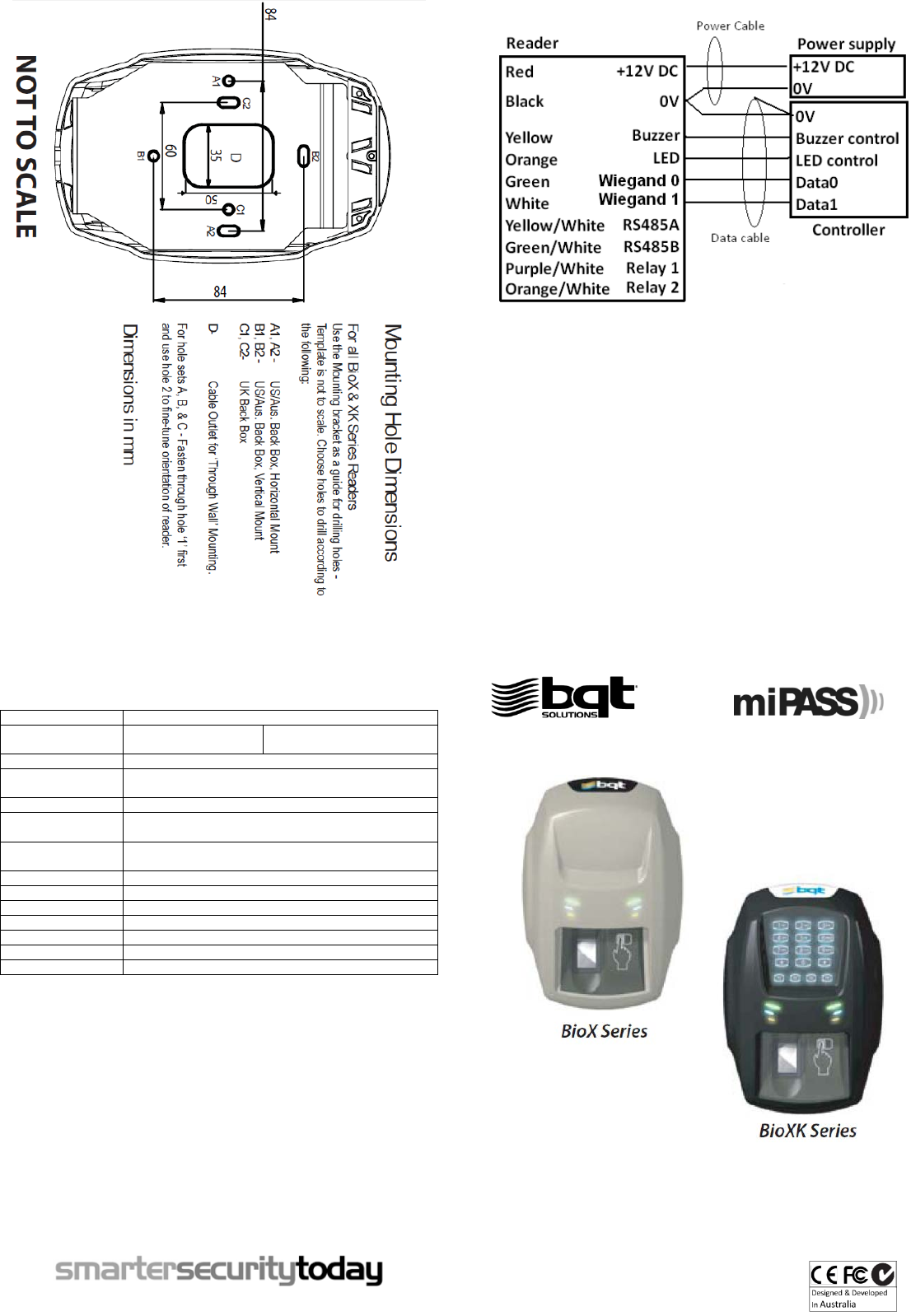

Wiring diagram
Note:
• A shielded cable is recommended to be used. The shield is connected to controller 0V reference
• Maximum wiegand data cable length: 150 meters (500 feet)
• Buzzer and LED are low activated.
• RS485 lines and Relay lines are only for optional use
• Terminate or insulate all un-used wires
Regulatory Information
C-Tick: This device is C-Tick complied.
CE: The device has passed all relevant tests and obtained CE approval.
FCC: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device
may not cause harmful interference and 2) this device must accept any interference received, including interference that may
cause undesired operation of the device.
Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressively approved by BQT Solutions could void the user’s authority to operate this
equipment.
BioX/XK
Series
INSTALLATION GUIDE
Version3.0
Installation
This reader may be mounted in either ‘Through Wall’ or ‘On Wall’
configurations as follows:
Through Wall:
All wires exit at the back of reader, and are collected in a ‘back box’ (not
included) that is mounted behind the reader - either inside the wall or on the
far side. Do not remove break-away cover at bottom of reader if mounting
through wall. Choose holes to suit your preferred back box type and
orientation (refer to Hole Dimensions).
On Wall:
Break-away cover at bottom of reader is removed, and wires exit bottom of
reader via a 20mm conduit fitting (not included). A back box is not used in
this configuration, so choose hole locations that are secure and accessible. It
is not necessary to drill hole ‘D’ if mounting ‘On Wall.’
1. Review Hole Dimension
diagram (overleaf).
2. Select and Drill
appropriate holes - the
Mounting Bracket may be
used as a template.
NOTE: Be careful not to drill
through any cables
Wire connection
Note:
Power to the unit is provided from the listed control unit or from a separately
UL listed 12V DC power-limited, access control power source. DO NOT supply
power during installation.
Wiring methods shall be in accordance with the Electrical wiring regulation in
your country / region.
Check your circuit diagram for the colour coding of the circuit wiring. The
reader can be damaged beyond repair if the wiring is connected incorrectly.
This will void the warranty.
1. Connect the 0V wire to the power 0V line;
Note: The 0V line of all power supplies must be connected to a common 0V reference
point.
2. Connect the Wiegand data or RS485 wires;
3. Connect the Buzzer and LED wires;
4. Connect 12V DC wire;
5. Placing reader
1 Insert Screw (not included)
into smaller, circular hole.
2 Insert Screw (not included)
into larger, slotted hole, but
do not fully tighten.
Ensure that edges of Wall
Bracket are vertical, then
tighten screw.
3 Hook reader onto Wall
Bracket.
4 Join Reader to Wall Bracket
with Base Screws (included).
6. Turn on the 12V DC power to power up reader.
7. Allow 10 – 15 seconds for reader to finish initialization (depends on the
application). Make sure reader is functioning correctly according to the
application specification.
External Use
• Make sure the wire bundle to the reader has an IP rating of at least IP65
Handling
• Handle the reader with care. DO NOT damage or drop unit before installation.
This will void the warranty.
• If the case is damaged, the reader may not be to the specified IP rating.
Replace the reader if the case is damaged.
Maintenance
• Once installed the reader requires no maintenance.
• Occasionally wipe the sensor gently using a non-abrasive cloth.
Troubleshooting
Problem
Troubleshooting steps
Power on reader – reader does not
start up
1. Check connections
2. Check the voltage at the reader
3. Check the current capability of the power supply
Power on reader – reader keeps
beeping
1. Check buzzer line
2. Check the voltage at the reader
3. Check the current capability of the power supply
Power on reader – LED stays green
1. Check LED line
Present a card to reader – a beep is
heard but reader does not output
any data
1. Check whether the card has data encoded
2. Check the wiegand connection to controller
3. Check the voltage level on wiegand data lines
Present a card to reader – no
response from reader
1. Try a known working card
2. Check if the reader requires to be configured
with a configuration card
If the problem still persists, please contact your distributor for technical support.
Warranty
Unless specified otherwise, the Company warrants to the Customer that’ BQT
Solutions Branded Products’ (excluding third party products and software) are
covered by a return to base warranty on defects in materials and workmanship
affecting normal use for a period of the Warranty offered under the Standard
Terms and Conditions of Sale from BQT invoice date (‘Standard Warranty’)
This standard warranty does not cover damage, fault, failure or malfunction
due to external causes including; accident, misuse, problems with electrical
power, servicing not authorised by the Company, usage and/or storage and/or
installation not in accordance with Product instructions, failure to perform
required preventative maintenance, normal wear and tear, act of God, fire,
flood, war, any violent or similar occurrence; any attempt by any person other
than Company personnel or any person authorised by the Company to repair
or support the Products and problems caused by use of parts and components
not supplied by the Company. The standard warranty does not cover any items
that are in one or more of the following categories: software; external devices;
accessories or parts added to the product after the product has been shipped
from BQT Solutions.
During the warranty, period beginning on the invoice date, the Company will
repair or replace faulty products (at its absolute discretion) returned to its’
factory. The Customer must prepay shipping and transportation costs and
insure the shipment or accept the risk of loss or damage during such
transportation.
The Customer shall be solely responsible for determining suitability for use and
the Company will, in no event, be liable in this respect. This standard warranty
is given in place of all warranties, conditions, terms, undertakings and
obligations implied by statute, common law, trade usage, and course of dealing
or otherwise including warranties or conditions of merchantability, fitness for
purpose, satisfactory quality and / or compliance with description, all of which
are hereby excluded to the fullest extent permitted by law.
