BRAGI B1002R The Dash Pro User Manual B37 252 01 03 bc indd

BRAGI GMBH The Dash Pro B37 252 01 03 bc indd

Contents

User Manual

For certification check
The Dash PRO
Quick Start Guide
Bragi GmbH, Sendlinger Str. 7/Angerblock, 80331 Munich, Germany, Earth
Copyright ©2015 Bragi GmbH. All rights reserved. BRAGI, The Dash, and the B logo are trademarks
of Bragi GmbH in the U.S. or one or more other countries. The absence of a product or service name
or logo from this list does not constitute a waiver of Bragi GmbH trademark or other intellectual
property rights concerning that name or logo. Patents pending.
v1.3, 2017-03, V3 QSG English
BT: 2.4GHz ISM Band 2.402-2.480GHz Output Power: +4dBm
Model No: B1002-01 NFMI: 10.5MHz
FCC ID: 2AF5T-B1002L FCC ID: 2AF5T-B1002R
IC: 20811-2AF5TB1002L IC: 20811-2AF5TB1002R
For certification check
Thank you.
For certification check
Charge your Dash
before first use.
Charge & Activate
For certification check
Downlod the free Brgi App to set up nd
remote-control your Dsh.
Unlock ll of its dvnced fetures now!
Bragi AppDownload now!
Use the Bragi App to set up:
Activities
Auto-Tracking
Controls
Head Gestures
Routines
Sound Settings
... and more
For certification check
BRAGI
The Charger will power
The Dash up to 5 times
while on-the-go.
With The Dash in The Charger,
connect to your computer or
a power supply via USB.
high
Battery status
of The Charger
Battery status
of The Dash
medium
low
Before using The Dash, charge it for
at lea 1 hour. This will also activate
your Dash.
Charge
Shake.
See the current battery
status by shaking your Dash.
high
full
medium
low
User manuals on bragi.com/support Only put a dry Dash into the Charger!
For certification check
Your Dash learns new skills when
updated to the newe Bragi OS.
Download from update.bragi.com
Make sure your Dash is
charged before updating.
Update
update.bragi.com
BRAGI
Video tutorials on bragi.com/support
For certification check
Tilt The Dash slightly forward.
Insert the tip firmly in your ear canal.
Adjust The Dash by rotating it backwards.
1.
2.
3.
Insert
1
23
The PerfectFit
bragi.com/support Your Dash will automatically turn on
once both The Left & Right Dash are inserted
For certification check
Video tutorials on bragi.com/support
PerfectFit
Try all FitSleeve & FitTip sizes to get the
PerfectFit. The sensors must be in contact
with your skin to get best tracking results.
FitSleeves best for Activities
FitTips Pro best for Audio
Make sure not to cover the EarTouch area & DataHub
Remove FitTips
Put on FitSleeves or FitTips
M
M
S
1
2
3
S
XS
L
L
!
For certification check
Connect. Control.
And now …
For certification check
Insert The Dash into your ear and search for
The Dash in the Bluetooth® menu of your device.
If your Dash does not show up in the list,
do a Long Hold (5sec) on the Right Dash.
You can find video tutorials on
bragi.com/support
!
Video tutorials on bragi.com/support
Fir connect Audio
Long Hold (5sec) on
the Right Dash to make
Bluetooth® visible
For certification check

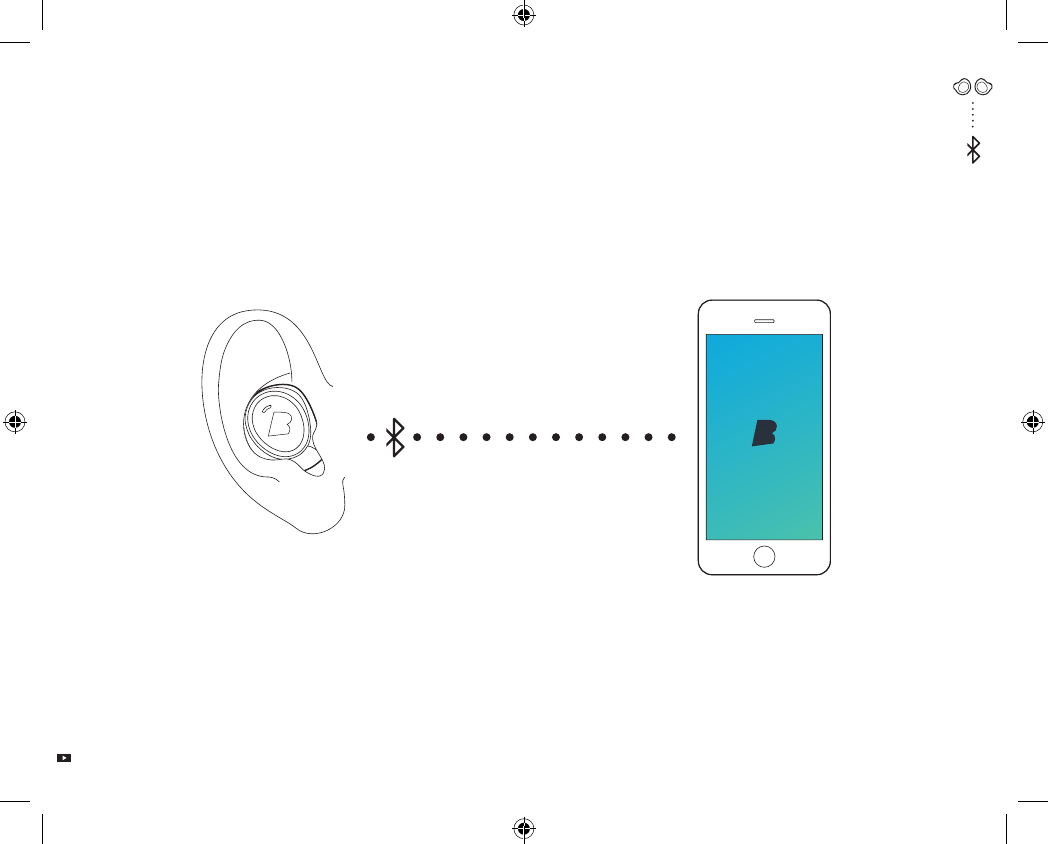

To connect The Dash sensors to your device, open
the Bragi App and select your Dash in the device list.
Make sure to connect The Dash audio system first
before connecting the sensors.
User manuals on bragi.com/support
Then connect Sensors
BLE
BLE
!
For certification check
Control your Dash with tap, hold and swipe
gestures using the EarTouch Interface.
EarTouch
The EarTouch Interface
is located on the lower
half of each Dash.
Hold on both Dash simultaneously
to turn TouchLock on
Tap.
Hold.
Swipe.
For certification check
Activate more features
in the Bragi App
Select
Next / Previous menu item
Close menu
Menu navigation
Connect Bluetooth®
Right Menu
Left Menu
Next song
Previous song
Play/Pause
Volume Up/Down
Basic Controls
Audio Transparency
Tap Tap
2xTap
3xTap
Swipe
Swipe
Swipe
Long Hold 5sec
Hold 1sec
Hold 1sec
Hold 1sec
Right Dash
Left Dash
Hold 1sec to
open Right Menu
Hold 1sec to
open Left Menu
Listen &
Communicate
Control
Applications
For certification check
Languages
Use the Bragi Updater to change the language
of your Dash. Download from update.bragi.com
BRAGI
I speak English
Ich spreche Deutsch
Je parle Français
Hablo Español
我会说中文
...
update.bragi.com
update.bragi.comVideo tutorials on bragi.com/support
For certification check
Queions?
We are here to help.
support.bragi.com
