BRAVEN LC B105 Portable Bluetooth Speaker User Manual
BRAVEN LC Portable Bluetooth Speaker
User Manual
QUICK START GUIDE
10 5
2Full manual and troubleshooting: braven.com/manuals
+ VOLUME UP / SKIP
TRACK (press and hold)
O PAIRING / ANSWER-
END CALL / PAUSE-
RESUME MUSIC
SILICONE FLAP
PULLS BACK
- VOLUME DOWN / SKIP
BACK (press and hold)
BRAVEN CHARGING
PORT
BATTERY / PAIRING
INDICATOR LIGHT
-Full battery = light off
-Red LED ashes 1x every
second at ≤10%
-LED remains solid red when
charging, then turns off
RESET BUTTON
STRAP
3.5 MM AUDIO-IN JACK
¼-20 THREADED
MOUNTING INSERT
GET TO KNOW YOUR BRAVEN
3
TURN ON & BLUETOOTH® AUTO-PAIRING
1. Long press on “O” button powers on 105
and automatically begins pairing mode.
LED behind grill will blink rapidly.
2. Activate Bluetooth® on the phone or
device you are pairing with (see your
device’s instruction manual for information
on activating its Bluetooth® settings).
3. Go to your phone or device’s Bluetooth®
settings and select “BRAVEN 105” from
the list.
4. If asked for a passcode, enter “0000”
5. You will hear a single beep when
BRAVEN 105 is paired with your device.
NOTE: Braven 105 only remembers 1
device.
NOTE: If your BRAVEN does not have
an active Bluetooth® connection and
is left on, it will shut itself off after 30
minutes. To restart your BRAVEN you
will need to press and hold the power
button for 2-3 seconds.
4Full manual and troubleshooting: braven.com/manuals
NEW DEVICE PAIRING
SPEAKERPHONE
1. If you’d like to pair BRAVEN 105 to a new
device, long press “O” to turn off speaker.
Once speaker is off, long press “O” until
you hear the speaker power on and hear
the pairing sound.
2. Activate Bluetooth® on the phone or
device you are pairing with (see your
device’s instruction manual for information
on activating its Bluetooth® settings).
NOTE: Speaker can ONLY go into paring mode
or be put into pairing mode when the speaker is
rst turned on.
• Press the “O” button to answer a call
over the speaker. Press the “O” button
again to end the call.
3. Go to your phone or device’s Bluetooth®
settings and select “BRAVEN 105” from
the list.
4. If asked for a passcode, enter “0000”
5. You will hear a single beep when
BRAVEN 105 is paired with you device.
5
CHARGING YOUR BRAVEN WATERPROOF FEATURES
• Before using your BRAVEN for the
rst time, charge the unit until the LED
battery indicator light behind the grill
turns off.
• To charge your BRAVEN, plug
the included USB-to-Micro- USB
cable into a wall power adapter (not
included) or into a powered USB port
on a computer. Plug the Micro-USB
connector end of the cable into the
BRAVEN charging port.
• The BRAVEN 105 is IPX7 waterproof,
and is designed to withstand rainfall,
waterjets, water splashing, and dunk in
the pool.
• IMPORTANT To ensure your BRAVEN
105 speaker is prepared for use in
a wet environment, remove all cable
connections and tightly close the
silicone ap which guards the charging
port and AUX input on the back of
the speaker. If this ap is not securely
fastened to the speaker, BRAVEN 105
will not be waterproof.
6Full manual and troubleshooting: braven.com/manuals
ATTACHING AND MOUNTING YOUR BRAVEN

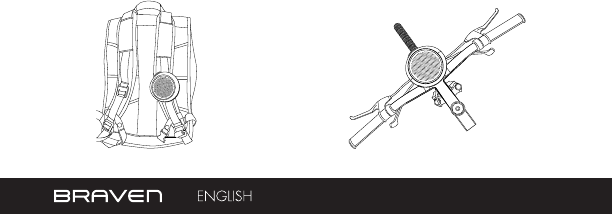

• Integrated strap allows you to attach
your BRAVEN 105 to a backpack, or bar.
• Included Action Mount allows you to
attach BRAVEN 105 to most GoPro*
mounting systems.
7

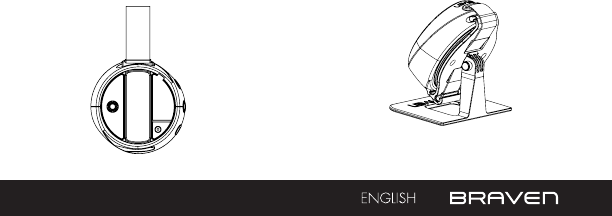

• ¼-20 threaded mounting insert is
compatible with tripods, and other
mounts with ¼-20 posts.
• Use included desk stand at the ofce,
dorm, or next to the kitchen sink.
*GoPro is a registered trademark or registered trademark of GoPro, Inc.
8Full manual and troubleshooting: braven.com/manuals

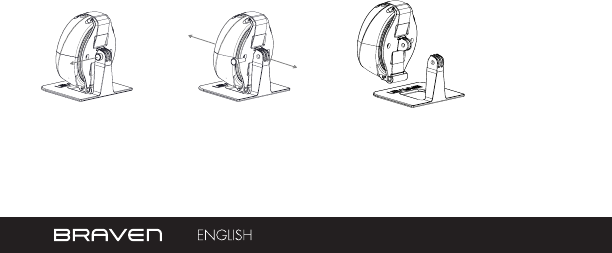

REMOVING 105 FROM STAND
1. Locate pin 2. Remove pin 3. Separate from stand
Note: Store stand
in safe place
9

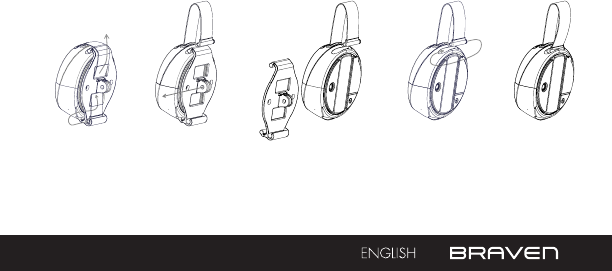

REMOVING ACTION MOUNT FROM 105
1. Slide out
strap end and
thread through
action mount
2. Slide out
action mount
3. Store action
mount safely
4. Slide in
strap end
5. Enjoy!
10 Full manual and troubleshooting: braven.com/manuals
ATTACHING 105/ACTION MOUNT TO STAND
1. Select preferred
angle
2. Line action
mount with stand
3. Insert pin to
secure to stand
4. Rock out!
11
WARNINGS, CAUTION & LEGAL INFORMATION
To reduce the risk of re or electric shock, do not expose the BRAVEN to rain or moisture while charging. The BRAVEN should
not be exposed to dripping or splashing, and objects lled with liquids, such as vases, should not be placed on or near it while
being charged or charging other devices. As with any electronic products, use care not to spill liquids into any part of the product.
Liquids can cause a failure and/or a re hazard. The power supply must be used indoors only. Make no modications to the
product or accessories. Unauthorized alterations may compromise safety, regulatory compliance, and system performance, and
will void the warranty. Do not place any ame sources, such as lighted candles, on or near the BRAVEN. The BRAVEN contains
small parts that may be a choking hazard and is not suitable for children under age 3. Do not continue charging the battery if
it does not reach full charge within the specied charging time. Overcharging may cause the battery to become hot, rupture,
or ignite. If you see any heat deformation or leakage, properly dispose of the battery. Do not attempt to charge the battery in
temperatures outside the range of 32°-104°F (0°-40°C). If the battery begins to leak, do not allow the liquid to come in contact
with your skin or eyes. If contact has been made, wash the affected area with plenty of water and seek medical attention
immediately. Do not expose the product or battery to excessive heat, including direct sunlight or re and storage or use inside
cars in hot weather, where it can be exposed to temperatures in excess of 115°F (60°C). Doing so may cause the battery and
power supply to generate heat, rupture, or ignite. Using the product in this manner also may result in a loss of performance and
a shortened life expectancy. Extended exposure to direct sunlight may damage the external appearance and material qualities.
Do not step on, throw, or drop batteries or the power supply or device, or expose them to a strong shock. Do not pierce, crush,
dent, or deform the batteries or power supply in any way. If either becomes deformed, properly dispose of it. Do not short-circuit
batteries. Do not attempt to service the BRAVEN yourself. Opening or removing covers may expose you to dangerous voltages
or other hazards and will void the manufacturer’s warranty. To prevent risk of re or electric shock, avoid overloading wall outlets,
12 Full manual and troubleshooting: braven.com/manuals
WARNINGS, CAUTION & LEGAL INFORMATION (CONT)
extension cords, or integral convenience receptacles. Your Bluetooth device (mobile phone, music player, tablet, laptop, etc.) must
support the A2DP Bluetooth prole in order to work wirelessly with your new BRAVEN speaker. The A2DP prole is supported by
most recent mobile products with built-in Bluetooth capability. Please refer to your device’s user manual for details and instruction
regarding the Bluetooth proles it supports. This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:—Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or
an experienced radio/TV technician for help.
CAUTION: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
FCC RADIATION EXPOSURE STATEMENT: This device complies with FCC radiation exposure limits set forth for an uncontrolled
13
environment.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna
of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference
to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that necessary for successful communication.
Lithium Battery installed is not intended to be replaced by the USER.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
Where the MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.
The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF
exposure, users can obtain Canadian information on RF exposure and compliance.
Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased.
This product complies with California Energy Commission efciency standards for consumer battery chargers.
TUTORIALS: www.braven.com/tutorials
PHONE: 1-877-9 BRAVEN (1-877-927-2836)
SUPPORT: www.braven.com/support
EMAIL: support@braven.com
ONLINE: www.braven.com
MANUAL: www.braven.com/manuals
