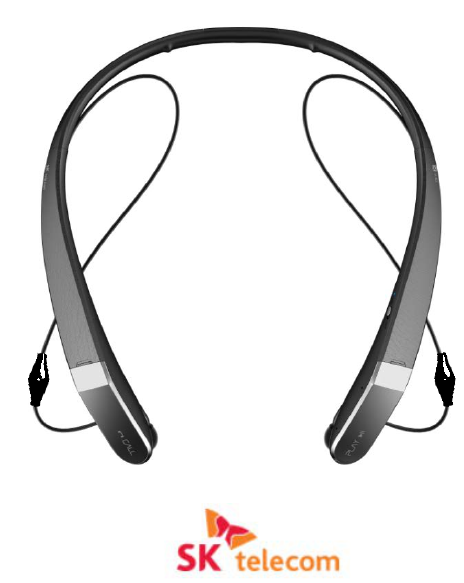

User Manual
User Manual
Ver. 1.0 KR
Safety Instructions Safety Instructions
Thank you for choosing Smart(Hearing Aid).
The following instructions are very important to keep users safe and to prevent equipment damage.
Users must read the instructions carefully and use the equipment correctly.
Wear the unit while it is turned off. Otherwise, you may
hurt your ears due to the feedback.
Do not use if you have an inflammation of your ear canal.
Otherwise, hearing loss may occur. Therefore, consult a
medical specialist if you have this condition.
Never touch any electrical socket or appliance with wet
hands. Otherwise, shock or fire may occur.
Do not drop the unit. Otherwise, product failure may occur.
Do not get the product wet. Otherwise, product failure may
occur.
Do not place the unit near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Otherwise, shock or fire may occur.
Perform routine inspections.
Use or purchase products to increase security of
electromagnetic waves from SKT.
Use or purchase accessories at SKT.
Do not remodel the product. Otherwise, serious failure may
occur.
Keep the product clean. Use in dusty environments may
cause failure.
Keep in a dry location. High humidity and liquids may
cause failure.
Main Functions
Product Description Product Description
Accessories
Smart(Hearing Aid) Ear tip
Charging Cable User Manual
Charging Connector Mode Button(Push)
Volume Button(Slide Back and Forth)
Ear tip Ear tip
On/Off
Call Play / Pause
Mic Mic
Mic
Basic Operation Basic Operation
Push mode button for 2-3 sec. The green LED blinks and the main unit enters
Connection Mode.
1. Main unit set up
2. Mobile phone set up Setting – Connections-Bluetooth –[Bluetooth] Tern on
Touch [Bluetooth] to enter the setting section
(Tern on the Smart(Hearing Aid)) Touch [Scan] to find Smart(Hearing Aid)
If pairing process is installed correctly, you will see
[SE-200] on its screen display of Paired devices section.
The screen display can be different for each mobile phones.
1
2
3
4
1st Step to making mobile phone calls ; Understanding Bluetooth
Technology 2nd step to making mobile phone calls : Combination Set Up
First, register("pair") a Bluetooth device(mobile phone, etc.)
and the unit with each other. Once pairing is established,
there is no need to pair again.
To get additional details about Pairing, please refer to [2nd
Step to make mobile phone call ; Pairing Set Up]..
After pairing, when the unit is turned on, the unit stars making
a Bluetooth connection to the recognized mobile phone
automatically.
Pairing is the recognition process between the main unit and
a mobile phone for the first time.
Connection is the approval process to exchange wireless data
between the main unit and a mobile phone.
Bluetooth wireless technology is a short-range wireless technology that enables wireless data communication
between digital devices,
such as a computers or digital cameras. Bluetooth wireless technology operates within a range of about 30 feet.
What is Bluetooth wireless technology?
1
2 4
3
4. Play music
•Push the play button to paly a music
Basic Operation
4. Telephone call
•Press CALL button for 3 sec to make a call to the last call
you made.
•Press CALL button for less than 1 sec
Make a phone call
End the phone
call
Play
Pause
•Push the play button to pause the music
Volume
Control
+
-
Push up or down to adjust volume
RW/FF
+
-
FOR 2 SEC
•Push up or down 2 sec to rewind or fast forward.
•+ : 다음곡
•- : 이전곡
Power on/off
Volume Control
The volume can be adjusted from 1(Lower) to 8(Highest) levels by
pressing the volume buttons.
It beeps twice when the volume reaches the lowest or the highest
level.
ON OFF
+
-
+ -
Battery Charging
To charge the device flip the cover and connect to charging
connector.
Hearing Aid Mode
Hearing aid Mode On/OFF : Push down in the middle of Volume
button.
+
-
+ -
Power ON : Push up the switch of the main unit. The green LED blink
and start Voice notifications of Battery statue and Bluetooth device
searching.
Power OFF : Push down the switch of the main unit. The red LED
blink and start Voice notifications of turning off.
+
-
+ -
Hearing aid Mode Volume control : Push up or down to adjust
volume
Do not use hearing aid mode while it is charging.
TIP If it was in the hearing aid mode before listen to the music.
When the music is stop it will be turning into the hearing mode
automatically.
Basic Operation
Decline an
incoming phone
call •Press CALL button for 3 sec
ON OFF
FOR 0.5 SEC
Basic Operation
Button operation
Condition Button Condition Mechanical control Application
Connected
To
Bluetooth
Turn
On/Off
Turned off Push up to On Turn on
Standby Push down to Off Turn Off
PLAY▶┃┃ Music Play/Pause
Standby Push Music play
Hearing aid Mode Push Hearing aid mode off / Music play
Listening Music Push Music stop
Mode
Standby Push Hearing aid mode On
Standby Push for 3 sec Scanning BT device
Hearing aid Mode Push Hearing aid mode Off
Hearing aid Mode Push for 3 sec Scan BT device
Listening Music Push for 3 sec Scan BT device
Volume
control
Standby Push up/down -
Standby Push up/down for 3 sec Sound notification for Battery state
Hearing aid Mode Push up/down Hearing aid gain control
Hearing aid Mode Push up/down for 3 sec Sound notification for Battery state
Listening Music Push up/down Volume control
Listening Music Push up/down for 3 sec RW/FF
☎CAL Telephone call
Standby Push for 3 sec Call the latest number
Hearing aid Mode Push for 3 sec Call the latest number
Listening Music Push for 3 sec Call the latest number
Not
Connected
To
Bluetooth
Turn
On/Off
Standby On Turn on
Standby Off Turn Off
Mode
Standby Push Hearing aid mode On
Standby Push for 3 sec Scanning BT device
Hearing aid Mode Push Hearing aid mode Off
Hearing aid Mode Push for 3 sec Scanning BT device
Volume
control
Standby Push up/down for 3 sec Sound notification for Battery state
Hearing aid Mode Push up/down Hearing aid gain control
Hearing aid Mode Push up/down for 3 sec Sound notification for Battery state
ON OFF
+ -
+ -
+ -
+ -
ON OFF
ON OFF
ON OFF

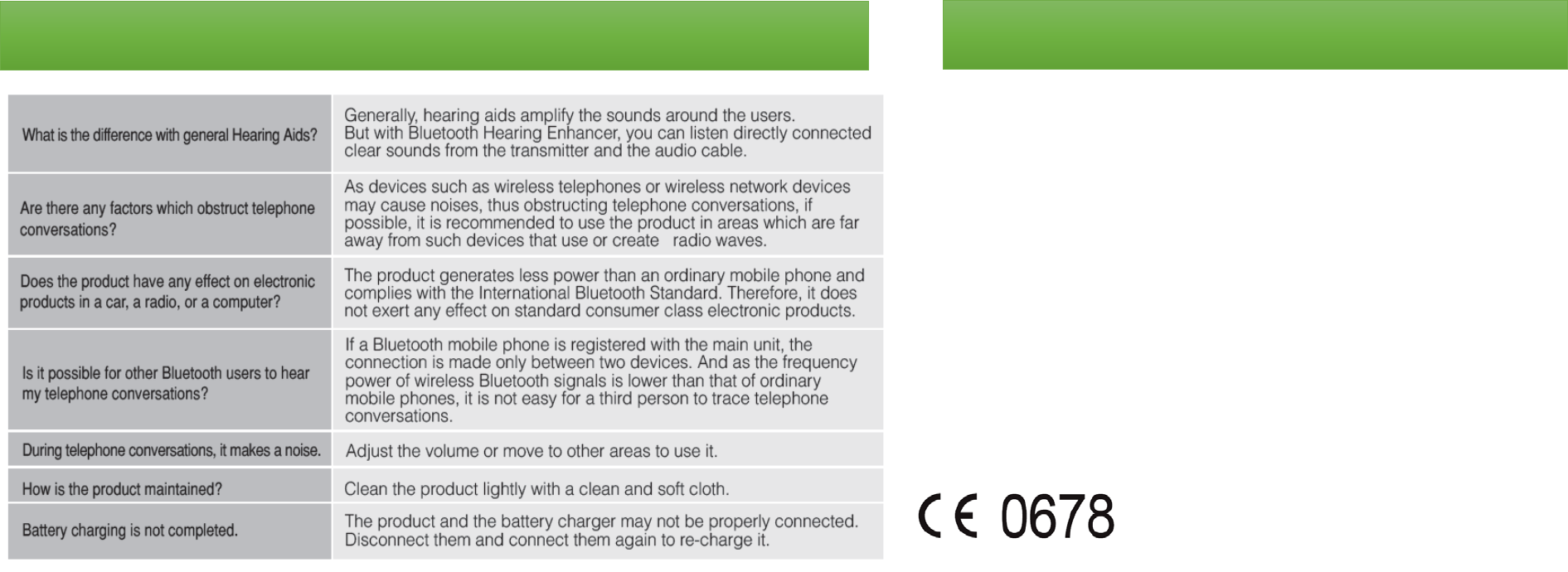

FAQ Caution
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Caution: Any changes or modifications to the equipment not expressly
approved by the
party responsible for compliance could void user’s authority to operate
the equipment.
CE
This product is CE marked according to the provision of the R&TTE
Directive (99/5/EC). Here by BioSoundLab Co., Ltd. declares that this
product is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Product Specifications Service & Warranty
Product Smart(Hearing Aid)
Model Name SE-220
Bluetooth Regulation Bluetooth 2.1+EDR
Standby Time
CallTime
Music Playing Time 11
Hearing aid Using Time
Charging Time 2
Operating temperature
Size(mm)
Frequency range 2402-2480MHz
Wireless range within 10 meters
Acoustic Feature
1) Times stated above may vary depending on ambient temperature or conditions of use.
2) This device cannot provide services which are related to the rescue operations because the radio signals can be crossed.
3) The wireless range can be changed due to the usage environment.
We warrant that it is free from material defects and manufactured with the highest quality workmanship. If you find
manufacturing defects, please contact your place of purchase or SKT.
This warranty is effective for one year from the date of purchase.
If problems arise due to manufacturer's defects within this period, this item can be replaced free of charge. In such cases,
customers must confirm the receipt to our staff as proof of the date of purchase.
If they cannot submit the receipt of the payment we will calculate one year from the manufacture date. Please retain the
receipt for a year.
In the following cases of failure or damage of the product, repair costs shall be charged during the warranty period.
Negligent handling or improper use of the product.
Any product repair, remolding, disassembly or cleaning undertaken by the user.
Natural disasters such as fire, earthquake, flood, or lightning.
Improper use such as dropping, impact, pressurizing, dust, sand, or flooding.
Careless storage (hot and humid locations or intense cold).
Caused by using consumables or components that are not genuine products.
If it is impossible to verify if the product is genuine. (If the serial number plate is damaged).
The warranty regulations on the repair, replacement, and refund of the product shall be in accordance with the customer
injury compensation rules of the notification of the Ministry of Finance and Economy.
The holding period of key components is 3 years.
The design, specifications and user's manual of this product are
subject to change without notice for performance improvement.
Service Terms & Conditions
Inquiry Service
Service center :
Before you contact us please check the model name and the
condition of your Hearing Enhancer.
Warranty Card Product Name Smart(Hearing Aid)
Model Name SE-220
Date of Purchase Year Month Day
Place of Purchase
Serial No.

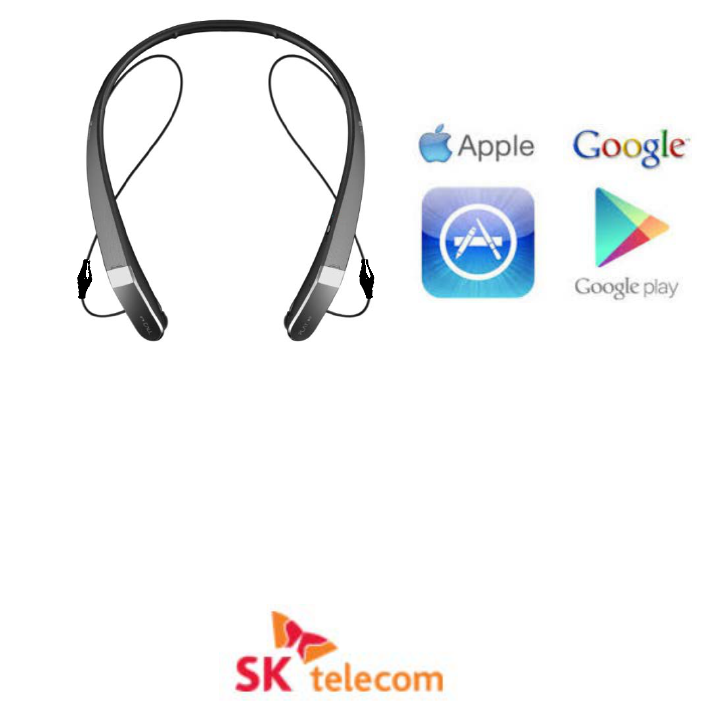

You can download Smart(Hearing Aid) Application
on App Store or Play Store of your Mobile phone.
