BT Links >
Users Manual
BTM-002 Bluetooth Headset
User Guide
Please follow the simple steps to operate the Bluetooth headset :
Battery Charging
1. Turn off the headset.
2. Connect the charger to the main power and plug the adaptor to the
charging socket of the headset.
3. During charging, the LED will turn red. When the battery is fully
charged, the LED will be off.
4. Disconnect the charger from the main power and the headset.

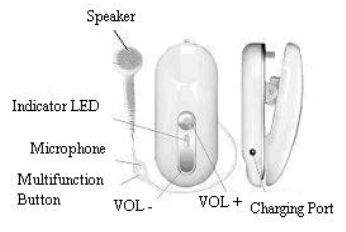

BT-200 Headset Overview
Remark : If the headset is not used for a long time or the battery is
drained, the indication of charging (red LED) will be displayed a few
seconds later
Charging Time
The headset is equipped with a built-in rechargeable battery. For the
first time of use, please charge the battery for 14 hours. Thereafter, the
battery charging time is normally within 3 hours. After the battery is
fully charged, press the multifunction button for 6~7 seconds to turn
on the headset. Please refer to the next page of “Turning on and off the
headset” for details
Talk and Standby Time
The fully charged battery can allow about 4 hours talk time and about
160 hourr standby time.
Battery Low
When the battery becomes low, the LED flashes red and the headset
emits “beep, beep” sound every 2 minutes. Please recharge the battery
as described above.
Turning on and off the headset
Turning on the headset
Press and hold the multifunction button for 6~7 seconds until 2 short
beeps are heard. The LED will flash blue.
Turning off the headset
Press and hold the multifunction button until the LED flashes from
blue to red. Then release the multifunction button immediately. The
headset will be off when the LED stop flashing.
Pairing the headset with a Bluetooth mobile phone
Before using the headset for the first time, the headset must be paired
up with a Bluetooth mobile phone.
1. Place the headset and the mobile phone within 1m apart where
they are easily viewable.
2. Ensure the headset is at standby mode.
3. Press and hold the VOL+ key until the LED flashes blue and red
alternatively.
4. Follow the manual of the mobile phone to activate your mobile
phone’s Bluetooth function.
5. Search from the mobile phone for the headset you are using.
6. Enter the password “1234” to the mobile phone. When the pairing
is complete, the headset LED will flash blue rapidly.
7. Return to the mobile phone’s main menu. A headset icon will be
shown on the screen for certain mobile phone models.
Remarks : If the pairing cannot be completed within 1 minute while
the pairing mode is activated, the headset will return to standby
mode. Please pair up the headset and the mobile phone again.
Using your headset
Answering a call
Wait for the headset to ring, then press the multifunction button to
accept the call or answer the call via your mobile phone in the normal
way.
Ending a call
Press the multifunction button to end your call or end the call via
mobile phone.
Dialling from your mobile phone
Simply make calls on your mobile phone in the normal way.
Voice Dialling from your headset
If the mobile is equipped with the voice dialling function, press the
multifunction button and when you hear a beep, say the voice tag.
Remarks : Please make sure to record voice tag into the mobile phone
first before using voice dialling function..
Last number redialling
Press the VOL- button for 3 seconds and release the button, you will
hear a beep. The last number will be redialled after you hear two beeps
again.
Remarks : The voice dialling and last number redialling functions
are only applicable to mobile phone with Bluetooth handsfree
profile. Functionality varies depending on the mobile phone model
you have. Please refer to your mobile phone user guide for
additional information.
Adjusting the volume
Press the VOL+ or VOL- repeatedly until the desired volume level is
reached.
Troubleshooting
If you are unable to connect your headset and mobile phone, please try
the following:
§ Ensure the headset is turned on and is properly charged.
§ Ensure the headset is paired with your mobile phone.
§ Ensure your mobile phone‘s Bluetooth feature is activated. Please
refer to your mobile phone user guide for specific instruction.
§ Ensure the headset is within a maximum of 10m from your
mobile phone(s) and there are no obstructions, such as walls or
other electronic devices in between.
If the above steps can not solve your problem, please recharge the
headset and remove your mobile phone battery for a while.
Safety information
§ Check local laws regarding use of a mobile phone and headset
while driving. If you use the headset while driving, ensure your
attention and focus remains on your responsibility of driving
safely.
§ Never allow children to play with the headset. Small parts may
be a choking hazard.
§ Observe all signs that require an electrical device of RF radio
product to be switched off in designated areas. These could
include hospitals, blasting areas, and potentially explosive
atmospheres.
§ Turn off your headset prior to boarding an aircraft. Do not use
your headset in an aircraft.
§ Never mount or store your headset over any bag deployment
area as serious injury may result when an air bag deploys.
§ Do not open or mutilate the built-in battery.
Care and maintenance
Headset
§ Consider turning your headset off before placing it in your pocket
or bag. If the multifunction button is accidentally depressed, your
mobile phone may place an unintended call.
§ Do not expose the headset to liquid, moisture or humidity as it is
not waterproof.
§ Do not use abrasive cleaning solvents to clean the headset.
§ Do not expose the headset to extremely high or low temperatures.
§ Do not dispose of the headset in a fire as it will result in an
explosion.
§ Do not expose your headset to contact with sharp objects as this
will cause scratches and damage.
§ Do not stick anything inside the headset as this may damage
internal components.
§ Do not attempt to disassemble the headset as it does not contain
serviceable components.
§ If you do not use the headset for long periods, be sure to store it
in a dry place free from extreme temperatures and dust.
Built-in battery
§ Do not attempt to replace the headset’s battery yourself as it is
in-built and is not changeable.
§ Charge the battery in accordance with the instruction supplied
with this user guide.
Charging
§ Must use the manufacturer supplied charger when charging the
headset.
§ Do not disassemble the charger as it may expose you to
dangerous voltages or other risks. Incorrect reassembly can cause
electric shock when the headset is subsequently used.
§ Do not use the charger outdoors or in damp areas.
§ Only charge the headset’s battery in accordance with the
instructions of this user guide.
§ Avoid charging the headset in extremely high or low
temperatures.
Product Specifications
Bluetooth Specification : Version 1.2
Bluetooth Profile Supported : Handset and Handsfree Profile
Operating Frequency : 2.4 GHz
Normal Charging Time : Within 3 hours
*Talk Time : About 4 hours
*Standby Time : About 160 hours
*May vary due to user’s operation mode and mobile phone settings
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2)This device must accept any interference received, including interference that may cause
undesired operation.
15.105 Federal Communications Commission (FCC) Requirements, Part 15
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
---Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications (including the antennas) made to this device that are not
expressly approved by the manufacturer may void the user's authority to operate the
equipment.
FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation
exposure limits set forth for an uncontrolled environment. This device and its antenna must not
be co-located or operating in conjunction with any other antenna or transmitter.
