User Manual

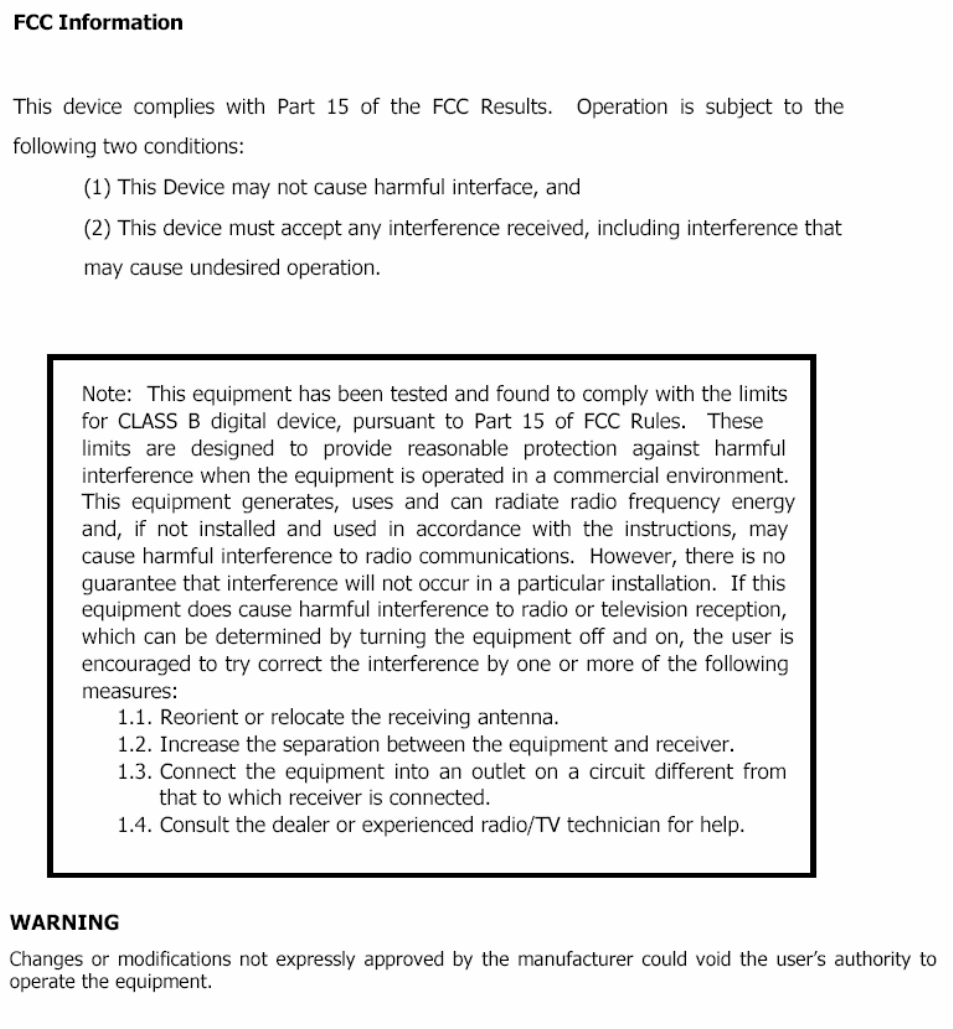

This equipment has been designed for the normal use. It is certified to comply with Electron Wave Suitable Registration. The user
this equipment in everywhere including residential areas.
180T
USER GUIDE
Notice
This equipment is one of first class quality. The LCD panel is composed of about 4 Million pixels and
may have some faulty pixels. LCD panels with a maximum of 10 faulty pixels are classified as
products of good quality. This standard is accepted by other manufacturers of LCD panels. An LCD
panel without any faulty pixels is too expensive for the average customer. Our ”A” class panels have
the least 5 faulty pixels. We guarantee that our panels will provide the user with high quality
performance. Therefore, no product exchanges or refunds will be made in regards to this matter.

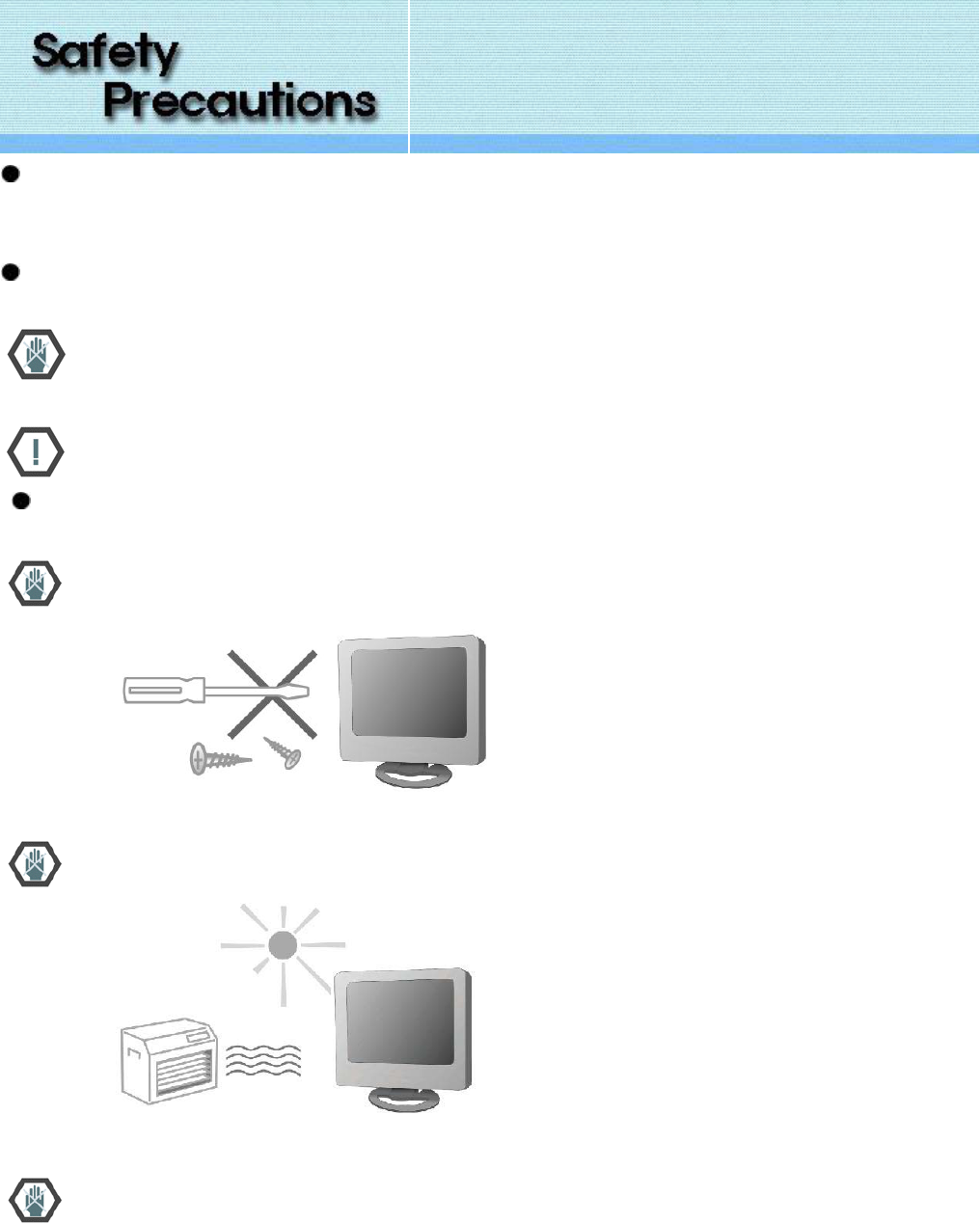

Please observe all following rules for installation, usage, and services so as to not defeat the
safeguards incorporated into this monitor.
Safety precautions are divided into Warning and Attention.
Warning : Please ensure that no water leaks or gets onto or into the LCD monitor. Accidental
exposure to water may cause fire or electrical damage. If case occurs, please turn off and unplug
the monitor. If there is smoke or abnormal noises, please contact the store or customer service
center.
Attention ; Breaking the basic rules can cause injury can cause injury to yourself or damage to the
equipment.
Save the manual near to future users after you read it.
Do not open the monitor. Contact your dealer if the monitor is not operating properly.
Do not place the monitor in direct sunlight or close to any heat source. -Product malfunction or fire
hazard may occur.
Do not drop metal objects like coins or hairpins into the monitor. -Electrical shock or fire hazard may
result.

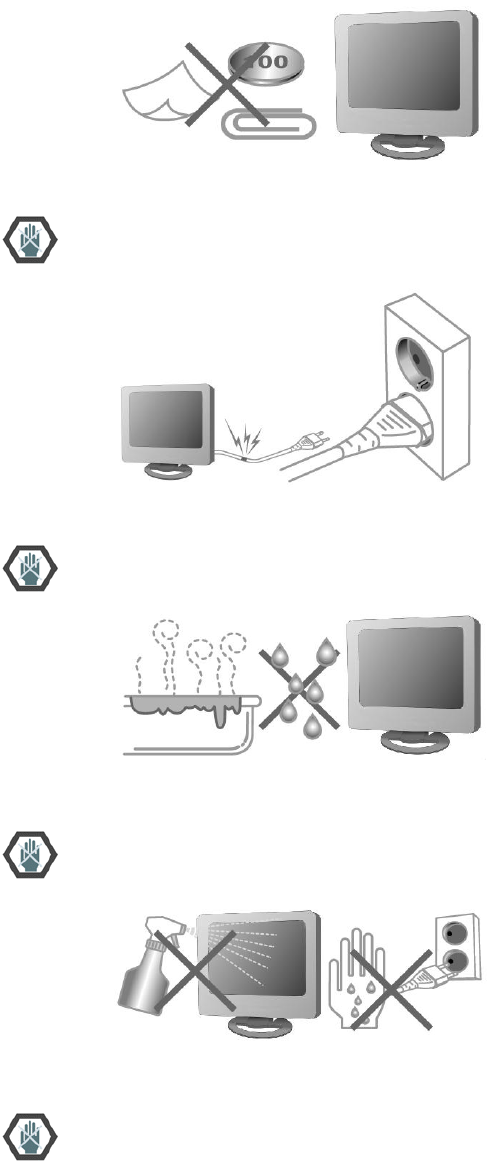

Provide a secure connection to the power supply and do not use damaged power cords or plugs. -
Electrical shock or fire hazard may result.
Do not place the monitor in exposed places or near water.
Do not clean the monitor with water or touch it with wet hands. -Electrical shock or fire hazard may
result.

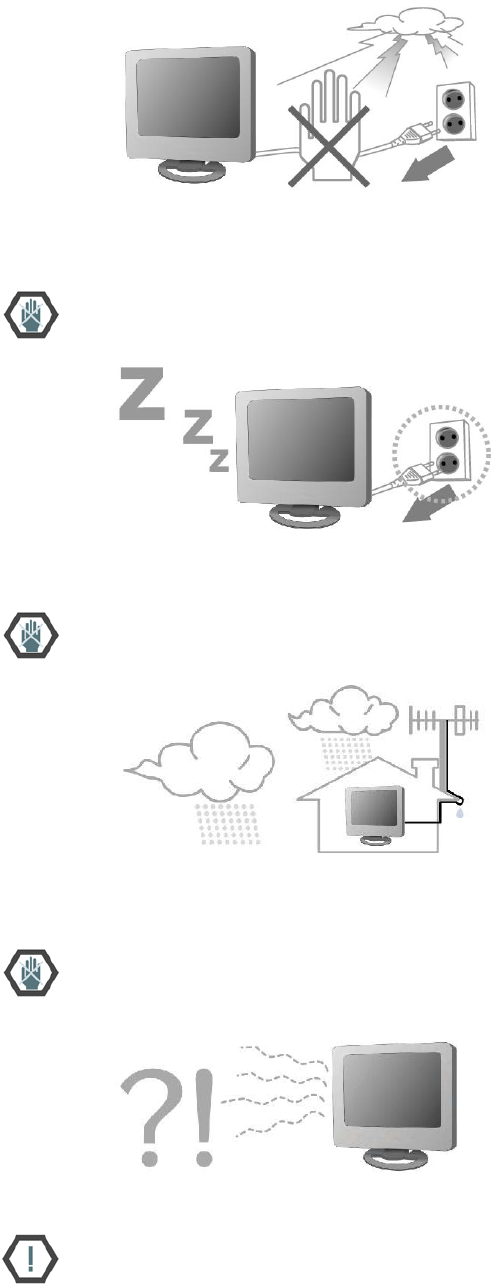

During lightening storms, unplug the monitor from the wall outlet and do not touch it. -Electrical
shock or fire hazard may result
Not using the monitor for hours, unplug the monitor from the wall outlet. - Dust may cause heat, fire,
shock or short circuit
If you use an outdoor antenna, be ensure that no water leaks through connectors and get onto the
monitor. - Any liquid spill on the TV may cause fire or electric shock
In case of any smoke or abnormal noise, immediately stop use of product and pull the power cord
from the wall outlet. Then call your local dealer or service representative for assistance. -Any
subsequent use may result in fire or electric shock.

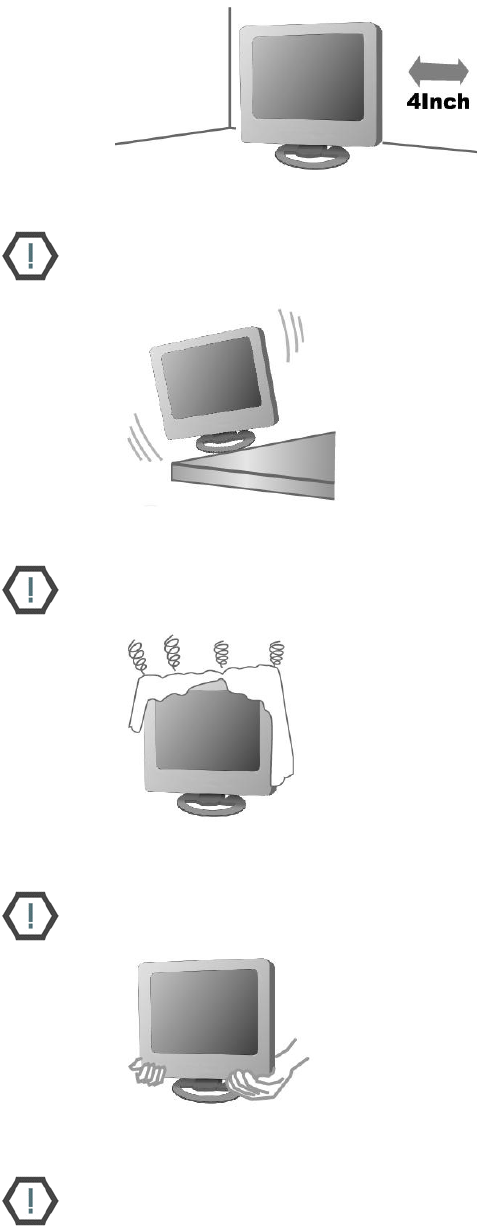

Install the monitor at the specified position from the wall to be well ventilated. - A rise in
temperature of monitor may cause fire.
Install the monitor in stable place. - An unstable monitor may crash or fall. Personal injury, damage,
or malfunction may result.
Do not block ventilation openings with any curtain or tablecloths. - The increase of inside
temperature may cause fire
DO not drop the unit or make any scratch on the panel when you move the product. -Any scratch
on the panel or drop of the product may cause functional failure.

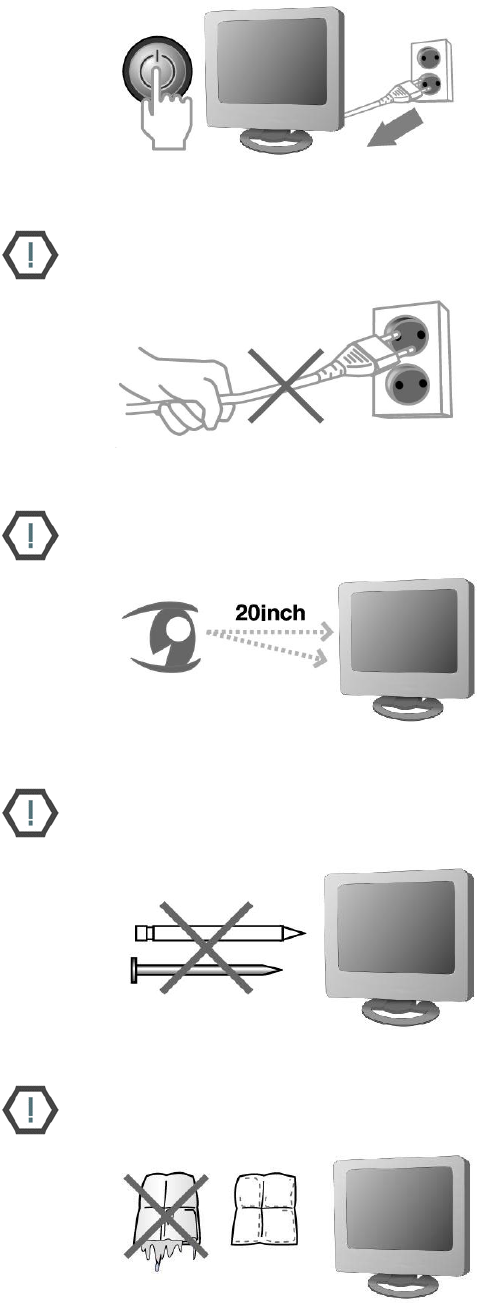

When moving the monitor, turn it off and disconnect all cables and the plug. - Product damage,
electric shock, or fire hazard may result.
When disconnecting from the wall outlet, grab the plug. - Grabbing the cord may result in heat
generation or fire hazard.
Keep your eyes 20 inch away from the screen and 0~15° down in relation to the screen. - Viewing
at too close a position and wrong posture can weaken your eyes.
Do not press hard with your finger or scratch with sharp object on the surface of the LCD. -Any
damage on the surface of the LCD may cause functional failure.
When you clean the monitor and the surface of LCD, be sure to pull the plug from wall outlet. Use
soft cloth instead of using damp duster.

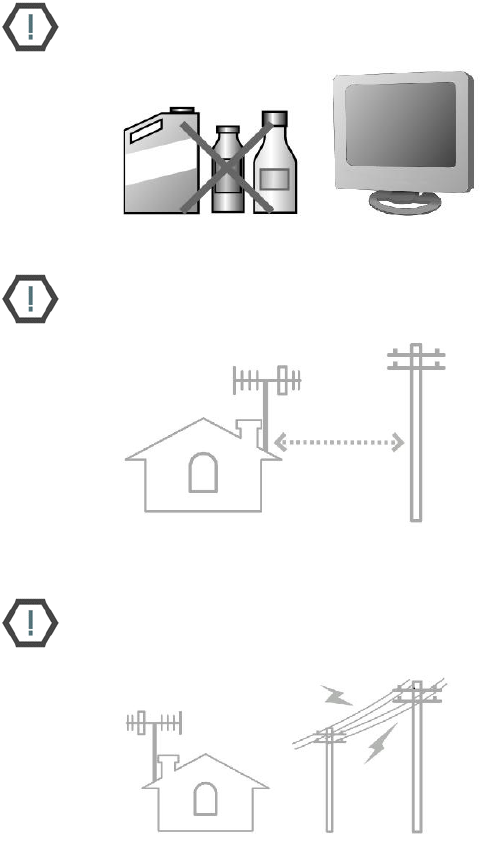

Do not use any chemicals such as industrial polisher, abrasive solution, wax, benzene, alcohol, or
clearing detergents. - Chemical cleaners may fade, dissolve, or crack the monitor surface.
If you install outdoor antenna, be sure to install it at the distance from power wire. - If the antenna
contacts with the power wire, it may cause electric shock.
Be sure to keep the distance of the outdoors antenna so that it would not touch electric wire in case
it falls by heavy wind. - If the antenna touches electric wire, it may cause injury and electric shock.

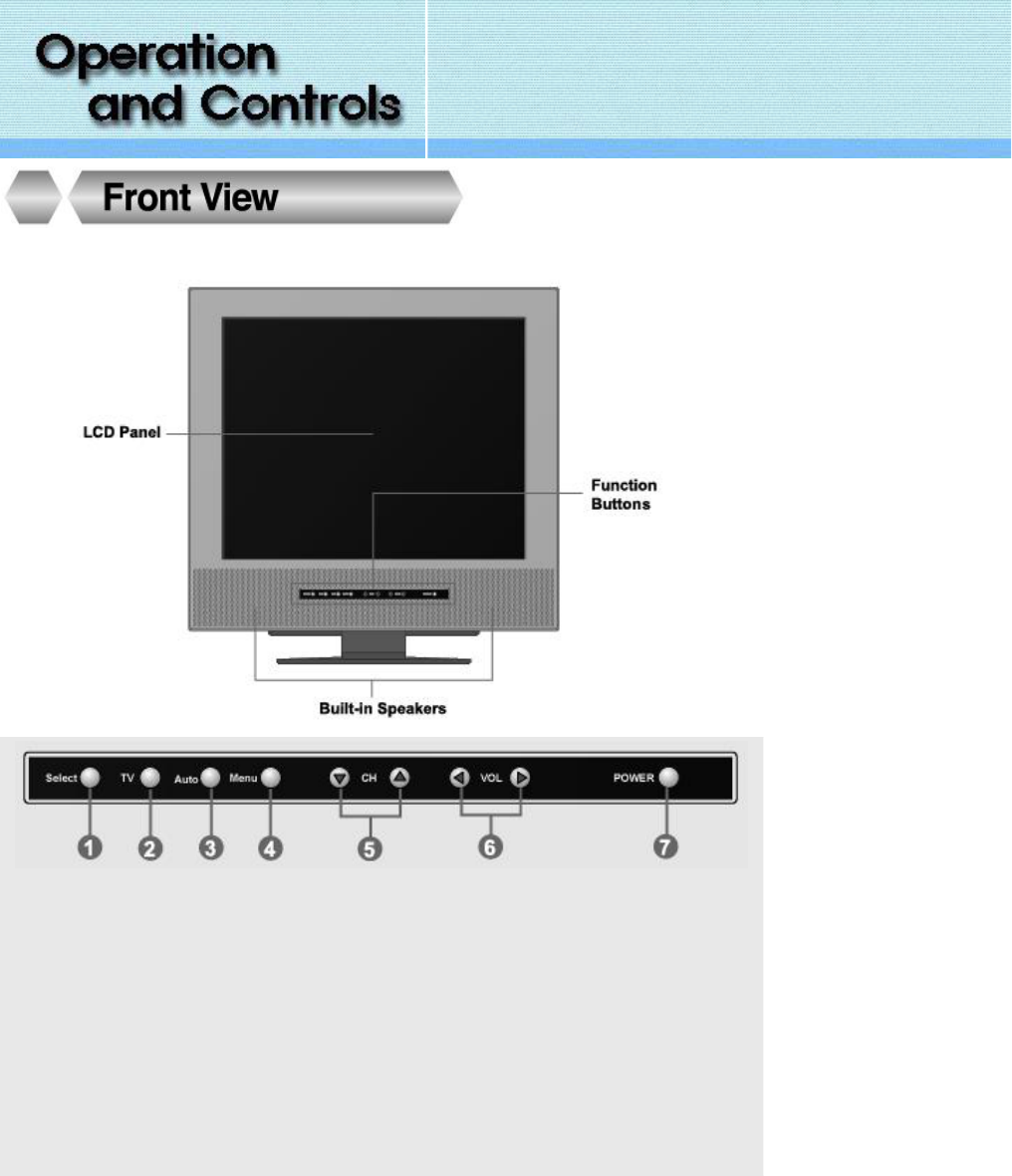

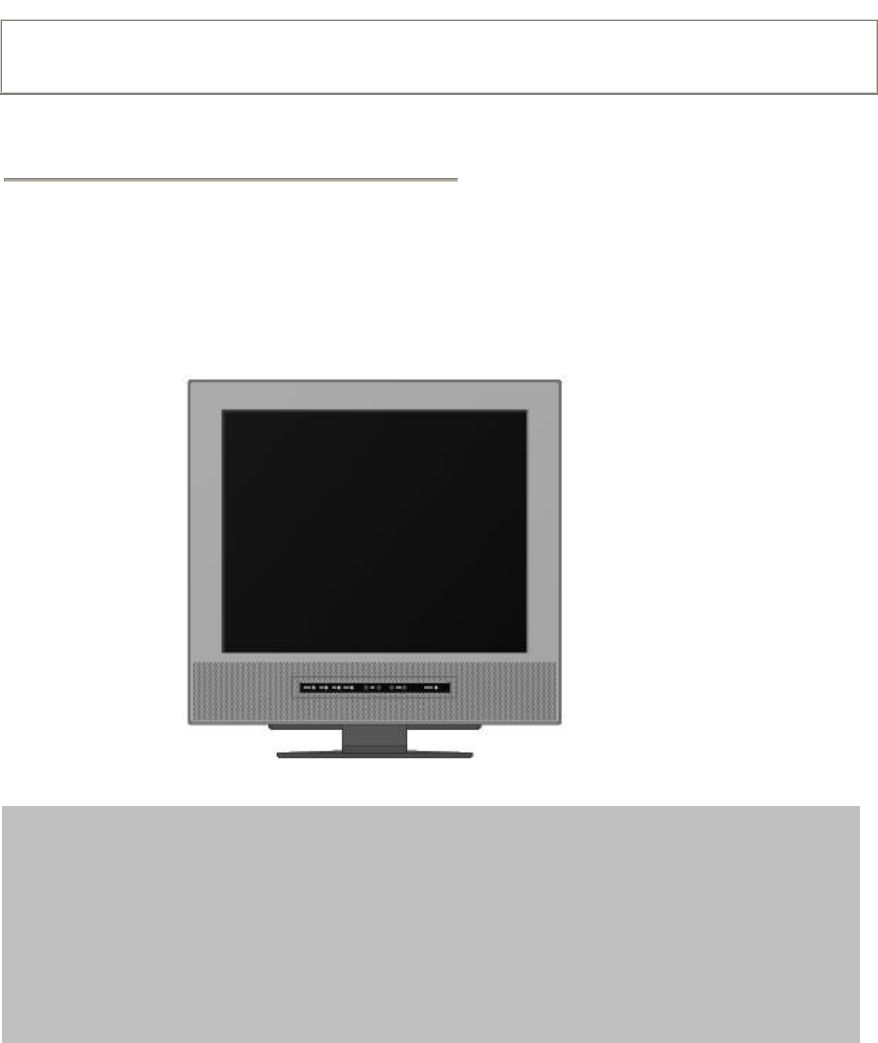

1. Select Button : Selects the input source. (PC / TV / AV1 / AV2).
2. TV Select Button.
3. Auto Button : Allows the monitor to self-adjust to the incoming video signal.
4. Menu Button : Use this button to open the OSD and activate a highlighted menu items.
5. Channel Buttons : Increases or decreases the channel number.
Moves the selector up or down on the OSD.
6. Volume Buttons : Increases or decreases the level of speaker volume.
Adjusts OSD Settings on the OSD.
7. Power Button : Turns ON/OFF the Monitor.

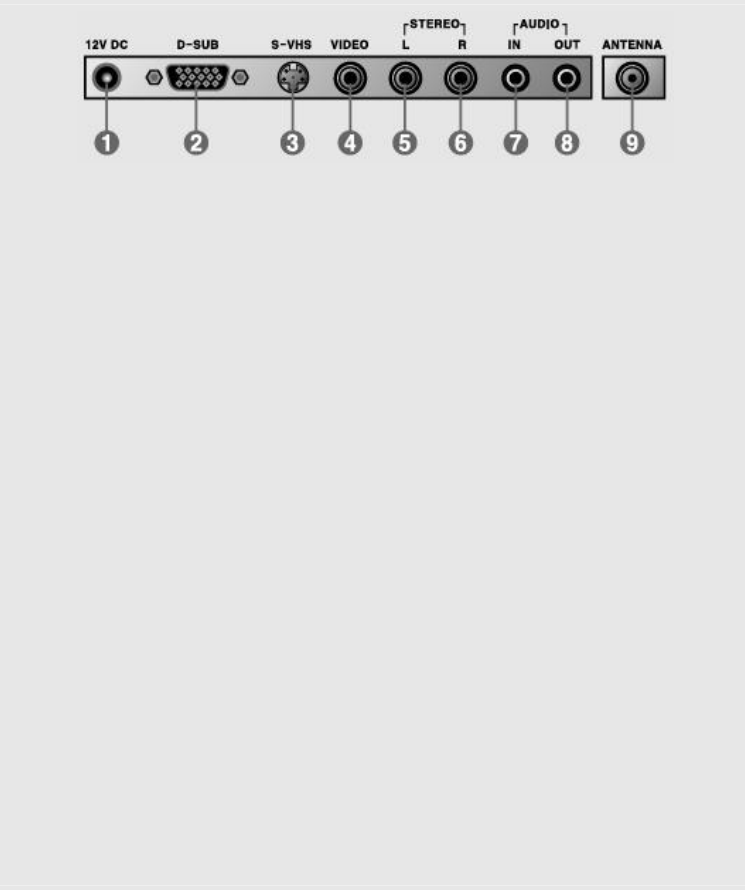

1. Power In Terminal
Connect the DC Adaptor to the power terminal on the back of the monitor.
2. D-SUB Terminal
Connect the monitor D-SUB connector and the PC using the D-SUB signal cable.
3. S-Video Input Terminal
Connect S-Video cable to this input.
4. Composite Video Input Terminal
Connect video cable to this input.
5. Audio Input (Left) Terminal
Connect left audio cable to this input.
6. Audio Input (Right) Terminal
Connect right audio to this input.
7. PC Audio Input Terminal
Connect the audio output of the PC.
8. PC Audio Output Terminal
Connect the stereo speaker system to Audio output.
9. Antenna Input Terminal
Use to connect antennas (AIR/CATV) and VCR.

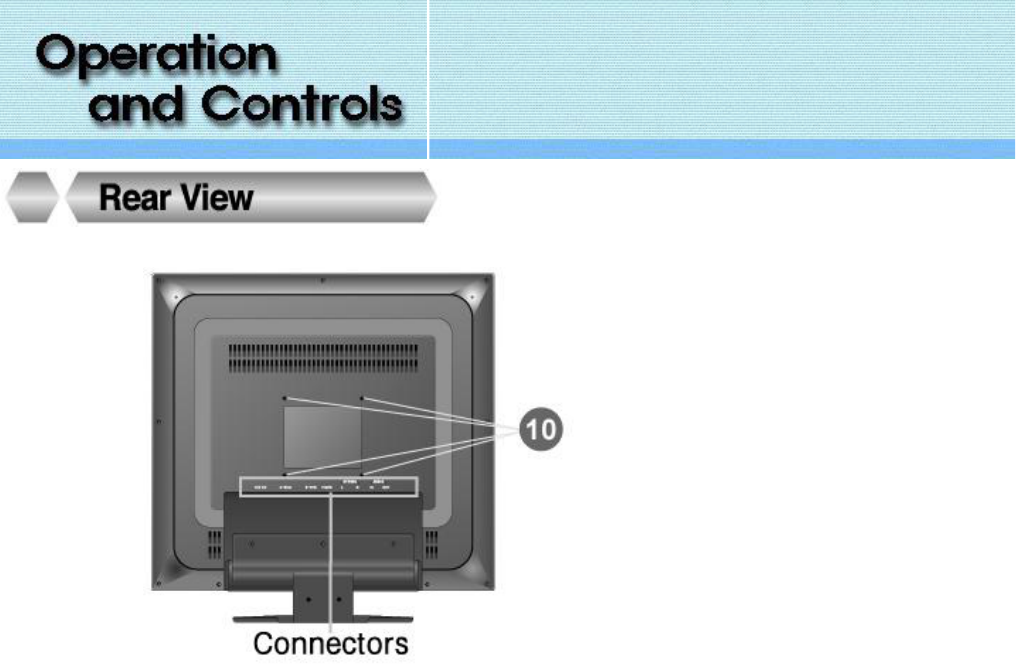

10. VESA HOLE for fixing on the wall.
Supports VESA mounting standard for use with various VESA mounting devices.

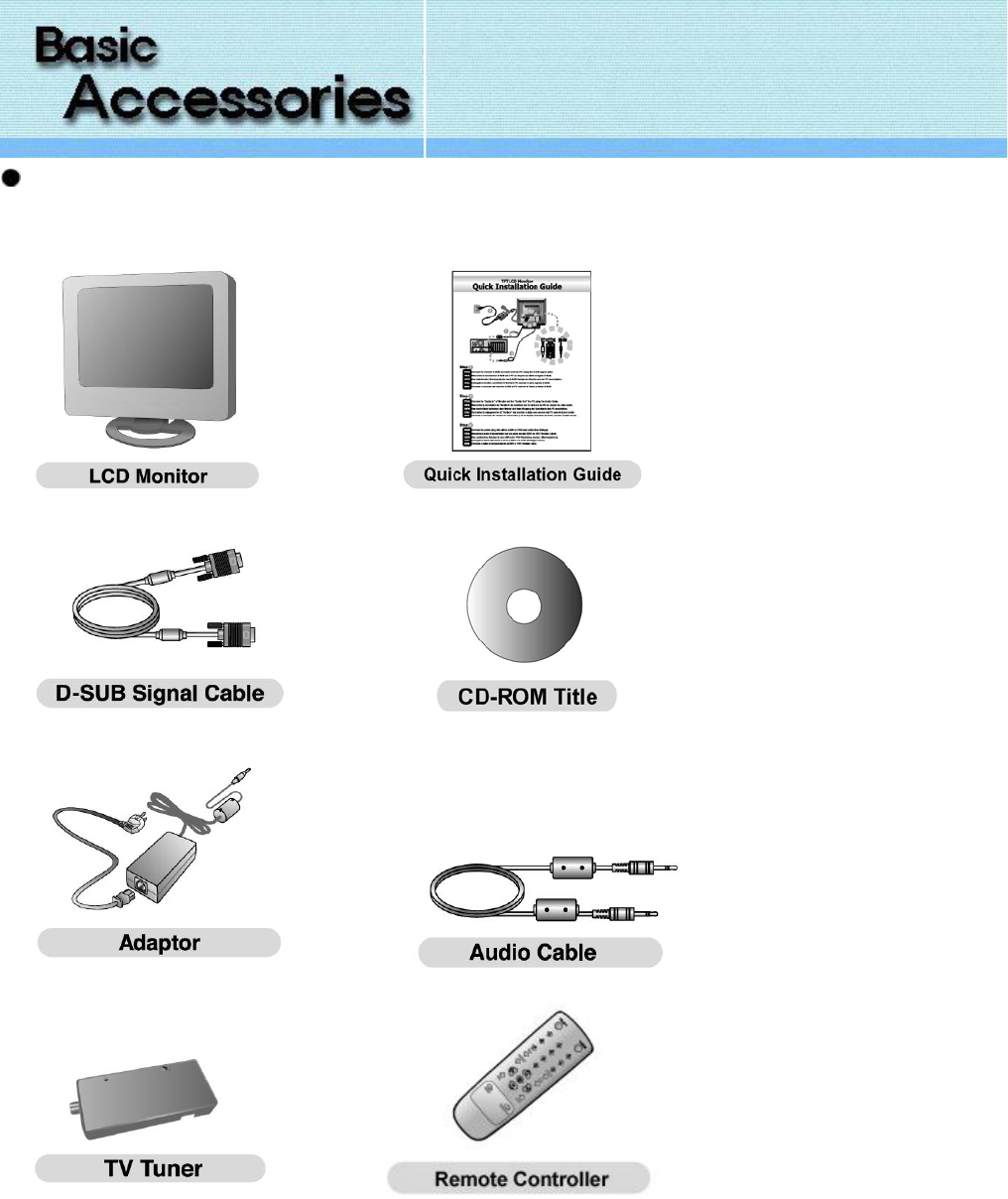

Please make sure the following items are included with your monitor.
If any items are missing, contact your dealer.

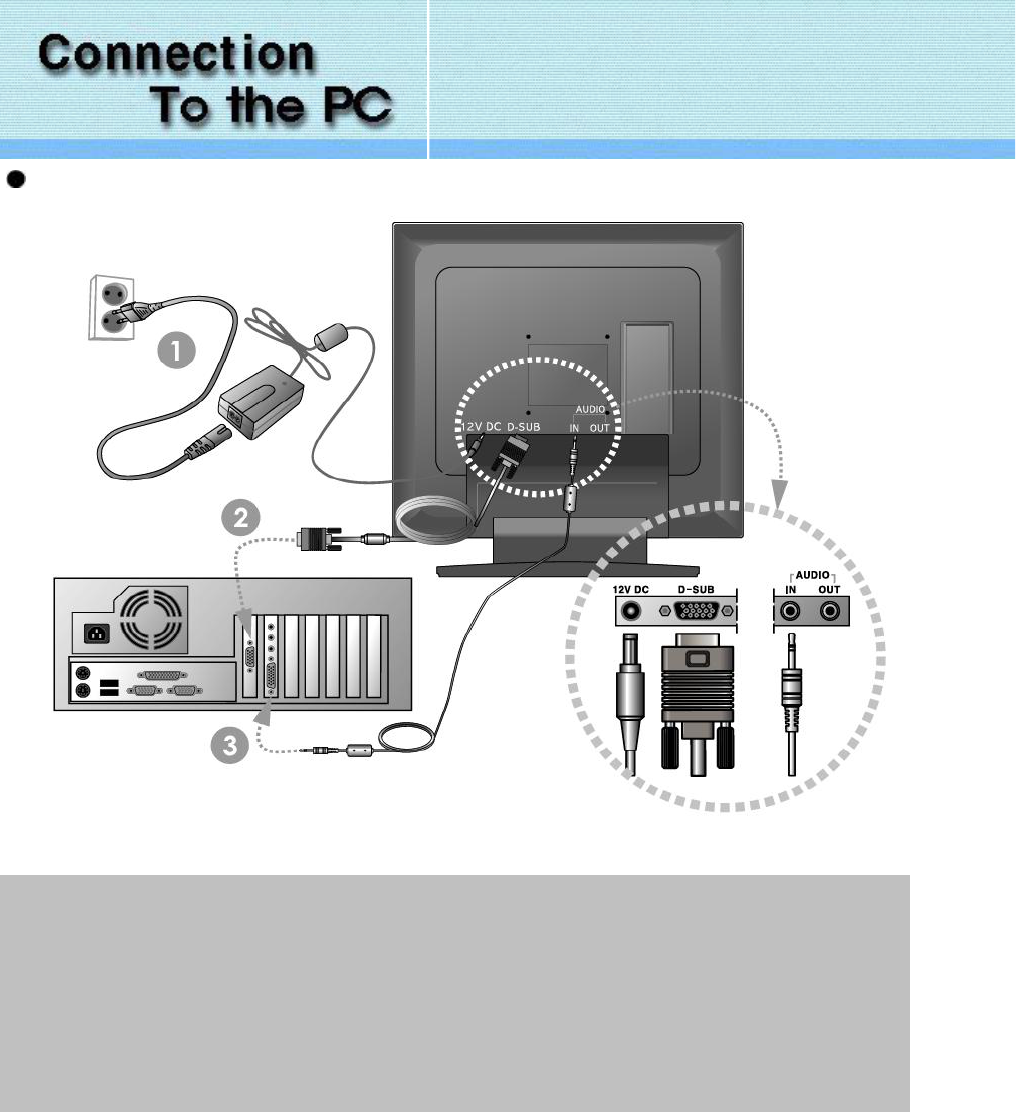

Attention : Power off your Monitor before making any connections.
1. Power Connection : Connect the DC Adaptor to the power terminal on the back of the monitor.
2. Connection of PC : Connect the signal cable(D-SUB cable) to the monitor output socket of the computer
and the other end to D-SUB on the back of the monitor.
3. AUDIO IN : Connect an audio cable to AUDIO IN on the back of the Monitor and the other end to AUDIO
OUT terminal of the sound card on your computer.
AUDIO OUT : Connect an audio cable to the AUDIO OUT of the back of the Monitor and the other end to
to the external speakers.

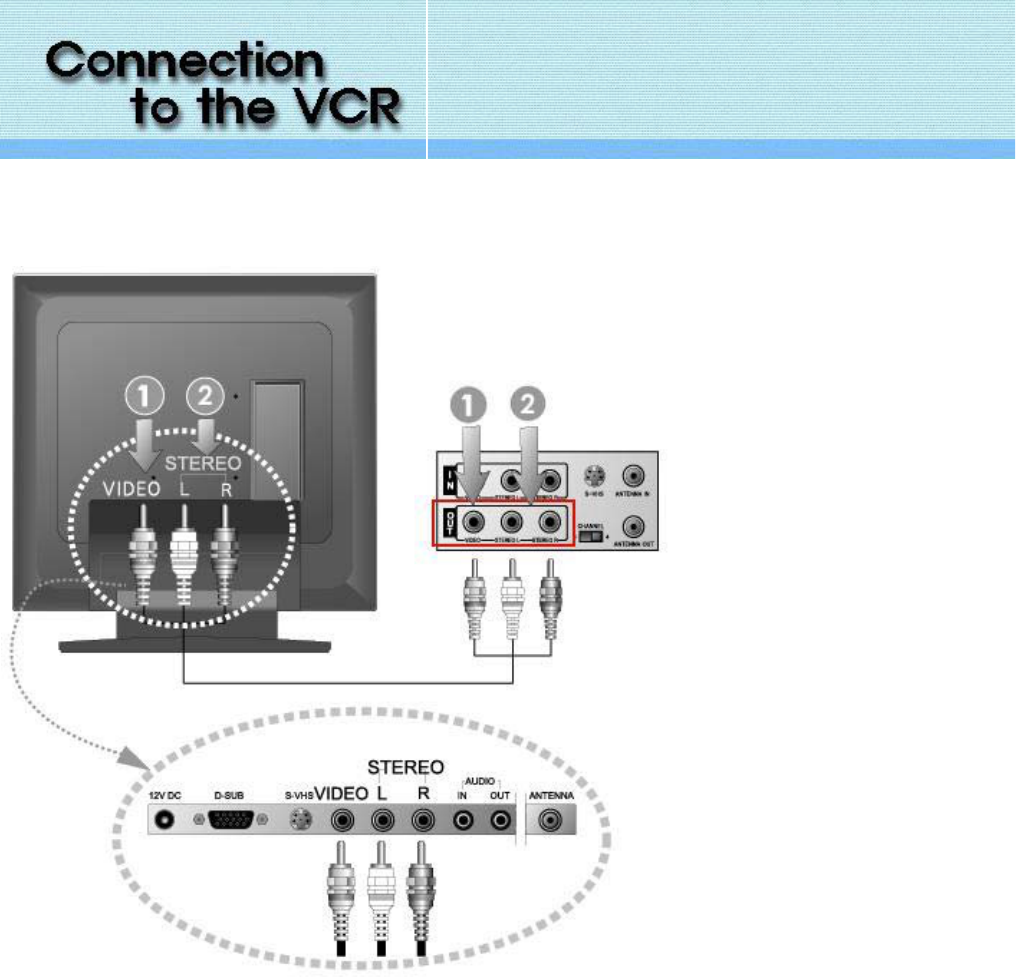

1. Connecting VIDEO 1
1) Connect RCA cable(Yellow) to VIDEO terminal on the back of the monitor and the other end to an
appropriate external A/V device such as VCR, DVD.
2) Connect Audio RCA cable(White, Red) to STEREO terminal on the back of the monitor and the other end
to an appropriate external A/V device such as VCR, DVD.

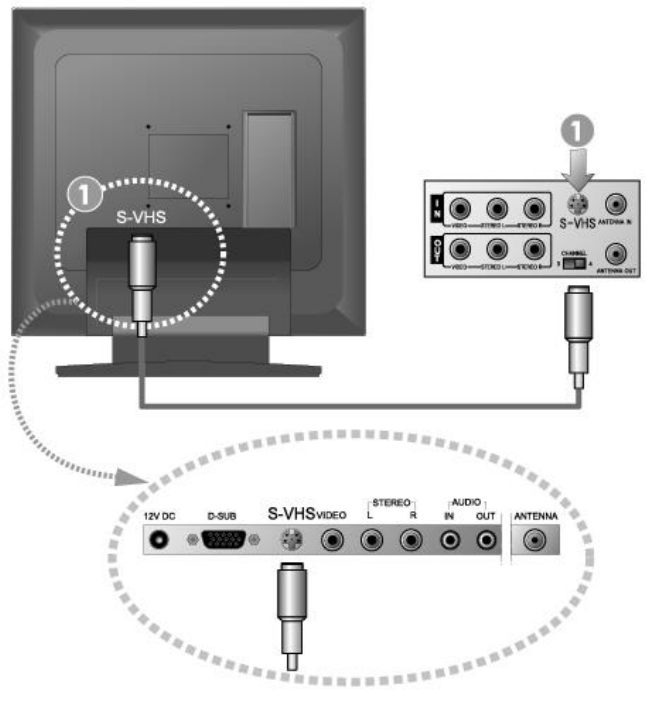

2. Connecting VIDEO 2
1) Connect S-VHS cable to an appropriate external A/V device such as VCR, DVD or Camcorder.

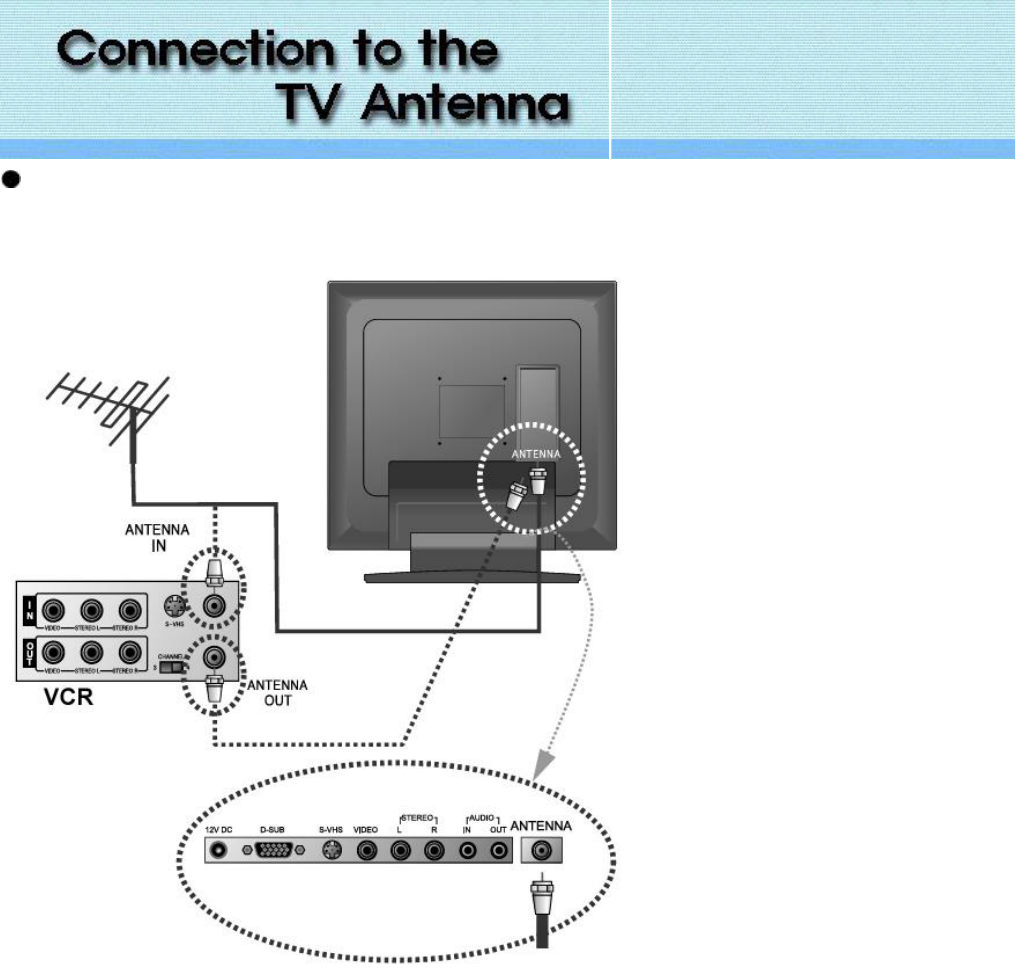

Connect to TV Antenna : Connect an antenna(or CATV cable) to the antenna terminal on the back of the
monitor.
1. Product Specification
SCREEN SIZE 389.0mm(H) x 317.2mm(V)
Resolution 1280(H) x 1024(V)
Brightness 250cd/m2
Contrast ratio 350: 1
Response time 30 msec
LCD SYSTEM
Viewing angles 160O (H) / 160O (V)
PC Input max resolution 1280 X 1204 @ 75 Hz (SXGA)
TV Color System NTSC
VIDEO
Video Color System NTSC/PAL/SECAM
AUDIO Built-in speakers Left (2W), Right (2W)
PC 15pin D-sub connector
Composite Video RCA Terminal(Yellow) X 1
S-Video Mini DIN 4-pin X 1
Audio L/R RCA Terminal(White) X 1, RCA Terminal(Red) X
1
Inputs
PC Audio Audio Terminal X 1
Antenna Input 75 ohm external input Terminal
Audio Out Audio Terminal X 1
REAR
12V DC Input Power Input Connector
User Control Buttons Power, Menu, Select, Auto,
VOL Up/Down, Adjust Up/Down
FRONT
IR Receiver Yes
Sleep Timer Yes
Auto Channel Searching Yes
Convenience
Smart Picture Control Normal/Dynamic/Cinema/User
Power management VESA DPMS standard
Source 12V/5A DC Adapter(AC 100~240V, 50/60Hz)
Power
Consumption 40W (standby: under 3W)
Plug & Play Level VESA DDC 1/2B Compatible
Agency Approval FCC, CE, VCCI, MIC,
Dimensions W x L x H 409 X 380 X 169
Weights Kg 4.4Kg (Net)
This specification of the product might be changed without any notice.
2. Product's Display Specification
RESOLUTION
HORIZONTAL
FREQUENCY
(KHz)
VERTICAL
FREQUENCY
(Hz)
REPRESENTATIVE
640 X 350 31.500 70.0 640 X 350@70Hz - Dos Graphic Mode
640 X 480 31.500 60.0 640 X 480@60Hz - Industry Standard
640 X 480 35.014 66.7 640 X 480@66.6Hz - Mac Mode
640 X 480 37.860 72.8 640 X 480@72Hz - VESA Standard
640 X 480 37.500 75.0 640 X 480@75Hz - VESA Standard
720 X 400 31.545 70.0 720 X 400@70Hz - DOS Test Mode
800 X 600 35.156 56.2 800 X 600@56Hz - VESA Guidelines
800 X 600 37.879 60.3 800 X 600@60Hz - VESA Guidelines
800 X 600 48.077 72.1 800 X 600@72Hz - VESA Standard
800 X 600 46.875 75.0 800 X 600@75Hz - VESA Standard
800 X 600 46.534 69.9 800 X 600@70Hz - Mode
832 X 624 49.731 74.5 832 X 624@75Hz - Mac Mode
1027 X 768 48.363 60.0 1027 X 768@60Hz - VESA Guidelines
1027 X 768 56.475 70.0 1027 X 768@70Hz - VESA Standard
1027 X 768 57.647 72.0 1027 X 768@72Hz - SUN Mode
1027 X 768 60.024 75.0 1027 X 768@75Hz - VESA Standard
1280 X 1024 63.981 60.0 1280 X 1024@60Hz - VESA Standard
1280 X 1024 74.400 70.0 1280 X 1024@70Hz - Mode
1280 X 1024 79.976 75.0 1280 X 1024@75Hz - VESA Standard
The front part of panel of this model consists of following function buttons. Description for each of
function button is shown below.
Select Button
Displays a OSD of all of the available input source. (PC / TV / AV1 / AV2).
Auto Button
Self adjusts the monitor settings on PC mode.
Menu Button
Opens or Closes the OSD.
Power Button
Turns ON/OFF the monitor.
Adjust Buttons( , )
1. Moves the selector up or down on the OSD.
2. Increases or decreases the channel number.
Volume Buttons( , )
1. Adjusts OSD Settings on the OSD.
2. Increases or decreases the level of speaker volume.

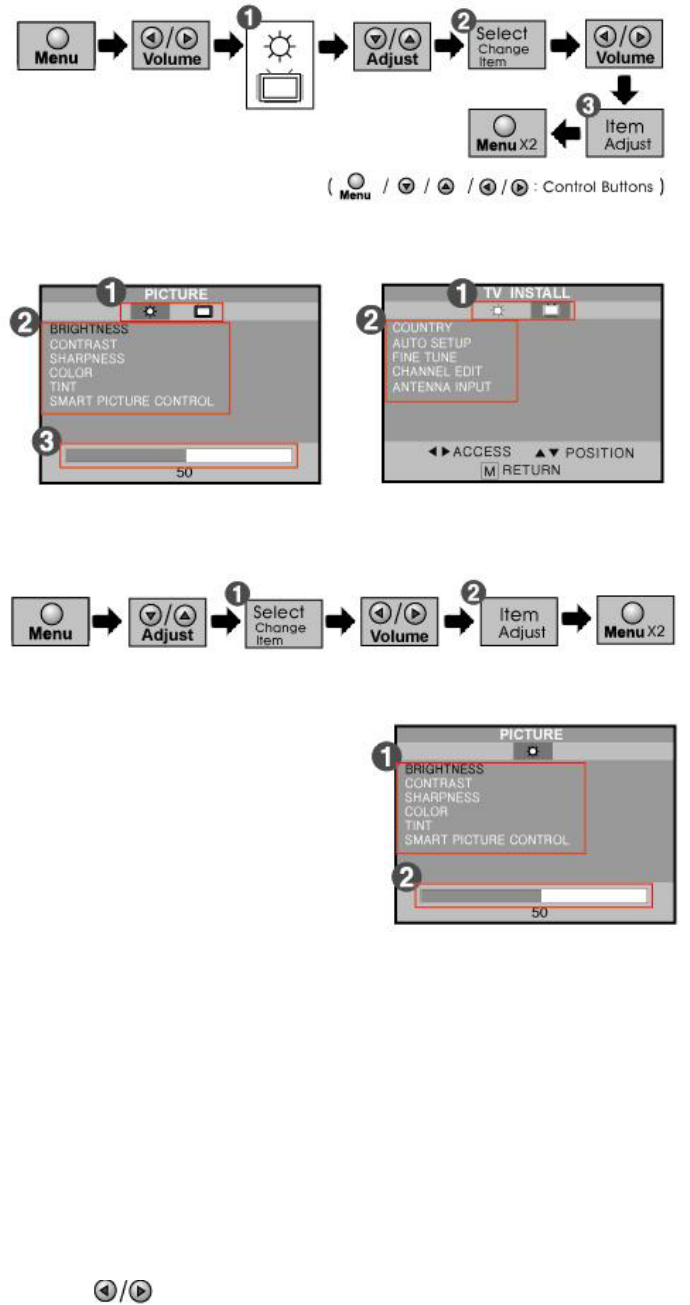

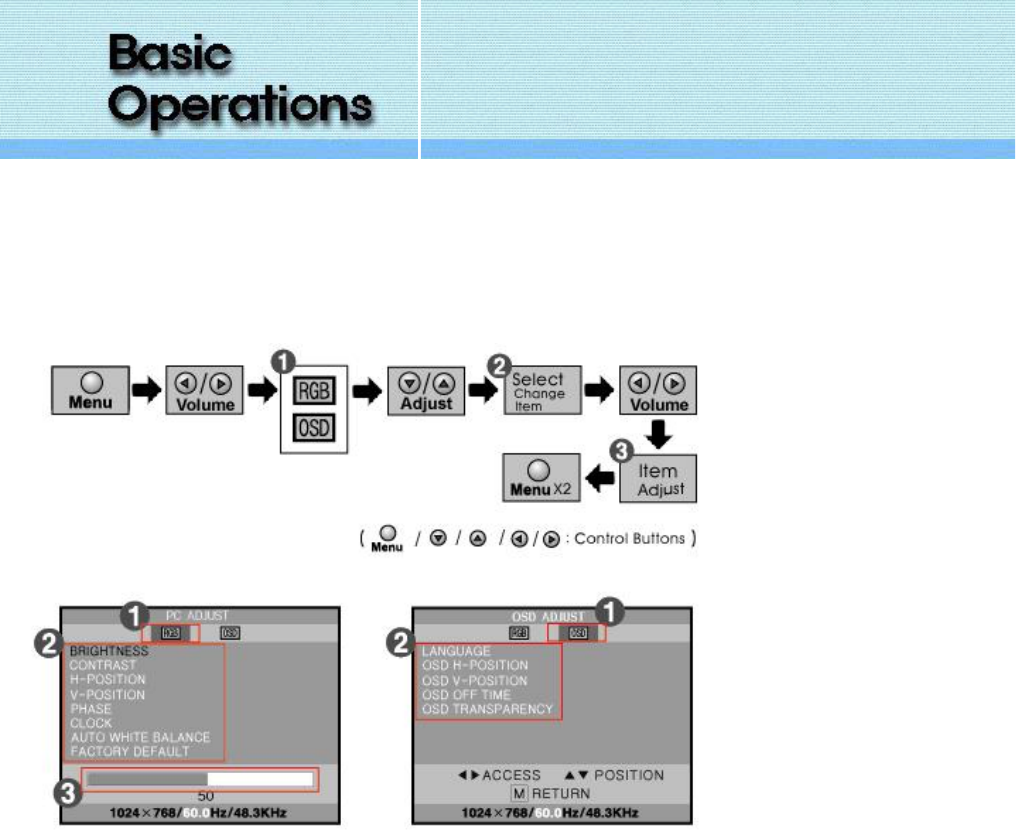

1. OSD Adjustment
- Set OSD value with the instructions described below.
1) Adjustment procedure for PC Monitor Mode
2) Adjustment procedure for TV Monitor Mode
3) Adjustment procedure for AV 1 / 2 Mode
2. Frequently used function
1) Monitor Auto adjustment function.
- Automatically adjusts the monitor settings on PC mode.
Press the AUTO Button.
2) Adjust Speaker volume
- Increases or decreases the level of speaker volume.
Press the buttons.

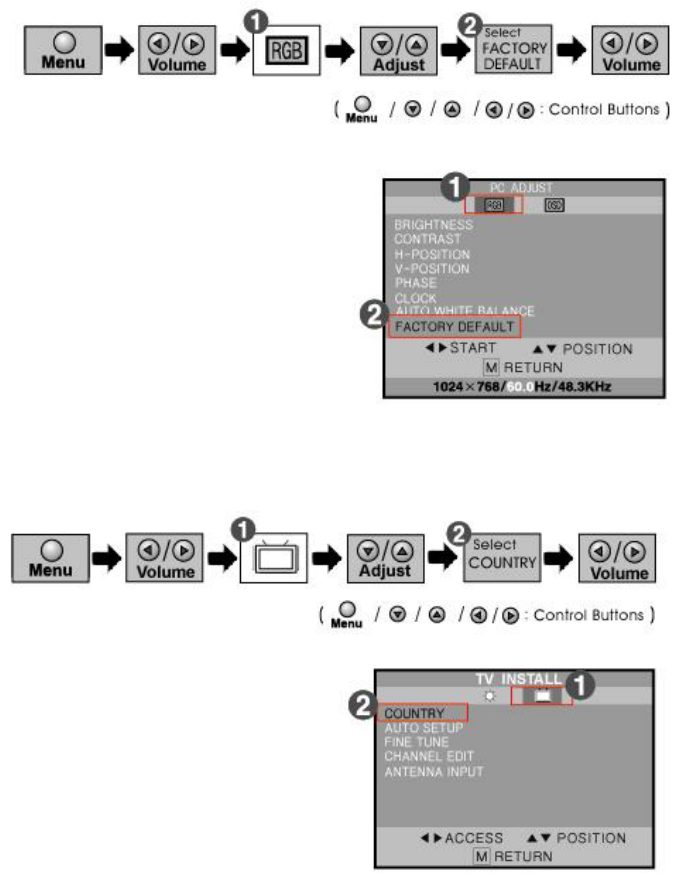

3) Reset Factory Default
- Screen parameters are replaced with the factory default values.
4) Select Country (TV function)
- Select a broadcasting system that is being used in your region.

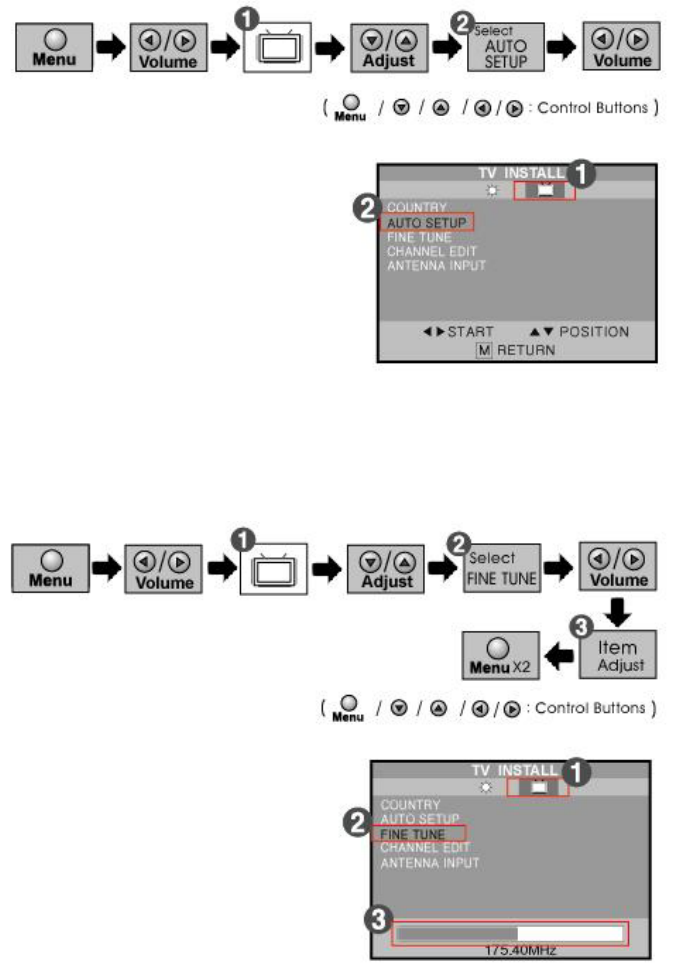

5) Auto Setup (TV function)
- Searches available channels and stores all automatically.
5) Fine Tune (TV function)
- Due to weak signals or a wrong antenna configuration, some of the channels may not be tuned correctly.
With fine tune function, you can tune in each channel precisely which has a grainy picture.

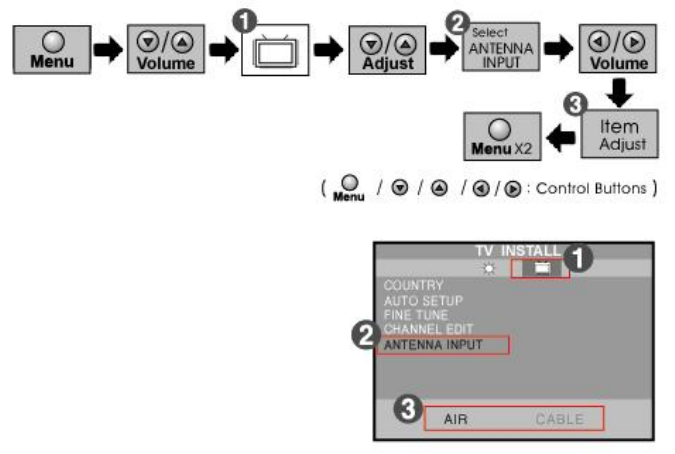

6) Antenna Input (TV function)
- Selects the desired source, between AIR and CABLE.
1. Menus when using PC Mode
1) PC ADJUST
Brightness : Adjust to brighten or darken the picture.
Contrast : The contrast control determines the white level of the picture.
H-Position : Move the entire screen to the left or right.
V-Position : Move the entire screen to the below or upper.
PHASE : Fine tuning of the screen even though it is not easily distinguishable with naked eyes.
CLOCK : Adjust the horizontal-size(size of horizontal screen)of the entire screen.
Auto White Balance : Select this menu to use automatic color balance function.
Factory Default : Screen parameters are replaced with the factory default values.
2) OSD ADJUST
Language : OSD language and appearance can be changed.
OSD H-Position : You can change the horizontal position where the OSD menu appears on your
monitor
OSD V-Position : You can change the vertical position where the OSD menu appears on your
monitor
OSD Off Time : The OSD will automatically turn off if no adjustments are made for a certain time
period.
OSD Transparency : Changes the transparent(or opaque) status of the background of the OSD.
2. Menus when using TV Mode
1) PICTURE
Brightness : Adjust to brighten or darken the picture.
Contrast : The contrast control determines the white level of the picture.
Sharpness : Adjust the sharpen or soften the picture.
Color : Adjust to increase or decrease color intensity..
Tint : Change the tone of the color.
Smart Picture Control : Changes the picture setting that is defined for [NORMAL], [ DYNAMIC],
[ CINEMA] or [ USER] each.
2) TV INSTALL
Country : Select a broadcasting system that is being used in your region.
Auto Setup : Searches available channels and stores all automatically.
Fine Tune : Due to weak signals or a wrong antenna configuration, some of the channels may not be
tuned correctly. With fine tune function, you can tune in each channel precisely which has a grainy
picture.
Channel Edit : Channel Edit function helps edit those channels.
Antenna Input : Select the desired source, between AIR and CABLE..
3. Menus when using AV 1(Composite) / AV 2 (S-VHS) Mode
1) PICTURE
Brightness : Adjust to brighten or darken the picture.
Contrast : The contrast control determines the white level of the picture.
Sharpness : Adjust the sharpen or soften the picture.
Color : Adjust to increase or decrease color intensity..
Tint : Change the tone of the color.
Smart Picture Control : Changes the picture setting that is defined for [NORMAL], [ DYNAMIC],
[ CINEMA] or [ USER] each.

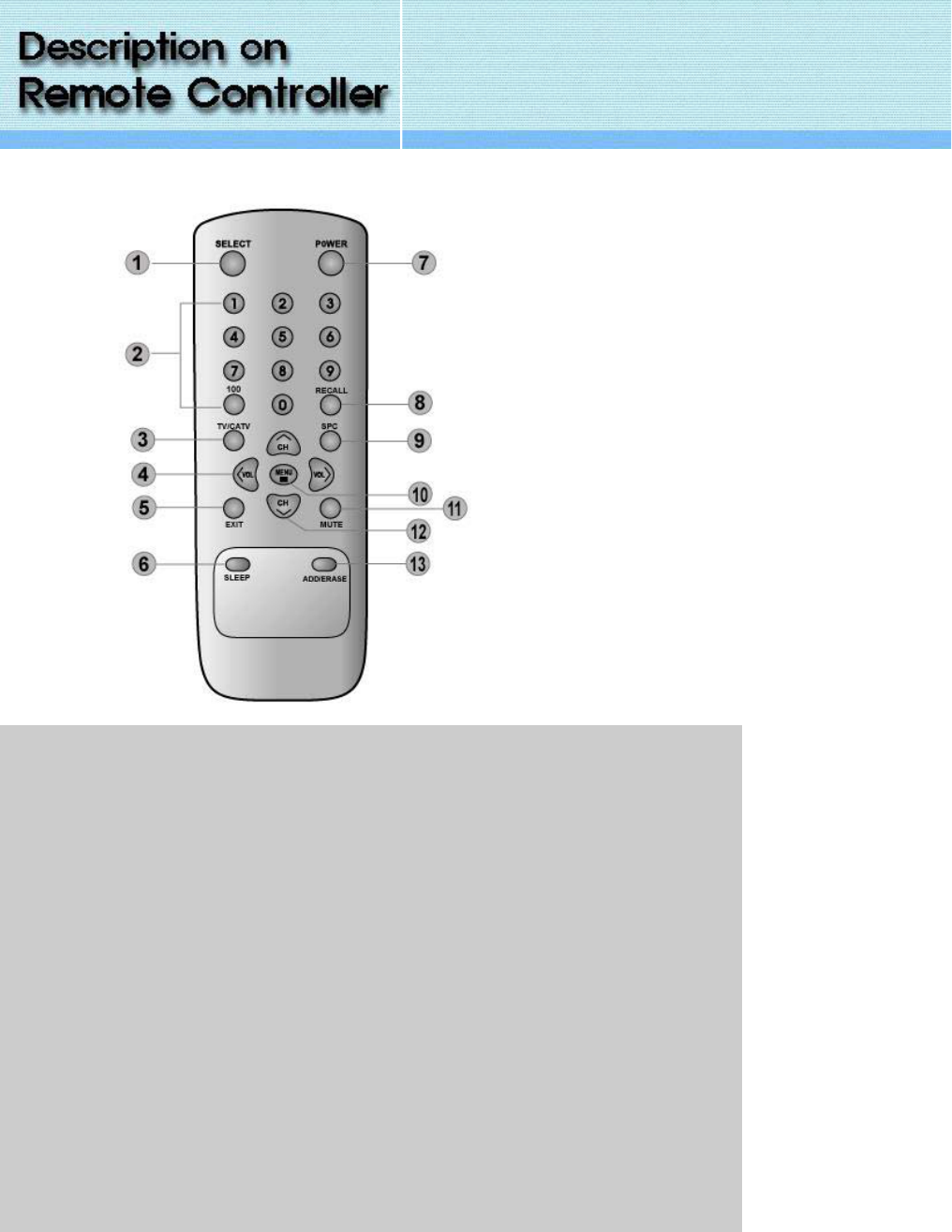

(TV Only-Option)
1. SELECT Button : Displays a menu of all of the available input source.
(PC / TV / AV1 / AV2).
2. Number buttons : Press to directly select channels.
3. TV/CATV Select Button : Press to convert reception modes between aerial and CATV.
4. VOLUME UP/DOWN Buttons : Adjusts the sound level or menu settings.
5. EXIT Button : To exit from the OSD
6. SLEEP Button : To select the length of time before the set automatically, switches to
standby.
7. POWER Button : Press to turn the Monitor on and off.
8. RECALL Button : To display the current status: channel number and input mode.
9. SPC (Smart Picture Controls) Button : To access preset video settings
(NORMAL, DYNAMIC, CINEMA, and USER)
10. MENU Button : To display or exit from the OSD.
11. MUTE Button : Switches the sound on or off.
12. CHANNEL UP/DOWN Buttons : Press to select channels or menu settings.
13. ADD/ERASE Button : Press to add and erase channels on your monitor.
In case of trouble, check these before calling the service center.
What you see... Suggested Actions
Screen is black and powe
r
indicator is off
Ensure that the power cord is firmly connected and the Monitor is on.
Screen is black and powe
r
indicator is blinks.
Ensure that the signal cable is firmly connected to the PC or video sources.
Ensure that the PC or video sources are turned on.
Screen position and size is
incorrect.
Press the AUTO Button.
Image is not stable and
may appear to vibrate.
Check that the display resolution and frequency from your PC or video board is
an available mode for your Monitor.
On your computer check : Control Panel -> Display -> Settings.
The image is too light o
r
too dark.
Adjust the Brightness and Contrast.
Horizontal noise on the
image.
Adjust the AUTO.
Adjust the PHASE.
Picture OK, No Sound. Check the Volume.
Make sure that MUTE is not on and the volume level.
Vertical bars or stripes on
the image.
Adjust the AUTO.
Adjust the CLOCK.
Dot pitch
The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the
resolution. The distance between two dots of the same color is called the 'Dot Pitch'.
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the screen horizontally is called
Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency.
Vertical Frequency
The screen must be redrawn several times per second in order to create and display an image for the
user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate.
Resolution
The number of horizontal and vertical dots used to compose the screen image is called 'resolution'.
Plug and Play
This is a function that provides the best quality screen for the user by allowing the computer and the
monitor to exchange information automatically.

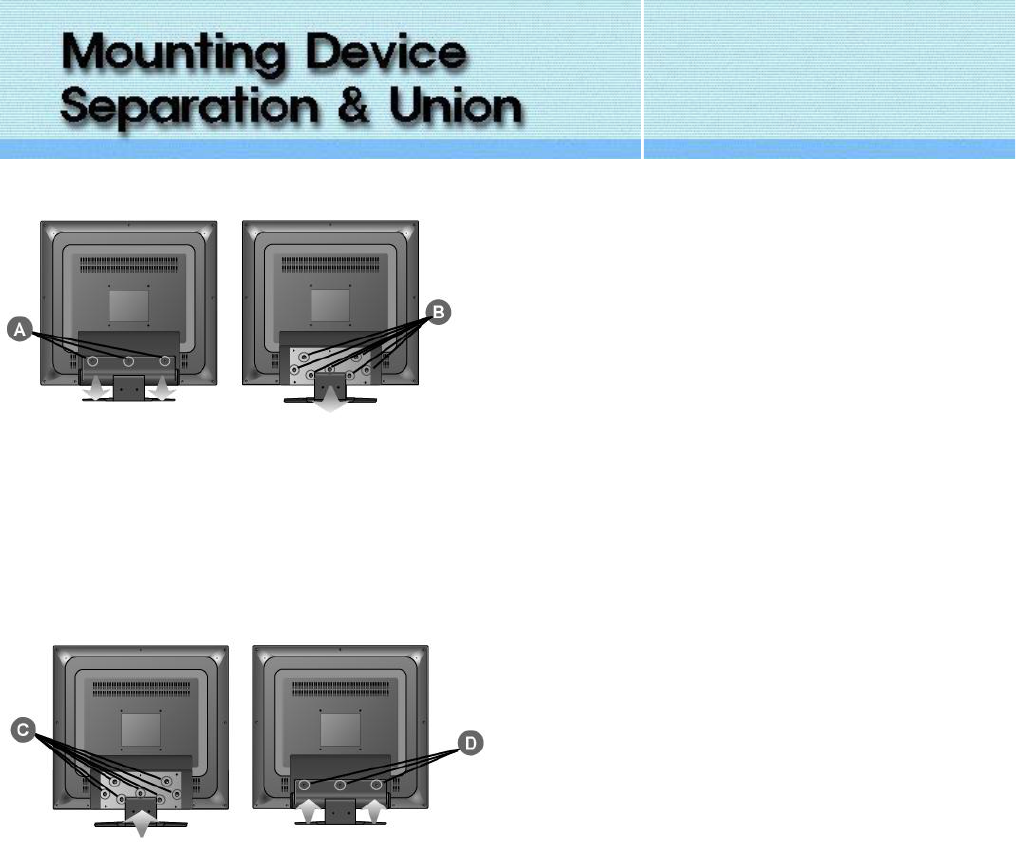

1. Separation
1) Turn off your monitor and unplug its
power cord.
2) Lay the monitor face-down ward on a
flat surface with a cushion beneath it to
protect the screen.
3) Remove the screws( A ) and then
remove the Mounting Device Cover from
the monitor.
4) Remove the screws( B ) and then
remove the Mounting Device from the
monitor.
2. Union
1) Align the Mounting Device with the
holes( C ) in the Rear Cover and secure
it with the screws.
2) Cover the Mounting Device with the
Mounting Device cover and secure it
with screws( D ).
