Technical Specifications – v1.4
©2013 BTR Controls, INC http://www.btrcontrols.com

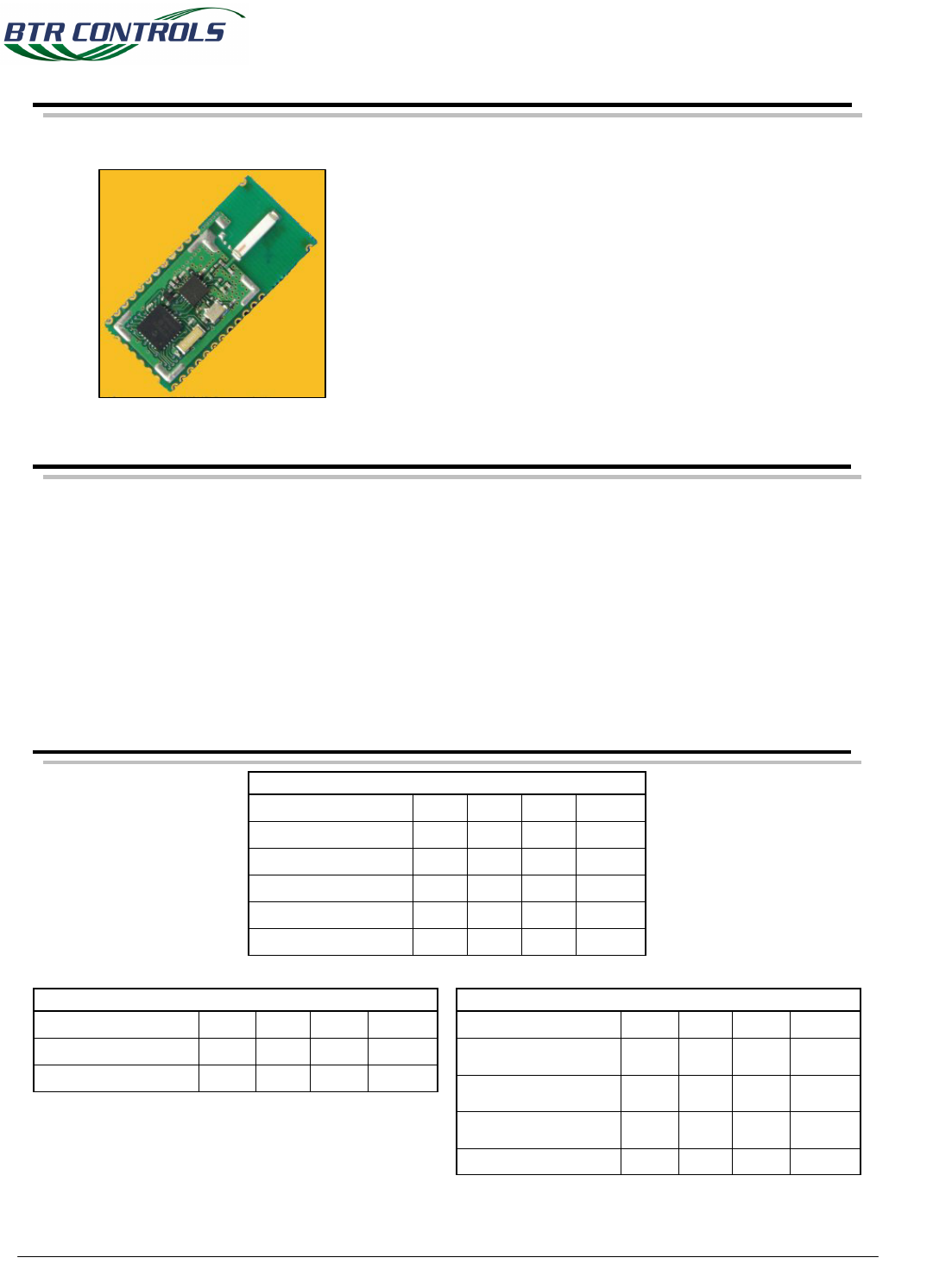

SeyWave
®
Wireless Module
Model: 11-115-0000 & 11-115-0001
Product Description
The SeyWave® RF module is an ultra low power wireless module designed for low to mid data
rate applications. The module is small, surface mount and has an integrated crystal, internal
voltage regulator, matching circuitry and two different antenna options. The module operates in
the worldwide non-licensed 2.4GHz band and is FCC and IC compliant.
The SeyWave® RF module has received modular approval in the United States (FCC) and
Canada (IC). This allows the end user to incorporate the module into their finished product and
bypass the need for regulatory testing for an intentional radiator (RF Transmitter). See
“Regulatory Approval” for further information.
Electrical Charecteristics
Operating Specifications
Parameter Min Typ Max Unit
Supply Voltage 2.4 3 5 VDC
Supply for Digital I/O - 2.0 - VDC
Sleep Current - 2 - uA
TX Current - 14 - mA
RX Current - 17 - mA
(TA = 25C, VDD = 3.3V)
Transmitter Specifications
Parameter Min Typ Max Unit
RF Carrier
Frequency
2.402 - 2.481 GHz
Maximum Output
Power
- 0 - dBm
RF Power Control
Range
16 18 20 dB
RF Power Accuracy
+-4 dB
Receiver Specifications
Parameter Min Typ Max Unit
RF Input Frequency 2.402 - 2.481 GHz
RF Sensitivity - -94 - dBm
• Worldwide 2.4GHz ISM band operation
• Ultra low power operation
• Runtime measured in years with normal
AA batteries
• Automatic packet handling
• Automatic packet retry modes
• On board voltage regulator
Technical Specifications – v1.4
©2013 BTR Controls, INC http://www.btrcontrols.com
SeyWave
®
Wireless Module
Model: 11-115-0000 & 11-115-0001
Regulatory Approval
The SeyWave® RF module has received regulatory approvals for modular devices in the United
States and Canada. Modular approval allows the end user to place the SeyWave module inside
a finished product and not require regulatory testing for an intentional radiator (RF transmitter),
provided no changes or modifications are made to the module circuitry. Changes or
modifications could void the user’s authority to operate the equipment. The end user must
comply with all of the instructions provided by BTR Controls, Inc., which indicate installation
and/or operating conditions necessary for compliance. (FCC Code of Federal Regulations Title 47 Part
15.21)
The integrator may still be responsible for testing the end product for any additional compliance
requirements when this module is installed (unintentional radiation) specific to the country where
the end device will be marketed.
United States
The end product user manual should also contain the following statement:
"This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation."*
Canada
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation
of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of
a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To
reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary
for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique
à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la
puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à
l'établissement d'une communication satisfaisante.
Technical Specifications – v1.4
©2013 BTR Controls, INC http://www.btrcontrols.com
SeyWave
®
Wireless Module
Model: 11-115-0000 & 11-115-0001
These radio transmitters 11-115-0001 & 11-115-0000 have been approved by Industry Canada
to operate with the antenna types listed below with the maximum permissible gain and required
antenna impedance for each antenna type indicated. Antenna types not included in this list,
having a gain greater than the maximum gain indicated for that type, are strictly prohibited for
use with this device.
Le présent émetteur radio 11-115-0001 & 11-115-0000
a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-
dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type
d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain
maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
Antennas approved for use with 11-115-0001 SeyWave RF Module
Antennas approved for use with 11-115-0000 SeyWave RF Module
Label instructions for End Product
The SeyWave® module has been labeled with its own FCC & IC identification numbers, and, if
these numbers are not visible when the module is installed inside another device, then the
outside of the device into which the module is installed must also display a permanently affixed
label referring to the enclosed module. This exterior label can use wording such as the
following:
“Contains Transmitter Modules FCC ID: RDF-SEYWAVE
IC: 10823A-SEYWAVE"
-or-
“Contains FCC ID: RDF-SEYWAVE
IC: 10823A-SEYWAVE.”
(FCC regulation - FCC Code of Federal Regulations 47 Part 15.212 (a)(1)(vi)(A))
Approved Antennas for use with 11-115-0001
Part Number Type Gain Application Impedance
AA02-TC2M2M10N
Dipole (half wave
articulated) RPSMA
2 dBi Fixed 50 Ohms
Approved Antennas for use with 11-115-0000
Part Number Type Gain Application Impedance
2450AT45A100 Chip Ceramic SMT 3.0dBi Peak Fixed 50 Ohms
