BTX >
User Manual
Programming Wireless Wall Switch
© 2014 BTX Intelligent Fashion, LLC.
Programming - 490.2076 - 040714
www.btxinc.com | 800-422-8839
CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 4
CHANNEL 5
STOP
OPEN CLOSE

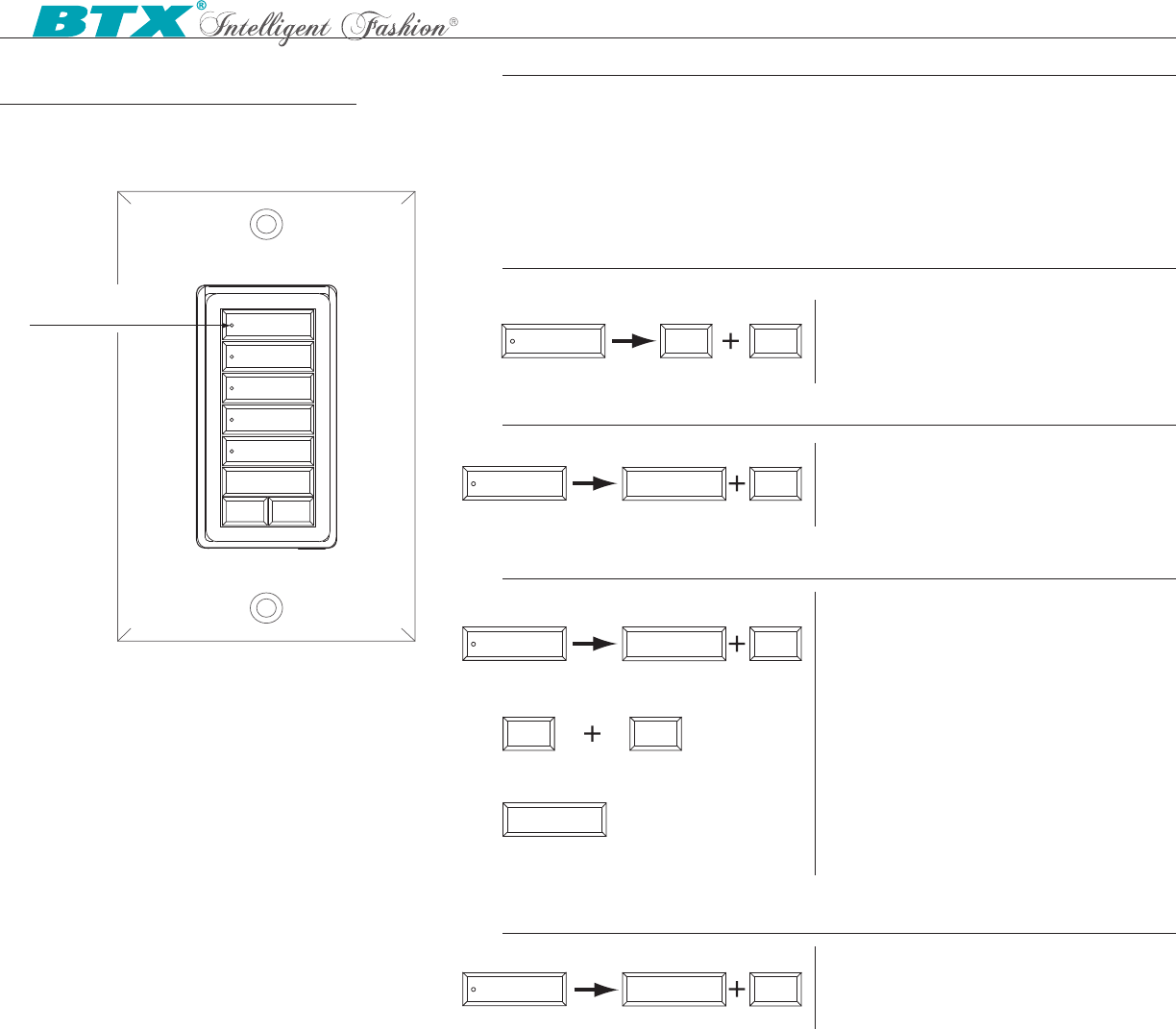

Wall Switch Layout For all following programming commands, the motor must be placed into “Pairing
Mode”
Pair Handsender to Motor / Learn Channel
CHANNEL BUTTON &
INDICATOR (LED)
Instructions
Select desired channel, then hold Open and Close.
- The wallswitch will give a slow blink
- After 3-5 seconds, the motor will jog
- Motor will no longer respond to this channel
Delete Channel from Motor
Select desired channel, then hold Stop and Open.
Select desired channel, then hold Stop and Close to
enter Programming Mode, then
Hold Open and Close to Reverse Direction, then
- The wallswitch will give a slow blink
- After 3-5 seconds, the motor will jog
- Motor is in Programming Mode
- The wallswitch will give a slow blink
- After 3-5 seconds, the motor will jog
- Motor will now work on this channel
Note: Each motor can learn up to 4 channels
Reverse Motor Direction (Electronic Limit Motors)
Expected Response:
CHANNEL OPEN
OPEN
CLOSE
CLOSE
CHANNEL STOP
CHANNEL STOP
- The wallswitch will give a slow blink
- After 3-5 seconds, the motor will jog
- Travel direction is now reversed
OPEN CLOSE
Hold Stop to save settings and exit Programming Mode
- The wallswitch will give a slow blink
- After 3-5 seconds, the motor will jog
- Settings are now saved
Select desired channel, then hold Stop and Close. - The wallswitch will give a slow blink
- After 3-5 seconds, the motor will jog
- Travel direction is now reversed
Reverse Motor Direction (Mechanical Limit Motors)
CLOSE
CHANNEL STOP
STOP
To Enter Pairing Mode Press and hold button on motor head for 2-3 seconds (until motor jogs). If
your motor doesn’t have a button on the motor head, you must disconnect power for 3-5 seconds,
then reconnect power. Alternate method: If the wireless wall switch is already Paired, then hold
STOP for approximately 5 seconds. Note that the motor will stay in Pairing Mode for 2 minutes. The
motor will time out on it’s own, and you do not need to save and exit from Pairing Mode.
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
