BTX MMCKFB002 Key-Fob Transmitter User Manual

BTX Holdings Inc Key-Fob Transmitter Users Manual

Users Manual

MMC User Guide
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-lowing two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide a reasonable protection against harmful interference in a residential instal-lation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer-ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet or a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

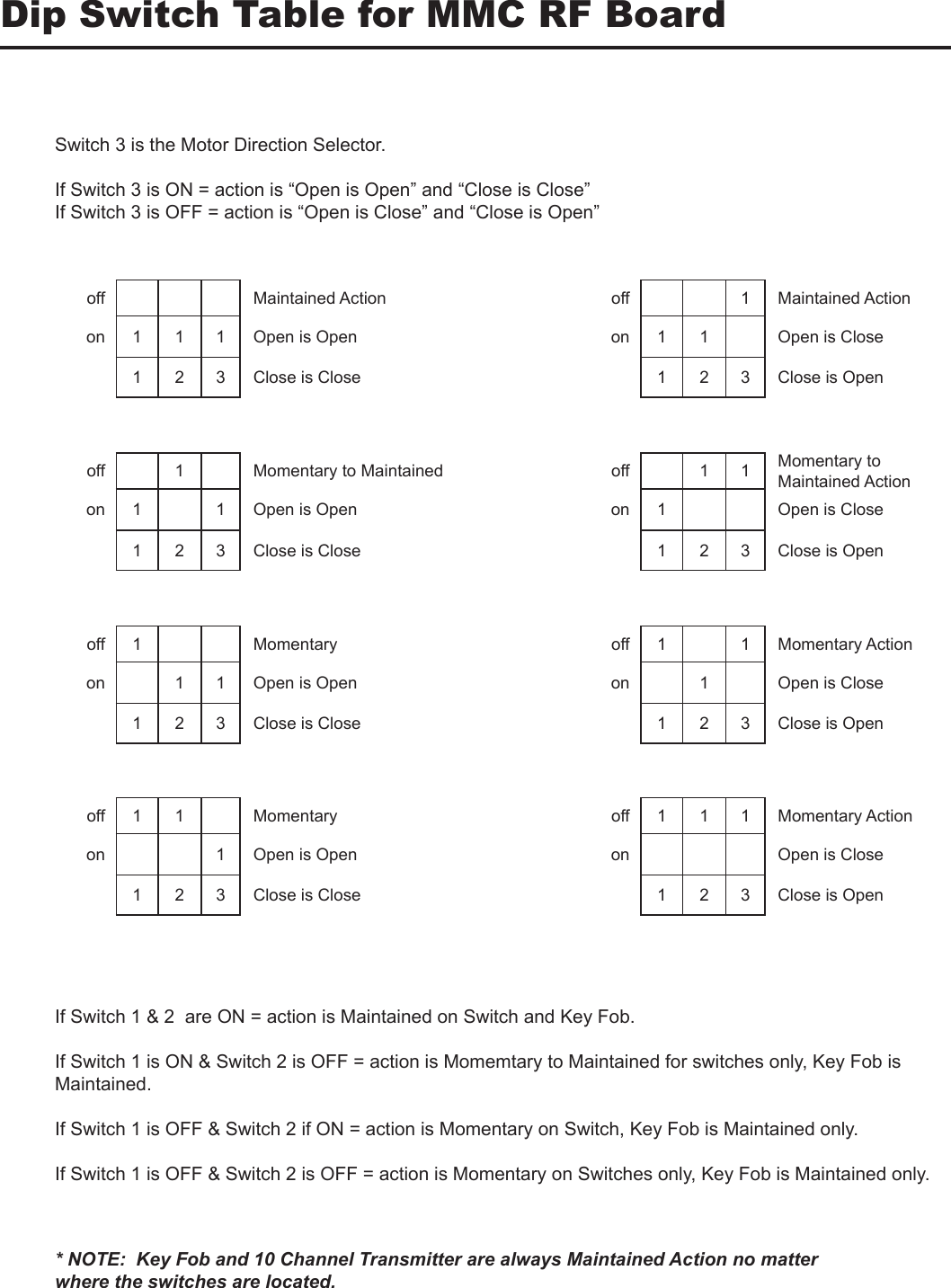

Dip Switch Table for MMC RF BoardSwitch 3 is the Motor Direction Selector.If Switch 3 is ON = action is “Open is Open” and “Close is Close”If Switch 3 is OFF = action is “Open is Close” and “Close is Open”off Maintained Actionon 1 1 1 Open is Open1 2 3 Close is Closeoff 1 Maintained Actionon 1 1 Open is Close1 2 3 Close is Openoff 1 Momentary to Maintainedon 1 1 Open is Open1 2 3 Close is Closeoff 1 1 Momentary to Maintained Actionon 1 Open is Close1 2 3 Close is Openoff 1 Momentaryon 1 1 Open is Open1 2 3 Close is Closeoff 1 1 Momentary Actionon 1 Open is Close1 2 3 Close is Openoff 1 1 Momentaryon 1 Open is Open1 2 3 Close is Closeoff 1 1 1 Momentary Actionon Open is Close1 2 3 Close is Open* NOTE: Key Fob and 10 Channel Transmitter are always Maintained Action no matter where the switches are located.If Switch 1 & 2 are ON = action is Maintained on Switch and Key Fob.If Switch 1 is ON & Switch 2 is OFF = action is Momemtary to Maintained for switches only, Key Fob is Maintained.If Switch 1 is OFF & Switch 2 if ON = action is Momentary on Switch, Key Fob is Maintained only.If Switch 1 is OFF & Switch 2 is OFF = action is Momentary on Switches only, Key Fob is Maintained only.

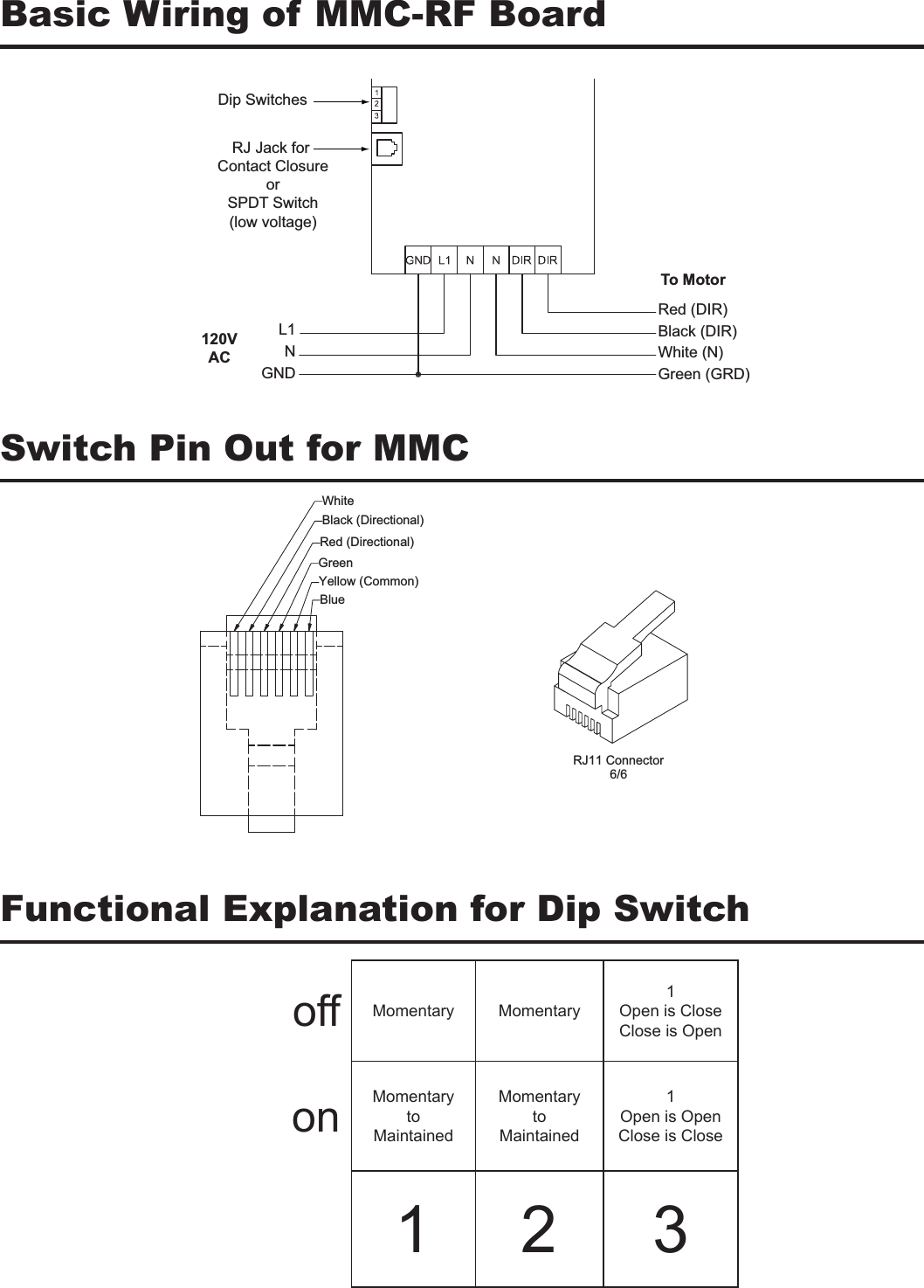

off Momentary Momentary1 Open is CloseClose is Openon Momentaryto MaintainedMomentary to Maintained1Open is OpenClose is Close1 2 3Dip SwitchesRJ Jack for Contact ClosureorSPDT Switch(low voltage)120VACL1NGNDRed (DIR)Black (DIR)White (N)Green (GRD)To MotorBasic Wiring of MMC-RF BoardFunctional Explanation for Dip SwitchSwitch Pin Out for MMCeulB)nommoC( wolleYneerG)lanoitceriD( deR)lanoitceriD( kcalBetihWrotcennoC 11JR6/6

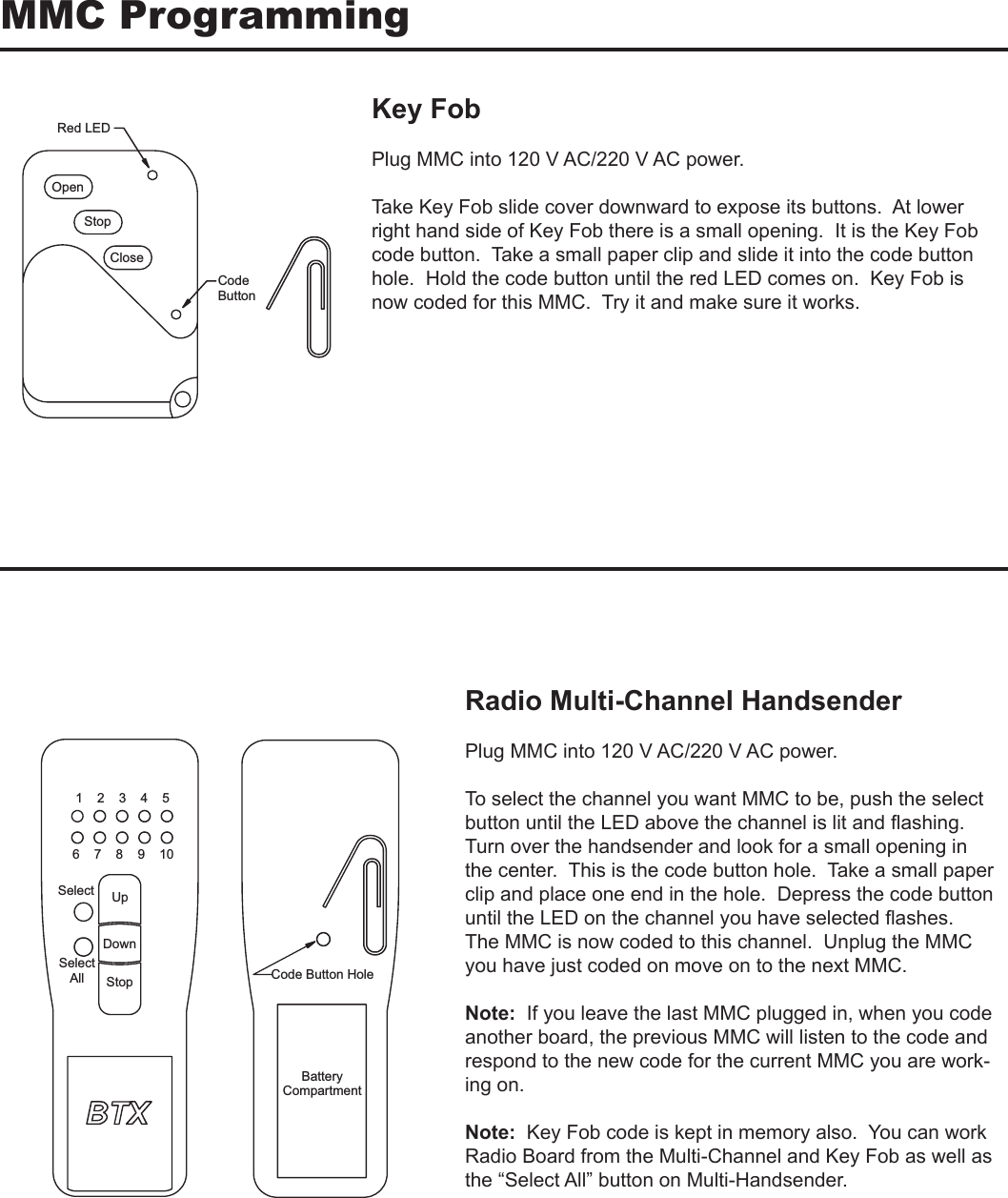

MMC ProgrammingKey FobPlug MMC into 120 V AC/220 V AC power.Take Key Fob slide cover downward to expose its buttons. At lower right hand side of Key Fob there is a small opening. It is the Key Fob code button. Take a small paper clip and slide it into the code button hole. Hold the code button until the red LED comes on. Key Fob is now coded for this MMC. Try it and make sure it works.DEL deRnepOpotSesolCedoCnottuBRadio Multi-Channel HandsenderPlug MMC into 120 V AC/220 V AC power.To select the channel you want MMC to be, push the select button until the LED above the channel is lit and flashing. Turn over the handsender and look for a small opening in the center. This is the code button hole. Take a small paper clip and place one end in the hole. Depress the code button until the LED on the channel you have selected flashes. The MMC is now coded to this channel. Unplug the MMC you have just coded on move on to the next MMC.Note: If you leave the last MMC plugged in, when you code another board, the previous MMC will listen to the code and respond to the new code for the current MMC you are work-ing on. Note: Key Fob code is kept in memory also. You can work Radio Board from the Multi-Channel and Key Fob as well as the “Select All” button on Multi-Handsender.eloH nottuB edoC5 4 3 2 101 9 8 7 6tceleStceleSllApUnwoDpotSyrettaBtnemtrapmoC

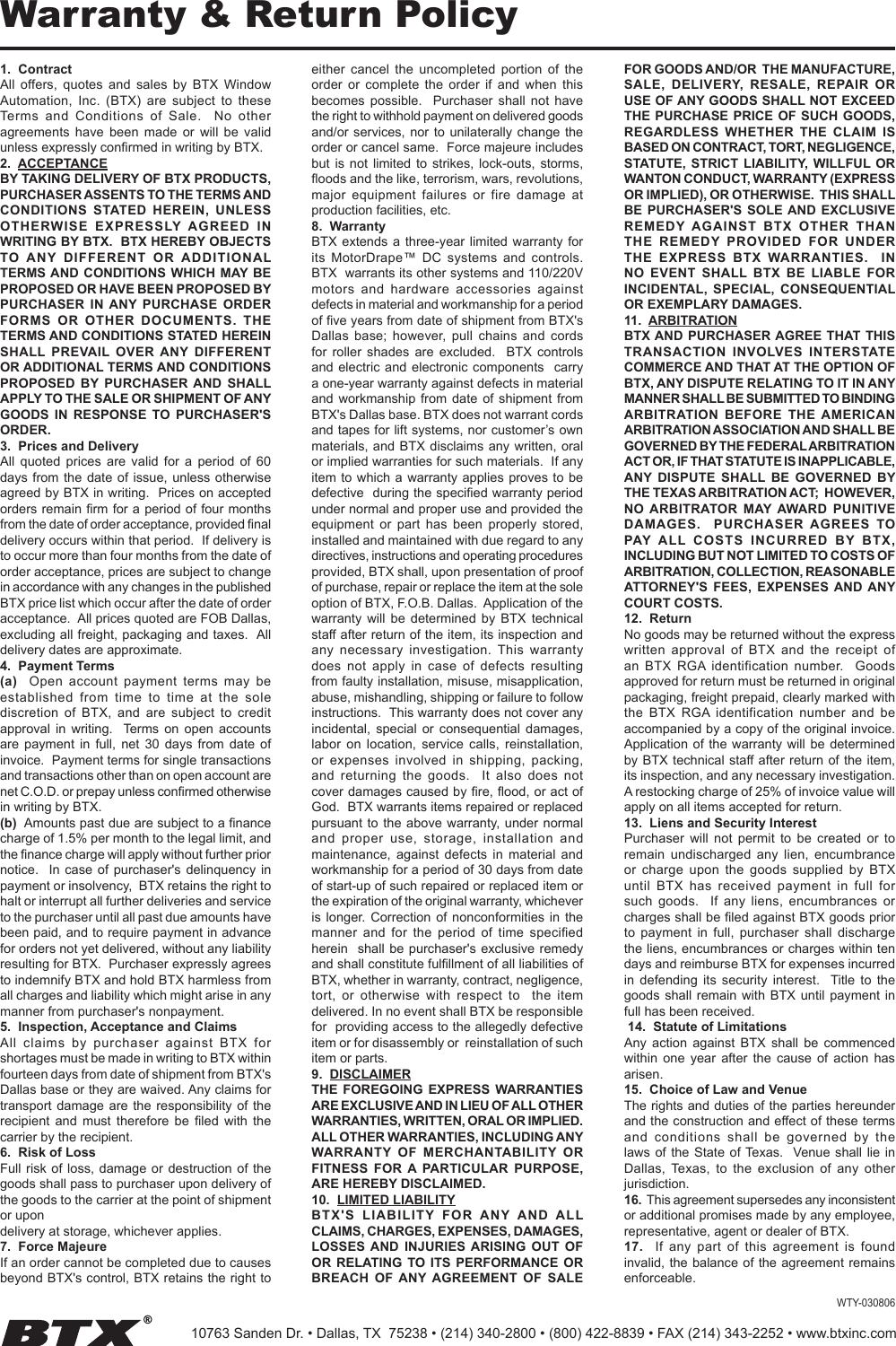

Warranty & Return Policy1. ContractAll offers, quotes and sales by BTX Window Automation, Inc. (BTX) are subject to these Terms and Conditions of Sale. No other agreements have been made or will be valid unless expressly confirmed in writing by BTX.2. ACCEPTANCEBY TAKING DELIVERY OF BTX PRODUCTS, PURCHASER ASSENTS TO THE TERMS AND CONDITIONS STATED HEREIN, UNLESS OTHERWISE EXPRESSLY AGREED IN WRITING BY BTX. BTX HEREBY OBJECTS TO ANY DIFFERENT OR ADDITIONAL TERMS AND CONDITIONS WHICH MAY BE PROPOSED OR HAVE BEEN PROPOSED BY PURCHASER IN ANY PURCHASE ORDER FORMS OR OTHER DOCUMENTS. THE TERMS AND CONDITIONS STATED HEREIN SHALL PREVAIL OVER ANY DIFFERENT OR ADDITIONAL TERMS AND CONDITIONS PROPOSED BY PURCHASER AND SHALL APPLY TO THE SALE OR SHIPMENT OF ANY GOODS IN RESPONSE TO PURCHASER'S ORDER.3. Prices and DeliveryAll quoted prices are valid for a period of 60 days from the date of issue, unless otherwise agreed by BTX in writing. Prices on accepted orders remain firm for a period of four months from the date of order acceptance, provided final delivery occurs within that period. If delivery is to occur more than four months from the date of order acceptance, prices are subject to change in accordance with any changes in the published BTX price list which occur after the date of order acceptance. All prices quoted are FOB Dallas, excluding all freight, packaging and taxes. All delivery dates are approximate.4. Payment Terms(a) Open account payment terms may be established from time to time at the sole discretion of BTX, and are subject to credit approval in writing. Terms on open accounts are payment in full, net 30 days from date of invoice. Payment terms for single transactions and transactions other than on open account are net C.O.D. or prepay unless confirmed otherwise in writing by BTX.(b) Amounts past due are subject to a finance charge of 1.5% per month to the legal limit, and the finance charge will apply without further prior notice. In case of purchaser's delinquency in payment or insolvency, BTX retains the right to halt or interrupt all further deliveries and service to the purchaser until all past due amounts have been paid, and to require payment in advance for orders not yet delivered, without any liability resulting for BTX. Purchaser expressly agrees to indemnify BTX and hold BTX harmless from all charges and liability which might arise in any manner from purchaser's nonpayment. 5. Inspection, Acceptance and ClaimsAll claims by purchaser against BTX for shortages must be made in writing to BTX within fourteen days from date of shipment from BTX's Dallas base or they are waived. Any claims for transport damage are the responsibility of the recipient and must therefore be filed with the carrier by the recipient.6. Risk of LossFull risk of loss, damage or destruction of the goods shall pass to purchaser upon delivery of the goods to the carrier at the point of shipment or upondelivery at storage, whichever applies.7. Force MajeureIf an order cannot be completed due to causes beyond BTX's control, BTX retains the right to either cancel the uncompleted portion of the order or complete the order if and when this becomes possible. Purchaser shall not have the right to withhold payment on delivered goods and/or services, nor to unilaterally change the order or cancel same. Force majeure includes but is not limited to strikes, lock-outs, storms, floods and the like, terrorism, wars, revolutions, major equipment failures or fire damage at production facilities, etc.8. WarrantyBTX extends a three-year limited warranty for its MotorDrape™ DC systems and controls. BTX warrants its other systems and 110/220V motors and hardware accessories against defects in material and workmanship for a period of five years from date of shipment from BTX's Dallas base; however, pull chains and cords for roller shades are excluded. BTX controls and electric and electronic components carry a one-year warranty against defects in material and workmanship from date of shipment from BTX's Dallas base. BTX does not warrant cords and tapes for lift systems, nor customer’s own materials, and BTX disclaims any written, oral or implied warranties for such materials. If any item to which a warranty applies proves to be defective during the specified warranty period under normal and proper use and provided the equipment or part has been properly stored, installed and maintained with due regard to any directives, instructions and operating procedures provided, BTX shall, upon presentation of proof of purchase, repair or replace the item at the sole option of BTX, F.O.B. Dallas. Application of the warranty will be determined by BTX technical staff after return of the item, its inspection and any necessary investigation. This warranty does not apply in case of defects resulting from faulty installation, misuse, misapplication, abuse, mishandling, shipping or failure to follow instructions. This warranty does not cover any incidental, special or consequential damages, labor on location, service calls, reinstallation, or expenses involved in shipping, packing, and returning the goods. It also does not cover damages caused by fire, flood, or act of God. BTX warrants items repaired or replaced pursuant to the above warranty, under normal and proper use, storage, installation and maintenance, against defects in material and workmanship for a period of 30 days from date of start-up of such repaired or replaced item or the expiration of the original warranty, whichever is longer. Correction of nonconformities in the manner and for the period of time specified herein shall be purchaser's exclusive remedy and shall constitute fulfillment of all liabilities of BTX, whether in warranty, contract, negligence, tort, or otherwise with respect to the item delivered. In no event shall BTX be responsible for providing access to the allegedly defective item or for disassembly or reinstallation of such item or parts.9. DISCLAIMERTHE FOREGOING EXPRESS WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WRITTEN, ORAL OR IMPLIED. ALL OTHER WARRANTIES, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED.10. LIMITED LIABILITYBT X'S LIABILIT Y FOR A NY AND ALL CLAIMS, CHARGES, EXPENSES, DAMAGES, LOSSES AND INJURIES ARISING OUT OF OR RELATING TO ITS PERFORMANCE OR BREACH OF ANY AGREEMENT OF SALE FOR GOODS AND/OR THE MANUFACTURE, SALE, DELIVERY, RESALE, REPAIR OR USE OF ANY GOODS SHALL NOT EXCEED THE PURCHASE PRICE OF SUCH GOODS, REGARDLESS WHETHER THE CLAIM IS BASED ON CONTRACT, TORT, NEGLIGENCE, STATUTE, STRICT LIABILITY, WILLFUL OR WANTON CONDUCT, WARRANTY (EXPRESS OR IMPLIED), OR OTHERWISE. THIS SHALL BE PURCHASER'S SOLE AND EXCLUSIVE REMEDY AGAINST BTX OTHER THAN THE REMEDY PROVIDED FOR UNDER THE EXPRESS BTX WARRANTIES. IN NO EVENT SHALL BTX BE LIABLE FOR INCIDENTAL, SPECIAL, CONSEQUENTIAL OR EXEMPLARY DAMAGES.11. ARBITRATIONBTX AND PURCHASER AGREE THAT THIS TRANSACTION INVOLVES INTERSTATE COMMERCE AND THAT AT THE OPTION OF BTX, ANY DISPUTE RELATING TO IT IN ANY MANNER SHALL BE SUBMITTED TO BINDING ARBITRATION BEFORE THE AMERICAN ARBITRATION ASSOCIATION AND SHALL BE GOVERNED BY THE FEDERAL ARBITRATION ACT OR, IF THAT STATUTE IS INAPPLICABLE, ANY DISPUTE SHALL BE GOVERNED BY THE TEXAS ARBITRATION ACT; HOWEVER, NO ARBITRATOR MAY AWARD PUNITIVE DAMAGES. PURCHASER AGREES TO PAY ALL COSTS INCURRED BY BTX, INCLUDING BUT NOT LIMITED TO COSTS OF ARBITRATION, COLLECTION, REASONABLE ATTORNEY'S FEES, EXPENSES AND ANY COURT COSTS.12. ReturnNo goods may be returned without the express written approval of BTX and the receipt of an BTX RGA identification number. Goods approved for return must be returned in original packaging, freight prepaid, clearly marked with the BTX RGA identification number and be accompanied by a copy of the original invoice. Application of the warranty will be determined by BTX technical staff after return of the item, its inspection, and any necessary investigation. A restocking charge of 25% of invoice value will apply on all items accepted for return.13. Liens and Security InterestPurchaser will not permit to be created or to remain undischarged any lien, encumbrance or charge upon the goods supplied by BTX until BTX has received payment in full for such goods. If any liens, encumbrances or charges shall be filed against BTX goods prior to payment in full, purchaser shall discharge the liens, encumbrances or charges within ten days and reimburse BTX for expenses incurred in defending its security interest. Title to the goods shall remain with BTX until payment in full has been received. 14. Statute of LimitationsAny action against BTX shall be commenced within one year after the cause of action has arisen.15. Choice of Law and VenueThe rights and duties of the parties hereunder and the construction and effect of these terms and conditions shall be governed by the laws of the State of Texas. Venue shall lie in Dallas, Texas, to the exclusion of any other jurisdiction.16. This agreement supersedes any inconsistent or additional promises made by any employee, representative, agent or dealer of BTX.17. If any part of this agreement is found invalid, the balance of the agreement remains enforceable.WTY-03080610763 Sanden Dr. • Dallas, TX 75238 • (214) 340-2800 • (800) 422-8839 • FAX (214) 343-2252 • www.btxinc.com
