Overview
Supported File Formats for iPhone/iPad app:
1. Video
m4v, mp4, mov (using H.264 or Mpeg-4 codec
only and must be DRM free)
2. Audio
AAC (NO-DRM), AIFF, Apple Lossless, Mp3,
WAV
3. Pictures (Viewable Only)
JPG, BMP, TIF, PNG, and GIF
4. Documents (Viewable Only)
ppt (Power point), xls (Excel), .docx or .doc
(Word), pdf
2
Requirements
The following procedures are instructions on how to
establish a connection with the HDW-P500U3. Please
make sure you have the following requirements.
Hardware Requirements
PC or Mac computer with USB 3.0/2.0 port (For
Samba sharing, file transfer, or to access the
HDW-P500U3 Connect user interface)
iPhone (3G or better), iPad (1 or better) or iPod Touch
(2nd generation or better)
Android device and Tablet
NTFS formatted 2.5 inch hard drive
3
Requirements
Software Requirements
Windows XP/Vista/7 or higher
Mac OSX 10.5 or higher
HDW-P500U3 Connect application for IOS (IOS 4.0 or
higher)
HDW-P500U3 Connect application for Android
(Android phone 2.3 or 3.0 for tablets)
Web browser to access the User Interface (IE 6 or
better, Firefox 3 or better, or Safari 4 or better)
4
Section I
Connecting to the HDW-P500U3 using an iPhone, iPod
Touch or iPad
1. Press the “Settings” button on your device.
2. Select the “General” tab.
3. Select the “Wi-Fi” tab. Your device will be searching for
any wireless hotspot within in range (See screenshot
below).
5
Section I
4. Select the hotspot called “WiFi DAS”.
6
Section I

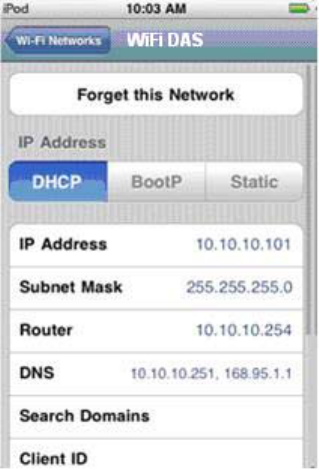

5. Make sure an IP address has been assigned
(10.10.10.xxx)
6. Once the connection is established, launch the
HDW-P500U3 Connect iOS application. This “App” can
be downloaded App store.
7
Section I

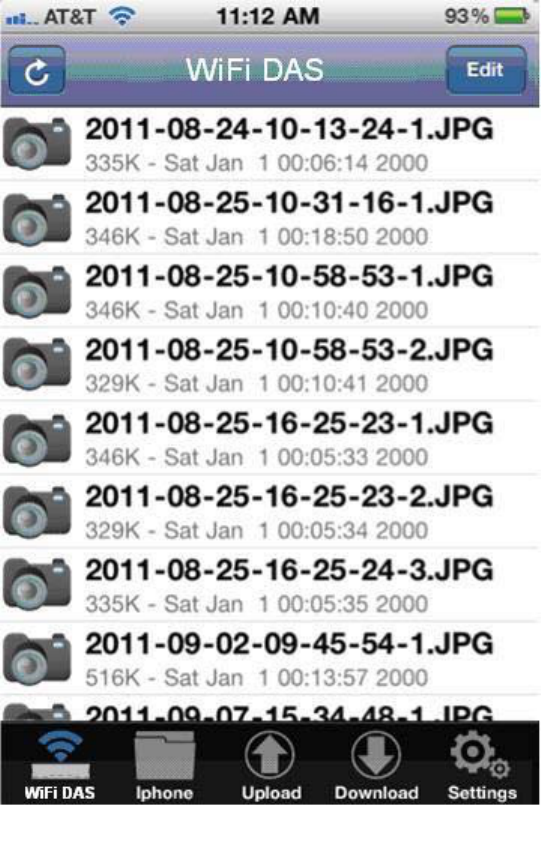

7. Once you have open the application you will be able to
browse the HDW-P500U3.
8
Section II
Navigating the HDW-P500U3 Connect Application
The following is a description of the icons that appears in
the home screen:
WiFi DAS – This is where you can view files that are in
the HDW-P500U3.
MyDevice – This folder contains files that were
downloaded from the HDW-P500U3 to your phone or
tablet.
Upload – This is where you can upload from your
phone or tablet to the HDW-P500U3. At the moment
you can only upload pictures or videos that are in your
device’s photo library.
Download- This is where you can download files from
the HDW-P500U3 and store them to your phone or
tablet.
Settings- This is where you can change the settings for
the HDW-P500U3.
9
Section II

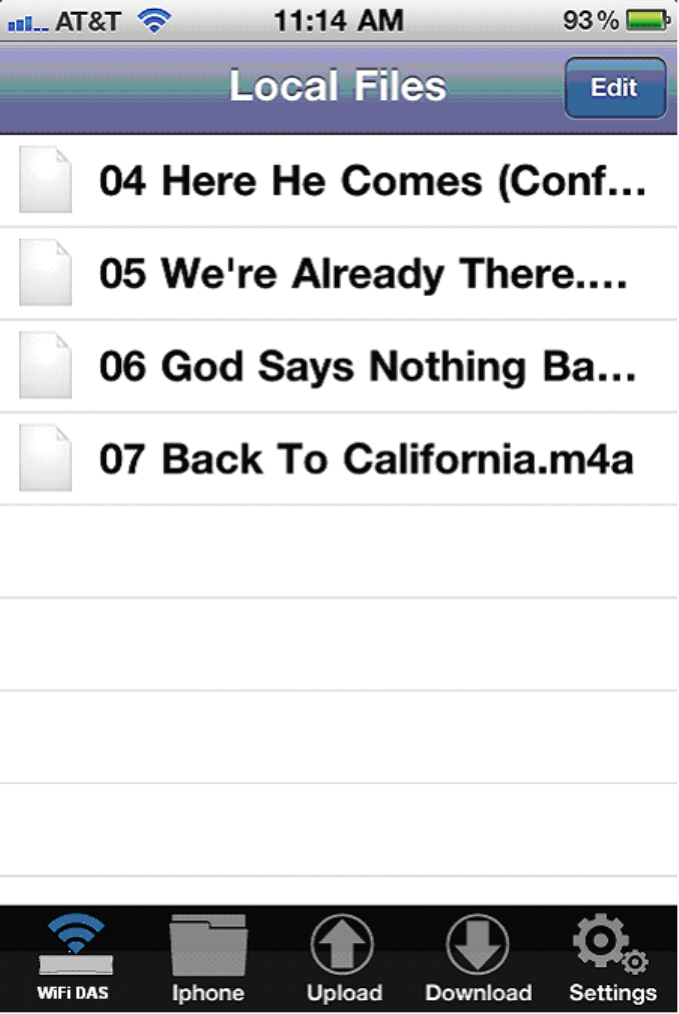

Playing Music
1. Select the audio file that you wish to play.

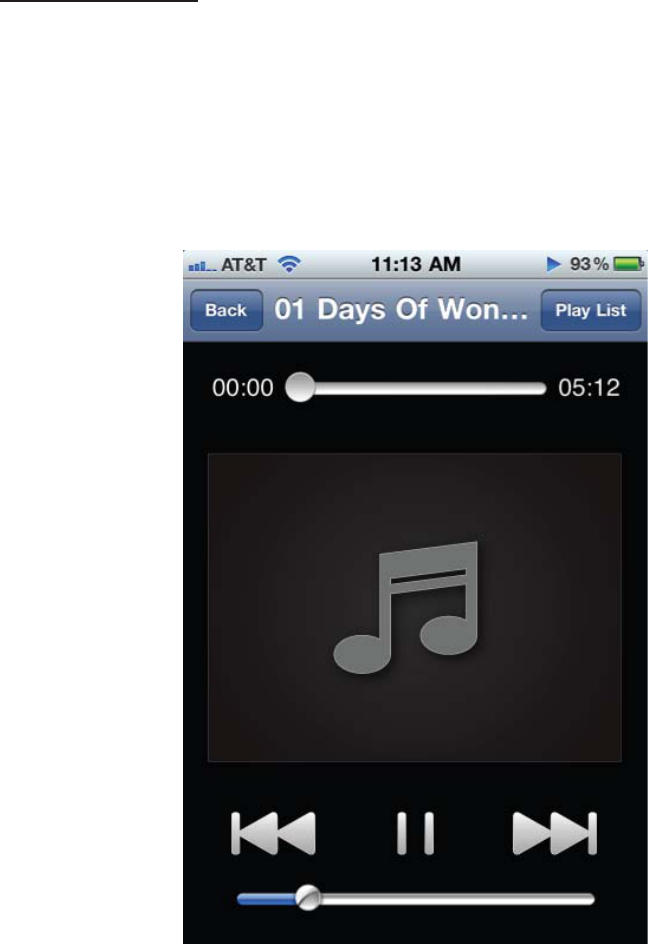

2. Once the song begins to play the music player will
appear.
3. Select the “Back” button if you wish to return to the main
10
Section II
Playing Video
1. Select the video file that you wish to play.

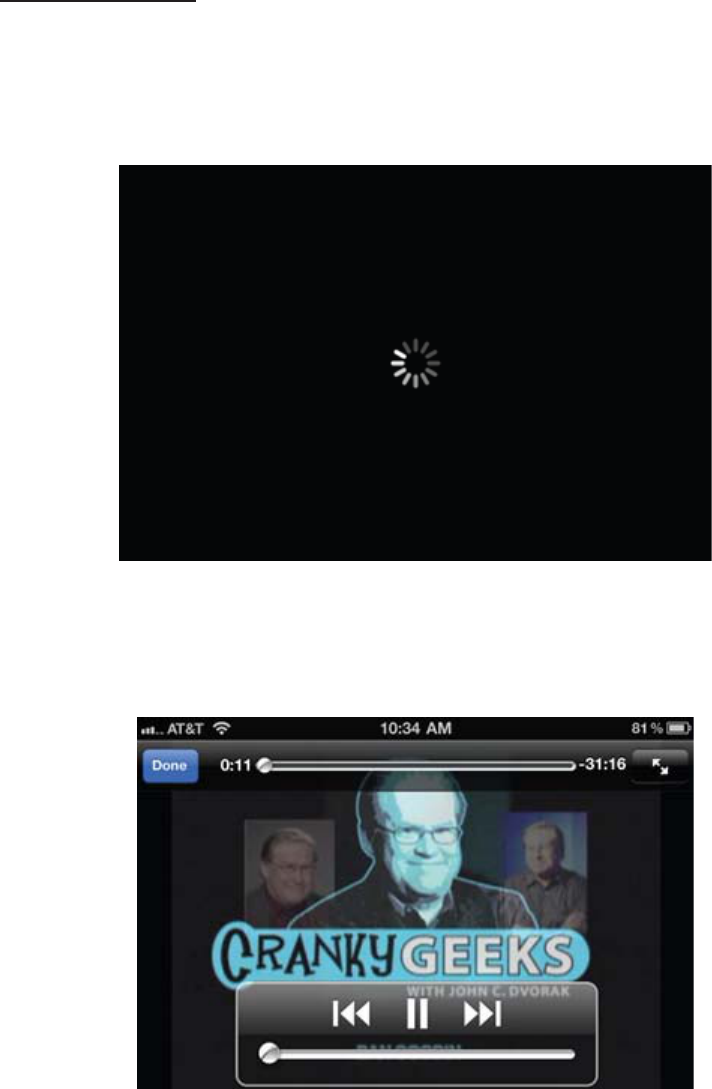

2. Once the video has been selected it will need to load.
3. Once the video finishes loading it will start playing
11
Section II
Viewing Photos
1. Select the photo you wish to view.

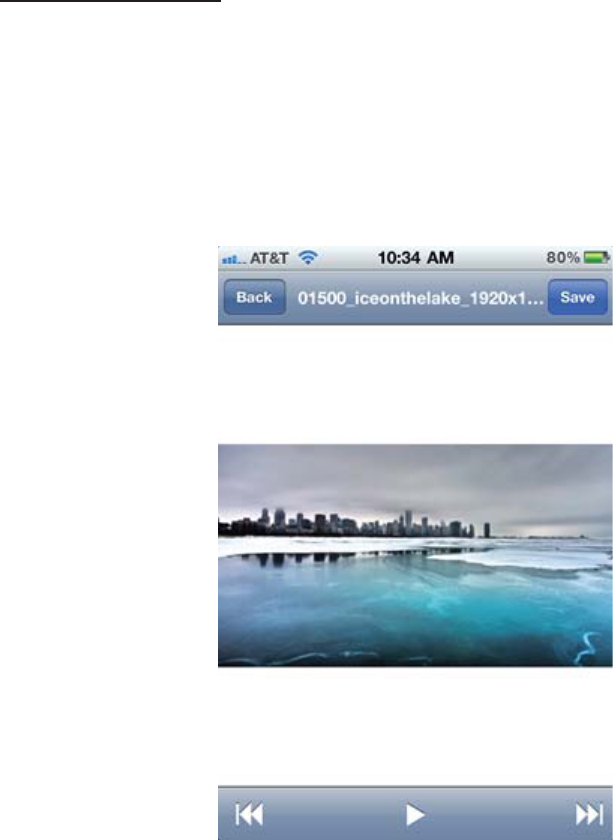

2. Once you have selected the photo the picture viewer will
start.
Pressing the “Play” button will begin the slideshow
12
Section II
The slide show settings can be changed by pressing the
“Settings” tab on the main screen.
13
Section II
Uploading photos/video to HDW-P500U3
1. Select the “upload” tab.

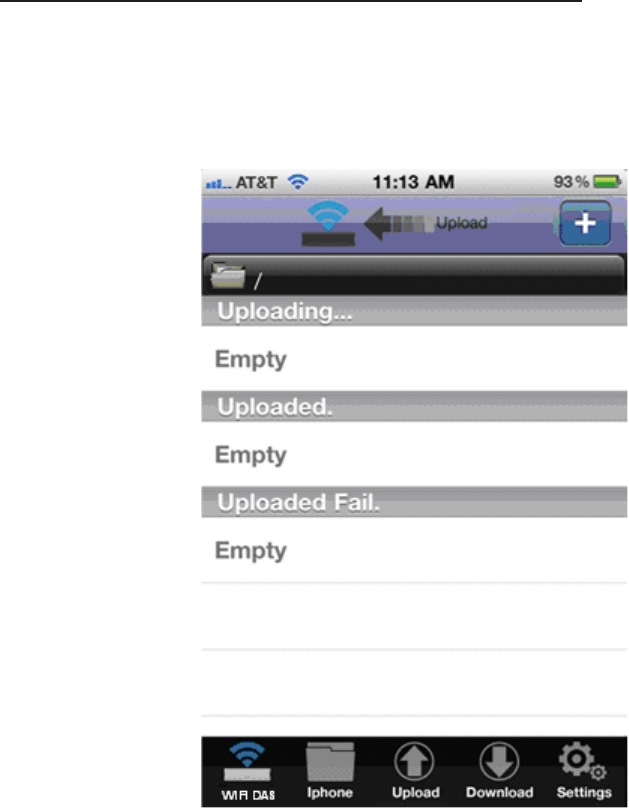

2. The upload screen will then appear.
3. Press the “+” button.
4. Select the files that you wish to upload to the
HDW-P500U3. Once the files have been chosen, press the
“upload” button. This should start the upload process to the
HDW-P500U3.
14
Section II
Downloading files from HDW-P500U3 to your phone or tablet
1. Select the “download” tab.
2. The download screen will then appear.
3. Press the “+” button.

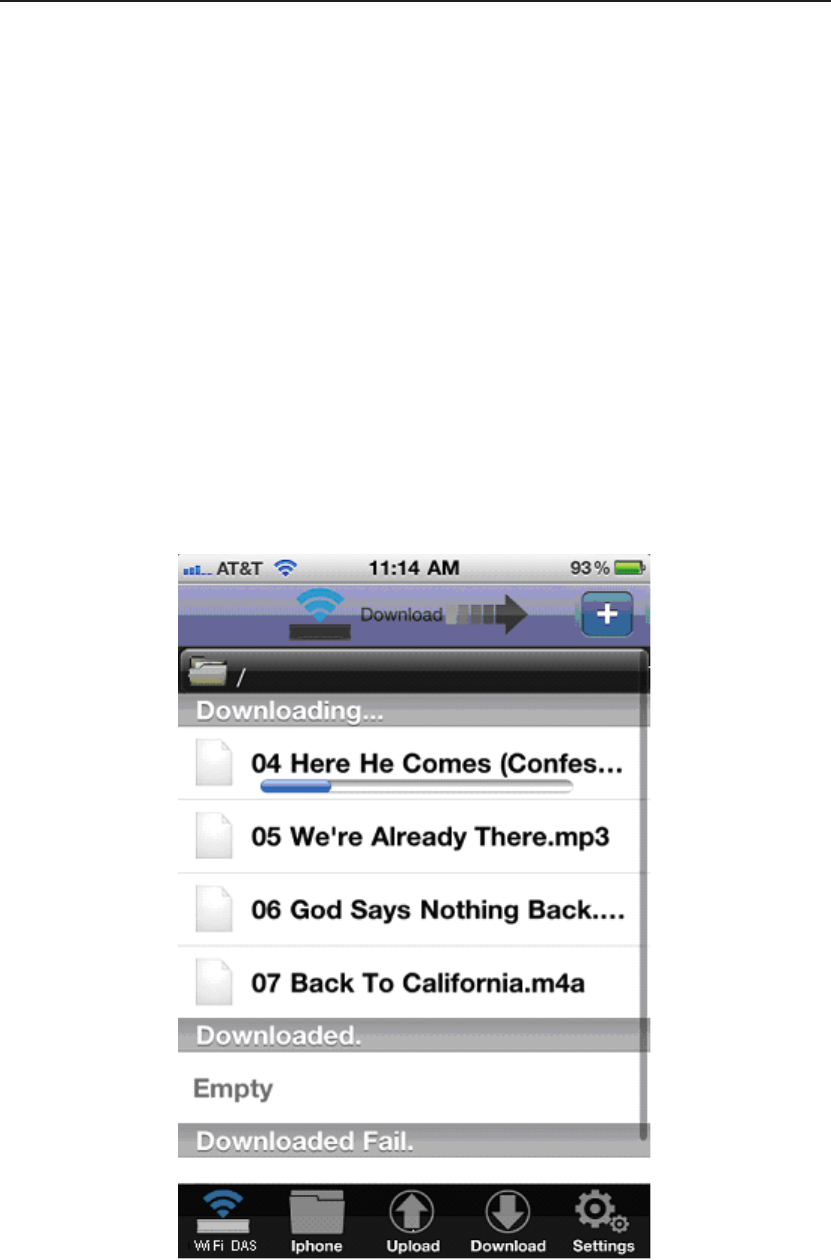

4. Select the files that you wish to download from
HDW-P500U3. Once the files have been chosen, press
the “download” button. This should start the download
process from HDW-P500U3 to your device
15
Section II
5. Files that have been downloaded are located in the
“MyDevice” folder.
16
Section II
Create/Copy/Move Files or Folders
1. Select the “MyDevice” folder tab.
2. Select the “edit” tab.

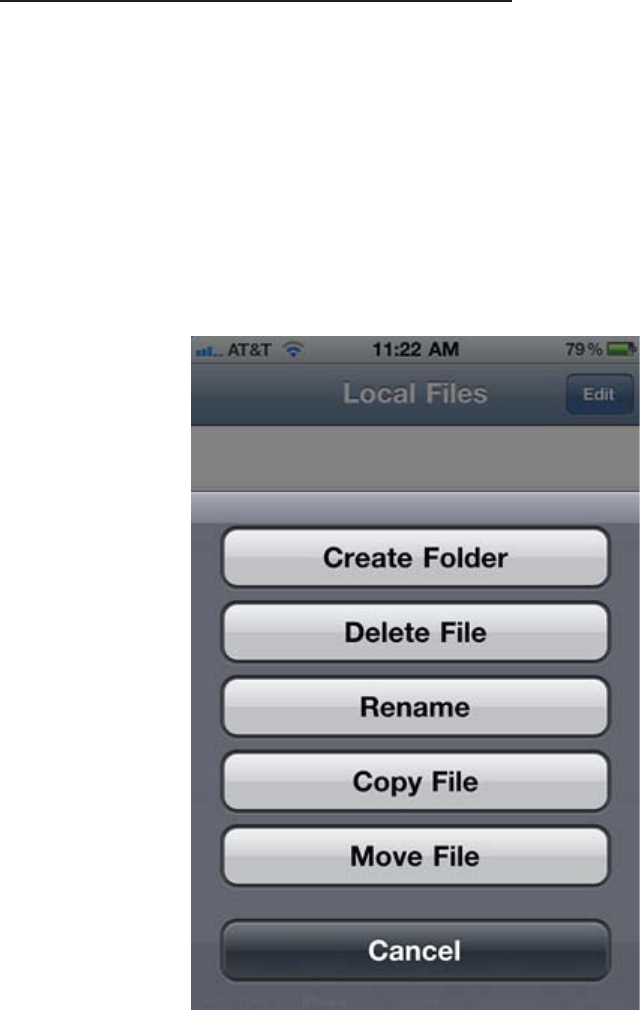

3. You can now create a new folder, in order to move or
copy files to.
17
Section II
4. In order to copy/move a file you will need to select the
files.
5. Choose the files or folders that will be copied or moved.
6. Once the files have been chosen press the “Done” tab.
7. Select the new folder that was created.
18
Section II

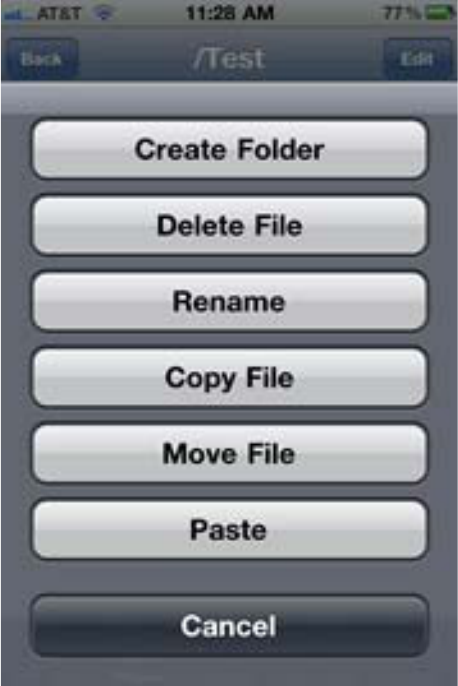

8. Press the “edit” tab. A new screen will appear.
9. Press the “paste” tab. The files that were selected will
now be copied/moved to the new folder.
19
Section III
Connecting to the Wi-Fi Settings of Your Operating System

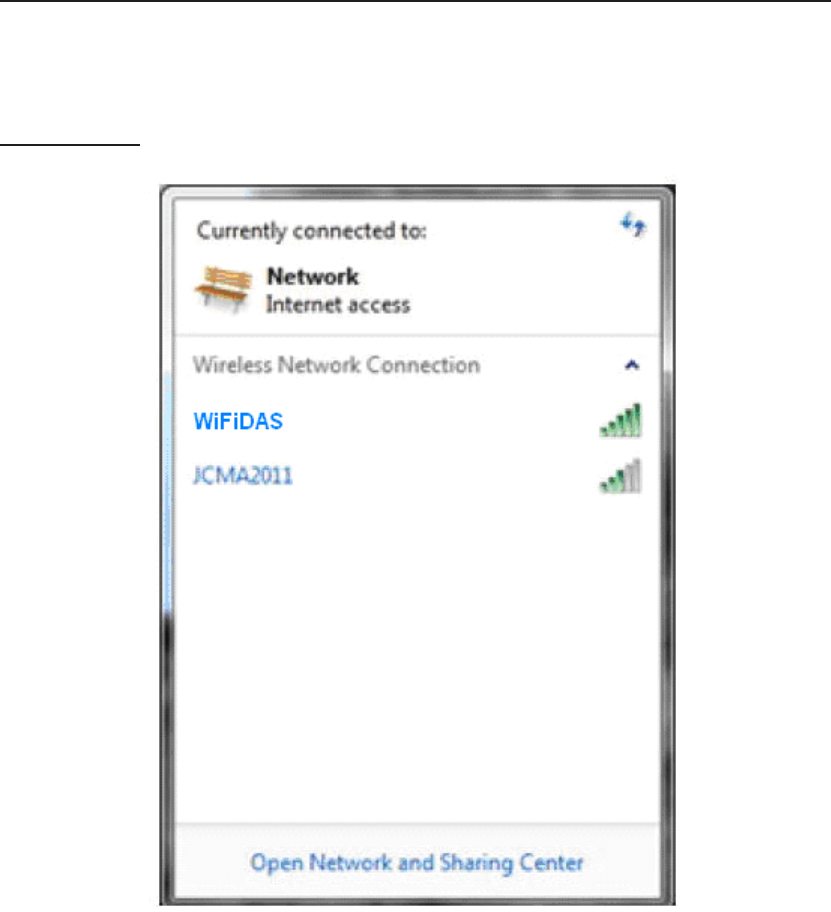

1. Navigate to the Wi-Fi settings of your operating system
Window 7
20
Section III
OSX

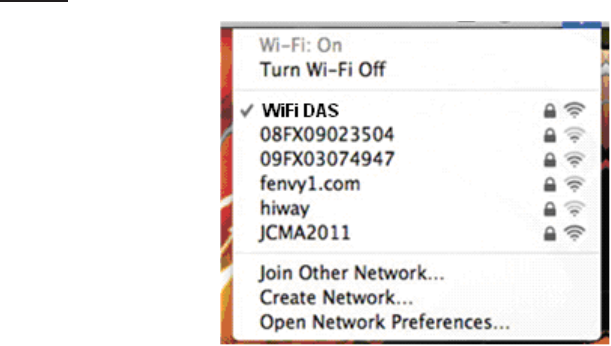

2. Select the hotspot called “WiFi DAS”.
3. Make sure an IP address has been assigned.
21
Section III
Mounting the Hard Drive
Once you have connected your computer to the WiFi DAS,
the device should appear within your home network. If the
device does not appear you will need to manually connect
to it using the Samba commands. The following
procedures are for OSX and Windows.
OSX
1. Click on The “Finder” icon on your dock.
2. Navigate to the upper taskbar and select “Go”.
3. Click on “Connect to Server”.

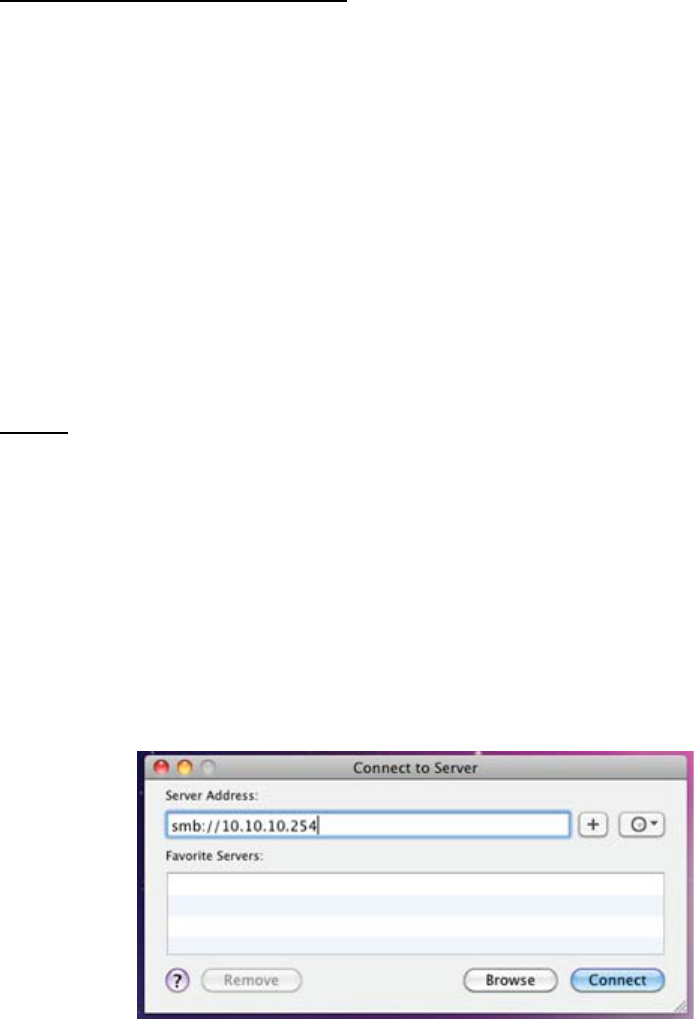

4. In the “Server Address” space, type in smb://10.10.10.254
5. The system will prompt you for a username and
password. Both the username and password are “admin”.
6. The drive will then mount on your desktop.
22
Section III
Windows
1. Click on The Windows icon on your taskbar.

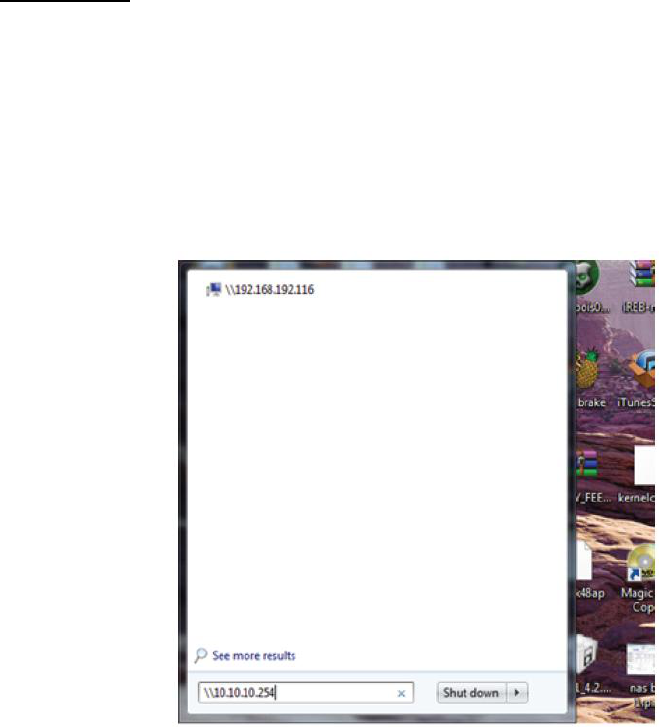

2. In the “search programs and files” box, type in
\\10.10.10.254
3. The system will prompt you for a username and
password. Both the username and password are
“admin”.
4. The drive will then mount under windows explorer.
23
Section IV
Accessing the WiFi DAS GUI
The HDW-P500U3 also includes a user interface that
allows
users to change certain settings such as; network security,
SSID, passwords, Static IP address, etc. The following
procedures work on both PC and Mac.

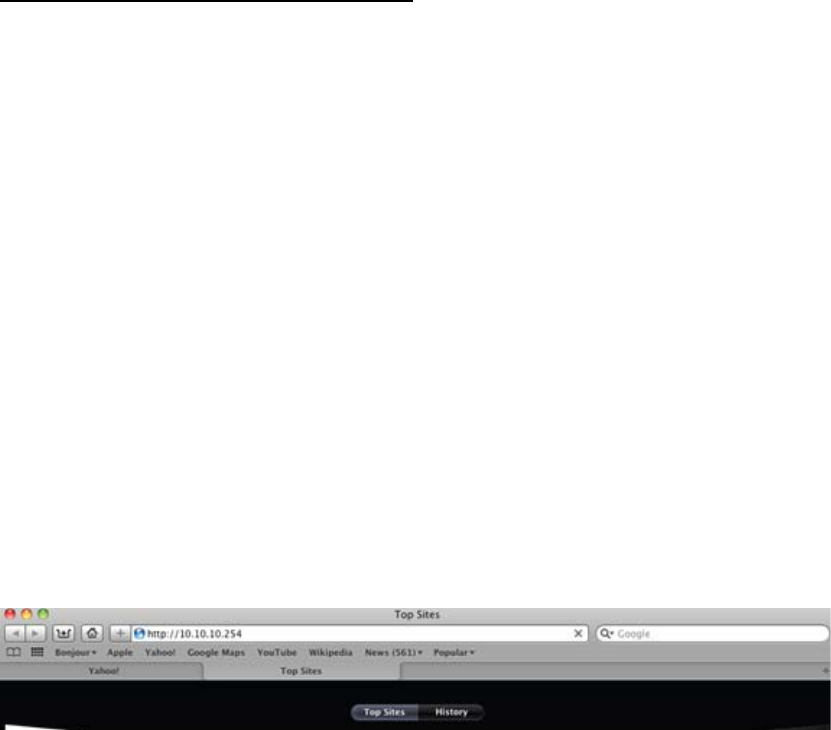

1. Open a web browser (IE, Firefox or Safari)
2. In the address bar type in the following:
http://10.10.10.254
24
Section IV
3. The system will prompt you for a username and
password. Both the username and password are “admin”.

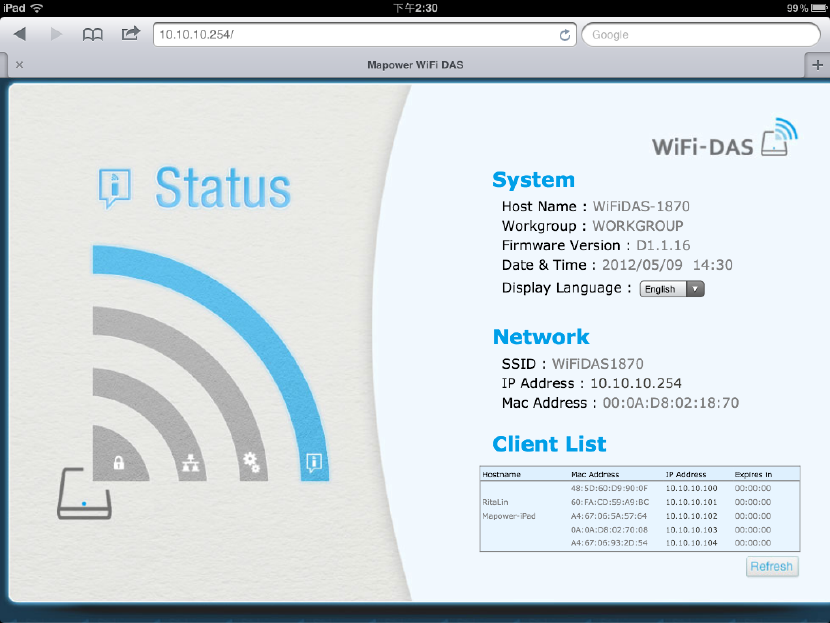

4. Once the username and password has been entered the
following page will appear.
25

- 1 -
Appendix
Specications
Wireless LAN Interface
Standard Compliance IEEE802.11n/g/b
Transmission Method Direct Sequence Spread Spectrum (DSSS), OFDM
Transmission Rate
802.11n/g/b
802.11n : 150Mbps Maximum
802.11g : 54Mbps Maximum
802.11b : 11Mbps Maximum
Frequency Range 2,412 - 2,462 MHz (Channels 1 - 11)
Access Mode Infrastructure Mode, WDS
Security AOSS, WPS, WPA2-PSK (TKIP/AES), WPA-PSK (TKIP/AES), 128/64bit WEP
USB Interface
Interface USB 3.0 (USB 2.0)
Connector Micro-B
Transfer speed USB 3.0 : 5 Gbps Maximum
USB 2.0 : 480 Mbps Maximum
Other
Power Supply External AC 100 - 240 V Universal, 50/60 Hz
DC 5 V ± 5 %
Power Consumption TBD
Dimensions 127 x 79 x 22 mm (5 x 3.2 x 0.9 in.)
Weight TBD
Operating Environment TBD
