Instant Wireless®Series

User Guide

Wireless-G

PCI Adapter

Use this Guide to install:

WMP54G

Reserved. Instant Wireless, Linksys, and the Linksys logo are registered trademarks of

Linksys Group, Inc. Microsoft, Windows, and the Windows logo are registered trade-

marks of Microsoft Corporation. All other trademarks and brand names are the proper-

ty of their respective proprietors.

LIMITED WARRANTY

Linksys guarantees that every Instant Wireless®Wireless-G PCI Adapter will be free from

physical defects in material and workmanship for one year from the date of purchase,

when used within the limits set forth in the Specifications section of this User Guide. If the

product proves defective during this warranty period, call Linksys Technical Support in

order to obtain a Return Authorization number. BE SURE TO HAVE YOUR PROOF OF

PURCHASE ON HAND WHEN CALLING. When returning a product, mark the Return

Authorization number clearly on the outside of the package and include a copy of your

original proof of purchase. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT

PROOF OF PURCHASE. All customers located outside of the United States of America

and Canada shall be held responsible for shipping and handling charges.

IN NO EVENT SHALL LINKSYS'S LIABILITY EXCEED THE PRICE PAID FOR THE PROD-

UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-

AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-

WARE, OR ITS DOCUMENTATION. LINKSYS OFFERS NO REFUNDS FOR ITS PROD-

UCTS. Linksys makes no warranty or representation, expressed, implied, or statutory,

with respect to its products or the contents or use of this documentation and all accom-

panying software, and specifically disclaims its quality, performance, merchantability, or

fitness for any particular purpose. Linksys reserves the right to revise or update its prod-

ucts, software, or documentation without obligation to notify any individual or entity.

Please direct all inquiries to:

Linksys P.O. Box 18558, Irvine, CA 92623.

SAFETY AND REGULATORY NOTICES

FCC STATEMENT

The Instant Wireless®Wireless-G PCI Adapter has been tested and complies with the

specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may

cause undesired operation.

These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can radiate radio fre-

quency energy and, if not installed and used according to the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that inter-

ference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which is found by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment or devices

• Connect the equipment to an outlet other than the receiver's

• Consult a dealer or an experienced radio/TV technician for assistance

FCC Caution: Any change or modification to the product not expressly approved by

Linksys could void the user's authority to operate the device.

FCC RF Radiation Exposure Statement

To comply with the FCC and ANSI C95.1 RF exposure limits, the antenna(s) for this

device must comply with the following:

• Access points with 2.4 GHz or 5 GHz integrated antenna must operate with a sepa-

ration distance of at least 20 cm from all persons using the cable provided and must

not be co-located or operating in conjunction with any other antenna or transmitter.

End-users must be provided with specific operations for satisfying RF exposure compli-

ance.

Note: Dual antennas used for diversity operation are not considered co-located.

Canadian Department of Communications Industry Canada (IC) Notice

This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 et CNR-210

du Canada.

"To prevent radio interference to the licensed service, this device is intended to be oper-

ated indoors and away from windows to provide maximum shielding. Equipment (or its

transmit antenna) that is installed outdoors is subject to licensing."

" Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une

licence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres afin de fournir

un écran de blindage maximal. Si le matériel (ou son antenne d'émission) est installé à

l'extérieur, il doit faire l'objet d'une licence. "

EC DECLARATION OF CONFORMITY (EUROPE)

Linksys Group declares that the Instant Wireless®Series products included in the Instant

Wireless®Series conform to the specifications listed below, following the provisions of the

European R&TTE directive 1999/5/EC, EMC directive 89/336/EEC, and Low Voltage

directive 73/23/EEC:

For 11Mpbs, 2.4 GHz devices with 100 mW radios, the following standards were applied:

• ETS 300-826, 301 489-1 General EMC requirements for Radio equipment.

• EN 609 50 Safety

• ETS 300-328-2 Technical requirements for Radio equipment.

Caution: This equipment is intended to be used in all EU and EFTA countries. Outdoor

use may be restricted to certain frequencies and/or may require a license for operation.

Contact local Authority for procedure to follow.

Note: Combinations of power levels and antennas resulting in a radiated power level of

above 100 mW equivalent isotropic radiated power (EIRP) are considered as not com-

pliant with the above mentioned directive and are not allowed for use within the European

community and countries that have adopted the European R&TTE directive 1999/5/EC

and/or the CEPT recommendation Rec 70.03.

For more details on legal combinations of power levels and antennas, contact Linksys

Corporate Compliance.

• Linksys Group vakuuttaa täten että Instant Wireless®Wireless-G PCI Adapter tyyp-

pinen laite on direktiivin 1999/5/EY, direktiivin 89/336/EEC ja direktiivin 73/23/EEC

oleellisten vaatimusten ja sitä koskevien näiden direktiivien muiden ehtojen

mukainen.

• Linksys Group déclare que la Instant Wireless®Wireless-G PCI Adapter est conforme

aux conditions essentielles et aux dispositions relatives à la directive 1999/5/EC, la

directive 89/336/EEC, et à la directive 73/23/EEC.

• Belgique B L'utilisation en extérieur est autorisé sur le canal 11 (2462 MHz), 12 (2467

MHz), et 13 (2472 MHz). Dans le cas d'une utilisation privée, à l'extérieur d'un bâti-

ment, au-dessus d'un espace public, aucun enregistrement n'est nécessaire pour

une distance de moins de 300m. Pour une distance supérieure à 300m un enreg-

istrement auprès de l'IBPT est requise. Pour une utilisation publique à l'extérieur de

bâtiments, une licence de l'IBPT est requise. Pour les enregistrements et licences,

veuillez contacter l'IBPT.

• France F:

2.4 GHz Bande : les canaux 10, 11, 12, 13 (2457, 2462, 2467, et 2472 MHz respec-

tivement) sont complétement libres d'utilisation en France (en utilisation intérieur).

Pour ce qui est des autres canaux, ils peuvent être soumis à autorisation selon le

départment. L'utilisation en extérieur est soumis à autorisation préalable et très

restreint.

2.4 GHz Band: only channels 10, 11, 12, 13 (2457, 2462, 2467, and 2472 MHz

respectively) may be used freely in France for indoor use. License required for out-

door installations.

• Deutschland D: Anmeldung im Outdoor-Bereich notwending, aber nicht genehmi-

gungspflichtig. Bitte mit Händler die Vorgehensweise abstimmen.

• Germany D: License required for outdoor installations. Check with reseller for proce-

dure to follow.

• Italia I: E' necessaria la concessione ministeriale anche per l'uso interno. Verificare

con i rivenditori la procedura da seguire. L'uso per installazione in esterni non e' per-

messa.

• Italy I: License required for indoor use. Use with outdoor installations not allowed.

• The Netherlands NL License required for outdoor installations. Check with reseller for

procedure to follow.

• Nederlands NL Licentie verplicht voor gebruik met buitenantennes. Neem contact op

met verkoper voor juiste procedure.

UG-WMP54G-121102NC KL

Table of Contents

Chapter 1: Introduction 1

The Wireless-G PCI Adapter 1

Features 1

Chapter 2: Planning Your Wireless Network 2

Network Topology 2

Ad-Hoc versus Infrastructure Mode 2

Chapter 3: Getting to Know the

Wireless-G PCI Adapter 4

Chapter 4: Software Installation and Configuration

for Windows 98SE, Me, and 2000 5

Overview 5

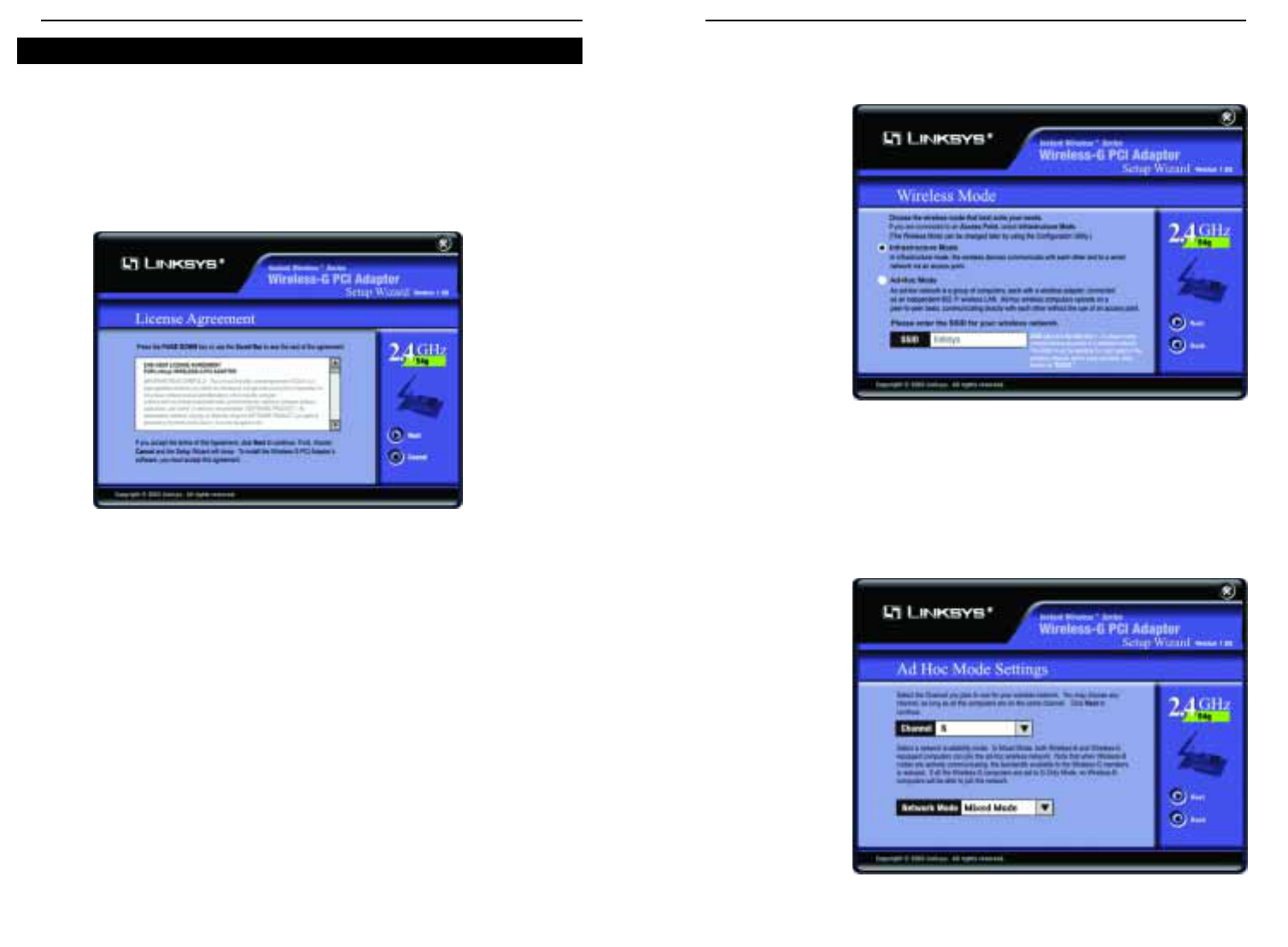

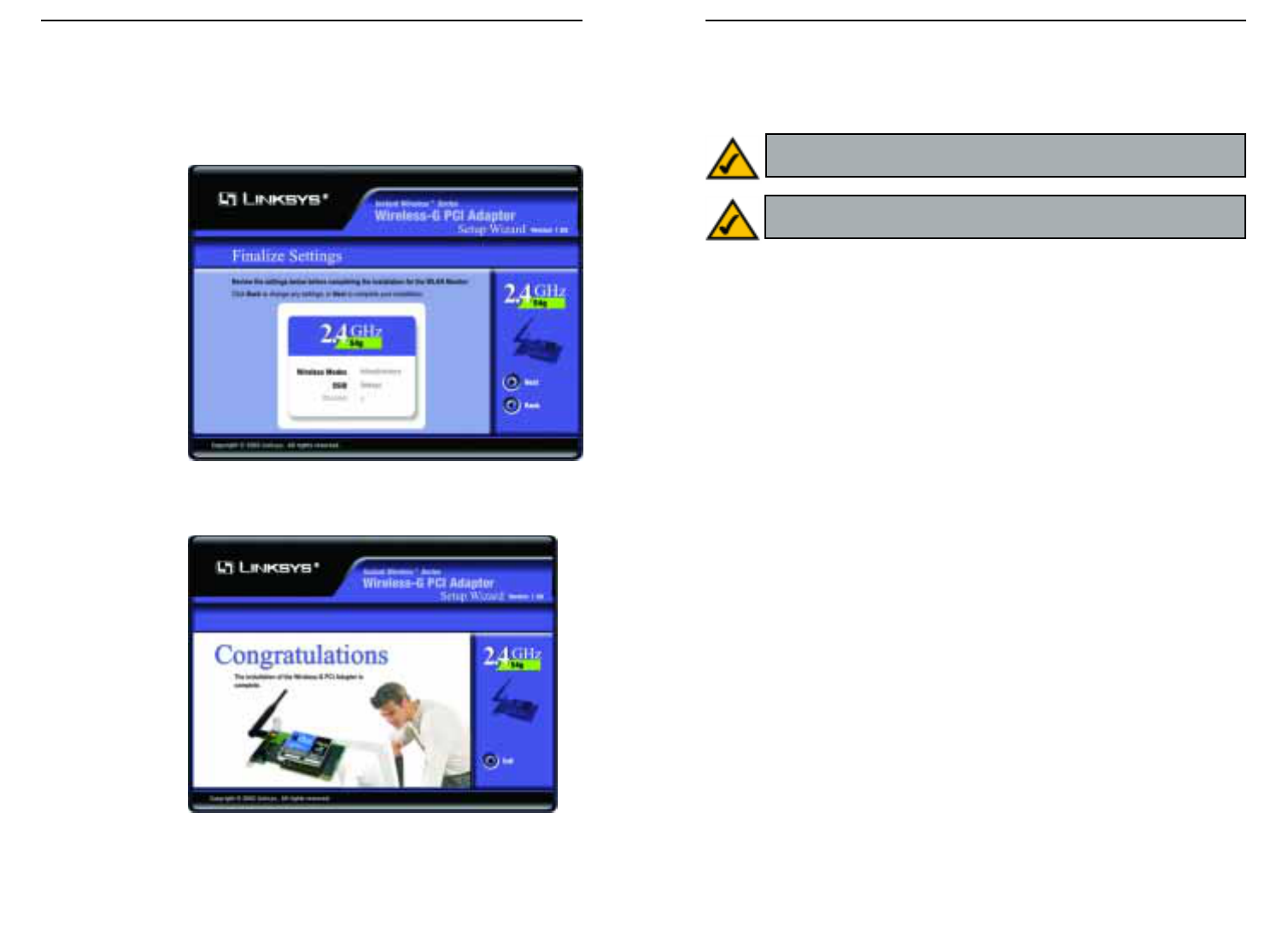

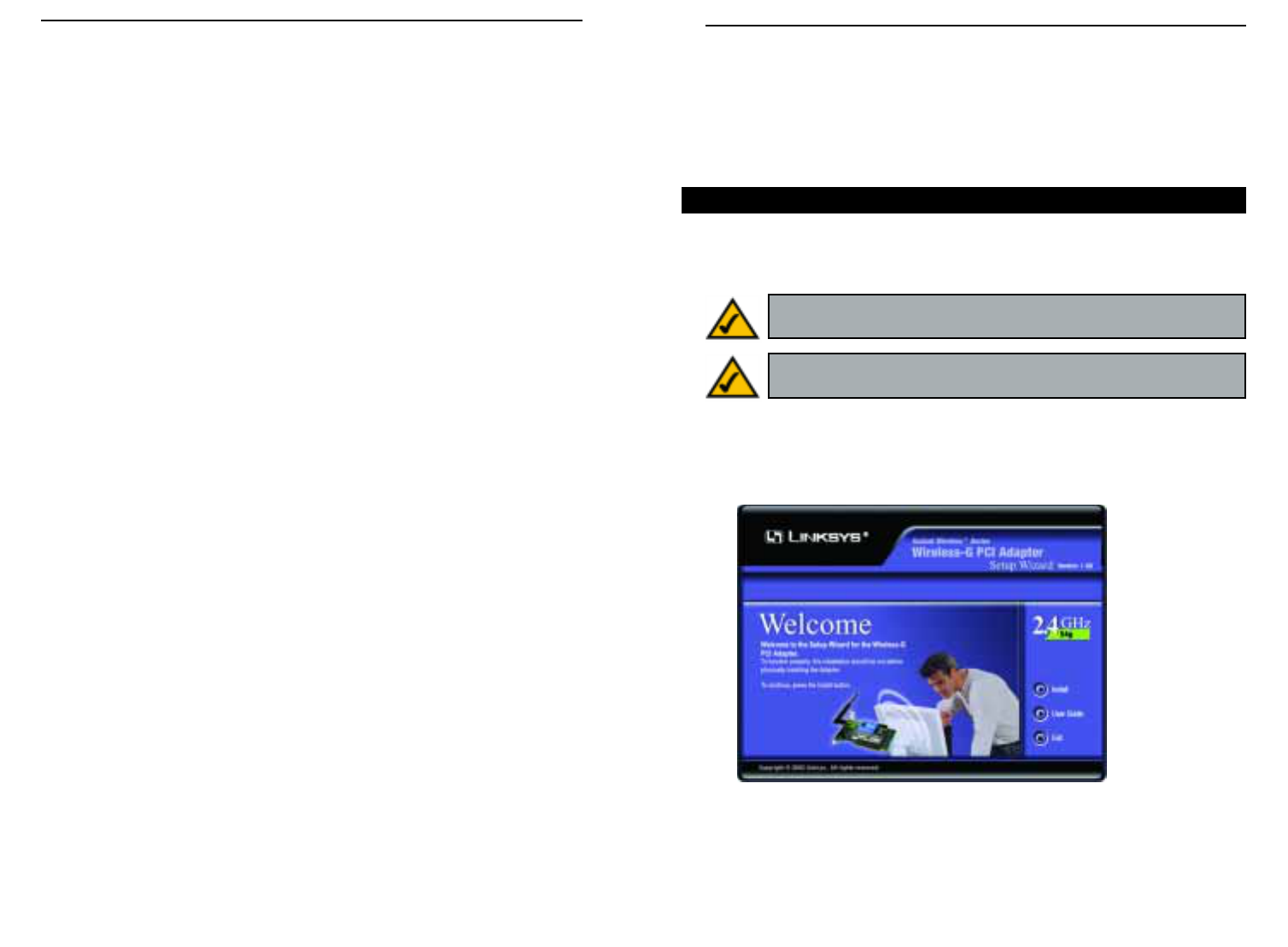

Setup Wizard Instructions for Windows 98SE, Me, and 2000 6

Chapter 5: Hardware Installation 9

Chapter 6: Driver Installation and Configuration for

Windows XP 10

Overview 10

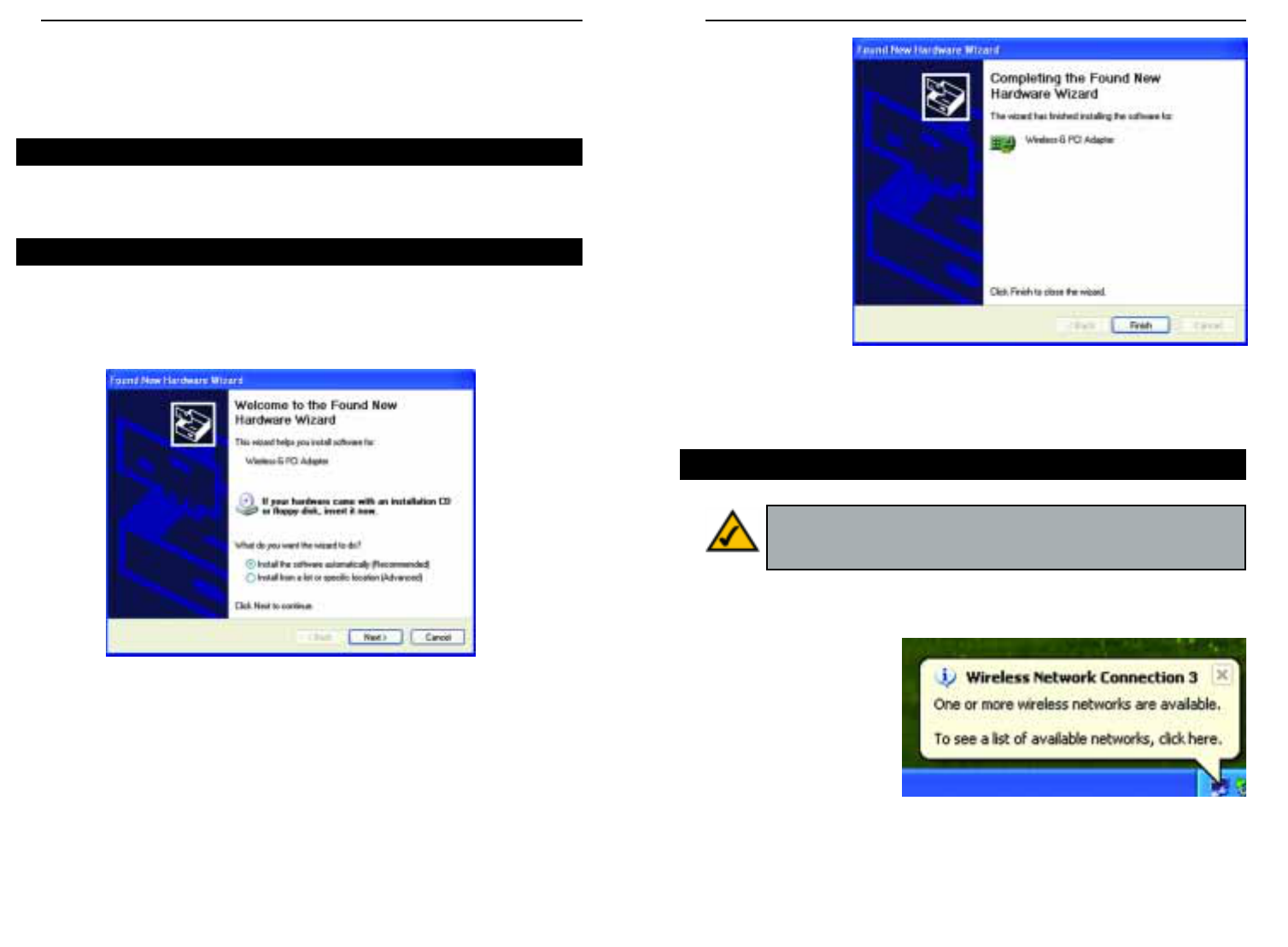

Driver Installation for Windows XP 10

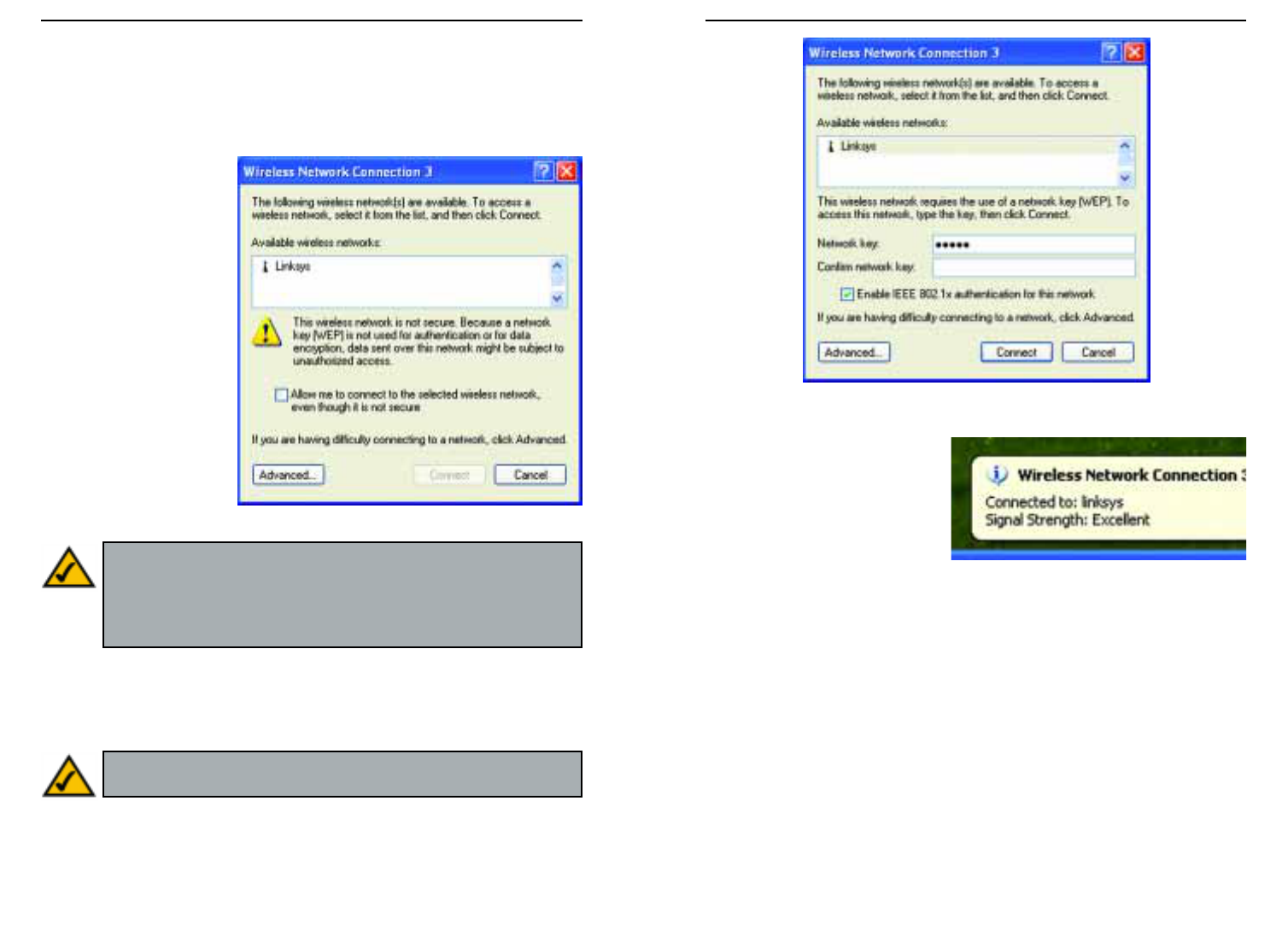

Windows XP Wireless Zero Configuration 12

Chapter 7: Using the WLAN Monitor for Windows

98SE, Me, and 2000 14

Overview 14

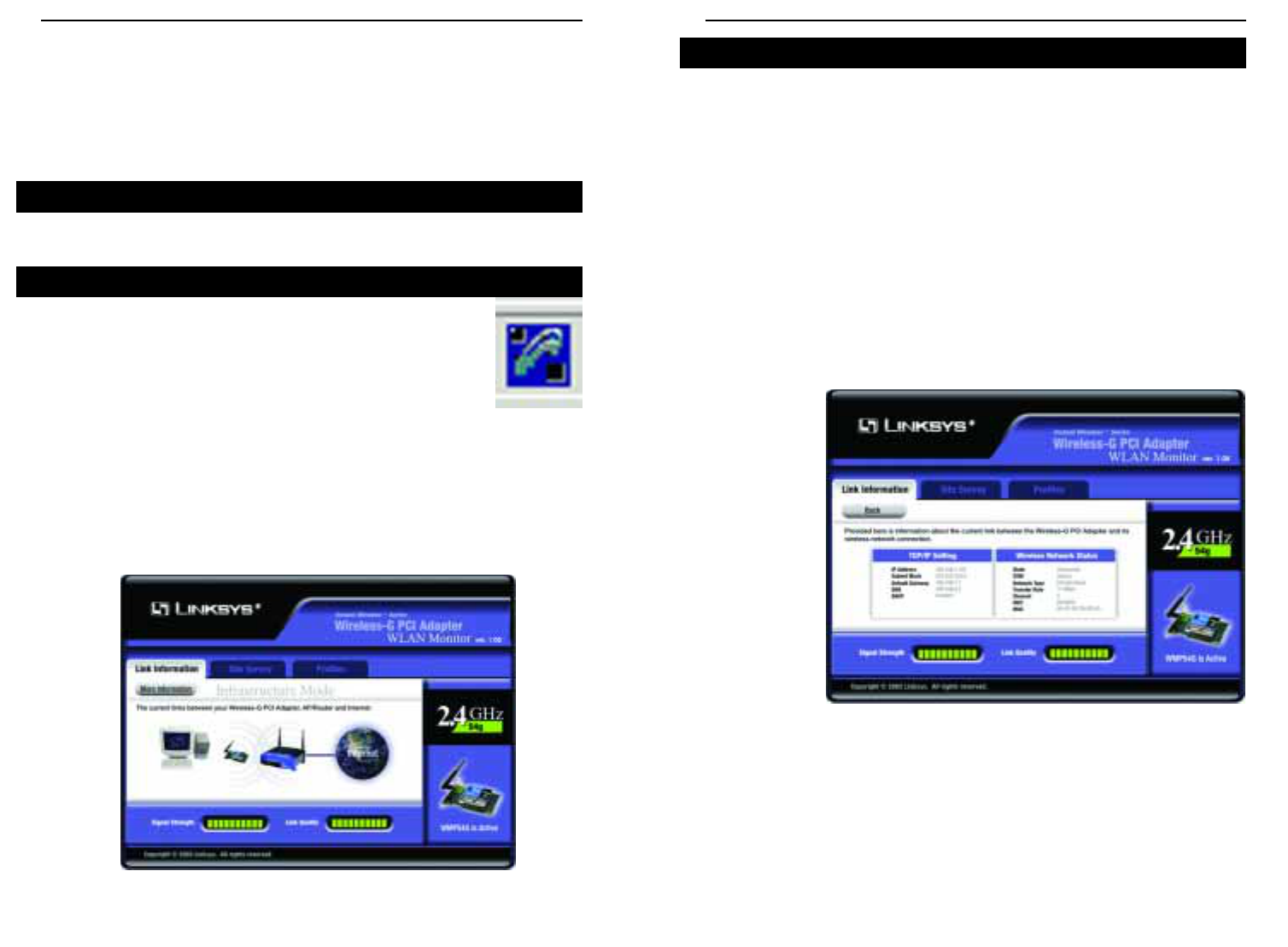

Accessing the WLAN Monitor 14

Link Information 15

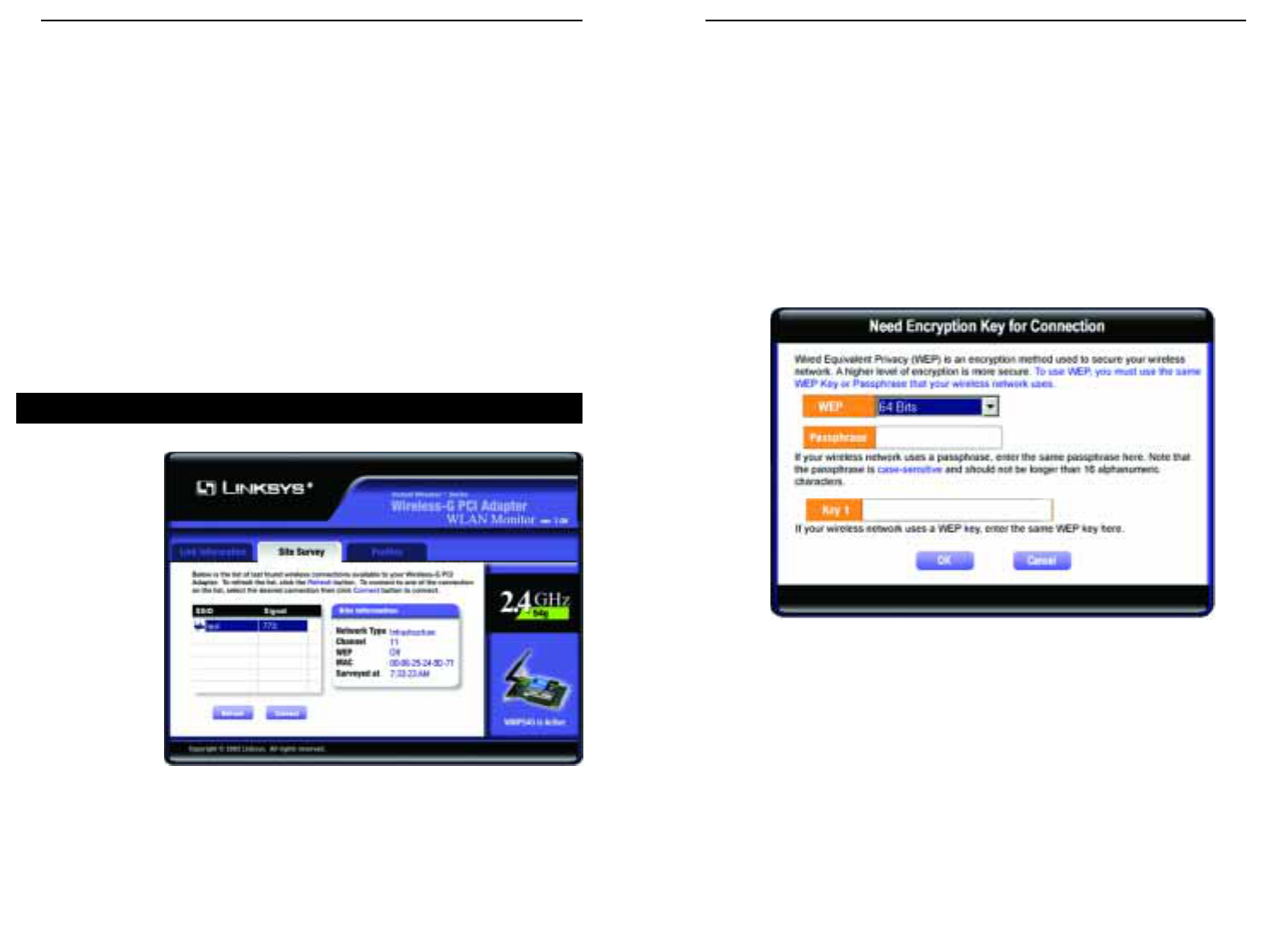

Site Survey 16

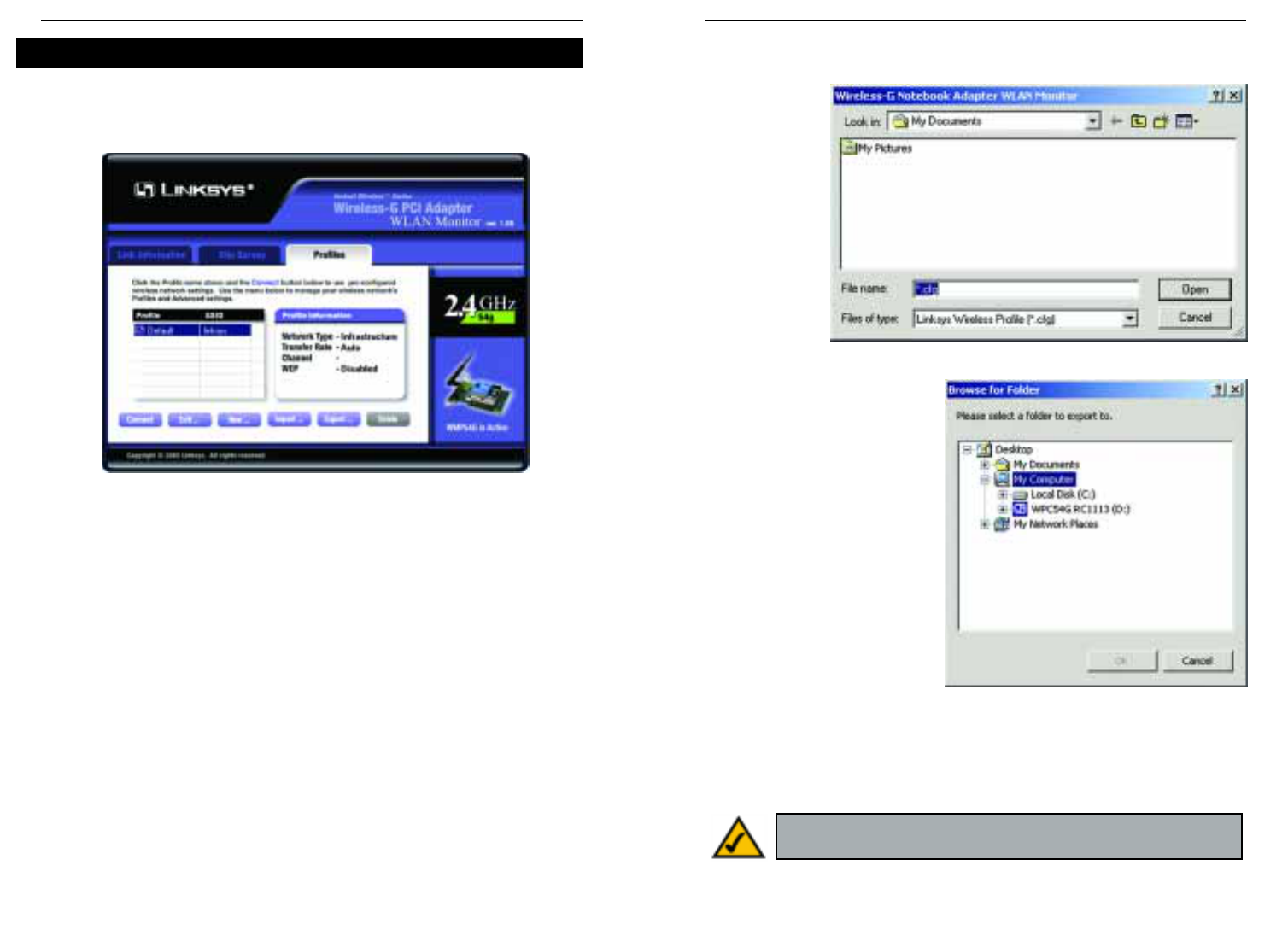

Profiles 18

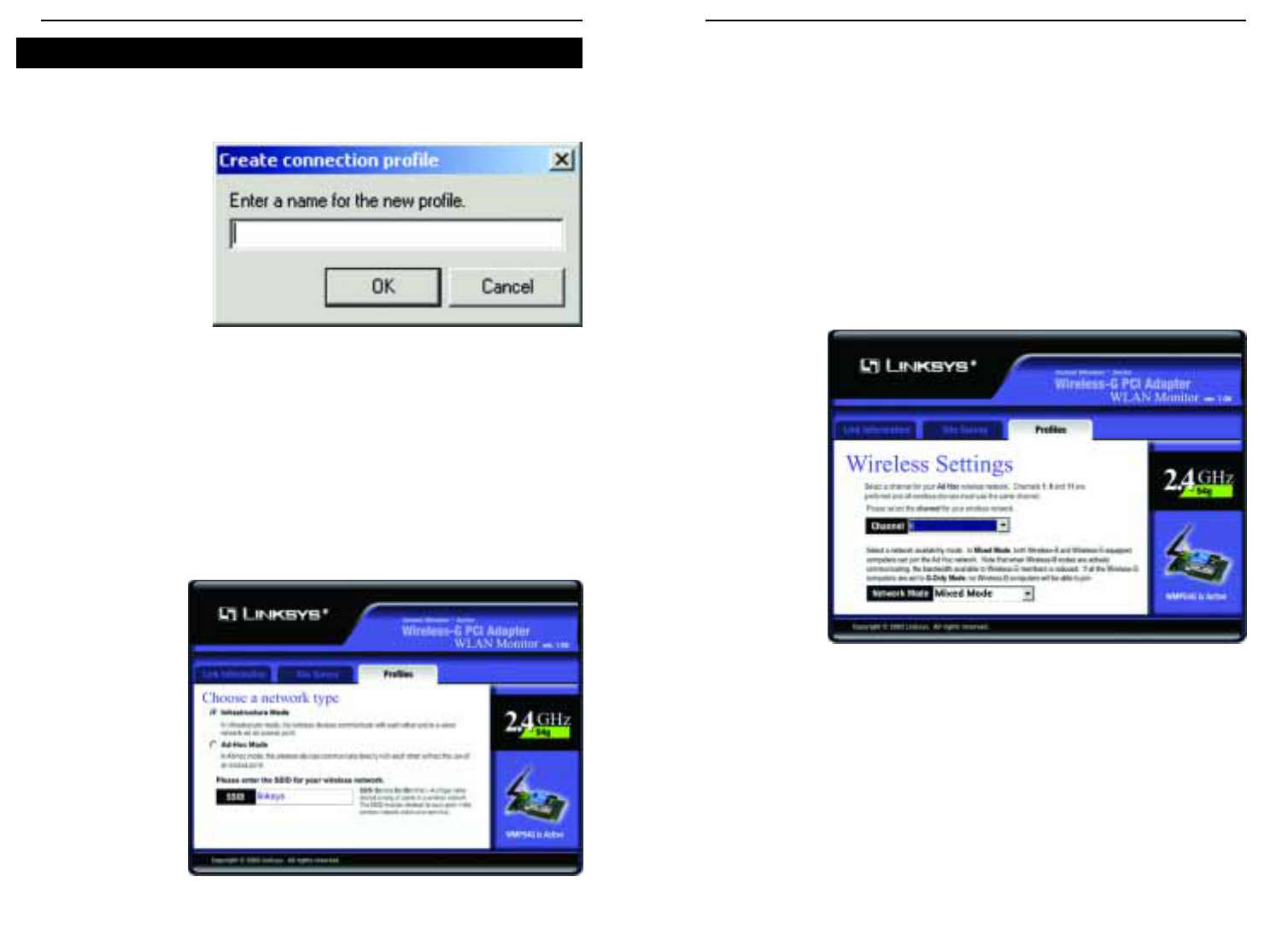

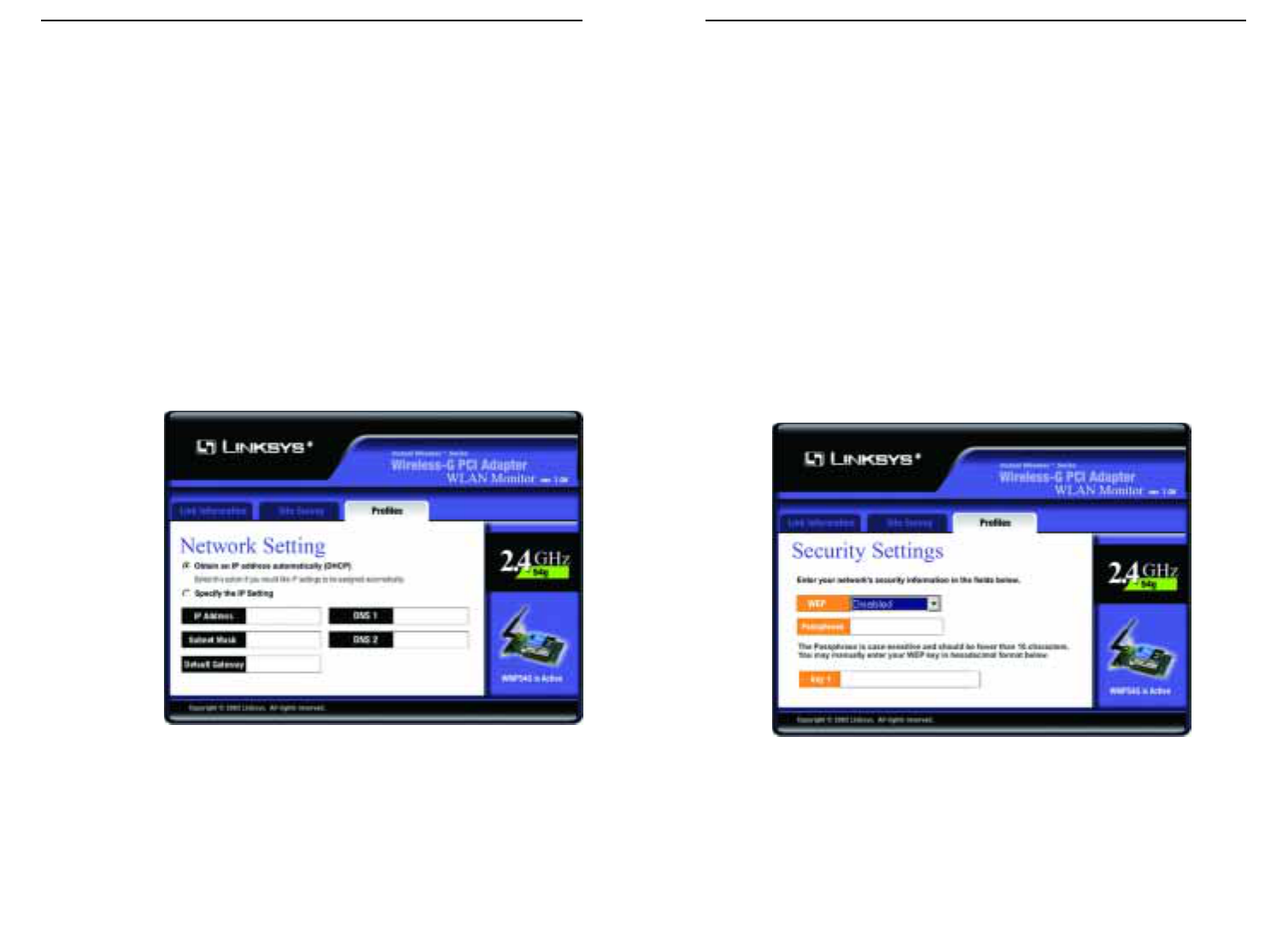

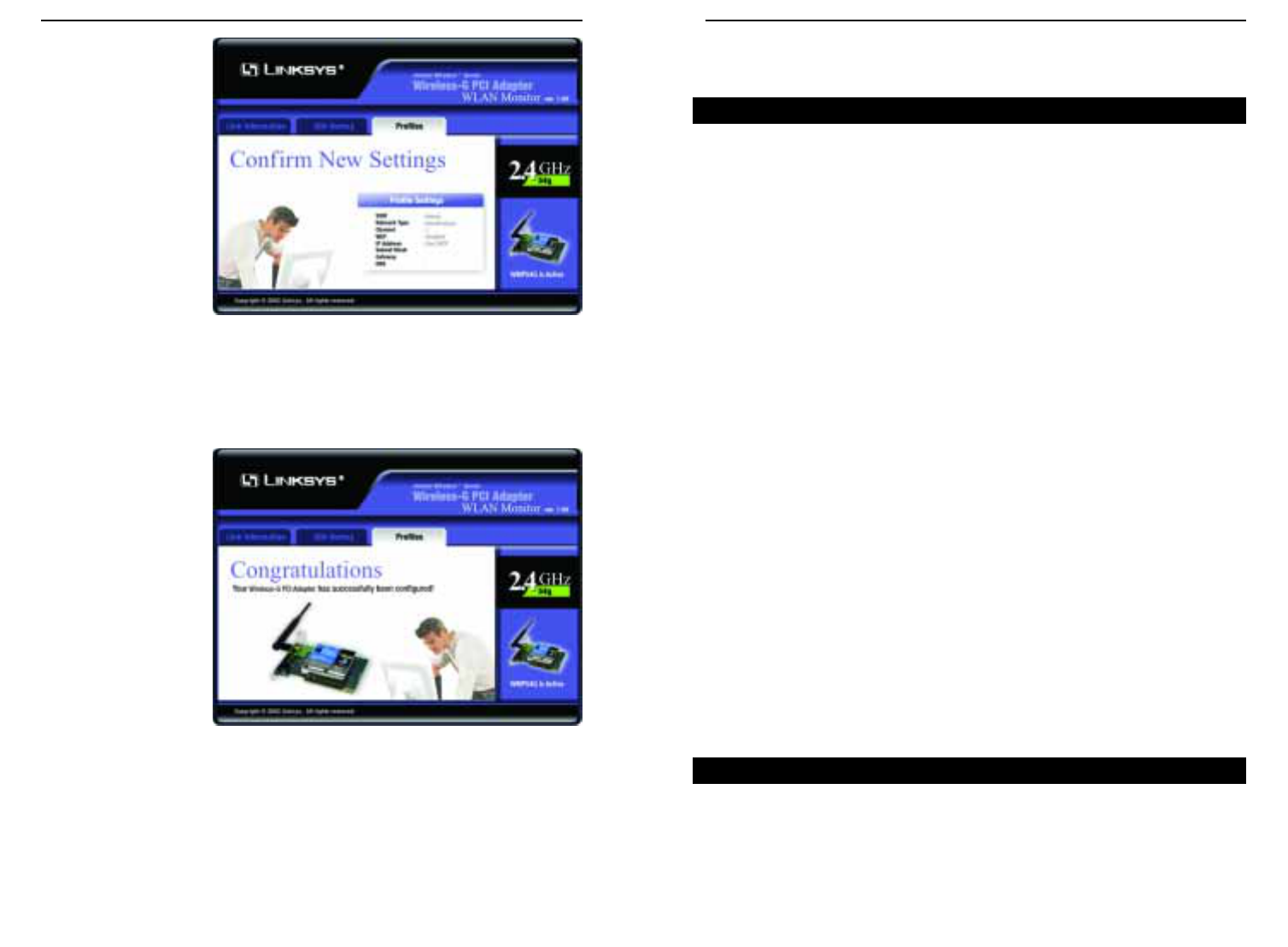

Creating a New Profile 20

Wireless-G PCI Adapter

Chapter 1:Introduction

The Linksys Wireless-G PCI Adapter installs in most desktops and lets you put

your computer almost anywhere in the building, without the cost and hassle of

running network cables. Now you don't have to drill holes in your walls and

climb through the attic or cellar to get connected to the network. Once you're

connected, you can keep in touch with your e-mail, access the Internet, use

instant messaging to chat with friends, and share files and other resources such

as printers and network storage with other computers on the network.

The Wireless-G PCI Adapter connects you with Wireless-G networks at an

incredible 54Mbps! And for added versatility, it can also interoperate with all

the 11Mbps Wireless-B (802.11b) products found in homes, businesses, and

public wireless hotspots around the country. And in either mode, your wireless

communications are protected by up to 128-bit encryption, so your data stays

secure.

So don't hassle with running cables through your house - get your desktop con-

nected the easy way with the Linksys Wireless-G PCI Adapter.

• Operates in the 2.4Ghz frequency spectrum with throughput of up to 54

Mbps

• Complies with IEEE 802.11g draft standards, and backwards compatible

with IEEE 802.11b products

• Up to 128-bit WEP encryption

• 32-bit PCI Interface

• Compatible with Windows 98SE, Millennium, 2000 and XP

The Wireless-G PCI Adapter

Features

Instant Wireless®Series

Appendix A: Troubleshooting 25

Common Problems and Solutions 25

Frequently Asked Questions 25

Appendix B: Glossary 29

Appendix C: Specifications 37

Environmental 38

Appendix D: Warranty Information 39

Appendix E: Contact Information 40

Wireless-G PCI AdapterInstant Wireless®Series

If the wireless network is relatively small and needs to share resources only

with the other computers on the wireless network, then the ad-hoc mode can

be used. (See Figure 2-2.) Ad-hoc mode allows computers equipped with wire-

less transmitters and receivers to communicate directly with each other, elimi-

nating the need for an access point. The drawback of this mode is that, in Ad-

Hoc mode, wireless-equipped computers are not able to communicate with

computers on a wired network. And, of course, communication between the

wireless-equipped computers is limited by the distance and interference direct-

ly between them.

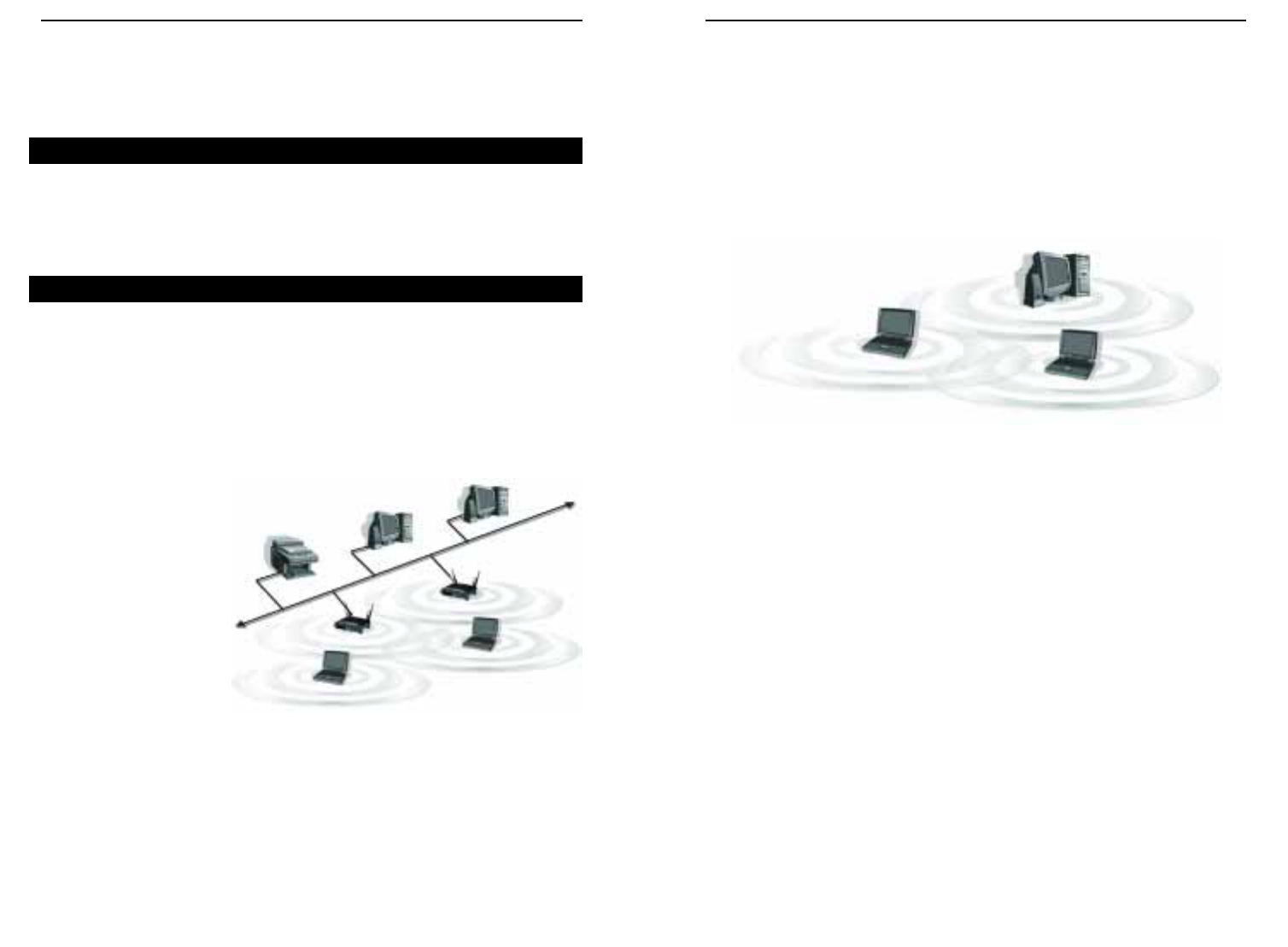

Figure 2-2

Chapter 2:Planning Your

Wireless Network

A wireless local area network (WLAN) is exactly like a regular local area net-

work (LAN), except that each computer in the WLAN uses a wireless device to

connect to the network. Computers in a WLAN share the same frequency

channel and SSID, which is an identification name for wireless devices.

Unlike wired networks, wireless networks have two different modes in which

they may be set up: infrastructure and ad-hoc. In an infrastructure configu-

ration a WLAN and wired LAN communicate to each other through an access

point. In ad-hoc configuration, wireless-equipped computers communicate

directly with each other. Choosing between these two modes depends on

whether or not the wireless network needs to share data or peripherals with a

wired network or not.

If the computers on the

wireless network need to

be accessed by a wired

network or need to share a

peripheral, such as a print-

er, with the wired network

computers, the wireless

network should be set up

in infrastructure mode.

(See Figure 2-1.) The

basis of infrastructure

mode centers around an

access point, which serves

as the main point of communications between a wired and wireless network.

Access points transmit data to PCs equipped with wireless network adapters,

which can roam within a certain radial range of the access point. Multiple

access points can be arranged to work in succession to extend the roaming

range, and can be set up to communicate with your Ethernet (wired) hardware

as well.

Network Topology

Ad-Hoc versus Infrastructure Mode

Figure 2-1

Wireless-G PCI Adapter

Instant Wireless®Series

Chapter 4:Software Installation

and Configuration for Windows

98SE, Me, and 2000

The Wireless-G PCI Adapter’s Setup Wizard will guide you through the instal-

lation procedure for Windows 98SE, Me, and 2000. The Setup Wizard will

install the WLAN Monitor and driver, as well as configure the Adapter.

Insert the Setup Wizard CD-ROM into your CD-ROM drive. The Setup

Wizard should run automatically, and Figure 4-1 should appear. If it does not,

click the Start button and choose Run. In the field that appears, enter

D:\setup.exe (if “D” is the letter of your CD-ROM drive).

Figure 4-1

Overview

Chapter 3:Getting to Know the

Wireless-GPCI Adapter

The PCI Adapter will install into your PC like any PCI adapter and, on the

mounting bracket, you will find two distinguishing items:

ACT LED Green. The ACT LED lights up when the Adapter is powered

on.

Antenna Port Attach the PCI Adapter’s antenna here and position it for

maximum performance, which is usually perpendicular to

the horizon. Important for Windows 98SE, Me, and 2000 users: You must run

the Setup Wizard to install the software before installing the hardware.

Important for Windows XP users: Do NOT run the Setup Wizard.

Proceed directly to “Chapter 5: Hardware Installation.”

Wireless-G PCI Adapter

Instant Wireless®Series

1. To install the Adapter, click the Install button on the Welcome screen,

Figure 4-1. Click User Guide to view the User Guide or click Exit to exit

the Setup Wizard.

2. After reading the License Agreement, shown in Figure 4-2, click the Next

button to continue the installation, or click the Cancel button to end the

installation.

3. The Setup Wizard will display a screen similar to that shown in Figure 4-3,

asking you to choose a wireless mode. Click the Infrastructure Mode

radio button if you want your wireless computers to network with comput-

ers on your wired network using a wireless access point. Click the Ad-Hoc

Mode radio button if you want multiple wireless computers to network

directly with each other. Do not use Ad-Hoc mode if you want your wire-

less computers to communicate with computers on your wired network.

Setup Wizard Instructions for Windows 98SE, Me, and 2000

Figure 4-2

In the SSID field, enter the SSID of your wireless network. The SSID must

be identical for all devices in the network. The default setting is linksys (all

lowercase). Click the Next button, or click the Back button to return to the

previous page.

4. If you chose Infrastructure Mode, go to Step 5 now. If you chose Ad-Hoc

Mode, you’ll see a screen similar to that shown in Figure 4-4. Select the cor-

rect operating channel for your network from the Channel drop-down

menu. Then, select the Network Mode from the drop-down menu. Click the

Next button, and go to Step 4. Click the Back button to change any settings.

Channel - The channel you choose should match the channel set on the

other devices in

your wireless

network. If you

are unsure about

which channel

to use, select the

default channel

(Channel 6).

Figure 4-3

Figure 4-4

Wireless-G PCI Adapter

Chapter 5:Installing the

Wireless-G PCI Adapter

1. Turn off your desktop PC.

2. Open your PC case and locate an available PCI slot on the motherboard.

Check with your computer manufacturer for instructions.

3. Slide the PCI Adapter into the PCI slot. Make sure that all of its pins are

touching the slot's contacts. You may have to apply a bit of pressure to slide

the adapter all the way in. After the adapter is firmly in place, secure its fas-

tening tab to your PC's chassis with a mounting screw. Then, close your PC.

4. Attach the external antenna to the adapter’s antenna port.

5. Power on your desktop PC.

If your PC is using Windows 98SE, Me, or 2000, proceed to the next sec-

tion, “Chapter 7: Using the WLAN Monitor for Windows 98SE, Me, and

2000.”

If your PC is using Windows XP, proceed to “Chapter 6: Driver

Installation and Configuration for Windows XP.”

Important for Windows 98SE, Me, and 2000 users: You must run

the Setup Wizard to install the software before installing the hardware.

Important for Windows XP users: You must install the Adapter’s

hardware before installing the software.

Instant Wireless®Series

Network Mode - Select Mixed Mode, and both Wireless-G and Wireless-

B computers will be allowed on the network, but the speed will be reduced.

Select G-Only Mode for maximum speed, but no Wireless-B users will be

allowed on the network.

5. The Setup Wizard will ask you to review your settings (as in Figure 4-5)

before it starts

to copy files.

Click the Next

button to save

these settings,

or click the

Back button to

change any set-

tings.

6. After the files have been successfully copied, the screen in Figure 4-6 will

appear. Click the Exit button.

Proceed to “Chapter 5: Hardware Installation.”

Figure 4-5

Figure 4-6

Wireless-G PCI Adapter

2. When Windows

has finished

installing the

driver, click the

Finish button.

You have now completed the driver installation for

the Adapter. To configure the Adapter, proceed to the next section,

“Windows XP Wireless Zero Configuration.”

1. After installing the Adapter, the Windows XP Wireless Zero Configuration

icon will appear in your computer’s system tray (see Figure 6-3). Double-

click the icon.

Instant Wireless®Series

Chapter 6:Driver Installation and

Configuration for Windows XP

After installing the Adapter into your PC, you will install the driver and con-

figure the Adapter.

1. Windows XP will automatically detect the Adapter. Insert the Setup CD-

ROM into the CD-ROM drive and the screen in Figure 6-1 should appear.

Click the radio button next to Install the software automatically

(Recommended). Then click the Next button.

Figure 6-2

Figure 6-1

Overview

Driver Installation for Windows XP

For Windows XP users: Windows XP has a built-in configuration tool.

Use Windows XP Wireless Zero Configuration (in the system tray at

the bottom of your screen) to configure the Adapter.

Windows XP Wireless Zero Configuration

Figure 6-3

Wireless-G PCI Adapter

Instant Wireless®Series

4. The screen in Figure 6-6 will

appear if your connection is

active.

For more information about WEP, refer to your access point’s documentation,

or visit www.linksys.com.

For more information about wireless networking on a Windows XP computer,

enter the keyword wireless in the Windows XP search engine.

Congratulations!

Your PC is now connected to your wireless network.

Figure 6-5

Figure 6-6

2. The screen that appears will show any available wireless network. Select the

network you want.

If you have already enabled WEP encryption on your network, skip ahead

to step 3.

If you have NOT

enabled WEP encryp-

tion on your network,

the screen in Figure 6-4

will appear. Check the

box next to Allow me to

connect to the selected

wireless network, even

though it is not secure.

Then click the Connect

button and continue to

step 4.

3. The screen in Figure 6-5 will appear. Enter the WEP key of your wireless

network in the Network key field, and re-enter it in the Confirm network key

field. Then, click the Connect button.

Figure 6-4

Note: In Steps 2 and 3, these are the instructions and screenshots for

Windows XP with Service Pack 1 installed. If you have not installed

Service Pack 1, select the network you want, and click the Connect

button. If the network has WEP encryption enabled, enter the WEP

key in the Network key field, and then click the Connect button.

Note: Wireless Zero Configuration does not support the use of a

passphrase. Enter the exact WEP key used by your access point.

Wireless-G PCI Adapter

The Link Information screen displays signal strength and link quality informa-

tion about the current connection and provides a button to click for additional

status information.

Ad-Hoc Mode or Infrastructure Mode - The screen indicates whether the

Adapter is currently working in ad-hoc or infrastructure mode.

Signal Strength - The Signal Strength bar indicates signal strength, from 0 to

100%.

Link Quality - The Link Quality bar indicates the quality of the wireless net-

work connection, from 0 to 100%.

Click the X (Close) button in the upper right corner to exit the WLAN Monitor.

Click the More

Information

button to view

more informa-

tion about the

wireless net-

work connec-

tion. A screen

similar to that

shown in Figure

7-3 will appear.

TCP/IP Setting

IP Address - The IP Address of the Adapter.

Subnet Mask - The Subnet Mask of the Adapter.

Default Gateway - The Default Gateway address of the Adapter.

DHCP - The status of the DHCP client.

DNS - The DNS address of the Adapter.

Instant Wireless®Series

Link Information

Chapter 7:Using the WLAN

Monitor for Windows 98SE, Me,

and 2000

Use the WLAN Monitor to check the link information, search for available

wireless networks, or create profiles that hold different configuration settings.

After installing the Adapter, the WLAN Monitor icon will appear

in your system tray. Double-click the icon (see Figure 7-1).

The Link Information screen (Figure 7-2) will appear. From this screen, you can

find out how strong the current wireless signal is and how good the connec-

tion’s quality is. You can also click the More Information button to view addi-

tional status information about the current wireless connection. To search for

available wireless networks, click the Site Survey tab. To perform configura-

tion changes, click the Profiles tab.

Figure 7-1

Figure 7-2

Accessing the WLAN Monitor

Overview

Figure 7-3

Wireless-G PCI Adapter

Instant Wireless®Series

Site Information

Wireless Mode - The mode of the wireless network currently in use.

Channel - The channel to which the wireless network devices are set.

WEP - The status of the WEP encryption security feature.

MAC - The MAC address of the wireless network’s access point.

Surveyed at - The time at which the wireless network was scanned.

Refresh - Click the Refresh button to perform a new search for wireless

devices.

Connect - To connect to one of the networks on the list, select the wireless net-

work,and click the Connect button. If the wireless network has WEP encryp-

tion enabled, you will see the screen shown in Figure 7-5.

In the WEP drop-down box, select the type of WEP encryption used by the

wireless network: 64-bit, or 128-bit WEP.

If the wireless network uses a passphrase, enter the passphrase in the

Passphrase field. If the wireless network uses a WEP key, enter the WEP key

in the Key 1 field.

Click the OK button to complete the network connection and return to the Site

Survey screen, or click the Cancel button to cancel the network connection and

return to the Site Survey screen.

On the Site Survey screen, click the X (Close) button in the upper right corner

to exit the WLAN Monitor.

Wireless Network Status

State - The status of the wireless network connection.

SSID - The unique name of the wireless network.

Wireless Mode - The mode of the wireless network currently in use.

Transfer Rate - The data transfer rate of the current connection.

Channel - The channel to which the wireless network devices are set.

WEP - The status of the WEP encryption security feature.

MAC - The MAC address of the wireless network’s access point.

Signal Strength - The Signal Strength bar indicates signal strength, from 0 to

100%.

Link Quality - The Link Quality bar indicates the quality of the wireless net-

work connection, from 0 to 100%.

Click the Back button to return to the initial Link Information screen. Click the

X (Close) button in the upper right corner to exit the WLAN Monitor.

The Site Survey screen, Figure 7-4, displays a list of infrastructure and ad-hoc

networks avail-

able for connec-

tion.

SSID - The SSID or unique name of the wireless network.

Signal - The percentage of signal strength, from 0 to 100%.

Site Survey

Figure 7-4

Figure 7-5

Wireless-G PCI Adapter

Instant Wireless®Series

Import - Click the Import button to import a profile that has been saved in

another location. From the screen that appears (shown in Figure 7-7), select the

appropriate file,

and click the

Open button.

Export - To save the profile(s) in

a different location, click the

Export button. On the screen that

appears (Figure 7-8), direct

Windows to the appropriate fold-

er and click the OK button.

Delete - Click the Delete button to delete a profile.

Click the X (Close) button in the upper right corner to exit the WLAN Monitor.

Figure 7-7

Figure 7-8

Note: If you have more than one profile, all profiles will be auto-

matically selected and exported to the same folder.

The Profiles screen (Figure 7-6) lets you save different configuration profiles

for different network setups. You can also import or export profiles. The default

profile holds the initial configuration saved when you ran the Setup Wizard.

Profile - Name of the connection profile.

SSID - The wireless network’s unique name, as set in the connection profile.

Profile Information

Network Type - The mode of the wireless network currently in use.

Transfer Rate - The data transfer rate of the current connection. (In Auto

mode, the Adapter dynamically shifts to the fastest data transfer rate possible

at any given time.)

Channel - The channel to which the wireless network devices are set.

WEP - The status of the WEP encryption security feature.

Connect - To connect to a wireless network using a specific profile, select the

profile,and click the Connect button.

Edit - Select a profile, and click the Edit button to change an existing profile.

New - Click the New button to create a new profile. See the next section,

“Creating a New Profile,” for detailed instructions.

Figure 7-6

Profiles

Wireless-G PCI Adapter

4. The Wireless Settings screen (Figure 7-11) will appear. If you chose

Infrastructure Mode, go to Step 4 now. If you chose Ad-Hoc Mode, select

the correct operating channel for your network from the Channel drop-

down menu. Then, select the Network Mode from the drop-down menu.

Click the Next button, and go to Step 4. Click the Back button to change

any settings.

Channel - The channel you choose should match the channel set on the other

devices in your wireless network. If you are unsure about which channel to

use, select the default channel (Channel 6).

Network Mode - Select Mixed Mode, and both Wireless-G and Wireless-B

computers will be allowed on the network, but the speed will be reduced.

Select G-Only Mode for maximum speed, but no Wireless-B users will be

allowed on

the network.

5. The Network Setting screen (Figure 7-12) will appear.

If your network has a DHCP server, click the radio button next to Obtain

an IP address automatically (DHCP). Click the Next button to continue,

or click the Back button to return to the previous screen.

Figure 7-11

Instant Wireless®Series

1. On the Profiles screen, shown in Figure 7-6, click the New button to create

a new profile.

2. When the Create

connection profile

screen appears

(Figure 7-9), enter a

name for the new

profile. Click OK

to save the profile

name or click

Cancel to return to

the previous screen.

3. The Choose a network type screen (Figure 7-10) shows a choice of two

wireless modes. Click the Infrastructure Mode radio button if you want

your wireless computers to communicate with computers on your wired

network via a wireless access point. Click the Ad-Hoc Mode radio button

if you want multiple wireless computers to communicate directly with each

other. Click the Next button to continue or the Back button to return to the

previous screen.

Infrastructure Mode - This mode allows wireless and wired networks to

communicate through an access point.

Ad-Hoc Mode -

This mode

allows wireless-

equipped com-

puters to com-

municate direct-

ly with each

other. No access

point is used.

Figure 7-10

Figure 7-9

Creating a New Profile

Wireless-G PCI Adapter

WEP (Disabled/64-bit WEP/128-bit WEP) - If you do not want to use

WEP encryption, choose Disabled. To use WEP encryption (recommended

to increase network security), select 64-bit or 128-bit WEP from the drop-

down menu, and enter either a Passphrase or WEP key.

Passphrase - Instead of manually entering WEP keys, you can enter a

Passphrase, so that a WEP key is automatically generated. It is case-sensi-

tive and should not be longer than 16 alphanumeric characters. This

passphrase must match the passphrase of your wireless network and is com-

patible with other Linksys wireless products only. (If you have any non-

Linksys wireless products, enter the WEP key(s) manually on those prod-

ucts.)

Key 1 - This WEP key must match the WEP key of your wireless network.

If you are using 64-bit WEP encryption, then the key must consist of exact-

ly 10 hexadecimal characters. If you are using 128-bit WEP encryption,

then the key must consist of exactly 26 hexadecimal characters. Valid hexa-

decimal characters are “0” to “9” and “A” to “F”.

Instant Wireless®Series

Figure 7-13

If your network does not have a DHCP server, click the radio button next to

Specify the IP address. Enter an IP Address, Subnet Mask, Default

Gateway, and DNS appropriate for your network. Enter each address in this

format: xxx.xxx.xxx.xxx (the x’s represent the numbers that make up each

address). You must specify the IP Address and Subnet Mask on this screen.

If you are unsure about the Default Gateway and DNS addresses, then leave

these fields alone.

IP Address - This IP Address must be unique to your network.

Subnet Mask - The Adapter’s Subnet Mask must be the same as your wired

network’s Subnet Mask.

Default Gateway - Enter the IP address of your network’s Gateway here.

DNS - Enter the DNS addresses of your Ethernet (wired) network here.

Click the Next button to continue or the Back button to return to the previ-

ous screen.

6. The Security Settings screen (Figure 7-13) will appear. Enable or disable

Wired Equivalent Privacy (WEP) encryption for your wireless network. If

you enable WEP, enter a Passphrase or WEP key. Click the Next button to

continue or the Back button to return to the previous screen.

Figure 7-12

Wireless-G PCI Adapter

Appendix A:Troubleshooting

This chapter provides solutions to problems that may occur during the installa-

tion and operation of the Wireless-G PCI Adapter. Read the descriptions below

to solve your problems. If you can’t find an answer here, check the Linksys

website at www.linksys.com.

1. The Wireless-G PCI Adapter does not work properly.

• Reinsert the Wireless-G PCI Adapter into your PC’s PCI slot.

• Right click on My Computer and select Properties. Select the device

manager and click on the Network Adapter. You will find the Wireless-G

PCI Adapter if it is installed successfully. If you see the yellow exclama-

tion mark, the resources are conflicting. You will see the status of the

Wireless-G PCI Adapter. If there is a yellow question mark, please check

the following:

• Make sure that your PC has a free IRQ (Interrupt ReQuest, a hardware

interrupt on a PC.)

• Make sure that you have inserted the right adapter and installed the prop-

er driver.

If the Wireless-G PCI Adapter does not function after attempting the above

steps, remove the adapter and do the following:

• Uninstall the driver software from your PC.

• Restart your PC and repeat the hardware and software installation as

specified in this User Guide.

2. I cannot communicate with the other computers linked via Ethernet in the

Infrastructure configuration.

• Make sure that the PC to which the Wireless-G PCI Adapter is associated

is powered on.

• Make sure that your Wireless-G PCI Adapter is configured on the same

channel and with the same security options as with the other computers in

the Infrastructure configuration.

Can I run an application from a remote computer over the wireless network?

This will depend on whether or not the application is designed to be used over

a network. Consult the application’s user guide to determine if it supports oper-

ation over a network.

Instant Wireless®Series

Common Problems and Solutions

7. The Confirm New

Settings screen

(Figure 7-14) will

appear. To save the

new settings, click

the Yes button. To

cancel the settings

and return to the

Profiles screen,

click the No button.

To edit the new set-

tings, click the

Back button.

8. The Congratulations screen (Figure 7-15) will appear next. Click Activate

new settings now to implement the new settings immediately and return to

the Link Information screen. Click Activate new settings later to keep the

current settings active, and return to the Profiles screen so that you can edit

your profile or cre-

ate another profile.

You have successfully created a connection profile. Click the X (Close) but-

ton in the upper right corner to exit the WLAN Monitor.

Figure 7-14

Figure 7-17

Frequently Asked Questions

Wireless-G PCI Adapter

Instant Wireless®Series

Can I play computer games with other members of the wireless network?

Yes, as long as the game supports multiple players over a LAN (local area net-

work). Refer to the game’s user guide for more information.

What is the IEEE 802.11b standard?

It is one of the IEEE standards for wireless networks. The 802.11b standard

allows wireless networking hardware from different manufacturers to commu-

nicate, provided that the hardware complies with the 802.11b standard. The

802.11b standard states a maximum data transfer rate of 11Mbps and an oper-

ating frequency of 2.4GHz.

What IEEE 802.11b features are supported?

The product supports the following IEEE 802.11b functions:

• CSMA/CA plus Acknowledge protocol

• Multi-Channel Roaming

• Automatic Rate Selection

• RTS/CTS feature

• Fragmentation

• Power Management

What is ad-hoc mode?

When a wireless network is set to ad-hoc mode, the wireless-equipped com-

puters are configured to communicate directly with each other. The ad-hoc

wireless network will not communicate with any wired network.

What is infrastructure mode?

When a wireless network is set to infrastructure mode, the wireless network is

configured to communicate with a wired network through a wireless access

point.

What is roaming?

Roaming is the ability of a portable computer user to communicate continu-

ously while moving freely throughout an area greater than that covered by a sin-

gle access point. Before using the roaming function, the workstation must make

sure that it is the same channel number with the access point of dedicated cov-

erage area.

To achieve true seamless connectivity, the wireless LAN must incorporate a

number of different functions. Each node and access point, for example, must

always acknowledge receipt of each message. Each node must maintain contact

with the wireless network even when not actually transmitting data. Achieving

these functions simultaneously requires a dynamic RF networking technology

that links access points and nodes. In such a system, the user’s end node under-

takes a search for the best possible access to the system. First, it evaluates such

factors as signal strength and quality, as well as the message load currently

being carried by each access point and the distance of each access point to the

wired backbone. Based on that information, the node next selects the right

access point and registers its address. Communications between end node and

host computer can then be transmitted up and down the backbone.

As the user moves on, the end node’s RF transmitter regularly checks the sys-

tem to determine whether it is in touch with the original access point or whether

it should seek a new one. When a node no longer receives acknowledgment

from its original access point, it undertakes a new search. Upon finding a new

access point, it then re-registers, and the communication process continues.

What is ISM band?

The FCC and their counterparts outside of the U.S. have set aside bandwidth

for unlicensed use in the ISM (Industrial, Scientific and Medical) band.

Spectrum in the vicinity of 2.4 GHz, in particular, is being made available

worldwide. This presents a truly revolutionary opportunity to place convenient

high-speed wireless capabilities in the hands of users around the globe.

What is Spread Spectrum?

Spread Spectrum technology is a wideband radio frequency technique devel-

oped by the military for use in reliable, secure, mission-critical communica-

tions systems. It is designed to trade off bandwidth efficiency for reliability,

integrity, and security. In other words, more bandwidth is consumed than in the

case of narrowband transmission, but the trade-off produces a signal that is, in

effect, louder and thus easier to detect, provided that the receiver knows the

parameters of the spread-spectrum signal being broadcast. If a receiver is not

tuned to the right frequency, a spread-spectrum signal looks like background

noise. There are two main alternatives, Direct Sequence Spread Spectrum

(DSSS) and Frequency Hopping Spread Spectrum (FHSS).

What is DSSS? What is FHSS? And what are their differences?

Frequency-Hopping Spread-Spectrum (FHSS) uses a narrowband carrier that

changes frequency in a pattern that is known to both transmitter and receiver.

Properly synchronized, the net effect is to maintain a single logical channel. To

Wireless-G PCI Adapter

Appendix B:Glossary

802.11b - One of the IEEE standards for wireless networking hardware.

Products that adhere to a specific IEEE standard will work with each other,

even if they are manufactured by different companies. The 802.11b standard

specifies a maximum data transfer rate of 11Mbps, an operating frequency of

2.4GHz, and WEP encryption for security. 802.11b networks are also referred

to as Wi-Fi networks.

802.11g - A proposed, but as yet unratified extension of the IEEE 802.11 stan-

dard for wireless networking hardware. The draft 802.11g specifications used

by Linksys specify a maximum data transfer rate of 54Mbps using OFDM

modulation, an operating frequency of 2.4GHz, backward compatibility with

IEEE 802.11b devices, and WEP encryption for security.

Adapter - Printed circuit board that plugs into a PC to add to capabilities or

connectivity to a PC. In a networked environment, a network interface card is

the typical adapter that allows the PC or server to connect to the intranet and/or

Internet.

Ad-hoc Network - An ad-hoc network is a group of computers, each with a

wireless adapter, connected as an independent 802.11 wireless LAN. Ad-hoc

wireless computers operate on a peer-to-peer basis, communicating directly

with each other without the use of an access point. Ad-hoc mode is also

referred to as an Independent Basic Service Set (IBSS) or as peer-to-peer

mode, and is useful at a departmental scale or SOHO operation.

Backbone - The part of a network that connects most of the systems and net-

works together and handles the most data.

Bandwidth - The transmission capacity of a given facility, in terms of how

much data the facility can transmit in a fixed amount of time; expressed in bits

per second (bps).

Bit - A binary digit. The value - 0 or 1-used in the binary numbering system.

Also, the smallest form of data.

BSS (Basic Service Set) - An infrastructure network connecting wireless

devices to a wired network using a single access point.

Instant Wireless®Series

an unintended receiver, FHSS appears to be short-duration impulse noise.

Direct-Sequence Spread-Spectrum (DSSS) generates a redundant bit pattern

for each bit to be transmitted. This bit pattern is called a chip (or chipping

code). The longer the chip, the greater the probability that the original data can

be recovered. Even if one or more bits in the chip are damaged during trans-

mission, statistical techniques embedded in the radio can recover the original

data without the need for retransmission. To an unintended receiver, DSSS

appears as low power wideband noise and is rejected (ignored) by most nar-

rowband receivers.

Would the information be intercepted while transmitting on air?

WLAN features two-fold protection in security. On the hardware side, as with

Direct Sequence Spread Spectrum technology, it has the inherent security fea-

ture of scrambling. On the software side, WLAN offers the encryption function

(WEP) to enhance security and access control.

What is WEP?

WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 64-bit

or 128-bit shared key algorithm, as described in the IEEE 802.11 standard.

Wireless-G PCI Adapter

Instant Wireless®Series

Driver - A workstation or server software module that provides an interface

between a network interface card and the upper-layer protocol software running

in the computer; it is designed for a specific card, and is installed during the

initial installation of a network-compatible client or server operating system.

DSSS (Direct-Sequence Spread Spectrum) - DSSS generates a redundant bit

pattern for all data transmitted. This bit pattern is called a chip (or chipping

code). Even if one or more bits in the chip are damaged during transmission,

statistical techniques embedded in the receiver can recover the original data

without the need for retransmission. To an unintended receiver, DSSS appears

as low power wideband noise and is rejected (ignored) by most narrowband

receivers. However, to an intended receiver (i.e. another wireless LAN end-

point), the DSSS signal is recognized as the only valid signal, and interference

is inherently rejected (ignored).

Encryption - A security method that applies a specific algorithm to data in

order to alter the data's appearance and prevent other devices from reading the

information.

Ethernet - IEEE standard network protocol that specifies how data is placed

on and retrieved from a common transmission medium. Has a transfer rate of

10 Mbps. Forms the underlying transport vehicle used by several upper-level

protocols, including TCP/IP and XNS.

FHSS (Frequency Hopping Spread Spectrum) - FHSS continuously changes

(hops) the carrier frequency of a conventional carrier several times per second

according to a pseudo-random set of channels. Because a fixed frequency is not

used, and only the transmitter and receiver know the hop patterns, interception

of FHSS is extremely difficult.

Fragmentation - Breaking a packet into smaller units when transmitting over

a network medium that cannot support the original size of the packet.

Gateway - A device that interconnects networks with different, incompatible

communications protocols.

Hardware - Hardware is the physical aspect of computers, telecommunica-

tions, and other information technology devices. The term arose as a way to dis-

tinguish the "box" and the electronic circuitry and components of a computer

from the program you put in it to make it do things. The program came to be

known as the software.

CSMA/CA (Carrier Sense Multiple Access/Collision Avoidance) - In local

area networking, this is the CSMA technique that combines slotted time-divi-

sion multiplexing with carrier sense multiple access/collision detection

(CSMA/CD) to avoid having collisions occur a second time. This works best if

the time allocated is short compared to packet length and if the number of sit-

uations is small.

CTS (Clear To Send) - An RS-232 signal sent from the receiving station to the

transmitting station that indicates it is ready to accept data.

Default Gateway - The routing device used to forward all traffic that is not

addressed to a station within the local subnet.

DHCP (Dynamic Host Configuration Protocol) - A protocol that lets network

administrators manage centrally and automate the assignment of Internet

Protocol (IP) addresses in an organization's network. Using the Internet's set of

protocol (TCP/IP), each machine that can connect to the Internet needs a

unique IP address. When an organization sets up its computer users with a con-

nection to the Internet, an IP address must be assigned to each machine.

Without DHCP, the IP address must be entered manually at each computer and,

if computers move to another location in another part of the network, a new IP

address must be entered. DHCP lets a network administrator supervise and dis-

tribute IP addresses from a central point and automatically sends a new IP

address when a computer is plugged into a different place in the network.

DHCP uses the concept of a "lease" or amount of time that a given IP address

will be valid for a computer. The lease time can vary depending on how long a

user is likely to require the Internet connection at a particular location. It's espe-

cially useful in education and other environments where users change fre-

quently. Using very short leases, DHCP can dynamically reconfigure networks

in which there are more computers than there are available IP addresses.

DHCP supports static addresses for computers containing Web servers that

need a permanent IP address.

DNS - The domain name system (DNS) is the way that Internet domain name

are located and translated into Internet Protocol (IP) addresses. A domain name

is a meaningful and easy-to-remember "handle" for an Internet address.

Domain - A subnetwork comprised of a group of clients and servers under the

control of one security database. Dividing LANs into domains improves per-

formance and security.

Wireless-G PCI Adapter

Instant Wireless®Series

ISM band - The FCC and their counterparts outside of the U.S. have set aside

bandwidth for unlicensed use in the ISM (Industrial, Scientific and Medical)

band. Spectrum in the vicinity of 2.4 GHz, in particular, is being made avail-

able worldwide. This presents a truly revolutionary opportunity to place con-

venient high-speed wireless capabilities in the hands of users around the globe.

LAN (Local Area Network) - A group of computers and associated devices that

share a common communications line and typically share the resources of a

single processor or server within a small geographic area (for example, within

an office building).

MAC (Media Access Control) Address - A unique number assigned by the

manufacturer to any Ethernet networking device, such as a network adapter,

that allows the network to identify it at the hardware level.

Mbps (Megabits per second) - One million bits per second; unit of measure-

ment for data transmission.

Motherboard - A motherboard is the physical arrangement in a computer that

contains the computer's basic circuitry and components.

Network - A system that transmits any combination of voice, video and/or data

between users.

Node - A network junction or connection point, typically a computer or work

station.

OFDM - Developed for wireless applications, Orthogonal Frequency Division

Multiplexing (OFDM) technology offers superior performance-increased data

rates and more reliable transmissions-than previous technologies, such as

DSSS. OFDM is a scheme in which numerous signals of different frequencies

are combined to form a single signal for transmission on the medium.

OFDM works by breaking one high-speed data stream into a number of lower-

speed data streams, which are then transmitted in parallel. Each lower speed

stream is used to modulate a subcarrier. Essentially, this creates a multi-carrier

transmission by dividing a wide frequency band or channel into a number of

narrower frequency bands or sub-channels. OFDM is also used for other appli-

cations, including powerline networking.

Packet - A unit of data routed between an origin and a destination in a network.

Hop - The link between two network nodes.

IEEE (The Institute of Electrical and Electronics Engineers) - The IEEE

describes itself as "the world's largest technical professional society, promoting

the development and application of electrotechnology and allied sciences for

the benefit of humanity, the advancement of the profession, and the well-being

of our members."

The IEEE fosters the development of standards that often become national and

international standards. The organization publishes a number of journals, has

many local chapters, and several large societies in special areas, such as the

IEEE Computer Society.

Infrastructure Network - An infrastructure network is a group of computers

or other devices, each with a wireless adapter, connected as an 802.11 wireless

LAN. In infrastructure mode, the wireless devices communicate with each

other and to a wired network by first going through an access point. An infra-

structure wireless network connected to a wired network is referred to as a

Basic Service Set (BSS). A set of two or more BSS in a single network is

referred to as an Extended Service Set (ESS). Infrastructure mode is useful at

a corporation scale, or when it is necessary to connect the wired and wireless

networks.

IP (Internet Protocol) - The method or protocol by which data is sent from one

computer to another on the Internet. It is a standard set of rules, procedures, or

conventions relating to the format and timing of data transmission between two

computers that they must accept and use to be able to understand each other.

IP Address - In the most widely installed level of the Internet Protocol (IP)

today, an IP address is a 32-binary digit number that identifies each sender or

receiver of information that is sent in packet across the Internet. When you

request an HTML page or send e-mail, the Internet Protocol part of TCP/IP

includes your IP address in the message (actually, in each of the packets if more

than one is required) and sends it to the IP address that is obtained by looking

up the domain name in the Uniform Resource Locator you requested or in the

e-mail address you're sending a note to. At the other end, the recipient can see

the IP address of the Web page requestor or the e-mail sender and can respond

by sending another message using the IP address it received.

IRQ (Interrupt ReQuest) - A hardware interrupt on a PC. There are 16 IRQ

lines used to signal the CPU that a peripheral event has started or terminated.

Except for PCI devices, two devices cannot use the same line.

Wireless-G PCI Adapter

Server - Any computer whose function in a network is to provide user access

to files, printing, communications, and other services.

Software - Instructions for the computer. A series of instructions that performs

a particular task is called a "program." The two major categories of software are

"system software" and "application software." System software is made up of

control programs such as the operating system and database management sys-

tem (DBMS). Application software is any program that processes data for the

user.

A common misconception is that software is data. It is not. Software tells the

hardware how to process the data.

SOHO (Small Office/Home Office) - Market segment of professionals who

work at home or in small offices.

Spread Spectrum - Spread Spectrum technology is a wideband radio frequen-

cy technique developed by the military for use in reliable, secure, mission-crit-

ical communications systems. It is designed to trade off bandwidth efficiency

for reliability, integrity, and security. In other words, more bandwidth is con-

sumed than in the case of narrowband transmission, but the trade off produces

a signal that is, in effect, louder and thus easier to detect, provided that the

receiver knows the parameters of the spread-spectrum signal being broadcast.

If a receiver is not tuned to the right frequency, a spread-spectrum signal looks

like background noise. There are two main alternatives, Direct Sequence

Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).

SSID (Service Set IDentifier) - A unique name shared among all points in a

wireless network. The SSID must be identical for each point in the wireless net-

work and is case-sensitive.

Storage - The semi-permanent or permanent holding place for digital data.

Subnet Mask - The method used for splitting IP networks into a series of sub-

groups, or subnets. The mask is a binary pattern that is matched up with the IP

address to turn part of the host ID address field into a field for subnets.

Switch - 1. A data switch connects computing devices to host computers,

allowing a large number of devices to share a limited number of ports. 2. A

device for making, breaking, or changing the connections in an electrical cir-

cuit.

Instant Wireless®Series

Passphrase - Used much like a password, a passphrase simplifies the WEP

encryption process by automatically generating the WEP encryption keys for

Linksys products.

PCI (Peripheral Component Interconnect) - A peripheral bus commonly used

in PCs, Macintoshes and workstations. It was designed primarily by Intel and

first appeared on PCs in late 1993. PCI provides a high-speed data path

between the CPU and peripheral devices (video, disk, network, etc.). There are

typically three or four PCI slots on the motherboard. In a Pentium PC, there is

generally a mix of PCI and ISA slots or PCI and EISA slots. Early on, the PCI

bus was known as a "local bus."

PCI provides "plug and play" capability, automatically configuring the PCI

cards at startup. When PCI is used with the ISA bus, the only thing that is gen-

erally required is to indicate in the CMOS memory which IRQs are already in

use by ISA cards. PCI takes care of the rest.

PCI allows IRQs to be shared, which helps to solve the problem of limited IRQs

available on a PC. For example, if there were only one IRQ left over after ISA

devices were given their required IRQs, all PCI devices could share it. In a PCI-

only machine, there cannot be insufficient IRQs, as all can be shared.

Plug-and-Play - The ability of a computer system to configure expansion

boards and other devices automatically without requiring the user to turn off

the system during installation.

Port - A pathway into and out of the computer or a network device such as a

switch or router. For example, the serial and parallel ports on a personal com-

puter are external sockets for plugging in communications lines, modems and

printers.

Roaming - In an infrastructure mode wireless network, this refers to the abili-

ty to move out of one access point's range and into another and transparently

reassociate and reauthenticate to the new access point. This reassociation and

reauthentication should occur without user intervention and ideally without

interruption to network connectivity. A typical scenario would be a location

with multiple access points, where users can physically relocate from one area

to another and easily maintain connectivity.

RTS (Request To Send) - An RS-232 signal sent from the transmitting station

to the receiving station requesting permission to transmit.

Wireless-G PCI Adapter

Appendix C:Specifications

Standards: Draft 802.11g, 802.11b

Modulation: 802.11b: CCK (11 Mbps), DQPSK (2 Mbps),

DBPSK (1 Mbps); 802.11g: OFDM

Channels:

802.11b, 11 Channels (USA)

draft 802.11g 13 Channels (Europe)

14 Channels (Japan)

Network Protocol: TCP/IP, IPX, NDIS 4, NDIS 5, NDIS 5.1, NetBEUI

Interface: PCI

Transmit Power:17 dBm

Sensitivity: -80 dBm

LED: ACT

WEP Key Bits: 64-Bit and 128-Bit

Instant Wireless®Series

TCP (Transmission Control Protocol) - A method (protocol) used along with

the IP (Internet Protocol) to send data in the form of message units (datagram)

between network devices over a LAN or WAN. While IP takes care of handling

the actual delivery of the data (routing), TCP takes care of keeping track of the

individual units of data (called packets) that a message is divided into for effi-

cient delivery over the network. TCP is known as a "connection oriented" pro-

tocol due to requiring the receiver of a packet to return an acknowledgment of

receipt to the sender of the packet resulting in transmission control.

TCP/IP (Transmission Control Protocol/Internet Protocol) - The basic com-

munication language or set of protocols for communications over a network

(developed specifically for the Internet). TCP/IP defines a suite or group of

protocols and not only TCP and IP.

Throughput - The amount of data moved successfully from one place to

another in a given time period.

Topology - A network's topology is a logical characterization of how the

devices on the network are connected and the distances between them. The

most common network devices include hubs, switches, routers, and gateways.

Most large networks contain several levels of interconnection, the most impor-

tant of which include edge connections, backbone connections, and wide-area

connections.

WAN (Wide Area Network)- A communications network that covers a rela-

tively large geographic area, consisting of two or more LANs. Broadband com-

munication over the WAN is often through public networks such as the tele-

phone (DSL) or cable systems, or through leased lines or satellites. In its most

basic definition, the Internet could be considered a WAN.

WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-

bit or 128-bit shared key algorithm, as described in the IEEE 802.11 standard.

WLAN (Wireless Local Area Network) - A group of computers and associat-

ed devices that communicate with each other wirelessly.

Wireless-G PCI Adapter

Instant Wireless®Series

Dimensions: 4.8" x 8.66" x 0.91"

(122 mm x 220 mm x 23 mm)

Unit Weight: 4.5 oz. (0.13 kg)

Power: 3.3V

Certifications: FCC

Operating Temp.: 32ºF to 150ºF (0ºC to 65ºC)

Storage Temp.: -40ºF to 185ºF (-40ºC to 85ºC)

Operating Humidity: 0% to 95%, Non-Condensing

Storage Humidity: 0% to 95%, Non-Condensing

Appendix D:Warranty Information

BE SURE TO HAVE YOUR PROOF OF PURCHASE AND A BARCODE

FROM THE PRODUCT’S PACKAGING ON HAND WHEN CALLING.

RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF

PURCHASE.

IN NO EVENT SHALL LINKSYS’ LIABILITY EXCEED THE PRICE PAID

FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDEN-

TAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE

OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE, OR ITS DOCU-

MENTATION. LINKSYS DOES NOT OFFER REFUNDS FOR ANY PROD-

UCT.

LINKSYS OFFERS CROSS SHIPMENTS, A FASTER PROCESS FOR PRO-

CESSING AND RECEIVING YOUR REPLACEMENT. LINKSYS PAYS

FOR UPS GROUND ONLY. ALL CUSTOMERS LOCATED OUTSIDE OF

THE UNITED STATES OF AMERICA AND CANADA SHALL BE HELD

RESPONSIBLE FOR SHIPPING AND HANDLING CHARGES. PLEASE

CALL LINKSYS FOR MORE DETAILS.

Environmental

Instant Wireless®Series

Appendix E:Contact Information

For help with the installation or operation of the Wireless-G PCI Adapter, con-

tact Linksys Technical Support at one of the phone numbers or Internet

addresses below.

Sales Information 800-546-5797 (LINKSYS)

Technical Support 800-326-7114

RMA (Return Merchandise

Authorization) Issues www.linksys.com (or call 949-271-5461)

Fax 949-265-6655

E-mail support@linksys.com

Web http://www.linksys.com

FTP Site ftp.linksys.com

http://www.linksys.com

BUFFALO 04600039-0 AirStation 11g 54Mbps PCI Wireless LAN Adapter User Manual WMP54G user guide

BUFFALO INC. AirStation 11g 54Mbps PCI Wireless LAN Adapter WMP54G user guide

Manual

Navigation menu

Namespaces

Views

Navigation
