BUFFALO INC. Wireless Router WZR HP G300NH WZR HP G300NH2
BUFFALO >
User Manual
User Manual for Professional Firmware
WZR-HP-G300NH / WZR-HP-G300NH2

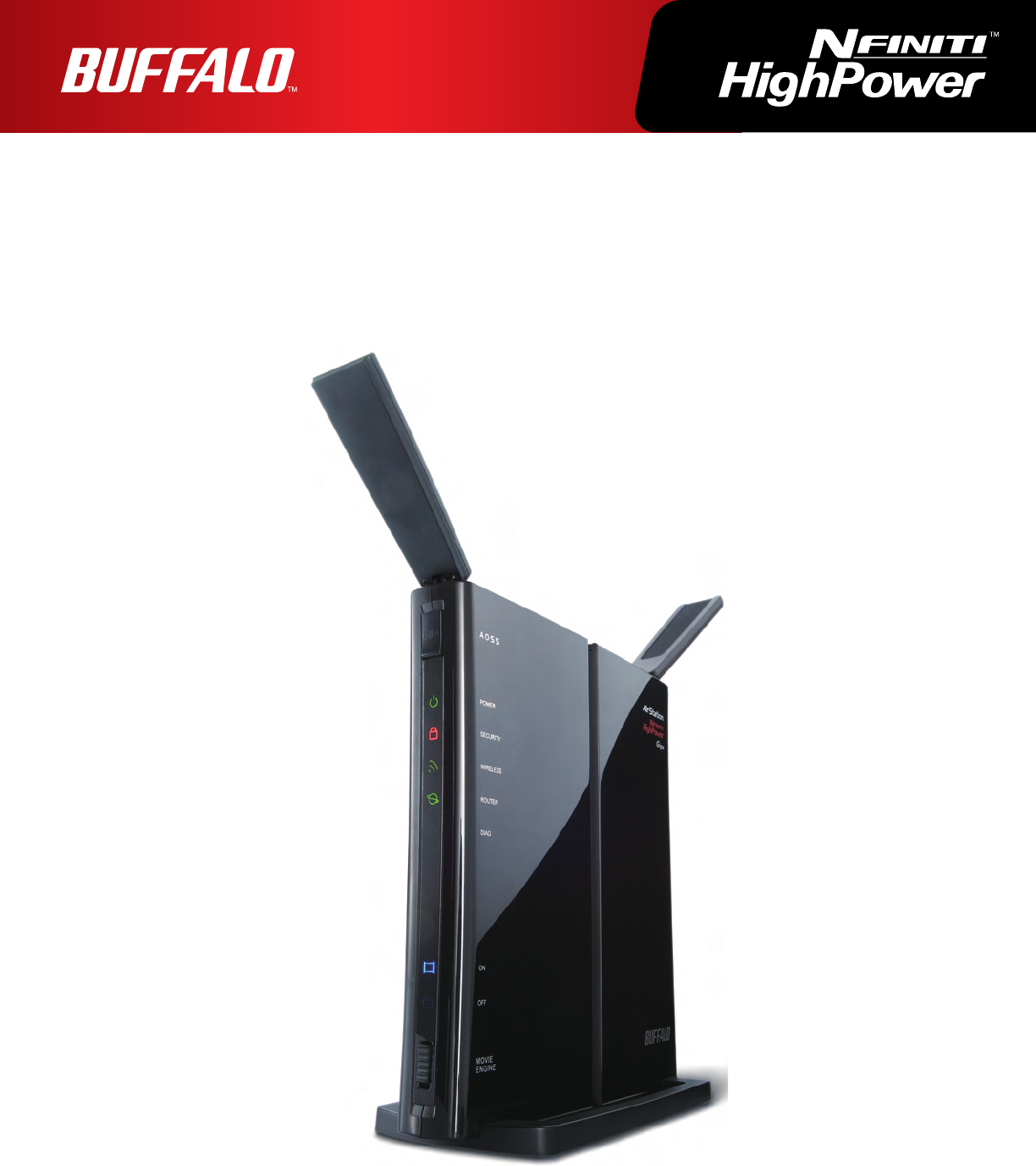

Nfiniti High Power Wireless N Router & Access Point
www.buffalotech.com
35011943 ver.01_
1. Introduction 3
1.1. Welcome 3
1.2. Device Configuration 3
1.2.1. Factory Settings 3
1.2.2. Initial Operation 3
2. Configuration via the Web Interface 4
2.1. Preparation 4
2.2. Web Interface Access 4
2.3. Web Interface Structure 5
2.3.1. Setup 6
2.3.1.1. Basic Configuration 6
2.3.1.2. Dynamic DNS (DynDNS or DDNS) 6
2.3.1.3. MAC Address Cloning 7
2.3.1.4. Advanced Routing 7
2.3.1.5. Networking 7
2.3.1.6. EoIP Tunnel 8
2.3.2. Wireless 8
2.3.2.1. Basic Settings 8
2.3.2.2. Wireless Security 9

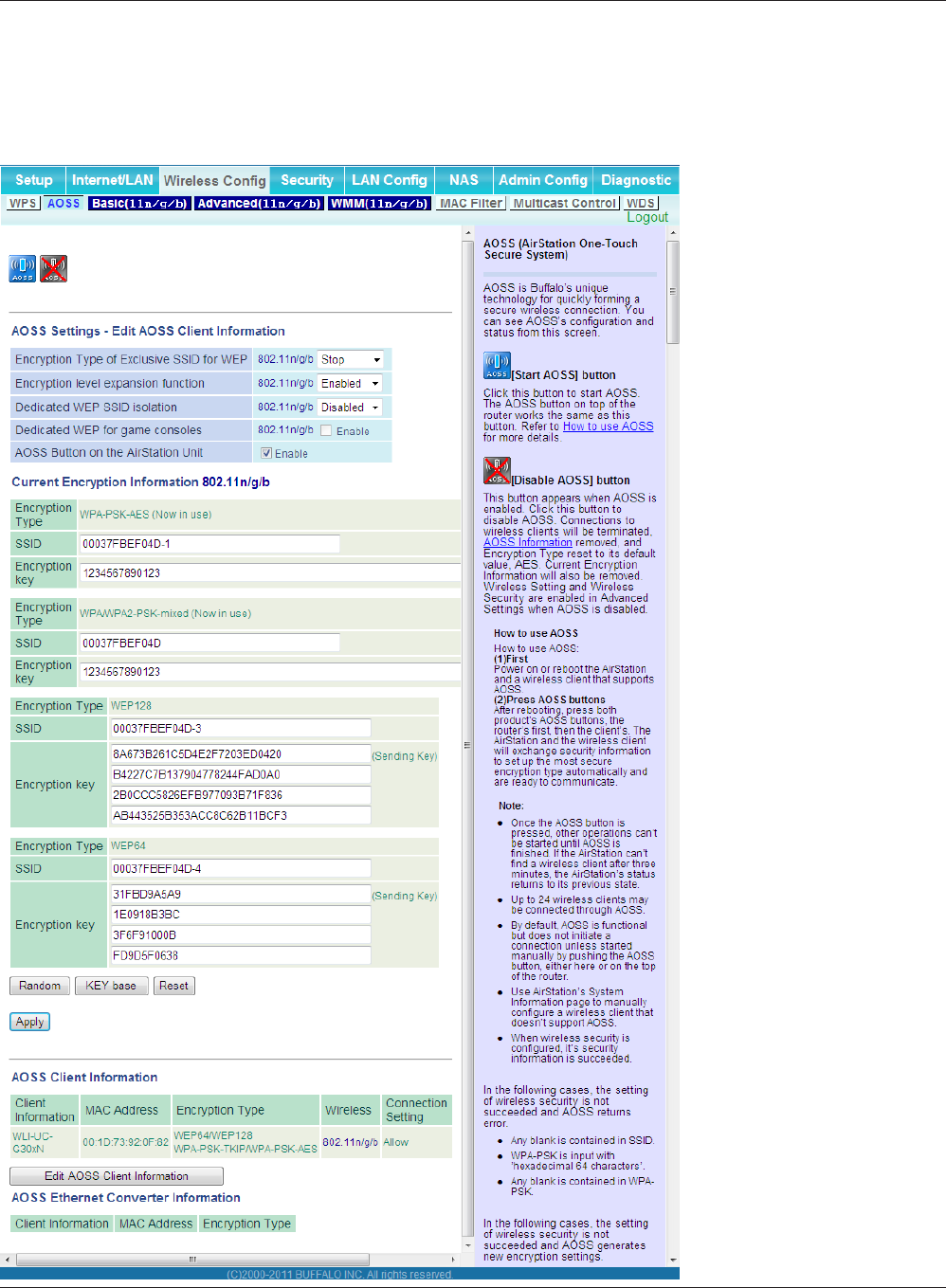

2.3.2.3. AOSS/WPS 11
2.3.2.4. MAC Filter 11
2.3.3. Services 12
2.3.3.1. Services 12
2.3.3.2. FreeRadius 12
2.3.3.3. PPPoE Server 12
2.3.3.4. VPN 12
2.3.3.5. USB 13
2.3.3.6. NAS 13
2.3.3.7. Hotspot 14
2.3.3.8. Milkfish SIP Router 14
2.3.3.9. My Ad Network 14
2.3.4. Security 14
2.3.4.1. Firewall 14
2.3.4.2. VPN Pass-through 14
2.3.5. Access Restrictions 14
2.3.5.1. WAN Access 14
2.3.6. NAT / QoS 14
2.3.6.1. Port Forwarding 14
2.3.6.2. Port Range Forwarding 15
2.3.6.3. Port Triggering 15
2.3.6.4. UPnP 15
2.3.6.5. DMZ 15
2.3.6.6. QoS 15
2.3.7. Administration 15
2.3.7.1. Management 15
2.3.7.2. Keep Alive 16
2.3.7.3. Commands 16
2.3.7.4. WOL 16
2.3.7.5. Factory Defaults 16

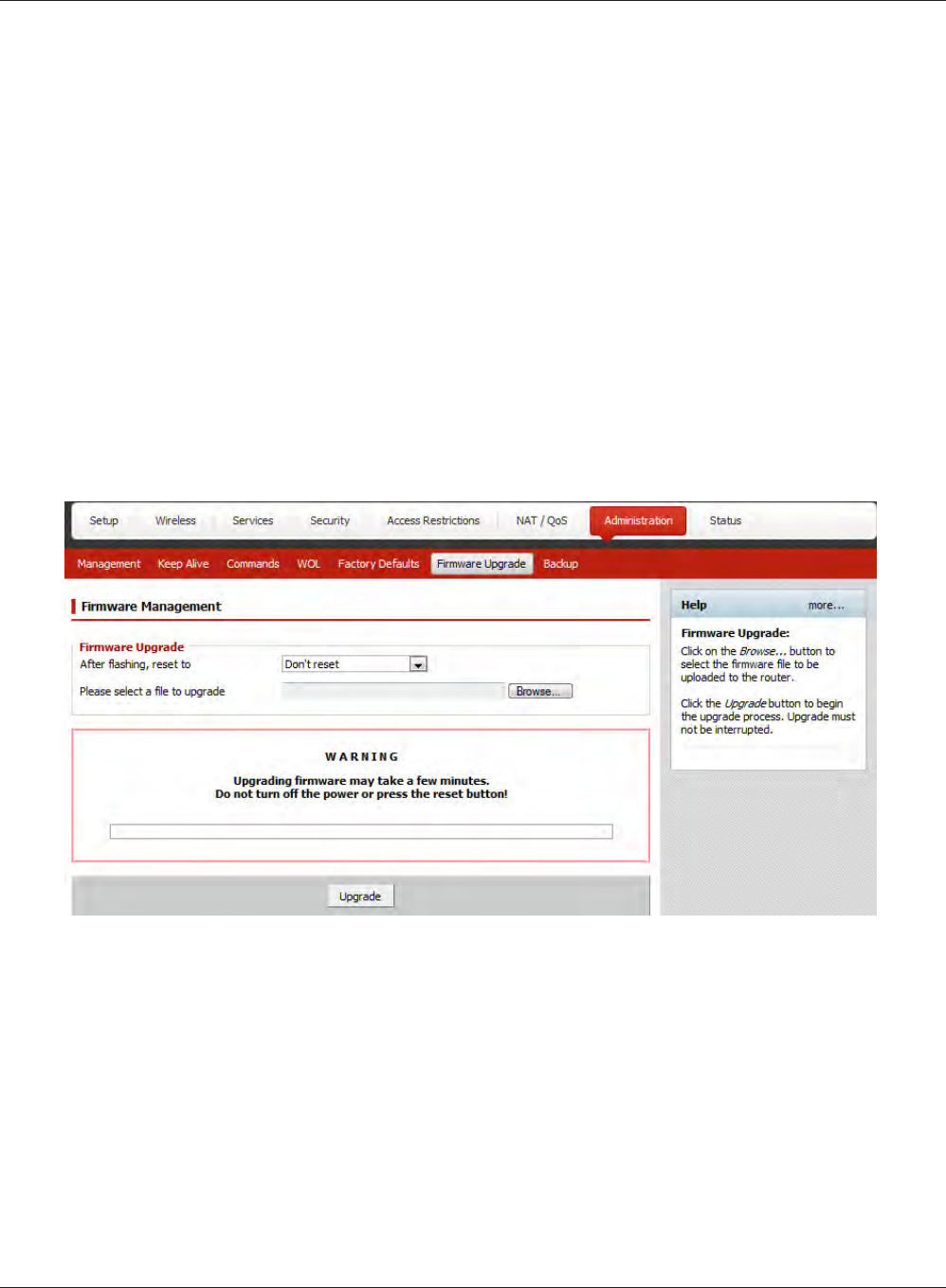

2.3.7.6. Firmware Upgrade 16
2.3.7.7. Backup 16
2.3.8. Status 16
2.3.8.1. Router 16
2.3.8.2. WAN 16
2.3.8.3. LAN 17
2.3.8.4. Wireless 17
2.3.8.5. Bandwidth 17
- 1 -
2.3.8.6. SysInfo 17
3. Use Cases 18
3.1. Access Point 18
3.1.1. Access Point with NAT / DHCP 18
3.1.1. Access Point attached to a network / Internet gateway 19
3.2. Wireless Client 20
3.3. Wireless Client Bridge 21
3.4. FTP Server 23
3.4.1. Examples 23
3.4.2. Logging into the FTP server 25
3.4.3. Common FTP commands 25
4. GPL Statement 27
4.1. GNU General Public License 27
4.1.1. Preamble 27
4.1.2. GNU General Public License – Terms and Conditions or Copying,
Distribution and Modification 28
4.1.3. NO WARRANTY 31
- 2 -
1. Introduction
1.1. Welcome
This AirStation wireless router comes with two different firmware
packages. You may use either the dd-wrt-based Professional firmware or
the simple User-friendly firmware. By default, the Professional
firmware is preinstalled for US/EU products, and the User-friendly
firmware is preinstalled for Asia-Pacific products.
1.2. Device Configuration
From the factory, the router is configured as a network bridge. That
means that all network interfaces can communicate with each other
using this default bridge. The router is ready to use with a few
simple adjustments.
1.2.1. Factory Settings
Because all interfaces are attached to the bridge by default, they all
have the same IP configuration:
IP address 192.168.11.1
Subnet Mask 255.255.255.0
DHCP server enabled
DHCP-Range 192.168.11.2 - 66
The Wireless LAN interface is activated by default with an SSID
generated from the device’s MAC address. For security, unused
interfaces should be disabled. Wireless LAN interfaces that are not
disabled should be configured with secure encryption (WPA2 or WPA is
recommended) and a secure password.
1.2.2. Initial Operation

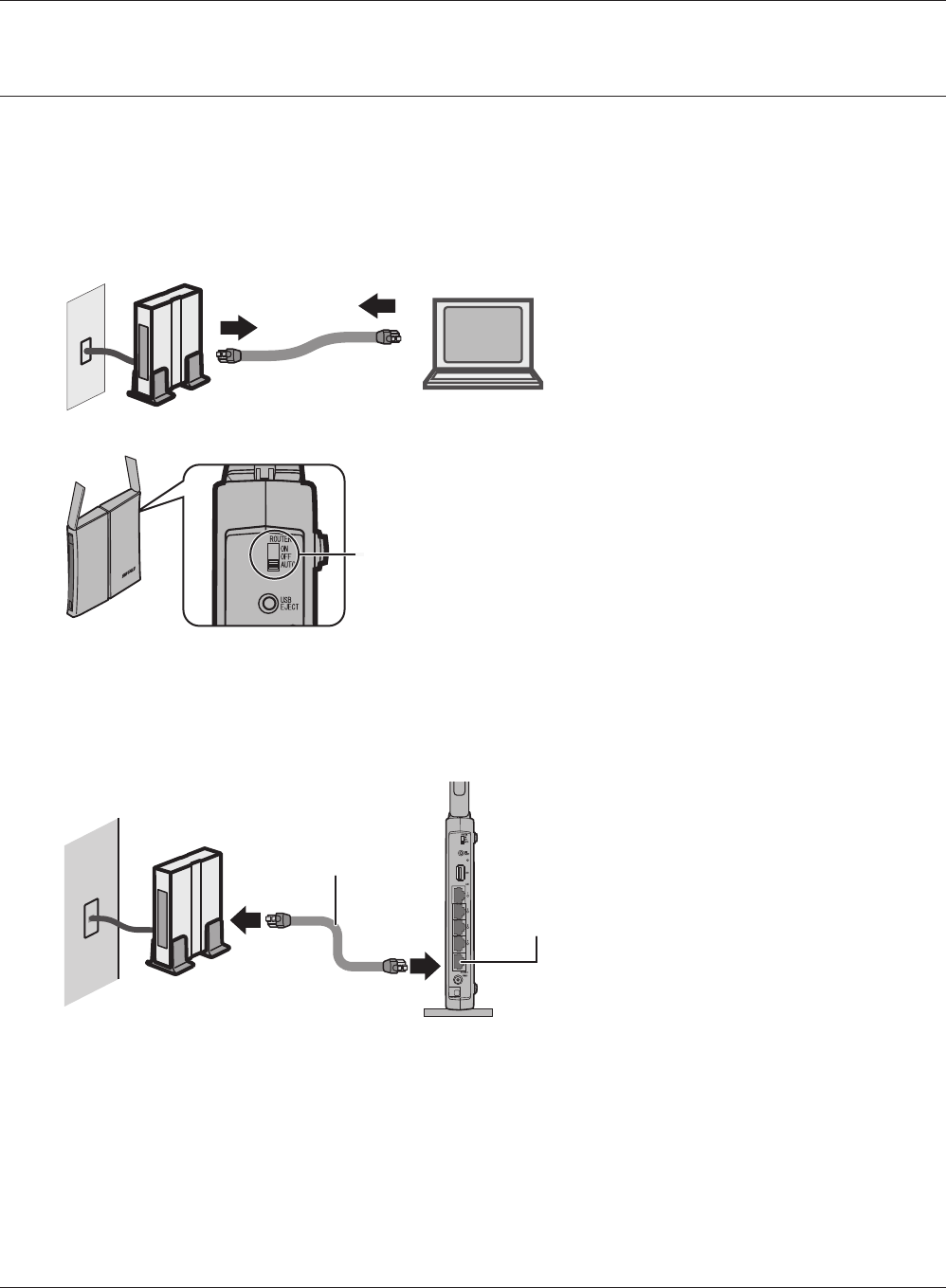

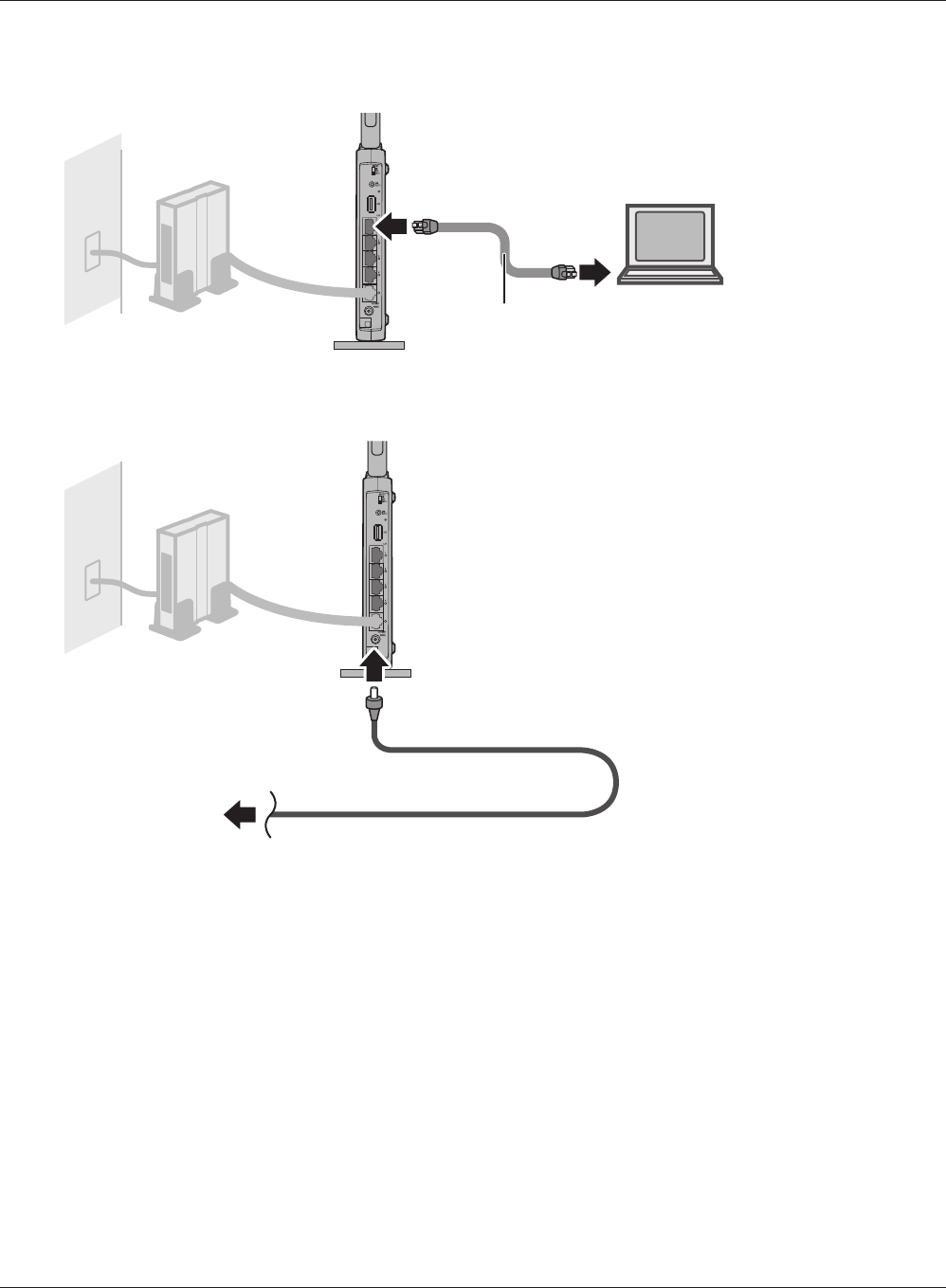

Connect your computer to the router with an Ethernet LAN cable and
power the router on. It will take about 30 seconds to boot. You can
then access it via telnet or web browser at the IP address
192.168.11.1. The DHCP server in the router is enabled by default. If
your PC’s Ethernet is configured for DHCP it should receive an IP
address from the router’s DHCP server. If not, please configure the
Ethernet interface with an address from the 192.168.11.x subnet.
Because all relevant settings can be made using the web interface,
this manual refers to configuration via the web GUI only.
- 3 -
2. Configuration via the Web Interface
The router contains an integrated web server that provides an easy to
use web interface. It allows configuration, administration, and status
checking in a simple but effective way.
When accessing the web GUI for the first time, change the default
username and password. By default, the router’s status page can be
accessed without authentication, but this can be disabled.
The web interface was successfully tested on the following browsers:
- Internet Explorer 7.x and newer versions
- Firefox 2.x and newer versions
- Safari 2.x and newer versions
2.1. Preparation
Connect your PC to the router and power the router on as described in
1.2.2. After the router has loaded its operating system, you can
communicate with it via your LAN network interface.

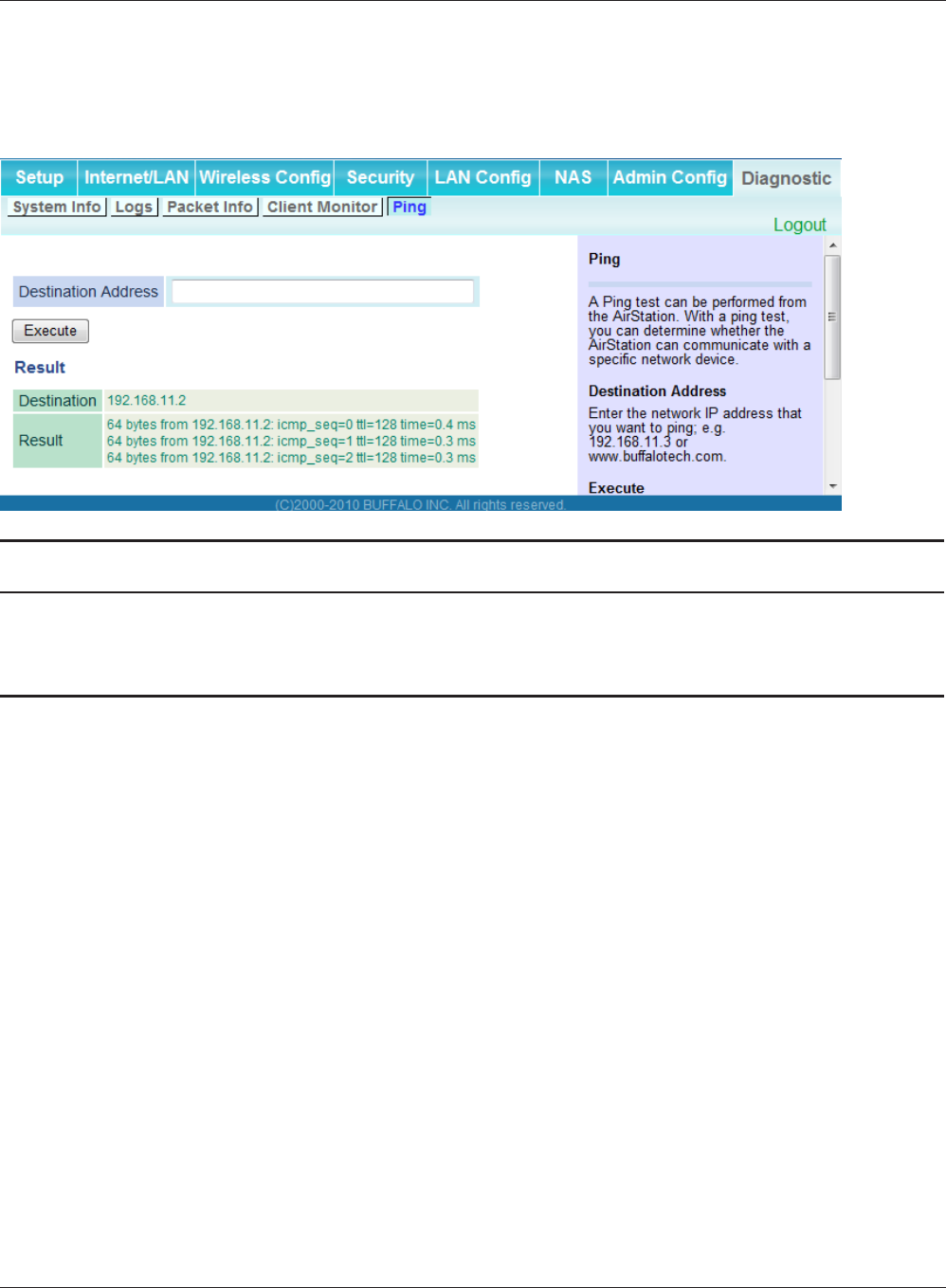

The easiest way to test if your PC can communicate with the router is
to ping 192.168.11.1.

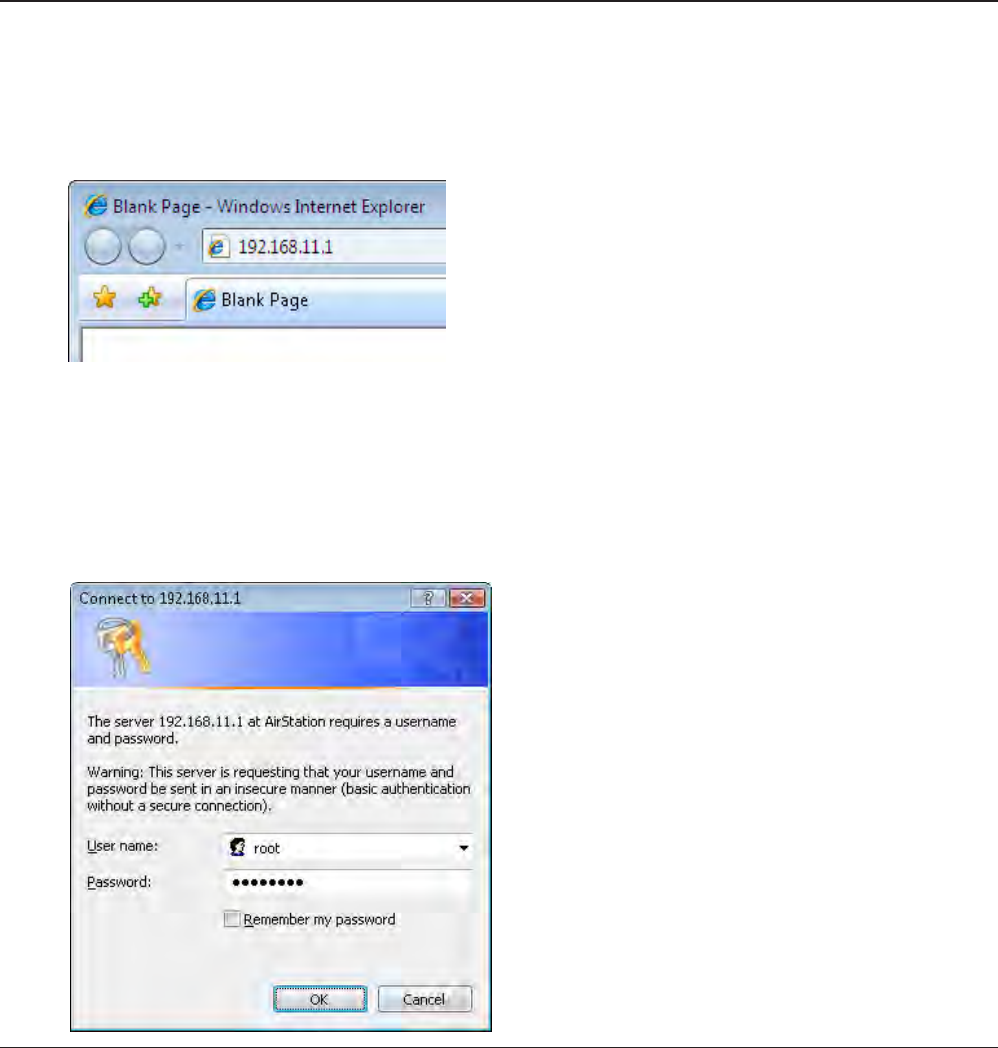

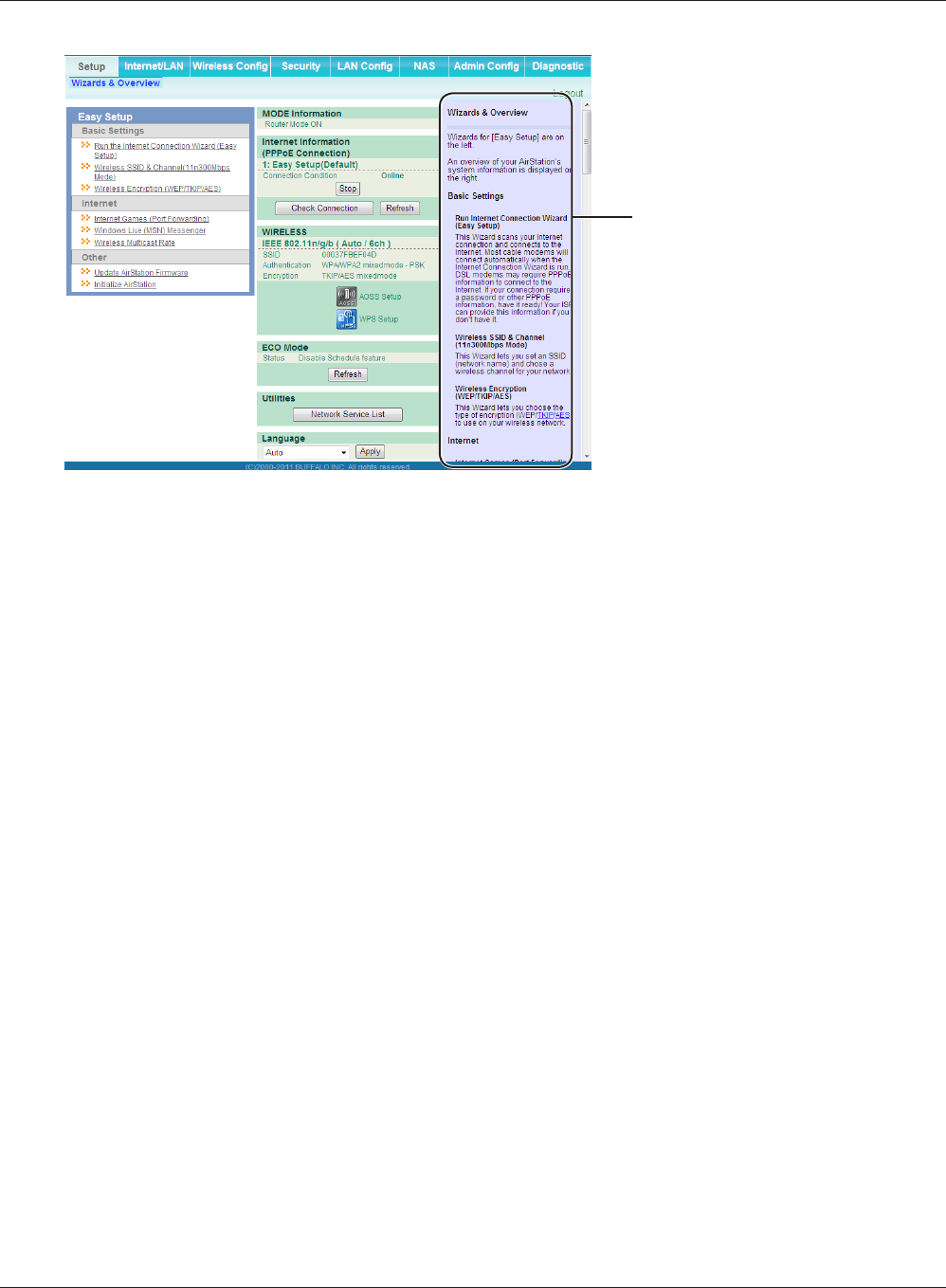

2.2. Web Interface Access
Open a browser window. Enter the address http://192.168.11.1 into the
address bar. The status page will be displayed.

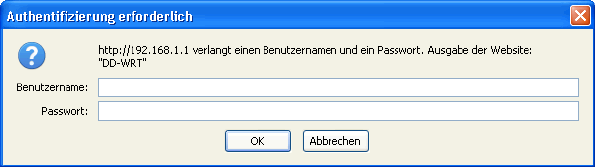

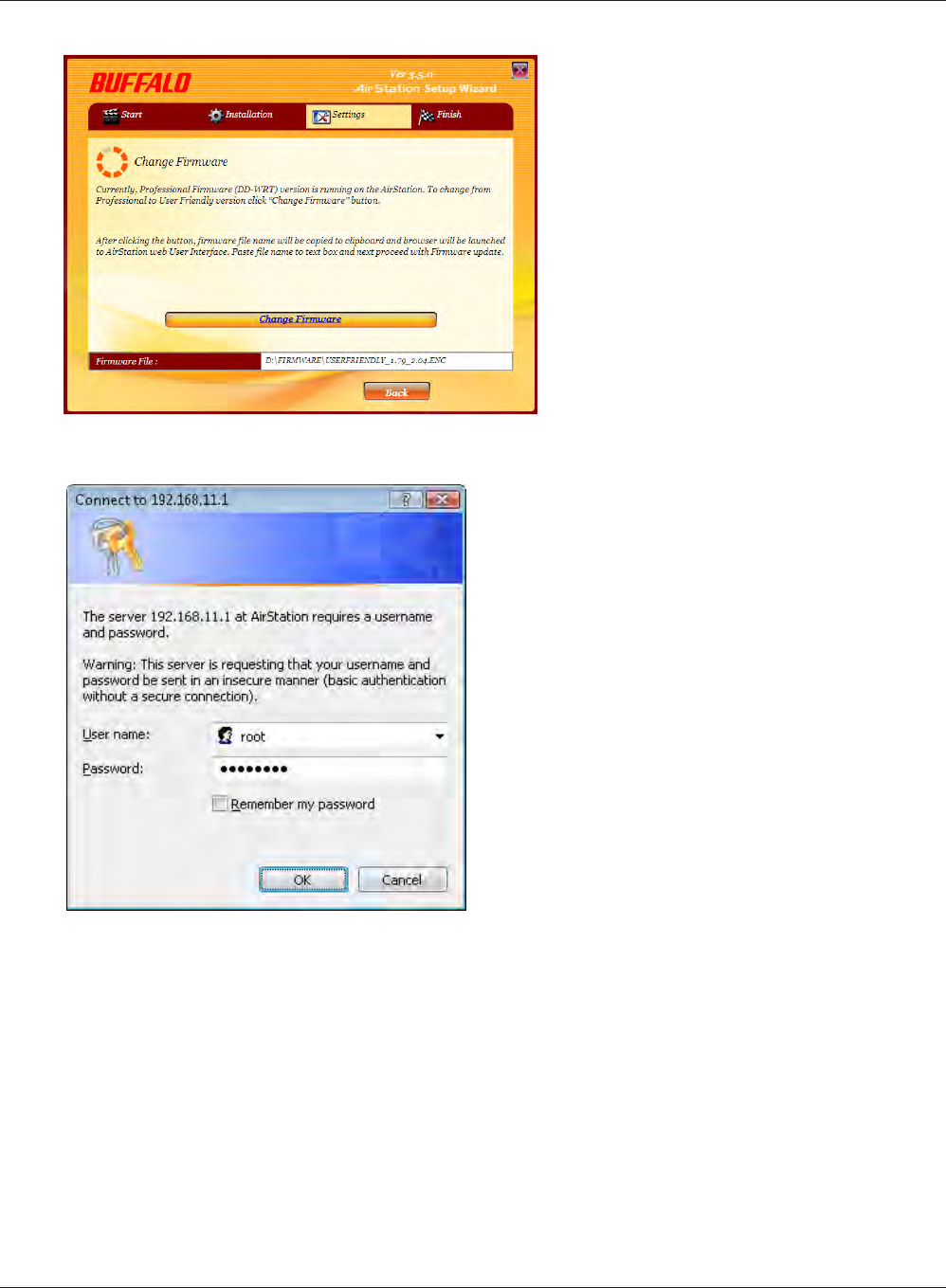

When you click on a tab, the login window will pop up. Enter the
username and password you previously set.
- 4 -

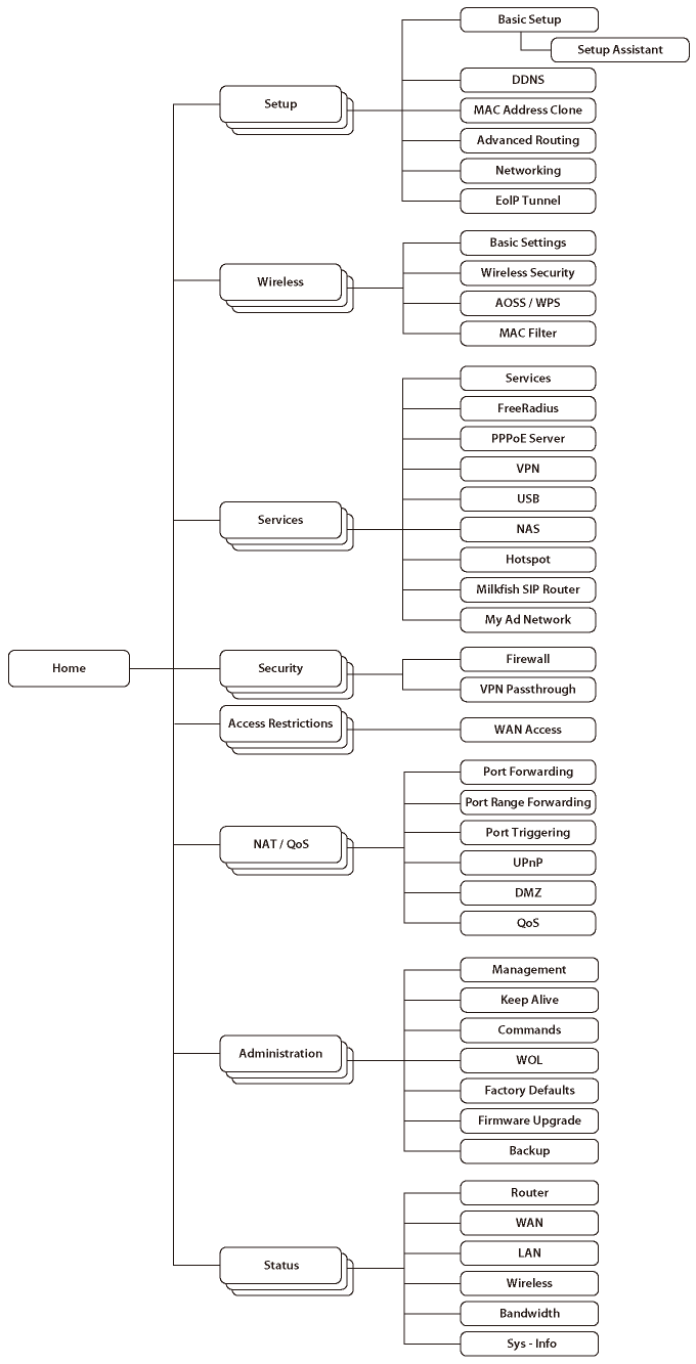

2.3. Web Interface Structure
- 5 -
2.3.1. Setup
2.3.1.1. Basic Configuration

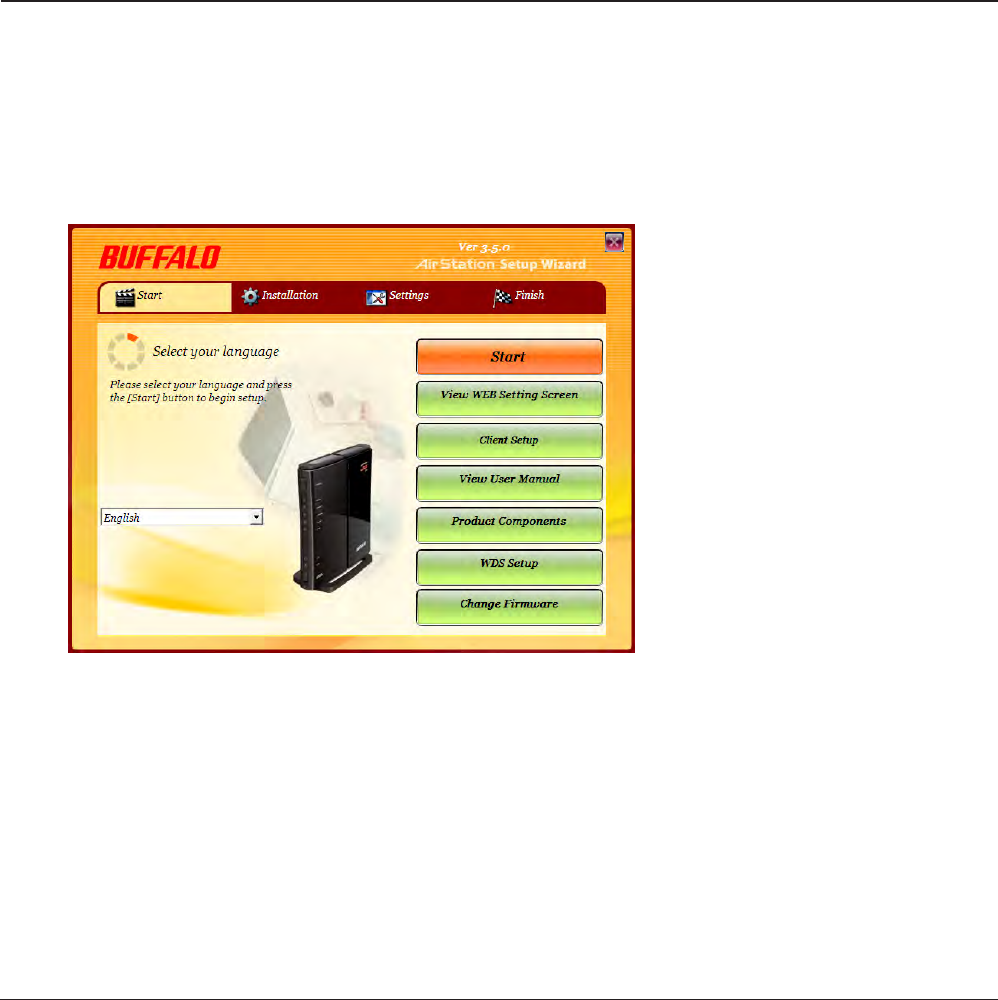

Setup Assistant
The setup assistant provides a step-by-step interface for basic router
configuration. This configures most common settings automatically.
WAN Setup
Here you’ll find the most important settings to configure your
internet access and WAN port. DHCP is enabled by default, but you can
also use PPPoE, PPTP, L2TP, static IP, or HeartBeat Signal. If you
don’t use a password to log in to your ISP, you may need to enter
“0000” for the password. Also, for some ISPs you should not enter the
service name, as it will prevent establishing the connection. If you
experience connection problems, then leave the service name empty.
WAN Connection Type Description
Disabled The WAN port is disabled.
Static IP A static IP address will be used – enter the
IP address, subnet mask, gateway, and server
manually.
Automatic
Configuration - DHCP
The router obtains its WAN-side IP address
from a DHCP server.
PPPoE Configure as PPPoE-client. For VDSL, check
the “VDSL-Tagging“ box.
PPTP Establishes connection via PPTP.
L2TP Establishes connection via L2TP.
HeartBeat Signal If you use a HeartBeat connection, consult
your ISP for setup information. HeartBeat
Signal is used only in Australia.

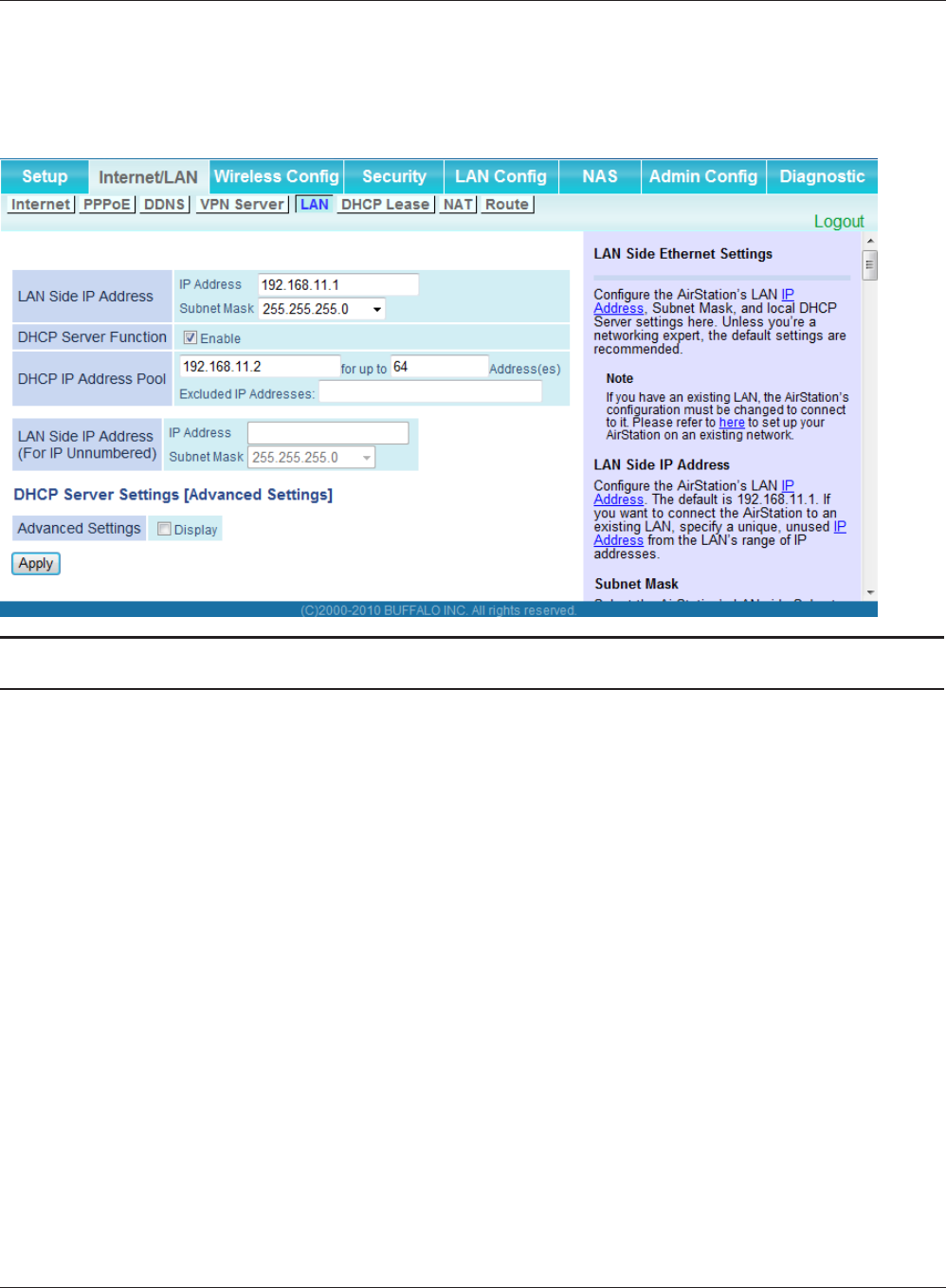

Network Setup
Network Setup configures the router’s basic settings to match the
local network. By default these settings are valid for all network
ports except the WAN because they are all attached to the default
bridge. If ports are disassociated from the bridge they will have
different settings.

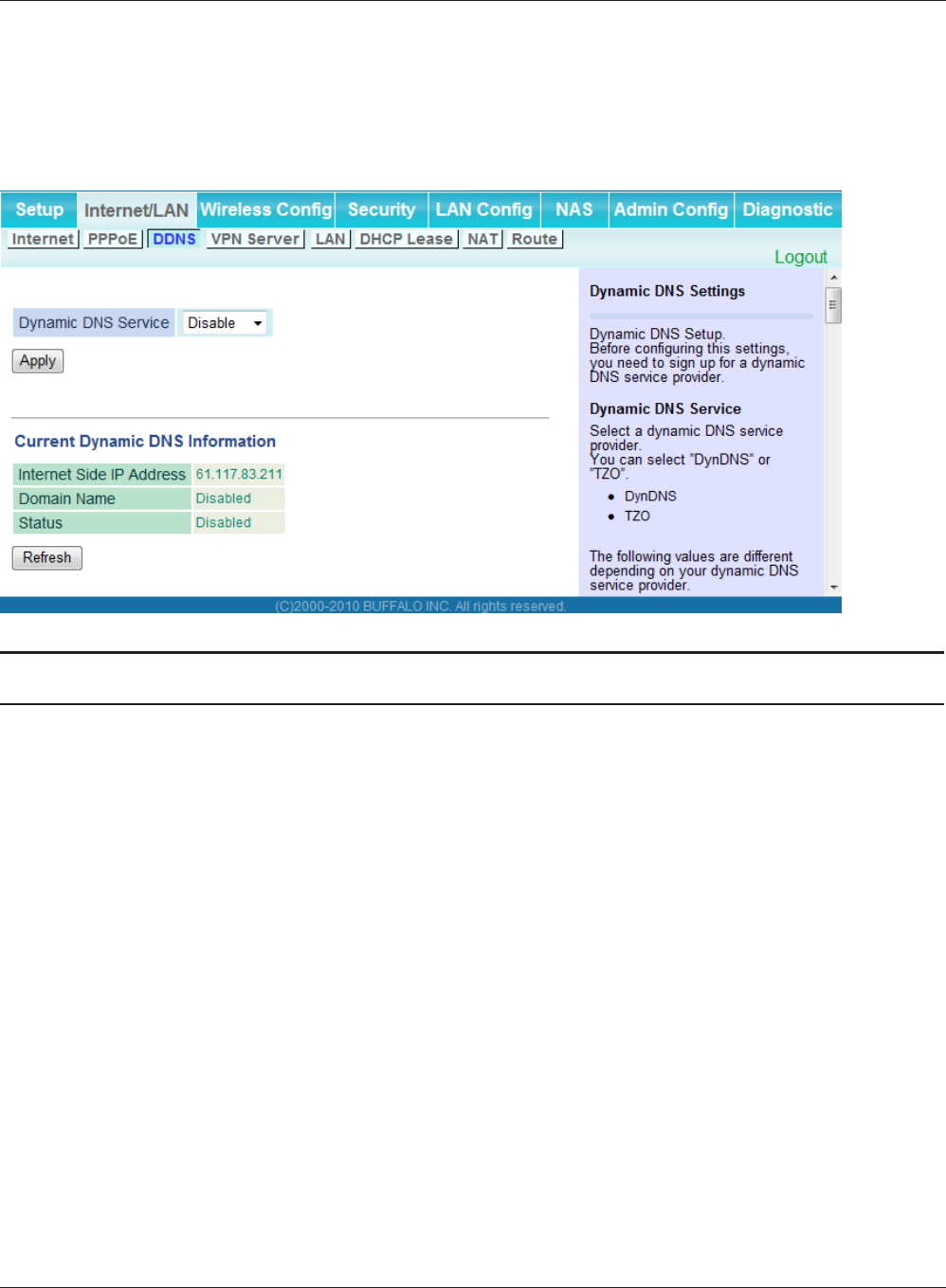

2.3.1.2. Dynamic DNS (DynDNS or DDNS)
Dynamic DNS allows the assignment of a DNS record to a dynamically
assigned WAN-side IP address. A DynDNS client updates DNS records when
your WAN-side IP address changes.
The router’s firmware offers presets for the most common DynDNS
services plus an option to define individual settings.
- 6 -
DynDNS Service Description
Disabled Default, no DynDNS
DynDNS.org
freedns.afraid.org
ZoneEdit.com
No-IP.com
3322.org
easyDNS.com
TZO.com
DynSIP.org
Custom Individual DynDNS service configuration
2.3.1.3. MAC Address Cloning
MAC address cloning lets you assign a different MAC address to the
router than the one encoded in the hardware.
2.3.1.4. Advanced Routing
Operating Mode
The default operating mode of the router is Gateway. Other routing
protocols are available.
Modus Description
Gateway Gateway (default)
BGP BGP Routing
Rip2 Router Rip2 Routing
Router Router

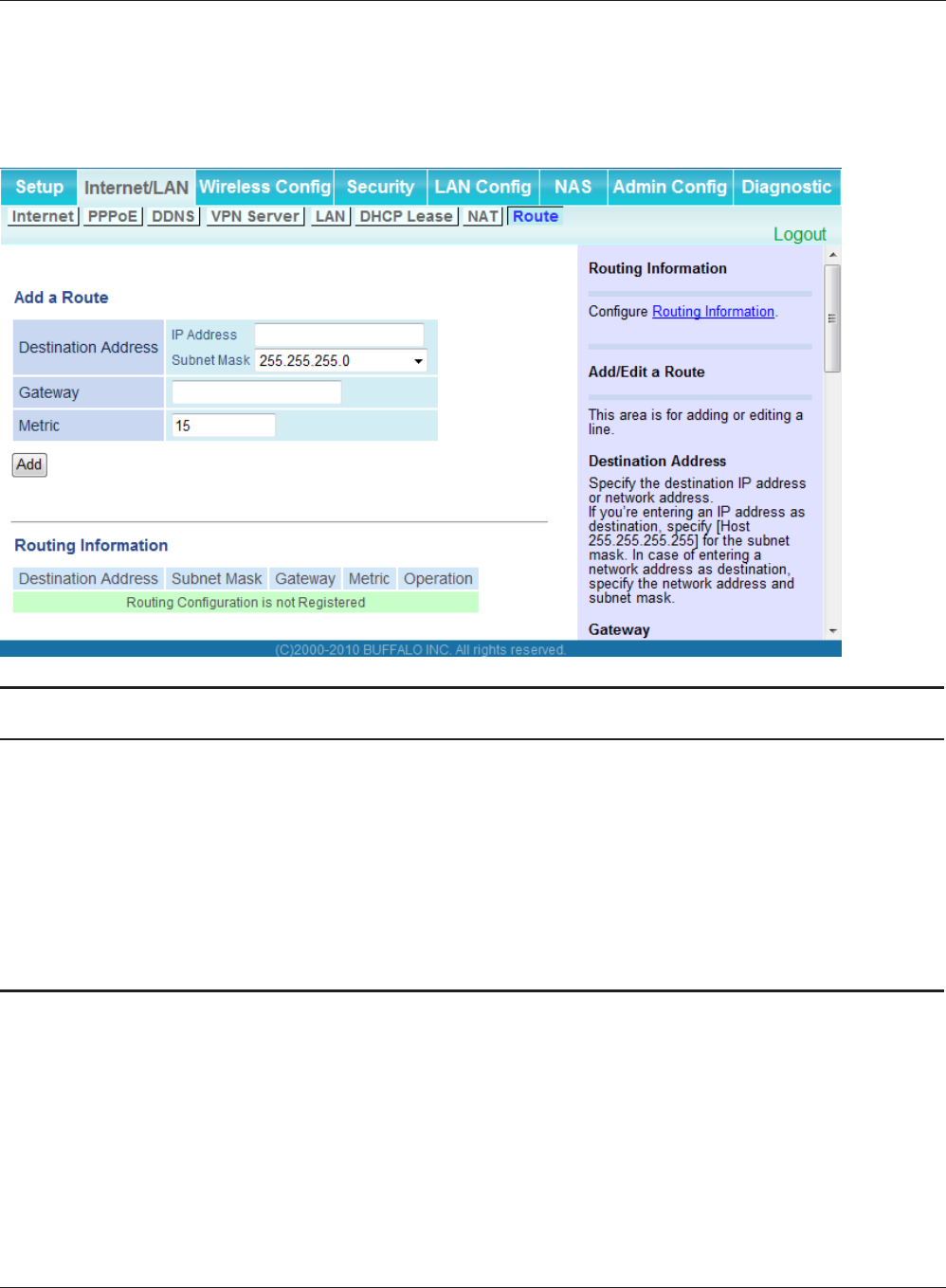

Static Routing
The Static Routing section lets you add static routes. The input
parameters are equivalent to the parameters of the Linux command
“route”.
2.3.1.5. Networking
The Networking section allows detailed network configuration.
VLAN Tagging
Use this option to configure VLAN tagging.
Bridging
By default, one bridge (br0) is defined and active. In this section
you can define additional bridges and change the interface assignment
according to your requirements.
- 7 -
Bonding
Bonding offers the ability to “bond” interfaces together. Bonding can
be used to enhance throughput or provide failover capabilities.
Port Setup
The port setup section allows further configuration of the routers
network interfaces. Network interfaces can be separated from the
bridge and it is possible to assign separate network settings for each
interface. If an interface is separated from the bridge, add routing
rules to allow communication between the interface and the bridge or
other unbridged interfaces.
DHCPD
Besides the default DHCP server, you can define additional DHCP
servers.
2.3.1.6. EoIP Tunnel
EoIP (Ethernet over IP) tunnels can transport Ethernet data packages
via a tunnel over existing IP connections. You can define up to 10
tunnels that can also be bonded.

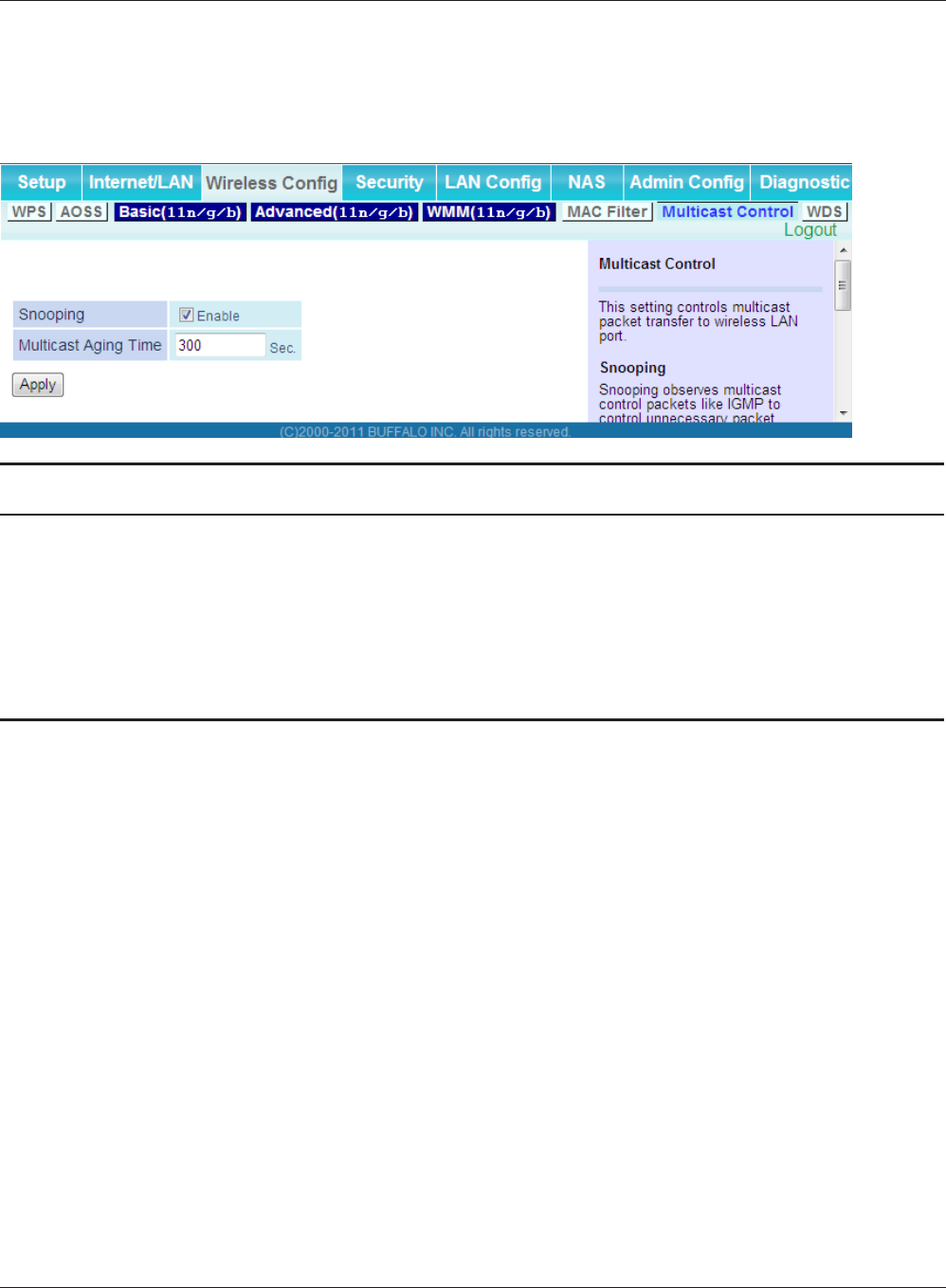

2.3.2. Wireless
2.3.2.1. Basic Settings

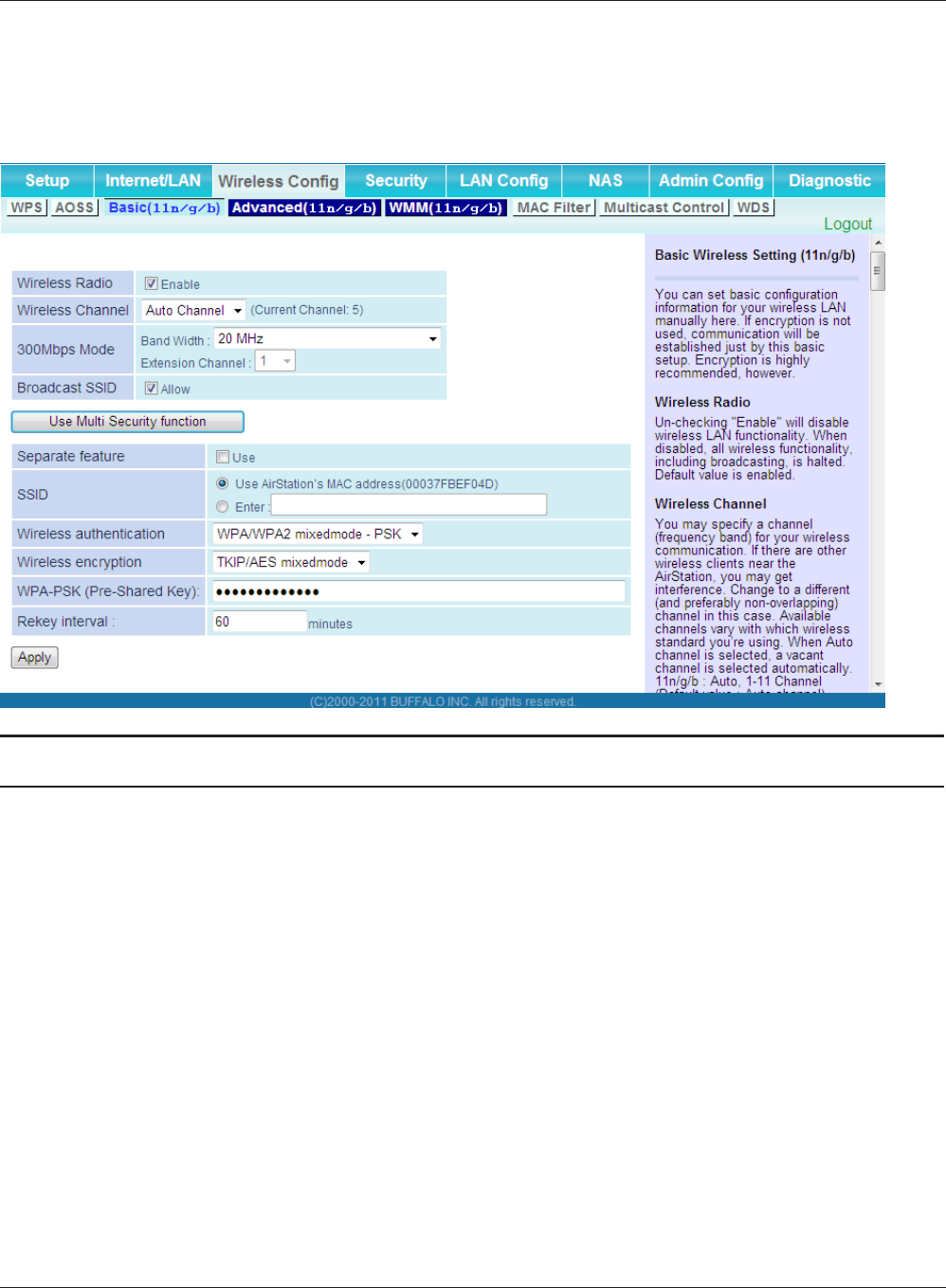

Each Wireless LAN interface has its own section in the wireless basic
settings screen. The wireless interfaces are labelled ath0 and ath0.1
– ath0.4 depending on the number of radios installed. To correctly
identify the antenna connectors, please compare the MAC addresses
printed on the enclosure with the addresses displayed in the web
interface.

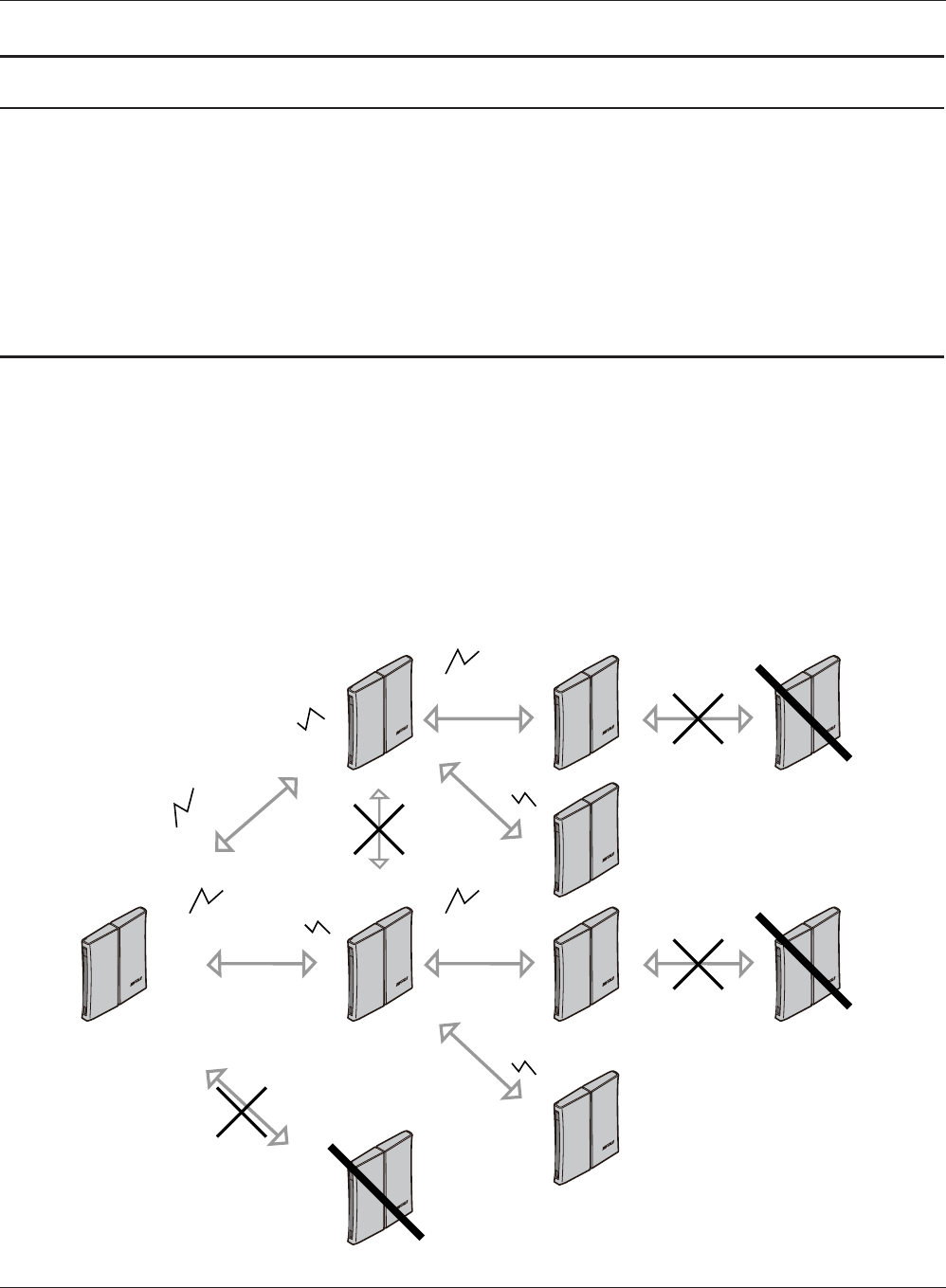

Wireless Mode
This parameter is used to define the operating mode of the Wireless
LAN interface. You can select among the following modes:
Modus Description
AP WLAN Access Point mode (default)
Client WLAN Client mode
Client-Bridge Client-Bridge mode allows connecting to
another Wireless LAN access point and
establishing a network bridge with that
access point
Adhoc Adhoc operating mode, required for building
mesh networks
WDS Station WDS Station is the client in a WDS-AP <-> WDS
station bridge. This is a special wireless
networking mode that offers better
flexibility and security than the classical
MAC address based WDS.
WDS AP WDS AP is the AP side for WDS AP <-> WDS
Station. A WDS AP allows connections from WDS
Stations and Wireless Clients.
- 8 -
Wireless Network Mode
Defines the IEEE802.11 networking mode.
Mode Description
Disabled Interface is disabled
Mixed 2.4 GHz 802.11b / 802.11g / 802.11n mixed
mode
B-Only 2.4 GHz 802.11b mode (802.11g and 802.11n
devices cannot connect)
G-Only 2.4 GHz 802.11g mode (802.11b, and 802.11n
devices cannot connect)
BG-Mixed 2.4 GHz 802.11b & 802.11g mixed mode (802.11n
devices cannot connect)
NG-Mixed 2.4 GHz 802.11n & 802.11g mixed mode (802.11b
devices cannot connect)
N-Only (2.4 GHz) 2.4 GHZ 802.11n mode (802.11a, 802.11b, and
802.11g devices cannot connect)
Channel Width
Some wireless network modes support wireless channel widths besides
the standard 20 MHz. 802.11g & 802.11n offer the option to use 40 MHz
channels for enhanced throughput. Both the AP and the client must
support 40 MHz channels to use them.
Wireless Channel (AP only)
Set the desired wireless channel, or let the router choose a free
channel automatically. If the router is in classic WDS (MAC address
based) mode, then the wireless channel must be selected manually.
Wireless Network Name (SSID)
The name of the wireless network the radio transmits or connects to
(depending on the wireless mode)
Wireless SSID Broadcast (AP only)
The name of the wireless network (SSID) may be broadcasted or not. Not
broadcasting does not prevent the network from being detected by a
wireless network sniffer; it just hides the name.

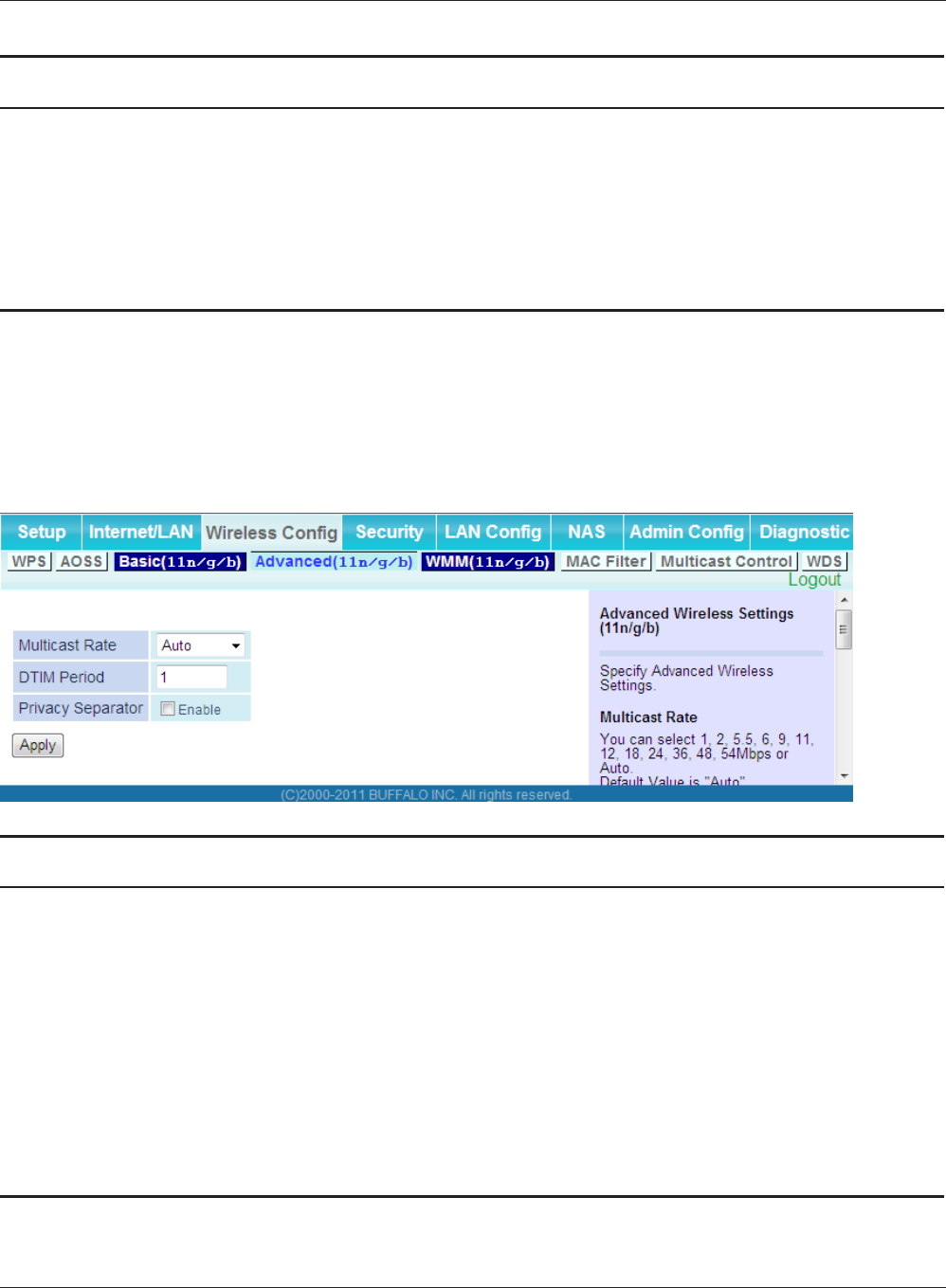

Advanced Settings
Check this box to get access to advanced wireless settings. These
advanced parameters should be only modified by experienced users.
2.3.2.2. Wireless Security
Because wireless data packets can easily be sniffed, wireless
connections require a greater level of security to ensure that data
cannot be read by unauthorized users.
Security Mode
Mode Description
Disabled No encryption set (not recommended!)
- 9 -
WPA Personal WPA encryption with a passphrase (text
password)
WPA Enterprise (AP
only)
WPA encryption with Radius Client
authentication according to 802.1x
WPA2 Personal WPA2 encryption with a passphrase (text
password)
WPA2 Enterprise (AP
only)
WPA2 encryption with Radius Client
authentication according to 802.1x
WPA2 Personal Mixed WPA & WPA2 encryption in WPA/WPA2 mixed mode
with a passphrase (text password)
WPA2 Enterprise Mixed
(AP only)
WPA & WPA2 encryption in WPA/WPA2 mixed with
Radius Client authentication according to
802.1x
RADIUS
WEP WEP 64 Bit / 128 Bit encryption (insecure;
not recommended!)
802.1x (Client only) Client side mode to connect to AP’s working
with WPA Enterprise Modes via RADIUS
authentication
When using WEP encryption (not recommended), the user can choose
between 64 bit and 128 bit keys. Keys can be entered as passphrases
that are used to generate the Hex keys. Theoretically 128 bit keys
offer a higher level of security but because of design flaws, that’s
not the case in actual use.
Key length Description
64 Bit (10
Hexadecimal
characters)
Standard
128 Bit (26
Hexadecimal
characters)
With WPA or WPA2 encryption, there are several encryption algorithms
to choose from. AES is more secure but TKIP is more widely supported.
There is also a TKIP + AES setting, but that does not offer more
security than TKIP.
Algorithm Description
TKIP TKIP encryption, supported by most clients
devices
AES AES encryption offers a better level of
security but might not be supported by a
number of client devices and requires less
CPU processing power.
TKIP + AES Mixed mode – offers best compatibility but
doesn’t work in all environments
If RADIUS security is used, the MAC address format has to be set
accordingly.
- 10 -
RADIUS MAC format
options
Description
aabbcc-ddeeff Standard
aabbccddeeff
aa:bb:cc:dd:ee:ff
aa-bb-cc-dd-ee-ff

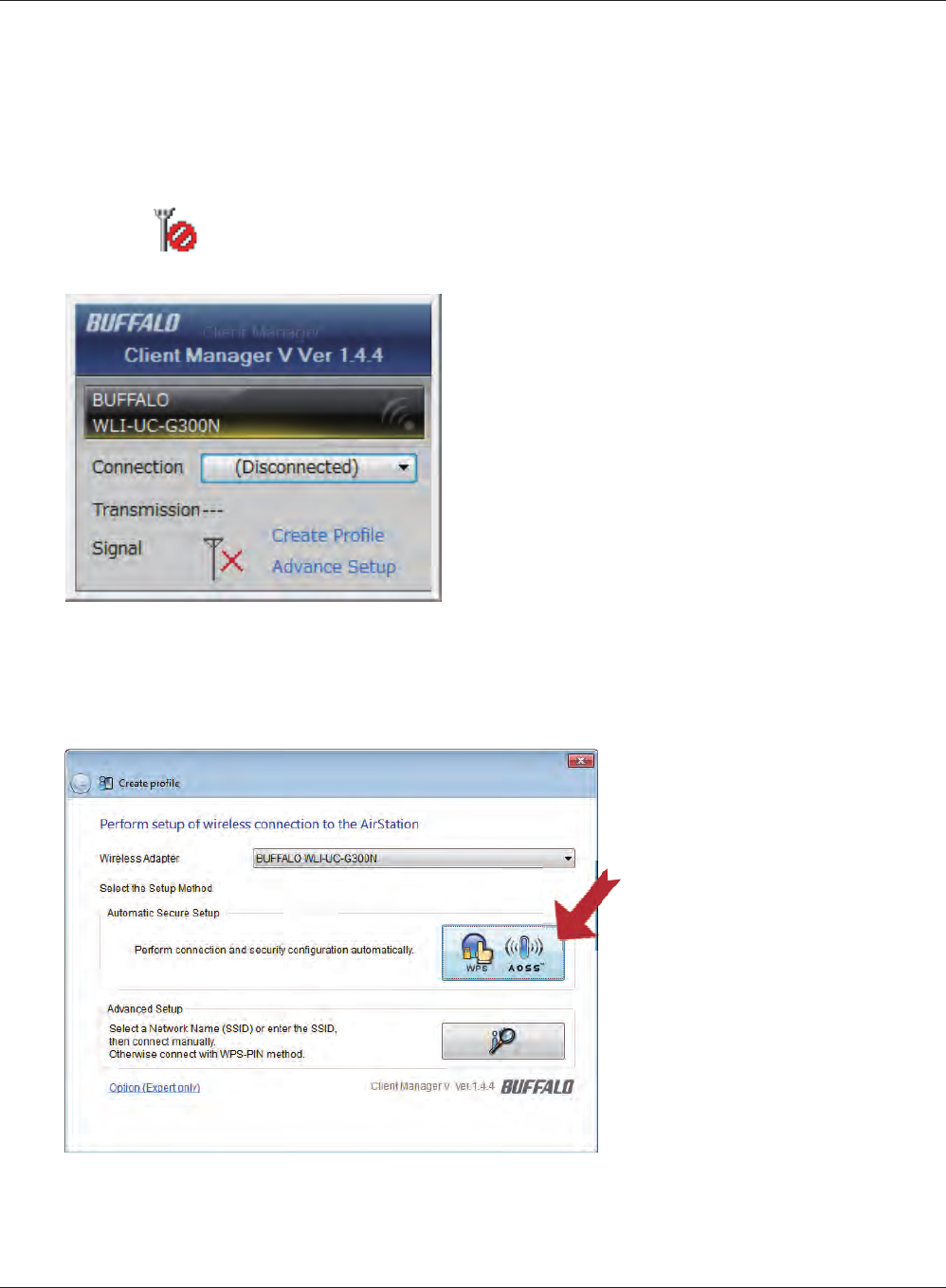

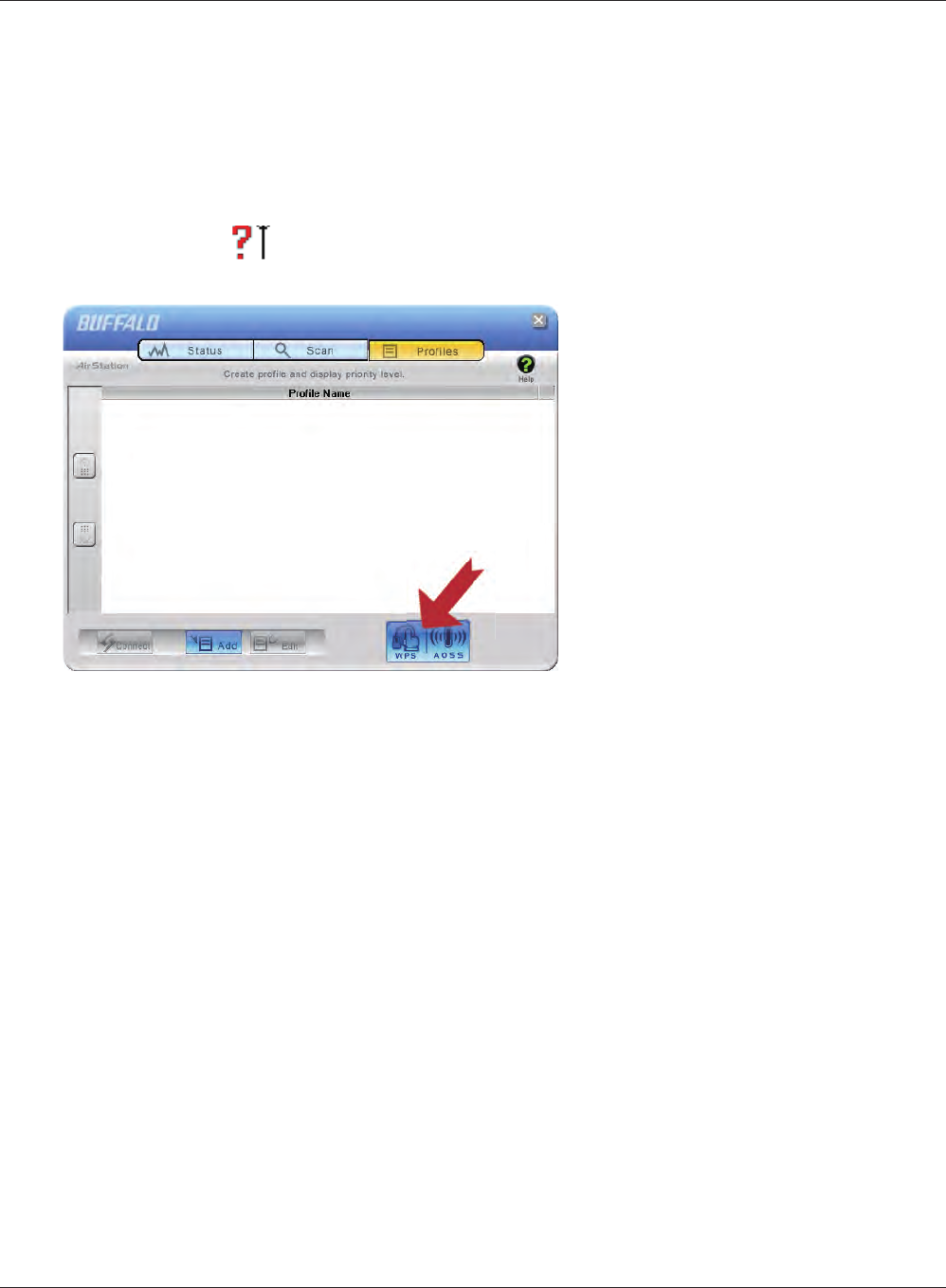

2.3.2.3. AOSS/WPS

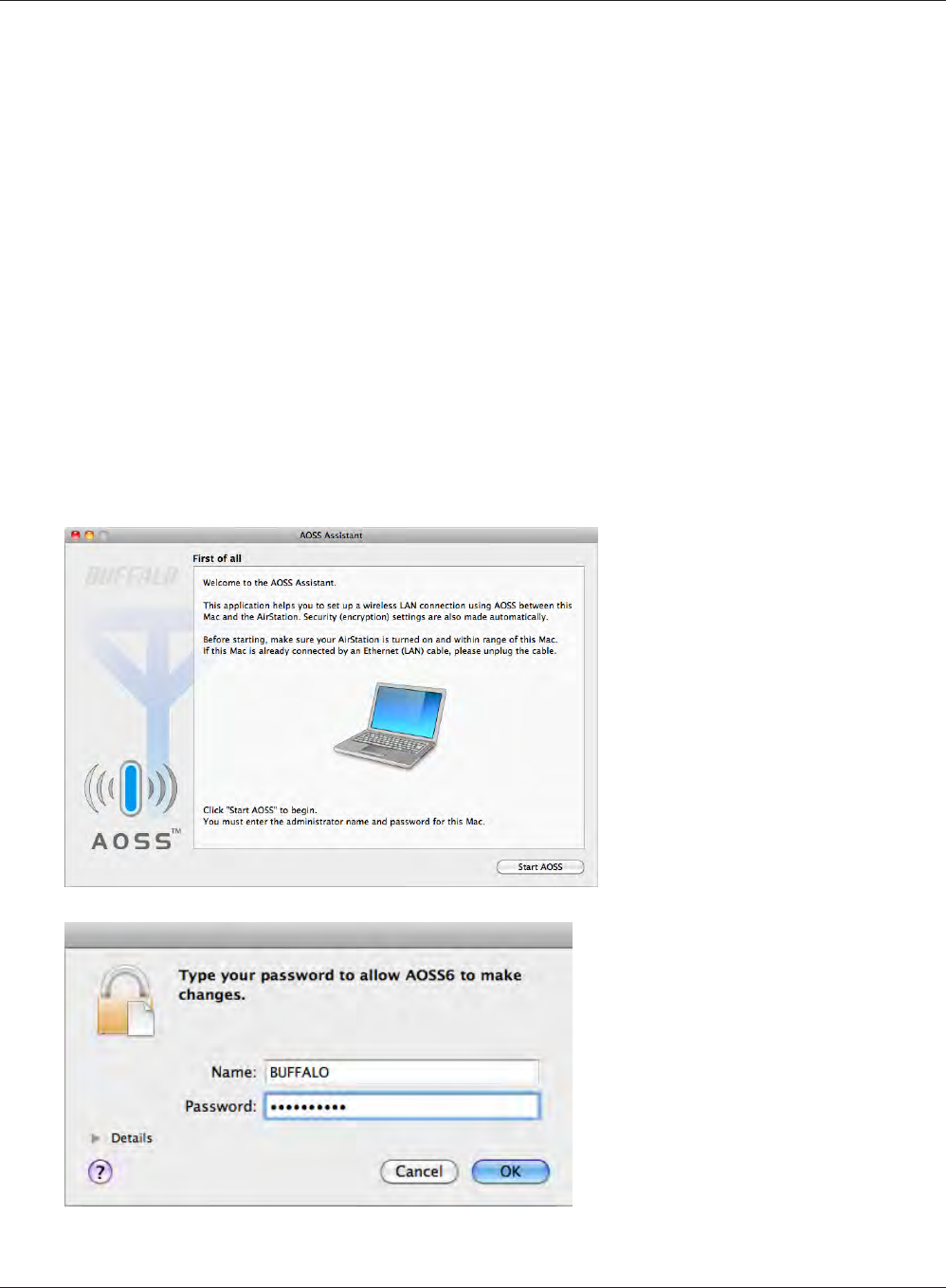

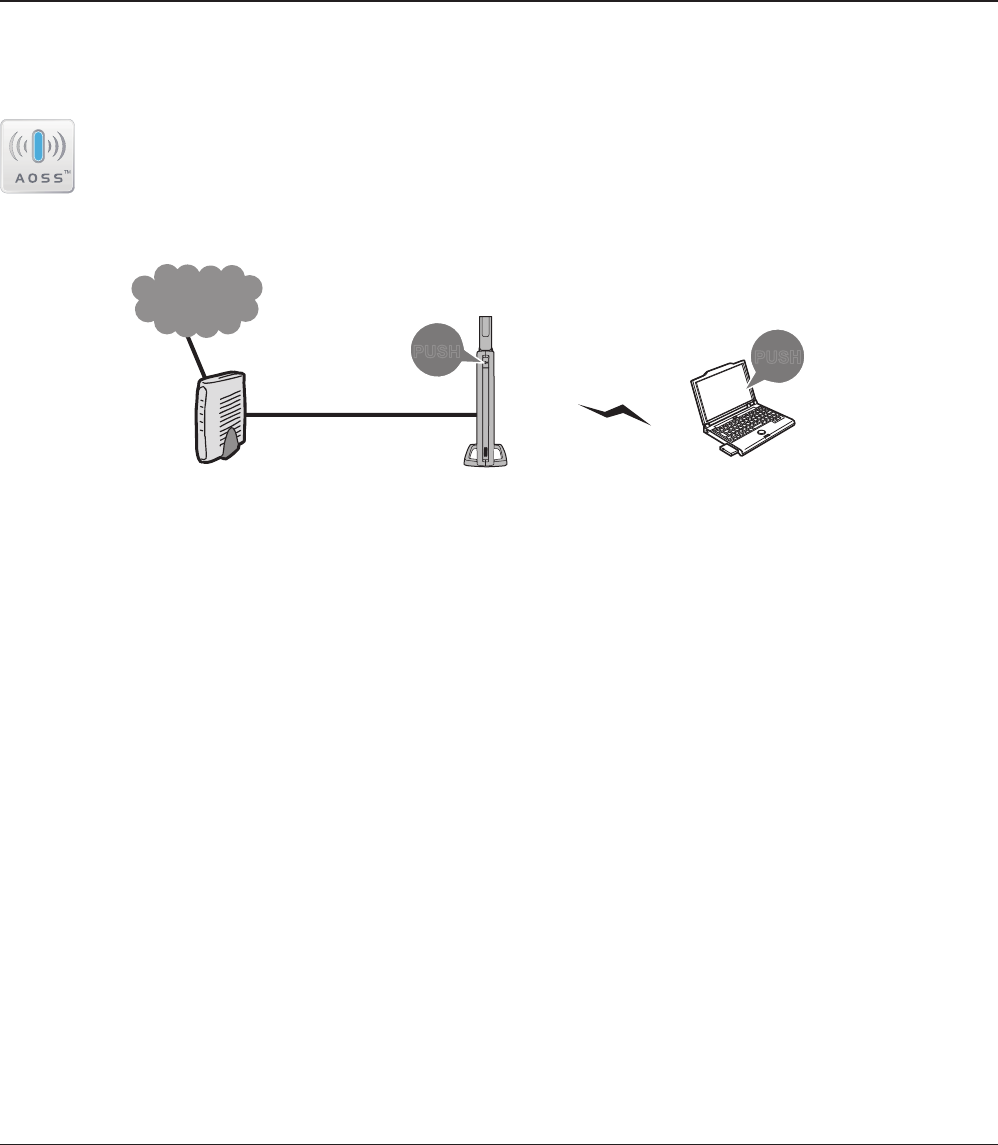

AOSS (AirStation One-touch Secure Setup) is Buffalo Technology’s
system to automatically connect wireless clients to an access point.
Just press the button on the AirStation, then press the button for the
wireless client (which might be in its software). AOSS will connect
the wireless devices automatically. AOSS is recommended if all of your
wireless devices support it. AOSS can only be used in AP mode.

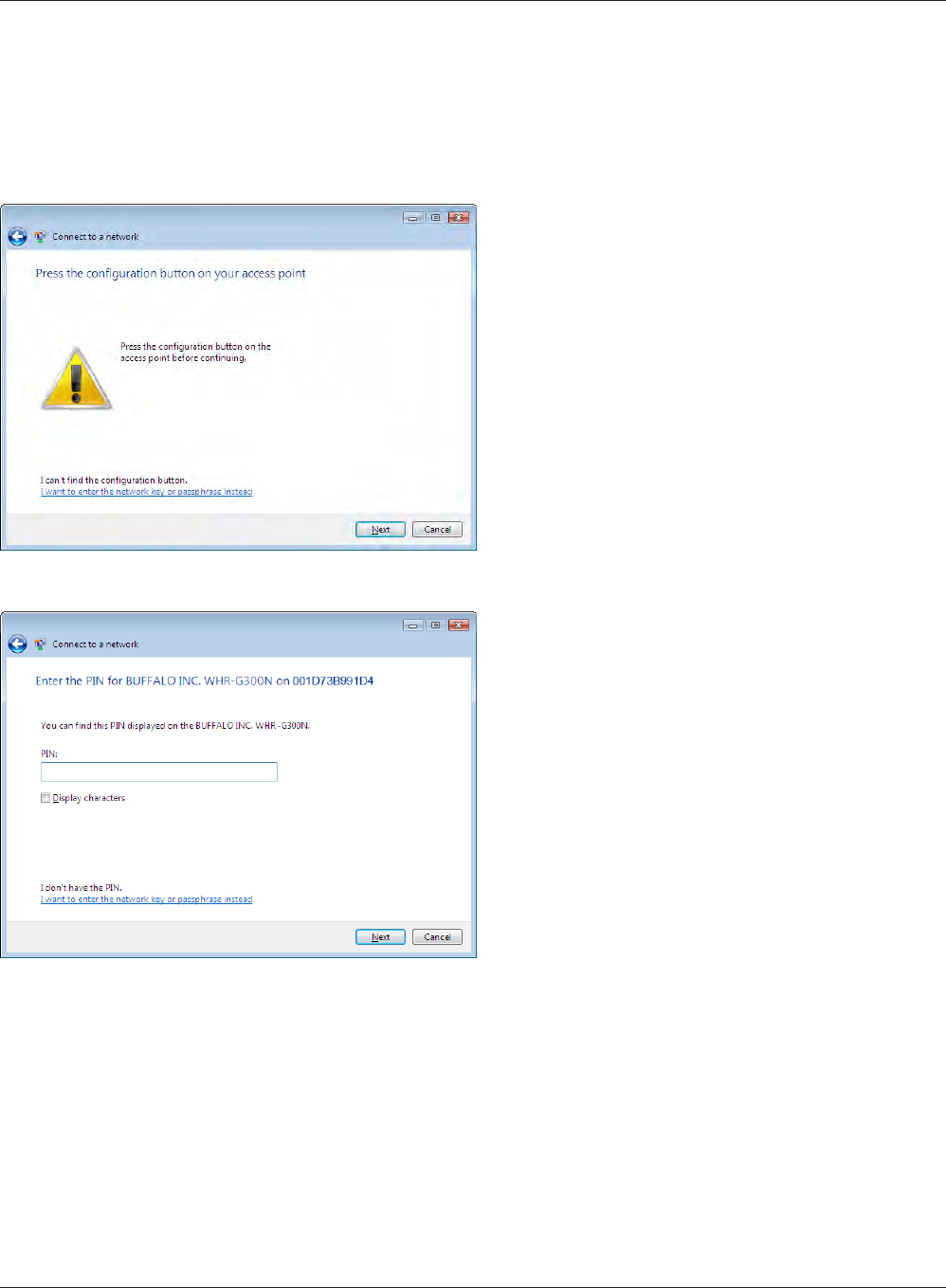

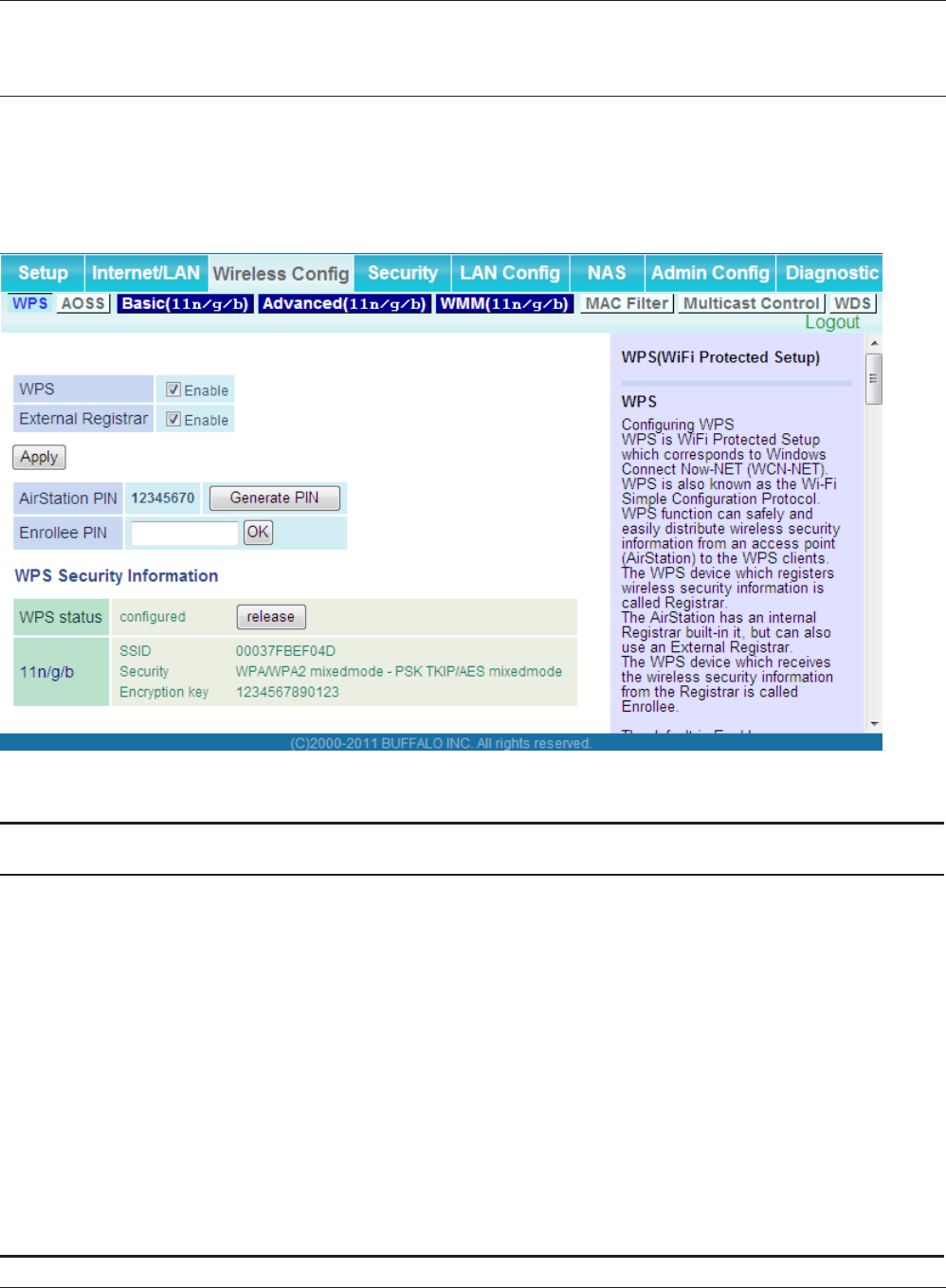

The WPS is a standard created by the Wi-Fi Alliance. There are two
methods of configuration, PBC and PIN. PBC is similar to AOSS. PIN
uses a unique PIN code to register the wireless client to the
AirStation. If your wireless devices support it, WPS makes
configuration simple and automatic.
Enable AOSS
Enables the AOSS Service. When disabled, AOSS cannot be used.
Start AOSS Negotiation
To initiate AOSS, either click the AOSS button in the GUI or hold down
the AOSS button on the front of the router for 3 seconds.
Security Modes
You may choose which security modes are offered in the AOSS
negotiation process. The use of WEP in general is not recommended due
to security concerns.
WPS Button
Enables the WPS button. When disabled, WPS button cannot be used.
WPS PIN
Enter the PIN code printed on your client device or your client
authentication application.

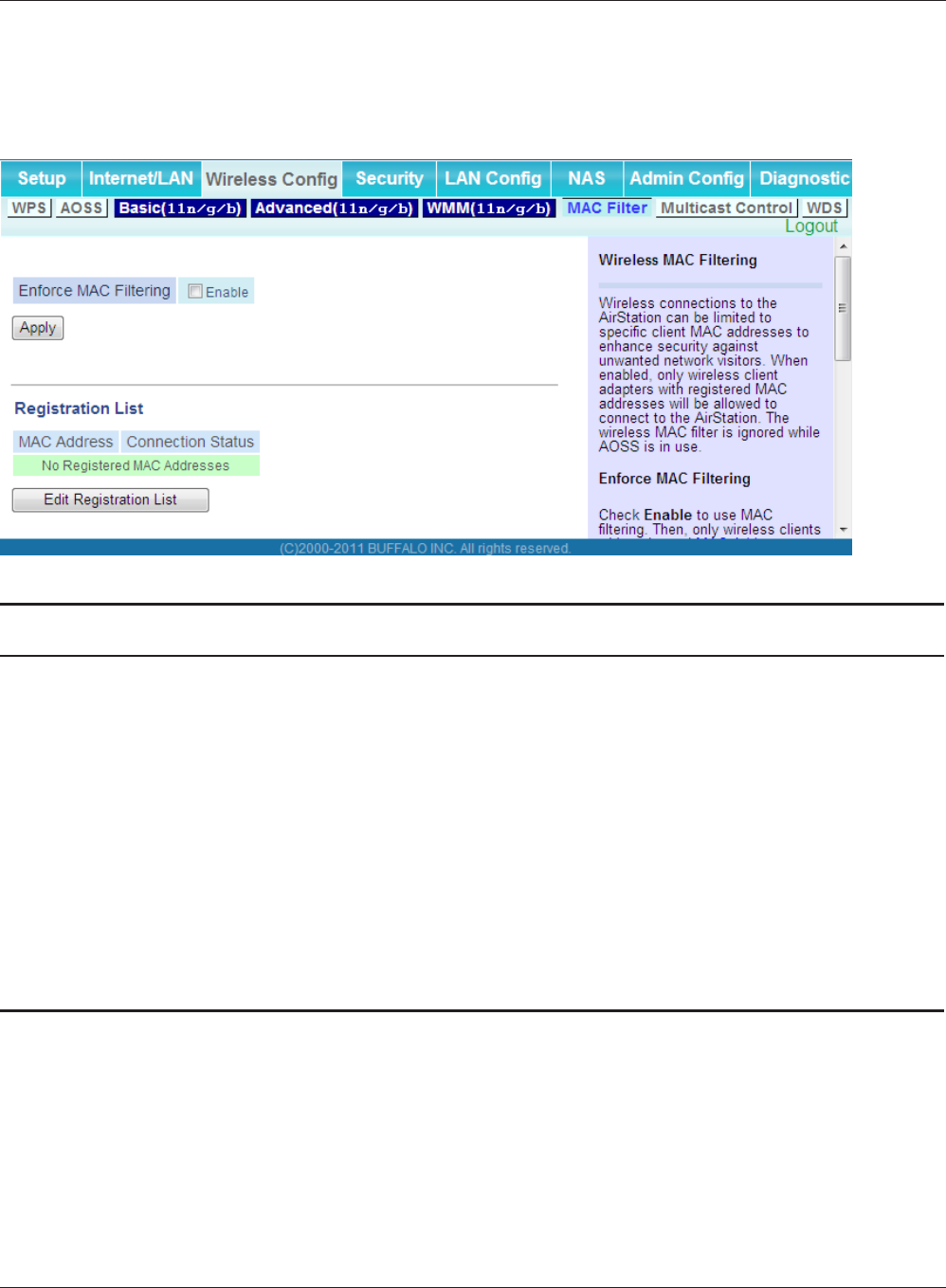

2.3.2.4. MAC Filter
The MAC Filter defines a list of client MAC addresses that are allowed
to connect wirelessly. MAC addresses that aren’t on the list aren’t
allowed to connect.
- 11 -
2.3.3. Services
2.3.3.1. Services
The services section allows the configuration of basic service
settings. Telnet and SSH can be configured this way. Remote access
options are configured in the Administration section.
Available DHCP Server
Domains
Description
WAN Standard
LAN / WLAN
Rflow / MACupd
Interface Options
Description
LAN & WLAN Standard
LAN
WLAN
2.3.3.2. FreeRadius
Certain applications (for example, Chillispot hotspot software)
benefit from a RADIUS server for management of user credentials and
settings.
Server Certificate
This section contains the parameters to generate the RADIUS server
certificate. The certificate needs to be generated before clients can
be configured to connect to the RADIUS server.
Certificate Status
Displays the server certificate creation status.
Settings
Choose the port that the RADIUS server uses for client communication.
The default port is 1812.
Clients
This section is used to define RADIUS clients (required for HotSpot
usage).
Users
Lists the users defined in the RADIUS servers. Allows creation and
modification of accounts.
2.3.3.3. PPPoE Server
Some applications require a PPPoE server on the router, which can be
configured here. The PPPoE server is disabled by default.
2.3.3.4. VPN
The router can also be configured as VPN server or VPN client.
- 12 -

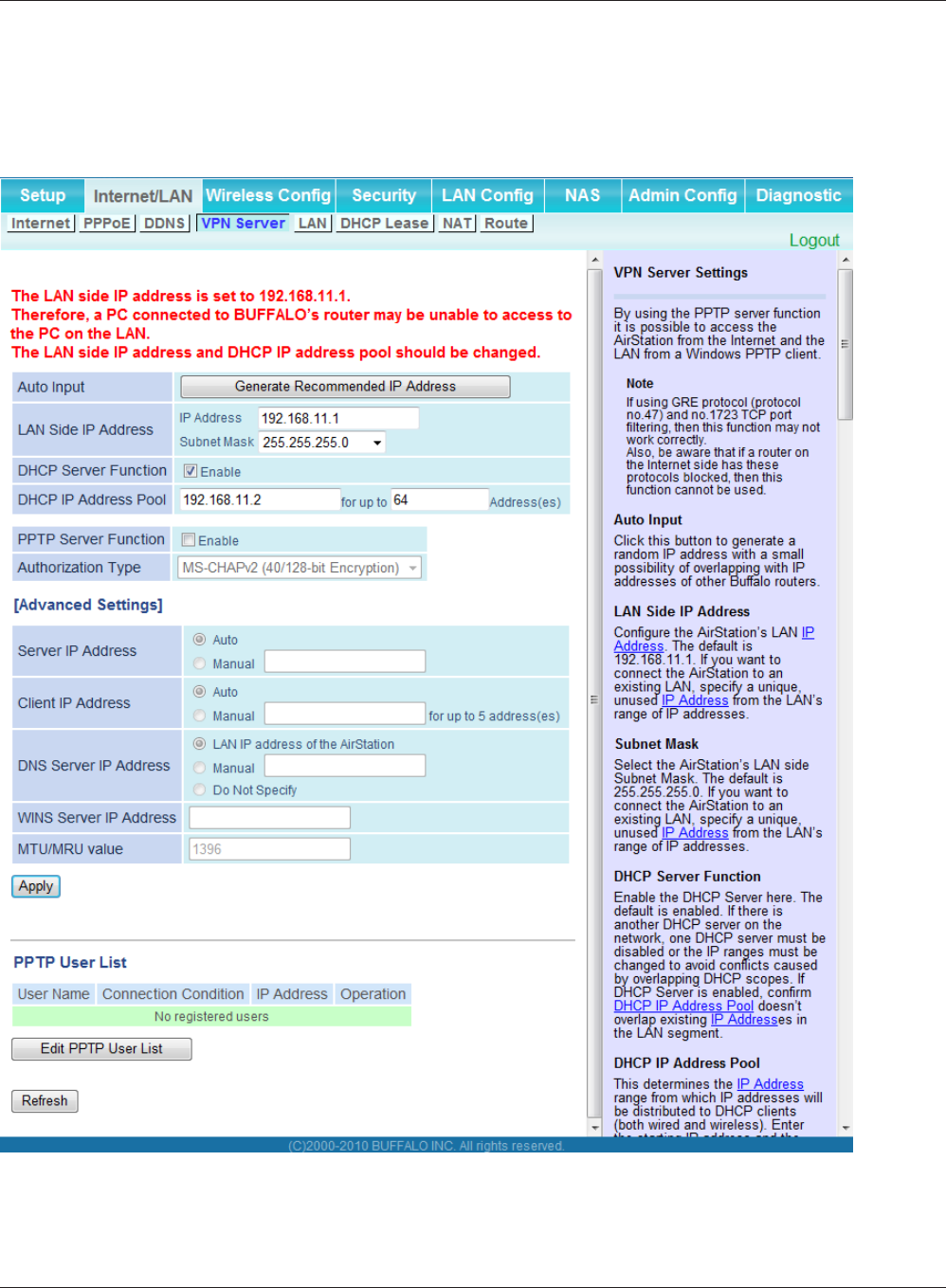

PPTP
When defining the PPTP server’s IP range, avoid overlap with the range
of IP addresses handed out by DHCP if DHCP is enabled. The IP range is
defined using the following syntax:
xxx.xxx.xxx.<start-ip>-<end-ip>
for example
192.168.1.20-30
Enter client login data follows:
<username> * <password> *
for example
testuser * test *
The encryption options can be set as follows
PPTP server type Settings
DD-WRT Router mppe required (Standard)
Windows PPTP Server mppe required,no40,no56,stateless or
mppe required,no40,no56,stateful
OpenVPN
OpenVPN is a powerful and flexible VPN solution. OpenVPN security is
based on certificates that cannot created on the router itself. Please
refer to OpenVPN’s online documentation for instructions on creating
certificates and configuring OpenVPN.

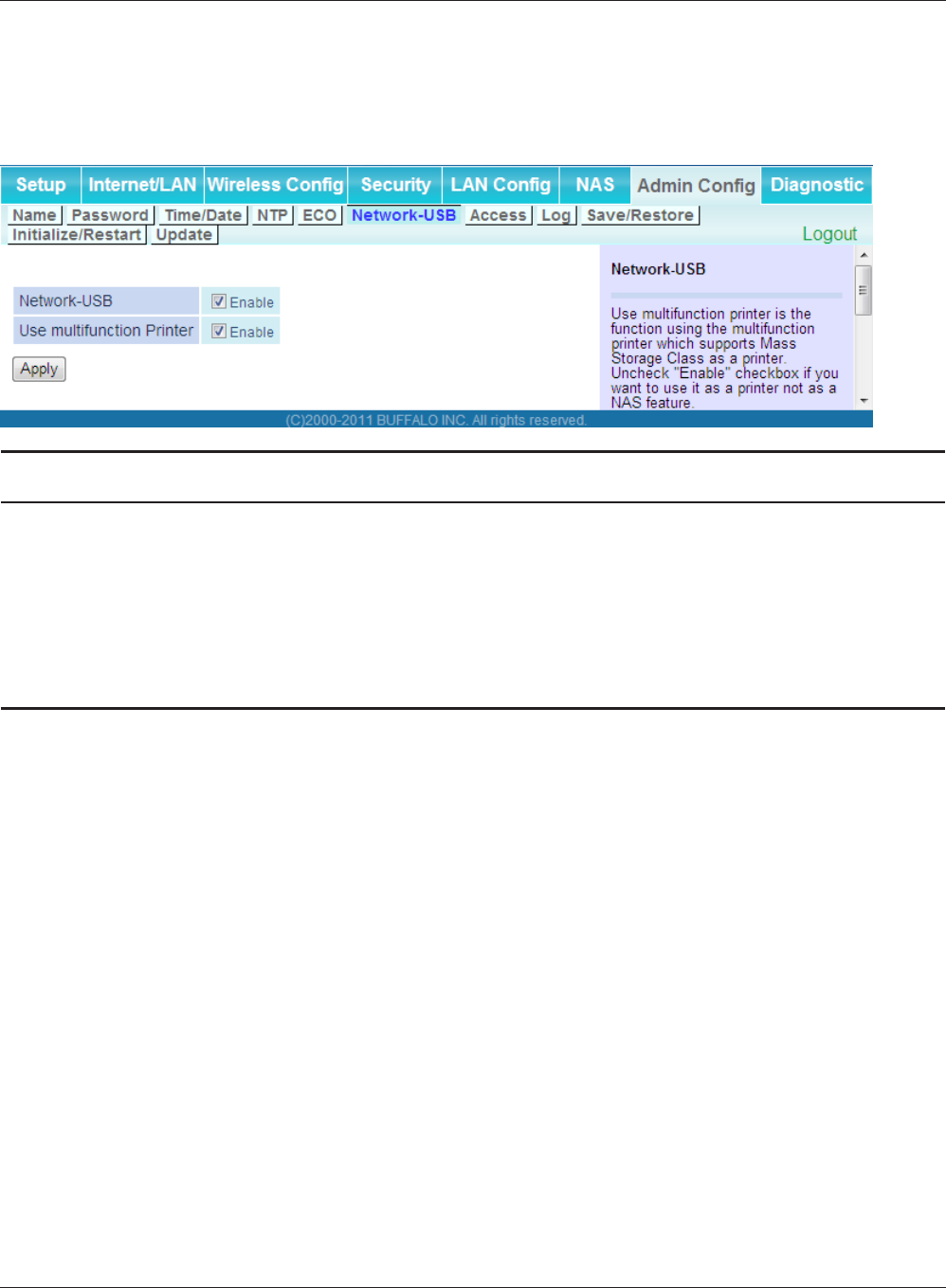

2.3.3.5. USB
The router’s USB port can be used for several purposes. Here the basic
and advanced USB parameters are defined. Besides enabling USB and
defining the USB hardware standard to use you can also define if
printer and storage support for USB shall be enabled.
2.3.3.6. NAS

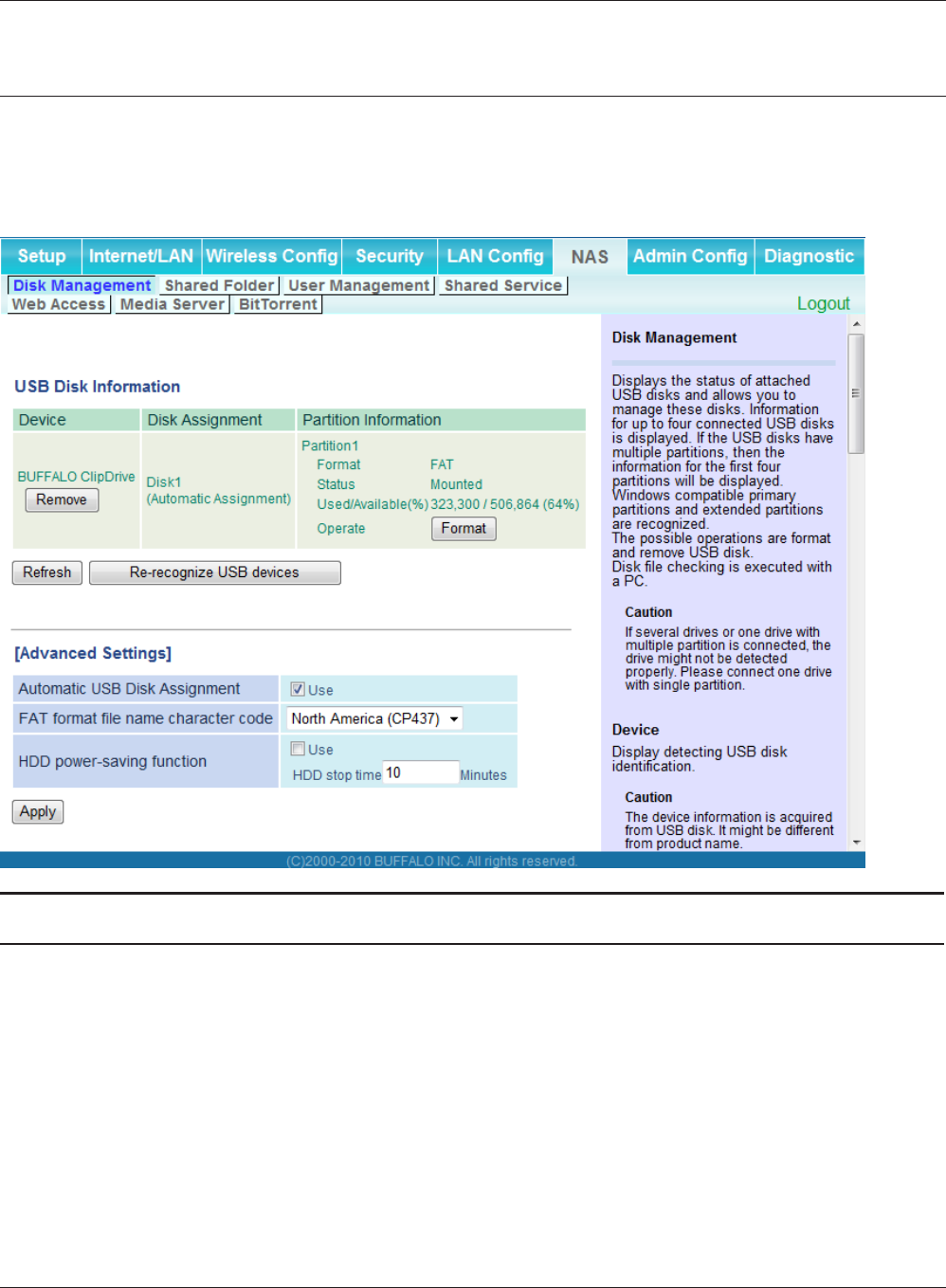

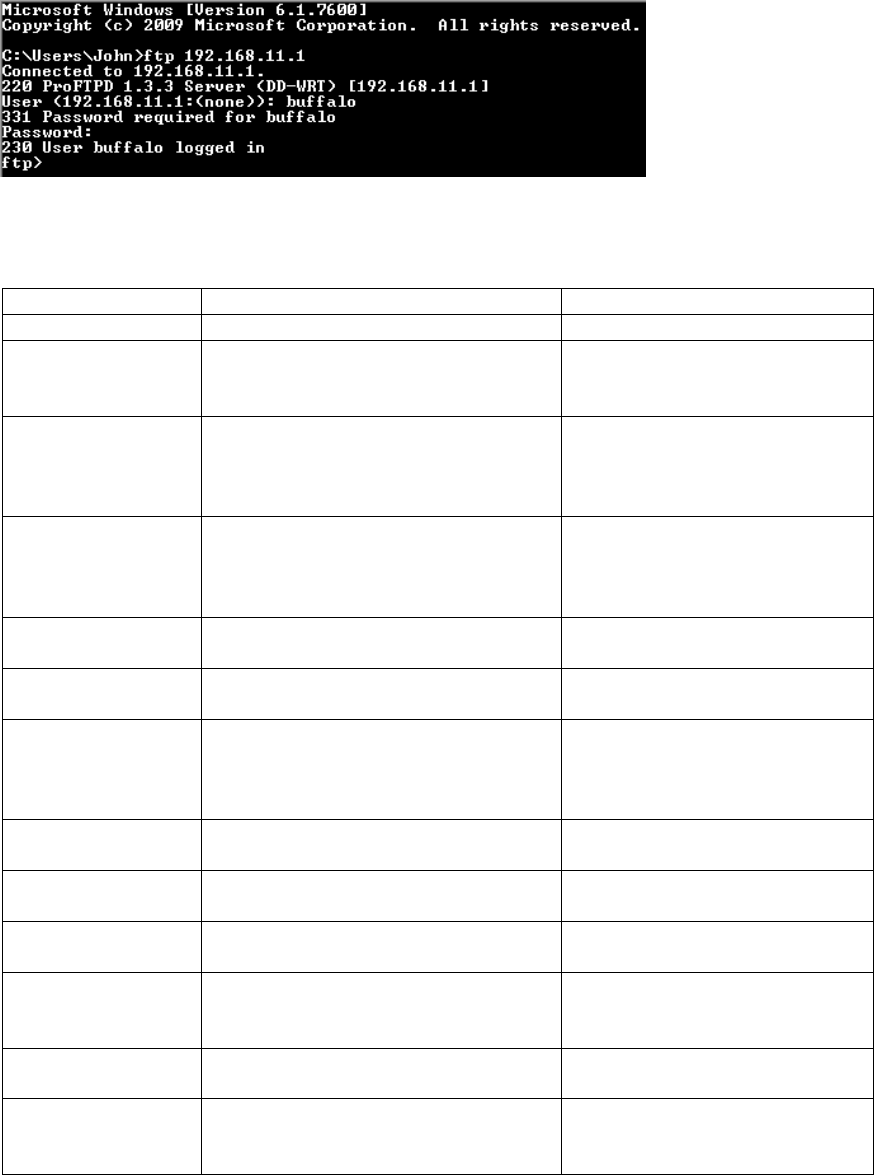

If USB hard drive support is enabled, you can start the integrated
ProFTPd server to share data on an attached hard disk via FTP.
The User/Password data are entered as follows:
<username> * <password> *
for example
testuser * test *
- 13 -
Be careful enabling anonymous login. If anonymous login is enabled,
everyone accessing your network has permission to read and write data.
2.3.3.7. Hotspot
Most hotspot software requires a server to store user settings and
login information. Please note that Sputnik is a commercial hotspot
service that requires an agreement with Sputnik for usage.
2.3.3.8. Milkfish SIP Router
This package is an implementation of the Milkfish SIP router.
2.3.3.9. My Ad Network
Allows the creation of an AnchorFree Hotspot that can be used to
create revenue via AnchorFree.
2.3.4. Security

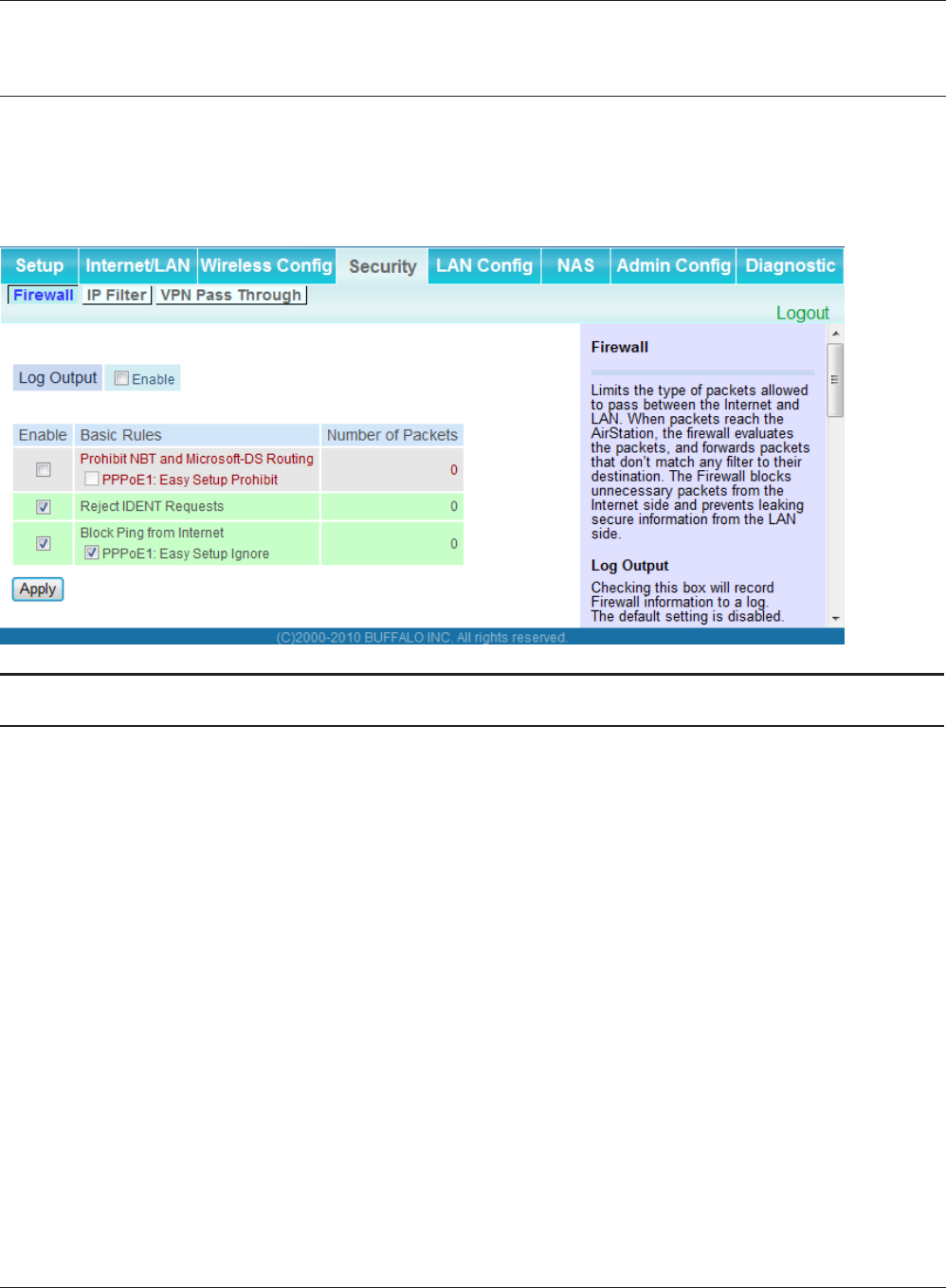

2.3.4.1. Firewall
Aside from enabling and disabling the firewall, you can also set
additional filters, block certain network requests for the WAN
interface, and manage logs.

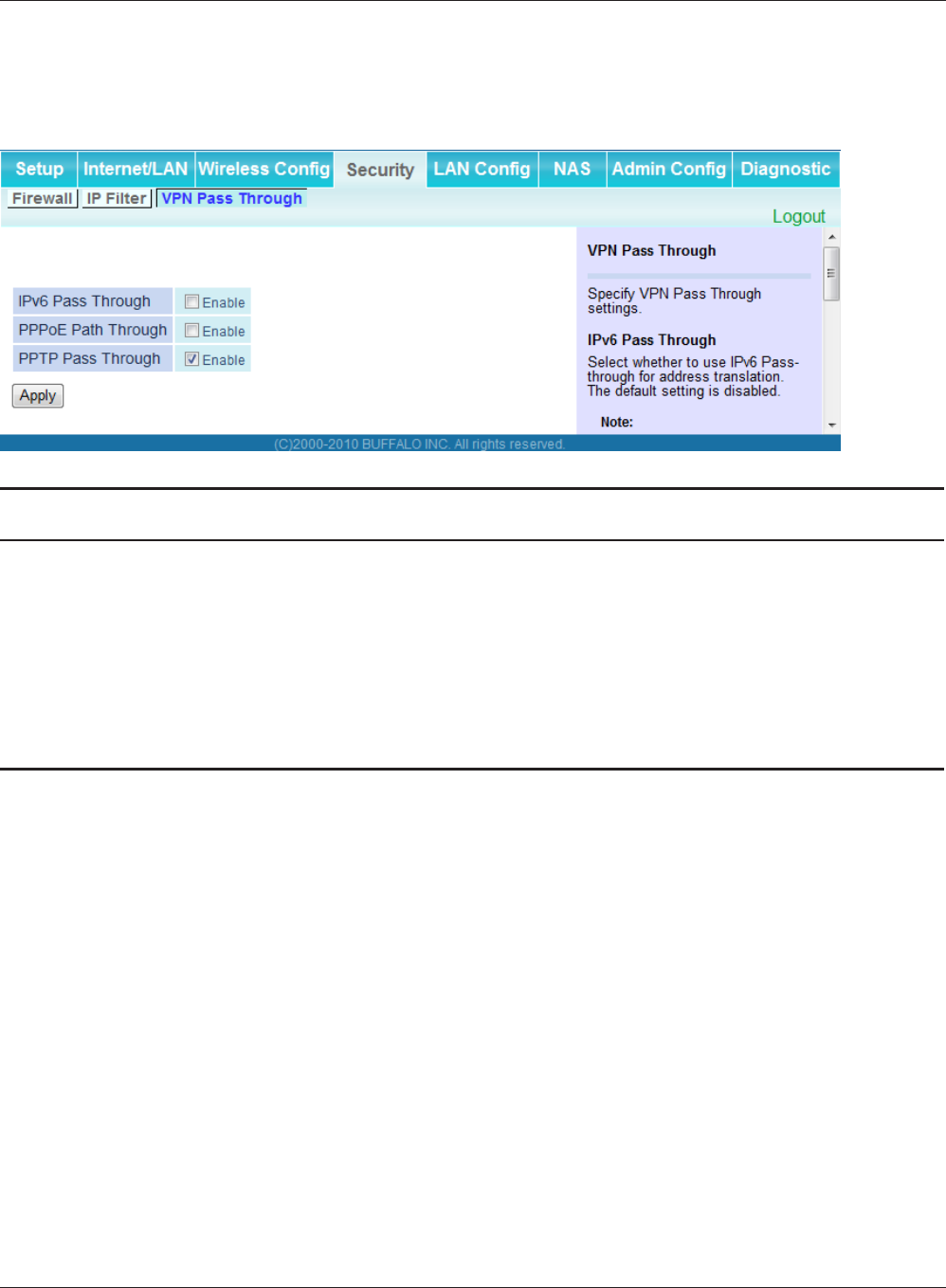

2.3.4.2. VPN Pass-through
VPN settings effect how the firewall handles IPSec, PPTP, and L2TP
connections. By default, pass-through is enabled. Please note that
disabling pass-through will usually prevent you from establishing VPN
connections from computers located in your local network to VPN
servers on the internet.
2.3.5. Access Restrictions
2.3.5.1. WAN Access
The WAN access settings allow the definition of time and service
related access rules.
2.3.6. NAT / QoS

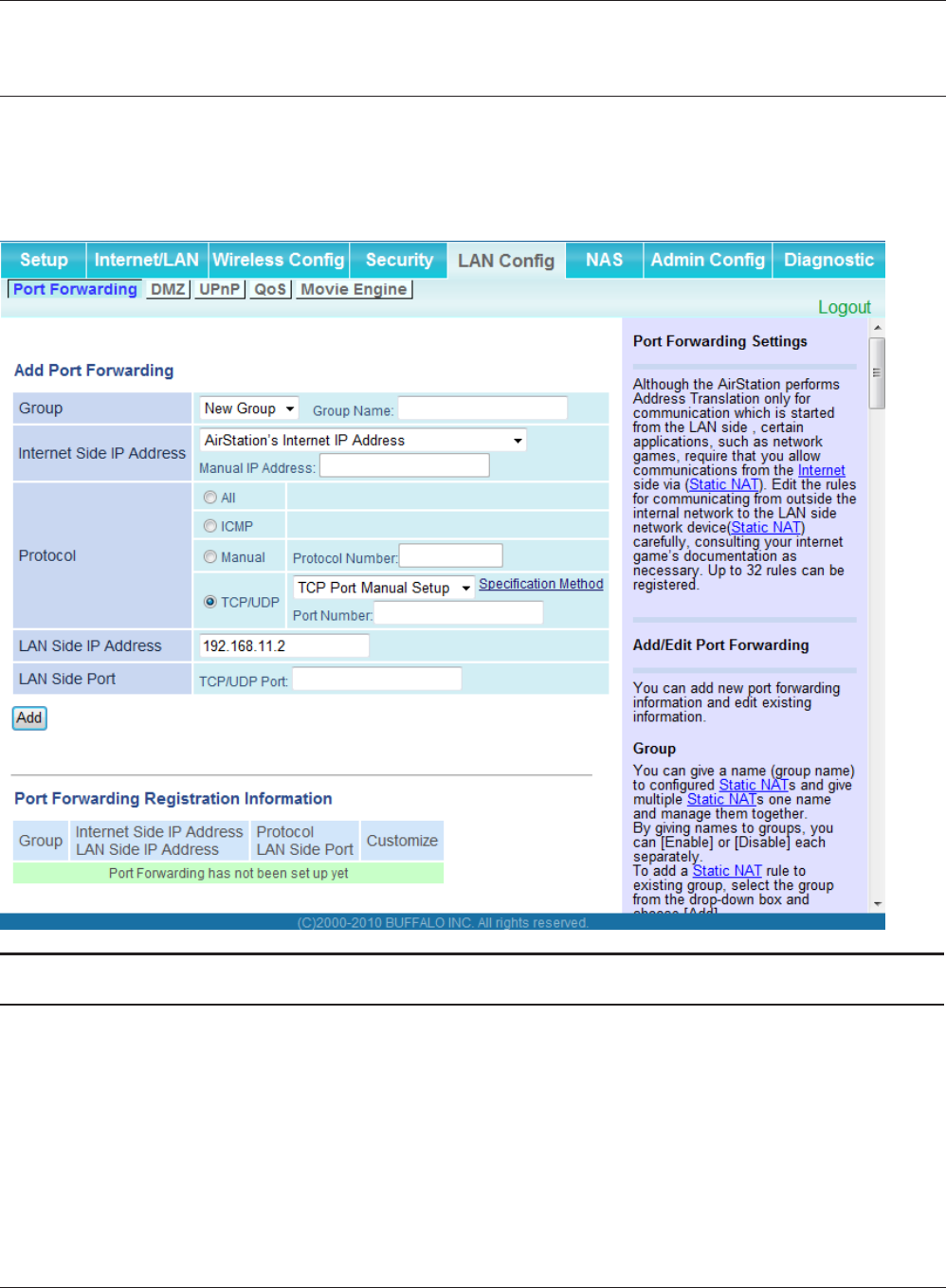

2.3.6.1. Port Forwarding
Port forwarding allows the assigning of WAN ports to specific internal
IP addresses and matching ports. Bidirectional external traffic can be
forwarded to specific internal devices and computers. Each port
forwarding entry defines a source port and a target IP address.
Before adding or removing a port forwarding entry, save all changed
settings. Any changes not saved will be lost when a port forwarding
entry is added or deleted.
- 14 -
2.3.6.2. Port Range Forwarding
Port range forwarding works similarly to port forwarding. Unlike port
forwarding, instead of a single port, a range of ports is forwarded to
the same range of ports at the internal target IP address.
2.3.6.3. Port Triggering
Port triggering is a kind of port range forwarding where outgoing
traffic on specific ports enables previously defined port forwards for
the activating device. This temporarily opens required ports when
specific applications are opened on computers on the LAN. This offers
a greater level of security than port forwarding or port range
forwarding because the ports are only opened when needed.

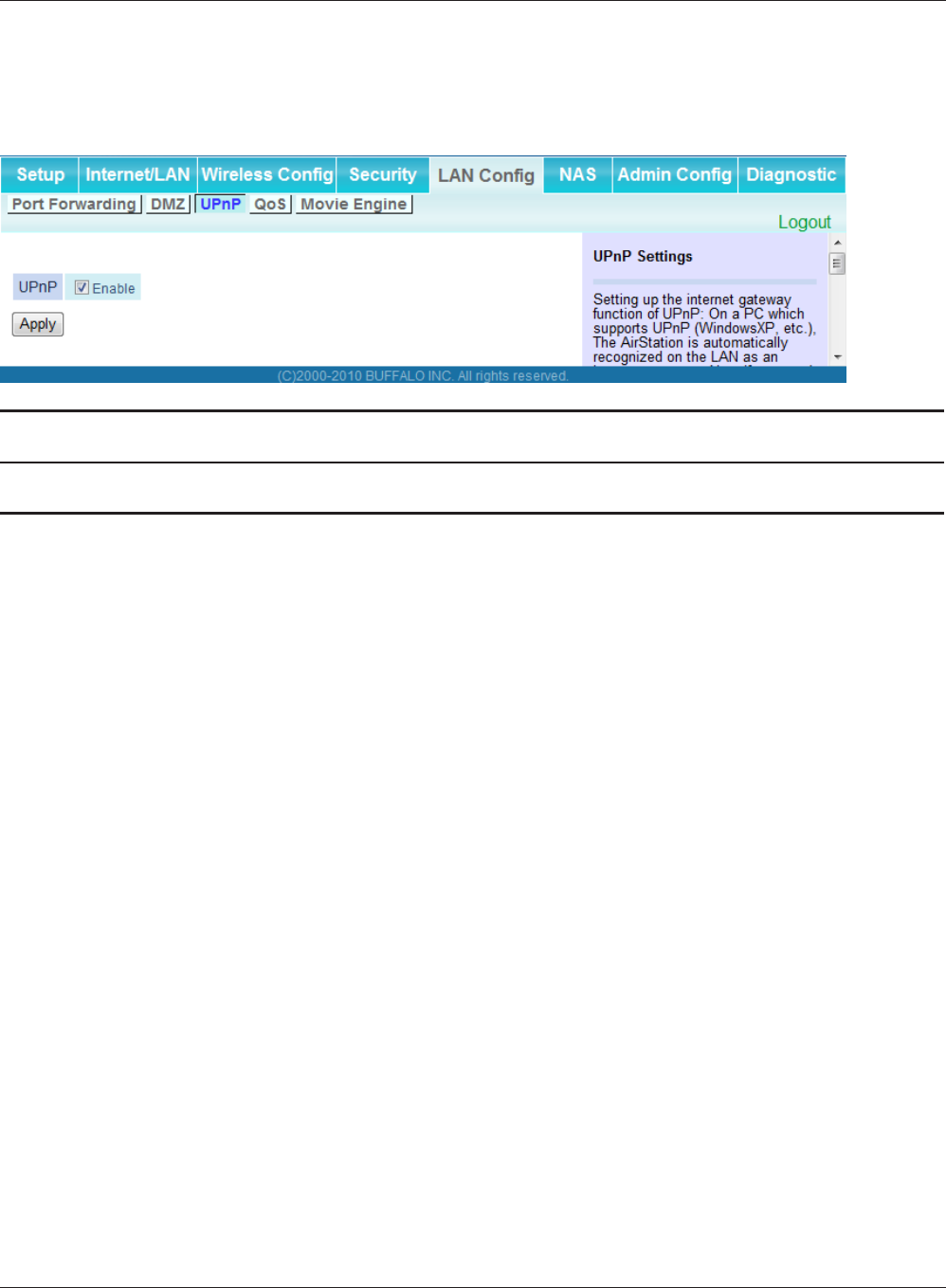

2.3.6.4. UPnP
UPnP allows UPnP capable applications and devices to open and close
required ports automatically as needed. This is simple to use and does
not require further configuration steps.

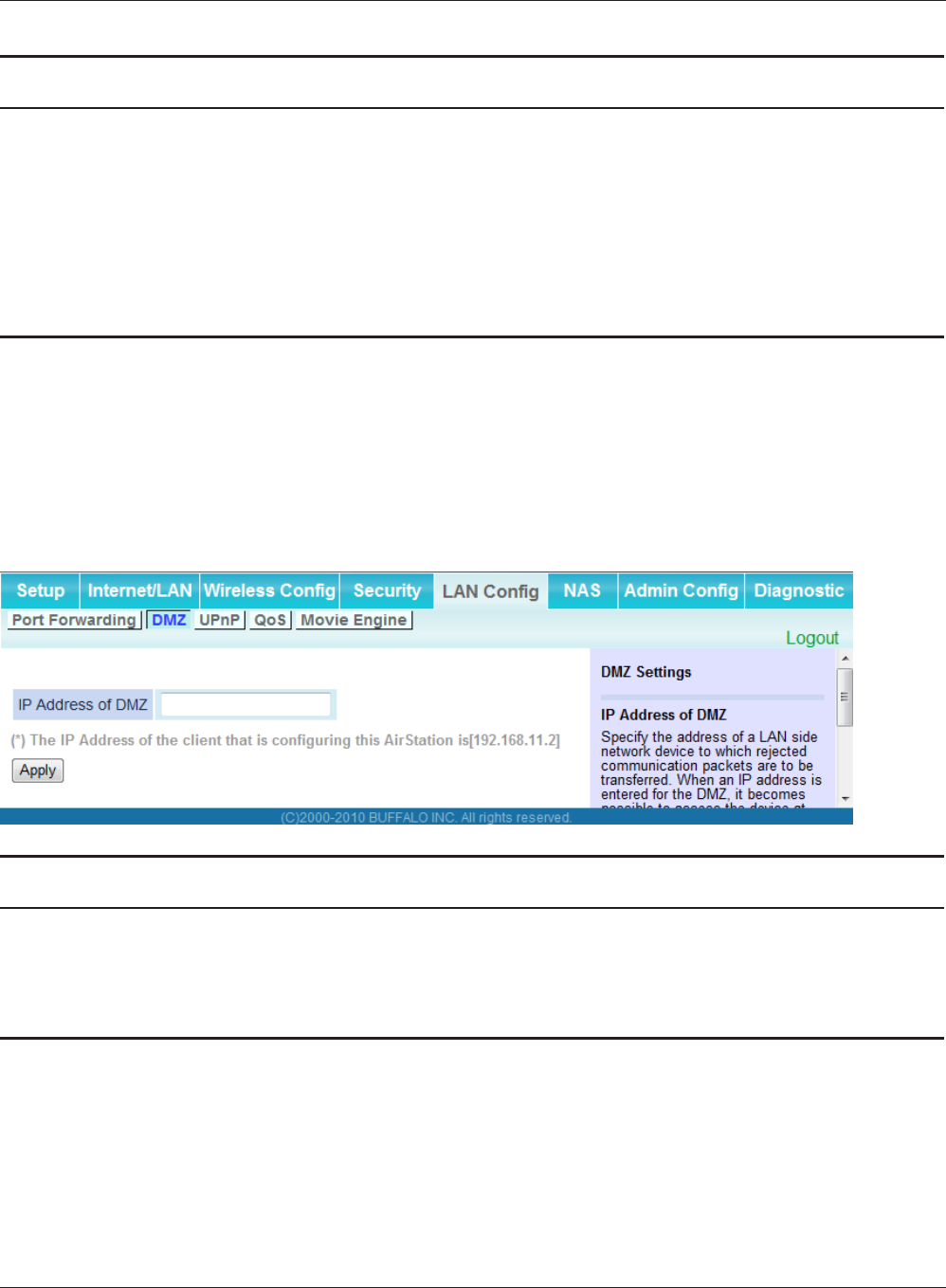

2.3.6.5. DMZ
A DMZ computer is a special computer in the internal network that gets
all incoming traffic forwarded. The task of that computer is managing
this traffic. When the DMZ feature is activated the internal firewall
is activated. This can pose a security issue if not handled with care.
Furthermore, several services of the router, that have to be
accessible from the WAN side, will not work because the associated
traffic is forwarded to the DMZ computer.

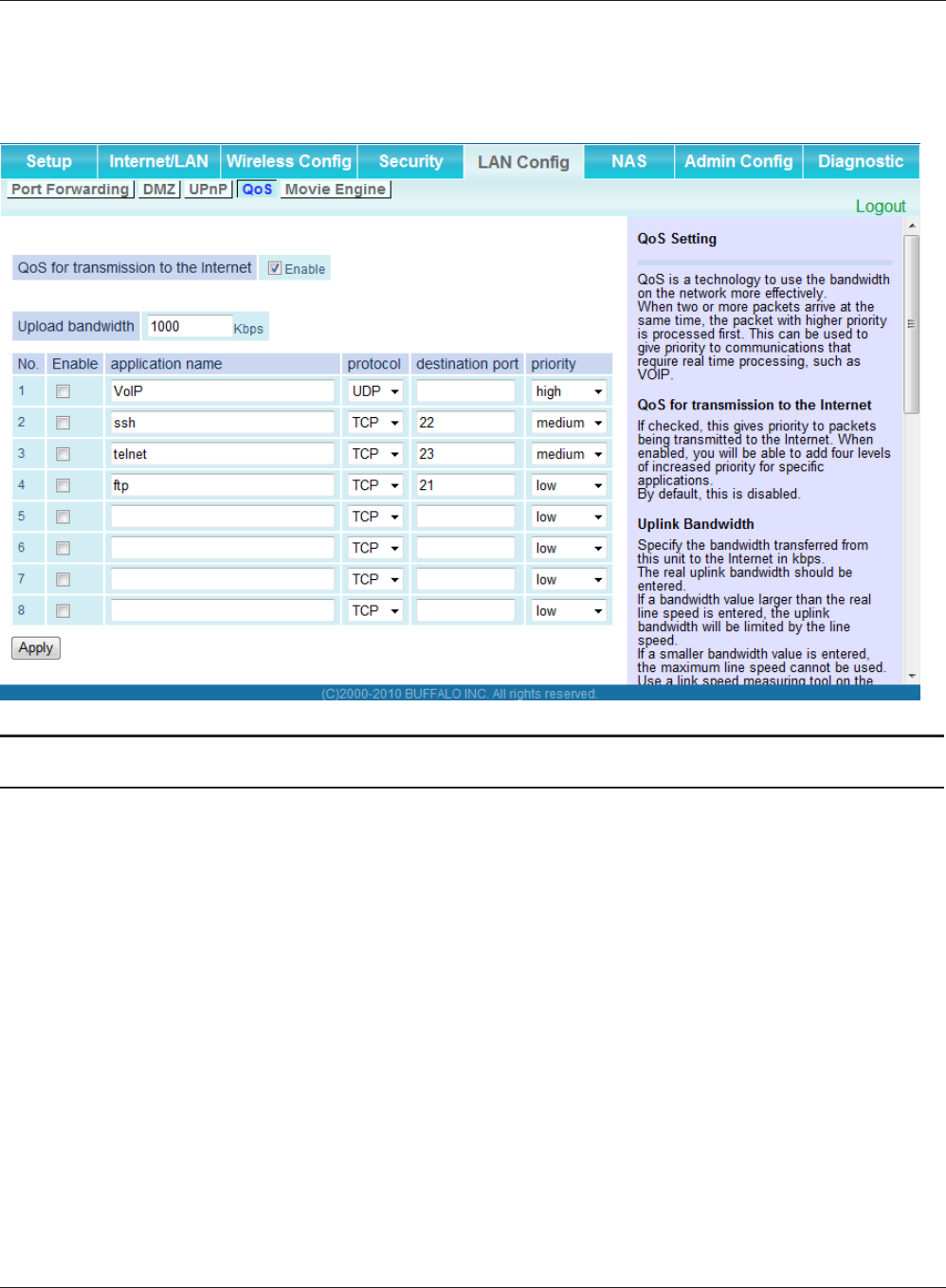

2.3.6.6. QoS
QoS (Quality of Service) is a procedure to prioritise network traffic
by application. Specific services can be assigned specific bandwidth.
Aside from upstream and downstream bandwidth, you can define settings
for specific services and IP and MAC address ranges.

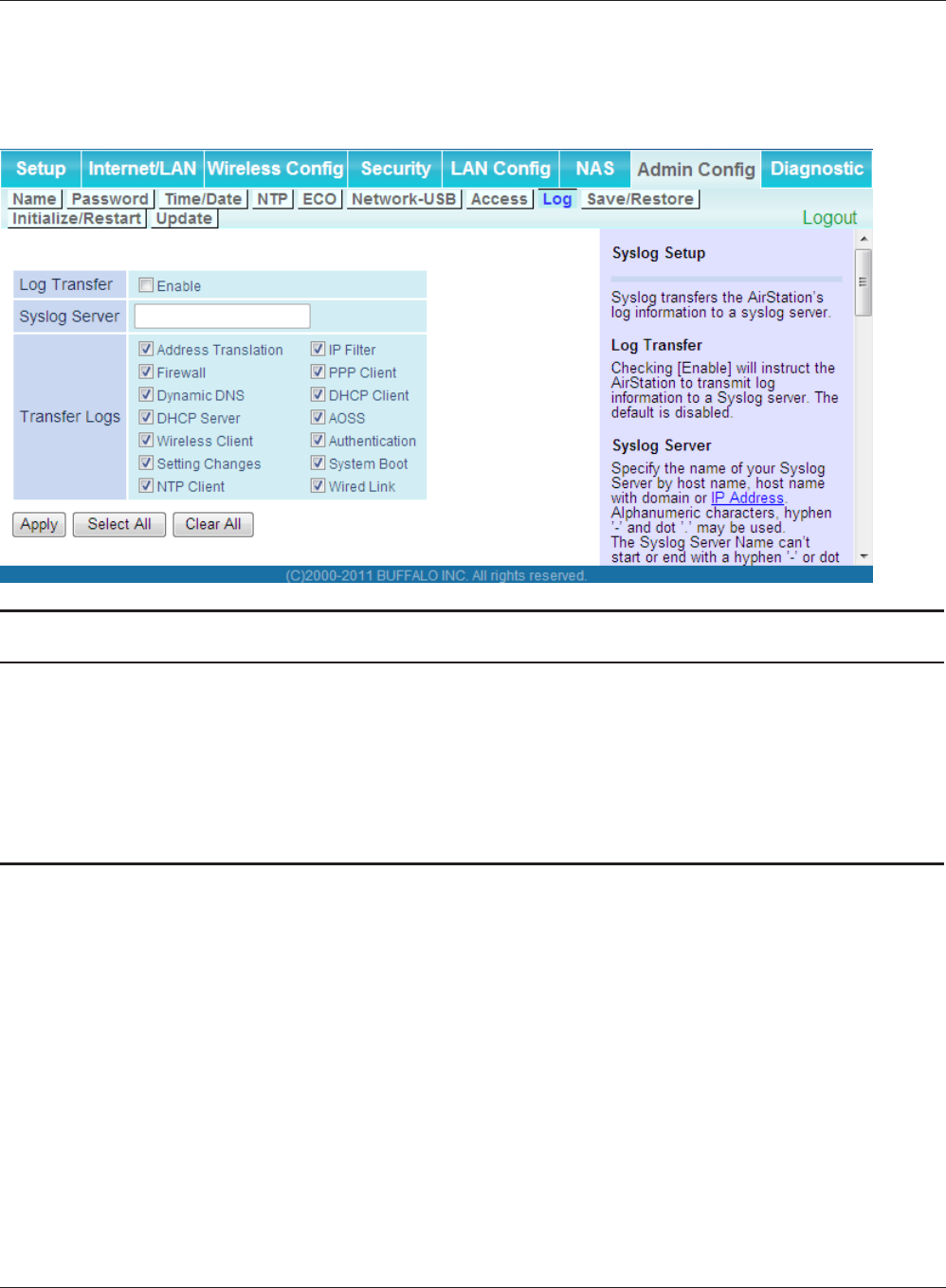

2.3.7. Administration

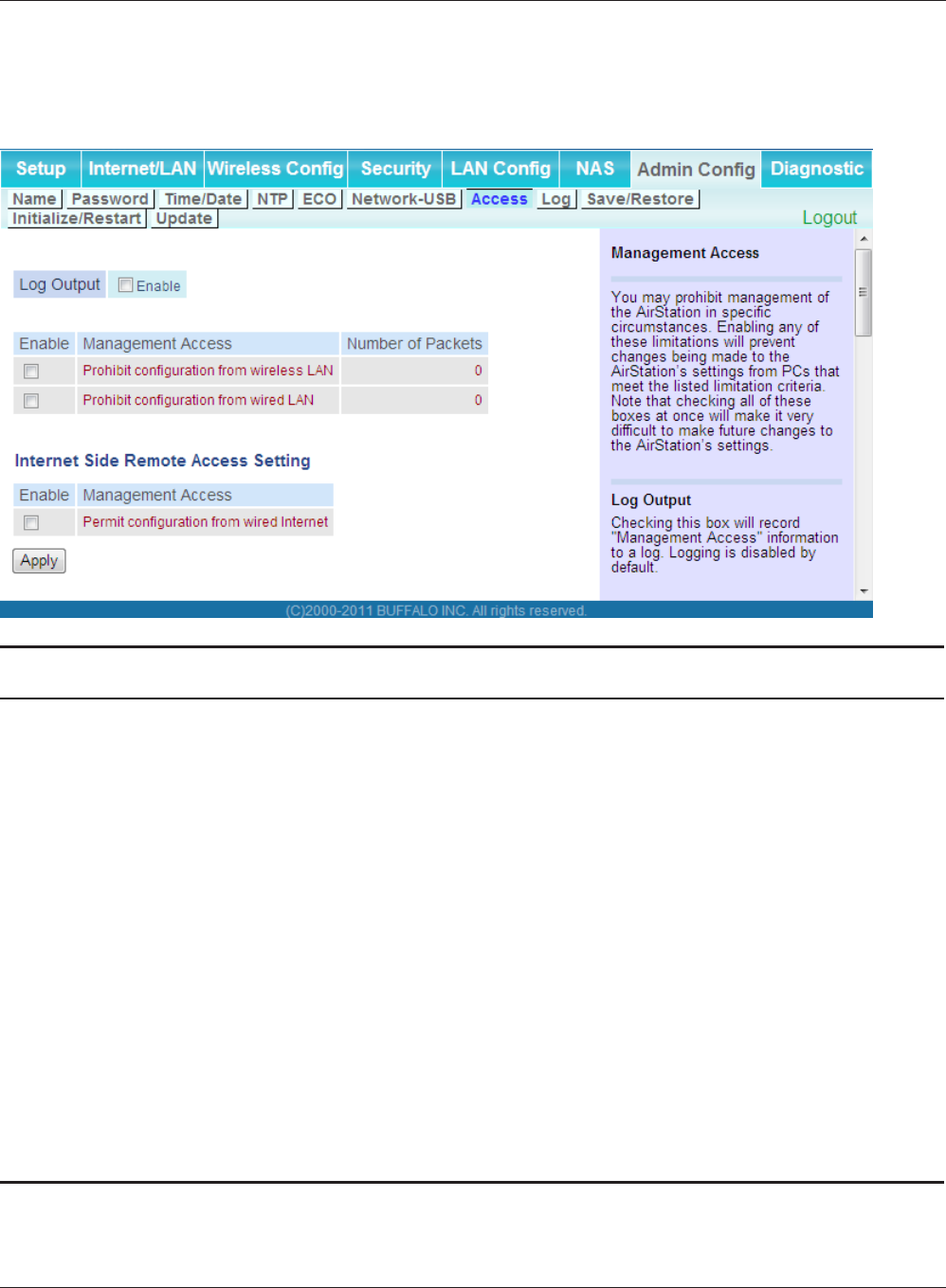

2.3.7.1. Management
The Management section contains settings for remotely accessing the
router and other basic settings that are usually not changed. The
settings for the language used in the Web GUI are also located here.
You may choose between Chinese (simplified & traditional), Croatian,
Dutch, French, German, Hungarian, Italian, Japanese, Latvian, Polish,
Portuguese, Romanian, Russian, Slovenian, Spanish, and Swedish. The
default setting is English.
Before using Telnet or SSH, activate the associated service(s) in this
section.
- 15 -
2.3.7.2. Keep Alive
Keep-Alive lets you configure monitoring options that automatically
reboot the router if a service malfunction causes it to fail to
respond.
2.3.7.3. Commands
Entering Linux commands is one of the most powerful ways to access the
router’s functionality. This enables you to access services and
configure options that are not accessible via the Web GUI. Using shell
commands can lead to unexpected results. Use them with utmost care.
Aside from executing the shell commands directly you can also save
custom start up and firewall scripts.
2.3.7.4. WOL
With Wake-on-LAN, you can send special data packets to compatible
devices on your LAN, causing them to exit sleep mode.
WOL data packets can be triggered manually or scheduled automatically.

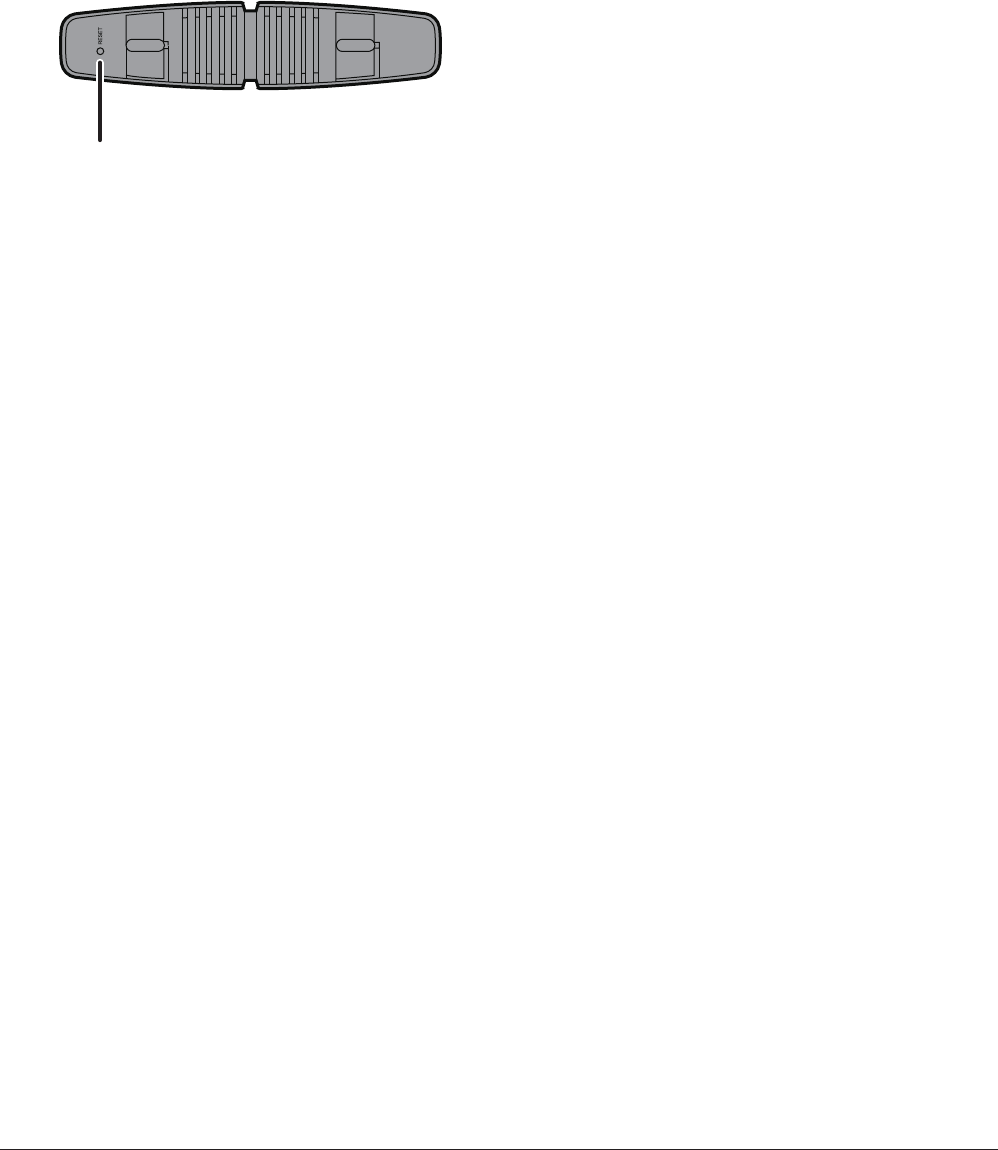

2.3.7.5. Factory Defaults
With this feature you can reset the router’s settings to factory
defaults. After a reset, the router will restart.

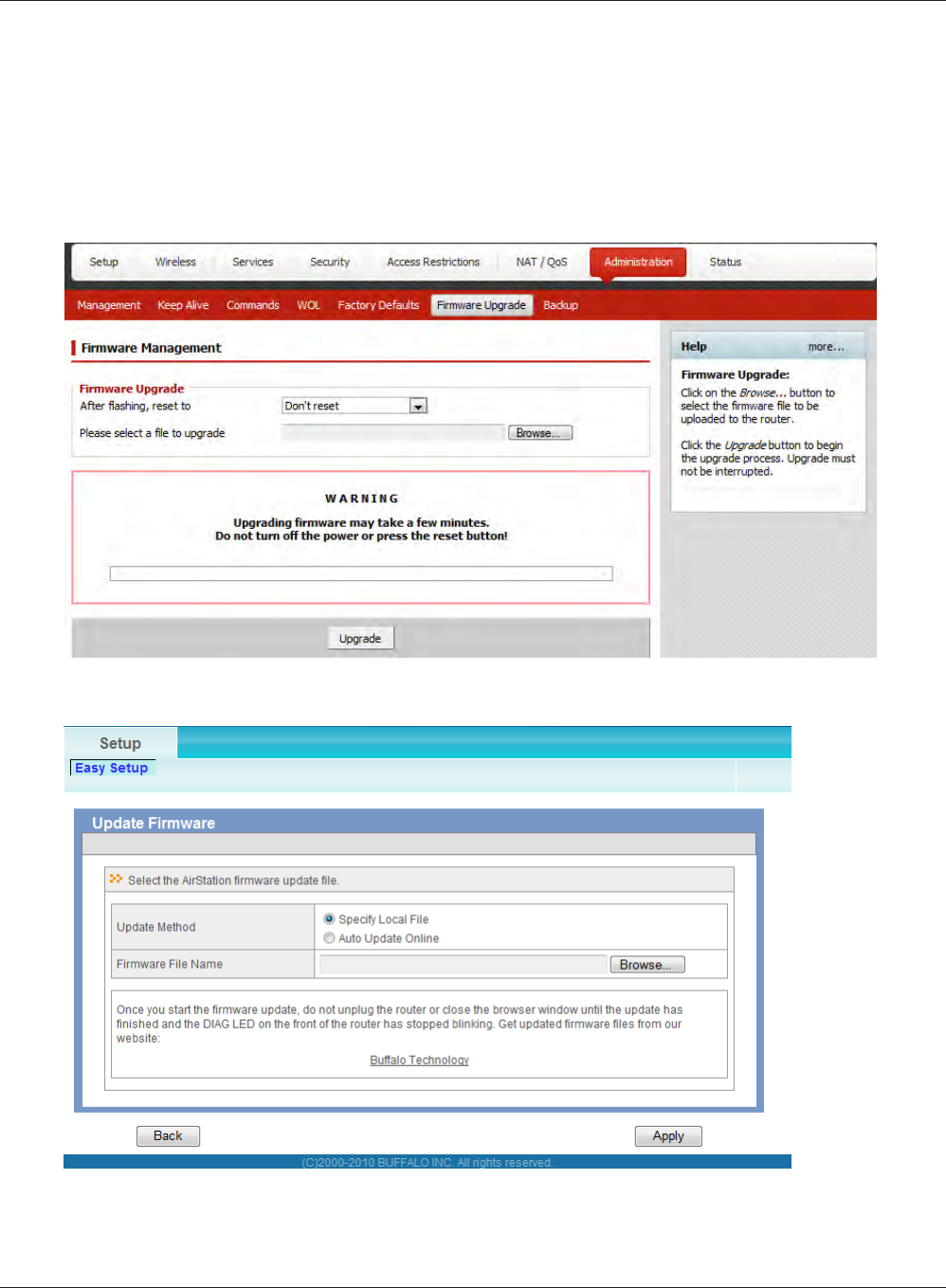

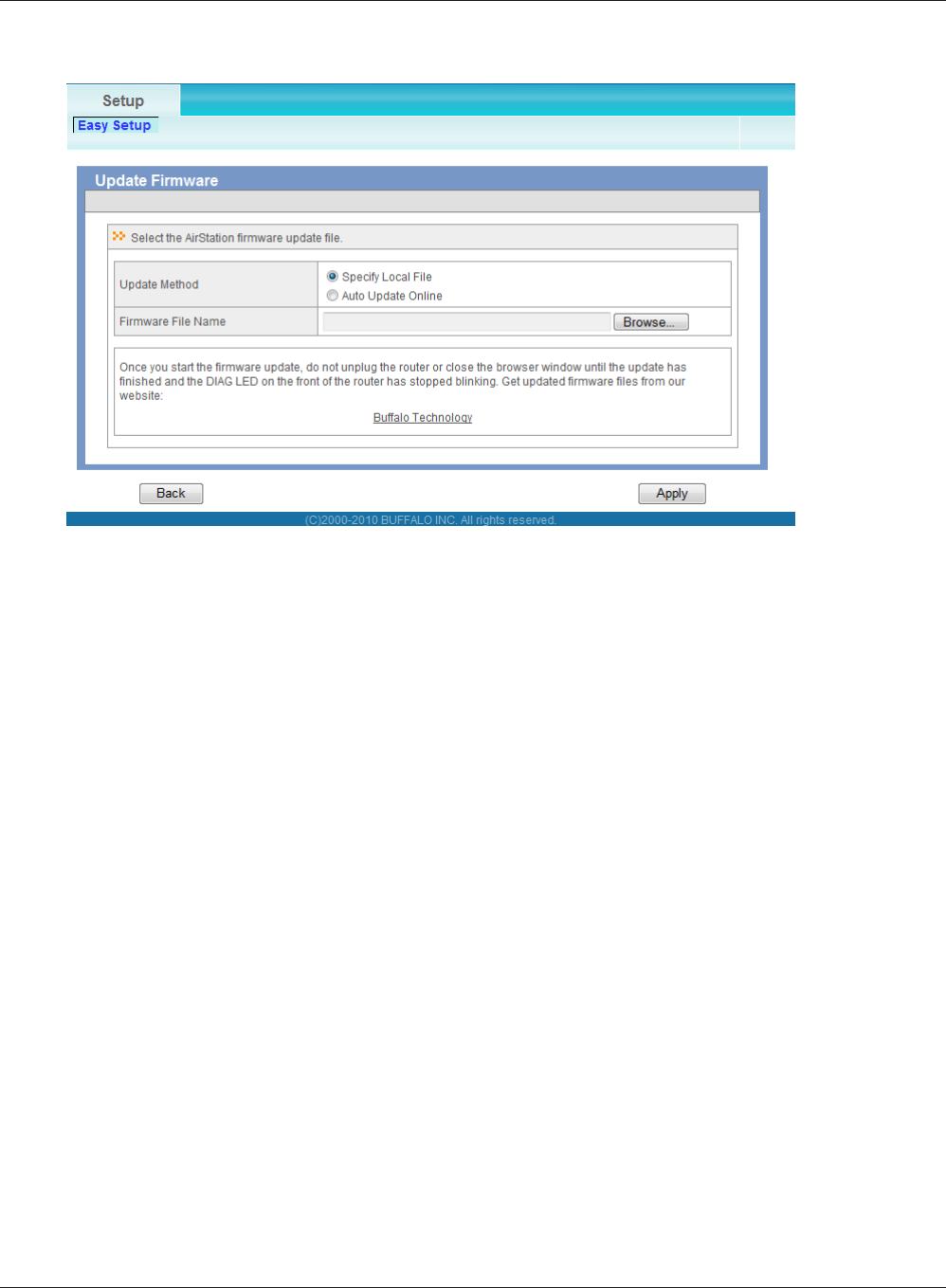

2.3.7.6. Firmware Upgrade
The firmware upgrade option can be used to install a different
firmware version. When doing this you can choose if the router’s
settings will be restored to factory defaults or kept.

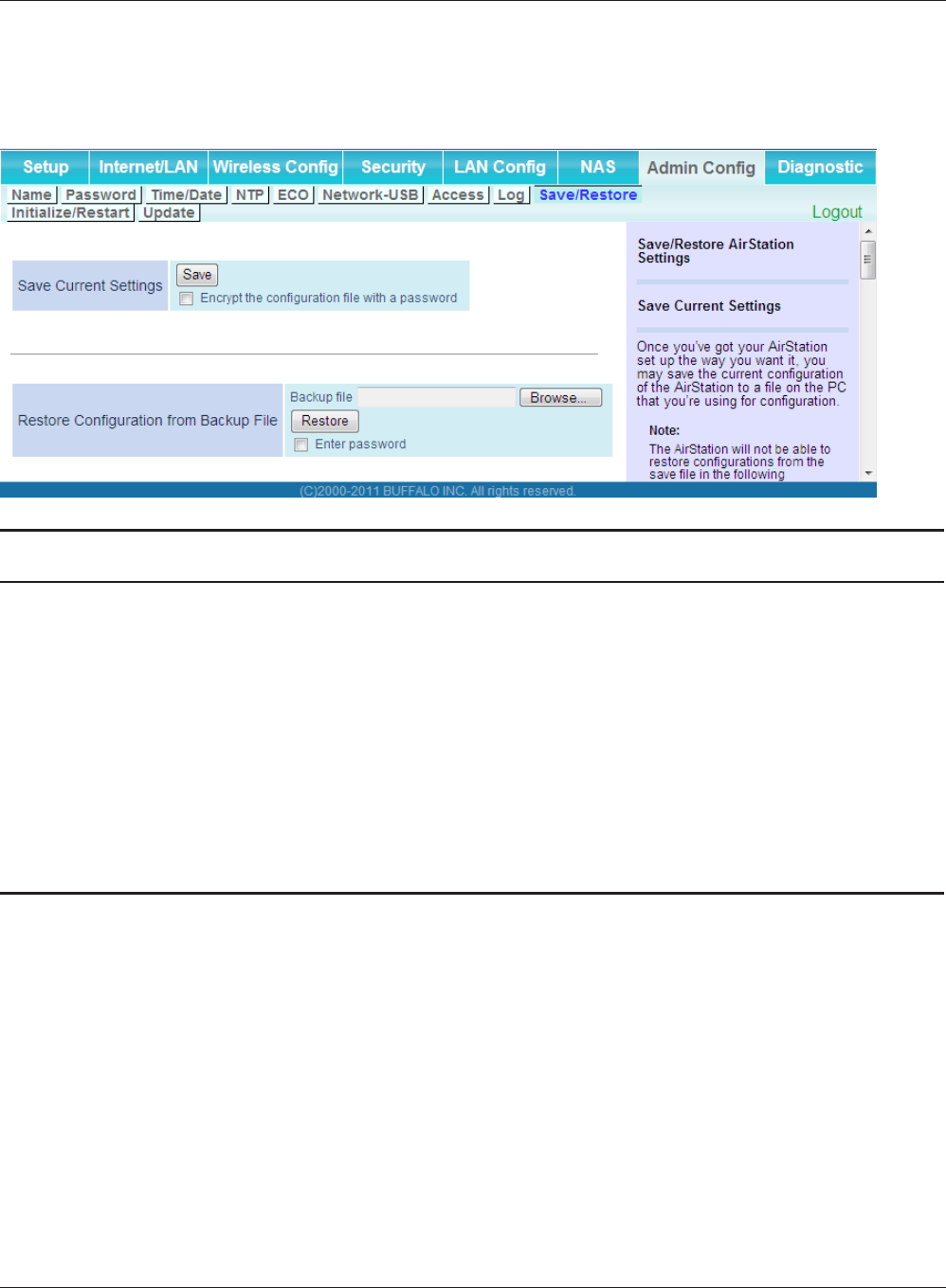

2.3.7.7. Backup
You can use this feature to store your current configuration into a
backup file, or to restore from a previously stored configuration.
This also makes it simple to set up a number of routers with the exact
same configuration.
2.3.8. Status
2.3.8.1. Router
The status screen displays information about the router, such as cpu
load, memory consumption, and currently active IP connections. Status
is updated automatically.
2.3.8.2. WAN
If the WAN interface is enabled, this screen displays WAN settings and
throughput statistics.
- 16 -
2.3.8.3. LAN
Here you can find LAN-related information like active clients and DHCP
clients.
2.3.8.4. Wireless
The wireless LAN status screen displays the current wireless LAN
interface configuration, wireless LAN clients (in AP modes), and
access points (in client modes). If there’s more than one wireless LAN
interface, you can switch between them via the interface pull down
menu.
2.3.8.5. Bandwidth
Bandwidth monitoring displays real time diagrams for incoming and
outgoing traffic for each network interface.
2.3.8.6. SysInfo
The SysInfo screen combines the most important information of the
other status pages. By default, the SysInfo page can be accessed from
LAN devices without authentication. That can be changed in the
Management section of the Administration area.
- 17 -
3. Use Cases
The following use cases relate to the most commonly used router
configurations. The related router configuration is explained step by
step.

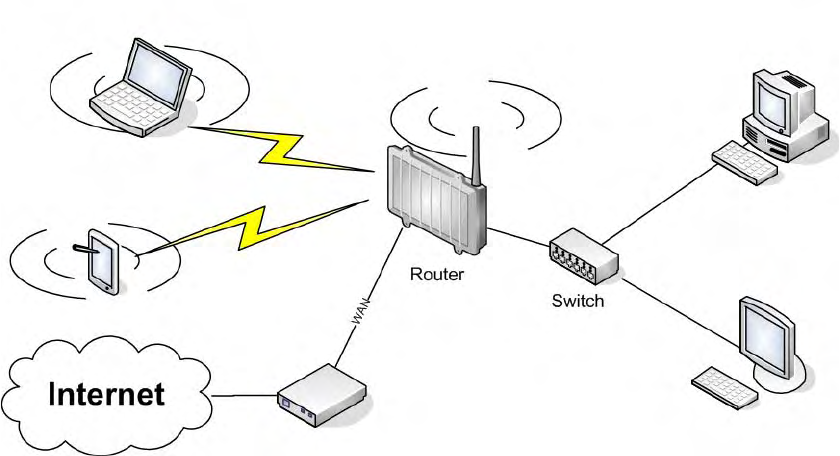

3.1. Access Point
Access Point (AP, sometimes also called “Infrastructure Mode”) is the
mode where the router is also the central wireless hub that connects
to the LAN and provides access to wireless devices. These wireless
clients of the AP can communicate with each other and with wired
devices on the network such as the Internet.
Connect your computer to the router as described in 2.1. and access
the web interface according to 2.2.
3.1.1. Access Point with NAT / DHCP
Setup -> Basic Setup
WAN Setup
o In ”Connection Type”, choose the type of WAN connection you want
to use and complete the related settings.
Network Setup
o Enter the desired LAN IP address for the router into “Router IP“.
o Set “DHCP Type“ to “DHCP Server“ (this is the default).
o “Enable“ DHCP Server (this is the default).
o Adjust the DHCP address range to match your requirements.
Time Settings
o Choose your time zone.
Click “Save“.
Wireless -> Basic Settings
- 18 -
Enter your country in “Regulatory Domain”
In the “Antenna Gain“ field, please enter the gain of the antenna on
your router. The firmware will adjust the transmit power accordingly
to meet regulatory requirements. Please keep in mind that very long
cables can dampen the HF signal thus reducing the usable antenna
gain.
Configure “Wireless Mode“ to “AP“
Set your desired wireless mode in “Wireless Network Mode“. Please
note that mixed modes will lead to reduced performance because of
maintaining compatibility.
Enter a name for your wireless network into “Wireless Network Name
(SSID)”
Click “Save“
Wireless -> Wireless Security
Choose and configure a security mode. Please note that WEP is
insecure and should only be used if no other option is available.
Click “Apply Settings“

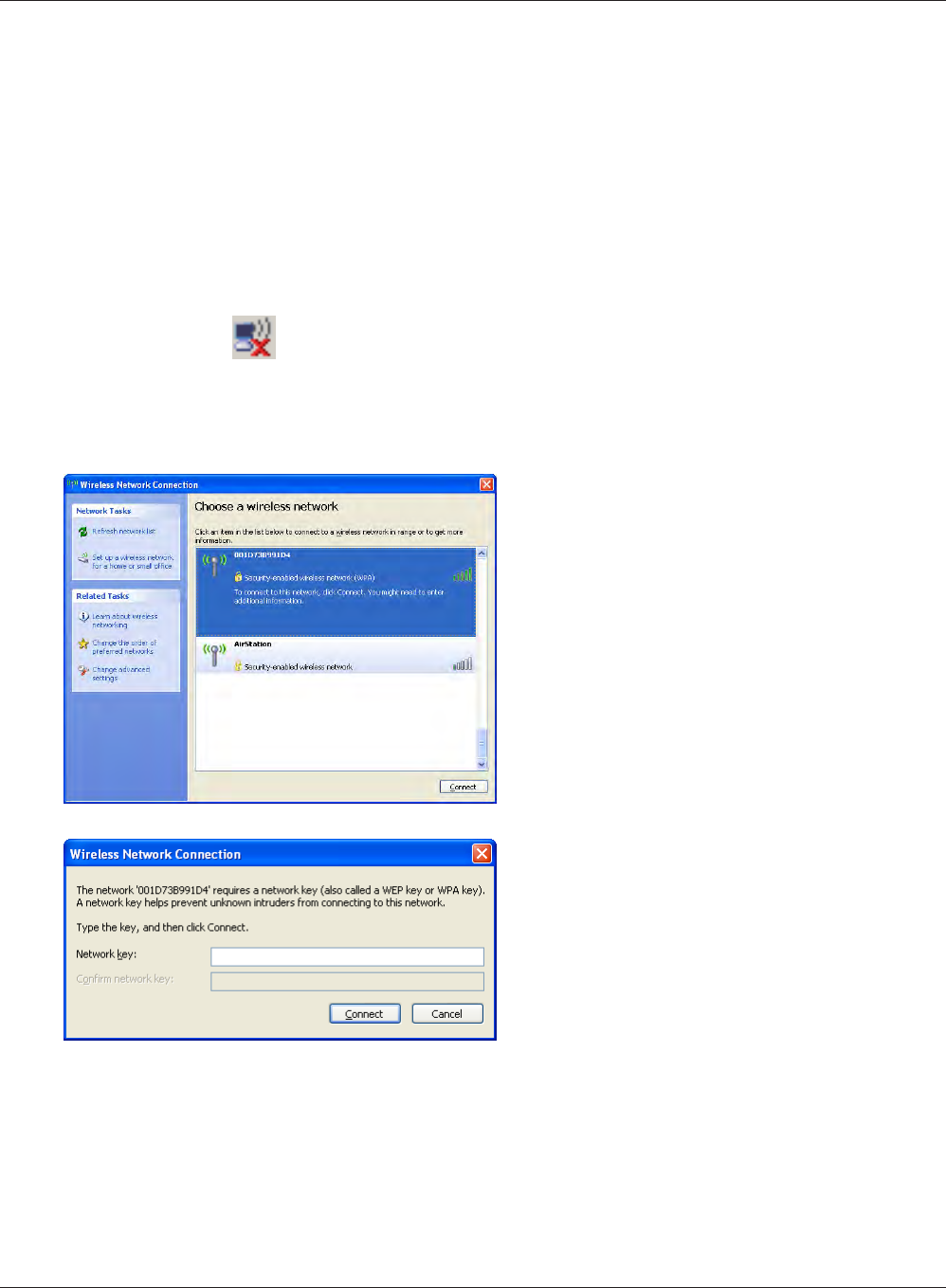

You can now connect the router to the Internet and your local network.
After you successfully connect wireless devices, they will then be
displayed on the “SysInfo” and “WLAN Status” pages.
3.1.1. Access Point attached to a network / Internet gateway
Setup -> Basic Setup
WAN Setup
o For “Connection Type“, choose “Disabled”.
Network Setup
o Enter the desired LAN-side IP address for the router into “Router
IP“.
o Set the “DHCP Type“ to “DHCP Server“ (this is the default).
o “Disable” “DHCP Server“.
Time Settings
o Choose your time zone.
Click “Save“.
Wireless -> Basic Settings
Enter your country in “Regulatory Domain”
In the “Antenna Gain“ field, please enter the gain of the antenna on
your router. The firmware will adjust the transmit power accordingly
to meet regulatory requirements. Please keep in mind that very long
cables can dampen the HF signal thus reducing the usable antenna
gain.
Configure “Wireless Mode“ to “AP“
Choose a wireless mode in “Wireless Network Mode“. Please note that
mixed modes will lead to reduced performance because of maintaining
compatibility.
- 19 -
Enter a name for your wireless network into “Wireless Network Name
(SSID)”.
Click “Save“.
Wireless -> Wireless Security
Choose and configure your desired security mode. Please note that
WEP is insecure and should only be used if no other option is
available.
Click “Apply Settings“
You can now connect the router to the Internet and your local network.
If you’re running a DHCP server in your LAN, connected wireless
devices will get their IP addresses from the server.

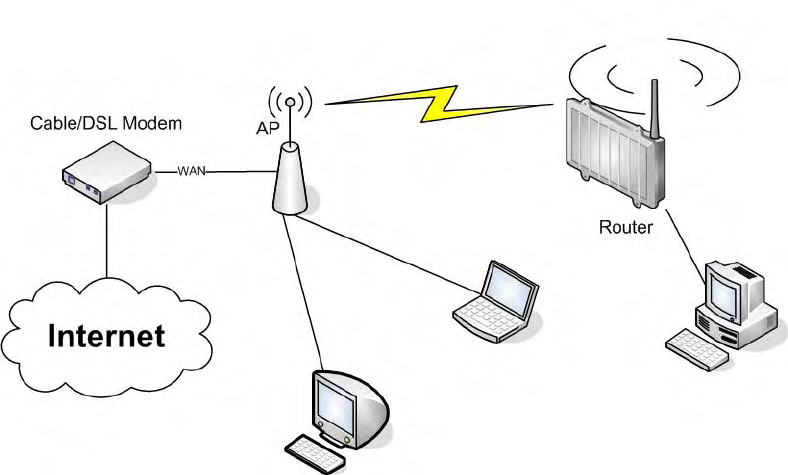

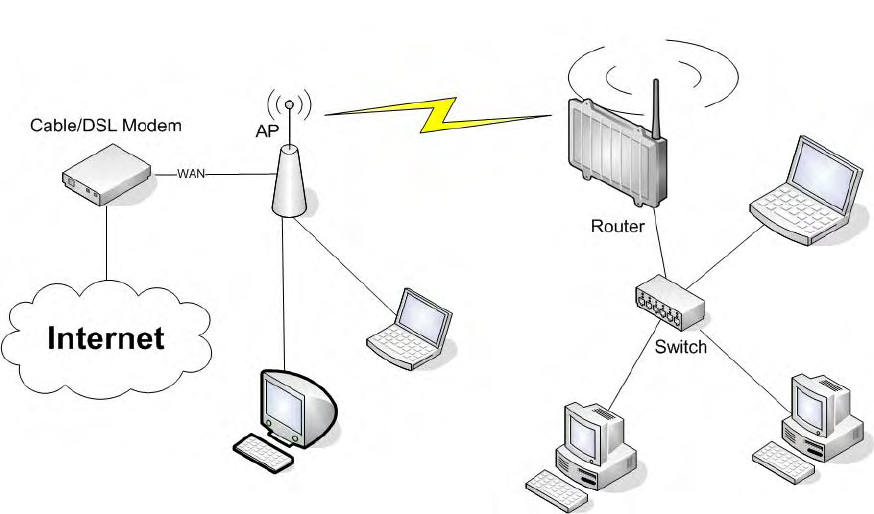

3.2. Wireless Client
The router can be also used as a wireless LAN client. This can be
useful if you want to connect devices to your wireless LAN that do not
have a wireless LAN interface. In this configuration, the wireless LAN
interface acts as a wireless client. Attached wired Ethernet devices
can also access the WAN through the wireless connection.
Setup -> Basic Setup
WAN Setup
o Set “Connection Type“ to “DHCP” to have the AirStation get its IP
address from a DHCP server, or to a “Static IP“ if no DHCP server
is available.
Network Setup
o Enter the desired LAN-side IP address for the router in “Router
IP“.
o Set the “DHCP Type“ to “DHCP Server“ (this is the default setting).
o “Enable” “DHCP Server“ (this is the default setting).
o Adjust the DHCP address range to match your requirements.
- 20 -
Time Settings
o Choose your time zone.
Click “Save“.
Wireless -> Basic Settings
Enter your country in “Regulatory Domain”
In the “Antenna Gain“ field, please enter the gain of your
AirStation’s antenna. The firmware will adjust the transmit power
automatically to meet regulatory requirements. Please note that the
use of a long extension cable for your antenna will reduce the
usable antenna gain.
Configure “Wireless Mode“ to “Client“.
Configure “Wireless Network Mode” to match the capabilities of the
access point you want to connect to.
Enter the network name (SSID) of the AP you want to connect to into
“Wireless Network Name (SSID)”.
Click “Save“.
Wireless -> Wireless Security
Configure the security mode to match the security settings of the
access point you want to connect to.
Click “Apply Settings“.
After the router reboots, please confirm that it has connected to the
access point. If there is a DHCP server available on the access point
side, and the router is configured to request an IP address, then it
should receive an IP address for its WAN-side interface.
You can now either connect wired clients to the access point or
configure another wireless network interface as an access point to
grant access to wireless clients.
3.3. Wireless Client Bridge
A wireless client bridge offers the ability to transparently integrate
the router’s LAN into a different LAN that another access point is
connected to. Clients connected to such a router can access devices in
both LANs and vice versa. In that configuration the router’s WAN
interface is disabled.
- 21 -
Setup -> Basic Setup
WAN Setup
o Choose “Disabled” for “Connection Type” (this will be set
automatically).
Network Setup
o Enter the desired LAN-side IP address for the router into “Router
IP”.
o “Disable“ “DHCP Server”.
Time Settings
o Choose your time zone.
Click “Save”.
Wireless -> Basic Settings
Enter your country in “Regulatory Domain”.
In the “Antenna Gain” field, please enter the gain of your
AirStation’s antenna. The firmware will adjust the transmit power
automatically to meet regulatory requirements. Please note that the
use of a long extension cable for your antenna will reduce the
usable antenna gain.
Configure “Wireless Mode” to “Client Bridge”.
Set “Wireless Network Mode” to match the access point you want to
connect to.
Enter the network name (SSID) of the AP you want to connect to.
Click “Save”.
Wireless -> Wireless Security
Configure security to match the security settings of the access
point you want to connect to.
Click “Apply Settings”.
After the router reboots, please confirm that it has connected to the
access point. If there is a DHCP server available on the access point
- 22 -
side, a pc in the router’s LAN configured to request an address from
DHCP should receive an IP address.
3.4. FTP Server
The router can be used as an FTP server when a USB disk (such as a
hard disk or flash memory device) is connected to the USB port on the
rear of the router.
3.4.1. Examples
Services -> USB
･Make the settings in the USB Support section, then click [Apply
Settings].
Examples:
Core USB Support Enabled
USB 1.1 Support
(UHCI)
Enabled
USB 1.1 Support
(OHCI)
Enabled
USB 2.0 Support Enabled
USB Storage
Support
Enabled
Automatic Drive
Mount
Enabled
Run-on-mount
Script Name
blank
Disk Mount Point /mnt
- 23 -
･Connect a USB disk to the router.
After a short wait, the disk information is displayed in the Disk
Info section.
Services -> NAS
･Make the settings in the ProFTPD section, and click [Apply Settings].
Setting example:
ProFTPD Enable
Server Port 21
Files Directory /mnt
Allow Write Enable
User Password List buffalo
12345678
Anonymous Login
(Read-only)
Disable
Separate the username (example: buffalo) and password (example:
12345678) with a space.
- 24 -
3.4.2. Logging into the FTP server
･Open a command prompt window.
･Enter “ftp 192.168.11.1” to access the FTP server.
･Enter the user name, and press the Enter key.
･Enter the password, and press the Enter key.
･When the login is successful, “ftp>” appears on the screen.
･To logout, enter the “bye” command.
3.4.3. Common FTP commands
Command Description Entry example
ftp Starts FTP ftp
ls Displays a list of
the remote
directory’s files
ls
pwd Displays the
current directory
on the remote
computer
pwd
cd Changes the current
working directory
on the remote
computer
cd img
mkdir Creates a remote
directory
mkdir test
rmdir Deletes a remote
directory
rmdir test
lcd Changes the current
working directory
on the local
computer
lcd E:\test
asc Switches to ASCII
transfer mode
asc
bin Switches to binary
transfer mode
bin
put Uploads a file to
the remote computer
put test.pdf
mput Uploads multiple
files to the remote
computer
mput test1.jpg
get Downloads a file to
the local computer
get index.html
mget Downloads multiple
files to the local
computer
mget test1.jpg
- 25 -
delete Deletes a file on
the remote computer
delete
mdelete Deletes multiple
files on the remote
computer
mdelete
rename Renames a file on
the remote computer
rename
help Displays the Help
for FTP commands
help
bye Exits FTP bye
- 26 -
4. GPL Statement
The firmware that is used in this product includes software that is
subject to the GNU Public Licence (GPL)/the GNU Lesser Public Licence
(LGPL). To the extent that it is applicable within the context of the
GPL and the LGPL, the conditions of the GPL and the LGPL, as well as
the relevant source codes, are available from the manufacturer. The
code underlying the GPL/LGPL for the software shall be provided,
without any ensuing warranty or liability claims. Please see the
conditions of the GPL/LGPL for further details.
4.1. GNU General Public License
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin
Street, Fifth Floor, Boston, MA 02110-1301, USA
Everyone is permitted to copy and distribute verbatim copies of this
license document, but changing it is not allowed.
4.1.1. Preamble
The licenses for most software are designed to take away your freedom
to share and change it. By contrast, the GNU General Public License
is intended to guarantee your freedom to share and change free
software--to make sure the software is free for all its users. This
General Public License applies to most of the Free Software
Foundation's software and to any other program whose authors commit to
using it. (Some other Free Software Foundation software is covered by
the GNU Library General Public License instead.) You can apply it to
your programs, too.
When we speak of free software, we are referring to freedom, not price.
Our General Public Licenses are designed to make sure that you have
the freedom to distribute copies of free software (and charge for this
service if you wish), that you receive source code or can get it if
you want it, that you can change the software or use pieces of it in
new free programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid
anyone to deny you these rights or to ask you to surrender the rights.
These restrictions translate to certain responsibilities for you if
you distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether
gratis or for a fee, you must give the recipients all the rights that
you have. You must make sure that they, too, receive or can get the
source code. And you must show them these terms so they know their
rights.
We protect your rights with two steps: (1) copyright the software, and
(2) offer you this license which gives you legal permission to copy,
distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain
that everyone understands that there is no warranty for this free
- 27 -
software. If the software is modified by someone else and passed on,
we want its recipients to know that what they have is not the original,
so that any problems introduced by others will not reflect on the
original authors' reputations.
Finally, any free program is threatened constantly by software patents.
We wish to avoid the danger that redistributors of a free program will
individually obtain patent licenses, in effect making the program
proprietary. To prevent this, we have made it clear that any patent
must be licensed for everyone's free use or not licensed at all.
The precise terms and conditions for copying, distribution and
modification follow.
4.1.2. GNU General Public License – Terms and Conditions or Copying,
Distribution and Modification
0. This License applies to any program or other work which contains a
notice placed by the copyright holder saying it may be distributed
under the terms of this General Public License. The "Program", below,
refers to any such program or work, and a "work based on the Program"
means either the Program or any derivative work under copyright law:
that is to say, a work containing the Program or a portion of it,
either verbatim or with modifications and/or translated into another
language. (Hereinafter, translation is included without limitation in
the term "modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification are not
covered by this License; they are outside its scope. The act of
running the Program is not restricted, and the output from the Program
is covered only if its contents constitute a work based on the Program
(independent of having been made by running the Program). Whether that
is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program's source
code as you receive it, in any medium, provided that you conspicuously
and appropriately publish on each copy an appropriate copyright notice
and disclaimer of warranty; keep intact all the notices that refer to
this License and to the absence of any warranty; and give any other
recipients of the Program a copy of this License along with the
Program.
You may charge a fee for the physical act of transferring a copy, and
you may at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of
it, thus forming a work based on the Program, and copy and distribute
such modifications or work under the terms of Section 1 above,
provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices
stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in
whole or in part contains or is derived from the Program or any part
- 28 -
thereof, to be licensed as a whole at no charge to all third parties
under the terms of this License.
c) If the modified program normally reads commands interactively when
run, you must cause it, when started running for such interactive use
in the most ordinary way, to print or display an announcement
including an appropriate copyright notice and a notice that there is
no warranty (or else, saying that you provide a warranty) and that
users may redistribute the program under these conditions, and telling
the user how to view a copy of this License. (Exception: if the
Program itself is interactive but does not normally print such an
announcement, your work based on the Program is not required to print
an announcement.)
These requirements apply to the modified work as a whole. If
identifiable sections of that work are not derived from the Program,
and can be reasonably considered independent and separate works in
themselves, then this License, and its terms, do not apply to those
sections when you distribute them as separate works. But when you
distribute the same sections as part of a whole which is a work based
on the Program, the distribution of the whole must be on the terms of
this License, whose permissions for other licensees extend to the
entire whole, and thus to each and every part regardless of who wrote
it.
Thus, it is not the intent of this section to claim rights or contest
your rights to work written entirely by you; rather, the intent is to
exercise the right to control the distribution of derivative or
collective works based on the Program.
In addition, mere aggregation of another work not based on the Program
with the Program (or with a work based on the Program) on a volume of
a storage or distribution medium does not bring the other work under
the scope of this License.
3. You may copy and distribute the Program (or a work based on it,
under Section 2) in object code or executable form under the terms of
Sections 1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable
source code, which must be distributed under the terms of Sections 1
and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years,
to give any third party, for a charge no more than your cost of
physically performing source distribution, a complete machine-readable
copy of the corresponding source code, to be distributed under the
terms of Sections 1 and 2 above on a medium customarily used for
software interchange; or,
c) Accompany it with the information you received as to the offer to
distribute corresponding source code. (This alternative is allowed
only for non-commercial distribution and only if you received the
program in object code or executable form with such an offer, in
accord with Subsection b above.)
- 29 -
The source code for a work means the preferred form of the work for
making modifications to it. For an executable work, complete source
code means all the source code for all modules it contains, plus any
associated interface definition files, plus the scripts used to
control compilation and installation of the executable. However, as a
special exception, the source code distributed need not include
anything that is normally distributed (in either source or binary
form) with the major components (compiler, kernel, and so on) of the
operating system on which the executable runs, unless that component
itself accompanies the executable.
If distribution of executable or object code is made by offering
access to copy from a designated place, then offering equivalent
access to copy the source code from the same place counts as
distribution of the source code, even though third parties are not
compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program
except as expressly provided under this License. Any attempt
otherwise to copy, modify, sublicense or distribute the Program is
void, and will automatically terminate your rights under this License.
However, parties who have received copies, or rights, from you under
this License will not have their licenses terminated so long as such
parties remain in full compliance.
5. You are not required to accept this License, since you have not
signed it. However, nothing else grants you permission to modify or
distribute the Program or its derivative works. These actions are
prohibited by law if you do not accept this License. Therefore, by
modifying or distributing the Program (or any work based on the
Program), you indicate your acceptance of this License to do so, and
all its terms and conditions for copying, distributing or modifying
the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the
Program), the recipient automatically receives a license from the
original licensor to copy, distribute or modify the Program subject to
these terms and conditions. You may not impose any further
restrictions on the recipients' exercise of the rights granted herein.
You are not responsible for enforcing compliance by third parties to
this License.
7. If, as a consequence of a court judgment or allegation of patent
infringement or for any other reason (not limited to patent issues),
conditions are imposed on you (whether by court order, agreement or
otherwise) that contradict the conditions of this License, they do not
excuse you from the conditions of this License. If you cannot
distribute so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you
may not distribute the Program at all. For example, if a patent
license would not permit royalty-free redistribution of the Program by
all those who receive copies directly or indirectly through you, then
the only way you could satisfy both it and this License would be to
refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under
any particular circumstance, the balance of the section is intended to
- 30 -
apply and the section as a whole is intended to apply in other
circumstances.
It is not the purpose of this section to induce you to infringe any
patents or other property right claims or to contest validity of any
such claims; this section has the sole purpose of protecting the
integrity of the free software distribution system, which is
implemented by public license practices. Many people have made
generous contributions to the wide range of software distributed
through that system in reliance on consistent application of that
system; it is up to the author/donor to decide if he or she is willing
to distribute software through any other system and a licensee cannot
impose that choice.
This section is intended to make thoroughly clear what is believed to
be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in
certain countries either by patents or by copyrighted interfaces, the
original copyright holder who places the Program under this License
may add an explicit geographical distribution limitation excluding
those countries, so that distribution is permitted only in or among
countries not thus excluded. In such case, this License incorporates
the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new
versions of the General Public License from time to time. Such new
versions will be similar in spirit to the present version, but may
differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Program
specifies a version number of this License which applies to it and
"any later version", you have the option of following the terms and
conditions either of that version or of any later version published by
the Free Software Foundation. If the Program does not specify a
version number of this License, you may choose any version ever
published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free
programs whose distribution conditions are different, write to the
author to ask for permission. For software which is copyrighted by
the Free Software Foundation, write to the Free Software Foundation;
we sometimes make exceptions for this. Our decision will be guided by
the two goals of preserving the free status of all derivatives of our
free software and of promoting the sharing and reuse of software
generally.
4.1.3. NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW.
EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR
OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
- 31 -
- 32 -
PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE
PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME
THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY
AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU
FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE
PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING
RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A
FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF
SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
User Manual for User-friendly Firmware
Nniti High Power Wireless Router & Access Point
WZR-HP-G300NH / WZR-HP-G300NH2
www.bualotech.com
35011944 ver.01
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 1
Contents
Chapter 1 - Product Overview .........................................6
Features .................................................................................. 6
AirNavigator CD Requirements ............................................... 8
300 Mbps High Speed Mode ................................................... 8
Package Contents ................................................................... 8
Hardware Overview ................................................................. 9
Front Panel LEDs ........................................................................... 9
Back Panel ..................................................................................... 11
Bottom ............................................................................................ 12
Right Side ...................................................................................... 13
Chapter 2 - Placing Your AirStation ................................14
Vertical Placement .................................................................. 14
Horizontal Placement .............................................................. 14
Wall-Mounting ......................................................................... 15
Chapter 3 - Installation .....................................................16
Automatic Setup ...................................................................... 16
Windows 7 / Vista / XP ................................................................... 16
Mac OS X ....................................................................................... 16
Other OS ........................................................................................ 16
Manual Setup .......................................................................... 17
Windows ........................................................................................ 20
Macintosh ....................................................................................... 23
Chapter 4 - Conguration ................................................25
Accessing the Web-based Conguration Interface ................. 25
Conguration Interface Menus in Router Mode ...................... 27
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 2
Conguration Interface Menus in Bridge Mode ....................... 29
Setup ....................................................................................... 31
Internet/LAN (LAN Cong) ...................................................... 33
Internet (Router Mode only) ........................................................... 33
PPPoE (Router Mode only) ............................................................ 34
DDNS (Router Mode only) ............................................................. 37
VPN server (Router Mode Only) .................................................... 39
LAN ................................................................................................ 41
DHCP Lease (Router Mode only) .................................................. 43
NAT (Router Mode only) ................................................................ 44
Route ............................................................................................. 45
Wireless Cong ....................................................................... 46
WPS ............................................................................................... 46
AOSS ............................................................................................. 47
Basic .............................................................................................. 49
Advanced ....................................................................................... 52
WMM .............................................................................................. 53
MAC Filter ...................................................................................... 55
Multicast Control ............................................................................ 56
WDS ............................................................................................... 57
Security (Router Mode only) ................................................... 59
Firewall (Router Mode only) ........................................................... 59
IP Filter (Router Mode only) ........................................................... 61
VPN Passthrough (Router Mode only) ........................................... 62
LAN Cong .............................................................................. 63
Port Forwarding (Router Mode only) .............................................. 63
DMZ (Router Mode only) ............................................................... 64
UPnP (Router Mode only) .............................................................. 65
QoS (Router Mode only) ................................................................ 66
Movie Engine (QoS) ...................................................................... 68
NAS ......................................................................................... 70
Disk management .......................................................................... 70
Shared Folder ................................................................................ 72
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 3
User Management ......................................................................... 74
Shared Service .............................................................................. 75
Web Access ................................................................................... 76
Media Server .................................................................................. 78
BitTorrent ........................................................................................ 79
Admin Cong ........................................................................... 81
Name ............................................................................................. 81
Password ....................................................................................... 82
Time/Date ...................................................................................... 83
NTP ................................................................................................ 84
ECO ............................................................................................... 85
Network-USB ................................................................................. 87
Access ........................................................................................... 88
Log ................................................................................................. 89
Save/Restore ................................................................................. 90
Initialize/Restart ............................................................................. 91
Update ........................................................................................... 92
Diagnostic ............................................................................... 93
System Info .................................................................................... 93
Logs ............................................................................................... 95
Packet Info ..................................................................................... 96
Client Monitor ................................................................................. 97
Ping ................................................................................................ 98
Chapter 5 - Connect to a Wireless Network ...................99
Automatic Secure Setup (AOSS/WPS) ................................... 99
Windows 7/Vista (Client Manager V) ............................................. 100
Windows XP (Client Manager 3) .................................................... 101
Mac OS X (AOSS Assistant) .......................................................... 102
Other Devices (e.g. Game Console) .............................................. 103
Manual Setup .......................................................................... 103
Windows 7 (WLAN AutoCong) ..................................................... 103
Windows Vista (WLAN AutoCong) ............................................... 104
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 4
Windows XP (Wireless Zero Conguration) ................................... 107
Mac OS X (AirPort) ........................................................................ 108
Chapter 6 - Troubleshooting ............................................109
Cannot connect to the Internet over wired connection. ........... 109
Cannot access the web-based conguration Interface. .......... 109
Cannot connect to the network wirelessly. .............................. 110
You forgot AirStation's SSID, Encryption Key, or Password. ... 110
The link speed is slower than 300 Mbps (Maximum link speed is
only 130 Mbps). ....................................................................... 110
Other Tips ................................................................................ 111
Chapter 7 - Default Conguration Settings ....................113
Chapter 8 - Network-USB Navigator ...............................120
Initial Setup for Windows Users .............................................. 120
Initial Setup for Mac Users ...................................................... 125
Opening the Network-USB User Manual ................................ 128
How to use Network-USB ....................................................... 129
Chapter 9 - Checking Wireless Signal Quality ...............130
Windows 7/Vista ...................................................................... 130
Macintosh ................................................................................ 131
Chapter 10 - TCP/IP Settings ...........................................133
Windows 7 ............................................................................... 133
Windows Vista ......................................................................... 134
Windows XP ............................................................................ 135
Mac OS X ................................................................................ 136
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 6
Chapter 1 - Product Overview
Installing Your AirStation
To install your AirStation, insert the software CD from your package into your computer and follow
the directions on the screen. For more information about installation, turn to chapter 3 of this
manual.
Professional or User-friendly?
This AirStation wireless router comes with two dierent rmware packages. You may use either the
dd-wrt-based Professional rmware or the simple User-friendly rmware. By default, the Professional
rmware is preinstalled for US/EU products, and the User-friendly rmware is preinstalled for Asia-
Pacic products. Turn to page 20 for instructions on switching between the two rmware packages.
Note : Most of this manual documents the user-friendly version of the rmware. For more
information on the dd-wrt-based professional rmware, consult the help les in its web-
based conguration interface or the WZR-HP-G300NH / WZR-HP-G300NH2 User Manual for
Professional Firmware, available for download from Bualo Technology.
Features
Supports IEEE802.11n and IEEE802.11b/g
With support for current Wireless-N, Wireless-G, and Wireless-B standards, the AirStation can transfer
data to and from all standard 2.4 GHz wireless clients.
Dual speed mode
Dual speed mode makes wireless transmission faster by using 2 channels, allowing 300 Mbps data
transmission.
Supports AOSS and WPS
Both AOSS (AirStation One-touch Secure System) and WPS (Wi-Fi Protected Setup) are supported.
These automatic connection standards make connection with compatible wireless devices easier.
Chapter 1 Product Overview
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 7
Security Features
The AirStation is equipped with the following security features:
• AOSS
• WPS
• WPA-PSK (TKIP/AES)
• WPA2-PSK(TKIP/AES)
• WPA/WPA2 mixed PSK
• WEP (64-bit and 128-bit)
• Privacy Separator
• MAC address access restriction
• Deny Any Connection/SSID stealth
• Password for web-based control interface
• Firewall with easy rules
Automatic Channel Selection
Monitors wireless interference and automatically assigns the clearest, best channel.
Roaming
You can use multiple AirStations to cover a large area. Wireless clients can automatically switch
AirStations for the best signal.
Initialization
To restore settings back to the factory defaults, hold down the Reset button on the bottom of the
unit.
Browser Based Administration
This unit can be easily congured from a web browser on your computer.
Auto Mode (Router/Bridge Automatic Recognition)
In Auto mode, the AirStation will detect whether or not your network has a router and automatically
switch to the appropriate router or bridge mode. You can also manually switch between modes.
(See page 11.)
MovieEngine
MovieEngine uses QoS to optimise your network for multimedia streaming. This can reduce jumps,
distorted audio, and dropped frames while watching streamed video.
NAS (Network Attached Storage)
Attach a USB hard drive to the AirStation and share it on the network as a NAS. All connected clients
can access it.
Gigabit Ethernet
This unit supports gigabit Ethernet, allowing transmission rates of up to a billion bits per second.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 8
Chapter 1 Product Overview
AirNavigator CD Requirements
The AirStation wireless router and access point works with most wired and wireless devices.
However, the automatic installation program on the CD requires a connected Windows 7, Vista or
XP computer to run. If you use the AirStation with a dierent operating system, you will have to
congure your network settings manually from a browser window.
300 Mbps High Speed Mode
300 Mbps is the link speed when using Wireless-N mode. It represents actual wireless data speeds,
including overhead. Because the overhead is not available for user data transfer, usable wireless
throughput will be substantially slower.
Package Contents
The following items are included in your AirStation package. If any of the items are missing, please
contact your vender.
• WZR-HP-G300NH or WZR-HP-G300NH2 ............................................................................. 1
• AC adapter .....................................................................................................................................1
• Stand for vertical/wall-mounting .......................................................................................... 1
• Screws for wall-mounting ........................................................................................................2
• LAN cable ....................................................................................................................................... 1
• AirNavigator CD ...........................................................................................................................1
• Quick Setup Guide ...................................................................................................................... 1
1
2
3
4
7
5
8
6
9
Chapter 1 Product Overview
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 9
Hardware Overview

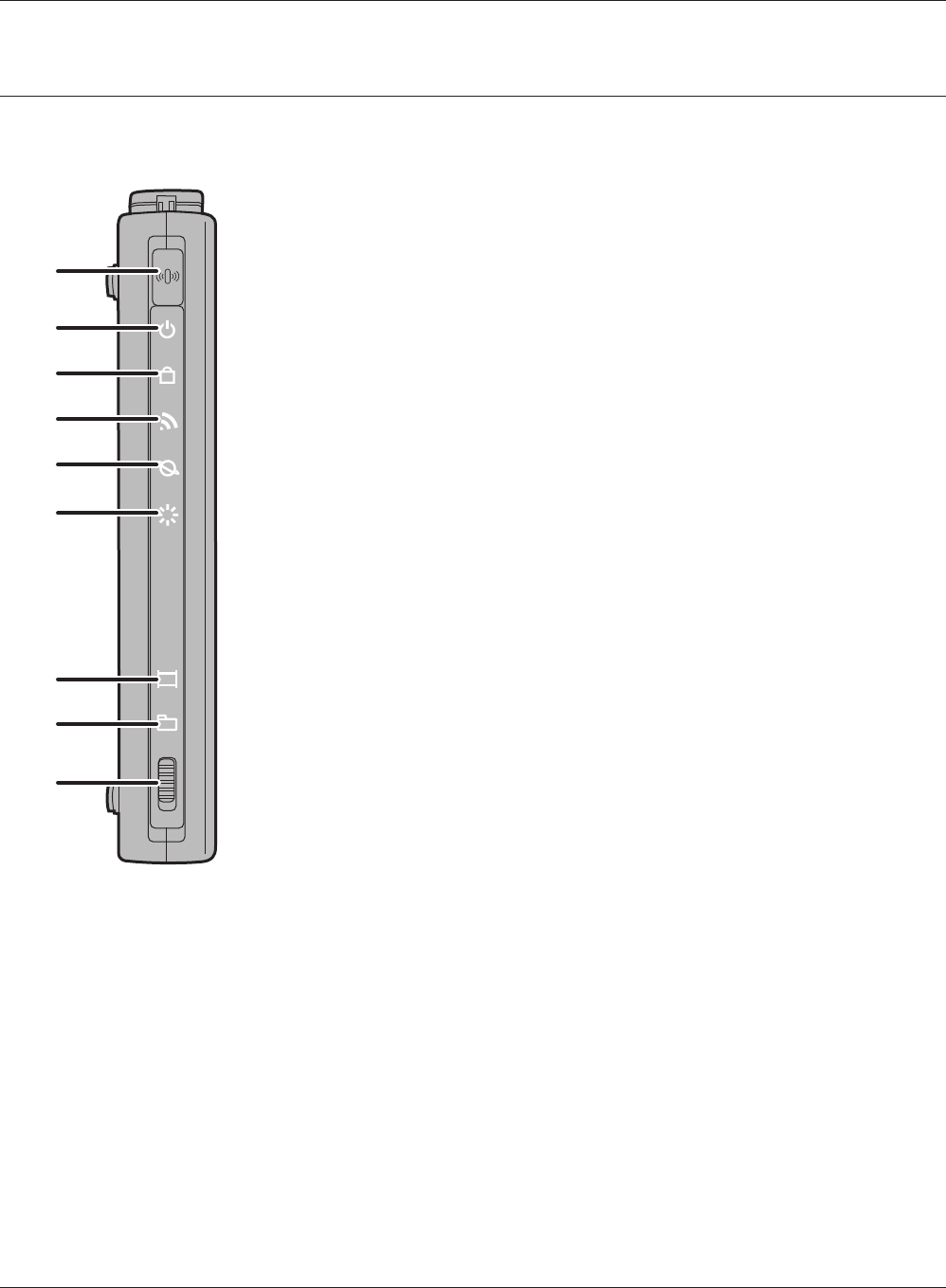

Front Panel LEDs
1AOSS Button
To initiate AOSS, hold down this button until the Security
LED ashes (about 1 second). Then, push or click the AOSS
button on your wireless client device to complete the
connection. Both devices must be powered on for this to
work.
2Power LED (Green)
On: The AC adapter is connected.
O: The AC adapter is not connected.
3Security LED (Amber)
Indicates security status.
O: AOSS or Encryption is not set.
On: AOSS/WPS activated; accessed to exchange
security keys.
Wireless security has been set.
2 blinks: AirStation is waiting for an AOSS or WPS security
key.
Blinking: AOSS/WPS error; failed to exchange security
keys.
Note: The Security LED is lit if an security key has been set.
4Wireless LED (Green)
Indicates wireless LAN status.
On: Wireless LAN is transmitting.
O: Wireless LAN is disabled.
5Router LED (Green)
On: Router functionality is enabled.
O: Router functionality is disabled.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 10
Chapter 1 Product Overview
6Diag LED (Red) This indicates the status of this unit depending on the number of blinks
per cycle.
Note: When the unit is rst turned on or restarted, the Diag LED will blink
for almost a minute during boot. This is normal.
Diag LED
status
Meaning Status
2 blinks *1Flash ROM error Cannot read or write to the ash memory.
3 blinks *1Ethernet (wired) LAN
error
Ethernet LAN controller is malfunctioning.
4 blinks *1Wireless LAN error Wireless LAN controller is malfunctioning.
5 blinks IP address setting error Because the network addresses of both the Internet port (WAN
port) and the LAN port are the same, it is not possible to establish
communication. Change the LAN side IP address of this unit.
Continuously
blinking *2
Updating the rmware
Saving settings
Initializing settings
Updating the rmware.
Saving the settings.
Initializing the settings.
*1 Unplug the AC adapter from the wall socket, wait for a few seconds, and then plug it again. If the
light still ashes, please contact technical support.
*2 Never unplug the AC adapter while the Diag LED is blinking continuously.
7Movie Engine On LED (Blue)
On: Movie Engine functionality is enabled.
O: Movie Engine functionality is disabled.
8Movie Engine O LED (Blue)
On: Movie Engine functionality is disabled.
O: Movie Engine functionality is enabled.
9Movie Engine Switch
Switches the movie engine function between enabled and disabled.
On: Movie Engine functionality is enabled.
O: Movie Engine functionality is disabled.

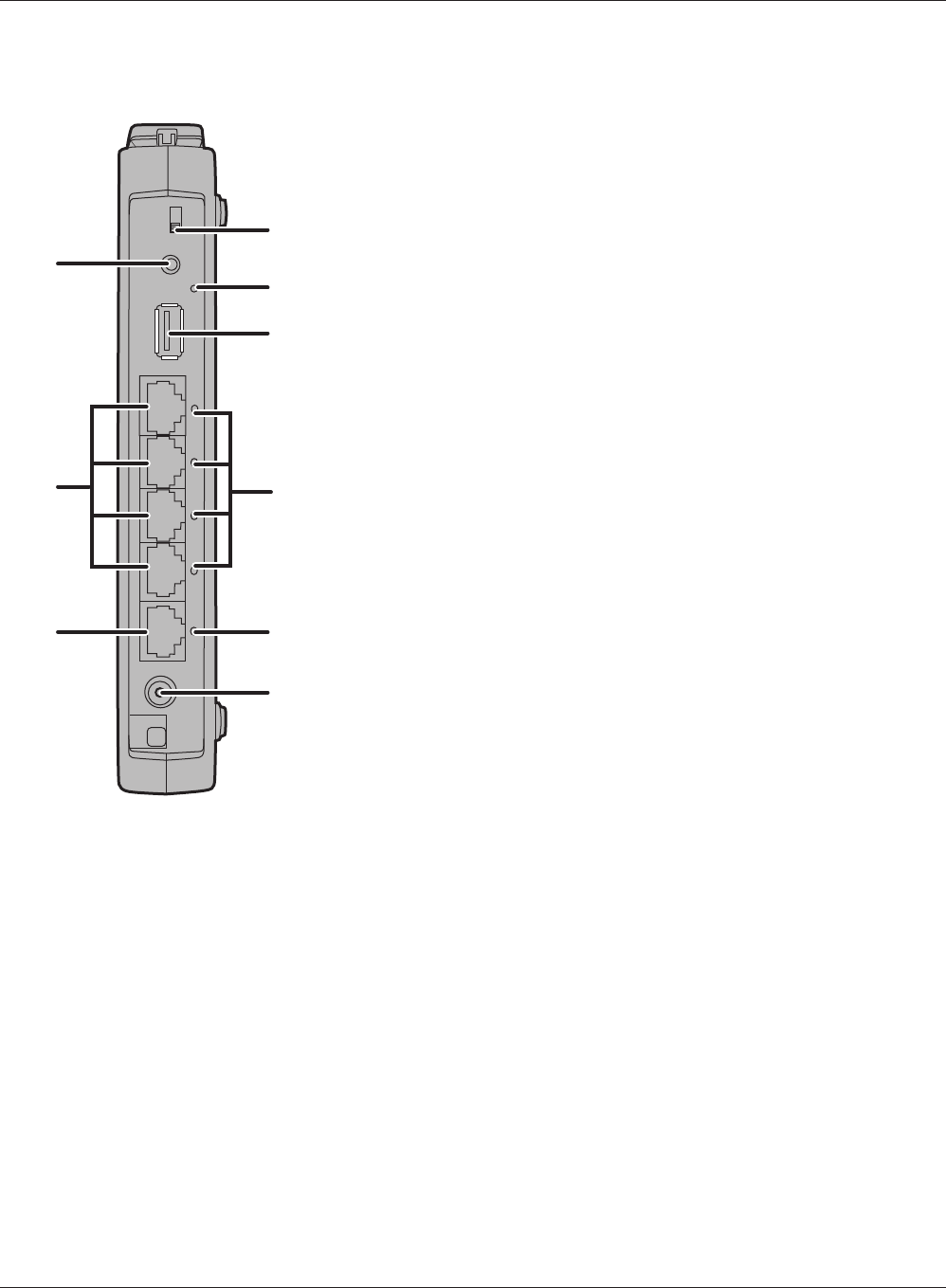

LAN
USB
USB
EJECT
ON
OFF
AUTO
ROUTER
1
2
3
4
POWER
INTERNET
16
11
18
14 15
17
12
10
13
Chapter 1 Product Overview
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 11
Back Panel
10 Router Switch
Switches router mode between enabled, disabled, and auto.
On: Router functionality is enabled (router mode).
O: Router functionality is disabled (bridge/AP
mode).
Auto: This switches between modes automatically
based on whether or not another router is
detected on the Internet port. The default setting
for this switch is Auto.
11 USB Eject Button
To dismount a USB hard drive, hold down this button until
the USB LED ashes (about 3 seconds). The USB drive can
then be unplugged safely.
12 USB LED (Blue)
On: The USB disk is connected.
O: The USB drive can be removed or no USB drive is
connected.
Flashing: Overcurrent detected.
Note: When this LED is blinking, the connected USB drive
cannot be used. Remove the connected USB drive. If
the LED continues to blink even after the USB drive is
removed, restart the AirStation.
Do not remove the USB drive or turn o the
AirStation while the USB LED is on.
13 USB Port Connect the USB drive.
Note: USB hubs are not supported.
14 LAN Port Connect your computer, hub, or other Ethernet devices to these ports.
This switching hub supports 10 Mbps,100 Mbps, and 1000 Mbps
connections.
15 LAN LED (Green)
On: An Ethernet device is connected.
Flashing: An Ethernet device is communicating.
19
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 12
Chapter 1 Product Overview
16 Internet Port 10 Mbps, 100 Mbps, and 1000 Mbps connections are supported.
Note: In bridge/AP mode (router switch o), the Internet port becomes a
regular LAN port, for a total of 5 usable LAN ports.
17 Internet LED (Green)
On: The Internet port is connected.
Flashing: The Internet port is transmitting data.
18 DC Connector Connect the included AC adapter here.

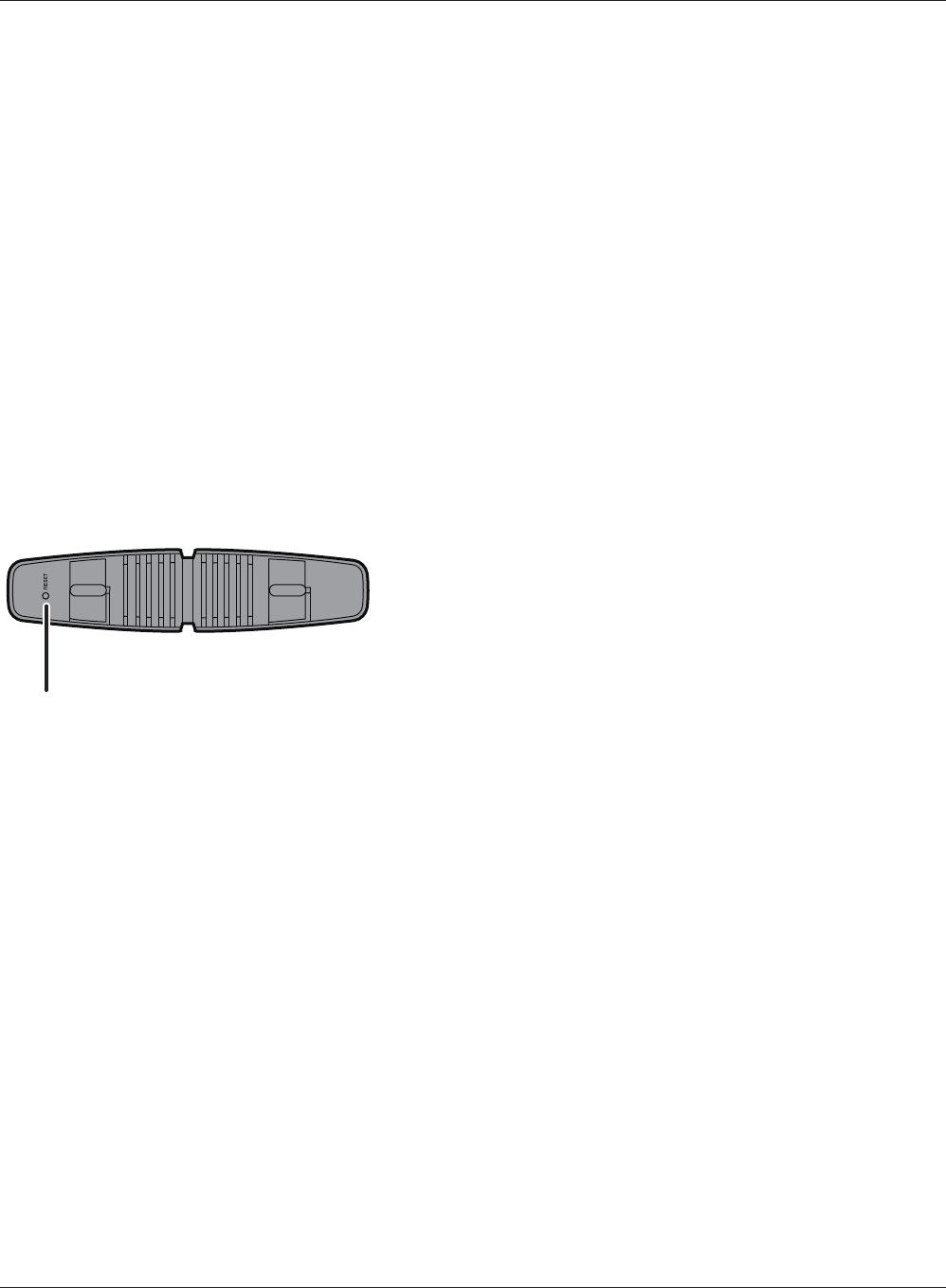

Bottom
19 Reset Button To reset all settings, hold down this button until the Diag LED comes on
(about 3 seconds). Power must be on.
20
Chapter 1 Product Overview
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 13

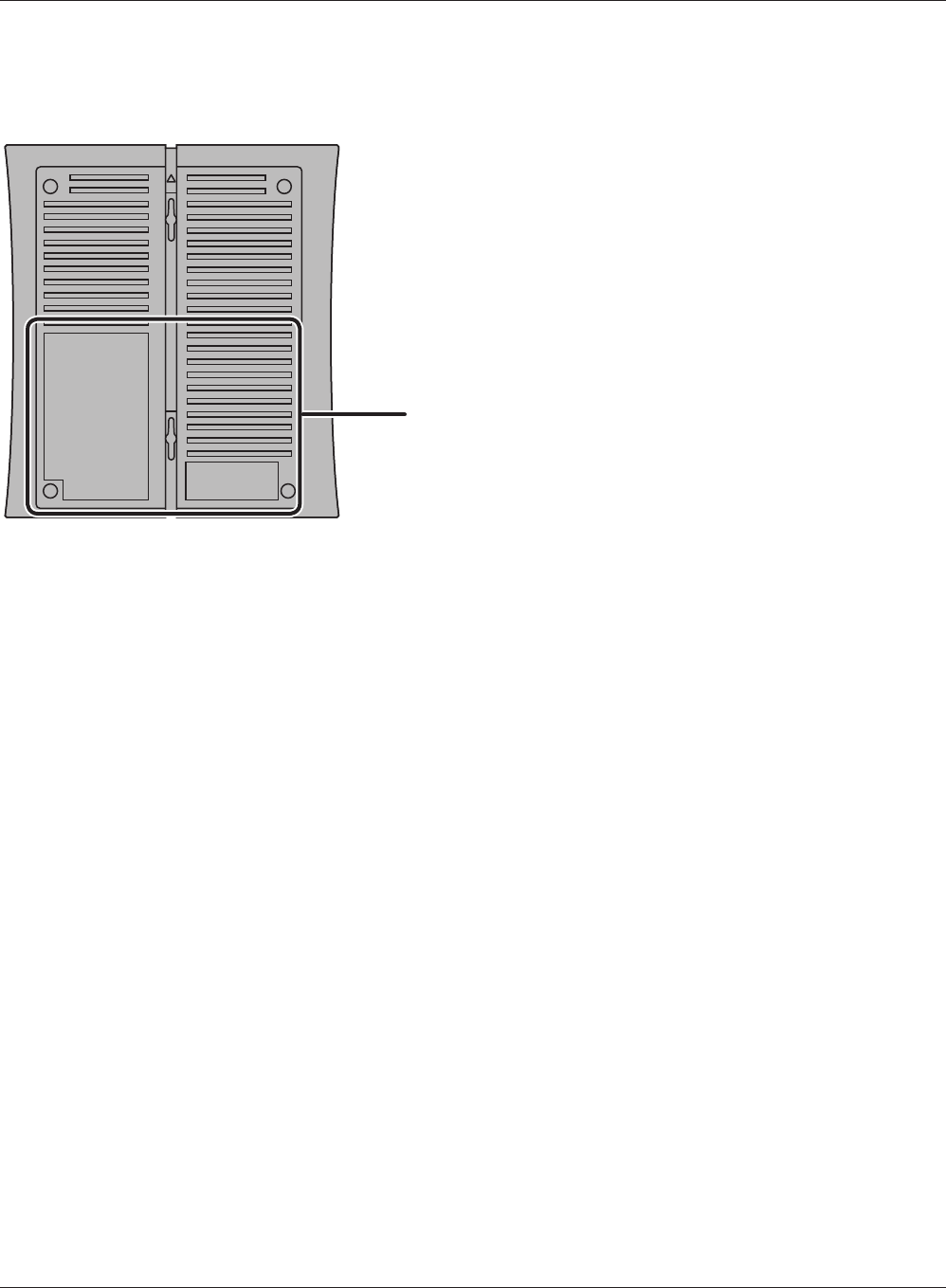

Right Side
20 Factory Default Settings This sticker shows the AirStation’s SSID, default encryption
key, and WPS PIN code. By default, encryption is disabled for
AirStations sold in Asia Pacic.
Note: The right side of the unit may become
hot. Please be careful not to place
anything next to it that could be
damaged by heat.
1
2
AOSS
ON
OFF
MOVIE
ENGINE
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 14
Chapter 2 - Placing Your AirStation

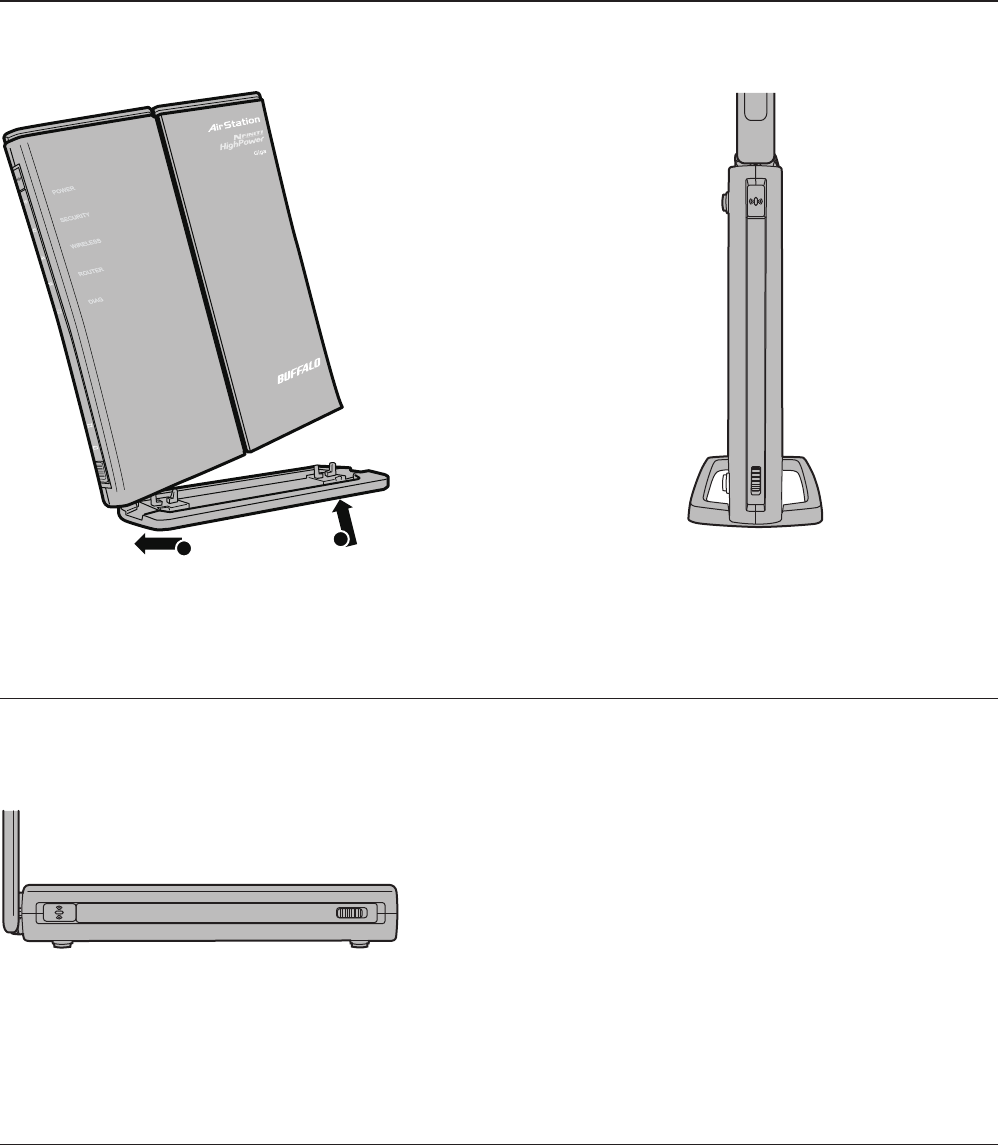

Vertical Placement
If the AirStation is to be placed vertically, attach the stand as shown.
Horizontal Placement
The stand is not used if the AirStation is placed horizontally.
FRONT
FRONT
Chapter 2 Placing Your AirStation
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 15

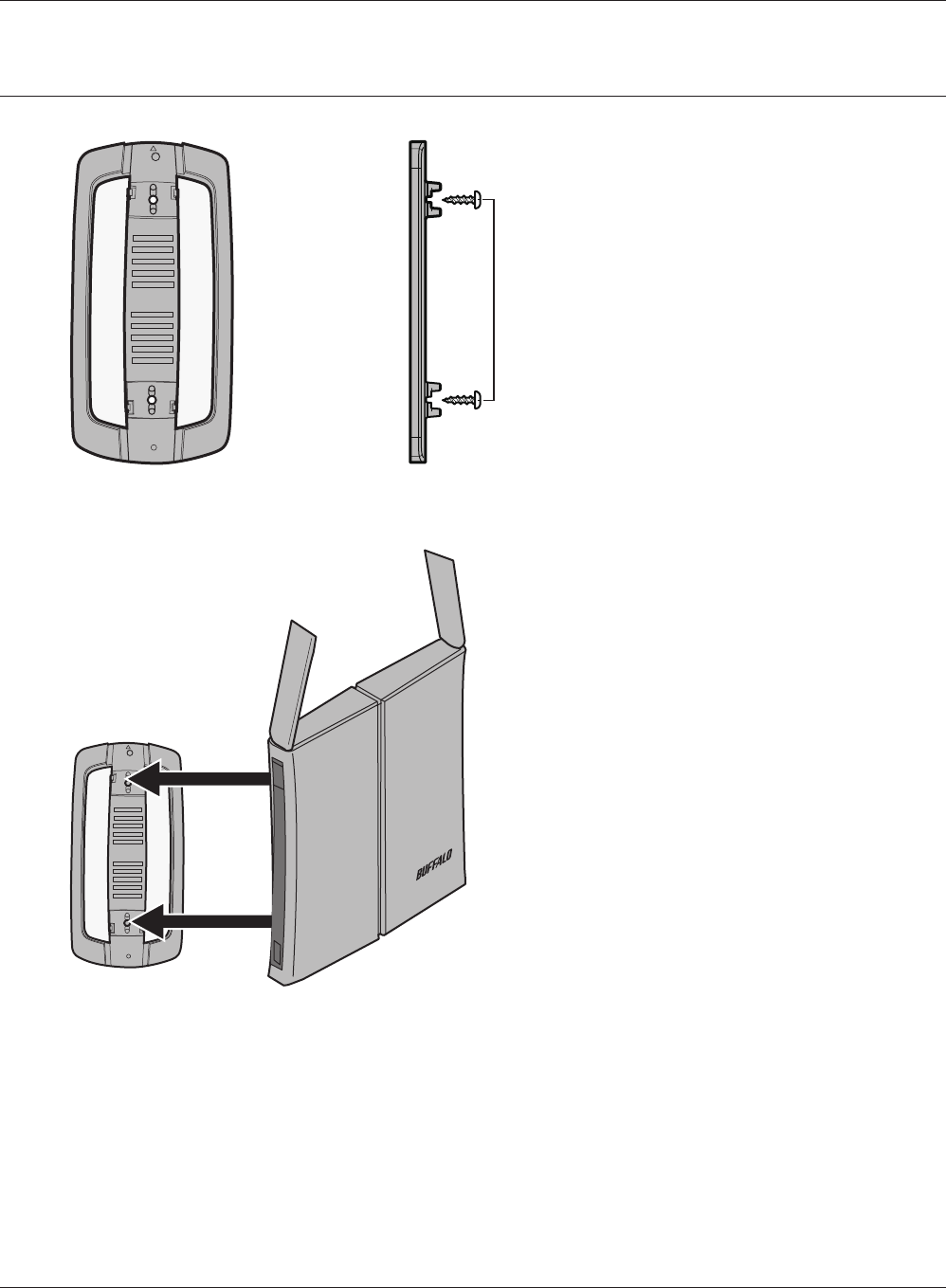

Wall-Mounting
1To wall-mount the AirStation, attach
the stand to the wall with the two
screws (included).
8.6 cm
(~3.4 inches)
2Snap the center of the AirStation to the stand
as shown.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 16
Chapter 3 - Installation
Automatic Setup
Windows 7 / Vista / XP
The AirNavigator CD can guide you through installing your AirStation. To launch the setup program
please insert the CD into your Windows 7/Vista/XP PC and follow the instructions on the screen. If
you deactivated auto-run for CD’s please navigate to [CD drive]:\Win\ and launch ASSetWiz.exe.
Note: · To use a wireless client in Windows 7 or Vista, perform setup using the AirNavigator CD to automatically
generate a profile for wirelessly connecting to the AirStation. After setup is complete, once the LAN
cable is removed, you can connect from your wireless client to the AirStation.
· Before performing setup, enable your computer’s wireless client.
Mac OS X
For a Mac, open the Mac folder on the CD and launch the AirStation Conguration tool. Search and
select the Bualo AirStation you want to set up. You can either congure the IP or open the web
interface for all settings. Please refer to “Manual Setup” in the next section.

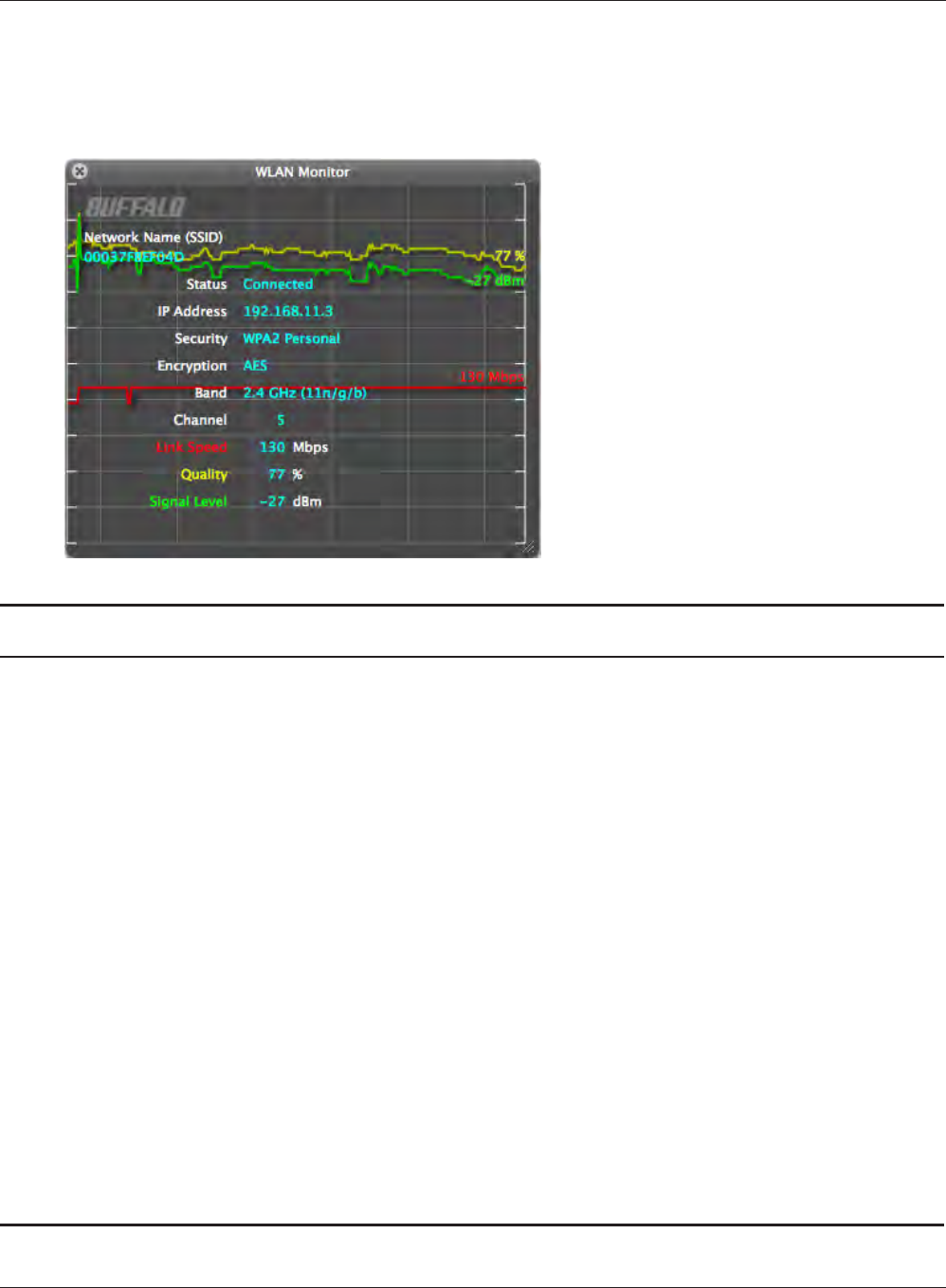

Note: You can use the easy and simple setup via AOSS to connect the Mac wirelessly. Please press the AOSS
button on the Buffalo router, start the AOSS assistant and follow the steps. The WLAN monitor in the
same folder shows the wireless status regardless which method you use to connect.
Other OS
If your computer uses a dierent operating system, use manual setup instead. Please refer to the
next section “Manual Setup”.
2) disconnect
modem computer
Conrm that the
switch is positioned to
[AUTO].
OFF
modem
LAN cable
1) connect
2) connect
AirStation
Internet
port
Chapter 3 Installation
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 17
Manual Setup
To congure your AirStation manually, follow the procedure below.
1Verify that you can connect to the internet without the AirStation, then turn o your modem
and computer.
2Unplug the LAN cable which connects
your computer and modem.
3Make sure the mode switch on the back of
the AirStation is in the “auto” position.
4Plug one end of the LAN cable into your modem and the other end to the AirStation’s
Internet (WAN) port. Turn on the modem.
AirStation
1) connect 2) connect
LAN cable
computer
OFF
AirStation
1) Connect the power supply
power outlet
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 18
Chapter 3 Installation
7Once your computer has booted, the AirStation’s LEDs should be lit as described below:
Power Green light on.
Wireless Green light on or blinking.
Router Green light on or o depending on your network.
Diag O
LAN Green light on or blinking.
Internet Green light on or blinking.
For LED locations, refer to chapter 1.
5Connect your computer to one of the AirStation’s LAN ports with the LAN cable.
6Turn on the AirStation, wait one minute, then turn on your computer.
Chapter 3 Installation
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 19
8Launch a web browser. If the home screen is displayed, setup is complete.
If username and password elds are displayed, enter “root” for the username. Enter “admin”
for the password if you’re using the professional rmware (default), or leave the password
eld blank if you’ve switched to the user-friendly rmware. Click [OK]. Step through the
wizard to complete setup.
You’ve completed initial setup of your AirStation. Refer to Chapter 4 for advanced settings.
Firmware Differences
You can choose between two dierent rmwares for your AirStation. By default, the professional
rmware (dd-wrt) is preinstalled for US/EU products. If you prefer, you may install the user-friendly
rmware instead. The two rmwares have slightly dierent features, as shown in the chart below.
Function Professional rmware (dd-wrt) User-friendly rmware
Router mode switch functionality ─a
Default administrator name root root (xed)
Default administrator password admin none
AOSS a a
WPS a a
WDS a a
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 20
Chapter 3 Installation

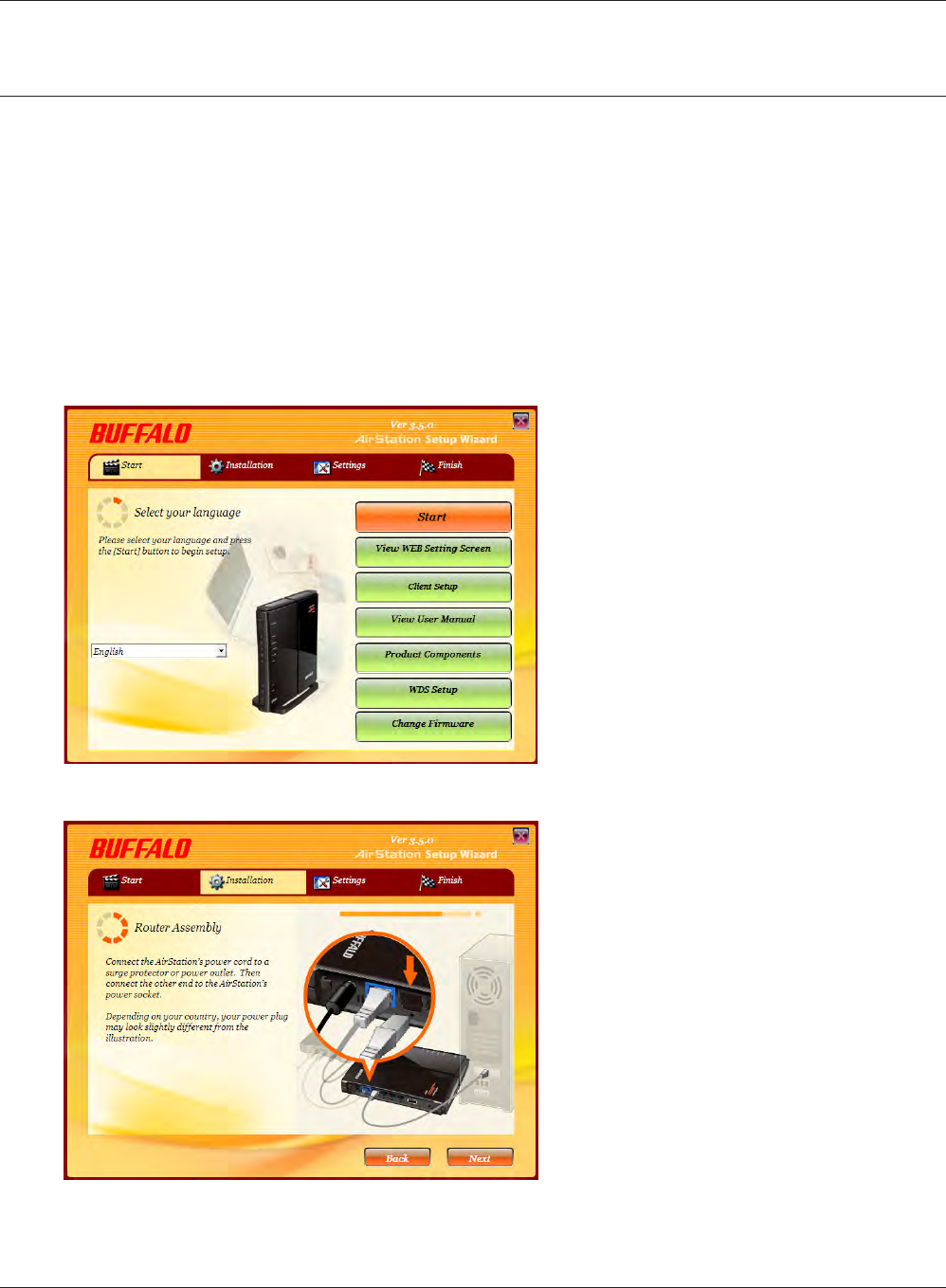

3The procedure for wiring will be displayed.
Step through the wizard to connect your
AirStation.
Changing Firmware
To change between the professional rmware (dd-wrt) and the user-friendly rmware, follow the
steps below.
Windows
1Insert the AirNavigator CD into your computer. The setup wizard will automatically launch.
Note: If the Setup Wizard does not launch, open the CD and double-click [ASSetWiz.exe] in the “Win” folder.
2
Click [Change Firmware].
Chapter 3 Installation
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 21
4When this screen is displayed, click
[Change Firmware].
5If requested, enter the AirStation’s username
and password.
Note: By default, the professional rmware doesn’t have
a username and password congured. Set them
before you go to the next step.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 22
Chapter 3 Installation
6When the following screen is displayed, make sure that the rmware le name is displayed,
click [Upgrade] or [Apply], and follow the instructions on the screen.
Note: If the rmware name is not displayed on the screen, click [Browse...] and select the desired rmware. The
rmware les are contained in the “Firmware” folder of the AirNavigator CD.
Professional rmware (dd-wrt) update screen:
User-friendly rmware update screen:
Chapter 3 Installation
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 23
Macintosh
1Open the conguration Interface of the AirStation.
2To replace the professional rmware with the user-friendly rmware, click [Administration] >
[Firmware Upgrade].
To replace the user-friendly rmware with the professional rmware, go to [Easy Setup] and
click [Update AirStation Firmware].
3Click [Browse...] to select the rmware le, and click [Upgrade] or [Apply].
Note: The rmware les are contained in the “Firmware” folder of the AirNavigator CD.
Professional rmware (dd-wrt) update screen:
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 24
Chapter 3 Installation
User-friendly rmware update screen:
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 25
Chapter 4 - Conguration
The web-based conguration tool lets you change advanced settings for the AirStation. Don’t
change these settings unless you know what you’re doing.
Accessing the Web-based Conguration Interface
To congure the AirStation’s advanced settings manually, log in to the web-based conguration
interface as shown below.
1
2
3
Launch a web browser.
Enter the AirStation’s LAN-side IP address in the
address eld and press the Enter key.
Note: · The AirStation’s default LAN-side IP address depends on the position of the mode switch.
In router mode: 192.168.11.1
In bridge mode: 192.168.11.100
Note: If the router switch is set to auto and the unit is in bridge mode, then the AirStation’s IP
address was assigned by an external DHCP server.
· If you changed the IP address of the AirStation, then use the new IP address.
When this screen appears, enter “root”
(in lower case) for the username and the
password that you set during initial setup.
Click [OK].
Note: · By default, the password is blank (not set).
· If you forget your password, hold down the
reset button (page 12) to initialize all settings.
The password will then be blank. Note that
all other settings will also revert to their
default values.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 26
Chapter 4 Conguration
4This is the conguration
interface, where most
AirStation settings can be
congured.
Help is always displayed on
the right side of each screen.
Refer to the Help screens for
more information on using the
conguration interface.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 27
Conguration Interface Menus in Router Mode
The menu structure for the AirStation in router mode is as follows. Please refer to the pages listed at
right for explanations of each item.
Main screen Descriptions Page
Internet/LAN
Internet Congure Internet side port and settings. Page 33
PPPoE PPPoE settings (DSL login). Page 34
DDNS DNS settings. Page 37
VPN Server VPN server settings. Page 39
LAN LAN side port conguration. Page 41
DHCP Lease DHCP lease settings. Page 43
NAT Network address translation settings, used to connect LAN side devices
to the Internet.
Page 44
Route Congure the AirStation’s IP communication route. Page 45
Wireless Cong
WPS WPS settings and status. Page 46
AOSS AOSS (AirStation One-touch Secure System) settings and status. Page 47
Basic Congure basic wireless settings. Page 49
Advanced Congure advanced wireless settings. Page 52
WMM Set priorities for Wireless Multimedia Extensions (Wi-Fi Multimedia). Page 53
MAC Filter Limit access to specic devices. Page 55
Multicast Control Congure limits on sending unnecessary multicast packets to the
wireless LAN port.
Page 56
WDS Congure communication between AirStations. Page 57
Security
Firewall Protect your computer from outside intruders. Page 59
IP Filter IP lters for packets passing through the LAN side and the Internet side. Page 61
VPN
Passthrough
Congure IPv6 passthrough, PPPoE passthrough, and PPTP passthrough. Page 62
LAN Cong
Port Forwarding Congure port translation and exceptions for games and other
programs.
Page 63
DMZ Congure a destination to transfer communication packets without a
LAN side destination.
Page 64
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 28
Chapter 4 Conguration
UPnP Congure UPnP (Universal Plug and Play). Page 65
QoS Congure priority for packets that require a guaranteed data ow. Page 66
Movie Engine Congure options for the Movie Engine feature. Page 68
NAS
Disk Management View the status and congure of attached USB disks. Page 70
Shared Folder Set the USB disk to use as shared folders. Page 72
User Management Congure users to access shared folders. Page 74
Shared Service Congure shared folder access. Page 75
Web Access Congure Web Access. Page 76
Media Server Congure a Media Server. Page 78
BitTorrent Congure a BitTorrent client. Page 79
Admin Cong
Name Congure the AirStation’s name. Page 81
Password Congure the AirStation’s login password for access to the conguration
interface.
Page 82
Time/Date Congure the AirStation’s internal clock. Page 83
NTP Congure the AirStation to synchronize with an NTP server to
automatically set the AirStation’s internal clock.
Page 84
ECO Congure the AirStation’s ECO Mode. Page 85
NTP Congure Network-USB from this screen. Page 87
Access Congure access restrictions to the AirStation’s conguration interface. Page 88
Log Congure a syslog server to manage the AirStation’s logs. Page 89
Save/Restore Save or restore the AirStation’s conguration from a conguration le. Page 90
Initialize/Restart Initialize the AirStation or reboot it. Page 91
Update Update the AirStation’s rmware. Page 92
Diagnostic
System Info View current system information for the AirStation. Page 93
Logs Check the AirStation’s logs. Page 95
Packet Info View all packets transferred by the AirStation. Page 96
Client Monitor View all devices currently connected to the AirStation. Page 97
Ping Test the AirStation’s connection to other devices on the network. Page 98
Logout
Click this to log out of the AirStation’s conguration interface.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 29
Conguration Interface Menus in Bridge Mode
The menu structure in bridge mode is as follows. Please refer to the pages listed at right for
explanations of each item.
Main screen Descriptions Page
LAN Cong
LAN Congure LAN side ports and devices. Page 41
Route Congure the AirStation’s IP communication route. Page 45
Wireless Cong
WPS WPS settings and status. Page 46
AOSS AOSS (AirStation One-touch Secure System) settings and status. Page 47
Basic Congure basic wireless settings. Page 49
Advanced Congure advanced wireless settings. Page 52
WMM Set priorities for Wireless Multimedia Extensions (Wi-Fi Multimedia). Page 53
MAC Filter Limit access to specic devices. Page 55
Multicast Control Congure limits on sending unnecessary multicast packets to the
wireless LAN port.
Page 56
WDS Congure communication between AirStations. Page 57
QoS
Movie Engine Congure options for the Movie Engine feature. Page 68
NAS
Disk Management View the status and congure of attached USB disks. Page 70
Shared Folder Set the USB disk to use as shared folders. Page 72
User Management Congure the name to access shared folders. Page 74
Shared Service Congure the name to access shared folders. Page 75
Web Access Set to use the Web Access function. Page 76
Media Server Set to use the Media Server function. Page 78
BitTorrent Set to use the BitTorrent function. Page 79
Admin Cong
Name Congure the AirStation’s name. Page 81
Password Congure the AirStation’s login password for access to conguration
interface.
Page 82
Time/Date Congure the AirStation’s internal clock. Page 83
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 30
Chapter 4 Conguration
NTP Congure the AirStation to synchronize with an NTP server to
automatically set the AirStation’s internal clock.
Page 84
ECO Congure ECO Mode. Page 85
NTP Congure Network-USB from this screen. Page 87
Access Congure access restrictions to the AirStation’s conguration interface. Page 88
Log Check the AirStation’s logs. Page 89
Save/Restore Save or restore the AirStation’s conguration from a conguration le. Page 90
Initialize/Restart Initialize the AirStation or reboot it. Page 91
Update Update the AirStation’s rmware. Page 92
Diagnostic
System Info View current system information for the AirStation. Page 93
Logs Check the AirStation’s logs. Page 95
Packet Info View all packets transferred by the AirStation. Page 96
Client Monitor View all devices currently connected to the AirStation. Page 97
Ping Test the AirStation’s connection to other devices on the network. Page 98
Logout
Click this to log out of the AirStation’s conguration interface.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 31

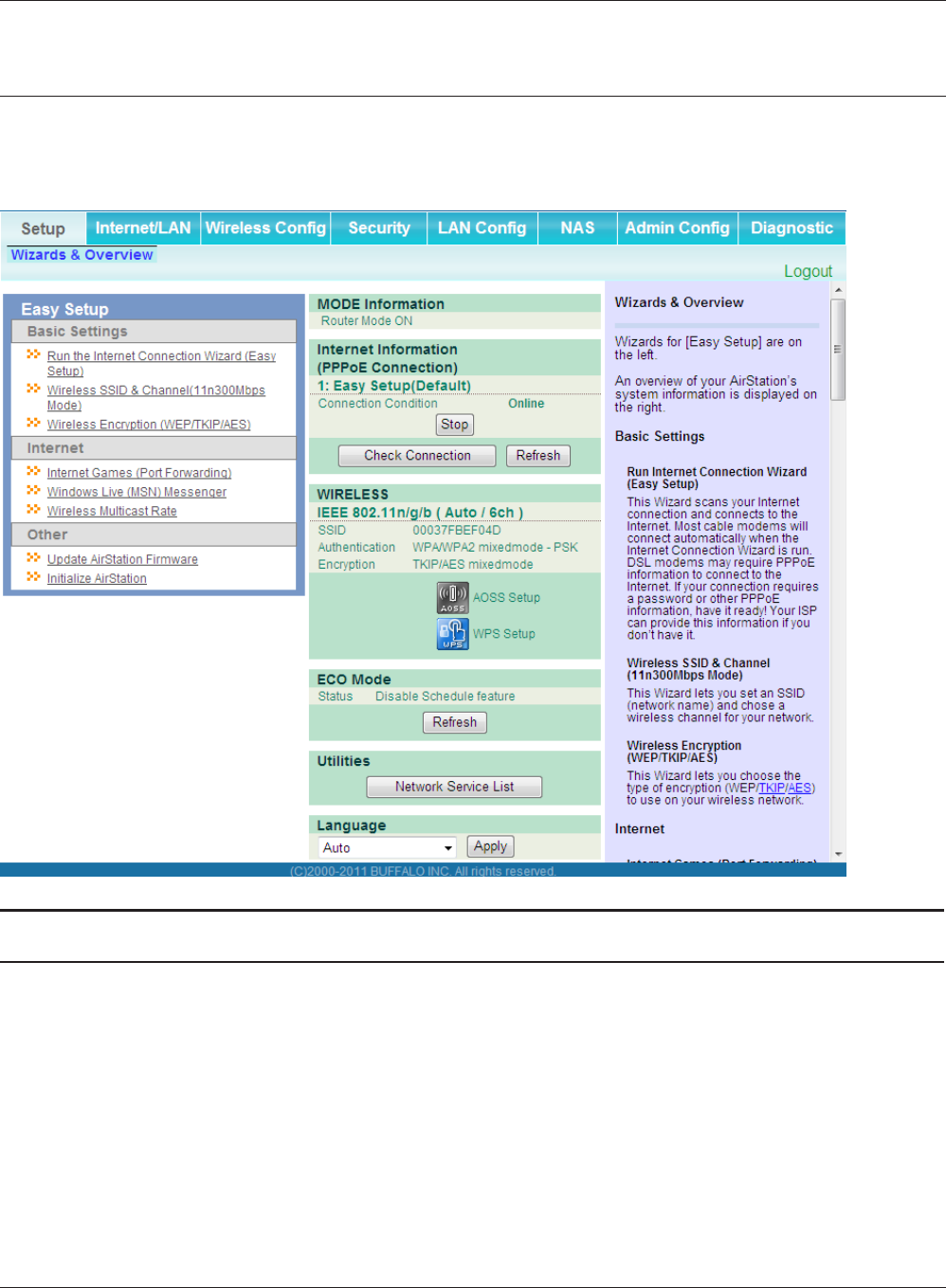

Setup
Setup is the home page of the conguration interface. You can verify settings and the status of the
AirStation here.
Parameter Meaning
Internet/LAN (LAN Cong) Displays the conguration screen for the Internet port and LAN
ports.
Wireless Cong Click this button to display the conguration screen for wireless
settings.
Security Click this button to display the conguration screen for security.
LAN Cong Click this button to display the conguration screen to open ports
for games and applications.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 32
Chapter 4 Conguration
Parameter Meaning
NAS Click this button to display the conguration screen for NAS
settings.
Admin Cong Click this button to display the conguration screen for
administration settings.
Diagnostic Click this button to display the status of the AirStation.
Easy Setup Enables you to easily congure the AirStation’s network settings
automatically.
MODE Information This indicates the operation mode of the AirStation.
Internet Information Displays WAN-side system information for the AirStation.
Check Connection Click this button to check if the AirStation is connected to the
Internet properly.
Refresh Click this button to refresh the current screen.
WIRELESS Displays the current wireless settings.
AOSS Setup Click this button to display the AOSS conguration screen.
WPS Setup Click this button to display the WPS conguration screen.
ECO Mode This indicates the operating status of ECO Mode.
Network Service List Displays the list of the network devices for which information is
provided from the network on the LAN-side.
Media Server Displays the status of the media server.
Download List Displays the list of BitTorrent les downloading.
Language Enables you to select the language you use.
Logout Log out of the conguration interface. If the AirStation does not
communicate for 5 minutes, it will log out automatically.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 33
Internet/LAN (LAN Cong)

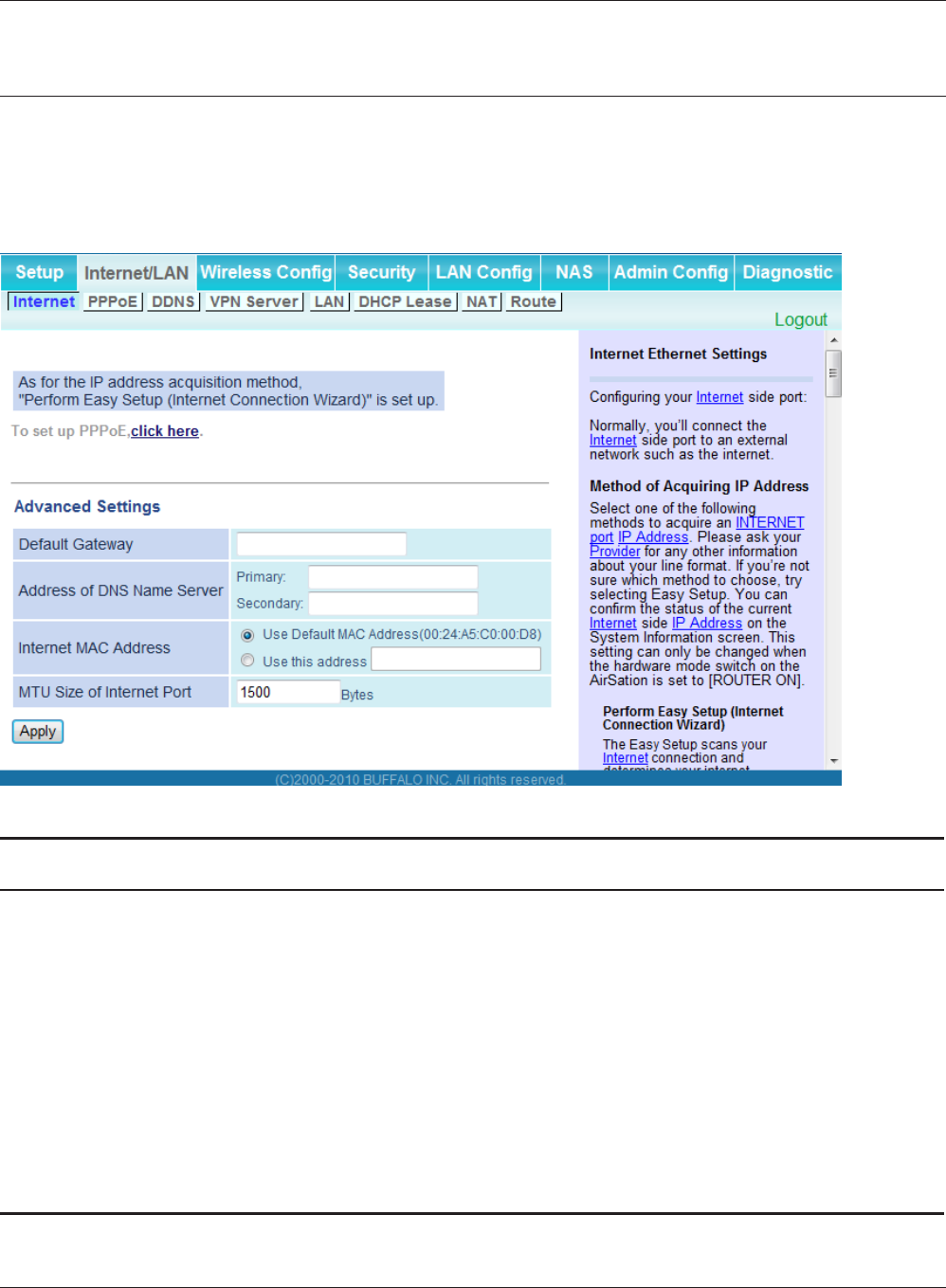

Internet (Router Mode only)
Congure the WAN-side port (“Internet port”).
Parameter Meaning
Method of Acquiring IP Address Specify how the WAN-side IP address is obtained.
Default Gateway Congure an IP address for the default gateway.
Address of DNS Name Server Specify an IP address for the DNS server.
Internet MAC Address Congure the Internet side MAC address.
Note: Conguring an improper MAC address may make the AirStation
unusable. Change this setting at your own risk.
MTU size of Internet Port Congure the MTU value of the Internet port. Values of 578 to 1500
bytes may be entered.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 34
Chapter 4 Conguration

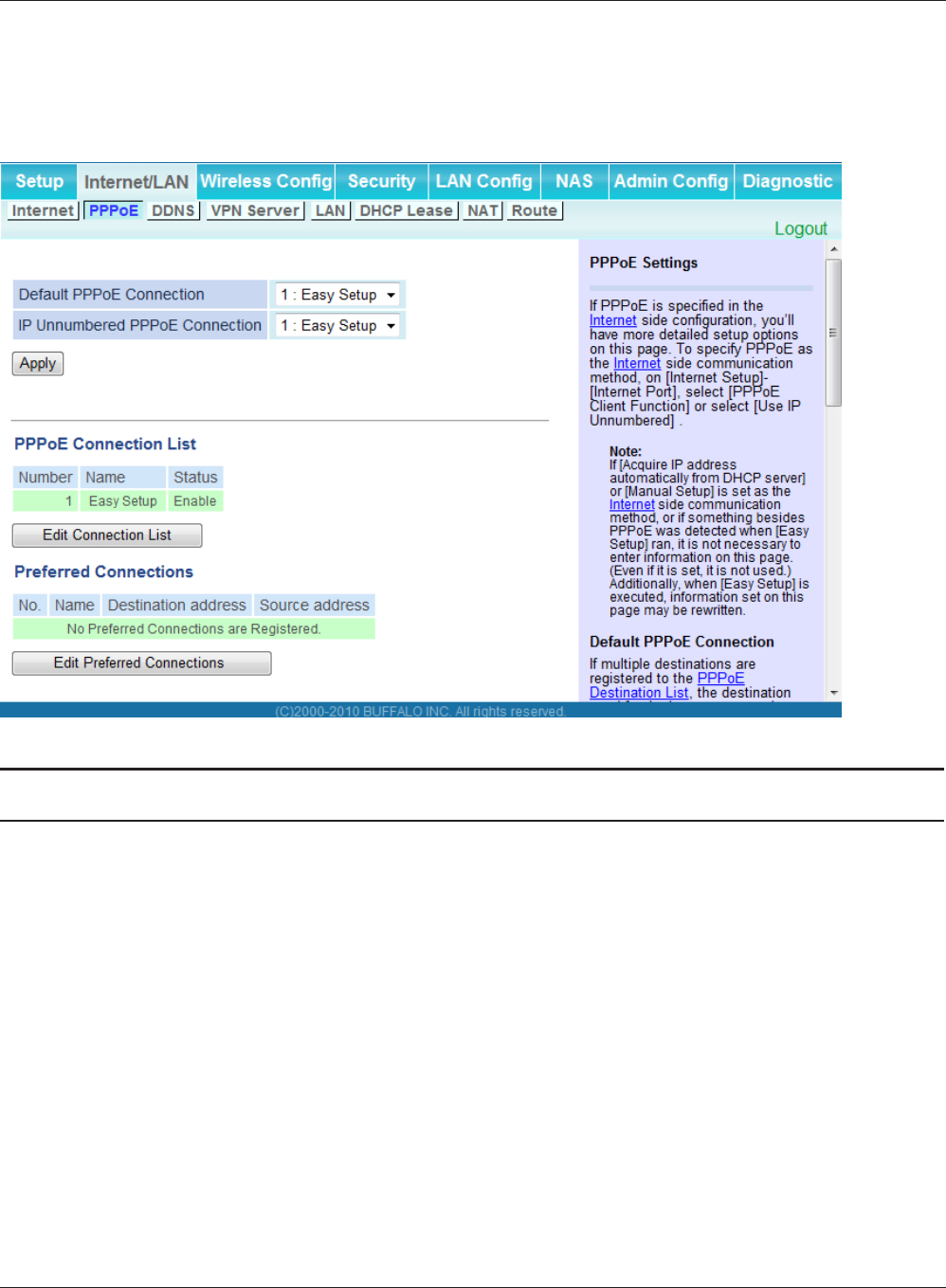

PPPoE (Router Mode only)
Congure PPPoE settings.
Parameter Meaning
Default PPPoE Connection If you have registered multiple connection destinations in the
PPPoE Connection List, connection destinations selected here
have priority. You need to congure the route to which PPPoE is
connected to if you don’t use the default settings.
IP Unnumbered PPPoE Connection Select the destination from the PPPoE Connection List which is
used when “Use IP Unnumbered” is chosen for the Method of
Acquiring IP Address (page 33).
PPPoE Connection List Edit PPPoE destination. You can register up to 5 sessions.
[Edit Connection List] Click this button to edit destination settings.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 35
Parameter Meaning
PPPoE Connection No.*-Add This is displayed when [Edit Connection List] is clicked.
Name of Connection
Enter the name to identify the connected destination. You may
enter up to 32 alphanumerical characters and symbols.
Username
Enter the username specied by your ISP for PPPoE certication.
You may enter up to 32 alphanumerical characters and symbols.
Password
Enter the password specied by your ISP for PPPoE certication.
You may enter up to 32 alphanumerical characters and symbols.
Service Name
Fill in this eld only if your ISP species a Service Name. Leave
blank otherwise. You may enter up to 32 alphanumerical
characters and symbols.
Connection Type
Species the timing for the AirStation to connect to your
provider.
Automatic disconnection
Set time to disconnect after communication is stopped when the
connection method is set to [Connect on Demand] or [Manual].
You can enter up to 1440 minutes.
Authorization
Congure an authorization method with a provider.
MTU Size
Congure the MTU size for PPPoE. Values of 578 to 1500 bytes
may be entered.
MRU Size
Congure MRU (Maximum Receive Unit) for PPPoE. Values of 578
to 1492 may be entered.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 36
Chapter 4 Conguration
Parameter Meaning
PPPoE Connection No. *-Add Keep Alive
If Keep Alive is enabled, then the AirStation will issue an LCP
echo request once a minute in order to maintain the connection
with the PPPoE. If the server does not respond for more than
6 minutes, the line is recognized as disconnected and the
AirStation will terminate the connection. [Disabled] is the
recommended setting.
Preferred Connections Displays information you have set regarding to the connection
destination route.
[Edit Preferred Connections] Click to edit the connection destination route settings.
Preferred PPPoE Connection -Add Click [Edit Preferred Connections] to display.
Name
The destination to connect by PPPoE if [Destination address] and
[Source address] match. Select the destination registered to the
PPPoE Connection List.
Destination address
When communicating to this address, the AirStation will
communicate with [Name of Connection.]
Source address
When communicating from this address, the AirStation will
communicate with [Name of Connection.]
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 37
DDNS (Router Mode only)
Congure Dynamic DNS settings. Many settings are only available when the appropriate Dynamic
DNS service is enabled.
Parameter Meaning
Dynamic DNS Service Select a provider (DynDNS or TZO) for Dynamic DNS.
Username Enter the Dynamic DNS username. You may enter up to 64
alphanumerical characters and symbols.
Password Enter the Dynamic DNS password. You may enter up to 64
alphanumerical characters and symbols.
Hostname Enter the Dynamic DNS hostname. You may enter up to 255
alphanumerical characters, hyphens, and periods.
Email Address Enter the email address which is registered to the Dynamic DNS
service. You may enter up to 64 alphanumerical characters and
symbols.
TZO Key Enter the TZO Key which is registered to the Dynamic DNS service.
You may enter up to 64 alphanumerical characters and symbols.
Domain Name Enter the domain name which is registered to the Dynamic DNS
service. You may enter up to 255 alphanumerical characters,
hyphens, and periods.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 38
Chapter 4 Conguration
Parameter Meaning
IP Address Update Period Species the period to notify the dynamic DNS service provider of
the current IP address. For DynDNS, set it between 0 and 35 days.
For TZO, set it between 0 and 99 days. If 0 (zero) days is set, no
periodic update is performed.
Internet Side IP Address The WAN-side IP address of the AirStation’s Internet port. This
address is sent to the dynamic DNS service provider.
Domain Name The domain name assigned by the dynamic DNS Service provider.
The AirStation can be accessed from the Internet using this domain
name.
Status Display the status of dynamic DNS service.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 39
VPN server (Router Mode Only)
Congure the VPN server.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 40
Chapter 4 Conguration
Parameter Meaning
Auto Input Click to generate a random IP address.
LAN Side IP Address Set a LAN side IP address and subnet mask.
DHCP Server Function Enable or disable the DHCP server, which assigns IP addresses
automatically.
DHCP IP Address Pool Congure the range of IP addresses to be assigned by the DHCP
server and IP addresses to be excluded from that range. Values
from 0-253 may be entered.
PPTP Server Function Enable to use a PPTP server.
Authorization Type Select the authentication method for PPTP connection.
Server IP Address Select the server IP address.
Client IP Address Select the IP address range.
DNS Server IP Address Choose the IP address for the DHCP server.
WINS Server IP Address Choose the IP address for the WINS server.
[Edit PPTP User List] Click to edit user information.
Username Enter the username to connect to the PPTP server. You may enter
up to 16 alphanumerical characters and symbols.
Password Enter the password to connect to the PPTP server. You may enter
up to 16 alphanumerical characters and symbols.
Method of Acquiring IP Address Select the method to be used to assign the IP address is assigned to
the PPTP client.
PPTP User List Displays the PPTP connection user information.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 41
LAN
Congure LAN-side and DHCP Server settings.
Parameter Meaning
LAN Side IP Address By default, the LAN side IP address is 192.168.11.1 with subnet
mask 255.255.255.0. You may change it here.
DHCP Server Function Enable or disable the DHCP server, which assigns LAN-side IP
addresses automatically.
DHCP IP Address Pool Congure the range of IP addresses to be assigned by the DHCP
server and IP addresses to be excluded from that range. Values
from 0-253 may be entered.
LAN Side IP Address
(For IP Unnumbered)
Set an IP unnumbered LAN side IP address.
Note: A PC with a normal LAN side IP address and a PC with an IP
Unnumbered IP address cannot communicate each other.
Advanced Settings Check [Display] to display DHCP server advanced settings options.
Lease Period Set the eective period of an IP address assigned by the DHCP
server. Up to 999 hours may be entered.
Default Gateway Set the default gateway IP address for the DHCP server to issue to
clients.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 42
Chapter 4 Conguration
Parameter Meaning
DNS Servers
* Router Mode only
Set the DNS server IP address for the DHCP server to issue to
clients.
WINS Server
* Router Mode only
Set the WINS server IP address for the DHCP server to issue to
clients.
Domain Name
* Router Mode only
Set the domain name for the DHCP server to issue to clients. You
may enter up to 127 alphanumerical characters, hyphens, and
periods.
Default Gateway
* Bridge Mode only
Set the default gateway IP address.
DNS Server Address
* Bridge Mode only
Set the DNS server IP address.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 43

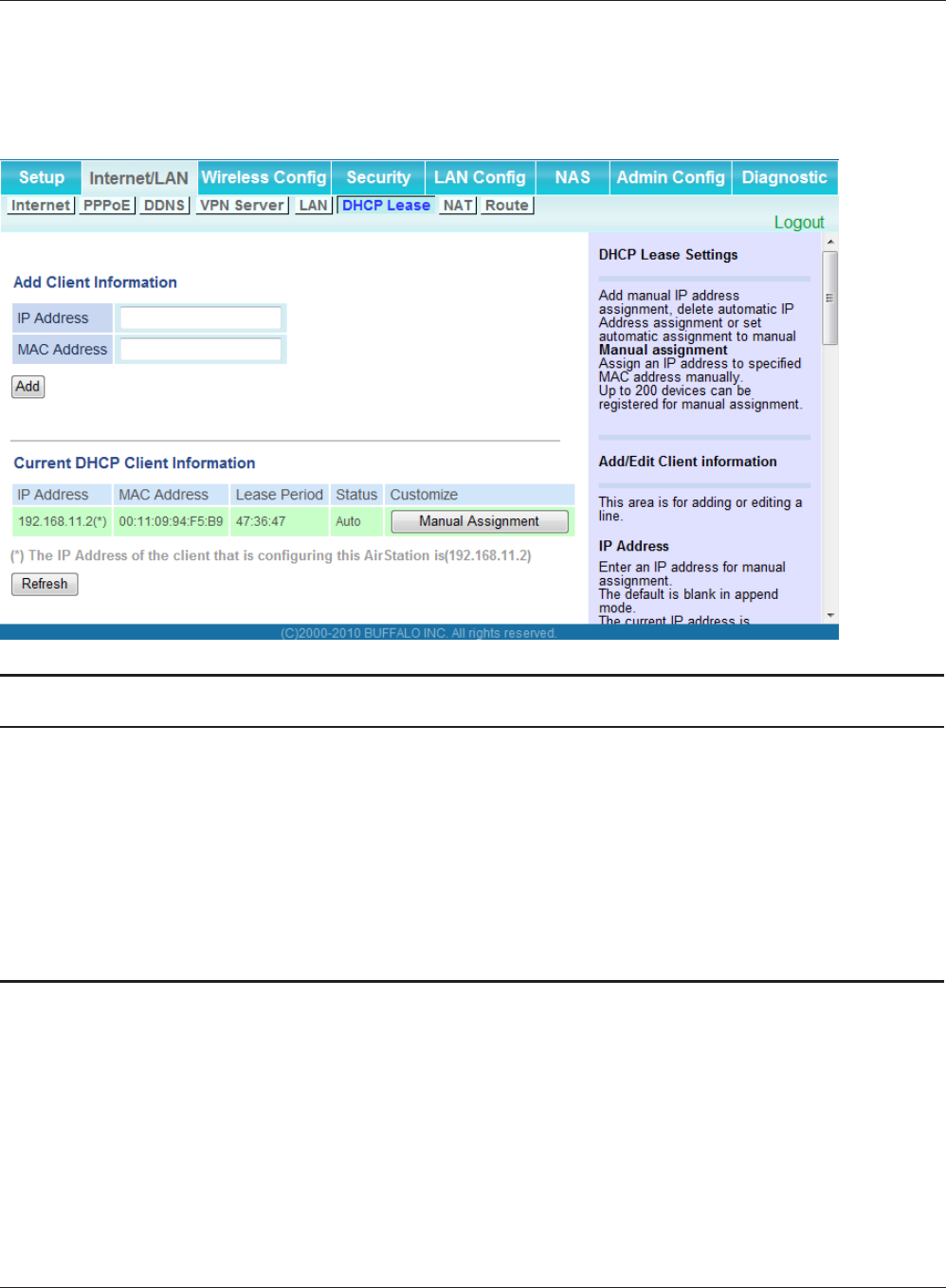

DHCP Lease (Router Mode only)
Congure DHCP Exceptions.
Parameter Meaning
IP Address Enter an IP address to lease manually. The IP address should be
from the same subnet as the DHCP scope, but not be within the
range that DHCP is assigning to other devices.
MAC Address Enter the MAC address which identies the client.
Current DHCP Client Information Displays information for current leases. An IP address which is
leased automatically can be changed to manual leasing by clicking
[Manual Assignment].
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 44
Chapter 4 Conguration

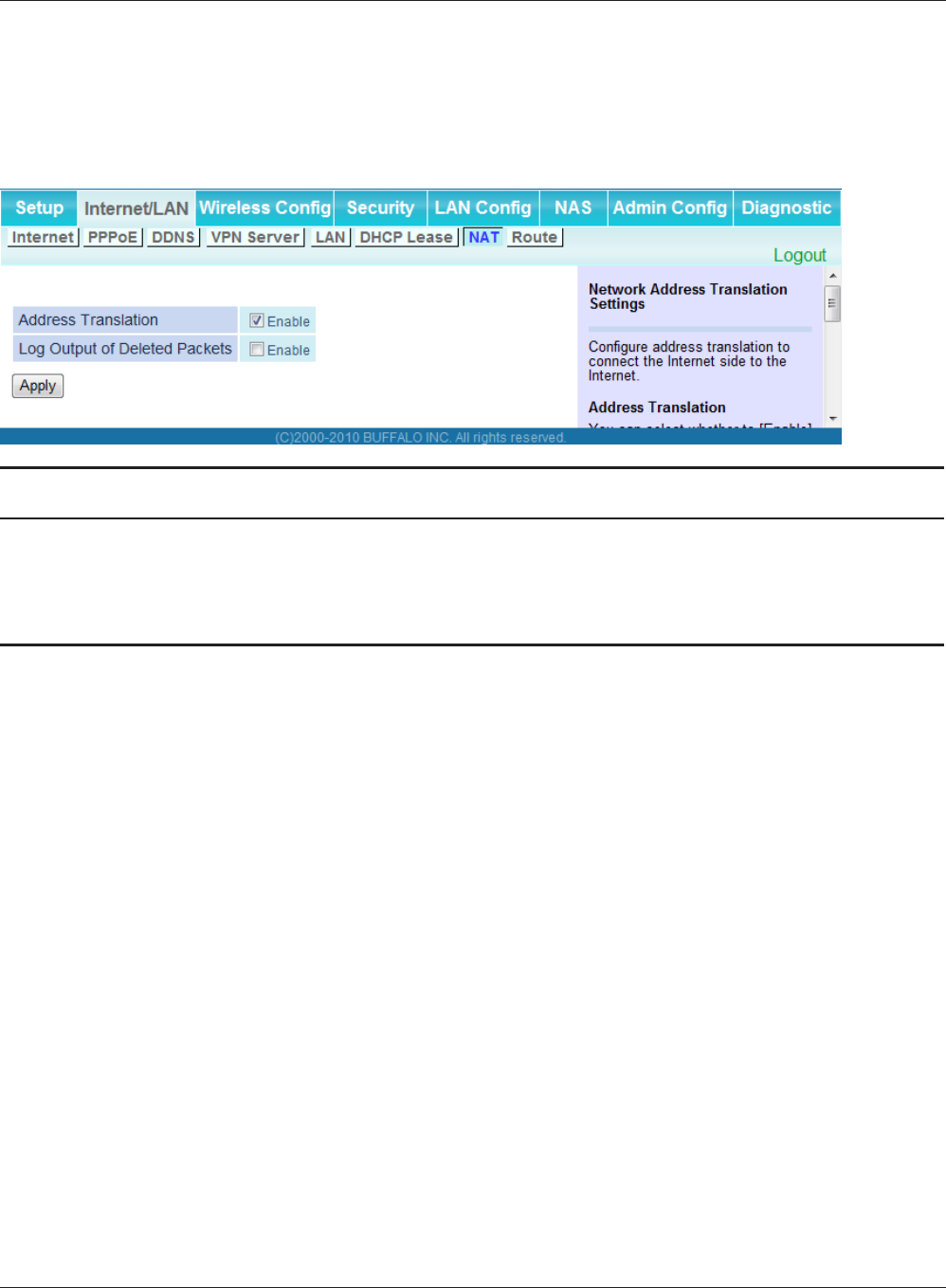

NAT (Router Mode only)
Congure network address translation settings. This enables LAN-side devices to communicate with
the Internet.
Parameter Meaning
Address Translation Enable to use Network Address Translation.
Log Output of Deleted Packets Enable to log deleted packets (such as errors) during address
translation.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 45
Route
Congure the AirStation’s IP communication route.
Parameter Meaning
Destination Address Adds a destination IP address and subnet mask to a routing table.
Gateway Adds a gateway address to a routing table.
Metric The metric is the maximum number of router hops a packet may
take on the way to its destination address. Values between 1 and 15
may be entered. The default value is 15.
Routing Information Manual entries will appear here after being added.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 46
Chapter 4 Conguration
Wireless Cong
WPS
WPS Status and Settings.
Parameter Meaning
WPS Enable to use WPS automatic conguration.
External Registrar Enable to accept congure requests from other WPS devices.
Note: Congure requests will not be accepted if AOSS is in use.
AirStation PIN Displays the PIN code of the AirStation. Clicking [Generate PIN]
will generate a new PIN code. This code can be entered into other
wireless devices that support WPS.
Enrollee PIN Enter the PIN code for the other wireless device and click [OK].
WPS status Displays “congured” if all available wireless bands are
congured. Displays “uncongured” if at least one wireless band is
uncongured.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 47
AOSS
AOSS Status and Settings.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 48
Chapter 4 Conguration
Parameter Meaning
Initiates AOSS automatic wireless conguration. Click this, then
press or click the AOSS button on your AOSS-compatible wireless
client. Repeat for additional AOSS clients.
Click this button to disconnect AOSS connections.
Note: If AOSS connections are disconnected, the SSID and encryption keys
will be restored to their last settings from before AOSS was used.
Encryption Type of Exclusive SSID for
WEP
You may allow a separate SSID specically for WEP connections. If
“disabled” is selected, then clients will not be able to connect with
WEP.
Encryption level expansion function Expands security method from TKIP to WPA/WPA2-PSK-mixed
mode.
Dedicated WEP SSID isolation Set a separate SSID and network segment specically for WEP
connections. Devices connected with WEP will not be able
to communicate with devices connected using AES/TKIP. All
connected devices will be able to communicate with the internet.
Allow WEP for Game consoles When enabled, the AirStation allows wireless devices to connect
with 64-bit or 128-bit WEP.
AOSS Button on the AirStation Unit Uncheck to disable the physical AOSS button on the AirStation.
Current Encryption Information
(AOSS connection only)
Displays the encryption type, SSID, and encryption key congured
by AOSS.
[Random] Click to enter random values for SSID, encryption key, and other
settings.
[KEY base] Click to return the SSID, encryption key, and other wireless settings
to the values on the case sticker.
[Reset] Click to return the SSID, encryption key, and other wireless settings
to their previous values.
AOSS Client Information*Displays AOSS clients connected to the AirStation and information
of the devices which are wirelessly communicated.
AOSS Ethernet Converter
Information*
* Only displayed if there are AOSS
Connections
Displays information about Ethernet converters connected to the
AirStation via AOSS.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 49
Basic
The screen to congure a basic wireless settings.
Parameter Meaning
Wireless Radio Determines whether to allow wireless communication. If this is
unchecked, then no wireless connections will be allowed.
Wireless Channel Sets a channel (a range of frequencies) for wireless connections.
With Auto Channel selected, the AirStation will automatically use
the best available channel.
300 Mbps Mode 300 Mbps mode uses twice the normal frequency range, 40
MHz instead of 20 MHz. In uncongested areas this can increase
performance. To use 300 Mbps mode, set the Bandwidth to 40 MHz
and choose an Extension Channel.
Note: If Auto Channel is selected, then the Extension Channel is set
automatically.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 50
Chapter 4 Conguration
Parameter Meaning
Broadcast SSID If [Allow] is checked, then the AirStation will respond to SSID
searches from wireless devices by broadcasting its SSID. If [Allow] is
unchecked, then the AirStation ignores SSID searches from wireless
devices.
Use Multi Security function
Do not use Multi Security function
Clicking [Use Multi Security function] will enable Multi Security,
allowing the use of multiple SSIDs, each with dierent wireless
security settings. Clicking [Do not usem Multi Security function] will
disable Multi Security. The AirStation will then allow one SSID and
one type of wireless security.
Note: When using Multi Security, enable at least one of the following:
SSID1, SSID2, or SSID3.
SSID1 Multi Security SSID1 can use WPA-PSK-TKIP or WPA/WPA2-Mixed for
wireless security.
SSID2 Multi Security SSID2 can use WPA-PSK-AES for wireless security.
SSID3 Multi Security SSID3 can use WEP for wireless security.
Separate When enabled, wireless devices connected to the AirStation can
communicate only with the Internet side, not with each other.
SSID Set SSID using 1 - 32 alphanumeric characters.
Wireless authentication Species an authentication method used when connecting to a
wireless device.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 51
Parameter Meaning
Wireless encryption You may use any of the following types of encryption:
No encryption
Data is transmitted without encryption. With this setting, anyone
within range can connect to your wireless network and might
be able to access data on the network. Not recommended for
anyone with private data that needs to be kept secure. [No
encryption] can be selected only when [No authentication] is
selected for wireless authentication.
WEP
WEP is a common encryption method supported by most
devices. WEP can only be selected when wireless authentication
is set to [No authentication]. Note that WEP’s encryption is weak,
and networks protected with WEP are not much more secure
than those with no encryption at all. Not recommended for
anyone with private data that needs to be kept secure.
TKIP
TKIP is an encryption method which is more secure than WEP, but
slower. Use an pre-shared-key to communicate with a wireless
device.
TKIP can be selected only when WPA-PSK or WPA2-PSK is selected
for Wireless authentication.
AES
AES is more secure than TKIP, and faster. Use a pre-shared-key to
communicate with a wireless device.
AES can be selected only when WPA-PSK or WPA2-PSK is selected
for wireless authentication.
TKIP/AES mixed mode
TKIP/AES mixed mode allows both TKIP and AES authentication
and communication. This is no more secure than TKIP alone, but
more convenient for some users. TKIP/AES mixed mode can be
selected only when WPA/WPA2 mixed mode - PSK is selected for
wireless authentication.
WPA-PSK (Pre-Shared Key) A pre-shared key or passphrase is the password for your wireless
connections. There are two dierent formats for a pre-shared
key. Use 8 to 63 alphanumeric characters (case-sensitive) for an ASCII
passphrase, or use 64 alphanumeric characters (0 to 9 and a to f, not case-
sensitive) for a hexadecimal passphrase.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 52
Chapter 4 Conguration
Parameter Meaning
Rekey interval Set the update interval for the encryption key between 0 and 1440
(minutes).
Set up WEP encryption key A WEP encryption key (passphrase) may have any of four dierent
formats. An ASCII passphrase may use either 5 or 13 alphanumeric
characters (case-sensitive). A hexadecimal passphrase may use either 10
or 26 alphanumeric characters (0 to 9 and a to f, not case-sensitive).
Advanced
Congure advanced wireless settings.
Parameter Meaning
Multicast Rate Set the communication speed of multi-cast packets.
DTIM Period Set the beacon responding interval (1 -255) for which the AirStation
responds to a wireless device. This setting is eective only when
power management is enabled for the wireless device.
Privacy Separator If enabled, the Privacy Separator blocks communication between
wireless devices connected to the AirStation. Wireless devices will
be able to connect to the Internet but not with each other. Devices
that are connected to the AirStation with wired connections will
still be able to connect to wireless devices normally.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 53
WMM
Set priorities for specic communications.

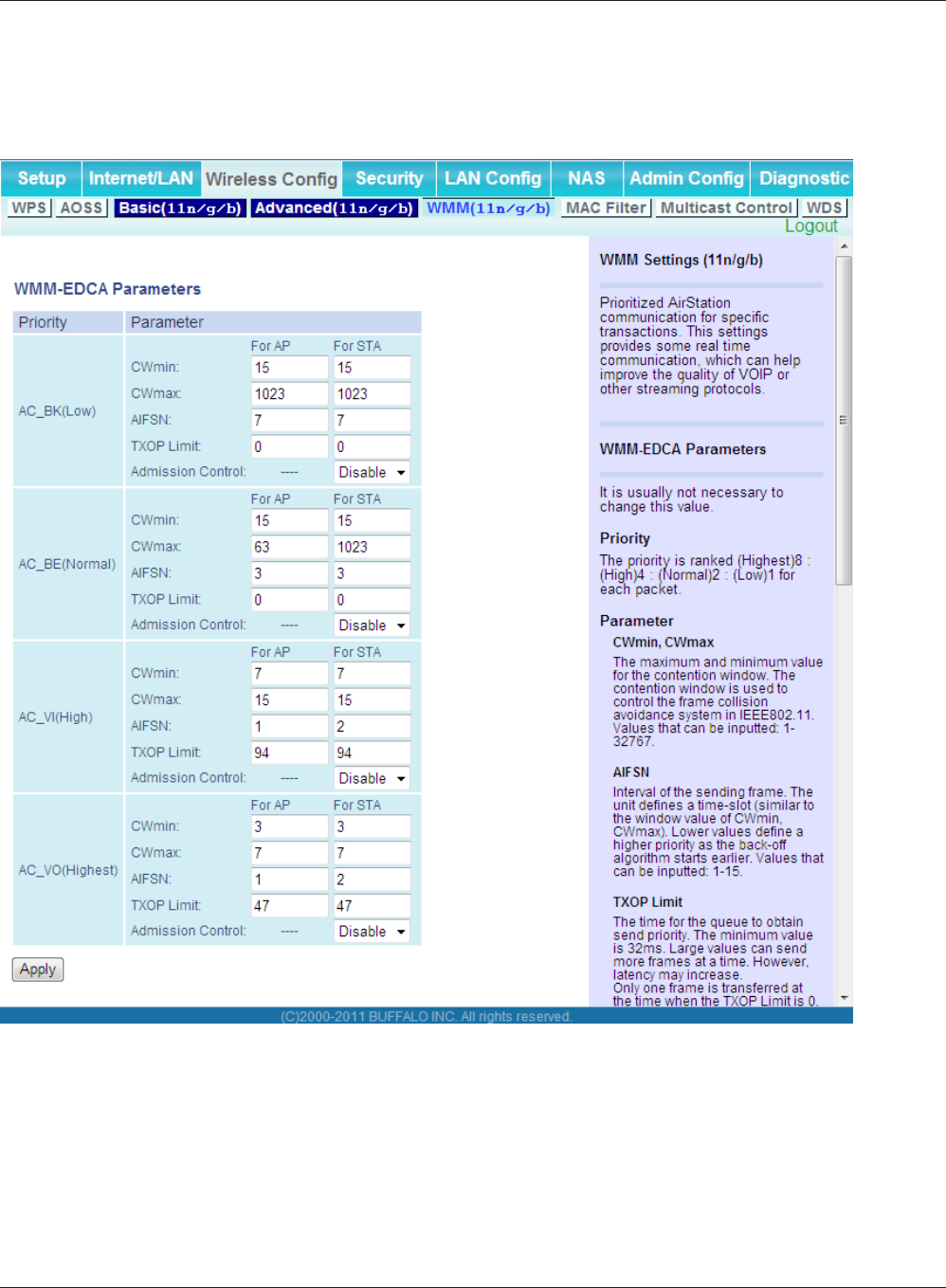

WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 54
Chapter 4 Conguration
Parameter Meaning
WMM-EDCA Parameters You don't usually need to change these settings. Using the default
settings is recommended.
Priority
The following priorities may be applied to individual
transmission packets: (Highest) 8, (High) 4, (Normal) 2, and
(Low) 1. From the queue, these packets are processed in order of
priority.
CWmin, CWmax
The maximum and minimum value of the contention window.
The contention window is used in the frame collision avoidance
structure performed in IEEE802.11, and generally, the smaller the
value in the window, the higher the probability that the queue
obtains the right to send.
AIFSN
The interval to send frames. The unit of the AIFSN is a slot, just as
the window dened by CWmin and CWmax is. The smaller the
interval of sending frames, the faster the algorithm can restart.
As a result, the priority of the queue is higher.
TXOP Limit
The period of time that the queue can use after obtaining the
right to send. The unit is 32 ms. The longer this time, the more
frames can be sent per right to send. However, the queue may
interfere with other packet transmissions. If TXOP Limit is set to 0
(zero), only one frame can be sent per right to send.
Admission Control
Restricts new frames from interfering with a previous queue. New
packets are prioritized lower until a queue of them is collected. As
the new queue accumulates more packets, its priority increases.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 55
MAC Filter
Restrict access to specic wireless devices.
Parameter Meaning
Enforce MAC Filtering Enable to restrict wireless connections to devices with registered
MAC addresses.
Registration List Displays the MAC addresses of registered devices which are
permitted to connect wirelessly.
Edit Registration List Adds a wireless device to the list of permitted devices.
MAC Addresses to be Registered Enter a MAC address of a wireless device to permit to connect to
the AirStation. Click [Register] to add that MAC address to the list.
List of all clients associated with this
AirStation
Display the list of all MAC addresses of wireless devices connected
to the AirStation.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 56
Chapter 4 Conguration
Multicast Control
Congure restrictions on unnecessary multicast packets sent to the wireless LAN port.
Parameter Meaning
Snooping If enabled, snooping supervises multicast administrative packets
such as IGMP and restricts unnecessary multicast transfers to wired
or wireless ports.
Multicast Aging Time Set the time to hold the data from multicast snooping in the range
of 1 to 3600 (seconds). Enter a value bigger than the IGMP/MLD
query interval.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 57

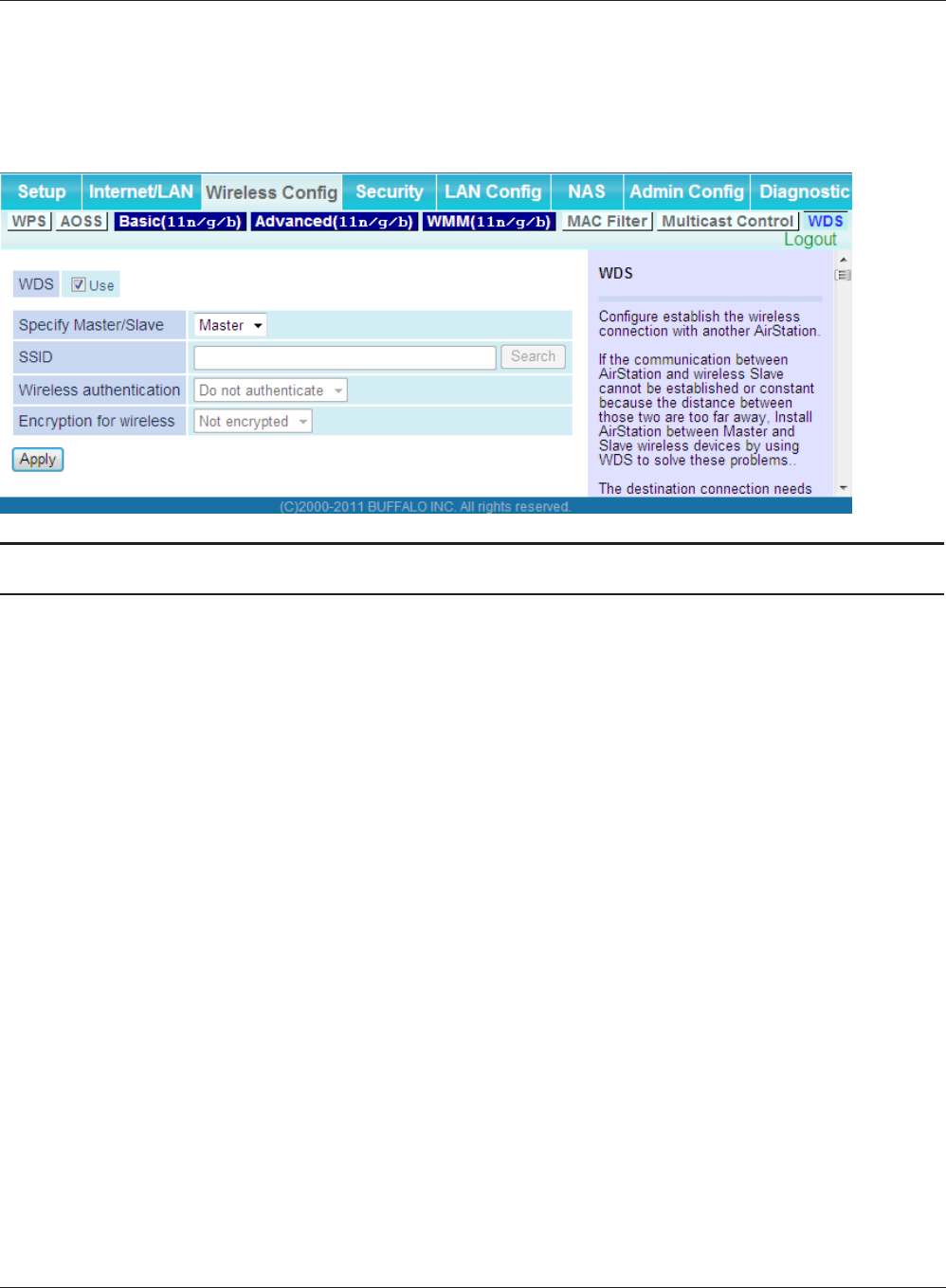

WDS
WDS bridging allows communication between AirStations.
Parameter Meaning
WDS Check to use WDS bridging.
Specify Master/Slave Dene this AirStation's role in a WDS bridge.
Master
This AirStation will be the master in a WDS bridge. It will have the
Internet connection, and other AirStations in the bridge will be
connected through this AirStation.
Slave
Slave AirStations are connected to the master AirStation.
Auto
Automatically switches between Master and Slave modes
depending on the surrounding network.
If an AirStation works as a router, it will automatically be set as a
master.
If the Airstation works as a bridge and a DHCP server exists
in the network, it will automatically be set as a master . If the
AirStation works as a bridge and no DHCP server is available, it
will automatically be set as a slave.
Master
Slave 1 Slave 2 Slave 3
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 58
Chapter 4 Conguration
Parameter Meaning
SSID Congure the Master Airstation's SSID.
[Search] Click to search for other AirStations' SSIDs.
Wireless authentication Congure authentication method for the master AirStation
Encryption for wireless Choose encryption type for the master AirStation.
WPA-PSK (Pre Shared Key) Set the master AirStation's Encryption key.
Notes: Two AirStation can be connected per one Master AirStation.
The slave AirStation is allowed to connect to another slave AirStation as lower slave AirStation.
The lower slave AirStation is not allowed to connect to another slave AirStation.
The slave AirStation is not allowed to communicate with the lower Slave AirStation or client
adapters when it is not connected to a master AirStation.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 59
Security (Router Mode only)
Firewall (Router Mode only)
Congure the AirStation’s rewall.
Parameter Meaning
Log Output Enable to output a log of rewall activity.
Basic Rules Enable to use any of the quick lters. Precongured quick lters
include:
Prohibit NBT and Microsoft-DS Routing
Enabling this blocks communication using these protocols from
the WAN side to the LAN side or from the LAN side to the Internet.
You can congure this with PPPoE if you select [Use PPPoE Client]
or [Use IP Unnumbered] in Method of Acquiring IP address (page
33), or if Easy Setup identied a PPPoE connection during setup.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 60
Chapter 4 Conguration
Parameter Meaning
Reject IDENT Requests
Enabling this option will answer IDENT requests from the Internet
side with corresponding rejection packets. Enable this option if
you experienced slow transfer speeds for network applications
such as mail, ftp or web browsing. If you have congured transfer
of IDENT requests to the LAN side computer in the address
translation settings (DMZ or TCP port 113), then that setting has
higher priority, and overrides this setting.
Block Ping from Internet
If this is enabled, the AirStation will not respond to pings from the
Internet side. You can congure this with PPPoE if you select [Use
PPPoE Client] or [Use IP Unnumbered] in Method of Acquiring IP
address (page 33), or if Easy Setup identied a PPPoE connection
during setup.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 61

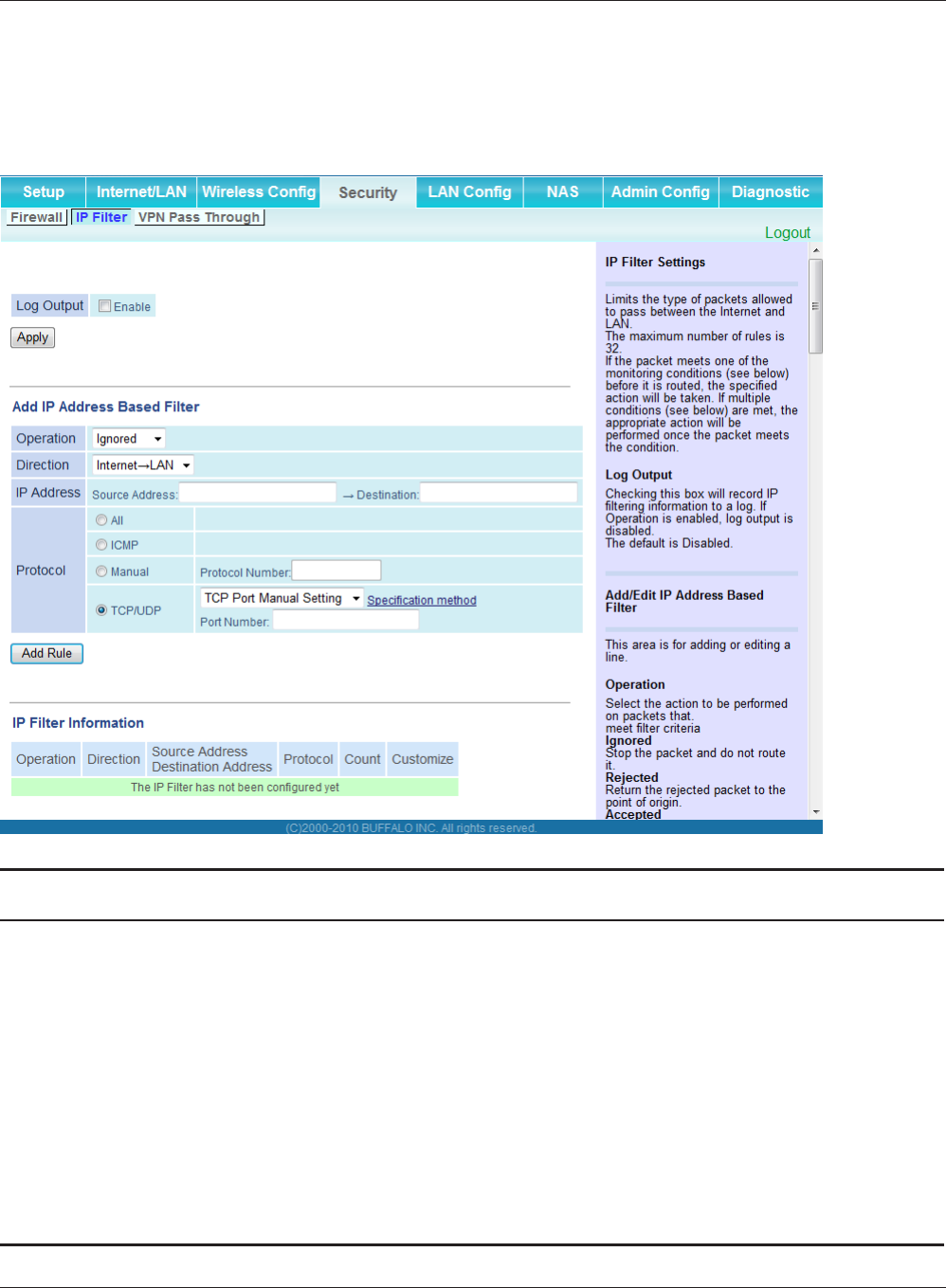

IP Filter (Router Mode only)
Edit IP lters.
Parameter Meaning
Log Output If enabled, IP lter activity is saved to a log.
Operation Specify how to process target packets.
Direction Specify the transmission direction of target packets.
IP Address Specify the sender's IP address and receiver's IP address of the
target packets.
Protocol Select a protocol for target transmission packet.
IP Filter Information Display the list of IP lters which have been registered.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 62
Chapter 4 Conguration
VPN Passthrough (Router Mode only)
Congure IPv6 passthrough, PPPoE passthrough, and PPTP passthrough.
Parameter Meaning
IPv6 Passthrough Enable to use IPv6 Passthrough for address translation.
PPPoE Passthrough Enable to use PPPoE bridging. PPPoE bridging lets you
automatically obtain an IP address from your provider for your LAN-
side computer using the PPPoE protocol because PPPoE packets
can pass between the Internet and LAN.
PPTP Passthrough Enable to use PPTP passthrough for address translation.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 63
LAN Cong
Port Forwarding (Router Mode only)
Congure port translation.
Parameter Meaning
Group Specify a group name for a new rule to belong to. Select [New
Group] and enter the new group name in the Group Name
eld to create a new group. A group name can include up to 16
alphanumeric characters.
Internet Side IP Address Enter the Internet side IP address (before translation) for the port
translation table entry.
Protocol Select the Internet side protocol (before translation) for the port
translation table entry.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 64
Chapter 4 Conguration
Parameter Meaning
LAN Side IP Address Enter the LAN side IP address (after translation) for the port
translation table entry.
LAN Side Port Select the LAN side (after translation) port number (1 - 65535) for
the port translation table entry.
Port Forwarding Registration
Information
Shows current entries in the port translation table.
DMZ (Router Mode only)
Congure a destination to transfer communication packets without a LAN side destination to.
Parameter Meaning
IP Address of DMZ Enter the IP address of the destination to which packets which are
not routed by a port translation table are forwarded.
Note: RIP protocol packets (UDP port number 520) will not be
forwarded.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 65
UPnP (Router Mode only)
Congure UPnP (Universal Plug and Play).
Parameter Meaning
UPnP Enable or disable Universal Plug and Play (UPnP) functionality.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 66
Chapter 4 Conguration
QoS (Router Mode only)
Congure the priority of packets sent to the Internet.
Parameter Meaning
QoS for transmission to the Internet Determine whether or not to prioritize packets sent to the Internet.
Check this box to enable QoS.
Upload bandwidth Specify the upstream bandwidth in kbps from the AirStation to the
internet side. Set the actual value for the upstream bandwidth.
Enable Enable or disable this entry.
application name Enter an application name. Names may use up to 32
alphanumerical characters, double or single tick marks ("'),
quotation marks (“), and semicolons (;).
protocol Select either TCP or UDP.
destination Port Specify a destination port from 1 - 65535. If this eld is empty, a
random port is selected.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 67
Parameter Meaning
priority Select high, medium or low. If packets do not qualify for classication
as a type on the list, then their priority is treated as a level between
medium and low.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 68
Chapter 4 Conguration

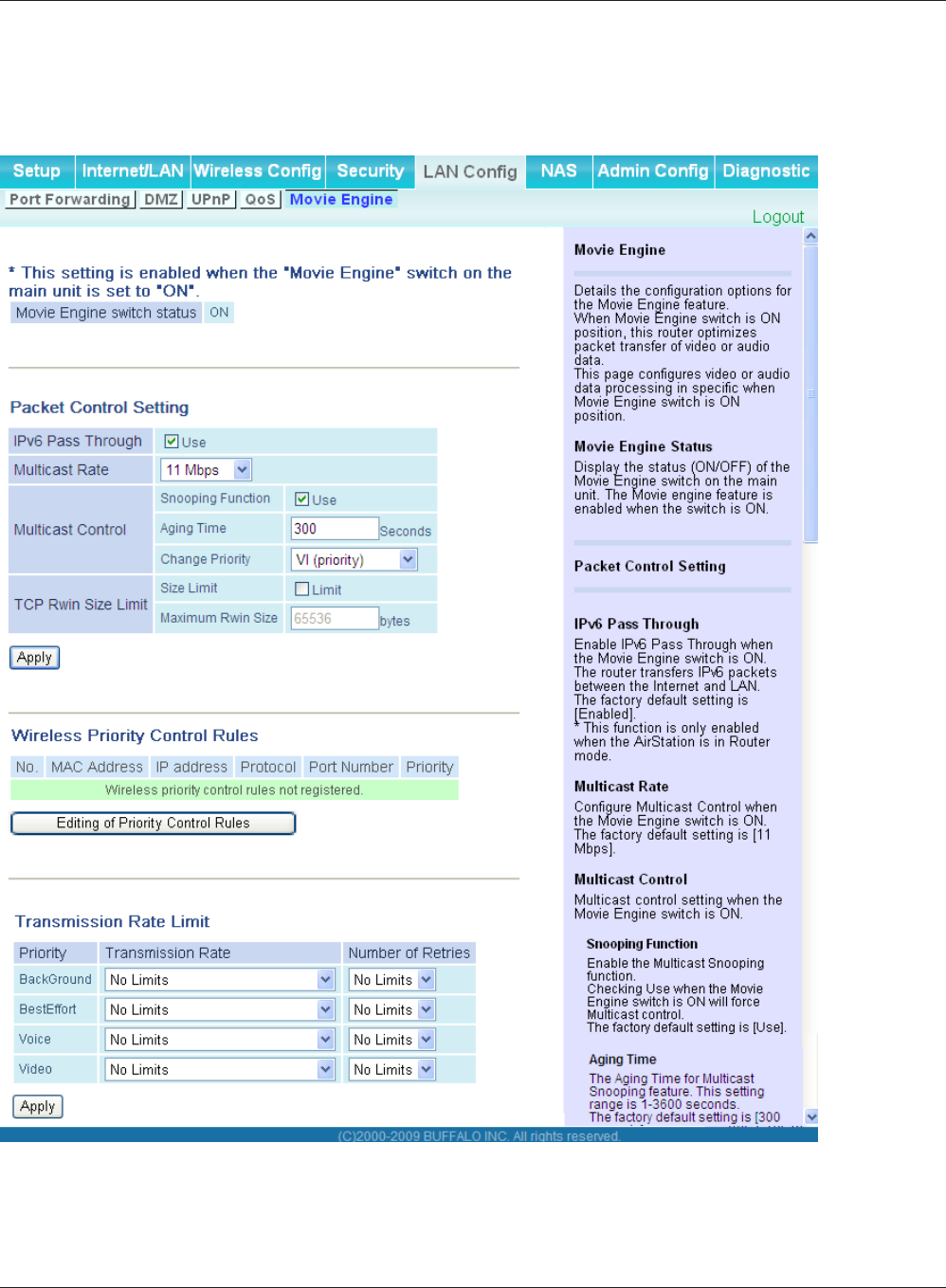

Movie Engine (QoS)
Congure Movie Engine options.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 69
Parameter Meaning
Movie Engine switch status Displays the status of the Movie Engine switch.
IPv6 Passthrough Set to enable the IPv6 pass-through.
Multicast Rate Select the Multicast Control rate.
Multicast Control Turn on Multicast Control.
TCP Rwin Size Limit Limits the maximum size of TCP Rwin packets passing through the
AirStation’s wireless LAN.
Wireless Priority Control Rules Display the list of rules controlling the priority of packets passing
through the AirStation’s wireless LAN.
Transmission Rate Select the maximum transmission rate.
Number of Retries Select maximum number of retries.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 70
Chapter 4 Conguration
NAS
Disk management
View the status of and congure attached USB hard disks.
Parameter Meaning
Device Displays information for attached USB disks. Disks are removed
when [Remove] in the Device column is clicked.
Disk Assignment A disk number will be automatically assigned to the disk or you can
choose a number. Select a disk number, or select [Do not assign],
then click [Apply].
Partition Information Displays the partition information for the selected USB disk. Click
[Format] to format the disk. Note: formatting a disk will erase all
information on it.
Re-recognize USB devices Click this to re-scan for connected USB disks.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 71
Parameter Meaning
Automatic USB Disk Assignment Check [Use] to automatically select an attached USB hard disk. The
entire drive will be used as the shared folder. To congure your disk
and share manually, uncheck [Use]. [Use] is selected by default.
FAT format le name character code Select the character code for lenames in FAT formatted partitions.
HDD power-saving function Click [Use] to enable power saving mode.
HDD stop time Powers down the drive after this duration of time.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 72
Chapter 4 Conguration

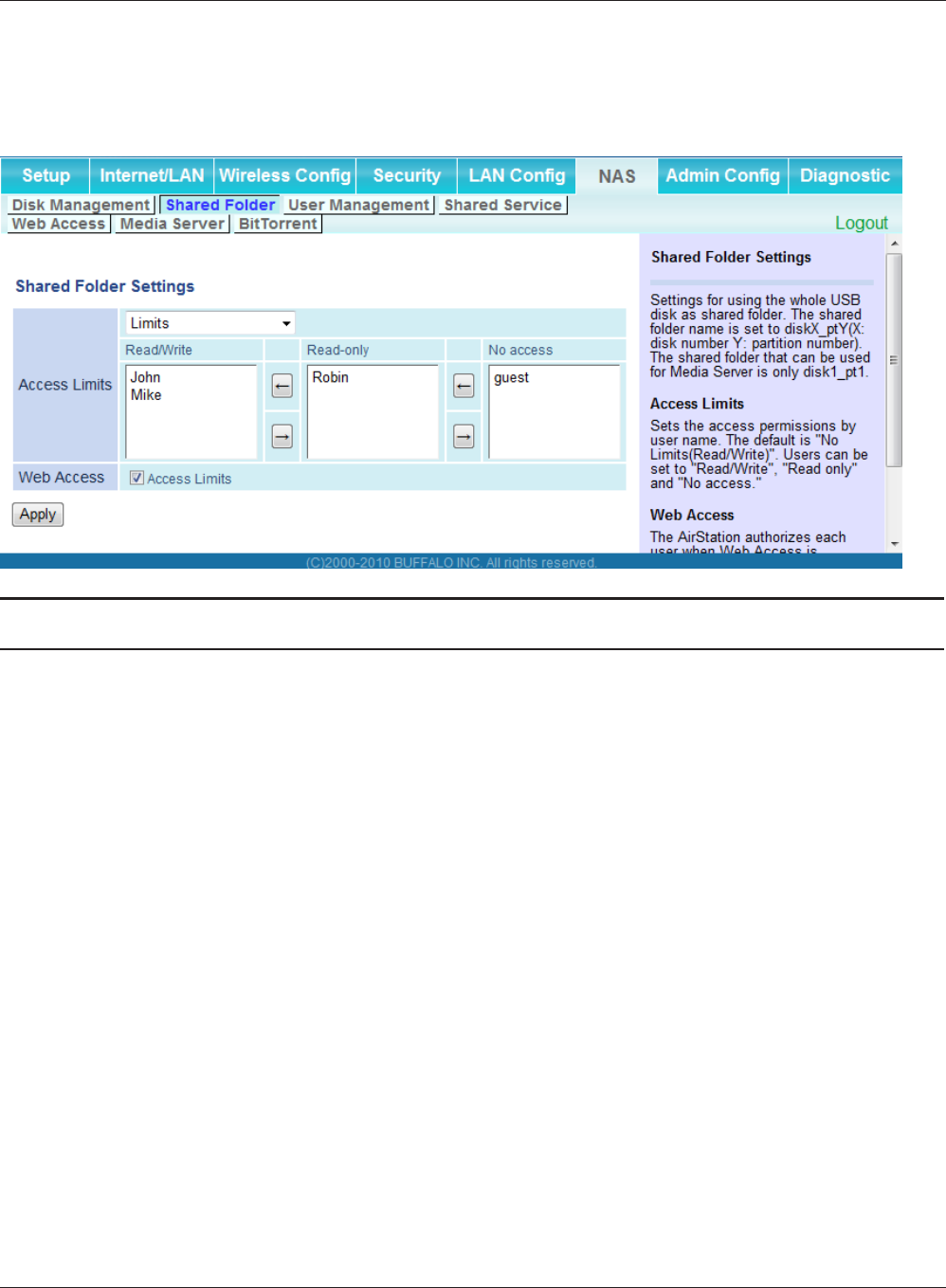

Shared Folder
Congure a USB hard disk for use with shared folders.
Parameter Meaning
Shared Folder Name* Enter a name for the shared folder. Up to 18 alphanumeric
characters, spaces, hyphens (-), and underscores (_) may be used.
Shared Folder Description* Enter a description of the shared folder (optional). Up to 75
alphanumeric characters, spaces, hyphens (-), and underscores (_)
may be used.
Disk Partition Area* Displays the partition area, format type, and the capacity of the USB
disk.
Disclosed to* Check the functionality that you want to support. Win/Mac OS
(Samba NAS), Web Access, Media Server, and/or BitTorrent may be
checked. Only one folder may be chosen for either Media Server or
BitTorrent functionality.
Access Limits If access limits are enabled, use the arrows to move highlighted
users between the columns for [Read/Write], [Read-only], or [No
access] privileges.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 73
Parameter Meaning
Web Access You may also select to enforce access limits on users accessing
through Web Access by checking the Access Limits checkbox.
Users will have the same access levels as assigned above. If Access
Limits is not checked, then all users accessing the shared folder via
Web Access will have [Read only] access..
Shared Folder Registration
Information*
Displays information about the shared folder.
* This is not displayed when Automatic USB Disk Assignment (page 71) is used:
The following shared folder settings are used when Disk Management is activated:
• All folders: Access limits in eect.
• Shared Folder/ Web Access: All folders are shared.
• Media Server/BitTorrent: The rst folder is shared.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 74
Chapter 4 Conguration
User Management
This screen lets you add users to the access list with the ability to access shared folders.
Parameter Meaning
Username Enter the name of a user to be given access to the shared folder. Up
to 20 alphanumeric characters, space, hyphens (-), and underscores
(_) may be used for each user. Up to 16 users may be entered.
Password Enter the user’s password. Use of the same password that
they use to log into their computer is recommended. Up to 20
alphanumeric characters, spaces, hyphens (-), and underscores
(_) may be used. For Windows 98SE/98/95 users, up to 14
alphanumeric characters may be used. Mac OS users may use up
to 8 alphanumeric characters. If you enter a longer password than
your users can use, then they will not be able to access the share.
User Description Describe the user (optional). Up to 75 alphanumeric characters,
spaces, hyphens (-), and underscores (_) may be used.
Current Users Lists current users, including “guest”. Guest is a built-in account
that cannot be changed or deleted.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 75

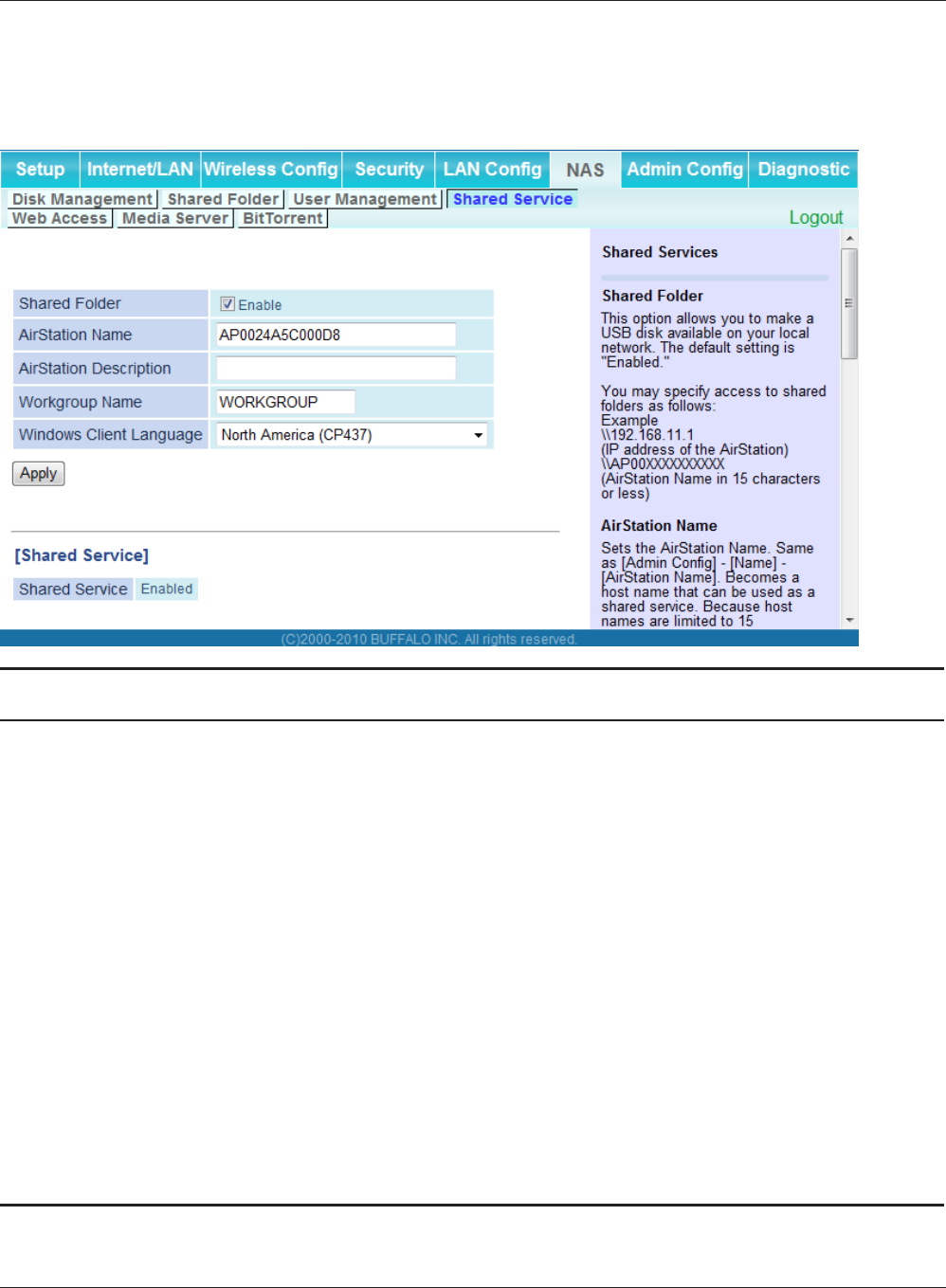

Shared Service
Assign AirStation and workgroup names to access shared folders.
Parameter Meaning
Shared Folder Enable to make a USB disk available on your local network.
AirStation name Rename your AirStation if desired. Up to 15 alphanumeric
characters, space, and hyphens (-), may be used. The AirStation
name is also used as the hostname that will be used with the
shared service. The shared service may not be available if you use
over 15 alphanumeric characters in your AirStation’s name.
AirStation Description Describe the AirStation (optional). Up to 48 alphanumeric
characters, space, hyphens (-), and underscores (_) may be used.
Workgroup name Enter your workgroup name. Up to 15 alphanumeric characters,
space, hyphens (-), underscores (_), and periods (.) may be used.
Windows Client Language Select the language to be used by the Windows client.
Shared Service Displays the status of the USB disk that is used with the shared
service.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 76
Chapter 4 Conguration
Web Access
The screen to congure Web Access.
Parameter Meaning
Web Access Check [Enable] to use Web Access.
Web Access Display Language Set the language to be used with Web Access.
HTTPS/SSL Encryption Check [Enable] to use SSL encryption for protected data transfer.
Web Access External Port Automatically sets the external port used for Web access. To select
the port manually, select [Manual].
DNS Service Hostname Sets the DNS Service Hostname when the Web access function
is activated. Select [Use BualoNAS.com registration function]
to use the Web access function easily. You’ll have to congure
a [BualoNAS.com name] and [BualoNAS.com key] to use
BualoNAS.com. 3 - 0 alphanumeric characters, spaces, hyphens
(-), underscores (_) and period (.), may be used in the BualoNAS.
com name. 3 - 20 alphanumeric characters, spaces, hyphens (-),
underscores (_) and period (.), may be used in the BualoNAS.com
key.
Note: The registered name is deleted from the server if the AirStation is
disconnected from power, even for a moment.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 77
Parameter Meaning
Web Access Displays the status of web access.
External Port Status Displays the status of the external port.
BualoNAS.com Displays the status of BualoNAS.com.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 78
Chapter 4 Conguration

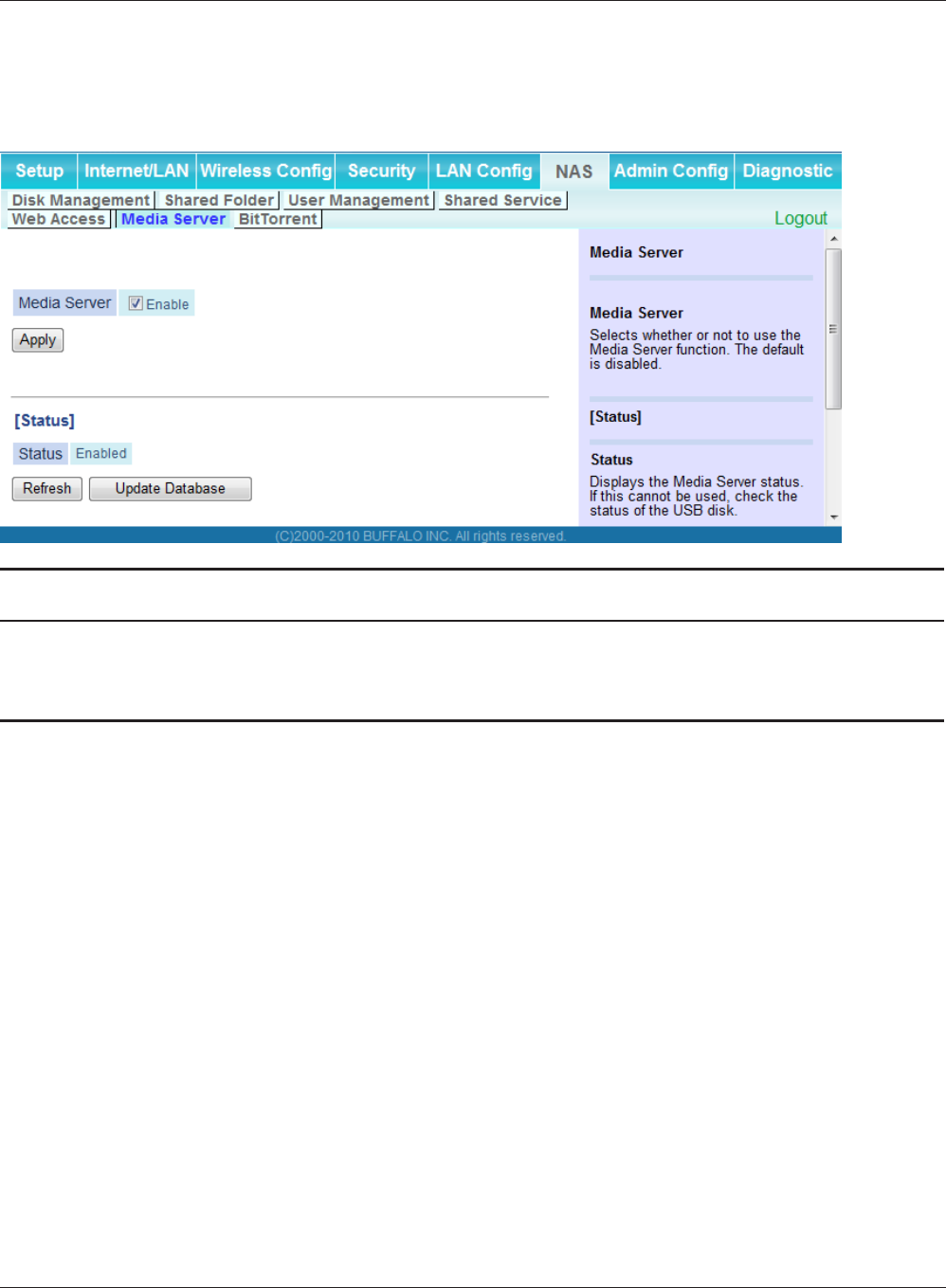

Media Server
Media Server settings.
Parameter Meaning
Media Server Enable to use the media server.
Status Displays the status of the media server.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 79

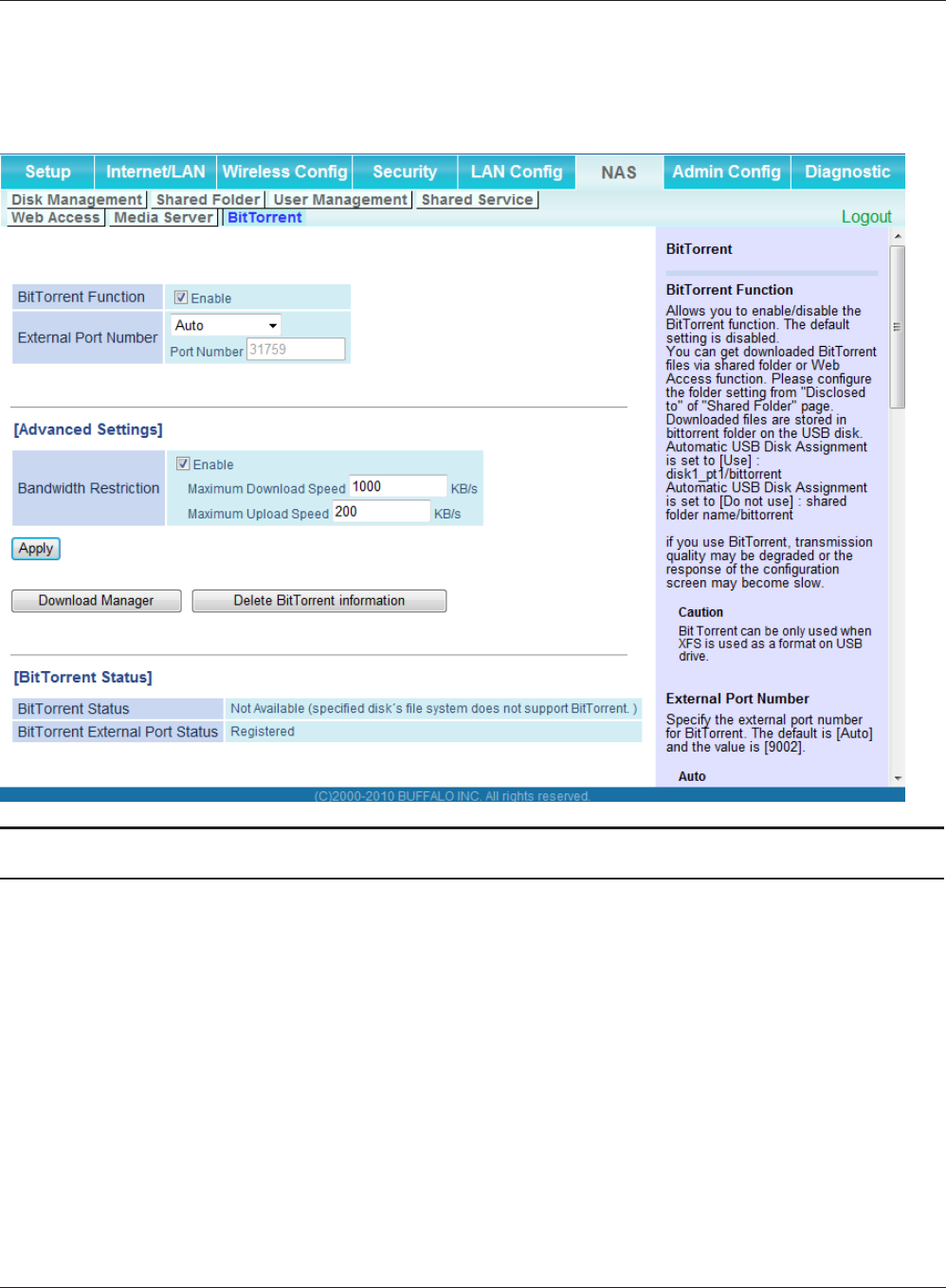

BitTorrent
Congure the BitTorrent client.
Parameter Meaning
BitTorrent Function Enable to use the BitTorrent client. If the BitTorrent client is
enabled, overall communication performance may decrease and
settings screens may respond slower. If that happens, reformat the
USB disk with XFS. That may help performance.
External Port Number Select an external port number.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 80
Chapter 4 Conguration
Parameter Meaning
Bandwidth Restriction Set a bandwidth limit for BitTorrent.
[Download Manager] Displays the BitTorrent download manager screen. Add a torrent,
then click [Add] to download the le(s).
[Delete BitTorrent information] Deletes all les, including the torrent les and les which are
currently downloading. Downloaded les are not deleted.
BitTorrent Status Displays the status of the BitTorrent client.
BitTorrent External Port Status Display the external port status of the BitTorrent client.
You can download the latest Windows BitTorrent client from www.bittorrent.com.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 81

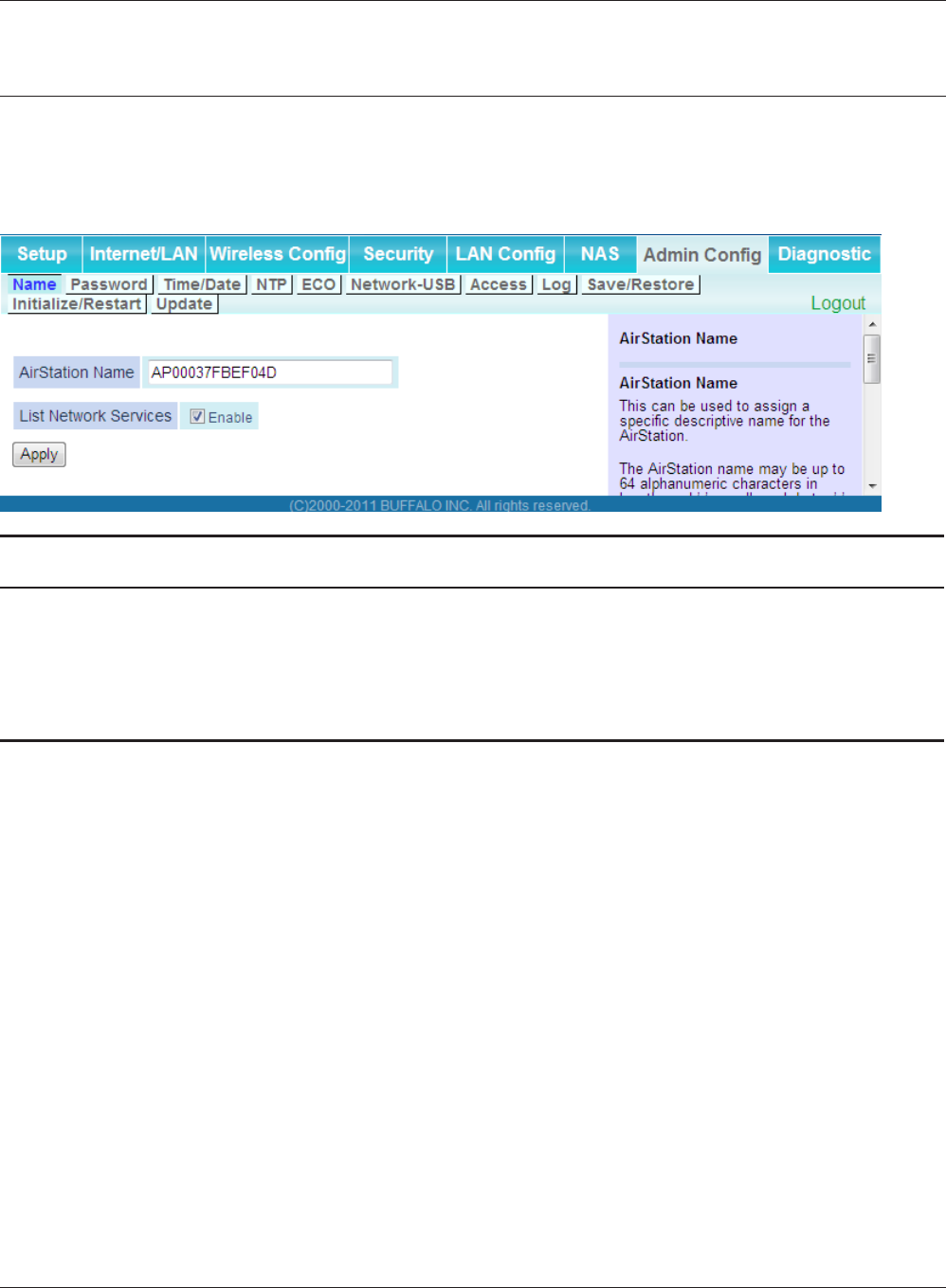

Admin Cong
Name
Congure basic AirStation settings.
Parameter Meaning
AirStation Name Enter a name for the AirStation. Names may include up to 64
alphanumeric characters and hyphens (-).
List Network Services Enable or disable this to display the computers and devices on your
network with their supported services.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 82
Chapter 4 Conguration

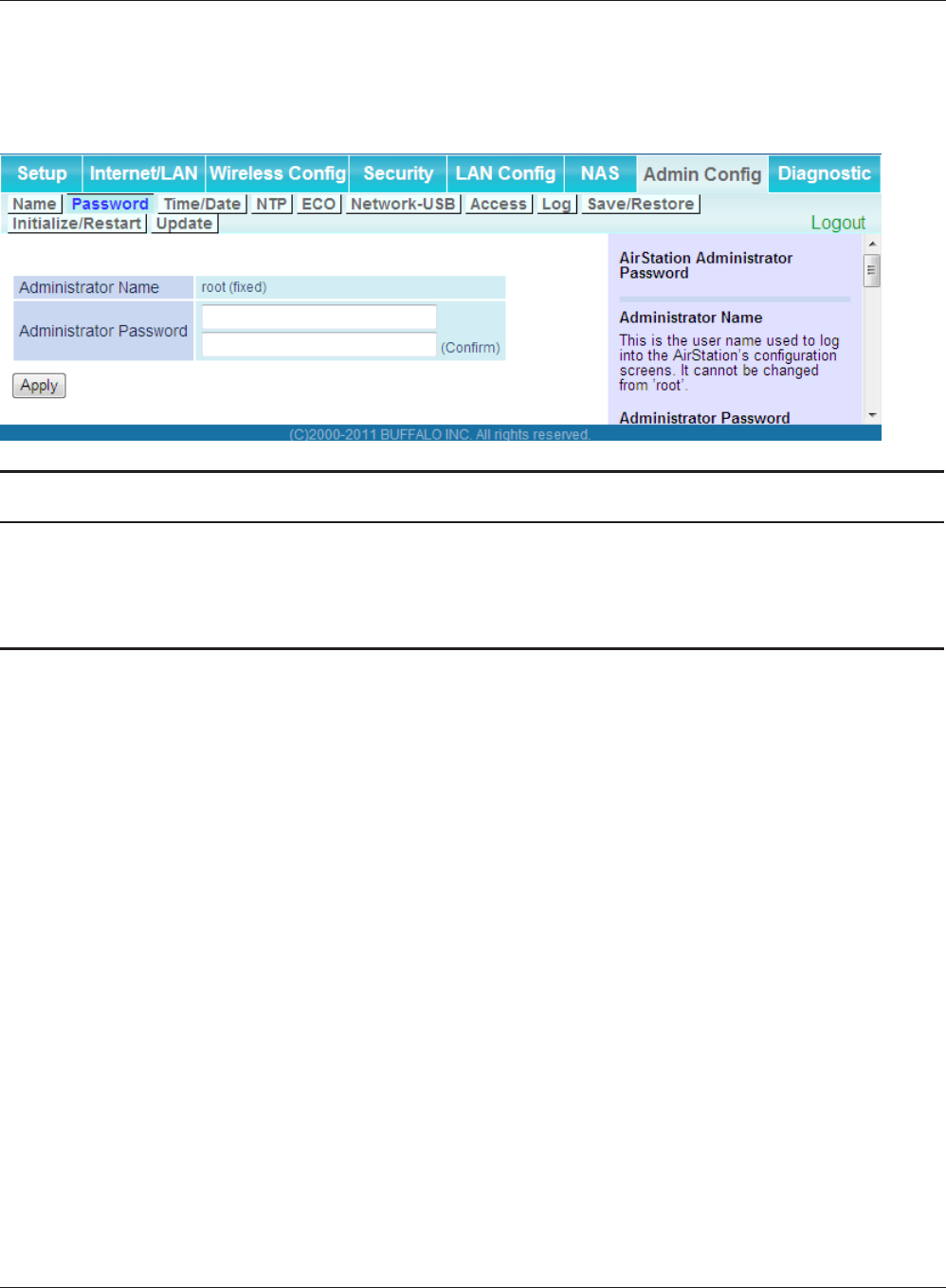

Password
Congure the password to log in to the AirStation’s conguration screen.
Parameter Meaning
Administrator Name The name of the Administrator account is “root”.
Administrator Password The Administrator password may contain up to 8 alphanumeric
characters and underscores (_).
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 83

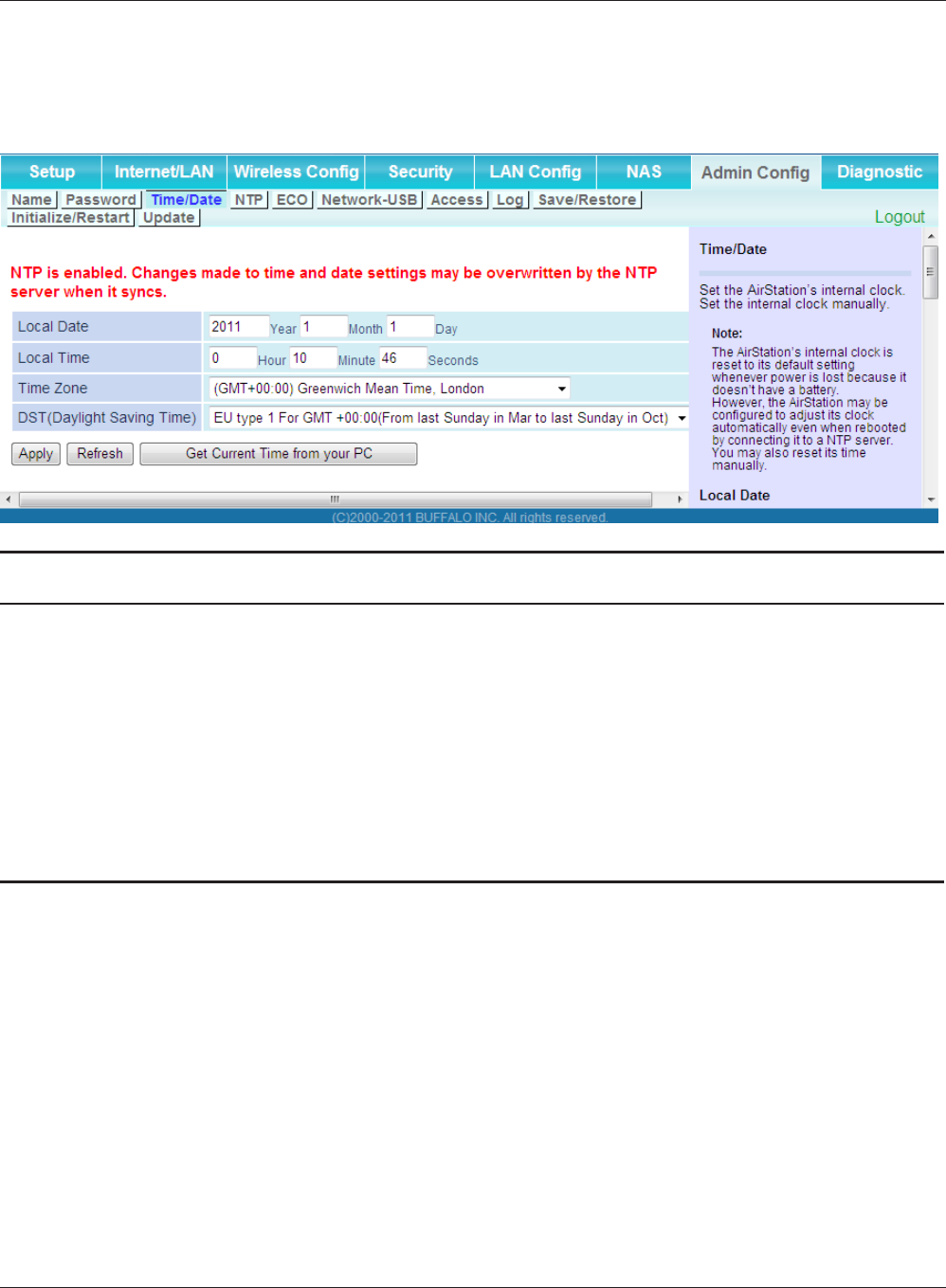

Time/Date
Congure the AirStation’s internal clock.
Parameter Meaning
Local Date You may manually set the date of the AirStation’s internal clock.
Local Time You may manually set the time of the AirStation’s internal clock.
Time Zone Specify the time zone (oset of Greenwich Mean Time) of the
AirStation's internal clock.
DST (Daylight Saving Time) You may congure the AirStation to automatically use DST
(Daylight Saving Time). If selected, the AirStation will automatically
adjust the time at the beginning and end of DST.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 84
Chapter 4 Conguration

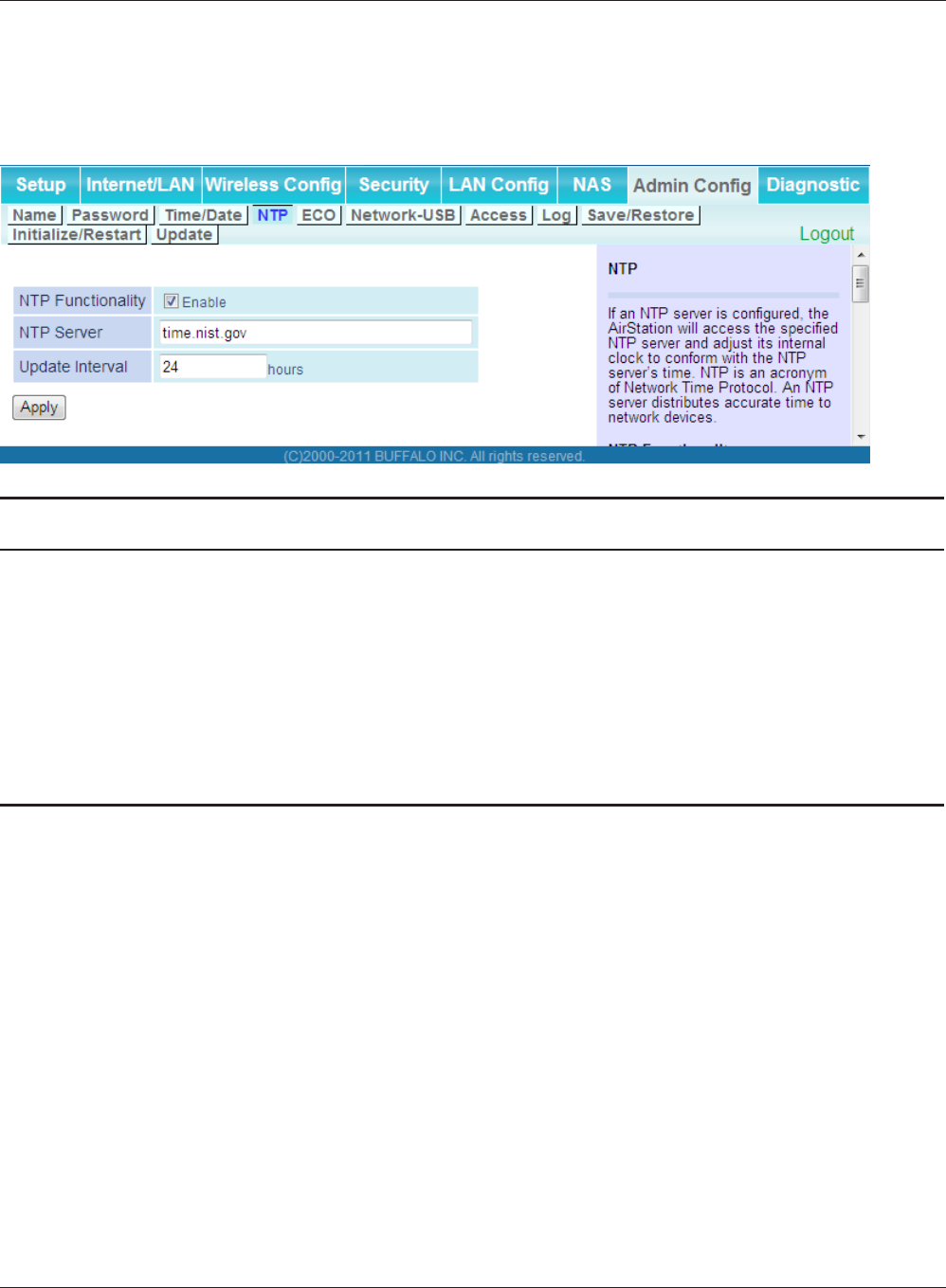

NTP
Congure an NTP server to automatically synchronise the AirStation’s internal clock.
Parameter Meaning
NTP Functionality Enable to use an NTP server. The default is Enabled.
NTP Server Enter the name of the NTP server as a hostname, hostname with
domain name, or IP address. Up to 255 alphanumeric characters,
hyphens (-), and underscores (_) may be used. The default is “time.
nist.gov”.
Update Interval How often will the AirStation check the NTP server for the correct
time? Intervals of 1 - 24 hours may be set. The default is 24 hours.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 85

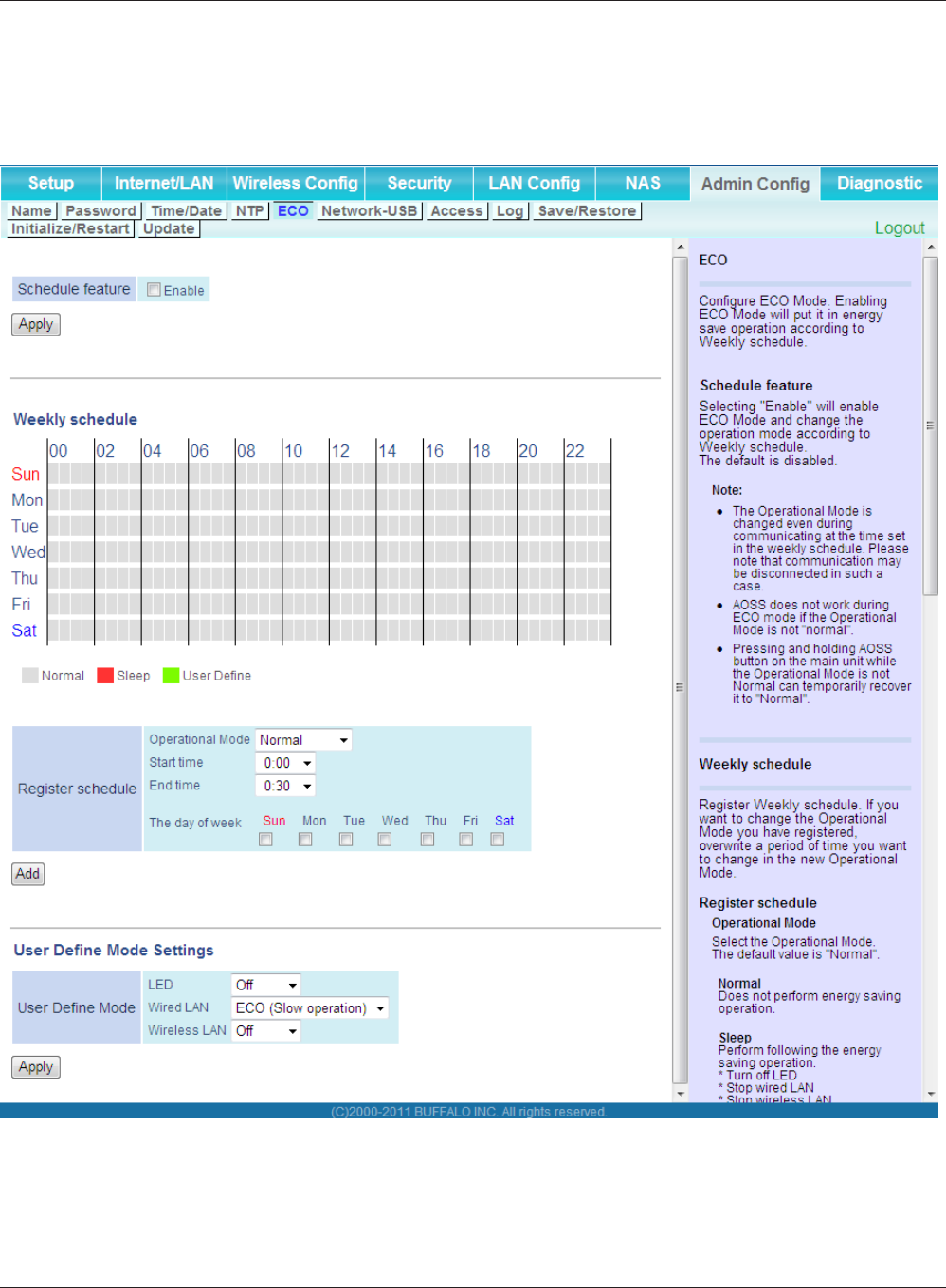

ECO
Congure Eco mode from this screen.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 86
Chapter 4 Conguration
Parameter Meaning
Schedule feature Enable to schedule Eco Mode. If Eco mode is enabled, AOSS will
function only when the AirStation is in Normal operating mode.
Weekly schedule Graphically displays the congured schedule.
Register schedule Congure operational mode for time periods in the weekly
schedule. If User Dened mode is chosen, congure it below.
User Dened Mode Individual power saving elements may be congured for User
Dened mode.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 87
Network-USB
Congure Network-USB from this screen.
Parameter Meaning
Network-USB Network-USB allows sharing USB devices connected to the
AirStation from multiple computers on a wired or wireless LAN.
Disable to reduce the impact on the NAS and other functions,
improve performance, or for security reasons.
Use multifunction Printer This uses a multifunction printer supporting mass storage classes
as a printer. Disable if using as a NAS instead.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 88
Chapter 4 Conguration
Access
Restrict access to the AirStation’s settings screens.
Parameter Meaning
Log Output Enabling outputs a log of changes to access settings.
Prohibit conguration from wireless
LAN
If enabled, prevents access to settings screens from wirelessly
connected devices (only wired devices may congure).
Prohibit conguration from wired
LAN
If enabled, prevents access to settings screens from wired devices
(only wirelessly connected devices may congure).
Permit conguration from wired
Internet
If enabled, allows access to settings screens from network devices
on the WAN (Internet) side.
Permitted IP address Displayed only if Internet side conguration is enabled. Enter the
IP address of a device that is permitted to congure the AirStation
remotely from the WAN (Internet) side.
Permitted Port Displayed only if Internet side conguration is enabled. Set a port
number (1 - 65535) to congure the AirStation from the WAN
(Internet) side.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 89
Log
Transfer the AirStation’s logs to a syslog server.
Parameter Meaning
Log Transfer Enable to send logs to a syslog server.
Syslog Server Identify the syslog server by hostname, hostname with domain
name, or IP address. You may enter up to 255 alphanumeric
characters, hyphens (-), and underscores (_).
Transfer Logs Choose which logs will be transferred to the syslog server.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 90
Chapter 4 Conguration
Save/Restore
Save AirStation settings as a le, and restore from them later.
Parameter Meaning
Save current settings Clicking [Save] will save the current conguration of the AirStation
to a le. If the [Encrypt the conguration le with a password]
option is checked, then the conguration le will be password
protected with the current administrator password.
Restore Conguration from Backup
File
Restore the conguration of the AirStation from a saved
conguration le by clicking the [Browse...] button, navigating to
the conguration le, and then clicking Restore. If the conguration
le was password protected, then put a check next to [To restore
from the le you need the password], enter the password, and click
[Open].
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 91

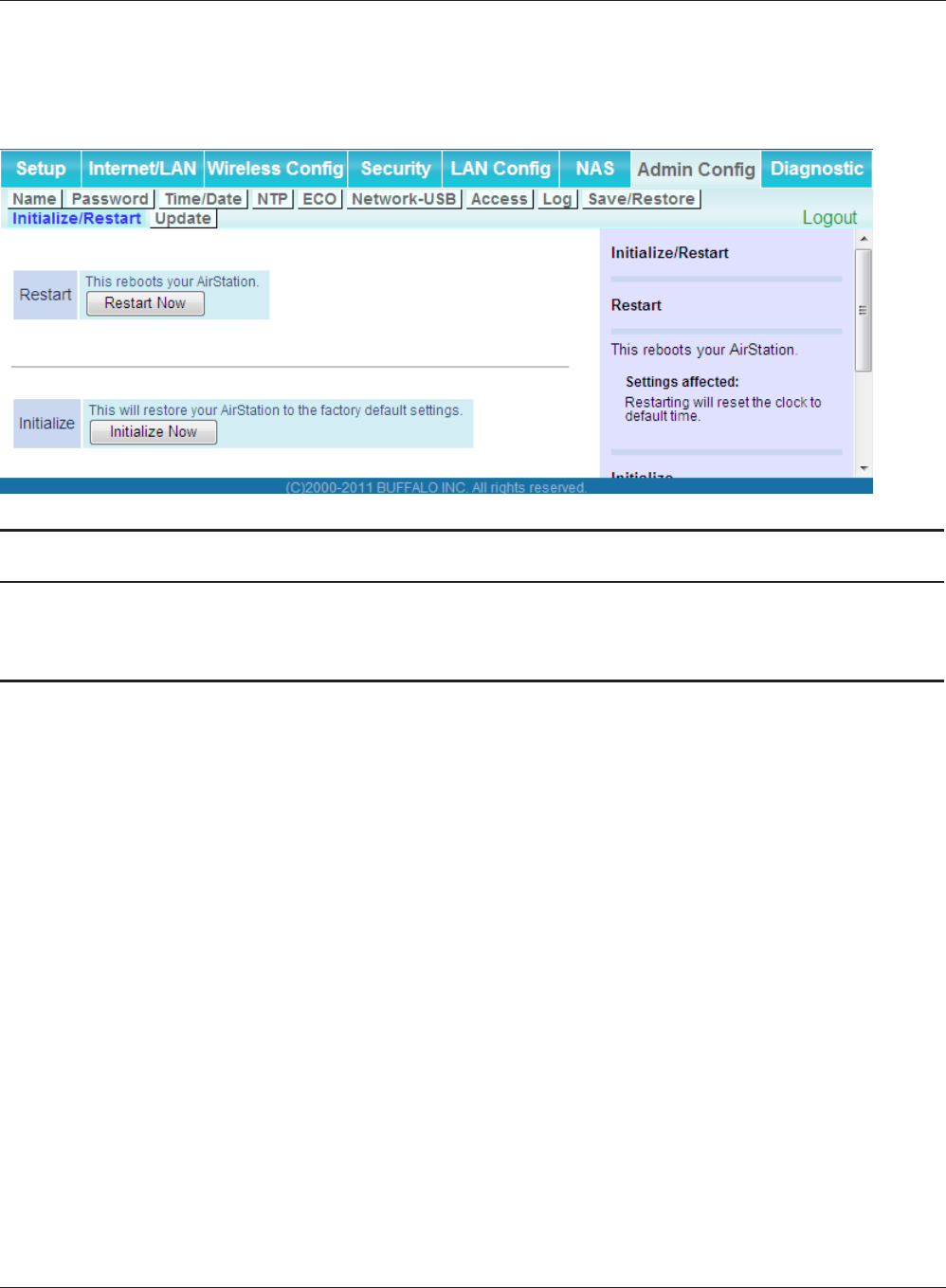

Initialize/Restart
Initialize or restart the AirStation.
Parameter Meaning
Restart Click [Restart Now] to restart the AirStation.
Initialize Click [Initialize Now] to initialize and restart the AirStation.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 92
Chapter 4 Conguration
Update
Update the AirStation’s rmware.
Parameter Meaning
Firmware Version Displays the current rmware version of the AirStation.
Update Method Specify Local File
Updates from a rmware le stored on your computer.
Automatic Update (Online Version)
Automatically updates to the latest rmware available.
Firmware File Name Click [Browse...] to navigate to the rmware le on your computer
if [Specify Local File] was selected. You don’t need to specify the
rmware location if you’re using [Automatic Update]. Click [Update
Firmware] to update the rmware.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 93

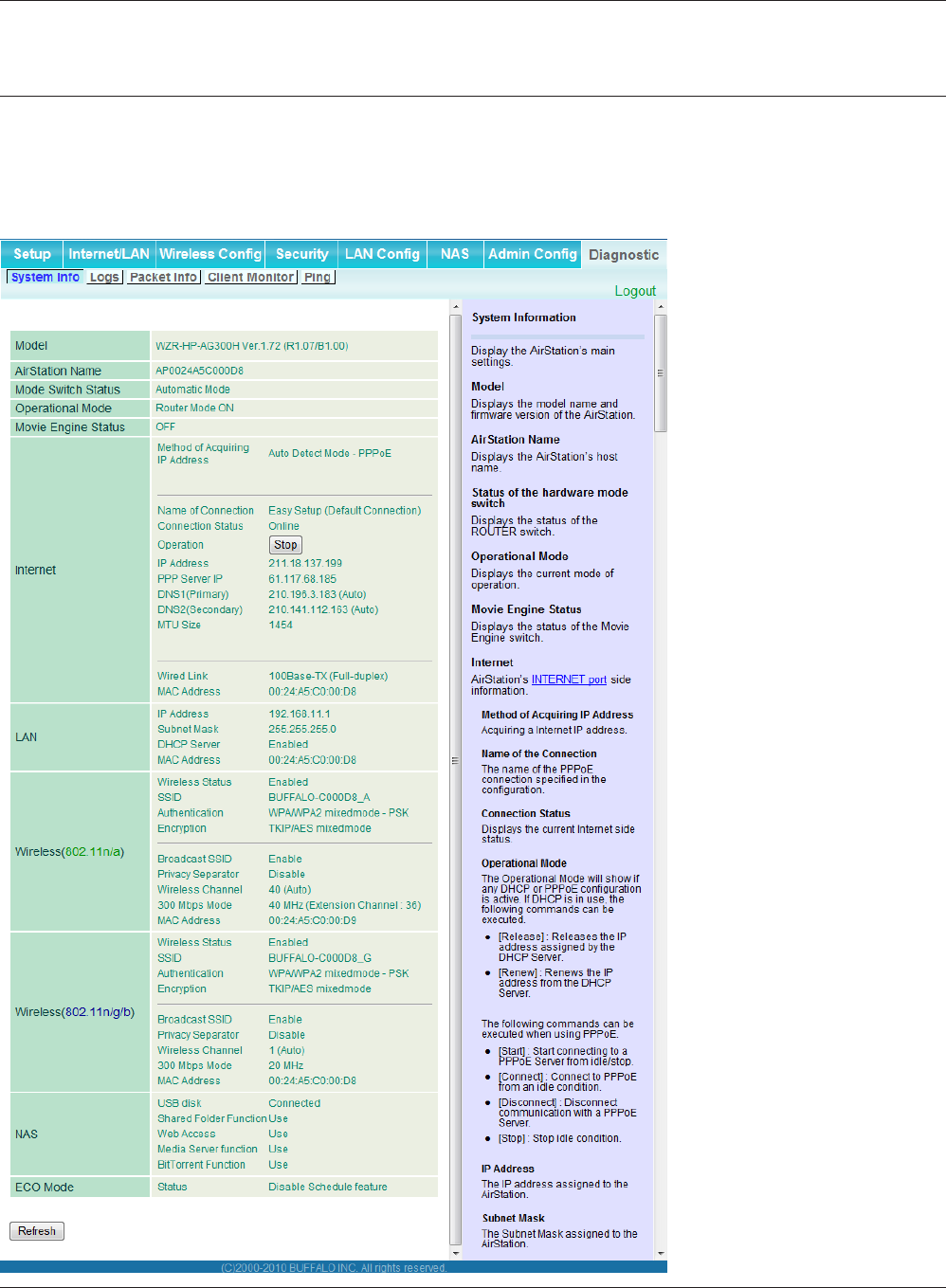

Diagnostic
System Info
View system information for the AirStation.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 94
Chapter 4 Conguration
Parameter Meaning
Model Displays the product name of the AirStation and the rmware
version.
AirStation Name Displays the name of the AirStation.
Mode Switch Status Displays the status of the AirStation’s mode switch.
Operational Mode Displays the AirStation’s current operational mode.
Movie Engine Status Displays the current Movie Engine Status.
Internet Displays information about the Internet port.
LAN Displays information about the LAN port.
Wireless Displays the wireless status.
NAS Displays information about the USB disk.
ECO Mode This indicates the operating status of ECO Mode.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 95

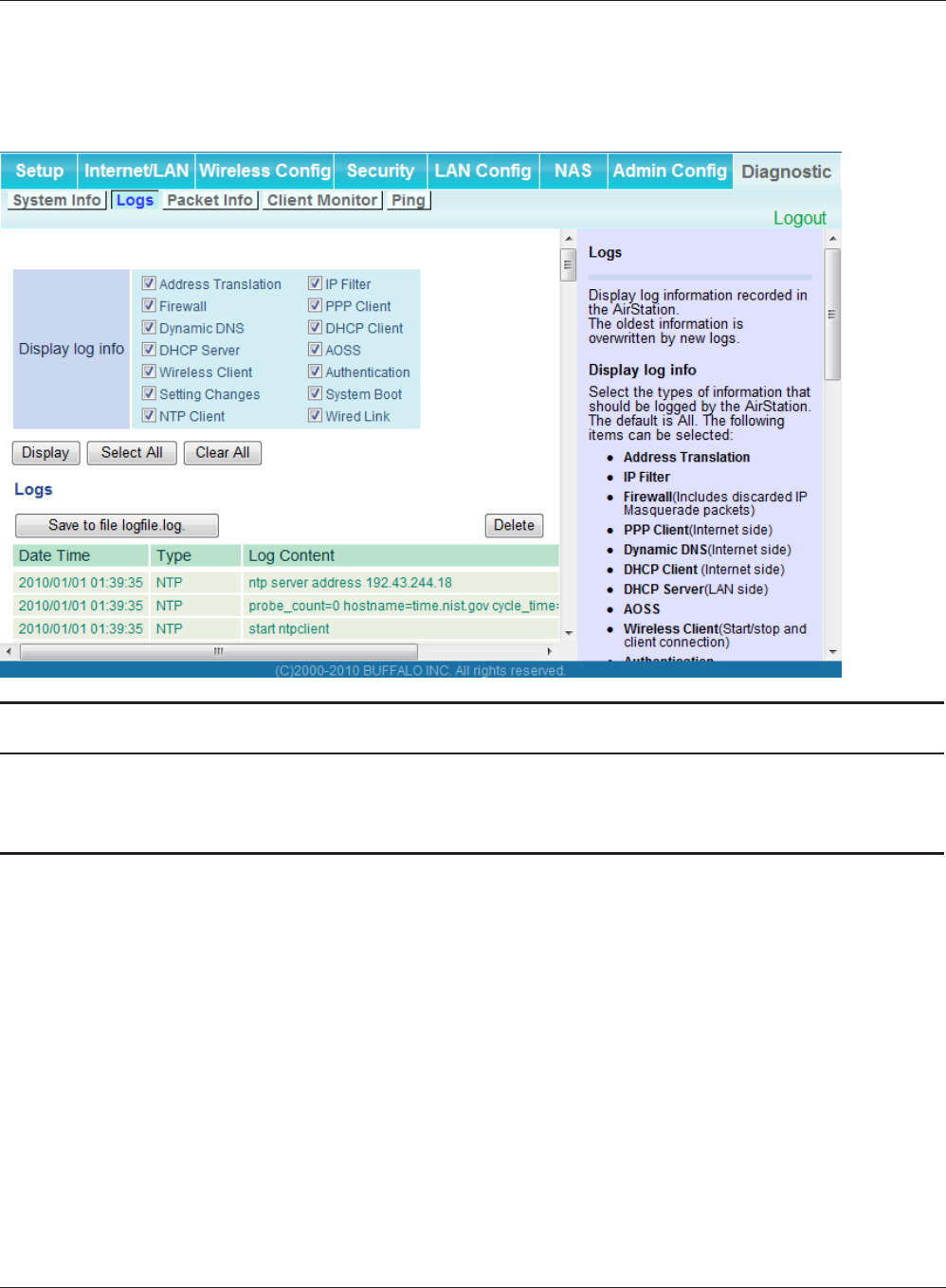

Logs
The AirStation’s logs are recorded here.
Parameter Meaning
Display log info Choose the types of logs to display.
Logs Displays the log information recorded in the AirStation.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 96
Chapter 4 Conguration
Packet Info
View packet transfer information.
Parameter Meaning
Sent Displays the number of packets sent to the WAN, the LAN, and the
wireless LAN.
Received Displays the number of packets received from the WAN, the LAN,
and the wireless LAN.
Chapter 4 Conguration
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 97

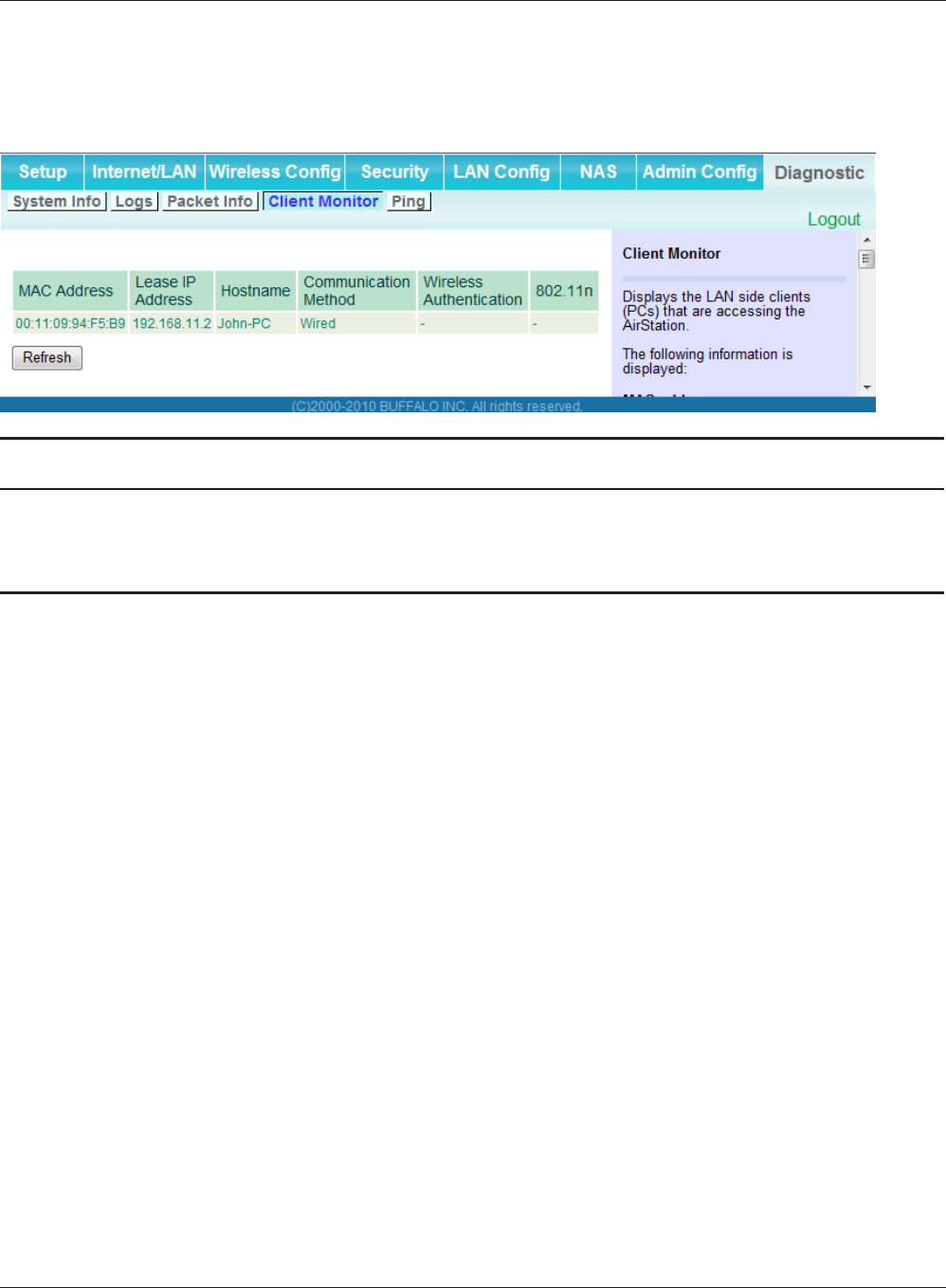

Client Monitor
This screen shows devices that are connected to the AirStation.
Parameter Meaning
Client Monitor Displays information (MAC address, lease IP address, hostname,
communication method, wireless authentication and 802.11n) for
devices that are connected to the AirStation.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 98
Chapter 4 Conguration
Ping
A ping test checks whether the AirStation can communicate with a specic network device.
Parameter Meaning
Destination Address Enter the IP address or hostname of the device that you are testing
communication with, then click [Execute]. The result will be
displayed below.
PUSH PUSH
Modem
Internet
AirStation PC or
Game console
(AOSS Devices)
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 99
Chapter 5 - Connect to a Wireless Network
Automatic Secure Setup (AOSS/WPS)
AOSS and WPS are systems that let you automatically congure wireless LAN settings. Just pressing
the buttons will connect wireless devices and complete security settings. Easily connect to wireless
devices, computers, or game machines which support AOSS or WPS.
AOSS (AirStation One-Touch Secure System) was developed by Bualo Technology. WPS
was created by the Wi-Fi Alliance.
• Before using AOSS/WPS to connect to a Bualo wireless client, install Client Manager software from
the included AirNavigator CD. Consult your wireless client’s documentation for more information.
• Bualo’s Client Manager software can be used with the wireless LAN devices built into most
computers. However, it is not guaranteed to work with all wireless LAN devices available. Some
wireless clients may require manual setup.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 100
Chapter 5 Connect to a Wireless Network
1
2
Click the icon in the system tray.
Windows 7/Vista (Client Manager V)
If you are using Windows 7 or Vista, use the included Client Manager V software to connect
wirelessly with AOSS/WPS.
Click [Create Pro le].
3If the User Account Control screen opens, click [Yes] or [Continue].
4Click the [WPS AOSS ] button.
Follow any instructions displayed on the screen. When the Security LED on the front of the
AirStation stop ashing and glows steadily, the connection is complete.
Chapter 5 Connect to a Wireless Network
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 101
2
Windows XP (Client Manager 3)
If you are using Windows XP, use Client Manager 3 to connect wirelessly with AOSS/WPS.
1Right click on the icon in the system tray and select [Pro le].
Click the [WPS AOSS] button.
It will take several seconds for your wireless connection to be con gured. When the Security LED on
the front of the AirStation stop ashing and glows steadily, the connection is complete.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 102
Chapter 5 Connect to a Wireless Network
Mac OS X (AOSS Assistant)
If you are using Mac OS X 10.6 / 10.5 / 10.4, use the included AOSS Assistant software to connect
wirelessly with AOSS.
1Load the AirNavigator CD in your Macintosh.
2Double-click the Mac folder in the AirNavigator CD.
3Double-click [AOSS Assistant].
4The software license screen is displayed. Click [Agree] to proceed.
5
Click [Start AOSS ].
6Enter the Mac’s username and
password and click [OK].
It will take several seconds for your wireless connection to be congured. When the Security LED on
the front of the AirStation stop ashing and glows steadily, the connection is complete.
Chapter 5 Connect to a Wireless Network
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 103
Other Devices (e.g. Game Console)
If you are using a game machine which supports AOSS or WPS, refer to that device’s manual to
initiate AOSS/WPS. When instructed, hold down the AOSS button on the AirStation for 1 second.
When the Security LED on the front of the AirStation stop ashing and glows steadily, the
connection is complete.
Manual Setup
You can also connect to the AirStation without installing Client Manager V or Client Manager 3 by
using the utility built-in to Windows. The procedure varies depending on which version of Windows
you are using.
Note: · If the AirNavigator CD is used to perform setup when making the initial settings of AirStation, the
wireless connection settings for the AirStation are completed during the Setup process. As a result, you
do not need to make the settings below. After setup is complete, once the LAN cable is removed, you
can connect from your wireless client to the AirStation.
· Before performing setup, make the settings to enable the wireless client of the computer.
Windows 7 (WLAN AutoCong)
With Windows 7, use WLAN AutoCong to connect to the AirStation.
1Click on the network icon in the system tray.
2Select the target AirStation and click
[Connect]. If you will be connecting to this
device in the future, checking [Connect
automatically] is recommended.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 104
Chapter 5 Connect to a Wireless Network

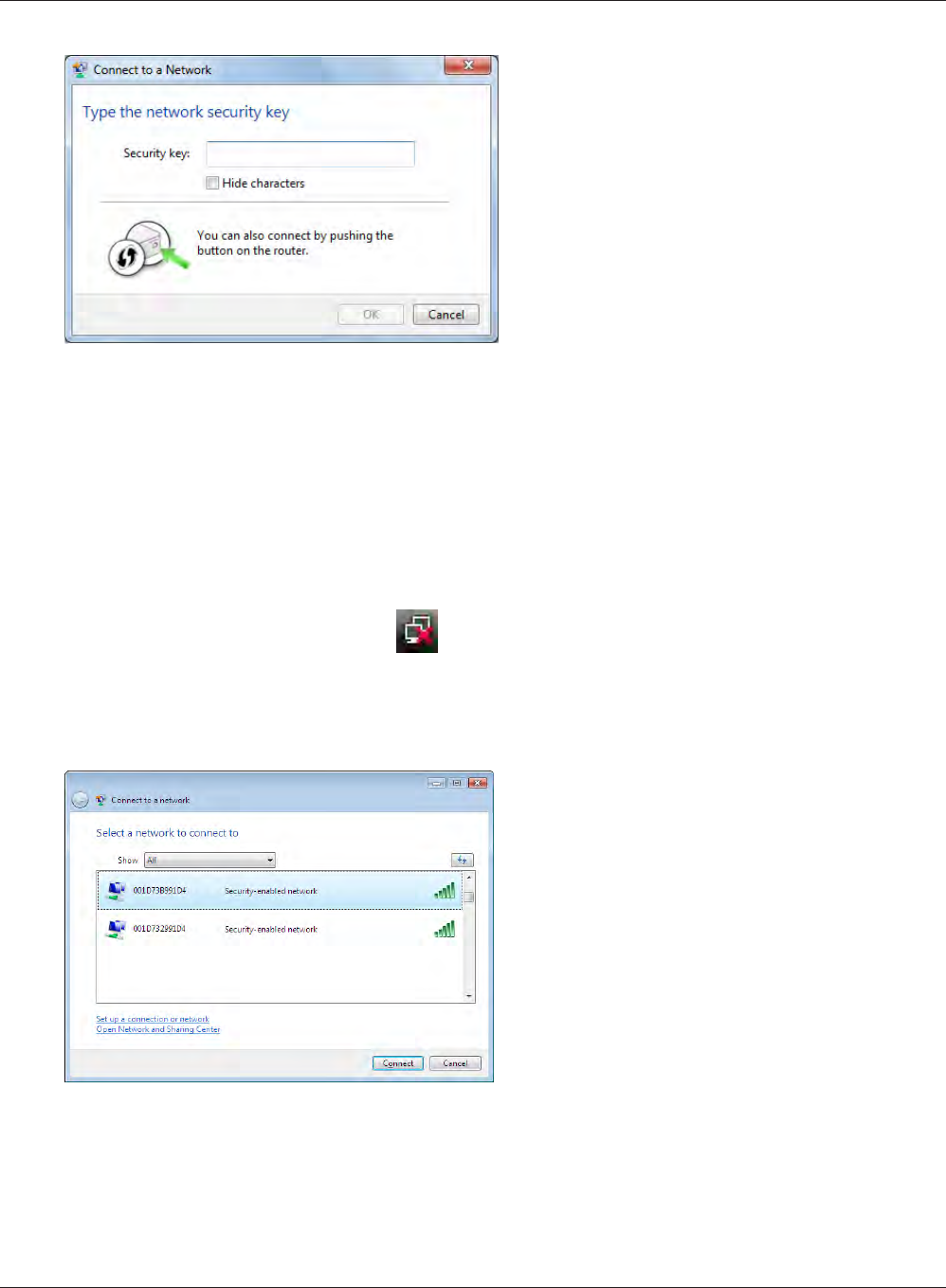

3Enter the encryption key and click [OK].
1Right click on the wireless network icon in the system tray.
2Click [Connect to a network].
When this screen is displayed, select your
network and click [Connect].
3
Windows Vista (WLAN AutoCong)
With Vista, use WLAN AutoCong to connect to the AirStation.
Chapter 5 Connect to a Wireless Network
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 105
If the screen below is displayed, click [I want to enter the network key or passphrase instead].
Otherwise,go to step 4.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 106
Chapter 5 Connect to a Wireless Network

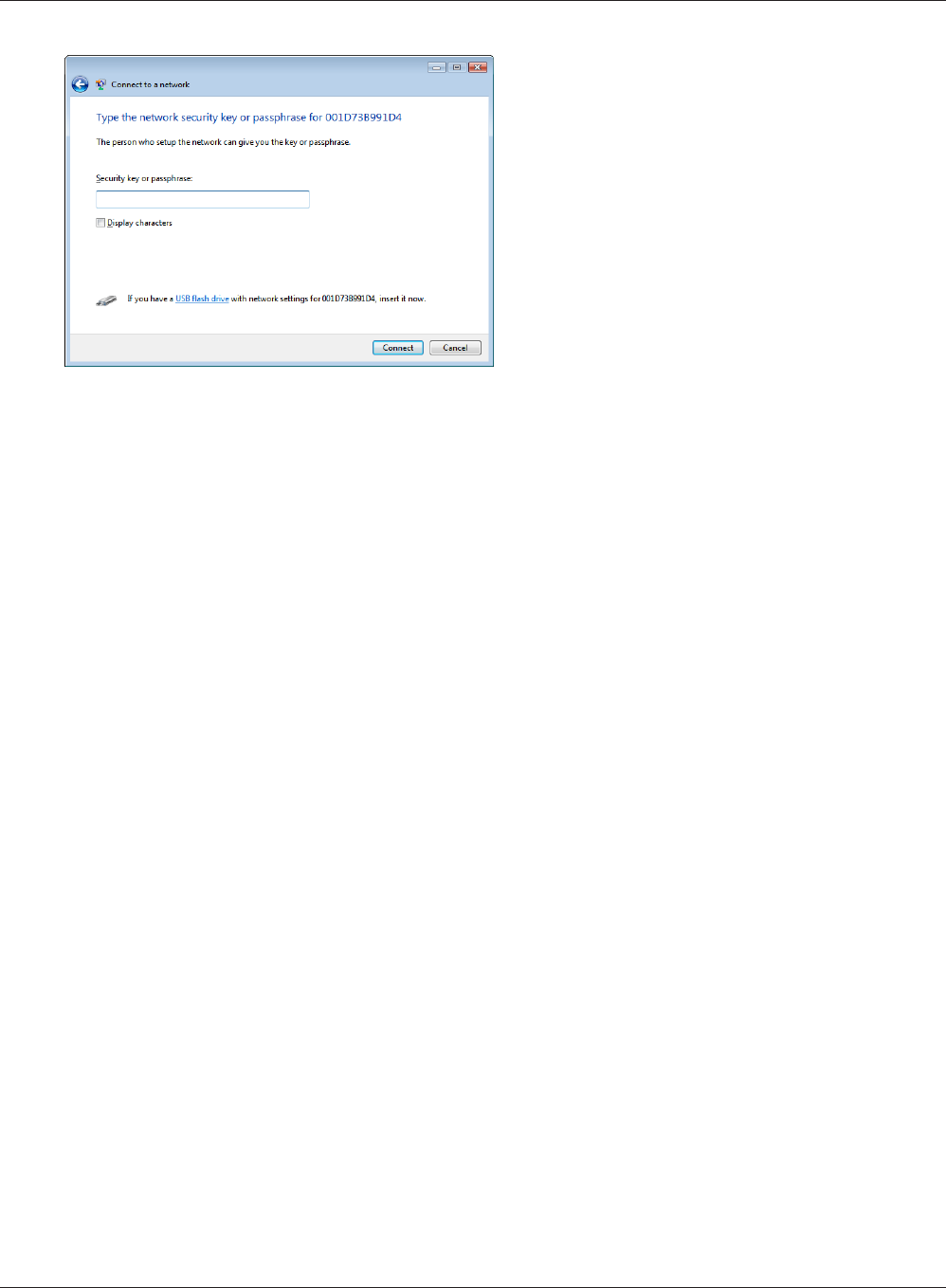

4Enter the encryption key and click [Connect].
Step through the wizard to nish conguration.
If the Set Network Location screen is displayed, select [Home], [Work], or [Public location] depending
on where you’re using the AirStation.
Chapter 5 Connect to a Wireless Network
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 107
Windows XP (Wireless Zero Conguration)
Windows XP includes Wireless Zero Cong, a built-in utility to connect to your AirStation.
Note: If Client Manager 3 is installed on your computer, Wireless Zero Cong is disabled. Uninstall Client
Manager 3 to use Wireless Zero Cong, or just use Client Manager 3 to connect to the AirStation.
1Right click on the wireless network icon in the system tray.
2Click [View Available Wireless Networks].
3
4
It will take several seconds for conguration to complete.
Select the network to connect to and click
[Connect].
Enter the encryption key (twice) and click
[Connect].
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 108
Chapter 5 Connect to a Wireless Network

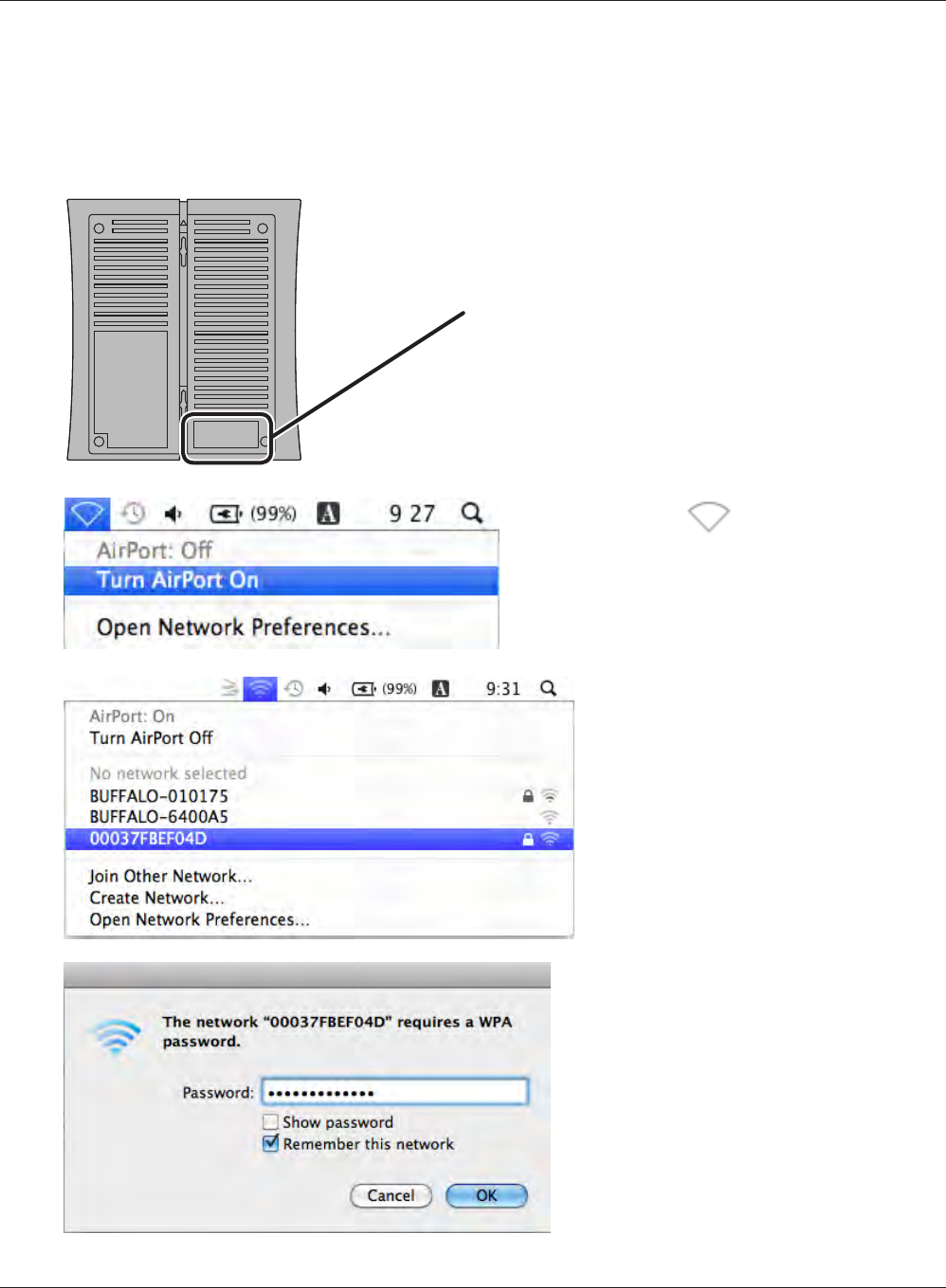

Mac OS X (AirPort)
Use AirPort on a Mac to connect to the AirStation.
1
2
3
4
It will take several seconds for conguration to complete.
Refer to the label on the side of the AirStation.
Make a note of the SSID and KEY printed on the
label.
Click the icon in the top
section of the screen and select
[Turn Airport On].
Find the SSID from step 1 on the list.
Click it to highlight it.
Enter the KEY from step 1 into
the Password entry box, check
[Remember this network], and click
[OK].
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 109
Chapter 6 - Troubleshooting
Cannot connect to the Internet over wired connection.
• Make sure that your AirStation is plugged in!
• Check that the status LEDs of your AirStation are lit as below:
Power Green light is on
Router Green light is on or o (depending on your environment)
Diag o
LAN Green light is on or ashing
Internet Green light is on or ashing
• Make sure that your computer is congured to “obtain an IP address automatically from DHCP”.
(See chapter 10)
• Restart your AirStation.
Cannot access the web-based conguration Interface.
• See chapter 4 for instructions to open the AirStation’s conguration interface.
• Enter the correct username and password to log in to the conguration interface. The factory
defaults are “root” (in lower case) for the username and a blank password (enter nothing). If you
changed the password, enter the new password that you set.
• Verify that your web browser is not set to use proxies.
• Make sure that your computer is congured to “obtain an IP address automatically from DHCP”.
(See chapter 10)
• Restart your AirStation.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 110
Chapter 6 Trouble Shooting
Cannot connect to the network wirelessly.
• Congure your wireless client with the same SSID, encryption type, and encryption key as set
on the AirStation.
The factory defaults are:
SSID - The AirStation’s MAC address (printed on the label)
Encryption Type - WPA/WPA2 mixed mode - PSK (Connect with either WPA-PSK TKIP or
WPA2-PSK AES).
Encryption Key - Printed on the label of the AirStation.
Note: Encryption is disabled by default in Asia Pacic.
• Place your AirStation and wireless devices 2 - 10 feet apart.
• Restart your AirStation.
You forgot AirStation's SSID, Encryption Key, or
Password.
Hold down the reset button on the base of your AirStation for 3 seconds to initialize its settings. All
settings, including your password, SSID, and encryption key will be initialized to their defaults. The
factory defaults are:
SSID - The AirStation’s MAC address (printed on the label)
Encryption Type - WPA/WPA2 mixed mode - PSK (Connect with either WPA-PSK TKIP or
WPA2-PSK AES).
Encryption Key - Printed on the label of the AirStation.
(Encryption is disabled by default for Asia Pacic AirStations.)
The link speed is slower than 300 Mbps (Maximum
link speed is only 130 Mbps).
By default, the AirStation’s 300 Mbps mode is not enabled. You may enable it with the following
procedure:
1. Open the conguration interface (chapter 4).
2. In Easy Setup, click [Wireless SSID & Channel (11n 300 Mbps Mode)].
3. Change the value in [300 Mbps Mode] - [Bandwidth] to 40 MHz and click [Apply].
If you still cannot connect at 300 Mbps, check the settings of your wireless client devices.
Chapter 6 Trouble Shooting
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 111
Other Tips
Issue:
I reset my wireless router to factory settings and forgot how to log in to the conguration interface.
Answer:
Open your browser, enter 192.168.11.1 as the browser address, and hit Enter. You will be prompted
to log in. Enter “root” for the username and leave the password box empty (no password). Click [OK]
to complete the login and the option to reset your password will be available on the rst page.
Issue:
How do I forward ports on my wireless router for my gaming console?
Answer:
Log in to the router’s conguration interface. From the home page, go to the Internet Game/ Port
Mapping section. Enter the port that needs to be forwarded and the IP address of the gaming
console.
Issue:
How do I enable or modify security encryption settings on the wireless router?
Answer:
Log in to the conguration interface with your browser. Go to [Wireless Cong] - [Security]. Bualo
recommends WPA for wireless encryption. The passphrase/key should be at least 8 characters in
length.
Issue:
How do I change my wireless router’s broadcasted network name (SSID)?
Answer:
Log in to the conguration interface. Go to the Wireless Cong tab and then select the Basic tab
if necessary. Find the settings area for SSID. Select the [Use] radio button and enter the name you
wish to use for your network in the text eld provided. Click [Apply] to save the settings. Once the
wireless router has rebooted, select the new network name for all wireless devices and re-enter your
encryption key if necessary.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 112
Chapter 6 Trouble Shooting
Issue:
What can I do if my wireless connection drops randomly or seems slow?
Answer:
There are many environmental factors that may cause this. First, ensure the issue is not range
related by moving the wireless router and the client device closer together. If the connection drops
continue, then range is probably not the issue.
Other 2.4 GHz devices such as microwaves, other wireless networks, and 2.4 GHz wireless phones
may impact performance. Try a dierent wireless channel for your wireless router. Log in to the
wireless router with your browser. Click on the Wireless Cong tab and then the Basic tab. Wireless
channels from 1 - 13 may be selected. Try the Auto-Channel option if available. Otherwise, manually
select an alternate channel and click [Apply].
Issue:
Though I am able to successfully make a connection with my wireless router, I am unable to access
the Internet with my web browser.
Answer:
First, power o the cable or DSL modem, the wireless router, and your computer. Move the router's
mode switch to the on position. Verify that the modem is connected to the wireless router with an
Ethernet cable to the WAN port. Power on the modem and wait one minute. Power on the wireless
router and wait another minute. Power on the computer. Open a browser on the computer and
navigate to a familiar website to verify whether the Internet connection is functioning normally.
If after these steps, an Internet connection is still unavailable, power o the cable or DSL modem
and computer again and directly connect your computer to the cable or DSL modem with a cable
between the computer and the port on the modem. Power on the modem and wait one minute.
Power on the computer and again check for an Internet connection.
If an Internet connection IS NOT available with a direct connection to the computer, please call the
Internet Service Provider who installed the modem.
If an Internet connection IS available with a direct connection to the computer, please call our
customer support.
Issue:
Where can I download the latest drivers, rmware, and instructions for my Bualo wireless products?
Answer:
The latest drivers and rmware are available online at
www.bualotech.com
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 113
Chapter 7 - Default Conguration Settings
Feature Parameter Default Setting
Internet
(Router Mode only)
Method of Acquiring IP Address Perform Easy Setup (Internet Connection Wizard)
Default Gateway none
Address of DNS Name Server none
Internet MAC Address Use Default MAC Address
MTU Size of Internet Port 1500 Bytes
PPPoE
(Router Mode only)
Default PPPoE Connection No Active Session
IP Unnumbered PPPoE
Connection
No Active Session
PPPoE Connection List none
Preferred Connections none
DDNS
(Router Mode only)
Dynamic DNS Service Disabled
Current Dynamic DNS
Information
none
VPN Server
(Router Mode only)
LAN Side IP Address 192.168.11.1 (255.255.255.0)
DHCP Server Function Enabled
DHCP IP Address Pool 192.168.11.2 for up to 64 Address(es)
PPTP Server Function Disabled
Authorization Type MS-CHAPv2 (40/128-bit Encryption)
Server IP Address Auto
Client IP Address Auto
DNS Server IP Address LAN IP address of the AirStation
WINS Server IP Address none
MTU/MRU value 1396
PPTP User List none
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 114
Chapter 7 Default Conguration Settings
Feature Parameter Default Setting
LAN LAN Side IP Address Router Mode (Router Switch AUTO/ON):
192.168.11.1 (255.255.255.0)
Bridge Mode (Router Switch OFF):
192.168.11.100 (255.255.255.0)
Bridge Mode (Router Switch AUTO):
Obtain automatically from DHCP Server
DHCP Server Function
(Router Mode only)
Enabled
DHCP IP Address Pool
(Router Mode only)
192.168.11.2 for up to 64 Addresses
LAN Side IP Address
(For IP Unnumbered)
(Router Mode only)
none
Lease Period
(Router Mode only)
48 Hours
Default Gateway
(Router Mode only)
AirStation's IP Address
DNS Servers
(Router Mode only)
AirStation's IP Address
WINS Server
(Router Mode only)
Do Not Specify
Domain Name
(Router Mode only)
Assigned Domain Name
Default Gateway
(Bridge Mode only)
none
DNS Server Address
(Bridge Mode only)
none
DHCP Lease
(Router Mode only)
Current DHCP Client Information none
NAT
(Router Mode only)
Address Translation Enabled
Log Output of Deleted Packets Disabled
Route Routing Information none
Chapter 7 Default Conguration Settings
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 115
Feature Parameter Default Setting
WPS WPS Enabled
External Registrar Enabled
AirStation PIN An 8-digit random value
(Printed on the label of the AirStation)
WPS Security Information WPS status: congured
SSID: AirStation’s MAC Address
Security: WPA/WPA2 mixedmode - PSK
TKIP/AES mixedmode or none
Encryption key: Either a 13-digit random value
or disabled. Printed on the label
of the AirStation. Encryption is
disabled by default settings on
AirStation for Asia Pacic.
AOSS Encryption Type of Exclusive SSID
for WEP
none
Encryption level expansion
function
Enabled
Dedicated WEP SSID isolation Disabled
Dedicated WEP for game consoles Disabled
AOSS Button on the AirStation
Unit
Enabled
Basic Wireless Radio Enabled
Wireless Channel Auto Channel
300 Mbps Mode Band Width: 20 MHz
Extension Channel: -
Broadcast SSID Allow
Separate feature not used
SSID Use AirStation's MAC address
Wireless authentication WPA/WPA2 mixedmode - PSK, or no authentication
Wireless encryption TKIP/AES mixedmode, or no encryption
WPA-PSK (Pre-Shared Key) A 13-digit random value or disabled
(Printed on the label of the AirStation. Encryption
is disabled in default settings on AirStation for Asia
Pacic.)
Rekey interval 60 minutes
Advanced Multicast Rate Auto
DTIM Period 1
Privacy Separator Disabled
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 116
Chapter 7 Default Conguration Settings
Feature Parameter Default Setting
WMM WMM-EDCA Parameters
(Priority AC_BK (Low) )
For AP For STA
CWmin 15 15
CWmax 1023 1023
AIFSN 7 7
TXOP Limit 0 0
Admission Control ----- Disabled
WMM-EDCA Parameters
(Priority AC_BE (Normal) )
For AP For STA
CWmin 15 15
CWmax 63 1023
AIFSN 3 3
TXOP Limit 0 0
Admission Control ----- Disabled
WMM-EDCA Parameters
(Priority AC_VI (High) )
For AP For STA
CWmin 7 7
CWmax 15 15
AIFSN 1 2
TXOP Limit 94 94
Admission Control ----- Disabled
WMM-EDCA Parameters
(Priority AC_VO (Highest) )
For AP For STA
CWmin 3 3
CWmax 7 7
AIFSN 1 2
TXOP Limit 47 47
Admission Control ----- Disabled
MAC Filter Enforce MAC Filtering Disabled
Registration List none
Multicast
Control
Snooping Enabled
Multicast Aging Time 300 Sec.
WDS WDS Use
Specify Master/Slave Master
Firewall
(Router Mode only)
Log Output Disabled
Basic Rules Prohibit NBT and Microsoft-DS Routing Disabled
Reject IDENT Requests Enabled
Block Ping from Internet Enabled
Chapter 7 Default Conguration Settings
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 117
Feature Parameter Default Setting
IP Filter
(Router Mode only)
Log Output Disabled
IP Filter Information none
VPN Pass
Through
(Router Mode only)
IPv6 Pass Through Disabled
PPPoE Pass Through Disabled
PPTP Pass Through Enabled
Port Forwarding
(Router Mode only)
Port Forwarding Registration
Information
none
DMZ
(Router Mode only)
IP Address of DMZ none
UPnP
(Router Mode only)
UPnP Enabled
QoS
(Router Mode only)
QoS for transmission to the
Internet
Disabled
Movie Engine Movie Engine switch status o
IPv6 Pass Through Used
Multicast Rate 11 Mbps
Multicast Control Snooping Function Use
Aging Time Seconds 300 Seconds
Change Priority VI (priority)
TCP Rwin Size Limit Size Limit No limit
Maximum Rwin Size 65536 bytes
Wireless Priority Control Rules None
Transmission Rate Limit No Limits
Disk
Management
Automatic USB Disk Assignment Used
FAT format le name character
code
North America (CP437)
HDD power-saving function Not used
HDD stop time 10 Minutes
Shared Folder Access Limits No Limits (Read/Write)
Web Access Access Limits
User
Management
Current Users guest
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 118
Chapter 7 Default Conguration Settings
Feature Parameter Default Setting
Shared Service Shared Folder Enabled
AirStation Name AP + AirStation’s MAC Address
AirStation Description None
Workgroup Name WORKGROUP
Windows Client Language North America (CP437)
Shared Service None
Web Access Web Access Disabled
Web Access Display Language English
HTTPS/SSL Encryption Disabled
Web Access External Port Auto (Port Number:9000)
DNS Service Host Name Use BualoNAS.com registration function
Web Access status None
Media Server Media Server Disabled
Status None
BitTorrent BitTorrent Function Disabled
External Port Number Auto (Port Number: 9002)
Bandwidth Restriction Enabled
Maximum Download Speed 1000 KB/s
Maximum Upload Speed 200 KB/s
BitTorrent Status None
Name AirStation Name AP + AirStation's MAC Address
List Network Services Enabled
Password Administrator Name root (xed)
Administrator Password none
Time/Date Local Date 2011 Year 1 Month 1 Day
Local Time 0 Hour 0 Minute 0 Seconds
Time Zone (GMT+00:00) Greenwich Mean Time,London
DST (Daylight Saving Time) EU type 1 For GMT+00:00(From Last Sunday in Mar
to last Sunday in Oct)
NTP NTP Functionality Enabled
NTP Server time.nist.gov
Update Interval 24 hours
Chapter 7 Default Conguration Settings
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 119
Feature Parameter Default Setting
ECO Schedule feature Disabled
Register schedule Operational Mode: Normal
Start time: 0:00
End time: 0:30
The day of week: none
User Dene Mode LED: O
Wired LAN: ECO (Slow operation)
Wireless LAN: O
Network-USB Network-USB Enabled
Use multifunction Printer Enabled
Access Log Output Disable
Limitation Item Prohibit conguration from wireless LAN Disabled
Prohibit conguration from wired LAN Disabled
Permit conguration from wired Internet Disabled
Log Log Transfer Disabled
Syslog Server none
Transfer Logs Router Mode:
Address Translation, IP Filter, Firewall, PPP Client,
Dynamic DNS, DHCP Client, DHCP Server, AOSS,
Wireless Client, Authentication, Setting Changes,
System Boot, NTP Client, and Wired Link
Bridge Mode:
IP Filter, DHCP Client, AOSS, Wireless Client,
Authentication, Setting Changes, System Boot,
NTP Client, and Wired Link
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 120
Chapter 8 - Network-USB Navigator
Network-USB Navigator is compatible only with printers and multifunction printers (all-in-one
devices with a printer, scanner, and memory card reader). It cannot be used with any other type of
USB devices.
Initial Setup for Windows Users
1Insert the AirNavigator CD into your computer.
The setup wizard will launch automatically. If not, open the CD and click on “ASSetWiz.exe” in
the “win” folder.
2
Click [Client setup].
Chapter 8 Network-USB Navigator
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 121

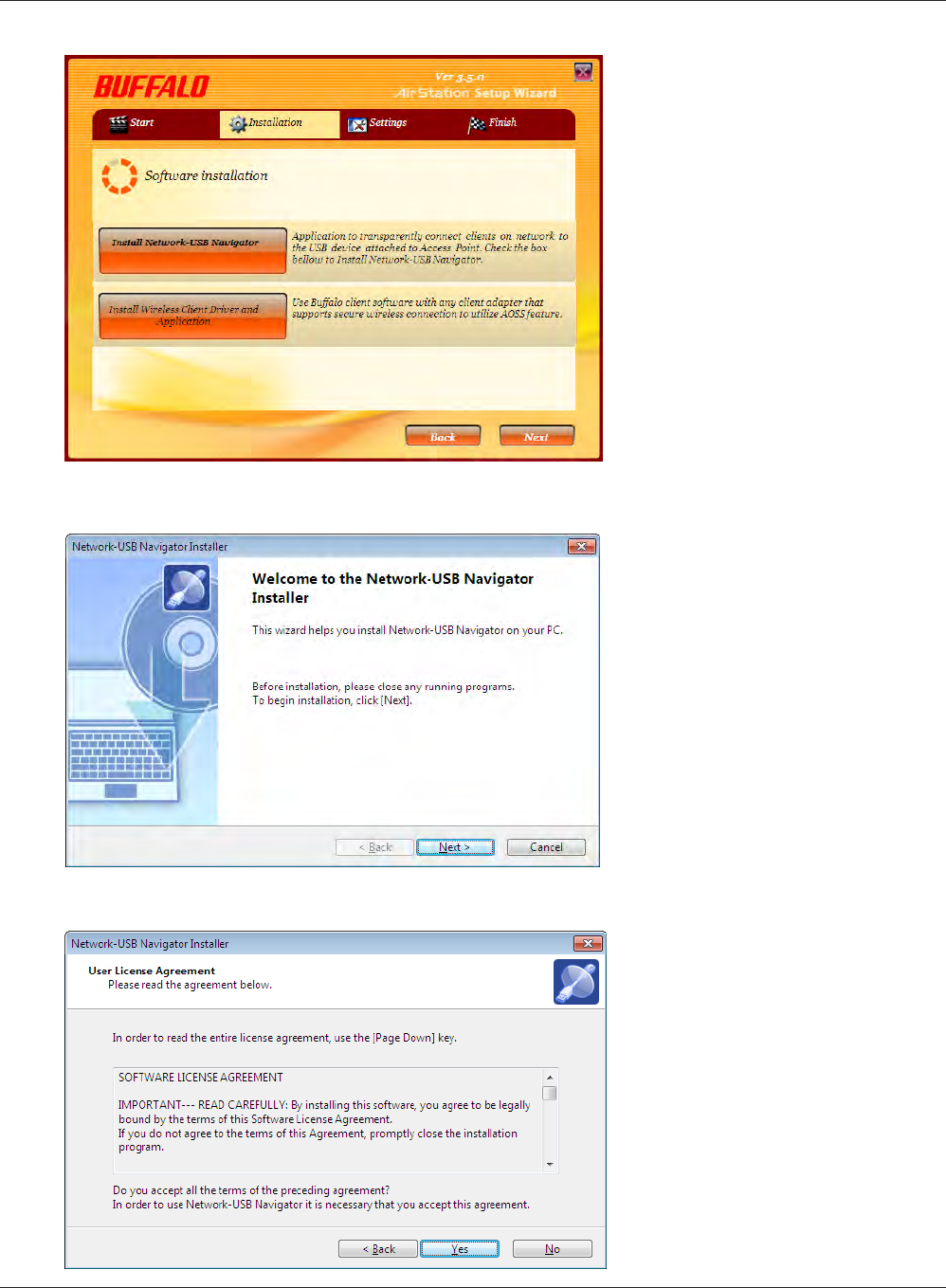

4
Click [Next].
5
Click [Yes].
3
Click [Install Network-USB
Navigator].
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 122
Chapter 8 Network-USB Navigator

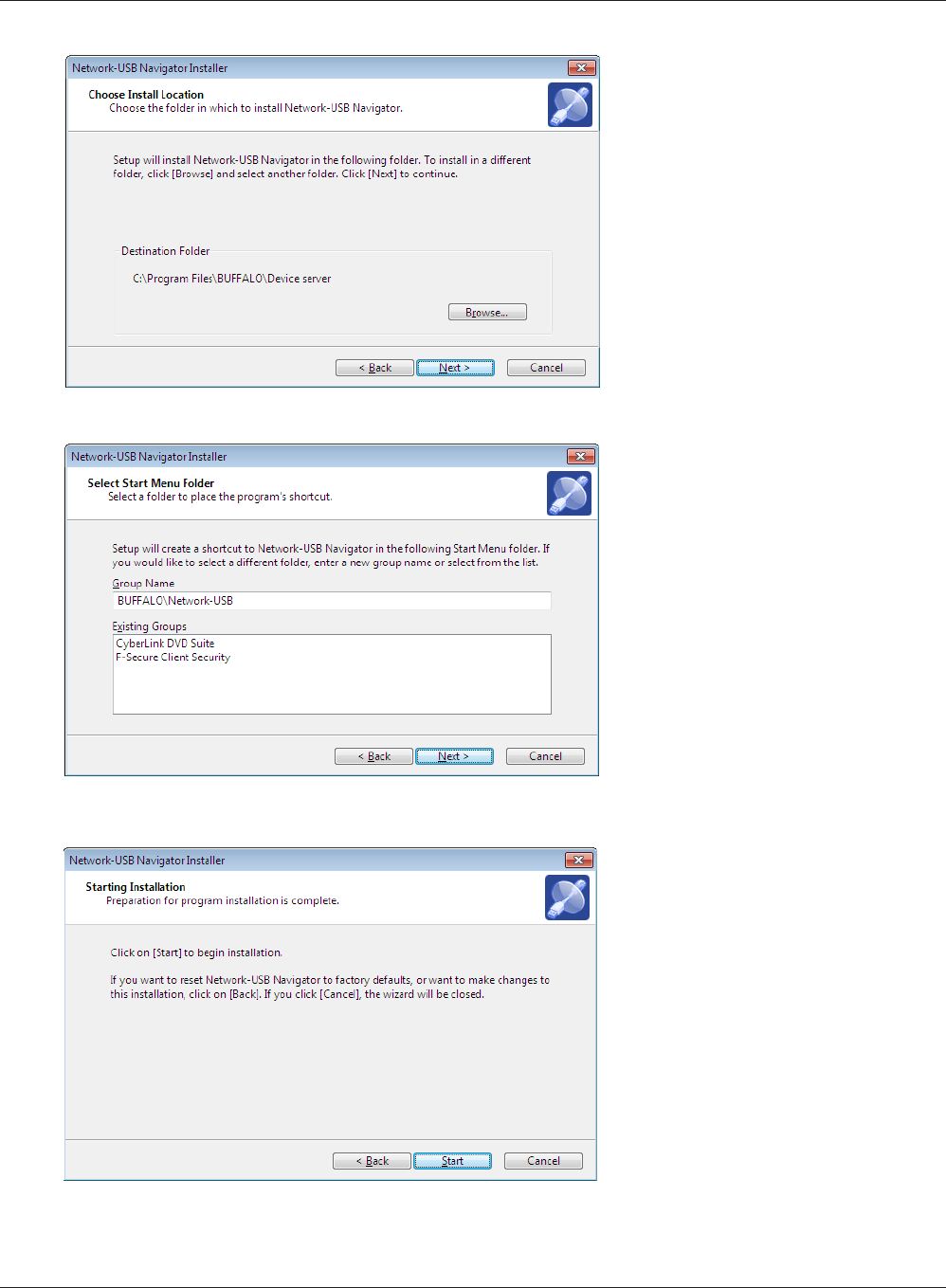

7
Click [Next].
6
Click [Next].
8
Click [Start].
Chapter 8 Network-USB Navigator
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 123

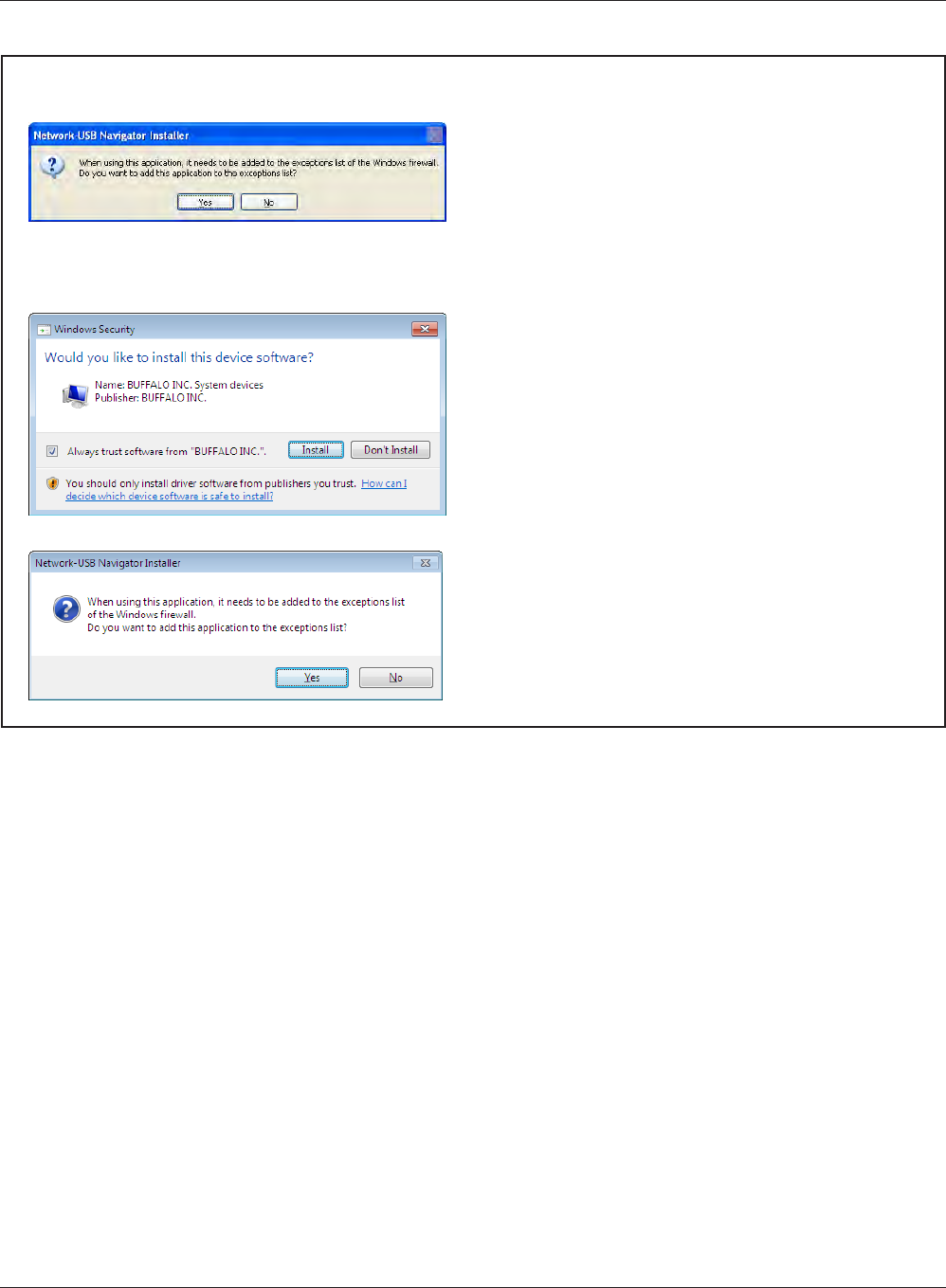

・Installation on Windows XP (SP2 or later)
・Installation on Windows 7/Vista
Click [Yes] when this screen is shown.
Click [Install] when this screen is shown.
Click [Yes] when this screen is shown.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 124
Chapter 8 Network-USB Navigator
9
10 Click [Finish] when the “Network-USB Navigator Install is Complete” screen is shown.
Network-USB Navigator installation is complete.

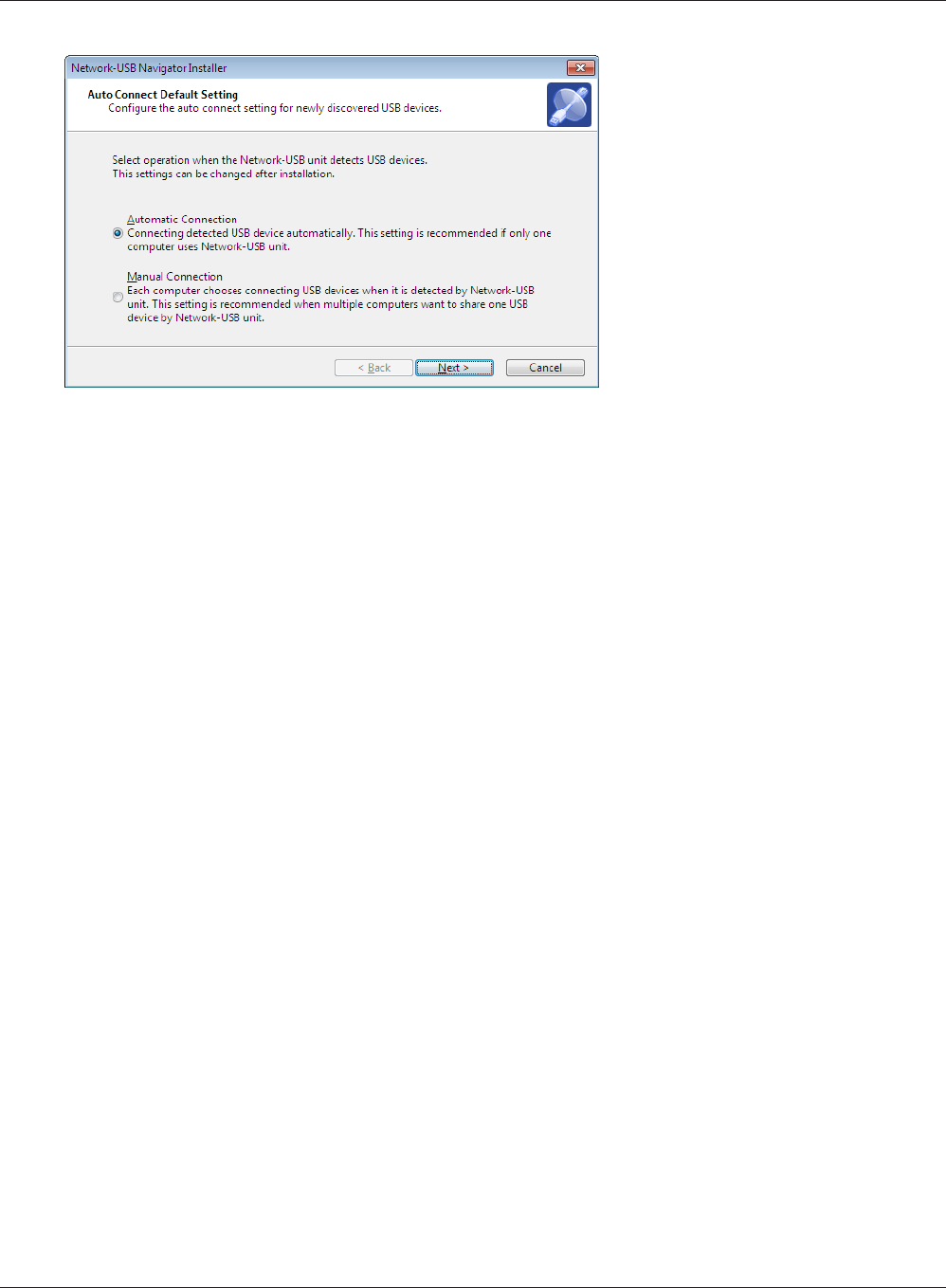

1 You can select the behavior
of this product when a USB
device is detected. Select the
connection behavior suited to
your usage environment.
2 Click [Next].
Chapter 8 Network-USB Navigator
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 125
Initial Setup for Mac Users
1Insert the Air Navigator CD.
2Double-click the CD-ROM on the desktop, then double-click the Mac folder.
3Double-Click [USB-Navigator], then [Cosetup.app].

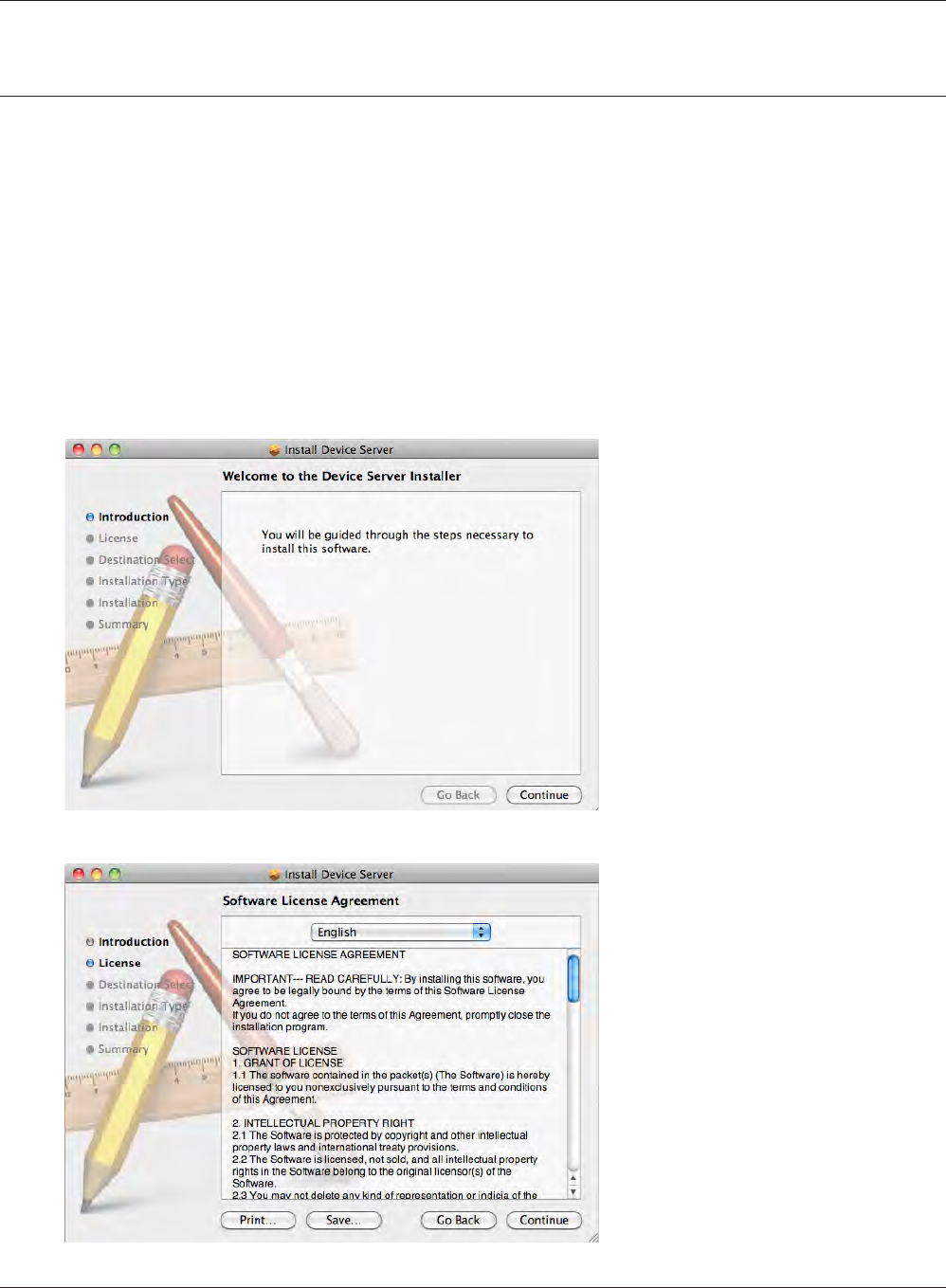

4
Click [Continue].
5Click [Continue].
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 126
Chapter 8 Network-USB Navigator
6Click [Agree].
8
Click [Install].
7
Click [Continue].
Chapter 8 Network-USB Navigator
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 127

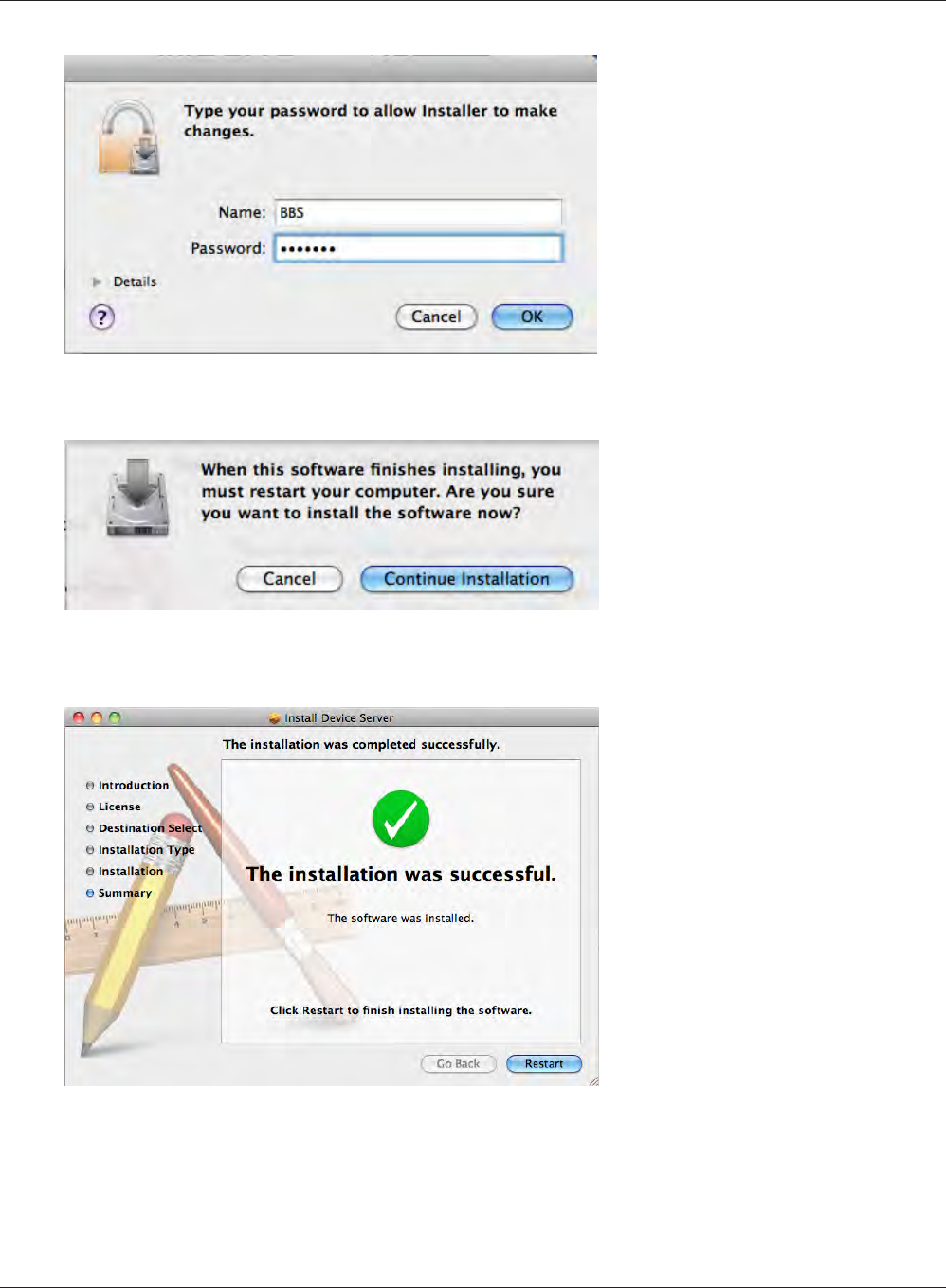

10
Click [Continue Installation].
11
Click [Restart].
9
Input your name and password.
Click [OK].
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 128
Chapter 8 Network-USB Navigator

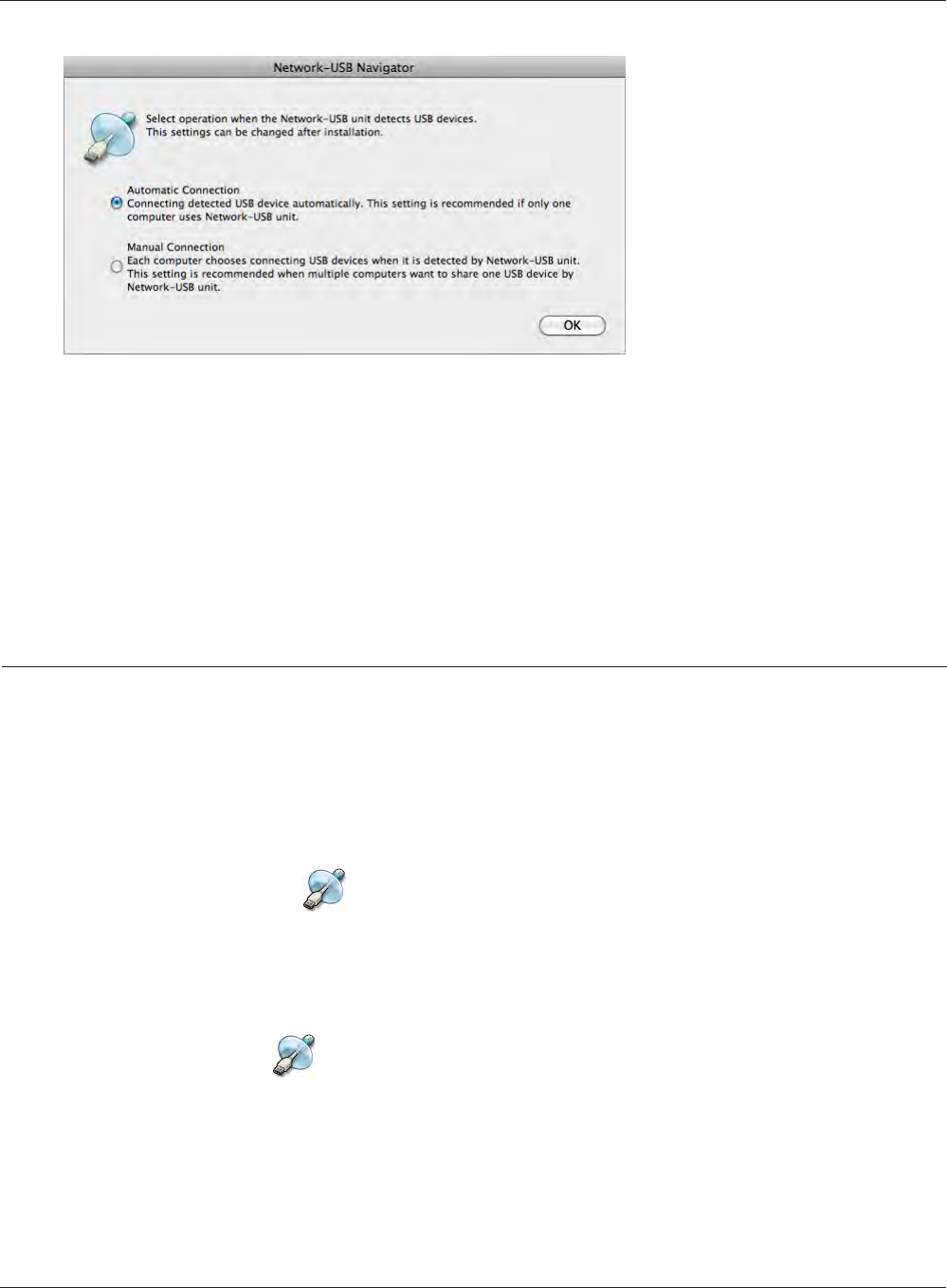

12
Network-USB Navigator installation is complete.
1 During the rst program
launch only, the screen at
left will appear before the
main program screen is
displayed. From here, you
can select the behavior of
this product when a USB
device is detected. Select
the connection behavior
suited to your usage
environment.
2 Click [OK].
Opening the Network-USB User Manual
1Launch Network-USB Navigator.
There are two ways to launch the program.
Windows Users
a) Click the task tray icon .
b) From the Start menu, click [(All) Programs]-[BUFFALO]-[Network-USB Navigator]-[Network-
USB Navigator].
Macintosh Users
a) Click the Dock icon .
b) Click [Macintosh HD]-[Applications]-[BUFFALO]-[Device Server]-[Network-USB Navigator].
Chapter 8 Network-USB Navigator
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 129
How to use Network-USB
To congure Network-USB, refer to the “Network-USB User Manual”.

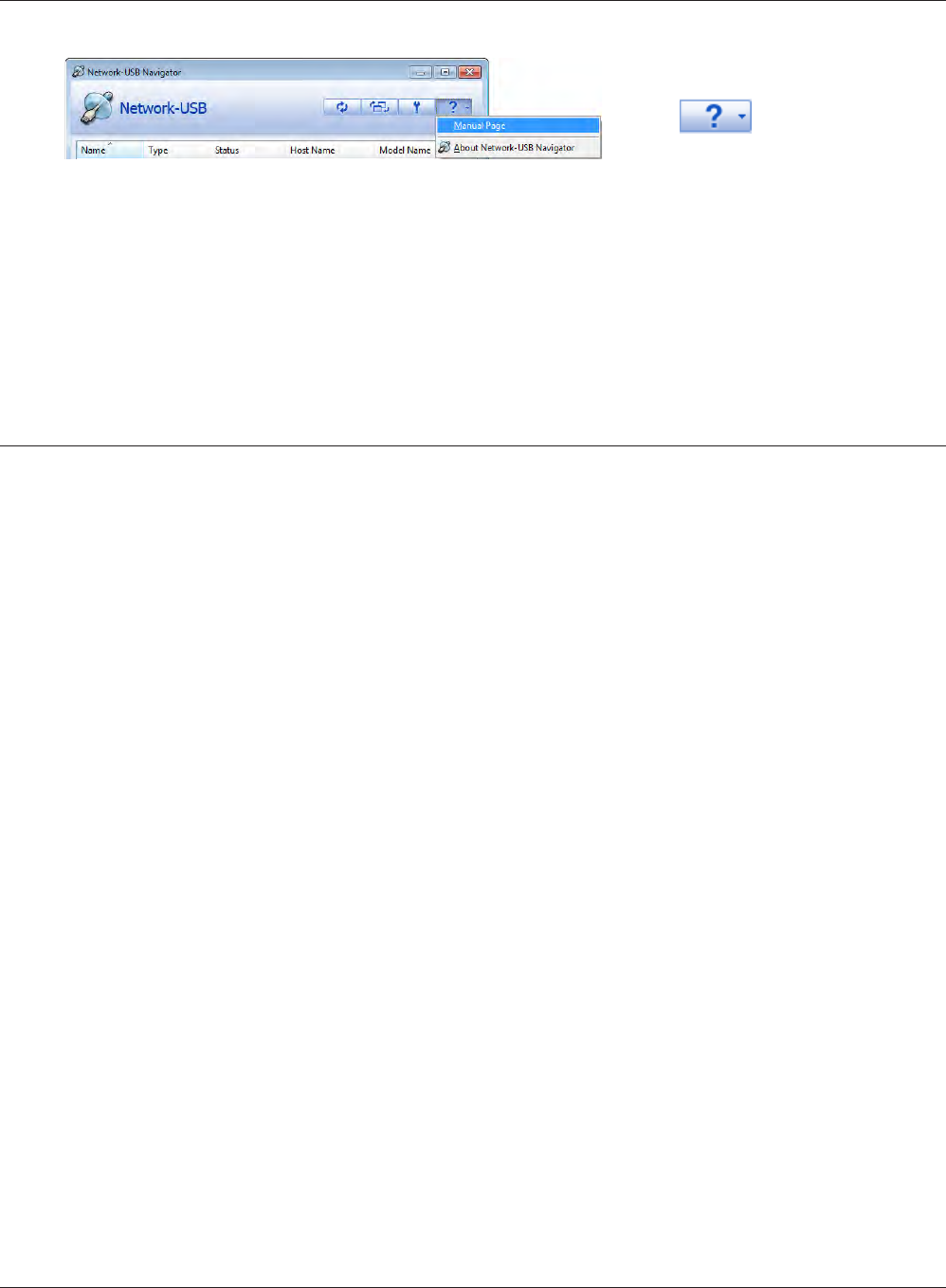

2
Click , then click [Manual
Page].
3Network-USB User Manual will open.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 130
For users of Windows 7, Vista, or Mac OS X (10.4 and later), software supplied with the AirStation can
be used to check the quality and strength of the wireless signal.
Windows 7/Vista
Note: · If Client Manager V is not already installed, install it from the AirNavigator CD. Click [Install Wireless Client Driver
and Application] > [Options] > [Advanced Installation], and install Client Manager V.
· Client Manager V does not support Windows XP.
Chapter 9 - Checking Wireless Signal Quality
3
When the Client Manager V status screen is
displayed, click .
1Click the icon in the system tray.
2
Click [Advanced Setup].
Chapter 9 Checking the Wireless Signal Quality and Strength
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 131

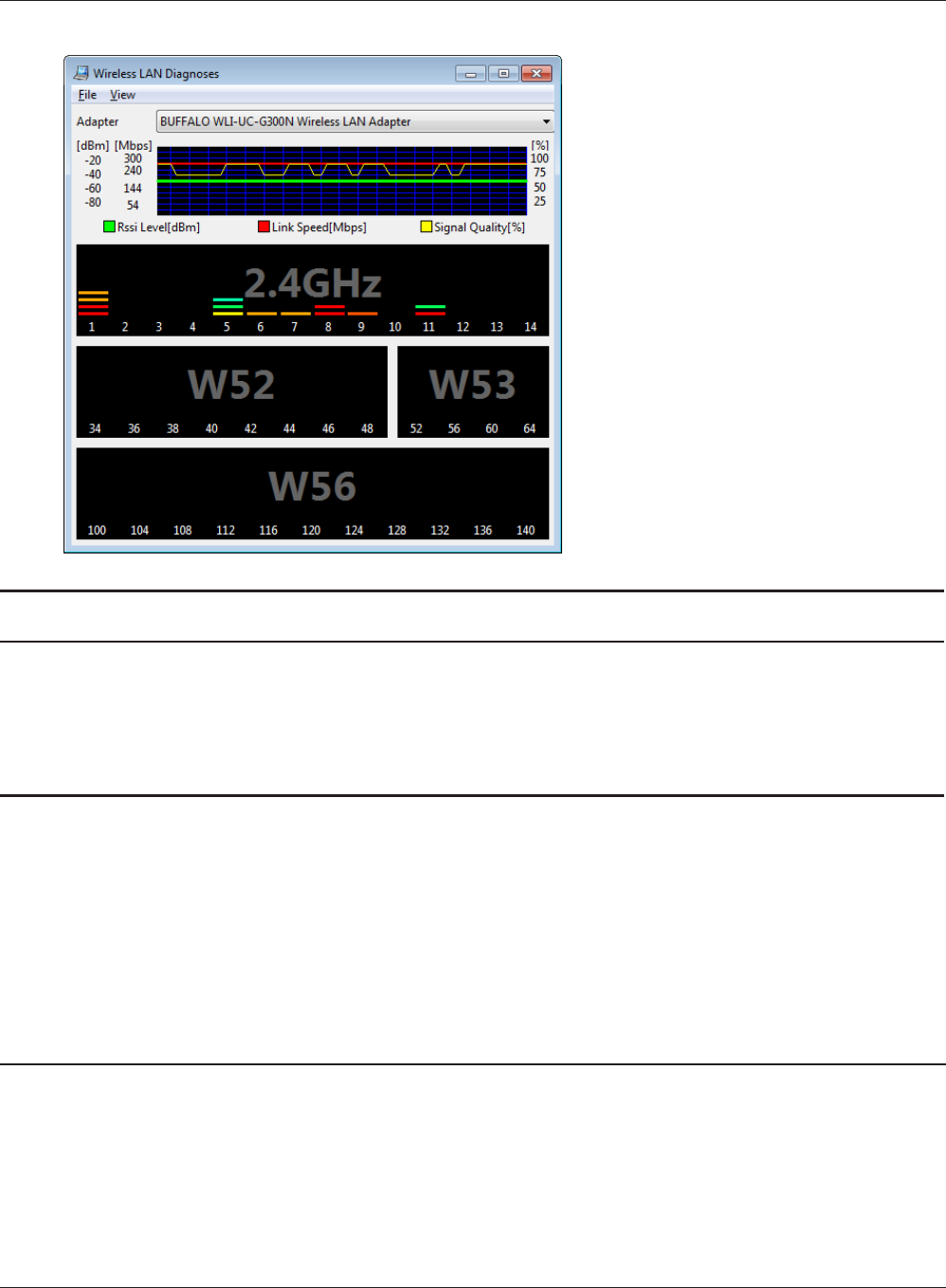

4
Parameter Meaning
Connection status Signal strength (dBm), link speed (Mbps), and signal quality (%) are
displayed in one-minute intervals on a real-time graph.
Usage status by channel The 11b/11g display shows usage in the 2.4 GHz band channels 1
to 11.
Colors are used to indicate the signal strength of the access point. Colors closer to red indicate an
access point with a stronger signal strength, and colors closer to blue indicate an access point with a
weaker signal strength.
Macintosh
1Load the AirNavigator CD into your Macintosh.
2Double-click the Mac folder in the AirNavigator CD.
3Double-click [WLAN Monitor].
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 132
Chapter 9 Checking the Wireless Signal Quality and Strength
4The software license screen is displayed when starting for the rst time only. Click [Agree] to
proceed.
5
Parameter Meaning
Network name (SSID) This displays the SSID of the AirStation that is currently connected.
Status This indicates the current connection status.
IP Address This indicates the IP address of the current wireless network port
(AirPort).
Security This indicates the authentication method for the current
connection target.
Encryption This displays the encryption type for the current connection target.
Band This displays the wireless band for the current connection target.
Channel This displays the wireless channel for the current connection target.
Link Speed (Mbps) This displays the current link speed.
Quality (%) This displays the current signal quality.
Signal Level (dBm) This indicates the strength of the current signal.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 133
Chapter 10 - TCP/IP Settings
Windows 7
To congure TCP/IP in Windows 7, follow the procedure below.
1Click [Start] > [Control Panel] > [Network and Internet].
2Click [Network and Sharing Center].
3Click [Change Adapter Settings] on the left side menu.
4Right-click on [Local Area Connection], then click [Properties].
5If the User Account Control screen opens, click [Yes] or [Continue].
6Select [Internet Protocol Version 4 (TCP/IPv4)] then click [Properties].
7To have DHCP set your IP address settings automatically, check [Obtain an IP address
automatically] and [Obtain DNS server address automatically].
To set your IP address settings manually, enter values for each setting. Examples:
If the router’s IP address is 192.168.11.1,
IP address 192.168.11.80
Subnet mask 255.255.255.0
Default gateway 192.168.11.1
Preferred DNS server 192.168.11.1
Alternate DNS server blank
8Click [OK].
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 134
Chapter 10 TCP/IP Settings
Windows Vista
To congure TCP/IP in Windows Vista, follow the procedure below.
1Click [Start] > [Settings] > [Control Panel].
2Click [Network and Sharing Center].
3Click [Manage network connections] on the left side menu.
4Right-click on [Local Area Connection], then click [Properties].
5If the User Account Control screen opens, click [Yes] or [Continue].
6Select [Internet Protocol Version 4 (TCP/IPv4)], then click [Properties].
7To have DHCP set your IP address settings automatically, check [Obtain an IP address
automatically] and [Obtain DNS server address automatically].
To set your IP address settings manually, enter values for each settings. Example:
If the router’s IP address is 192.168.11.1,
IP address 192.168.11.80
Subnet mask 255.255.255.0
Default gateway 192.168.11.1
Preferred DNS server 192.168.11.1
Alternate DNS server blank
8Click [Close].
Chapter 10 TCP/IP Settings
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 135
Windows XP
To congure TCP/IP in Windows XP, follow the procedure below.
1Click [Start] > [Settings] > [Control Panel].
2Double-click [Network].
3Right click on [Local Area Connection], then click [Properties].
4Select [Internet Protocol (TCP/IP)], then click [Properties].
5To have DHCP set your IP address settings automatically, check [Obtain an IP address
automatically] and [Obtain DNS server address automatically].
To set your IP address settings manually, enter values for each setting. Examples:
If the router’s IP address is 192.168.11.1,
IP address 192.168.11.80
Subnet mask 255.255.255.0
Default gateway 192.168.11.1
Preferred DNS server 192.168.11.1
Alternate DNS server blank
6Click [Close].
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 136
Chapter 10 TCP/IP Settings
Mac OS X
To congure TCP/IP in Mac OS X, follow the procedure below.
1Click [Apple menu] > [System Preferences…].
2Click [Network].
3Click [Ethernet].
4To have DHCP set your IP address settings automatically, select [Using DHCP] in the Congure
IPv4 eld.
To set your IP address settings manually, select [Manually] in the Congure IPv4 eld and
enter values for each setting. Examples:
If the router’s IP address is 192.168.11.1,
IP Address 192.168.11.80
Subnet Mask 255.255.255.0
Router 192.168.11.1
DNS Server 192.168.11.1
Search Domains blank
5Click [Apply].
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 137
Chapter 11 -
Restoring the Default Conguration
With the AirStation powered on, hold down this button
for 3 seconds to return it to factory default settings.
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 138
Chapter 12 - Shared Folders and the USB Port
There are several restrictions on using the AirStation’s USB port:
• When using two-byte characters (such as Japanese), keep folder and le names within 80
characters. You may not be able to copy a folder or a le whose name length is more than 80
characters.
• You cannot set attributes (hidden or read-only) for folders or les on the AirStation.
• When using access restrictions, you can register up to 16 users for the AirStation.
• Please note that you are not allowed to use any of the following words as a user or group name:
adm, administrator, all, bin, daemon, disk, ftp, guest, halt, hdusers, kmen, lp, mail, man, news,
nobody, nogroup, none, operator, root, shadow, shutdown, sshd, sync, sys, ttyusers, utmp, uucp,
www.
• Please note that you are not allowed to use any of the following words as a shared folder name:
global, homes, printers, bittorrent, disk1_pt1, disk1_pt2, disk1_pt3, disk1_pt4, disk2_pt1, disk2_
pt2, disk2_pt3, disk2_pt4, disk3_pt1, disk3_pt2, disk3_pt3, disk3_pt4, disk4_pt1, disk4_pt2, disk4_
pt3, disk4_pt4.
• If shared folder names, work group names, or le names contain any of the following characters,
you may not access data or manipulate les on the AirStation properly. In such a case, use a
dierent character.
• If a le created on a Macintosh contains any of the following characters, it will not be displayed
correctly under Windows OS. Also, you cannot copy or properly display a le when connecting via
SMB from Mac OS X if it contains any of these characters:
? [ ] / \ = + < > ; : ” , | *
• Cancelling or aborting a le copy may leave the le incomplete, and you may no longer be able
to delete the incomplete le. This can also happen during a power outage or if the LAN cable is
suddenly disconnected. If it happens, restart the AirStation, delete the le, and try copying the le
again.
• Use the same username and password for the AirStation as the user’s Windows login. If they
are dierent, the user may not be able to access shared folders with access restrictions on the
AirStation.
• Date and time stamps stored on the USB hard drive may be updated by the OS accessing the
AirStation. File creation or access dates may not be maintained.
Chapter 12 Technical Detail of the USB port
WZR-HP-G300NH / WZR-HP-G300NH2 User Manual 139
• If you view the size of a hard drives on the browser, it shows a bigger value than when you see it in
Windows’ drive properties. This is because the browser shows the size of the drive in gigabytes but
Windows shows it in gibibytes.
• If you have logged in using a “guest” account from Windows 7, Vista, XP or 2000, access restrictions
may not work properly. A (dierent) guest account already exists on the AirStation.
• If you access a shared folder from a Macintosh computer, additional Mac OS X information les
may be automatically generated. Do not delete these les from a Windows computer. Otherwise,
you may no longer be able to access folders from a Macintosh.
• Device types that can be connected to the AirStation’s USB connector are USB hard drives, USB
memory sticks, or USB card readers. Card readers with 5 or more slots are not supported. USB
devices such as a digital cameras, CD/DVD drives, USB hubs, mice, or keyboards are not supported.
•Encrypted USB hard drives are not supported.
• Only one single drive may be connected to the AirStation’s USB port at a time. Drives
manufactured by other companies besides Bualo Technology are not supported.
• If your hard drive has an auto power mode switch, move the switch to [manual] or [on]. Leaving
the switch set to [auto] may result in unpredictable behavior.
• Up to 4 partitions can be recognized on a USB hard drive.
• Available le systems for USB hard drives are FAT12, FAT16, FAT32, and XFS.
WZR-HP-G300NH / WZR-HP-G300NH2 Appendix I
Wireless LAN Interface
Standard Compliance IEEE802.11b / IEEE802.11g / IEEE802.11n
Transmission Method Direct Sequence Spread Spectrum (DSSS), OFDM, MIMO
Frequency Range 2,412 - 2,462 MHz (Channels 1 - 11)
Transmission Rate 802.11b:
11, 5.5, 2, 1 Mbps
802.11g:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n
20 MHz BW
(Long GI) 130, 117, 104, 78, 52, 39, 26, 13 Mbps (2 stream)
65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps (1 stream)
(Short GI) 130, 115.5, 86.6, 57.7, 43.3, 28.8, 14.4 Mbps (2 stream)
65, 72.2, 57.8, 43.3, 28.9, 21.7, 14.4, 6.5 Mbps (1 stream)
40 MHz BW
(Long GI) 270, 243, 216, 162, 108, 81, 54, 27 Mbps (2 stream)
135, 121.5, 108, 61, 54, 40.5, 27, 13.5 Mbps (1 stream)
(Short GI) 300, 270, 240, 180, 120, 90, 60, 30 Mbps (2 stream)
150, 135, 120, 90, 60, 45, 30, 15 Mbps (1 stream)
Access Mode Infrastructure Mode
Security AOSS, WPA2-PSK (TKIP/AES), WPA/WPA2 mixed PSK, WPA-PSK (TKIP/AES), 64-
bit and 128-bit WEP, Mac Address Filter
Wired LAN Interface
Standard Compliance IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Transmission Rate 10 / 100 / 1000 Mbps
Transmission Encoding 1000BASE-T 4DPAM5, 100BASE-TX 4B5B/MLT-3, 10BASE-T Manchester Cording
Access Method CSMA/CD
Speed and Flow Control 10 / 100 / 1000 Mbps, Auto Sensing, Auto MDIX
Number of LAN Ports 4
LAN Port Connector RJ-45
USB Interface
Interface USB 2.0
Connector Type Type A (plug)
Compliance 5.0 V 500 mA (max 1000 mA)
Appendix A -
Specications
35011946 ver.01
WZR-HP-G300NH / WZR-HP-G300NH2 Appendix II
Appendix A Specications
Other
Power Supply External AC 100-240 V Universal, 50/60 Hz
Power Consumption About 14.0 W (Max)
Dimensions 165 mm x 158 mm x 30 mm (6.5 x 6.2 x 1.2 in.)
Weight 382 g (13.5 oz.) (not including the stand)
Operating Environment 0 - 40° C (32 - 104° F), 20 - 80% (non-condensing)
WZR-HP-G300NH / WZR-HP-G300NH2 Appendix III
Appendix B - Regulatory Compliance Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Important Note - FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specic channels and/or operational frequency bands are country
dependent and are rmware programmed at the factory to match the intended destination. The
rmware setting is not accessible by the end user.
WZR-HP-G300NH / WZR-HP-G300NH2 Appendix IV
Appendix B Regulatory Compliance Information
Industry Canada statement:
Industrie Canada déclaration:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio
exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes:
(1) le dispositif ne doit pas produire de brouillage préjudiciable, et
(2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer
un fonctionnement indésirable.
Important Note - Radiation Exposure Statement:
Note Importante - Déclaration d’exposition aux radiations:
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm
de distance entre la source de rayonnement et votre corps.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The
following test methods have been applied in order to prove presumption of conformity with the
essential requirements of the R&TTE Directive 1999/5/EC:
EN60950-1: 2006 +A11: 2009
Safety of Information Technology Equipment
EN50385 : (2002-08)
Product standard to demonstrate the compliance of radio base stations and xed terminal stations
for wireless telecommunication systems with the basic restrictions or the reference levels related to
human exposure to radio frequency electromagnetic elds (110MHz - 40 GHz) - General public
EN 300 328 V1.7.1: (2006-10)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems;
Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum
Appendix B Regulatory Compliance Information
WZR-HP-G300NH / WZR-HP-G300NH2 Appendix V
modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the
R&TTE Directive
EN 301 489-1 V1.8.1: (2008-04)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment and services; Part 1: Common technical requirements
EN 301 489-17 V2.1.1 (2009-05)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment; Part 17: Specic conditions for Broadband Data Transmission
Systems
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU
member states and EFTA countries, except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to
obtain authorization to use the device for setting up outdoor radio links and/or for supplying public
access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the
RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For
detailed information the end-user should contact the national spectrum authority in France.
Česky [Czech]
Bualo Technology Inc. tímto prohlašuje, že tento AirStation WZR-HP-G300NH/WZR-HP-G300NH2 je
ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk [Danish]
Undertegnede Bualo Technology Inc. erklærer herved, at følgende udstyr AirStation WZR-HP-
G300NH/WZR-HP-G300NH2 overholder de væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF.
Deutsch [German]
Hiermit erklärt Bualo Technology Inc. dass sich das Gerät AirStation WZR-HP-G300NH/WZR-
HP-G300NH2 in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/EG bendet.
WZR-HP-G300NH / WZR-HP-G300NH2 Appendix VI
Appendix B Regulatory Compliance Information
Eesti [Estonian]
Käesolevaga kinnitab Bualo Technology Inc. seadme AirStation WZR-HP-G300NH/WZR-HP-
G300NH2 vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
English
Hereby, Bualo Technology Inc. declares that this AirStation WZR-HP-G300NH/WZR-HP-G300NH2 is
in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Español [Spanish]
Por medio de la presente Bualo Technology Inc. declara que el AirStation WZR-HP-G300NH/WZR-
HP-G300NH2 cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o
exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Buffalo Technology Inc. ΔΗΛΩΝΕΙ ΟΤΙ AirStation WZR-HP-G300NH/WZR-HP-
G300NH2 ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ
ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français [French]
Par la présente Buffalo Technology Inc. déclare que l’appareil AirStation WZR-HP-G300NH/WZR-
HP-G300NH2 est conforme aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.
Italiano [Italian]
Con la presente Buffalo Technology Inc. dichiara che questo AirStation WZR-HP-G300NH/WZR-HP-
G300NH2 è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Latviski [Latvian]
Ar šo Buffalo Technology Inc. deklarē, ka AirStation WZR-HP-G300NH/WZR-HP-G300NH2 atbilst
Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių [Lithuanian]
Šiuo Buffalo Technology Inc. deklaruoja, kad šis AirStation WZR-HP-G300NH/WZR-HP-G300NH2
atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands [Dutch]
Hierbij verklaart Buffalo Technology Inc. dat het toestel AirStation WZR-HP-G300NH/WZR-HP-
G300NH2 in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van
richtlijn 1999/5/EG.
Appendix B Regulatory Compliance Information
WZR-HP-G300NH / WZR-HP-G300NH2 Appendix VII
Malti[ Maltese]
Hawnhekk, Buffalo Technology Inc. , jiddikjara li dan AirStation WZR-HP-G300NH/WZR-HP-G300NH2
jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva
1999/5/EC.
Magyar [Hungarian]
Alulírott, Buffalo Technology Inc. nyilatkozom, hogy a AirStation WZR-HP-G300NH/WZR-HP-
G300NH2 megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb
elõírásainak.
Polski [Polish]
Niniejszym Buffalo Technology Inc. oświadcza, że AirStation WZR-HP-G300NH/WZR-HP-G300NH2
jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy
1999/5/EC.
Português [Portuguese]
Buffalo Technology Inc. declara que este AirStation WZR-HP-G300NH/WZR-HP-G300NH2 está
conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko [Slovenian]
Buffalo Technology Inc. izjavlja, da je ta AirStation WZR-HP-G300NH/WZR-HP-G300NH2 v skladu z
bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky [Slovak]
Buffalo Technology Inc. týmto vyhlasuje, že AirStation WZR-HP-G300NH/WZR-HP-G300NH2 spĺňa
základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish]
Buffalo Technology Inc. vakuuttaa täten että AirStation WZR-HP-G300NH/WZR-HP-G300NH2
tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden
ehtojen mukainen.
Svensk [Swedish]
Härmed intygar Buffalo Technology Inc. att denna AirStation WZR-HP-G300NH/WZR-HP-G300NH2
står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som
framgår av direktiv 1999/5/EG.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity when
working with electrical equipment. All guidelines of this manual and of the computer manufacturer
must therefore be allowed at all times to ensure the safe use of the equipment.
WZR-HP-G300NH / WZR-HP-G300NH2 Appendix VIII
Appendix B Regulatory Compliance Information
根據 NCC 低功率電波輻射性電機管制辦法：
第十二條：
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加
大功率或變更原設計之特性及功能。
第十四條：
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停
用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低
功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
기종별 사 용 자 안 내 문
B 급 기기
( 가정용 정보통신기기 )
이 기기는 가정용 (B 급 ) 전자파적합기기로서 주
로 가정에서 사용하는 것을 목적으로 하며 , 모든
지역에서 사용할 수 있습니다 .
WZR-HP-G300NH / WZR-HP-G300NH2 Appendix IX
Appendix C - Environmental Information
• The equipment that you have purchased has required the extraction and use of natural resources
for its production.
• The equipment may contain hazardous substances that could impact health and the environment.
• In order to avoid the dissemination of those substances in our environment and to diminish the
pressure on the natural resources, we encourage you to use the appropriate take-back systems.
• The take-back systems will reuse or recycle most of the materials of your end life equipment in a
sound way.
• The crossed-out wheeled bin symbol invites you to use those systems.
• If you need more information on collection, reuse, and recycling systems, please contact your local
or regional waste administration.
WZR-HP-G300NH / WZR-HP-G300NH2 Appendix X
Appendix D - GPL Information
The source code for Bualo products that use GPL code is available at http://opensource.bualo.jp/ .
WZR-HP-G300NH / WZR-HP-G300NH2 Appendix XI
Appendix E - Warranty Information
Bualo Technology (Bualo Inc.) products come with a two-year limited warranty from the date of
purchase. Bualo Technology (Bualo Inc.) warrants to the original purchaser of the product good
operating condition for the warranty period. This warranty does not include non-Bualo Technology
(Bualo Inc.) installed components. If the Bualo product malfunctions during the warranty period,
Bualo Technology/(Bualo Inc.) will, replace the unit, provided the unit has not been subjected
to misuse, abuse, or non-Bualo Technology/(Bualo Inc.) authorized alteration, modications or
repair.
All expressed and implied warranties for the Bualo Technology (Bualo Inc) product line including,
but not limited to, the warranties of merchantability and tness of a particular purpose are limited in
duration to the above period.
Under no circumstances shall Bualo Technology/(Bualo Inc.) be liable in any way to the user
for damages, including any lost prots, lost savings or other incidental or consequential damages
arising out of the use of, or inability to use the Bualo products.
In no event shall Bualo Technology/(Bualo Inc.) liability exceed the price paid for the product
from direct, indirect, special, incidental, or consequential damages resulting from the use of the
product, its accompanying software, or its documentation. Bualo Technology (Bualo Inc.) does
not oer refunds for any product.
@ 2003-2011 Bualo Technology (Bualo, Inc.)
