BUFFALO 09101938-0 802.11n/b/g Wireless Access Point Router User Manual
BUFFALO INC. 802.11n/b/g Wireless Access Point Router
BUFFALO >
User Manual
User Manual
WCR-G300 / WCR-HP-G300
802.11n / b / g Wireless Access Point Router
www.bualotech.com
3501xxxx ver.01
WCR-G300 / WCR-HP-G300 User Manual 1
Contents
Chapter 1 - Product Overview .........................................5
Features .................................................................................. 5
300 Mbps High Speed Mode ................................................... 6
Package Contents ................................................................... 7
Hardware Overview ................................................................. 8
Front Panel LED's .......................................................................... 8
Back Panel ..................................................................................... 10
Bottom ............................................................................................ 11
Right Side ...................................................................................... 12
Chapter 2 - Placing Your AirStation ................................13
Horizontal Placement .............................................................. 13
Chapter 3 - Installation .....................................................14
Manual Setup .......................................................................... 15
WDS Setup ............................................................................. 17
Automatic Setup ............................................................................. 18
WDS Setup (Manual) ..................................................................... 20
Chapter 4 - Conguration ................................................23
Accessing the Web-based Conguration Interface ................. 23
Conguration Menu (Router Mode) ......................................... 25
Conguration Menu (Bridge Mode) ......................................... 27
Setup ....................................................................................... 29
Internet/LAN (LAN Cong) ...................................................... 31
Internet (Router Mode only) ........................................................... 31
PPPoE (Router Mode only) ............................................................ 32
DDNS (Router Mode only) ............................................................. 34
WCR-G300 / WCR-HP-G300 User Manual 2
LAN ................................................................................................ 36
DHCP Lease (Router Mode only) .................................................. 38
NAT (Router Mode only) ................................................................ 39
Route ............................................................................................. 40
Wireless Cong ....................................................................... 41
WPS ............................................................................................... 41
AOSS ............................................................................................. 42
Basic .............................................................................................. 44
Advanced ....................................................................................... 48
WMM .............................................................................................. 49
MAC Filter ...................................................................................... 51
WDS (Bridge Mode only) ............................................................... 52
Security (Router Mode only) ................................................... 54
Firewall (Router Mode only) ........................................................... 54
IP Filter (Router Mode only) ........................................................... 56
VPN Pass-Through (Router Mode only) ........................................ 57
LAN Cong (Router Mode only) .............................................. 58
Port Forwarding (Router Mode only) .............................................. 58
DMZ (Router Mode only) ............................................................... 59
UPnP (Router Mode only) .............................................................. 60
QoS (Router Mode only) ................................................................ 61
Admin Cong ........................................................................... 62
Name ............................................................................................. 62
Password ....................................................................................... 63
Time/Date ...................................................................................... 64
NTP ................................................................................................ 65
Access ........................................................................................... 66
Log ................................................................................................. 67
Save/Restore ................................................................................. 68
Initialize/Restart ............................................................................. 69
Update ........................................................................................... 70
Diagnostic ............................................................................... 71
System Info .................................................................................... 71
Logs ............................................................................................... 73
WCR-G300 / WCR-HP-G300 User Manual 3
Packet Info ..................................................................................... 74
Client Monitor ................................................................................. 75
Ping ................................................................................................ 76
Chapter 5 - Connect to a Wireless Network ...................77
Automatic Secure Setup (AOSS/WPS) ................................... 77
Windows 7 or Vista (Client Manager V) ......................................... 78
Windows XP (Client Manager 3) .................................................... 79
Mac OS X (AOSS Assistant) .......................................................... 80
Manual Setup .......................................................................... 81
Windows 7 (WLAN AutoCong) ..................................................... 81
Windows Vista (WLAN AutoCong) ............................................... 82
Windows XP (Wireless Zero Conguration) ................................... 85
Mac OS X (Wi-Fi) ........................................................................... 86
Chapter 6 - Troubleshooting ............................................87
Cannot connect to the Internet over wired connection. ........... 87
Cannot access the web-based conguration interface. .......... 87
Cannot connect to the network wirelessly. .............................. 88
You forgot AirStation's SSID, Encryption Key, or Password. ... 88
The link speed is slower than 150 Mbps (Maximum link speed is
only 72Mbps). .......................................................................... 88
Other Tips ................................................................................ 89
Appendix A - Specications ............................................92
Appendix B - Default Conguration Settings ................ 94
Appendix C - Checking Wireless Signal Quality ...........99
WCR-G300 / WCR-HP-G300 User Manual 4
Appendix D - TCP/IP Settings in Windows .....................102
Appendix E - Restoring the Default Conguration ........106
Appendix F - Regulatory Compliance Information ........107
Appendix G - Environmental Information ......................113
Appendix H - GPL Information ........................................114
Appendix I - Warranty Information ..................................115
WCR-G300 / WCR-HP-G300 User Manual 5
Chapter 1 - Product Overview
Features
Supports IEEE802.11n and IEEE802.11b/g
With support for Wireless-N, Wireless-G, and Wireless-B standards, the AirStation can transfer data to
and from all standard 2.4 GHz wireless clients.
Supports WDS
WDS bridging allows multiple units to operate in a bridged network for extended coverage.
Dual speed mode
Dual speed mode makes wireless transmission faster by using 2 channels, allowing 150 Mbps data
transmission.
Support AOSS and WPS
Both AOSS (AirStation One-touch Secure System) and WPS (Wi-Fi Protected Setup) are supported.
These automatic connection standards make connection with compatable wireless devices easier.
Security Features
The AirStation is equipped with the following security features:
• AOSS
• WPS
• WPA-PSK (AES)
• WPA2-PSK(AES)
• WPA/WPA2 mixed PSK
• WEP(128/64 bit)
• Privacy Separator
• MAC address access restriction
• Deny Any Connection/SSID stealth
• Web conguration interface with password
• Firewall with easy rules
Automatic Channel Selection
Monitors wireless interference and automatically assigns the clearest, best channel.
WCR-G300 / WCR-HP-G300 User Manual 6
Chapter 1 Product Overview
Initialization
To restore settings back to the factory defaults, hold down the Reset button on the bottom of the
unit.
Browser Based Administration
This unit can be easily congured from a web browser on your computer.
300 Mbps High Speed Mode
300 Mbps is the link speed of WCR-G300 / WCR-HP-G300 when using Wireless-N mode. It represents
actual wireless data speeds, including overhead. Because the overhead is not available for user data
transfer, usable wireless throughput will be substantially slower.
Chapter 1 Product Overview
WCR-G300 / WCR-HP-G300 User Manual 7
Package Contents
Following items are included in your AirStation. If any of the items are missing, please contact your
vender.
WCR-G300
• Main unit ..............................................................................................1
• AC adapter ...........................................................................................1
• LAN cable .............................................................................................1
• Quick Setup Guide............................................................................1
• Admin Card .........................................................................................1
WCR-HP-G300
• Main unit ..............................................................................................1
• Antennas ..............................................................................................2
• AC adapter ...........................................................................................1
• LAN cable .............................................................................................1
• Quick Setup Guide............................................................................1
• Admin Card .........................................................................................1
1
2
3
45
6
WCR-G300 / WCR-HP-G300 User Manual 8
Chapter 1 Product Overview
Hardware Overview
Front Panel LED's
1 Flexible antenna
Adjust the angle for the best signal as needed. Turning the
unit so that the antenna points straight up will probably give
the strongest signal.
2 Power LED (Green)
On: The AC adapter is connected
O: The AC adapter is not connected
3 Security LED (Amber)
Indicates security status.
O: Encryption is not set
On: Encryption has been set
Double blink: The unit is waiting for an AOSS or WPS
security key
Blinking: AOSS/WPS error; failed to exchange security keys
Note: When the Security LED is lit, an encryption key has
been set. Wireless clients will need the same key to
connect.
4 Wireless LED (Green)
Indicates wireless LAN status.
Blinking: Wireless LAN is transmitting
On: Wireless LAN is connected but not active
5 Router LED (Green) On: Router functionality is enabled
O: Router functionality is disabled
6 Diag LED (Red) This indicates the status of the unit depending on the number of
blinks per cycle.
Note: When the unit is rst turned on or restarted, the Diag LED will
blink for almost a minute during boot. This is normal.
Chapter 1 Product Overview
WCR-G300 / WCR-HP-G300 User Manual 9
Diag LED
status
Meaning Status
2 blinks *1Flash ROM error Cannot read or write to the ash memory.
3 blinks *1Ethernet (wired) LAN
error
Ethernet LAN controller is malfunctioning.
4 blinks *1Wireless LAN error Wireless LAN controller is malfunctioning.
5 blinks IP address setting error Because the network addresses of both the Ineternet port (INTERNET
port) and the LAN port are the same, it is not possible to establish
communication. Change the LAN side IP address of this unit.
Continuously
blinking *2
Updating the rmware
Saving settings
Initializing settings
Updating the rmware.
Saving the settings.
Initializing the settings.
*1 Unplug the AC adapter from the wall socket, wait for a few seconds, and then plug it again. If the
light still ashes, please contact technical support.
*2 Never unplug the AC adapter while the Diag LED is blinking continuously.
7
8
9
10
WCR-G300 / WCR-HP-G300 User Manual 10
Chapter 1 Product Overview
Back Panel
7 AOSS Button
Hold down this button until the Security LED ashes (about
1 second), while the unit’s power is on, initiates AOSS/WPS
mode, allowing the unit to exchange security keys with AOSS
or WPS compatible devices.
8 LAN Port
Connect your computer, hub, or other Ethernet devices
to
these ports. This switching hub supports 10 Mbps and
100 Mbp
s connections.
9 Internet (WAN) Port
10 Mbps and 100 Mbps connections are supported.
Note: In bridge/AP mode, the Internet port becomes a
regular LAN port, for a total of 5 usable LAN ports.
10 Power Connector
Connect the included AC adapter.
11
Chapter 1 Product Overview
WCR-G300 / WCR-HP-G300 User Manual 11
Bottom
11 Reset Button With the power on, hold down this button until the Diag LED comes on to
initialize the AirStation’s settings to their default values.
12
WCR-G300 / WCR-HP-G300 User Manual 12
Chapter 1 Product Overview
Right Side
12 Factory Default Settings This sticker shows the AirStation’s SSID, default encryption key,
and WPS PIN code. By default, encryption key is disabled for
Asia Pacic.
WCR-G300 / WCR-HP-G300 User Manual 13
Chapter 2 - Placing Your AirStation
Horizontal Placement
For horzontal placement, the stand is not used.
WCR-G300 / WCR-HP-G300 User Manual 14
Chapter 3 - Installation
Automatic Setup
Windows 7 / Vista / XP
The AirNavigator CD can guide you through installing your AirStation. To launch the setup program
please insert the CD into your Windows 7/Vista/XP PC and follow the instructions on the screen. If
you deactivated auto-run for CD’s please navigate to [CD drive]:\Win\ and launch ASSetWiz.exe.
Note: · To use a wireless client in Windows 7 or Vista, perform setup using the AirNavigator CD to automatically
generate a profile for wirelessly connecting to the AirStation. After setup is complete, once the LAN
cable is removed, you can connect from your wireless client to the AirStation.
· Before performing setup, enable your computer’s wireless client.
Mac OS X

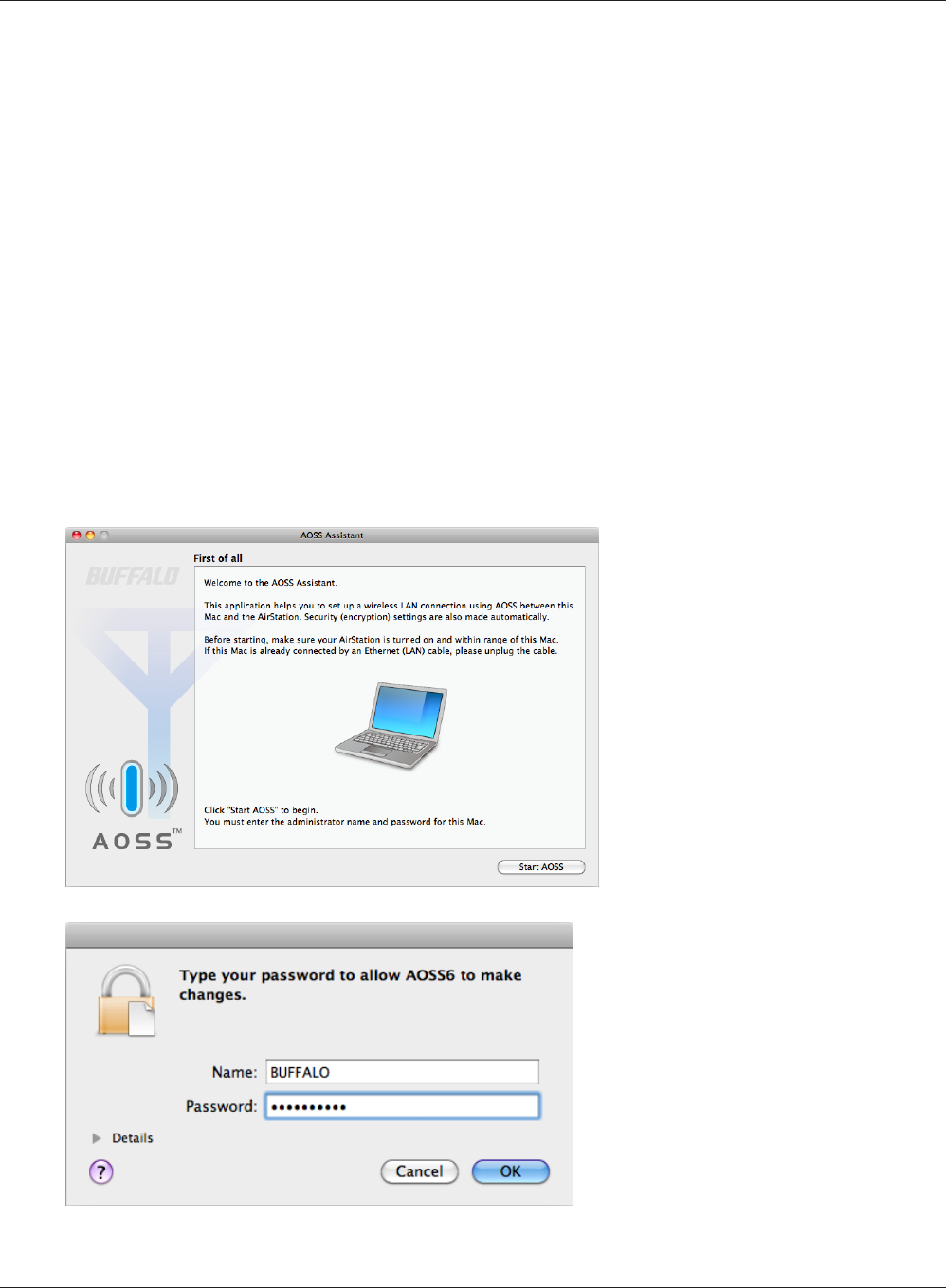

For a Mac, open the Mac folder on the CD and launch the AirStation Conguration tool. Search and
select the Bualo AirStation you want to set up. You can either congure the IP or open the web
interface for all settings. Please refer to “Manual Setup” in the next section.
Note: You can use the easy and simple setup via AOSS to connect the Mac wirelessly. Please press the AOSS but-
ton on the Buffalo router, start the AOSS assistant and follow the steps. The WLAN monitor in the same

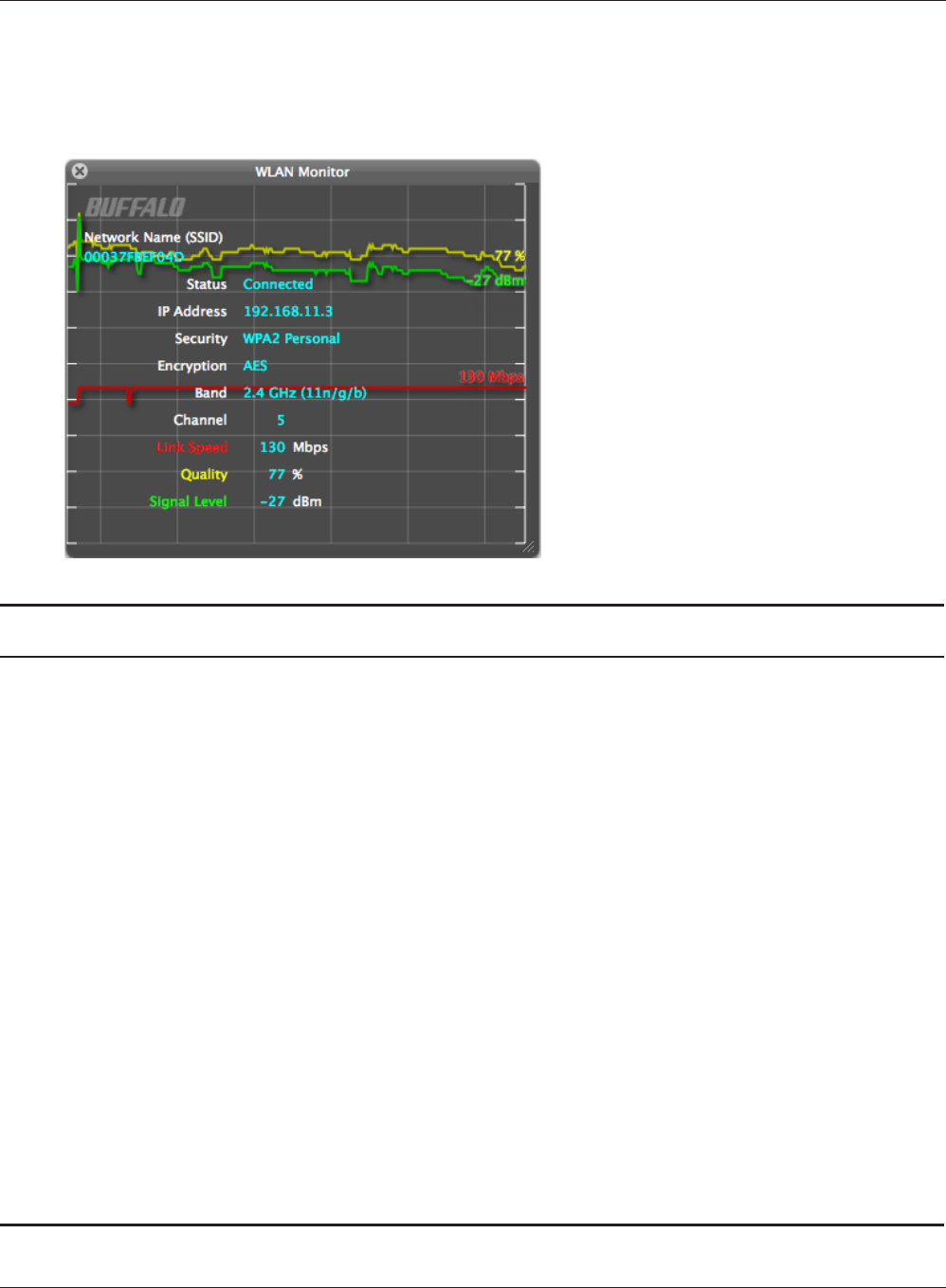

folder shows the wireless status regardless which method you use to connect.
Other OS
If your computer uses a dierent operating system, use manual setup instead. Please refer to the
next section “Manual Setup”.
Chapter 3 Installation
WCR-G300 / WCR-HP-G300 User Manual 15
4Connect your computer to one of the AirStation’s LAN ports with the Ethernet cable.
Turn on the AirStation, wait one minute, and then turn on your computer.
Manual Setup
To congure your AirStation manually, follow the procedure below.
1
computer
modem
2) disconnect
2) disconnect
ÏÆÆ
1) turn o the computer
Turn o your computer and modem. If the modem doesn’t have an o switch, unplug its
power connector.
2Find the LAN cable that connects your
computer and modem. Unplug it
from the computer.
3Plug the LAN cable from the modem into the Internet (WAN) port of your AirStation. Turn on
the modem.
WCR-G300 / WCR-HP-G300 User Manual 16
Chapter 3 Installation

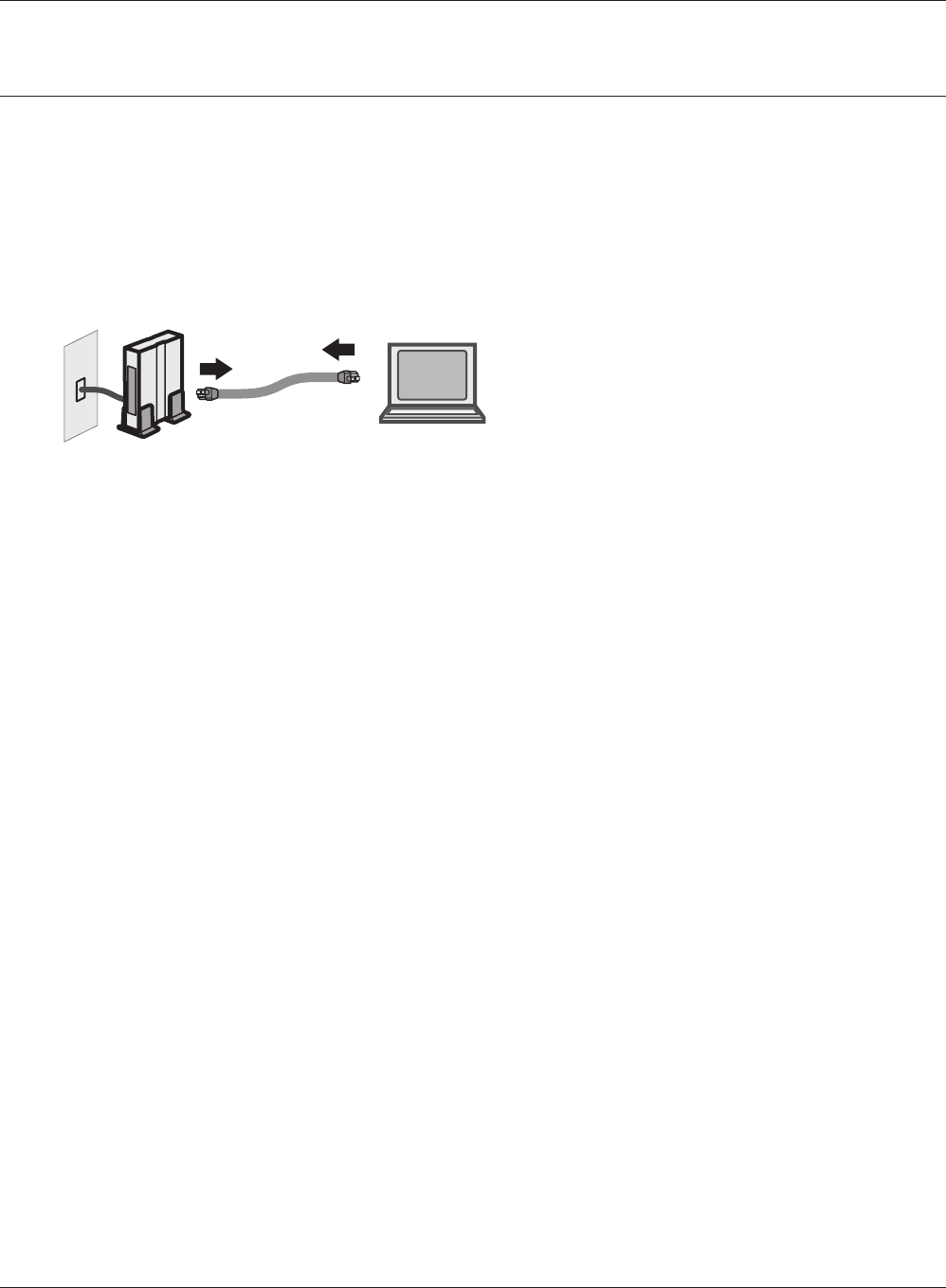

5Conrm the devices are connected correctly as the below diagram shows.
6Wait for a minute or so, until the AirStation’s LEDs are lit as described below:
Power Green light is on
Wireless Green light is on
Router Green light is on
Diag O
LAN Green light is on or blinking
Internet Green light is on or blinking
※ Refer to page 8 and 10 for LED locations and other details.
7Launch a web browser. If the [home] setup screen is displayed, setup is complete.
If a user name and password screen are displayed, enter [root] (in lower case) for the user
name, leave the password blank, and click [OK]. Follow the instructions on the screen to
complete setup.
You’ve completed initial setup of your AirStation. Refer to Chapter 4 for advanced settings.
Chapter 3 Installation
WCR-G300 / WCR-HP-G300 User Manual 17
WDS Setup
The AirNavigator CD can step you through installing multiple AirStations in a WDS bridge. Insert
it into your Windows 7, Vista, or Windows XP PC and follow the instructions on the screen. If your
computer uses a dierent operating system, use manual setup instead.
WCR-G300 / WCR-HP-G300 User Manual 18
Chapter 3 Installation
Automatic Setup
1Insert the AirNavigator CD into your PC.

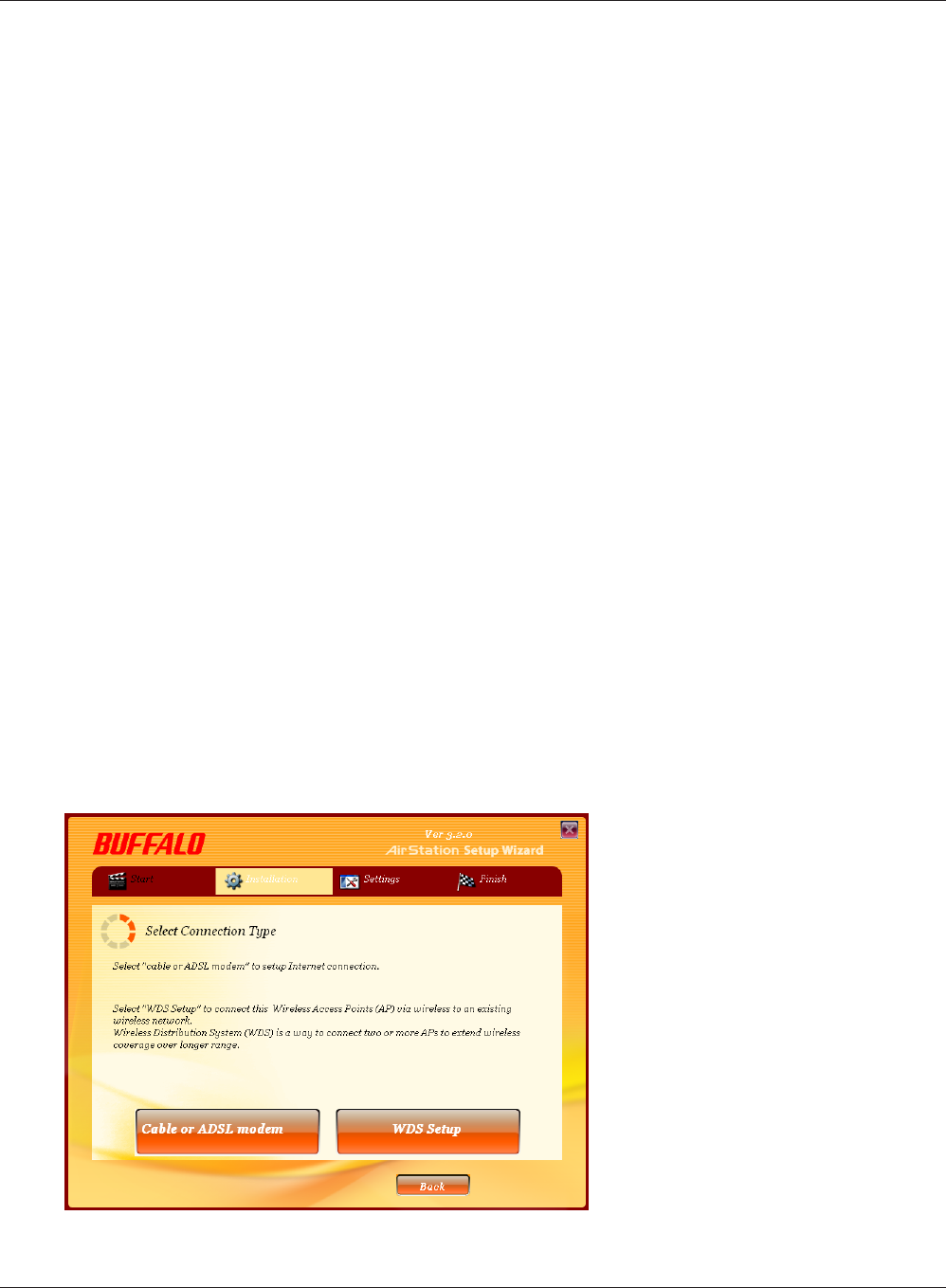

2When the screen below screen appears, click [Start].
3Choose [WDS Setup].
Chapter 3 Installation
WCR-G300 / WCR-HP-G300 User Manual 19

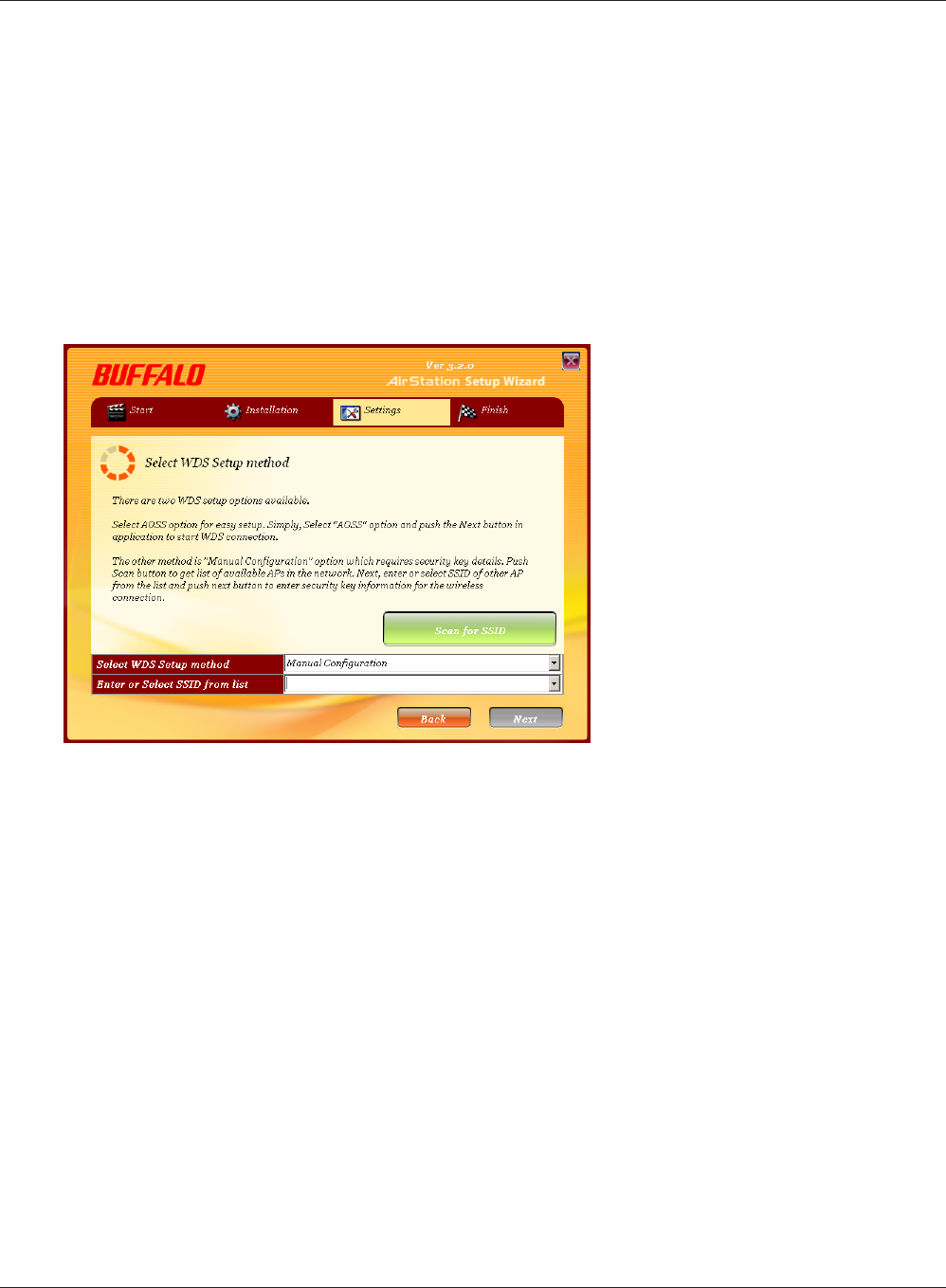

4When the below screen appears, select [AOSS conguration] or [Manual Conguration] from
[Select WDS Setup method].
AirStation will attempt to connect to other wireless APs to set up WDS.
If the target wireless AP that supports WDS is a Bualo AirStation, select [AOSS
conguration] , then push the AOSS button on the target AP.
If the target AP is not a Bualo AirStation, select [Manual Conguration]. Click [Scan for
SSID]. A list of available wireless AP will be generated. Select the target AP’s SSID from the
list and click [Next] to continue.
5Step through the wizard to complete the setup.
After conguring the WDS bridge with AOSS, any preexisting AOSS wireless clients will be
disconnected. Turn to page 77 to reconnect wireless clients with AOSS.
WCR-G300 / WCR-HP-G300 User Manual 20
Chapter 3 Installation
WDS Setup (Manual)
To congure the WDS manually, follow the procedure below.
1Change your computer’s IP to a xed address. For details, please refer to Appendix D (page 102).
ex) IP address 192.168.11.80
Subnet mask 255.255.255.0
Default gateway blank
Preferred DNS server blank
Alternate DNS server blank
2Turn o your computer.
3Connect your computer to one of the AirStation’s LAN ports with the Ethenet cable.
Turn on the AirStation, wait one minute, and then turn on your computer.
4Wait for about a minute, until the AirStation’s LEDs are lit as described below:
Power Green light is on
Wireless Green light is on
Router Green light is on
Diag O
※ Refer to page 8 and 10 for LED locations and other details.
Chapter 3 Installation
WCR-G300 / WCR-HP-G300 User Manual 21
5Open the web conguration interface (page 23).

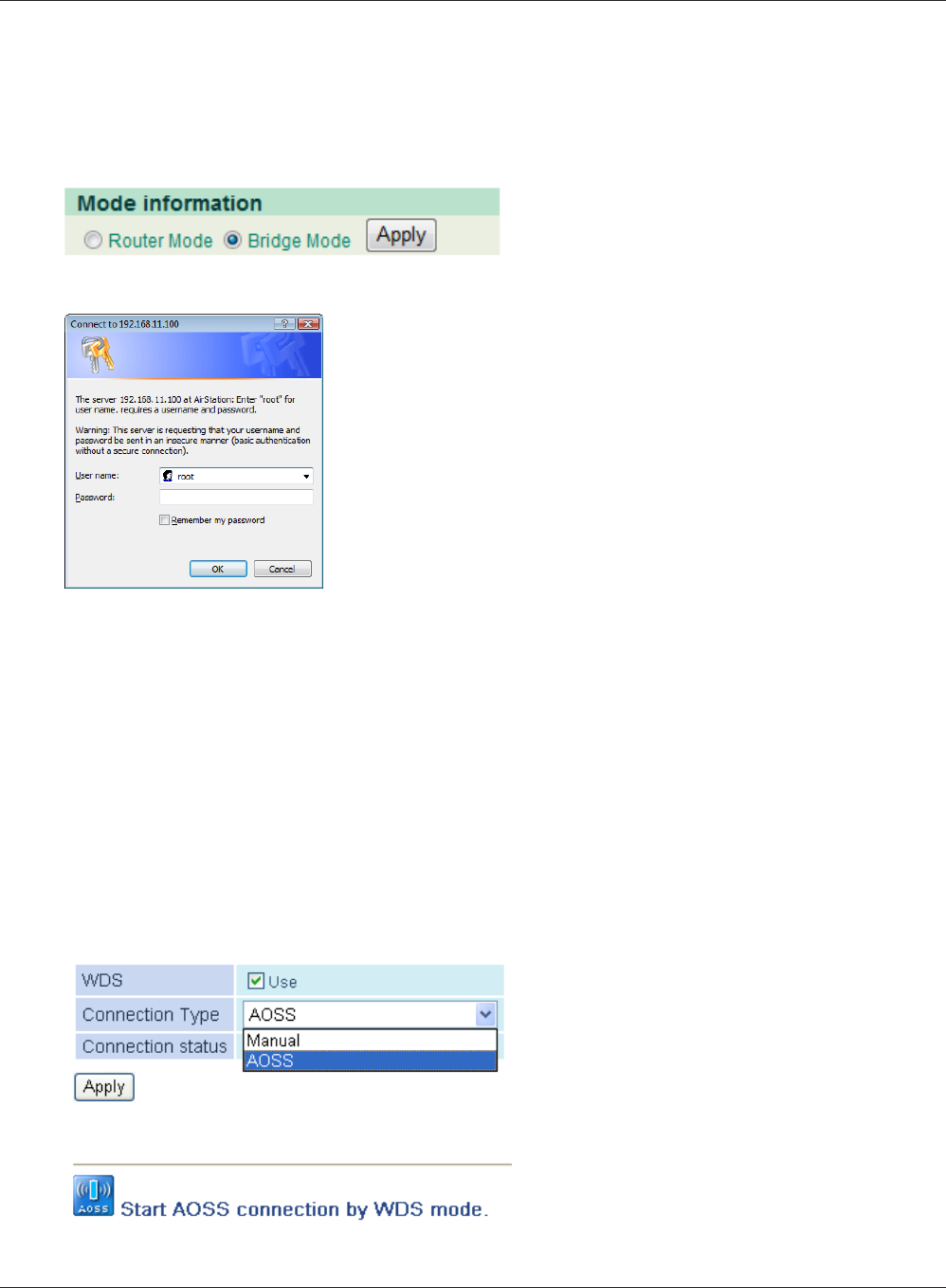

6In the [Mode information] menu, select [Bridge Mode], then click [Apply].
7When this below screen appears, re-enter
the web conguration interface username
"root" and password. Click [OK].
8The web conguration interface will open. Click [Wireless Cong] , then [WDS].
10 Follow the directions below.
AOSS Settings
Select [AOSS] from [Connection type] and click the AOSS button. Also push the AOSS button
on the unit intended to connect. Automatic conguration will take about a minute. To return
the unit to its original IP address settings, refer to Appendix D.
9Check [Use].
WCR-G300 / WCR-HP-G300 User Manual 22
Chapter 3 Installation

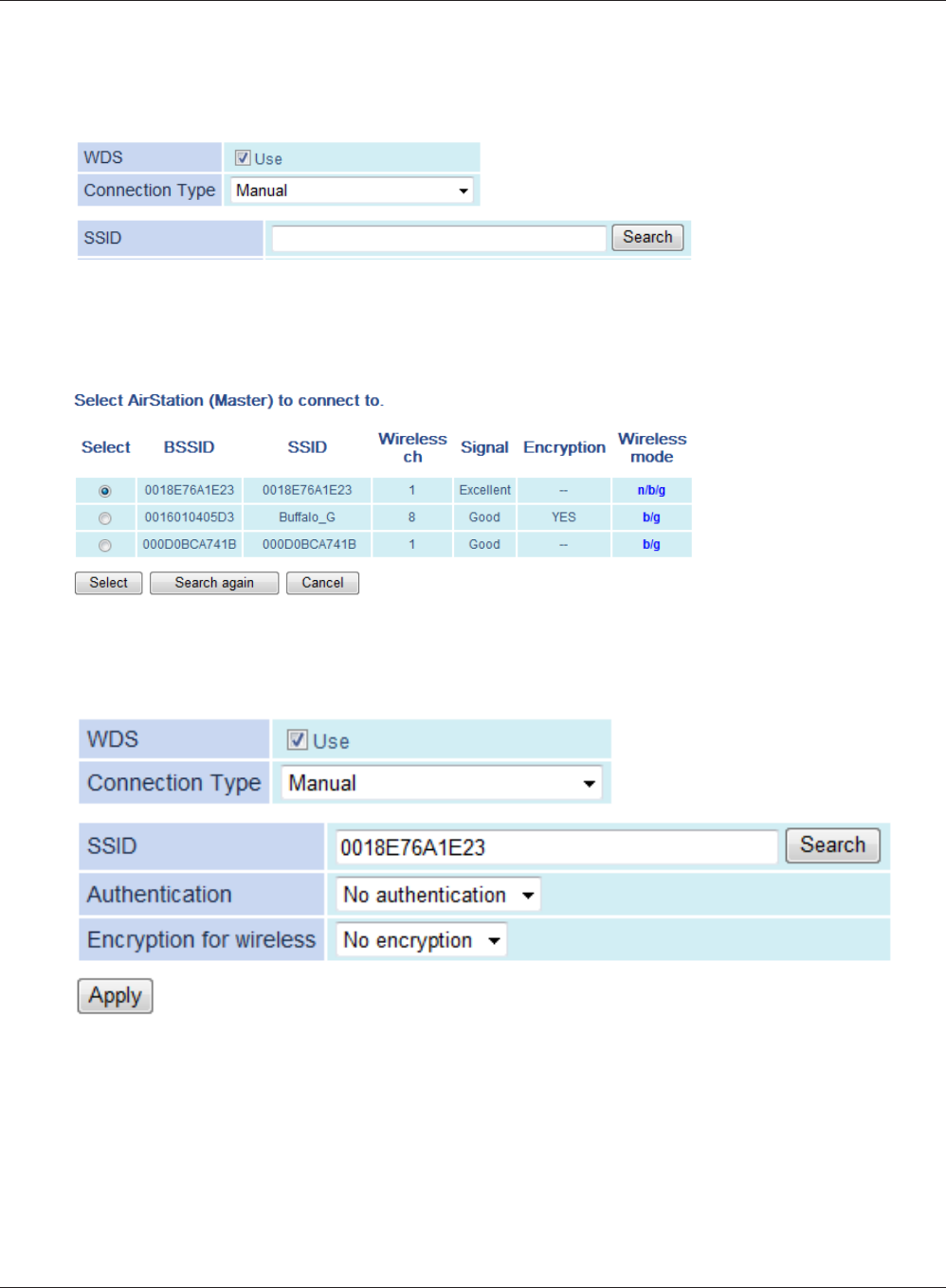

11 A list of available wireless APs will be generated. Select the target AP and click [Select].
Click [Search again] if no APs are found.
12 Congure the security settings to match that of the target AP, then click [Apply].
13 Revert your computer's IP adress settings to their original values as secribed in Appendix D
(page 102).
ex) IP address obtain an IP address automatically
Subnet mask obtain DNS server address automatically
WDS setup is complete. Refer to Chapter 4 for advanced settings.
Manual Settings

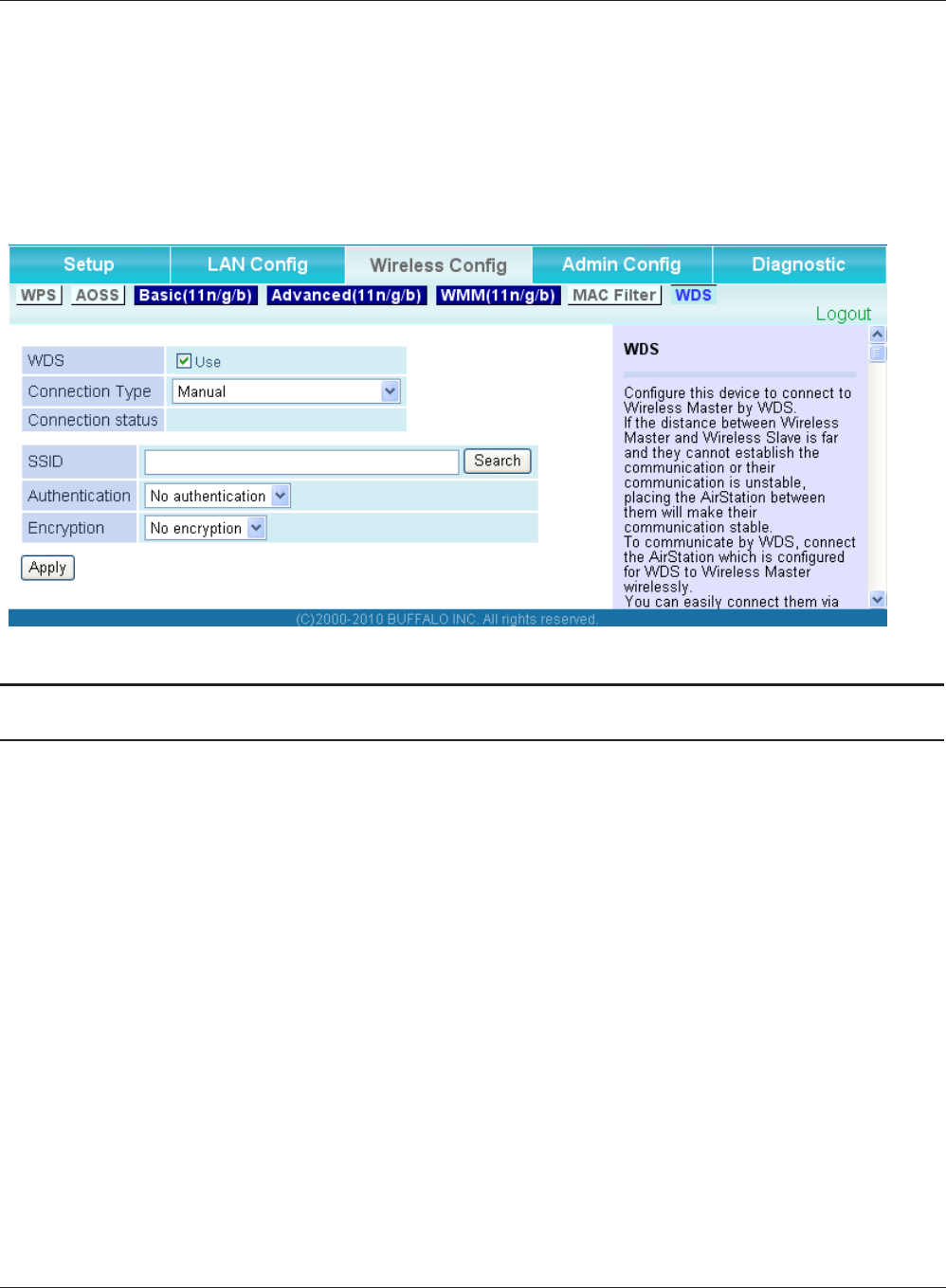

Select [Manual] from [Connection type]. Then click [Search].
WCR-G300 / WCR-HP-G300 User Manual 23
Chapter 4 - Conguration
To access the AirStation’s advanced settings, use the web-based conguration interface.
Accessing the Web-based Conguration Interface
Follow the procedure below to open the web-based conguration interface.
1
2
3

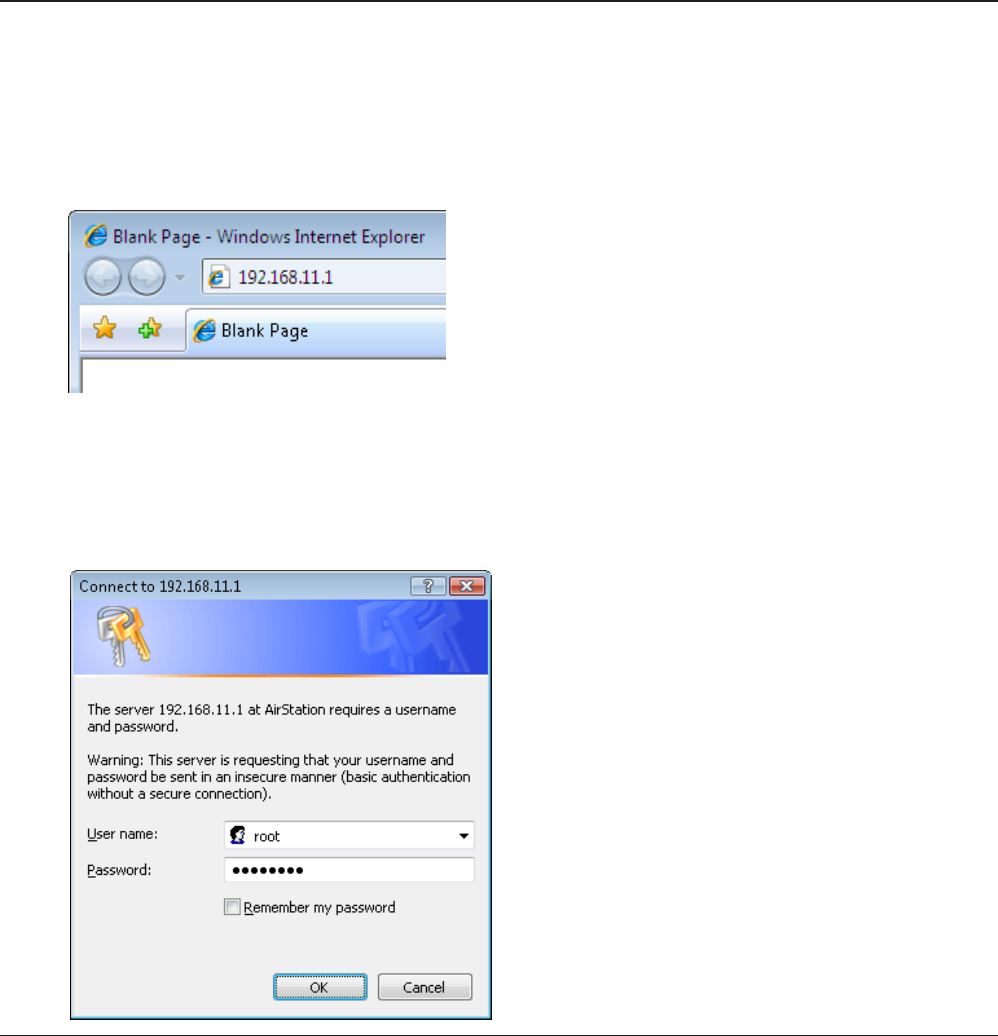

Launch a web browser.
Enter the router’s LAN-side IP address in the address
eld, and press the [Enter] key.
Note: ･ The AirStation’s default LAN-side IP address depends on its mode setting.
In router mode: 192.168.11.1
In bridge mode: 192.168.11.100
･ If you changed the IP address setting, then use the new IP address.
Enter [root] (lower case) for the username and
the password that you set during initial setup.
Click [OK].
Note: ･ By default, the password is blank (not set).
･ If you forget your password, hold down the
Reset button (page 11) to initialize all settings.
The password will then be blank.
Note that all other settings will also revert to
their default values.
WCR-G300 / WCR-HP-G300 User Manual 24
Chapter 4 Conguration

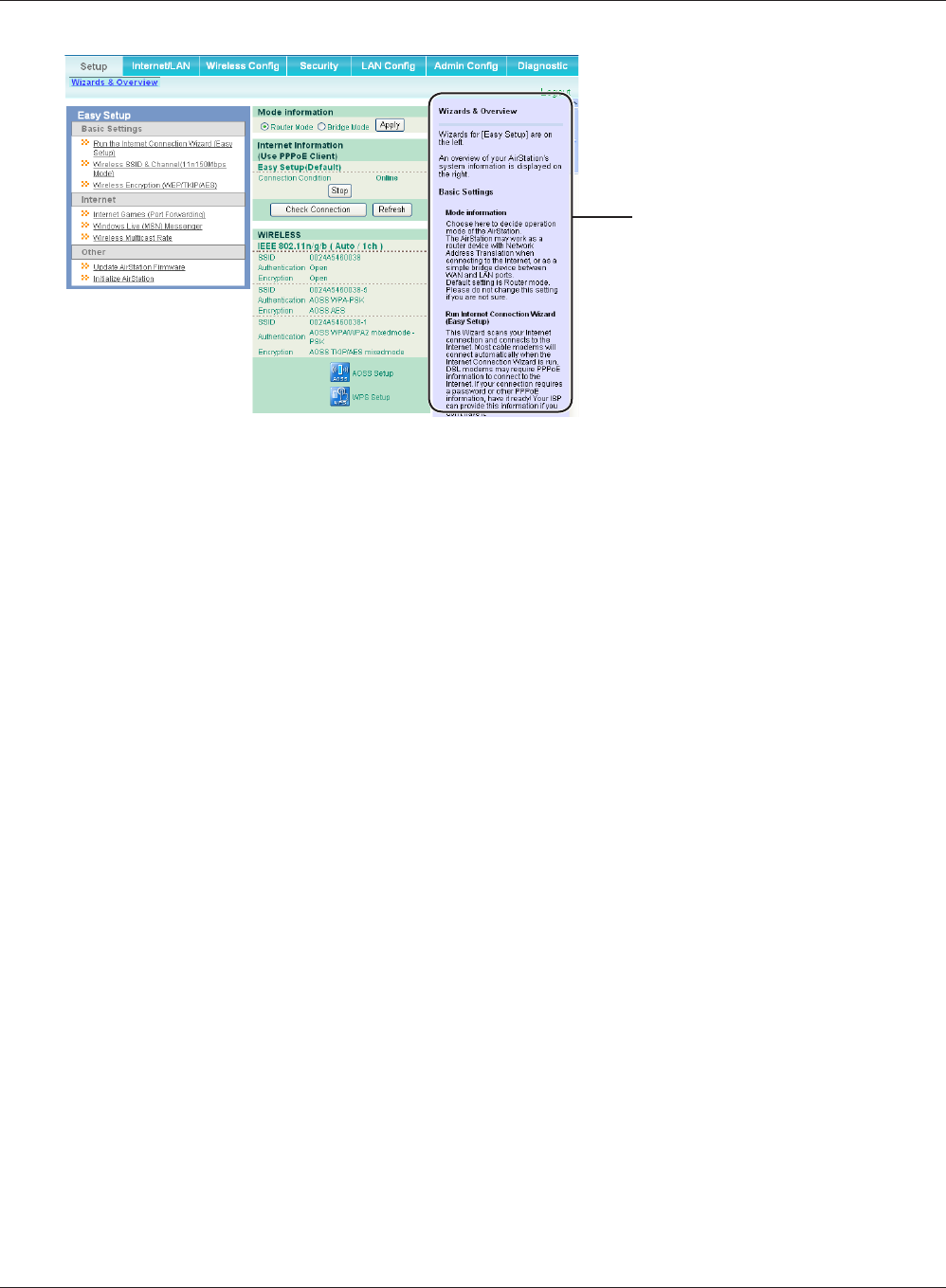

4The conguration interface is
displayed.
Help is always displayed on the
right side of the conguration
interface. Refer to the Help screens
for more information on each
page.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 25
Conguration Menu (Router Mode)
The menu structure for the AirStation in router mode is the following. Please refer to the pages listed
at right for explanations of each item.
Main screen Descriptions Page
Internet/LAN

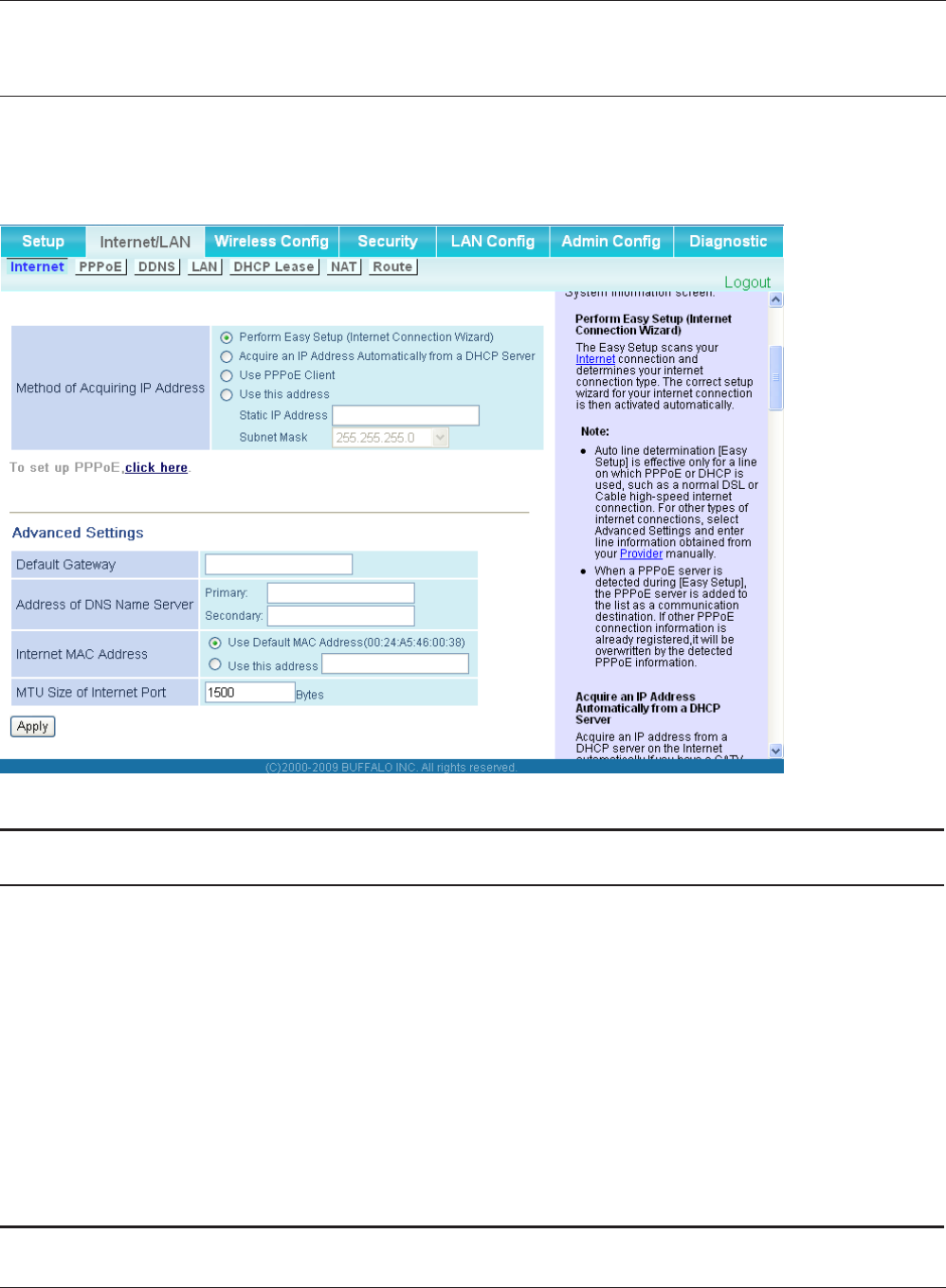

Internet Congure Internet side port and settings Page 31

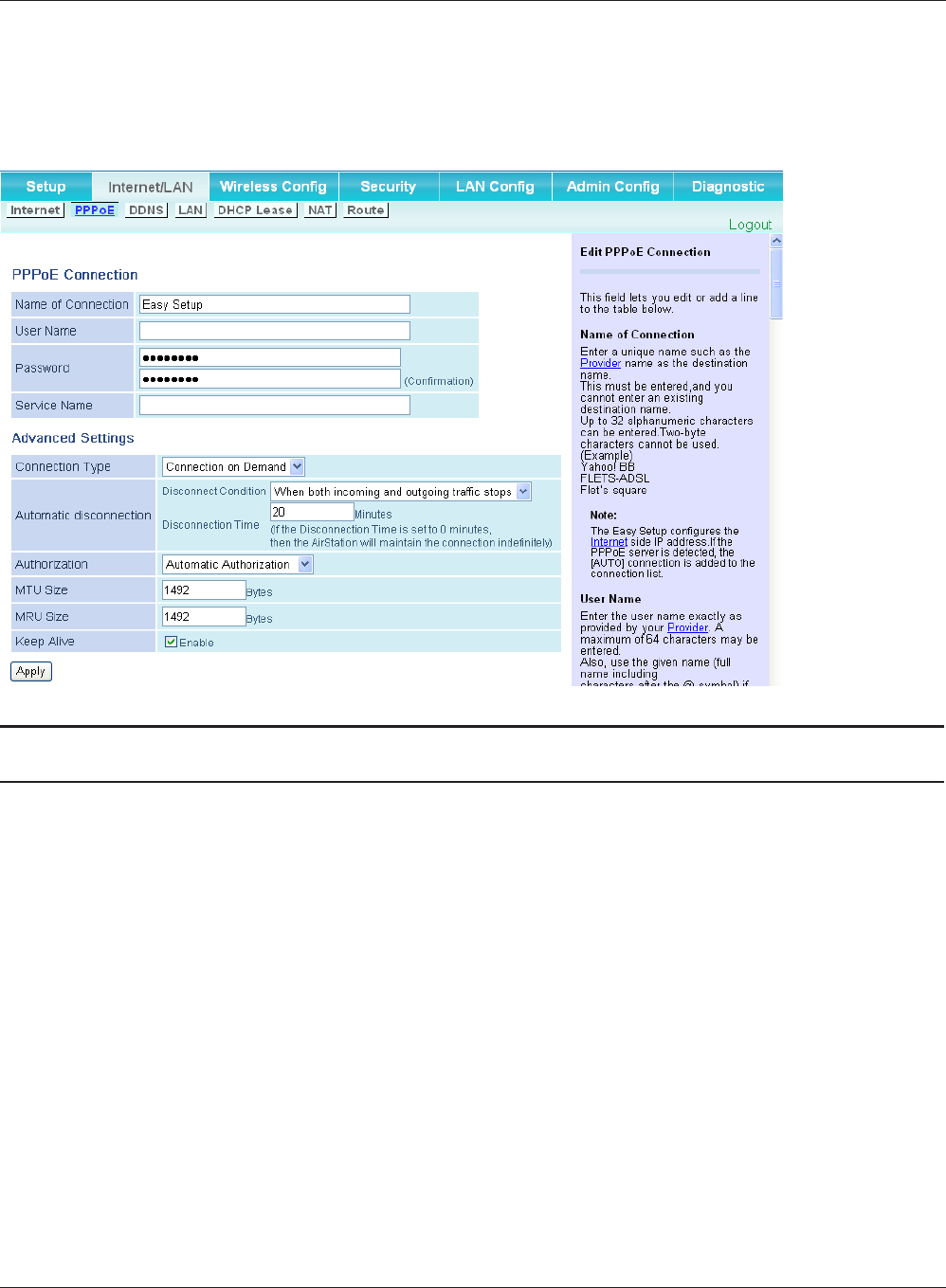

PPPoE PPPoE settings (DSL login) Page 32
DDNS DNS settings Page 34

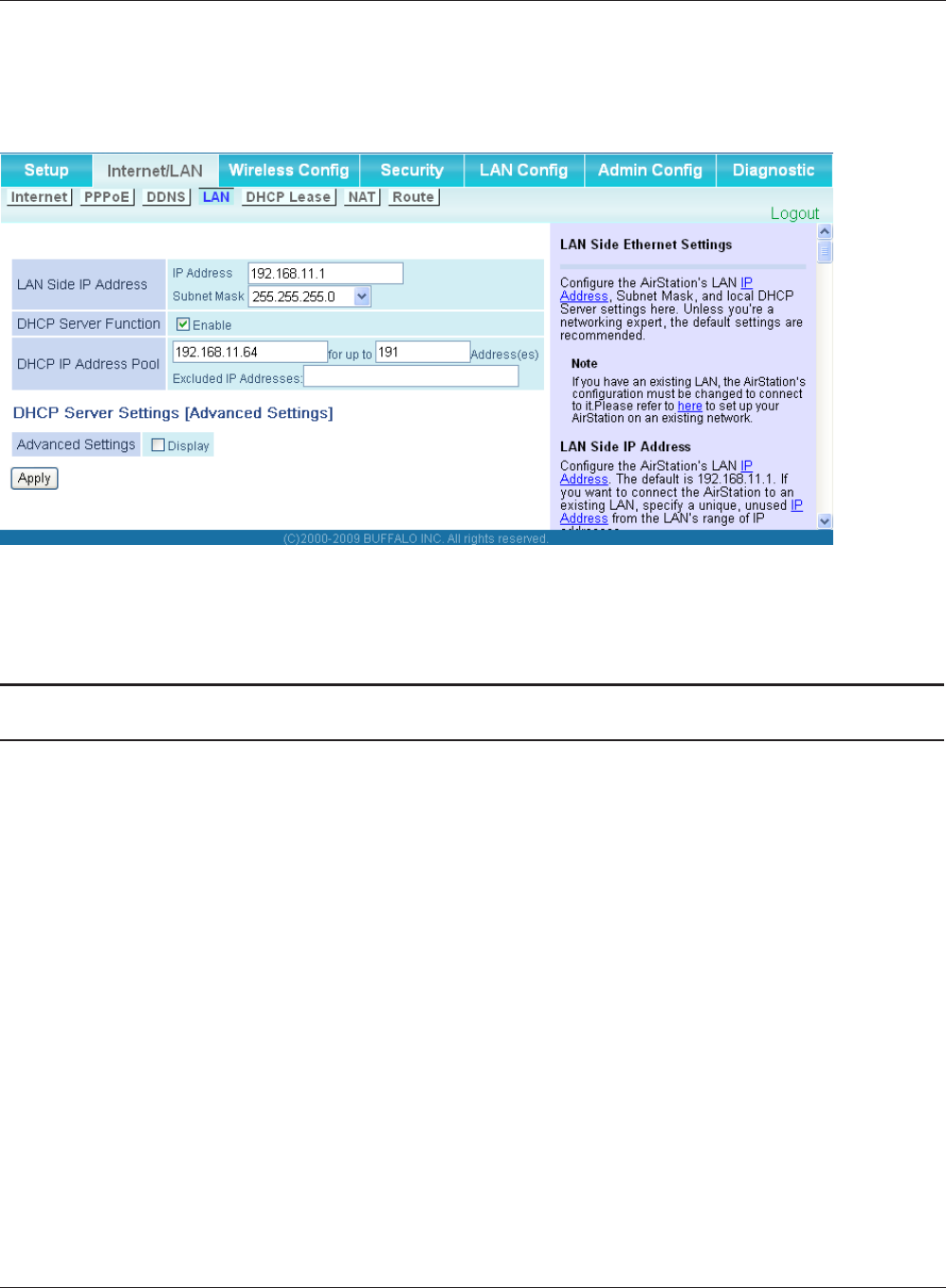

LAN LAN side port and DHCP server conguration Page 36

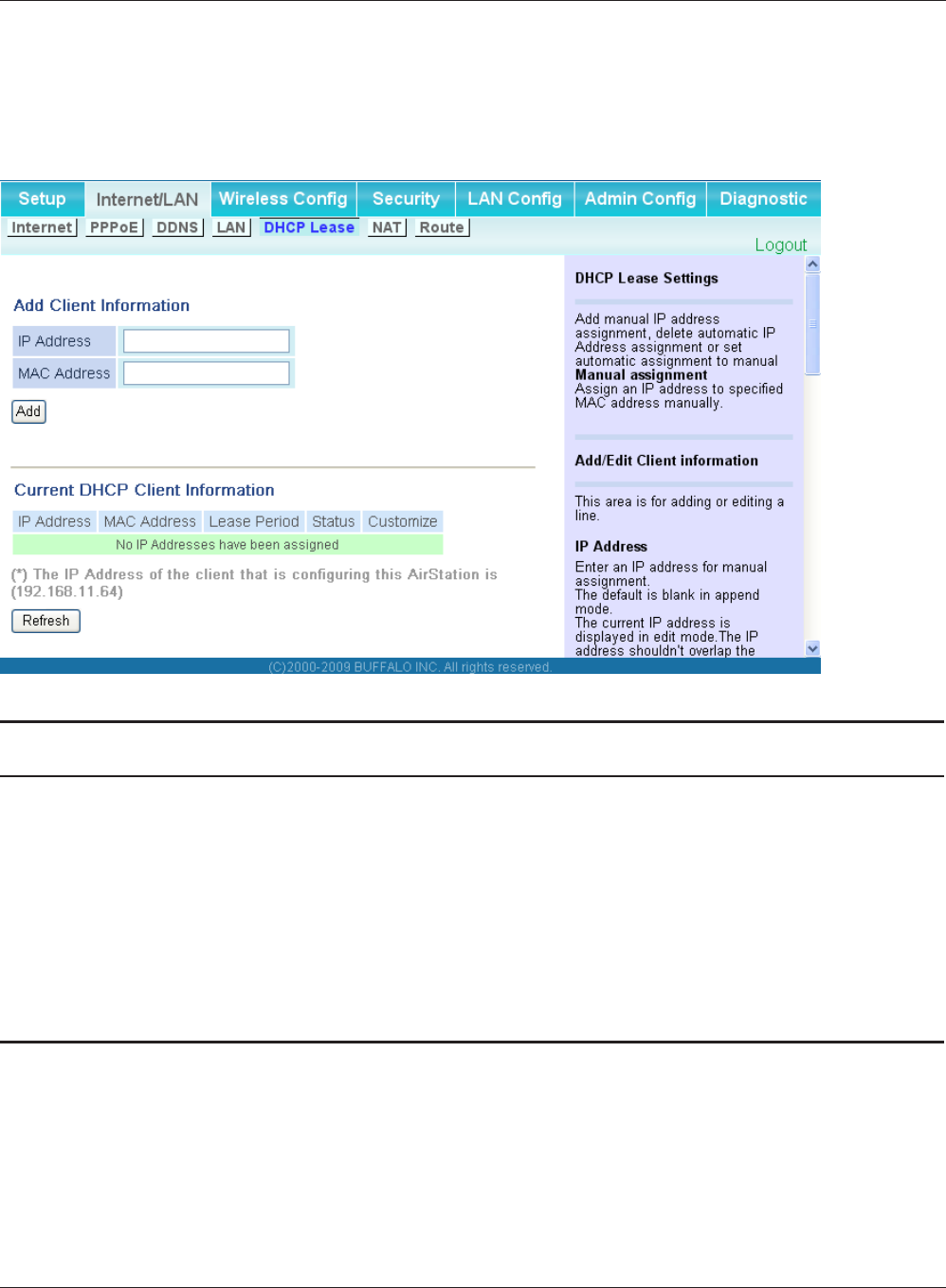

DHCP Lease DHCP lease settings Page 38

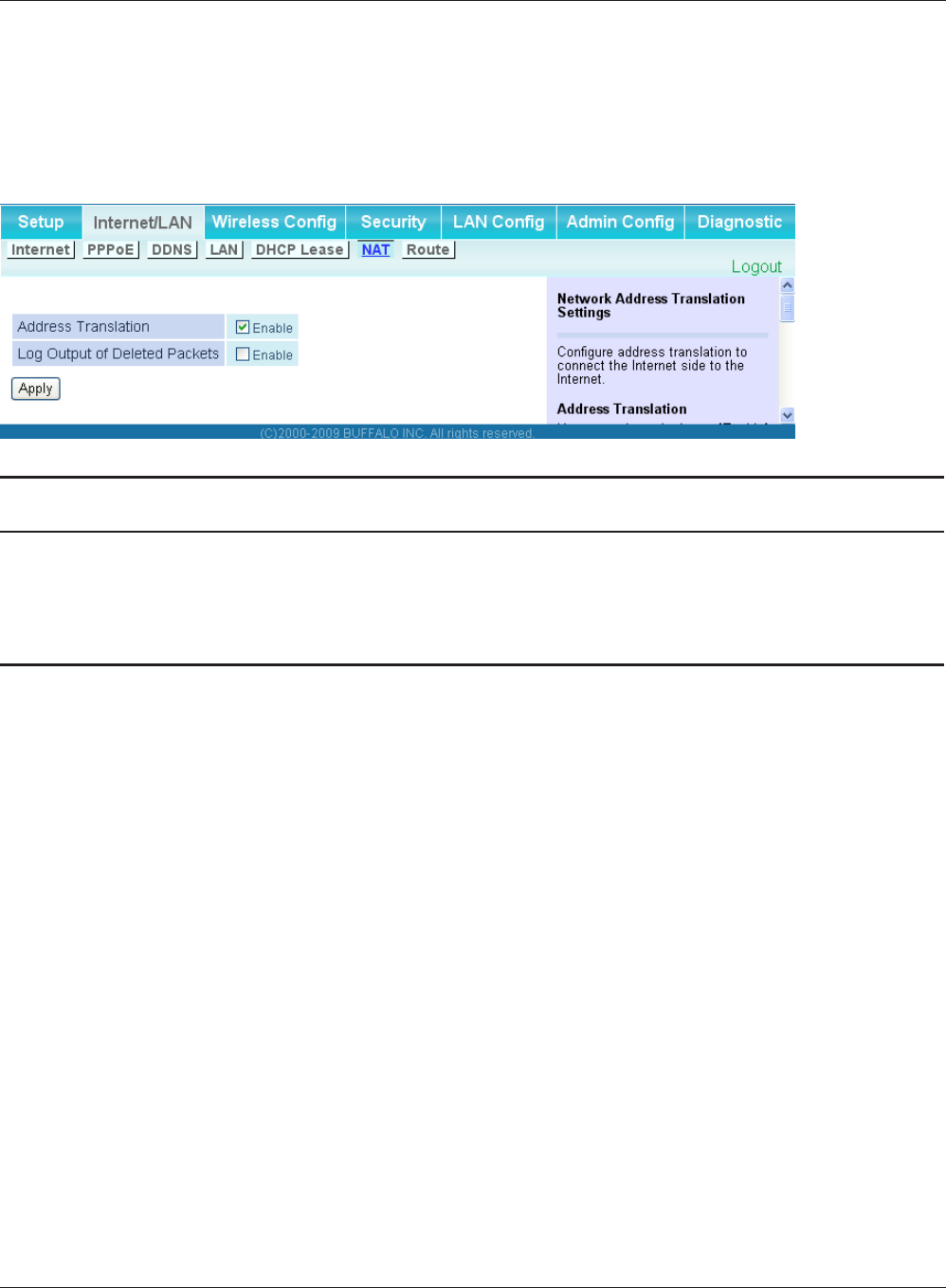

NAT Network address translation settings, used to connect LAN side devices
to the Internet
Page 39

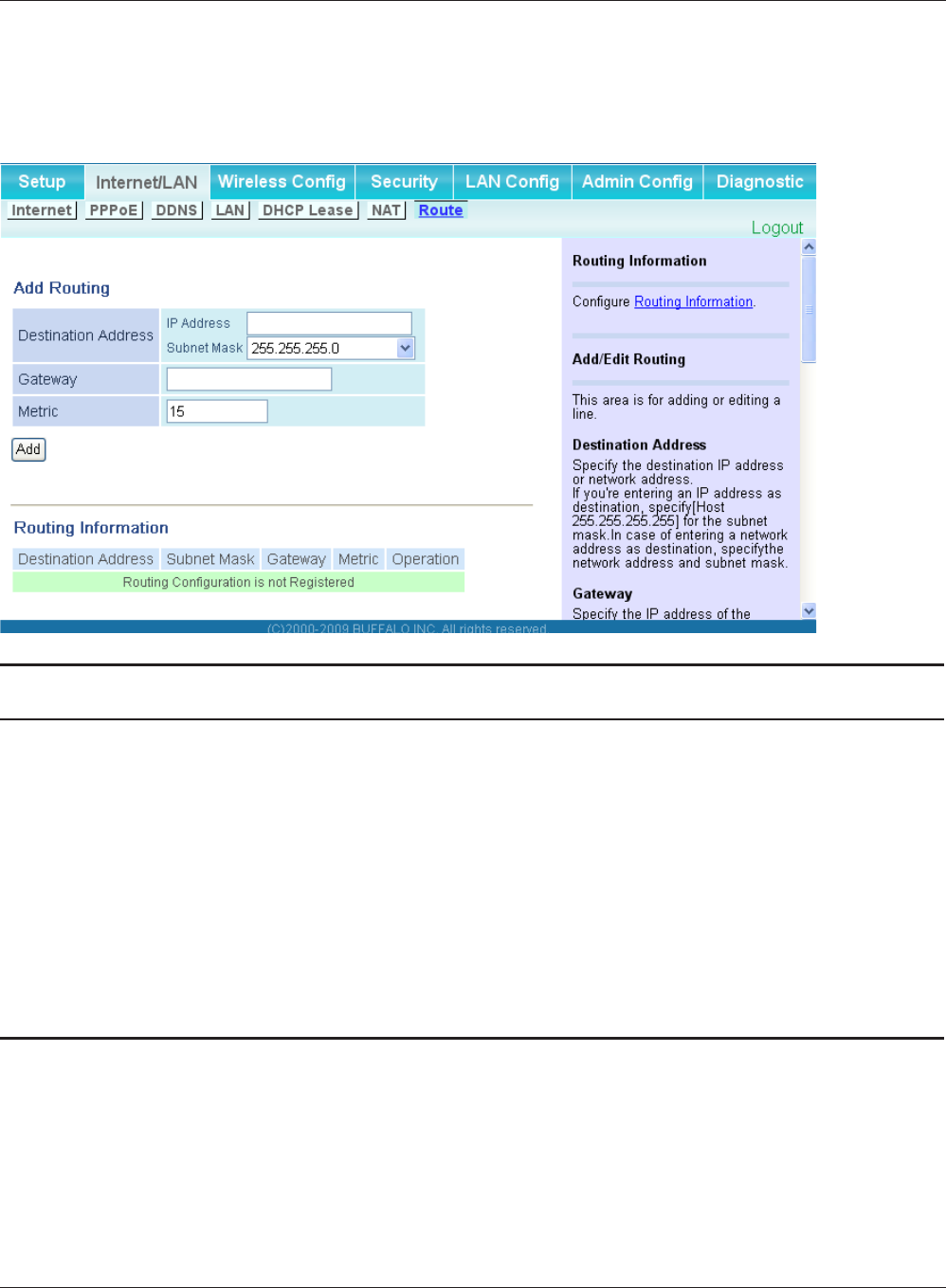

Route Congure the IP communication route that the AirStation uses Page 40
Wireless Cong
WPS WPS settings and status Page 41

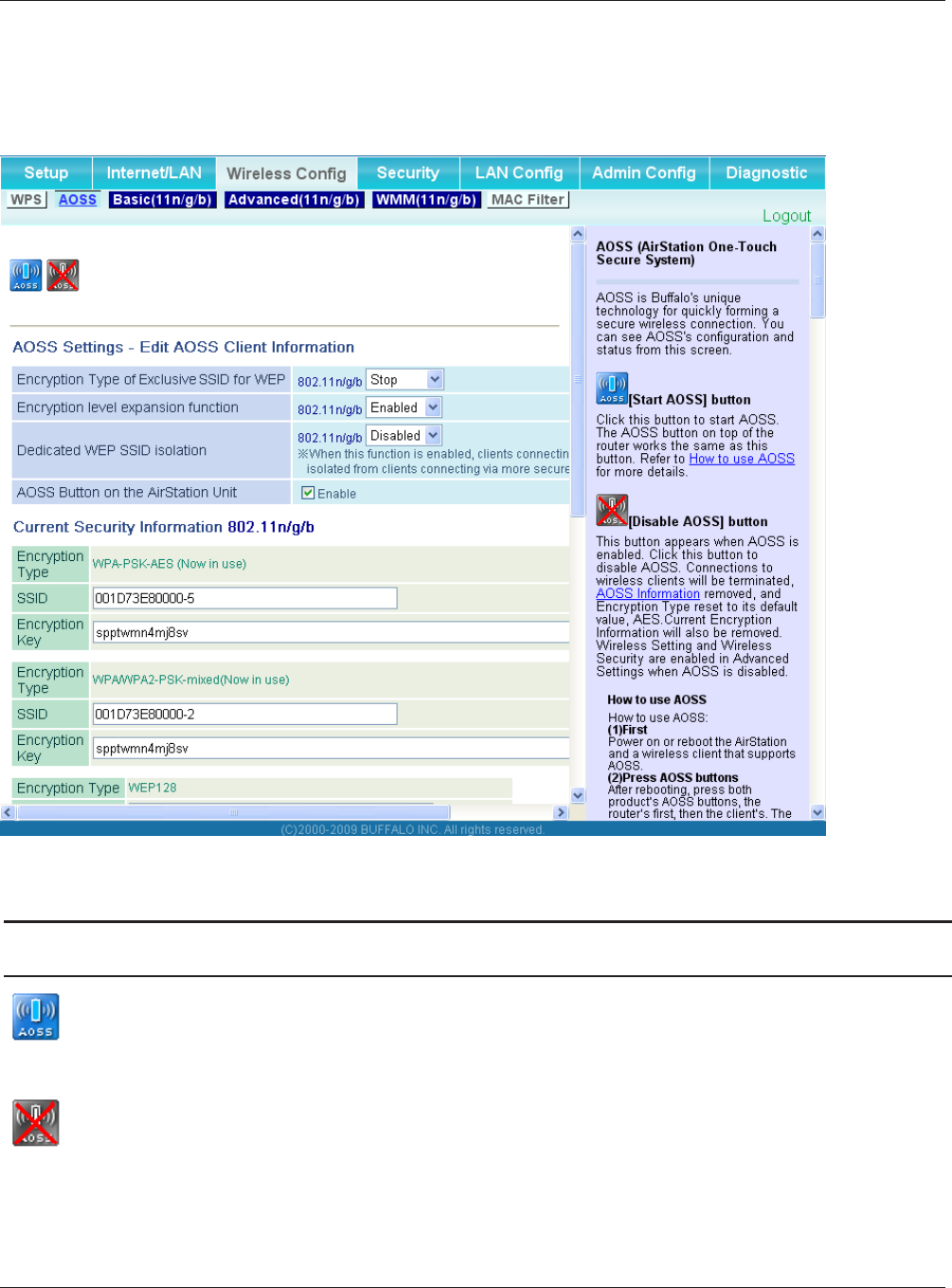

AOSS AOSS (AirStation One-touch Secure System) settings and status Page 42
Basic Congure basic wireless settings Page 44

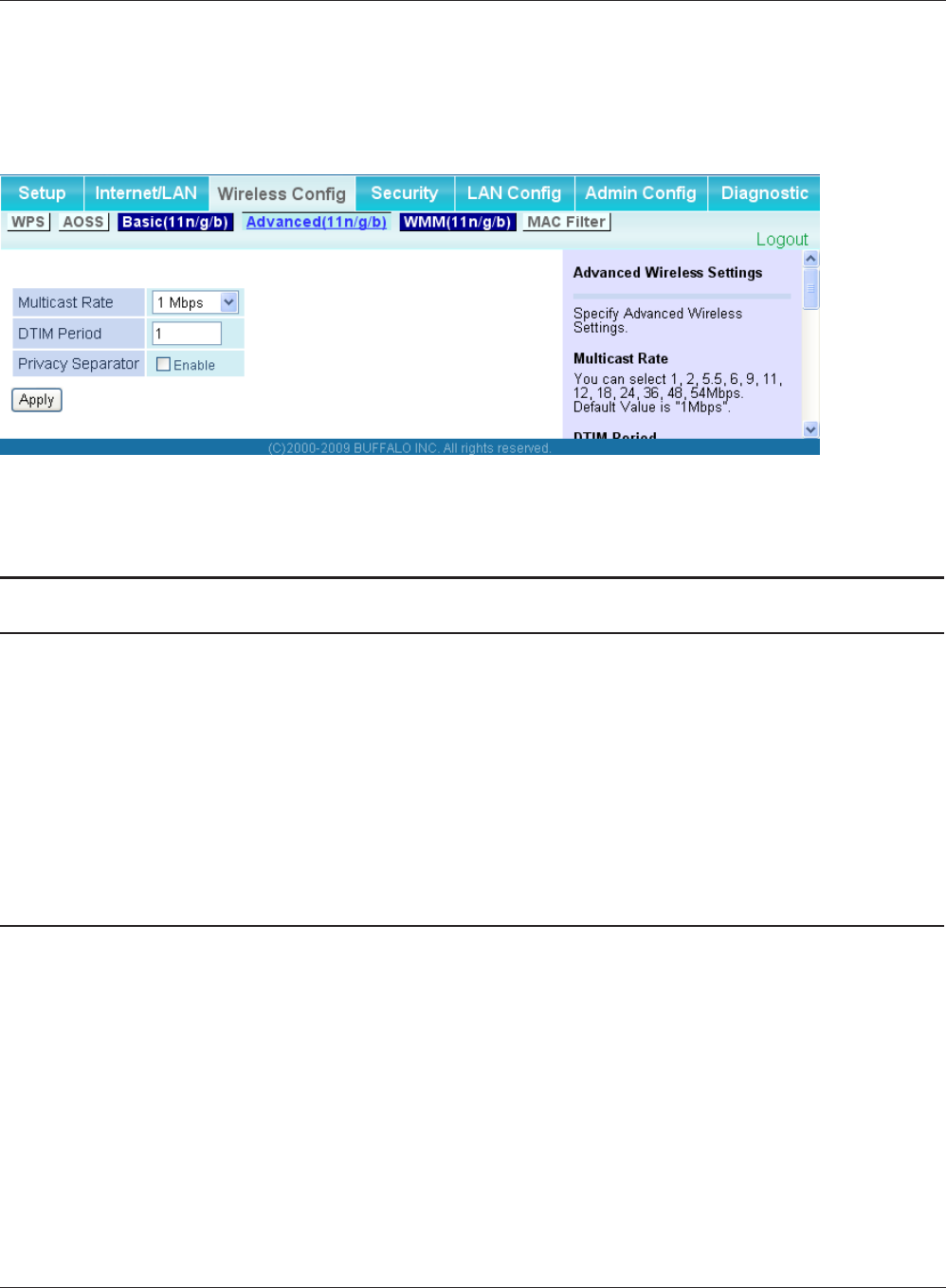

Advanced Congure advanced wireless settings Page 48

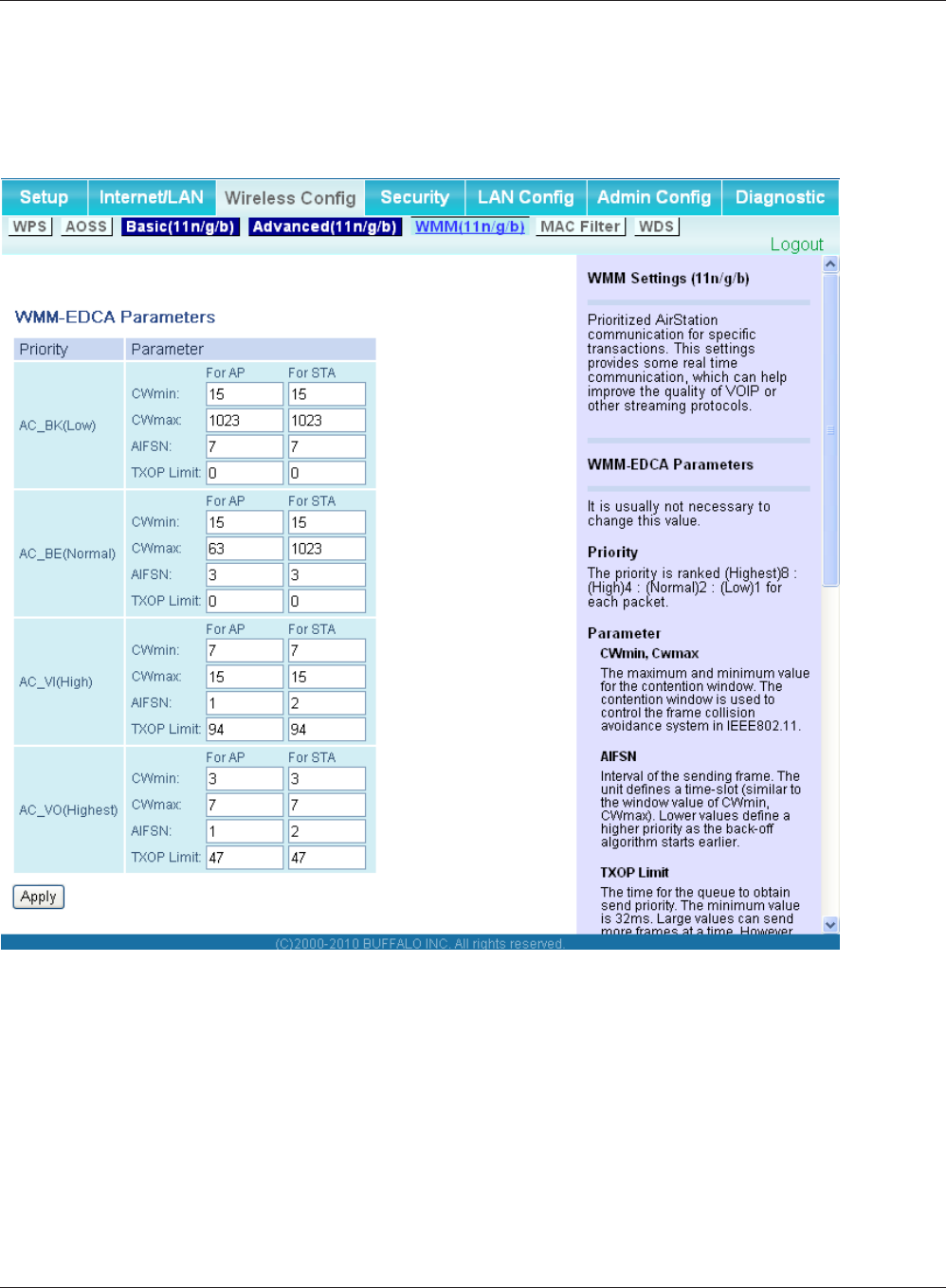

WMM Set priorities for Wireless Multimedia Extensions (Wi-Fi Multimedia) Page 49

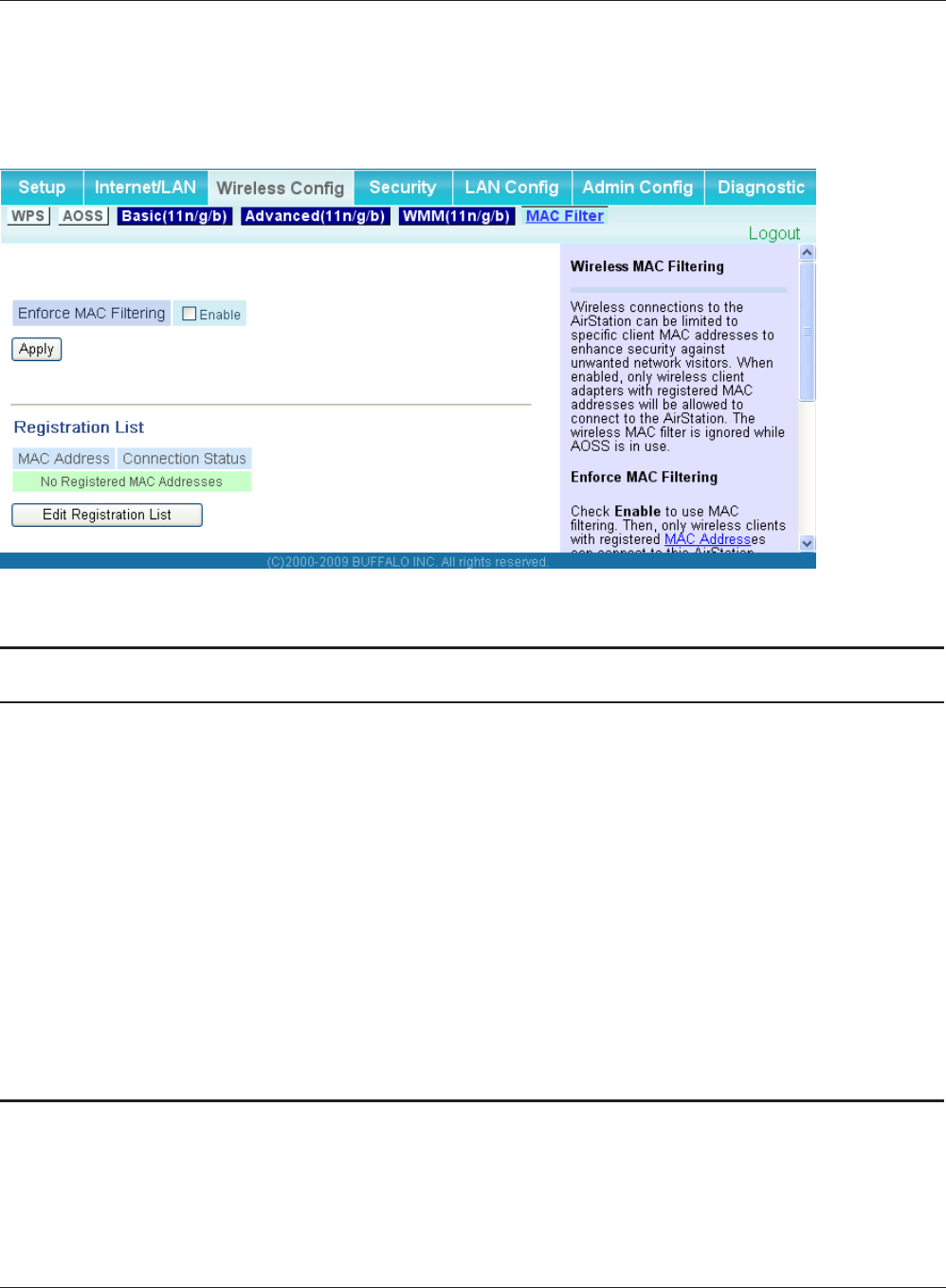

MAC Filter Limit access to specic devices Page 51
Security

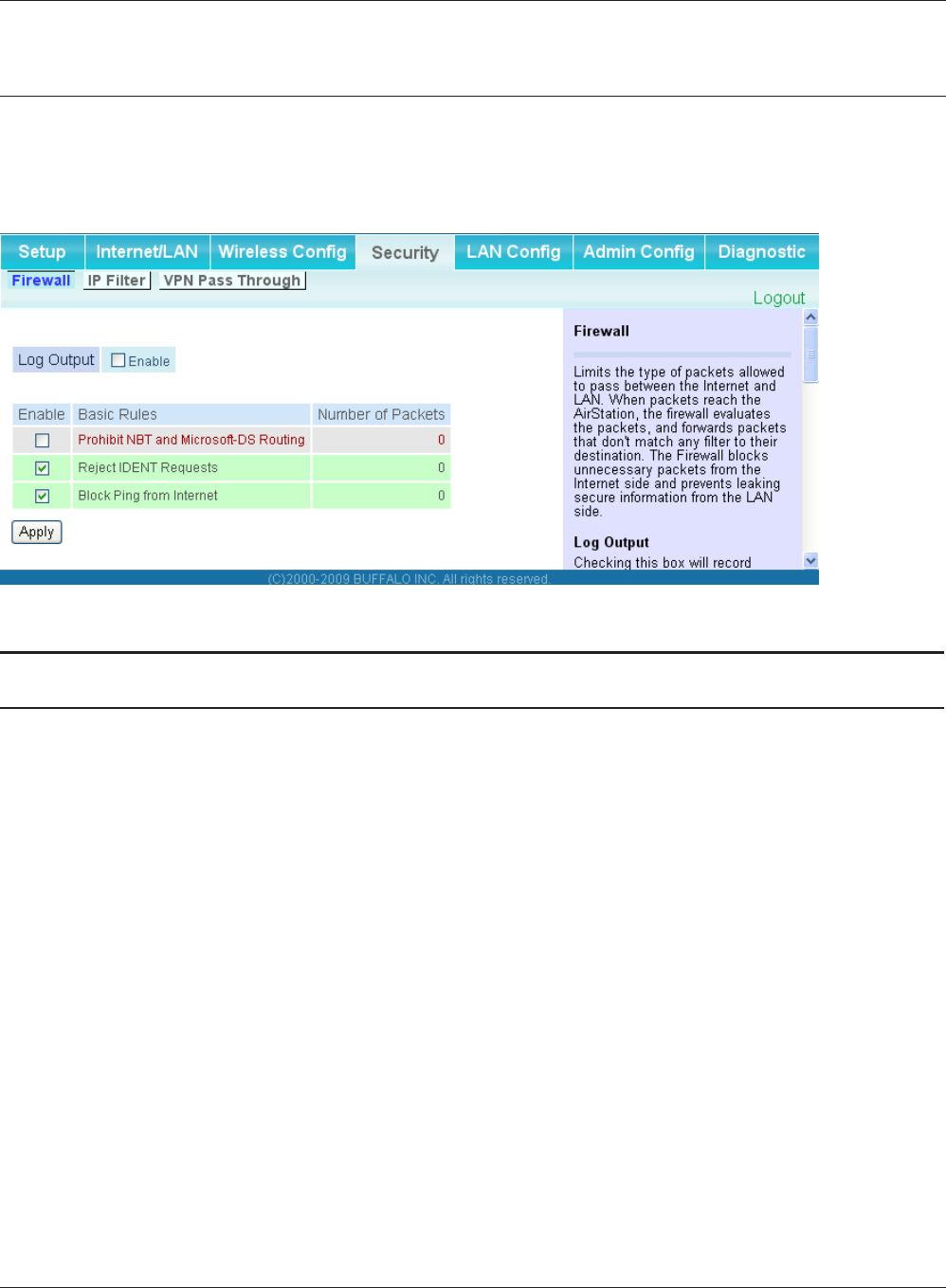

Firewall Protect your computer from outside intruders Page 54

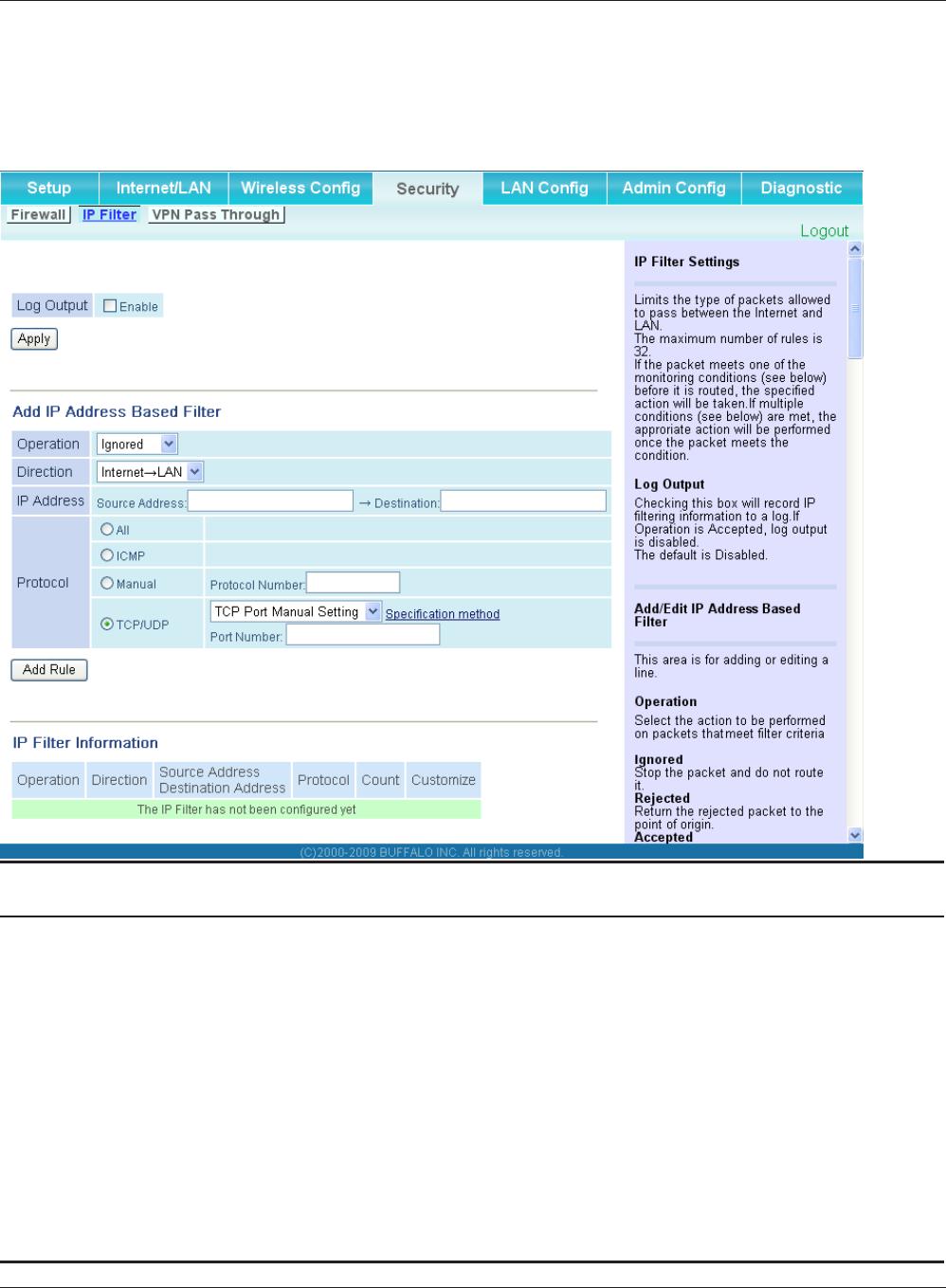

IP Filter Edit IP lters which relates to the packets passing through the LAN side
and the Internet side
Page 56
VPN
Pass-through

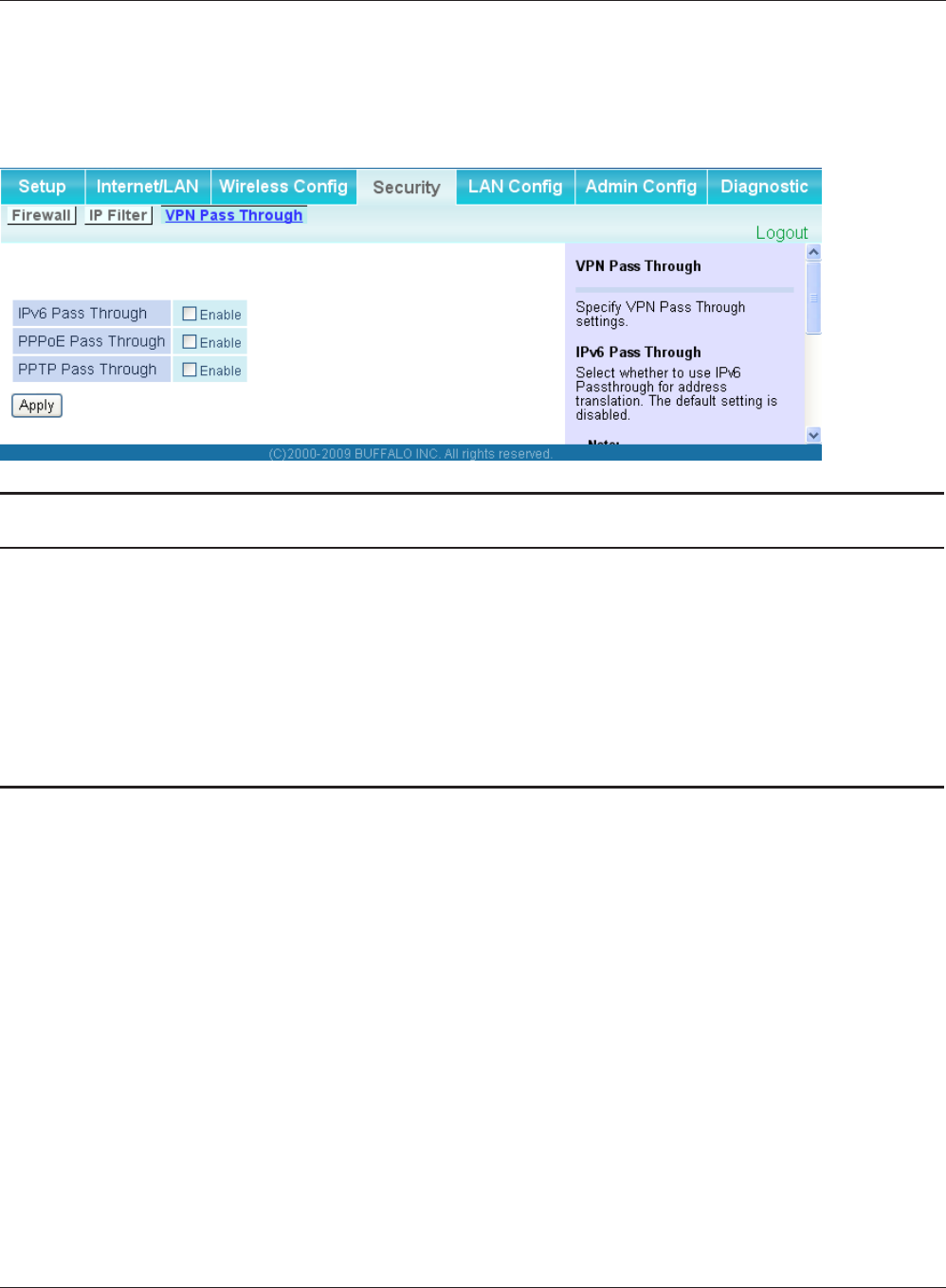

Congure IPv6 passthrough, PPPoE passthrough, and PPTP passthrough Page 57
LAN Cong

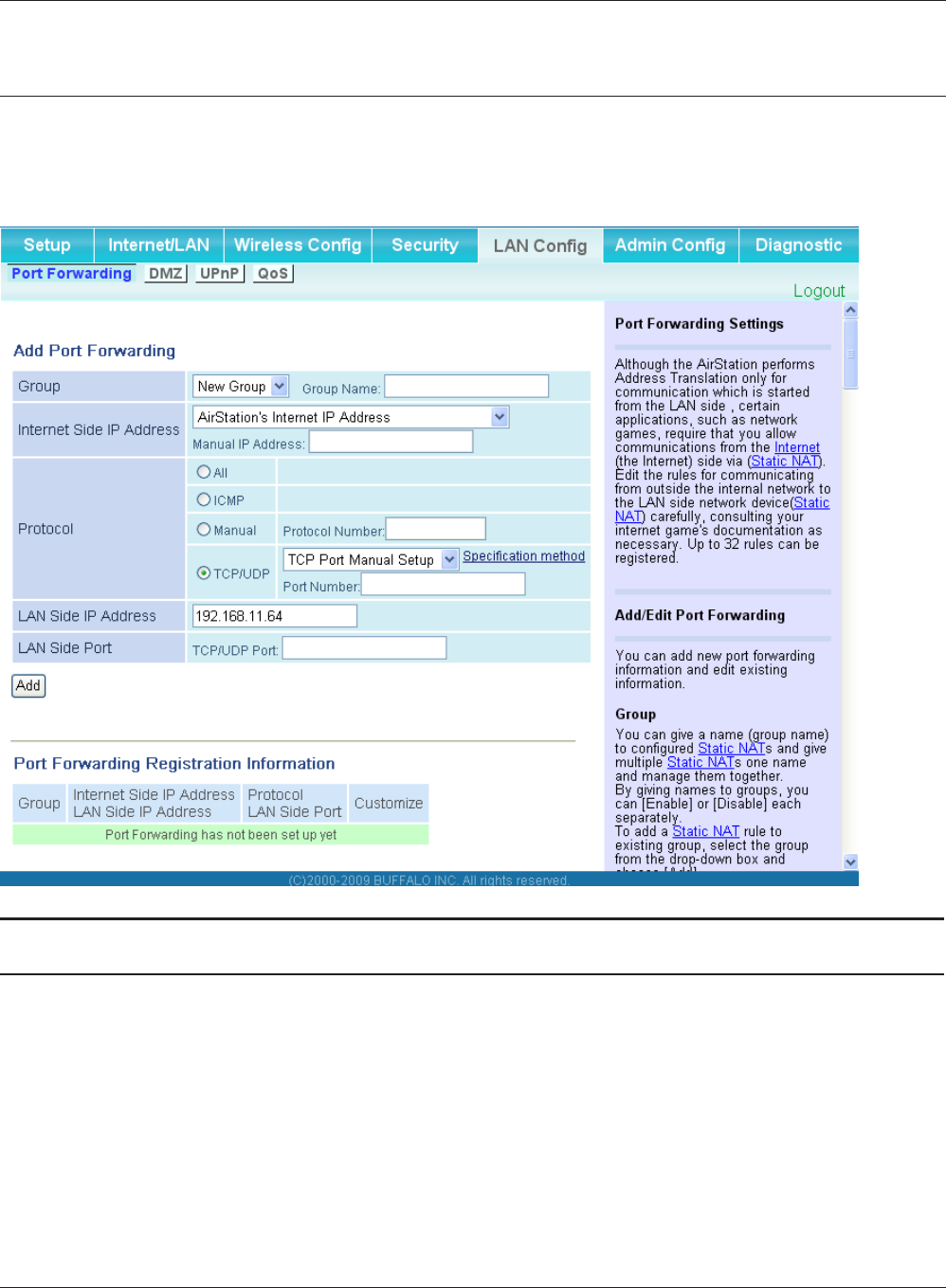

Port Forwarding Congure port translation and exceptions for games and other programs Page 58
WCR-G300 / WCR-HP-G300 User Manual 26
Chapter 4 Conguration

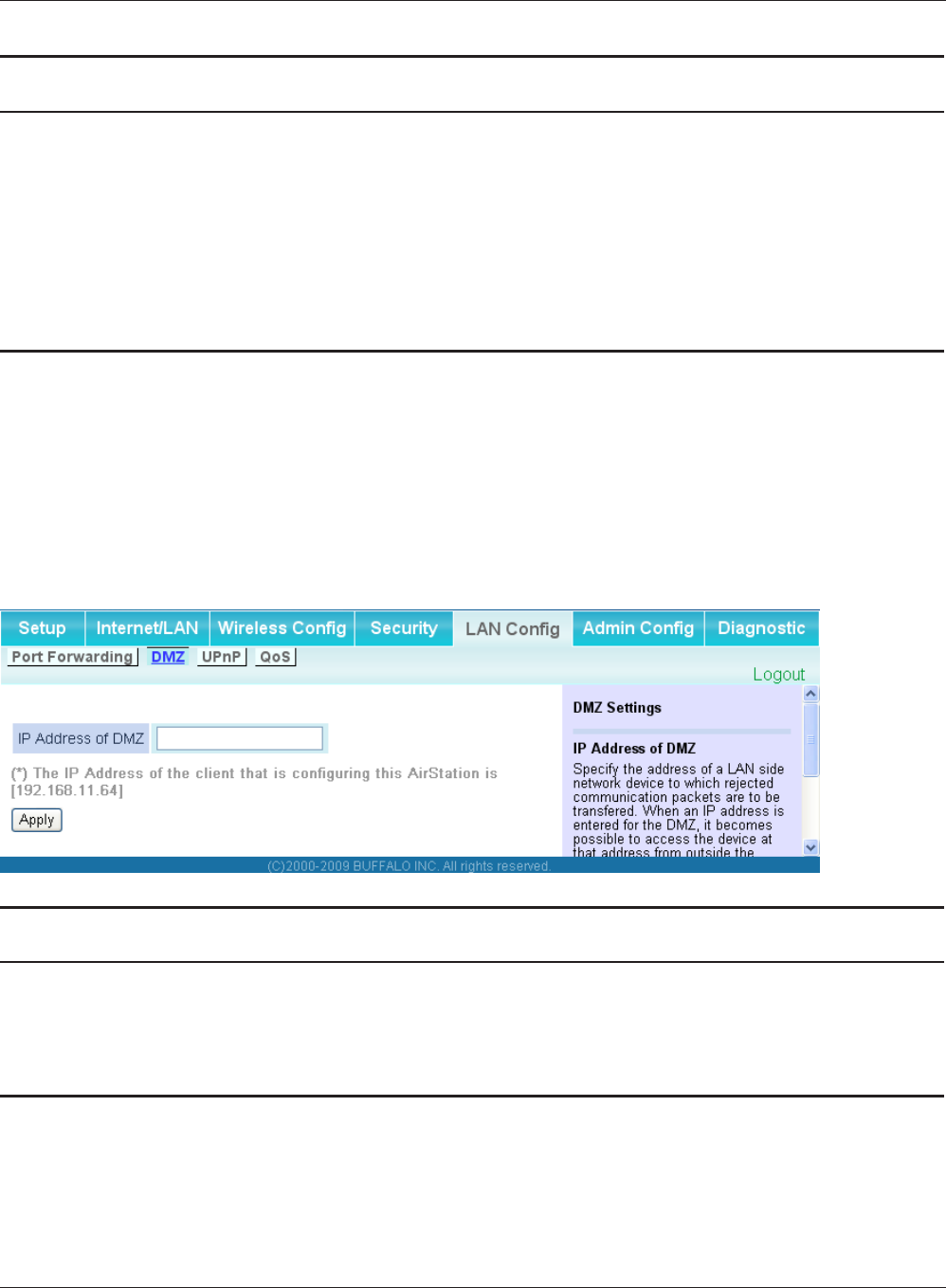

DMZ Congure a destination to transfer communication packets without a
LAN side destination.
Page 59
UPnP Congure UPnP (Universal Plug and Play) Page 60

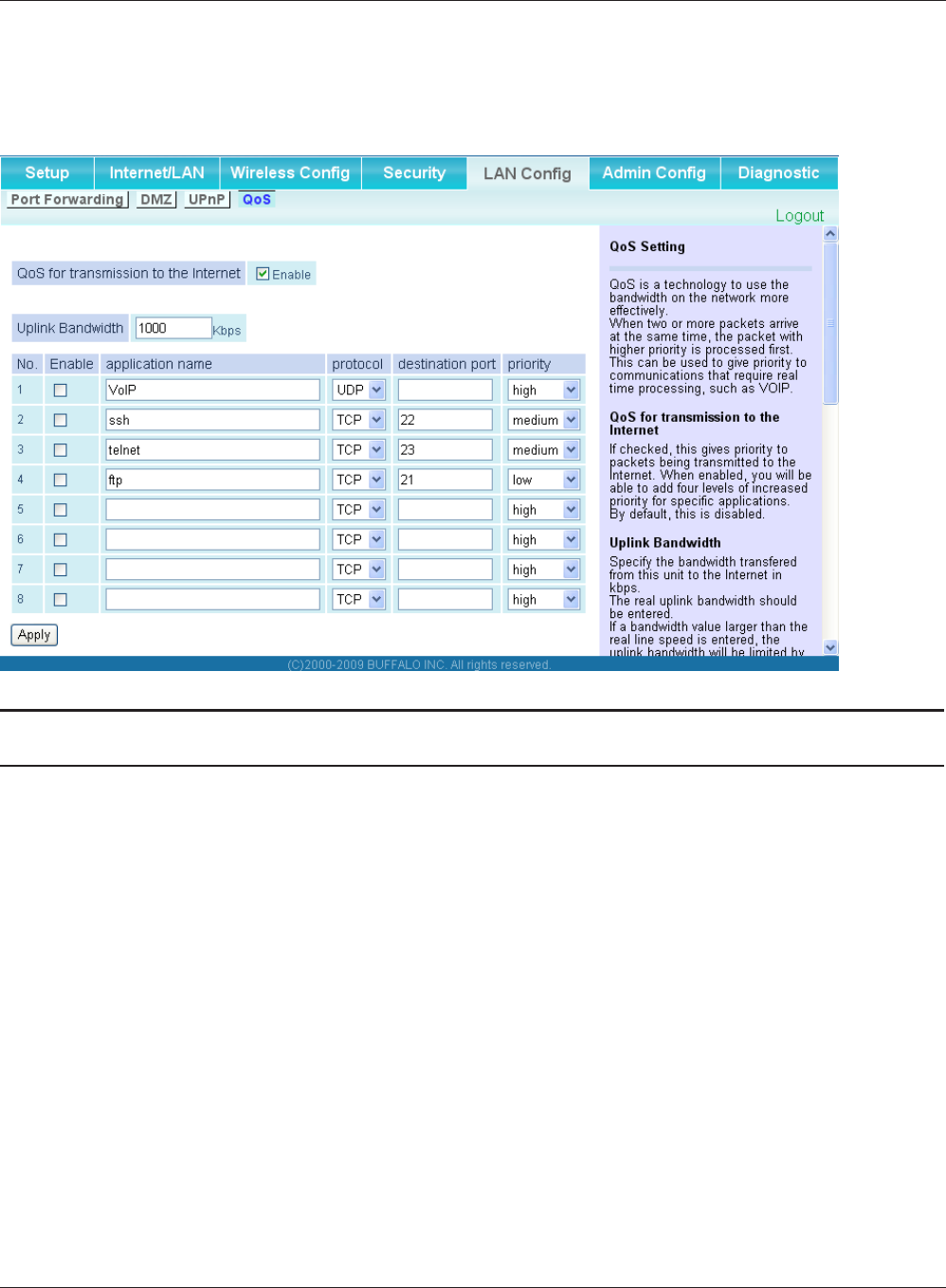

QoS Congure priority for packets that require a certain data ow Page 61
Admin Cong

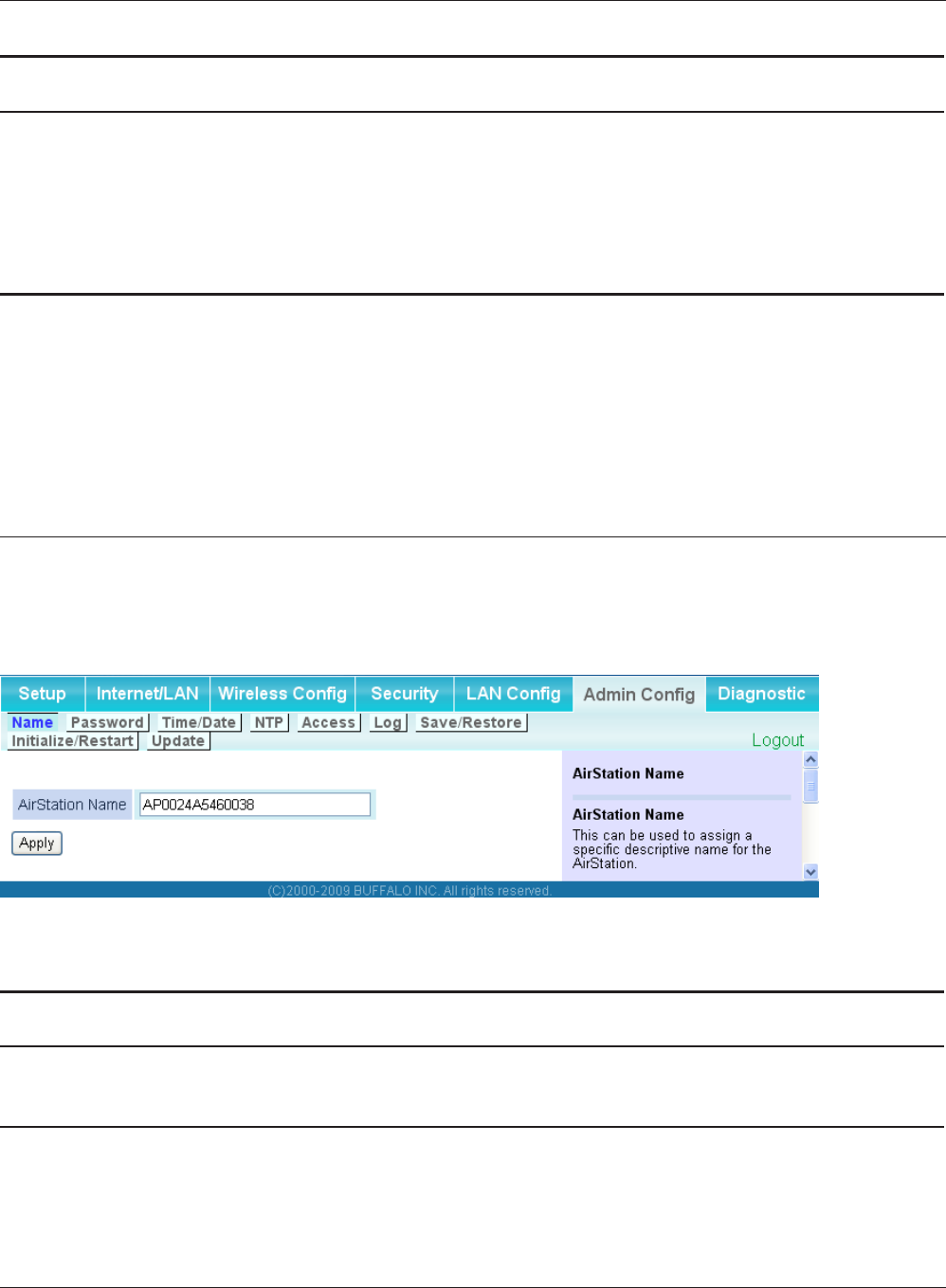

Name Congure the AirStation’s name Page 62

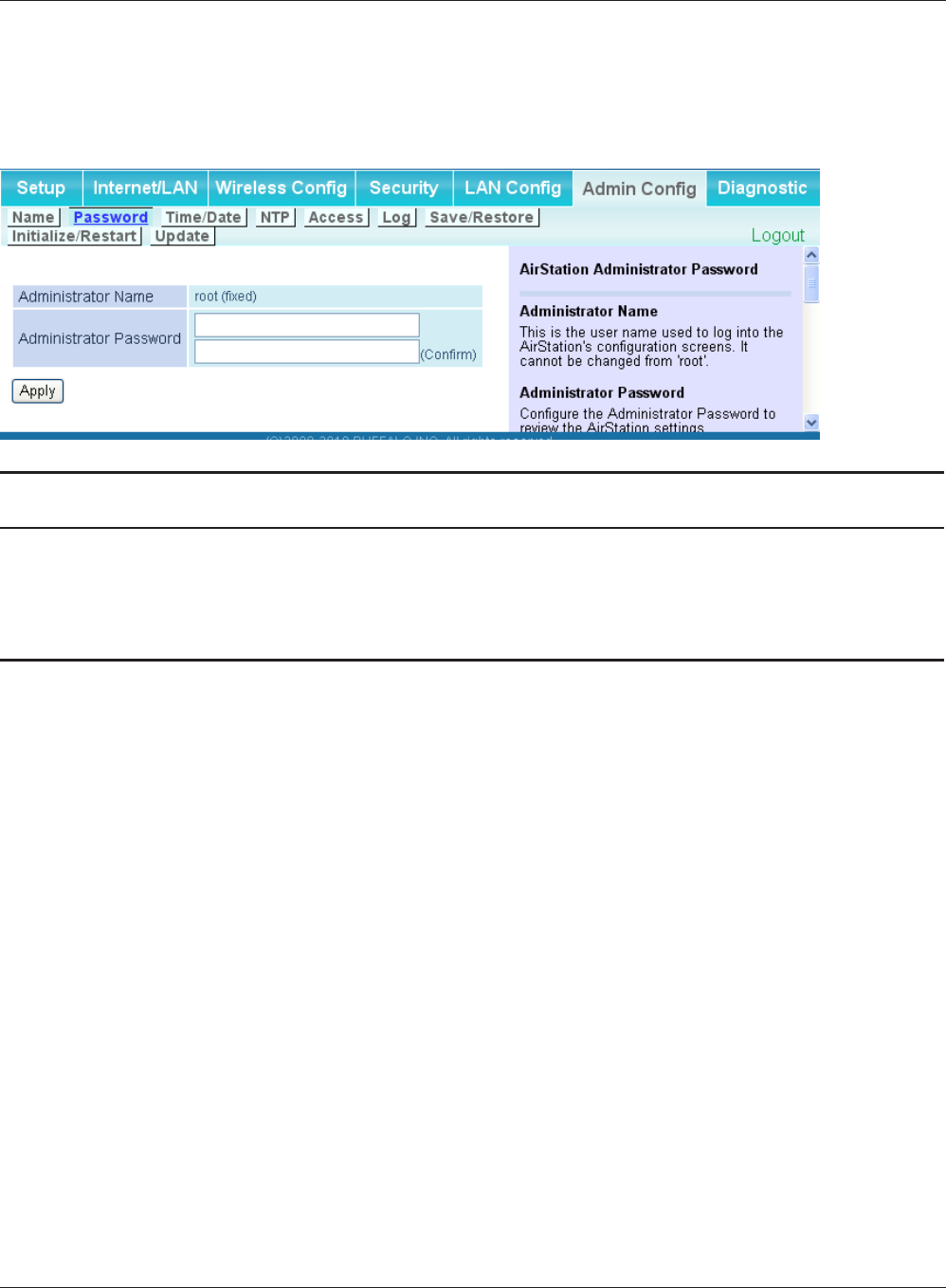

Password Congure the AirStation’s login password for access to conguration
interfaces
Page 63
Time/Date Congure the AirStation’s internal clock Page 64

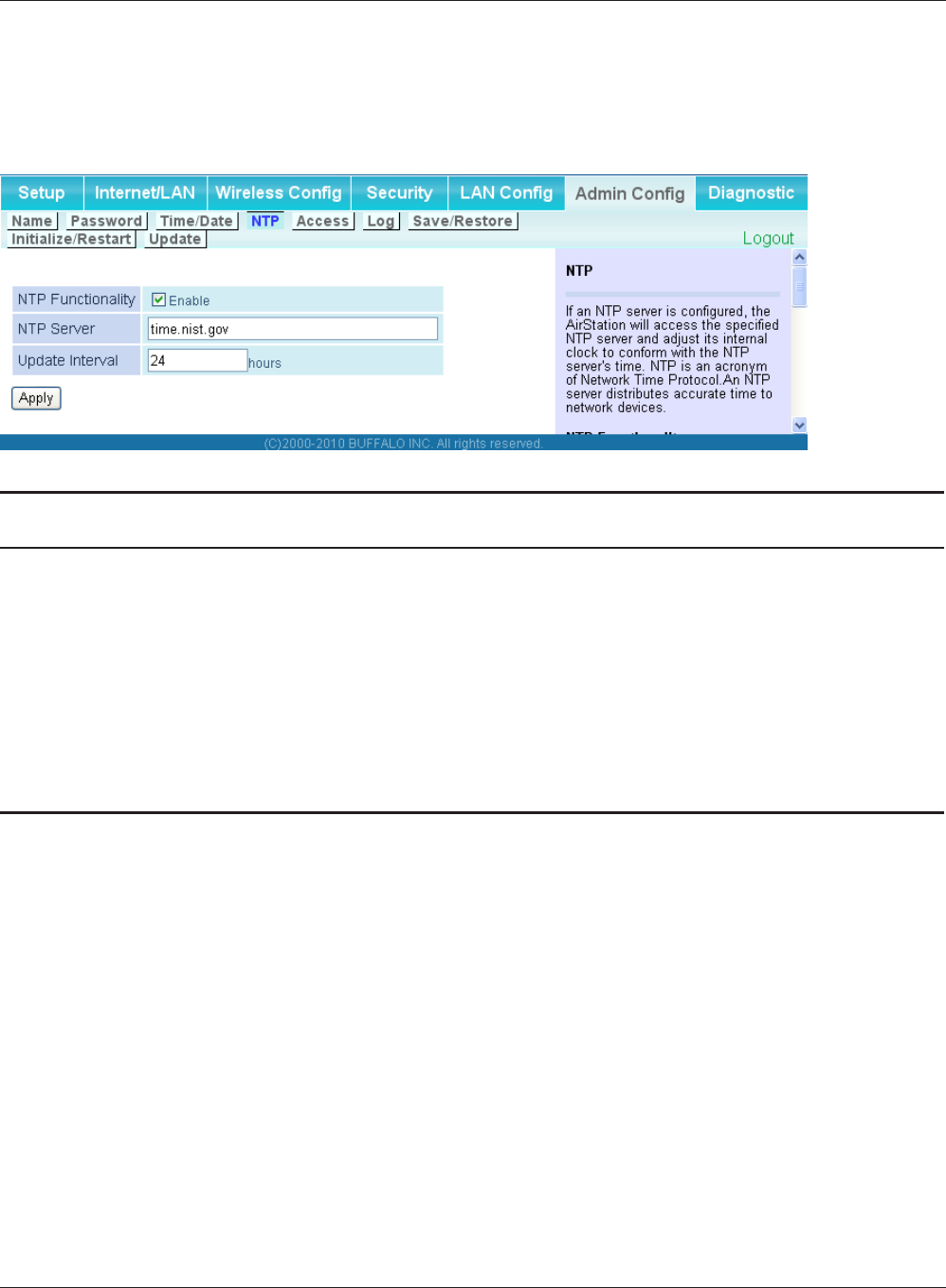

NTP Congure the AirStation to synchronize with an NTP server to
automatically set the AirStation’s internal clock
Page 65

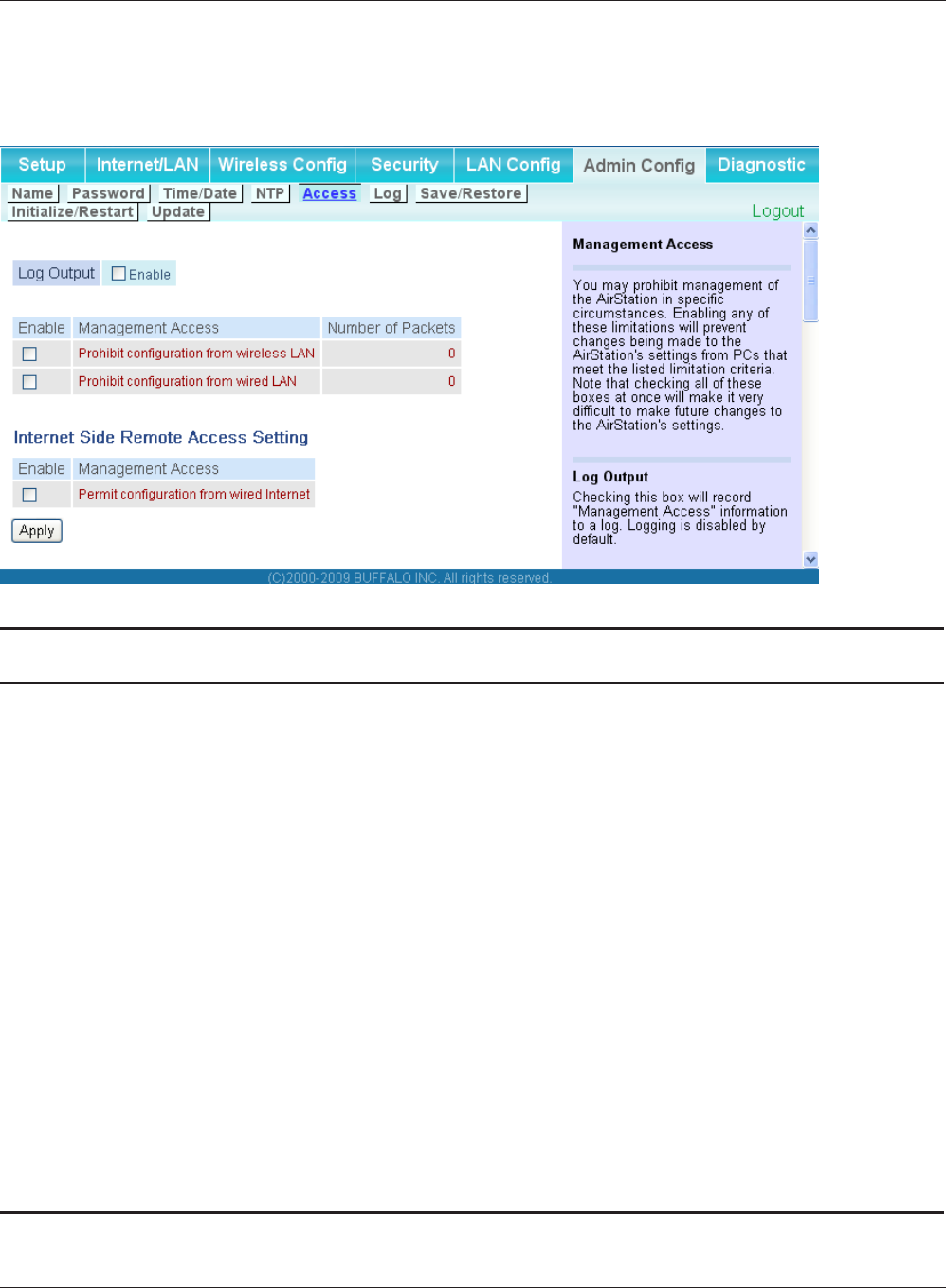

Access Congure access restrictions to the AirStation’s conguration interfaces Page 66

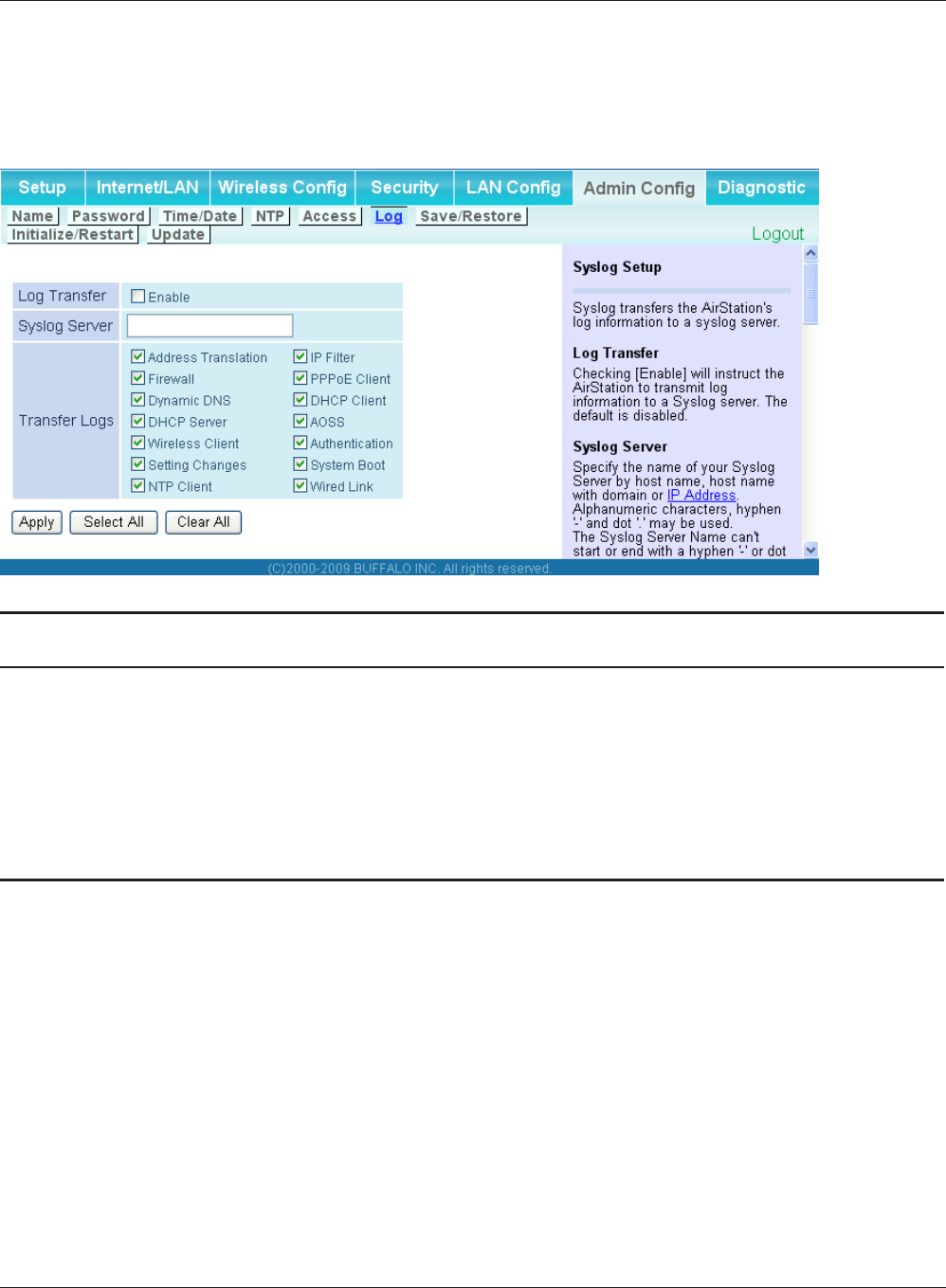

Log Congure a syslog server to manage the AirStation’s logs Page 67
Save/Restore Save or restore the AirStation’s conguration from a conguration le Page 68

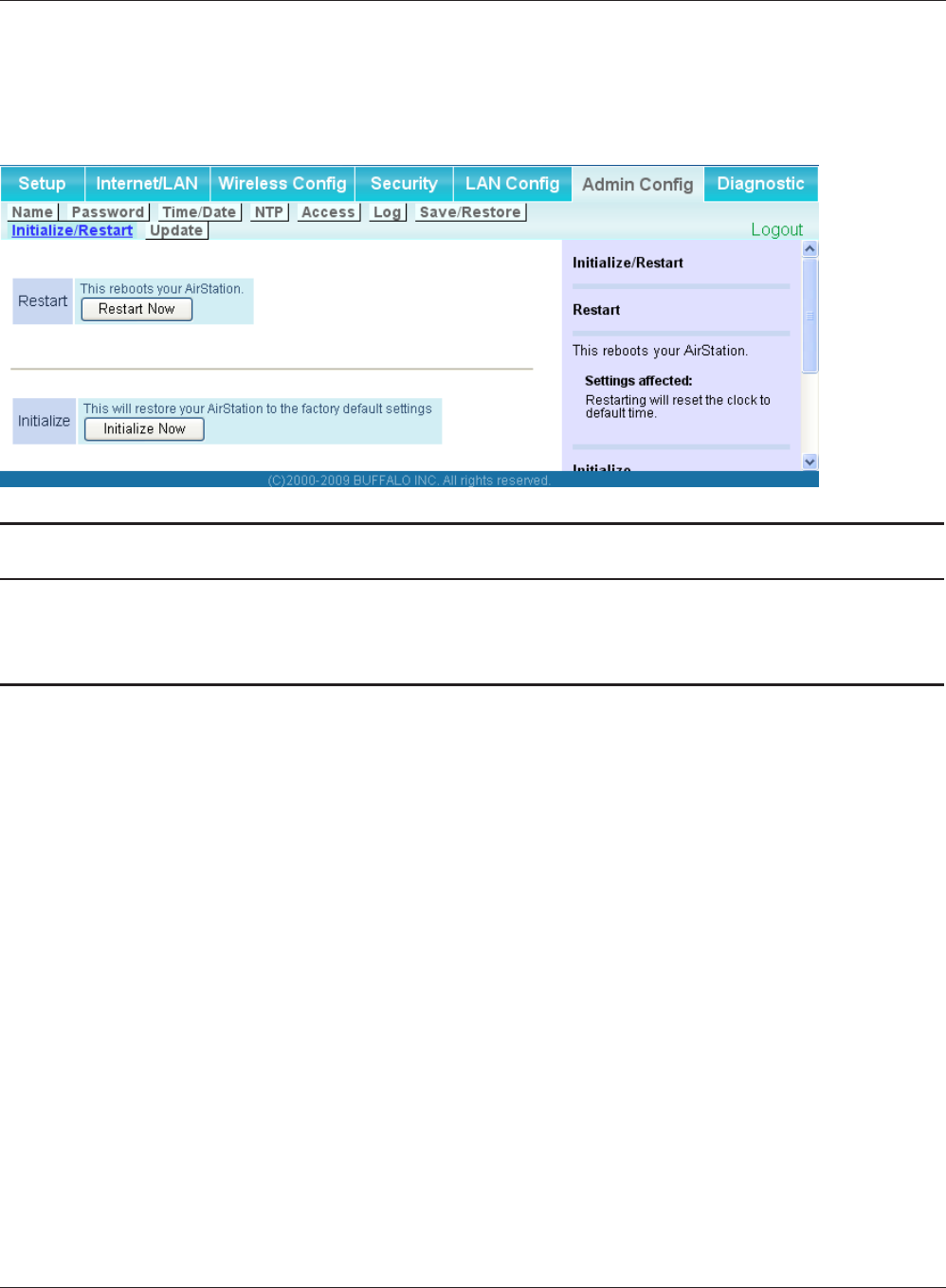

Initialize/Restart Initialize the AirStation or reboot it Page 69

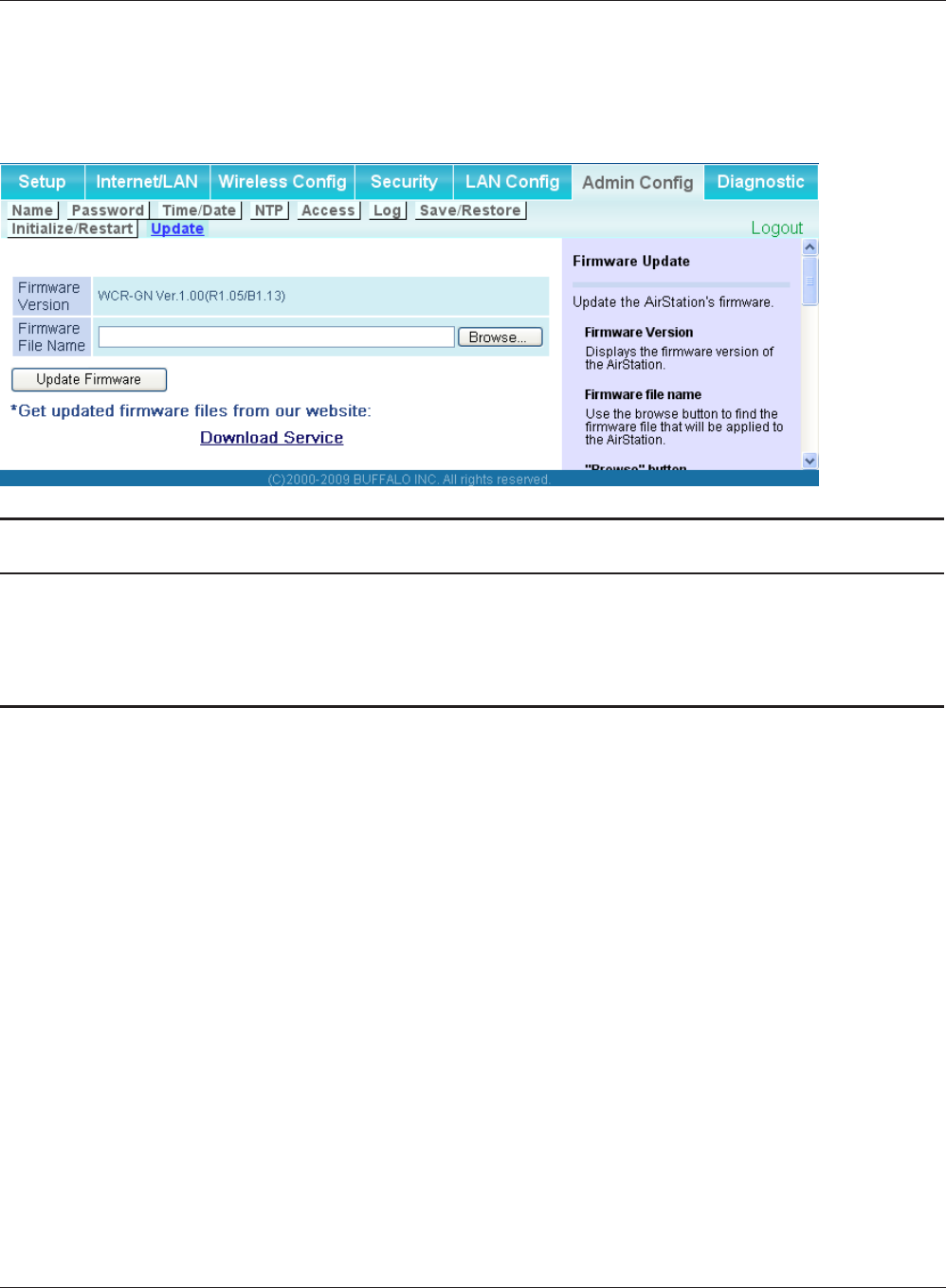

Update Update the AirStation’s rmware Page 70
Diagnostic

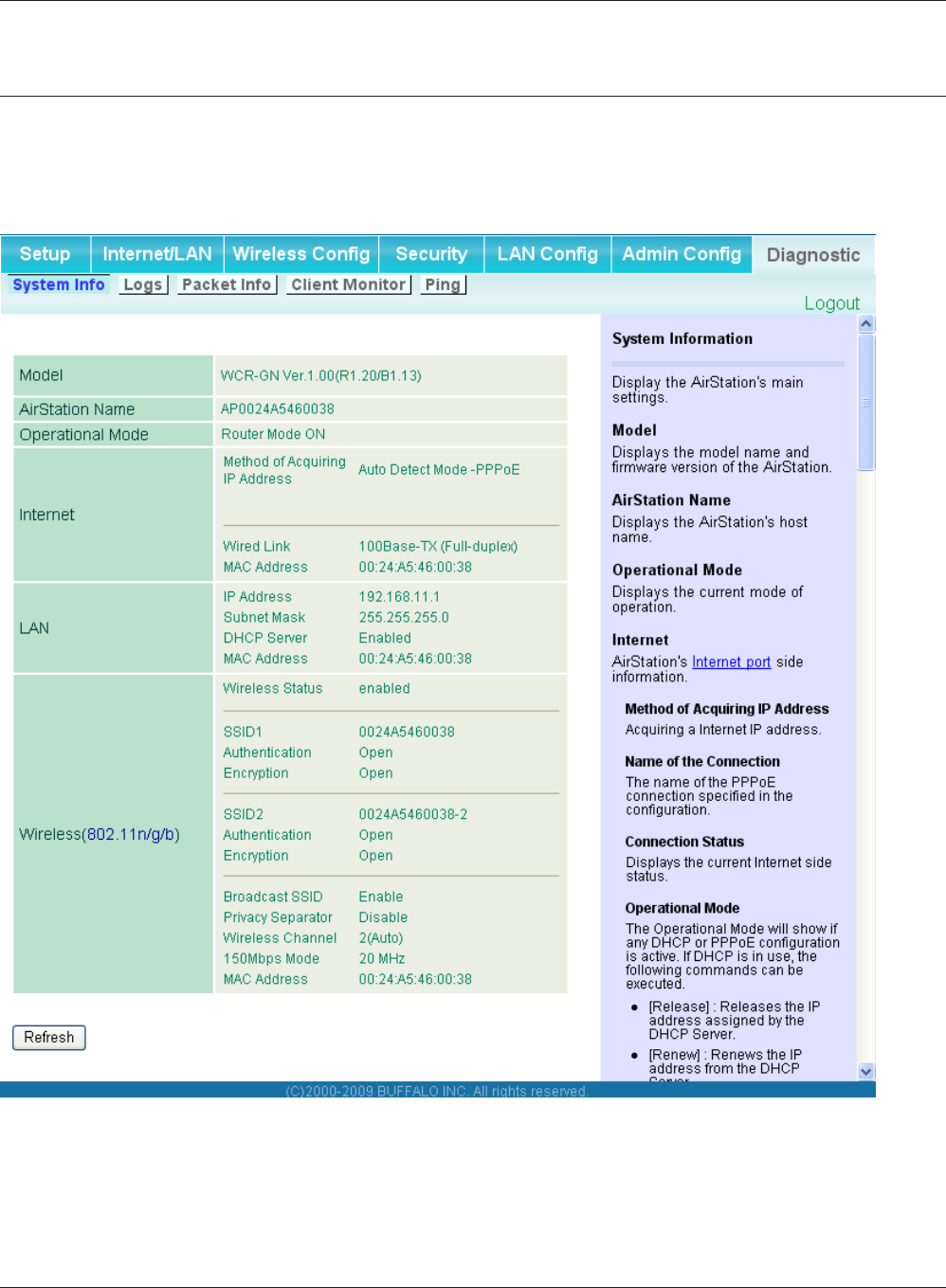

System Info View current system information for the AirStation Page 71
Logs Check the AirStation’s logs Page 73
Packet Info View all packets transferred by the AirStation Page 74
Client Monitor View all devices currently connected to the AirStation Page 75
Ping Test the AirStation’s connection to other devices on the network Page 76
Logout
Click this to log out of the AirStation’s conguration interfaces
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 27
Conguration Menu (Bridge Mode)
The menu structure during a bridge mode is the following. Please refer to respective page for expla-
nations regarding to each item.
Main screen Descriptions Page
LAN Cong
LAN Congure LAN side ports and devices Page 36
Route Congure the IP communication route that the AirStation uses Page 40
Wireless Cong
WPS WPS settings and status Page 41
AOSS AOSS (AirStation One-touch Secure System) settings and status Page 42
Basic Congure basic wireless settings Page 44
Advanced Congure advanced wireless settings Page 48
WMM Set priorities for Wireless Multimedia Extensions (Wi-Fi Multimedia) Page 49
MAC Filter Limit access to specic devices Page 51
WDS Congure communication among AirStatiion Page 52
Admin Cong
Name Congure the AirStation’s name Page 62
Password Congure the AirStation’s login password for access to conguration
interfaces
Page 63
Time/Date Congure the AirStation’s internal clock Page 64
NTP Congure the AirStation to synchronize with an NTP server to
automatically set the AirStation’s internal clock
Page 65
Access Congure access restrictions to the AirStation’s conguration interfaces Page 66
Log Congure a syslog server to manage the AirStation’s logs Page 67
Save/Restore Save or restore the AirStation’s conguration from a conguration le Page 68
Initialize/Restart Initialize the AirStation or reboot it Page 69
Update Update the AirStation’s rmware Page 70
Diagnostic
System Info View current system information for the AirStation Page 71
Logs Check the AirStation’s logs Page 73
Packet Info View all packets transferred by the AirStation Page 74
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 29

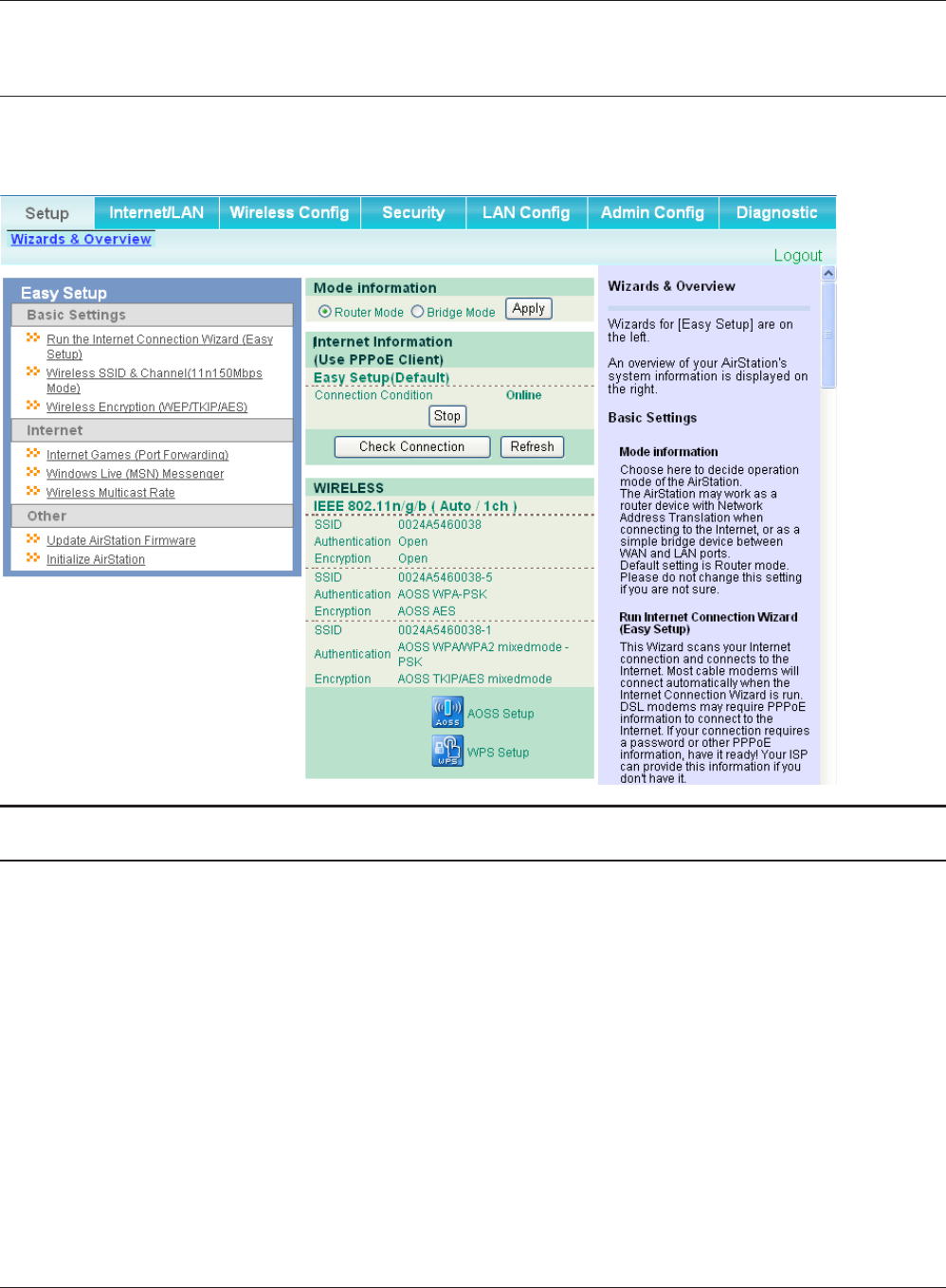

Setup
The home page of the conguration interface. You can verify settings and the status of the AirStation
here.
Parameter Meaning
Internet/LAN (LAN Cong) Click this tab to display the conguration interface for the Internet
port and LAN ports.
Wireless Cong Click this tab to display the conguration interface for wireless set-interface for wireless set- for wireless set-
tings.
Security Click this tab to display the conguration interface for security.
LAN Cong Click this tab to display the conguration interface to open ports for
games and applications.
WCR-G300 / WCR-HP-G300 User Manual 30
Chapter 4 Conguration
Parameter Meaning
Admin Cong Click this tab to display the conguration interface which is related
to the administration of the AirStation.
Diagnostic Click this tab to display the status of the AirStation.
Easy Setup Enable you to congure the AirStation easily such as an encryption
method of the wireless signal or changing a wireless channel.
Mode Information Switches router mode and bridge mode.
Internet Information
Router mode only
Displays the current information where the AirStation is connected
on the Internet side.
Check Connection
Router mode only
Clicking this button to check if the AirStation is connected to the
Internet properly.
Refresh
Router mode only
Clicking this button to refresh the current screen.
Wireless Displays the current wireless settings.
AOSS Click this button to display the AOSS conguration interface.
WPS Click this button to display the WPS conguration interface.
Language Enable you to select the language you use.
If Auto is selected, the same language displayed on the browser will
be selected automatically.
Logout Log out from the conguration interface of the AirStation. If the
web conguration interface is not used for 5 minutes, it will log out
automatically.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 31
Internet/LAN (LAN Cong)
Internet (Router Mode only)
Congure the Internet (WAN) port here.
Parameter Meaning
Method of Acquiring IP Address Specify how the Internet side IP address is obtained.
Default Gateway Congure an IP address for the default gateway.
Address of DNS Name Server Specify an IP address of the DNS server.
Internet MAC Address Congure the Internet side MAC address.
Note: Conguring an improper MAC address may make the AirStation
unusable. Be carefull!
MTU size of Internet Port The Internet (WAN) port’s MTU size may be set to any value from
578 to 1500 bytes.
WCR-G300 / WCR-HP-G300 User Manual 32
Chapter 4 Conguration
PPPoE (Router Mode only)
Congure PPPoE settings here.
Parameter Meaning
Name of Connection Enter the name to identify the connected destination. You may
enter up to 32 alphanumerical characters and symbols.
User Name Set the user name which is specied by your provider, used for
a PPPoE certication. You may enter up to 32 alphanumerical
characters and symbols.
Password Set the password specied by your provider for PPPoE certication.
You may enter up to 32 alphanumerical characters and symbols.
Service Name Fill in this eld only when your provider species a Service Name.
Leave blank otherwise. You may enter up to 32 alphanumerical
characters and symbols.
Connection Type Species the timing for the AirStation to connect to your provider.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 33
Parameter Meaning
Automatic disconnection Sets the timer for disconnection if the connection method is set
to [Connect on Demand] or [Manual]. You can enter up to 1440
minutes.
Authorization Congure an authorization method with a provider.
MTU Size The PPPoE MTU size may be set to any value from 578 to 1492.
MRU size The PPPoE MRU (Maximum Receive Unit) size may be set to any
value from 578 to 1492.
Keep Alive If enabled, the AirStation will request an LCP echo from the PPP
server once a minute. If the connection server doesn't respond
within 6 minutes, the Internet connection will be cut o. If the PPP
connection is often cut o, disable this.
WCR-G300 / WCR-HP-G300 User Manual 34
Chapter 4 Conguration

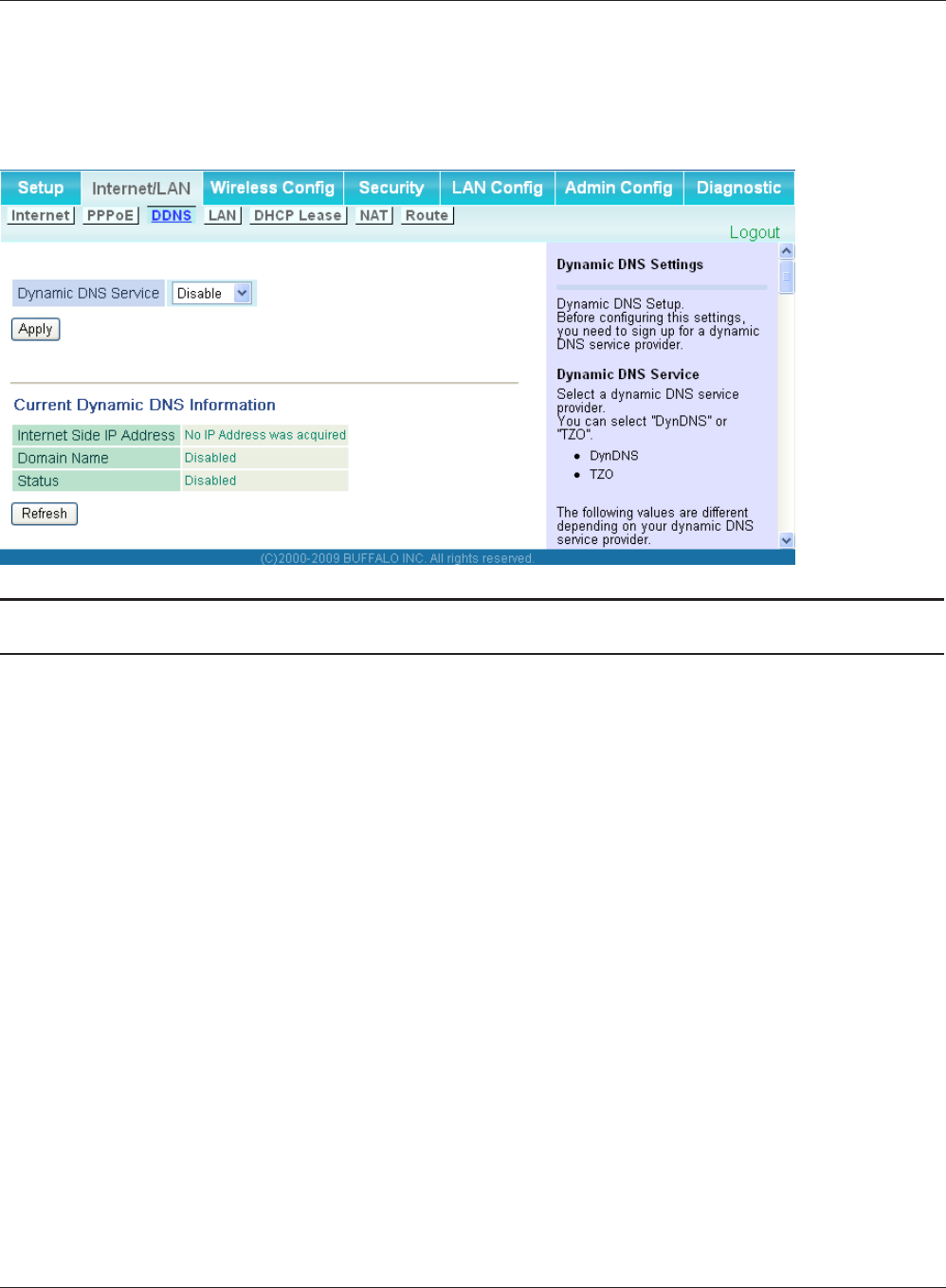

DDNS (Router Mode only)
Congure Dynamic DNS settings here.
Parameter Meaning
Dynamic DNS Service Select a provider (DynDNS or TZO) for Dynamic DNS.
User Name
Only when DynDNS is selected
Enter the username that you registered with DynDNS. You may
enter up to 64 alphanumerical characters and symbols.
Password
Only when DynDNS is selected
Enter your DynDNS password. You may enter up to 64
alphanumerical characters and symbols.
Hostname
Only when DynDNS is selected
Enter your DynDNS hostname. Hostnames may include up to 255
alphanumerical characters, hyphens, and periods.
Email Address
Only when selecting TZO
Enter the email address that you registered with TZO. You may enter
up to 64 alphanumerical characters and symbols.
TZO Key
Only when selecting TZO
Enter your TZO key. TZO keys may have up to 64 alphanumerical
characters and symbols.
Domain Name
Only when selecting TZO
Enter your TZO domain name. You may enter up to 255
alphanumerical characters, hyphens, and periods.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 35
Parameter Meaning
IP Address Update Period Species the period to notify the dynamic DNS service provider of
the current IP address. When DynDNS is selected, set it between 0
and 35 days. When TZO is selected, set it between 0 and 99 days. If
0 (zero) is set, no periodic update is performed.
Internet Side IP Address The WAN-side IP address of the AirStation’s Internet port. This
address is sent to the dynamic DNS service provider.
Domain Name The domain name assigned by the dynamic DNS Service provider.
The AirStation can be accessed from the Internet using this domain
name.
Status Displays the current status of the dynamic DNS service.
WCR-G300 / WCR-HP-G300 User Manual 36
Chapter 4 Conguration
LAN
Congure the LAN side port and DHCP server settings.
Parameter Meaning
LAN Side IP Address Set a LAN side IP address and subnet mask.
DHCP Server Function
Router Mode only
Enable or disable the DHCP server, which assigns IP addresses
automatically.
DHCP IP Address Pool
Router Mode only
Congure the range of IP addresses to be assigned by the DHCP
server and IP addresses to be excluded from that range. Values from
0-253 may be entered.
Advanced Settings
Router Mode only
Select Display to display the advanced settings options for the
DHCP server.
Lease Period
Router Mode only
Set the eective period of an IP address assigned by the DHCP
server. Up to 999 hours may be entered.
Default Gateway
Router Mode only
Set the default gateway IP address for the DHCP server to issue to
clients.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 37
Parameter Meaning
DNS Servers
Router Mode only
Set the DNS server IP address for the DHCP server to issue to clients.
WINS Server
Router Mode only
Set the WINS server IP address for the DHCP server to issue to
clients.
Domain Name
Router Mode only
Set the domain name for the DHCP server to issue to clients. You
may enter up to 127 alphanumerical characters, hyphens, and
periods.
Default Gateway
Bridge Mode only
Set the default gateway IP address.
DNS Server Address
Bridge Mode only
Set the DNS server IP address.
WCR-G300 / WCR-HP-G300 User Manual 38
Chapter 4 Conguration
DHCP Lease (Router Mode only)
Congure DHCP leasing here.
Parameter Meaning
IP Address Enter an IP address to lease manually. The IP address should be
from the same subnet as the DHCP scope, but not be within the
range that DHCP is assigning to other devices.
MAC Address Enter the MAC address which identies the client.
Current DHCP Client Information Displays information for current leases. An IP address which is
leased automatically can be changed to be leased manually by
clicking [Manual Assignment].
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 39
NAT (Router Mode only)
Congure NAT (network address translation) settings here. NAT is used to connect devices on the
LAN side to the Internet.
Parameter Meaning
Address Translation Enable to use Network Address Translation.
Log Output of Deleted Packets Enable logging for deleted packets (such as errors) during address
translation.
WCR-G300 / WCR-HP-G300 User Manual 40
Chapter 4 Conguration
Route
Add routes to the NAT table.
Parameter Meaning
Destination Address
Subnet Mask
Adds a destination IP address to an entry in the routing table.
Adds a subnet mask to an entry in the routing table.
Gateway Adds a gateway address to an entry in the routing table.
Metric The metric is the maximum number of router hops a packet may
take on the way to its destination address. Values between 1 and 15
may be entered. The default value is 15.
Routing Information Entries will be listed here after being added.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 41
Wireless Cong
WPS
Congure WPS settings here.
Parameter Meaning
WPS Enable to use WPS automatic conguration.
External Registrar Enable to accept conguration requests from other WPS devices.
Note: Conguration requests will be ignored if AOSS is in use.
AirStation PIN Displays the AirStation’s PIN code. Click [Generate PIN] to generate a
new PIN code. This code can be entered into other WPS-compatable
wireless devices.
Enrollee PIN Enter the PIN code for the other wireless device and click [OK].
WPS status Displays WPS status as “congured” or “uncongured”.
WCR-G300 / WCR-HP-G300 User Manual 42
Chapter 4 Conguration
AOSS
Congure AOSS settings here.
Parameter Meaning
Initiates AOSS automatic wireless conguration. Click this, then
press or click the AOSS button on your AOSS-compatible wireless
client. Repeat for additional AOSS clients.
Click this button to disconnect AOSS connections.
Note : If AOSS connections are disconnected, the SSID and encryption
keys will be restored to their most recent settings before using
AOSS.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 43
Parameter Meaning
Exclusive SSID for WEP You may allow a separate SSID for WEP connections. If this is
disabled, clients will not be able to connect with WEP.
Encryption level expansion Adds additional encryption options including WPA/WPA2-PSK-
mixed mode.
Dedicated WEP SSID isolation Set a separate SSID and network segment specically for WEP
connections. Devices connected with WEP will not be able
to communicate with devices connected using AES/TKIP. All
connected devices will be able to communicate with the internet.
AOSS Button on the AirStation Unit If enabled, AOSS will be initiated when the physical AOSS button is
pressed. Disable to prevent the button from initiating AOSS.
Current Encryption Information
AOSS Connection only
Displays the type of encryption, SSID, and encryption key that AOSS
has congured.
[Random] Click to enter random values for SSID, encryption key, and other
settings.
[KEY base]
enable for EU/US only
Click to return the SSID, encryption key, and other wirelesss settings
to the values on the case sticker.
[Reset] Click to return the SSID, encryption key, and other wireless settings
to their previous values.
AOSS Client Information
AOSS Connection only
Displays status of connected AOSS clients.
WCR-G300 / WCR-HP-G300 User Manual 44
Chapter 4 Conguration

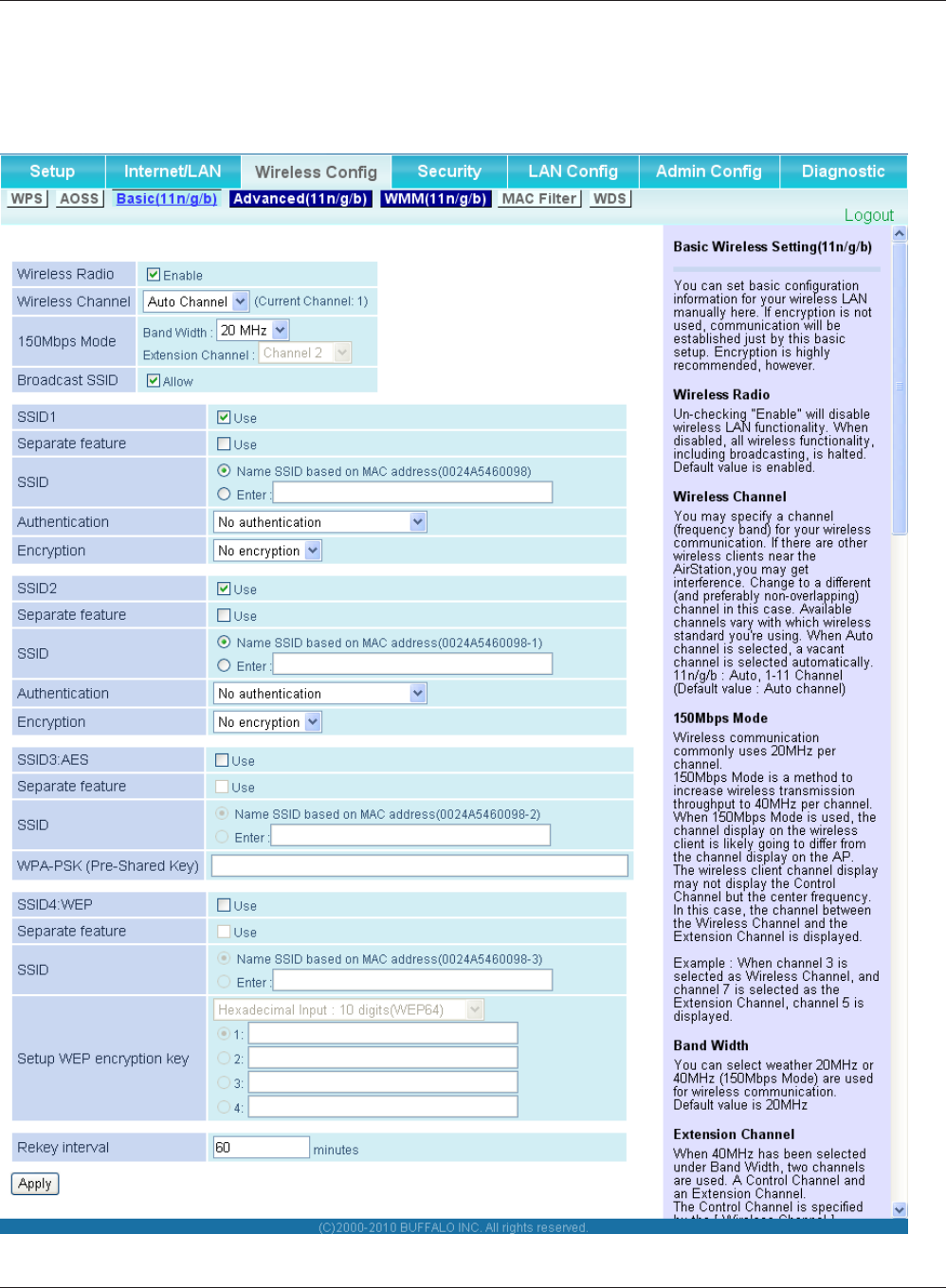

Basic
Congure basic wireless settings here.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 45
Parameter Meaning
Wireless Radio Enable to allow wireless communication. If this is unchecked, then
no wireless connections will be allowed.
Wireless Channel Sets a channel (a range of frequencies) used for wireless
connections. Available range of channels is 1-11.
With Auto Channel selected, the AirStation will automatically use
the best available channel.
This parameter is disabled if WDS is in use.
150Mbps Mode 150 Mbps mode uses twice the normal frequency range, 40
MHz instead of 20 MHz. In uncongested areas this can increase
performance. To use 150 Mbps mode, set the Bandwidth to 40 MHz
and choose an Extension Channel.
Note: If using Auto Channel for the wireless channel, then the Extension
Channel is set automatically.
This parameter is disabled if WDS is in use.
Broadcast SSID If [Allow] is checked, then the AirStation will respond to SSID
searches from wireless devices by broadcasting its SSID. If [Allow] is
unchecked, then the AirStation ignore SSID searches from wireless
devices.
SSID1 Always enabled and supports all wireless encryption types.
Encryption can be disabled.
SSID2 Always enabled and supports all wireless encryption types.
Encryption can be disabled.
SSID3 SSID3 can use WPA-PSK-AES encryption.
SSID4 SSID4 can use WEP encryption.
Separation When enabled, wireless devices connected to the AirStation can
communicate only with the Internet, not with each other.
This parameter does not function if WDS is enabled.
SSID Set SSID using 1-32 alphanumeric character(s).
Authentication Specify the type of wireless authentication.
WCR-G300 / WCR-HP-G300 User Manual 46
Chapter 4 Conguration
Parameter Meaning
Encryption Select a type of data encryption for wireless communication from
the following options:
No encryption
Data is transmitted without encryption. Avoid this option since
any communication may be intercepted.
[No encryption] can be selected only when [No authentication] is
selected for Wireless authentication.
WEP
WEP is a common encryption method supported by most devices.
Use an encryption key to communicate with a wireless device.
WEP can only be selected when [No authentication] is selected for
Wireless authentication.
TKIP
TKIP is an encryption method which is more secure than WEP, but
slower. Use an pre-shared-key to communicate with a wireless
device.
TKIP can be selected only when WPA-PSK or WPA2-PSK is selected
for Wireless authentication.
AES
AES is more secure than TKIP, and faster. Use a pre-shared-key to
communicate with a wireless device.
AES can be selected only when WPA-PSK or WPA2-PSK is selected
for Wireless authentication.
TKIP/AES mixed mode
TKIP/AES mixed mode allows both TKIP and AES authentication
and communication.
TKIP/AES mixed mode can be selected only when WPA/WPA2
mixed mode - PSK is selected for Wireless authentication.
WPA-PSK (Pre-Shared Key) Enter a pre-shared key for use with wireless authentication.
Keys may be character or hexadecimal. For a character key, use 8 to 63
alphanumeric characters (case-sensitive). For a hexadecimal key, enter
64 digits using 0 to 9 and a to f (not case-sensitive).
Setup WEP encryption key Enter an encryption key to encrypt wireless data.
Keys may be character or hexadecimal. For a character key, use 5 or 13
alphanumeric characters (case-sensitive). For a hexadecimal key, enter
10 or 26 digits using 0 to 9 and a to f (not case-sensitive).
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 47
Parameter Meaning
Rekey interval Choose an interval from 0 to 1440 minutes for keys to be updated.
WCR-G300 / WCR-HP-G300 User Manual 48
Chapter 4 Conguration
Advanced
Congure advanced wireless settings on this page. Don’t change these settings unless you know
what you’re doing.
Parameter Meaning
Multicast Rate Sets the communication speed of multi-cast packets.
DTIM Period Set the beacon responding interval (1 -255). This setting is eective
only when power management is enabled.
Privacy Separator If enabled, the Privacy Separator blocks communication between
wireless devices connected to the AirStation. Wireless devices will
be able to connect to the Internet but not with each other. Devices
that are connected to the AirStation with wired connections will
still be able to connect to wireless devices normally.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 49
WMM
Congure priorities for specic types of data. Don’t change these settings unless you know what
you’re doing.
WCR-G300 / WCR-HP-G300 User Manual 50
Chapter 4 Conguration
Parameter Meaning
WMM-EDCA Parameters You don't usually need to change these settings. Using the default
settings is recommended.
Priority
The following priorities may be applied to individual transmission
packets: (Highest) 8, (High) 4, (Normal) 2, and (Low) 1. From the
queue, these packets are processed in order of priority.
CWmin, CWmax
The maximum and minimum value of the contention window.
The contention window is used in the frame collision avoidance
structure performed in IEEE802.11, and generally the smaller the
value in the window, the higher the probability that the queue
obtains the right to send.
AIFSN
The interval to send frames. The unit of the AIFSN is a slot, just as
the window dened by CWmin and CWmax is. The smaller the
interval of sending frames, the faster the algorithm can restart. As
a result, the priority of the queue is higher.
TXOP Limit
The period of time that the queue can use after obtaining the
right to send. The unit is 32 ms. The longer this time, the more
frames can be sent per right to send. However, the queue may
interfere with other packet transmissions. If TXOP Limit is set to 0
(zero), only one frame can be sent per right to send.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 51
MAC Filter
MAC ltering allows only devices with registered MAC addresses to connect to the AirStation
wirelessly.
Parameter Meaning
Enforce MAC Filtering Enable to restrict wireless connections to devices with registered
MAC addresses.
Registration List Displays the MAC addresses of registered devices which are
permitted to connect wirelessly.
[Edit Registration List] Click this button to add a MAC address of a wireless device to the
list of permitted devices.
MAC Addresses to be Registered Enter a MAC address of a wireless device you permit to connect to
the AirStation. Click [Register] to add that MAC address to the list.
List of all clients that are associated
with this AirStation
Display the list of all MAC addresses of wireless devices connected
to the AirStation.
WCR-G300 / WCR-HP-G300 User Manual 52
Chapter 4 Conguration
WDS (Bridge Mode only)
Congure the settings for WDS bridging here. Refer to page 17 for the WDS setup process.
Note: You cannot specify WDS while the device is in the router mode.
Change the mode to bridge on TOP screen to display WDS conguration screen.
Parameter Meaning
WDS Enable to use WDS.
Connection type Select how you want to congure WDS.
Manual
Enter the target wireless AP's SSID and security information
manually.
AOSS
Connect with the AirStation using AOSS. If this option is selected,
a special AOSS button will appear. This button can be used for
WDS connection only. Once AOSS connection is set up, the WCR-
GN will have the same security setting as the other AP in the
bridge. Refer to page 17 for setup directions.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 53
Parameter Meaning
Connection Status Displays WDS connection status.
SSID Enter the target Airstation's SSID.
[ Search ] Click this button to search for target AirStations by SSID.
Authentication Enter the target AirStation's wireless authentication method.
Encryption Enter the target AirStation's encryption type.
WPA-PSK (Pre-shared key) Enter the target AP's Encryption key (if used).
WEP encryption key setting Enter the target AP's WEP key (if used).
WCR-G300 / WCR-HP-G300 User Manual 54
Chapter 4 Conguration
Security (Router Mode only)
Firewall (Router Mode only)
Congure the AirStation’s rewall here.
Parameter Meaning
Log Output Enable to output a log of rewall activity.
Basic Rules Enable to use any of the quick lters. Precongured quick lters
include:
Prohibit NBT and Microsoft-DS Routing
When this is enabled, Microsoft le and printer sharing is blocked
between the WAN and LAN sides of the router. You can congure
this with PPPoE if you select [Use PPPoE Client] or [Use IP
Unnumbered] in Method of Acquiring IP address (on page 31), or if
Easy Setup identied a PPPoE connection during setup.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 55
Parameter Meaning
Reject IDENT Requests
Enabling this option will answer IDENT requests from the Internet
side with corresponding rejection packets. Enable this option if
you experienced slower transfer speed for network application
such as sending mail, using ftp or displaying on browser. If
you have congured transfer of IDENT requests to the LAN
side computer in the address translation settings (DMZ or TCP
port:113), that setting has higher priority, and overrides this
setting.
Block Ping from Internet
If this is enabled, the AirStation will not respond to pings from the
Internet side. You can congure this with PPPoE if you select [Use
PPPoE Client] in Method of Acquiring IP address (page 31), or if Easy
Setup identied a PPPoE connection during setup.
WCR-G300 / WCR-HP-G300 User Manual 56
Chapter 4 Conguration
IP Filter (Router Mode only)
Edit IP lters here.
Parameter Meaning
Log Output If enabled, IP lter activity is saved to a log.
Operation Specify how to process target packets.
Direction Specify the transmission direction of target packets.
IP Address Specify the sender's IP address and receiver's IP address of the
target packets.
Protocol Select a protocol for target transmission packet.
IP Filter Information Display the list of IP lters which have been registered.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 57
VPN Pass-Through (Router Mode only)
Congure IPv6 pass-through, PPPoE pass-through, and PPTP pass-through here.
Parameter Meaning
IPv6 Pass-through Enable to use IPv6 pass-through for address translation.
PPPoE Pass-through Enable to use PPPoE bridge. Using PPPoE bridge lets you
automatically obtain LAN-side IP addresses from your provider
using the PPPoE protocol because all PPPoE packets can pass
through from the LAN to the WAN side.
PPTP Pass-through Enable to use the PPTP pass-through for address translation.
WCR-G300 / WCR-HP-G300 User Manual 58
Chapter 4 Conguration
LAN Cong (Router Mode only)
Port Forwarding (Router Mode only)
Congure port translation here.
Parameter Meaning
Group Specify a group name for a new rule to belong to. Select [New
Group] and enter the new group name in the Group Name eld
to create a new group. A group name can include up to 16
alphanumeric letters.
Internet Side IP Address Enter the Internet side IP address (before translation) for the port
translation table entry.
Protocol Select the Internet side protocol (before translation) for the port
translation table entry.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 59
Parameter Meaning
LAN Side IP Address Enter the LAN side IP address (after translation) for the port
translation table entry.
LAN Side Port Select the LAN side (after translation) port number (1 - 65535) for
the port translation table entry.
Port Forwarding Registration
Information
Shows current entries in the port translation table.
DMZ (Router Mode only)
Congure a destination to transfer communication packets without a LAN side destination to.
Parameter Meaning
IP Address of DMZ Enter the IP address of the destination to which packets which are
not routed by a port translation table are forwarded.
Note: RIP protocol packets (UDP port number 520) will not be
forwarded.
WCR-G300 / WCR-HP-G300 User Manual 60
Chapter 4 Conguration
UPnP (Router Mode only)
Enable UPnP (Universal Plug and Play) here.
Parameter Meaning
UPnP Enable or disable Universal Plug and Play (UPnP) functionality.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 61
QoS (Router Mode only)
Congure priorities for types of packets passing through the router.
Parameter Meaning
QoS for transmission to the Internet Determine whether or not to prioritize packets by application.
Check this box to enable QoS.
Upload bandwidth Specify the upstream bandwidth in kbps from the AirStation to the
internet side.
Enable Enable or disable this entry.
application name Enter an application name. Names may use up to 32 alphanumeric
characters, double or single tickmarks ("'), quotation marks (“), and
semicolons (;).
protocol Select either TCP or UDP.
WCR-G300 / WCR-HP-G300 User Manual 62
Chapter 4 Conguration
Parameter Meaning
destination port Specify a destination port with the value of 1 - 65535. If this eld is
empty, a random port is selected.
priority Select high, medium, or low priority for these packets.
* Packets whose type isn’t on the list are treated as a level between
medium and low.
Admin Cong
Name
Congure the AirStation’s name.
Parameter Meaning
AirStation Name Enter a name for the AirStation. Names may include up to 64
alphanumeric characters and hyphens (-).
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 63
Password
You may change the login password for the conguration interface here.
Parameter Meaning
Administrator Name The username for login is xed as “root”.
Administrator Password This password is to log in to the AirStation’s conguration interface.
It may contain up to 8 alphanumeric characters and underscores (_).
WCR-G300 / WCR-HP-G300 User Manual 64
Chapter 4 Conguration

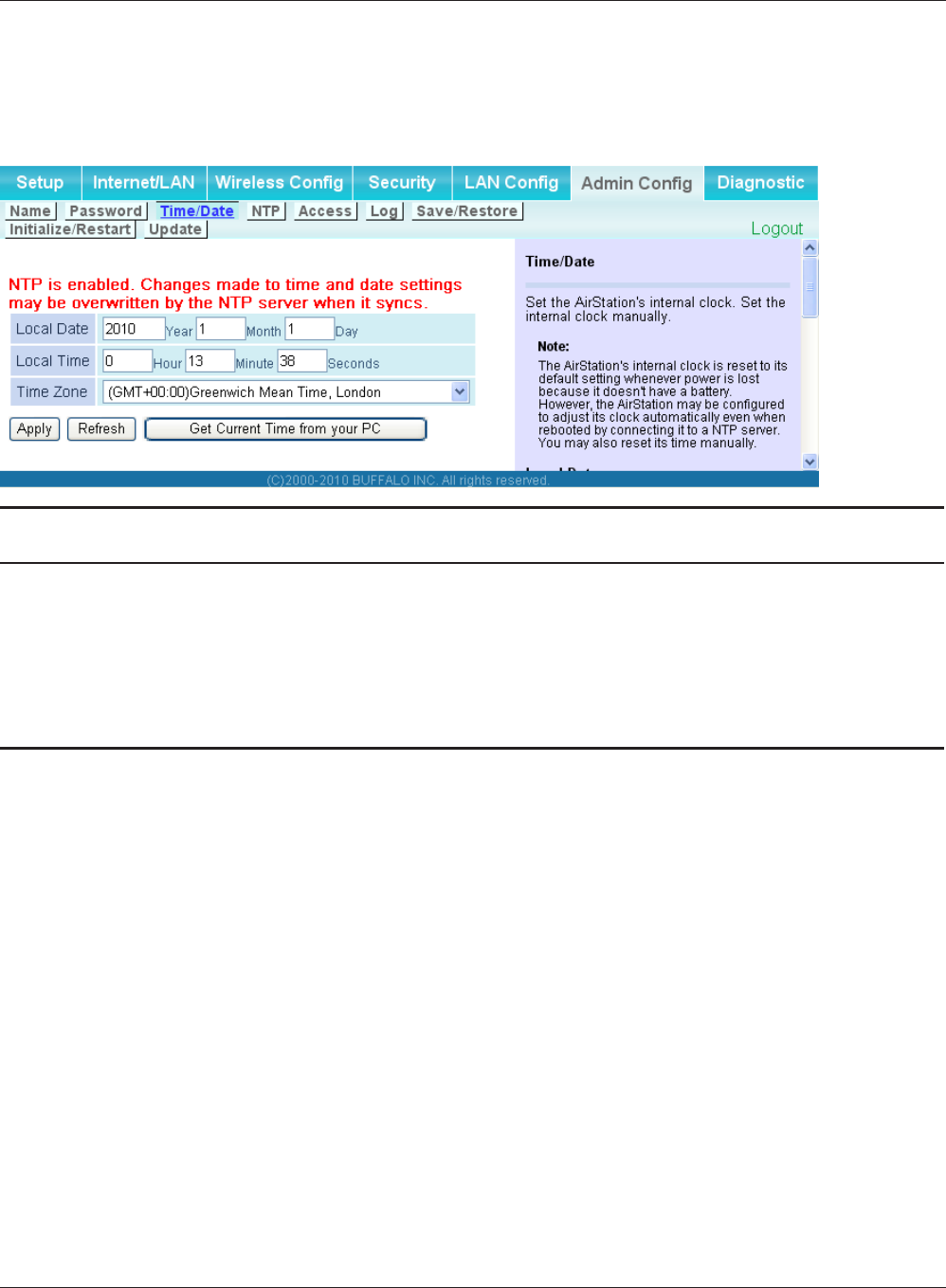

Time/Date
Congure the AirStation’s internal clock here.
Parameter Meaning
Local Date You may manually set the date of the AirStation’s internal clock.
Local Time You may manually set the time of the AirStation’s internal clock.
Time Zone Specify the time zone (offset of Greenwich Mean Time) of the
AirStation's internal clock.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 65
NTP
You may congure an NTP server to automatically correct the AirStation’s time settings.
Parameter Meaning
NTP Functionality Enable to use an NTP server to automatically set the AirStation's
internal clock.
NTP Server Enter the name of the NTP server as a host name, host name with
domain name, or IP address. Up to 255 alphanumeric characters,
hyphens (-), and underscores (_) may be used.
Update Interval How often should the AirStation submit a time request to the NTP
server? Intervals of 1 - 24 hours may be set.
WCR-G300 / WCR-HP-G300 User Manual 66
Chapter 4 Conguration
Access
The screen to restrict access to the AirStation’s settings screens.
Parameter Meaning
Log Output Enabling outputs a log of changes to access settings.
Prohibit conguration from wireless
LAN
If enabled, prevents access to settings screens from wirelessly
connected devices (only wired devices may congure).
Prohibit conguration from wired
LAN
If enabled, prevents access to settings screens from wired devices
(only wirelessly connected devices may congure).
Permit conguration from wired
Internet
Router mode only
If enabled, allows access to settings screens from network devices
on the Internet side.
Permitted IP address
Router mode only
Displayed only if Internet side conguration is enabled. Enter the IP
address of the device that is permitted to congure the AirStation
remotely from the Internet side.
Permitted Port
Router mode only
Displayed only if Internet side conguration is enabled. Set a port
number (1 - 65535) if conguring the AirStation from the Internet
side.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 67
Log
Logs may be transferred to a syslog server automatically.
Parameter Meaning
Log Transfer Enable to send logs to a syslog server.
Syslog Server Indentify the syslog server by host name, host name with domain
name, or IP address. You may enter up to 255 alphanumeric
characters, hyphens (-), and underscores (_).
Transfer Logs Choose which logs will be transferred to the syslog server.
WCR-G300 / WCR-HP-G300 User Manual 68
Chapter 4 Conguration

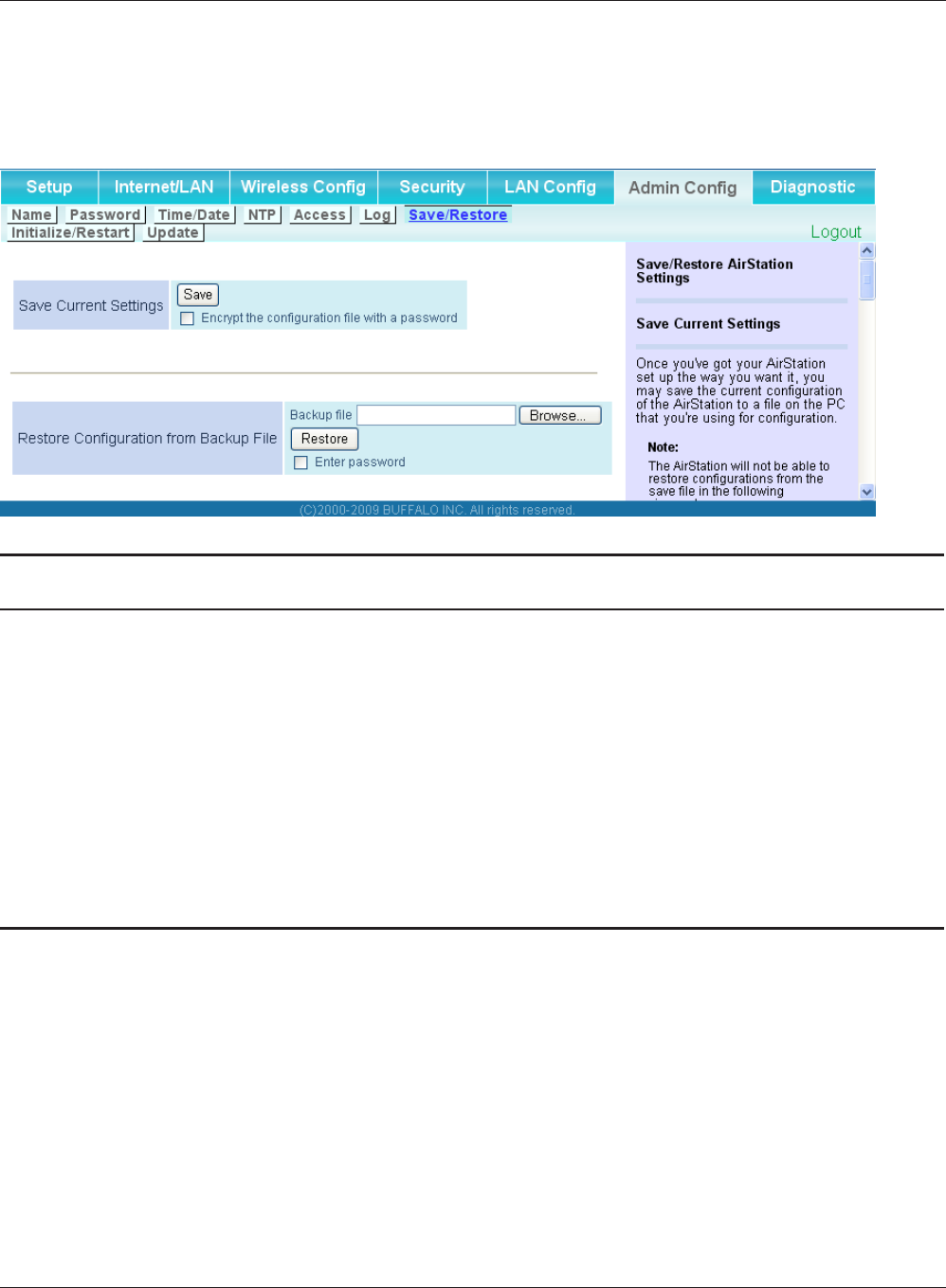

Save/Restore
AirStation settings may be saved to a conguration le or restored from one.
Parameter Meaning
Save current settings Click [Save] to save the current conguration of the AirStation to a
le. If [Encrypt the conguration le with a password] is checked,
then the conguration le will be password protected with the
specied password.
Restore Configuration from Backup
File
Restore the conguration of the AirStation from a saved
conguration le by clicking the [Browse] button, navigating to the
conguration le, and then clicking Restore. If the conguration
le was password protected, then put a check next to [To restore
from the le you need the password], enter the password, and click
[Open].
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 69
Initialize/Restart
Initialize or restart the AirStation from here.
Parameter Meaning
Restart Click [Restart Now] to restart the AirStation.
Initialize Click [Initialize Now] to initialize and restart the AirStation.
WCR-G300 / WCR-HP-G300 User Manual 70
Chapter 4 Conguration
Update
The screen to update the AirStation’s rmware.
Parameter Meaning
Firmware Version Displays the current rmware version of the AirStation.
Firmware File Name Click [Browse] to specify a rmware le and click [Update
Firmware]. This will update the rmware.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 71
Diagnostic
System Info
System information for the AirStation is displayed here.
WCR-G300 / WCR-HP-G300 User Manual 72
Chapter 4 Conguration
Parameter Meaning
Model Displays the product name of the AirStation and the rmware
version.
AirStation Name Displays AirStation Name (as set on page 62).
Operational Mode Displays the current operational mode of the AirStation.
Internet
Router mode only
Displays WAN port information.
LAN Displays LAN port information.
Wireless Displays wireless status.
WDS
Brdige mode only
Displays the status of WDS.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 73

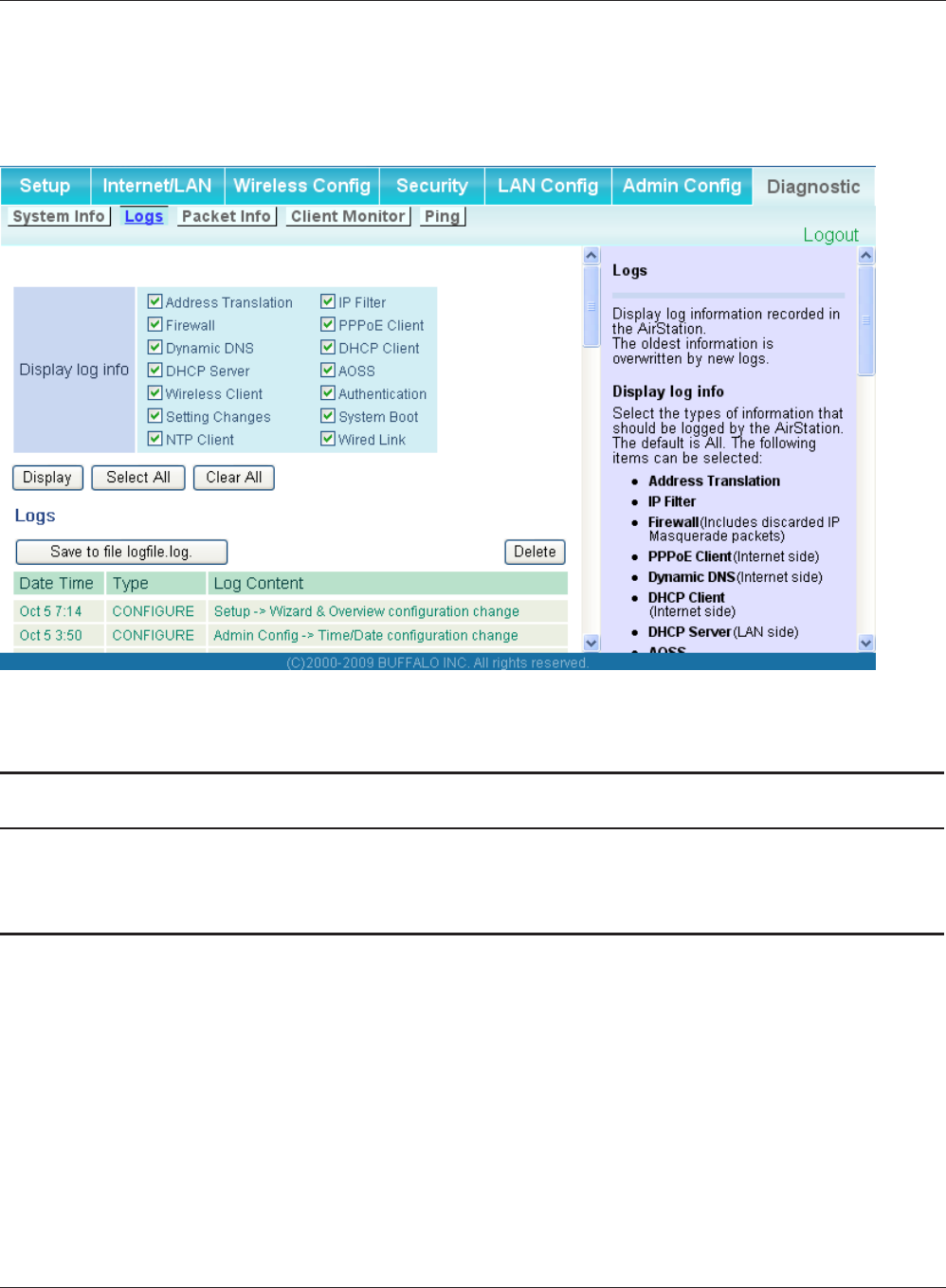

Logs
View the AirStation’s logs here.
Parameter Meaning
Display log info Choose the type of logs to display.
Logs Displays the selected logs.
WCR-G300 / WCR-HP-G300 User Manual 74
Chapter 4 Conguration

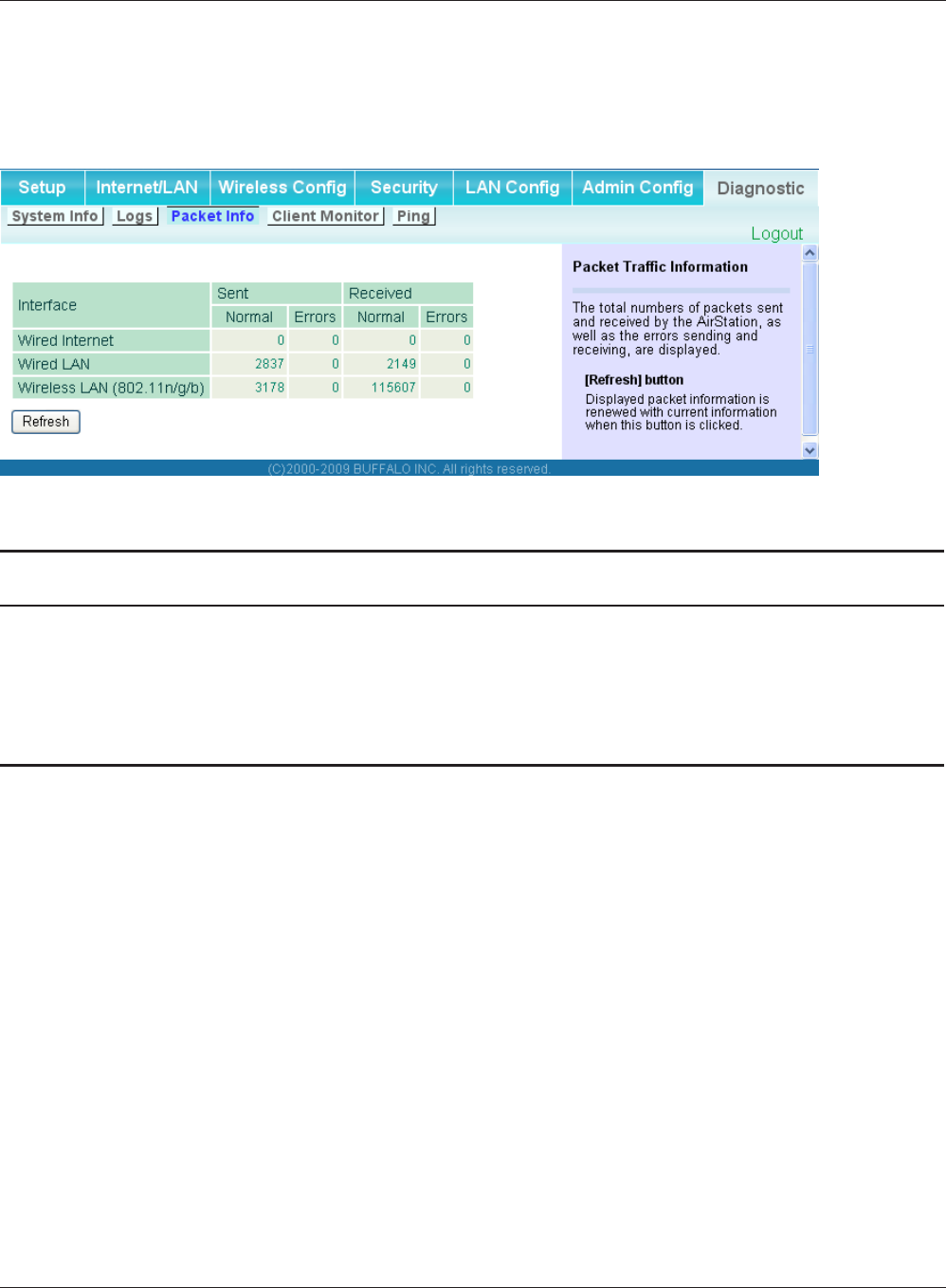

Packet Info
This screen shows the packets that the AirStation has transferred.
Parameter Meaning
Sent Displays the number of packets sent to the WAN (Internet), the
Ethernet LAN, and the wireless LAN.
Received Displays the number of packets received from the WAN (the
Internet), the Ethernet LAN, and the wireless LAN.
Chapter 4 Conguration
WCR-G300 / WCR-HP-G300 User Manual 75
Client Monitor
This screen shows devices that are connected to the AirStation.
Parameter Meaning
Client Monitor Displays information ( MAC address, lease IP address, host name,
communication method, wireless authentication and 802.11n) for
devices that are connected to the AirStation.
WCR-G300 / WCR-HP-G300 User Manual 76
Chapter 4 Conguration

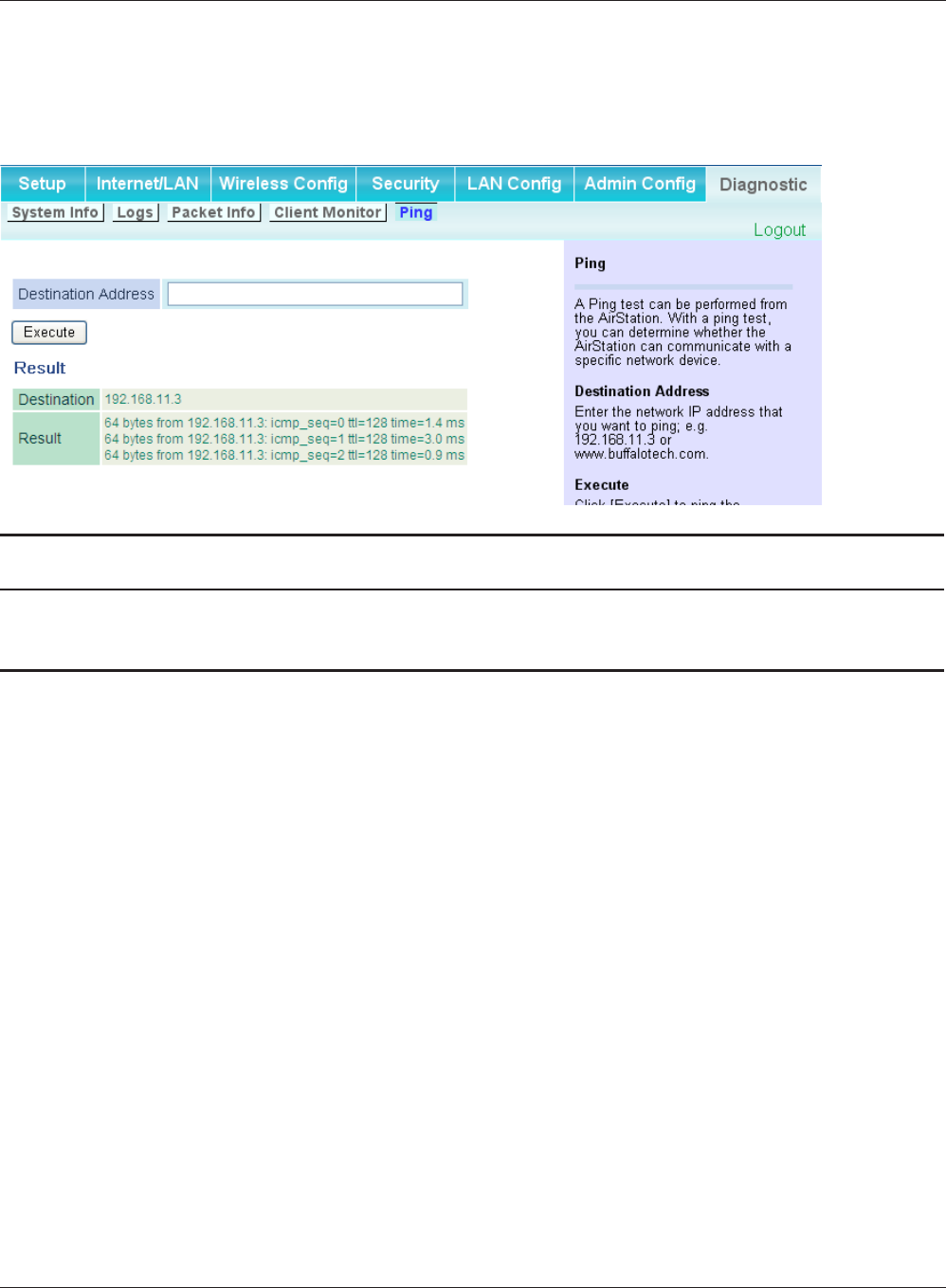

Ping
A ping test checks whether the AirStation can communicate with a specic network device.
Parameter Meaning
Destination Address Enter an IP address or a hostname to ping, and click [Execute]. The
result will be displayed in the [Result] eld.
WCR-G300 / WCR-HP-G300 User Manual 77
Chapter 5 - Connect to a Wireless Network
Automatic Secure Setup (AOSS/WPS)
AOSS and WPS are systems that enable you to automatically congure wireless LAN settings. Just
pressing the buttons will connect wireless devices and complete security settings. Use them to
automatically connect wireless devices, computers, or game machines which support AOSS or WPS.
AOSS (AirStation One-Touch Secure System) is technology developed by Bualo Technology.
WPS was created by the Wi-Fi Alliance.
• Before using AOSS/WPS to connect to a computer with a Bualo wireless client, install Client
Manager software from the included AirNavigator CD on the computer. Consult your wireless
client’s documentation for more information.
• Bualo’s Client Manager software can be used with the wireless LAN devices built into your
computer. However, it is not guaranteed to work with all wireless LAN devices available.
Note:
To congure WDS with AOSS, you must use a dierent AOSS button. Refer to page 17 for more
information on using AOSS to congure a WDS bridge.
If you use AOSS to congure WDS, any wireless clients that were previously connected to the
AirStation via AOSS will have been disconnected. Refer to the following procedure to reconnect
them.
WCR-G300 / WCR-HP-G300 User Manual 78
Chapter 5 Connect to a Wireless Network
1
2

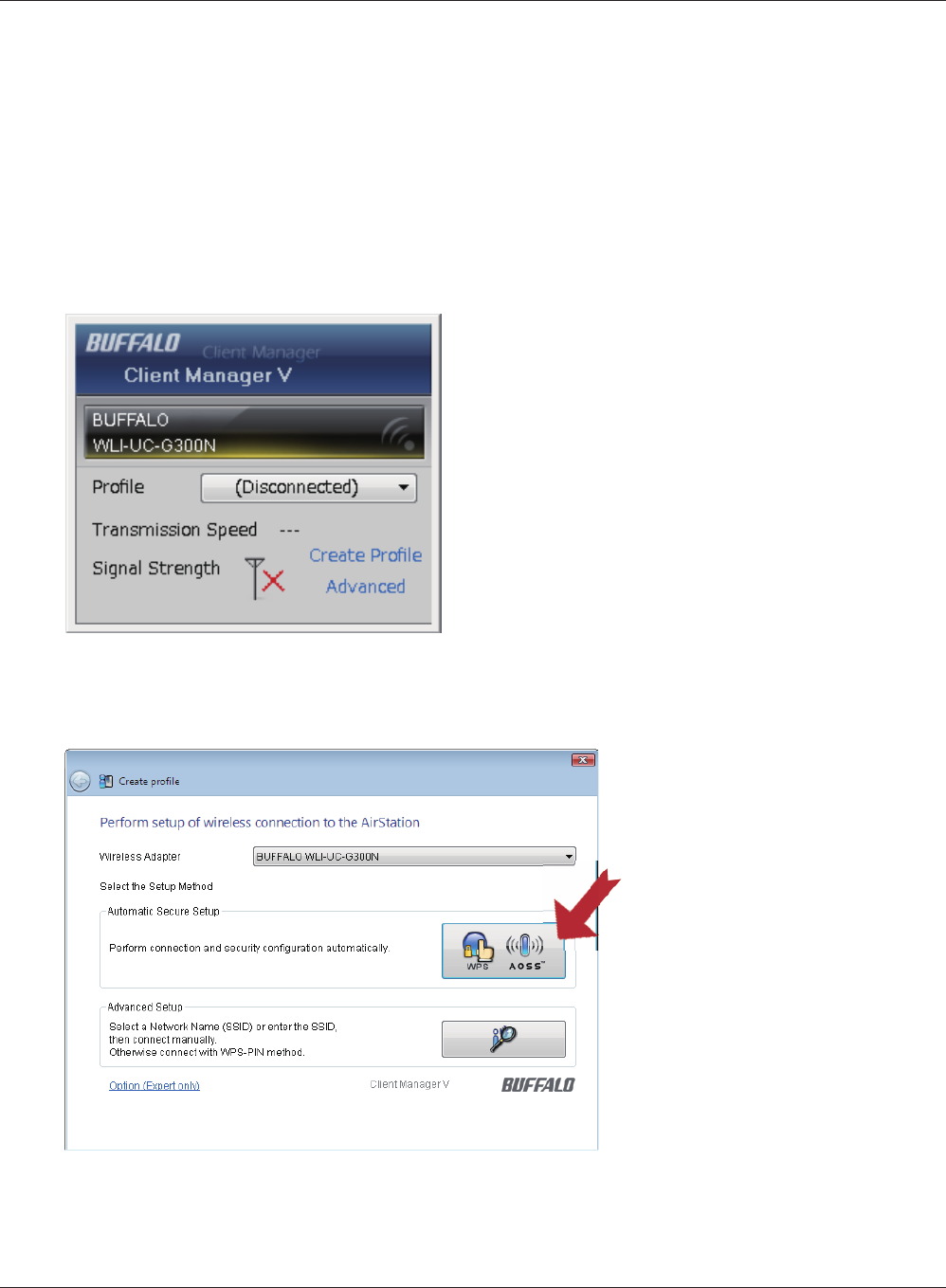

Click [Start] > [All Programs] > [BUFFALO] > [AirStation Utility] > [Client Manager V].

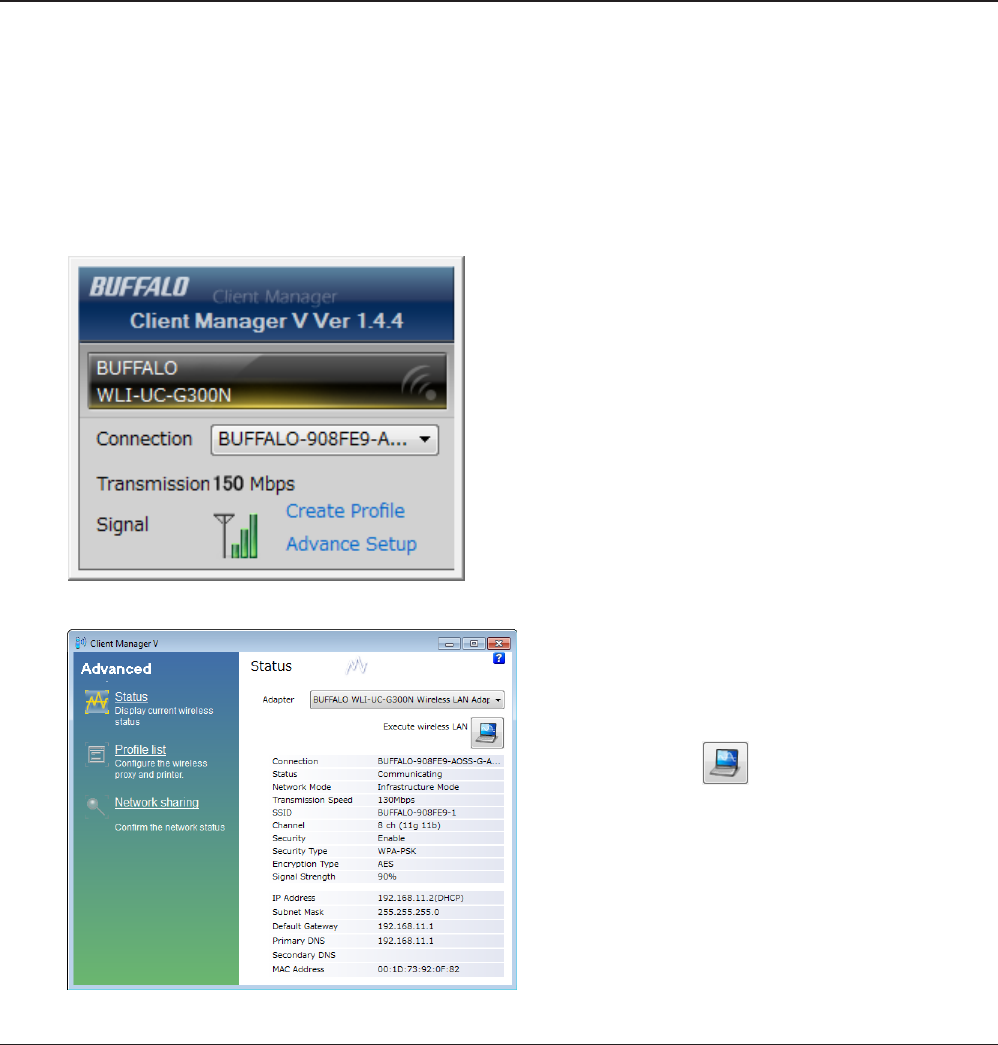

Windows 7 or Vista (Client Manager V)
If you are using Windows 7 or Vista, use the included Client Manager V software to connect wirelessly
with AOSS/WPS.
Click [Create Pro le].
Follow any instructions displayed on the screen. When the Security LED on the front of the AirSta-
tion stop ashing and glows steadily, the connection is complete.
3If the User Account Control screen opens, click [Yes] or [Continue].
4Click the [WPS AOSS] button.
Chapter 5 Connect to a Wireless Network
WCR-G300 / WCR-HP-G300 User Manual 79
2
Windows XP (Client Manager 3)
If you are using Windows XP, use Client Manager 3 to connect wirelessly with AOSS/WPS.
1Right click on the icon in the system tray and select [Pro le].
Click the [WPS AOSS] button.
It will take several seconds for your wireless connection to be con gured. When the Security LED on
the front of the AirStation stop ashing and glows steadily, the connection is complete.
WCR-G300 / WCR-HP-G300 User Manual 80
Chapter 5 Connect to a Wireless Network
Mac OS X (AOSS Assistant)
If you are using Mac OS X 10.7 / 10.6 / 10.5 / 10.4, use the included AOSS Assistant software to con-
nect wirelessly with AOSS.
1Load the AirNavigator CD in your Macintosh.
2From the menu bar, click [Go] > [Computer].
3Double-click the CD icon, and then double-click [AOSS Assistant] in the “Mac” folder.
4The software license screen is displayed. Click [Agree] to proceed.
5
Click [Start AOSS ].
6Enter the Mac’s username and
password and click [OK].
It will take several seconds for your wireless connection to be congured. When the Security LED on
the front of the AirStation stop ashing and glows steadily, the connection is complete.
Chapter 5 Connect to a Wireless Network
WCR-G300 / WCR-HP-G300 User Manual 81
1Click on the network icon in the system tray.
2Select the target AirStation’s name and click
[Connect]. If you will be connecting to this
device in the future, checking [Connect
automatically] is recommended.
Other Devices (e.g. Game Console)
If you are using a game machine which supports AOSS or WPS, refer to that device’s manual to initi-
ate AOSS/WPS. When instructed, hold down the AOSS button on the AirStation for 1 second.
When the Security LED on the front of the AirStation stop ashing and glows steadily, the connec-
tion is complete.
Manual Setup
You can also connect to the AirStation without installing Client Manager V or Client Manager 3 by
using the utility built-in to Windows. The procedure varies depending on which version of Windows
you are using.
Note: · If the AirNavigator CD is used to perform setup when making the initial settings of AirStation, the wire-
less connection settings for the AirStation are completed during the Setup process. As a result, you do
not need to make the settings below. After setup is complete, once the LAN cable is removed, you can
connect from your wireless client to the AirStation.
· Before performing setup, make the settings to enable the wireless client of the computer.
Windows 7 (WLAN AutoCong)
With Windows 7, use WLAN AutoCong to connect to the AirStation.
WCR-G300 / WCR-HP-G300 User Manual 82
Chapter 5 Connect to a Wireless Network

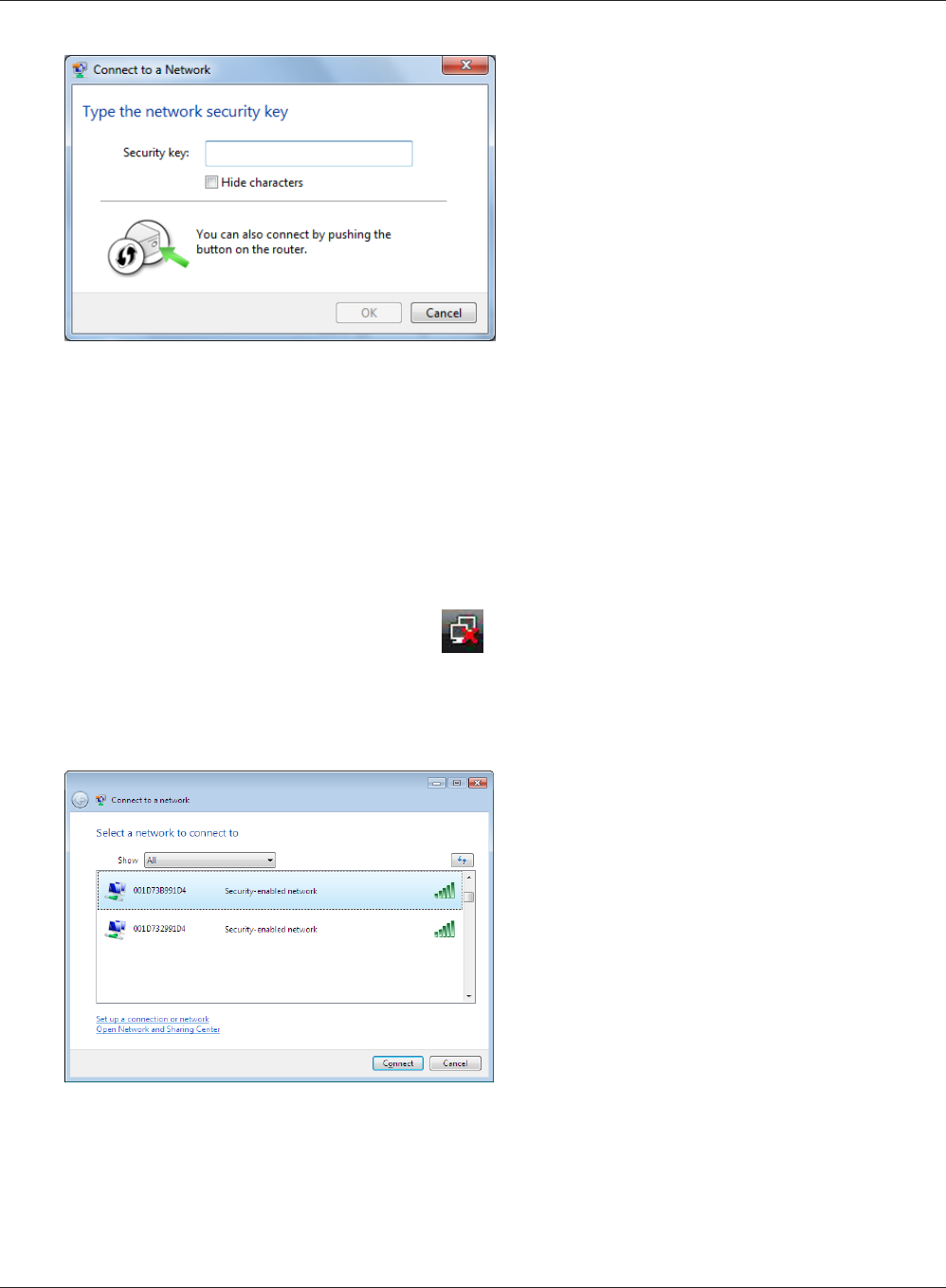

3Enter the encryption key and click [OK].
1Right click on the wireless network icon in the system tray.
2Click [Connect to a network].
When the screen at left is displayed, select the
network to connect to and click [Connect].
3
Windows Vista (WLAN AutoCong)
With Windows Vista, use WLAN AutoCong to connect to the AirStation.
Chapter 5 Connect to a Wireless Network
WCR-G300 / WCR-HP-G300 User Manual 83

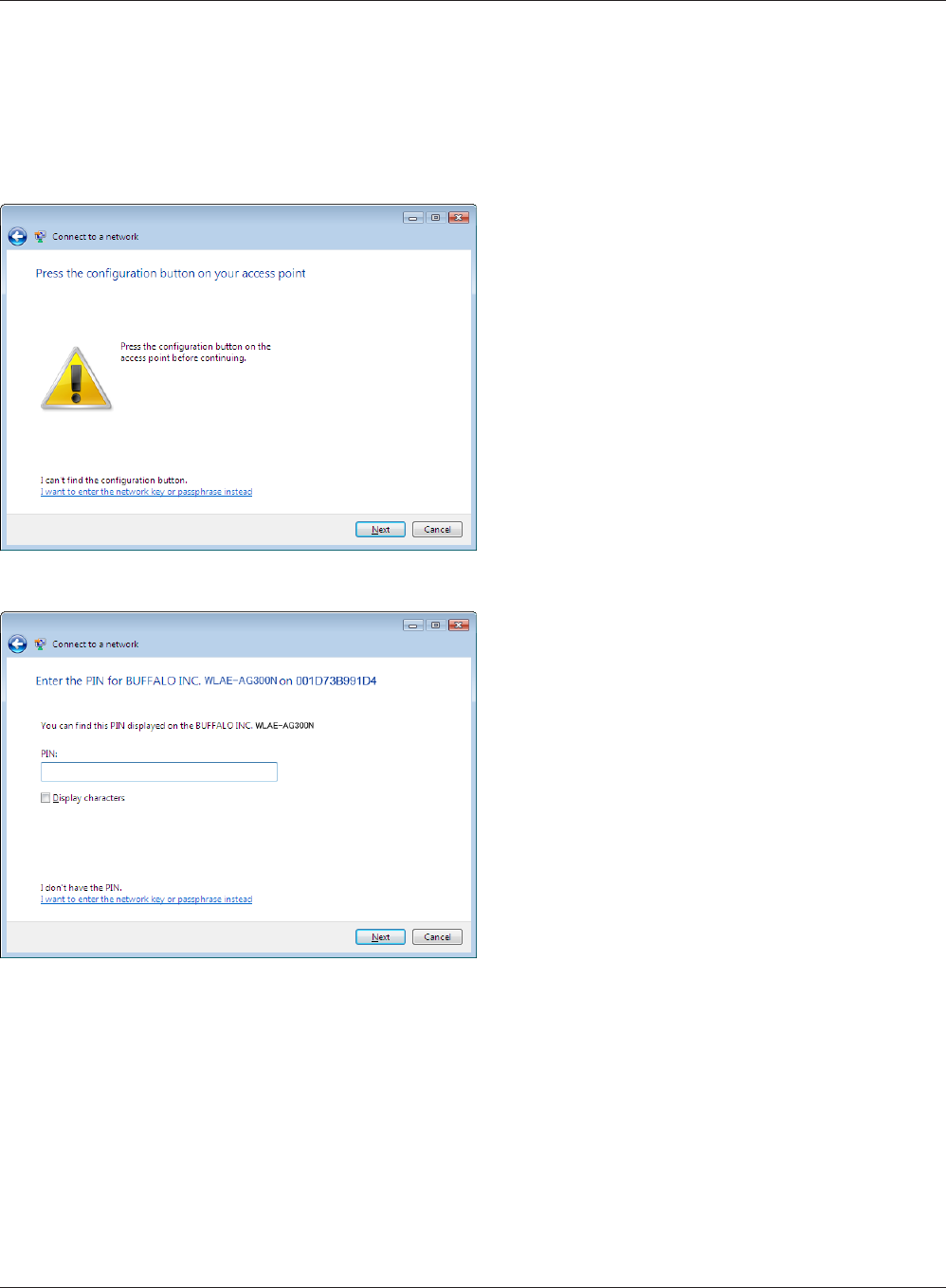

If the screen below is displayed, click [I want to enter the network key or passphrase instead].
Otherwise,go to step 4.
WCR-G300 / WCR-HP-G300 User Manual 84
Chapter 5 Connect to a Wireless Network

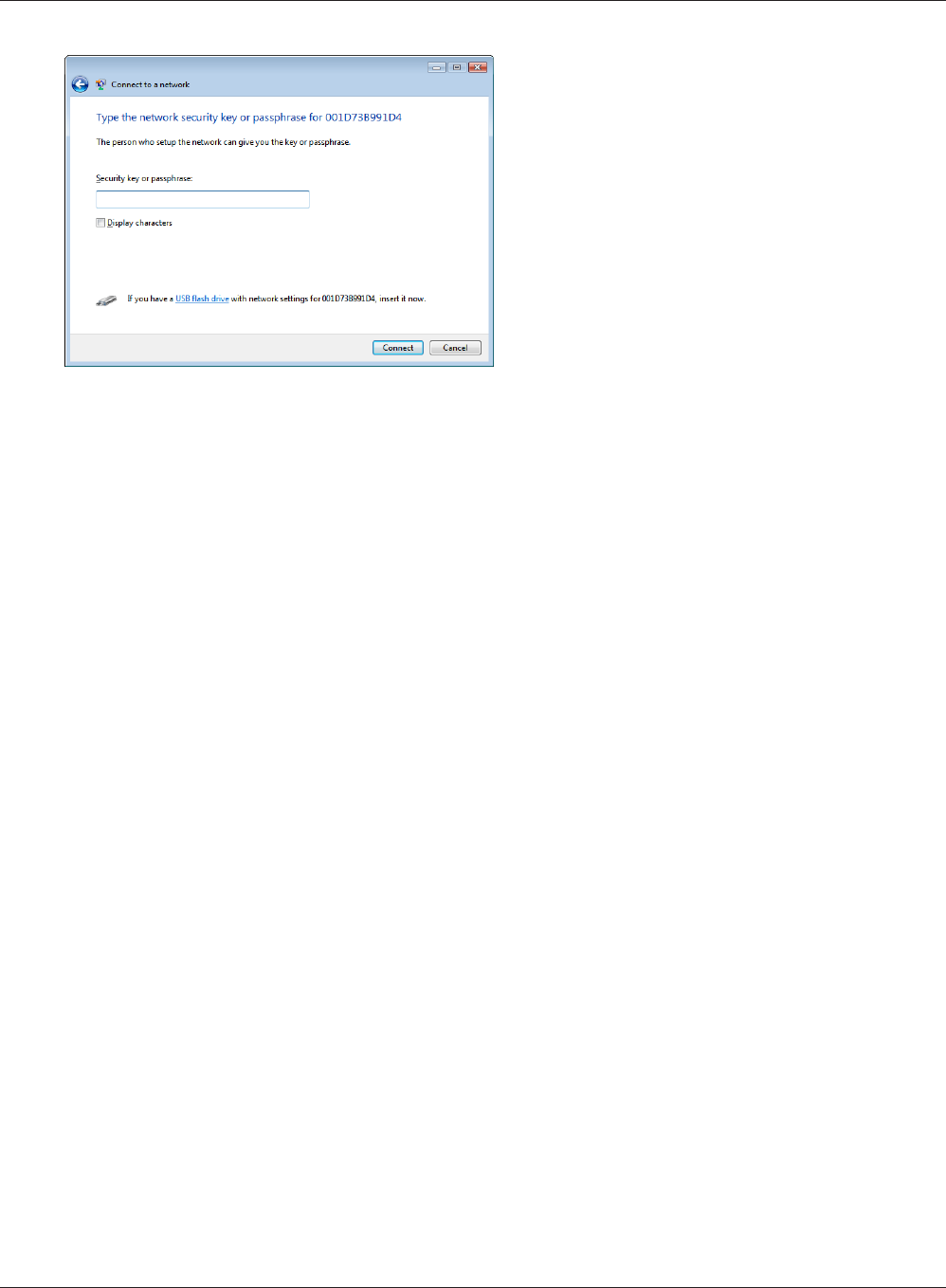

4Enter the encryption key and click [Connect].
Step through the wizard to nish conguration.
If the Set Network Location screen is displayed,
select [Home], [Work], or [Public location] depending where you’re using the AirStation.
Chapter 5 Connect to a Wireless Network
WCR-G300 / WCR-HP-G300 User Manual 85

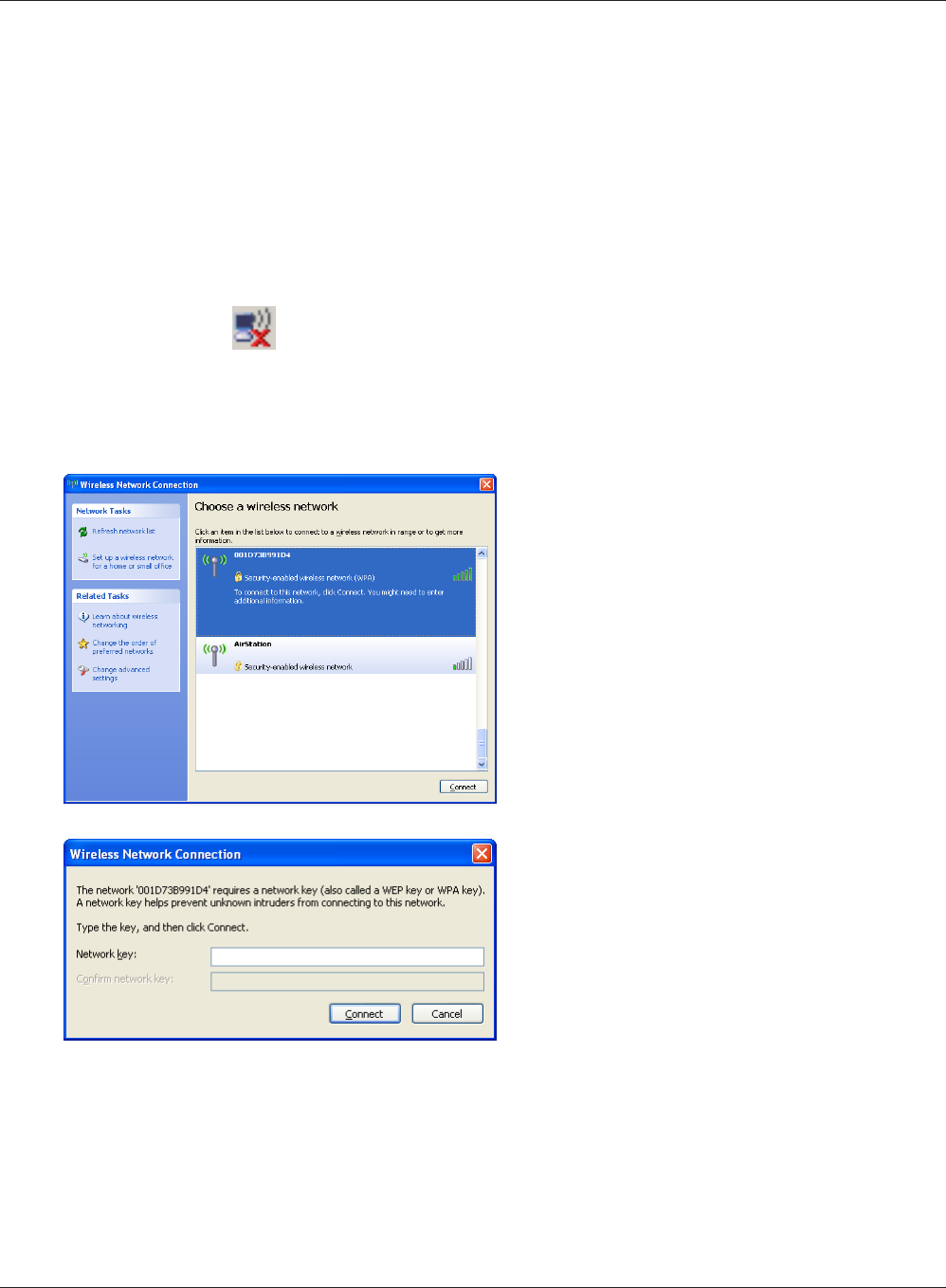

Windows XP (Wireless Zero Conguration)
Windows XP includes a built-in utility to connect to your AirStation.
Note: If Client Manager 3 is installed on your computer, Wireless Zero Cong is disabled. Uninstall Client
Manager 3 to use Wireless Zero Cong, or just use Client Manager 3 to connect to the AirStation.
1Right click on the icon in the system tray.
2Click [View Available Wireless Networks].
3
4
Wireless Zero Cong will automatically connect you to the network.
Select the network to connect to and click
[Connect].
Enter the encryption key (twice) and click
[Connect].
WCR-G300 / WCR-HP-G300 User Manual 86
Chapter 5 Connect to a Wireless Network

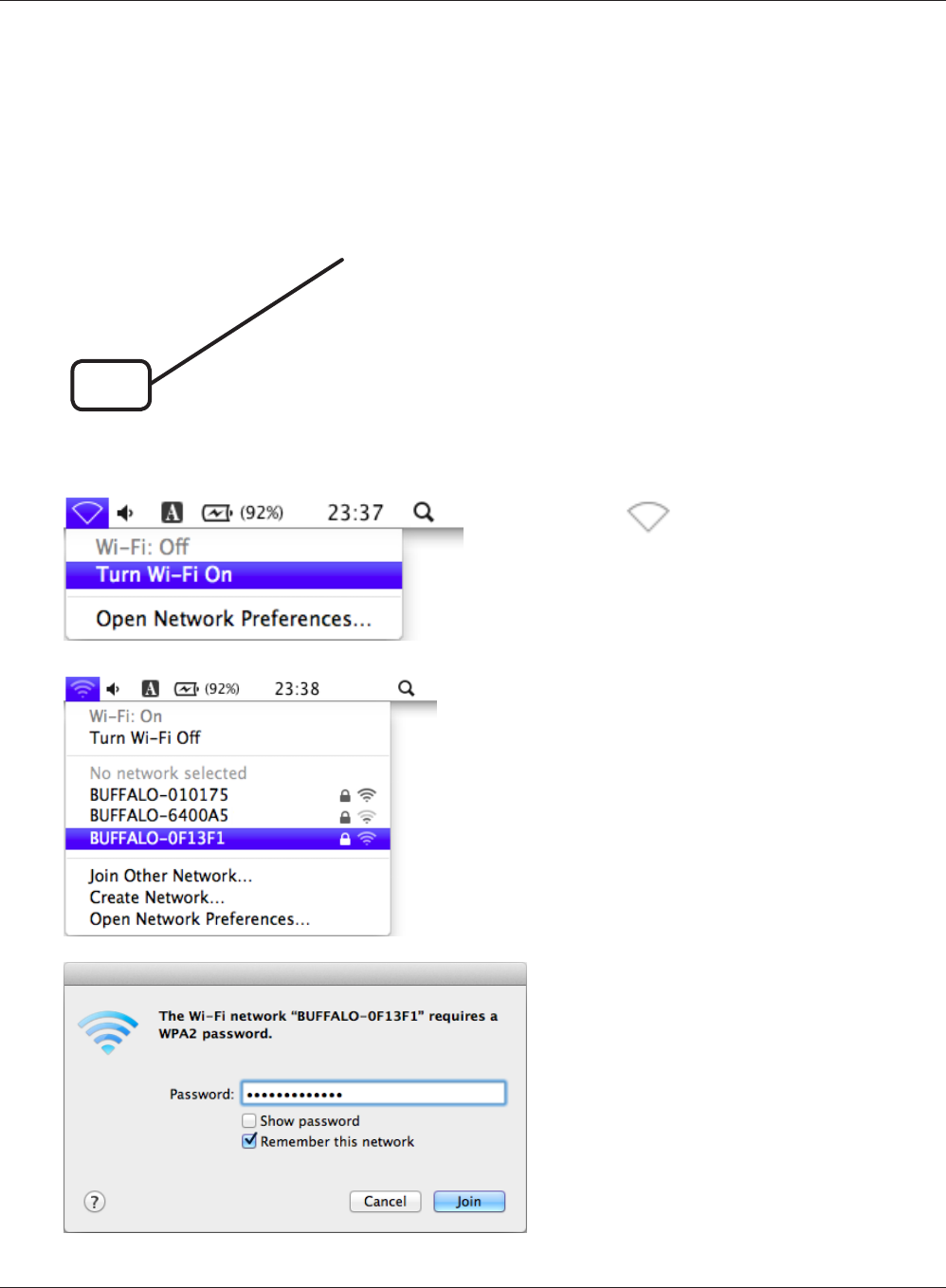

Mac OS X (Wi-Fi)
Use Wi-Fi on a Mac to connect to the AirStation.
1
2
3
4
It will take several seconds for conguration to complete.
Refer to the label on the side of the AirStation.
Make a note of the SSID and KEY printed on the label.
Click the icon in the top section of the
screen and select [Turn Wi-Fi On].
Find the SSID from step 1 on the list.
Click it to highlight it.
Enter the KEY from step 1 into the
Password entry box, check [Remember
this network], and click [Join].
WCR-G300 / WCR-HP-G300 User Manual 87
Chapter 6 - Troubleshooting
Cannot connect to the Internet over wired connection.
• Make sure that your AirStation is plugged in!
• Check that the status LEDs of your AirStation are lit as below:
Power Green LED is on.
Wireless Green LED on or ashing
Router Green LED may be on or o
Diag O
• Make sure that your computer is set to [obtain an IP address automatically]. See page 102 for more
information.
• Restart your AirStation.
Cannot access the web-based conguration
interface.
• Open the conguration interface by following the procedure on page 23.interface by following the procedure on page 23. by following the procedure on page 23.
• Enter the correct user name and password to log in to the conguration interface.
If you are using AirStation with factory default settings, enter “root” (lower case) for the
username and leave the password blank (enter nothing).
• Verify that your web browser is not set to use proxies.
• Make sure that your computer is congured to [Obtain an IP Address Automatically]. (page 102)
• Restart your AirStation.
WCR-G300 / WCR-HP-G300 User Manual 88
Chapter 6 Trouble Shooting
Cannot connect to the network wirelessly.
• Congure your wireless device with the same SSID, encryption type, and encryption key as used
by your AirStation.
The factory defaults are:
SSID - The AirStation’s MAC address (printed on the label)
Encryption Type - WPA/WPA2 mixed mode - PSK (Connect with either WPA-PSK TKIP or
WPA2-PSK AES).
Encryption Key - Printed on the label of the AirStation.
Note: Encryption is disabled by default in Asia Pacic.
• Place your AirStation and wireless devices 2 - 10 feet apart.
• Restart your AirStation.
You forgot AirStation's SSID, Encryption Key, or
Password.
Hold down the Reset button (page 106) on your AirStation for 5 seconds to initialize its settings. All
settings, including your password, SSID, and encryption key will be initialized to their defaults.
The followings are the factory default settings of the AirStation.
SSID - The AirStation’s MAC address (printed on the label)
Encryption Type - WPA/WPA2 mixed mode - PSK (Connect with either WPA-PSK TKIP or
WPA2-PSK AES).
Encryption Key - Printed on the label of the AirStation.
(Encryption is disabled by default for Asia Pacic AirStations.)
The link speed is slower than 150 Mbps (Maximum
link speed is only 72Mbps).
By default, the AirStation’s 150 Mbps mode is not enabled. To enable it, use the following procedure:
1. Open the conguration interface of your AirStation (page 23).
2. Click [Wireless SSID & Channel (11n 150Mbps Mode)] in Easy Setup.
3. Change the value in [150 Mbps Mode] - [Band Width] to 40 MHz and click [Apply].
If you still cannot connect at 150 Mbps, check the settings of your wireless client device.
Chapter 6 Trouble Shooting
WCR-G300 / WCR-HP-G300 User Manual 89
Other Tips
Issue:
I reset my wireless router to factory settings and forgot how to log in.
Answer:
Open your browser, enter 192.168.11.1 as the browser address, then press the Enter key. You will be
prompted to log in. Enter "root" for the username and leave the password box empty (no password).
Click [OK] to log in. The option to reset your password will be available on the rst page.
Issue:
How do I forward ports on my wireless router for my gaming console?
Answer:
Log in to the router. From the home page, go to the Internet Game/ Port Mapping section. Enter the
port that needs to be forwarded and the IP address of the gaming console.
Issue:
How do I enable or modify encryption settings on the wireless router?
Answer:
Log in to the wireless router with your browser. Go to the Wireless Cong tab and then select the
Basic tab. Bualo recommends the use of WPA/WPA2 mixed for wireless encryption. The passphrase/
key should be at least 8 characters in length.
Issue:
How do I change my wireless router's broadcasted network name (SSID)?
Answer:
Log in to the wireless router with your browser. Navigate to Wireless Cong - Basic. Find the SSID
setting. Select [Use] and enter the new name for your network. Click [Apply]. Once the wireless
router has rebooted, you will need reconnect any wireless clients to the AirStation using the new
network name. The encryption key will still be the same.
WCR-G300 / WCR-HP-G300 User Manual 90
Chapter 6 Trouble Shooting
Issue:
What can I do if my wireless connection drops randomly or seems slow?
Answer:
There are many environmental factors that may aect this behavior. First, ensure the issue is not
range related by locating the wireless router and the device dropping connection in closer proximity
and check whether the connection drops continue.
In some cases, interference from other wireless networks or sources such as 2.4 GHz wireless phones
may impact performance. To work around this scenario, change the wireless channel used by your
wireless router.
Log in to the wireless router with your browser. Click on the Wireless Cong tab and then the Basic
tab. The Wireless Channel setting can be selected from channels 1 to 11. If an Auto-Channel option
is available, attempt to use this option to remedy the problem. If Auto-Channel is unavailable,
manually select an alternate channel and click [Apply].
Issue:
Though I am able to successfully make a connection with my wireless router, I am unable to access
the Internet with my web browser.
Answer:
First, power o the Cable or DSL modem, the wireless router, and your computer. Move the router's
mode switch to the on position. Verify that the modem is connected to the wireless router with an
Ethernet cable to the WAN port. Power on the modem and wait one minute. Power on the wireless
router and wait another minute. Power on the computer. Open a browser on the computer and
navigate to a familiar website to verify whether the Internet connection is functioning normally.
If after these steps, an Internet connection is still unavailable, power o the Cable or DSL modem
and computer again and directly connect your computer to the Cable or DSL modem with a cable
between the computer and the port on the modem. Power on the modem and wait one minute.
Power on the computer and again check for an Internet connection.
If an Internet connection IS NOT available with a direct connection to the computer, please call the
Internet Service Provider who installed the modem.
If an Internet connection IS available with a direct connection to the computer, please call our
customer support.
Chapter 6 Trouble Shooting
WCR-G300 / WCR-HP-G300 User Manual 91
Issue:
Where can I download the latest drivers, rmware, and instructions for my Bualo wireless products?
Answer:
The latest drivers and rmware are available online at
www.bualotech.com
WCR-G300 / WCR-HP-G300 User Manual 92
Appendix A - Specications
Wireless LAN Interface
Standard Compliance IEEE802.11b / IEEE802.11g / IEEE802.11n
Transmission Method Direct Sequence Spread Spectrum (DSSS), OFDM, MIMO
Frequency Range 2,412 - 2,462 MHz (Channels 1 - 11)
Transmission Rate 802.11b:
11, 5.5, 2, 1 Mbps
802.11g:
54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n
20 MHz BW
(Long GI) 130, 117, 104, 78, 52, 39, 26, 13 Mbps (2 stream)
65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps (1 stream)
(Short GI) 144.4, 130, 115.6, 86.7, 57.8, 43.3, 28.8, 14.4 Mbps (2 stream)
72.2, 65, 57.8, 43.3, 28.9, 21.7, 14.4, 7.2 Mbps (1 stream)
40 MHz BW
(Long GI) 270, 243, 216, 162, 108, 81, 54, 27 Mbps (2 stream)
144.5, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps (1 stream)
(Short GI) 300, 270, 240, 180, 120, 90, 60, 30 Mbps (2 stream)
150, 135, 120, 90, 60, 45, 30, 15 Mbps (1 stream)
Access Mode Infrastructure Mode
Security AOSS, WPA2-PSK (AES), WPA/WPA2 mixed PSK, WPA-PSK (AES), 128/64 bit WEP,
Mac Address Filter
Wired LAN Interface
Standard Compliance IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T)
Transmission Rate 10 / 100 Mbps
Transmission Encoding 100BASE-TX 4B5B/MLT-3, 10BASE-T Manchester Cording
Access Method CSMA/CD
Speed and Flow Control 10/100, Auto Sensing, Auto MDIX
Number of LAN Ports 4
LAN Port Connector RJ-45
Appendix A Specications
WCR-G300 / WCR-HP-G300 User Manual 93
Other
Power Supply External AC 100-240V Universal, 50/60 Hz
Power Consumption Approx. 5.8 W (Max)
Dimensions WCR-G300 : 118 mm x 104 mm x 23 mm (4.6 x 4.1 x 0.9 in.)
WCR-HP-G300 : 118 mm x 104 mm x 23 mm (4.6 x 4.1 x 0.9 in.)
Weight WCR-G300 : 144 g (4.5 oz.)
WCR-HP-G300 : 144 g (4.5 oz.)
Operating Environment 0 - 40° C (32 - 104° F), 20 - 80% (non-condensing)
WCR-G300 / WCR-HP-G300 User Manual 94
Appendix B - Default Conguration Settings
Feature Parameter Default Setting
Internet
Router Mode only
Method of Acquiring IP Address Easy Setup (Internet Connection Wizard)
Default Gateway none
Address of DNS Name Server none
Internet MAC Address Use default MAC Address
MTU Size of Internet Port 1500 Bytes
PPPoE
Router Mode only
Name of Connection none
User Name none
Password none
Service Name none
Connection Type Continuous Connection
Automatic disconnection Disconnect Condition
When both incoming and outgoing trac stops
Disconnect Time
5 Minutes
Authorization Automatic Authorization
MTU Size 1454 Bytes
MRU size 1454 Bytes
Keep Alive Enabled
DDNS
Router Mode only
Dynamic DNS Service Disabled
Current Dynamic DNS Informa-
tion
none
LAN LAN Side IP Address Router Mode:
192.168.11.1 (255.255.255.0)
Bridge Mode
192.168.11.100 (255.255.255.0)
DHCP Server
Router Mode only
Enabled
DHCP IP Address Pool
Router Mode only
192.168.11.2 for up to 64 addresses
Lease Period
Router Mode only
48 hours
Appendix B Default Conguration Settings
WCR-G300 / WCR-HP-G300 User Manual 95
Feature Parameter Default Setting
Default Gateway
Router Mode only
AirStation's IP Address
DNS Servers
Router Mode only
AirStation's IP Address
WINZ Server
Router Mode only
Assigned IP address
Domain Name
Router Mode only
Assigned Domain Name
Default Gateway
Bridge Mode only
none
DNS Server Address
Bridge Mode only
none
DHCP Lease
Router Mode only
Current DHCP Client Informa-
tion
none
NAT
Router Mode only
Address Translation Enabled
Log Output of Deleted Packets Disabled
Route Routing Information none
WPS WPS Enabled
External Registrar Enabled
AirStation PIN An 8-digit random value
(Printed on the label of the AirStation)
WPS Security Information WPS status: congured or uncongured
SSID: AirStation’s MAC Address
Security: WPA/WPA2 mixedmode - PSK TKIP/
AES mixedmode or none
Encryption key: A 13-digit random value or dis-
abled.
(Printed on the label of the AirSta-
tion. Encryption is disabled by
default settings on AirStation for
Asia Pacic.)
WCR-G300 / WCR-HP-G300 User Manual 96
Appendix B Default Conguration Settings
Feature Parameter Default Setting
AOSS Encryption Type of Exclusive
SSID for WEP
none
Encryption level expansion
function
Enabled
Dedicated WEP SSID isolation Disabled
AOSS Button on the AirStation
Unit
Enabled
Basic Wireless Radio Enabled
Wireless Channel Auto Channel
150Mbps Mode Band Width: 20MHz
Extension Channel: -
Broadcast SSID Allow
Separate feature For US/EU
SSID1: not used
SSID2: used
For AP
SSID1: used
SSID2: not used
SSID For US/EU
SSID1: not used
SSID2: Congure AirStation’s MAC address + [-1]
SSID3: not used
SSID4: not used
For US/EU
SSID1: Congure AirStation’s MAC address
SSID2: not used
SSID3: not used
SSID4: not used
Authentication For US/EU
WPA/WPA2 mixed mode-PSK
For AP
No authentication
Encryption For US/EU
TKIP/AES mixed mode
For AP
No encryption
Rekey interval 60 minutes
Appendix B Default Conguration Settings
WCR-G300 / WCR-HP-G300 User Manual 97
Feature Parameter Default Setting
Advanced Multicast Rate 1Mbps
DTIM Period 1
Privacy Separator Disabled
WMM WMM-EDCA Parameters
(Priority AC_BK (Low) )
For AP For STA
CWmin 15 15
CWmax 1023 1023
AIFSN 7 7
TXOP Limit 0 0
WMM-EDCA Parameters
(Priority AC_BE (Normal) )
For AP For STA
CWmin 15 15
CWmax 63 1023
AIFSN 3 3
TXOP Limit 0 0
WMM-EDCA Parameters
(Priority AC_VI (High) )
For AP For STA
CWmin 7 7
CWmax 15 15
AIFSN 1 2
TXOP Limit 94 94
WMM-EDCA Parameters
(Priority AC_VO (Highest) )
For AP For STA
CWmin 3 3
CWmax 7 7
AIFSN 1 2
TXOP Limit 47 47
MAC Filter Enforce MAC Filter Disabled
Registration List none
WDS WDS not used
Firewall
Router Mode only
Log Output Disabled
Basic Rules Prohibit NBT and Microsoft-DS Routing Disabled
Reject IDENT Requests Enabled
Block Ping from Internet Enabled
IP Filter
Router Mode only
Log Output Disabled
IP Filter Information none
WCR-G300 / WCR-HP-G300 User Manual 98
Appendix B Default Conguration Settings
Feature Parameter Default Setting
VPN Pass
Through
Router Mode only
IPv6 Pass Through Disabled
PPPoE Pass Through Disabled
PPTP Pass Through Disabled
Port Forwarding
Router Mode only
Port Forwarding Registration
Information
none
DMZ
Router Mode only
IP Address of DMZ none
UPnP
Router Mode only
UPnP Enabled
QoS
Router Mode only
QoS for transmission to the In-
ternet
Disabled
Name AirStation Name AP + AirStation's MAC Address
Password Administrator Name root (xed)
Administrator Password none
Time/Date Local Date 2010 Year 1 Month 1 Day
Local Time 0 Hour 0 Minute 0 Seconds
Time Zone (GMT−00:00) Greenwich Mean Time, London
NTP NTP Functionality Enabled
NTP Server time, nist, gov
Update Interval 24 hours
Access Log Output Disabled
Limitation Item Prohibit conguration from wireless LAN Disabled
Prohibit conguration from wired LAN Disabled
Permit conguration from wired Internet Disabled
Log Log Transfer Disabled
Syslog Server none
Transfer Logs Router Mode:
Address Translation, IP Filter, Firewall, PPPoE Client,
Dynamic DNS, DHCP Client, DHCP Server, AOSS,
Wireless Client, Authentication, Setting Changes,
System Boot, NTP Client, and Wired Link
Bridge Mode:
IP Filter, DHCP Client, AOSS, Wireless Client, Au-
thentication, Setting Changes, System Boot, NTP
Client, and Wired Link
WCR-G300 / WCR-HP-G300 User Manual 99
For users of Windows 7, Vista, or Mac OS X (10.4 and later), software supplied with the AirStation can
be used to check the quality and strength of the wireless signal.
Windows 7/Vista
Note: · If Client Manager V is not already installed, install it from the AirNavigator CD. Click [Install Wireless Client Driver
and Application] > [Options] > [Advanced Installation], and install Client Manager V.
· Client Manager V does not support Windows XP.
Appendix C - Checking Wireless Signal Quality
3
When the Client Manager V status screen is
displayed, click .
1Click [Start] > [All Programs] > [BUFFALO] > [AirStation Utility] > [Client Manager V].
2
Click [Advanced Setup].
WCR-G300 / WCR-HP-G300 User Manual 100
Appendix C Checking Wireless Signal Quality

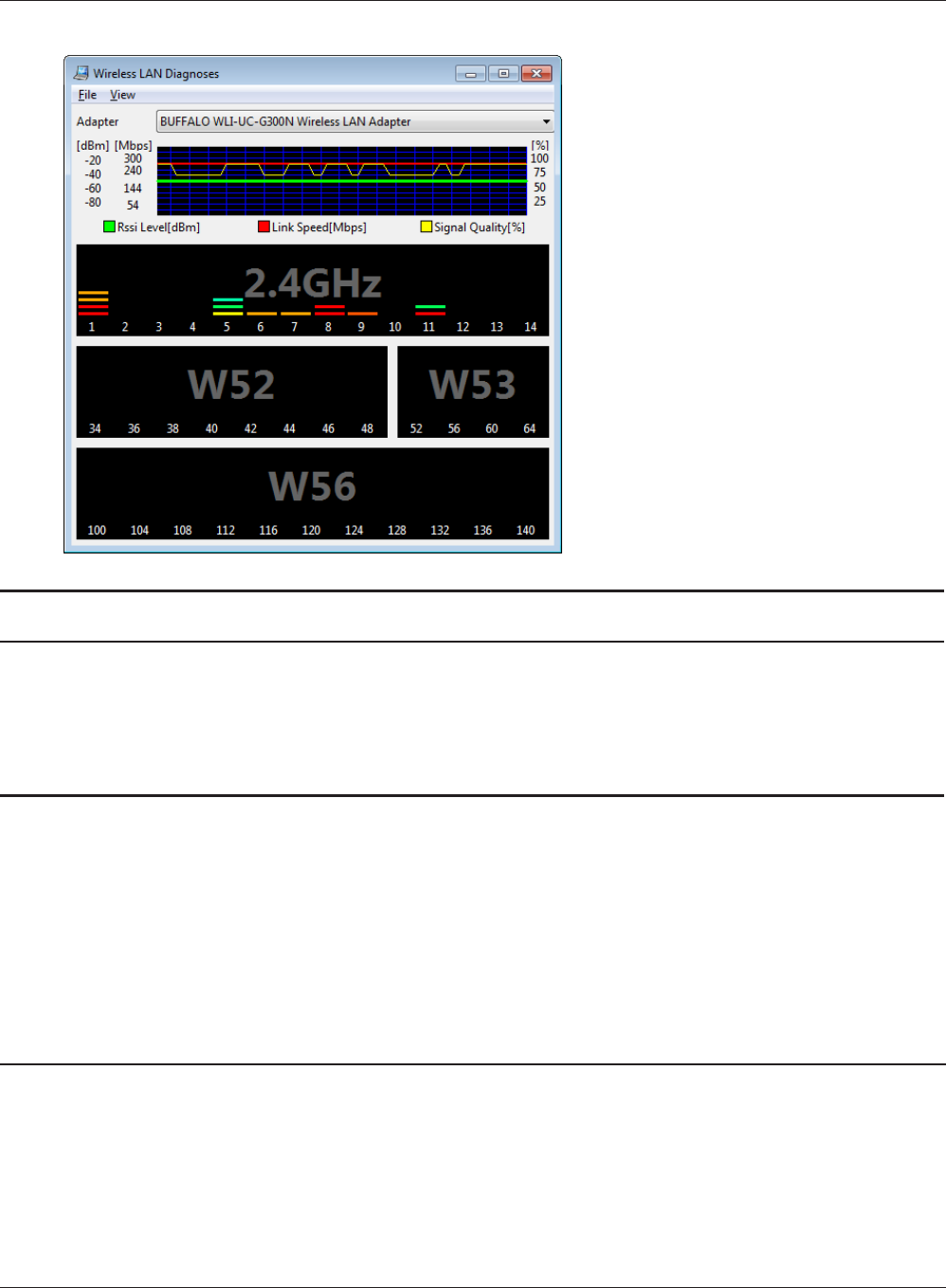

4
Parameter Meaning
Connection status Signal strength (dBm), link speed (Mbps), and signal quality (%) are
displayed in one-minute intervals on a real-time graph.
Usage status by channel The 11b/11g display shows usage in the 2.4 GHz band channels 1
to 11.
Colors are used to indicate the signal strength of the access point. Colors closer to red indicate an
access point with a stronger signal strength, and colors closer to blue indicate an access point with a
weaker signal strength.
Mac OS X
1Load the AirNavigator CD into your Macintosh.
2From the menu bar, click [Go] > [Computer].
3Double-click the CD icon, and then double-click [WLAN Monitor] in the “Mac” folder.
Appendix C Checking Wireless Signal Quality
WCR-G300 / WCR-HP-G300 User Manual 101
4The software license screen is displayed when starting for the rst time only. Click [Agree] to
proceed.
5
Parameter Meaning
Network name (SSID) This displays the SSID of the AirStation that is currently connected.
Status This indicates the current connection status.
IP Address This indicates the IP address of the current wireless network port
(AirPort).
Security This indicates the authentication method for the current
connection target.
Encryption This displays the encryption type for the current connection target.
Band This displays the wireless band for the current connection target.
Channel This displays the wireless channel for the current connection target.
Link Speed (Mbps) This displays the current link speed.
Quality (%) This displays the current signal quality.
Signal Level (dBm) This indicates the strength of the current signal.
WCR-G300 / WCR-HP-G300 User Manual 102
Appendix D - TCP/IP Settings in Windows
Windows 7
To congure TCP/IP in Windows 7, follow the procedure below.
1Click [Start] > [Control Panel] > [Network and Internet].
2Double-click [Network and Sharing Center].
3Click [Change Adapter Settings] on the left side menu.
4Right-click on [Local Area Connection], then click [Properties].
5If the message “Windows needs your permission to continue” appears, click [Continue].
6Select [Internet Protocol Version 4 (TCP/IPv4)] then click [Properties].
7To have DHCP set your IP address settings automatically, check [Obtain an IP address
automatically] and [Obtain DNS server address automatically].
To set your IP address settings manually, enter values for each settings. Example:
If the router’s IP address is 192.168.11.1,
IP address 192.168.11.80
Subnet mask 255.255.255.0
Default gateway 192.168.11.1
Preferred DNS server 192.168.11.1
Alternate DNS server blank
8Click [OK].
Appendix D TCP/IP Settings in Windows
WCR-G300 / WCR-HP-G300 User Manual 103
Windows Vista
To congure TCP/IP in Windows Vista, follow the procedure below.
1Click [Start] > [Settings] > [Control Panel].
2Double-click [Network and Sharing Center].
3Click [Manage network connections] on the left side menu.
4Right click on [Local Area Connection], then click [Properties].
5When the message [Windows needs your permission to continue], click [Continue].
6Select [Internet Protocol Version 4 (TCP/IPv4)], then click [Properties].
7To have DHCP set your IP address settings automatically, check [Obtain an IP address
automatically] and [Obtain DNS server address automatically].
To set your IP address settings manually, enter values for each settings. Example:
If the router’s IP address is 192.168.11.1,
IP address 192.168.11.80
Subnet mask 255.255.255.0
Default gateway 192.168.11.1
Preferred DNS server 192.168.11.1
Alternate DNS server blank
8Click [Close].
WCR-G300 / WCR-HP-G300 User Manual 104
Appendix D TCP/IP Settings in Windows
Windows XP
To congure TCP/IP in Windows XP, follow the procedure below.
1Click [Start] > [Settings] > [Control Panel].
2Double-click [Network].
3Right click on [Local Area Connection], then click [Properties].
4Select [Internet Protocol (TCP/IP)], then click [Properties].
5To have DHCP set your IP address settings automatically, check [Obtain an IP address
automatically] and [Obtain DNS server address automatically].
To set your IP address settings manually, enter values for each setting. Example:.
If the router’s IP address is 192.168.11.1,
IP address 192.168.11.80
Subnet mask 255.255.255.0
Default gateway 192.168.11.1
Preferred DNS server 192.168.11.1
Alternate DNS server blank
6Click [Close].
Appendix D TCP/IP Settings in Windows
WCR-G300 / WCR-HP-G300 User Manual 105
Mac OS X
To congure TCP/IP in Mac OS X, follow the procedure below.
1Click [Apple menu] > [System Preferences…].
2Click [Network].
3Click [Ethernet].
4To have DHCP set your IP address settings automatically, select [Using DHCP] in the Congure
IPv4 eld.
To set your IP address settings manually, select [Manually] in the Congure IPv4 eld and
enter values for each setting. Examples:
If the router’s IP address is 192.168.11.1,
IP Address 192.168.11.80
Subnet Mask 255.255.255.0
Router 192.168.11.1
DNS Server 192.168.11.1
Search Domains blank
5Click [Apply].
WCR-G300 / WCR-HP-G300 User Manual 106
Appendix E - Restoring the Default Conguration
Hold down this button for 3 seconds. The
AirStation will be initialized.
WCR-G300 / WCR-HP-G300 User Manual 107
Appendix F - Regulatory Compliance Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modications not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Important Note - FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specic channels and/or operational frequency bands are country
dependent and are rmware programmed at the factory to match the intended destination. The
rmware setting is not accessible by the end user.
WCR-G300 / WCR-HP-G300 User Manual 108
Appendix F Regulatory Compliance Information
Industry Canada statement:
Industrie Canada déclaration:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Ce dispositif est conforme à la norme CNR-210 d’Industrie Canada applicable aux appareils radio
exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes:
(1) le dispositif ne doit pas produire de brouillage préjudiciable, et
(2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer
un fonctionnement indésirable.
Important Note - Radiation Exposure Statement:
Note Importante - Déclaration d’exposition aux radiations:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
This device has been designed to operate with an antenna having a maximum gain of [5] dB.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required
antenna impedance is 50 ohms.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of
a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm
de distance entre la source de rayonnement et votre corps.
Ce dispositif a été conçu pour fonctionner avec une antenne ayant un gain maximal de dB [5].
Une antenne à gain plus élevé est strictement interdite par les règlements d’Industrie Canada.
L’impédance d’antenne requise est de 50 ohms.
Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peutfonctionner
avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pourl’émetteur par
Industrie Canada. Dans le but de réduire les risques de brouillage radioélectriqueà l’intention des
autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que lapuissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire àl’établissement d’une
communication satisfaisante.
Appendix F Regulatory Compliance Information
WCR-G300 / WCR-HP-G300 User Manual 109
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The
following test methods have been applied in order to prove presumption of conformity with the
essential requirements of the R&TTE Directive 1999/5/EC:
EN60950-1: 2006 +A11: 2009
Safety of Information Technology Equipment
EN50385 : (2002-08)
Product standard to demonstrate the compliance of radio base stations and xed terminal stations
for wireless telecommunication systems with the basic restrictions or the reference levels related to
human exposure to radio frequency electromagnetic elds (110MHz - 40 GHz) - General public
EN 300 328 V1.7.1: (2006-10)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems;
Data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum
modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the
R&TTE Directive
EN 301 489-1 V1.8.1: (2008-04)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment and services; Part 1: Common technical requirements
EN 301 489-17 V2.1.1 (2009-05)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility
(EMC) standard for radio equipment; Part 17: Specic conditions for Broadband Data Transmission
Systems
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU
member states and EFTA countries, except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to
obtain authorization to use the device for setting up outdoor radio links and/or for supplying public
access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the
RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For
detailed information the end-user should contact the national spectrum authority in France.
WCR-G300 / WCR-HP-G300 User Manual 110
Appendix F Regulatory Compliance Information
Česky [Czech]
Bualo Technology Inc. tímto prohlašuje, že tento AirStation WCR-G300 / WCR-HP-G300 je ve shodě
se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk [Danish]
Undertegnede Bualo Technology Inc. erklærer herved, at følgende udstyr AirStation WCR-G300 /
WCR-HP-G300 overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German]
Hiermit erklärt Bualo Technology Inc. dass sich das Gerät AirStation WCR-G300 / WCR-HP-G300
in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen
Bestimmungen der Richtlinie 1999/5/EG bendet.
Eesti [Estonian]
Käesolevaga kinnitab Bualo Technology Inc. seadme AirStation WCR-G300 / WCR-HP-G300
vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
English
Hereby, Bualo Technology Inc. declares that this AirStation WCR-G300 / WCR-HP-G300 is in
compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Español [Spanish]
Por medio de la presente Bualo Technology Inc. declara que el AirStation WCR-G300 / WCR-
HP-G300 cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o
exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Buffalo Technology Inc. ΔΗΛΩΝΕΙ ΟΤΙ AirStation WCR-G300 / WCR-HP-G300
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ
ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français [French]
Par la présente Buffalo Technology Inc. déclare que l’appareil AirStation WCR-G300 / WCR-HP-G300
est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Italiano [Italian]
Con la presente Buffalo Technology Inc. dichiara che questo AirStation WCR-G300 / WCR-HP-G300 è
conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian]
Ar šo Buffalo Technology Inc. deklarē, ka AirStation WCR-G300 / WCR-HP-G300 atbilst Direktīvas
1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Appendix F Regulatory Compliance Information
WCR-G300 / WCR-HP-G300 User Manual 111
Lietuvių [Lithuanian]
Šiuo Buffalo Technology Inc. deklaruoja, kad šis AirStation WCR-G300 / WCR-HP-G300 atitinka
esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands [Dutch]
Hierbij verklaart Buffalo Technology Inc. dat het toestel AirStation WCR-G300 / WCR-HP-G300 in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/
EG.
Malti[ Maltese]
Hawnhekk, Buffalo Technology Inc. , jiddikjara li dan AirStation WCR-G300 / WCR-HP-G300
jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva
1999/5/EC.
Magyar [Hungarian]
Alulírott, Buffalo Technology Inc. nyilatkozom, hogy a AirStation WCR-G300 / WCR-HP-G300 megfelel
a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish]
Niniejszym Buffalo Technology Inc. oświadcza, że AirStation WCR-G300 / WCR-HP-G300 jest zgodny
z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese]
Buffalo Technology Inc. declara que este AirStation WCR-G300 / WCR-HP-G300 está conforme com
os requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko [Slovenian]
Buffalo Technology Inc. izjavlja, da je ta AirStation WCR-G300 / WCR-HP-G300 v skladu z bistvenimi
zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky [Slovak]
Buffalo Technology Inc. týmto vyhlasuje, že AirStation WCR-G300 / WCR-HP-G300 spĺňa základné
požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi [Finnish]
Buffalo Technology Inc. vakuuttaa täten että AirStation WCR-G300 / WCR-HP-G300 tyyppinen
laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Svensk [Swedish]
Härmed intygar Buffalo Technology Inc. att denna AirStation WCR-G300 / WCR-HP-G300 står I
överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som
framgår av direktiv 1999/5/EG.
WCR-G300 / WCR-HP-G300 User Manual 112
Appendix F Regulatory Compliance Information
Safety
This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity when
working with electrical equipment. All guidelines of this manual and of the computer manufacturer
must therefore be allowed at all times to ensure the safe use of the equipment.
根據 NCC 低功率電波輻射性電機管制辦法：
第十二條：
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加
大功率或變更原設計之特性及功能。
第十四條：
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停
用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低
功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없음
기종별 사 용 자 안 내 문
B 급 기기
( 가정용 정보통신기기 )
이 기기는 가정용 (B 급 ) 전자파적합기기로서 주
로 가정에서 사용하는 것을 목적으로 하며 , 모든
지역에서 사용할 수 있습니다 .
WCR-G300 / WCR-HP-G300 User Manual 113
Appendix G - Environmental Information
• The equipment that you have purchased has required the extraction and use of natural resources
for its production.
• The equipment may contain hazardous substances that could impact health and the environment.
• In order to avoid the dissemination of those substances in our environment and to diminish the
pressure on the natural resources, we encourage you to use the appropriate take-back systems.
• The take-back systems will reuse or recycle most of the materials of your end life equipment in a
sound way.
• The crossed-out wheeled bin symbol invites you to use those systems.
• If you need more information on the collection, reuse and recycling systems, please contact your
local or regional waste administration.
WCR-G300 / WCR-HP-G300 User Manual 114
Appendix H - GPL Information
The source code for Bualo products that use GPL code is available at http://opensource.bualo.jp/ .
WCR-G300 / WCR-HP-G300 User Manual 115
Appendix I - Warranty Information
Bualo Technology (Bualo Inc.) products come with a two-year limited warranty from the date of
purchase. Bualo Technology (Bualo Inc.) warrants to the original purchaser the product; good
operating condition for the warranty period. This warranty does not include non-Bualo Technology
(Bualo Inc.) installed components. If the Bualo product malfunctions during the warranty period,
Bualo Technology/(Bualo Inc.) will, replace the unit, provided the unit has not been subjected
to misuse, abuse, or non-Bualo Technology/(Bualo Inc.) authorized alteration, modications or
repair.
All expressed and implied warranties for the Bualo Technology (Bualo Inc) product line including,
but not limited to, the warranties of merchantability and tness of a particular purpose are limited in
duration to the above period.
Under no circumstances shall Bualo Technology/(Bualo Inc.) be liable in any way to the user
for damages, including any lost prots, lost savings or other incidental or consequential damages
arising out of the use of, or inability to use the Bualo products.
In no event shall Bualo Technology/(Bualo Inc.) liability exceed the price paid for the product from
direct, indirect, special, incidental, or consequential damages resulting from the use of the product,
its accompanying software, or its documentation. Bualo Technology (Bualo Inc.) does not oer
refunds for any product.
@ 2003-2011 Bualo Technology (Bualo, Inc.)
