R700 User Manual

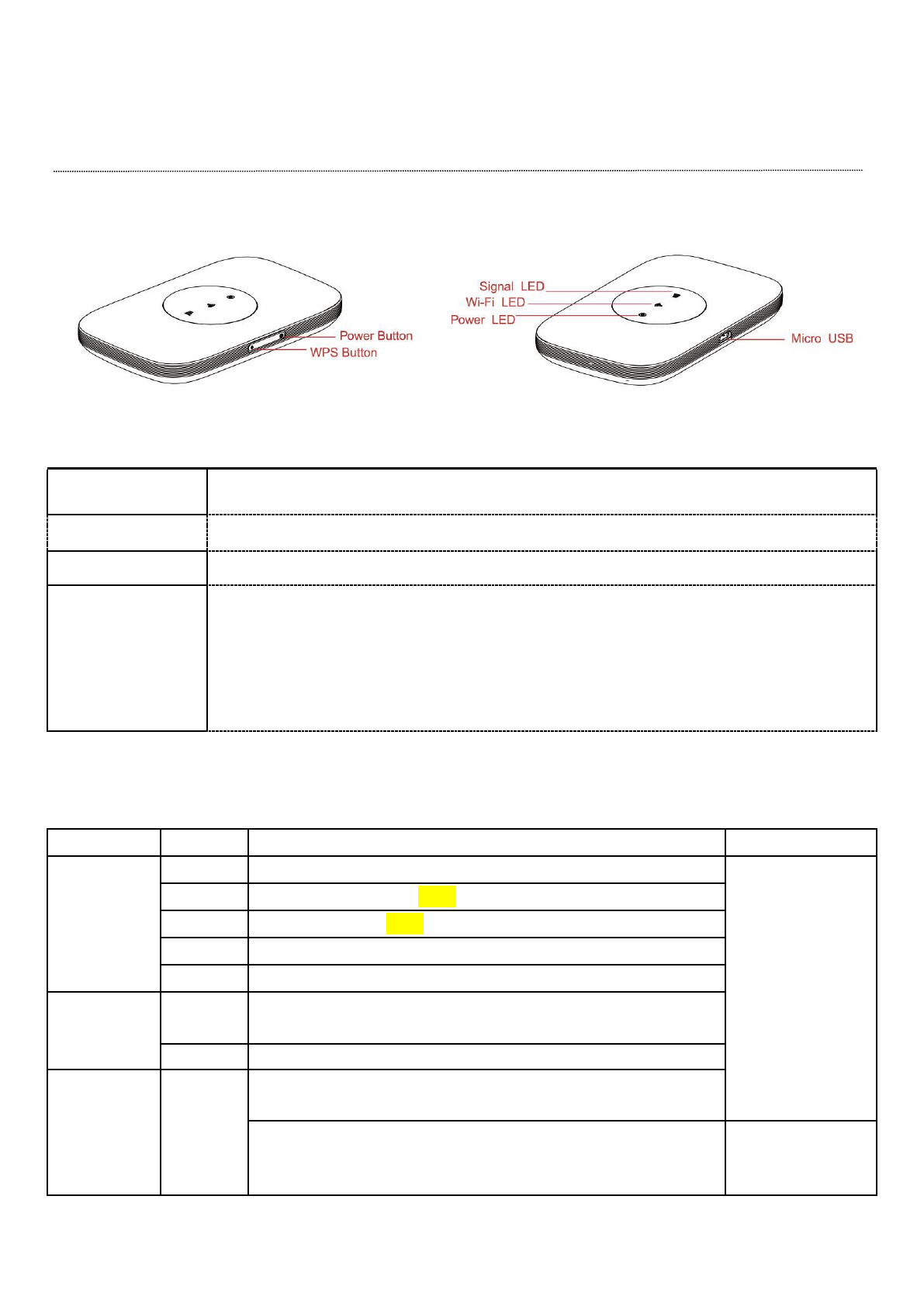

Interface
Button
Illustrate
Power Button
Long press over 5 seconds to power on and long press to power off
WPS Button
Press to active the WPS
Reset
The Reset button is on the opposite side of the machine. If you forget Administrator
password or Wireless network key, you can press the Reset key to restore factory
default settings.
LED Indication
Indicator
Color
Working Status
Power LED
Amber
Charging
Blink:
Turn on-0.5s
Turn off-0.5s
Blue
Battery High(100%-50%) or Charge Completed
Green
Battery Middle (50%-10%)
Red
Blink: Battery too low nearly shutdown (<10%)
Purple
Blink: New SMS
Signal LED
Blue
Solid: Regiester to LTE(not connect)
Blink: Connected toLTE network
Red
Solid:No Service/Device Error
Wi-Fi LED
Blue
Solid:No Client
Blink: Client is actived
Blink: WPS is actived
Blink:
Turn on-0.2s
Turn off-0.1s
Installation

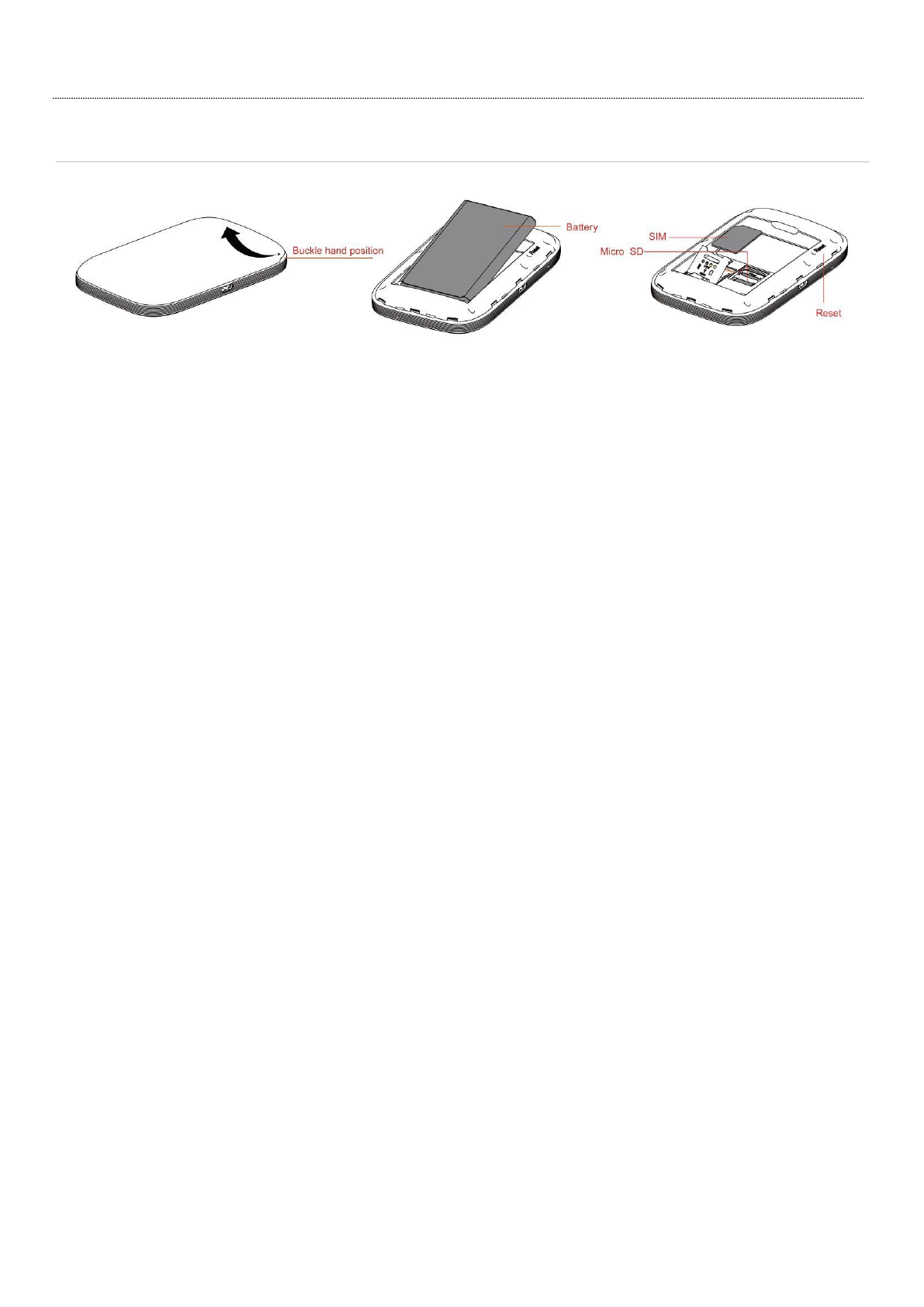

Follow the diagram to install the SIM card and SD card
Tips: Always switch the device off and disconnect the charger before removing the battery.
1. Remove the back cover and battery;
2. Insert the SIM card and SD card. Ensure that the contact area on the card is facing down and that the
beveled corner on the card is facing the beveled corner on the holder.
3. Align the battery contacts with the battery compartment connectors, and insert the battery. Replace
the back cover lastly.
Charge
Your battery has been partially charged at the factory. If the device indicates a low charge, do the
following:
1. Connect the charger to a wall outlet.
2. Connect the USB charger plug to your device’s USB port.
3. When the device indicates a full charge, disconnect the charger from the device, then from the wall
outlet.

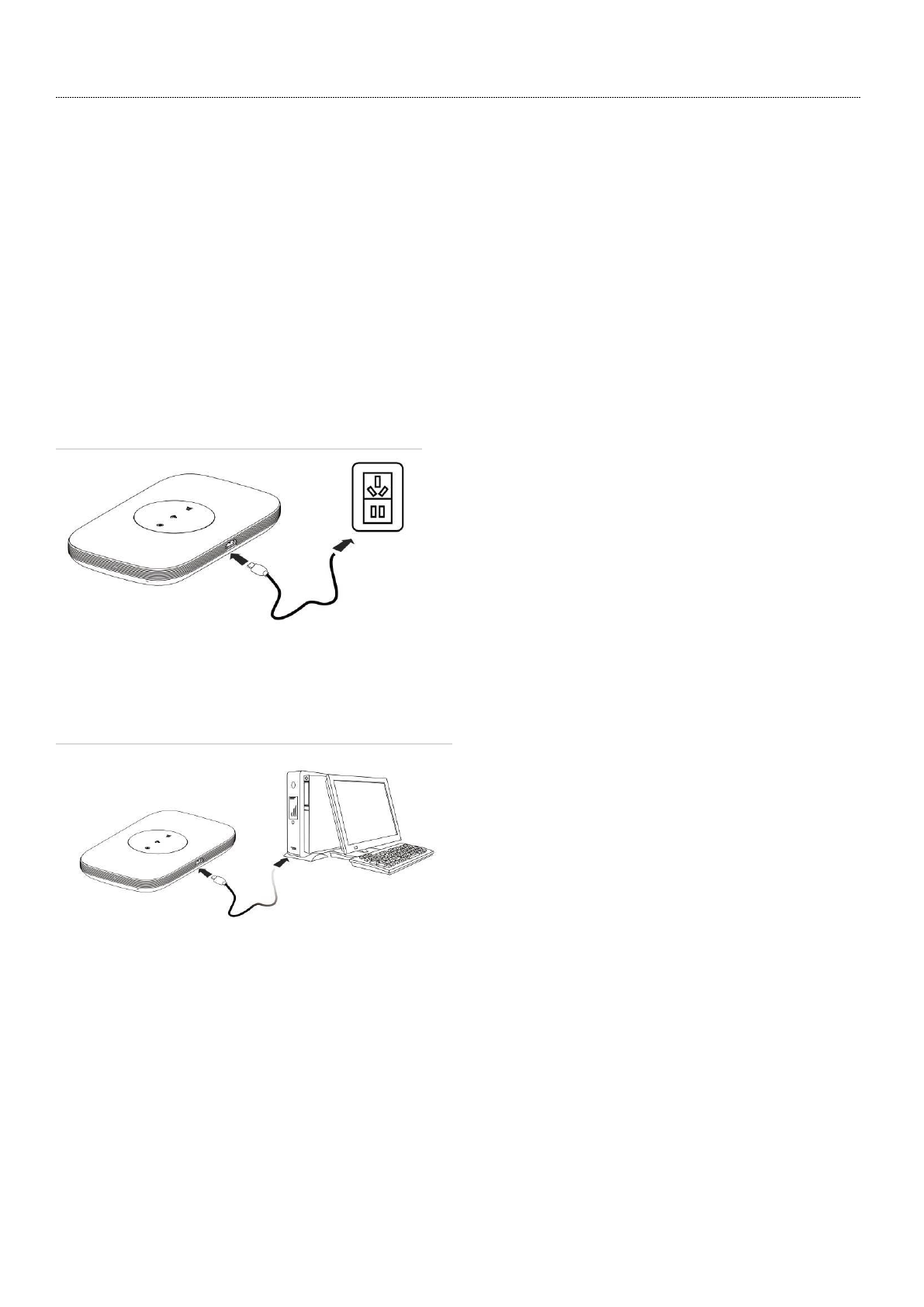

One：Using charge adapter
Two：Using USB port
R700 Usage
R700 support 4G networks. Insert the SIM card, Wi-Fi devices and the computer can access the Internet
through R700, enjoy high-speed network services. Smart phones, tablet computers, game consoles and
other Wi-Fi devices can be connected with the R700 Wi-Fi connection for Internet access.
Computers & laptops etc may be connected to the R700 via USB cable for Internet Access.
R700 computer for the first time via a USB connection, you need to follow the prompts to install the
driver
Wi-Fi wireless Internet access
In order for a Wi-Fi device to establish a connection with the R700 for the first time, you will need to
select the R700 SSID (Wi-Fi name) & enter the relevant Wi-Fi password, which you may find in the
following ways:

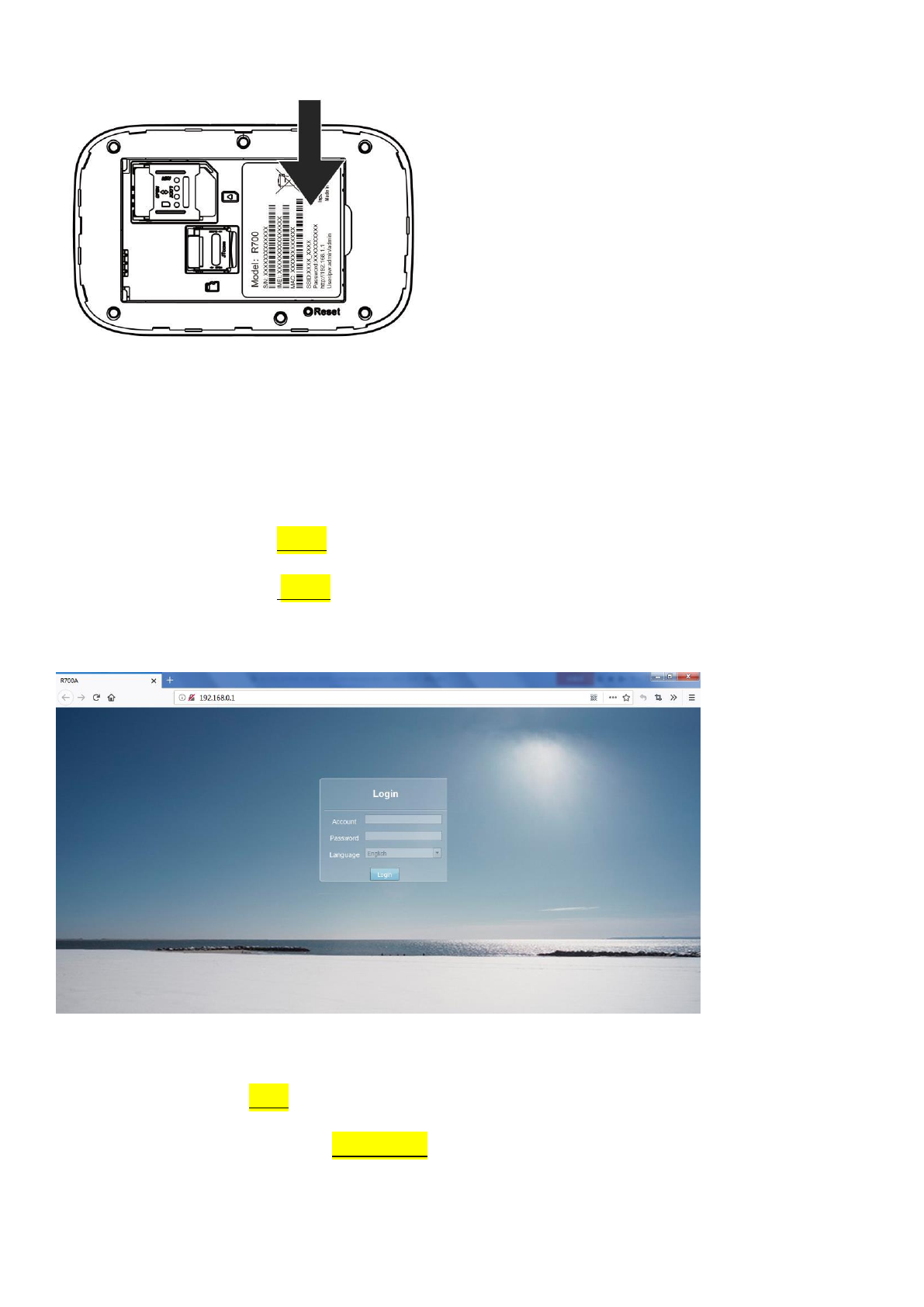

Method one: on the nameplate view the default SSID and Wi-Fi passwords
Method Two: Login management page view
1. Computer, open your browser, input http://192.168.0.1 and enter.
●The default Account is:
admin
●The default Password is
:admin
Enter the Account and Password, login administration pages

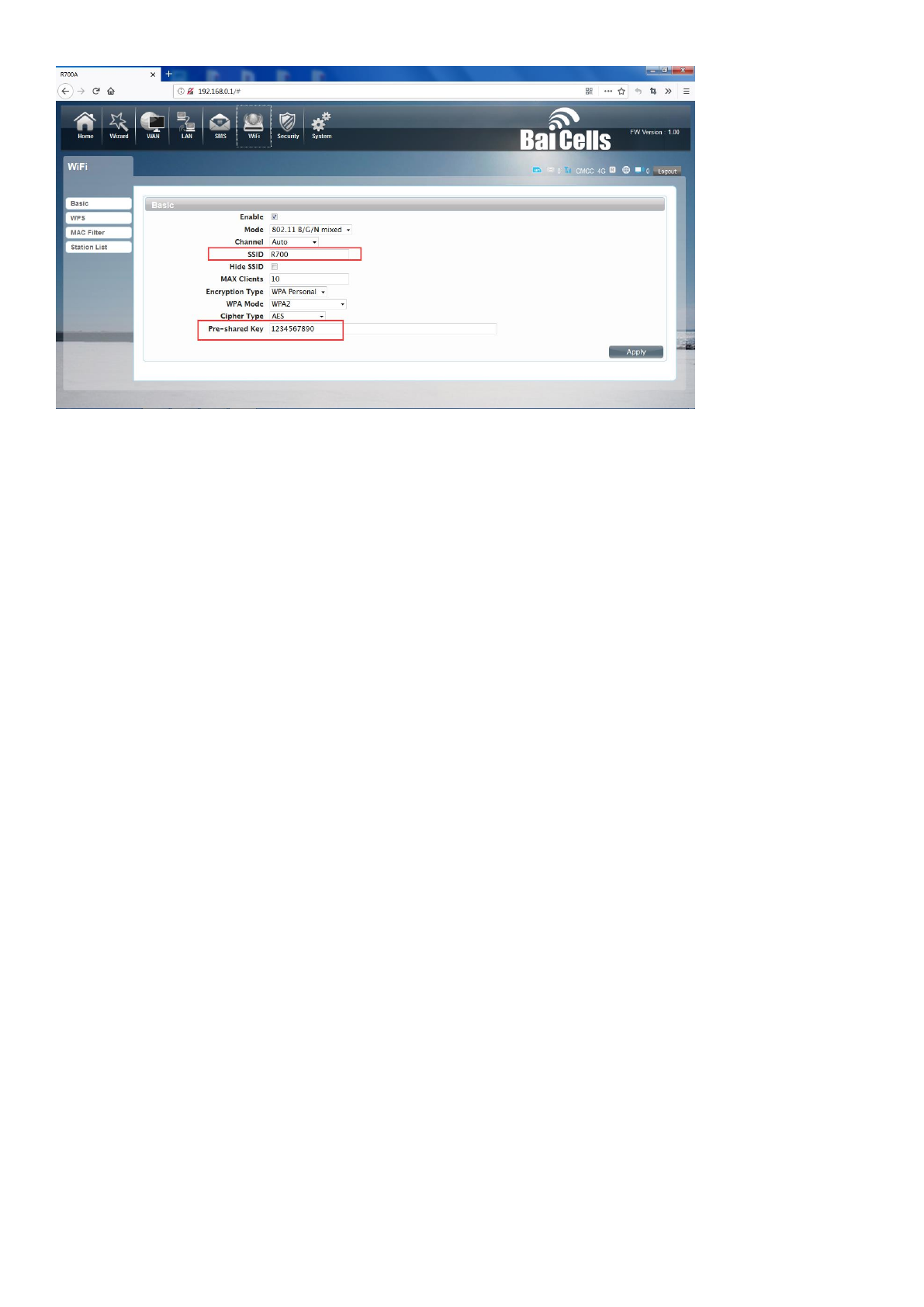

2. Enter the Wi-Fi menu; view the default SSID and Wi-Fi password
●The default SSID is:
R700
●The default Wi-Fi Password is:
1234567890
★Recommend that you start using R700 administration pages after setting a convenient landing
memorizing SSID and a higher safety factor Wi-Fi passwords
Install the driver and connecting the device
USB Connection: Windows 7 for example

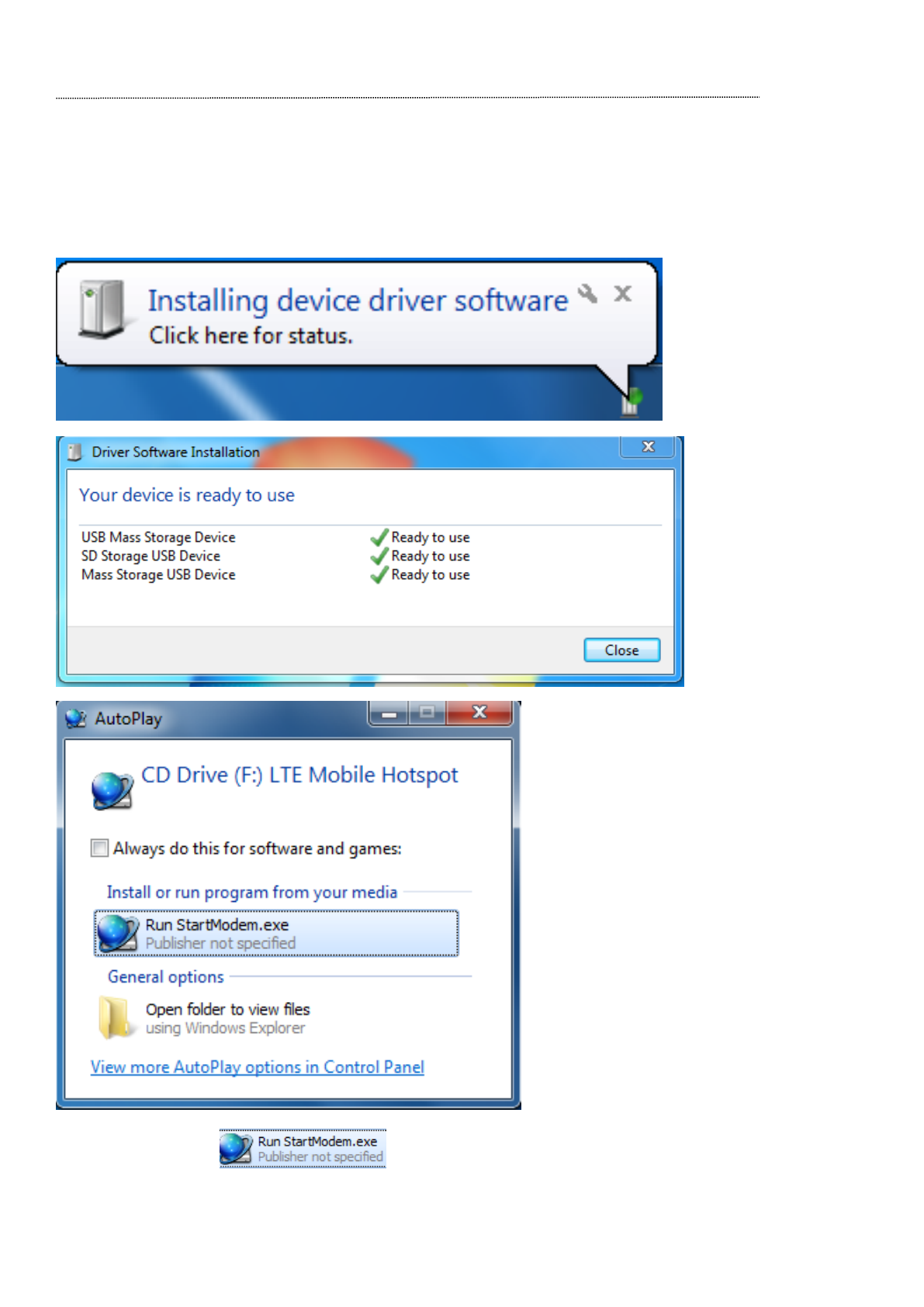

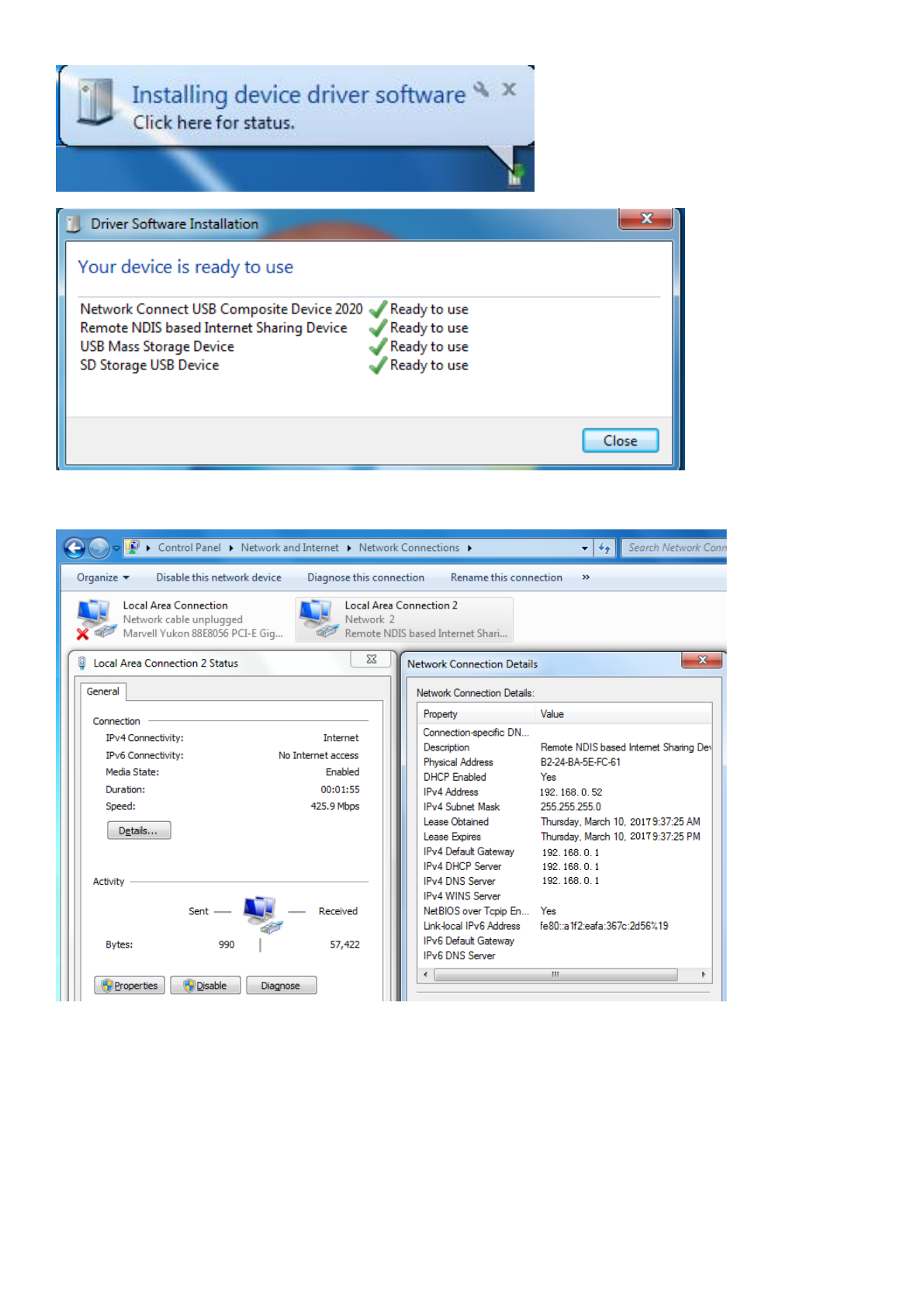

1. Keep R700 powering on, Plug the device into your computer, it will shows like the following pictures
step by step.
2. Double-click the , wait for the installation to complete

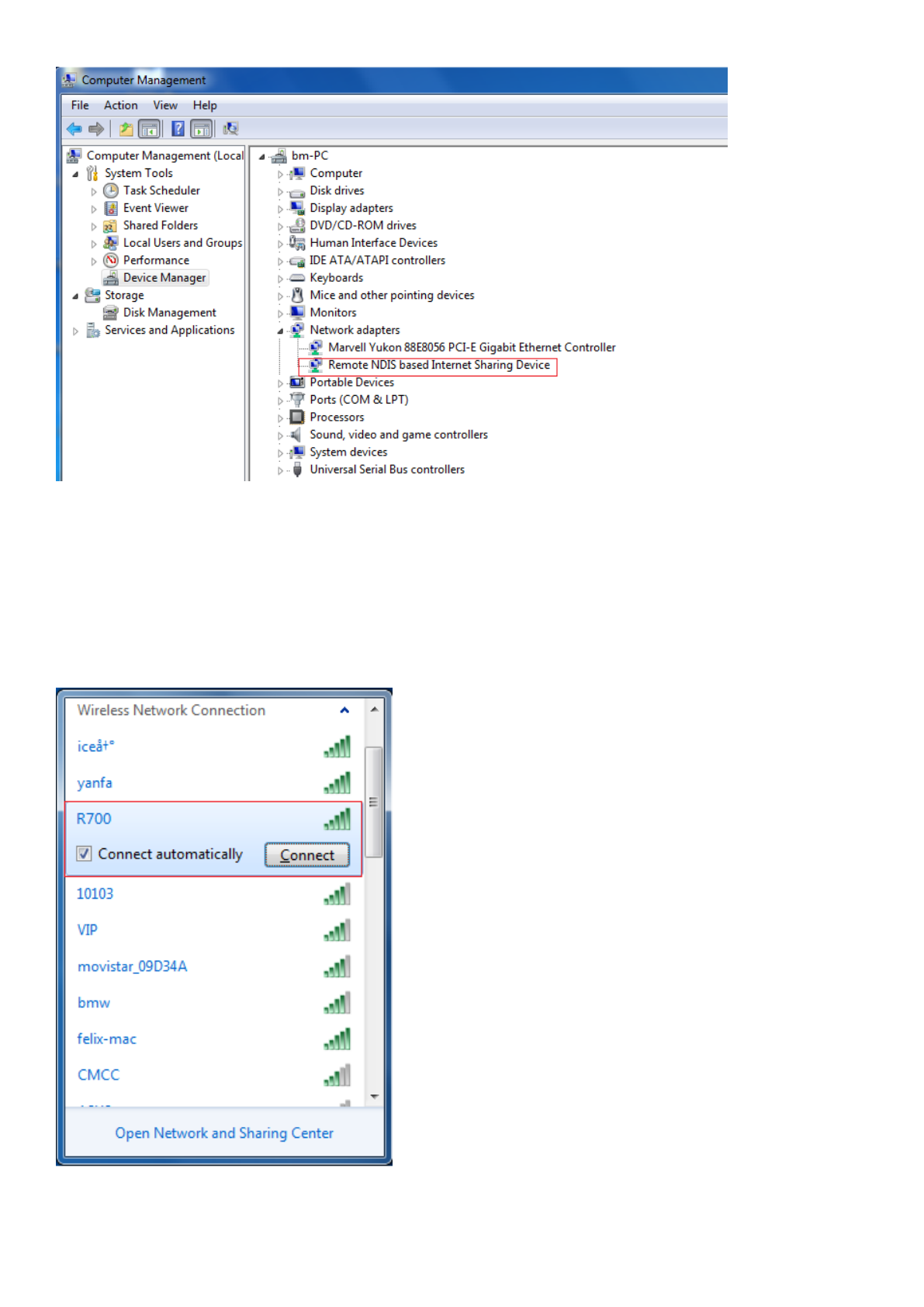

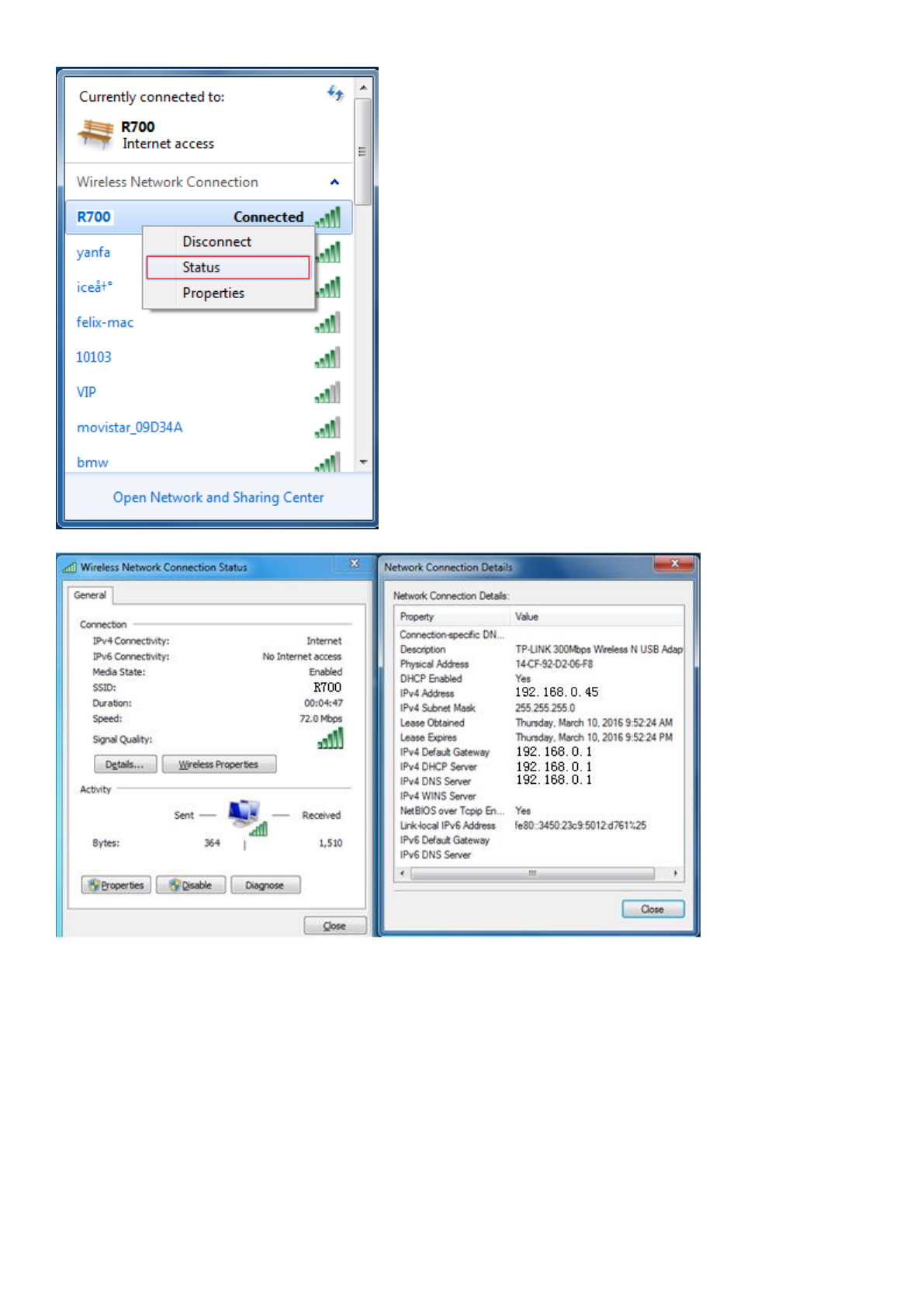

3. Check the network card is installed correctly, like the following pictures
Or,
Establish Wi-Fi connection: you must ensure that the computer equipped with a wireless network
card. If the computer showed the presence of Wi-Fi connectivity, the wireless LAN is available.
Otherwise, you need to check your wireless network card is working properly.

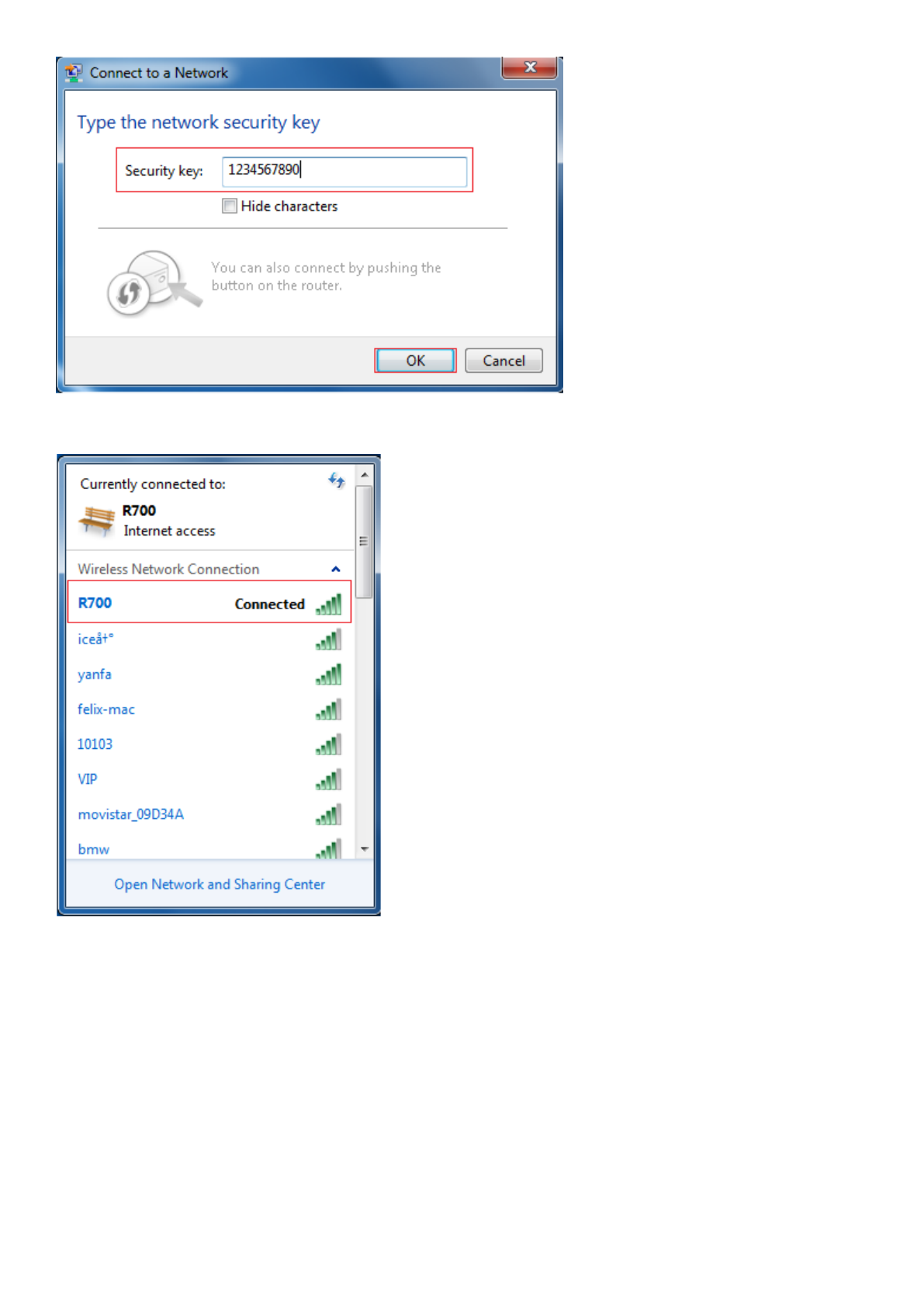

1. In the Wi-Fi list, select the SSID consistent with R700 Wi-Fi, click Connect
2. Enter the correct Wi-Fi password, click OK

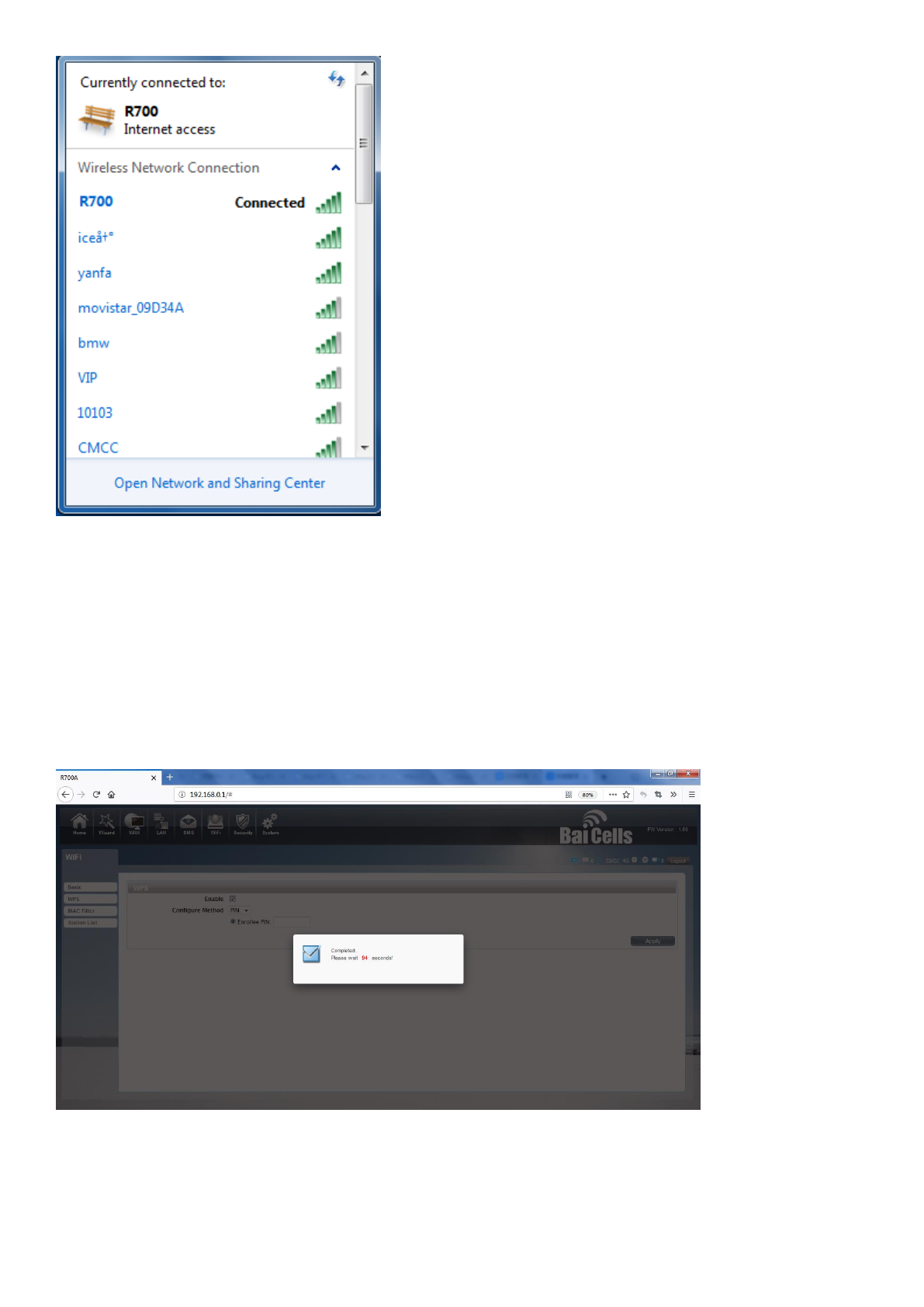

3. Wait a moment, Wi-Fi connection is displayed next to the name, Wi-Fi connection is successful
4. Check the network card is installed correctly, like the following pictures
WebUI
●Home

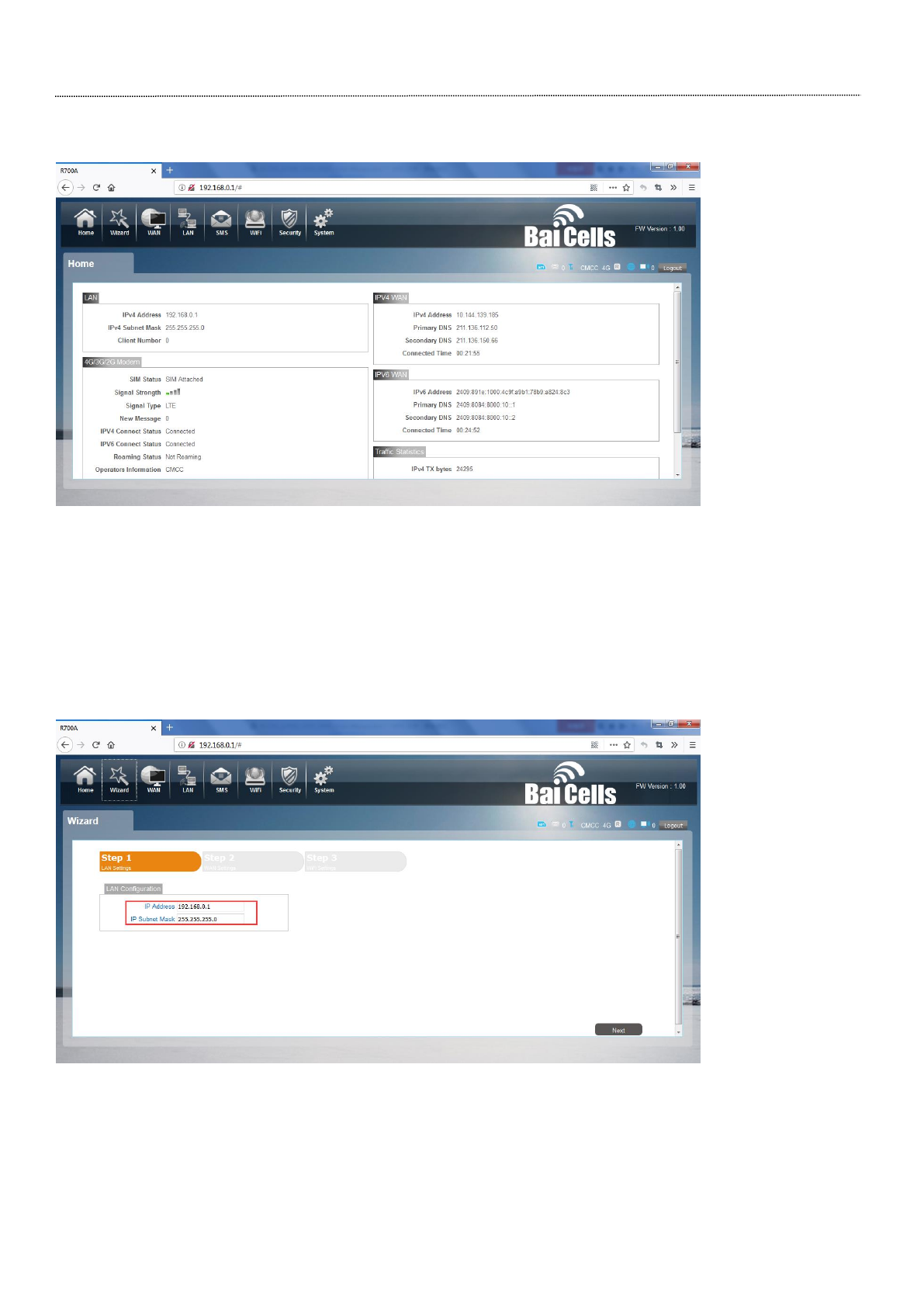

First part of the main display settings and network status information, such as IP address, SIM card status,
type and quality of the network signal, whether it is roaming, with or without a new message, and traffic
statistics, and system uptime, and so on.
●Wizard

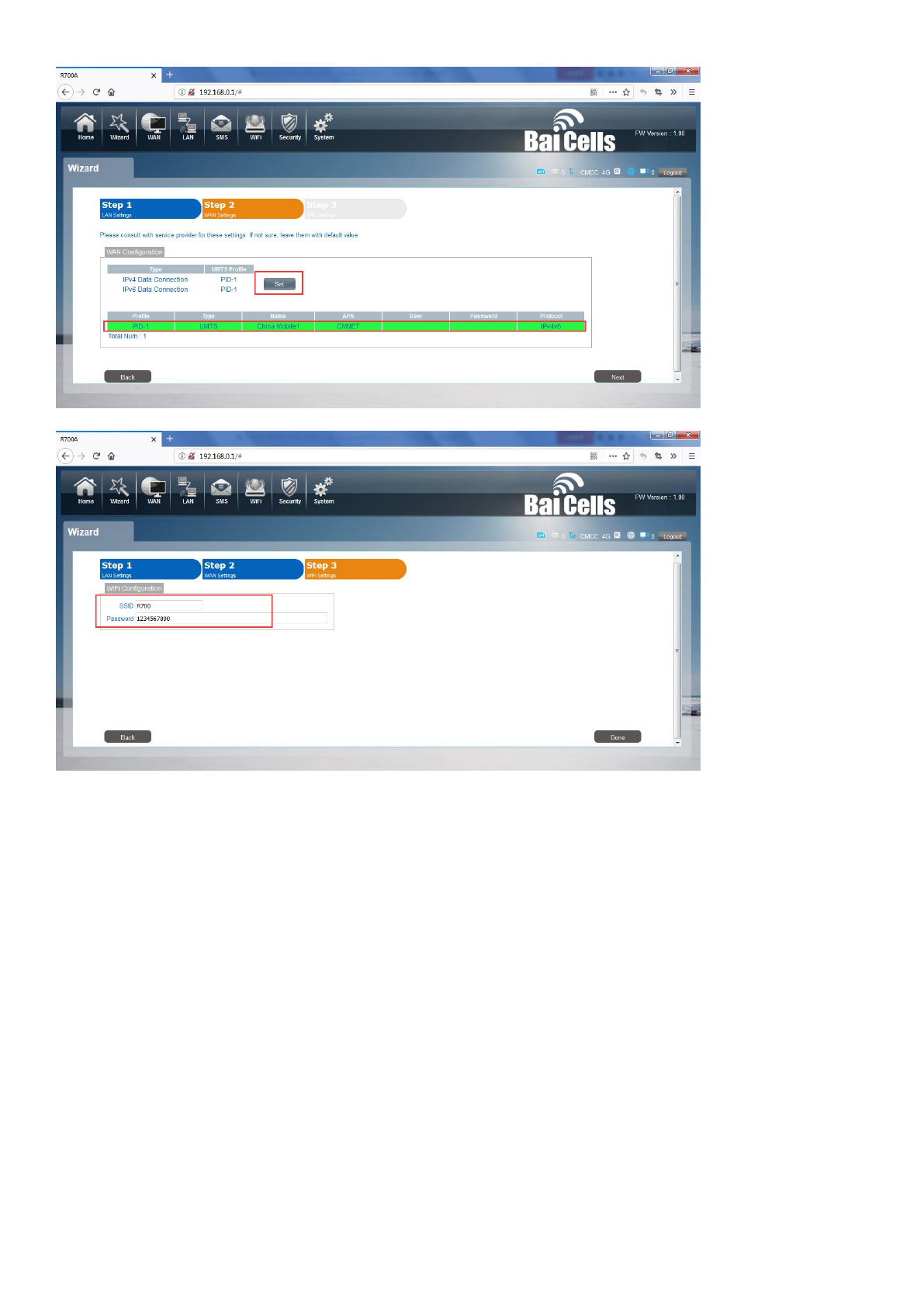

You can quickly change the LAN configuration, set the APN, and change the SSID /password through the
wizard function.
●WAN
1. Connection

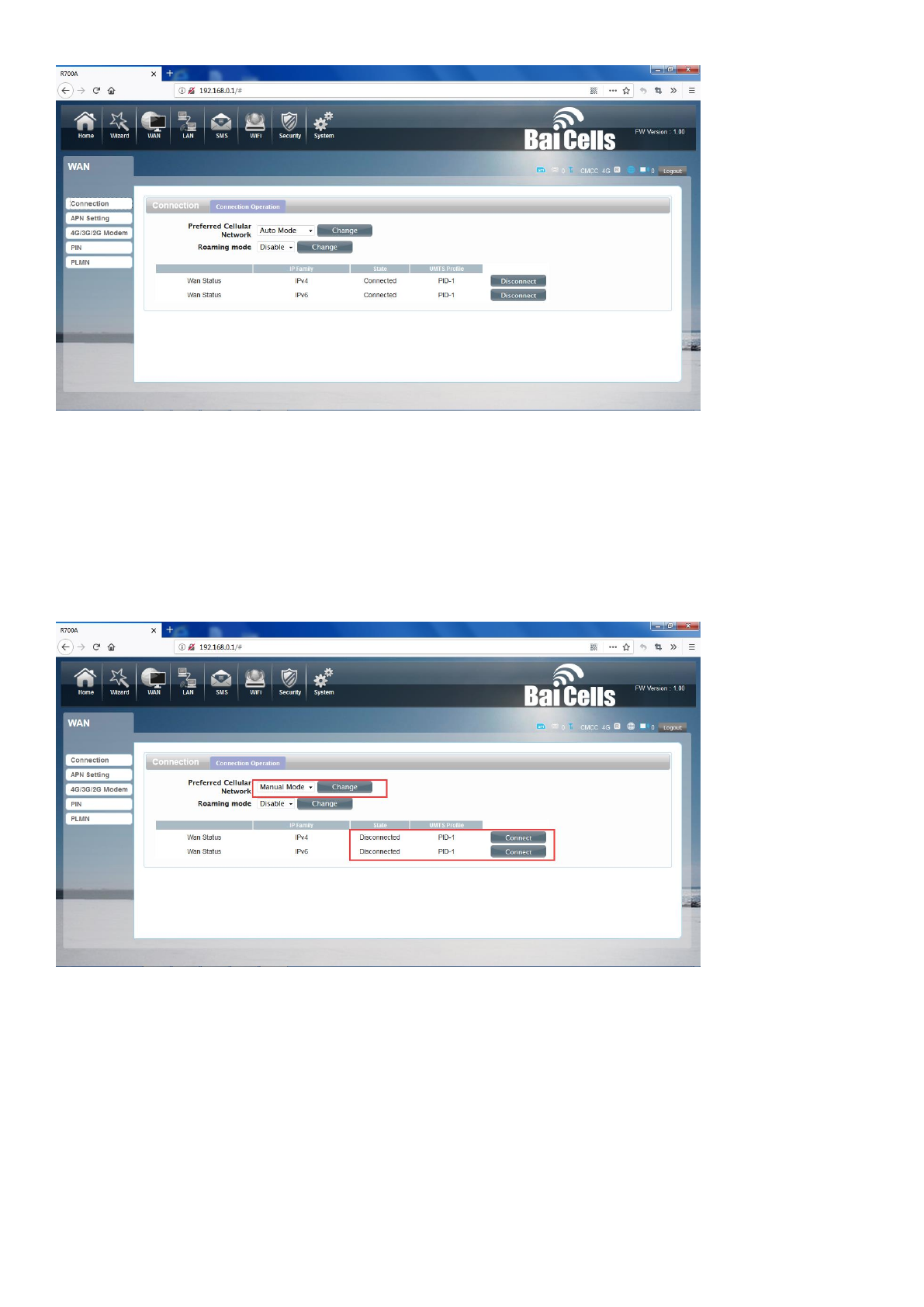

Dialing Mode:
Select the Auto Mode, after you turn on R700 without additional operations, the device will automatically
connect to the network; select the Manual Mode, you need to manually connect to the network after
opening the R700 management page.

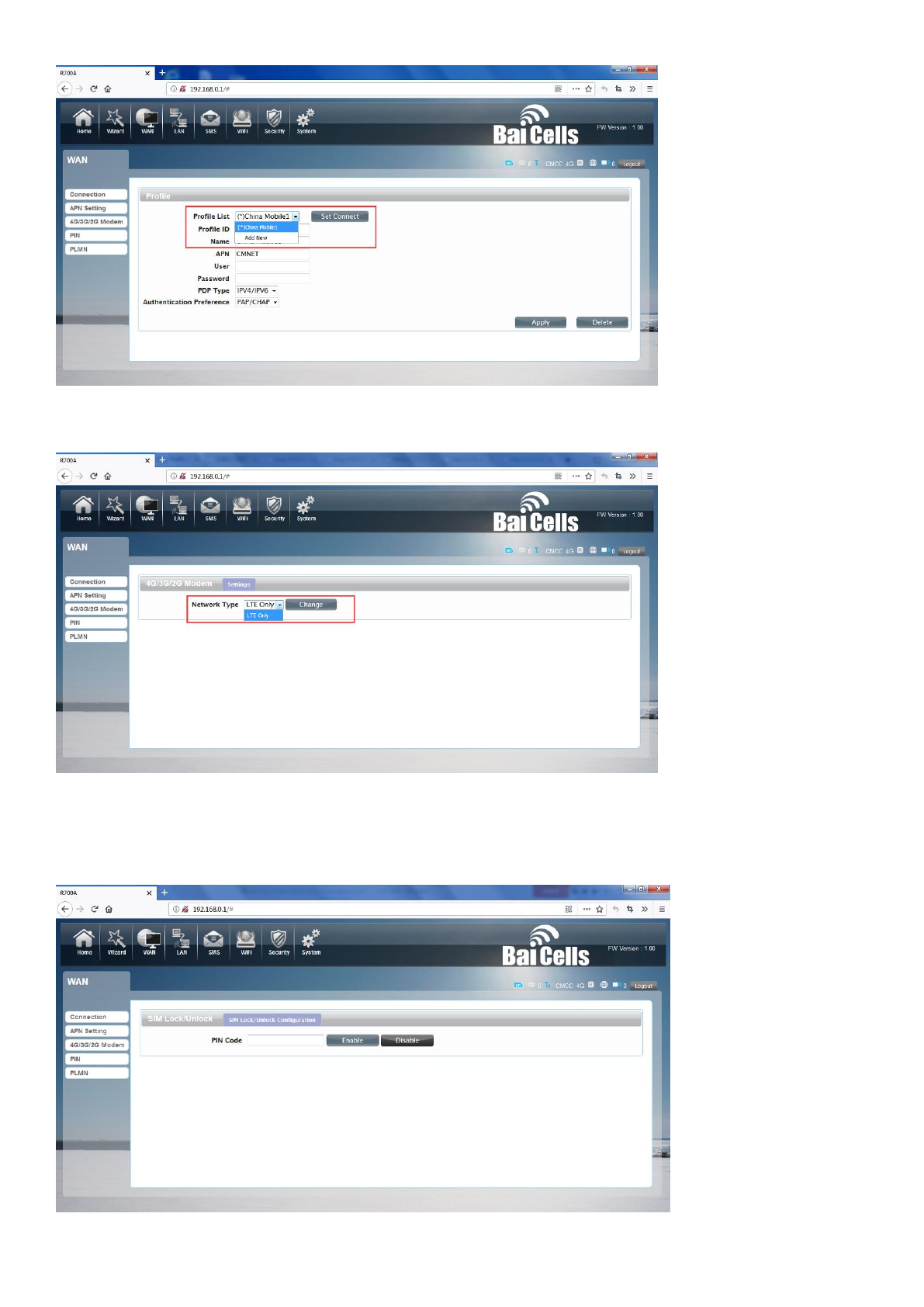

2. APN Setting: You can customize the network configuration or manually add the new APN and
set default APN.
3. 4G Modem
There is a type of network can be chose, LTE only is using only 4G.
5. PIN
Open your PIN, if you reboot the device, you need to login management page, and the page will
prompted to enter the correct PIN code, you can use the SIM card. PIN / PUK code supplied with the SIM
card provided by your carrier, please consult your carrier.
●LAN

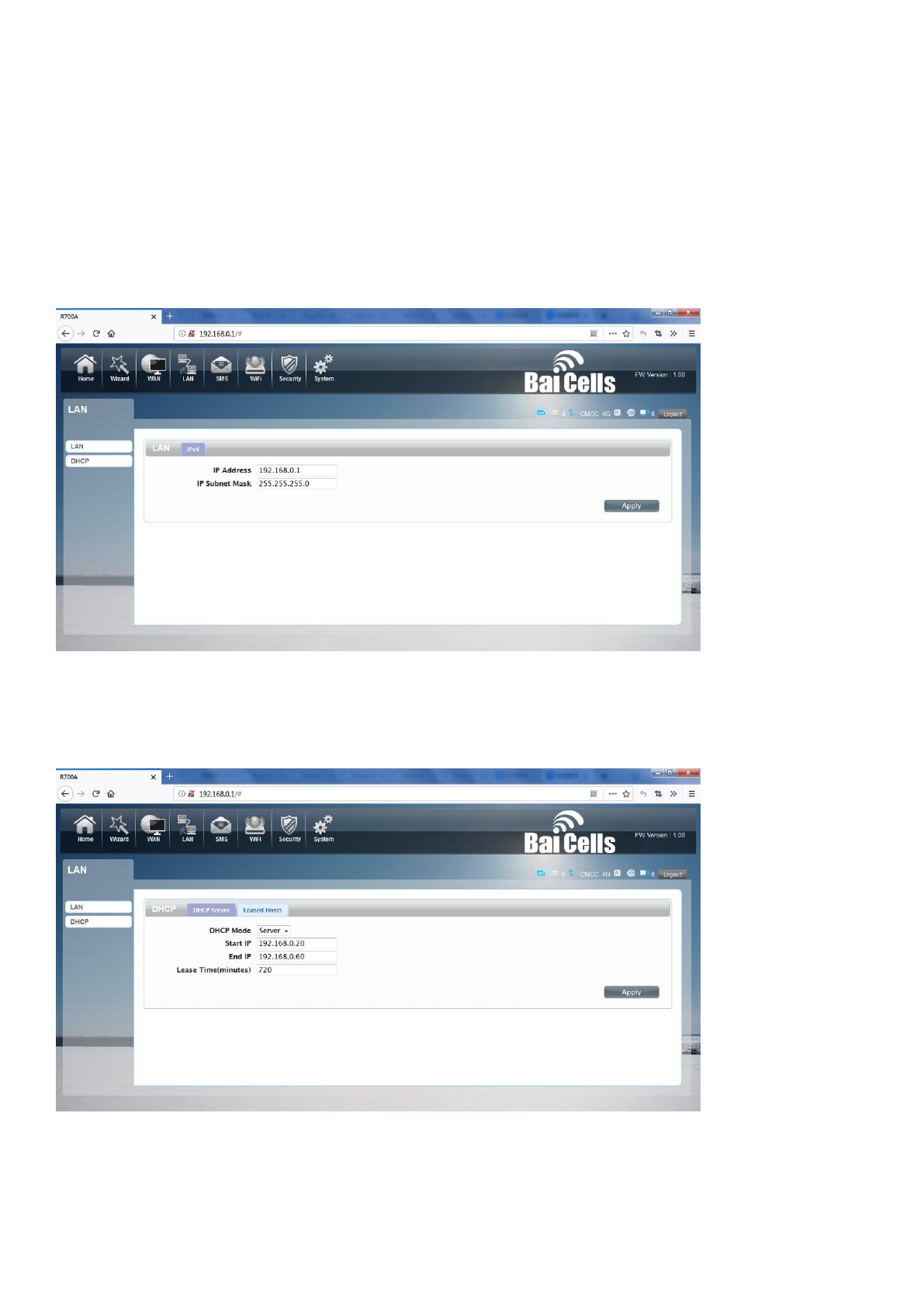

1. LAN
We can change IP address in this page.
2. DHCP
DHCP Mode: Select the server mode, the device can be done using a DHCP server; choose None, which is
off the server function.
Start / End IP address: Changing DHCP assigned IP and IP segments.
Lease Time: Each is assigned a time to use the IP

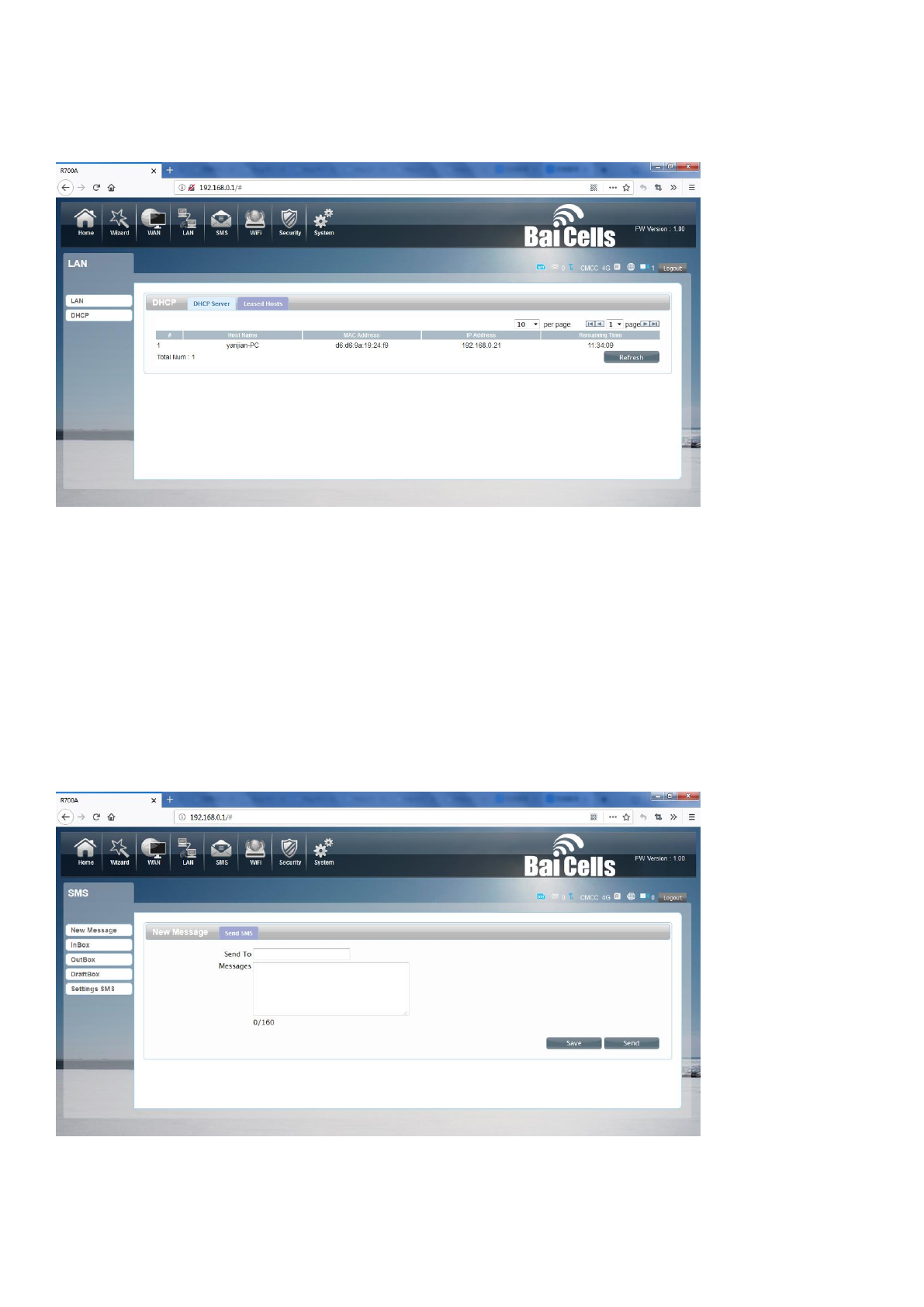

Leased Hosts: the R700 each wireless device list and USB device can view the Host name, MAC Address, IP
Address, information about the Remaining Time.
●SMS
When using SIM card to access network, you could also send text messages at the time. You can send, receive, reply,
forward, and save test messages. You can send 10 text messages at the same time; SMS number intervals with a semicolon.
Also you can set the storage location of messages, and so on. We can operate the SMS in this page.
●Wi-Fi
1. Basic

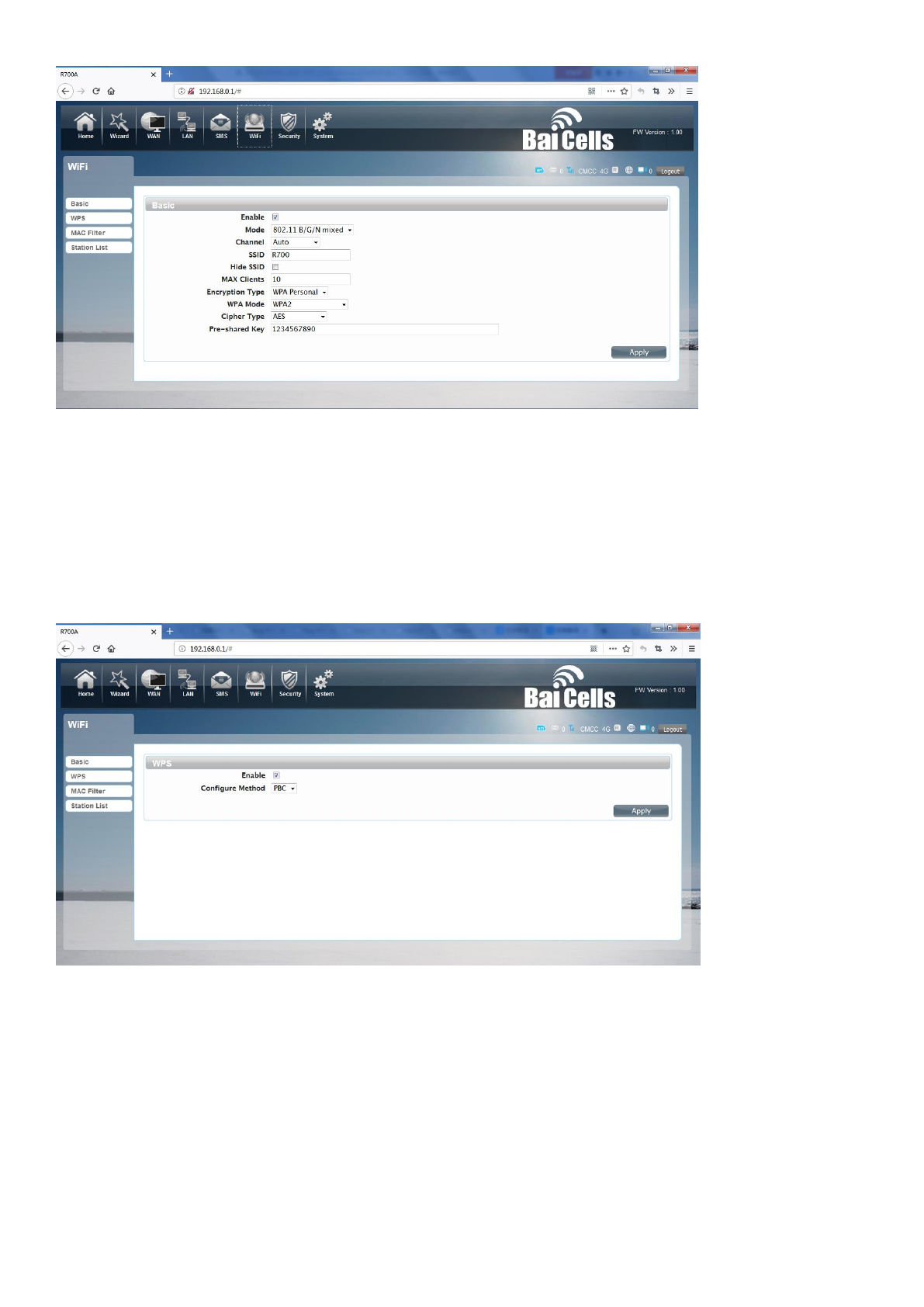

We can set the Wi-Fi configuration in this page, like B/G/N mode, Channel, SSID, WI-FI KEY and so on.
2. WPS
R700 supports two kinds of WPS authentication, PBC and PIN. Default is PBC authentication.
WPS PBC authentication:
If your Wi-Fi is enabled, device supports WPS (Wi-Fi Protected Setup) and you have forgotten or do not
wish to enter your password to connect to your R700, you may use the following available procedures for
quick access to Wi-Fi.
Open the WPS:
WPS can be opened by two methods. The fist method is ,Entering the management interface page, press

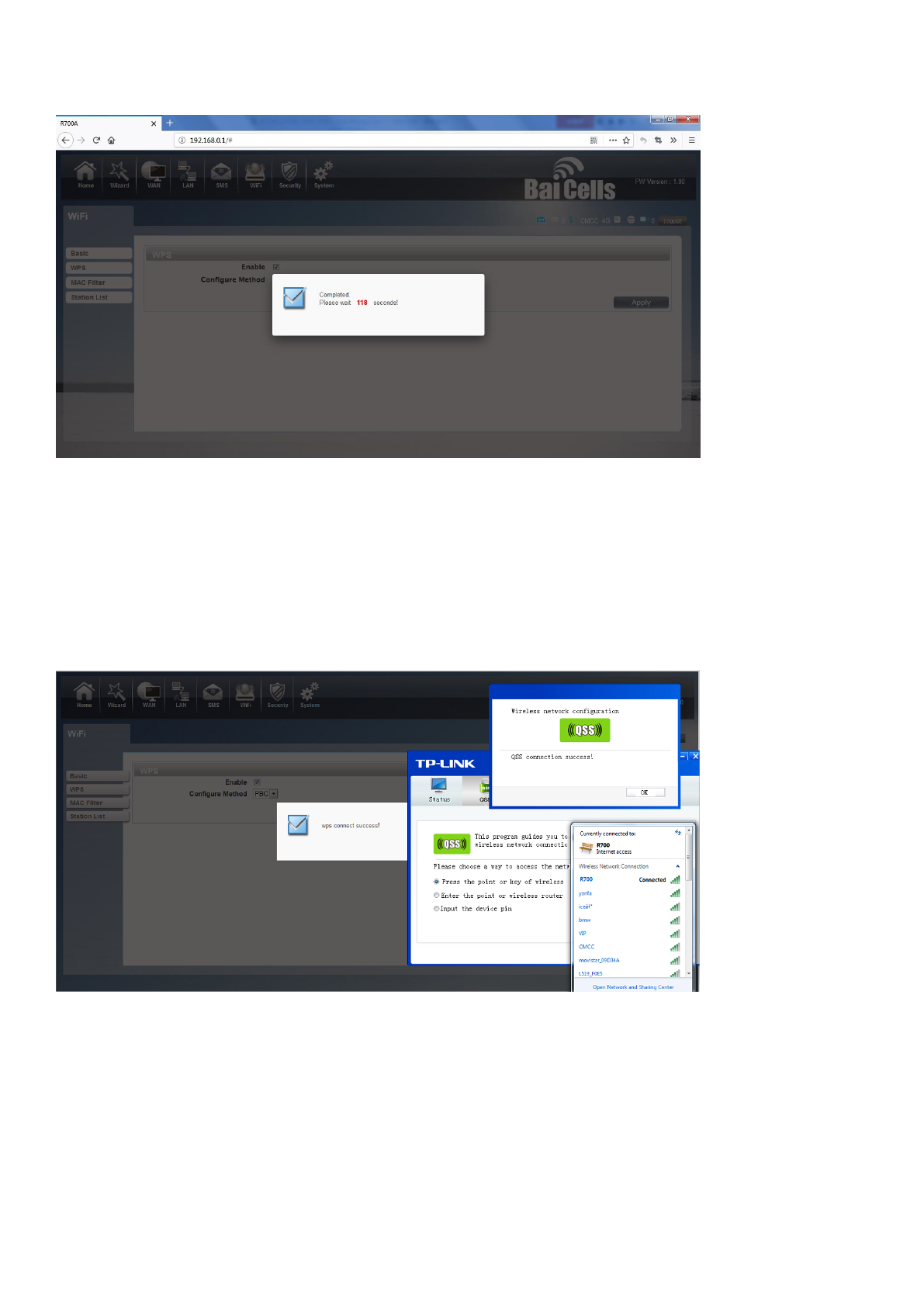

the “Apply “button ,open the WPS. It will lasting 120 seconds. Like the following picture.
Using WPS to connecting the R700 (Computer for example):
You can press the WPS button on the wireless card if your wireless card also supports WPS authentication.
Waiting for a moment, it will be prompted to connect successfully.
Or

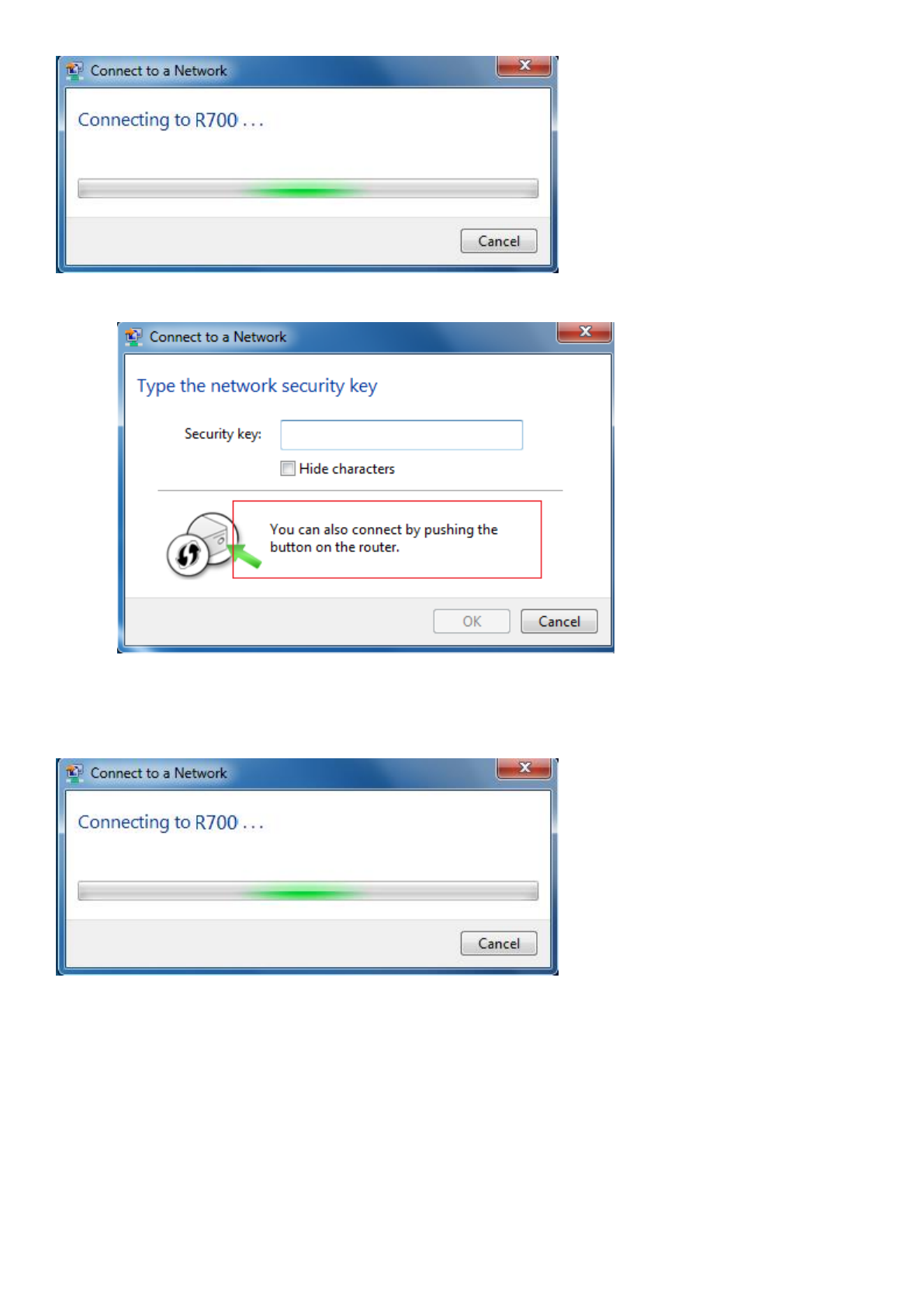

Select the SSID of the device and connect. Then you can see like the following picture.
The second method is: Select the SSID of the device and
connect
Press the WPS button on the R700, activate the WPS. It will last 120 seconds.
Then you can see like the following picture.
WPS PIN authentication:
The connection to the R700 is achieved by inputting the relevant PIN key into the enrollee PIN text box,
which you may find in the wireless network card. When you applied, it will lasting 120 seconds. The
premise is that the wireless network card or the clients must support WPS PIN authentication. Like the
following pictures.

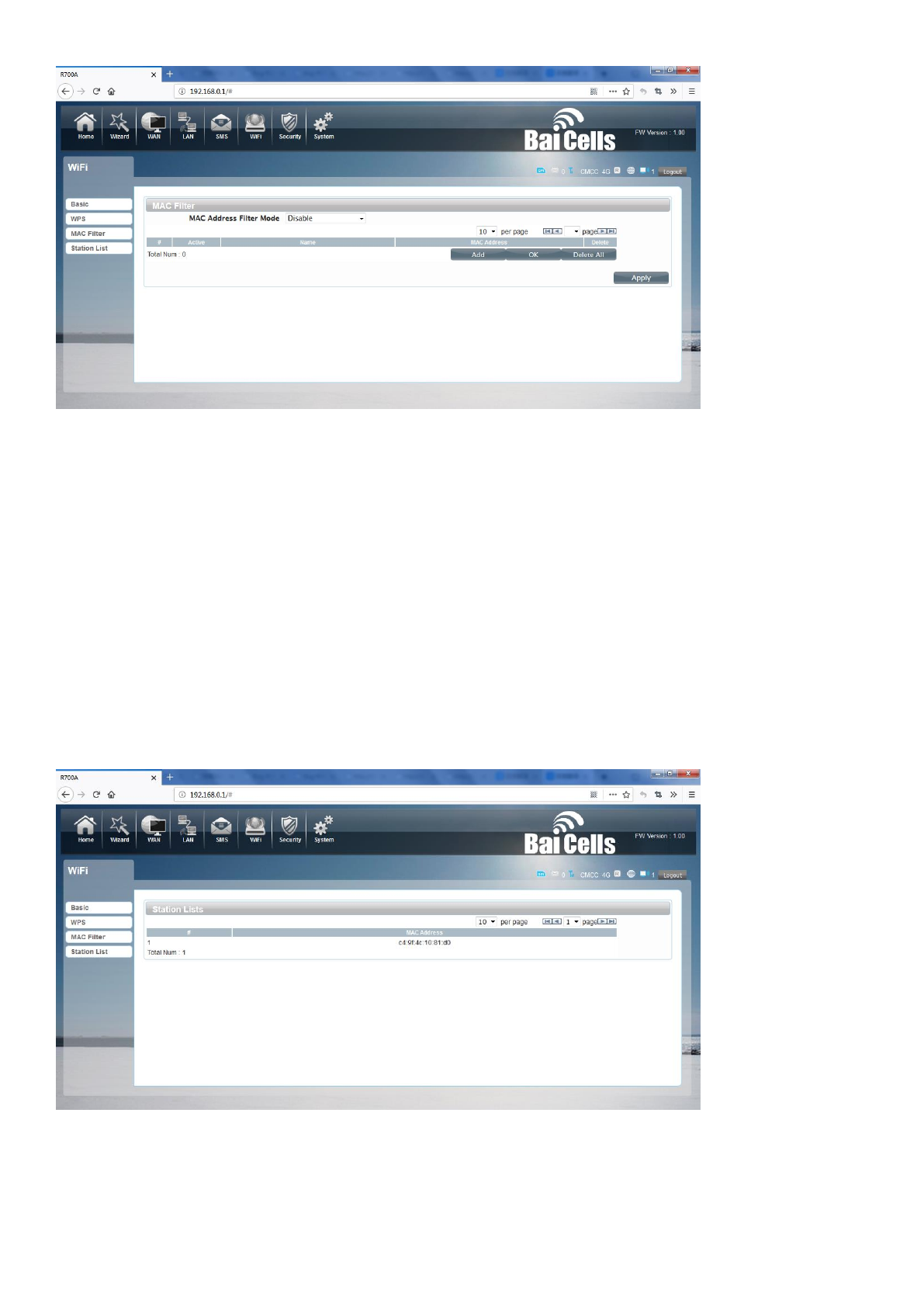

3. MAC Filter
Deny list Stations: If you add the computers or wireless devices MAC address into the list, it can
prohibiting the computers or wireless devices connect to the R700.The computes or wireless devices
MAC address which are not in the list can able to connect to R700.
Allow list Stations: Opposite with Deny list Stations. It only allows the devices in the list to connect to the
R700; other wireless devices are unable to connect to the R700
Disable: It means close the function of the MAC Address Filter.
4. Station List
Show the information of wireless devices which are connected to the R700.
●Security
1. Firewall

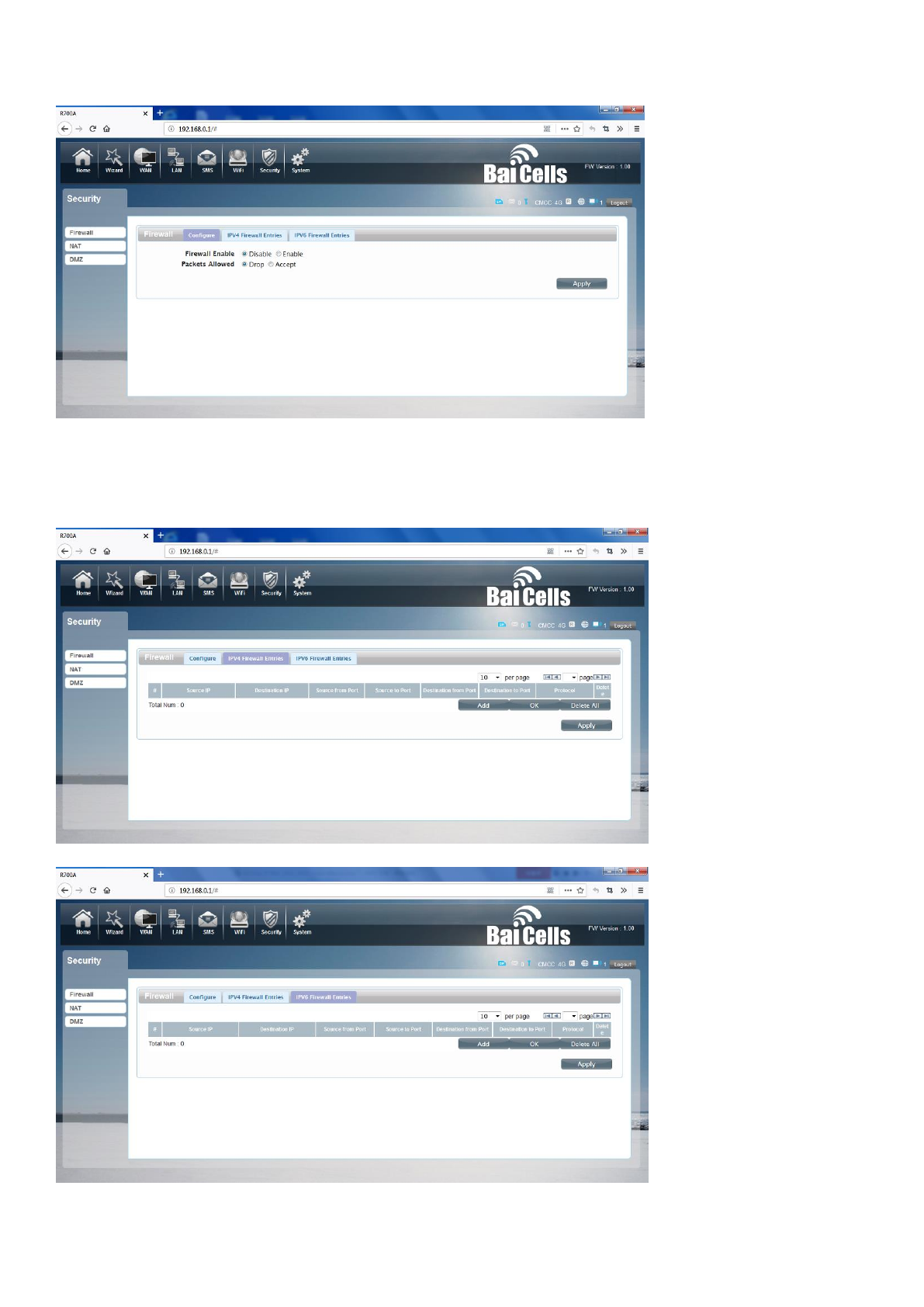

Firewall configuration: You can Disable or Enable the Firewall function. Also you can set the matching
packets rule to receive or reject.
You can add the rule in the list.
●System
1. About
R700 displays some basic information, such as device name, firmware version, IMEI, baseband version.
2. Configuration
Restore the factory settings, all the personal configuration will be deleted, all configuration pages will be
restored to the factory defaults.

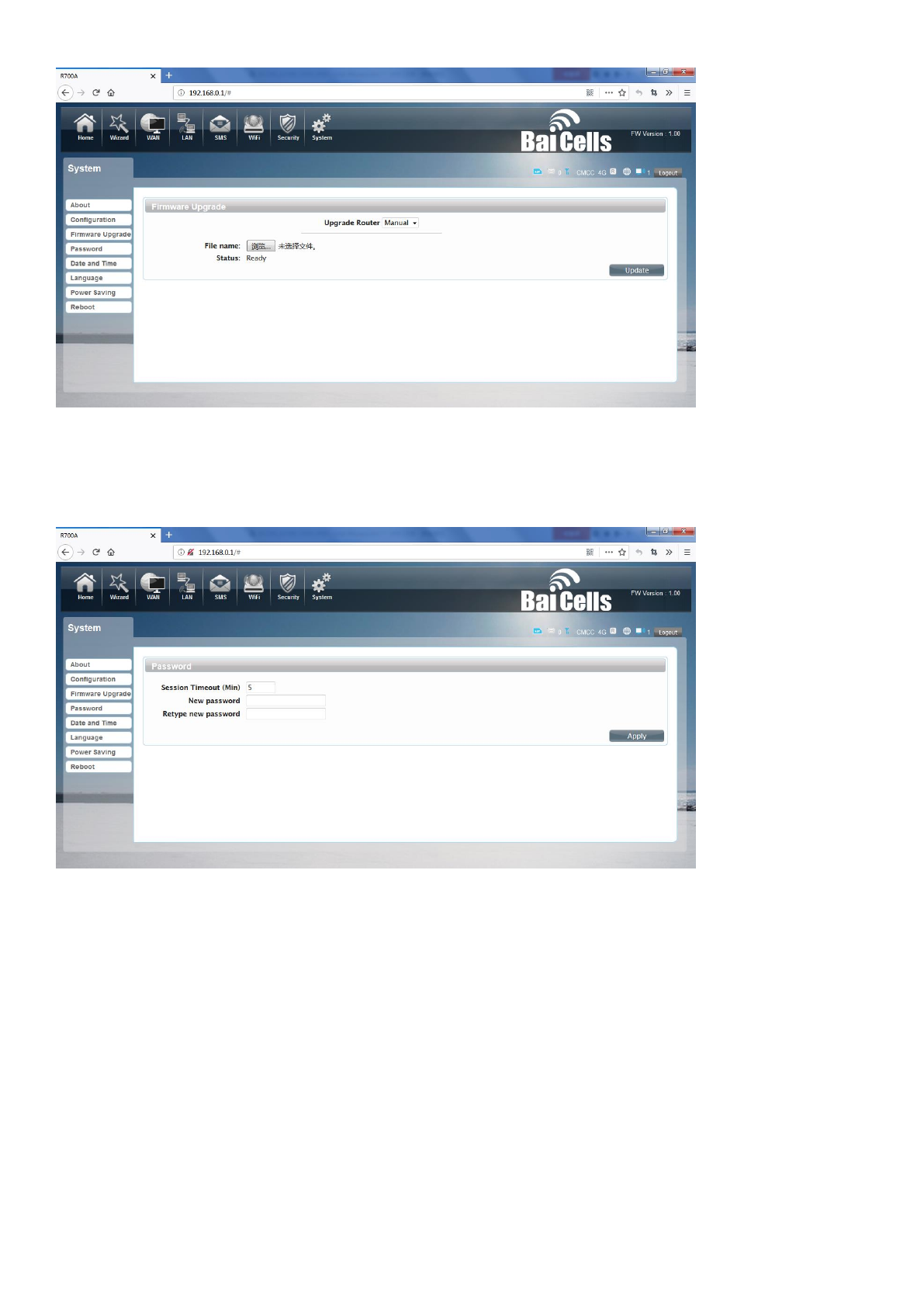

3. Firmware Upgrade
Select the file to update the software
4. Password
Modify the login password for administrator interface. Also you can set the time to logout the UI
automatically.
5. Date and Time

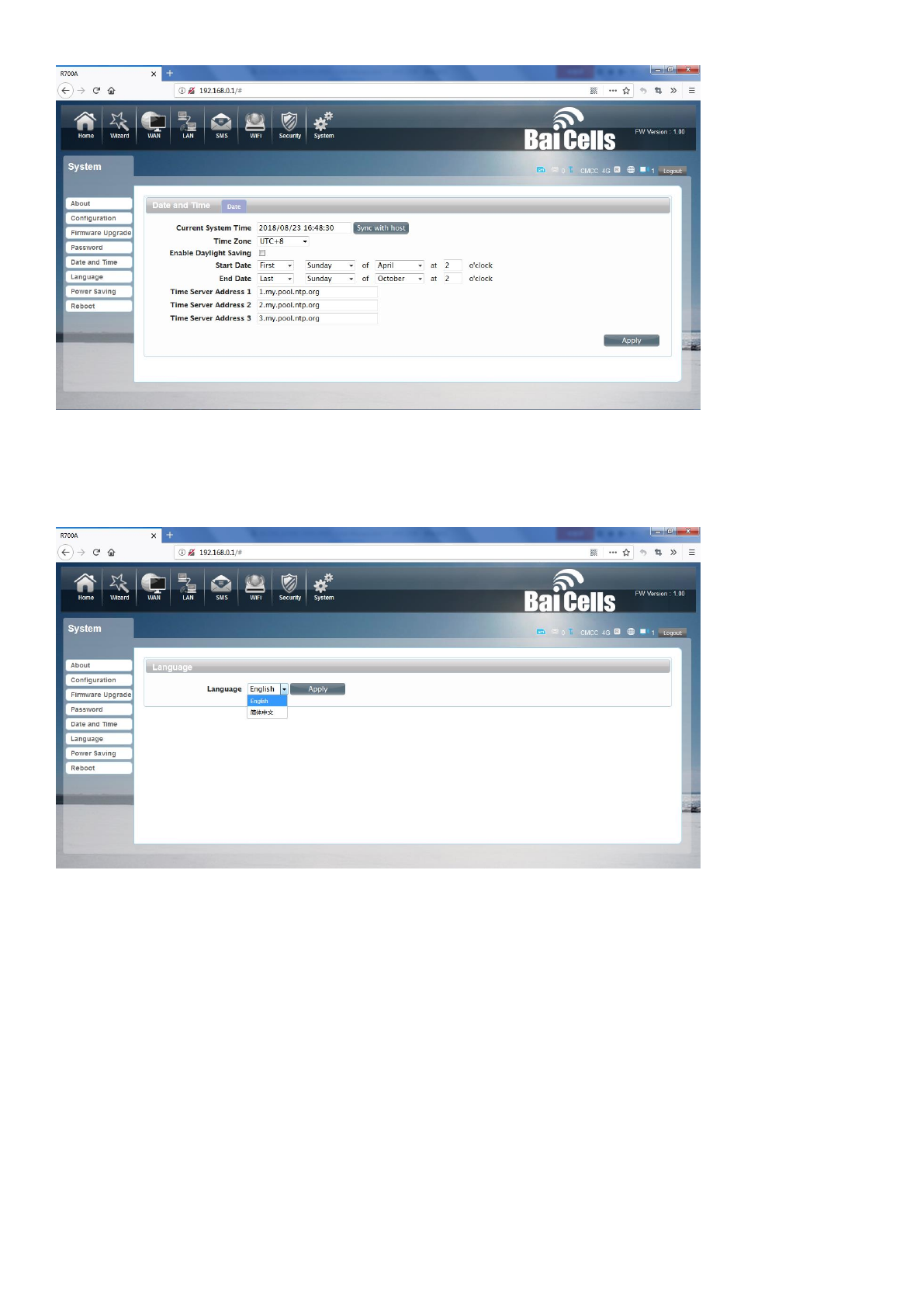

You can synchronize the time with the host; you can also select the time zone
6. Language
You can change the UI language in this page.
7. Power saving

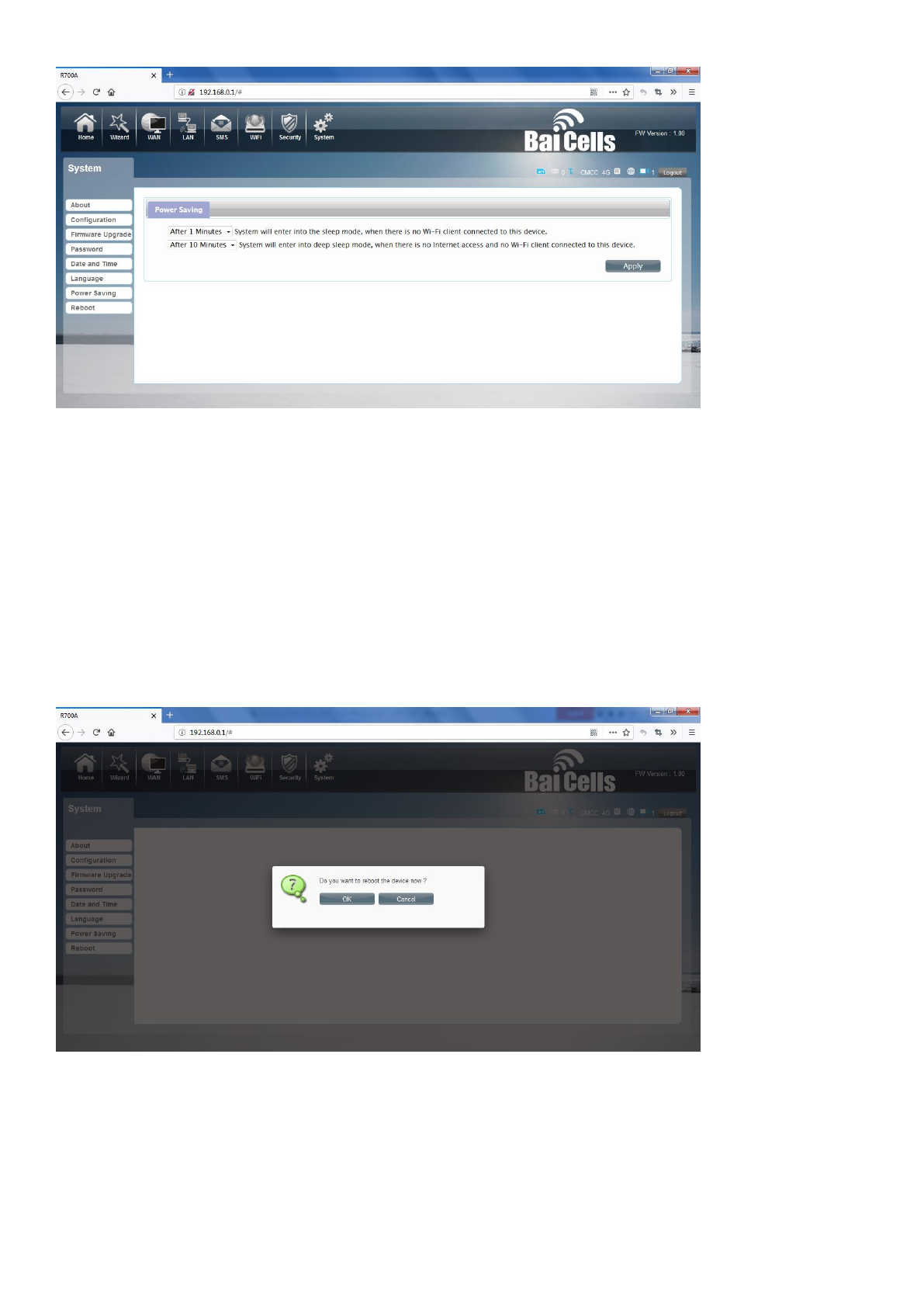

You can change the time of sleep mode or deep sleep mode. In this page you also can Disable the Power
saving function.
Sleep mode: System will enter into the sleep mode, when there is no Wi-Fi client connected to this device.
Deep sleep mode: System will enter into deep sleep mode, when there is no Internet access and no Wi-Fi client
connected to this device.
8. Reboot
9. FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
⚫ Reorient or relocate the receiving antenna.
⚫ Increase the separation between the equipment and receiver.
⚫ Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
⚫ Consult the dealer or an experienced radio/TV technician for help.
10. Warning
Your mobile wifi is a radio transmitter and receiver. It is designed and manufactured not to exceed the
emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission
of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of
RF energy for the general population. The guidelines are based on standards that were developed by
independent scientific organizations through periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure the safety of all persons, regardless of age
and health. The exposure standard for wireless mobile wifi employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted
with the wifi transmitting at its highest certified power level in all tested frequency bands. Although the
SAR is determined at the highest certified power level, the actual SAR level of the wifi while operating can
be well below the maximum value. This is because the wifi is designed to operate at multiple power levels
so as to use only the power required to reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output. Before a wifi model is available for sale to the public, it must
be tested and certified to the FCC that it does not exceed the limit established by the government adopted
requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn
on the body) as required by the FCC for each model. The highest SAR value for this mobile wifi when worn
on the body, as described in this user guide, is 0.258W/Kg(Body-worn measurements differ among wifi
models, depending upon available accessories and FCC requirements). The maximum scaled SAR in hotspot
mode is 0.258W/Kg. While there may be differences between the SAR levels of various wifis and at various
positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment
Authorization for this model wifi with all reported SAR levels evaluated as in compliance with the FCC RF
exposure guidelines. SAR information on this model wifi is on file with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC ID: 2AG32R700A Additional
information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry
Asso-ciation (CTIA) web-site at http://www.wow-com.com
